Micromachines 2017, 8(4), 95; doi:10.3390/mi8040095

Two-Dimensional Magnetic Field Sensor Based on Silicon Magnetic Sensitive Transistors with Differential Structure

Key Laboratory of Electronics Engineering, College of Heilongjiang Province, Heilongjiang University, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Academic Editor: Nam-Trung Nguyen
Received: 10 December 2016 / Revised: 16 February 2017 / Accepted: 17 March 2017 / Published: 23 March 2017
View Full-Text   |   Download PDF [4689 KB, uploaded 23 March 2017]   |

Abstract

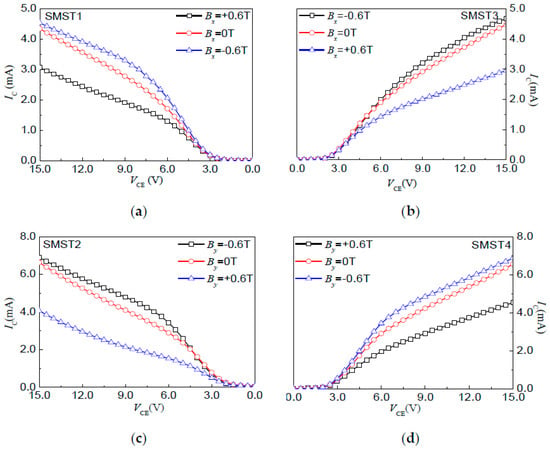

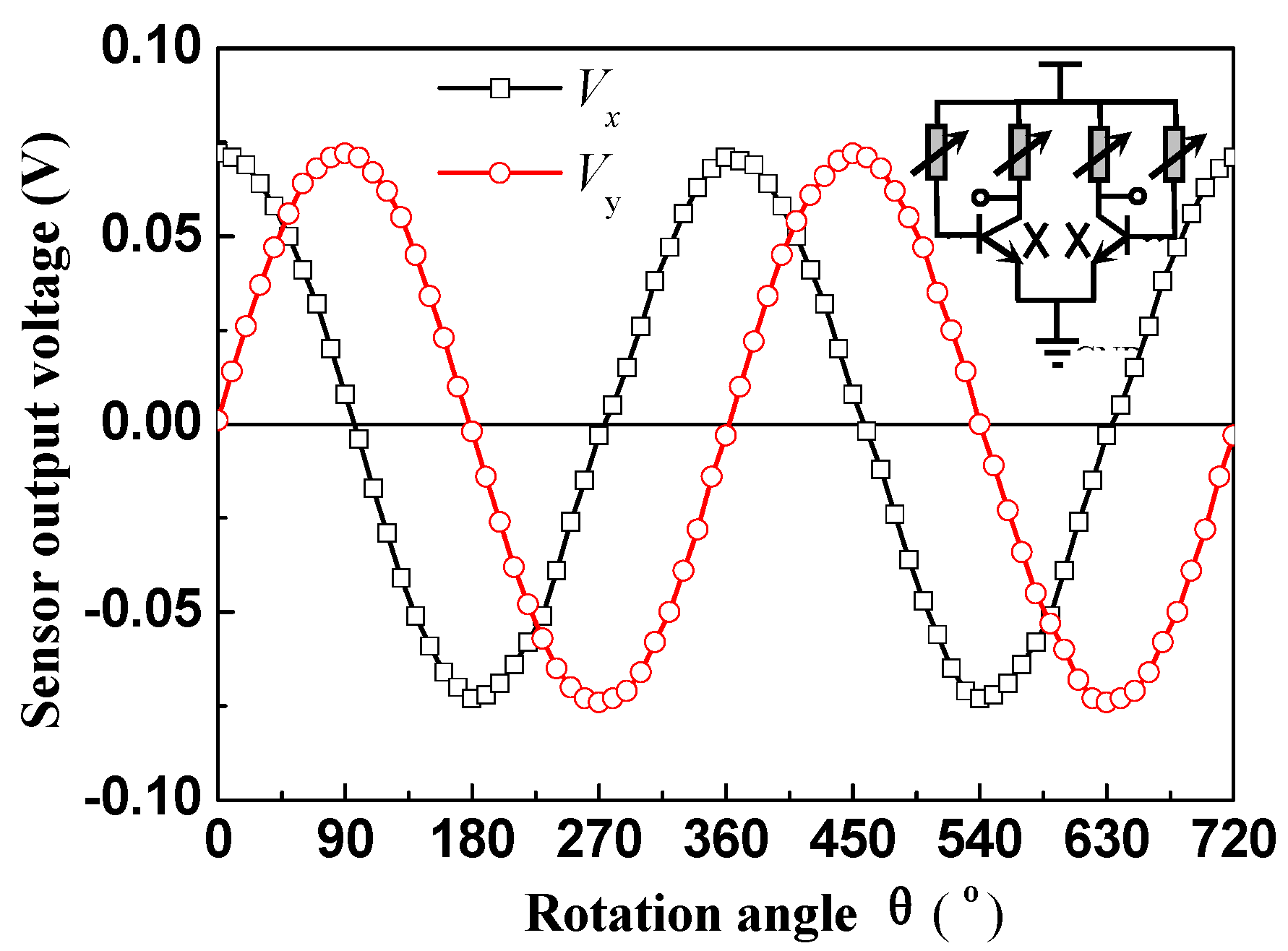

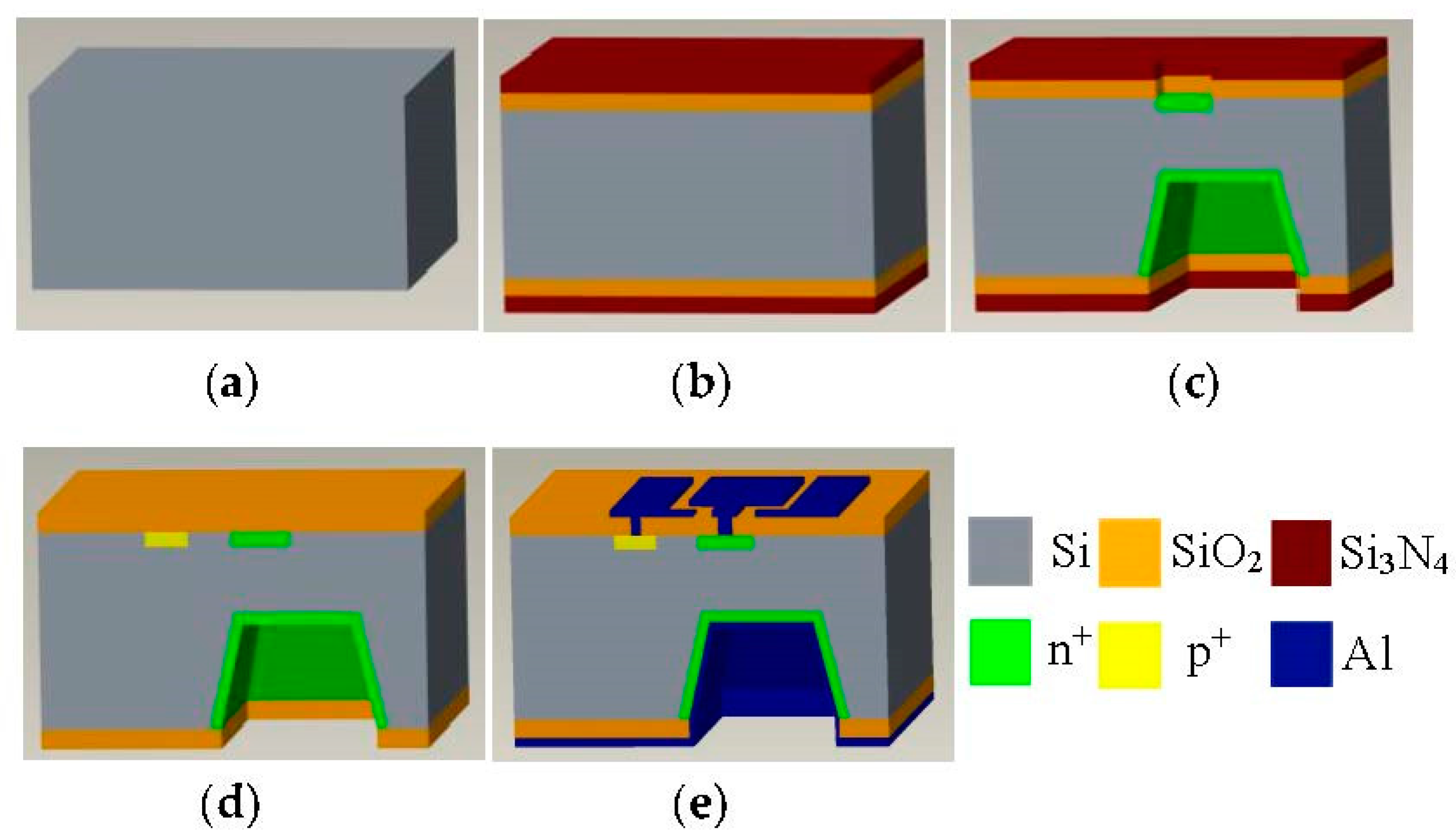

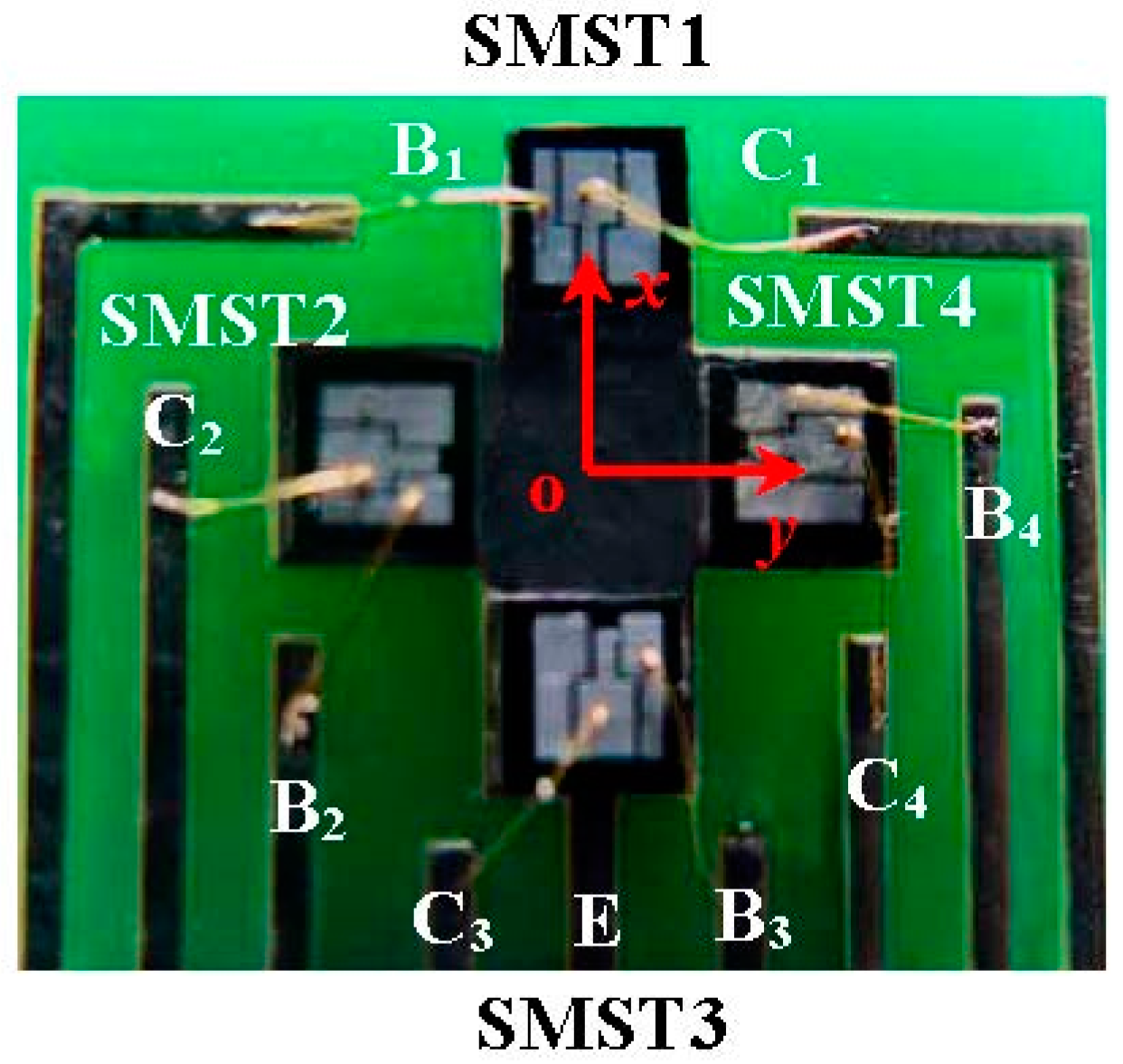

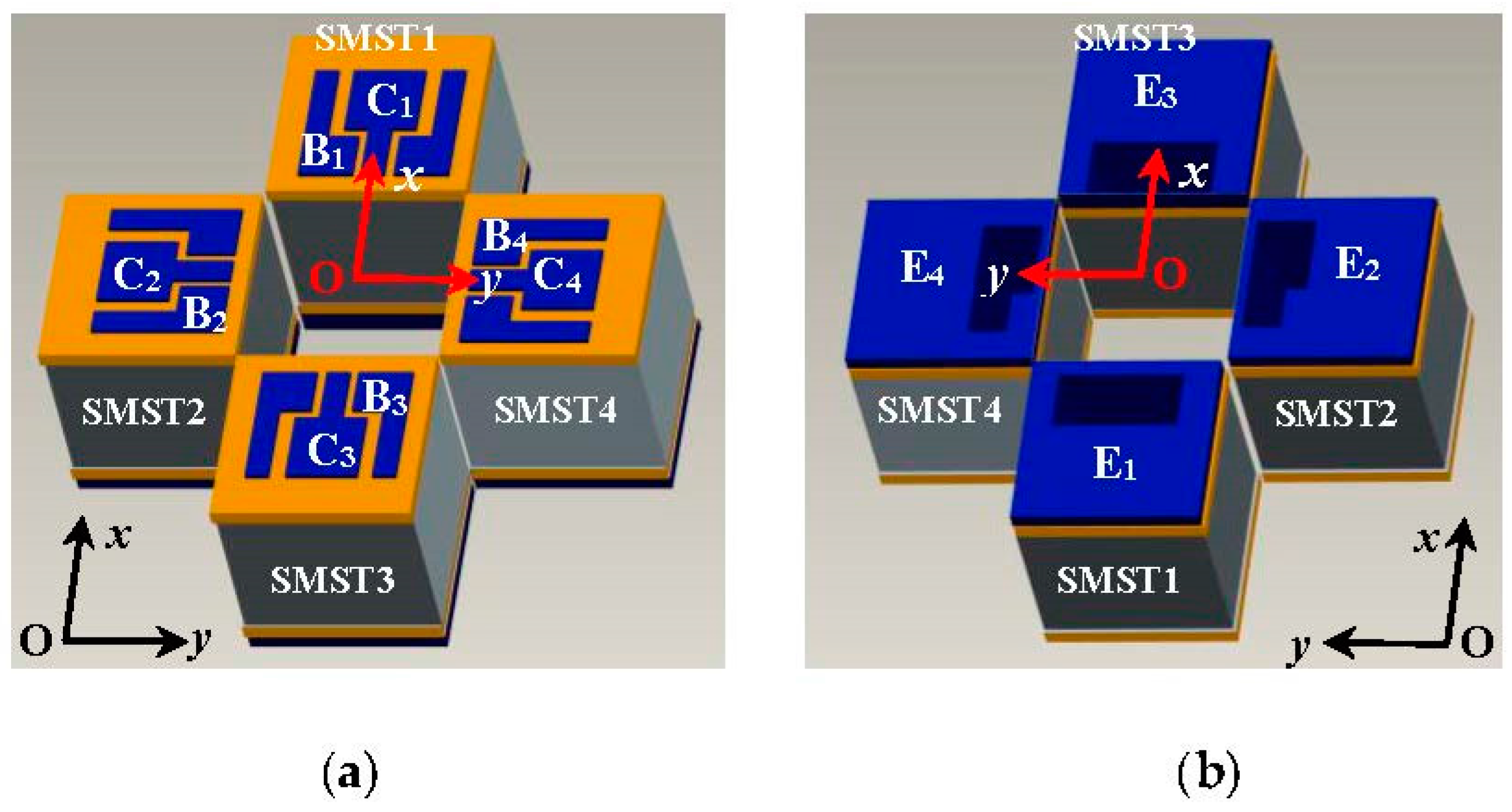

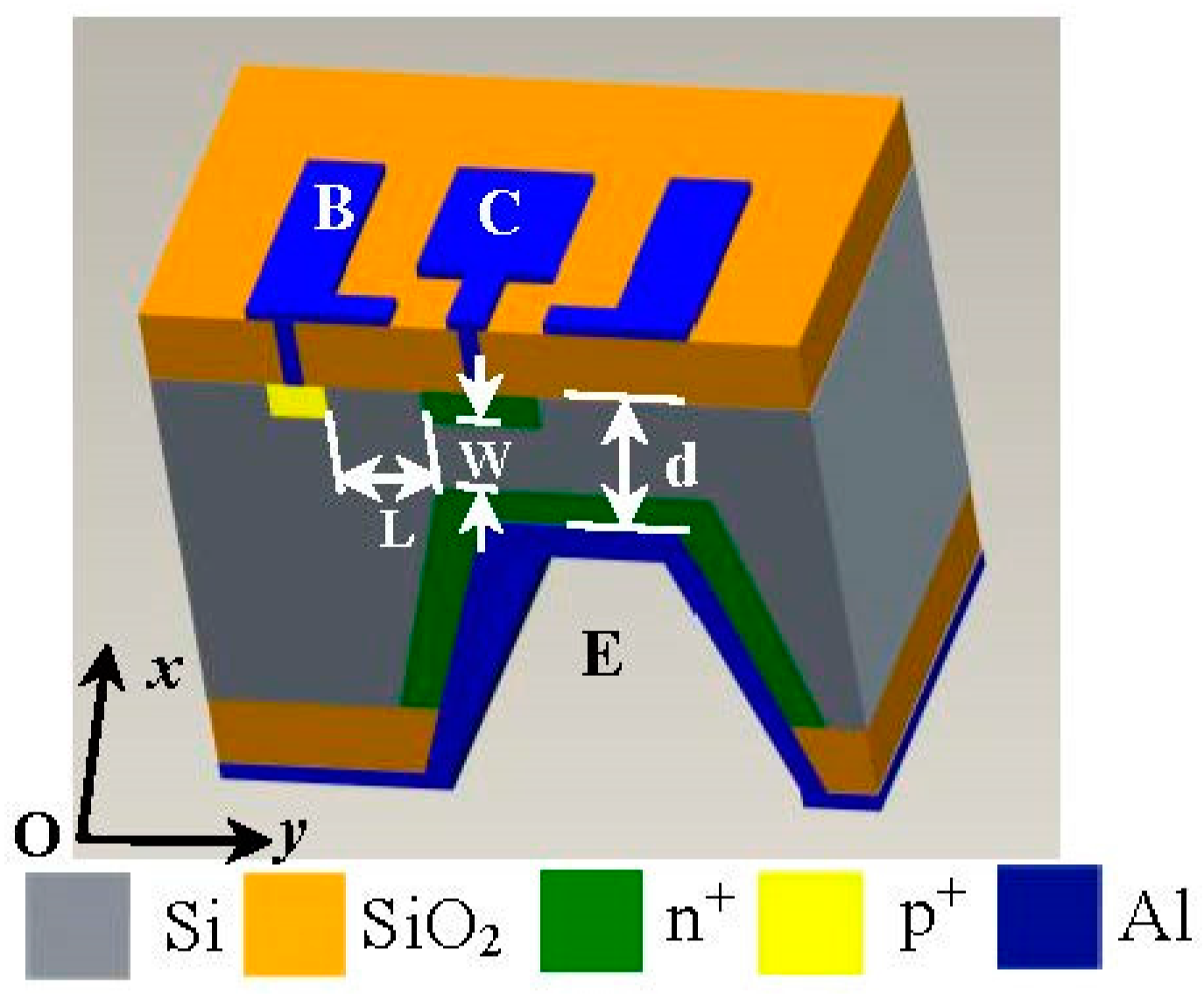

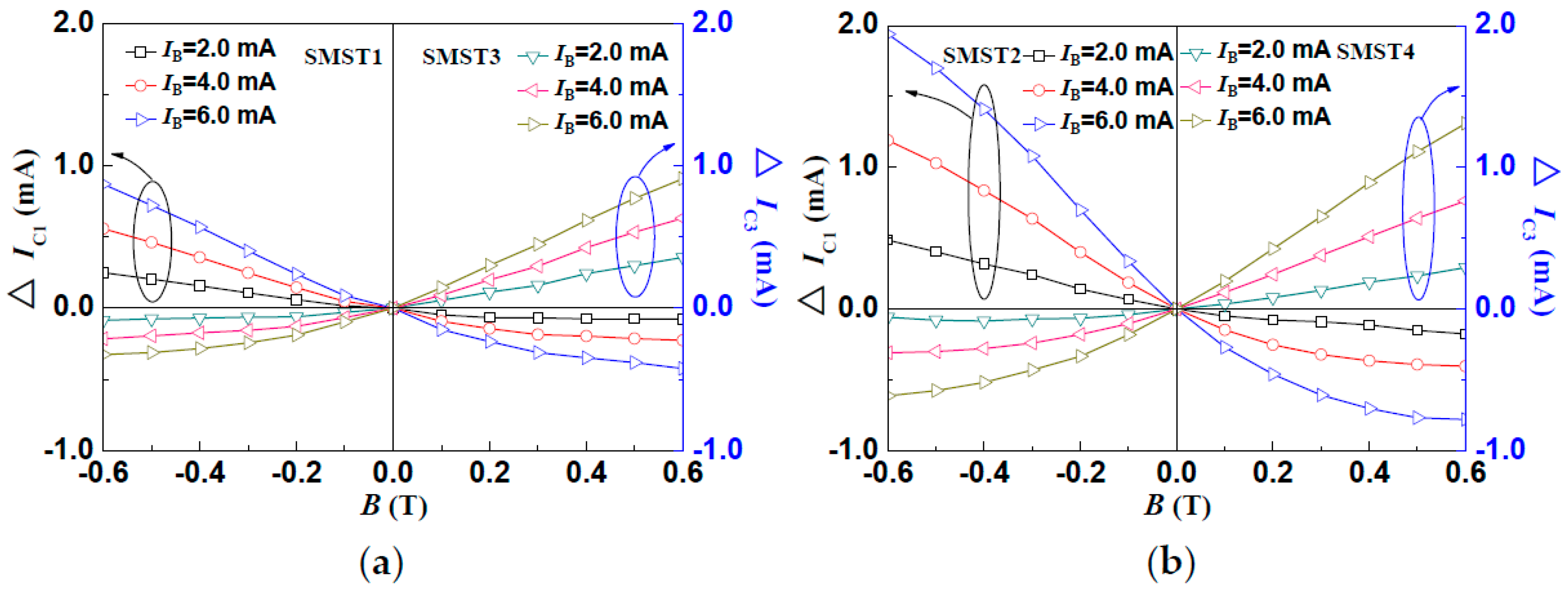

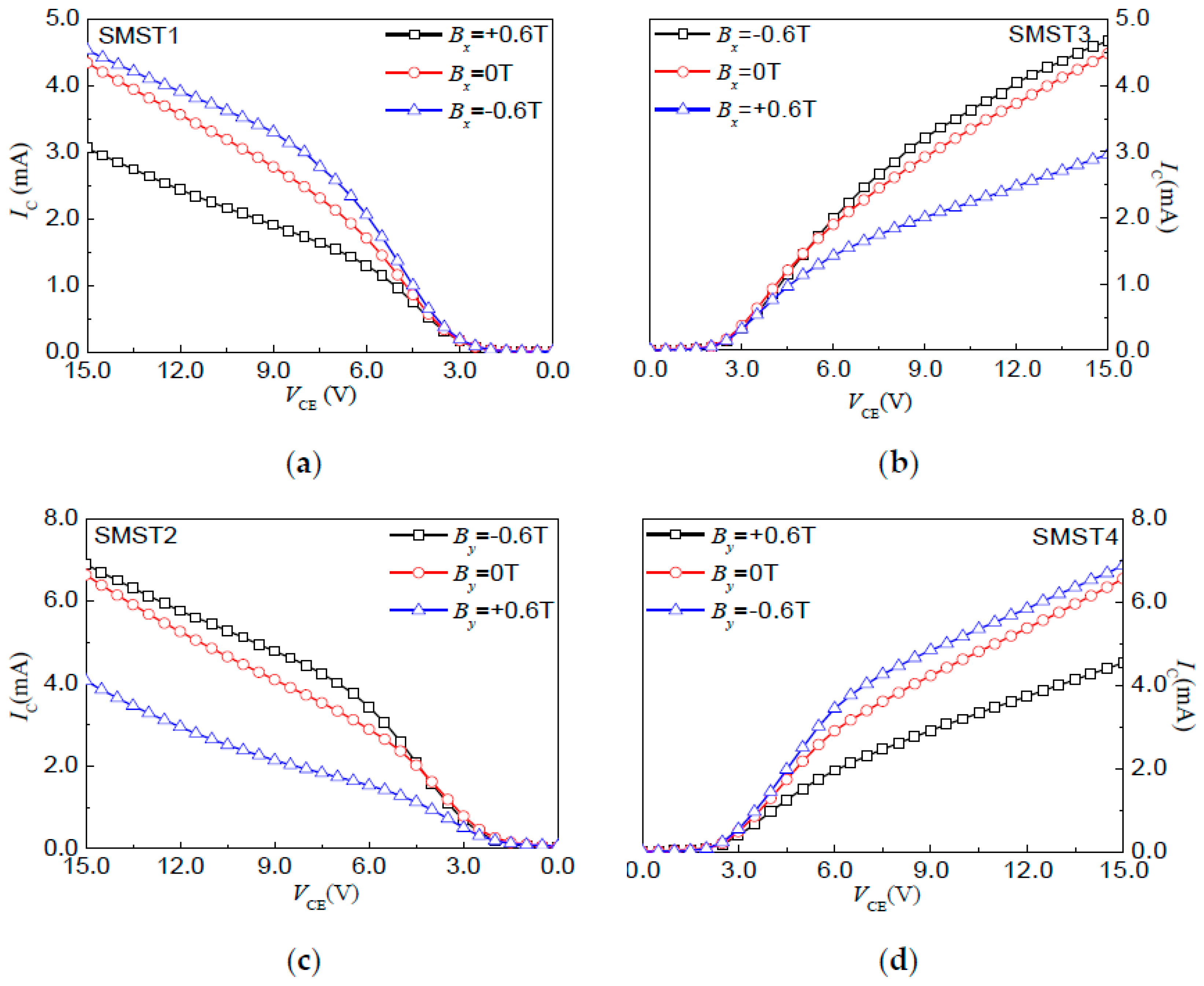

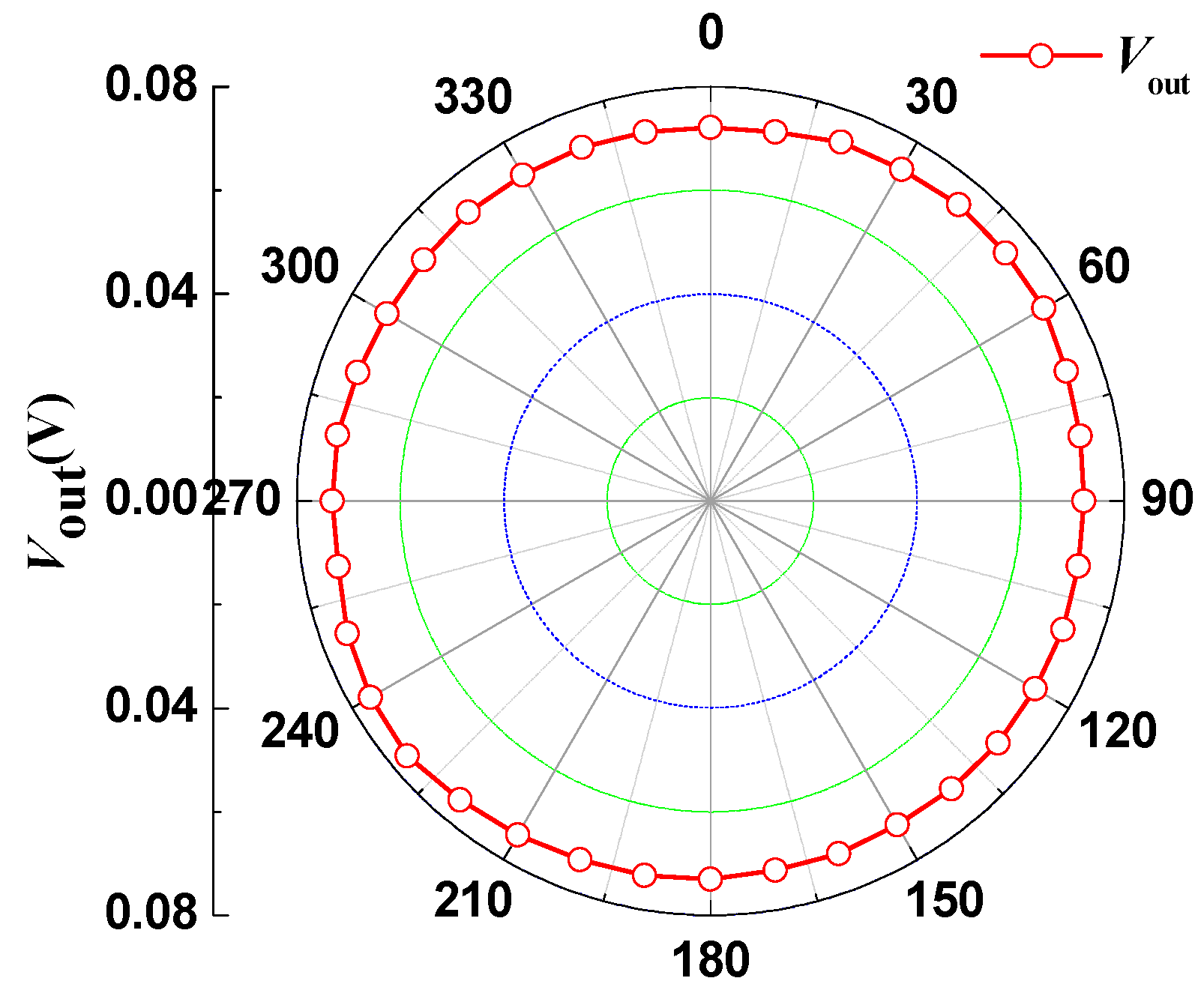

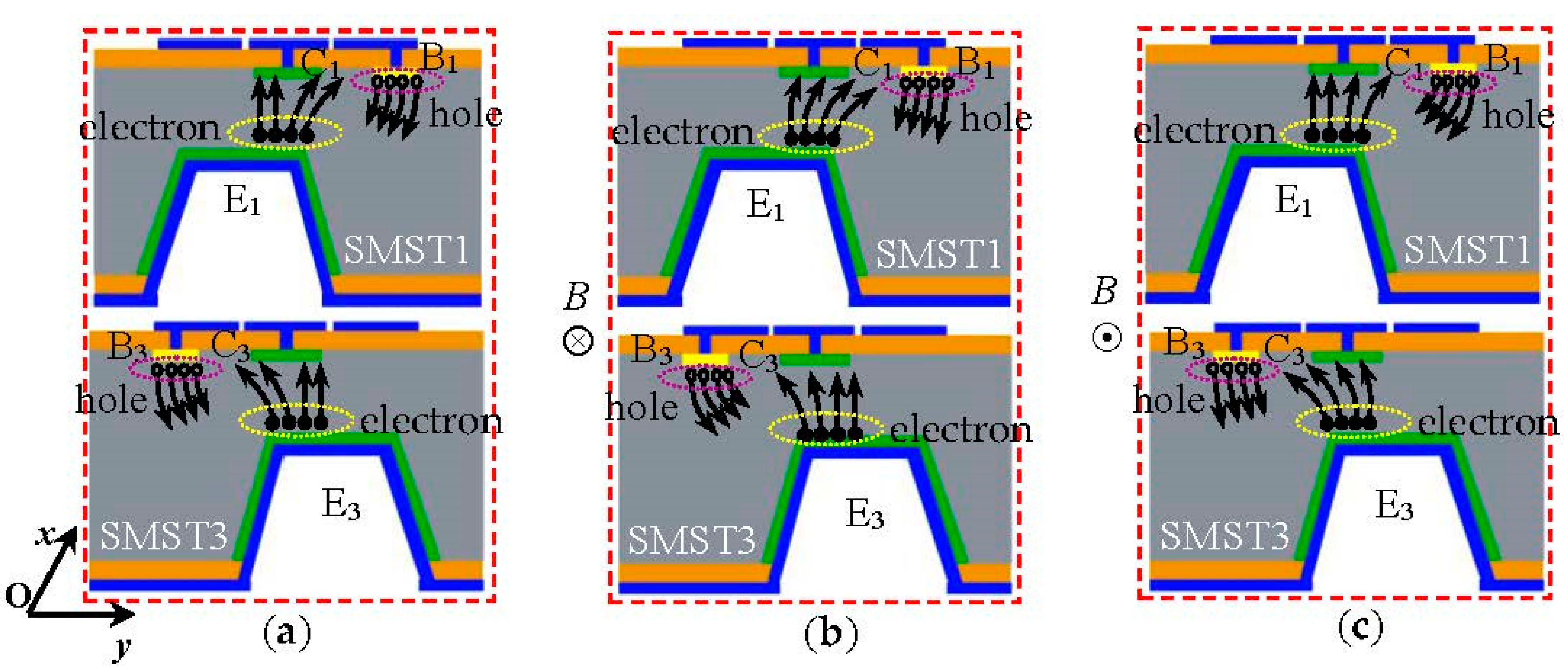

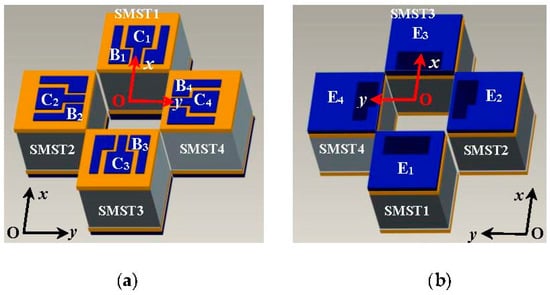

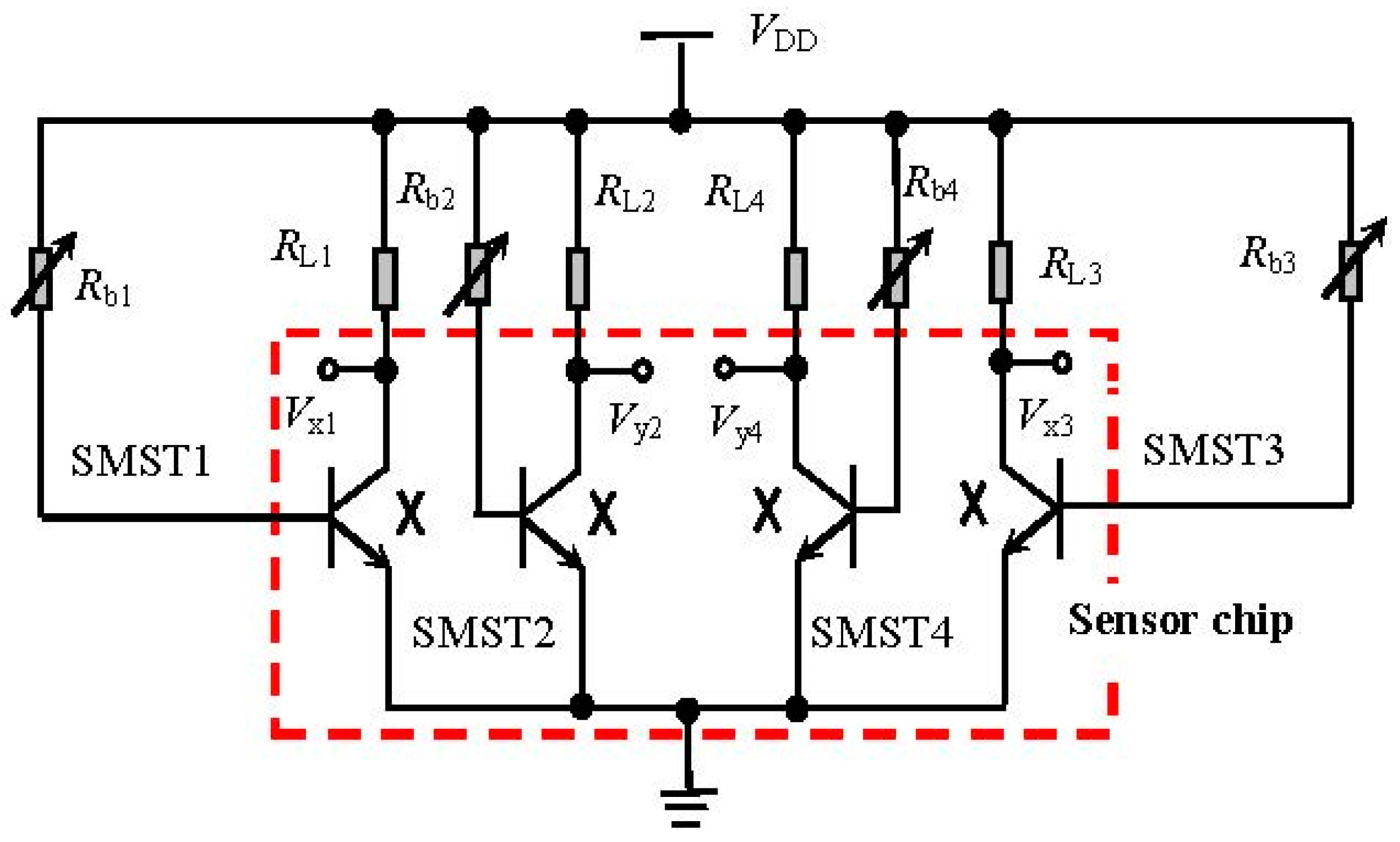

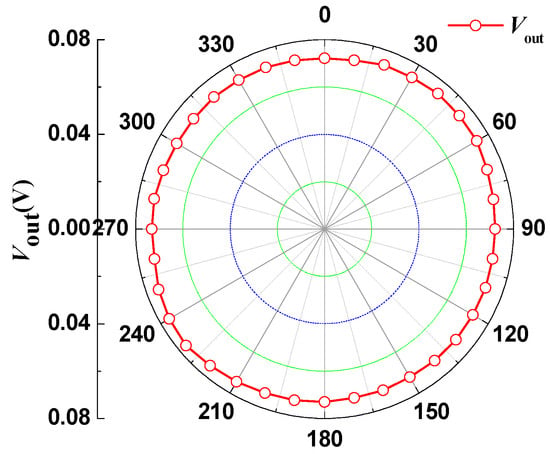

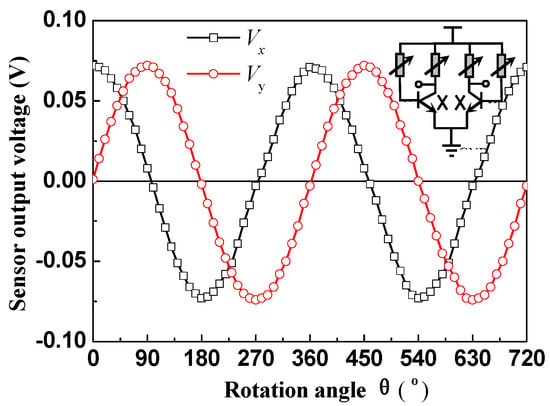

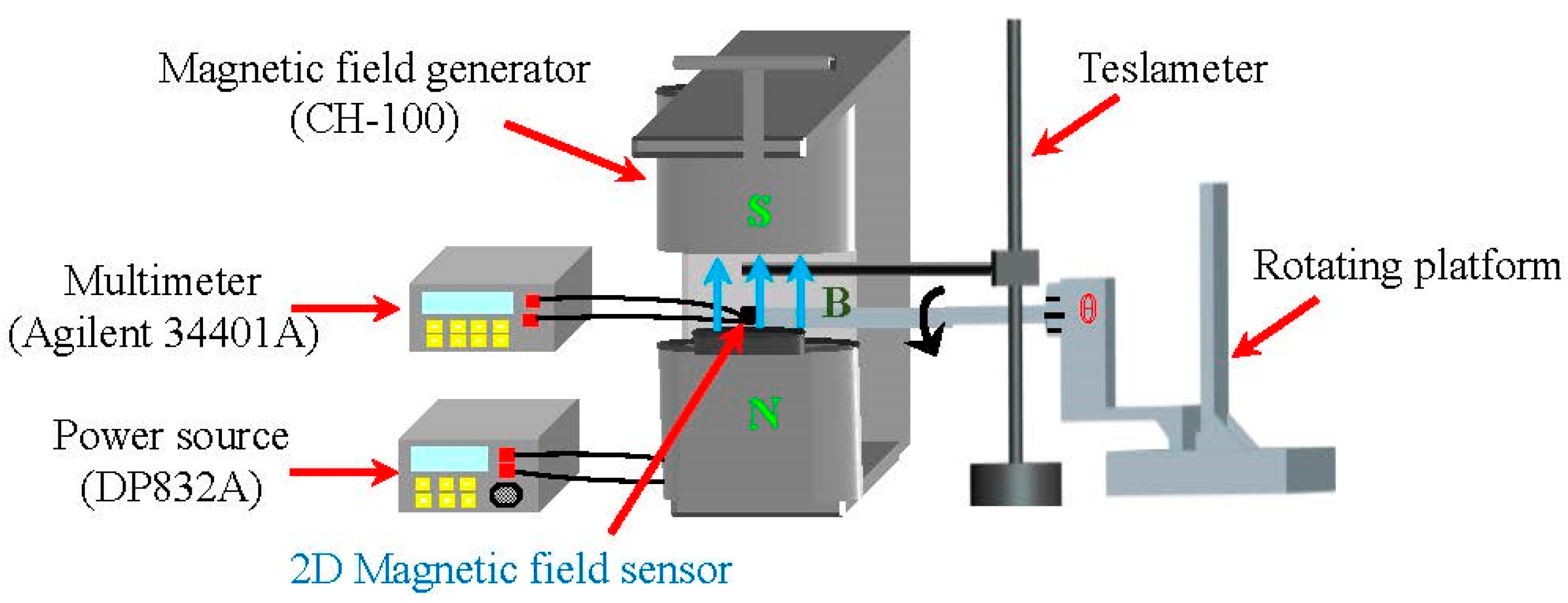

A two-dimensional (2D) magnetic field sensor consisting of four silicon magnetic sensitive transistors (SMSTs) with similar characteristics is presented in this paper. By use of micro-electromechanical systems (MEMS) and integrated packaging technology, this sensor fabricated by using the silicon wafer with a <100> orientation and high resistivity, was packaged on printed circuit boards (PCBs). In order to detect the magnetic fields in the x and y axes directions, two of the four SMSTs with opposite magnetic sensitive directions were located along the x and −x axes directions, symmetrically, and the others were located along the y and −y axes directions. The experimental results show that when the VCE = 10.0 V and IB = 6.0 mA, the magnetic sensitivities of the sensor in the x and y axes directions are 366.0 mV/T and 365.0 mV/T, respectively. It is possible to measure the 2D magnetic field and improve the magnetic sensitivity, significantly. View Full-Text
Keywords: two-dimensional (2D) magnetic field sensor; silicon magnetic sensitive transistor; differential structure; micro-electromechanical systems (MEMS) technology two-dimensional (2D) magnetic field sensor; silicon magnetic sensitive transistor; differential structure; micro-electromechanical systems (MEMS) technology
Figures

Figure 1
