Design and Analysis of Lithium–Niobate-Based Laterally Excited Bulk Acoustic Wave Resonator with Pentagon Spiral Electrodes

Abstract

In this paper, we present a comprehensive study on the propagation and dispersion characteristics of A₁ mode propagating in Z-cut LiNbO₃ membrane. The A₁ mode resonators with pentagon spiral electrodes utilizing Z-cut lithium niobate (LiNbO₃) thin film are designed and fabricated. The proposed structure excites the A₁ mode waves in both x- and y-direction by utilizing both the piezoelectric constants e₂₄ and e₁₅ due to applying voltage along both the x- and y-direction by arranging pentagon spiral electrode. The fabricated resonator operates at 5.43 GHz with no spurious mode and effective electromechanical coupling coefficient ($K_{eff}^2$) of 21.3%, when the width of electrode is 1 µm and the pitch is 5 µm. Moreover, we present a comprehensive study of the effect of different structure parameters on resonance frequency and $K_{eff}^2$ of XBAR. The $K_{eff}^2$ keeps a constant with varied thickness of LiNbO₃ thin film and different electrode rotation angles, while it declines with the increase of p from 5 to 20 µm. The proposed XBAR with pentagon spiral electrodes realize high frequency response with no spurious mode and tunable $K_{eff}^2$, which shows promising prospects to satisfy the needs of various 5 G high-band application.

1. Introduction

In recent years, with the explosion of mobile data from video streaming, virtual reality, and wireless communication, the needs for high frequency and large bandwidth of radio-frequency (RF) components have increased dramatically [1,2,3]. Nowadays, the surface acoustic wave (SAW) resonator and the thin film bulk acoustic wave resonators (FBARs) have dominated the market due to the excellent performances. However, there are obstacles for them to be used to high-frequency and large-bandwidth RF front-end devices. On the one hand, the effective electromechanical coupling coefficient ($K_{eff}^2$) of both SAW and FBAR are limited to 6–13% with aluminium nitride (AlN) thin film, not satisfying the demand of the relative bandwidth of filter above 6%, such as band N77 and N79. On the other hand, the SAW resonators and FBARs are difficult to operate above 5 GHz. The frequency of SAW hardly amounts to 3.5 GHz due to the limitation of acoustic velocity and the lithography technology. For FBAR, the thinner the piezoelectric film, the higher the frequency. However, the thinner thickness of piezoelectric film may cause the degradation of film crystal quality, which eventually influences the performance of devices [4,5,6].

In recent years, the laterally excited bulk acoustic resonator (XBAR) devices based on lithium niobate (LiNbO₃) thin film have been extensively studied as promising candidates for the application in fifth generation mobile communication [7,8,9,10,11]. XBARs can achieve a high frequency of more than 5 GHz, and a large $K_{eff}^2$ of more than 20%, exceeding the traditional FBARs and SAW resonators due to the larger piezoelectric coefficients e₁₅ and e₂₄ of LiNbO₃. In 2019, V. Plessky et al. first presented a 4.8 GHz XBAR based on Z-cut LiNbO₃ thin film with a $K_{eff}^2$ of 25%, showing the possibility of its application to filters in the 3–6 GHz range [12]. In 2020, Ruochen Lu presented XBAR in 128° Y-cut LiNbO₃ thin films with the $K_{eff}^2$ of 46.4%, which obtained the highest value of $K_{eff}^2$ [13]. In 2021, Bohua Peng designed and fabricated a solid-mounted-type XBAR on ZY- LiNbO₃, operating at 5 GHz, to improve heat dissipation and temperature coefficient of frequency (TCF) [14].

The $K_{eff}^2$ of resonator has a significant influence on the bandwidth of filters, and it can be adjusted by structural optimization and tuning piezoelectric coefficients. For example, Gianluca Piazza investigated the influence of the electrical boundary conditions of Lamb wave resonator imposed by the excitation electrodes on the $K_{eff}^2$, and determined that $K_{eff}^2$ can be tuned with a varying range from 3% to 7% [15]. Jie Zou investigated the impact of Euler angle of LiNbO₃ film on the $K_{eff}^2$ of the resonator. The $K_{eff}^2$ varies largely due to the prominent anisotropy of the piezoelectric matrix, so the optimal cut angle can be chosen so as to optimize the $K_{eff}^2$ [16]. Compared with Lamb wave resonator, the research on the structure and vibrate modes of XBAR is relatively immature, and there is almost no systematical analysis of the effect of XBAR structure parameters on the $K_{eff}^2$.

In this paper, we present a comprehensive study on the propagation characteristics of the plate modes propagating in Z-cut LiNbO₃ membrane. Then, we propose new pentagon spiral electrode structure to excite the A₁ mode in the LiNbO₃ thin film. The dependance of $K_{eff}^2$ with the electrode rotation angle and the pitch of electrodes are investigated. A series of XBARs with pentagon spiral electrodes with different electrode pitches are fabricated. The resonance frequency of fabricated device is around 5.4 GHz, and the $K_{eff}^2$ of the fabricated devices varied with the electrode pitch, corresponding to the results of simulations. The resonator with pentagon spiral electrodes operates at 5.4 GHz with tunable $K_{eff}^2$, showing promising prospect for application in super high-frequency RF front-end filters.

2. Design and Simulation

A.

Propagation characteristics of plate mode

The plate waves propagating in the LiNbO₃ thin film include either the symmetric and antisymmetric Lamb wave (S₀, S₁, A₀ and A₁) or the plate shear wave (SH₀ and SH₁). XBAR consists of a suspended LiNbO₃ thin film with interdigital electrodes (IDEs) on top. When applying a voltage, with the generated lateral electric field in the electrode arrangement direction, shear antisymmetric A₁ mode is generated. To more accurately capture the A₁ mode propagation characteristics in Z-cut LiNbO₃ thin film, the three-dimensional eigenfrequency simulation is set up to calculate the open phase velocity ($v_p$) and the coupling coefficient ($k^2$) dispersion of the plate waves propagating in the piezoelectric membrane [17,18,19]. The $v_p$ characteristics are the open-surface phase velocity and are calculated by Formula (1), and $k^2$ characteristics are calculated by Formula (2):

$$v_p=f\times \lambda ,$$

(1)

$$k^2=\frac{v_p^2-v_m^2}{v_p^2},$$

(2)

where $f$ is the eigenfrequency of the acoustic mode obtained by the FEM simulation, $\lambda$ is the length of the acoustic mode, and the v_m is the short-surface phase velocity calculated by FEM approach. In the simulation, the model is a 3D building block of the LiNbO₃ plate with period boundary conditions on both x- and y-directions. The IDTs are assumed to be infinitely thin with no material assigned, which means the mechanical loading is ignored and only electrical boundary conditions considered herein.

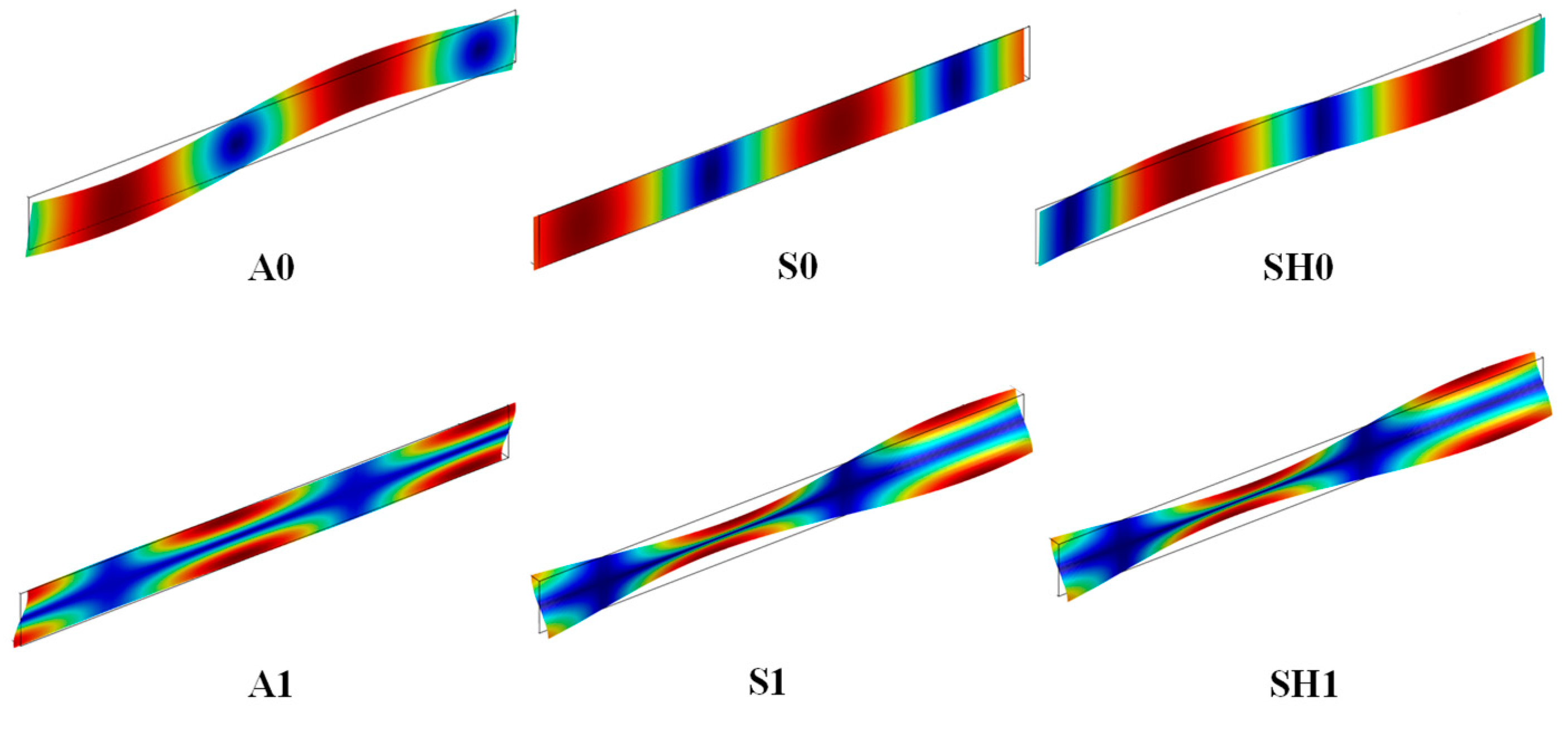

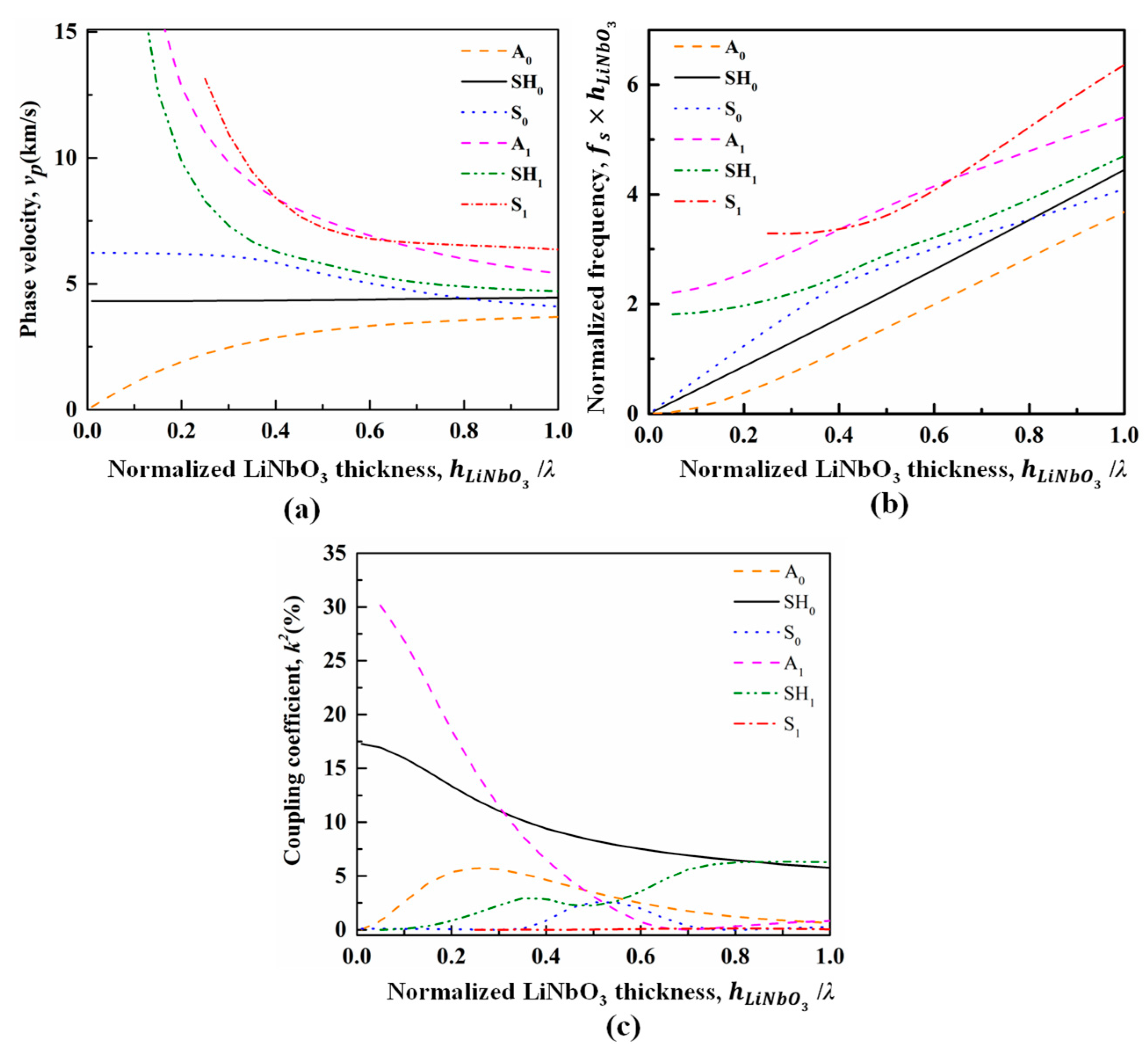

Figure 1 depicts the mode shapes of the six plate modes. The displacement profile or the mechanical vibration of the Lamb wave modes is in the propagation xz-plane, and for the SH plate modes in the sagittal yz-plane. The $v_p$ and $k^2$ dispersion characteristics of six plate waves propagating in the Z-cut LiNbO₃ membrane are shown in Figure 2, where the $h_{\mathrm{LiNbO}3}$ is the thickness of LiNbO₃ membrane and $\lambda$ represents the length of acoustic wave. Obviously, higher plate wave modes exhibit large $v_p$ with strong dispersion especially when the $h_{\mathrm{LiNbO}3}/\lambda$ is small, and high $v_p$ is generally favored for high frequency applications. As shown in Figure 2b, the frequencies of higher plate modes stop scaling with β, rather depending solely on the plate thickness. This indicates that for the A₁ mode at low $h_{\mathrm{LiNbO}3}/\lambda$, the frequency is not pitch-controlled any more but thickness-controlled, which breaks the limit of lithography technology to frequency. High $v_p$ beyond 40,000 m/s and large $k^2$ of higher than 30% can be obtained as $h_{\mathrm{LiNbO}3}/\lambda$ < 0.1, making the feasibility of wideband operating in 6G bands using A₁ mode resonators in Z-cut LiNbO₃.

B.

Resonator design

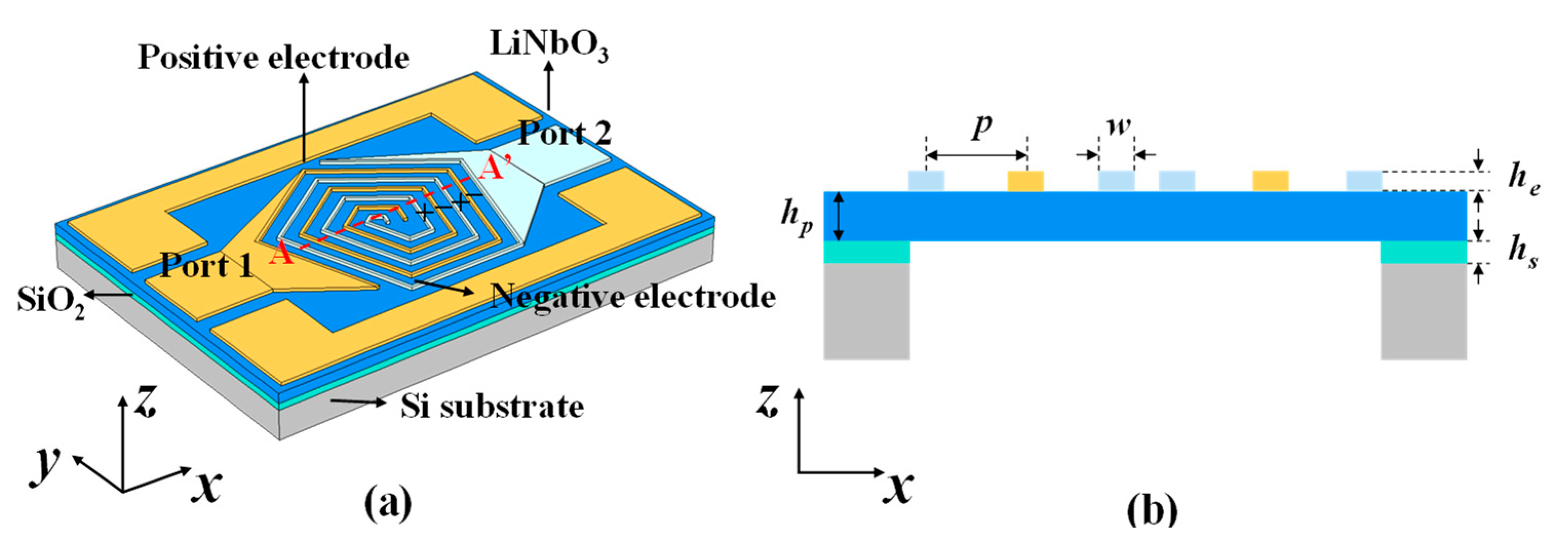

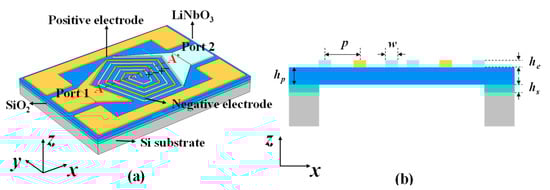

The proposed XBAR with pentagon spiral shape electrode is illustrated in Figure 3a. The pentagon spiral electrodes are arranged alternatively on the top of Z-cut LiNbO₃ thin film, with two thin anchors connecting to the Ground–Signal–Ground (GSG) pads. The electrical potentials are alternatingly applied to adjacent electrodes, as illustrated by “+” and “−” signs indicated in Figure 3, creating electric fields along both the x-direction and y-direction. The A-A’ cross-section view of the resonator is shown in Figure 3b, and an air cavity is formed underneath the LiNbO₃ thin film via backside release silicon substrate and silicon dioxide (SiO₂).

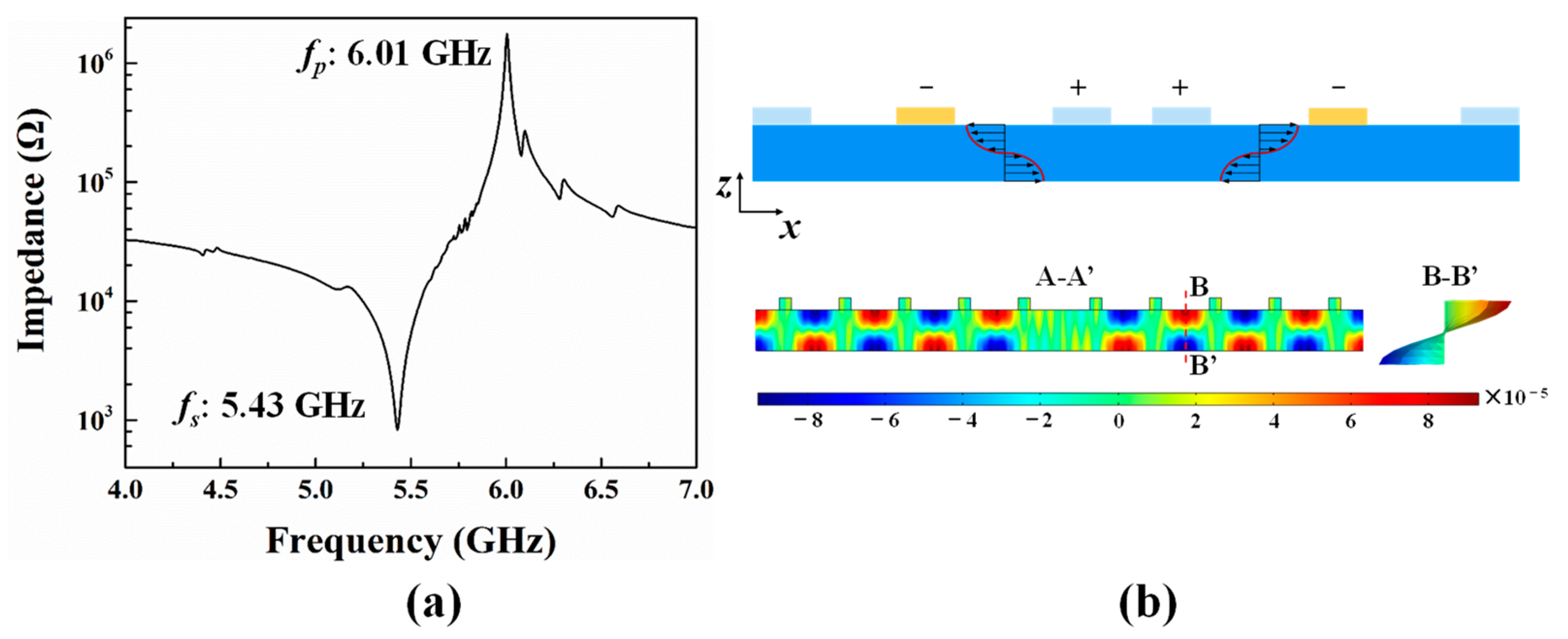

The finite element simulation is carried out to further analyze the performance of the resonator with pentagon spiral electrodes. The thickness of the Z-cut LiNbO₃ thin film (h_p) and electrode (h_e) is set to 330 nm and 200 nm, respectively, to achieve a 5.4 GHz resonant frequency (f_s), as shown in Figure 4a. The width of electrodes (w) is defined as 1 µm and the pitch (p) equals to 5 µm. Figure 4b shows the horizontal displacement distribution at resonance frequency along the A-A’ cross-section of the resonator with pentagon spiral electrodes and shows the horizontal displacement deformation in the B-B’ cross-section. The horizontal displacement is antisymmetric with the centre plane of the wave excited in the piezoelectric layer, which corresponds to the standard A₁ mode acoustic wave [20,21]. The proposed pentagon spiral-shaped electrodes applying alternating voltage can excite the electrical fields along both the x-direction and y-direction, thus exciting A₁ mode shear wave along both x- and y-directions, utilizing both the e₂₄ and e₁₅ piezoelectric constants [19]. However, the $K_{eff}^2$ of structure with pentagon spiral-shaped electrodes is not improved relative to that of IDTs structure, which may be owing to the piezoelectric coefficient being e₂₄ equal to e₁₅, and no superposition effect occurs. Furthermore, we investigate the influence of the electrode rotation angle in respect to x-direction and the influence of p on the $K_{eff}^2$.

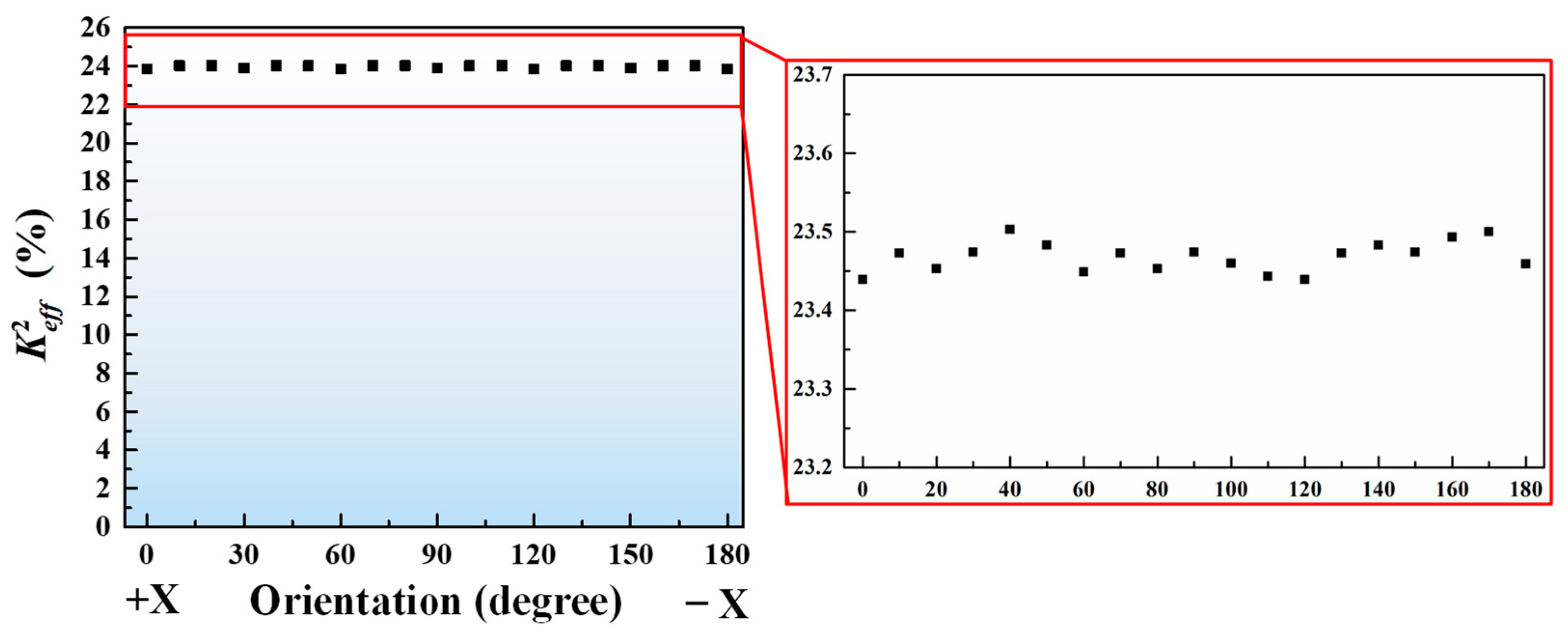

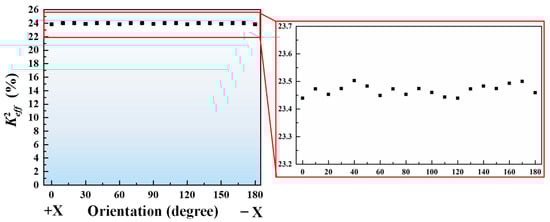

First, we investigate the effect of electrode rotation angle in respect to x-direction with Z-cut LiNbO₃ plate on $K_{eff}^2$. The $K_{eff}^2$ of XBAR can be obtained by the approximated Formulas (2) and (3) [22,23,24]. It can be concluded that the $K_{eff}^2$ is positive to piezoelectric coefficient e₁₅ of Z-cut LiNbO₃ thin film. The simulated $K_{eff}^2$ vs. different rotation angle is depicted in Figure 5. The $K_{eff}^2$ of the XBAR is maintained around 23.5% as the rotation angle of electrodes increases from 0° to 180°, which may contribute to the equality of the e₂₄ and e₁₅ of Z-cut LiNbO₃.

$$K_{eff}^2=\frac{K^2}{1+K^2}=\frac{{\pi }^2}{4}\times \frac{(f_p-f_s)}{f_p},$$

(3)

$$K^2=\frac{e_{15}^2}{{\epsilon }_r{\epsilon }_0{C}_{44}},$$

(4)

where the $f_s$ and $f_p$ are the resonance and anti-resonance frequency of the resonator, e₁₅ is the piezoelectric coefficient of the LiNbO₃ thin film, ${\epsilon }_r$ and ${\epsilon }_0$ are the relative permittivity and vacuum permittivity, and $C_{44}$ is the elastic constant of the LiNbO₃ thin film.

By simplifying the classic dispersion equation for anti-symmetric A₁ mode and using $h_p/p$ as a small parameter, we can obtain the approximate dispersion Equation (5) [25]. More precisely, for practical design of XBARs, it is advised to use the empirical Formula (6) [26].

$$\frac{\Delta \omega }{{\omega }_s}={\left(\frac{h_p}{p}\right)}^2\times \left\{\frac{1}{2}+\frac{8}{\pi }\times \frac{V_T}{V_L}\times \frac{1}{\tan \left(\pi \frac{h_p}{{\lambda }_L}\right)}\right\},$$

(5)

$$\frac{\Delta \omega }{{\omega }_s}=C1\times \frac{h_p}{p}+C2\times {\left(\frac{h_p}{p}\right)}^2.$$

(6)

Here, ${\omega }_s=2\pi f_s$ is the angular frequency of resonator. The first term “1/2” in brackets corresponds to simple “shear wave in rectangular resonator” model, while the second term shows that longitudinal component of Lamb wave does matter. The ${\lambda }_L$ is the wavelength of longitudinal bulk wave dependent on frequency. $C1$ and $C2$ are constants for linear and quadratic coefficients. According to the empirical Formula (4), we describe the relationship between $\Delta \omega /{\omega }_s$ and h_p/p. It can be deduced from Formula (5) and Figure 6 that $\Delta \omega /{\omega }_s$ is negatively correlated with p, which indicates that the decrease of $K_{eff}^2$ with the increase of p as $h_p$ is the same.

3. Fabrication and Results

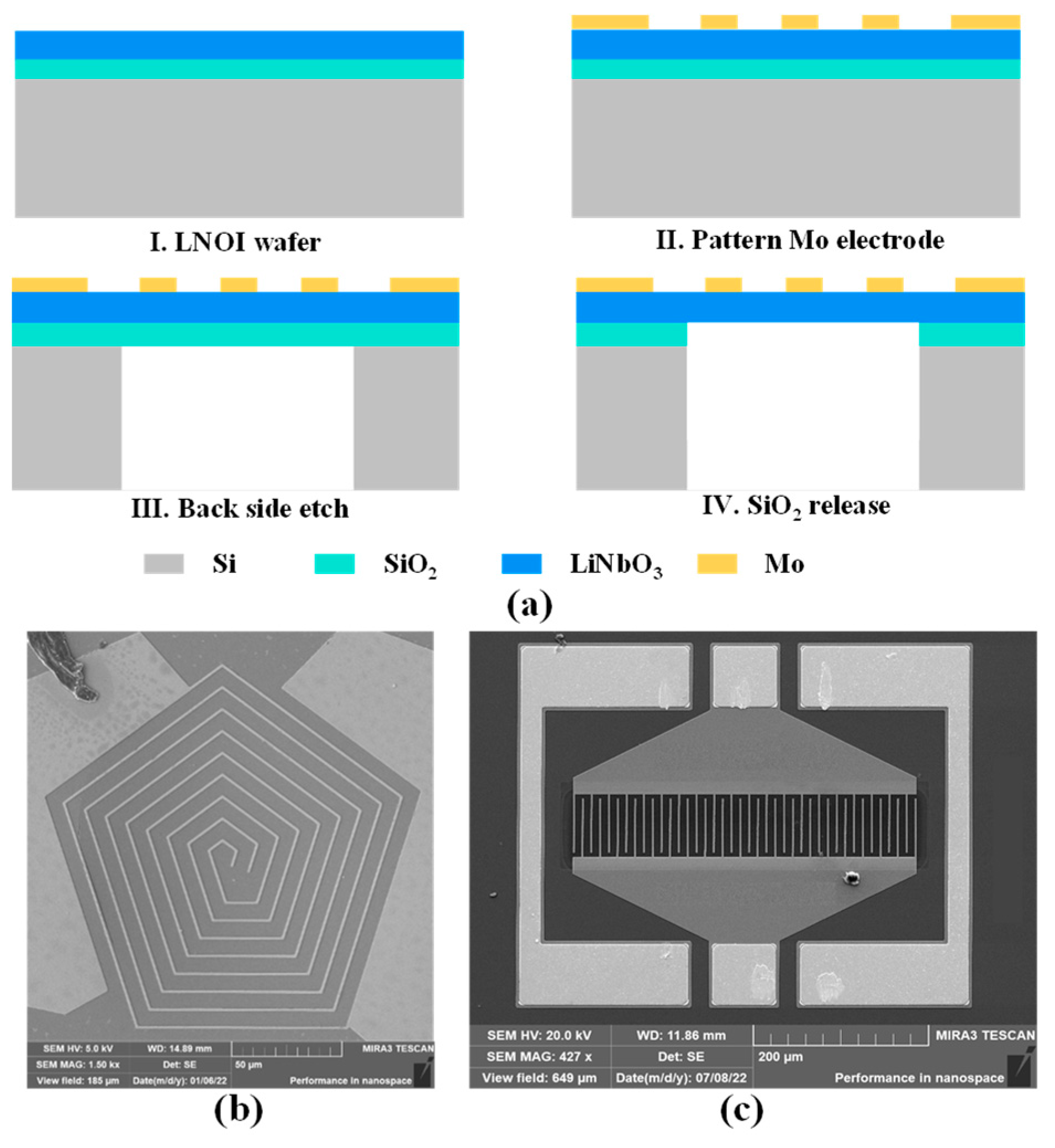

A series of XBARs, utilizing pentagon spiral electrodes with varied p and utilizing IDEs, have been fabricated. The fabrication process of resonator is shown in Figure 6a. The substrate wafer consisted of 330 nm-thick Z-cut LiNbO₃ thin film, 2 µm-thick SiO₂ and Si substrate, which is provided by NanoLN. Inc. First, 200 nm Mo thin film is deposited on the surface of LiNbO₃ thin film and patterned as pentagon spiral shape or IDEs by lithography and reactive ion etching technology. Then, 300 nm-thick SiO₂ is deposited on the surface of LiNbO₃ and Mo thin film by Plasma Enhanced Chemical Vapor Deposition (PECVD) as protective layer. Subsequently, LiNbO₃ thin film release is performed with backside Si deep reactive-ion etch (DRIE) process, followed by a wet etch with hydrofluoric acid solution to remove the buried SiO₂ layer underneath the piezoelectric membrane. By exactly controlling the release time, the resonators with suspended working area only are realized. The scanning electron microscope (SEM) images of the fabricated devices with pentagon spiral shape and IDEs are shown in Figure 6b,c.

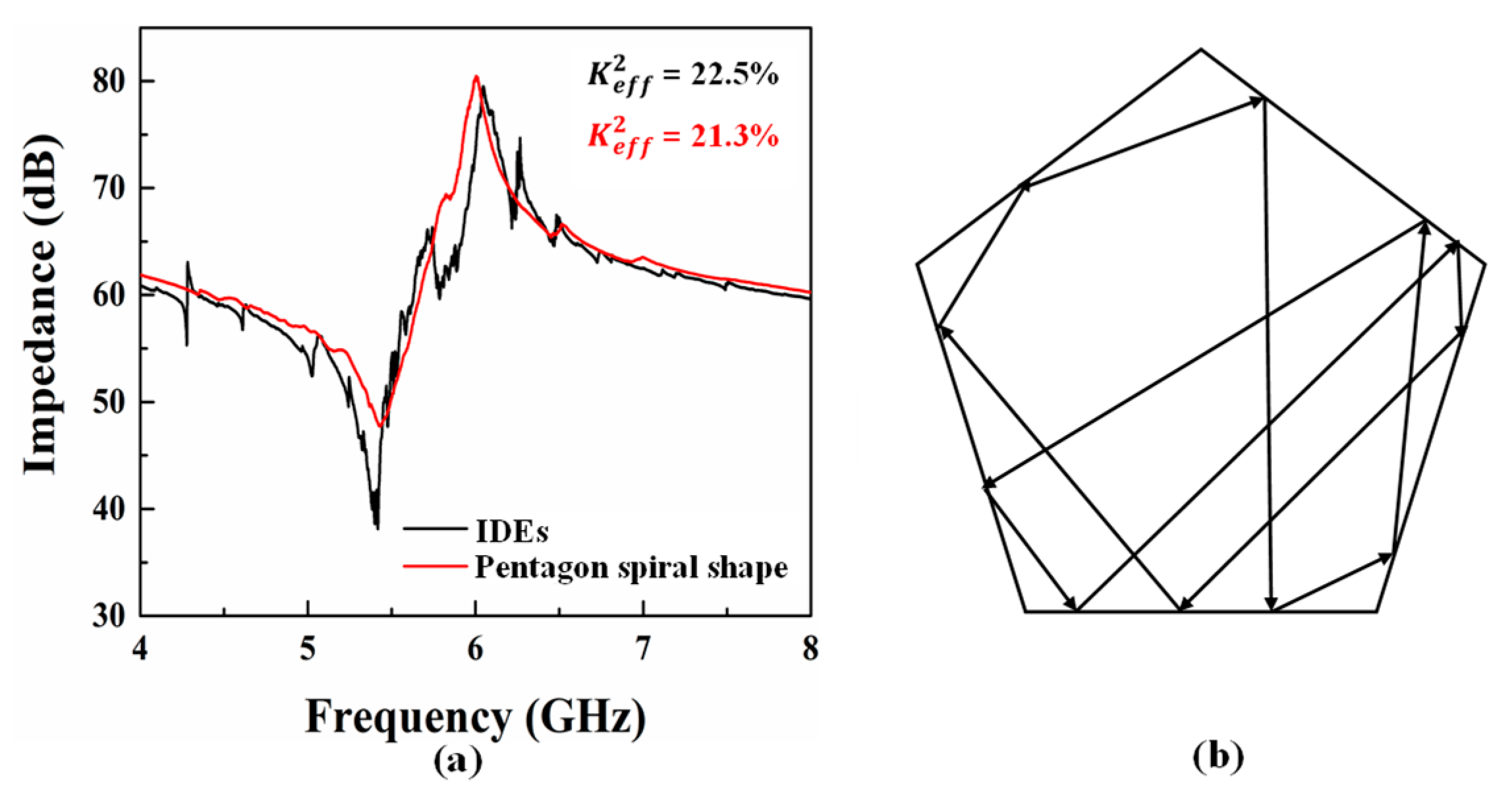

The scattering (S) parameter measurements are carried out using Keysight Network Analyzer (N5222B) connecting to a Cascade Microtech’s GSG probe station. Prior to the measurement, the setup is properly calibrated to remove the contribution of the probes and the cabling and only measure the ensemble of pads plus resonators. Figure 7 shows the experimentally obtained impedance curves vs. frequency of resonators with IDEs and pentagon spiral electrodes. The parameters of both resonators with IDEs and pentagon spiral electrodes are the same. The thickness of the Z-cut LiNbO₃ thin film (h_p) and electrode (h_e) is set to 330 nm and 200 nm, respectively. The width of electrodes (w) is defined as 1 µm and the pitch (p) equals to 5 µm. The resonance frequency of XBAR with IDTs and pentagon spiral electrodes is 5.38 and 5.43 GHz, and $K_{eff}^2$ is 22.5% and 21.3%, respectively. The $K_{eff}^2$ of the resonator with pentagon spiral electrodes is almost equal to that of IDTs, which demonstrates that the electrode rotation angle has no impact on $K_{eff}^2$ of XBAR on Z-cut LiNbO₃ thin film. Furthermore, it is also worth mentioning that the spurious modes in the impedance curve of XBAR with pentagon spiral electrodes are obviously suppressed, while the curve of resonator with IDEs structure is disturbed by spurious modes. In XBAR with IDE structure, the transverse waves are reflected at the edge of the electrode and form standing waves, thus causing spurious modes. However, in XBAR with pentagon spiral structure, due to the non-parallelism of electrode edges, the transverse waves have different reflection path at each point on the electrode edge, and the propagation path becomes longer, as shown in Figure 7b. When the transverse wave propagates through a long path, the energy of the standing wave is attenuated very low; therefore, the amplitude of spurious modes on the impedance curve are greatly reduced. It can also be noticed that the quality factor of XBAR with pentagon spiral electrodes is lower than that of XBAR with IDEs. The length of pentagon spiral electrodes is much larger than that of IDEs, which will increase the resistant of electrodes and eventually increase the electrical loss of electrodes.

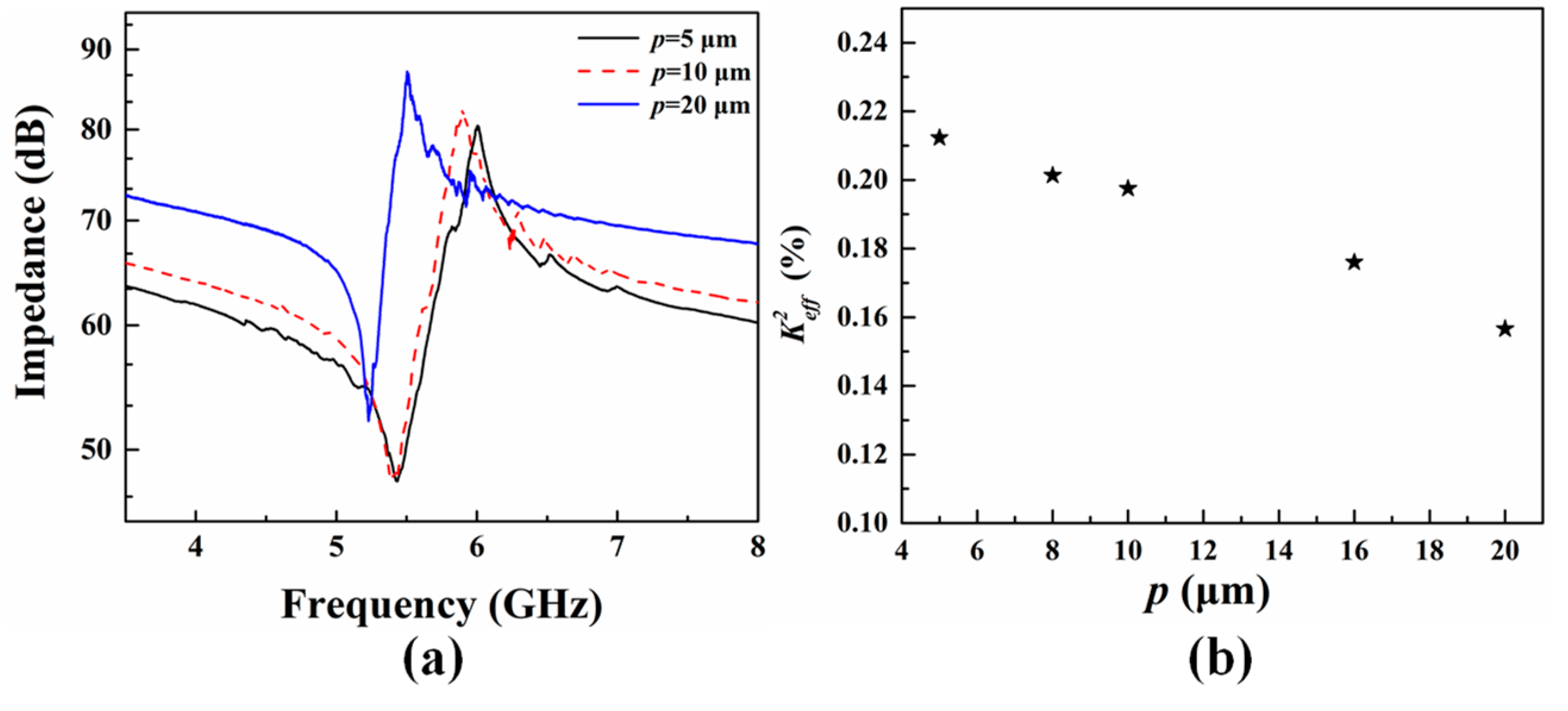

Figure 8a shows the measured impedance curves of XBARs with different p of the top pentagon spiral electrodes. The resonance frequency is 5.433 GHz, 5.432 GHz and 5.230 GHz, respectively, when the p of electrodes is 5, 10 and 20 µm. The measured resonance frequency of the resonator with p = 20 µm is lower than that of p = 5 and 10 µm, which may due to the in-plane thickness inhomogeneity of LiNbO₃ thin film, where the standing A₁ modes are thickness-dependent when $h_p\ll p$. As p increases from 5 µm to 20 µm, the measured $K_{eff}^2$ decreases from 21.3% to 15.8% gradually as shown in Figure 8b. To better understand the variation of the $K_{eff}^2$ with different p, we adopt Berlincour’s Formulations (7) and (8) for electromechanical coupling calculation, which can be expressed as [27,28,29]

$$K^2=\frac{U_m^2}{U_e{U}_d},$$

(7)

$$U_m\propto {{\displaystyle \int }}^{}\left(E.d.T\right) dV,$$

(8)

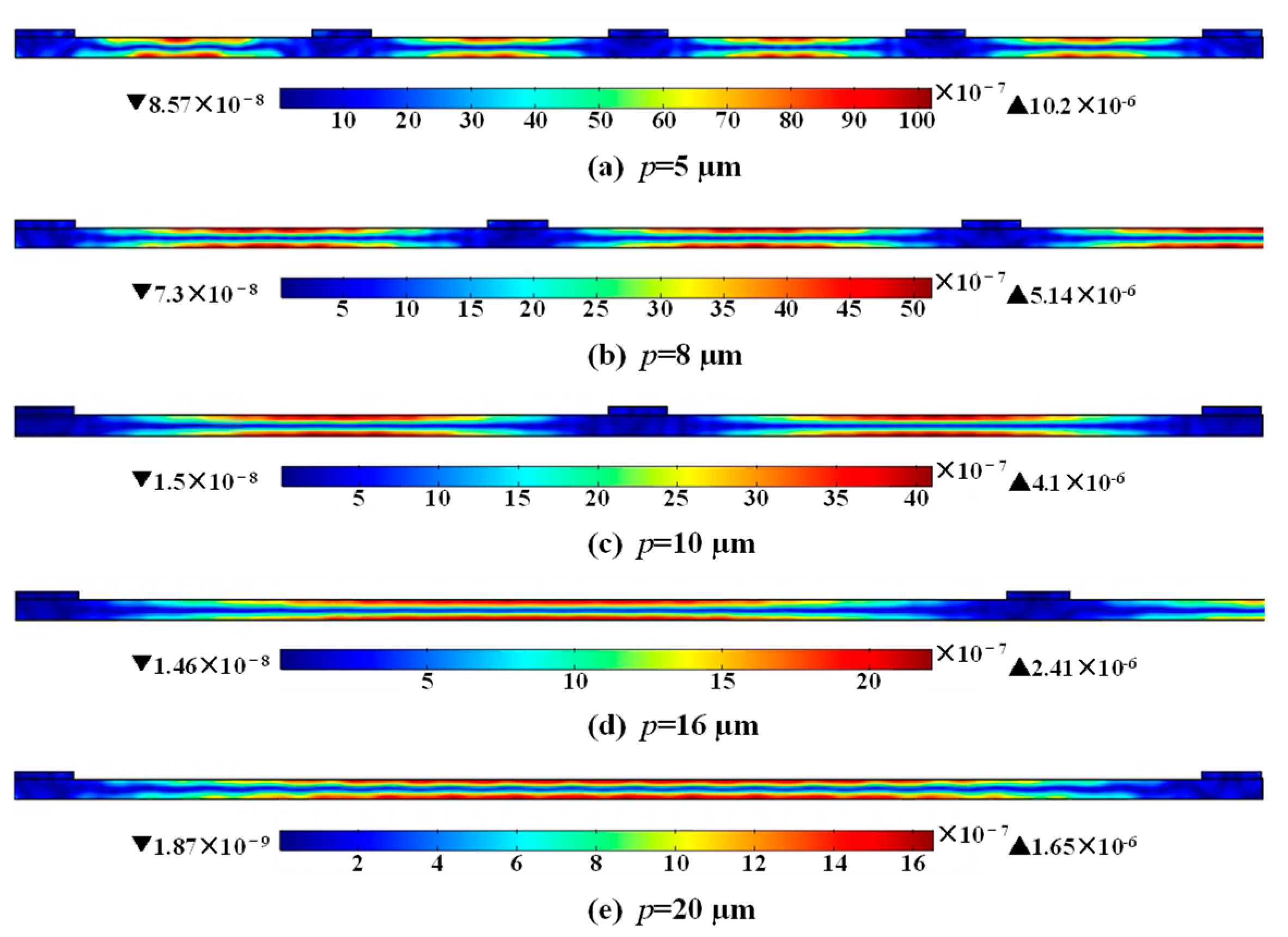

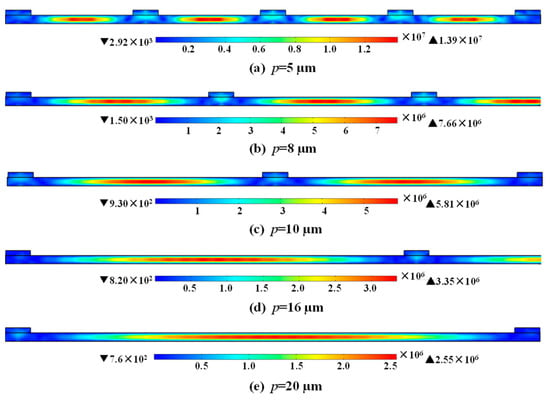

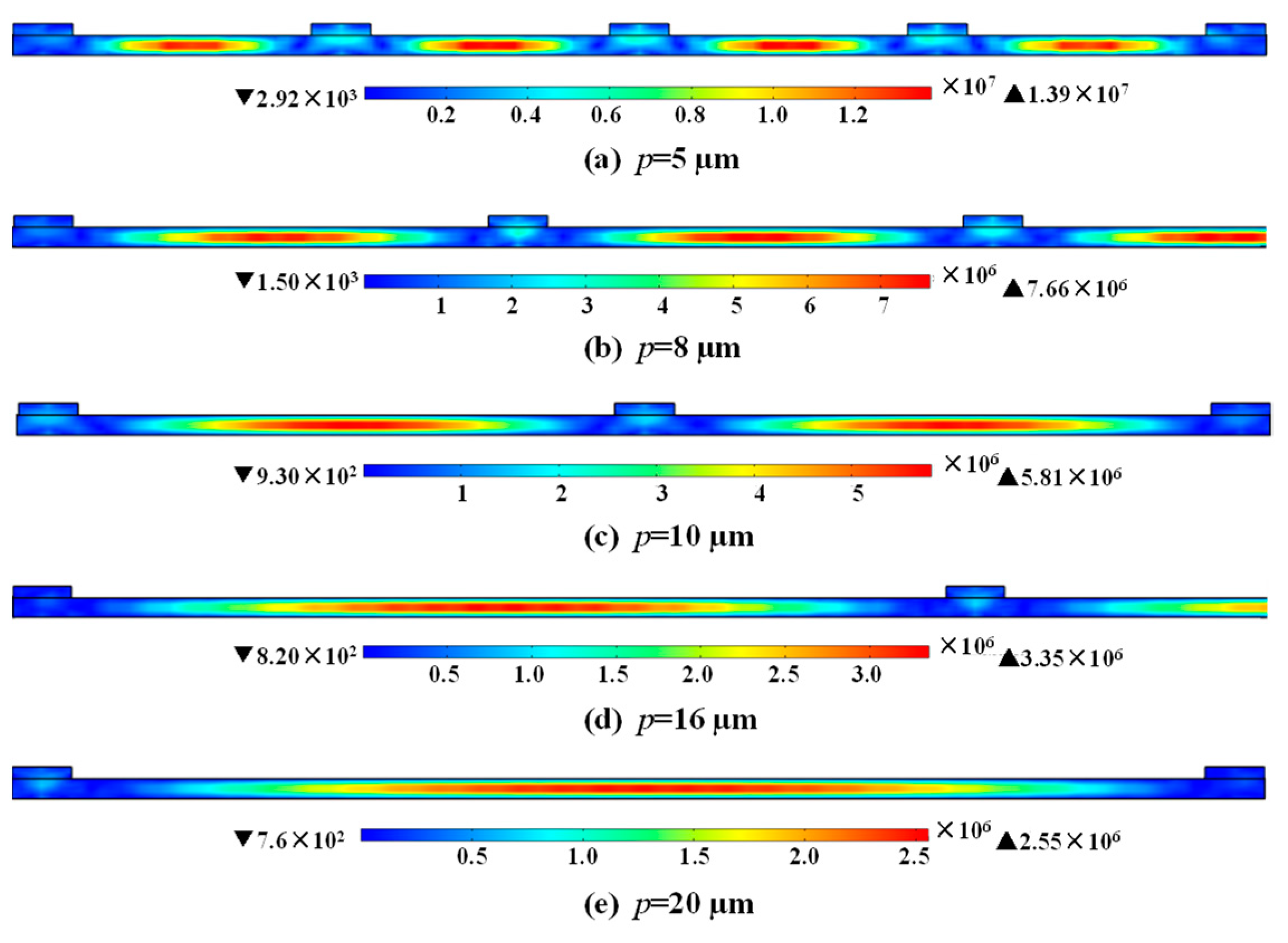

where K² is the electromechanical coupling, U_m, U_d, and U_e are the mutual energy, electrical energy, and elastic energy. E, d, T and V are the electric field, the piezoelectric coefficient, stress, and volume of the piezoelectric material, respectively. Equation (7) signifies the importance of the overlap between the applied electric field and the stress distribution of the resonant mode inside the piezoelectric material in the thickness direction. Figure 9 and Figure 10 show the stress distribution and total displacement distribution of A₁ mode in the thickness direction of the LiNbO₃ thin film, as the p = 5, 8, 10, 16 and 20 µm, respectively. The stress distribution and total displacement distribution declines with the increase of p, indicating the decrease in mutual energy and finally causing the diminution of $K_{eff}^2$.

4. Conclusions

In conclusion, we design and fabricate XBARs with pentagon spiral shape electrodes based on Z-cut LiNbO₃ thin films. The proposed structure realized an A₁ mode shear wave at 5.433 GHz along with $K_{eff}^2$ of 21.3%. The thickness of LiNbO₃ thin film and the rotation angle of electrodes have no impact on the $K_{eff}^2$ of the proposed resonator. However, the $K_{eff}^2$ of XBAR is affected by the p of electrodes, decreasing from 21.3% to 15.8% with the increasement of p from 5 to 20 µm. Finally, a XBAR operates at 5.43 GHz with $K_{eff}^2$ of 21.5%, and little spurious mode is obtained when w = 1 µm and p = 5 µm. The almost no spurious mode resonator has great potential for 50 Ω impedance match within a miniature size applied in super high-frequency RF front-end filters.
