Article

Bias Stress Stability of Solution-Processed Nano Indium Oxide Thin Film Transistor

by
Rihui Yao
1,
Xiao Fu
1,
Wanwan Li
1,
Shangxiong Zhou
1,
Honglong Ning
1,*,
Biao Tang
2,
Jinglin Wei
1,
Xiuhua Cao
3,*,
Wei Xu
1 and
Junbiao Peng
1
1
State Key Laboratory of Luminescent Materials and Devices, Institute of Polymer Optoelectronic Materials and Devices, South China University of Technology, Guangzhou 510640, China
2
Guangdong Provincial Key Laboratory of Optical Information Materials and Technology & Institute of Electronic Paper Displays, South China Academy of Advanced Optoelectronics, South China Normal University, Guangzhou 510006, China
3
State Key Laboratory of Advanced Materials and Electronic Components, Fenghua Electronic Industrial Park, No. 18 Fenghua Road, Zhaoqing 526020, China
*
Authors to whom correspondence should be addressed.
Micromachines 2021, 12(2), 111; https://doi.org/10.3390/mi12020111
Submission received: 28 December 2020 / Revised: 18 January 2021 / Accepted: 19 January 2021 / Published: 22 January 2021
(This article belongs to the Special Issue Wide Bandgap Based Devices: Design, Fabrication and Applications, Volume II)
Browse Figures
Versions Notes

Abstract

:
In this paper, the effects of annealing temperature and other process parameters on spin-coated indium oxide thin film transistors (In2O3-TFTs) were studied. The research shows that plasma pretreatment of glass substrate can improve the hydrophilicity of glass substrate and stability of the spin-coating process. With Fourier transform infrared (FT-IR) and X-ray diffraction (XRD) analysis, it is found that In2O3 thin films prepared by the spin coating method are amorphous, and have little organic residue when the annealing temperature ranges from 200 to 300 °C. After optimizing process conditions with the spin-coated rotating speed of 4000 rpm and the annealing temperature of 275 °C, the performance of In2O3-TFTs is best (average mobility of 1.288 cm2·V−1·s−1, Ion/Ioff of 5.93 × 106, and SS of 0.84 V·dec−1). Finally, the stability of In2O3-TFTs prepared at different annealing temperatures was analyzed by energy band theory, and we identified that the elimination of residual hydroxyl groups was the key influencing factor. Our results provide a useful reference for high-performance metal oxide semiconductor TFTs prepared by the solution method.

1. Introduction

With the active matrix liquid crystal display (AMLCD) and active matrix organic light-emitting diodes (AMOLED) gradually occupying the mainstream position in the display field [1,2,3,4], metal oxide thin film transistors (MOS-TFTs) have been widely studied due to their high mobility, high light transmittance, low processing temperature and low processing cost [3,4,5,6,7,8,9]. At present, metal oxide semiconductors are mainly fabricated by vacuum deposition methods, which have strict environmental requirements and relatively high manufacturing cost [10,11]. In contrast, solution-processed deposition offers the advantages of a simple process, high-throughput, high material utilization rate, and easy control of chemical components, which provides the possibility for large-area preparation of metal oxide semiconductor [12,13,14,15,16,17]. The preparation of metal oxides by the solution method usually requires annealing, which promotes the formation of (M–O–M) structure and the densification of film [18]. Solution methods mainly include the spin-coating method, solvothermal method, microwave assisted growth method, sonochemical method, hydrothermal method, electrodeposition method and so on [19,20,21,22,23,24,25]. Among them, the spin-coating method has the advantages of low cost, low pollution, energy saving and low film thickness, but it also has the disadvantages of uneven film thickness and waste of solution.
Nowadays, metal oxide semiconductor materials with (n − 1)d10ns0 (n ≥ 4) electronic configurations have attracted much attention due to their good electrical properties in the amorphous phase, and indium oxide (In2O3) is one of them [26,27]. This meets the requirements of low temperature preparation in the field of flexible display. In2O3 has been widely studied in the preparation of TFT active layer due to its wide band gap, high mobility, high carrier concentration and good transparency [1,28,29,30,31], but there is still little research on the influence mechanism of amorphous In2O3 electrical stability [32].
In this paper, In2O3 thin films were prepared by spin coating. The spreading property of precursor solution was improved by plasma surface treatment [33]. The phase composition of In2O3 thin films was investigated by different annealing methods. On this basis, In2O3-TFTs were fabricated on Al electrodes and Si3N4 substrates and the electrical characteristics of devices under different process conditions were analyzed. Furthermore, the possible methods to further improve the performance of TFTs prepared by spin coating were explored.

2. Materials and Methods

A semiconductor precursor solution was prepared using Indium nitrate hydrate (In(NO3)3·5H2O, CAS No.: 13465-14-0), in a solvent of ethylene glycol monomethyl ether (2-MOE, CAS No.: 109-86-4). The precursor solution was stirred in a magnetic mixer for 30 min and filtered, and then ultrasonic treatment was performed for 10 min. After plasma surface treatment, 35 μL of In2O3 precursor solution was added dropwise to the single-crystal silicon (CAS No.: 7440-21-3), and then spin coated with a homogenizer (model: KW-4A) at the speed of 4000 rms for 30 s. In the multilayer spin-coating process, every single-layer was pre-annealed at 100 °C for 10 min to evaporate the solvent. Finally, the In2O3 films were annealed at 200 °C, 225 °C, 250 °C, 275 °C and 300 °C for 45 min respectively. For the fabrication of In2O3-TFTs, bottom-gate devices were fabricated on Al (CAS No.: 7429-90-5) gate electrode and Si3N4 (CAS No.: 27198-71-6) dielectric layer. After the deposition of In2O3 thin films, an Al source and drain electrodes were formed by magnetron sputtering through a shadow mask. The schematic structure of the In2O3-TFTs is shown in Figure 1.
The surface tension of In2O3 solutions were measured by an Attension Theta Lite (TL200, Biolin Scientific, Gothenburg, Sweden). The internal chemical composition of In2O3 thin films was observed by Fourier transform infrared spectroscopy (FT-IR) (IRprestige21, Shimadzu, Kyoto, Janpan). X-ray reflectivity (XRR) (EMPYREAN, PANalytical, Almelo, The Netherlands) was used to analyze the thickness of the films. X-ray diffraction (XRD) (EMPYREAN, PANalytical, Almelo, The Netherlands) was used to analyze the phase of the films with Cu-kα as the X-ray source, and the scanning speed is 0.1°·s−1 from 20° to 70°. The surface morphology of the films was measured by atomic force microscopy (AFM) (Being Nano-Instruments BY3000, Being Nano-Instruments, Beijing, China). Semiconductor parameter analyzers (Agilent 4155c, Agilent, Santa Clara, CA, USA) was used under an ambient atmosphere to evaluate the electrical characteristics of TFTs.

3. Results and Discussion

3.1. Effect of Plasma Surface Treatment on Solution Spreading

Figure 2a,b show the spread situation of In2O3 precursor solutions without/with plasma surface treatment. It can be found that it is difficult for the In2O3 precursor solution to spread uniformly on the substrate without plasma treatment. They agglomerate into many small droplets on the substrate, so the uniformity of the film is poor. However, on the substrate treated by plasma, the precursor solution of In2O3 can be spread uniformly without agglomeration, which indicates that plasma surface treatment can significantly improve the film-forming ability of spin coating. The results characterized by Attension Theta Lite show that the surface tension of In(NO3)3 solution is 39 mN·m−1, while that of 2-MOE is 27.6 mN·m−1, this difference easily leads to the spontaneous agglomeration of micro droplets after spin coating, so the film-forming ability is poor; however, plasma treatment can effectively reduce the difference of surface tension by introducing polarization groups into the surface of the substrate, thus improving the hydrophilicity of the substrate surface, which can improve the uniformity of spin-coating films [34,35,36]. Based on this result, the subsequent films and TFTs are prepared on substrates with plasma surface treatment.

3.2. Effect of Annealing Temperature on In2O3 Thin Films and TFTs

Figure 3 shows the FT-IR test curves of In2O3 thin films prepared at different annealing temperatures. The absorption peak located at 2750 cm−1 to 3750 cm−1 is the stretching vibration of O–H bond [37], The absorption peak at 1250 cm−1 to 1750 cm−1 were caused by the bending vibration of the carbon–hydrogen bond and carbon–oxygen bond [38]. The absorption peak at 500–700 cm−1 can be attributed to the stretching vibration of the In–O bond. The O-H bond mainly comes from [In (OH)](3−x)+, and the hydrolysis reaction of precursor is as follows [18]:
In3+ + xH2O→[In(OH)](3−x)+ + xH+
where x is the stoichiometric number.
Excessive concentration of such functional groups easily causes adverse effects on the electrical properties of TFTs, such as high leakage current. It can be seen from Figure 3 that with the increase of annealing temperature, the vibration peak intensity of the O–H bond decreases significantly, which is almost zero at 300 °C. Based on the discussion above, an annealing temperature higher than 250 °C is necessary for promoting metal-oxide bond formation. Combined with the process requirements of device preparation, such as preventing the defects from the hillock of the Al electrode, the appropriate annealing temperature range of In2O3 thin films is 250 °C to 300 °C.
To investigate the influence of the annealing temperature on the surface morphology and thickness of In2O3 thin films, AFM and XRR was used. The AFM scanning area of the images was 4.0 µm × 4.0 µm. Figure 4a–e shows AFM images of In2O3 thin films annealed at different temperature, and it can be seen that all samples show a relatively smooth morphology without cracks with low roughness (below 0.4 nm). At the same time, the thickness of In2O3 films at different annealing temperatures are in the range of 3–7 nm, which indicates that they are all nano-scale films.
In our previous studies, it was found that In2O3 thin films crystallized only at temperatures above 400 °C [17]. Therefore, we only studied the crystallization of In2O3 thin films at 200–300 °C in this work. It can be seen from Figure 5 that as the annealing temperature increases, a diffraction peak related to cubic In2O3 gradually appears in the film around 31°, which indicates an increased transformation from amorphous phase into crystalline phase. According to the test results, when the temperature is 275 °C and below, the diffraction peak has a large full width at half maxima (FWHM), weak intensity, and extremely low crystallinity, which indicates that the In2O3 thin films prepared by the spin coating can maintain an amorphous structure at this annealing temperature. The amorphous In2O3 thin films can achieve better flatness and uniformity than crystalline films, and is conducive to the control of carrier concentration [38].
In2O3-TFTs were prepared under the optimized conditions. Figure 6 shows the transfer I–V characteristics of In2O3-TFTs at different annealing temperatures, and their corresponding electrical characteristics are listed in Table 1. It can be seen from Figure 6 that the devices had a certain negative shift and a large hysteresis, which indicated that there were many defects in the active layer. Combined with the test results in Figure 3, it may be the residual OH- in the In2O3 films. Another possible factor for the results is that H+ in the Si3N4 gate insulating layer. With the increase of annealing temperature, the hydroxyl group gradually decomposes, and the hysteresis phenomenon gradually weakens [39]. When the annealing temperature is 275 °C, the threshold voltage (Vth) difference between forward scanning and reverse scanning is the smallest, and the In2O3-TFTs showed a Vth of 0.84 V, an Ion/Ioff ratio of 5.93 × 106, which was ideal.
It can be seen from Table 1 that the Vth of In2O3-TFTs gradually negative shift with the increase of annealing temperature, which is the minimum (0.84 V) at 275 °C. Also, the Ion/Ioff first increased to a peak value (5.93 × 106) at 275 °C, and then decreased. Furthermore, the saturation mobility (μsat) and subthreshold swing (SS) reached the maximum (1.288 cm2·v−1·s−1) and the minimum (1.030 V·dec−1) at 275 °C respectively. The performance is similar to that of In2O3-TFTs prepared by Choi at 280 °C (μsat of 2.4 cm2·v−1·s−1, Ion/Ioff of 106) [40]. According to the FT-IR results, the low carrier concentration inside the In2O3 films at low annealing temperature may be due to the existence of undecomposed metal hydroxides in the active layer in the form of various defects, leading to the low μsat, low Ion/Ioff, large Vth and large SS. When the annealing temperature increased from 200 °C to 275 °C, the devices performance gradually improved. However, when the annealing temperature reached 300 °C, the carrier concentration in the In2O3 thin films was too high, which made the device unable to turn off normally, thus, the Ion/Ioff was only 7.27 × 103. In addition, the continuous increase of temperature may lead to the degradation of the interface quality of the device, leading to the decrease of other performance.

3.3. Bias Stability of Indium Oxide Thin Film Transistors (In2O3-TFTs)

Figure 7 shows the transfer curves of In2O3-TFTs annealed at 275 °C under positive gate bias stress (PBS) and negative gate bias stress (NBS) with a drain-bias stress of VDS = 20 V. During the test, a bias stress (VGS = −50 V for NBS and VGS = 50 V for PBS) was applied to the gate electrode for 5400 s. Figure 8 shows the energy band change of In2O3-TFTs under bias voltage. It can be seen from Figure 7a that the Vth under PBS drifts forward nearly 20 V. The possible reasons are as follows: (1) the carriers were trapped by the interface defects of In2O3/Si3N4; (2) the In2O3 back channel adsorbed water and oxygen in the environment, and oxygen atoms captured electrons [41]. In both cases, as shown in Figure 8a, the actual carrier concentration will be reduced, so a higher Vth is required to form the conductive channel.
Similarly, Vth had a drift of −45 V under NBS, as shown in Figure 7b. In addition, with the increase of NBS time, the Ioff increased and the hysteresis phenomenon became more obvious, which indicated that there were more defects in the In2O3 active layer, or the adsorption of water and oxygen was more serious. This was due to the activation of a large number of donors under NBS, such as impurities in the In2O3 films, and these electrons were removed from the active layer by the electric field. At the same time, the donors were positively charged after losing electrons, which were absorbed near the In2O3/Si3N4 interface. When the bias voltage changed from −50 V to 0 V, the electric field cannot remove all the electrons generated out of the channel. Also, most of the electrons were not easy to compound with donor-like vacancies, but directly formed channel current under voltage, resulting in a negative Vth, as shown in Figure 8b.

4. Conclusions

In this study, we fabricated solution-processed In2O3 thin films and TFTs, and investigated the factors affecting the stability of the devices. The results show that plasma treatment can significantly improve the spreading of In2O3 precursor solution on the substrate surface. The In2O3 films without annealing contain more organic residues, and they can be significantly reduced after annealing at 275 °C maintaining the amorphous film structure.
Through the study of the annealing characteristics of In2O3-TFTs, it was found that the devices prepared by the solution method have the characteristics of low active layer carrier concentration, high Vth and low Ion/Ioff at low temperature. With the increase of annealing temperature, the electrical properties of the devices gradually improve. The optimal performance can be obtained after annealing at 275 °C, which exhibited a high μsat of 1.288 cm2·V−1·s−1, high Ion/Ioff of 5.93 × 106, and low SS of 0.84 V·dec−1. Also, the bias stability is the best, which may be due to the reduction of organic residues and defects in the films. When further increasing the annealing temperature, the performance deteriorates, which may be due to the film interface degradation. This study provides a useful reference for the improvement and optimization of the performance of electronic devices prepared by the solution method.

Author Contributions

Conceptualization, R.Y. and W.X.; methodology, H.N. and W.L.; software, S.Z. and X.C.; validation, B.T. and J.W.; formal analysis, J.W. and S.Z.; investigation, X.F. and W.L.; resources, W.X.; data curation, X.C.; writing—original draft preparation, X.F.; writing—review and editing, X.F. and J.P.; visualization, R.Y.; supervision, J.P.; project administration, H.N.; funding acquisition, H.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Key-Area Research and Development Program of Guangdong Province (No.2020B010183002), National Natural Science Foundation of China (Grant No.51771074, 62074059 and 22090024), Guangdong Major Project of Basic and Applied Basic Research (No.2019B030302007), Fundamental Research Funds for the Central Universities (No. 2020ZYGXZR060 and 2019MS012), Ji Hua Laboratory scientific research project (X190221TF191), South China University of Technology 100 Step Ladder Climbing Plan Research Project (No.j2tw202004035, j2tw202004034 and j2tw202004095), National College Students’ Innovation and Entrepreneurship Training Program (No.202010561001, 202010561004 and 202010561009) and 2020 Guangdong University Student Science and Technology Innovation Special Fund (“Climbing Plan” Special Fund).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Twyman, N.M.; Tetzner, K.; Anthopoulos, T.D.; Payne, D.J.; Regoutz, A. Rapid photonic curing of solution-processed In2O3 layers on flexible substrates. Appl. Surf. Sci. 2019, 479, 974–979. [Google Scholar] [CrossRef]
  2. Chen, R.; Lan, L. Solution-processed metal-oxide thin-film transistors: A review of recent developments. Nanotechnology 2019, 30, 312001. [Google Scholar] [CrossRef]
  3. Lee, S.; Shin, J.; Jang, J. Top Interface Engineering of Flexible Oxide Thin-Film Transistors by Splitting Active Layer. Adv. Funct. Mater. 2017, 27, 1604921. [Google Scholar] [CrossRef]
  4. Xu, W.; Long, M.; Zhang, T.; Liang, L.; Cao, H.; Zhu, D.; Xu, J. Fully solution-processed metal oxide thin-film transistors via a low-temperature aqueous route. Ceram. Int. 2017, 43, 6130–6137. [Google Scholar] [CrossRef]
  5. Nomura, K.; Ohta, H.; Takagi, A.; Kamiya, T.; Hirano, M.; Hosono, H. Room-temperature fabrication of transparent flexible thin-film transistors using amorphous oxide semiconductors. Nat. Cell Biol. 2004, 432, 488–492. [Google Scholar] [CrossRef]
  6. Park, J.S.; Maeng, W.J.; Kim, H.S.; Park, J.S. Review of recent developments in amorphous oxide semiconductor thin-film transistor devices. Thin Solid Films 2012, 520, 1679–1693. [Google Scholar] [CrossRef]
  7. Myny, K. The development of flexible integrated circuits based on thin-film transistors. Nat. Electron. 2018, 1, 30–39. [Google Scholar] [CrossRef]
  8. Nomura, K.; Ohta, H.; Ueda, K.; Kamiya, T.; Hirano, M.; Hosono, H. Thin-Film Transistor Fabricated in Single-Crystalline Transparent Oxide Semiconductor. Science 2003, 300, 1269–1272. [Google Scholar] [CrossRef] [PubMed]
  9. Karnaushenko, D.; Münzenrieder, N.; Karnaushenko, D.D.; Koch, B.; Meyer, A.K.; Baunack, S.; Petti, L.; Tröster, G.; Makarov, D.; Schmidt, O.G. Biomimetic Microelectronics for Regenerative Neuronal Cuff Implants. Adv. Mater. 2015, 27, 6797–6805. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Huang, G.; Duan, L.; Dong, G.; Zhang, D.; Qiu, Y. High-Mobility Solution-Processed Tin Oxide Thin-Film Transistors with High-κ Alumina Dielectric Working in Enhancement Mode. ACS Appl. Mater. Interfaces 2014, 6, 20786–20794. [Google Scholar] [CrossRef] [PubMed]
  11. Bin Esro, M.; Vourlias, G.; Somerton, C.; Milne, W.I.; Adamopoulos, G. High-Mobility ZnO Thin Film Transistors Based on Solution-processed Hafnium Oxide Gate Dielectrics. Adv. Funct. Mater. 2015, 25, 134–141. [Google Scholar] [CrossRef]
  12. Cai, W.; Wilson, J.; Zhang, J.; Park, S.; Majewski, L.; Song, A. Low-Voltage, Flexible InGaZnO Thin-Film Transistors Gated with Solution-Processed, Ultra-Thin AlxOy. IEEE Electron Device Lett. 2018, 40, 36–39. [Google Scholar] [CrossRef]
  13. Chen, C.-K.; Hsieh, H.-H.; Shyue, J.-J.; Wu, C.-C. The Influence of Channel Compositions on the Electrical Properties of Solution-Processed Indium-Zinc Oxide Thin-Film Transistors. J. Disp. Technol. 2009, 5, 509–514. [Google Scholar] [CrossRef]
  14. Jang, J.; Kitsomboonloha, R.; Swisher, S.L.; Park, E.S.; Kang, H.; Subramanian, V. Transparent High-Performance Thin Film Transistors from Solution-Processed SnO2/ZrO2Gel-like Precursors. Adv. Mater. 2012, 25, 1042–1047. [Google Scholar] [CrossRef]
  15. Lee, C.-G.; Dodabalapur, A. Solution-processed zinc–tin oxide thin-film transistors with low interfacial trap density and improved performance. Appl. Phys. Lett. 2010, 96, 243501. [Google Scholar] [CrossRef]
  16. Kim, S.J.; Yoon, S.; Kim, H.J. Review of solution-processed oxide thin-film transistors. Jpn. J. Appl. Phys. 2014, 53, 02BA02. [Google Scholar] [CrossRef]
  17. Zhang, J.; Fu, X.; Zhou, S.; Ning, H.; Wang, Y.; Guo, D.; Cai, W.; Li, J.-A.; Yao, R.; Peng, J. The Effect of Zirconium Doping on Solution-Processed Indium Oxide Thin Films Measured by a Novel Nondestructive Testing Method (Microwave Photoconductivity Decay). Coatings 2019, 9, 426. [Google Scholar] [CrossRef] [Green Version]
  18. Park, S.; Kim, C.H.; Lee, W.J.; Sung, S.; Yoon, M.H. Sol-gel metal oxide dielectrics for all-solution-processed electronics. Mater. Eng. R Rep. 2017, 114, 1–22. [Google Scholar] [CrossRef]
  19. Chang, S.B.; Chae, H.U.; Kim, H.S. Structural, optical, electrical and morphological properties of different concentration sol-gel ZnO seeds and consanguineous ZnO nanostructured growth dependence on seeds. J. Alloys Compd. 2017, 729, 571–582. [Google Scholar]
  20. Yang, J.; Li, C.; Zhang, X.; Quan, Z.; Zhang, C.; Li, H.; Lin, J. Self-Assembled 3D Architectures of LuBO3:Eu3+: Phase-Selective Synthesis, Growth Mechanism, and Tunable Luminescent Properties. Chemistry 2008, 14, 4336–4345. [Google Scholar] [CrossRef]
  21. Rana, A.U.H.S.; Kang, M.; Kim, H.-S. Microwave-assisted Facile and Ultrafast Growth of ZnO Nanostructures and Proposition of Alternative Microwave-assisted Methods to Address Growth Stoppage. Sci. Rep. 2016, 6, 24870. [Google Scholar] [CrossRef] [PubMed]
  22. Hafeezullah; Yamani, Z.H.; Iqbal, J.; Qurashi, A.; Hakeem, A.S. Rapid sonochemical synthesis of In2O3 nanoparticles their doping optical, electrical and hydrogen gas sensing properties. J. Alloys Compd. 2014, 616, 76–80. [Google Scholar] [CrossRef]
  23. Rana, A.U.H.S.; Kim, H.S. NH4OH Treatment for an Optimum Morphological Trade-off to Hydrothermal Ga-Doped n-ZnO/p-Si Heterostructure Characteristics. Materials 2018, 11, 37. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, G.; Lu, K.; Zhang, X.; Yuan, W.; Shi, M.; Ning, H.; Tao, R.; Liu, X.; Yao, R.; Peng, J. Effects of Annealing Temperature on Optical Band Gap of Sol–gel Tungsten Trioxide Films. Micromachines 2018, 9, 377. [Google Scholar] [CrossRef] [Green Version]
  25. Zheng, M.J.; Zhang, L.D.; Li, G.H.; Zhang, X.Y.; Wang, X.F. Ordered indium-oxide nanowire arrays and their photoluminescence properties. Appl. Phys. Lett. 2001, 79, 839–841. [Google Scholar] [CrossRef]
  26. Seo, S.-J.; Choi, C.G.; Hwang, Y.-H.; Bae, B.-S. High performance solution-processed amorphous zinc tin oxide thin film transistor. J. Phys. D Appl. Phys. 2008, 42, 035106. [Google Scholar] [CrossRef]
  27. Chiang, H.Q.; Wager, J.; Hoffman, R.L.; Jeong, J.; Keszler, D.A. High mobility transparent thin-film transistors with amorphous zinc tin oxide channel layer. Appl. Phys. Lett. 2005, 86, 013503. [Google Scholar] [CrossRef]
  28. Nguyen, M.-C.; Jang, M.; Lee, D.-H.; Bang, H.-J.; Lee, M.; Jeong, J.K.; Yang, H.; Choi, R. Li-Assisted Low-Temperature Phase Transitions in Solution-Processed Indium Oxide Films for High-Performance Thin Film Transistor. Sci. Rep. 2016, 6, 25079. [Google Scholar] [CrossRef] [Green Version]
  29. Choi, H.S.; Cho, W.J. Controlling In-Ga-Zn-O Thin-Film Resistance by Vacuum Rapid Thermal Annealing and Application to Transparent Electrode. Phys. Status Solidi 2019, 216, 1800653.1–1800653.6. [Google Scholar] [CrossRef]
  30. Nguyen, M.-C.; Nguyen, A.H.T.; Ji, H.; Cheon, J.; Kim, J.-H.; Yu, K.-M.; Cho, S.-Y.; Kim, S.-W.; Choi, R. Application of Single-Pulse Charge Pumping Method on Evaluation of Indium Gallium Zinc Oxide Thin-Film Transistors. IEEE Trans. Electron. Dev. 2018, 65, 3786–3790. [Google Scholar] [CrossRef]
  31. Kim, H.S.; Byrne, P.D.; Facchetti, A.; Marks, T.J. High Performance Solution-Processed Indium Oxide Thin-Film Transistors. J. Am. Chem. Soc. 2008, 130, 12580–12581. [Google Scholar] [CrossRef] [PubMed]
  32. Troughton, J.; Atkinson, D. Amorphous InGaZnO and metal oxide semiconductor devices: An overview and current status. J. Mater. Chem. C 2019, 7, 12388–12414. [Google Scholar] [CrossRef]
  33. Jeon, H.; Jin, S.Y.; Park, W.H.; Lee, H.; Kim, H.T.; Ryou, M.H.; Lee, Y.M. Plasma-assisted water-based Al2O3 ceramic coating for polyethylene-based microporous separators for lithium metal secondary batteries. Electrochim. Acta 2016, 212, 649–656. [Google Scholar] [CrossRef]
  34. Huang, K.-M.; Ho, C.-L.; Chang, H.-J.; Wu, M.-C. Fabrication of inverted zinc oxide photonic crystal using sol–gel solution by spin coating method. Nanoscale Res. Lett. 2013, 8, 306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Zhuang, L.; Jiang, K.; Zhang, G.; Tang, J.; Lee, S.W.R. O-2 Plasma Treatment in Polymer Insulation Process for Through Silicon Vias. In Proceedings of the 2014 15th International Conference on Electronic Packaging Technology (ICEPT), Chengdu, China, 12–15 August 2014. [Google Scholar]
  36. Tho, S.Y.; Ibrahim, K.; Kamarulazizi, B.I. Plasma Pre-Treatment of Polyethylene Terephthalate Substrate Influence on the Properties of ZnO Thin Film. Adv. Mater. Res. 2014, 895, 41–44. [Google Scholar] [CrossRef]
  37. Park, J.H.; Yoo, Y.B.; Lee, K.H.; Jang, W.S.; Oh, J.Y.; Chae, S.S.; Lee, H.W.; Han, S.W.; Baik, H.K. Boron-Doped Peroxo-Zirconium Oxide Dielectric for High-Performance, Low-Temperature, Solution-Processed Indium Oxide Thin-Film Transistor. ACS Appl. Mater. Interfaces 2013, 5, 8067–8075. [Google Scholar] [CrossRef]
  38. Park, J.H.; Kim, K.; Yoo, Y.B.; Park, S.Y.; Lim, K.-H.; Lee, K.H.; Baik, H.K.; Kim, Y.S. Water adsorption effects of nitrate ion coordinated Al2O3 dielectric for high performance metal-oxide thin-film transistor. J. Mater. Chem. C 2013, 1, 7166–7174. [Google Scholar] [CrossRef]
  39. Jiang, S.; Zhang, Q.; Li, Y.; Zhang, Y.; Sun, X.; Jiang, B. Structural characteristics of SrTiO3 thin films processed by rapid thermal annealing. J. Cryst. Growth 2005, 274, 500–505. [Google Scholar] [CrossRef]
  40. Choi, C.-H.; Han, S.-Y.; Su, Y.-W.; Fang, Z.; Lin, L.-Y.; Cheng, C.-C.; Chang, C.-H. Fabrication of high-performance, low-temperature solution processed amorphous indium oxide thin-film transistors using a volatile nitrate precursor. J. Mater. Chem. C 2014, 3, 854–860. [Google Scholar] [CrossRef]
  41. Kang, D.; Lim, H.; Kim, C.; Song, I.; Park, J.; Park, Y.; Chung, J. Amorphous gallium indium zinc oxide thin film transistors: Sensitive to oxygen molecules. Appl. Phys. Lett. 2007, 90, 192101. [Google Scholar] [CrossRef]
Micromachines 12 00111 g001 550

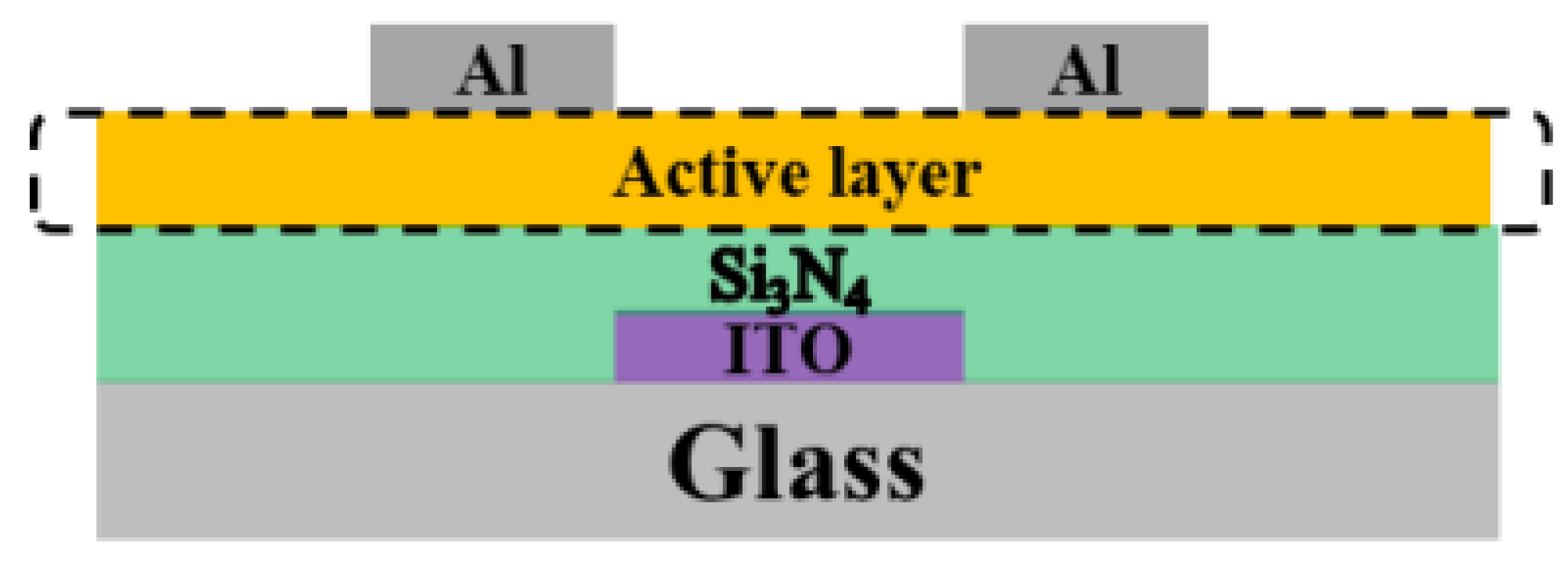

Figure 1. Schematic of indium oxide thin film transistors (In2O3-TFTs).
Figure 1. Schematic of indium oxide thin film transistors (In2O3-TFTs).
Micromachines 12 00111 g001
Micromachines 12 00111 g002 550
Figure 2. Spreading situation of precursor solution: (a) without plasma surface treatment; (b) with plasma surface treatment.
Figure 2. Spreading situation of precursor solution: (a) without plasma surface treatment; (b) with plasma surface treatment.
Micromachines 12 00111 g002
Micromachines 12 00111 g003 550

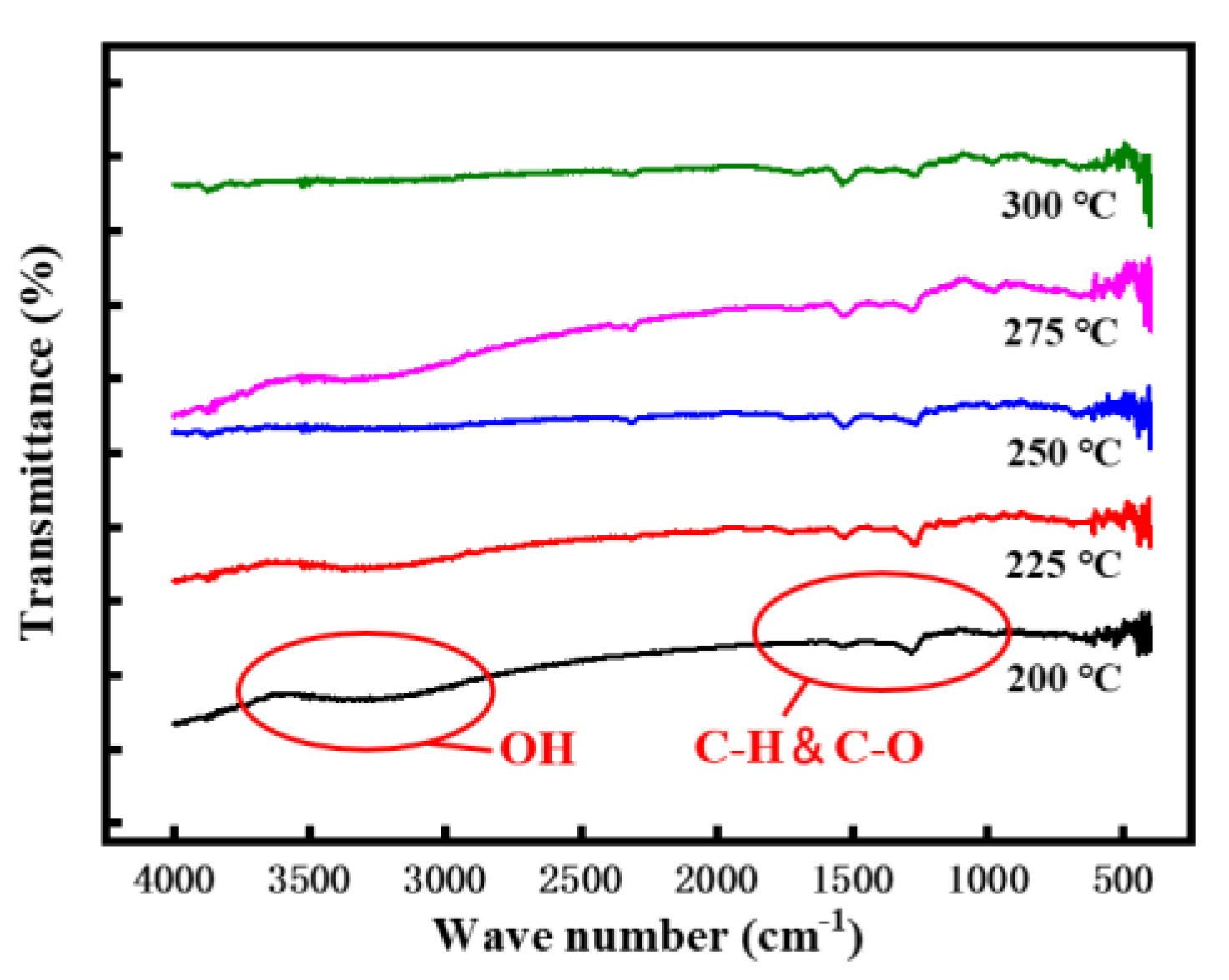

Figure 3. Fourier transform infrared (FT-IR) spectroscopy curves of In2O3 thin films annealed at different temperatures.
Figure 3. Fourier transform infrared (FT-IR) spectroscopy curves of In2O3 thin films annealed at different temperatures.
Micromachines 12 00111 g003
Micromachines 12 00111 g004 550

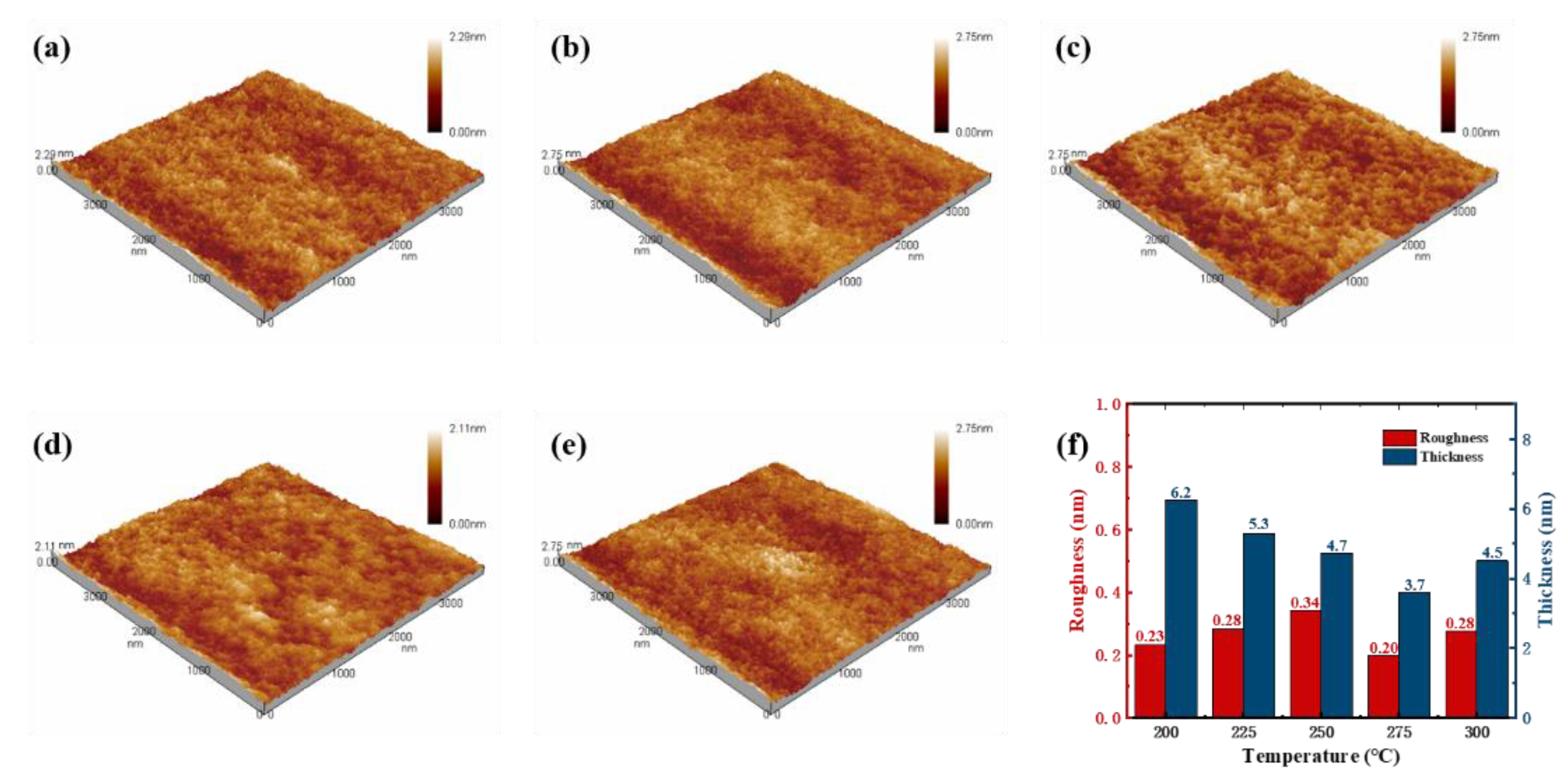

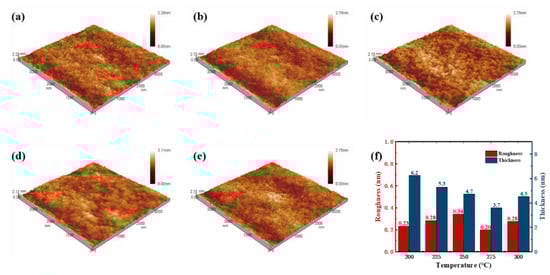

Figure 4. Atomic force microscopy (AFM) 3D images (4.0 × 4.0 µm2) of In2O3 thin films annealed at different temperatures: (a) 200 °C, (b) 225 °C, (c) 250 °C, (d) 275 °C, (e) 300 °C, respectively. (f) The surface roughness and thickness of these films.
Figure 4. Atomic force microscopy (AFM) 3D images (4.0 × 4.0 µm2) of In2O3 thin films annealed at different temperatures: (a) 200 °C, (b) 225 °C, (c) 250 °C, (d) 275 °C, (e) 300 °C, respectively. (f) The surface roughness and thickness of these films.
Micromachines 12 00111 g004
Micromachines 12 00111 g005 550

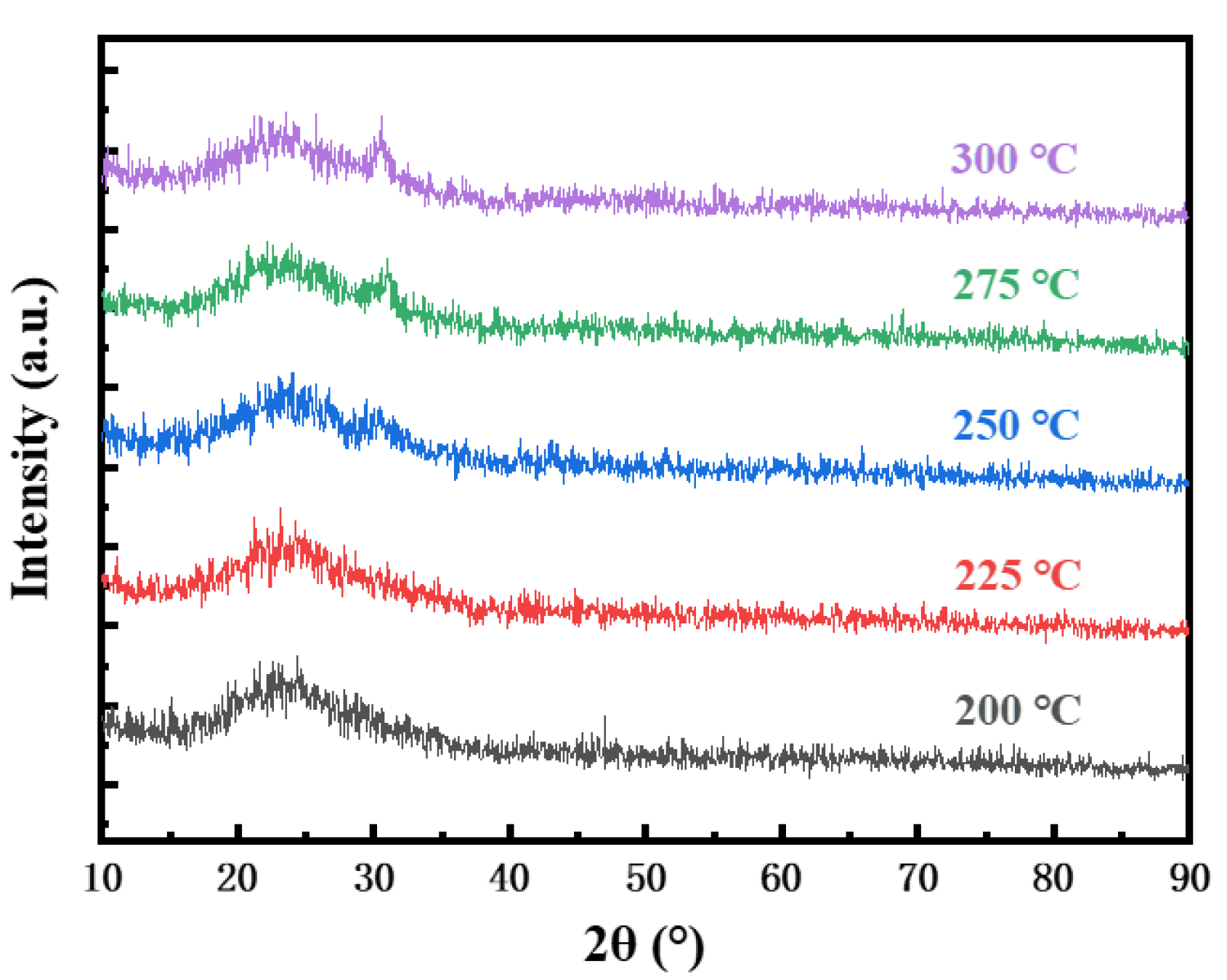

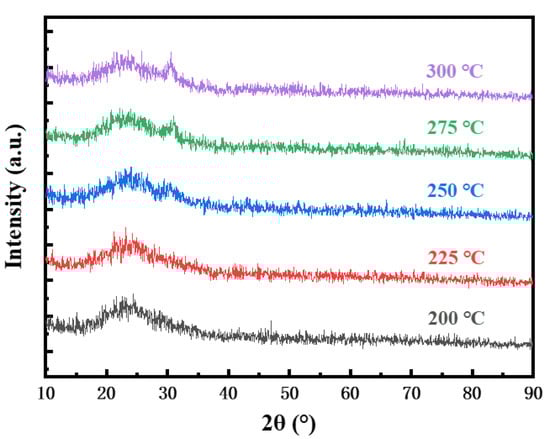

Figure 5. X-ray diffraction (XRD) curves of In2O3 annealed at different temperatures.
Figure 5. X-ray diffraction (XRD) curves of In2O3 annealed at different temperatures.
Micromachines 12 00111 g005
Micromachines 12 00111 g006 550

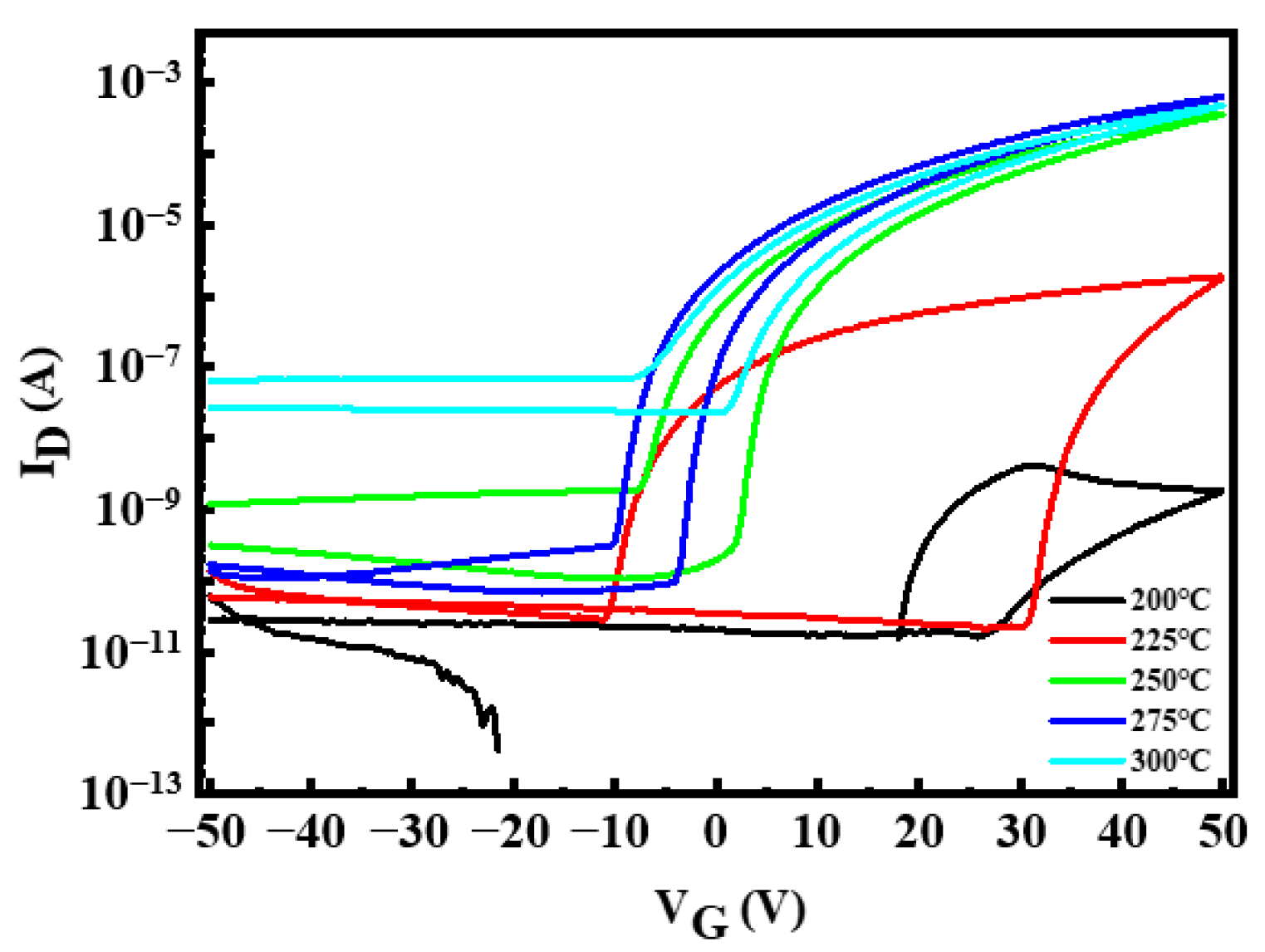

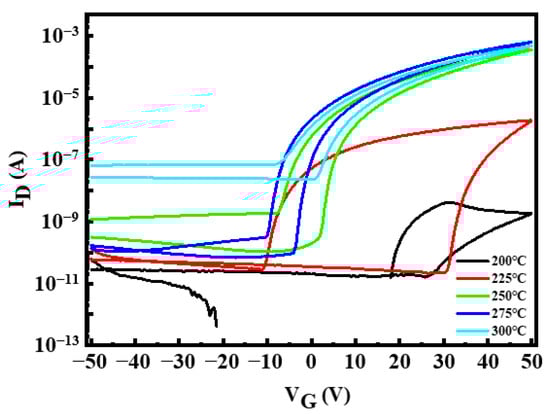

Figure 6. Transfer current-voltage (I-V) characteristics of In2O3-TFTs at different annealing temperature.
Figure 6. Transfer current-voltage (I-V) characteristics of In2O3-TFTs at different annealing temperature.
Micromachines 12 00111 g006
Micromachines 12 00111 g007 550

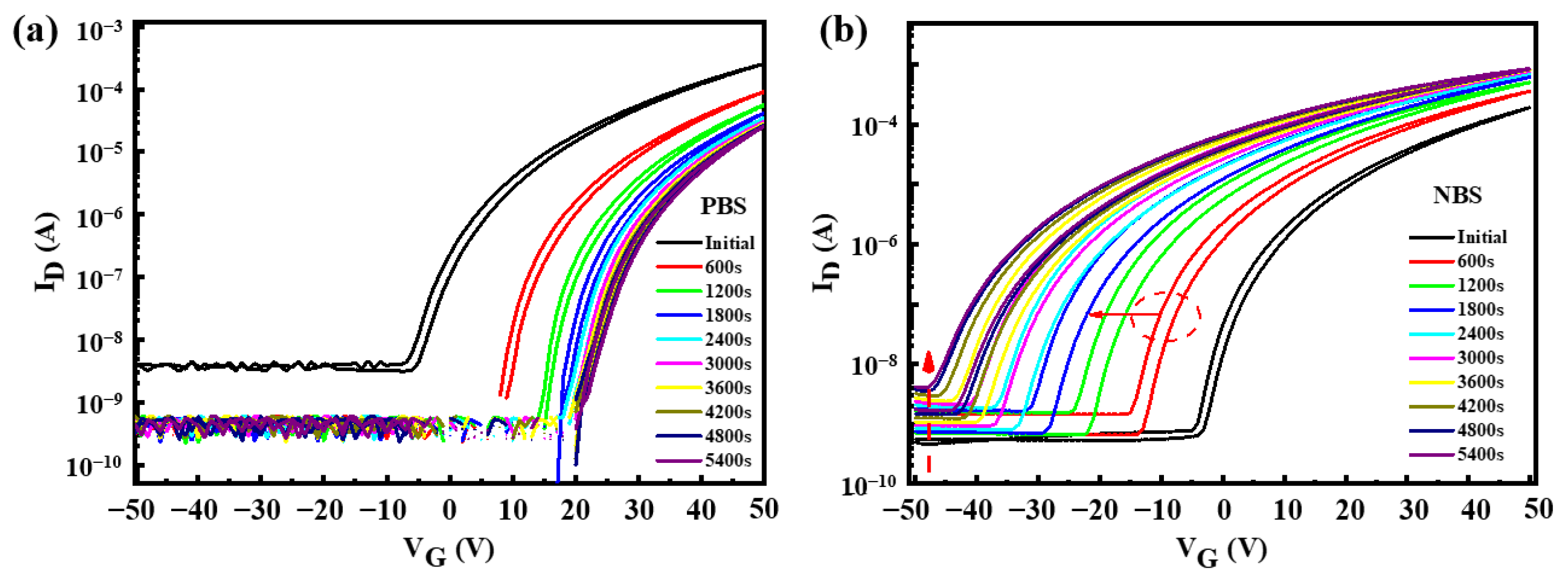

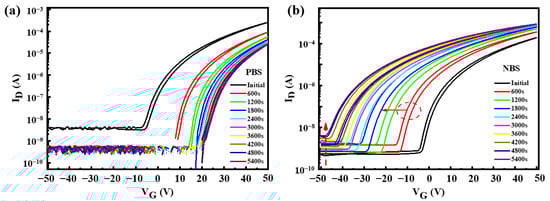

Figure 7. Transfer curves of In2O3-TFT annealed at 275 °C under (a) positive gate bias stress (PBS) and (b) negative gate bias stress (NBS). Measurement conditions: VDS = 20 V at room temperature.
Figure 7. Transfer curves of In2O3-TFT annealed at 275 °C under (a) positive gate bias stress (PBS) and (b) negative gate bias stress (NBS). Measurement conditions: VDS = 20 V at room temperature.
Micromachines 12 00111 g007
Micromachines 12 00111 g008 550

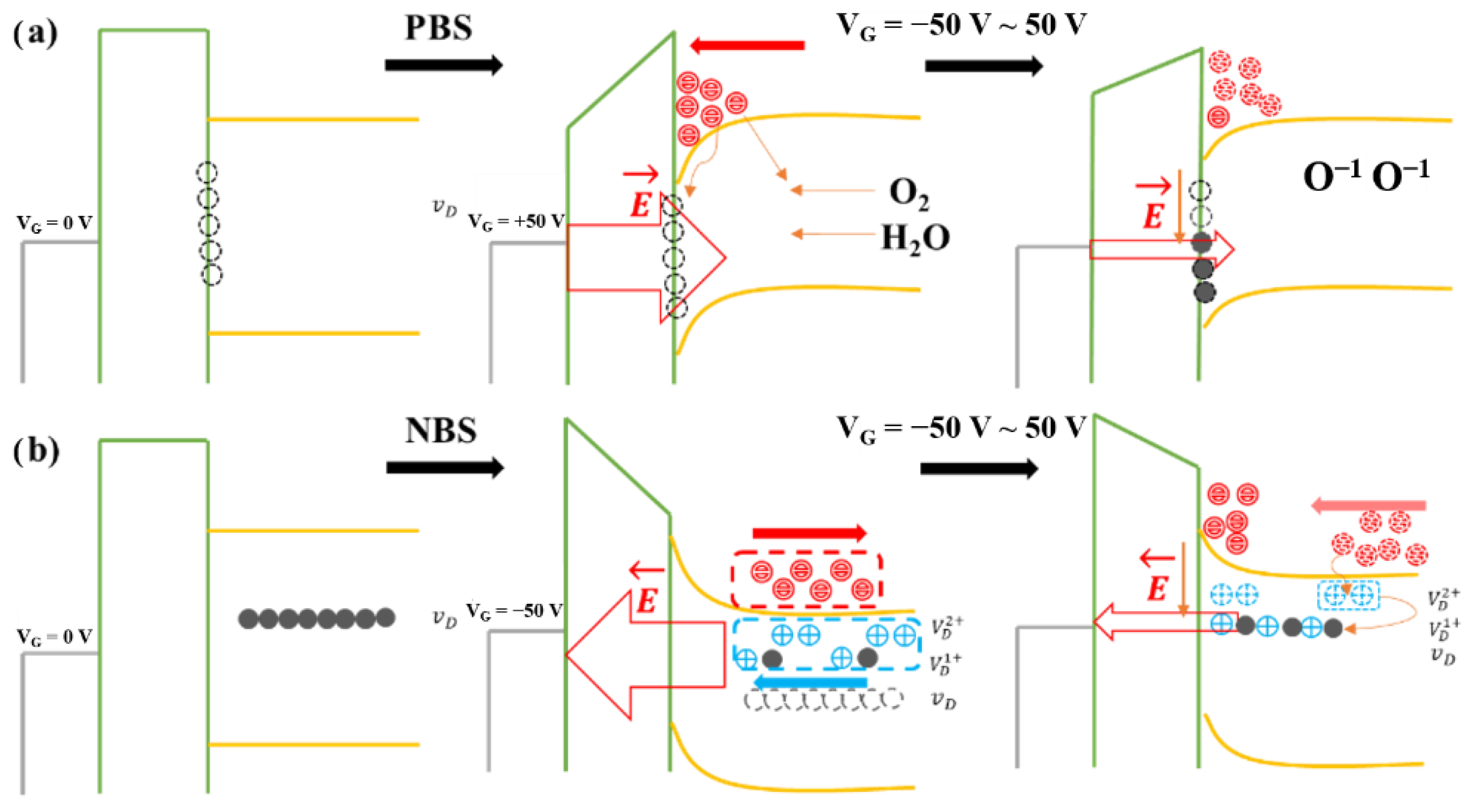

Figure 8. Plot of how about the energy band and carriers of In2O3-TFTs changing with the electric field under the (a) PBS and (b) NBS.
Figure 8. Plot of how about the energy band and carriers of In2O3-TFTs changing with the electric field under the (a) PBS and (b) NBS.
Micromachines 12 00111 g008
Table
Table 1. Properties of In2O3-TFTs at different annealing temperature.
Table 1. Properties of In2O3-TFTs at different annealing temperature.
Temperature (°C)Vth (V)Ion/Ioffμsat (cm2·V−1·s−1)SS (V·dec−1)
200-2.83 × 102--
22539.676.70 × 104--
2506.463.00 × 1050.8371.77
2750.845.93 × 1061.2881.03
300–2.937.27 × 1031.0992.69
