Exploring the Effect of a MnO2 Coating on the Electrochemical Performance of a Li1.2Mn0.54Ni0.13Co0.13O2 Cathode Material

by
Zhong Li
*,
Peiyue Yang
,
Zhongxiang Zheng
,
Qiyun Pan
,
Yisi Liu
,
Yao Li
and
Jinnan Xuan
Institute for Advanced Materials, Hubei Normal University, Huangshi 435002, China
*
Author to whom correspondence should be addressed.
Micromachines 2021, 12(11), 1410; https://doi.org/10.3390/mi12111410
Submission received: 31 October 2021 / Revised: 14 November 2021 / Accepted: 15 November 2021 / Published: 17 November 2021
(This article belongs to the Section E：Engineering and Technology)
Browse Figures
Versions Notes

Abstract

:
The effect of electrochemically active MnO2 as a coating material on the electrochemical properties of a Li1.2Mn0.54Ni0.13Co0.13O2 (LTMO) cathode material is explored in this article. The structural analysis indicated that the layered structure of the LTMO was unchanged after the modification with MnO2. The morphology inspection demonstrated that the rod-like LTMO particles were encapsulated by a compact coating layer. The MnO2 layer was able to hinder the electrolyte solution from corroding the LTMO particles and optimized the formation of a solid electrolyte interface (SEI). Meanwhile, lithium ions were reversibly inserted into and extracted from MnO2, which afforded an additional capacity. Compared with the bare LTMO, the MnO2-coated sample exhibited enhanced electrochemical performance. After the MnO2 coating, the first discharge capacity rose from 224.2 to 239.1 mAh/g, and the initial irreversible capacity loss declined from 78.2 to 46.0 mAh/g. Meanwhile, the cyclic retention climbed up to 88.2% after 100 cycles at 0.5 C, which was more competitive than that of the bare LTMO with a value of 71.1%. When discharging at a high current density of 2 C, the capacity increased from 100.5 to 136.9 mAh/g after the modification. These investigations may be conducive to the practical application of LTMO in prospective automotive Li-ion batteries.

1. Introduction

Developing high-energy-density secondary batteries to appease the increasing consumption of electronic apparatuses and electric vehicles is the responsibility of battery researchers [1,2]. In the last two decades, Li-rich Mn-based solid-solution cathode materials of nLi2MnO3·(1−n)LiTMO2 (0 < n < 1, TM = Mn, Ni, Co, Mn0.5Ni0.5, Mn0.333Ni0.333Co0.333, etc.) with a layered structure have drawn much attention, which has been ascribed to their outstanding specific capacity [3,4,5]. The nLi2MnO3·(1−n)LiTMO2 materials are made up of a monoclinic Li2MnO3 component (C2/m) and a layered LiTMO2 component (R-3m) [6,7]. Usually, the two-component notation nLi2MnO3·(1−n)LiTMO2 can be denoted as a layered type of Li1+nTM1−nO2 [8]. The cutoff voltage of Li1+nTM1−nO2 is high—up to 4.6–4.8 V—because the Li2MnO3 component must undergo an activation over 4.5 V to generate an extra reversible capacity, enabling Li1+nTM1−nO2 to achieve a much higher specific capacity than that of the LiTMO2 component [4,9].
As one of the most representative types of Li1+nTM1−nO2, Li1.2Mn0.54Ni0.13Co0.13O2 (LTMO, or denoted as 0.5Li2MnO3·0.5LiMn0.333Ni0.333Co0.333O2) can release a competitive capacity of 220–280 mAh/g at 2.0–4.8 V [10,11,12], and it is considered to be one of the preferred cathode materials for prospective automotive Li-ion batteries. However, LTMO still suffers from several shortcomings that limit its practical application [8,9,10,11]. During the first charge, the movement of transition metal ions eliminates oxide ion vacancies generated by the deintercalation of lithium as Li2O in the Li2MnO3 over 4.5 V, which gives rise to a decrease in lithium-ion sites for Li+ to be reinserted during the first discharge [3,13]. The reduced insertion of lithium ions, along with the growth of a thick solid electrolyte interface (SEI) layer caused by the side reaction between the LTMO particles and electrolyte, brings about a large initial irreversible capacity loss for the LTMO [4,6]. Meanwhile, the continuous corrosion of the electrolyte on the LTMO surface at a high cut-off voltage of 4.8 V severely deteriorates the cyclic performance [9,14]. Moreover, the LTMO demonstrates an unsatisfied rate capability, which is ascribed to the poor conductivity for the electrons and lithium ions of the Li2MnO3 component [7,11].
Currently, many approaches have been implemented to upgrade the electrochemical properties of LTMO, including morphology optimization [15,16,17], ion doping [18,19,20,21,22], surface coating [10,11,13,14,23,24,25,26,27,28,29,30,31,32,33,34], and special treatment [35,36,37,38]. Among the above-mentioned strategies, modification of the surface of LTMO particles with inert metal oxides has been testified to remarkably enhance the cyclic performance, such as with ZrO2 [10], TiO2 [25], Al2O3 [23,26], MgO [27], ZnO [28], Pr6O11 [29], and Er2O3 [30]. The above chemically stable metal oxides not only stabilize the interface of LTMO particles, but also act as an effective barrier in order to inhibit the etching by the electrolyte [10,23,25,26,27,28,29,30]. Nevertheless, owing to the electrochemical inertness properties of these metal oxides, the coating layer will reduce the initial specific capacity of LTMO to some extent [10,25,26,27,28,29,30].
MnO2 is a well-known electrochemically active oxide that has been widely applied as an active material for the research fields of supercapacitors [39], electrocatalysis [40], and lithium-ion batteries [41]. Recently, the function of MnO2 has extended to become a surface modification material on cathode materials, such as LiMn2O4 [42], Li3V2(PO4)3 [43], and LiMn0.333Ni0.333Co0.333O2 [44], in order to obtain a better electrochemical performance. Firstly, the stable MnO2 protective layer can hinder the electrolyte from corroding the cathode particles and can optimize the formation of the SEI layer [42,43,44]. Furthermore, lithium ions can be inserted into and extracted from the electrochemically active MnO2 under 3 V, which affords an additional capacity and benefits the Li+ transfer from the interface of the cathode particle to the electrolyte [44].
Inspired by such research, this article explores the impacts of MnO2 as a surface modification material on LTMO particles. The structures and morphologies of LTMO before and after MnO2 modification are thoroughly examined. In addition, the electrochemical properties, such as the specific capacity, initial irreversible capacity loss, cyclic stability, rate capability, and electrochemical impedance spectroscopy, are systematically investigated and discussed.

2. Materials and Methods

2.1. Preparation of Bare LTMO

The bare LTMO cathode material was synthesized as follows: Firstly, stoichiometric amounts of manganese sulfate monohydrate, nickel sulfate hexahydrate, and cobalt sulfate heptahydrate were put into distilled water and stirred continuously to generate a homogeneous solution (1 mol/L). Then, 1 mol/L sodium carbonate solution and 0.3 mol/L ammonium hydroxide were slowly dropped into the above solution. After being stirred at 60 °C for 0.5 h and 30 °C for 12 h, the coprecipitated carbonate precursor was filtered and then rinsed with distilled water. After drying at 80 °C for one day, the filtered powder was thoroughly blended with lithium carbonate, then heated at 500 °C for 5 h and calcined at 900 °C for 15 h in air atmosphere to form LTMO.

2.2. Preparation of MnO2-Coated LTMO

The MnO2-coated LTMO was prepared as follows: Initially, the LTMO was put into the manganese sulfate solution and stirred vigorously for 0.5 h. Then, an aqueous solution of sodium carbonate was dropped slowly into the above suspension to precipitate manganese carbonate. The obtained slurry was filtered and rinsed with distilled water, subsequently dried at 80 °C for 2 days, and then heated at 400 °C for 2 h in air atmosphere to get the MnO2-coated LTMO material with 3 wt % MnO2.

2.3. Material Characterization

The materials were characterized by using X-ray diffraction (XRD, D8-Advance, Bruker, Karlsruhe, Baden-Württemberg, Germany) (2θ degree: 10–70°, operating rate: 4°/min). The particle micro-morphologies were inspected by using field-emission scanning electron microscopy (FESEM, Sirion 200, FEI, Hillsboro, OR, USA), and the elemental distribution was probed with energy-dispersive spectroscopy (EDS, SU8010, HITACHI, Tokyo, Japan). The specific amounts of transition metal ions were determined by using inductively coupled plasma atomic emission spectrometry (ICP-AES, Optima 7000 DV, PerkinElmer, Waltham, MA, USA). The MnO2 coating layer on the LTMO particles was surveyed by using transmission electron microscopy (TEM, Philips CM12, Philips, Amsterdam, Noord-Holland, Netherlands).

2.4. Electrochemical Evaluations

CR2016 coin cells were fabricated to evaluate the electrochemical properties. To prepare the LTMO (bare and MnO2-coated) electrodes, active cathode powder (85 wt %), conductive carbon (10 wt %), and polytetrafluoroethylene (PTFE) (5 wt %) were mixed and continuously rolled to obtain a thin sheet. Subsequently, the thin sheet was separated into several circular films and dried at 120 °C in a vacuum to produce the electrodes. The diameter and mass loading of the LTMO (bare and MnO2-coated) electrodes were 8 mm and 5~6 mg/cm2. The cells were fabricated with the electrodes, metallic lithium sheet, separator (Celgard 2400), and carbonate-based electrolyte (1 mol/L LiPF6 in the solvents consisting of ethylene carbonate and dimethyl carbonate with the volume ratio of 1:1) under an argon atmosphere. The galvanostatic charge/discharge evaluations were implemented at ambient temperature on an electrochemical test system (CT2001A, Wuhan Land) at 2.0–4.8 V with various current densities (1 C = 250 mA/g). Electrochemical impedance spectroscopy (EIS) was assessed by utilizing a CorrTest electrochemical workstation (frequency: 100,000–0.01 Hz, amplitude: 10 mV).

3. Results and Discussion

3.1. Structures of Bare and MnO2-Coated LTMO

The XRD results for the bare and MnO2-coated LTMO are exhibited in Figure 1. All of the diffraction peaks (excluding the peaks from 20° to 25°) of both samples belonged to the layered LiMn0.333Ni0.333Co0.333O2 component with a hexagonal α-NaFeO2 structure (R-3m) [13]. The weak peaks (020) and (110) located at the degree of 20–25° indicate the existence of the monoclinic Li2MnO3 component (C2/m) [27]. The (006)/(012) and (018)/(110) peaks displayed obvious separation in the bare and MnO2-coated LTMO, proving the excellence of the layered structure [15,20].
The lattice parameters of the bare and MnO2-coated LTMO from XRD patterns are presented in Table 1. Since the ion radii of Ni+ and Li+ were very close, cation mixing may have occurred in the preparation process of the materials. If the values of c/a and I(003)/I(104) of 4.96 and 1.2 cannot be achieved, this implies that partial cation mixing exists in a material [16]. Notably, the c/a and I(003)/I(104) of both materials demonstrated values higher than 4.99 and 2.2, respectively, indicating the low degree of cation mixing for the bare and MnO2-coated LTMO. Furthermore, no distinct XRD peaks were indexed to MnO2 in the MnO2-coated LTMO, which may have been caused by the low amount and poor crystallinity of MnO2 [42,43,44]. The XRD results illustrate that the MnO2 coating did not damage the lattice structure of the LTMO.

3.2. Microscopic Morphologies of Bare and MnO2-Coated LTMO

The field-emission scanning electron microscopy (FESEM) images of the LTMO particles before and after the MnO2 modification are shown in Figure 2 with different magnifications. The images in Figure 2a,c show that both samples comprised well-crystallized particles, and the particles presented a rod-like morphology with lengths in the range of 300–1000 nm. The bare LTMO particles all displayed clean and smooth surfaces at high magnification (Figure 2b). In contrast, the MnO2-coated LTMO particles exhibited ambiguous and rough surfaces, which were ascribed to the coarse coating layer (Figure 2d).
The elemental distributions of Mn, Ni, and Co in the bare and MnO2-coated LTMO particles are shown in Figure 3. For both samples, the transition metal elements were uniformly dispersed in the particles. Moreover, the ICP-AES test was applied to examine the elemental composition of transition metal ions in the two samples, and the measured values are presented in Table 2. The atomic ratio in the bare LTMO was almost identical to the theoretical stoichiometric ratio of Mn, Ni, and Co (0.54:0.13:0.13). It should be noted that the content of the Mn element in the MnO2-coated LTMO was 3.327%, which was higher than in the bare simple. This result originated from the added MnO2 coating layer and was very close to the designed amount of the coated Mn element (3 wt %) in this article.
Figure 4 demonstrates TEM images of the bare and MnO2-coated LTMO particles. Compared to the smooth surface appearing in the bare sample at high magnification (Figure 4b), it can be seen that the MnO2-coated LTMO in Figure 4d was coated with a compact and distinguishable layer with a thickness from 10 to 50 nm. The compact coated layer was able to encapsulate the LTMO particles to constrain the side reaction and erosion caused by the electrolyte [42,43,44].

3.3. The Electrochemical Characteristics of Bare and MnO2-Coated LTMO at 0.05 C

Figure 5 displays the electrochemical characteristics of the bare and MnO2-coated LTMO at 0.05 C for the first two cycles. The first charge curve shows no evident change after MnO2 coating. Both curves have an inclined plateau at less than 4.5 V and a gentle plateau over 4.5 V (Figure 5a,b), which always appears in LTMO [3,4]. The inclined voltage plateau is derived from the variations of Ni2+ to Ni4+, as well as Co3+ to Co4+, in the LiMn0.333Ni0.333Co0.333O2 component [31]. The gentle plateau emerged only in the first charge process, reflecting the activation of the Li2MnO3 component, and was accompanied by the removal of Li2O [3,7,13,17]. As for the first discharge curves, the MnO2-coated LTMO exhibited a small potential plateau around 2.8 V, but not in the bare sample. Meanwhile, an additional corresponding charge plateau around 2.9 V occurred in the second charge curve for only the MnO2-coated sample.
The dQ/dV profiles for the first two cycles of the LTMO before and after MnO2 coating are depicted in Figure 5c,d. For the dQ/dV profiles of the bare and MnO2-coated LTMO during the initial charge, the anodic peak at 4.0 V was correlated to the inclined plateau in the charge curve (Figure 5a,b), and another peak at 4.5 V was associated with the gentle plateau. Moreover, a cathodic peak at 2.8 V and an anodic peak at 2.9 V appeared in the dQ/dV profiles of the MnO2-coated LTMO (Figure 5d), while these two peaks could not be found for the bare sample (Figure 5c), which is in keeping with the information in Figure 5a,b. According to the previous literature [44], these phenomena could stem from the insertion of Li+ into the coated MnO2 in the first discharge process and reversible extraction in the following charge process. The results prove that the MnO2 layer with electrochemical activity was well coated on the surface of the LTMO.
The charge and discharge capacities of the bare LTMO were 302.4 and 224.2 mAh/g, respectively (Figure 5a). In contrast, although the charge capacity of the MnO2-coated LTMO decreased to 285.1 mAh/g, the discharge capacity climbed up to 239.1 mAh/g (Figure 5b). Consequently, after surface coating, the irreversible capacity loss fell from 78.2 to 46.0 mAh/g, while the coulombic efficiency rose from 74.1% to 83.9%. The electrochemical redox process of the MnO2 coating layer could be partially responsible for the enhanced first discharge capacity and the reduced initial irreversible capacity loss. Furthermore, the growth of the SEI was reduced, which was ascribed to the repression of the side reaction between the LTMO particles and electrolyte by the MnO2 modification, which can be another benefit for the promoted electrochemical performance [42,43,44].

3.4. The Cyclic Performance of Bare and MnO2-Coated LTMO

Figure 6 displays the cyclic performance of the bare and MnO2-coated LTMO at 0.5 C for 100 cycles after an activation process at 0.05 C for two cycles. The cyclic performance at 0.5 C of the LTMO cathode was remarkably enhanced after the MnO2 coating (Figure 6a). Specifically, the bare LTMO delivered 145.6 and 103.5 mAh/g for the first and 100th cycles, and the corresponding retention was 71.1%. In contrast, the MnO2-coated LTMO released a higher capacity of 181.5 mAh/g at the first cycle and retained 160.1 mAh/g at the end with a retention rate of 88.2%. In addition, the MnO2-coated sample exhibited less polarization compared to the bare one as the cycle proceeded (Figure 6b,c). Since MnO2 can hinder the direct contact between the LTMO particles and the electrolyte [42,43,44], the superior cyclic stability after the surface coating was due to the inhibition of electrolyte corrosion on the surface of LTMO at high potential. Similarly to the metal oxides reported in previous studies (Table 3), MnO2 can evidently improve the electrochemical performance of LTMO, and especially has the advantage of reducing the initial irreversible capacity loss.

3.5. The Rate Capabilities of Bare and MnO2-Coated LTMO

The bare and MnO2-coated LTMO were successively tested at 0.05, 0.5, 1, 2, and 0.5 C to evaluate their rate capabilities. As exhibited in Figure 7a, the MnO2-coated LTMO delivered an elevated capacity in comparison with the bare sample at all C rates. Moreover, as the C rate increased, the discharge midpoint voltage difference between the MnO2-coated LTMO and the bare LTMO showed an upward tendency (Figure 7b), and the discharge curves of the bare sample (Figure 7c) exhibited more polarization compared to the MnO2-coated sample (Figure 7d). The detailed discharge capacities of the bare LTMO at 0.05, 0.5, 1, and 2 C were 221.7, 143.7, 125.0, and 100.5 mAh/g, respectively. In contrast, the MnO2-coated LTMO was able to deliver improved capacities of 242.8, 178.3, 161.8, and 136.9 mAh/g under identical test conditions.

3.6. The EIS Measurements of Bare and MnO2-Coated LTMO

To seek the origin of the enhanced electrochemical properties, EIS experiments were conducted on the bare and MnO2-coated LTMO. Before the EIS tests, both the bare and MnO2-coated samples were charged to 4.6 V after 40 cycles at 0.5 C to achieve an identical status. Figure 8 demonstrates the obtained and fitted Nyquist plots, as well as the equivalent circuit. Similarly, the EIS spectra of the bare and MnO2-coated LTMO exhibited a pair of well-defined semicircles and a short, straight line that rose slowly. The intersection between the left side of the initial semicircle and the x-axis reflects the total ohmic resistance (Rs) [45]. The initial semicircle in the high frequency reflects the impedance (Rsf) for Li+ transmission through the interfacial film (SEI layer) of the cathode particle, and the subsequent semicircle in intermediate frequency indicates the resistance of the charge transfer reaction (Rct). The short line in the low frequency is relevant with the Warburg impedance (Zw), which reflects Li+ diffusion inside the cathode particles [28,46].
The fitted values of Rs, Rsf, and Rct are listed in Table 4. Rs, which contains the impedance of the two electrodes, separator, and electrolyte, showed close values for the two samples. Nonetheless, the values of Rsf and Rct for the MnO2-coated sample were 39.7 and 167.8 Ω, exhibiting values that remarkably declined compared to those of the bare one (94.5 and 422.6 Ω). The side reaction occurring on the cathode surface with the electrolyte was significantly impaired after the MnO2 modification, leading to a decrease in Rsf [42]. Furthermore, the electrochemically active MnO2 coating layer was conducive to Li+ transport [43,44], together with the reduced Rsf, which accounted for the decrease in Rct for the coated sample. The EIS results demonstrate that the coated MnO2 was able to accelerate the transmission kinetics of Li+ through the interfacial film and sped up the charge transfer reaction, revealing the origin of the superior electrochemical performance of the MnO2-coated LTMO.

4. Conclusions

In summary, a Li-rich layered cathode material, LTMO, was prepared and then successfully coated with MnO2. Firstly, the MnO2 coating layer can inhibit the electrolyte from corroding the LTMO surface and can optimize the formation of SEI. Moreover, lithium ions are reversibly inserted into/extracted from MnO2, which affords an additional capacity. Compared with the bare LTMO, the MnO2-coated sample displayed a better first discharge capacity, lower initial irreversible capacity loss, superior cyclic performance, and promoted rate capability. After the MnO2 coating, the first discharge capacity rose from 224.2 to 239.1 mAh/g, and the initial irreversible capacity loss fell from 78.2 to 46.0 mAh/g. Furthermore, the MnO2-coated LTMO delivered a cyclic retention of 88.2% after 100 cycles at 0.5 C, which is more competitive than that of the bare LTMO with a value of 71.1%. At a high current density of 2 C, the discharge capacity increased from 100.5 to 136.9 mAh/g after the modification with MnO2. The EIS results illustrate that the electrochemically active MnO2 can enhance the transmission kinetics of lithium ions through the interfacial film and can speed up the charge transfer reaction. Therefore, MnO2 should be a beneficial surface modification material for promoting the electrochemical properties of LTMO.

Author Contributions

Conceptualization, Z.L.; methodology, Z.L.; software, P.Y. and Z.Z.; validation, Z.L.; formal analysis, Z.L.; investigation, Z.L. and P.Y.; resources, Z.L. and Q.P.; data curation, Z.L.; writing—original draft preparation, Z.L. and P.Y.; writing—review and editing, Z.L.; visualization, P.Y.; supervision, Q.P.; project administration, Z.L., Y.L. (Yao Li), and J.X.; funding acquisition, Z.L., Q.P., and Y.L. (Yisi Liu) All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (No. 52007054, 51901074, 22008058), Hubei Provincial Natural Science Foundation of China (No. 2020CFB472), and Research Project of Hubei Provincial Department of Education (No. B2020131).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Niu, C.; Liu, D.; Lochala, J.A.; Anderson, C.S.; Cao, X.; Gross, M.E.; Xu, W.; Zhang, J.-G.; Whittingham, M.S.; Xiao, J.; et al. Balancing interfacial reactions to achieve long cycle life in high-energy lithium metal batteries. Nat. Energy 2021, 6, 723–732. [Google Scholar] [CrossRef]
  2. Ryu, H.-H.; Sun, H.H.; Myung, S.-T.; Yoon, C.S.; Sun, Y.-K. Reducing cobalt from lithium-ion batteries for the electric vehicle era. Energy Environ. Sci. 2021, 14, 844–852. [Google Scholar] [CrossRef]
  3. Lei, Y.; Ni, J.; Hu, Z.; Wang, Z.; Gui, F.; Li, B.; Ming, P.; Zhang, C.; Elias, Y.; Aurbach, D.; et al. Surface Modification of Li-Rich Mn-Based Layered Oxide Cathodes: Challenges, Materials, Methods, and Characterization. Adv. Energy Mater. 2020, 10, 2002506. [Google Scholar] [CrossRef]
  4. Li, Y.; Li, Z.; Chen, C.; Yang, K.; Cao, B.; Xu, S.; Yang, N.; Zhao, W.; Chen, H.; Zhang, M.; et al. Recent progress in Li and Mn rich layered oxide cathodes for Li-ion batteries. J. Energy Chem. 2021, 61, 368–385. [Google Scholar] [CrossRef]
  5. Kim, S.; Kim, C.; Noh, J.-K.; Yu, S.; Kim, S.-J.; Chang, W.; Choi, W.C.; Chung, K.Y.; Cho, B.-W. Synthesis of layered–layered xLi2MnO3·(1−x)LiMO2 (M = Mn, Ni, Co) nanocomposite electrodes materials by mechanochemical process. J. Power Sources 2012, 220, 422–429. [Google Scholar] [CrossRef]
  6. He, L.; Xu, J.; Han, T.; Han, H.; Wang, Y.; Yang, J.; Wang, J.; Zhu, W.; Zhang, C.; Zhang, Y. SmPO4-coated Li1.2Mn0.54Ni0.13Co0.13O2 as a cathode material with enhanced cycling stability for lithium ion batteries. Ceram. Int. 2017, 43, 5267–5273. [Google Scholar] [CrossRef]
  7. He, W.; Guo, W.; Wu, H.; Lin, L.; Liu, Q.; Han, X.; Xie, Q.; Liu, P.; Zheng, H.; Wang, L.; et al. Challenges and Recent Advances in High Capacity Li-Rich Cathode Materials for High Energy Density Lithium-Ion Batteries. Adv. Mater. 2021, 2005937. [Google Scholar] [CrossRef]
  8. Xu, G.; Li, J.; Xue, Q.; Dai, Y.; Zhou, H.; Wang, X.; Kang, F. Elevated electrochemical performance of (NH4)3AlF6-coated 0.5Li2MnO3·0.5LiNi1/3Co1/3Mn1/3O2 cathode material via a novel wet coating method. Electrochim. Acta 2014, 117, 41–47. [Google Scholar] [CrossRef]
  9. Zheng, J.; Myeong, S.; Cho, W.; Yan, P.; Xiao, J.; Wang, C.; Cho, J.; Zhang, J.G. Li- and Mn-Rich Cathode Materials: Challenges to Commercialization. Adv. Energy Mater. 2016, 7, 1601284. [Google Scholar] [CrossRef]
  10. Wang, Z.; Liu, E.; Guo, L.; Shi, C.; He, C.; Li, J.; Zhao, N. Cycle performance improvement of Li-rich layered cathode material Li[Li0.2Mn0.54Ni0.13Co0.13]O2 by ZrO2 coating. Surf. Coat. Technol. 2013, 235, 570–576. [Google Scholar] [CrossRef]
  11. Zhou, L.; Wu, Y.; Huang, J.; Fang, X.; Wang, T.; Liu, W.; Wang, Y.; Jin, Y.; Tang, X. Enhanced electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2 cathode material coated with Li+-conductive Li2SiO3 for lithium ion batteries. J. Alloys Compd. 2017, 724, 991–999. [Google Scholar] [CrossRef]
  12. Yabuuchi, N.; Yoshii, K.; Myung, S.T.; Nakai, I.; Komaba, S. Detailed studies of a high-capacity electrode material for rechargeable batteries, Li2MnO3-LiCo1/3Ni1/3Mn1/3O2. J. Am. Chem. Soc. 2011, 133, 4404–4419. [Google Scholar] [CrossRef]
  13. Xiao, Z.; Meng, J.; Li, Q.; Wang, X.; Huang, M.; Liu, Z.; Han, C.; Mai, L. Novel MOF shell-derived surface modification of Li-rich layered oxide cathode for enhanced lithium storage. Sci. Bull. 2018, 63, 46–53. [Google Scholar] [CrossRef] [Green Version]
  14. Ding, F.; Li, J.; Deng, F.; Xu, G.; Liu, Y.; Yang, K.; Kang, F. Surface Heterostructure Induced by PrPO4 Modification in Li1.2[Mn0.54Ni0.13Co0.13]O2 Cathode Material for High-Performance Lithium-Ion Batteries with Mitigating Voltage Decay. ACS Appl. Mater. Interfaces 2017, 9, 27936–27945. [Google Scholar] [CrossRef] [PubMed]
  15. Ma, D.; Li, Y.; Zhang, P.; Cooper, A.J.; Abdelkader, A.M.; Ren, X.; Deng, L. Mesoporous Li1.2Mn0.54Ni0.13Co0.13O2 nanotubes for high-performance cathodes in Li-ion batteries. J. Power Sources 2016, 311, 35–41. [Google Scholar] [CrossRef]
  16. Lou, M.; Zhong, H.; Yu, H.-T.; Fan, S.-S.; Xie, Y.; Yi, T.-F. Li1.2Mn0.54Ni0.13Co0.13O2 hollow hierarchical microspheres with enhanced electrochemical performances as cathode material for lithium-ion battery application. Electrochim. Acta 2017, 237, 217–226. [Google Scholar] [CrossRef]
  17. Deng, B.; Lin, Z.; Chen, Y.; He, W.; Wang, J.; Xie, Q.; Wang, L.; Peng, D.-L. Preparation of porous Li1.2Mn0.54Ni0.13Co0.13O2 micro-cubes for high-capacity lithium-ion batteries. J. Alloys Compd. 2020, 834, 155152. [Google Scholar] [CrossRef]
  18. Lou, M.; Fan, S.-S.; Yu, H.-T.; Xie, Y.; Zhang, Q.; Zhu, Y.-R.; Yi, T.-F.; Tian, G.-H. Mg-doped Li1.2Mn0.54Ni0.13Co0.13O2 nano flakes with improved electrochemical performance for lithium-ion battery application. J. Alloys Compd. 2018, 739, 607–615. [Google Scholar] [CrossRef]
  19. Li, H.; Jian, Z.; Yang, P.; Li, J.; Xing, Y.; Zhang, S. Niobium doping of Li1.2Mn0.54Ni0.13Co0.13O2 cathode materials with enhanced structural stability and electrochemical performance. Ceram. Int. 2020, 46, 23773–23779. [Google Scholar] [CrossRef]
  20. Xu, L.; Meng, J.; Yang, P.; Xu, H.; Zhang, S. Cesium-doped layered Li1.2Mn0.54Ni0.13Co0.13O2 cathodes with enhanced electrochemical performance. Solid State Ion. 2021, 361, 115551. [Google Scholar] [CrossRef]
  21. Jafta, C.J.; Ozoemena, K.I.; Mathe, M.K.; Roos, W.D. Synthesis, characterisation and electrochemical intercalation kinetics of nanostructured aluminium-doped Li[Li0.2Mn0.54Ni0.13Co0.13]O2 cathode material for lithium ion battery. Electrochim. Acta 2012, 85, 411–422. [Google Scholar] [CrossRef]
  22. Ghorbanzadeh, M.; Allahyari, E.; Riahifar, R.; Hadavi, S.M.M. Effect of Al and Zr co-doping on electrochemical performance of cathode Li[Li0.2Ni0.13Co0.13Mn0.54]O2 for Li-ion battery. J. Solid State Electrochem. 2017, 22, 1155–1163. [Google Scholar] [CrossRef]
  23. Wu, Y.; Manthiram, A. High Capacity, Surface-Modified Layered Li[Li(1−x)/3Mn(2−x)/3Nix/3Cox/3]O2 Cathodes with Low Irreversible Capacity Loss. Electrochem. Solid-State Lett. 2006, 9, A221–A224. [Google Scholar] [CrossRef]
  24. Şahan, H.; Göktepe, H.; Patat, Ş.; Yıldız, S.; Özdemir, B.; Ülgen, A.; Mukerjee, S.; Abraham, K.M. Effect of silver coating on electrochemical performance of 0.5Li2MnO3.0.5 LiMn1/3Ni1/3Co1/3O2 cathode material for lithium-ion batteries. J. Solid State Electrochem. 2019, 23, 1593–1604. [Google Scholar] [CrossRef]
  25. Zheng, J.M.; Li, J.; Zhang, Z.R.; Guo, X.J.; Yang, Y. The effects of TiO2 coating on the electrochemical performance of Li[Li0.2Mn0.54Ni0.13Co0.13]O2 cathode material for lithium-ion battery. Solid State Ion. 2008, 179, 1794–1799. [Google Scholar] [CrossRef]
  26. Wu, Y.; Ming, J.; Zhuo, L.; Yu, Y.; Zhao, F. Simultaneous surface coating and chemical activation of the Li-rich solid solution lithium rechargeable cathode and its improved performance. Electrochim. Acta 2013, 113, 54–62. [Google Scholar] [CrossRef]
  27. Shi, S.J.; Tu, J.P.; Tang, Y.Y.; Liu, X.Y.; Zhang, Y.Q.; Wang, X.L.; Gu, C.D. Enhanced cycling stability of Li[Li0.2Mn0.54Ni0.13Co0.13]O2 by surface modification of MgO with melting impregnation method. Electrochim. Acta 2013, 88, 671–679. [Google Scholar] [CrossRef]
  28. Kong, J.-Z.; Zhai, H.-F.; Qian, X.; Wang, M.; Wang, Q.-Z.; Li, A.-D.; Li, H.; Zhou, F. Improved electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2 cathode material coated with ultrathin ZnO. J. Alloys Compd. 2017, 694, 848–856. [Google Scholar] [CrossRef]
  29. Li, J.; Li, J.; Yu, T.; Ding, F.; Xu, G.; Li, Z.; Zhao, Y.; Kang, F. Stabilizing the structure and suppressing the voltage decay of Li[Li0.2Mn0.54Co0.13Ni0.13]O2 cathode materials for Li-ion batteries via multifunctional Pr oxide surface modification. Ceram. Int. 2016, 42, 18620–18630. [Google Scholar] [CrossRef]
  30. Zhang, S.; Gu, H.; Tang, T.; Du, W.; Gao, M.; Liu, Y.; Jian, D.; Pan, H. In Situ Encapsulation of the Nanoscale Er2O3 Phase To Drastically Suppress Voltage Fading and Capacity Degradation of a Li- and Mn-Rich Layered Oxide Cathode for Lithium Ion Batteries. ACS Appl. Mater. Interfaces 2017, 9, 33863–33875. [Google Scholar] [CrossRef] [PubMed]
  31. Li, C.-D.; Yao, Z.-L.; Xu, J.; Tang, P.; Xiong, X. Surface-modified Li[Li0.2Mn0.54Ni0.13Co0.13]O2 nanoparticles with LaF3 as cathode for Li-ion battery. Ionics 2017, 23, 549–558. [Google Scholar] [CrossRef]
  32. Geng, X.; Guo, H.; Wang, C.; Cheng, M.; Li, Y.; Zhang, H.; Huo, H. Surface modification of Li1.20Mn0.54Ni0.13Co0.13O2 cathode materials with SmF3 and the improved electrochemical properties. J. Mater. Sci.-Mater. Electron. 2018, 29, 19207–19218. [Google Scholar] [CrossRef]
  33. Chen, D.; Zheng, F.; Li, L.; Chen, M.; Zhong, X.; Li, W.; Lu, L. Effect of Li3PO4 coating of layered lithium-rich oxide on electrochemical performance. J. Power Sources 2017, 341, 147–155. [Google Scholar] [CrossRef]
  34. Xiao, B.; Wang, B.; Liu, J.; Kaliyappan, K.; Sun, Q.; Liu, Y.; Dadheech, G.; Balogh, M.P.; Yang, L.; Sham, T.-K.; et al. Highly stable Li1.2Mn0.54Co0.13Ni0.13O2 enabled by novel atomic layer deposited AlPO4 coating. Nano Energy 2017, 34, 120–130. [Google Scholar] [CrossRef]
  35. Zheng, J.; Deng, S.; Shi, Z.; Xu, H.; Xu, H.; Deng, Y.; Zhang, Z.; Chen, G. The effects of persulfate treatment on the electrochemical properties of Li[Li0.2Mn0.54Ni0.13Co0.13]O2 cathode material. J. Power Sources 2013, 221, 108–113. [Google Scholar] [CrossRef]
  36. Xu, G.; Li, J.; Xue, Q.; Ren, X.; Yan, G.; Wang, X.; Kang, F. Enhanced oxygen reducibility of 0.5Li2MnO3·0.5LiNi1/3Co1/3Mn1/3O2 cathode material with mild acid treatment. J. Power Sources 2014, 248, 894–899. [Google Scholar] [CrossRef]
  37. Liu, X.; Huang, T.; Yu, A. A new, high energy rechargeable lithium ion battery with a surface-treated Li1.2Mn0.54Ni0.13Co0.13O2 cathode and a nano-structured Li4Ti5O12 anode. J. Alloys Compd. 2015, 648, 7–12. [Google Scholar] [CrossRef]
  38. Li, S.; Ji, J.; Li, Z.; Yan, L.; Jiang, W.; Ling, M.; Lin, Z.; Liang, C. Pre-activation and Defects Introduced via Citric Acid to Mitigate Capacity and Voltage Fading in Li-rich Cathode. Z. Anorg. Allg. Chem. 2020, 646, 1285–1291. [Google Scholar] [CrossRef]
  39. Zhou, Y.; Cheng, X.; Tynan, B.; Sha, Z.; Huang, F.; Islam, M.S.; Zhang, J.; Rider, A.N.; Dai, L.; Chu, D.; et al. High-performance hierarchical MnO2/CNT electrode for multifunctional supercapacitors. Carbon 2021, 184, 504–513. [Google Scholar] [CrossRef]
  40. Hao, L.; Li, S.-S.; Wang, J.; Tan, Y.; Bai, L.; Liu, A. MnO2/multi-walled carbon nanotubes based nanocomposite with enhanced electrocatalytic activity for sensitive amperometric glucose biosensing. J. Electroanal. Chem. 2020, 878, 114602. [Google Scholar] [CrossRef]
  41. Huyan, Y.; Chen, J.; Yang, K.; Zhang, Q.; Zhang, B. Tailoring carboxyl tubular carbon nanofibers/MnO2 composites for high-performance lithium-ion battery anodes. J. Am. Ceram. Soc. 2020, 104, 1402–1414. [Google Scholar] [CrossRef]
  42. Kang, B.J.; Joo, J.-B.; Lee, J.K.; Choi, W. Surface modification of cathodes with nanosized amorphous MnO2 coating for high-power application in lithium-ion batteries. J. Electroanal. Chem. 2014, 728, 34–40. [Google Scholar] [CrossRef]
  43. Wang, B.; Sun, D.; Guo, R.; Liu, Z.; Meng, L.; Zheng, M.; Li, F.; Li, T.; Luo, Y.; Jiang, H. Amorphous MnO2-modified Li3V2(PO4)3/C as high-performance cathode for LIBs: The double effects of surface coating. J. Mater. Sci. 2017, 53, 2709–2724. [Google Scholar] [CrossRef]
  44. Guo, X.; Cong, L.-N.; Zhao, Q.; Tai, L.-H.; Wu, X.-L.; Zhang, J.-P.; Wang, R.-S.; Xie, H.-M.; Sun, L.-Q. Enhancement of electrochemical performance of LiNi1/3Co1/3Mn1/3O2 by surface modification with MnO2. J. Alloys Compd. 2015, 651, 12–18. [Google Scholar] [CrossRef] [Green Version]
  45. Liu, B.; Zhang, Z.; Wan, J.; Liu, S. Improved electrochemical properties of YF3-coated Li1.2Mn0.54Ni0.13Co0.13O2 as cathode for Li-ion batteries. Ionics 2017, 23, 1365–1374. [Google Scholar] [CrossRef]
  46. Kong, J.-Z.; Wang, C.-L.; Qian, X.; Tai, G.-A.; Li, A.-D.; Wu, D.; Li, H.; Zhou, F.; Yu, C.; Sun, Y.; et al. Enhanced electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2 by surface modification with graphene-like lithium-active MoS2. Electrochim. Acta 2015, 174, 542–550. [Google Scholar] [CrossRef]
Micromachines 12 01410 g001 550

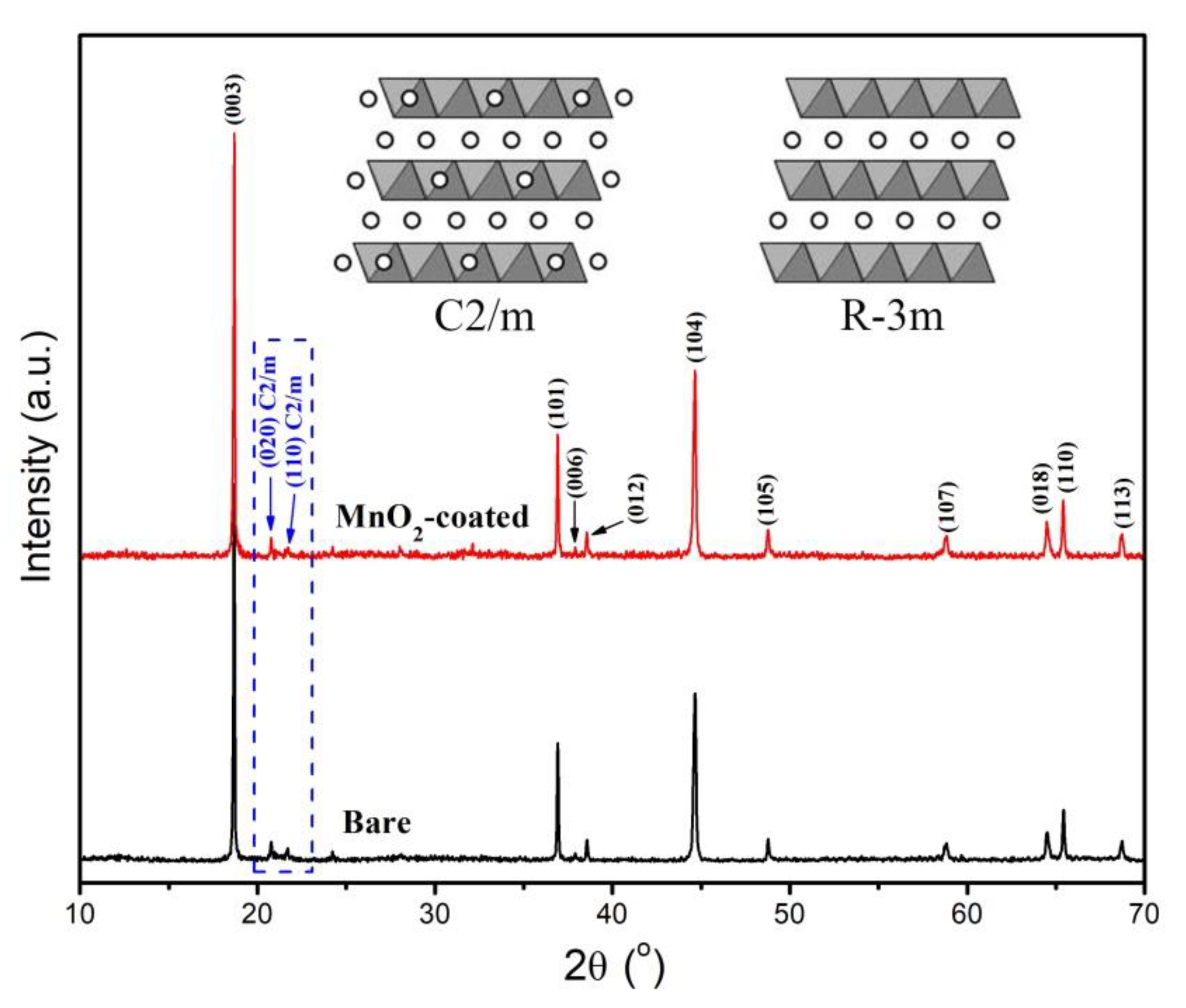

Figure 1. XRD results of bare and MnO2-coated LTMO.
Figure 1. XRD results of bare and MnO2-coated LTMO.
Micromachines 12 01410 g001
Micromachines 12 01410 g002 550
Figure 2. FESEM results for the (a,b) bare and (c,d) MnO2-coated LTMO particles.
Figure 2. FESEM results for the (a,b) bare and (c,d) MnO2-coated LTMO particles.
Micromachines 12 01410 g002
Micromachines 12 01410 g003 550
Figure 3. The elemental distributions of Mn, Ni, and Co in the bare and MnO2-coated LTMO particles.
Figure 3. The elemental distributions of Mn, Ni, and Co in the bare and MnO2-coated LTMO particles.
Micromachines 12 01410 g003
Micromachines 12 01410 g004 550
Figure 4. TEM images of the (a,b) bare and (c,d) MnO2-coated LTMO particles.
Figure 4. TEM images of the (a,b) bare and (c,d) MnO2-coated LTMO particles.
Micromachines 12 01410 g004
Micromachines 12 01410 g005 550

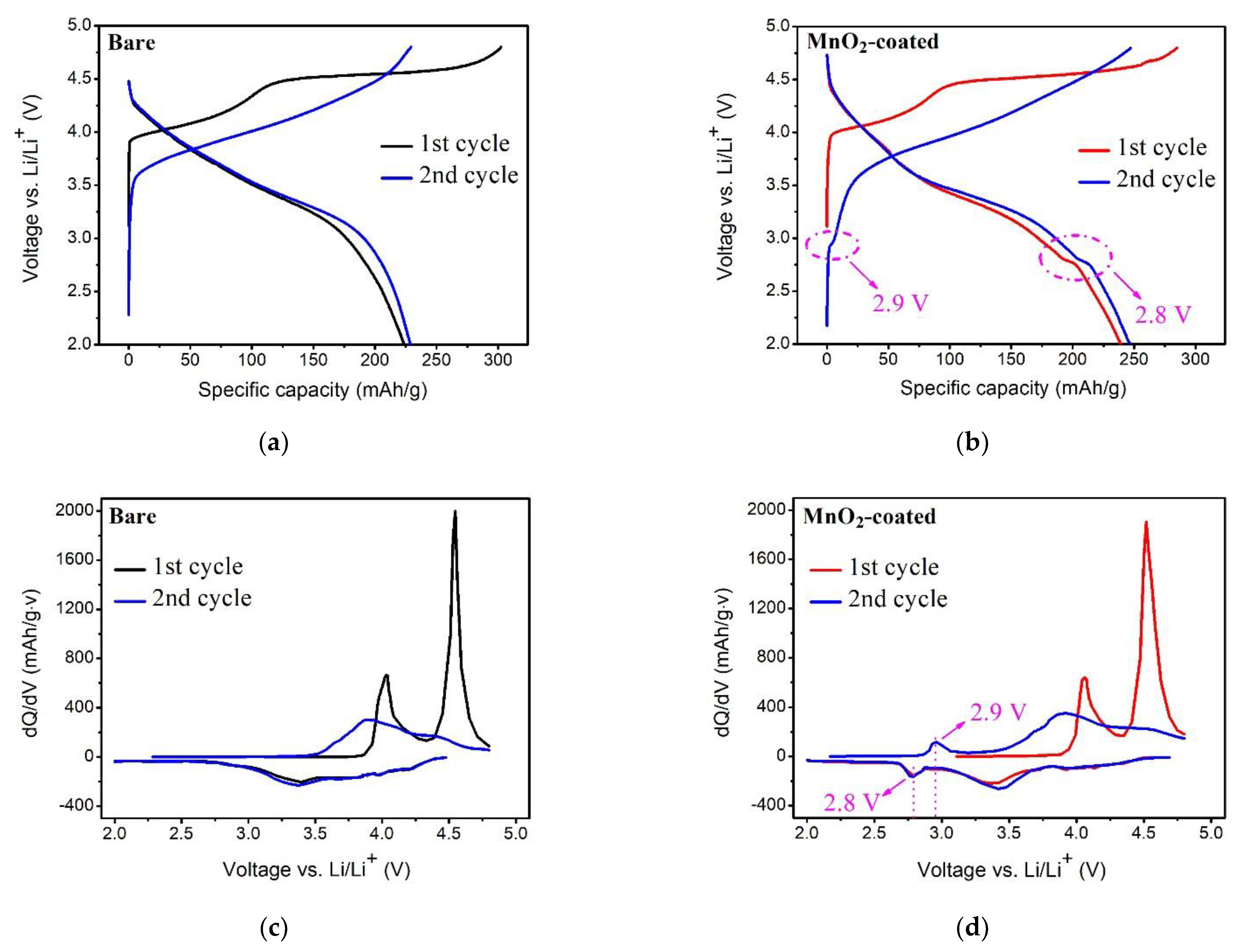

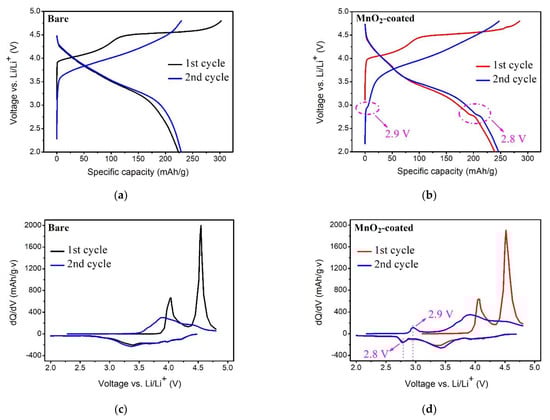

Figure 5. The electrochemical characteristics of the bare and MnO2-coated LTMO at 0.05 C. (a,b) Charge and discharge curves and (c,d) dQ/dV profiles.
Figure 5. The electrochemical characteristics of the bare and MnO2-coated LTMO at 0.05 C. (a,b) Charge and discharge curves and (c,d) dQ/dV profiles.
Micromachines 12 01410 g005
Micromachines 12 01410 g006 550

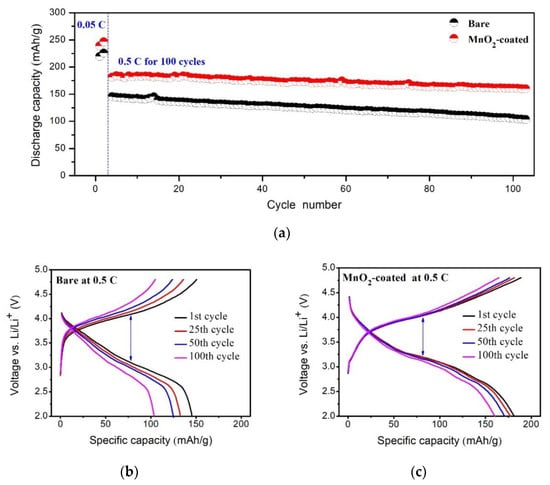

Figure 6. (a) Cyclic performance at 0.5 C. Charge and discharge curves of the (b) bare LTMO and (c) MnO2-coated LTMO for different cycles.
Figure 6. (a) Cyclic performance at 0.5 C. Charge and discharge curves of the (b) bare LTMO and (c) MnO2-coated LTMO for different cycles.
Micromachines 12 01410 g006
Micromachines 12 01410 g007 550

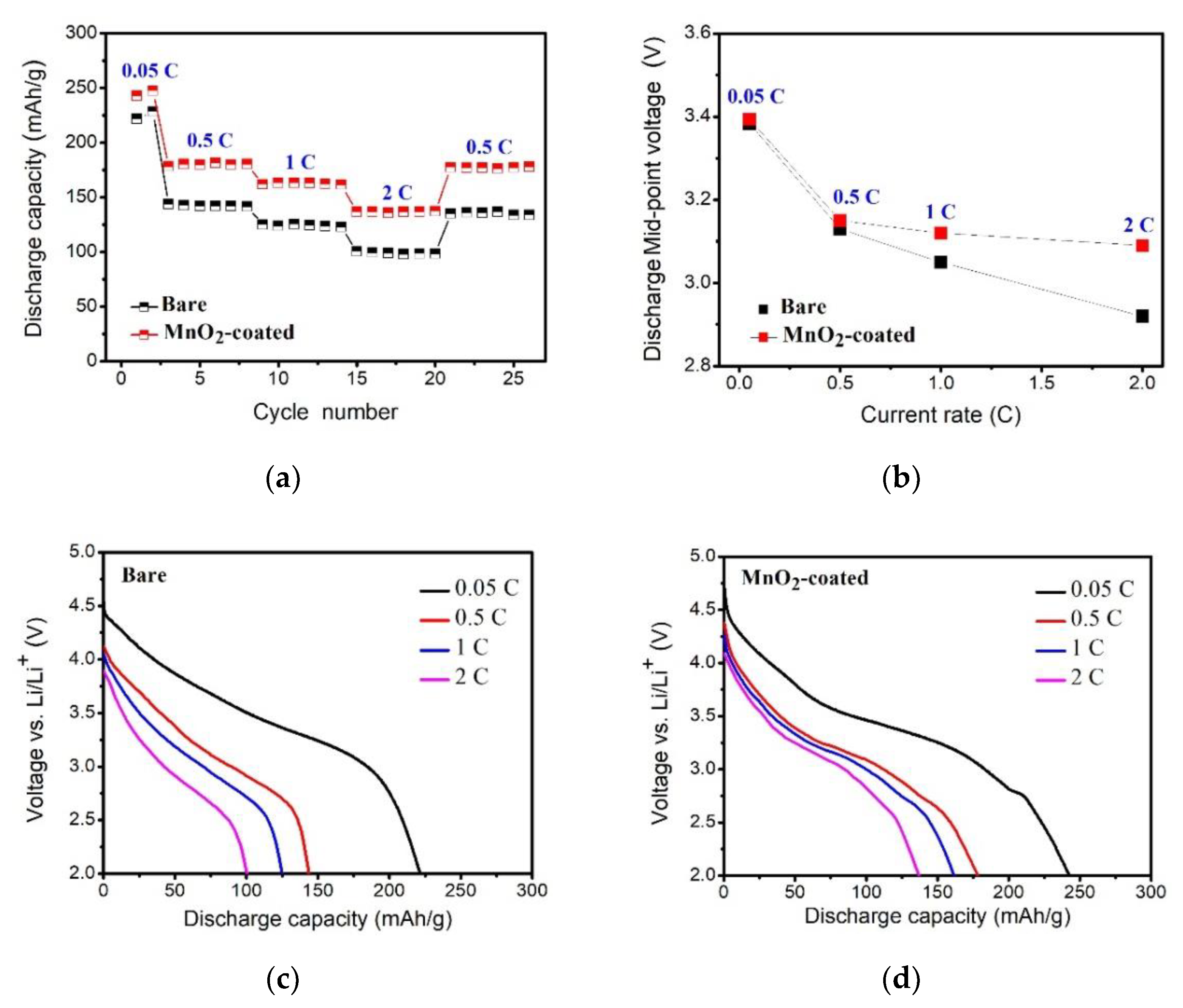

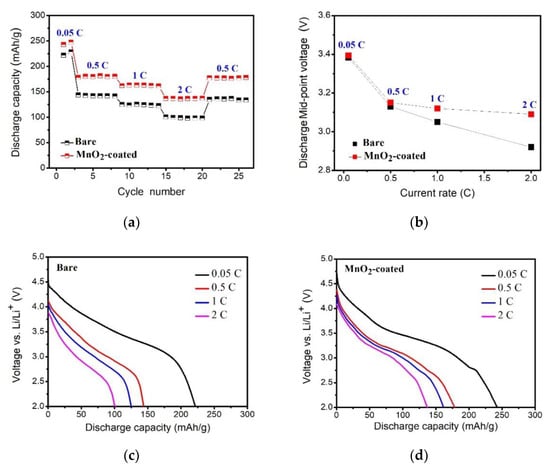

Figure 7. The electrochemical properties of the bare and MnO2-coated LTMO evaluated at various C rates. (a) The rate capabilities. (b) The discharge midpoint voltage. (c,d) Discharge curves.
Figure 7. The electrochemical properties of the bare and MnO2-coated LTMO evaluated at various C rates. (a) The rate capabilities. (b) The discharge midpoint voltage. (c,d) Discharge curves.
Micromachines 12 01410 g007
Micromachines 12 01410 g008 550

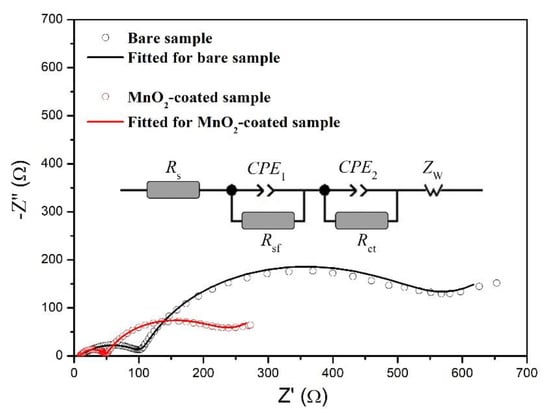

Figure 8. Nyquist plots of the bare and MnO2-coated LTMO and the equivalent circuit for fitting.
Figure 8. Nyquist plots of the bare and MnO2-coated LTMO and the equivalent circuit for fitting.
Micromachines 12 01410 g008
Table
Table 1. Lattice parameters of the LTMO before and after the MnO2 modification.
Table 1. Lattice parameters of the LTMO before and after the MnO2 modification.
Samplea (Å)c (Å)c/aI(003)/I(104)
Bare2.850114.23844.99582.24
MnO2-coated2.850814.23644.99382.26
Table
Table 2. The elemental composition of the bare and MnO2-coated LTMO determined with ICP-AES.
Table 2. The elemental composition of the bare and MnO2-coated LTMO determined with ICP-AES.
SampleMeasured Atomic Ratio
MnNiCo
Bare0.5410.1300.129
MnO2-coated0.5590.1310.128
Table
Table 3. Comparison of the data of MnO2 with other metal oxides reported as coating materials for LTMO.
Table 3. Comparison of the data of MnO2 with other metal oxides reported as coating materials for LTMO.
Coating Material
[References]		Initial Irreversible Capacity Loss (mAh/g)Cyclic Retention
Bare SampleCoated SampleBare SampleCoated Sample
This work
MnO2 (3 wt %)		78.24685.4% (50 cycles)94.3% (50 cycles)
71.1% (100 cycles)88.2% (100 cycles)
ZrO2 (1 wt %) [10]~70.3~71.987.5% (50 cycles)94.9% (50 cycles)
Al2O3 (3 wt %) [23]754189.5% (50 cycles)94% (50 cycles)
TiO2 (3 mol %) [25]75.5~6063% (90 cycles)87% (90 cycles)
MgO (2 wt %) [27]74.173.770.7% (100 cycles)96.4% (100 cycles)
ZnO (20 ALD layers) [28]77.550.885.3% (100 cycles)97.5% (100 cycles)
Pr6O11 (3 wt %) [29]73.147.879.2% (50 cycles)97.9% (50 cycles)
Er2O3 (4 wt %) [30]645584% (300 cycles)89% (300 cycles)
Table
Table 4. Lattice-fitted values of the parameters according to the equivalent circuit.
Table 4. Lattice-fitted values of the parameters according to the equivalent circuit.
SampleRs (Ω)Rsf (Ω)Rct (Ω)
Bare10.394.5422.6
MnO2-coated9.639.7167.8
