Next Article in Journal
Further Aspects of Ochratoxin A-Cation Interactions: Complex Formation with Zinc Ions and a Novel Analytical Application of Ochratoxin A-Magnesium Interaction in the HPLC-FLD System
Next Article in Special Issue
Draft Genome Sequences of Two Bacillus thuringiensis Strains and Characterization of a Putative 41.9-kDa Insecticidal Toxin
Previous Article in Journal
Tracing Monotreme Venom Evolution in the Genomics Era
Previous Article in Special Issue
Bacillus thuringiensis subsp. israelensis and Its Dipteran-Specific Toxins

Toxins 2014, 6(4), 1274-1294; doi:10.3390/toxins6041274

Changes in Gene Expression in the Larval Gut of Ostrinia nubilalis in Response to Bacillus thuringiensis Cry1Ab Protoxin Ingestion
Jianxiu Yao 1,, Lawrent L. Buschman 1,, Nanyan Lu 2, Chitvan Khajuria 1 and Kun Yan Zhu 1,*
Department of Entomology, 123 Waters Hall, Kansas State University, Manhattan, KS 66506, USA; E-Mails: (J.Y.); (L.L.B.); (C.K.)
Bioinformatics Center, Kansas State University, Manhattan, KS 66506, USA; E-Mail:
Current Address: Department of Entomology, 412 Minnie Belle Heep Building, Taxes A&M University, College Station, TX 77843, USA.
Current Address: 963 Burland Drive, Bailey, CO 80421, USA.
Author to whom correspondence should be addressed; E-Mail:; Tel.: +1-785-532-4721; Fax: +1-785-532-6232.
Received: 11 December 2013; in revised form: 13 March 2014 / Accepted: 26 March 2014 /
Published: 3 April 2014


: We developed a microarray based on 2895 unique transcripts assembled from 15,000 cDNA sequences from the European corn borer (Ostrinia nubilalis) larval gut. This microarray was used to monitor gene expression in early third-instar larvae of Bacillus thuringiensis (Bt)-susceptible O. nubilalis after 6 h feeding on diet, with or without the Bt Cry1Ab protoxin. We identified 174 transcripts, for which the expression was changed more than two-fold in the gut of the larvae fed Cry1Ab protoxin (p < 0.05), representing 80 down-regulated and 94 up-regulated transcripts. Among 174 differentially expressed transcripts, 13 transcripts putatively encode proteins that are potentially involved in Bt toxicity, and these transcripts include eight serine proteases, three aminopeptidases, one alkaline phosphatase, and one cadherin. The expressions of trypsin-like protease and three aminopeptidase transcripts were variable, but two potential Bt-binding proteins, alkaline phosphatase and cadherin were consistently up-regulated in larvae fed Cry1Ab protoxin. The significantly up and down-regulated transcripts may be involved in Cry1Ab toxicity by activation, degradation, toxin binding, and other related cellular responses. This study is a preliminary survey of Cry1Ab protoxin-induced transcriptional responses in O. nubilalis gut and our results are expected to help with further studies on Bt toxin-insect interactions at the molecular level.
Bacillus thuringiensis; European corn borer; Ostrinia nubilalis; Cry1Ab protoxin; microarray; transcriptional response

1. Introduction

The European corn borer, Ostrinia nubilalis, which primarily infests corn, is responsible for significant yield losses in North America [1]. In the United States alone, annual economic losses due to the direct damage and the costs of controlling this pest have been estimated to exceed $1 billion [2]. The insect-infested corn ears also experience substantial increases in mycotoxin contamination [3]. Transgenic corn hybrids, expressing Cry toxins encoded by genes derived from Bacillus thuringiensis (Bt), are one of the most successful technologies for controlling O. nubilalis under field conditions [4,5].

The mode of action of Bt toxins generally involves multiple steps, including: (1) solubilization of Bt crystals in insect midgut under certain pH conditions after ingestion; (2) activation of Bt protoxin to toxin by certain proteases (e.g., trypsins); (3) binding of activated toxin to a cadherin and/or a GPI-anchored protein (e.g., aminopeptidases, alkaline phosphatases); (4) insertion of the bound toxin oligomer into the lipid raft of the gut membrane to form pores; and (5) ultimately causing the gut cell to burst [6]. The binding of Bt toxin to cadherin has also been proposed to directly trigger intracellular signaling pathways involving stimulation of G proteins and adenylyl cyclase (AC), increasing cAMP levels, and activation of protein kinase A (PKA). The induction of AC and PKA results in cytological changes and cell blebbing, swelling, and lysis [7]. However, the signaling pathway model has been recently challenged by other scientists due to its poor support by experimental evidence [8]. Although the exact mode of action of Bt toxins has not been completely understood, it is clear that a number of genes expressed in insect gut are involved in Bt toxicity [6,8].

Cry toxins have been effective control agents with insecticidal specificity toward several insect pests in field, like O. nubilalis larvae. Therefore, these insects have the potential to develop resistance within a few generations if they are continuously exposed to Cry1Ab protoxin [9]. Even though there is no strong evidence related to field-evolved O. nubilalis resistance to Bt (Cry1Ab) corn, likely due to the implementation of high-dose/refuge resistance management strategies [10], reduced efficacy of Bt corn due to field-evolved resistance has been reported in some populations of other major corn pest species including Busseola fusca against Cry1Ab corn in South Africa, P. gossypiella against Cry1Ac cotton in India, Diabrotica virgifera virgifera against Cry3Bb corn, and Spodoptera frugiperda against Cry1F corn both in the United States [11]. Gassmann et al. [12] proposed that the insufficient planting of refuges and non-recessive inheritance of resistance may have contributed to resistance development in the field.

The mechanism of resistance to Bt toxin in insects is multifaceted, mirroring the complicated pore-formation mode of action involving multiple steps and gene products [8,13]. Our previous studies noted that transcript levels of several trypsin and trypsin-like protease genes were induced after the ingestion of Cry1Ab protoxin in larvae [14], and the activity of one soluble trypsin-like protease of a Dipel Bt-resistant strain of O. nubilalis was approximately half that of a susceptible strain [15]. The reduced trypsin-like activity was attributed to the reduced expression of OnT23 in Bt-resistant O. nubilalis [16]. In O. nubilalis, Bt resistance has also been associated with decreased sensitivity or expression of Bt toxin-binding proteins, and increased expression of other intracellular defense proteins in the larval gut cells [7,9,17,18].

Microarray analysis is a widely used method to identify and analyze insect genes that are differentially expressed under specific conditions, such as insecticide exposures, microorganism infection, injury, etc. For example, microarrays have been used to identify gut gene expression responses of Choristoneura fumiferana under Bt Cry toxin exposure [19] and detoxification gene responses of Anopheles gambiae to insecticide exposure [20]. In order to provide a more comprehensive analysis, we developed a gut specific microarray for examining the transcriptional responses in Bt-susceptible O. nubilalis larvae after fed artificial diets containing Cry1Ab protoxin. Results from this research are expected to provide a platform for functional studies of toxin-insect interactions.

2. Results and Discussion

2.1. Overview of Transcriptional Responses in O. nubilalis Larvae Fed Cry1Ab Protoxin

This study was to examine the transcriptional responses of the gut genes in O. nubilalis larvae fed Cry1Ab protoxin. We used the third-instar larvae that had been starved for 24 h to ensure they immediately started feeding on the experimental diets. Although we used the artificial diet containing the protoxin at the LC50 concentration (0.25 µg/mL diet) to feed the larvae, the protoxin did not cause any visible effect on the larvae because this LC50 value was determined based on a seven-day bioassay whereas the feeding duration in this study was only six hours. We used a feeding period of six hours since the larvae had stopped their feeding after they ingested the diet containing Cry1Ab protoxin. The use of the six-hour feeding period was to ensure sufficient amounts of Cry1Ab protoxin ingested by the larvae but minimum effect of starvation on gene expression when treated larvae stopped feeding after they ingested Cry1Ab protoxin. As shown by van Munster et al. [21], the majority of the genes had altered transcriptional levels at five hours when they analyzed the dissected midgut of C. fumiferana larvae 15 min, 2 h, 5 h, and 24 h post Cry1Ab protoxin ingestion at a single sublethal concentration.

By using the Agilent custom microarray that contained 12,297 probes representing 2895 unique transcripts from the gut of O. nubilalis larvae, we identified 758 probes representing174 transcripts as differentially expressed in the larvae fed diet containing Cry1Ab protoxin (p < 0.05, expression ratio or fold change ≥2 fold [22]. These transcripts represent 80 down-regulated and 94 up-regulated genes (Figure 1). Among these 174 differentially expressed transcripts, 119 had BLAST results (E-value < 1.0e−3) (Table 1), whereas 56 did not after running global BLAST and CDS (conserved domain search) searches in the National Center for Biotechnology Information (NCBI) (Supplementary Table S1). This analysis was limited to those transcripts/proteins that are functionally-annotated in the database. Only 68% of the 174 gut transcripts that were differentially expressed in response to the ingestion of Cry1Ab1 protoxin had homolog descriptions in the database.

Toxins 06 01274 g001 1024

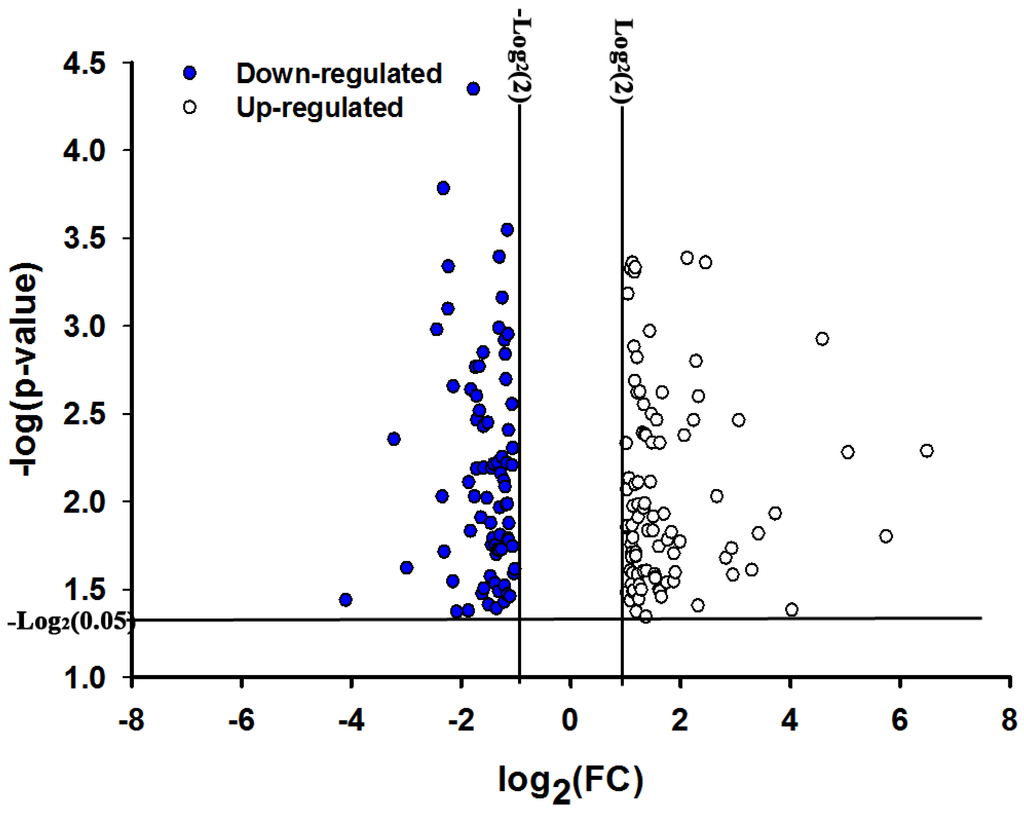

Figure 1. Transcript expression profiles from the gut of O. nubilalis larvae fed Cry1Ab protoxin. The transcriptional responses were compared between the larvae fed a diet containing Cry1Ab protoxin (treatment) and larvae fed a normal diet (control) by using one-way ANOVA (p < 0.05) and the Benjamini-Hochberg multiple testing correction (q < 0.05). Finally, 174 transcripts were identified as differentially expressed based on the cutoff of the fold change (FC) at ≥2.0. The p-value and fold change of each transcript was transformed to negative log and log2 scale, respectively, in the plot. The solid data points represent down-regulated gut transcripts (total 80) and clear data points represent up-regulated transcripts (total 94).

Click here to enlarge figure

Figure 1. Transcript expression profiles from the gut of O. nubilalis larvae fed Cry1Ab protoxin. The transcriptional responses were compared between the larvae fed a diet containing Cry1Ab protoxin (treatment) and larvae fed a normal diet (control) by using one-way ANOVA (p < 0.05) and the Benjamini-Hochberg multiple testing correction (q < 0.05). Finally, 174 transcripts were identified as differentially expressed based on the cutoff of the fold change (FC) at ≥2.0. The p-value and fold change of each transcript was transformed to negative log and log2 scale, respectively, in the plot. The solid data points represent down-regulated gut transcripts (total 80) and clear data points represent up-regulated transcripts (total 94).
Toxins 06 01274 g001 1024

Among the 119 transcripts with BLAST hits, 14 were potentially involved in Bt toxin solubilization, activation, degradation; five were involved in Bt toxin binding; three were involved in signal transduction; seven served as transporters; five appeared to be transcription factors and might influence gene expression; 49 were involved in diverse metabolic processes including xenobiotic, amino acid, carbohydrate, lipid, and chitin metabolisms; three were related to anti-bacterial proteins; and the remaining 23 were involved in other diverse functions (Table 1). Among the 49 transcripts related to various metabolisms, approximately 81% were down-regulated, probably caused by the reduced food uptake due to the ingestion of Cry1Ab protoxin. Eleven transcripts potentially involved in carbohydrate metabolic pathways, including one α-amylase, two enolases, one glucose phosphate dehydrogenase, one glycoside hydrolase, one hydroxybutyrate dehydrogenase, and five glucosyltransferases, were down-regulated. Similarly, seven transcripts involved in lipid metabolic pathways, such as alkaline ceramidase-like enzyme, lipase, and desaturase, were also down-regulated.

Table Table 1. Summary of 119 significantly differentially expressed (fold change ≥2.0 and p < 0.05) transcripts with BLAST results from O. nubilalis larvae in response to the ingestion of Cry1Ab protoxin.

Click here to display table

Table 1. Summary of 119 significantly differentially expressed (fold change ≥2.0 and p < 0.05) transcripts with BLAST results from O. nubilalis larvae in response to the ingestion of Cry1Ab protoxin.
EST IDNCBI EST database IDGene HomologsHomolog GenBank Accession No.Fold Change ± SE *
Bt toxin solubilization, activation, degradation or sequestration
contig [0243]GH998064.1trypsin precursorAFM77760.1−2.69 ± 0.29
contig [0389]GH998056.1serine proteaseAFM77769.18.39 ± 0.02
contig [0770]GH997442.1trypsin-like serine proteaseAFM77762.13.16 ± 0.14
contig [1207]GH997507.1serine proteaseAFM77770.17.67 ± 0.26
contig [3704]GH999118.1trypsin-like serine proteaseAFM77754.16.36 ± 0.04
contig [4768]GH998250.1trypsin-like serine proteaseAFM77753.110.75 ± 0.12
contig [5740]GH999046.1chymotrypsin-2 (chymotrypsin ii)AFM77774.13.26 ± 0.19
ECB-C-18_B11GH994018.1silk gland derived serine proteaseAAR98920.2−2.63 ± 0.04
contig [0115]GH997328.1esterase FE4-like (Bombyx mori)XP_004924612.13.69 ± 0.13
contig [3820]GH999448.1carboxylesterase (Helicoverpa armigera)ADE05548.1−2.21 ± 0.12
J-ECB-07_G03GH991809.1carboxylesterase (Loxostege sticticalis)ACA50924.13.58 ± 0.06
J-ECB-09_D02GH992373.1carboxylesterase (Spodoptera litura)AEJ38204.1−3.31 ± 0.22
ECB-17_F12GH998536.1carboxylesterase (Helicoverpa armigera)ADD97156.13.99 ± 0.06
ECB-27_F04GH999378.1carboxyl/cholinesterase 4A (Bombyx mori)NP_001116814.1−2.83 ± 0.11
Potential Bt toxin binding partners
J-ECB-25_B09GH990771.1cadherin-like proteinACK37450.12.85 ± 0.20
ECB-V-05_D12GH994582.1aminopeptidase n3AEO12689.1−2.55 ± 0.23
contig [4776]GH998970.1aminopeptidase n2ACJ64828.12.17 ± 0.09
contig [4879]GH997475.1aminopeptidase n8ACV04931.1−2.31 ± 0.12
contig [5858]GH998639.1membrane-bound alkaline phosphatase (Ostrinia furnacalis)AEM43806.12.23 ± 0.06
Signal transduction
contig [0492]GH998299.1caspase-4 (Lymantria monacha)AEK20829.12.36 ± 0.03
ECB-10_C01GH997883.1pyridoxal kinase (Bombyx mori)NP_001037440.1−2.99 ± 0.10
contig [5143]GH995296.1ctl2 antioxidant enzyme (Aedes aegypti)XP_001661235.12.32 ± 0.04
contig [0814]GH998546.1sodium-bile acid cotransporter (Danaus plexippus)EHJ73754.1−5.03 ± 0.05
contig [1314]GH993616.1potassium coupled amino acid transporter (Manduca sexta)AAF18560.1−4.68 ± 0.16
contig [4763]GH998142.1sodium-bile acid cotransporter (Aedes aegypti)XP_001662576.1−4.39 ± 0.10
contig [5743]GH993678.1amino acid transporter (Bombyx mori)NP_001124343.1−5.40 ± 0.13
ECB-21_C09GH998857.1sugar transporter (Danaus plexippus)EHJ73890.1−2.46 ± 0.10
J-ECB-39_E12GH992066.1sugar transporter (Culex quinquefasciatus)XP_001862938.1−2.65 ± 0.25
J-ECB-55_E04GH988996.1monocarboxylate transporter (Bombyx mori)XP_004927805.1−3.40 ± 0.10
Transcription factor and gene expression
contig [3833]GH993952.1DNA-binding nuclear protein p8 (Simulium guianense)ACH56888.14.89 ± 0.09
contig [4800]GH998367.1endonuclease-reverse transcriptase (Bombyx mori)ADI61826.12.49 ± 0.04
ECB-V-26_F03GH996285.1histone H3.2-like (Meleagris gallopavo)XP_003202254.1−2.04 ± 0.02
contig [3869]GH997175.1cellular repressor of E1A-stimulated genes 1 (Tribolium castaneum)XP_972946.1−3.16 ± 0.06
contig [5038]GH991382.1MluI cell cycle box (MCB) Binding Factor 2 (Samia cynthia)BAA34219.12.41 ± 0.11
Xenobiotics metabolism
contig [0004]GH992504.1glutathione S-transferase (Choristoneura fumiferana)AAF23078.1−3.53 ± 0.45
contig [2246]GH991501.1glutathione S-transferase 16 (Helicoverpa armigera)ACU09495.1−2.59 ± 0.57
contig [0012]GH987677.1microsomal glutathione transferase (Heliothis virescens)ADH16761.1−2.19 ± 0.13
ECB-C-03_D08GH992802.1cytochrome P450 monooxygenase cyp6ab4 (Bombyx mandarina)NP_001073135.1−2.70 ± 0.08
contig [5080]GH996933.1cytochrome P450 monooxygenase cyp4m5(Bombyx mori)NP_001103833.12.81 ± 0.11
J-ECB-21_A02GH988690.1aliphatic nitrilase (Bombyx mori)NP_001165388.1−2.43 ± 0.43
Lipid metabolism
J-ECB-35_D11GH990122.1alkaline ceramidase-like isoform 1 (Bombus terrestris)XP_003393007.1−3.09 ± 0.37
contig [0029]GH998728.1acidic lipase (Helicoverpa armigera)AFI64313.1−2.08 ± 0.04
contig [0140]GH998810.1neutral lipase (Helicoverpa armigera)AFI64310.1−4.47 ± 0.11
contig [1081]GH998825.1neutral lipase (Helicoverpa armigera)AFI64314.1−2.58 ± 0.05
Lipid metabolism
contig [1486]GH997709.1C-5 sterol desaturase erg32-like (Bombyx mori)XP_004922936.1−4.96 ± 0.13
contig [1897]GH997709.1C-5 sterol desaturase-like (Acyrthosiphon pisum)XP_001947459.1−4.48 ± 0.02
J-ECB-11_B07GH988922.1fatty acid-binding protein, muscle-like isoform 2 (Nasonia vitripennis)XP_001608053.1−2.47 ± 0.10
Carbohydrate metabolism
contig [4242]GH998158.1alpha-amylase 2 (Diatraea saccharalis)AAP97393.1−2.21 ± 0.03
contig [4425]GH988573.1enolase (Antheraea pernyi)ADO40102.1−2.36 ± 0.25
ECB-V-12_H04GH995176.1enolase (Spodoptera litura)AGQ53952.1−2.26 ± 0.02
ECB-28_F02GH999466.1glucose phosphate dehydrogenase (Axia margarita)ADW85328.1−3.05 ± 0.27
contig [5232]GH987506.1glycoside hydrolases (Aedes aegypti)XP_001659854.1−2.31 ± 0.04
contig [4123]GH990084.1glucose and ribitol dehydrogenase-like (Bombyx mori)XP_004922759.1−2.28 ± 0.10
ECB-V-05_G12GH994609.1UDP-glycosyltransferase UGT33J1 (Helicoverpa armigera)AEW43118.1−2.27 ± 0.07
ECB-V-08_G03GH994852.1UDP-glycosyltransferase UGT33F1 (Helicoverpa armigera)AEW43115.1−2.25 ± 0.07
ECB-12_E11GH998082.1UDP-glycosyltransferase UGT40K1 (Bombyx mori)AEW43171.1−3.62 ± 0.27
ECB-V-19_F07GH995711.1glycosyltransferase 2 (Chilo suppressalis)AGG36457.1−2.42 ± 0.02
ECB-V-22_H08GH995978.1UDP-glycosyltransferase UGT40K1 (Bombyx mori)AEW43171.1−2.80 ± 0.07
Amino acid metabolism
contig [4515]GH987646.1gamma-glutamyl hydrolase A-like (Bombyx mori)XP_004931467.1−2.50 ± 0.03
J-ECB-24_G10GH990570.1methyltransferase (Mesobuthus caucasicus)CAE53466.12.14 ± 0.03
contig [5690]GH988024.1farnesoic acid O-methyltransferase (Bombyx mori)AGS17914.12.92 ± 0.07
contig [1237]GH989714.1farnesoic acid O-methyltransferase (Bombyx mori)AGS17915.12.90 ± 0.05
J-ECB-30_A09GH987906.1farnesoic acid O-methyltransferase (Bombyx mori)AGS17914.12.91 ± 0.08
contig [5679]GH988679.1phosphoserine aminotransferase (Antheraea pernyi)ADO79970.1−2.18 ± 0.08
ECB-09_B04GH997795.1asparagine synthetase (Bombyx mori)NP_001037414.1−2.38 ± 0.29
Gut chitin metabolism
contig [0188]GH997506.1chitinase (Ostrinia nubilalis)chtinase 8 (Drosophila melanogaster)ADB85578.1−2.74 ± 0.23
ECB-V-28_H03GH996480.1chitin synthase (Ostrinia furnacalis)ABB97082.12.16 ± 0.02
ECB-C-05_D05GH992955.1glucosamine-fructose-6-phosphate aminotransferase 2 (Culex quinquefasciatus)XP_001848160.1−2.02 ± 0.01
Other metabolic enzymes
contig [0077]GH998660.1caboxypeptidase 4 (Mamestra configurata)ACN69214.1−2.25 ± 0.04
contig [0009]GH992549.1carboxypeptidase (Bombyx mori)AFD99126.1−2.19 ± 0.05
contig [0019]GH998697.1plasma glutamate carboxypeptidase, partial (Spodoptera exigua)AFM38216.1−3.16 ± 0.19
J-ECB-33_G12GH989302.1juvenile hormone epoxide hydrolase-like protein 1 (Bombyx mori)NP_001159617.1−3.00 ± 0.06
contig [0557]GH998460.1juvenile hormone epoxide hydrolase (Spodoptera exigua)ABD85119.1−2.17 ± 0.02
contig [1953]GH997798.1NADP-dependent oxidoreductase (Bombyx mori)NP_001091765.1−3.27 ± 0.09
contig [3531]GH995654.1aldo-keto reductase (Aedes aegypti)XP_001648461.1−2.23 ± 0.03
contig [4521]GH989023.1aldo-keto reductase (Bombyx mori)ADQ89807.1−4.40 ± 0.60
J-ECB-37_E05GH991174.1oxidoreductase (Acromyrmex echinatior)EGI66780.1−2.37 ± 0.05
contig [4410]GH994481.1methionine-R-sulfoxide reductase B1-like isoform X2 (Bombyx mori)XP_004924661.1−2.46 ± 0.03
contig [3814]GH994966.1alcohol dehydrogenase (Bombyx mori)ADM32152.1−2.07 ± 0.03
gi_133906638EL929475.1retinol dehydrogenase 11-like (Bombyx mori)XP_004926801.1−3.61 ± 0.62
contig [5542]GH997904.1acetyltransferase 1 (Danaus plexippus)EHJ65205.1−2.98 ± 0.27
J-ECB-39_F07GH992097.1cytidylate kinase (Bombyx mori)NP_001040356.1−2.73 ± 0.06
BM2_M13R_B12GH992538.1estradiol 17-beta-dehydrogenase 8-like isoform X1 (Bombyx mori)XP_004928638.1−2.09 ± 0.07
Anti-bacterial related protein
J-ECB-60_D07GH987186.1antibacterial protein (Heliothis virescens)ACI02333.12.84 ± 0.07
gi_133905829EL928679.1hinnavin II antibacterial peptides (Pieris rapae)AAT94287.17.13 ± 0.22
contig [2223]GH996406.1peptidoglycan recognition protein C (Ostrinia nubilalis)ADU33186.15.04 ± 0.07
contig [0347]GH987380.1fatty acid binding protein 1 (Manduca sexta)P31416.16.89 ± 0.35
ECB-V-18_A08GH995588.1Fatty acid-binding protein 2 (Danaus plexippus)EHJ79280.1−4.19 ± 0.32
contig [0028]GH999333.1cytochrome b5 (Helicoverpa armigera)ADU02195.1−2.70 ± 0.41
contig [2048]GH994666.1cytochrome b561 domain-containing protein 2-like (Bombyx mori)XP_004933387.12.26 ± 0.03
contig [4527]GH989618.1cytochrome b561 domain-containing protein 1-like (Bombyx mori)XP_004928254.1−7.89 ± 0.34
ECB-11_E06GH997996.1peroxisomal membrane protein 11C-like (Bombyx mori)XP_004925254.1−3.51 ± 0.23
gi_133907290EL930112.1interferon-induced very large GTPase 1-like (Danio rerio)XP_005163746.14.37 ± 0.27
contig [0566]GH993617.1fatty acid binding protein (Spodoptera litura)AEH16743.1−2.17 ± 0.03
contig [1640]GH991677.1fatty acid-binding protein, adipocyte-like (Bombyx mori)XP_004930401.1−2.99 ± 0.14
contig [2896]GH987914.1lipid storage droplet protein 2 (Manduca sexta)AEJ33049.12.28 ± 0.10
contig [0407]GH997662.1sensory appendage protein 3 (Manduca sexta)AAF16707.1−17.04 ± 3.80
J-ECB-08_B02GH991953.1putative chemosensory protein (Sesamia inferens)AGY49266.1−9.26 ± 0.49
ECB-19_G03GH998716.1nose resistant to fluoxetine protein 6-like (Bombyx mori)XP_004929562.12.75 ± 0.01
ECB-V-07_D03GH994735.1serine-rich adhesin for platelets-like (Ceratitis capitata)XP_004536543.12.66 ± 0.05
contig [5724]EL928855.1silk protein P25 (Corcyra cephalonica)ACX50393.133.34 ± 1.92
contig [4952]GH988655.1fibroin light chain (Haritalodes derogata)AFS32690.153.91 ± 1.63
ECB-02_H03GH997311.1saposin-like protein (Bombyx mori)ADU03994.1−2.55 ± 0.35
contig [5293]GH997917.1trypsin inhibitor (Bombyx mori)NP_001037044.190.23 ± 1.47
contig [5386]GH996141.1leukocyte surface antigen CD53-like isoform X5 (Bombyx mori)XP_004926002.12.33 ± 0.06
ECB-C-04_H06GH992916.1tetraspanin D107 (Plutella xylostella)BAD52262.12.25 ± 0.03
contig [5414]GH997359.1polyubiquitin-C-like isoform X1 (Musca domestica)XP_005179902.12.74 ± 0.09
contig [1085]GH992931.1larvae cuticle protein (Choristoneura fumiferana)AFC88812.1−4.92 ± 0.36
J-ECB-12_F09GH989631.1globin 1 (Bombyx mori)NP_001136083.1−2.54 ± 0.40
J-ECB-29_G03GH992468.1IST1 homolog (Bombyx mori)XP_004931988.12.18 ± 0.07
J-ECB-32_D06GH988574.1tetratricopeptide repeat protein 27-like (Bombyx mori)XP_004930370.1−2.44 ± 0.01
J-ECB-47_A02GH990851.1hepatocyte growth factor-regulated tyrosine kinase substrate-like (Bombyx mori)XP_004932480.13.09 ± 0.62
gi_133905779EL928629.1pantetheinase (Mamestra configurata)AEA76314.1−3.36 ± 0.13
ECB-19_B09GH998666.1vanin-like protein 2-like (Bombyx mori)XP_004928912.12.56 ± 0.03
J-ECB-14_H06GH990255.1circadian clock-controlled protein (Harpegnathos saltator)EFN85083.12.27 ± 0.10
ECB-V-26_F03GH996285.1Histone H3c (Culex quinquefasciatus)XP_001862696.1−2.04 ± 0.02
J-ECB-07_A03GH991471.1circadian clock-controlled protein-like (Bombyx mori)XP_004932669.15.02 ± 0.46
J-ECB-39_H09GH992207.1extracellular domains-containing protein CG31004-like isoform X2 (Bombyx mori)XP_004925419.12.15 ± 0.02
ECB-V-25_C10GH996179.1conserved hypothetical protein (Culex quinquefasciatus)XP_001845252.12.29 ± 0.08

* The fold change and its standard errors (SE) were calculated based on five probes of the same transcript in the O. nubilalis larvae fed the artificial diet containing Cry1Ab protoxin and in the control larvae fed artificial diet without the protoxin. The symbol “−” before the fold change indicates down regulation of the transcript in the gut of O. nubilalis larvae fed on Cry1Ab protoxin. The values of the fold change in the last column are bolded if they are >10-fold.

2.2. Transcriptional Responses of Genes Potentially Involved in Protoxin Activation or Degradation

When a Cry protoxin is ingested by insects, it is cleaved by proteases in the gut to yield an active toxin [23,24]. This produces an activated toxin monomer that can interact with the insect gut receptors. Thus, Bt protoxin activation or degradation are primary factors influencing protoxin Bt toxicity after ingestion [25,26,27]. In this study, we found that serine proteases constituted the most abundant group of transcripts (8) that were differentially expressed when O. nubilalis larvae were fed Cry1Ab protoxin (Table 1). These include five trypsin and trypsin-like transcripts (contig [4768], contig [0389], contig [1207], contig [0243, and ECB-C-18_B11) and three chymotrypsin and chymotrypsin-like transcripts (contig [3704], contig [5740], and contig [0770]), in which three trypsins and three chymotrypsins were up-regulated. One trypsin-like protease transcript (contig [4768]) showed >10-fold up-regulation based on the microarray data. This transcript may be directly involved in proteolytic activation of Cry1Ab protoxin to toxin after protoxin ingestion [26]. Interestingly, we also found that one trypsin inhibitor transcript (contig [5293]) was up-regulated by 90-fold based on the microarray data. This trypsin inhibitor gene may be involved in insect defense against Cry1Ab intoxication by inhibiting proteolytic activation of protoxin to toxin. The transcriptional changes of chymotrypsin (contig [3704], contig [5740], contig [0770]) and trypsin (contig [4768], contig [0389], contig [1207], contig [0243], and ECB-C-18_B11) transcripts were also validated by reverse transcription quantitative PCR (RT-qPCR), in which most transcript change ratios are consistent with microarray data, except for one trypsin transcript (contig [0243]) (Figure 2). These serine proteases could potentially be involved in the proteolysis of Cry1Ab protoxin either for activation or degradation of the protoxin.

Li et al. [16] reported that the larvae of the KS-SC Dipel Bt-resistant strain of O. nubilalis had relatively lower trypsin activity than the susceptible strain. One trypsin transcript (OnTry23) was expressed at lower levels in the resistant strain relative to a susceptible strain, but another transcript (OnTry25) was not significantly different for the two strains. This implies that OnTry23 may be involved in resistance to Dipel Cry protoxins by decreasing protoxin activation in resistant strains of O. nubilalis. In a resistant strain of Plodia interpunctella, the lack of a major gut protease activity, PiT2 (accession No: AF064525), was responsible for about 90% of the resistance to Cry1Ab protoxin in a B. thuringiensis subsp. entomocidus-resistant colony [26,27]. Our previous studies showed that OnTry5 (contig [4786]), OnTry6 (contig [3704]), and OnTry14 (contig [0770]) shared 78, 69, and 68% amino acid sequence identities, respectively, with PiT2, and were clustered with PiT2 in phylogenetic analysis [14]. Thus, the relatively high similarity of these O. nubilalis trypsin transcripts with PiT2 suggests they may have a similar role in protoxin activation in O. nubilalis.

In lepidopteran larval gut, trypsins appear to function mainly in Bt protoxin activation, whereas chymotrypsins appear to be more important in toxin degradation [25]. In our study, we observed the up-regulation of three transcripts (contig [3704], contig [5740], contig [0770]) putatively encoding chymotrypsins. Although our results do not provide direct evidence for the involvement of these trypsin and chymotrypsin genes in the activation or degradation of Cry1Ab protoxin, the significant changes in expression of these genes in the larval gut in response to Cry1Ab protoxin ingestion suggests their involvement in Bt protoxin activation or degradation. Further studies are needed to confirm these results at the protein level by identifying them by MS/MS and quantifying their relative activities by blotting using chymotrypsin and trypsin-specific reagents, and clarify their roles probably by using RNA interference (RNAi).

Toxins 06 01274 g002 1024

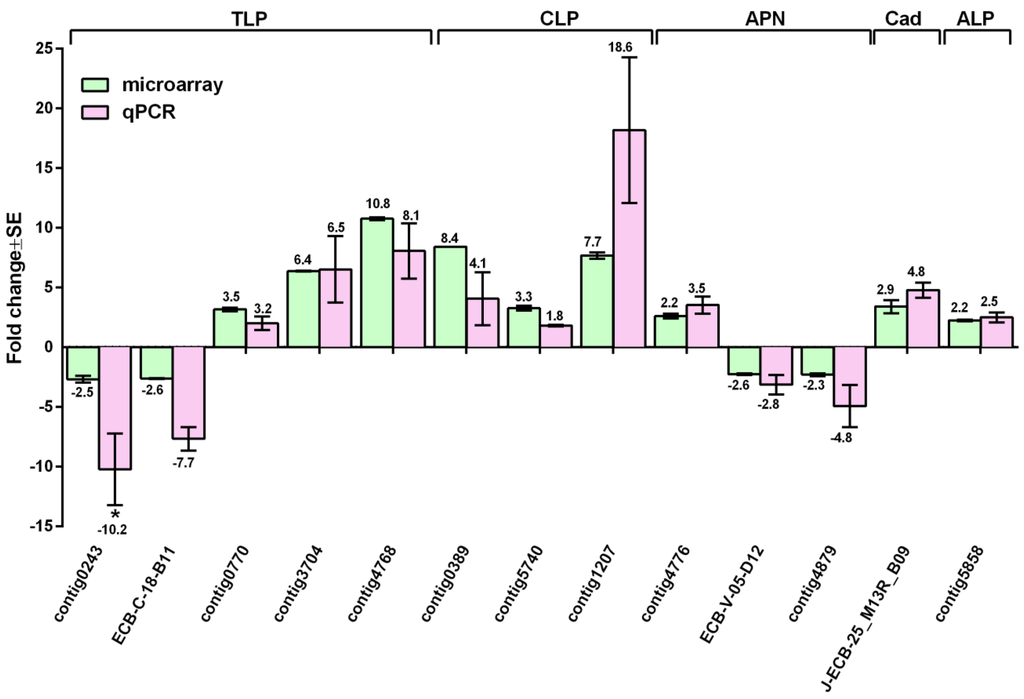

Figure 2. Validation of microarray data using RT-qPCR. Microarray (spotted bar) and RT-qPCR (outlined diamond bar) analyses of 13 differentially regulated transcripts, sequentially, including those encoding putative trypsin and trypsin-like serine protease transcripts (TLP) (EST ID: contig [4786], contig [3704], contig [0770], contig [0243], ECB-C18-B11), chymotrypsin and chymotrypsin-like serine protease transcripts (CLP) (EST ID: contig [0389], contig [1207], contig [5740]), aminopeptidase (APN) (EST ID: contig [4776], contig [4879], ECB-V05_D12), cadherin (Cad) (EST ID: J-ECB-25B09), and alkaline phosphatase (ALP) (EST ID: contig [5858]). The fold change of each transcript in the microarray (p-value < 0.05, and fold change cut off ≥2 folds) and RT-qPCR analyses (p-value ≤ 0.05) are marked on the top of each column. The symbol “*” indicates that RT-qPCR of contig [0243] did not show significant difference between the Cry1Ab protoxin and no protoxin treatments (p > 0.05).

Click here to enlarge figure

Figure 2. Validation of microarray data using RT-qPCR. Microarray (spotted bar) and RT-qPCR (outlined diamond bar) analyses of 13 differentially regulated transcripts, sequentially, including those encoding putative trypsin and trypsin-like serine protease transcripts (TLP) (EST ID: contig [4786], contig [3704], contig [0770], contig [0243], ECB-C18-B11), chymotrypsin and chymotrypsin-like serine protease transcripts (CLP) (EST ID: contig [0389], contig [1207], contig [5740]), aminopeptidase (APN) (EST ID: contig [4776], contig [4879], ECB-V05_D12), cadherin (Cad) (EST ID: J-ECB-25B09), and alkaline phosphatase (ALP) (EST ID: contig [5858]). The fold change of each transcript in the microarray (p-value < 0.05, and fold change cut off ≥2 folds) and RT-qPCR analyses (p-value ≤ 0.05) are marked on the top of each column. The symbol “*” indicates that RT-qPCR of contig [0243] did not show significant difference between the Cry1Ab protoxin and no protoxin treatments (p > 0.05).
Toxins 06 01274 g002 1024

2.3. Transcriptional Responses of Genes Potentially Involved in Toxin Binding

In the pore-formation model of Bt mode of action, the active monomeric toxin binds to cadherin, resulting in further toxin processing to form toxin oligomers, possibly involving N-acetylgalactosamine residues on N-aminopeptidases (APNs) and alkaline phosphatases (ALPs) [13]. In relation to this model, we found a 2.9-fold up-regulation of a cadherin-like transcript (J-ECB-25-B09) in Cry1Ab protoxin-fed O. nubilalis larvae. This cadherin-like protein showed 60% amino acid sequence identity with the cadherin of Manduca sexta, which has been known to be associated with Cry1Ab binding and cytotoxicity [28]. In fact, a cadherin-like protein has been shown to act as a receptor and is involved in Cry1Ab toxicity in O. nubilalis [29]. However, it is unclear why this cadherin-like transcript was up-regulated in response to CryAb1 ingestion in O. nubilalis larvae.

In this study, we also found differential expressions of three APN and one ALP transcripts in the larvae fed Cry1Ab protoxin (Table 1). The ALP transcript (contig [5858]) and one of the three APN transcripts (contig [4776]) were up-regulated by ~2 fold, while the other two APN transcripts (contig [4879] and ECB-V-05-D12) were down-regulated by ~2 fold. These changes in the microarray data (J-ECB-25_B09, contig [5858], contig [4776], contig [4879] and ECB-V-05-D12) were further confirmed by RT-qPCR (Figure 2). Microarray and RT-qPCR had the same transcript change pattern, except that the change was greater in the RT-qPCR analysis than in the microarray analysis (Figure 2).

APNs have also been proposed as receptors for Bt Cry toxin in several lepidopteran species, such as M. sexta [30], Asian corn borer (O. furnacalis) [31], sugarcane borer (Diatraea saccharalis) [32], and cotton leafworm (Spodoptera litura) [33]. The injection of dsRNA for an APN gene in S. litura resulted in reduced transcript levels and decreased susceptibility to Cry1C toxin) [33]. Moreover, the APN-N1 gene was not expressed in a lab-selected Cry1C resistant colony of S. exigua) [34]. In our recent study using RNA interference suggested that an aminopeptidase-P like gene could be involved in binding Cry1Ab toxin in larval midgut of O. nubilalis) [35]. However, the up-regulated APN transcript in this study (contig [4776]) belongs to the APN2 group. Further research is needed to better understand its role in Cry1Ab toxicity in O. nubilalis.

2.4. Transcriptional Responses of Genes Potentially Involved in Larval Defense

The ingestion of Cry toxin by insects can trigger transcription changes of the genes involved not only in Bt toxicity, but also in defense and repair mechanisms. For example, the ingestion of Cry toxins destroys the epithelial membrane of the insect gut, which leads to the leak of the gut contents into the hemolymph and promoting septicemia [36]. Therefore, under Cry toxin exposure, larvae may invoke the mechanisms that reduce the damage and support a functional gut system.

In this study, we found a five-fold increased expression of a peptidoglycan recognition protein (PGRP) transcript (EST id: contig [2223]) in the gut of larvae fed Cry1Ab toxin (Table 1). We also found that two antimicrobial peptide transcripts, including an antibacterial protein (J-ECB-60_D07) and a hinnavin II antibacterial peptide (gi_133905829), that were up-regulated by ~3 and 7 fold, respectively. The up-regulation of these transcripts may imply the involvement of these genes in larval defense against the septicemia that results from pore formation during Cry toxin activity [36,37]. In addition, three transcripts, encoding proteins similar to caspase-4 and catalase-2 (ctl-2) (contig [0492] and contig [5143]) were also up-regulated. In the Caenorhabditis elegans-Cry5B interaction, 106 hpo (hypersensitive to pore-forming toxin) genes were important for cellular protection against an attack because knock-downs showed hypersensitive to Cry5B phenotype [18]. For example, catalase (ctl-2) gene functions as an antioxidant enzyme that protects cells from reactive oxygen species, and ctl-2 expression is negatively regulated by DAF-2 mediated insulin signaling. The DAF-2 mediated insulin signaling pathway has been identified as one of the cellular defense mechanisms in C. elegans [38]. These transcripts (contig [0492] and contig [5143]) may be involved in immune defense by accelerating infected cell death, and triggering the intracellular daf-2 insulin pathways in response to the ingestion of Cry1Ab protoxin.

In this study, we also observed a 2.7-fold decreased expression of a chitinase transcript (contig [0188]) and 2.2-fold increased expressions of both chitin synthase 2 (ECB-V-28_H03) and glucosamine-fructose-6-phosphate aminotransferase (GFAT) 2 (ECB-C-05_D05) transcripts. A gut specific chitinase gene has been reported to play an important role in regulating the chitin content of peritrophic matrix in the midgut of O. nubilalis larvae [39]. On the other hand, chitin synthase 2 has been known to be specifically responsible for biosynthesis of chitin associated with peritrophic matrix in the midgut [40,41,42,43], whereas GFAT catalyzes the formation of glucosamine 6-phosphate and is an important enzyme in chitin biosynthetic pathway [41]. Thus, the down-regulation of the gut chitinase gene and the up-regulation of chitin synthase 2 and GFAT genes may act as a defense mechanism to maintain the gut system integrity in response to the Cry1Ab ingestion in the larvae.

In summary, our microarray analysis of the transcript expression in the gut of O. nubilalis larvae in response to the ingestion of Cry1Ab protoxin has shown many interesting phenomena that likely reflect physiological changes. However, this study is a preliminary survey of Cry1Ab protoxin induced transcriptional responses in O. nubilalis, and many hypotheses generated in this study require further validations and analyses by using additional approaches in order to better understand the molecular basis of the Bt protoxin and gut interactions in this important insect pest.

3. Materials and Methods

3.1. European Corn Borer

The Bt-susceptible strain (Lee) of O. nubilalis was obtained from French Agricultural Research, Inc. (Lamberton, MN, USA). Larvae were reared at 26 °C using artificial diet (Bio-Serv, Frenchtown, NJ, USA), and adults were reared in a metal cage under long-day conditions (L:D = 16:8) and 70% humidity, and routinely fed 2% sucrose water to provide supplementary reproductive nutrition. The eggs were collected on wax paper every day and kept in insect rearing cups with high humidity (≥80%) until hatching. Newly hatched larvae were immediately transferred to artificial diet and reared to the third instar for testing. The larval developmental stage was monitored by moving larvae to a new rearing dish after each molt.

3.2. Determination of Median Lethal Concentration of Cry1Ab Protoxin in 7-Day Bioassay

Cry1Ab protoxin was prepared from Escherichia coli (strain ECE54) which harbor cry1Ab gene based on the previously described method [44], and stored at −80 °C as a suspension until use. The bacterial strain was provided by the Bacillus Genetic Stock Center, Ohio State University (Columbus, OH, USA). The median lethal concentration (LC50) of Cry1Ab protoxin was determined in a 7-d bioassay at room temperature. In this assay, third-instar larvae were starved for 24 h, and larvae were fed artificial diet containing no Cry1Ab protoxin (0 µg/mL) as a control and each of five concentrations of Cry1Ab protoxin (0.04, 0.20, 1.0, 5.0, and 25 µg/mL) as a treatment. Each control or treatment was repeated three times and 16 starved larvae were used in each control or treatment. Fresh artificial diet containing Cry1Ab protoxin was replaced every other day, and surviving individuals were recorded every day. The bioassay data were analyzed by probit analysis using PROC GLM procedure. After 7 d, the LC50 for the O. nubilalis larvae was determined to be 0.25 µg/mL (95% CI = 0.14–0.33 µg/mL). Mortality was not observed in the control larvae fed artificial diet only.

3.3. Cry1Ab Protoxin Bioassay

For this experiment 30 third-instar larvae were first starved for 24 h to ensure that they would feed immediately when placed on experimental diets. The larvae were divided into two groups (control and treated) and each group consisted of three replicates (5 individuals in each replicate). The larvae in the treated group were fed artificial diet containing the concentration of 0.25 μg of Cry1Ab protoxin per ml of diet. Cry1Ab protoxin was first dissolved in 50 mM sodium carbonate buffer, pH 10.0 [14]. The larvae in the control group were fed protoxin-free diet as described by van Munster et al. [21]. This concentration of Cry1Ab protoxin was the LC50 observed in a preliminary 7-day bioassay for third instar larvae as described above. Aliquots of 100-µL liquid diet with or without Cry1Ab protoxin were loaded into a 96-well microplate. The diet was allowed to solidify for 30 min at room temperature. The starved larvae were individually transferred into the wells and allowed to feed on the respective diets for 6 h. The larva was collected from each well and dissected to obtain the whole gut. A total of five whole guts were pooled as a sample for total RNA extraction. The 6-h feeding time was based on the observation that larvae had stopped feeding, but there were as yet no visible effect and larval mortality. Therefore, the concentration of 0.25 μg of Cry1Ab protoxin per ml of diet was close to the no observed effect concentration (NOEC) for the 6-h feeding period. Total RNA was prepared independently for each replicate (a group of five larvae) using TRIzol reagent (Invitrogen Inc., Frederick, MD, USA). The quantity and quality of the total RNA were determined by NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific Inc., Waltham, MA, USA) and Agilent 2100 bioanalyzer (Agilent Technologies Inc., Santa Clara, CA, USA).

3.4. Microarray Analysis

We previously sequenced 15,000 expressed sequence tags (ESTs) from the larval gut of O. nubilalis [17]. A total of 12,519 high quality ESTs with an average length of 656 bp were deposited in the EST database (dbEST) with GenBank accession numbers from GH987145 to GH999663 at the NCBI. A high-resolution 8 × 15 K multi-pack expression microarray for single-color detection was designed using Agilent’s probe design algorithms (Agilent). In average, five oligonucleotide probes from each of 2895 unique ESTs from the O. nubilalis larval gut were computationally designed, and potential cross-hybridization probes were discarded; however, some transcripts only have less than five probes after a cross-hybridization examination. In total, 12,972 usable probes were obtained from O. nubilalis ESTs, which represent 2895 unique gut transcripts [17]. Agilent also provided the background control and the standard control probes. Agilent’s sure-print inkjet technology was employed to directly synthetize all oligo probes (60 mers) on specially prepared glass slides. Each glass slide contained eight identical microarray chips. The datasets of the gene expression profiles have been deposited in the NCBI Gene Expression Omnibus (GEO) repository with the accession number of GSE55685 (

Cyanine-3 labeled cRNAs were synthesized from Agilent single-color microarray-based gene expression kit. Dye-incorporation ratio was determined using NanoDrop 2000 spectrophotometry. The cRNA samples with the ratio cyanine-3 labeled cRNA ≥10 pmol/µg were used for hybridization. Cyanine-3 labeled cRNAs (600 ng) of each sample was hybridized to the microarray chip (six samples, including 3 from the control diet and 3 from the protoxin diet, and were hybridized on six individual microarray chips) and incubated at 65 °C for 17 h. Slides were scanned using an Axon GenePix 4000B (Molecular Devices Inc., Sunnyvale, CA, USA) microarray scanner at a 532 nm wavelength. The signal intensity of each hybridized spot was qualified and quantified with Agilent Feature Extraction Ver. 9.5 software (Agilent). At beginning, six raw data files with 12,972 customer designed probes and control probes extracted by Agilent Feature Extraction software were imported to GeneSpring GX11 and were applied “75% percentile shift” normalization algorithm. Six samples were grouped into two groups (three controls and three treatments). The quality control was assessed by examining principal components analysis (PCA) plots and correlation analysis of sample replicates. The correlation coefficients within Cry1Ab treatment or control group were larger than 97% indicating the high quality control (Figure 3). Analysis of variance (one-way ANOVA, p < 0.05) was performed to test the variation between two groups. The Benjamini-Hochberg multiple testing correction (q < 0.05) was also employed after ANOVA to identify the transcripts that were differentially expressed when the cutoff of the fold change was set at ≥2.0. The expression differences with p < 0.05 and with expression ratios ≥2.0 were considered significantly different [22,45]. A total of 758 probes were identified to be differentially expressed at the significant level as specified. These probes represented 174 unique transcripts found in the larval gut. Finally, gene ontologies of 174 transcripts were analyzed by using Blast2go (, BioBam Bioinformatics S.L. Valencia, Spain) at level 2.

Toxins 06 01274 g003 1024

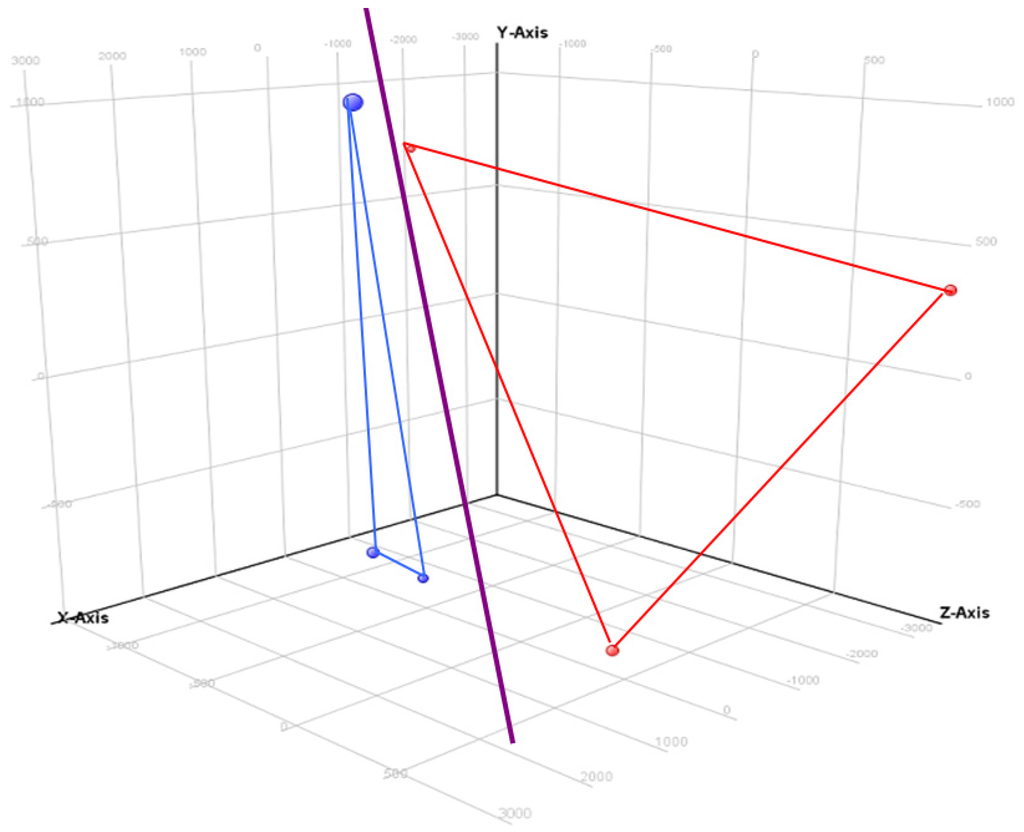

Figure 3. Microarray data quality control test using principal components analysis (PCA) plot. The blue spots indicated three samples from the larvae fed the diet with Cry1Ab protoxin, whereas the red spots represented three samples from the larvae fed the diet with on protoxin.

Click here to enlarge figure

Figure 3. Microarray data quality control test using principal components analysis (PCA) plot. The blue spots indicated three samples from the larvae fed the diet with Cry1Ab protoxin, whereas the red spots represented three samples from the larvae fed the diet with on protoxin.
Toxins 06 01274 g003 1024

3.5. Validation of Expression Changes by RT-qPCR

Before the expression changes were validated by RT-qPCR, the efficiency of each primer pair was evaluated first and only one unique product (one peak in the efficiency graph for each primer pair) was obtained. The efficiencies of the primer pairs used in our RT-qPCR analysis ranged from 95% to 110% by using whole gut cDNA from O. nubilalis as a template. The total RNA used for microarray analysis was also used for RT-qPCR analysis. One microgram of total RNA was reverse-transcribed in a 20-µL reaction mixture using Fermentas ReverAidTM First Strand cDNA synthesis kit (Fermentas Inc., Glen Burnie, MD, USA). RT-qPCR was performed in a Bio-Rad iCycler (Bio-Rad Laboratories, Hercules, CA, USA) by using Fermentas SYBR green qPCR kit (Fermentas). Quantitative PCR was performed with 2-step amplification protocol with 40 cycles of 95 °C for 30 s, 56 °C for 30 s using a Bio-Rad IQ thermocycler (Bio-Rad Laboratories Inc. Hercules, CA, USA). The specific primers for 13 candidate genes as inferred from other studies [14,24,25] and the endogenous reference gene (ribosome protein L18, OnRpl18) were designed using Beacon 7 DesignerTM (Table 2). The abundance of each transcript was normalized to OnRpl18, using the ∆Ct equation (Ct (target)—Ct (reference)). The relative abundance of each transcript in the treatment (Cry1Ab protoxin) compared with the controls was calculated using the ∆∆Ct relative expression (2−(∆Ct treatment−∆Ct control)) method [46], and the significantly different expression of each transcript was evaluated by student t-test (p ≤ 0.05).

Table Table 2. Sequences of primers used for reverse transcription quantitative PCR (RT-qPCR) analysis.

Click here to display table

Table 2. Sequences of primers used for reverse transcription quantitative PCR (RT-qPCR) analysis.
Gene namePrimer sequencesProduct size (bp)EST ID
Trypsin-like serine proteaseGGACAGTTCTCTGAGCAGTTAC109contig [4786]
Trypsin-like serine proteaseATTCTCAACAACAGGGCTATTTTG148contig [3704]
Trypsin-like serine proteaseGCATCATACCCGTCACATCTAC148contig [0770]
Trypsin precursorGCCAGCATTACACCTTCCG128contig [0243]
Silk gland derived trypsin serine proteaseCACAAAGTCCTGGAGGAAGATTC125ECB-C-18-B11
Chymotrypsin-like serine proteaseGGTGCTTGTTAGTATGTT116contig [0389]
Chymotrypsin-like serine proteaseATAGAGCACCCGAATTACAACG123contig [1207]
Chymotrypsin-2CCCCTTCGTCCACGCTAG123contig [5740]
Aminopeptidase NTTCCAAACACATTTTCTTG118contig [4776]
Aminopeptidase NCAGTAGCGATAACATCAC183contig [4879]
Cadherin-like proteinCTATGTGTTCTCAATCCAA75J-ECB-25-B09
Alkaline phosphataseCGGATTATCTGCTGGGTTTATTTG79contig [5858]

Supplementary Files

  • Supplementary File 1:

    Supplementary Information (PDF, 96 KB)

  • Acknowledgments

    We thank Mandar Deshpande of the Kansas State University (KSU) Integrated Genomics Facility for his technical support, Blair D. Siegfried at the University of Nebraska-Lincoln for providing Cry1Ab protoxin, and Zurek Ludek and Brain McCornack for providing the accesses to Bio-Rad iCycler and the insect rearing facility, respectively. This study was supported in part by the Kansas Agricultural Experiment Station and the Arthropod Genomics Center funded by K-State Targeted Excellence program at Kansas State University. Mention of trade names or commercial products in this manuscript is solely for the purpose of providing specific information and does not imply recommendation or endorsement by Kansas State University. This manuscript is contribution No 14-107-J from the Kansas Agricultural Experiment Station, Manhattan, Kansas. The Ostrinia nubilalis voucher specimens (voucher No. 079) are located in the Kansas State University Museum of Entomological and Prairie Arthropod Research, Manhattan, Kansas, USA.

    Author Contributions

    Yao, J., Khajuria, C., Buschman, L.L. and Zhu, K.Y. conceived and designed the experiments; Yao, J. performed the experiments; Yao, J. and Lu, N. analyzed the data; Buschman, L.L., Lu, N. and Zhu, K.Y. contributed reagents/material/analysis tools; Yao, J., Buschman, L.L. and Zhu, K.Y. wrote the paper.

    Conflicts of Interest

    The authors declare no conflict of interest.


    1. Showers, W.B.; Witkowski, J.F.; Mason, C.E.; Calvin, D.D.; Higgins, R.A.; Dively, G.P. European Corn Borer Development and Management; North Central Regional Extension Publication, No. 327. Iowa State University: Ames, IA, USA, 1989. [Google Scholar]
    2. Clive, J. Global Status of Commercialized Biotech/GM Crops; International Service for the Acquisition of Agri-biotech Application (ISAAA): Ithaca, NY, USA, 2010. [Google Scholar]
    3. Munkvold, G.P.; Desjardins, A.E. Fumonisins in maize: Can we reduce their occurrence? Plant Dis. 1997, 81, 556–565. [Google Scholar] [CrossRef]
    4. Witkowski, J.F.; Wedberg, J.L.; Seffey, K.L.; Sloderbeck, P.E.; Siegfried, B.D.; Rice, M.E.; Pilcher, L.C.; Onstad, D.W.; Mason, C.E.; Lewis, L.C.; et al. Bt Corn and European Corn Borer- Long Term Success through Resistance Management; North Central Regional Extension Publication: Ames, IA, USA, 1997. [Google Scholar]
    5. Hutchison, W.D.; Burkness, E.C.; Mitchell, P.D.; Moon, R.D.; Leslie, T.W.; Fleischer, S.J.; Abrahamson, M.; Hamilton, K.L.; Steffey, K.L.; Gray, M.E.; et al. Areawide suppression of European corn borer with Bt maize reaps savings to non-Bt maize growers. Science 2010, 330, 222–225. [Google Scholar]
    6. Soberón, M.; Pardo, L.; Muñóz-Garay, C.; Sánchez, J.; Gómez, I.; Porta, H.; Bravo, A. Pore formation by Cry toxins. Adv. Exp. Med. Biol. 2010, 677, 127–142. [Google Scholar] [CrossRef]
    7. Zhang, X.; Candas, M.; Griko, N.B.; Taussig, R.; Bulla, L.A., Jr. A mechanism of cell death involving an adenylyl cyclase/PKA signaling pathway is induced by the Cry1Ab toxin of Bacillus thuringiensis. Proc. Natl. Acad. Sci. USA 2006, 103, 9897–9902. [Google Scholar]
    8. Vachon, V.; Laprade, R.; Schwartz, J.L. Current models of the mode of action of Bacillus thuringiensis insecticidal crystal proteins: A critical review. J. Invertebr. Pathol. 2012, 111, 1–12. [Google Scholar] [CrossRef]
    9. Siqueira, H.A.; González-Cabrera, J.; Ferré, J.; Flannagan, R.; Siegfried, B.D. Analyses of Cry1Ab binding in resistant and susceptible strains of the European corn borer, Ostrinia nubilalis (Hubner) (Lepidoptera: Crambidae). Appl. Environ. Microbiol. 2006, 72, 5318–5324. [Google Scholar]
    10. Huang, F.; Andow, D.A.; Buschman, L.L. Success of the high-dose/refuge resistance management strategy after 15 years of Bt crop use in North America. Entomol. Exp. Appl. 2011, 140, 1–16. [Google Scholar] [CrossRef]
    11. Tabashnik, B.E.; Brévault, T.; Carrière, Y. Insect resistance to Bt crops: Lessons from the first billion acres. Nat. Biotechnol. 2013, 31, 510–521. [Google Scholar] [CrossRef]
    12. Gassmann, A.J.; Petzold-Maxwell, J.L.; Keweshan, R.S.; Dunbar, M.W. Field-evolved resistance to Bt maize by western corn rootworm. PLoS One 2011, 6, e22629. [Google Scholar]
    13. Bravo, A.; Soberon, M. How to cope with insect resistance to Bt toxins? Trends Biotechnol. 2008, 26, 573–579. [Google Scholar] [CrossRef]
    14. Yao, J.; Buschman, L.L.; Oppert, B.; Khajuria, C.; Zhu, K.Y. Characterization of cDNAs encoding serine proteases and their transcriptional responses to Cry1Ab protoxin in the gut of Ostrinia nubilalis larvae. PLoS One 2012, 7, e44090. [Google Scholar]
    15. Li, H.; Oppert, B.; Higgins, R.A.; Huang, F.; Zhu, K.Y.; Buschman, L.L. Comparative analysis of proteinase activities of Bacillus thuringiensis-resistant and -susceptible Ostrinia nabilalis (Lepidoptera:crambidae). Insect Biochem. Mol. Biol. 2004, 34, 753–762. [Google Scholar] [CrossRef]
    16. Li, H.; Oppert, B.; Higgins, R.A.; Huang, F.; Buschman, L.L.; Gao, J.-R.; Zhu, K.Y. Characterization of cDNAs encoding three trypsin-like proteases and mRNA quantitative analysis in Bt-resistant and -susceptible strains of Ostrinia nubilalis. Insect Biochem. Mol. Biol. 2005, 35, 847–860. [Google Scholar] [CrossRef]
    17. Khajuria, C.; Zhu, Y.C.; Chen, M.-S.; Buschman, L.L.; Higgins, R.A.; Yao, J.; Cresop, A.L.B.; Siegfried, B.D.; Muthukrishnan, S.; Zhu, K.Y. Expressed sequence tags from larval gut of the European corn borer (Ostrinia nubilalis): Exploring candidate genes potentially involved in Bacillus thuringiensis toxicity and resistance. BMC Genomics 2009, 10, 1–14. [Google Scholar] [CrossRef]
    18. Kao, C.-Y.; Los, F.C.O.; Huffman, D.L.; Wachi, S.; Kloft, N.; Husmann, M.; Karabrahimi, V.; Schwartz, J.-L.; Bellier, A.; Ha, C.; et al. Global functional analyses of cellular responses to pore-forming toxins. PLoS Pathog. 2011, 7, e1001314. [Google Scholar] [CrossRef]
    19. Côté, J.C.; Otvos, I.S.; Schwartz, J.-L.; Vincent, C. Gene expression response of the spruce budworm, Choristoneura fumiferana, after exposure to various doses of Bacillus thuringiensis Cry1Ab toxin using microarray technology. In Proceedings of the 6th Pacific Rim Conference on the Biotechnology of Bacillus thuringiensis and its Environmental Impact, Victoria, BC, USA, 30 October 2005.
    20. David, J.-P.; Strode, C.; Vontas, J.; Nikou, D.; Vaughan, A.; Pignatelli, P.; Louis, C.; Hemingway, J.; Ranson, H. The Anopheles gambiae detoxification chip: A highly specific microarray to study metabolic-based insecticide resistance in malaria vectors. Proc. Natl. Acad. Sci. USA 2005, 102, 4080–4084. [Google Scholar] [CrossRef]
    21. Van Munster, M.; Prefonaine, G.; Meunier, L.; Elias, M.; Mazza, A.; Brousseau, R.; Masson, L. Altered gene expression in Choristoneura fumiferana and Manduca sexta in response to sublethal intoxication by Bacillus thuringiensis Cry1Ab toxin. Insect Mol. Biol. 2007, 16, 25–35. [Google Scholar] [CrossRef]
    22. Huang, L.; Cheng, T.; Xu, P.; Cheng, D.; Fang, T.; Xia, Q. A genome-wide survey for host response of silkworm, Bombyx mori during pathogen Bacillus bombyseptieus infection. PLoS One 2009, 4, e8098. [Google Scholar]
    23. Chroma, C.T.; Surewicz, W.K.; Carey, P.R.; Pozsgay, M.; Raynor, T.; Kaplan, H. Unusual proteolysis of the protoxin and toxin from Bacillus thuringiensis: Structural implications. Eur. J. Biochem. 1990, 189, 523–527. [Google Scholar] [CrossRef]
    24. Bravo, A.; Gill, S.S.; Soberón, M. Mode of action of Bacillus thuringiensis Cry and Cyt toxins and their potential for insect control. Toxicon 2007, 49, 423–435. [Google Scholar] [CrossRef]
    25. Oppert, B. Protease interactions with Bacillus thuringiensis insecticidal toxins. Arch. Insect Biochem. Physiol. 1999, 42, 1–12. [Google Scholar] [CrossRef]
    26. Oppert, B.; Kramer, K.J.; Johnson, D.; Upton, S.J.; Mcgaughey, W.H. Luminal proteinases from Plodia interpunctella and the hydrolysis of Bacillus thuringiensis CryIA(c) protoxin. Insect Biochem. Mol. Biol. 1996, 26, 571–583. [Google Scholar]
    27. Oppert, B.; Kramer, K.J.; Beeman, R.W.; Johnson, D.; McGaughey, W.H. Proteinase-mediated insect resistance to Bacillus thuringiensis toxins. J. Biol. Chem. 1997, 272, 23473–23476. [Google Scholar] [CrossRef]
    28. Hua, G.; Jurat-Fuentes, J.L.; Adang, M.J. Bt-R1a extracellular cadherin repeat 12 mediates Bacillus thuringiensis Cry1Ab binding and cytotoxicity. J. Biol. Chem. 2004, 279, 28051–28056. [Google Scholar]
    29. Flannagan, R.D.; Yu, C.G.; Mathis, T.E.; Shi, X.; Siqueira, H.A.; Siegfied, B.D. Identification, cloning and expression of a Cry1Ab cadherin receptor from European corn borer, Ostrinia nubilalis (Hubner) (Lepidoptera: Crabidae). Insect Biochem. Mol. Biol. 2005, 35, 33–40. [Google Scholar] [CrossRef]
    30. Knight, P.J.K.; Crickmore, N.; Ellar, D.J. The receptor for Bacillus thuringiensis Cry1Ac delta-endotoxin in the brush border membrane of the lepidopteran Manduca sexta is aminpeptidase N. Mol. Microbiol. 1994, 11, 429–436. [Google Scholar] [CrossRef]
    31. Xu, L.N.; He, K.L.; Wang, Z.Y.; Bai, S.X. Cloning and sequencing of aminopeptidase N genes from Asian corn borer susceptible and resistant to Cry1Ab toxin. J. Agric. Biotechnol. 2011, 19, 164–170. [Google Scholar]
    32. Yang, Y.; Zhu, Y.C.; Ottea, J.; Husseneder, C.; Leonard, B.R.; Abel, C.; Huang, F. Molecular characterization and RNA interference of three midgut aminopeptidase N isozymes from Bacillus thuringiensis-susceptible and -resistant strains of sugarcane borer, Diatraea saccharalis. Insect Biochem. Mol. Biol. 2010, 40, 592–603. [Google Scholar] [CrossRef]
    33. Rajagopal, R.; Sivakumar, S.; Agrawal, P.; Malbotra, P.; Bhatnagar, R.K. Silencing of midgut aminopeptidase N of Spodoptera litura by double-stranded RNA establishes role as Bacillus thuringiensis toxin receptor. J. Biol. Chem. 2002, 277, 46849–46851. [Google Scholar]
    34. Herrero, S.; Gechev, T.; Bakker, P.L.; Moar, W.J.; de Maagd, R.A. Bacillus thuringiensis Cry1Ca-resistant Spodoptera exigua lacks expression of one of four aminopeptidase N genes. BMC Genomics 2005, 6, e96. [Google Scholar] [CrossRef]
    35. Khajuria, C.; Buschman, L.L.; Chen, M.-S.; Siegfried, B.D.; Zhu, K.Y. Identification of a novel aminopeptidase P-like gene (OnAPP) possibly involved in Bt toxicity and resistance in a major corn pest (Ostrinia nubilalis). PLoS One 2011, 6, e23983. [Google Scholar]
    36. Broderick, N.A.; Raffa, K.F.; Handelsman, J. Midgut bacteria required for Bacillus thuringiensis insecticidal activity. Proc. Natl. Acad. Sci. USA 2006, 103, 15196–15199. [Google Scholar] [CrossRef]
    37. Khajuria, C.; Buschman, L.L.; Chen, M.-S.; Zurek, L.; Zhu, K.Y. Characterization of six antibacterial response genes from the European corn borer (Ostrinia nubilalis) larval gut and their expression in response to bacterial challenge. J. Insect Physiol. 2011, 57, 345–355. [Google Scholar] [CrossRef]
    38. Chen, C.-S.; Bellier, A.; Kao, C.-Y.; Yang, Y.-L.; Chen, H.-D.; Los, F.C.; Aroian, R.V. WWP-1 is a novel modulator of the DAF-2 insulin-like signaling network involved in pore-forming toxin cellular defenses in Caenorhabditis elegans. PLoS One 2010, 5, e9494. [Google Scholar]
    39. Khajuria, C.; Buschman, L.L.; Chen, M.-S.; Muthukrishnan, S.; Zhu, K.Y. A gut-specific chitinase gene essential for regulation of chitin content of peritrophic membrane and growth of Ostrinia nubilalis larvae. Insect Biochem. Mol. Biol. 2010, 40, 621–629. [Google Scholar] [CrossRef]
    40. Zhang, X.; Zhang, J.; Zhu, K.Y. Chitosan/double-stranded RNA nanoparticle-mediated RNA interference to silence chitin synthase genes through larval feeding in the African malaria mosquito (Anopheles gambiae). Insect Mol. Biol. 2010, 19, 683–693. [Google Scholar] [CrossRef]
    41. Kato, N.; Dasgupta, R.; Smartt, C.T.; Christensen, B.M. Glucosamine:fructose-6-phosphate aminotransferase: Gene characterization, chitin biosynthesis and peritrophic matrix formation in Aedes aegypti. Insect Mol. Biol. 2002, 11, 207–216. [Google Scholar] [CrossRef]
    42. Liu, X.; Zhang, H.; Li, S.; Zhu, K.Y.; Ma, E.; Zhang, J. Characterization of a midgut-specific chitin synthase gene (LmCHS2) responsible for biosynthesis of chitin of peritrophic matrix in Locusta migratoria. Insect Biochem. Mol. Biol. 2012, 42, 902–910. [Google Scholar] [CrossRef]
    43. Zhang, X.; Zhang, J.; Park, Y.; Zhu, K.Y. Identification and characterization of two chitin synthase genes in African malaria mosquito, Anopheles gambiae. Insect Biochem. Mol. Biol. 2012, 42, 674–682. [Google Scholar] [CrossRef]
    44. Lee, M.K.; Milne, R.E.; Ge, A.Z.; Dean, D.H. Location of Bombyx mori receptor binding region on a Bacillus thuringiensis endotoxin. J. Biol. Chem. 1992, 267, 3115–3121. [Google Scholar]
    45. Dalman, M.R.; Deeter, A.; Nimishakavi, G.; Duan, Z.-H. Fold change and p-value cutoffs significantly alter microarray interpretations. BMC Bioinform. 2012, 13, S11. [Google Scholar]
    46. Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, e45. [Google Scholar] [CrossRef]
    Toxins EISSN 2072-6651 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
