Remote Sens. 2017, 9(4), 342; doi:10.3390/rs9040342

Polarimetric Calibration for a Ground-Based Radar, and Comparison of the Polarimetric Parameters with Air-Borne SAR Obtained from a Forest

1
Tokyo Denki University, Ishizaka, Hatoyama-machi, Hiki-gun, Saitama 350-0394, Japan
2
Earth Observation Research Center, Japan Aerospace Exploration Agency, 2-1-1 Sengen, Tsukuba, Ibaraki 305-8505, Japan
*
Author to whom correspondence should be addressed.
Academic Editors: Bruce Chapman, Paul Siqueira, Nicolas Baghdadi, Richard Müller and Prasad S. Thenkabail
Received: 27 December 2016 / Revised: 15 March 2017 / Accepted: 31 March 2017 / Published: 3 April 2017
(This article belongs to the Special Issue Calibration and Validation of Synthetic Aperture Radar)
View Full-Text   |   Download PDF [5362 KB, uploaded 7 April 2017]   |

Abstract

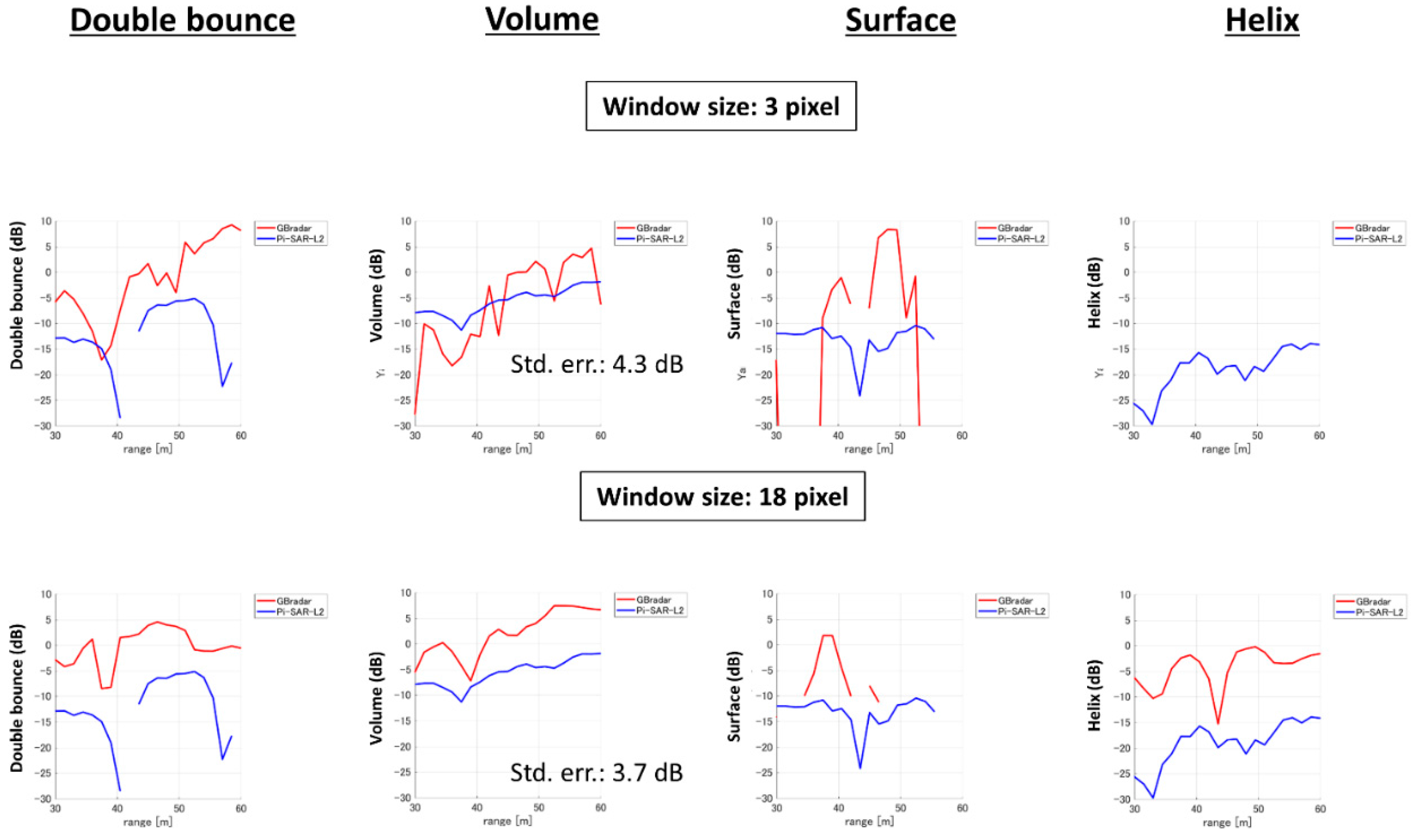

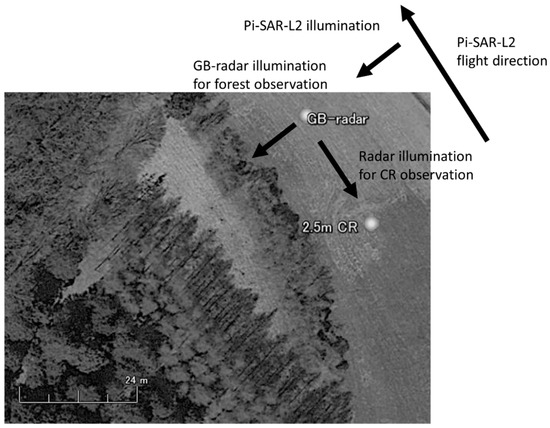

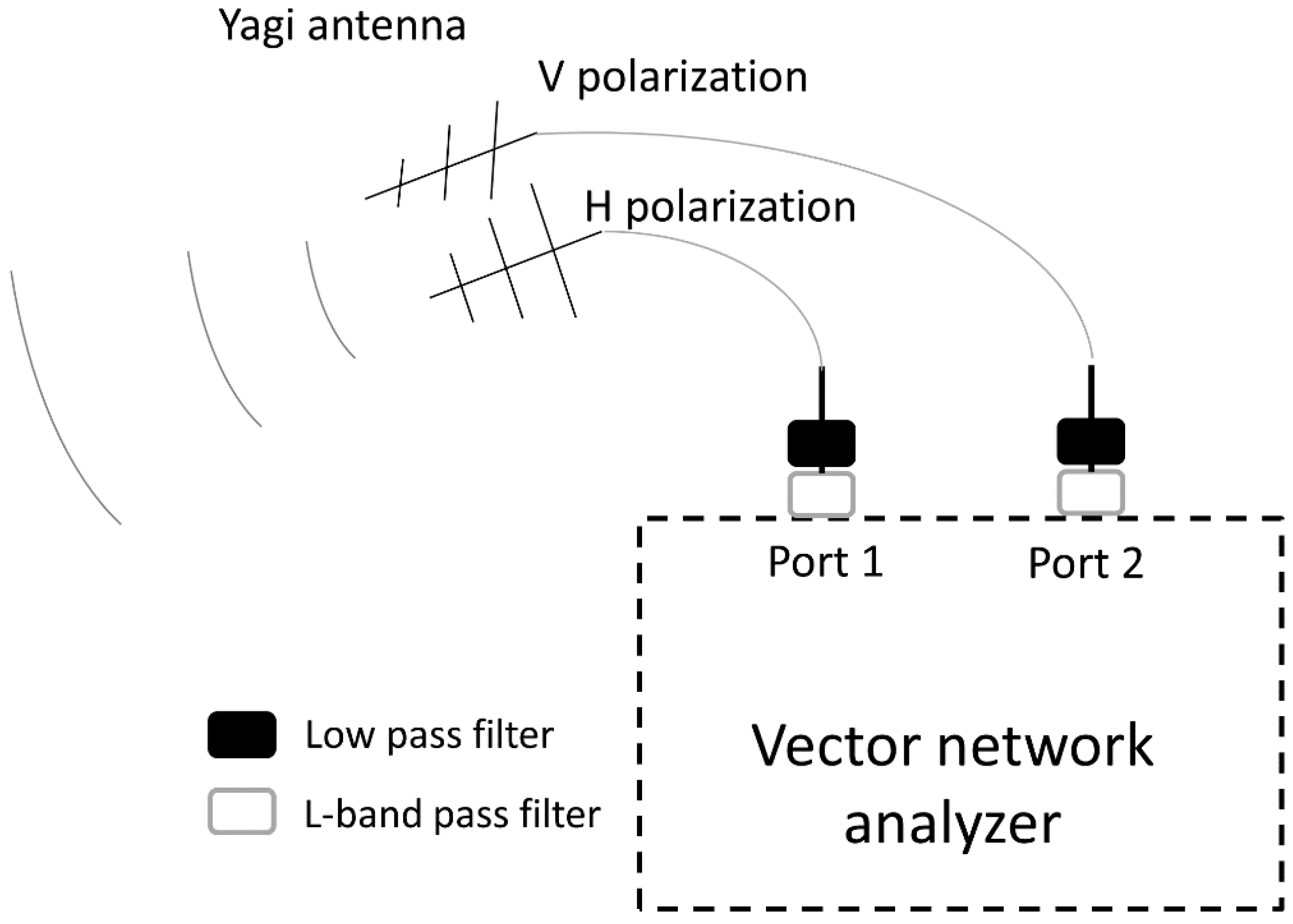

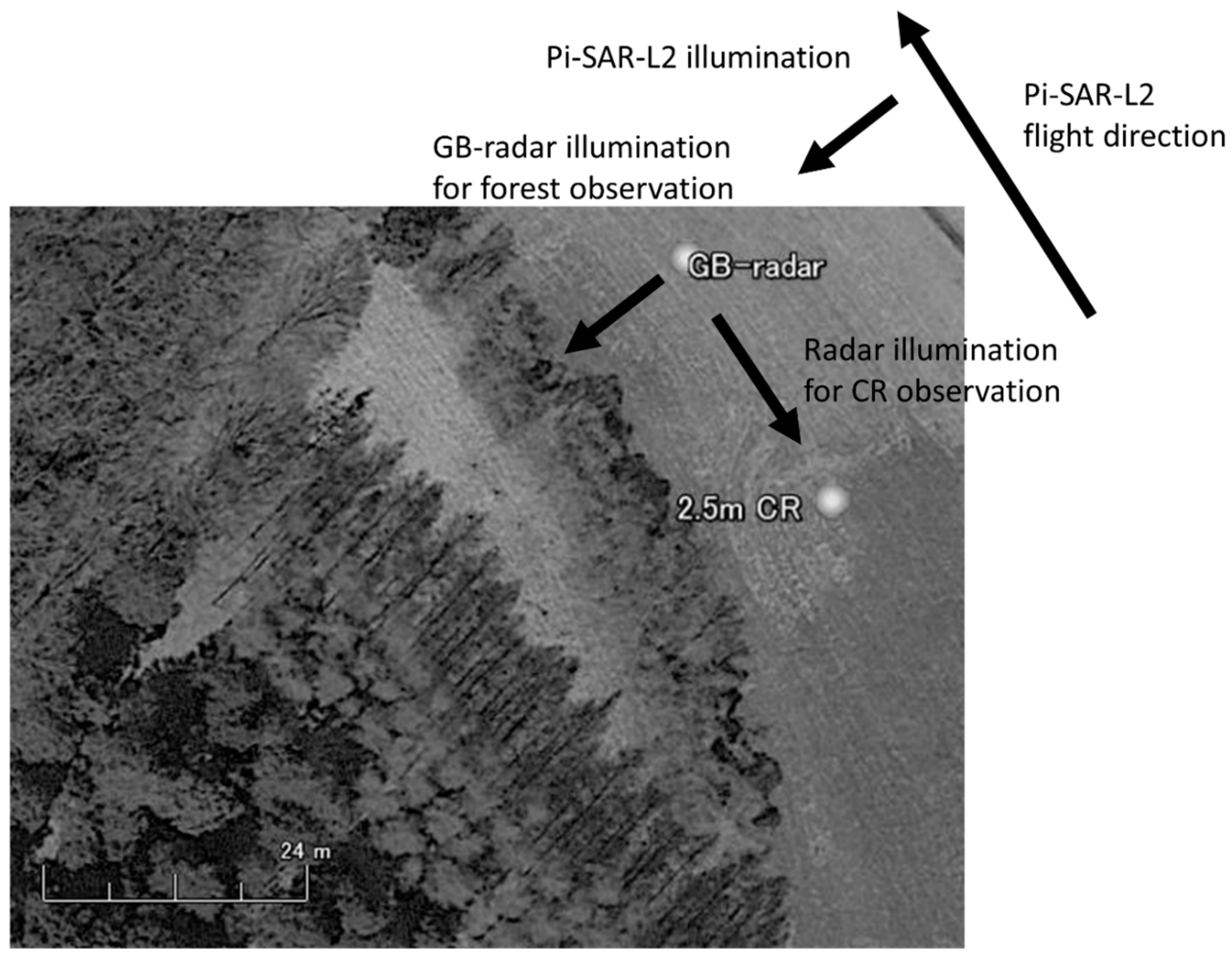

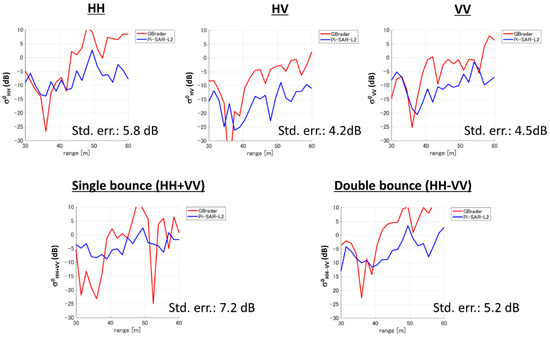

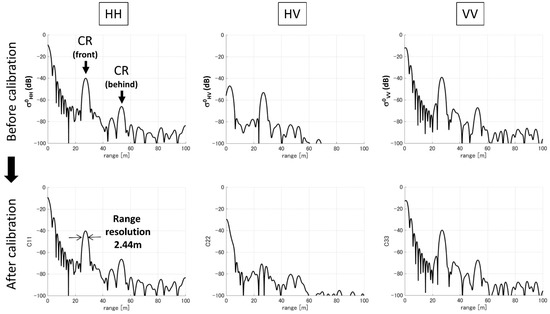

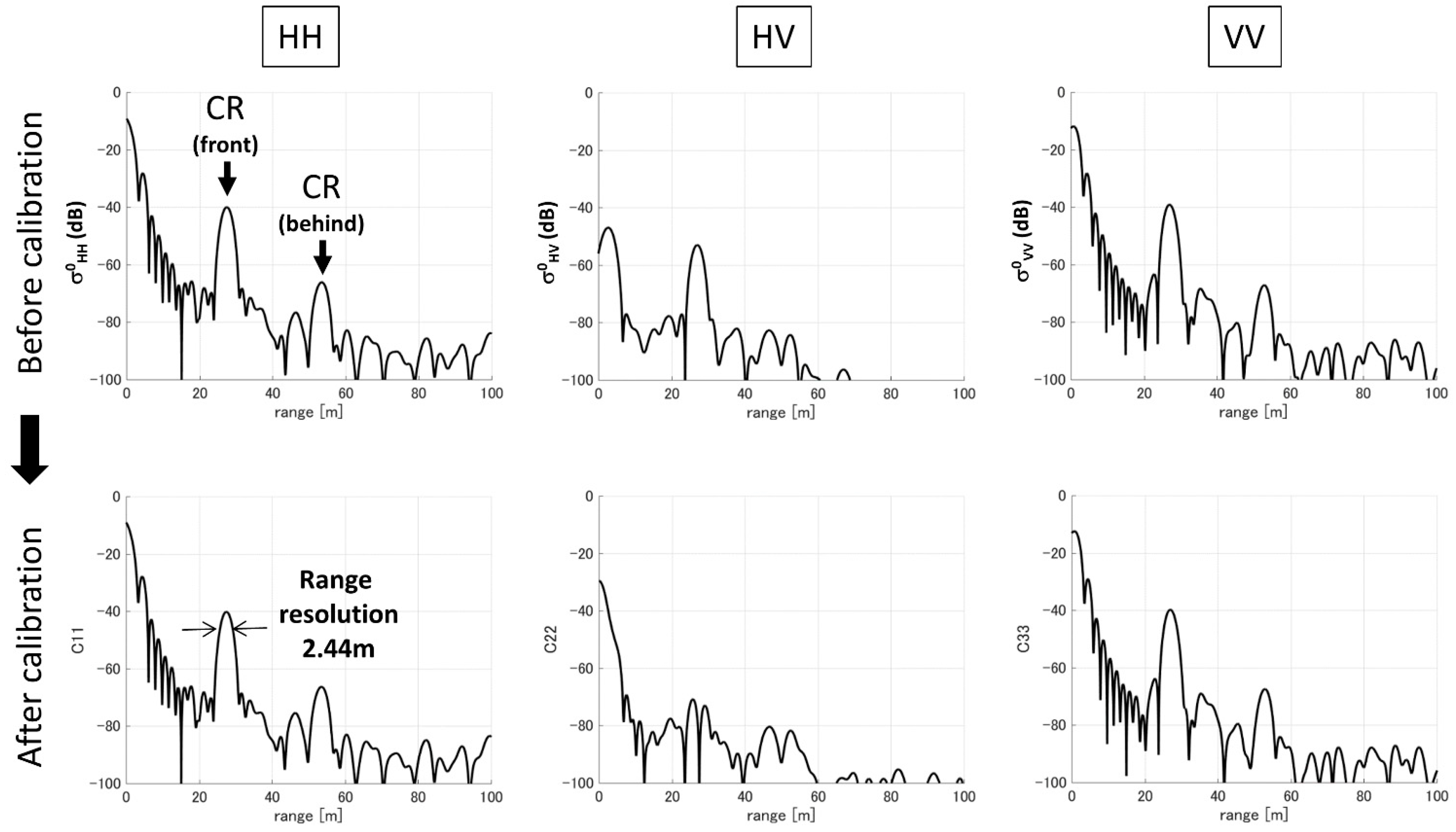

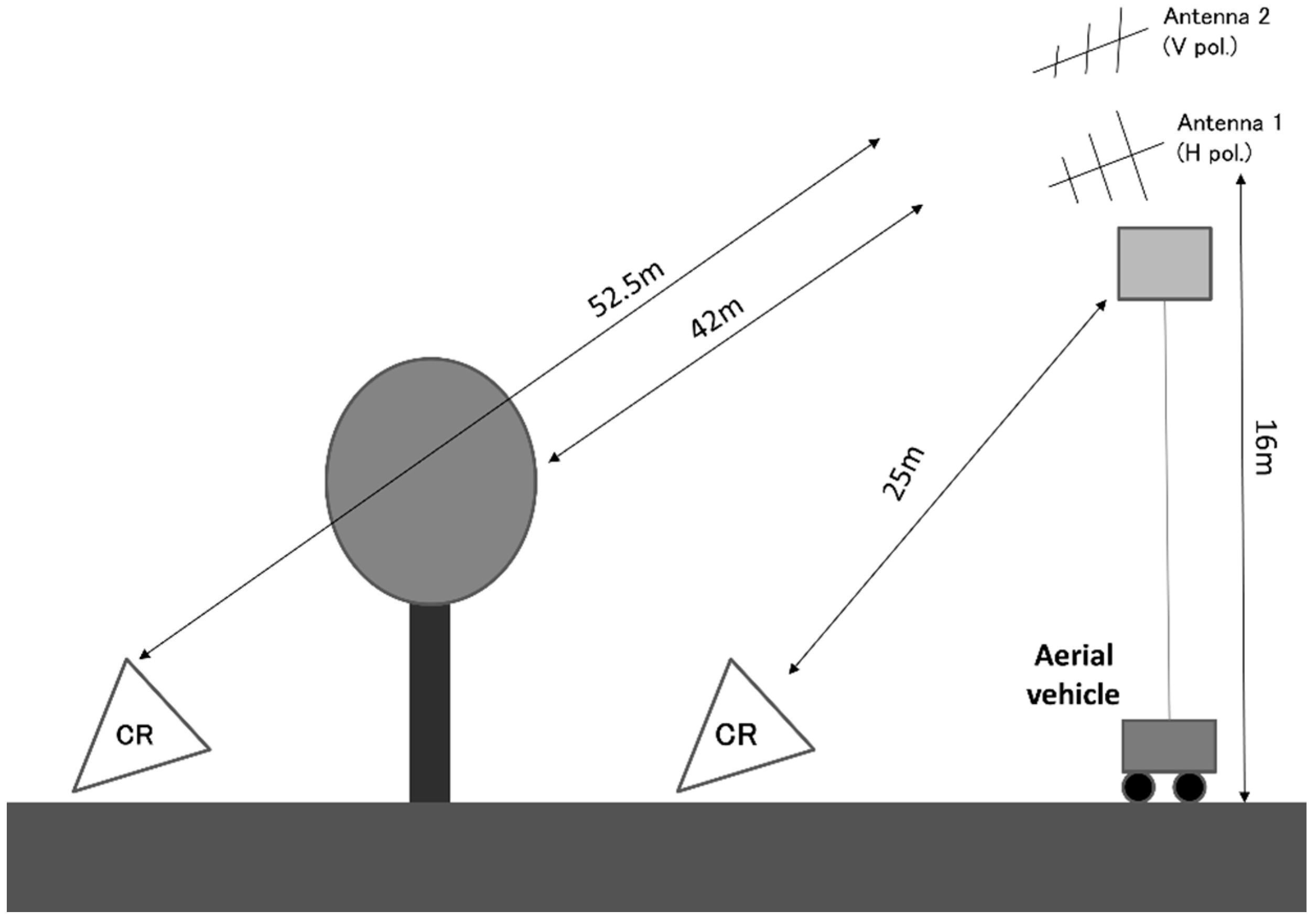

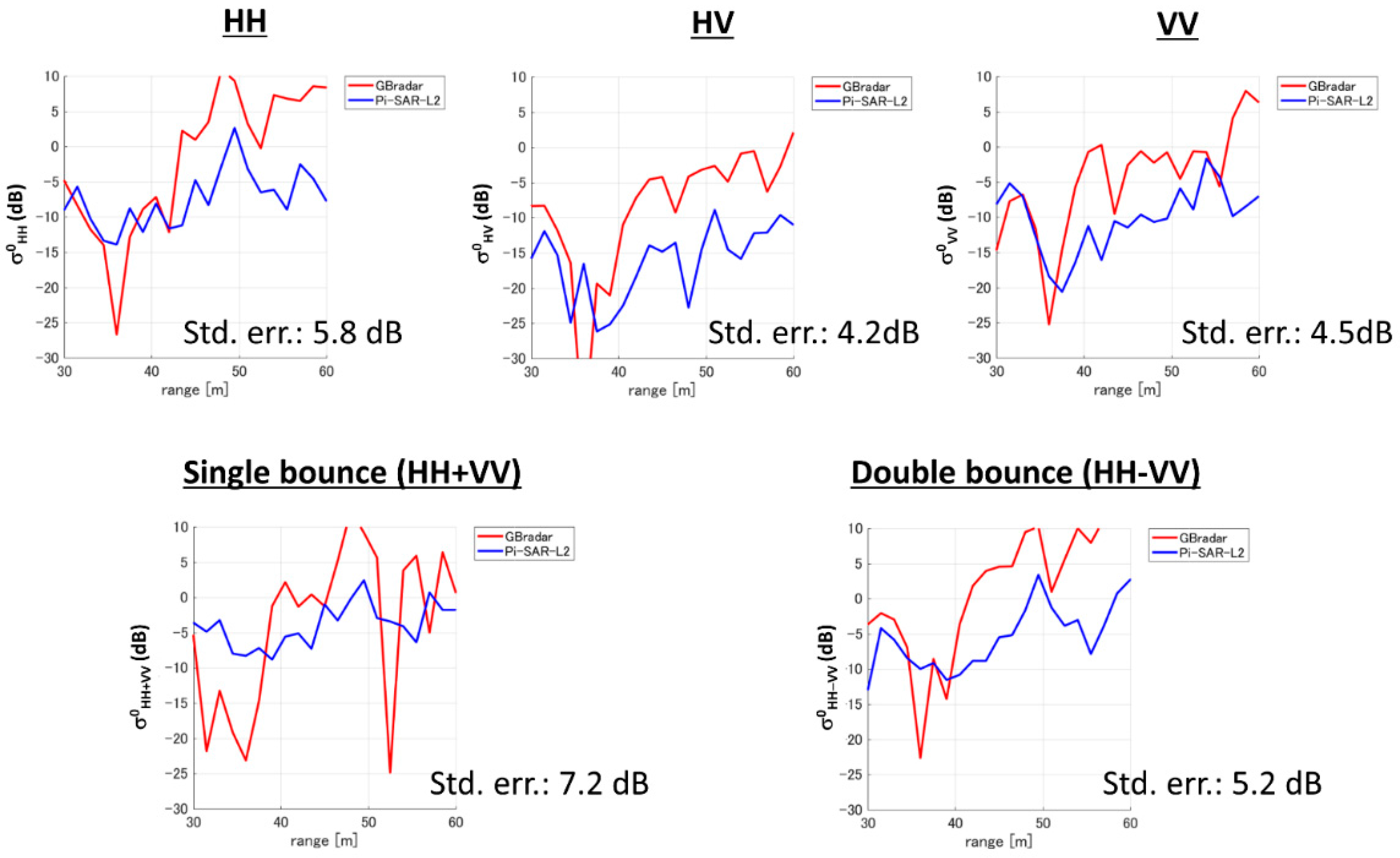

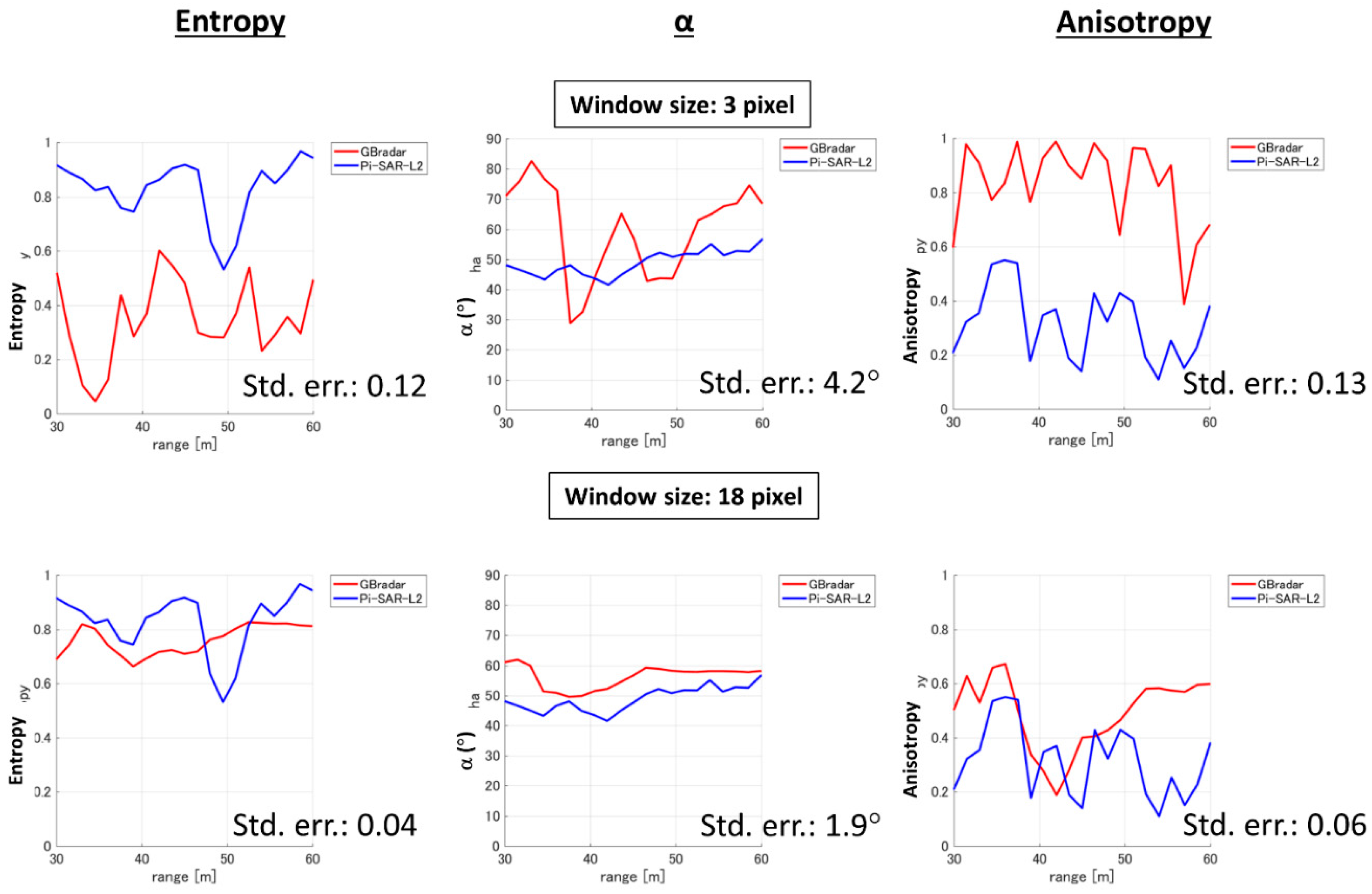

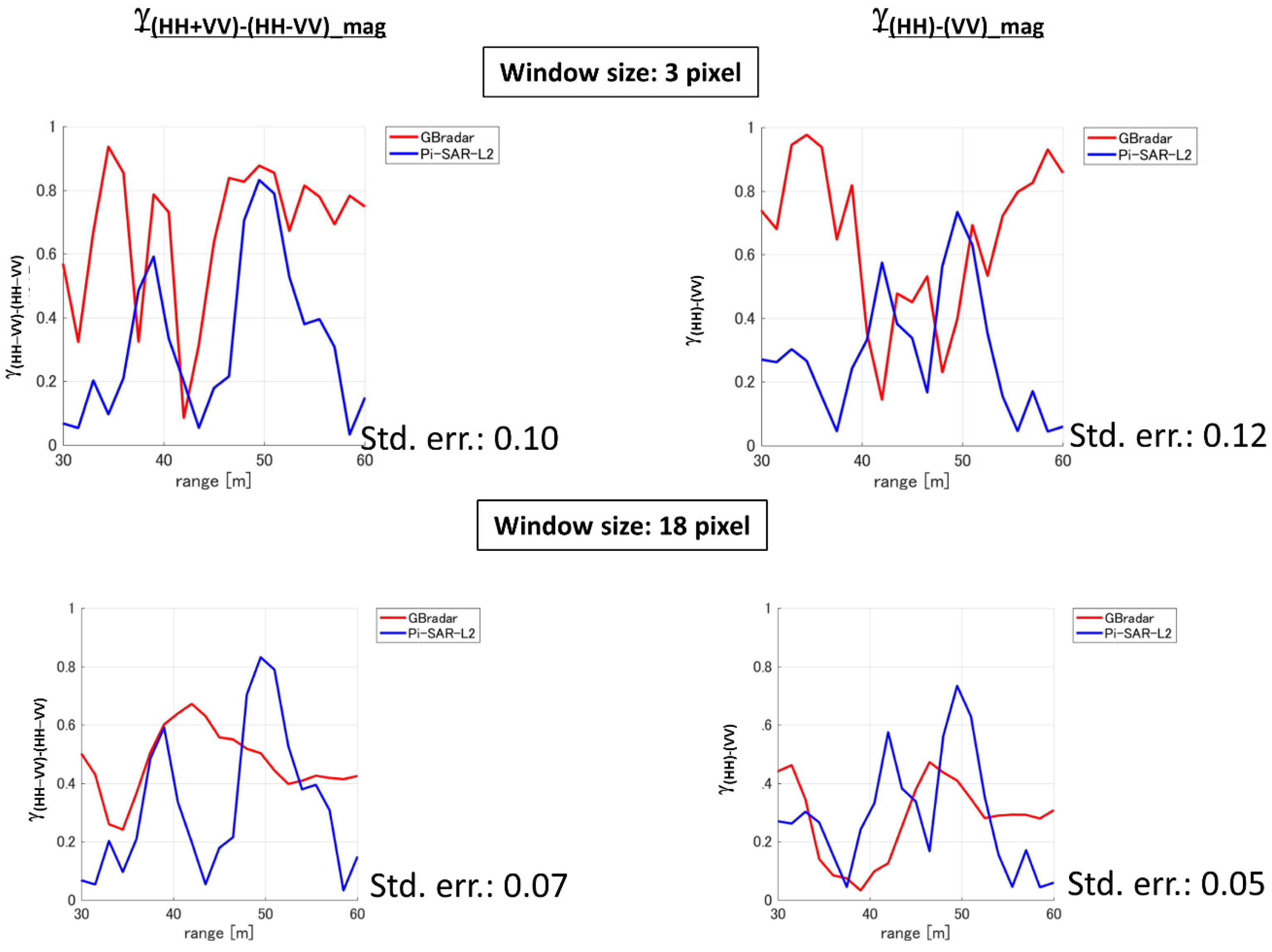

A polarimetric ground-based radar (GB-radar) system operated in the L-band has been developed. The frequency range of GB-radar is 1.215 to 1.3 GHz, which is the same as that of Japanese satellite-borne SAR, PALSAR-2 (Phased Array type L-band Synthetic Aperture Radar), and Japanese L-band air-borne radar, i.e., Pi-SAR-L2 (Polarimetric and Interferometric Airborne Synthetic Aperture Radar L2). Polarimetric calibration was carried out twice in the field to calibrate and validate the GB-radar data. Cross-talk and channel imbalance are improved for the both experiments, and are from −13.3 dB to −30.7 dB, and from 1.06 to 1.00, respectively for the first experiment, after calibration. The calibrated cross-talk and channel imbalance values were comparable to −31.7 dB and 1.013, which were obtained using PALSAR. Radiometric calibration and antenna pattern correction were also carried out in the second experiment. Forest observations were also carried out simultaneously by GB-radar and Pi-SAR-L2 in the second experiment. The range profiles obtained by GB-radar and Pi-SAR-L2 were compared for several polarimetric parameters, namely, radar backscattering coefficient, polarimetric coherence, eigenvalue-decomposition parameters, and four-component-decomposition parameters. Both range profiles matched moderately well and showed good performance that could compensate for the limited possibility of satellite/air-borne SAR observation. View Full-Text
Keywords: forest monitoring; L-band SAR; ground-based radar; radar calibration forest monitoring; L-band SAR; ground-based radar; radar calibration
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
