Remote Sens. 2015, 7(6), 7080-7104; doi:10.3390/rs70607080

Evaluation of Land Surface Temperature Retrieval from FY-3B/VIRR Data in an Arid Area of Northwestern China

1
State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
2
Joint Center for Global Change Studies (JCGCS), Beijing 100875, China
3
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Academic Editors: Xin Li, Yuei-An Liou, Richard Müller and Prasad S. Thenkabail
Received: 10 March 2015 / Revised: 4 May 2015 / Accepted: 13 May 2015 / Published: 29 May 2015
View Full-Text   |   Download PDF [3505 KB, uploaded 9 June 2015]   |

Abstract

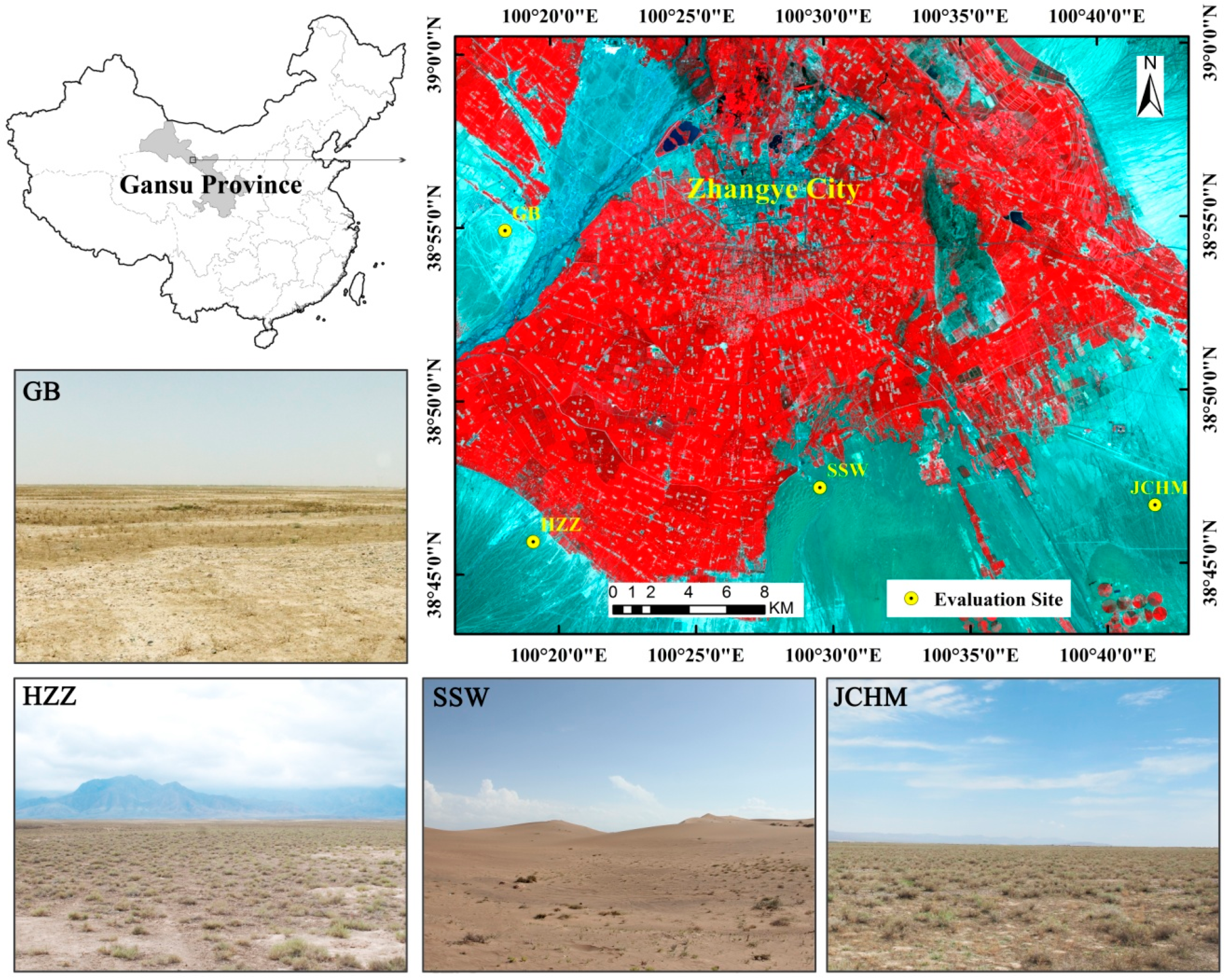

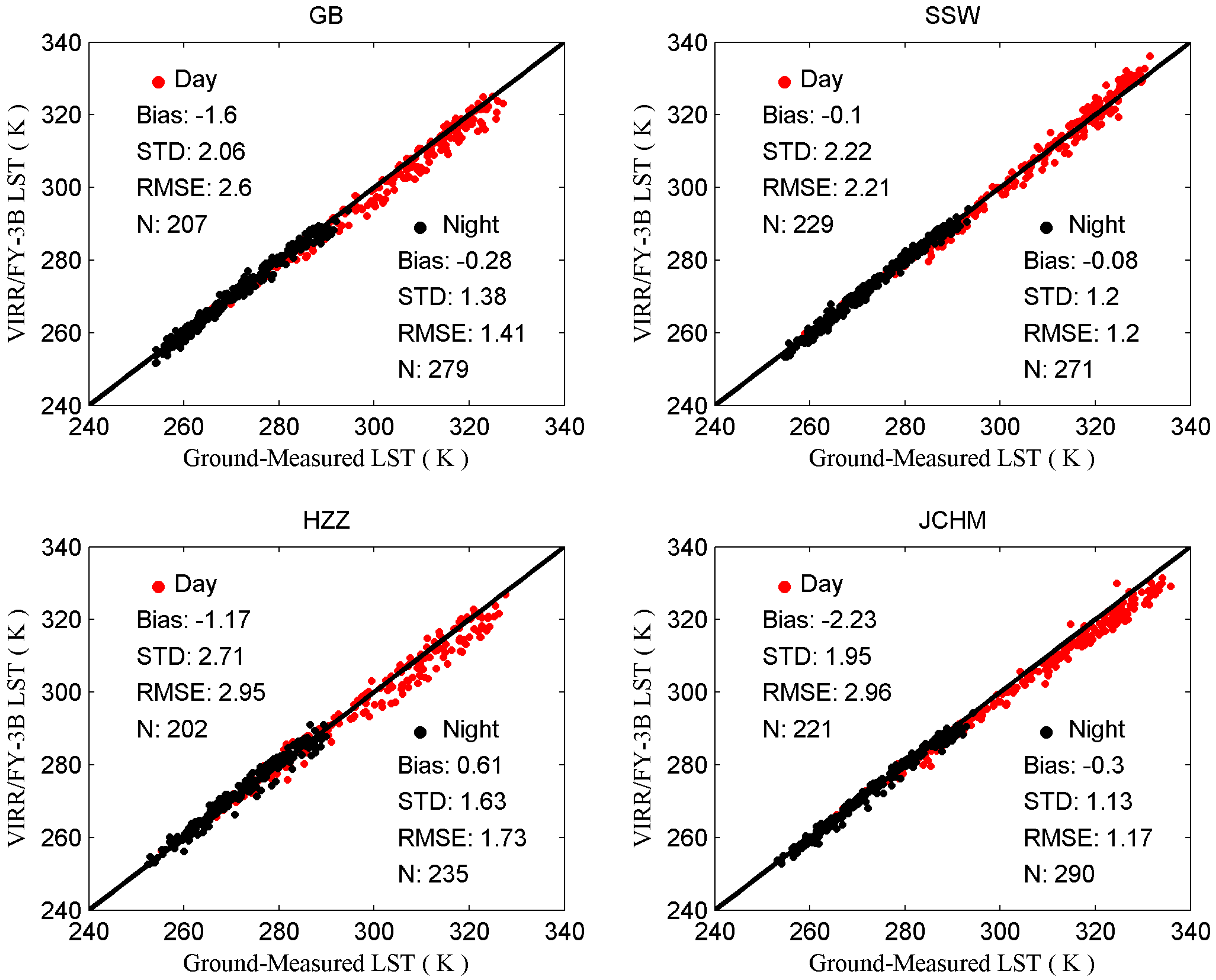

This paper uses the refined Generalized Split-Window (GSW) algorithm to derive the land surface temperature (LST) from the data acquired by the Visible and Infrared Radiometer on FengYun 3B (FY-3B/VIRR). The coefficients in the GSW algorithm corresponding to a series of overlapping ranges for the mean emissivity, the atmospheric Water Vapor Content (WVC), and the LST are derived using a statistical regression method from the numerical values simulated with an accurate atmospheric radiative transfer model MODTRAN 4 over a wide range of atmospheric and surface conditions. The GSW algorithm is applied to retrieve LST from FY-3B/VIRR data in an arid area in northwestern China. Three emissivity databases are used to evaluate the accuracy of different emissivity databases for LST retrieval, including the ASTER Global Emissivity Database (ASTER_GED) at a 1-km spatial resolution (AG1km), an average of twelve ASTER emissivity data in the 2012 summer and emissivity spectra extracted from spectral libraries. The LSTs retrieved from the three emissivity databases are evaluated with ground-measured LST at four barren surface sites from June 2012 to December 2013 collected during the HiWATER field campaign. The results indicate that using emissivity extracted from ASTER_GED can achieve the highest accuracy with an average bias of 1.26 and −0.04 K and an average root mean square error (RMSE) of 2.69 and 1.38 K for the four sites during daytime and nighttime, respectively. This result indicates that ASTER_GED is a useful emissivity database for generating global LST products from different thermal infrared data and that using FY-3B/VIRR data can produce reliable LST products for other research areas. View Full-Text
Keywords: land surface temperature; FY-3B/VIRR; Generalized Split-Window; land surface emissivity; ASTER_GED; ground-measured LST land surface temperature; FY-3B/VIRR; Generalized Split-Window; land surface emissivity; ASTER_GED; ground-measured LST
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
