Remote Sens. 2014, 6(9), 8220-8237; doi:10.3390/rs6098220

Assessment of Complex Masonry Structures with GPR Compared to Other Non-Destructive Testing Studies

1
Department of Strength of Materials and Structural Engineering, Escola Universitària d'Enginyeria Tècnica Industrial, Technical University of Catalonia, C/Urgell 187, 08036 Barcelona, Spain
2
Department of Geotechnical Engineering and Geo-Sciences, Technical University of Catalonia, C/Jordi Girona 1-3, 08034 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Received: 20 June 2014 / Revised: 21 August 2014 / Accepted: 25 August 2014 / Published: 29 August 2014
(This article belongs to the Special Issue Close-Range Remote Sensing by Ground Penetrating Radar)
View Full-Text   |   Download PDF [5802 KB, uploaded 29 August 2014]   |

Abstract

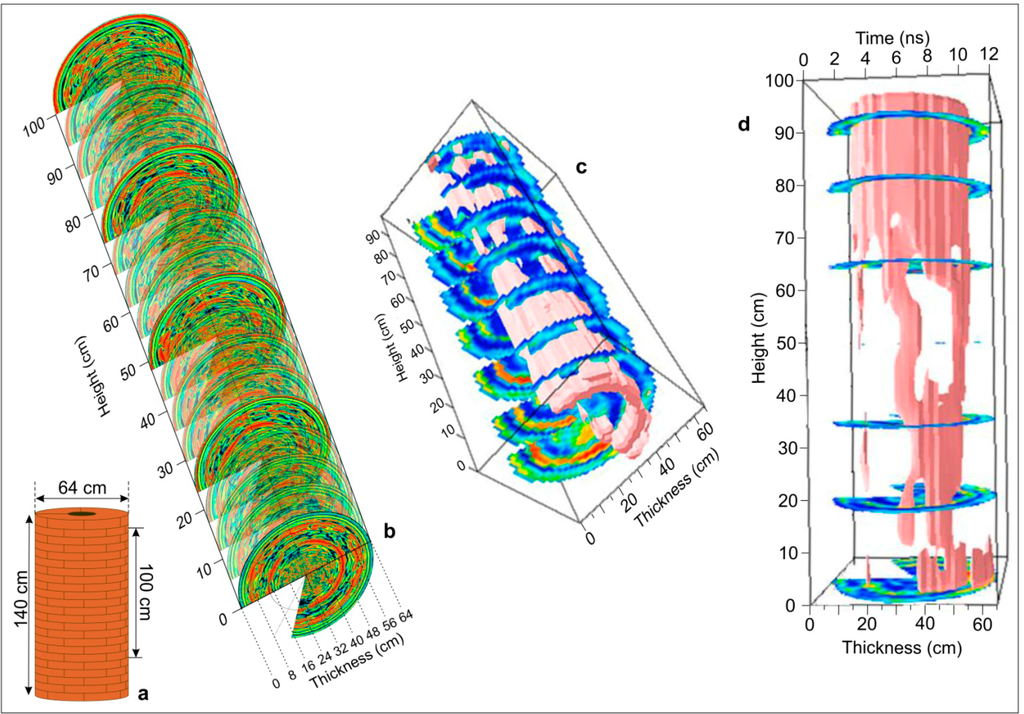

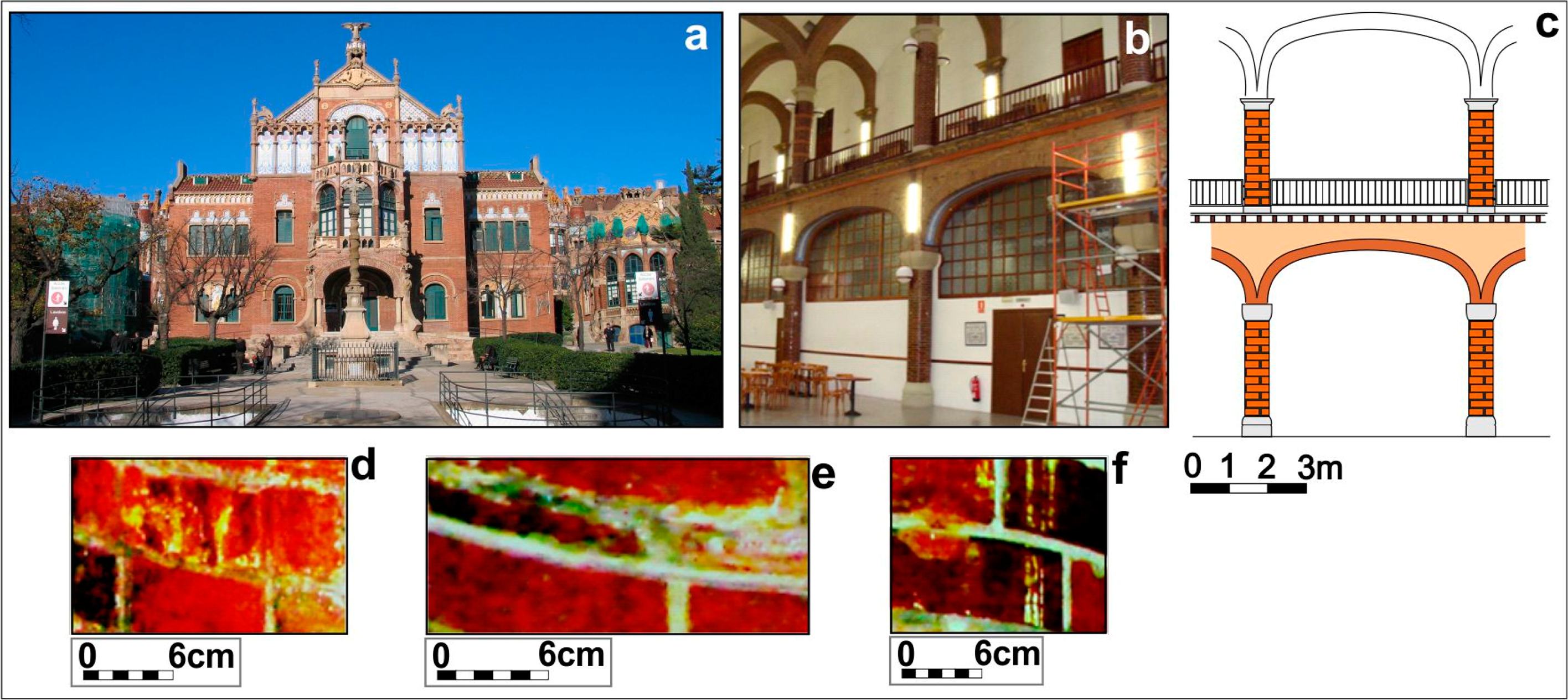

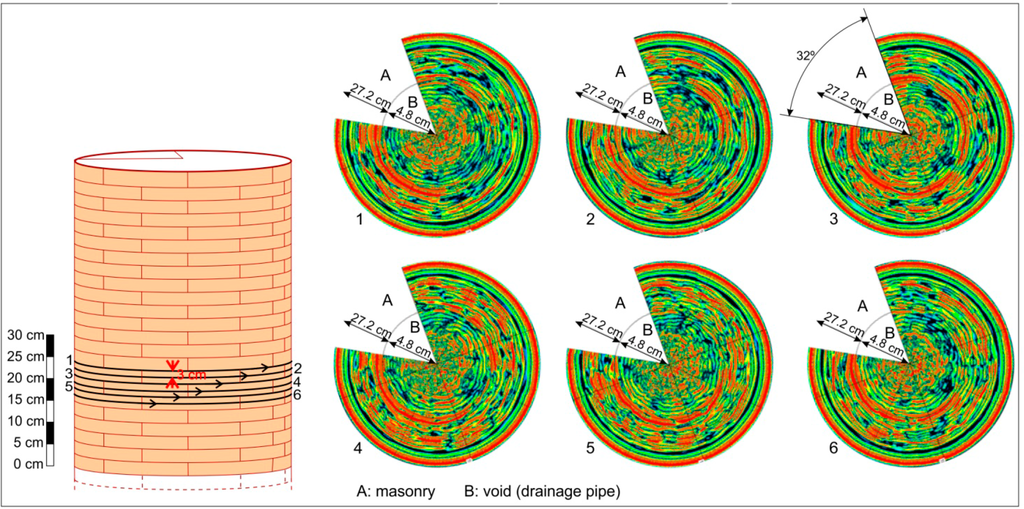

Columns are one of the most usual supporting structures in a large number of cultural heritage buildings. However, it is difficult to obtain accurate information about their inner structure. Non-destructive testing (NDT) methodologies are usually applied, but results depend on the complexity of the column. Non-flat external surfaces and unknown and irregular internal materials complicate the interpretation of data. This work presents the study of one column by using ground-penetrating radar (GPR) combined with seismic tomography, under laboratory conditions, in order to obtain the maximum information about the structure. This column belongs to a “Modernista” building from Barcelona (Spain). These columns are built with irregular and fragmented clay bricks and mortar. The internal irregular and complex structure causes complicated 2D images, evidencing the existence of many different targets. However, 3D images provide valuable information about the presence and the state of an internal tube and show, in addition, that the column is made of uneven and broken bricks. GPR images present high correlation with seismic data and endoscopy observation carried out in situ. In conclusion, the final result of the study provides information and 3D images of damaged areas and inner structures. Comparing the different methods to the real structure of the column, the potential and limitations of GPR were evaluated. View Full-Text
Keywords: ground-penetrating radar (GPR); seismic tomography; cultural heritage; masonry column; cylindrical interpolation; 3D radar imaging ground-penetrating radar (GPR); seismic tomography; cultural heritage; masonry column; cylindrical interpolation; 3D radar imaging
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
