Remote Sensing 2014, 6(4), 3369-3386; doi:10.3390/rs6043369

Article
Quantifying Spatial Heterogeneity in Urban Landscapes: Integrating Visual Interpretation and Object-Based Classification
Weiqi Zhou 1,*, Mary. L. Cadenasso 2, Kirsten Schwarz 3 and Steward T.A. Pickett 4
1
State Key Laboratory of Urban and Regional Ecology, Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences, Shuangqinglu 18, Beijing 100085, China
2
Department of Plant Sciences, University of California, Davis, Mail Stop 1, 1210 PES, One Shields Ave, Davis, CA 95616, USA; E-Mail: mlcadenasso@ucdavis.edu
3
Northern Kentucky University, Nunn Drive, Highland Heights, KY 41099, USA; E-Mail: schwarzk1@nku.edu
4
Cary Institute of Ecosystem Studies, Box AB, Millbrook, NY 12545, USA; E-Mail: picketts@caryinstitute.org
*
Author to whom correspondence should be addressed; E-Mail: wzhou@rcees.ac.cn; Tel.: +86-10-6284-9268; Fax: +86-10-6291-5372.
Received: 10 January 2014; in revised form: 21 March 2014 / Accepted: 26 March 2014 /
Published: 16 April 2014

Abstract

: Describing and quantifying the spatial heterogeneity of land cover in urban systems is crucial for developing an ecological understanding of cities. This paper presents a new approach to quantifying the fine-scale heterogeneity in urban landscapes that capitalizes on the strengths of two commonly used approaches—visual interpretation and object-based image analysis. This new approach integrates the ability of humans to detect pattern with an object-based image analysis that accurately and efficiently quantifies the components that give rise to that pattern. Patches that contain a mix of built and natural land cover features were first delineated through visual interpretation. These patches served as pre-defined boundaries for finer-scale segmentation and classification of within-patch land cover features which were classified using object-based image analysis. Patches were then classified based on the within-patch proportion cover of features. We applied this approach to the Gwynns Falls watershed in Baltimore, Maryland, USA. The object-based classification approach proved to be effective for classifying within-patch land cover features. The overall accuracy of the classification maps of 1999 and 2004 were 92.3% and 93.7%, respectively. This exercise demonstrates that by integrating visual interpretation with object-based classification, the fine-scale spatial heterogeneity in urban landscapes and land cover change can be described and quantified in a more efficient and ecologically meaningful way than either purely automated or visual methods alone. This new approach provides a tool that allows us to quantify the structure of the urban landscape including both built and non-built components that will better accommodate ecological research linking system structure to ecological processes.
Keywords:
object-based image analysis; visual interpretation; spatial heterogeneity; land cover classification; urban landscape; Baltimore

1. Introduction

Urban areas are strikingly heterogeneous, representing a mix of natural and built components at different densities and arrangements in the landscape. Over the past decade, research in urban systems has increasingly focused on understanding the link between this spatial heterogeneity and ecological processes [13]. This understanding is crucial for the management of current urban systems as well as for the planning of future growth. It also, potentially, may help us understand the influence of policy interventions on urban system structure and function. To develop such an understanding, it is necessary to first quantify the fine-scale heterogeneity using structural elements of the landscape that are hypothesized to influence ecological processes [4]. Urban ecologists are increasingly interested in the reciprocal interactions between built and non-built components of the landscape [1,4]. Therefore, there is a need for new approaches to quantify the fine-scale heterogeneity in urban landscapes that integrate the built and non-built components of the system [4,5]. Here we present a new approach to quantifying the fine-scale heterogeneity in urban landscapes that capitalizes on the strengths of two commonly used approaches—visual interpretation and object-based image analysis, using high spatial resolution imagery. This new approach integrates the ability of humans to detect pattern with an object based image analysis that accurately and efficiently quantifies the components that give rise to that pattern.

Visual interpretation is better suited for delimiting patches that incorporate built and non-built components of the landscape, compared to digital image processing approaches [4,68]. Recently, there is increasing interest in delineating patches (sometimes referred to as land cover units), based on visual interpretation that incorporate both built and non-built components of the urban landscapes [4,911], instead of digitizing individual landscape features [12]. Humans are exceptionally adept at visually recognizing and interpreting complex spatial patterns through comprehensively using shape, size, color, orientation, pattern, texture and context in interpretations [13,14]. These characteristics are crucial for identifying and delimiting patches that can represent important contrasts in ecological structure or process in the landscape, but are difficult to incorporate into conventional digital image processing techniques [6,7]. Therefore, in contrast to computer-based digital image processing approaches, visual interpretation integrates ecological knowledge into image analysis to define the boundaries of patches making the results more ecologically meaningful and relevant [4,7,8,14].

While visual interpretation is a good approach for patch delineation, it is not ideally suited for quantifying area estimates of within-patch land cover features [6,15,16]. In addition, it is labor-intensive, and may be subjective and unrepeatable, translating into mapping accuracy that varies substantially among interpreters with different experiences and skills [6,17,18].

Object-based image analysis can provide an effective means to measure land cover heterogeneity within a patch delineated from visual interpretation [1921]. Rather than classifying individual pixels into discrete cover types, object-based classification first segments the imagery into groups of pixels, called “image objects”. Consequently, image object characteristics such as shape and spatial relations (e.g., adjacency, distances, and direction) can be used to increase the discrimination between spectrally similar urban land cover types (e.g., building roofs and paved surfaces), thus improving the classification [19,20]. An object-based approach to land cover classification is quickly gaining acceptance among remote sensors and has recently been widely applied to urban land cover classifications [22].

This study presents a new approach that combines visual interpretation and object-based classification, with high-resolution digital aerial imagery, to describe and quantify the fine-scale heterogeneity in urban landscapes. This approach integrates the strength of human interpretation in patch delineation and the efficiency of an object-based approach in automated quantification of finer-scale land cover features. The overall objective of this study is to develop an ecologically meaningful and efficient approach to quantifying the fine-scale heterogeneity in urban landscapes. The method involves two steps. First, patches are generated through visual interpretation based on the HERCULES (High Ecological Resolution Classification for Urban Landscapes and Environmental Systems) land cover classification scheme [4], which will be discussed in detail in the method section. These patches serve as pre-defined boundaries for finer-scale segmentation and classification of within-patch land cover features, using an object-based classification. Patches are then classified based on the within-patch proportion of land cover features. We applied this approach to the Gwynns Falls watershed in Baltimore, Maryland, USA for two years, 1999 and 2004 to quantify the fine-scale heterogeneity and understand change over time.

2. Methods

2.1. Study Site

This analysis was conducted for the Gwynns Falls watershed, one of the focal research watersheds of the Baltimore Ecosystem Study (BES), a long-term ecological research project (LTER) ( www.beslter.org). The Gwynns Falls watershed, approximately 17,150 hectares in size, spans Baltimore City and Baltimore County, Maryland, USA and drains into the Chesapeake Bay (Figure 1). It traverses an urban–suburban–rural gradient from the urban core of Baltimore City, through older inner ring suburbs to rapidly suburbanizing areas in the middle reaches and a rural/suburban fringe in the upper section. Land cover in the watershed varies from highly impervious in lower sections to a broad mix of uses in the middle and upper sections.

2.2. Data

Data used in this study included: (1) high spatial resolution color-infrared digital aerial image data for two years (October 1999 and August 2004); (2) Light Detecting and Ranging (LIDAR) data acquired in March 2002; and (3) building footprints (ca. 1997). The aerial imagery was used for both patch delineation and within-patch land cover classification, while LIDAR data and building footprints were only used to aid in the land cover classification.

The imagery was 3-band color-infrared, with green (510–600 nm), red (600–700 nm), and near-infrared (NIR) bands (800–900 nm). The imagery has a spatial resolution of 0.6 m, with an 8-bit radiometric depth. It was orthorectified using a bilinear interpolation resampling method, and it meets the National Mapping Accuracy Standards for scale mapping of 1:3000 (3-m accuracy with 90% confidence).

A surface height model was derived from the LIDAR data, and used to aid in the land cover classification. Both the first and last vertical returns were recorded for each laser pulse, with an average point spacing of approximately 1.3 m. The returns from bare ground and nonground (e.g., canopy, building roofs) were separated. The point-sample elevation data were interpolated into 1-m spatial resolution raster Digital Surface Models (DSMs) using the Natural Neighbor interpolation method available in ArcGIS 3D Analyst TM. Digital surface models were separately created to represent the bare ground and nonground features from the return measurements. A surface cover height model was then generated by subtracting the bare ground DSM from the surface cover DSM.

Building footprints of Baltimore County and City of Baltimore (ca. 1997) were also used in this study. A limited assessment was conducted to compare the building footprints to the aerial image data. The building footprints appeared to agree spatially with the aerial imagery, but a considerable number of buildings that were constructed after 1997 were not captured.

2.3. Patch Delineation

The HERCULES land cover classification scheme was used to delineate patches. HERCULES classifies the biophysical structure of urban environments using six landscape features: (1) coarse-textured vegetation—trees and shrubs (CV); (2) fine-textured vegetation—herbs and grasses (FV); (3) bare soil; (4) pavement, (5) building; and (6) building typology [4]). Building typology has five recognized types (Table 1). Water is represented by the absence of the other elements.

HERCULES patches were digitized on-screen using the imagery in ArcGIS TM 9.2. Patches were delineated separately on the two datasets (1999/2004). Patches must be a minimum size of 20 m in two orthogonal directions to be recognized. This size constraint prevents: (1) roads, except for interstate highways and large divided roadways, from becoming independent patches; smaller roads and streets are included in the patches, and the variation among patches in the density of roads is captured by quantifying cover of paved surfaces; (2) individual parcels from being recognized as unique patches, as the land cover may reflect single land-owner management decisions; and (3) a single row of trees being recognized as unique patches.

The delineation of patches was an iterative process. Patches were mapped by two cycles of scale-explicit, rule-based interpretation of imagery, followed by QA/QC (quality assurance/quality control). Patches with no buildings were mapped first. These included patches of: (1) closed canopy woody vegetation; (2) open canopy; (3) major roads; and (4) water bodies. A patch of closed canopy woody vegetation is composed of continuous woody canopy with no built structures and an area larger than 0.5 ha. If there is an opening of greater than 20 m by 20 m, this opening will be mapped as a separated patch or patches. Patches of open canopy are those with no continuous canopy and no built structures; however, there may be isolated or scattered woody vegetation present. A road patch was mapped only if the width of the roads was greater than 20 m; examples are highways and major roads with multiple lanes. For those roads that were not wide enough to be delimited as an individual patch, if a road separates two patches, then the road is divided equally between the two patches; i.e., the patch boundary is drawn down the center of the road. Only water bodies with water year round were recognized as unique patches. This excluded ephemeral water bodies such as detention ponds.

Patches with built structures were then mapped based on the types of buildings recognized in the HERCULES classification (Table 1). A patch was delimited to include only one type of building, and any spatially associated vegetation and paved surfaces. Spatially adjacent buildings with the same building type were mapped into one patch if the relative abundances of the spatially associated vegetation and paved surfaces were similar. Otherwise, separated patches would be delineated.

Following the delineation of the draft patches, a different interpreter revisited each patch. This process involves a closer inspection of patch content to determine the presence and relative amounts of the features that make up the patch. This closer inspection may have resulted in discovering that the draft patch needed to be split into two or more patches. More often, assessing the relative amounts of the features that make up the patch may have led to the realization that the draft patch contained the same elements in the same proportions as an adjacent patch, resulting in a merge of the adjacent patches. Often the similarity between patches was overlooked in the initial stage because the arrangement of the elements in the two patches was very different, making visual interpretation of cover challenging. In general, the tendency to merge rather than to split patches was consistent across the years sampled; however, this was not quantified.

2.4. Patch Classification

Following patch delineation, an object-based approach was used to classify those patches according to the HERCULES criteria—the six landscape elements identified above. We developed a two-level hierarchical classification system. Image objects were generated at two hierarchical scales: (1) patches (level 2, or higher level); and (2) land cover features within patches (level 1, or lower level). The delineated patches served as pre-defined boundaries for finer-scale segmentation and classification of within-patch land cover features. Classification of the five land cover features were performed first (Figure 2, Panel C). Patches were then classified based on the within-patch, proportional cover of the five land cover features, combining building typology (Figure 2, Panel E; Table 2). We implemented this framework in Definiens Developer (now eCognition 8), an object-based image analysis program [23]. Separate classifications were created for the two study years.

2.4.1. Classification of Land Cover Features

We first segmented the image into object primitives, which consisted of groups of relatively homogeneous pixels. These objects were the building blocks for subsequent classifications following the methodology discussed in more detail in a previous study [20]. The image segmentation algorithm used in this study followed the fractal net evolution approach [23,24]. It is a bottom-up region merging algorithm, which is initialized with each pixel in the image as a separate segment. In subsequent steps, spatially adjacent segments are merged into a larger one if the increase in heterogeneity of the new segment compared to its component segments is less than a user-defined scale parameter [24]. The scale parameter indirectly controls the size of objects by specifying the maximum heterogeneity that is allowed within each object: The greater the scale parameter, the larger the average size of the objects. User-defined color and shape parameters can also be set to change the relative weighting of reflectance and shape in defining segments. The process stops when there are no more possible merges given the defined scale parameter. The segmentation was conducted at a very fine scale, with a scale parameter of 20. The color criterion was given a weight of 0.9, while the shape was assigned with the remaining weight of 0.1, giving equal weights to compactness (i.e., 0.05) and smoothness. The scale parameter of 20 and the values for the color and shape parameters were determined by visual interpretation of the image segmentation results, where objects were considered to be internally homogenous, i.e., all pixels within an image object belonged to one land cover class [20,25].

Following the image segmentation, a rule-based classification, i.e., a set of membership functions, was used to classify each of the objects into one of the five land cover features defined in HERCULES. A class hierarchy and its associated knowledge base of classification rules were developed by adapting the knowledge base created by a previous study [20]. Here, we describe the class hierarchy, its associated features and rules, and the classification processes (Figure 3).

We first separated buildings from non-built areas by using the information from the thematic layer of building footprints. Then, the non-built areas were classified into areas with shadows and areas without shadows using brightness, with the threshold value of 30 determined by a histogram thresholding method [20,25]. The brightness was defined as the channel mean value of the three image layers, i.e., green, red and near-infrared bands. The areas without shadows were further subdivided into vegetated areas and non-vegetated areas using Normalized Difference Vegetation Index (NDVI), which was derived from the red and near-infrared bands: Objects with NDVI values greater than 0.08 were classified as vegetation. Vegetation was further divided into coarse vegetation and fine vegetation, based on the height information obtained from the surface height model generated from LIDAR. Non-vegetated areas with height values of greater than 3 m were classified as buildings. We added the class of “missing building” to compensate for the fact that buildings built after 1997 were missing from the building footprint dataset. The parcel boundary layer contained information regarding the year of housing construction which was used to separate pavement from bare soil, as bare soil was mostly associated with new construction. Manual editing was further conducted to improve the separation of bare soil from pavement.

Before we further classified shaded objects, we performed an additional segmentation at a finer scale on the shaded objects, using the value of 5 for the scale parameter [25]. Shaded objects were then classified into tall and short objects, using information from the surface height model. Short objects were further distinguished into shaded fine vegetation and shaded pavement using both NDVI and spatial relations to neighboring objects. Shaded fine vegetation included objects with an NDVI value greater than 0.l or whose relative “borders to fine vegetation” value was greater than 0.5. The value of “borders to fine vegetation” was defined as the ratio of an object’s border shared with neighboring fine vegetation objects to the total border length. Shaded tall objects were classified as shaded buildings if their NDVI values were less than 0.1 and their relative borders to buildings were greater than 0.2; otherwise they were classified as shaded trees.

2.4.2. Accuracy Assessment on Classification of Land Cover Features

Accuracy of the land cover classification was assessed separately for the two years. We used pixels as the assessment units [26]. For each classification map, a stratified random sampling scheme based on the mapped land cover classes as strata was used to generate random points [27]. A total of 350 points were sampled, with a minimum of 50 random points representing each of the five land cover features [17,27]. The 1999 and 2004 imagery were used as reference data. In addition, natural color orthophotos with spatial resolution of 0.3 m that were collected in 2005 were used, in cases a decision could not be made only based on the 1999 or 2004 imagery (e.g., the randomly selected checking point was under shadow). An error matrix was created for each classification map. We calculated the overall, and user’s and producer’s accuracies based on the error matrices (Table 3). We incorporated the inclusion probabilities for the stratified design when calculating the user’s and producer’s accuracies [26].

2.4.3. Patch Classification

Patches, the objects at the higher level, were classified based on the within patch proportion cover of the five land cover features, combining building typology. The within-patch proportion cover of the five land cover features was obtained using the information from the sub-objects in the lower level. The proportional cover is divided into five categories: (0) absent, (1) present to 10% cover, (2) 11%–35% cover, (3) 36%–75% cover, and (4) >75% cover [4]. Building typology was visually interpreted during the process of patch delineation. Patch classes are defined by combining the proportion cover of all the five land cover features and building typology within each patch (CV + FV + Bare Soil + Pave + Building + Building type). For example, a patch with a high proportion of coarse vegetation (>75%), medium density of single detached houses (11%–35%), little fine vegetation and pavement (present to 10%), and no bare soil, is classified as “41012S”. For an example of patches classified using HERCULES see Table 2.

3. Results

3.1. Classification of Land Cover Features

The overall accuracies and the user’s and producer’s accuracies of individual land cover features were consistently high for both classification maps (1999 and 2004) (Table 3). The overall accuracies for 1999 and 2004 were 92.3% and 93.7%, respectively. User’s and producer’s accuracies of individual land cover features in both years were generally high, mostly greater than 90%. The relatively low producer’s accuracy for bare soil in 2004 was largely due to the very small proportion (i.e., 0.7%) of this type of land cover in the study area (Table 4).

Figure 4 depicts the land cover classification for the watershed in 1999 and 2004. The proportion cover of buildings, CV, FV, pavement and bare soil was 11.6%, 34.3%, 28.2%, 24.0%, and 1.9%, respectively in 1999, and was 12.0%, 34.5%, 26.9%, 25.9%, and 0.7%, respectively in 2004 (Table 4). The area, or proportions of, bare soil and fine vegetation decreased from 1999 to 2004, while that of building, pavement, and coarse vegetation increased. The percent cover of fine vegetation and bare soil decreased 1.3% and 1.2%, respectively (Table 4). Percent cover of pavement increased 1.9% between the two years. The coverage of coarse vegetation and building increased slightly, with values of 0.2% and 0.4%. While the changes in the relative abundance (or proportion) of the land cover features were small, changes in areas were not. For example, there was an increase of 319.8 ha of paved surfaces in the watershed during the 5-year time period, and a decrease of 223 ha in fine vegetation (Table 4)

3.2. Patch Delineation and Patch Classification

Patch delineation: The total number of patches in the watershed was 2159 in 1999, with a patch density of about 12.3/km2. Patch size ranged from 0.07 to 785.57 ha, with the mean patch size of 7.94 ha and the standard deviation of 25.54 ha. The median patch size was 2.64 ha, only about a third of the mean patch size, indicating the highly right-skewed distribution of patch sizes. That is, the majority of the distribution is concentrated on the left, with relatively few high values. Patches within Baltimore City had smaller mean patch size, but larger variation than those outside of the City. The total length of patch edges was 2892.15 km, with the mean of 1.34 km and a standard deviation of 2.36 km. The mean of shape index was 1.34, with a standard deviation of 0.55. Shape index is a measure of patch shape complexity [28]. Shape index equals 1 when the patch is maximally compact—square or almost square. It increases as patch shape becomes more irregular.

The total number of patches decreased slightly from 2159 to 2136 in 2004, with a very similar patch density, mean patch size, and range of patch size to those of 1999. The total length of patch edges was 2882.27 km, with a very small decrease from that of 1999. The mean shape index was 1.34 in 2004.

Patch classification: The Gwynns Falls watershed consists of 400 types of patches in 1999 (Figure 5). The number of patch types, however, was greatly reduced in 2004 to 330 (Figure 6). Patches were very unevenly distributed among classes for both years. In 1999, the 20 most dominant classes accounted for 43.8% of all the patches, or an average of 47 patches for one class, while 315 out of the 400 classes (or 78.8%), had less than five patches for each class. In 2004, the 20 most dominant classes had 1043 patches (or 48.8%), but 254 patch classes (or 77.0%), had less than five patches for each class. For both years, most of the watershed was occupied by built patches, or patches with buildings present. Buildings were present in 1430 patches, or 67% of the patches in 1999, and 1443 patches, or 66.2% of the patches in 2004. Only 109 patches in 1999 and 123 patches in 2004 had no buildings or pavement present. In 1999, the five largest patch classes were 22032C, 22022C, 22032M, 12032M, and 23020N, with number of patches 79, 76, 71, 63, and 59, respectively. In 2004, they were 22022C, 22032M, 12032M, 23022S, and 23020N, with number of patches 98, 90, 84, 58, and 56, respectively.

4. Discussion

Urban areas are strikingly heterogeneous. To develop an ecological understanding of urban systems, it is critical to quantify the fine-scale heterogeneity of their built and natural components. Recent availability of high-spatial resolution satellite and aerial imagery provides new opportunities to describe and quantify this fine-scale heterogeneity. However, it also calls for new approaches geared towards such data. In this study, we present an approach that combines visual interpretation and object-based image analysis to describe and quantify the fine-scale heterogeneity in urban landscapes. By integrating the strength of visual interpretation in patch delineation with an object-based approach in patch classification, this new approach provides an effective way to quantify the structure of urban landscapes that will better accommodate ecological research linking system structure to ecological processes. Our results showed that the urban landscape is very heterogeneous, characterized by extreme fine-scale patchiness and large variability in patch size.

4.1. Patch Delineation and Patch Classification: Visual Interpretation versus Digital Image Processing

Patch Delineation. Visual interpretation is superior to digital processing methods in delineating patches, even with the great recent advances made in object-based image analysis techniques [8,21,22]. In fact, objects generated from image segmentation are mostly image objects without realistic ecological meaning [19,22]. Humans are exceptionally adept at visually recognizing and interpreting complex spatial patterns [13,14]. In particular, ecological knowledge can be integrated into image analysis through visual interpretation with ease, but ecological knowledge is difficult to incorporate into digital image processing techniques (Jensen 2000 [14]; Richards and Jia 2006 [6]; Lang 2009 [8]). Incorporating ecological knowledge into patch delineation is critical in measuring and quantifying the fine-scale heterogeneity in urban landscapes. Therefore, incorporating ecological knowledge makes visual interpretation valuable for patch delineation, even though it is labor-intensive, and thus expensive.

Recent advances in object-based image analysis greatly enhance our capacity in urban land cover classification and feature extraction [19,21]. With the development of object-based image analysis, there is increasing interest in the automatic delineation of ecologically realistic objects [8,22,29].

The integration of future advances in image segmentation with knowledge-based classifications may allow us to incorporate ecological knowledge with ease, allowing for the automatic delineation of ecologically meaningful objects, or patches [8,22].

Patch Classification. Recent advances in object-based image analysis allow an automated quantification of land cover features at fine spatial scales [1921]. Our results show that an object-based approach provides an effective way for the classification of land cover features within a patch, and thus for patch classification. Therefore, an integration of the strength of visual interpretation for ecological patch delineation, and the effectiveness of an object-based approach for patch classification, provides a better way than using visual interpretation or an object-based approach alone, in quantification of fine-scale heterogeneous urban landscapes [8,30].

Alternatively, the within-patch proportion of land cover features can be visually estimated [4], in case there are no resources to perform object-based classification. Visual interpretation, however, is relatively poor in quantification of the finer scale of within-patch land cover features, compared to digital processing methods such as object-based image analysis [6,15]). A comparison between the estimates from visual interpretation and those from object-based classification showed that estimates by visual interpretation are moderately accurate, with overall accuracies varying by land cover features [15]. While visual interpretation does not work effectively when patches contain a mix of different types of features, accuracy increases with patches that are either dominated by a specific feature, or do not contain a specific feature [15].

An object-based approach, however, not only provides more accurate patch classification, but also provides more flexibility in patch classification. Different classification schemes, unlike the one used for patch classification in this study, can be developed based on different research questions. For example, if research needs require more or less categorical resolution in land cover features, the classes can be easily obtained by recoding the continuous percent cover of the land cover feature(s) within a patch.

4.2. Advancing Our Understanding of Ecological Processes in Cities

In addition to describing and quantifying the fine-scale heterogeneity in urban systems, this integrative approach also provides a tool for: (1) Communicating with and collaborating with other disciplines such as social science and urban design to implement integrated socio-ecological research; (2) stratifying the landscape to assist with sampling schemes design and site selection; (3) testing hypotheses for structure-function links; and (4) exploring hierarchical patch dynamics. Integrated socio-ecological research requires a match between the spatial and categorical resolution of ecological and social datasets [31]. For example, household level social data would be of little use to ecologists who may only be able to say something about urban land cover at the scale of the watershed and vice versa. In addition, the integration of built and non-built areas into ecologically relevant patches may also correspond to patches of social significance. For example, neighborhoods that were built at the same time will likely have similar amounts of fine vegetation, coarse vegetation, and building cover especially if they were built by the same developer. Neighborhoods with similar structure would be captured as a single HERCULES patch. This patch may also represent social organization in the community, for example, a neighborhood association, which could affect the relative proportion of cover by implementing management decisions. Classifications that do not integrate built and non-built components would not be able to capture this reciprocal relationship.

The flexibility of the classification also makes it well suited for stratifying the landscape to assist with sampling schemes design and site selection. The hierarchical nature of the classification allows patches with similar land cover proportions to be selected. For example, if a research question addressed forest patches embedded in the city, an investigator could select patches in the classification with continuous woody vegetation. Alternatively, a researcher might be interested in testing the affect of lawn age on carbon cycling. The flexibility of the classification would allow the investigator to select lawns of a different age while keeping all other factors constant (e.g., herbaceous vegetation, woody vegetation, and building cover). It also allows for the testing of gradients of land cover, for example, a researcher could select patches with three different densities of building cover while holding woody vegetation constant.

By separating ecological structure from function, this integrative approach also provides a tool for testing hypotheses of structure-function links in cities [32,33], a research area ripe for expansion and relevant as the Earth becomes increasingly urban. Finally, the hierarchical nature of the classification permits the exploration of patch dynamics as well as within-patch variation when temporal data are available. For example, by quantifying how much change of within-patch land cover feature will lead to changes in HERCULES patches, we can examine how changes in HERCULES patches link to those in within-patch land cover features.

5. Summary and Conclusions

Urban areas are inherently heterogeneous. To develop an ecological understanding of urban systems, it is critical to quantify the fine-scale heterogeneity of their built and natural components. This paper presents a new approach to quantify and measure the fine-scale heterogeneity in urban systems using high-spatial resolution imagery. This approach combines visual interpretation for patch delineation, or delimiting ecologically meaningful objects, with an object-based image analysis approach to quantify the land cover features within patches for patch classification. It integrates the strength of human interpretation in patch delineation and the effectiveness of an object-based approach in automated quantification of finer-scale land cover features. This approach provides a more efficient and ecologically meaningful way than either purely automated or visual methods alone to measure and quantify the structure of urban systems, using high-spatial resolution remotely sensed imagery. In addition, it also provides a useful tool for site selection, testing hypotheses linking structure of urban systems and ecosystem function, and integrated socio-ecological research.

The support of the National Natural Science Foundation of China (Grant No. 41371197) and the “One hundred talents” program of Chinese Academy of Sciences is gratefully acknowledged. This research was also supported by the National Science Foundation CAREER program (DEB-0844778), LTER program (DEB 042376), and Biocomplexity program (BCE 0508054).

Author Contributions

Weiqi Zhou and Mary. L. Cadenasso designed research; Weiqi Zhou and Mary. L. Cadenasso performed research; Weiqi Zhou analyzed data; and Weiqi Zhou, Mary. L. Cadenasso, Kirsten Schwarz, and Steward T.A. Pickett wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Grimm, N.B.; Grove, J.M.; Pickett, S.T.A.; Redman, C.L. Integrated approaches to long-term studies of urban ecological systems. Bioscience 2000, 50, 571–584. [Google Scholar]
  2. Pickett, S.T.A.; Cadenasso, M.L.; Grove, J.M.; Nilon, C.H.; Pouyat, R.V.; Zipperer, W.C.; Costanza, R. Urban ecological systems: Linking terrestrial ecological, physical, and socioeconomic components of metropolitan areas. Annu Rev. Ecol. Syst 2001, 32, 127–157. [Google Scholar]
  3. Pickett, S.T.A.; Cadenasso, M.L.; Grove, J.M.; Boone, C.G.; Groffman, P.M.; Irwin, E.; Kaushal, S.S.; Marshall, V.; McGrath, B.P.; Nilon, C.H.; et al. Urban ecological systems: Scientific foundations and a decade of progress. J. Environ. Manage 2011, 92, 331–362. [Google Scholar]
  4. Cadenasso, M.L.; Pickett, S.T.A.; Schwarz, K. Spatial heterogeneity in urban ecosystems: Reconceptualizing land cover and a framework for classification. Front. Ecol. Environ 2007, 5, 80–88. [Google Scholar]
  5. Zhou, W.Q.; Troy, A. Development of an object-based framework for classifying and inventorying human-dominated forest ecosystems. Int J. Remote Sens 2009, 30, 6343–6360. [Google Scholar]
  6. Richards, J.A.; Jia, X. Remote Sensing Digital Image Analysis; Springer: New York, NY, USA, 2006. [Google Scholar]
  7. Shao, G.F.; Wu, J.G. On the accuracy of landscape pattern analysis using remote sensing data. Landscape Ecol 2008, 23, 505–511. [Google Scholar]
  8. Lang, S.; Schopfer, E.; Langanke, T. Combined object-based classification and manual interpretation-synergies for a quantitative assessment of parcels and biotopes. Geocarto Int 2009, 24, 99–114. [Google Scholar]
  9. Pauleit, S.; Duhme, F. Assessing the environmental performance of land cover types for urban planning. Landscape Urban. Plan 2000, 52, 1–20. [Google Scholar]
  10. Gill, S.E.; Handley, J.F.; Ennos, A.R.; Pauleit, S.; Theuray, N.; Lindey, S.J. Characterising the urban environment of UK cities and towns: A template for landscape planning. Landscape Urban. Plan 2008, 87, 210–222. [Google Scholar]
  11. James, P.; Bound, D. Urban morphology types and open space distribution in urban core areas. Urban. Ecosys 2009, 12, 417–414. [Google Scholar]
  12. Ellis, E.C.; Wang, H.Q.; Xiao, H.S.; Peng, K.; Liu, X.P.; Li, S.C.; Ouyang, H.; Cheng, X.; Yang, L.Z. Measuring long-term ecological changes in densely populated landscapes using current and historical high resolution imagery. Remote Sens Environ 2006, 100, 457–473. [Google Scholar]
  13. Antrop, M.; van Eetvelde, V. Holistic aspects of suburban landscapes: Visual image interpretation and landscape metrics. Landscape Urban. Plan 2000, 50, 43–58. [Google Scholar]
  14. Jensen, J.R. Remote Sensing of the Environment: An Earth Resource Perspective; Prentice Hall: Upper Saddle River, NJ, USA, 2000. [Google Scholar]
  15. Zhou, W.Q.; Schwarz, K.; Cadenasso, M.L. Mapping urban landscape heterogeneity: Agreement between visual interpretation and digital classification approaches. Landscape Ecol 2010, 25, 53–67. [Google Scholar]
  16. Zhou, W.Q.; Cadenasso, M.L. Effects of patch characteristics and within patch heterogeneity on the accuracy of urban land cover estimates from visual interpretation. Landscape Ecol 2012, 27, 1291–1305. [Google Scholar]
  17. Congalton, R.G.; Green, K. Assessing the Accuracy of Remotely Sensed Data: Principles and Practices; Lewis Publishers: New York, NY, USA, 1999. [Google Scholar]
  18. Lunetta, R.S.; Iiames, J.; Knight, J.; Congalton, R.G.; Mace, T.H. An assessment of reference data variability using a “virtual field reference database”. Photogramm. Eng. Remote Sens 2001, 67, 707–715. [Google Scholar]
  19. Benz, U.; Hofmann, P.; Willhauck, G.; Lingenfelder, I.; Heynen, M. Multiresolution object-oriented fuzzy analysis of remote sensing data for GIS-ready information. ISPRS J. Photogramm. Remonet Sens 2004, 58, 239–258. [Google Scholar]
  20. Zhou, W.Q.; Troy, A. An object-oriented approach for analysing and characterizing urban landscape at the parcel level. Int. J. Remote Sens 2008, 29, 3119–3135. [Google Scholar]
  21. Blaschke, T. Object based image analysis for remote sensing. ISPRS J. Photogramm. Remote Sens 2010, 65, 2–16. [Google Scholar]
  22. Blaschke, T.; Strobl, J. What’s wong with pixels? Some recent developments interfacing remote sensing and GIS. GIS Z. Fur Geoinformationssys 2001, 6, 12–17. [Google Scholar]
  23. eCognition Software. Available online: http://www.definiens-imaging.com/ (accessed on 10 January 2014).
  24. Baatz, M.; Schape, A. Multiresolution Segmentation: An Optimization Approach for High Quality Multi-Scale Image Segmentation. In Angewandte Geographische Informationsverabeitung XII; Strobl, J., Blaschke, T., Griesebner, G., Eds.; Wichmann: Karlsruhe, Germany, 2000; pp. 12–23. [Google Scholar]
  25. Zhou, W.Q.; Huang, G.L.; Troy, A.; Cadenasso, M.L. Object-based land cover classification of shaded areas in high spatial resolution imagery of urban areas: A comparison study. Remote Sens. Environ 2009, 113, 1769–1777. [Google Scholar]
  26. Stehman, S.V.; Czaplewski, R.L. Design and analysis for thematic map accuracy assessment: Fundamental principles. Remote Sens. Environ 1998, 64, 331–344. [Google Scholar]
  27. Stehman, S.V. Sampling designs for accuracy assessment of land cover. Int. J. Remote Sens 2009, 30, 5243–5272. [Google Scholar]
  28. FRAGSTATS: Spatial Pattern Analysis Program for Categorical Maps. Available online: www.umass.edu/landeco/research/fragstats/fragstats.html (accessed on 10 January 2014).
  29. Burnett, C.; Blaschke, T. A multi-scale segmentation/object relationship modelling methodology for landscape analysis. Ecol. Model 2003, 168, 233–249. [Google Scholar]
  30. Visuelle Interpretation von CIRLuftbildern im direkten Vergleich mit objekt-basierter Bildanalyse—Showdown im Nationalpark Berchtesgaden. Available online: http://www.agit.at/php_files/myagit/papers/2004/1991.pdf (accessed on 10 January 2014).
  31. Zhou, W.; Troy, A.; Grove, M. Modeling residential lawn fertilization practices: Integrating high resolution remote sensing with socioeconomic data. Environ. Manage 2008, 41, 742–752. [Google Scholar]
  32. Zhou, W.; Huang, G.; Cadenasso, M.L. Does spatial configuration matter? Understanding the effects of land cover pattern on land surface temperature in urban landscapes. Landscape Urban. Plan 2011, 102, 54–63. [Google Scholar]
  33. Zhou, W.; Qian, Y.; Li, X.; Li, W.; Han, L. Relationships between land cover and the surface urban heat island: Seasonal variability and effects of spatial and thematic resolution of land cover data on predicting land surface temperatures. Landscape Ecol 2014, 29, 153–167. [Google Scholar]
Remotesensing 06 03369f1 1024

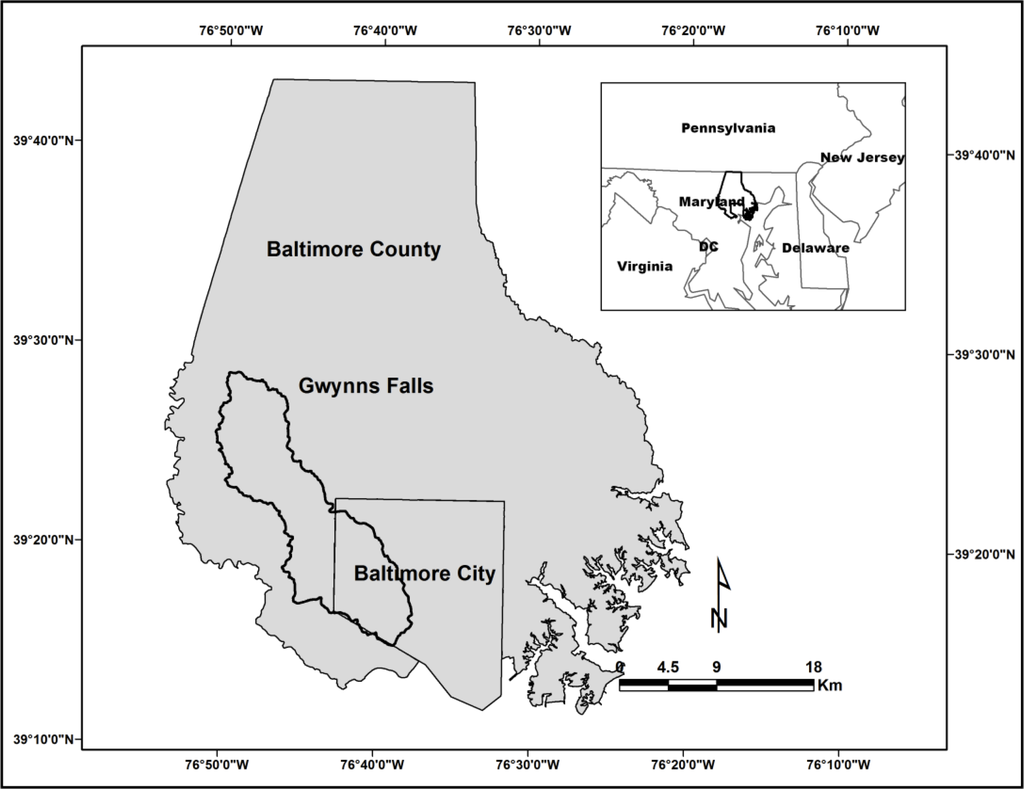

Figure 1. The Gwynns Falls watershed includes portions of Baltimore City and Baltimore County, MD, USA, and drains into the Chesapeake Bay.

Click here to enlarge figure

Figure 1. The Gwynns Falls watershed includes portions of Baltimore City and Baltimore County, MD, USA, and drains into the Chesapeake Bay.
Remotesensing 06 03369f1 1024
Remotesensing 06 03369f2 1024
Figure 2. The process of patch delineation and classification. Panel (A): the false-color aerial imagery of an urban landscape with mixed built and non-built components; Panel (B): the patches delineated based on the HERCULES classification scheme; Panel (C): classification of the six types of landscape features (or land cover) based on an object-based classification approach; Panel (D): land cover classification with the patches overlaid; Panel (E): patch classification based on the proportional cover of within-patch landscape features.

Click here to enlarge figure

Figure 2. The process of patch delineation and classification. Panel (A): the false-color aerial imagery of an urban landscape with mixed built and non-built components; Panel (B): the patches delineated based on the HERCULES classification scheme; Panel (C): classification of the six types of landscape features (or land cover) based on an object-based classification approach; Panel (D): land cover classification with the patches overlaid; Panel (E): patch classification based on the proportional cover of within-patch landscape features.
Remotesensing 06 03369f2 1024
Remotesensing 06 03369f3 1024

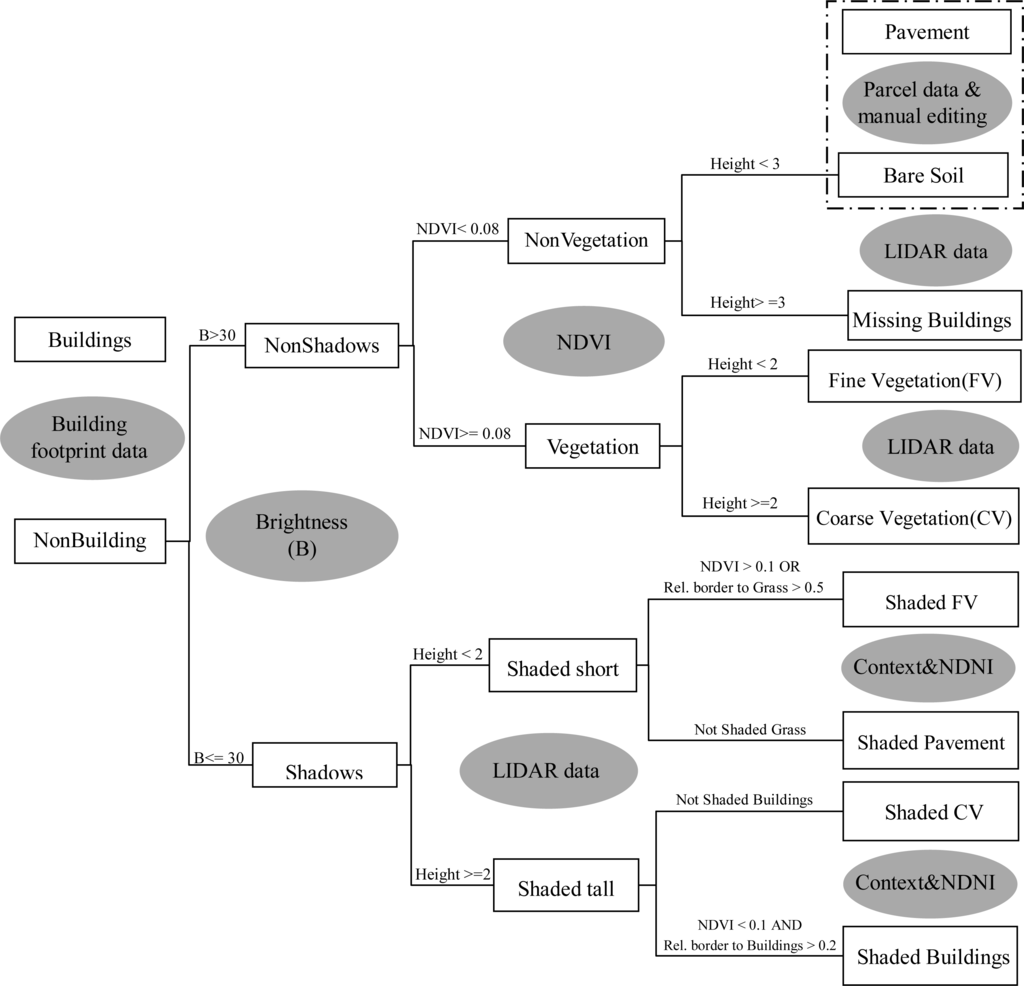

Figure 3. The class hierarchy, and its associated features and rules used for land cover classification (adapted from [4]). This classification hierarchy was used for the classifications of both image data collected in 1999 and 2004. Here the gray ovals refer to the features used for classification. Except for brightness, the values of the threshold for the features used for classification were identical for image data collected in 1999 and 2004. The brightness used to separate shaded objects from non-shaded ones was 70 for the 2004 image data.

Click here to enlarge figure

Figure 3. The class hierarchy, and its associated features and rules used for land cover classification (adapted from [4]). This classification hierarchy was used for the classifications of both image data collected in 1999 and 2004. Here the gray ovals refer to the features used for classification. Except for brightness, the values of the threshold for the features used for classification were identical for image data collected in 1999 and 2004. The brightness used to separate shaded objects from non-shaded ones was 70 for the 2004 image data.
Remotesensing 06 03369f3 1024
Remotesensing 06 03369f4 1024

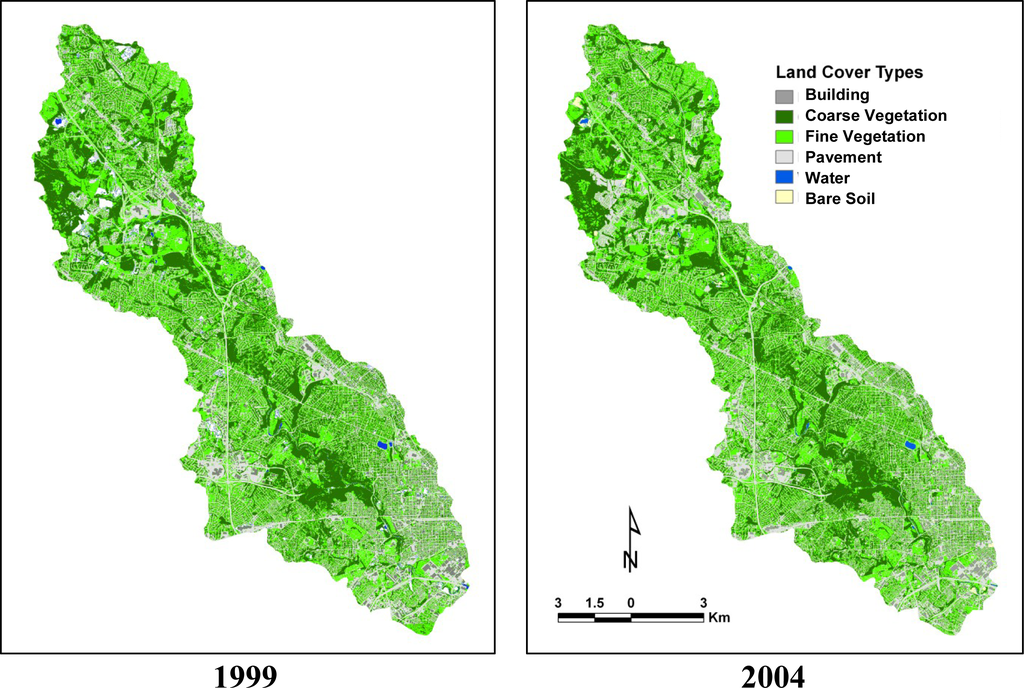

Figure 4. Land cover classification for the Gwynns Falls watershed in 1999 (left panel) and 2004 (right panel).

Click here to enlarge figure

Figure 4. Land cover classification for the Gwynns Falls watershed in 1999 (left panel) and 2004 (right panel).
Remotesensing 06 03369f4 1024
Remotesensing 06 03369f5 1024

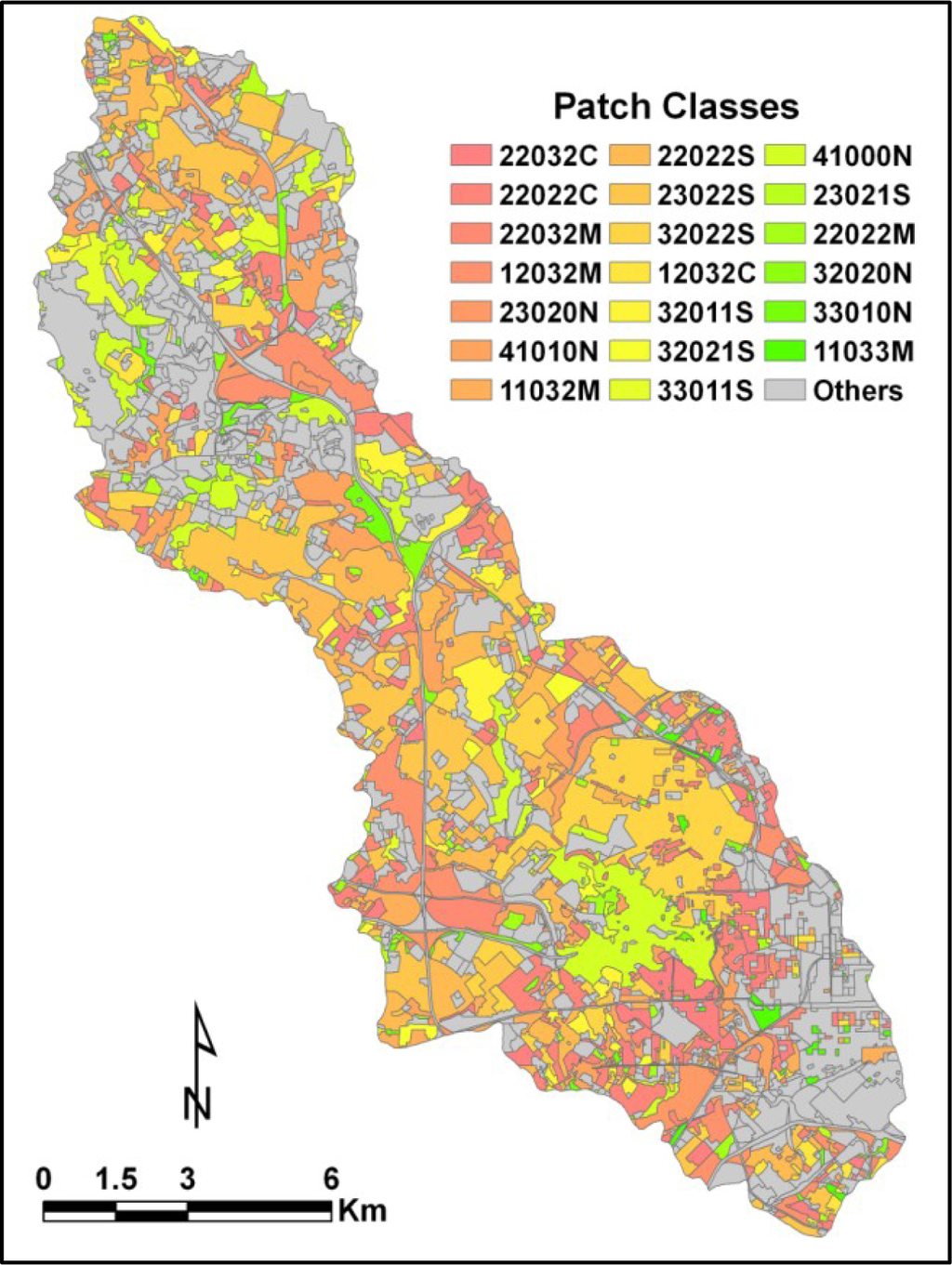

Figure 5. HERCULES patch classification for the Gwynns Falls watershed in 1999. The legend lists the first 20 dominant classes, which accounted for 43.8% of all the patches.

Click here to enlarge figure

Figure 5. HERCULES patch classification for the Gwynns Falls watershed in 1999. The legend lists the first 20 dominant classes, which accounted for 43.8% of all the patches.
Remotesensing 06 03369f5 1024
Remotesensing 06 03369f6 1024
Figure 6. HERCULES patch classification for the Gwynns Falls watershed in 2004. The legend lists the first 20 dominant classes, which accounted for 48.8% of all the patches.

Click here to enlarge figure

Figure 6. HERCULES patch classification for the Gwynns Falls watershed in 2004. The legend lists the first 20 dominant classes, which accounted for 48.8% of all the patches.
Remotesensing 06 03369f6 1024
Table Table 1. The five types of different buildings.

Click here to display table

Table 1. The five types of different buildings.
Building TypesDescription and Definition of Building Types
Single (S)single structures in rows or clusters
Connected (C)connected structures that share a wall or are associated with multiple walkways while sharing the same roofline
Mixed (M)buildings with multiple wings, connection by courtyards or arcades, or a group of buildings with different structural footprints
Highrises (H)buildings that are between 4 and 10 stories
Towers (T)buildings greater than 10 stories
Table Table 2. Examples of patches classified using HERCULES (adapted from [4]). The proportional cover of coarse and fine vegetation, bare soil, pavement, and buildings is scored into five categories (0 = none; 1 = present–10%; 2 = 11%–35%; 3 = 36%–75%; and 4 = >75%). Building types are identified as N = none, S = single, C = connected, or M = mixed.

Click here to display table

Table 2. Examples of patches classified using HERCULES (adapted from [4]). The proportional cover of coarse and fine vegetation, bare soil, pavement, and buildings is scored into five categories (0 = none; 1 = present–10%; 2 = 11%–35%; 3 = 36%–75%; and 4 = >75%). Building types are identified as N = none, S = single, C = connected, or M = mixed.
Coarse VegetationFine VegetationBare SoilPavementBuildingBuilding Type
Remotesensing 06 03369i140011S
Remotesensing 06 03369i240000N
Remotesensing 06 03369i312022C
Remotesensing 06 03369i401400N
Remotesensing 06 03369i512032M
Remotesensing 06 03369i624000N
Table Table 3. Summary of the classification accuracies of land cover features for 1999 and 2004, using an object-based classification approach.

Click here to display table

Table 3. Summary of the classification accuracies of land cover features for 1999 and 2004, using an object-based classification approach.
Land Cover Class19992004

User’s Acc. (%)Producer’s Acc. (%)User’s Acc. (%)Producer’s Acc. (%)
Building83.693.493.491.2
CV97.795.997.793.8
FV94.992.791.495.4
Pavement91.991.691.894.9
Bare soil90.010095.966.5

Overall accuracy92.3%93.7%
Table Table 4. Area and percent cover of the five land cover features in the Gwynns Falls watershed in 1999 and 2004, and their changes between the two years.

Click here to display table

Table 4. Area and percent cover of the five land cover features in the Gwynns Falls watershed in 1999 and 2004, and their changes between the two years.
Land Cover19992004Relative Change

Area (ha)Percent Cover (%)Area (ha)Percent Cover (%)Area (ha)Percent Cover (%)
Building1989.511.62055.612.066.10.4
CV5876.934.35915.834.538.90.2
FV4839.028.24616.026.9−223.0−1.3
Pavement4122.824.04442.625.9319.81.9
Bare soil321.01.9119.20.7−201.8−1.2
