Remote Sensing 2013, 5(11), 6079-6095; doi:10.3390/rs5116079

Article
Fraunhofer Lidar Prototype in the Green Spectral Region for Atmospheric Boundary Layer Observations
Songhua Wu *, Xiaoquan Song and Bingyi Liu
Ocean Remote Sensing Institute, Ocean University of China, 238 Songling Road, Qingdao 266100, China; E-Mails: songxq@ouc.edu.cn (X.S.); bingyiliu@ouc.edu.cn (B.L.)
*
Author to whom correspondence should be addressed; E-Mail: wush@ouc.edu.cn; Tel.: +86-532-6678-2573.
Received: 8 October 2013; in revised form: 27 October 2013 / Accepted: 13 November 2013 /
Published: 18 November 2013

Abstract

: A lidar detects atmospheric parameters by transmitting laser pulse to the atmosphere and receiving the backscattering signals from molecules and aerosol particles. Because of the small backscattering cross section, a lidar usually uses the high sensitive photomultiplier and avalanche photodiode as detector and uses photon counting technology for collection of weak backscatter signals. Photon Counting enables the capturing of extremely weak lidar return from long distance, throughout dark background, by a long time accumulation. Because of the strong solar background, the signal-to-noise ratio of lidar during daytime could be greatly restricted, especially for the lidar operating at visible wavelengths where solar background is prominent. Narrow band-pass filters must therefore be installed in order to isolate solar background noise at wavelengths close to that of the lidar receiving channel, whereas the background light in superposition with signal spectrum, limits an effective margin for signal-to-noise ratio (SNR) improvement. This work describes a lidar prototype operating at the Fraunhofer lines, the invisible band of solar spectrum, to achieve photon counting under intense solar background. The photon counting lidar prototype in Fraunhofer lines devised was used to observe the atmospheric boundary layer. The SNR was improved 2–3 times by operating the lidar at the wavelength in solar dark lines. The aerosol extinctions illustrate the vertical structures of aerosol in the atmospheric boundary over Qingdao suburban during summer 2011.
Keywords:
lidar; Fraunhofer lines; photon counting; signal-to-noise ratio; aerosol extinction coefficient

1. Introduction

Lidar (light detection and ranging) or laser radar detects atmospheric parameters by transmitting laser pulse to the atmosphere and receiving the backscattering signals from molecules and aerosol particles, described by Rayleigh scattering and Mie scattering [1]. Mie scattering is generally the most efficient of these scattering processes with cross-sections of the order 10−26−10−8 cm2/particle, whereas Rayleigh cross-sections are in the region of 4.04 × 10−27–7.24 × 10−27 cm2/molecule in the wavelength region from 490 nm to 565 nm [2]. This Rayleigh cross-section follows a λ−4 relation and, hence, shorter wavelengths exhibit greater scattering effects. Because of the extreme low backscattering cross section, lidar usually uses the high sensitive photon detector and photon counting technology to obtain the return signal from long distance by a long time accumulation [311]. Because of the strong solar background, the signal-to-noise ratio (SNR) of lidar during daytime could be greatly restricted, especially for the lidar operating at visible spectral region where solar background is prominent [7]. A large number of background rejection techniques have been used to improve the SNR such as narrow band interference filter, Fabry-Perot etalon and field-of-view restriction, whereas the solar noise in superposition with the signal spectrum limits an effective margin for SNR improvement.

The absorption process of solar radiation is well known as the solar Fraunhofer spectra due to certain atmospheric constituent in either the solar atmosphere or that of the earth, first documented and mapped by Joseph von Fraunhofer in 1812. Because of the absorption process, the solar light reaching the earth’s surface exhibits certain “dark windows” rather than being a continuum of all wavelengths. Modern observations of solar spectrum can detect many thousands of lines. The wavelengths of the most notable lines for visible wavelengths [12,13] are given in Figure 1. Fraunhofer lines produce strong absorptions and fingerprint information of sunlight. Therefore, those lines have been studied for free-space laser communications and passive optical sensing techniques [14,15]. A wavelength lying within a Fraunhofer line can carry optical communications with reduced interference from the solar background. The tunable source laser and the Fraunhofer filter were proposed to match the Doppler shifts of the source and background [14]. A free-space Quantum key distribution system for Earth-space data link was described that lies within an H-alpha Fraunhofer line at 656.28 nm, to carry the signal with reduced interference from sunlight [15]. Fraunhofer line radiometers were also suggested to identify certain materials of solar-stimulated luminescence [16,17]. A space mission called FLEX (Fluorescence Explorer) probe terrestrial vegetation by solar induced fluorescence that is detectable within the Fraunhofer lines in the red and blue-UV region [18]. With regards to laser remote sensing, resonance fluorescence techniques have evolved to measure mesospheric metals such as Na, K, Fe, Ca, and Ca+ are capable of measuring mesospheric metals densities in the middle atmosphere region 80–105 km [1924]. The thermal broadening and Doppler frequency shift of the fluorescence spectrum of such metals have also been used to retrieve temperature and wind structures throughout the mesospheric region. These middle-atmosphere lidars spontaneously exhibit good signal-to-noise ratio during the daytime because the resonance fluorescence wavelengths of such metals are consistent with the strong Fraunhofer lines by the same metal atoms or ions in the solar atmosphere [25]. This work describes a photon counting lidar prototype operating at the Fraunhofer lines in the green spectral region, the invisible spectral region of the solar spectrum, to achieve photon counting under intense solar background. The first criterion to select the dark lines is that the line has a strong absorption peak to minimize solar noise at the signal wavelength. The second criterion is that the line has broad linewidth to facilitate tuning of both the laser transmitter and optical filter. The last consideration is that the dark line is co-inside with some atomic or molecular absorption filter as potential high spectral resolution receiver. Based on the above criteria, it was found that three such lines exist, at 516.7327 nm, 517.2698 nm and 518.3619 nm, by the Magnesium atom in the solar chromospheres. The broadest linewidth of those is approximately 0.2 nm wide, slightly broader than that of tunable laser we have, 0.17 nm. Thus, optimization of the receiver optics such as high resolution monochromator/spectrograph is investigated to cover the margin to sufficiently minimize the solar noise such that equivalent photon counting efficiency in daytime can be obtained. The laser transmitter is an optical parametric oscillator pumped by 355 nm Nd:YAG (neodymium-doped yttrium aluminum garnet) laser and is tuned to the selected dark lines by which nearly 90% of solar radiation is absorbed. The prototype provides some theoretical references for optimized design of photon counting lidar in the visible spectral region with comparable SNR at night, which may contribute to the research on diurnal variation of the atmosphere and to the operational observation of lidar. The ongoing procedures included the application of atomic vapor filter as the receiver taking maximum heritages of traditional HSRL for wind, temperature and aerosol probing [610].

2. Apparatus

2.1. Apparatus and Methodology

The optical layout of the lidar prototype is shown in Figure 2. The laser used for this application is a tunable OPO (Optical Parametric Oscillator) laser pumped by the third harmonic of a Nd:YAG laser. It is found that the divergence of the laser output is too large to collect backscattered light. A pair of cylinder lens and a beam expander is installed in front of the OPO laser output to produce a circular beam pattern with a lower divergence. A 5 times beam expander follows the cylinder lens to reduce the beam divergence. The backscattering signal is collected by a Schmidt-Cassegrain telescope with 200 mm diameter and is coupled into the fiber bundles that contain 19 fibers, 200 μm diameter each, arranged in a line pattern at the slit end, and round at the source end. The fiber guides the backscattering light into a 500 mm focal length monochromator/spectrograph that has adjustable spectral resolution from 0.02 nm to 5 nm. The photons are detected with a photomultiplier in the exit slit of the monochomater. The photoelectric current is digitized by photon counting technique with a preamplifier. The dashed diagram shows an optional receiver assembly as high spectral resolution receiver consisting of two channels. One of two channels is a molecular vapor filter and the other is the reference channel. The system specification is listed in Table 1.

2.2. Methodology

The solar spectra background is measured by the spectrograph and a CCD camera in order to confirm the presence of the selected lines. The spectrograph is calibrated by a Mercury lamp, prior to the background investigation. The sky light is collected by the telescope and coupled into a spectrograph, chosen for its high resolution with a diffraction grating of 1,200 grooves per mm and a focal length of 500 mm. The dispersion is 1.7 nm/mm and the pixel width of the CCD is 12.5 μm, so as, that the “snap shot” of solar background has a spectral resolution of 0.0213 nm. Figure 3a shows the solar spectrum between 515 nm to 520 nm measured by the spectrum channel of lidar on May 4, 2011. The solar spectrum within same region [13] is illustrated in Figure 3b for reference. The solar spectrum clearly indicates the solar Fraunhofer lines at 516.4521 nm, 517.0414 nm and 518.2386 nm. The frequency shift of the observed lines with respect to the literature is supposed to be affected synthetically by the imperfect calibration for the spectrometer and the effect of local Doppler shift due to the Earth revolution about the sun [14]. More hyperfine structure from various absorption and scatters in both earth and solar atmosphere are also observed in the figure. Figure 3 shows the dark lines at 517.0414 nm and 518.2386 nm with a minimum of around 10000 counts and a width of 0.2 nm which is slightly wider than the OPO laser linewidth at that wavelength (0.18 nm and 0.16 nm respectively) (Figure 4) and therefore these two lines are chosen. The spectral separation of both wavelengths is 1.1972 nm according to the measurement.

Optimization of spectral matching is performed by the combination of collimating slits, placed at both the entry and exit to the spectrometer, and the best resolution and signal-to-noise ratio results were achieved with both slits set at 100μm. In this case, a photomultiplier tube Hamamatsu R7400U-20 was placed at the exit slit of the spectrometer, and the signal output fed into a photon counter. Tuning of the OPO laser was achieved by tuning the grating to the minimum of the solar dark line, scanning the OPO laser past this wavelength region, and measuring the returned signal.

3. Solar Background Analysis for Selected Fraunhofer Line

In order to precisely match the laser wavelength and the Fraunhofer lines, the spectral channel using a CCD camera was continuously monitoring the skylight background and the laser backscatters when the laser transmitter was tuning to the minimum of the solar dark line. Figure 5 shows the superposition of the solar spectrum and the laser signal which fills the absorption dip of Mg Fraunhofer line at 518.2386 nm. The energy of the laser was attenuated for better illustration.

The background level is evaluated for the on- and off-line wavelength of the Fraunhofer line. The decrease of the background from day to night is shown in Figure 6. The measurements for on- and off-line wavelength were alternately carried out by the one lidar system with the same configurations. It is assumed that all the circumstance factors like sun-zenith angle have the same impact on these very close wavelengths. The maximum of the background was observed at 15:00 pm because of the telescope pointing approximately at the sun. It can be seen that the difference in on- and off-line wavelength for the solar background is of the order of 70%, which is less than the theoretical estimation. This is mostly due to the insufficient resolution of the spectrograph. Solar noises whose wavelength is not in a superposition with laser signal are also important in SNR. As we use a rotating grating system with the blocking ratio of OD (Optical Density) 6 (corresponding to 10−6). In order to compress the solar background and the stray light in the grating system, an additional band-pass filter having a linewidth of 10 nm and the blocking ratio of OD 5 is used between the telescope and the input port of the receiving fiber. Thus the total blocking ratio is about OD 11 that is sufficient for the solar background compression out of the spectral region of the Fraunhofer line. In normal case, solar background light comes into the photomultiplier through the filter because of the low blocking ratio of the spectrograph. In this case, the narrow band Fraunhofer absorption line is this not so effective in decreasing background solar background signal.

The output laser is tuned to 518.2386 nm (on-line) and 518.65 nm (off-line), respectively. Then we analyses the lidar SNR according to the lidar returned signal. The SNR is defined as Equation (1):

SNR = N s N s + N b + N e
where Ns is laser backscattering signal, Nb is the noise introduced by photons of the sky background, and Ne is the noise from the dark current and readout electronics. Nb and Ne are estimated by the square of the standard deviation of the lidar return signal from the far distance where the background noise and electronics noise dominate. Figure 7a shows the SNR of the returned signal on-line and off-line measurements at 07:00 UTC (15:00 LST). The ratio of on-line SNR to off-line SNR is calculated according to Equation (2). The SNR on-line is obviously higher than the SNR off-line as shown in Figure 7b.
Ratio = SNR on–line / SNR off–line

For further contrast, Figure 8a shows the SNR of the returned signal on-line and off-line measurements at night for the same day while Figure 8b shows the ratio between them. As Figure 8 presents, the SNR for the on-line and off-line wavelength are almost equivalent at night measurement. To draw a conclusion, it is very significant to tune the OPO output laser to the minimum of the solar dark line in order to improve the SNR of the Fraunhofer lidar, especially for daytime measurements.

The above lidar return signals were taken at clear and stable weather. In order to eliminate the pulse energy jitter and long term power drift of the transmitting laser, which is prominent for the OPO laser we used, an extra photomultiplier was adopted as reference to eliminate the variation of the laser power. The SNR of the lidar backscatter signals on 3 June 2011 at both noon and night are compared in Figure 9. The analysis shows that the SNR of the measurements in the daytime are almost equivalent to that of night measurements for SNR > 10 decibels. The variation of the SNR between daytime and nighttime is less than ±1 decibels. For the far distance lidar return, night measurements have better SNR than the daytime n mnmeasurement due to the lower background noise at night (for SNR < 10 decibels).

4. Atmospheric Boundary Layer Observations

According to the above analysis, the prototype lidar exhibits the advantage of photon counting at wavelengths corresponding to Fraunhofer lines in the green spectral region with strong solar irradiance. Two measurement cases obtained at different meteorological and aerosol conditions, are presented to demonstrate the capability of the Fraunhofer lidar prototype for the atmospheric boundary layer (ABL) observation. The lidar was located at the Laoshan campus of the Ocean University of China 6 km away from the seashore and the elevation is 74 m above the mean sea level, where the longitude and latitude is 36.16°N and 120.49°E respectively. As the prototype lidar consists of only an elastic scattering channel, we adopt the well-known Fernald method [26] to retrieve the aerosol extinction coefficient in the boundary layer. It is requested to determine the reference altitude before calculating the aerosol extinction coefficient of a certain altitude, which is lower than the reference altitude. In this article, the reference altitude is determined at 2–3 km where the aerosol extinction coefficient of the altitude is 0.13 km−1. To solve the underconstrained lidar equation scince it is associated with two unknowns for one equation, we need to know an extinction-to-backscatter ratio, so-called “lidar ratio”, to retrieve the aerosol extinction coefficient. Lidar ratio is related to the size, the shape, and the composition of the particles. The measurements were held in the summer and the sea breeze is a regular feature of the summer season. The lidar ratio for the marine aerosol is between 20 to 35 sr [27]. The aerosol optical depths (AOD) can be used to retrieve an average lidar ratio [28]. For this study, the Moderate Resolution Imaging Spectroradiometer (MODIS) derived AOD was used for the case of boundary layer measurement in cloudless conditions and was used for the lidar ratio inversion.

The evolution of the atmospheric boundary layer under cloudless conditions during daytime is shown first (3 June 2011). In the second case (24 August 2011), the boundary layer with more variation (clouds on top of the boundary layer) is discussed and validated with the results of the space-borne lidar CALIOP onboard CALIPSO satellite.

Figure 10 presents the aerosol extinction coefficient profile above the ground level on June 3, 2011, for the lidar ratio of 20, 30 and 35 sr, respectively. As shown in this figure, although it has slight difference when the altitude is lower than 1 km, the tendency of these three profiles is consistent. A ratio of 30 sr is used in this work.

In order to detect the vertical profile of the extinction coefficient and compare the detection performance between daytime and nighttime, the experiments were carried out when it was sunny and cloudless. The measurement was performed from 10:00 am to 20:00 pm when the weather conditions allowed from May to August. The 6 min averaged lidar profiles, comprising 3,600 shots acquired, were used for the extinction coefficient inversion.

For the first case, one scene of the boundary layer during clear sky condition is shown. Figure 11 presents the vertical extinction coefficient profiles for different times on 3 June 2011. As shown in the figure, the aerosol under 1.5 km increases slowly from 02:30 to 10:30 UTC (from 10:30 to 18:30 LST) and decreases from 08:31 to 11:31 UTC (from 16:31 to 19:31 LST). Meanwhile, the aerosol above 1.5 km has no obvious variation. According to the meteorological data, the relative humidity is 93%∼96% on 3 June. The aerosol extinction coefficient is large because of the moisture absorption effect of the aerosol particles. The extinction coefficient is retrieved above an altitude of around 400 m because of the loss of overlap between the laser beam and the telescope field of view.

The height of the atmospheric boundary layer can be estimated using the potential temperature profile. This height is identified to be the height at which the potential temperature is subject to a steep increase. The radiosonde profiles on 3 June 2011 are plotted as Figure 12. The radiosonde was launched at approximately 8:00, 20:00 LST at the Qingdao Meteorological Station, where the longitude and latitude is 36.06°N and 120.33°E respectively. The inversion layer is obviously indicated at around 737 m (00:00 UTC, 08:00 LST) and 725 m (12:00 UTC, 20:00 LST), respectively in the radiosonde profiles. At the inversion layer, the water vapor mixing ratio at the night (12:00 UTC, 20:00 LST) is 8.63 g/kg, much higher than the mixing ratio of 4.28 g/kg in the morning (00:00 UTC, 08:00 LST).

From the Fraunhofer lidar observation, the height of the boundary layer is indicated by a sharp change in the extinction profile. To investigate the development and variation of the aerosol boundary layer, Figure 13 shows the boundary layer evolution in terms of the extinction coefficient observed with the Fraunhofer lidar on 3 June 2013. The maximum detection height is around 2.48 km based on the SNR threshold. For this study, 30 min averages were used to obtain statistically meaningful boundary layer height. A stable boundary aerosol layer below approximately 1 km is observed. According to the local meteorological report there was a sea breeze (south-west wind) and fog emerging in the afternoon. As shown in the Figure 13, a lower layer with a height of below 800 m is due to the sea breeze front emerging at 15:00 LST. The boundary layer fluctuates as the front passes underneath it, showing how sea breeze propagation may produce gravity waves in the overlying stable inversion layer.

The other measurement on 24 August 2011 is observed using the Fraunhofer lidar for case study with strong variability. Figure 14 presents the vertical extinction coefficient profile on August 24, 2011. As shown in the figure, the aerosol under 1.5 km varies slowly while obvious variation appears when the altitude is above 1.5 km. Moreover, the variation is almost one order of magnitude bigger because of the existence of low cloud at 03:16 UTC (11:16 LST). The radiosonde profiles are shown in Figure 15. There is not a distinct inversion layer in the temperature profile to be used to estimate the height of the boundary layer. The feature of an abrupt decrease in the water vapor mixing ratio Profile is used to mark the boundary layer around 1.5 km. The time-height-indicator of the extinction coefficient in Figure 16 indicates that there are two layers of semi-transparent cloud occupation from 2:52 to 3:48 UTC (from 10:52 to 11:48 LST). The lower cloud layer top and bottom altitudes are identified as 3 km and 2.7 km. The higher cloud layer top and bottom altitudes are found as 3.9 km and 3.6 km. The extinction coefficient profile at 11:16 (blue plot in Figure 15) also shows a high value at the height of 3.5 km. The high extinction and variability is obvious below 1.5 km. The averaging time is adjusted to 15 min in this case due to the rapid variation.

It is important to note that daytime Fraunhofer lidar data is, unlike an ordinary Mie lidar, not noisier than that of night-time due to the absorption of the solar background by certain constituents in the solar atmosphere. From the Time-Height-Indicator figures, the aerosol varies obviously from afternoon to the dusk. Because the lidar site is in the suburb of Qingdao, the major environmental influence comes from the atmospheric turbulence rather than human activities.

For comparison, Figure 17 presents the profiles of the aerosol extinction coefficient detected by the Fraunhofer lidar and the CALIOP level-2 aerosol profile product under cloud-free conditions (3 June 2011) with a horizontal resolution of 40 km and vertical resolution of 120 m (backscatter, extinction, and depolarization ratio). CALIOP (Cloud-Aerosol LIdar with Orthogonal Polarization) is a two-wavelength polarization-sensitive lidar onboard the NASA/CNES CALIPSO satellite (Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observation), to provide high-resolution vertical profiles of aerosols and clouds as well as on their optical properties at two wavelengths (532 nm and 1,064 nm) [29]. The Fraunhofer lidar performed measurements before and after the CALIPSO northward-flying over the lidar location within a maximum distance of 46 km at 04:53 UTC (12:53 LST). The averaged CALIOP aerosol extinction profiles between 04:53 and 05:45 UTC (between 12:53 and 13:45 LST) are used for comparison. Spatial and temporal variability of aerosol results in the complex validation analysis of the Fraunhofer lidar measurement by direct comparison with the CALIOP. In this case, although CALIOP overpasses the ground based lidar location with a distance of 46 km, the comparison illustrates that both lidars show consistent trend in the upper part of the ABL (0.7∼1.5 km) considering the spatial inhomogeneity of aerosol distributions.

5. Conclusion

The goal of this work is to measure the lidar backscattered signal in the green spectral region where the solar background is intensively attenuated due to the Fraunhofer absorption lines, making daytime photon counting technique possible. This is the first time, to our knowledge, that Fraunhofer lines are used for planetary boundary layer lidar remote sensing. The prototype lidar exhibits the advantage of not having to use complex noise filtering procedures, representing a viable option for an operational lidar designed to measure the atmosphere during daytime and night. The experiment detects the atmospheric parameters and characteristics of the atmospheric boundary layer. The analysis illustrates that the SNR was improved 2–3 times by operating the lidar at the wavelength in solar dark lines. However, the stability of the prototype is to be improved because of technical limitations. The OPO laser was the only accessible laser source at the experimental time, which represents a suitable solution for prototyping, but cannot be used for accurate and effective measurements for PBL. The advantage of using an OPO laser is its tunability to cover selected Fraunhofer lines in one lidar system. But, the OPO laser needs to achieve better frequency stability so that the frequency drift can be inhibited and the detector can accurately match with the receiving bandwidth. But, the disadvantages of using an OPO laser are low efficiency and poor beam quality. The OPO efficiency and other issues in the laser system will probably lower the outgoing laser energy by a factor of 2–3, compared to transmitting the 532 nm wavelength directly. Those efficiency losses of the OPO laser counteract the benefits of the SNR improvement by tuning the laser to the Fraunhofer lines. Therefore, more efficient laser transmitter should be designed for experiments.

The diagram in the dashed rectangle in Figure 2 shows the ongoing investigation to assess high spectral resolution filter coincide with wavelengths of candidate notable Fraunhofer lines, such that it is possible to isolate the signal from the solar noise and take advantage of traditional HSRL for wind, temperature and aerosol probing. There are a large number of absorption lines of iodine around solar Fraunhofer line by Magnesium at 516.4521 nm, 517.0414 nm and 518.2386 nm. The idea and primary experiments in this paper present a possible solution to the operational observation problems normally associated with photon counting lidar for green wavelengths, and guarantee further investigations on lidar systems.

This work was supported by the National High-tech R&D Program of China (Grant No. 2008AA12Z101).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cracknell, A.P.; Hayes, L. Introduction to Remote Sensing, 2nd ed ed.; Taylor and Francis: London, UK, 2007.
  2. Bodhaine, B.A.; Norman, B.W.; Ellsworth, G.D.; James, R.S. On Rayleigh optical depth calculations. J. Atmos. Ocean. Technol 1999, 16, 1854–1861.
  3. Donovan, D.P.; Whiteway, J.A.; Carswell, A.I. Correction for nonlinear photon-counting effects in lidar systems. Appl. Opt 1993, 32, 6742–6753.
  4. Spinhirne, J.D. Micro pulse lidar. IEEE Trans. Geosci. Remote Sens 1993, 31, 48–55.
  5. Gentry, B.M.; Chen, H.; Li, S.X. Wind measurements with 355-nm molecular Doppler lidar. Opt. Lett 2000, 25, 1231–1233.
  6. Liu, Z.S.; Liu, B.Y.; Wu, S.H.; Li, Z.G.; Wang, Z.J. A high spatial and temporal resolution mobile incoherent Doppler lidar for sea surface wind measurements. Opt. Lett 2008, 33, 1485–1487.
  7. Liu, Z.S.; Liu, B.Y.; Li, Z.-G.; Yan, Z.-A.; Wu, S.H.; Sun, Z.-B. Wind measurements with incoherent Doppler lidar based on iodine filters at night and day. Appl. Phys. B 2007, 88, 327–335.
  8. Ansmann, A.; Riebesell, M.; Wandinger, U.; Weitkamp, C.; Voss, E.; Lahmann, W.; Michaelis, W. Combined Raman elastic-backscatter lidar for vertical profiling of moisture, aerosol extinction, backscatter, and lidar ratio. Appl. Phys. B 1992, 55, 18–28.
  9. Eloranta, E.E. Lidar: Range-Resolved Optical Remote Sensing of the Atmosphere. In High Spectral Resolution Lidar; Springer: Berlin, Germany, 2005; pp. 143–163.
  10. Hair, J.W.; Caldwell, L.M.; Krueger, D.A.; She, C.Y. High-spectral-resolution lidar with iodine-vapor filters measurement of atmospheric-state and aerosol profiles. Appl. Opt 2001, 40, 5280–5294.
  11. Browell, E.V.; Ismail, S.; Grant, W.B. Differential absorption lidar (DIAL) measurements from air and space. Appl. Phys. B 1998, 67, 399–410.
  12. The Solar Spectrum. Available online: http://www.harmsy.freeuk.com/fraunhofer.html (accessed on 1 June 2010).
  13. Chance, K.; Kurucz, R.L. An improved high-resolution solar reference spectrum for Earth’s atmosphere measurements in the ultraviolet, visible, and near infrared. J. Quant. Spectrosc. Radiat. Transf 2010, 111, 1289–1295.
  14. Kerr, E.L. Architectural design of a ground-based deep-space optical reception antenna. Proc. SPIE 1989, doi:10.1117/12.951701..
  15. Rogers, D.J.; Bienfang, J.C.; Mink, A.; Hershman, B.J.; Nakassis, A.; Tang, X.; Ma, L.; Su, D.H.; Williams, C.J.; Clark, C.W. Free-space quantum cryptography in the H-alpha Fraunhofer window. Proc. SPIE 2006, doi:10.1117/12.680899..
  16. Plascyk, J.A. The MK II Fraunhofer Line Discriminator (FLD-II) for airborne and orbital remote sensing of solar-stimulated luminescence. Opt. Eng. 1975, doi:10.1117/12.7971842..
  17. Smith, C.; Fischer, R.L.; Anderson, J. Detection of selected solar-stimulated fluorophores with a Fraunhofer line radiometer. J. Appl. Remote Sens 2008, doi:10.1117/1.2884783..
  18. Stoll, M.P.; Laurila, T.; Cunin, B.; Gitelson, A.A.; Lichtenthaler, H.K.; Hame, T. FLEX: Fluorescence explorer—A space mission for screening vegetated areas in the Fraunhofer lines. Proc. SPIE 1999, doi:10.1117/12.373087..
  19. Bowman, M.R.; Gibson, A.J.; Sandford, M.C.W. Atmospheric sodium measured by a tuned laser radar. Nature 1969, 221, 456–457.
  20. Zhao, Y.; Liu, A.; Gardner, C.S. Measurements of atmospheric stability in the mesopause region at Starfire Optical Range, NM. J. Atmos. Solar Terr. Phys 2003, 65, 219–232.
  21. Bills, R.E.; Gardner, C.S.; She, C.Y. Narrowband lidar technique for Na temperature and Doppler wind observations of the upper atmosphere. Opt. Eng 1991, 30, 13–21.
  22. Chu, X.; Papen, G.; Pan, W.; Gardner, C.S.; Gelbwachs, J. Fe Boltzmann temperature lidar: Design, error analysis, and first results from the North and South Poles. Appl. Opt 2002, 41, 4400–4410.
  23. Zahn, U.; Hoffner, J. Mesopause temperature profiling by potassium lidar. Geophys. Res. Lett 1996, 26, 141–144.
  24. Gardner, C.S. Performance capabilities of middle-atmosphere temperature lidars: Comparison of Na, Fe, K, Ca, Ca+, and Rayleigh systems. Appl. Opt 2004, 43, 4941–4956.
  25. Granier, C.; Jegou, J.P.; Megie, G. Atomic and ionic calcium in the Earth’s upper atmosphere. J. Geophys. Res 1989, 94, 9917–9924.
  26. Femald, F.G. Analysis of atmospheric lidar observations: Some comments. Appl. Opt 1984, 23, 652–653.
  27. Franke, K.; Ansmann, A.; Müller, D.; Althausen, D.; Wagner, F.; Scheele, R. One year observations of particle lidar ratio over the tropical Indian Ocean with Raman lidar. Geophys. Res. Lett 2001, 28, 4559–4562.
  28. Chazette, P. The monsoon aerosol extinction properties at Goa during INDOEX as measured with lidar. J. Geophys. Res 2003, doi:10.1029/2002JD002074..
  29. CALIPSO (Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observations). Available online: http://www-calipso.larc.nasa.gov/ (accessed on 1 June 2013).
Remotesensing 05 06079f1 200
Figure 1. Fraunhofer lines for visible wavelengths [12].

Click here to enlarge figure

Figure 1. Fraunhofer lines for visible wavelengths [12].
Remotesensing 05 06079f1 1024
Remotesensing 05 06079f2 200
Figure 2. Optical layout of the Fraunhofer lidar prototype.

Click here to enlarge figure

Figure 2. Optical layout of the Fraunhofer lidar prototype.
Remotesensing 05 06079f2 1024
Remotesensing 05 06079f3 200
Figure 3. (a) The solar spectra background measured by lidar; (b) the solar spectrum provided by Kurucz 2010 [13].

Click here to enlarge figure

Figure 3. (a) The solar spectra background measured by lidar; (b) the solar spectrum provided by Kurucz 2010 [13].
Remotesensing 05 06079f3 1024
Remotesensing 05 06079f4 200
Figure 4. Linewidth of the OPO laser measured by the spectrograph.

Click here to enlarge figure

Figure 4. Linewidth of the OPO laser measured by the spectrograph.
Remotesensing 05 06079f4 1024
Remotesensing 05 06079f5 200

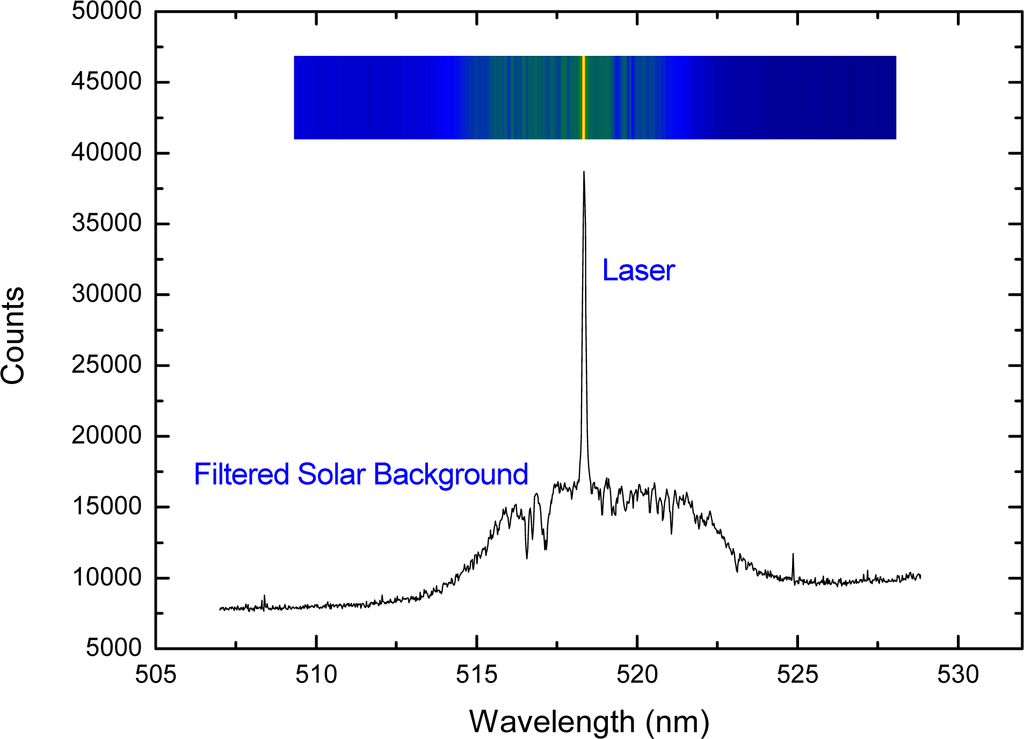

Figure 5. Laser transmitter spectrum and sky background with Fraunhofer lines structure.

Click here to enlarge figure

Figure 5. Laser transmitter spectrum and sky background with Fraunhofer lines structure.
Remotesensing 05 06079f5 1024
Remotesensing 05 06079f6 200
Figure 6. Variation of the on-line and off-line wavelength from the sky background from 07:00 to 11:00 UTC (15:00–19:00 LST)

Click here to enlarge figure

Figure 6. Variation of the on-line and off-line wavelength from the sky background from 07:00 to 11:00 UTC (15:00–19:00 LST)
Remotesensing 05 06079f6 1024
Remotesensing 05 06079f7 200

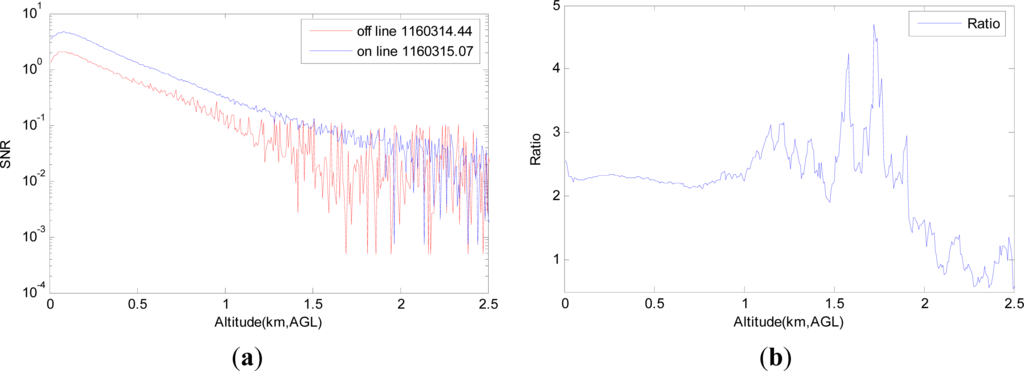

Figure 7. (a) The SNR of on line and off line measurements; (b) The SNR difference between on-line and off-line measurements, at 07:00 UTC (daytime 15:00 LST), on 3 June 2011.

Click here to enlarge figure

Figure 7. (a) The SNR of on line and off line measurements; (b) The SNR difference between on-line and off-line measurements, at 07:00 UTC (daytime 15:00 LST), on 3 June 2011.
Remotesensing 05 06079f7 1024
Remotesensing 05 06079f8 200

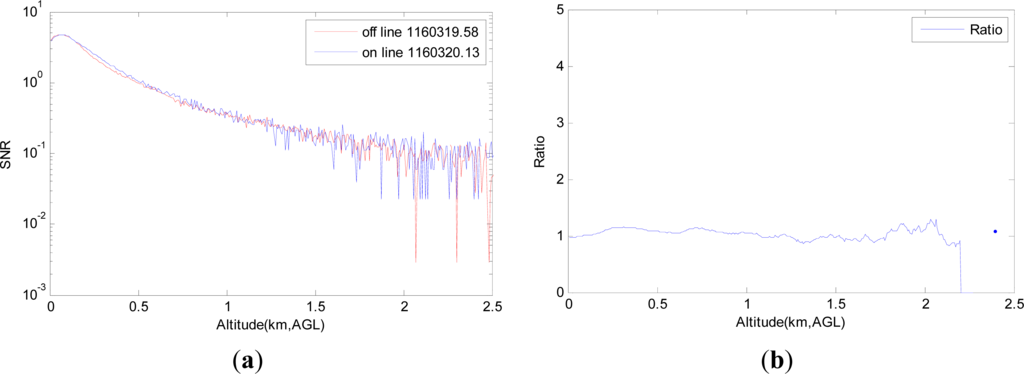

Figure 8. (a) The SNR of on-line and off-line measurements at night; (b) The SNR difference between on-line and off-line measurements at 12:00 UTC (night, 20:00 LST) on 3 June 2011.

Click here to enlarge figure

Figure 8. (a) The SNR of on-line and off-line measurements at night; (b) The SNR difference between on-line and off-line measurements at 12:00 UTC (night, 20:00 LST) on 3 June 2011.
Remotesensing 05 06079f8 1024
Remotesensing 05 06079f9 200
Figure 9. SNR comparison between day and night measurements.

Click here to enlarge figure

Figure 9. SNR comparison between day and night measurements.
Remotesensing 05 06079f9 1024
Remotesensing 05 06079f10 200

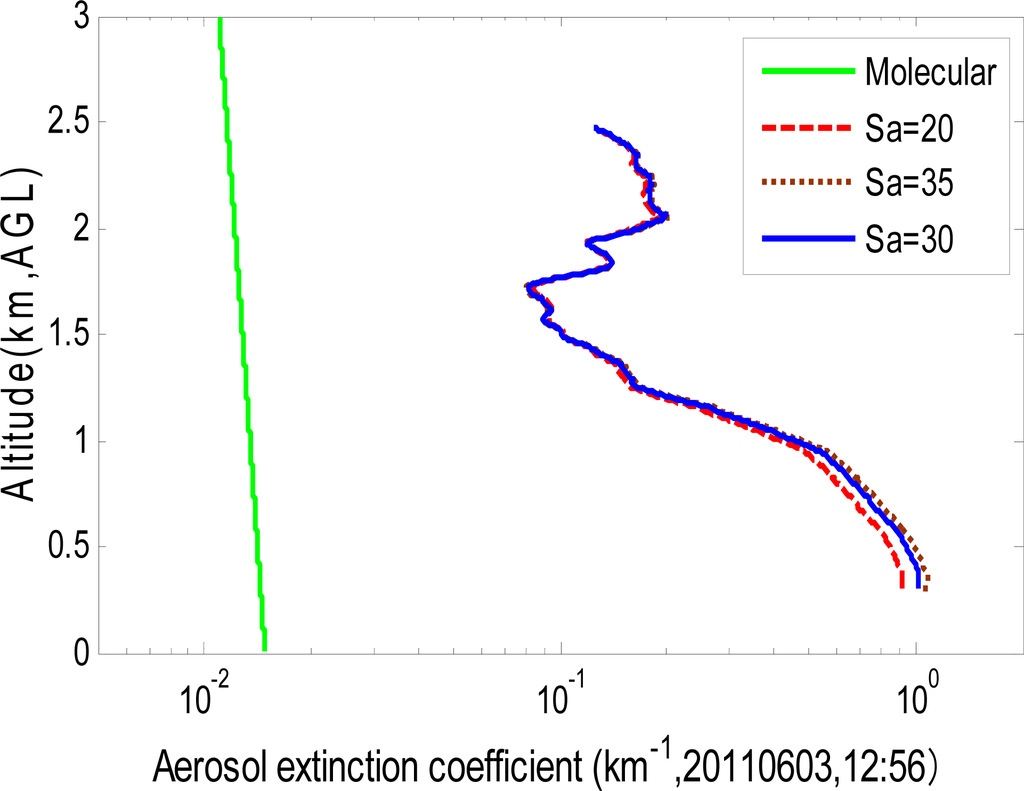

Figure 10. The extinction coefficient profiles retrieved with different Lidar ratio.

Click here to enlarge figure

Figure 10. The extinction coefficient profiles retrieved with different Lidar ratio.
Remotesensing 05 06079f10 1024
Remotesensing 05 06079f11 200
Figure 11. The extinction coefficient profiles on 3 June 2011, in Qingdao (data logged in LST).

Click here to enlarge figure

Figure 11. The extinction coefficient profiles on 3 June 2011, in Qingdao (data logged in LST).
Remotesensing 05 06079f11 1024
Remotesensing 05 06079f12 200

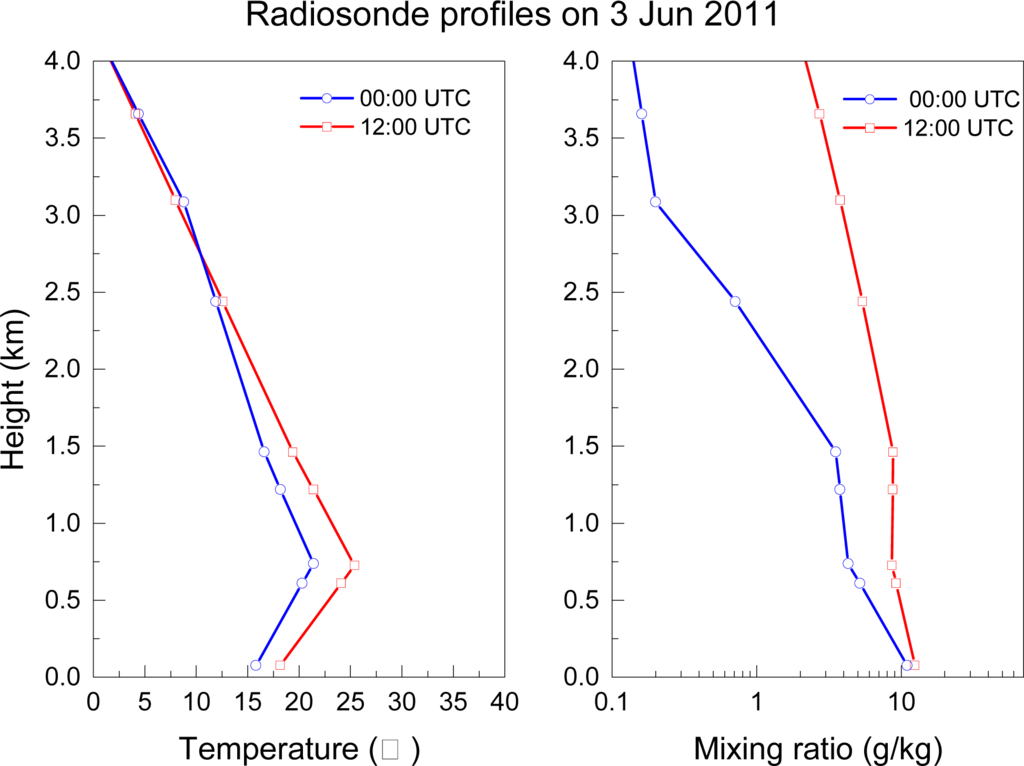

Figure 12. The temperature and water vapor mixing ratio profiles from the radiosonde on 3 June 2011.

Click here to enlarge figure

Figure 12. The temperature and water vapor mixing ratio profiles from the radiosonde on 3 June 2011.
Remotesensing 05 06079f12 1024
Remotesensing 05 06079f13 200

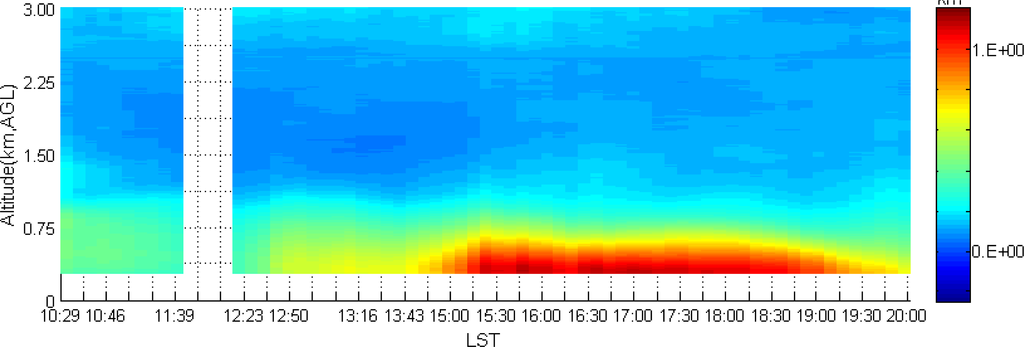

Figure 13. Temperal evolution of the extinction coefficient on 3 June 2011.

Click here to enlarge figure

Figure 13. Temperal evolution of the extinction coefficient on 3 June 2011.
Remotesensing 05 06079f13 1024
Remotesensing 05 06079f14 200

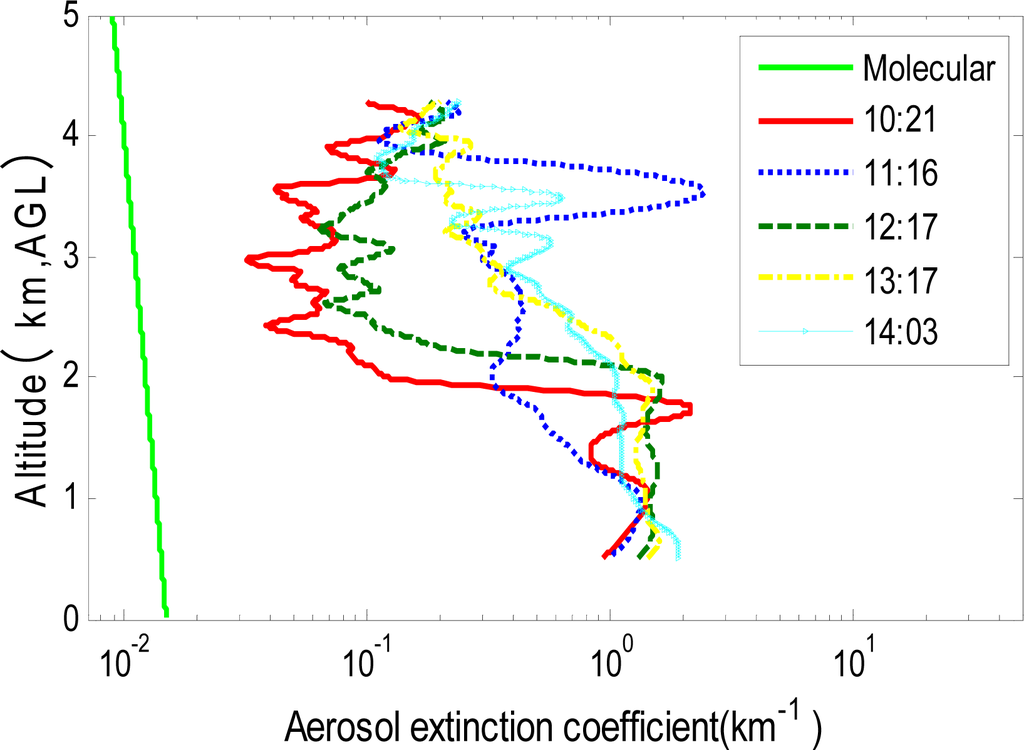

Figure 14. The extinction coefficient profiles on 24 August 2011 (data logged in LST).

Click here to enlarge figure

Figure 14. The extinction coefficient profiles on 24 August 2011 (data logged in LST).
Remotesensing 05 06079f14 1024
Remotesensing 05 06079f15 200

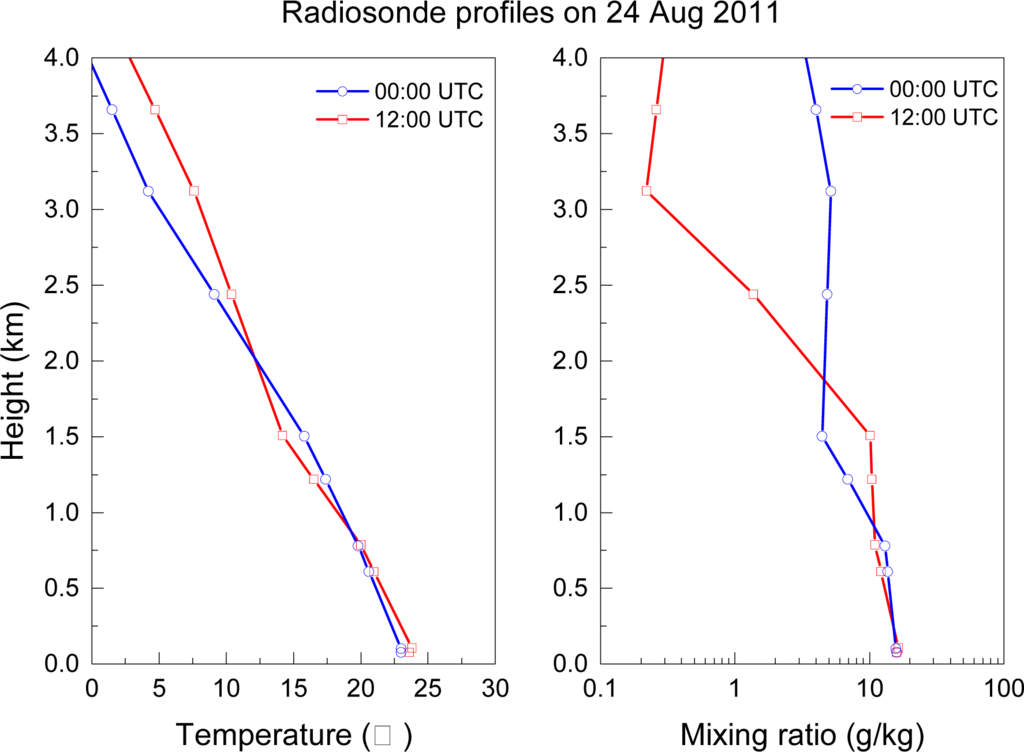

Figure 15. The temperature and water vapor mixing ratio profiles from the radiosonde on 24 August 2011.

Click here to enlarge figure

Figure 15. The temperature and water vapor mixing ratio profiles from the radiosonde on 24 August 2011.
Remotesensing 05 06079f15 1024
Remotesensing 05 06079f16 200
Figure 16. Temporal evolution of the extinction coefficient on 24 August 2011.

Click here to enlarge figure

Figure 16. Temporal evolution of the extinction coefficient on 24 August 2011.
Remotesensing 05 06079f16 1024
Remotesensing 05 06079f17 200

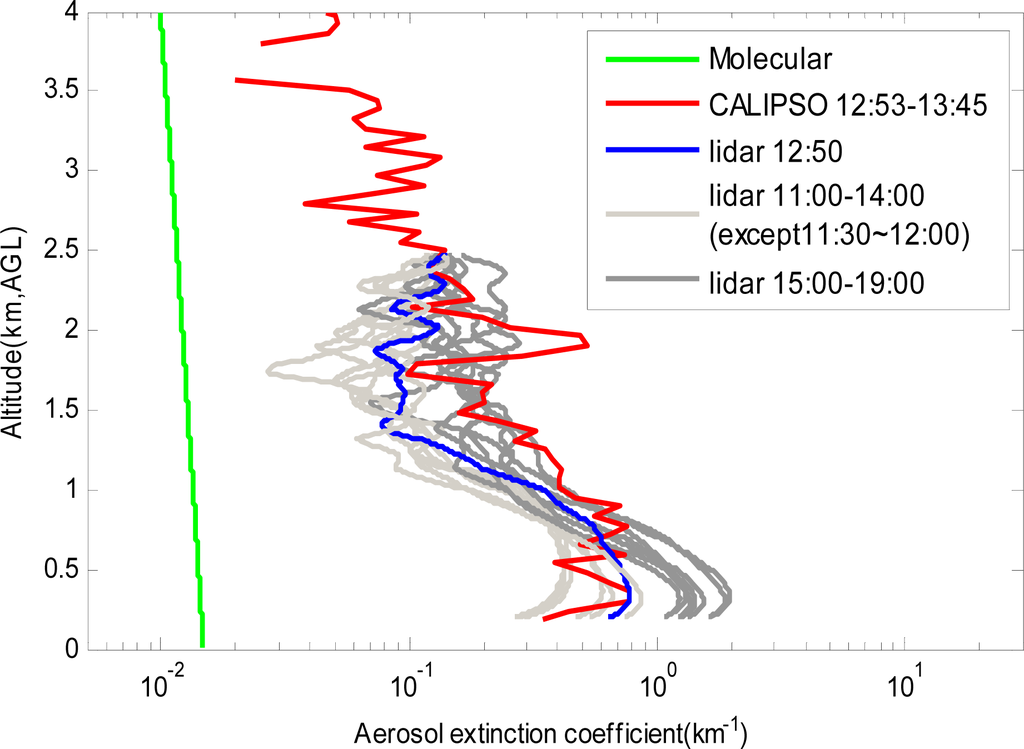

Figure 17. Comparison between the extinction coefficient of Lidar and CALIPSO Level2 data on 3 June 2011, in Qingdao.

Click here to enlarge figure

Figure 17. Comparison between the extinction coefficient of Lidar and CALIPSO Level2 data on 3 June 2011, in Qingdao.
Remotesensing 05 06079f17 1024
Table 1. Specifications of the Fraunhofer Lidar.

Click here to display table

Table 1. Specifications of the Fraunhofer Lidar.
Pump Laser Specifications
Pump LaserNd:YAG, Q-Switched flash lamp pumped
Pump wavelength355 nm
Pump pulse energy180 mJ
Pulse repetition rate10 Hz
Pulse width5 ns
OPO Parameters
Wavelength Tuning Range410–2,400 nm
Peak OPO Energy30 mJ
Spectral Linewidth4–7 cm−1 (0.1–0.2 nm)
Beam DivergenceVertical: < 2 mrad Horizontal: < 10 mrad
PolarizationSignal: Horizontal, Idler: Vertical Linear Polarization
Optical Filter
Optical DesignImaging Czerny-Turner
Grating1,200 grooves/mm
Dispersion1.7 nm/mm
Resolution0.02 nm at 435.8 nm
Repeatability±0.05 nm
Drive Step Size0.0025 nm
Slits10 μm to 3 mm adjustable
Data Acquisition
PhotomultiplierHamamatsu R7400U-20
Cathode radiant sensitivity>70 mA/W
Maximum Photon Counting Rate250 MHz
Sampling resolution3.75 m
