Autonomous Navigation Airborne Forward-Looking SAR High Precision Imaging with Combination of Pseudo-Polar Formatting and Overlapped Sub-Aperture Algorithm

1
Science and Technology on Microwave Imaging Laboratory (MITL), Institute of Electronics, Chinese Academy of Sciences (IECAS), No. 19, North 4th Ring West, Beijing 100190, China
2
University of Chinese Academy of Sciences, No. 19, A Yuquanlu, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Received: 17 September 2013 / Revised: 25 October 2013 / Accepted: 4 November 2013 / Published: 15 November 2013
View Full-Text   |   Download PDF [1708 KB, uploaded 19 June 2014]   |

Abstract

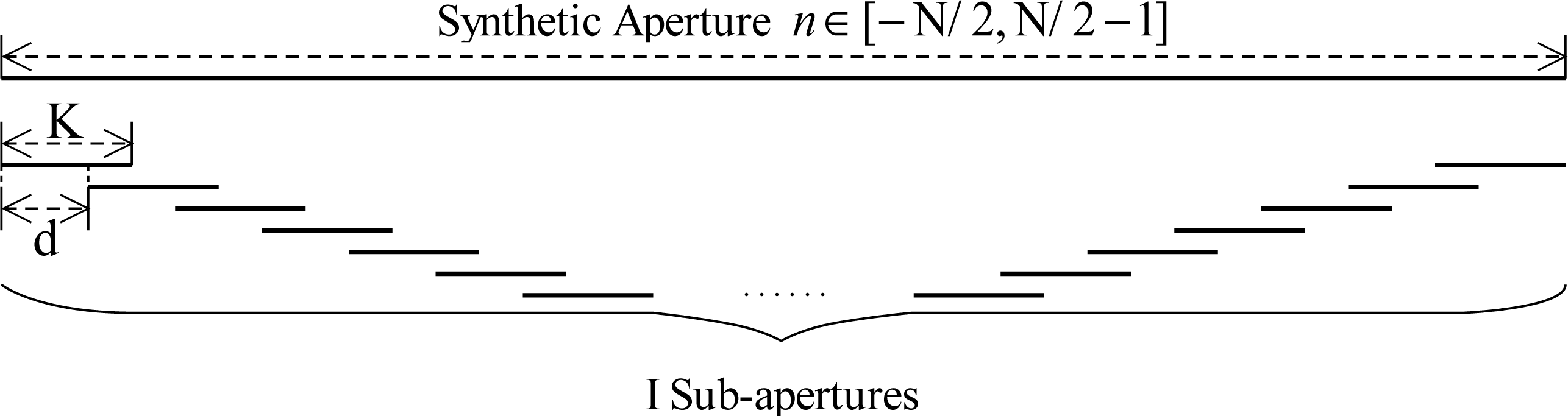

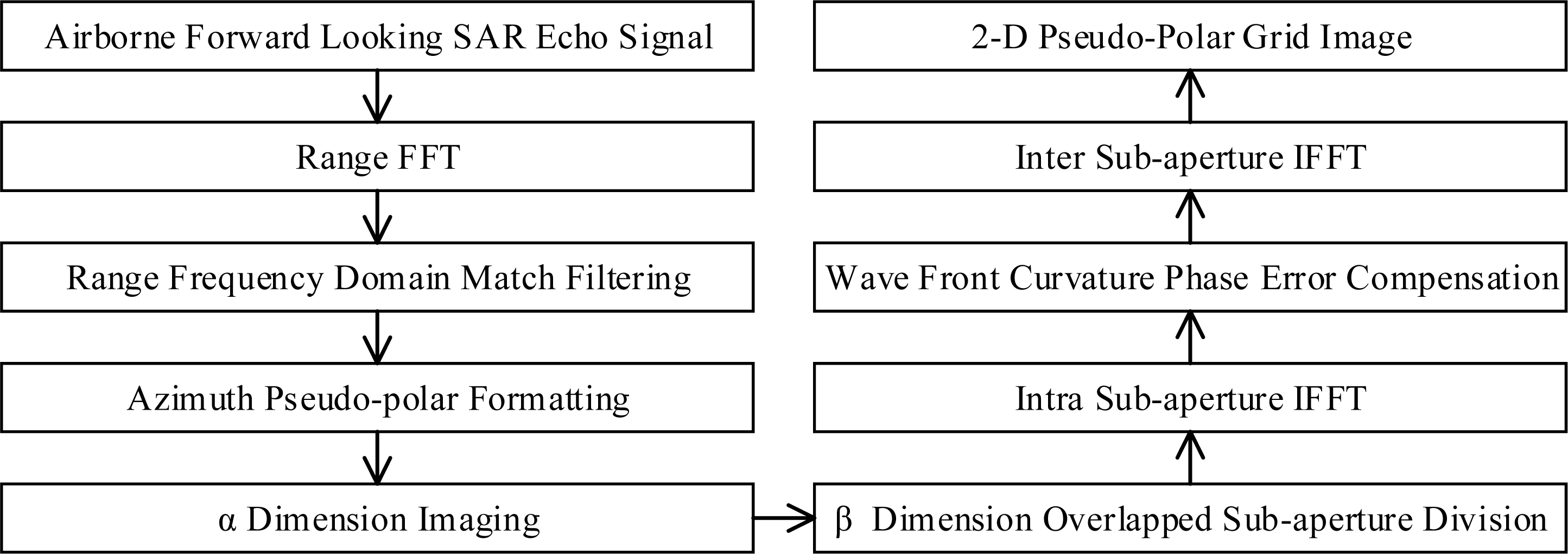

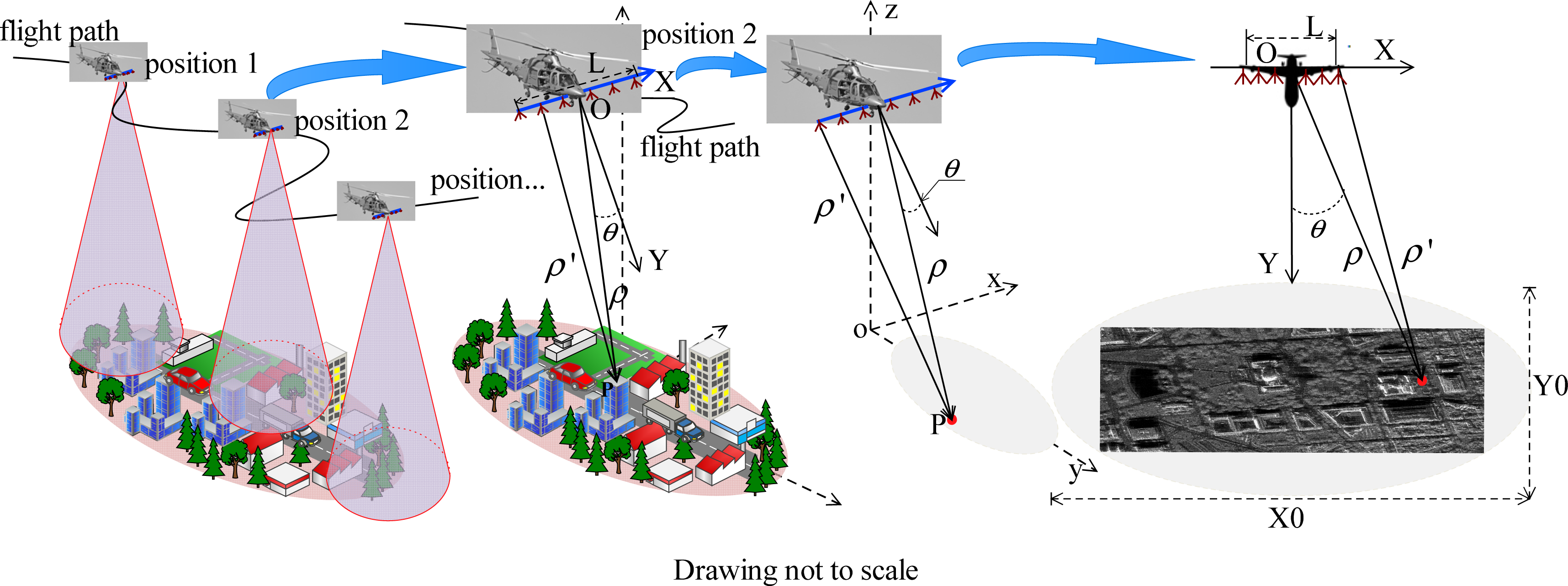

Autonomous navigation airborne forward-looking synthetic aperture radar (SAR) observes the anterior inferior wide area with a short cross-track dimensional linear array as azimuth aperture. This is an application scenario that is drastically different from that of side-looking space-borne or air-borne SAR systems, which acquires azimuth synthetic aperture with along-track dimension platform movement. High precision imaging with a combination of pseudo-polar formatting and overlapped sub-aperture algorithm for autonomous navigation airborne forward-looking SAR imaging is presented. With the suggested imaging method, range dimensional imaging is operated with wide band signal compression. Then, 2D pseudo-polar formatting is operated. In the following, azimuth synthetic aperture is divided into several overlapped sub-apertures. Intra sub-aperture IFFT (Inverse Fast Fourier Transform), wave front curvature phase error compensation, and inter sub-aperture IFFT are operated sequentially to finish azimuth high precision imaging. The main advantage of the proposed algorithm is its extremely high precision and low memory cost. The effectiveness and performance of the proposed algorithm are demonstrated with outdoor GBSAR (Ground Based Synthetic Aperture Radar) experiments, which possesses the same imaging geometry as the airborne forward-looking SAR (short azimuth aperture, wide azimuth swath). The profile response of the trihedral angle reflectors, placed in the imaging scene, reconstructed with the proposed imaging algorithm and back projection algorithm are compared and analyzed.
Keywords: autonomous navigation airborne forward looking SAR; pseudo-polar formatting; overlapped sub-aperture algorithm; radar imaging autonomous navigation airborne forward looking SAR; pseudo-polar formatting; overlapped sub-aperture algorithm; radar imaging
