Remote Sens. 2010, 2(4), 908-925; doi:10.3390/rs2040908
Article

Using Spatial Structure Analysis of Hyperspectral Imaging Data and Fourier Transformed Infrared Analysis to Determine Bioactivity of Surface Pesticide Treatment

1,2,* , 3
, 2
 and 1
Received: 26 January 2010; in revised form: 10 March 2010 / Accepted: 22 March 2010 / Published: 26 March 2010
(This article belongs to the Special Issue Ecological Status and Change by Remote Sensing)
Download PDF [590 KB, uploaded 19 June 2014]

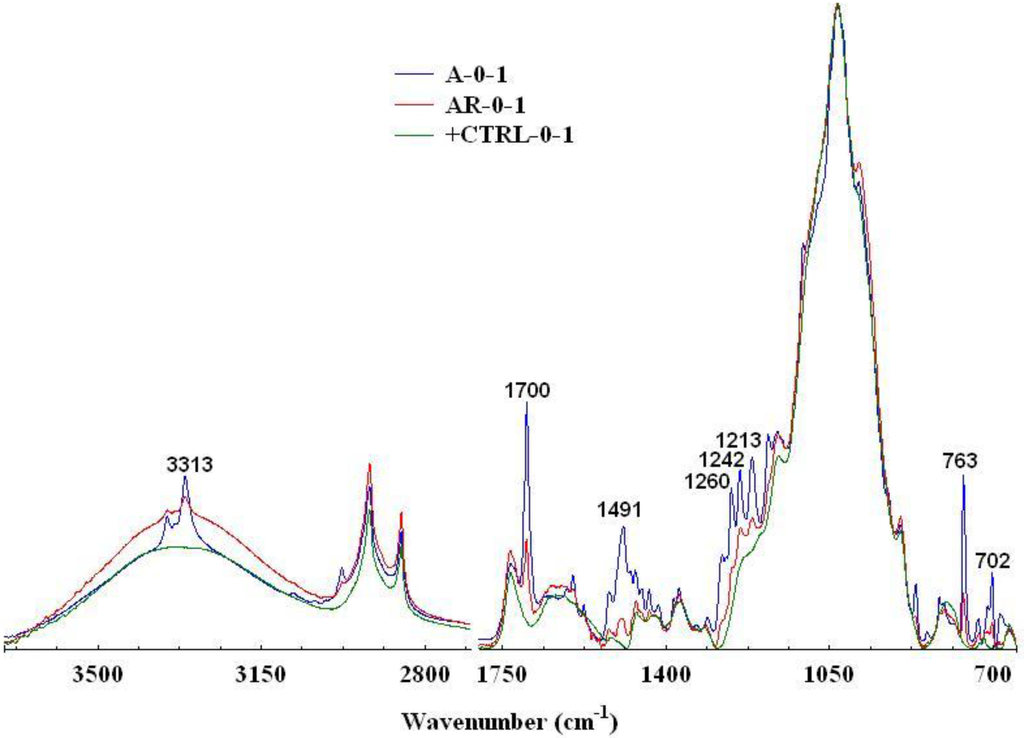

Abstract: Many food products are subjected to quality control analyses for detection of surface residue/contaminants, and there is a trend of requiring more and more documentation and reporting by farmers regarding their use of pesticides. Recent outbreaks of food borne illnesses have been a major contributor to this trend. With a growing need for food safety measures and “smart applications” of insecticides, it is important to develop methods for rapid and accurate assessments of surface residues on food and feed items. As a model system, we investigated detection of a miticide applied to maize leaves and its miticidal bioactivity over time, and we compared two types of reflectance data: fourier transformed infrared (FTIR) data and hyperspectral imaging (HI) data. The miticide (bifenazate) was applied at a commercial field rate to maize leaves in the field, with or without application of a surfactant, and with or without application of a simulated “rain event”. In addition, we collected FTIR and HI from untreated control leaves (total of five treatments). Maize leaf data were collected at seven time intervals from 0 to 48 hours after application. FTIR data were analyzed using conventional analysis of variance of miticide-specific vibration peaks. Two unique FTIR vibration peaks were associated with miticide application (1,700 cm−1 and 763 cm−1). The integrated intensities of these two peaks, miticide application, surfactant, rain event, time between miticide application, and rain event were used as explanatory variables in a linear multi-regression fit to spider mite mortality. The same linear multi-regression approach was applied to variogram parameters derived from HI data in five selected spectral bands (664, 683, 706, 740, and 747 nm). For each spectral band, we conducted a spatial structure analysis, and the three standard variogram parameters (“sill”, “range”, and “nugget”) were examined as possible “indicators” of miticide bioactivity. We demonstrated that both FTIR peaks and standard variogram parameters could be used to accurately predict spider mite mortality, but linear multi-regression fits based on standard variogram parameters had the highest accuracy and were successfully validated with independent data. Based on experimental manipulation of HI data, the use of spatial structure analysis in classification of HI data was discussed.
Keywords: hyperspectral imaging; fourier transformed infrared analysis; variogram analysis; residue analysis; miticide hyperspectral imaging; fourier transformed infrared analysis; variogram analysis; residue analysis; miticide
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Nansen, C.; Abidi, N.; Sidumo, A.J.; Gharalari, A.H. Using Spatial Structure Analysis of Hyperspectral Imaging Data and Fourier Transformed Infrared Analysis to Determine Bioactivity of Surface Pesticide Treatment. Remote Sens. 2010, 2, 908-925.

AMA Style

Nansen C, Abidi N, Sidumo AJ, Gharalari AH. Using Spatial Structure Analysis of Hyperspectral Imaging Data and Fourier Transformed Infrared Analysis to Determine Bioactivity of Surface Pesticide Treatment. Remote Sensing. 2010; 2(4):908-925.

Chicago/Turabian Style

Nansen, Christian; Abidi, Noureddine; Sidumo, Amelia Jorge; Gharalari, Ali Hosseini. 2010. "Using Spatial Structure Analysis of Hyperspectral Imaging Data and Fourier Transformed Infrared Analysis to Determine Bioactivity of Surface Pesticide Treatment." Remote Sens. 2, no. 4: 908-925.
