Inversion of Aerosol Particle Size Distribution Using an Improved Stochastic Particle Swarm Optimization Algorithm

Abstract

Aerosol particle size distribution (PSD) is one of the main influencing factors of the radiation effects and climate effects of aerosol. An improved stochastic particle swarm optimization (ISPSO) algorithm is proposed, and the PSD characteristics of aerosols were successfully retrieved from the aerosol optical depth (AOD). The performance analysis shows that the algorithm has good global search ability and convergence performance and will not fall into local optima. Then, the robustness and the ability to resist the noise of the algorithm were verified by adding random errors, using random initial values, and changing the number of samples and inversion parameters, and it was shown that the algorithm has a weak dependence on the initial value. The PSD characteristics of three typical aerosols were inverted, and the results show that the algorithm has good adaptability to the inversion of aerosol PSD. Finally, the PSD characteristics of aerosols from Xianghe and Mezaira under typical weather were inverted based on AERONET data, which shows the effectiveness and advancement of the ISPSO algorithm. This study can provide help for the obtaining of aerosol parameters under poor optical conditions.

1. Introduction

Atmospheric aerosol is a colloidal system composed of solid and liquid particles and gas in the atmosphere. It is a multiphase mixture with multi-scale characteristics, with diameters ranging from 0.001 to 100 μm [1,2,3]. Atmospheric aerosol is also the main participating medium of atmospheric radiation. It affects the Earth’s energy balance through direct and indirect radiation effects and is one of the biggest sources of uncertainty in the assessment of global climate change [4,5,6]. Due to the significant spatiotemporal heterogeneity of aerosol and the accompanying uncertainty of optical observations, the accurate inversion of aerosol optical properties has always been a difficult point in the field of atmospheric research and remote sensing [7,8].

Countries worldwide have developed a variety of optical and remote sensing equipment for effectively obtaining the optical property parameters of atmospheric aerosols, including different satellite-based, ground-based, and mobile detectors [9,10,11]. This equipment provides great help for observation and inversion research on aerosols. However, the existing remote sensing equipment can only obtain the optical properties of aerosols in a finite spectrum. The optical properties in other wavelengths are generally obtained by indirect methods. Specifically, physical parameters such as aerosol particle size distribution (PSD) are obtained by inversion, and then the required aerosol optical properties are calculated by these physical parameters [12,13,14]. For decades, researchers have developed a large number of techniques and methods to obtain the PSD of aerosols, such as the aerodynamic method, optical method, electrical sensing zone method, electrical mobility method, condensation methods, etc. [15]. Among them, the optical method is widely used in PSD inversion due to its advantage in obtaining temporal-spatial data, such as the extinction method. For example, Lee et al. developed a new method for inversion of aerosol PSD based on spectral extinction technique and optical depth [16]. He et al. performed a nonparametric estimation of the aerosol PSD using spectral extinction and regularization [17]. Wurl et al. used a nonlinear estimation method to invert the PSD characteristics of small aerosol particles based on multi-wavelength extinction data [18].

In recent years, a large number of numerical algorithms have been used to solve optimization problems such as the inversion of PSD. There are mainly two types that are widely used at present; one is based on the gradient-based techniques, such as the Levenburg–Marquardt method and Gauss–Newton method [19,20], and the other are the heuristic intelligent optimization algorithms, such as the genetic algorithm, ant colony optimization algorithm, fruit fly optimization algorithm, and particle swarm optimization algorithm (PSO) [21,22]. The former algorithm was developed earlier and has been widely used to invert the PSD characteristics of aerosols. For example, Stamnes et al. developed an OC-SMART algorithm for inversion of aerosol and ocean parameters using nonlinear estimation and the Levenburg–Marquardt method to improve retrieval accuracy [23]. Diner et al. employed nonlinear least squares and retrieved the optical properties and PSD of aerosols through a multi-angle spectrometer [24]. Dubovik et al. retrieved the PSD characteristics of aerosols through light scattering polarization measurements and gave a kernel look-up table [25,26]. Although gradient-based techniques, such as the Levenburg–Marquardt method, are widely used due to maturity and reliability, such algorithms still suffer from cumbersome solutions (requiring complex mathematical calculations) and high dependence on initial values. Specifically, the choice of initial value used for inversion can significantly affect the solution and the accuracy of the results (an ill-posed problem). Hence, researchers have developed various intelligent optimization algorithms to avoid these problems. These intelligent algorithms have the advantages of simple solution and easy implementation. Compared with traditional numerical inversion algorithms using gradient-based techniques, intelligent algorithms have unique advantages in the face of the global optimal and high dimensional problem and no longer rely too much on the initial value and do not require the gradient information of the objective function. For example, He et al. retrieved the PSD of aerosols based on the optimal wavelength selection technique and the fruit fly optimization algorithm [27]. $\mathrm{Yuan}$ et al. inverted the PSD characteristics of aerosols through a log normal distribution model and stochastic particle swarm optimization algorithm (SPSO) [28]. Zhang et al. developed a quantum-behaved particle swarm algorithm to invert the PSD and complex refractive index of aerosols [29].

Among the intelligent algorithms, the PSO algorithm has strong global search ability and problem adaptability and has been widely used. However, the basic PSO algorithm has low computational efficiency and easily falls into local optima. Hence, in this paper, an improved stochastic particle swarm optimization (ISPSO) is proposed to invert the PSD characteristics of aerosols based on the advantages of intelligent optimization algorithms. The algorithm optimizes the iterative formula of the traditional particle swarm optimization algorithm and adds random particles to the particle swarm after iteration, which has better global search ability and convergence performance than various traditional intelligent algorithms. Additionally, the robustness of the algorithm is verified by analyzing random errors, changing inversion parameters, and the number of samples. The adaptability of the algorithm to aerosols is verified by inverting the PSD of different aerosol types. Finally, the example of the inversion of aerosol PSD characteristics in Xianghe is presented. Considering the complex distribution and optical properties of aerosols, the study results in this paper can provide help for effectively obtaining atmospheric aerosol parameters. The symbols used in this paper are given in

Table 1. Symbol, nomenclature, and abbreviations.

Symbol	Explanation
N	The number concentration of aerosols for log normal distribution, cm−3
rm	Mean radius for log normal distribution, μm
σ	The standard deviation for log normal distribution
τ	Aerosol optical depth
r	Particle radius, μm
κ	Extinction factor of aerosol particle
m	Complex refractive index, n ± ki
λ	Wavelength, μm
n(r)	The number concentration of aerosols with particle size greater than r, cm−3
n	The dimension of the particle swarm
x	The position of the particle in the solution space
v	The velocity of the particle in the solution space
i	The number of iterations
c1, c2	Acceleration coefficient
Gd, Gb	The individual and global best position
ω	Inertia weight for PSO
ω′	Inertia weight for ISPSO
ζ1, ζ2, ζ3	The adjustment factor for ISPSO
ψ	Control factor for ISPSO
γ	Random error,%
δ	Relative error,%
Vm	The aerosol column volume concentration, μm3∙μm−2

.

2. Materials and Methods

2.1. Aerosol Particle Size Distribution and Fredholm Integral Equation

Various size distribution functions have been used to describe the PSD, such as the Weber distribution and log normal distribution, and the log normal distribution has been proved to be accurate and efficient in aerosols (the effect of using the log normal distribution is shown in Figure A1):

$$\frac{dn\left(r\right)}{dln\left(r\right)}=\frac{N}{ln\sigma \sqrt{2\pi }}exp\left(-\frac{{\left(lnr-ln{r}_m\right)}^2}{2l{n}^2\sigma }\right),$$

(1)

where N is the number concentration, r_m and σ represent the mean radius and standard deviation, respectively.

The inverse radiation problem of solving PSD is based on the forward radiation problem of calculating aerosol optical depth (AOD). Hence, the Fredholm integral equation of the first kind expressing the relationship between AOD and the columnar aerosol PSD can be written as [30]:

$$\tau ={\int }_{r_{min}}^{r_{max}}\pi r^2\kappa \left(r,m,\lambda \right)\frac{dn\left(r\right)}{dr}dr,$$

(2)

where τ is the AOD; κ(r,m,λ) represents the extinction factor of aerosols; m is the complex refractive index; and n(r) represents the PSD function of columnar aerosol.

The formula of inversion (objective function) can be obtained by bringing the log normal distribution into the integral equation:

$${\tau }_{retrieval}={\int }_{r_{min}}^{r_{max}}\pi r^2\kappa \left(r,m,\lambda \right)\frac{N}{ln\sigma \sqrt{2\pi }}exp(-\frac{{(lnr-ln{r}_m)}^2}{2l{n}^2\sigma })dr,$$

(3)

where τ_retrieval is the AOD obtained from the inverse problem; N, r_m, and σ are the unknown parameters to be inverted; and the upper and lower limits of the integration can be obtained by the 3σ criteria.

2.2. Improved Stochastic Particle Swarm Optimization Algorithm

The PSO algorithm is a kind of random search algorithm which belongs to the heuristic algorithm based on the swarm, and its basic idea comes from the imitation of natural laws. The algorithm adopts an information-sharing mechanism, and the core idea can be summarized as: particle swarm searches for the target solution based on group cooperation by simulating the foraging behavior of birds. Each particle moves and updates velocity through the group and its own experience (one iteration). The experience comes from the record of the best position of the group and the particle (the quality of the position is judged by the objective function). This mechanism makes the particle swarm gradually gather to the area where the target is located until the particle finds the target solution (the position of any particle from the target is smaller than the requirement) [31,32].

The particle searches for the target solution in the solution space (the target solution is unknown, and the relative distance of the particle to the solution can be judged by the objective function) and has two properties of position and velocity. If the dimension of the solution space is n (each dimension corresponds to an unknown parameter in this paper, and the N, r_m, σ constitute a solution, and the variation range of N, r_m, σ constitutes a three-dimensional solution space), the position of the particle is x⁽ⁿ⁾ = (x¹, x², …, xⁿ)^T, and the velocity of the particle is v⁽ⁿ⁾ = (v¹, v², …, vⁿ)^T. The position of any particle in the swarm is randomly initialized by giving upper and lower limits:

$$\xi =rand\left[0-1\right]\left({\xi }_{max}-{\xi }_{min}\right)+{\xi }_{min},$$

(4)

where ξ is the arbitrary parameter of particles.

The quality of the solution searched by the particle is evaluated by fitness (the quality is inversely proportional to the distance from the target solution). In this paper, the larger the fitness, the better the quality of the solution. Referring to the definition of variance, the fitness of any particles can be expressed according to Equation (3):

$$fitness=1/[{{\displaystyle \sum }}_{k=1}^n{\left({\tau }_{object}-{\tau }_{inversion}\right)}^2/n],$$

(5)

where τ_object and τ_inversion are the target AOD and the AOD, respectively, calculated based on Equation (3) through the searched N, r_m, σ in the solution space. The reciprocal means that the greater the fitness, the closer to the target solution. The value k generally ranges from 1 to 4 and represents the four spectral channels (440 nm, 675 nm, 870 nm, and 1020 nm) often used to invert the PSD.

The movement of particles in the solution space (the update of position and velocity) is achieved by iterative formulas. According to the Refs. [31,32] of Eberhart and Kennedy, the iterative formulas of the PSO algorithm can be expressed as:

$$v_{i+1}^{\left(n\right)}=\omega v_i^{\left(n\right)}+c_1·rand\left[0-1\right]\left(G_i^{\left(n\right)d}-x_i^{\left(n\right)}\right)+c_2·rand\left[0-1\right]\left(G_i^{\left(n\right)b}-x_i^{\left(n\right)}\right),$$

(6)

$$x_{i+1}^{\left(n\right)}=x_i^{\left(n\right)}+v_{i+1}^{\left(n\right)},$$

(7)

where v is the velocity of the particle; x represents the position of the particle; n is the dimension of the particle; i represents the number of iterations; c₁ and c₂ are called acceleration coefficients, which represent the cognitive and social parameters, respectively; and G^d and G^b are individual and global best positions, respectively. Meanwhile, ω represents the inertia weight of the velocity and varies with the number of iterations:

$$\omega \left(i\right)=\left(i_{max}-i\right)/i_{max}\left({\omega }_{max}-{\omega }_{min}\right)+{\mathsf{\omega }}_{min},$$

(8)

where ω_max and ω_min represent the maximum and minimum weights, respectively. The weight value gradually decreases with the number of iterations, indicating that the effect of velocity decreases. Referring to the Equations (6)–(8), the particles adjust the velocity during iteration based on the inertia weight, the global optimal position, and the individual optimal position and change their position according to the velocity. The global optimal position is the best position searched by the swarm (the solution with highest quality of the swarm), while the individual optimal position is the best position searched by the particle itself. Therefore, the movement of the particles is influenced by both the swarm and the particles themselves, that is, the information sharing mechanism and the proportion of influence can be adjusted by ω, C₁, and C₂.

The basic particle swarm optimization is often of low computational efficiency. Meanwhile, the aerosol optical properties (especially the extinction factor) calculated based on Mie theory have significant oscillation characteristics, and the changes in the properties with the particle size are non-convex functions. Hence, it is easy to obtain a local optimum solution by using the PSO algorithm. Based on the above reasons, an improved stochastic particle swarm optimization (ISPSO) algorithm is developed in this paper. The convergence ability and the search capability in solution space are considered to the maximum extent to avoid local optima based on the improvement of the PSO algorithm from Refs. [33,34]. The flowchart of the algorithm is shown in Figure 1, and the iterative formula of the ISPSO algorithm is updated as follows:

$$v_{i+1}^{\left(n\right)}={\omega }^{\prime }{v}_i^{\left(n\right)}+c·rand\left[0-1\right]\left[\psi \left({\zeta }_1{G}_i^{\left(n\right)d}+{\zeta }_2{G}_i^{\left(n\right)b}+{\zeta }_3{x}_i^{\left(n\right)}\right)-3x_i^{\left(n\right)}\right],$$

(9)

$$x_{i+1}^{\left(n\right)}=x_i^{\left(n\right)}+v_{i+1}^{\left(n\right)},$$

(10)

where c is a positive constant and the same as the acceleration coefficient; ζ₁, ζ₂, ζ₃ are the adjustment factors and their sum is 1, and the relative ratio of ζ₁ and ζ₂ affect the relative influence of individual and global best positions; and ψ represents the control factor, which is used to describe the relative proportion of G^d and G^b to x_i:

$$\psi =\left({\Psi }_{max}-3\right)(i_{max}-i)/i_{max}·rand\left[0-1\right]+3,$$

(11)

and the ratio of G^d and G^b to x_i is 1 when ψ is equal to 3, and the ratio of G^d and G^b is higher (lower) when ψ is greater (less) than 3. The role of ψ is to give the swarm additional search capability in the early iterations. The value of ψ gradually tends to 3 after a period of iteration, and the iterative formula tends to the PSO algorithm. The initial value of ψ can be set to 3 ± 0.1.

The ω′ represents the modified inertia weight of velocity. Considering that the velocity of the PSO algorithm has a minimum value, G^b often fails to meet accuracy requirements. This makes the algorithm converge early and fall into local optima. Hence, the value of ω′_min is 0 in this paper, which means that the velocity of the particle is reduced to 0 after the number of iterations exceeds i_max so as to avoid the above problems. At this point, the motion of the particle is completely driven by the individual and global best positions. The ω′(i) is updated as follows:

$${\omega }^{\prime }\left(i\right)={{\omega }^{\prime }}_{max}\left(i_{max}-i\right)/i_{max},$$

(12)

The ISPSO algorithm adjusts the velocity of the swarm through c and adjusts the relative size of G^d, G^b to x_i through ψ and ζ₁, ζ₂, ζ₃. In addition, a new particle is randomly generated after one iteration based on the existing particle swarm to further improve the global search capability of the ISPSO algorithm (for more detail, please see Refs. [35,36]). The position of this new particle is expressed as x_j⁽ⁿ⁾ = (x¹, x², …, xⁿ)^T, subsequently updated as follows:

$$G^b=argmax\langle fitness\left(G_i^d\right),fitness(G_j^d)\rangle ,$$

(13)

where argmax<●> represents the variable in parenthesis that maximizes the objective function in the angle bracket. The G^b is replaced by the local optimum solution of the new particle if the particle has the largest fitness after repeated comparison with the swarm.

3. Results

3.1. The Performance of the Algorithm

In this paper, the performance of the ISPSO algorithm is evaluated by comparing it with traditional intelligent algorithms such as the genetic algorithm (GA) and PSO algorithm. The best fitness variation of different algorithms is shown in Figure 2. The number of maximum iterations is 500. The acceleration coefficients c₁ and c₂ of the standard PSO algorithm are both 1.8, and the inertia weights ω_max and ω_min are 0.9 and 0.4, respectively. The basic simulation parameters of the IPSO (improved particle swarm optimization algorithm, no random particles) and ISPSO algorithm are shown in

Table 2. The basic simulation parameters of IPSO and ISPSO algorithms.

Swarm Size	Inertia Weight (Maximum) ωmax	Inertia Weight (Minimum) ωmin	Acceleration Coefficient c	Control Factor ψ	ζ1	ζ2	ζ3
50	0.9	0	2.0	to 3.0	0.3	0.3	0.4

. The probabilities of mutation and crossover of the genetic algorithm are 0.3 and 0.6, respectively, and the swarm size of all algorithms is 50. The results show that the ISPSO algorithm achieves a higher fitness in a shorter number of iterations compared with the GA, PSO, and IPSO algorithms, so the ISPSO algorithm has higher computational efficiency and better convergence performance.

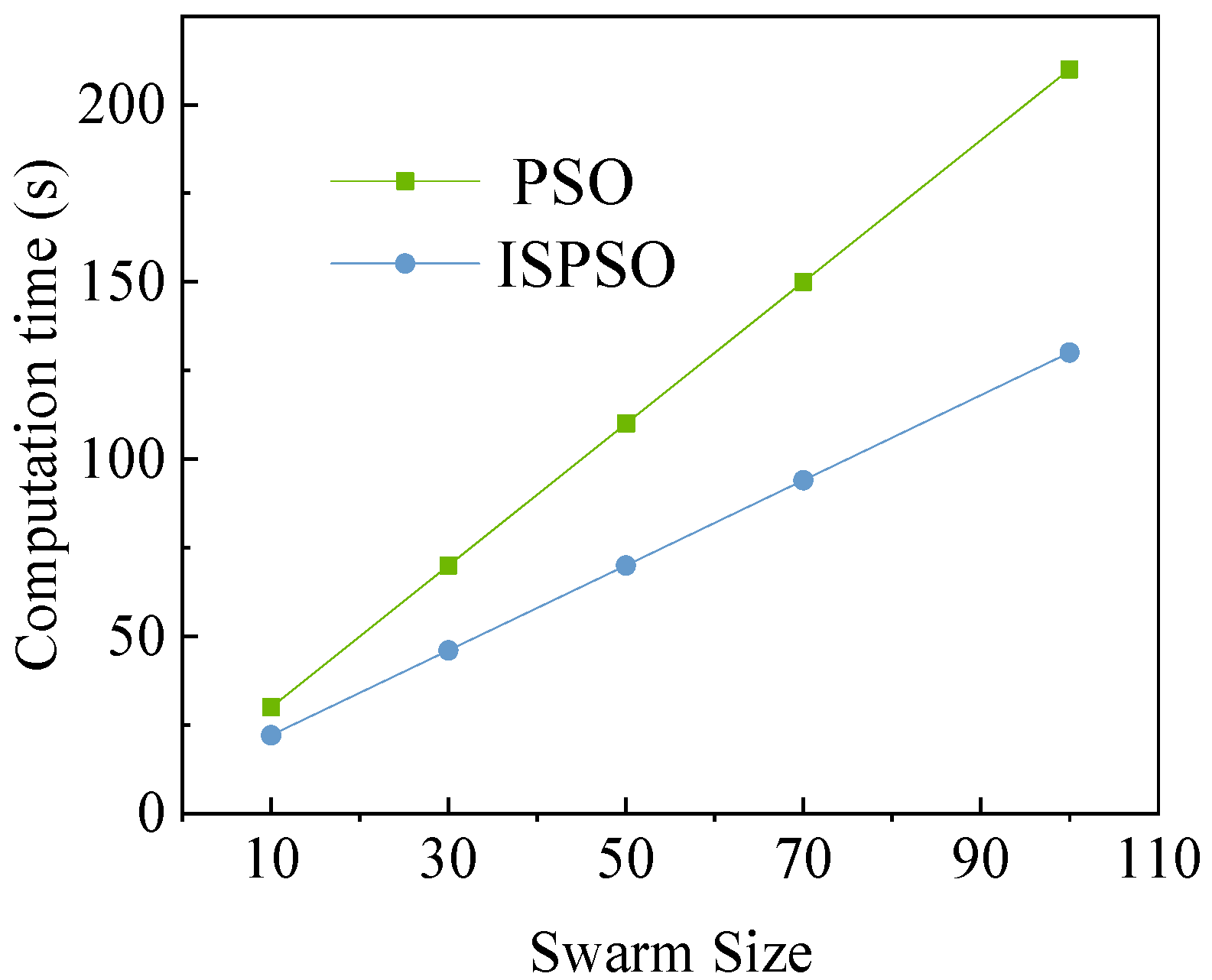

The inversion of the ISPSO algorithm under different swarm sizes is also compared, and the results are shown in Figure 3 and Figure 4, which are the best fitness and calculation time as a function of the swarm size, respectively. It can be seen that the convergence speed and the fitness of the ISPSO algorithm both increase with the increasing swarm size, but the computation time of the algorithm also increases. The accuracy of the algorithm is not significantly improved when the swarm size of the algorithm exceeds 50. Hence, to take into account both the computational efficiency and computational accuracy, the swarm size is set to 50. In addition, the calculation time of the ISPSO and PSO algorithm is proportional to the swarm size, and the calculation time of the ISPSO algorithm is less than that of the PSO algorithm, which has obvious advantages.

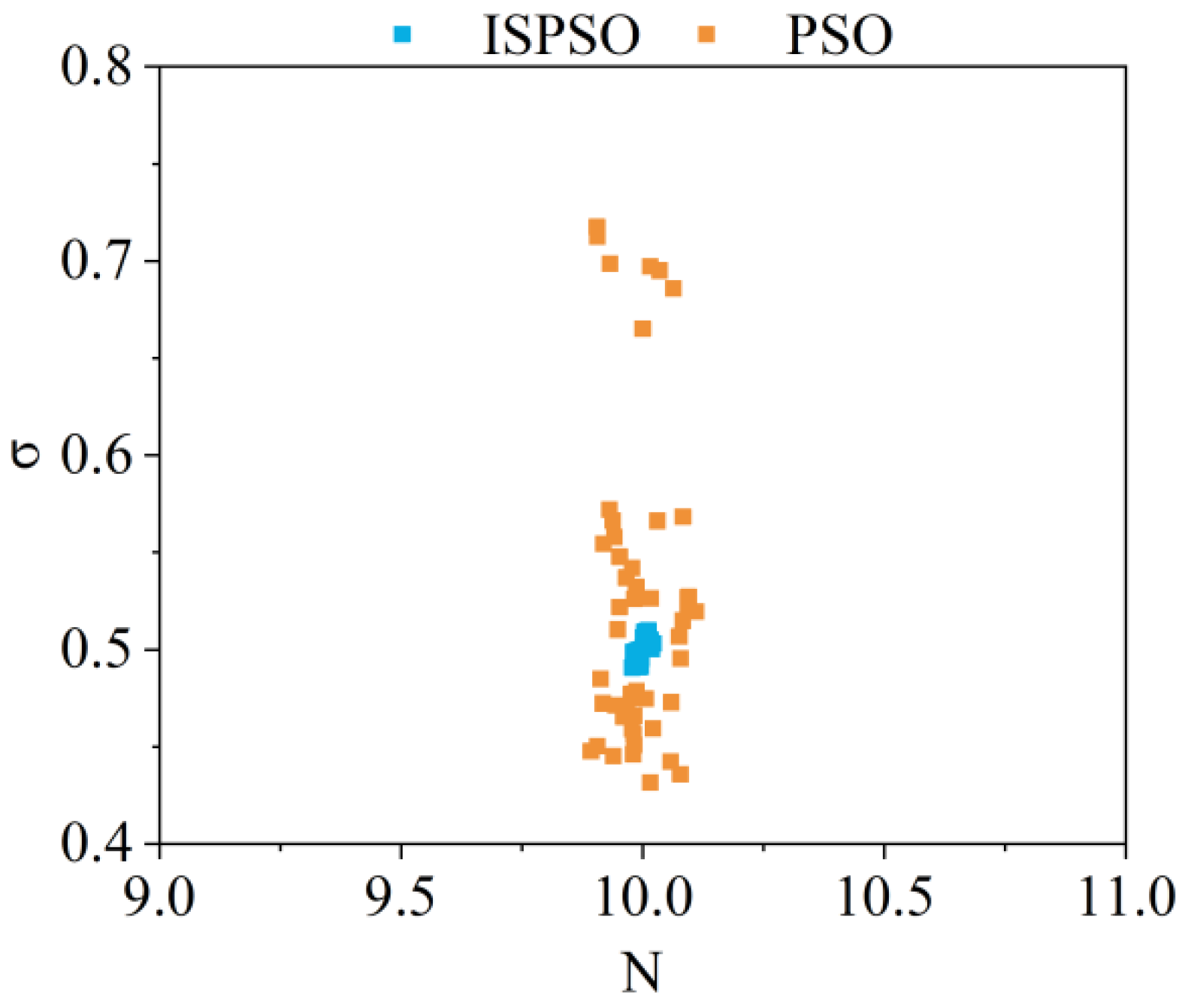

The mean radius (r_m) and standard deviation (σ) of the ISPSO algorithm and the PSO algorithm for 50-times calculation are shown in Figure 5 (the upper limit of the number of iterations is 500). The inversion results of the ISPSO algorithm are completely concentrated in the neighborhood range of (r_m, σ) = (1.0, 0.5), so the ISPSO algorithm does not fall into the local optima. However, some of the results of the PSO algorithm fall in another area, which can be considered to fall into the local optima (The distributions of other inversion parameters are shown in Figure A2 and Figure A3).

3.2. Algorithm Verification

In this section, the influence of random error (γ%), random initial values, the number of samples, and the number of inversion parameters on the inversion results of the algorithm are analyzed to further verify the robustness of the algorithm (all calculations are repeated 50-times). The relative error δ is defined before the simulation:

$$\delta =\left|\frac{P_{ture}-P_{calculation}}{P_{calculation}}\right|\times 100\%,$$

(14)

where P_true is the true value, and P_calculation is the inversion result. The true value and complex refractive index of inversion are shown in

Table 3. True value and complex refractive index of different wavelengths.

Wave (nm)	Real Part	Image Part	True Value
250	1.53	0.05	(N, rm, σ) = (10, 1, 0.9)
440	1.53	0.008
675	1.53	0.009
870	1.52	0.009
1020	1.50	0.009

, including the wavelengths of 250 nm, 440 nm, 675 nm, 870 nm, and 1020 nm.

The influence of different random errors (γ%) on the algorithm is evaluated, and the results are shown in

Table 4. The relative error under different random errors.

True Value	γ%	N	rm	σ	δ(N)	δ(rm)	δ(σ)
(N, rm, σ) = (10, 1, 0.9)	0%	10.00	1.00	0.90	0%	0%	0%
	3%	10.34	1.05	0.92	3.40%	5.00%	2.22%
	5%	12.56	1.29	0.95	25.60%	29.00%	5.56%
	10%	17.72	1.95	1.09	77.20%	95.00%	21.11%

. The random errors are 0%, 3%, 5%, and 10%, respectively, and the wavelengths used for inversion are 440 nm, 675 nm, 870 nm, and 1020 nm, respectively. The results show that the inversion value is consistent with the true value when the random error is 0%. As the random error increases, the relative error of the inversion parameters is also rapidly increased. The aerosol PSD characteristics under different random errors are shown in Figure 6. It can be found that the inversion results can still reproduce the real PSD characteristics well when the random error is 3% and 5%, and the relative error with the true value is still acceptable, but the relative error increases sharply when the random error reaches 10% and the inversion result has become unacceptable.

The relative error of the inversion results of 10 random initial values based on a 5% random error is shown in Figure 7. It can be seen that the relative error does not change significantly with different initial values. The inversion results fluctuate around the average relative error, and the maximum relative error is about 8%. This indicates that the ISPSO algorithm is weakly dependent on the inversion initial value.

The effects of the number of samples on the inversion results are also compared in this paper. The comparison is necessary, because the measurement results of sun photometers in different wavelengths are inevitably noisy and distorted, and severe noise may cause data in a certain wavelength to be unavailable. The results are shown in

Table 5. The inversion results under different wavelength combinations.

True Value	Type	N	rm	σ	δ(N)	δ(rm)	δ(σ)
(N, rm, σ) = (10, 1, 0.9)	With 250 nm	10.01	1.00	0.90	0.10%	0%	0%
	Without 440 nm	18.42	1.95	0.93	84.20%	95.00%	3.33%
	Without 675 nm	10.07	1.01	0.90	0.70%	1.00%	0%
	Without 870 nm	10.11	1.02	0.90	1.10%	2.00%	0%
	Without 1020 nm	14.13	1.29	0.92	41.30%	29.00%	2.22%
	All wavelengths	10.00	1.00	0.90	0%	0%	0%

and Figure 8. “Without 440 nm” means that 440 nm is discarded among the four inversion wavelengths of 440 nm, 675 nm, 870 nm, and 1020 nm and uses the remaining three wavelengths for inversion. The other “Without” labels are similar to “Without 440 nm”. “With 250 nm” means that four wavelengths of 250 nm, 675 nm, 870 nm, and 1020 nm are used for inversion. “All wavelengths” means that all five wavelengths are used for inversion. The results show that the inversion results of the two cases such as “All wavelengths” and “With 250 nm” are consistent with the true values, and the relative error is almost 0%. The data of 250 nm successfully replaced 440 nm and played an effective role. However, there is a serious relative error in the inversion results of “Without 440 nm”. As seen in Equations (2) and (3), the more difference between the extinction factor in different wavelengths and the higher the independence between each other, the stronger the resistance to noise (for further analysis, please see Figure A4). Therefore, after removing 440 nm, the remaining three wavelengths are not significantly independent of each other, and the inversion results have a large relative error. However, the relative errors of “Without 675 nm” and “Without 870 nm” are small, indicating that these two wavelengths are less independent of each other. Therefore, if possible, it is easier to obtain accurate inversion results by selecting wavelengths with more independent optical properties.

The influence of the number of inversion parameters is further evaluated in this paper, and the true value of the inversion adopts the double log normal distribution (True value: (N₁, r_m1, σ₁, N₂, r_m2, σ₂) = (100, 0.2, 0.7, 10, 1, 0.9)). When the number of inversion parameters is 3, then N₁, N₂, and r_m2 are unknown, and the rest of the true values are known. When the number of inversion parameters is 4, then N₁, N₂, r_m1, and r_m2 are unknown, and so on. The wavelength and corresponding complex refractive index are shown in Table 3, and the results are shown in

Table 6. The relative errors under different numbers of inversion parameters.

True Value	Number of Inversion Parameters	Relative Error
(N1, rm1, σ1, N2, rm2, σ2) = (100, 0.2, 0.7, 10, 1, 0.9)	3	δ(N1, N2, rm2) = (0%, 0%, 0%)
	4	δ(N1, rm1, N2, rm2) = (11%, 23%, 9%, 21%)
	5	δ(N1, rm1, σ1, N2, rm2) = (93%, 137%, 91%, 87% 115%)
	6	δ(N1, rm1, σ1, N2, rm2, σ2) = (152%, 235%, 184%, 136%, 183%, 139%)

. The results show that the inversion accuracy begins to decrease when the number of inversion parameters is larger than 4. When the number of inversion parameters is 6, the relative error far exceeds 100%, and the inversion results have become unacceptable.

3.3. Aerosol Type

To evaluate the adaptability of the ISPSO algorithm to inverse the PSD characteristics of different types of aerosol, three types of aerosol (dust aerosol, water-soluble aerosol, and soot aerosol) are considered. The complex refractive indices at different wavelengths and true values of these aerosols are listed in

Table 7. Complex refractive index and true value for three aerosol types.

Wavelength (nm)	440 (n ± ki)	675 (n ± ki)	870 (n ± ki)	1020 (n ± ki)	N	rm	σ
Dust	1.52 ± 0.008i	1.52 ± 0.008i	1.52 ± 0.008i	1.52 ± 0.008i	10.0	0.54	0.73
Soot	1.75 ± 0.46i	1.75 ± 0.43i	1.75 ± 0.43i	1.75 ± 0.43i	10.0	0.012	0.69
Water-soluble	1.53 ± 0.005i	1.53 ± 0.006i	1.53 ± 0.012i	1.53 ± 0.012i	10.0	0.04	0.80

[37,38]. The mean radius of PSD of dust aerosol is much larger than the water-soluble aerosol and soot aerosol. Soot aerosol has the smallest mean radius and the largest complex refractive index (both real and imaginary parts).

The inversion results and relative error changes under different random errors and different aerosol types are shown in

Table 8. The inversion results for three aerosol types.

Aerosol	γ%	N	rm	σ	δ(N)	δ(rm)	δ(σ)
Dust: (N, rm, σ) = (10, 0.54, 0.73)	0%	10.0	0.54	0.73	0%	0%	0%
	3%	10.32	0.59	0.74	3.20%	9.26%	1.37%
	5%	12.13	0.71	0.77	21.30%	31.48%	5.48%
	10%	16.95	1.06	0.85	69.50%	96.30%	16.44%
Soot: (N, rm, σ) = (10, 0.012, 0.69)	0%	10.0	0.012	0.69	0%	0%	0%
	3%	10.42	0.012	0.71	4.20%	8.33%	2.90%
	5%	11.41	0.013	0.75	14.10%	8.33%	8.70%
	10%	14.23	0.015	0.87	42.30%	16.67%	26.09%
Water-soluble: (N, rm, σ) = (10, 0.04, 0.80)	0%	10.0	0.04	0.80	0%	0%	0%
	3%	10.27	0.042	0.82	2.70%	5.00%	2.50%
	5%	11.89	0.05	0.89	18.90%	25.00%	11.25%
	10%	14.05	0.066	1.01	40.50%	65.00%	26.25%

and Figure 9. The results show that the inversion results deteriorate with the increasing random error for any aerosol type, but the inversion results are generally more reasonable. For dust aerosol and water-soluble aerosol, the accuracy of the inversion results is lower than the soot aerosol under each random error. For soot aerosol, the inversion results vary little with the random error, which indicates that the optical properties of soot aerosol at different wavelengths are more independent and therefore more resistant to noise.

3.4. Experimental Simulation

Xianghe is densely populated, located in northern China, and prone to dusty weather. Meanwhile, Mezaira is located in the Arabian desert, which is dry and rainy all the year round, and is dominated by dust aerosols. In this paper, the algorithm is verified by two locations with AERONET data. The complex refractive index and PSD are shown in

Table 9. The complex refractive index and PSD measured by AERONET.

Date	Wavelength (nm)	n ± ki	Ture Value (Vm, rm, σ)
22 March 2021 (Xianghe, dust)	440	1.6 ± 0.0032i	(0.605, 1.716, 0.728)
	675	1.59 ± 0.0005i
	870	1.57 ± 0.0005i
	1020	1.56 ± 0.0005i
5 April 2021 (Xianghe, sunny)	440	1.47 ± 0.0059i	(0.139, 0.339, 1.512)
	675	1.49 ± 0.0043i
	870	1.50 ± 0.0042i
	1020	1.49 ± 0.0043i
18 July 2018 (Mezaira, sample1)	440	1.53 ± 0.0022i	(0.612, 1.230, 1.008)
	675	1.54 ± 0.0013i
	870	1.53 ± 0.0018i
	1020	1.53 ± 0.0025i
31 July 2018 (Mezaira, sample2)	440	1.52 ± 0.0023i	(2.140, 1.243, 0.639)
	675	1.49 ± 0.0005i
	870	1.47 ± 0.0005i
	1020	1.46 ± 0.0005i

, and the measurement wavelengths are 440 nm, 675 nm, 870 nm, and 1020 nm, respectively. V_m is the aerosol column volume concentration, which can be converted to number concentration N by dividing the sphere volume in the integral term. The sun photometer data from 22 March 2021 and 5 April 2021 (Xianghe) and from 18 July 2018 and 31 July 2018 (Mezaira) are used. The inversion results are shown in Figure 10. The results show that the PSD parameters retrieved by the algorithm are in agreement with the AERONET retrieval products (version 3.0), both in dust and urban aerosols. Hence, the ISPSO algorithm can effectively perform the inversion of aerosol PSD.

4. Discussion

4.1. The Discussion of Algorithm Performance

The intelligent algorithm is a biologically-inspired method that searches for a target in a solution space by simulating the swarm behavior of organisms. The idea of group collaboration makes this kind of algorithm more suitable for global optimal problems. Especially for the SPSO algorithm with random particles, it seldom falls into the local optima compared with the PSO algorithm [28,33]. The advantages of the PSO algorithm make it easier to be modified and improved. The improved algorithm (ISPSO) undoubtedly has better performance and convergence ability compared with various traditional intelligent algorithms (such as the PSO algorithm and the GA algorithm). Additionally, the optimal swarm size of the intelligent algorithm is affected by the dimension of the solution space, the search range, and the objective function (Equation (3)), but the conditions such as the objective function are not significantly different in some intelligent algorithm studies compared with ours [28,33,34,35,39], so the optimal swarm size is the same (swarm size = 50).

Furthermore, as mentioned in the introduction, the advantages of intelligent algorithms over traditional numerical algorithm are significant. According to the case in Refs. [38,39], the intelligent algorithm has better convergence (or results). Therefore, in some practical applications such as AERONET and SKYNET (for example, the volume PSD of aerosols is retrieved by combining the aerosol optical depth and scattering phase functions measured by AERONET (composite scattering and extinction measurements) [40,41]), the intelligent algorithms can have higher computational efficiency and less dependence on the initial value (easier to avoid the local optima).

4.2. The Discussion of Error and Robustness

Since the objective function is a Fredholm integral equation of the first kind and a priori information is used on the PSD characteristics (giving distribution type), the inversion is a clearly ill-posed problem, i.e., small changes in the aerosol optical data may cause a huge error in the inversion results. Hence, this ill-conditioned characteristic of the inversion make robustness an important criterion for evaluating the algorithm [39]. The results of the error analysis show that the relative error of the inversion result relative to the true value rapidly increase with the increasing random error (data noise). The inversion results have begun to be distorted when the random error is 10%. In the inversion results, the relative error of the standard deviation is the smallest, and the mean radius is the largest. The effect of different inversion parameters on the objective function is different. The bigger the effect of the inversion parameters (the higher the sensitivity), the stronger the ability to resist noise. In addition, the weak dependence on the inversion initial value and the search range are a significant advantage of the intelligent algorithm, and the inversion results of multiple random initial values and subsequent studies verify this advantage.

The number of inversion samples and inversion parameters is also an important factor affecting the uncertainty of inversion. The relative number of inversion samples and parameters makes the calculation indetermined or overdetermined. The overdetermined equation need not be discussed, but for the indetermined problem, the independence between samples becomes very important. The stronger the independence between samples, the higher the ability to resist noise. Hence, the independence between the samples of 675 nm and 870 nm wavelength is weak, so the inversion results are little affected after deleting either of the two samples. Similarly, the relative error of inversion results increases rapidly with the increasing number of inversion parameters.

In summary, when the independence of the samples is insufficient and the number of inversion parameters significantly exceeds the samples, the accuracy of the inversion results will be unacceptable. When dealing with the double log normal distribution or others, the uncertainty of the inversion can be reduced in the following ways: (1) As shown in Table 5 and Figure 8, the ill-posed problem of inversion can be effectively avoided by selecting appropriate data to increase the independence between samples. (2) If the number of inversion parameters is significantly larger than samples, some unknown parameters can be given a priori. For example, Yuan Yuan et al. used the number concentration only in the log normal distribution as an unknown parameter to obtain the PSD characteristics of aerosols [28]. (3) More samples for inversion can be used; for example, angular light scattering measurements are used to obtain the aerosol PSD and complex refractive index [29].

4.3. The Discussion of Inversion of Aerosol Type

Atmospheric aerosols can be described by the PSD and the complex refractive index when the aerosol is assumed to be spherical. Different aerosols have different PSD and complex refractive index, resulting in different optical properties (such as extinction factor) at a given wavelength. The higher the difference between the aerosol optical property data at different wavelengths, the stronger its independence and thus the stronger the ability to resist noise. Soot aerosol has the best ability to resist noise, while dust aerosol has the worst inversion accuracy from the inversion results. Furthermore, the mean radius had the largest relative error, and the standard deviation had the smallest relative error regardless of aerosol type, which is consistent with the previous analysis.

The data verified by the practical example comes from the Xianghe station, including dust and sunny days. The inversion results agree quite well with the AERONET results. It is easy to obtain consistent results since the AOD data of AERONET comes from the direct inversion of the Beer–Lambert law (have high accuracy) [42]. However, the effect of random errors cannot be ignored when considering the satellite data. The study shows that the measurement error (random error) of AOD may be up to 40% and 20%, respectively, for passive remote sensing such as MODIS and active remote sensing such as Caliop [43,44,45].

In a future study, the multi-log normal distribution with more inversion parameters will be considered for the ISPSO algorithm, and the atmospheric medium, such as clouds and fog, will also be considered. In addition, the algorithm will attempt to obtain the PSD characteristics of aerosols without being given the distribution type a priori.

5. Conclusions

In this paper, the PSD characteristics of aerosols are inverted using the log normal distribution based on the self-developed ISPSO algorithm. The performance evaluation shows that the algorithm has a faster convergence speed and better accuracy than traditional intelligent algorithms. The distribution results of the inversion parameters show that the algorithm can effectively avoid the local optima compared with the PSO algorithm. The ability of the algorithm to resist noise is evaluated by adding random errors of the inversion. Then, the weak dependence of the algorithm on the initial value is reflected through the inversion results of the random initial value. The relative errors of the inversion results of the algorithm under different wavelength combinations and the number of inversion parameters are analyzed, and the applicability and robustness of the algorithm are further clarified. In addition, the study found that the independence of data can significantly affect the accuracy of the inversion results and is proportional to the accuracy. Then, the PSD characteristics of dust aerosol, water-soluble aerosol, and soot aerosol are inverted by the algorithm. The results show that the inversion of three aerosols is reasonable and effective, and the inversion accuracy of soot aerosol is the highest. The results also show that the relative error of the mean radius in the inversion parameters is the largest and the standard deviation is the smallest, which is related to the sensitivity of the inversion parameters in the objective function. Finally, the ISPSO algorithm is used to invert the PSD characteristics of Xianghe and Mezaira combined with AERONET data. The inversion results are in good agreement with the inversion data from AERONET. The ISPSO algorithm is an effective technique to obtain aerosol PSD, and the size distribution can provide support for further study on atmospheric aerosol radiation and environmental effects.
