Inter-Calibration of HY-1B/COCTS Thermal Infrared Channels with MetOp-A/IASI

Abstract

The Chinese Ocean Color and Temperature Scanner (COCTS) on board the Haiyang-1B (HY-1B) satellite has two thermal infrared channels (9 and 10) centred near 11 μm and 12 μm, respectively, which are intended for sea surface temperature (SST) observations. To improve the accuracy of COCTS SSTs, inter-calibration of COCTS thermal infrared radiance is carried out. The Infrared Atmospheric Sounding Interferometer (IASI) on board MetOp-A satellite is used as inter-calibration reference owing to its hyperspectral nature and high-quality measurements. The inter-calibration of HY-1B COCTS thermal infrared radiances with IASI is undertaken for data from the Period 2009–2011 located in the northwest Pacific. Collocations of COCTS radiance with IASI are identified within a temporal window of 30 min, a spatial window of 0.12° and an atmospheric path tolerance of 3%. Matched IASI spectra are convolved with the COCTS spectral response functions, while COCTS pixels within the footprint of each IASI pixel are spatially averaged, thus creating matched IASI-COCTS radiance pairs that should agree well in the absence of satellite biases. The radiances of COCTS 11 and 12 μm channel are lower than IASI with relatively large biases, and a strong dependence of difference on radiance in the case of 11 μm channel. We used linear robust regression for four different detectors of COCTS separately to obtain the inter-calibration coefficients to correct the COCTS radiance. After correction, the mean values of COCTS 11 and 12 μm channel minus IASI radiance are −0.02 mW m⁻² cm sr⁻¹ and −0.01 mW m⁻² cm sr⁻¹, respectively, with corresponding standard deviations of 0.51 mW m⁻² cm sr⁻¹ and 0.57 mW m⁻² cm sr⁻¹. Striped noise is present in COCTS original radiance imagery associated with inconsistency among the four detectors, and inter-calibration is shown to reduce, although not eliminate, the striping. The calibration accuracy of COCTS is improved after inter-calibration, which is potentially useful for improving COCTS SST accuracy in the future.

1. Introduction

Satellite measurements are critical for quantifying Earth’s environmental parameters, monitoring climate change and informing numerical weather prediction. Satellite calibration is fundamental to the error characteristics of derived satellite products. Calibration accuracy, stability and consistency over time are important for the retrieval quality of geophysical and atmospheric parameters [1]. Inter-calibration of satellite instruments is an effective way to quantify the calibration difference between a target instrument and a reference instrument, and to make the target instrument radiance closer to the reference calibration [1,2,3]. Thus, inter-calibration may increase the confidence in the operational calibration of individual satellites.

The Haiyang-1B (HY-1B) satellite, operated by the National Ocean Satellite Application Center (NSOAS) of the State Oceanic Administration (SOA) of China, was launched in April 2007. The satellite operated in a near sun-synchronous polar orbit at altitude of 798 km. The main payloads on board HY-1B are the Chinese Ocean Color and Temperature Scanner (COCTS) and Coastal Zone Imager (CZI). The main objective of the HY-1B satellite is the detection of marine environmental parameters, including chlorophyll concentration, suspended sediment concentration, dissolved organic matter, pollutants, and sea surface temperature (SST) [4]. The COCTS has eight visible near infrared bands (0.402–0.422 μm, 0.433–0.453 μm, 0.480–0.500 μm, 0.510–0.530 μm, 0.555–0.575 μm, 0.660–0.680 μm, 0.730–0.770 μm, and 0.845–0.885 μm) for ocean colour observations and two thermal infrared bands (10.30–11.40 μm and 11.40–12.50 μm) for measuring SST, with a spatial resolution of 1.1 km at nadir. COCTS is a whiskbroom scanner, with four parallel detectors along-track [4].

COCTS Level 2B (L2B) SST products in the northwest Pacific were previously investigated [5]. The comparison results with buoy SST measurements gave a mean difference of 1.22 °C and standard deviation of difference of 1.78 °C [5]. This is much poorer than the equivalent statistics generally obtained using long-established SST sensors with similar channel specifications, which would typically give a mean difference of a few tenth of a degree and standard deviations of order 0.5 °C. Stable and accurate satellite radiance measurements are important for SST retrieval. To improve COCTS SST accuracy, inter-calibration and correction of COCTS infrared radiance is essential, and is addressed in this paper.

The Infrared Atmospheric Sounding Interferometer (IASI) is one of the payloads on board MetOp series satellites, mainly providing atmospheric emission spectra to derive humidity and temperature profiles, as well as SST, clouds, atmospheric trace constituents and land measurements [6]. The IASI on board MetOp-A was launched in 2006. IASI is a whiskbroom scanning instrument with scan angles of ±48.3°, including 30 effective fields of view (EFOV) in total. Each EFOV consists of a 2 × 2 matrix of instantaneous fields of view (IFOV), each IFOV having a spatial resolution of 12 km near nadir [6]. IASI measures the spectral radiance in 8461 channels, covering the spectrum from 3.63 μm (2760 cm⁻¹) to 15.5 μm (645 cm⁻¹) with a spectral binning of 0.25 cm⁻¹ [6,7]. Radiometric calibration of the IASI is based on views of cold space and an internal blackbody [7]. The IASI calibration has been proven to be accurate and stable. Firstly, the routine monitoring of IASI data and the validation of IASI spectral, radiometric, and geometric calibration by Centre National d’Etudes Spatiales (CNES) and European Organisation for the Exploitation of Meteorological Satellites (EUMETSAT) verify that the IASI noise and calibration accuracy is stable and within specification [7,8,9,10]. In addition, Wang et al. (2011) compared the radiance from IASI and Atmospheric Infrared Sounder (AIRS) on board Aqua using double-difference and simultaneous-nadir overpass methods. Both methods showed good agreement between IASI and AIRS radiances in the tropic and polar regions, indicating their differences are less than 0.1 K and there are no significant long-term changes in the IASI minus AIRS differences [11]. Due to its hyperspectral nature and high-quality radiance measurements, IASI can serve as the reference for in-orbit re-calibration of other instruments. The Global Space-based Inter-Calibration System (GSCIS) uses IASI as the reference for the inter-calibration studies of the thermal infrared channels from current meteorological sensors on geostationary satellites, such as Meteosat, GOES, MTSAT, Fengyun2, and COMS instruments [3,12,13,14]. Moreover, IASI data have been used in other inter-calibration studies of the sensors on board the polar-orbital satellites such as Advanced Very High Resolution Radiometer (AVHRR) [15,16], Advanced Along-Track Scanning Radiometer (AATSR) [17] and Infrared Atmospheric Sounder (IRAS) [18].

In this study, we used IASI radiance as the reference to evaluate and correct HY-1B COCTS radiance of thermal infrared channels from 2009 to 2011 in the region of 0°–48°N and 100°E–148°E. The data we used include the COCTS Level 1B (L1B) radiance data provided by NSOAS [19] and IASI Level 1C (L1C) radiance data provided by EUMETSAT [20]. The IASI L1C products are the geolocated, calibrated and apodized radiances, consisting of 8461 spectral samples every 0.25 cm⁻¹ [6]. This paper is organised as follows. In Section 2, the inter-calibration method is introduced. In Section 3, we compare the COCTS thermal infrared radiances from 11 and 12 μm channel with IASI. In Section 4, we describe the calculation of coefficients for COCTS radiance correction. In Section 5, we validate the COCTS corrected radiance. In Section 6, the post-recalibration improvement in striped noise reduction is analysed. In Section 7, the main results are summarised.

2. Inter-Calibration Method

2.1. Calculation of IASI-Convolved Radiance

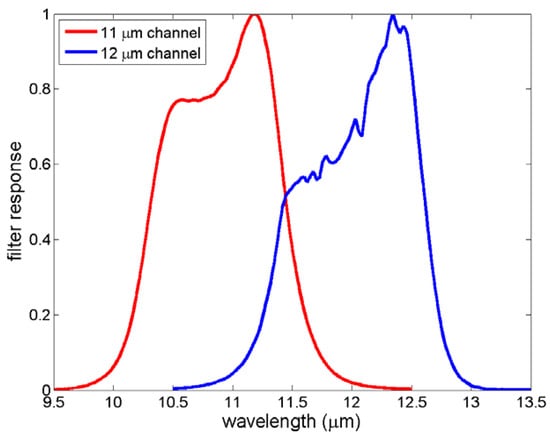

IASI L1C radiance data include 8461 spectral samples in every pixel with a fixed spectral binning of 0.25 cm⁻¹. The spectral ranges of COCTS thermal infrared spectral response functions (SRFs) for 11 and 12 μm channel are 9.50–12.50 μm and 10.50–13.50 μm, respectively (shown in Figure 1), both with a bin size of 0.002 μm. Due to the spectral resolution difference between IASI spectral radiance and COCTS SRFs, linear interpolation is used to generate COCTS spectral response value at each IASI radiance samples. Then, the IASI-convolved radiance corresponding to COCTS SRFs could be calculated using Equation (1):

$$L_i=\frac{{{\displaystyle \int }}_{{\lambda }_1}^{{\lambda }_2}L\left(\lambda \right)S_i\left(\lambda \right)d\lambda }{{{\displaystyle \int }}_{{\lambda }_1}^{{\lambda }_2}{S}_i\left(\lambda \right)d\lambda }$$

(1)

where subscript $i$ indicates COCTS thermal infrared channel number, $L\left(\lambda \right)$ is the IASI spectral radiance, $S_i\left(\lambda \right)$ is the COCTS spectral response, and ${\lambda }_1$ and ${\lambda }_2$ are COCTS bandpass boundary values.

2.2. Generation of Matchups

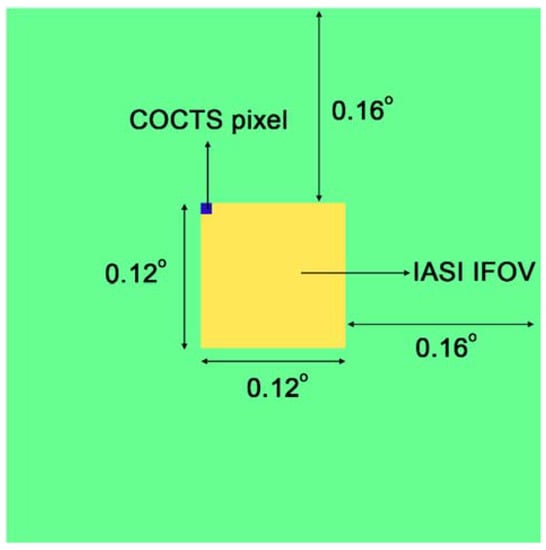

According to the COCTS and IASI spatial resolution of 1 km and 12 km near nadir, respectively, COCTS and IASI-convolved radiance are projected to equal-angle maps in the research region (0°–48°N and 100°E–148°E) with the grid size of 0.01° and 0.12°, respectively. The collocations of COCTS and IASI radiance data are generated with a spatial window of 0.12° and a temporal window of ±30 min. We need to ensure the matchups of COCTS and IASI are measured under similar conditions. Due to the effect of atmospheric path on radiance measurements, the satellite zenith angle of COCTS and IASI should also be matched when generating the matchup datasets. We set the threshold of difference in the secant of the satellite zenith angles as 0.03, constraining the difference of COCTS and IASI atmospheric paths to be less than 3% to ensure the view conditions are close. The variances of COCTS minus IASI radiance difference against temporal window value and atmospheric paths difference have been checked. There is no obvious increasing trend presented, demonstrating that these window thresholds of finding collocations we set is reasonable. The radiances of COCTS pixels across all detectors inside each IASI IFOV are averaged as the collocated COCTS radiance with IASI. Typically, there are about 50–140 pixels go towards average under different satellite zenith angles. All the COCTS pixels are evenly weighted, despite the effect of IASI point spread function [3,6]. Considering the inconsistency between COCTS four parallel detectors, COCTS pixels inside each IASI IFOV measured by per detector are averaged separately later, to estimate the difference between COCTS detectors and remove the striped noise.

2.3. Filtering of Matchups

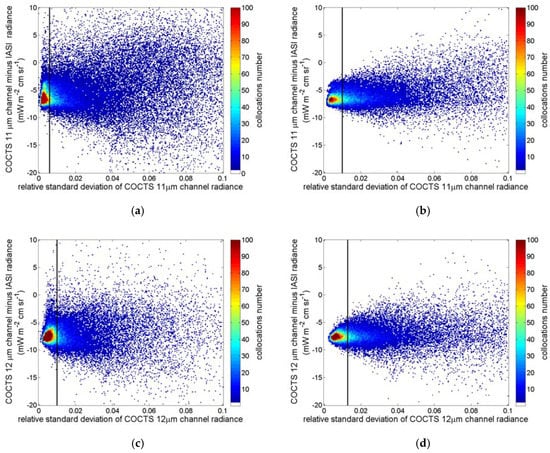

Because the spatial resolution of IASI is much larger than COCTS, the homogeneity of each IASI IFOV is very important. Radiance nonuniformity within the IASI IFOV increases the spatial uncertainties of matchups because of the different point spread functions between IASI and COCTS as well as increasing the error due to geolocation errors [15,16]. We used the relative standard deviation, which is the standard deviation/mean of the COCTS valid pixels inside each IASI IFOV, to quantify the homogeneity. We also used a perimeter region outside the central collocation area to reduce the likelihood of time variable components such as errors caused by differences in the cloud and/or clear distributions in a similar way to that suggested by GSICS [21]. For the COCTS and IASI gridded radiance after equal-angle projection, we calculated the relative standard deviation of COCTS pixels at 0.12° × 0.12° region (shown as the yellow region of Figure 2) to estimate the uniformity of the corresponding IASI IFOV, and the relative standard deviation of surrounding pixels around the target region within 0.16° (shown as the green region) as the estimation of homogeneity in the wider surroundings. Figure 3 shows the variations of COCTS 11 and 12 μm channel radiance minus IASI radiance difference against the relative standard deviation of COCTS pixels in target region (Figure 3a,c) and surrounding environment region (Figure 3b,d), respectively. The plotted colour indicates the number of collocations in every 0.0005 relative standard deviation bin and in 0.15 mW m⁻² cm sr⁻¹ radiance difference bin. The radiance differences in both target region and surrounding environment region become larger with the larger relative standard deviations, indicating that the relative standard deviation is an effective factor to control the matchup spatial uncertainties. According to the distribution pattern for different channels and different regions, we chose different thresholds (shown as black vertical lines in Figure 3) to select matchups located in uniform scenes. For 11 μm channel, we chose the matchups with the COCTS relative standard deviation in the target and surrounding region smaller than 0.006 and 0.01, respectively. For 12 μm channel, we chose the matchups with the COCTS relative standard deviations in target and surrounding region smaller than 0.01 and 0.013, respectively. Both criteria on relative standard deviation must be met for both channels for the matchup to be retained. The total number of filtered matchups of COCTS and IASI in uniform scenes from 2009 to 2011 is 11,250 and all of the subsequent analysis and correction are based on these filtered matchups.

3. Comparison of COCTS Radiance with IASI

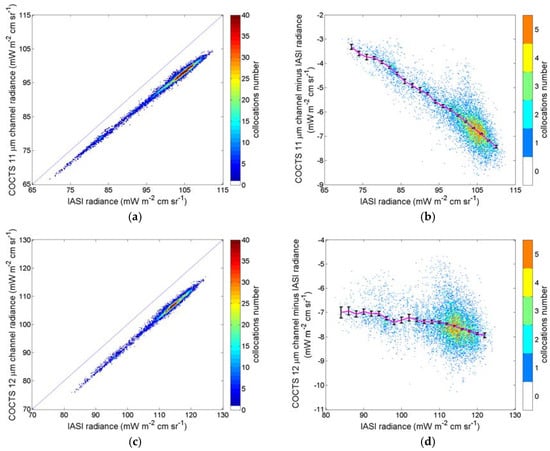

Based on these 11,250 filtered matchups presented in Section 2, COCTS radiance from 11 and 12 μm channel are compared with IASI. Figure 4a,c shows the scatter plots of COCTS 11 and 12 μm channel radiance with IASI radiance, respectively. The background colour indicates the collocation numbers in every 0.2 mW m⁻² cm sr⁻¹ COCTS and IASI radiance bin. The overall statistics of COCTS with IASI radiance indicate large cold biases of −6.35 mW m⁻² cm sr⁻¹ and −7.56 mW m⁻² cm sr⁻¹, with the corresponding standard deviations of 0.96 mW m⁻² cm sr⁻¹ and 0.63 mW m⁻² cm sr⁻¹. Figure 4b,d indicates the variations of COCTS 11 and 12 μm channel radiance minus IASI radiance against IASI radiance, respectively. Again, the background colour indicates the number of collocations in every 0.2 mW m⁻² cm sr⁻¹ IASI radiance bin and in 0.02 mW m⁻² cm sr⁻¹ radiance difference bin. The purple solid line shows mean values of the radiance difference in IASI radiance bins of width 2 mW m⁻² cm sr⁻¹, with the corresponding black vertical bars indicating two times the uncertainty in the mean (i.e., the standard deviation/$\sqrt{n}$). For COCTS 11 and 12 μm channel, both radiance differences represent approximately linear dependence on radiance. The difference for COCTS 11 μm channel more obviously depends on scene radiance than for 12 μm channel. For 11 μm channel, the mean value of radiance difference is about −3.3 mW m⁻² cm sr⁻¹ when radiance is around 70 mW m⁻² cm sr⁻¹, becoming around −7.4 mW m⁻² cm sr⁻¹ when the IASI radiance is about 110 mW m⁻² cm sr⁻¹. The radiance difference of 12 μm channel has a less-strong dependence on IASI radiance, spanning roughly −7 mW m⁻² cm sr⁻¹ to −8 mW m⁻² cm sr⁻¹ over the matchup range.

There is distinct striped noise with a pattern approximately repeating every four scan lines in COCTS radiance image, due to the inconsistency between four parallel detectors [4]. Similar striping is also seen on other whiskbroom scanning radiometers, such as the Moderate Resolution Imaging Spectroradiometer (MODIS) and Visible Infrared Imaging Radiometer Suite (VIIRS) [22,23,24,25]. To estimate the measurement difference between different detectors, the COCTS pixels inside each IASI IFOV measured by individual detectors are averaged separately. Then, the COCTS radiance from four detectors (called Detector 1, Detector 2, Detector 3, and Detector 4 hereafter) are compared with IASI separately. Figure 5 represents the comparisons of COCTS radiance measured by four individual detectors with IASI radiance. Similar to the purple solid lines shown in Figure 4b,d, the solid lines in difference colours of Figure 5 are the variations of mean difference in IASI radiance bins of width 2 mW m⁻² cm sr⁻¹, with the corresponding two times the uncertainty in the mean shown as the vertical bars in the same colour.

Table 1. The statistics of COCTS minus IASI radiance difference from 2009 to 2011.

	COCTS All Detectors	COCTS Detector 1	COCTS Detector 2	COCTS Detector 3	COCTS Detector 4
	Mean/Std.Dev	Mean/Std.Dev	Mean/Std.Dev	Mean/Std.Dev	Mean/Std.Dev
11 μm channel radiance difference (mW m−2 cm sr−1)	−6.35/0.96	−6.42/0.93	−6.38/1.02	−6.20/0.94	−6.42/0.99
12 μm channel radiance difference (mW m−2 cm sr−1)	−7.56/0.63	−7.30/0.69	−8.06/0.66	−7.18/0.72	−7.69/0.57

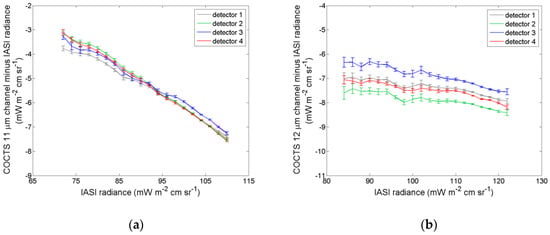

indicates the overall statistics of COCTS minus IASI radiance difference, including the comparison results of all detector measurements as well as measurements from four individual detectors. For 11 μm channel, the comparison results show smaller difference between adjacent detectors with the maximum difference of 0.22 mW m⁻² cm sr⁻¹ corresponding to Detector 3 and Detector 4. In addition, when the radiances larger than 95 mW m⁻² cm sr⁻¹, the difference among Detector 1, Detector 2 and Detector 4 are very minor. However, for 12 μm channel, both the variation plots and the statistics results indicate the difference between adjacent detectors are larger than 11 μm channel in the whole radiance range, which is consistent with more obvious striped noise shown in COCTS 12 μm channel radiance image.

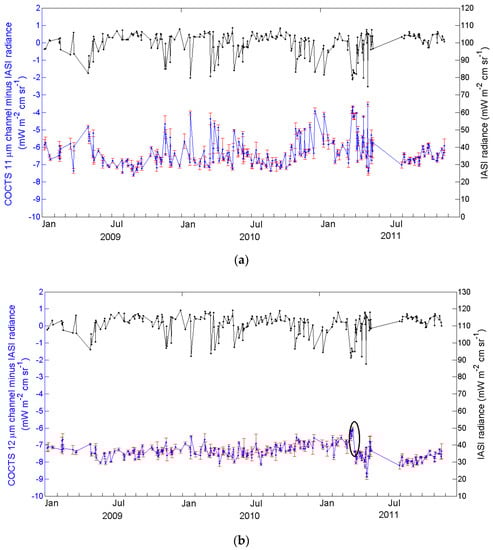

Figure 6 is the time series plot of COCTS minus IASI radiance difference from 2009 to 2011 (Figure 6a for COCTS 11 μm channel and Figure 6b for COCTS 12 μm channel). The lower blue points in each figure indicate the daily mean values of the COCTS minus IASI radiance difference and the red vertical bars are the daily uncertainties in the means, corresponding to the left y-axis. The upper black points represent the daily averaged IASI radiances corresponding to the right y-axis. There are some missing values when there are no matchups or the COCTS data are invalid during these days. Figure 6a represents a strong negative correlation between 11 μm channel radiance difference and IASI radiance that is consistent with overall three-year comparison results, also leading to strong fluctuations of daily biases. In other words, the fluctuation of biases from 11 μm channel is dominated by a radiance-dependent variation, not by a time-dependent variation. For 12 μm channel, there is no obvious daily radiance difference dependence on IASI radiance shown, and the biases keep relatively stable, except for a difference jump about 1 mW m⁻² cm sr⁻¹ decreasing at the junction point between March and April 2011 (shown as the black circle of the lower line in Figure 6b). Thus, the overall calibration of COCTS thermal infrared channels was stable from 2009 to 2011, except for the calibration drifting at the beginning of April 2011.

4. Calculation of Coefficients for COCTS Radiance Correction

The coefficients of COCTS radiance correction are obtained based on the filtered matchups of COCTS with IASI radiance. We use the robust linear regression to obtain the slope, $a$, and offset, $b$, of the relationship between COCTS minus IASI radiance difference and IASI radiance, represented as the Equation (2):

$$L_{COCTS}-L_{IASI}=a \times L_{IASI}+b$$

(2)

$$L_{COCTS\prime }=\frac{L_{COCTS}-b}{a+1}$$

(3)

where the $L_{COCTS}$ and $L_{IASI}$ represent the COCTS and IASI original radiances, respectively. The COCTS original radiances are fitted to IASI data using Equation (2), therefore the COCTS corrected radiance $L_{COCTS\prime }$ (substituting $L_{COCTS\prime }$ for $L_{IASI}$) are given using Equation (3). A randomly selected subset, 2/3 of the whole matchup dataset, was used for regression and the remaining 1/3 were used for validation. Due to the calibration drifting at the junction point between March and April 2011, two periods during 2009 to 2011 are analysed separately. Period 1 is from January 2009 to March 2011 and Period 2 is from April 2011 to December 2011. Coefficients for COCTS radiance corrections were calculated separately in Period 1 and Period 2. In addition, considering the different comparison results for COCTS four detectors shown in Section 3, the regression coefficients for different COCTS detectors were obtained separately.

Table 2. The coefficients for COCTS radiance correction.

	Period 1 (January 2009–March 2011)				Period 2 (April 2011–December 2011)
	Detector 1	Detector 2	Detector 3	Detector 4	Detector 1	Detector 2	Detector 3	Detector 4
	(a/b)	(a/b)	(a/b)	(a/b)	(a/b)	(a/b)	(a/b)	(a/b)
11-μm channel	−0.11/4.30	−0.12/5.88	−0.11/4.79	−0.12/5.69	−0.11/4.42	−0.12/6.15	−0.10/4.33	−0.12/5.76
12-μm channel	−0.02/−4.47	−0.03/−4.69	−0.03/−2.98	−0.03/−4.41	−0.01/−6.51	−0.02/−6.10	−0.04/−3.29	−0.03/−4.50

shows the coefficients for COCTS 11 and 12 μm channel radiance correction of different detectors in two periods separately. Then, the COCTS radiances measured by each detector were corrected using individual coefficients to reduce the striped noise due to nonuniformity of individual detectors.

5. Validation of COCTS Corrected Radiance

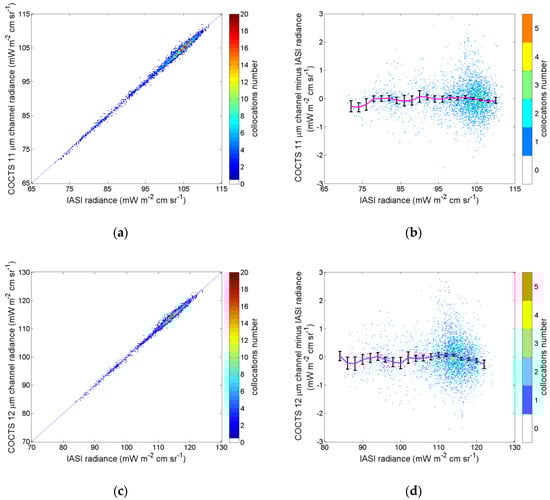

The comparison results of COCTS 11 and 12 μm channel corrected radiance with IASI are shown as Figure 7. Figure 7a,c shows scatter plots, while Figure 7b,d presents the variations of radiance difference against IASI radiance after correction.

Table 3. The statistics of radiance and BT difference between COCTS and IASI before and after correction.

		11 μm Channel Radiance Difference (mW m−2 cm sr−1)	11 μm Channel BT Difference K)	12 μm Channel Radiance Difference (mW m−2 cm sr−1)	12 μm Channel BT Difference (K)
		Mean/Std.Dev	Mean/Std.Dev	Mean/Std.Dev	Mean/Std.Dev
Period 1 (January 2009–March 2011)	Before correction	−6.45/1.05	−4.15/0.55	−7.27/0.64	−4.58/0.40
	After correction	0.01/0.56	0.00/0.36	0.00/0.63	0.00/0.39
Period 2 (April 2011–December 2011)	Before correction	−6.31/0.88	−4.04/0.46	−7.75/0.54	−4.87/0.34
	After correction	−0.03/0.47	–0.02/0.30	–0.03/0.53	–0.02/0.32
All (January 2009–December 2011)	Before correction	−6.37/0.95	−4.08/0.50	−7.57/0.62	−4.76/0.39
	After correction	−0.02/0.51	−0.01/0.33	–0.01/0.57	–0.01/0.35

is the statistics of comparison results before and after correction based on the validation matchups. In Table 3, the mean differences and standard deviations of COCTS 11 and 12 μm channel radiance with IASI in two periods separately and combined are provided. The large biases between COCTS original radiance and IASI radiance are removed after correction, with the value of −0.02 mW m⁻² cm sr⁻¹ and −0.01 mW m⁻² cm sr⁻¹ for 11 and 12 μm channel during the whole period from January 2009 to December 2011, respectively. For 11 μm channel, the significant radiance-dependent pattern of radiance difference is corrected, with the reduced overall standard deviation from 0.95 mW m⁻² cm sr⁻¹ to 0.51 mW m⁻² cm sr⁻¹. A reduction in the bias and standard deviation between the COCTS and IASI is also seen for 12 μm channel. We have also provided the same statistics in brightness temperature (BT) space for ease of comprehension. As shown in Table 3, the overall mean differences of COCTS 11 and 12 μm channel original BTs with IASI are −4.08 K and −4.76 K, with the corresponding standard deviations of 0.50 K and 0.39 K. After correction, both mean values of COCTS 11 and 12 μm channel corrected BTs minus IASI are −0.01 K, with the corresponding standard deviations of 0.33 K and 0.35 K respectively.

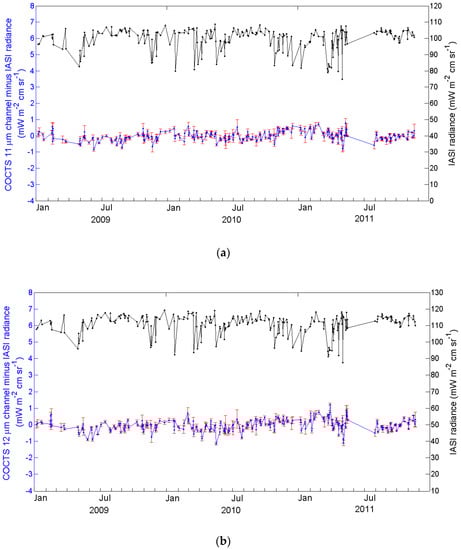

The time series plots of COCTS 11 and 12 μm channel corrected radiance minus IASI are shown in Figure 8a,b respectively. Similar to Figure 6, the upper black lines are daily mean values of IASI radiance, and the lower blue lines are the daily variations of COCTS corrected radiance minus IASI difference with the corresponding uncertainties shown as red vertical lines. For 11 μm channel, compared with Figure 6a, the fluctuations of radiance difference become much smoother. In addition, the jump of 12 μm channel radiance difference at the junction point between March and April 2011 is not represented again in Figure 8b, indicating that the different coefficients applied in two periods separately is reasonable to correct COCTS calibration drifting.

6. Post-Recalibration Improvement in Striped Noise Reduction

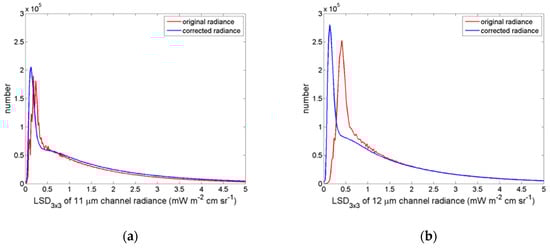

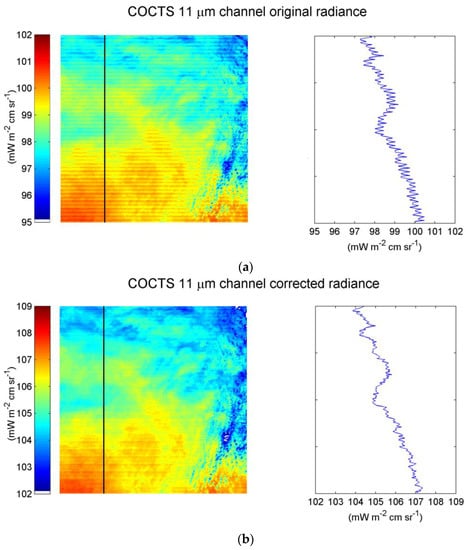

Figure 9 and Figure 10 are regional radiance images of COCTS 11 and 12 μm channel on 12 May 2011, respectively, with Figure 9a and Figure 10a being the original data and Figure 9b and Figure 10b the corrected data. The blue plots indicate radiance variations along track at the location of black lines painted in each radiance image. The radiance images, as well as the significant fluctuations of original radiance variations, display the strong striping in COCTS radiance data. In addition, the larger difference between neighbour detectors of 12 μm channel indicates that the striping of 12 μm channel radiance is stronger than 11 μm channel. After the correction of COCTS original radiance using individual coefficients for four detector measurements, the striped noise shown in corrected COCTS radiance images is reduced, with smoother variations along track, demonstrating that the inter-calibration method in this study is useful in some extent for COCTS striped noise elimination. Moreover, the histogram statistics of local standard deviations over 3 by 3 pixels box (LSD_3×3) of the whole scene radiance is applied to evaluate the noise level quantitatively. Figure 11a,b shows the LSD_3×3 histogram curves of original radiance (red curve) and corrected radiance (blue curve) from COCTS 11 and 12 μm channels on 12 May 2011, respectively. The LSD_3×3 value corresponding to the peak number reflects the noise level. For 11 μm channel original radiance and corrected radiance, the LSD_3×3 peak values are 0.18 mW m⁻² cm sr⁻¹ and 0.13 mW m⁻² cm sr⁻¹ respectively. For 12 μm channel, after correction, the LSD_3×3 peak value decrease from 0.41 mW m⁻² cm sr⁻¹ to 0.11 mW m⁻² cm sr⁻¹. The histogram patterns and LSD_3×3 peak values indicate the noise COCTS 12 μm channel in the original data is stronger than 11 μm channel, which is consistent with the striped noise analysis results. After inter-calibration, the noise levels in both channels are decreased, and the improvement of 12 μm channel is greater than 11 μm channel, mainly due to the distinguishable difference between neighbour detectors of 12 μm channel. The radiance inter-calibration does not fully eliminate apparent striping, presumably because of residual error or temporal evolution of the calibration differing between detectors. Nonetheless, the improvements of COCTS radiance accuracy after inter-calibration are essential for improved SST retrieval from COCTS, which will be the topic of future work.

7. Conclusions

In this study, the COCTS radiances from thermal infrared channels were inter-calibrated with IASI in the northwest Pacific region during the period from 2009 to 2011. The comparison results indicate that the mean values of COCTS 11 and 12 μm channel original radiance minus IASI radiance difference are −6.35 mW m⁻² cm sr⁻¹ and −7.56 mW m⁻² cm sr⁻¹, with the corresponding standard deviations of 0.96 mW m⁻² cm sr⁻¹ and 0.63 mW m⁻² cm sr⁻¹, respectively. The mean values of COCTS 11 and 12 μm channel original BT minus IASI BT difference are −4.08 K and −4.75 K, with the corresponding standard deviations of 0.50 K and 0.39 K, respectively. In addition, the radiance difference between COCTS and IASI is radiance-dependent for both 11 and 12 μm channel with a stronger dependence in the 11 μm channel radiance difference with IASI radiance than 12 μm channel. The time series plot of radiance difference demonstrates that there is no obvious time-dependent variation except a slight hopping at the junction point between March and April 2011.

The inter-calibration coefficients are obtained using linear robust regression for COCTS individual detectors separately. After correction, the mean values of COCTS minus IASI radiance difference are −0.02 mW m⁻² cm sr⁻¹ and −0.01 mW m⁻² cm sr⁻¹, respectively, with the corresponding standard deviations of 0.51 mW m⁻² cm sr⁻¹ and 0.57 mW m⁻² cm sr⁻¹. Both mean values of COCTS 11 and 12 μm channel corrected BTs minus IASI are −0.01 K, with the corresponding standard deviations of 0.33 K and 0.35 K, respectively. Compared with COCTS original radiance statistic results, the biases are removed and the standard deviations are reduced, and the dependence of radiance difference on IASI radiance is disappeared after correction. The significant striped noise of COCTS original radiance is reduced, which is evident in imagery and distributions of local standard deviation. In conclusion, several strands of evidence indicate the calibration accuracy of COCTS is improved after the correction. In a future study, the COCTS corrected radiance will be applied to SST retrieval in the expectation that this will improve the COCTS SST accuracy.
