Sustainability 2012, 4(9), 2022-2037; doi:10.3390/su4092022

Article
Urban Vulnerability in Bantul District, Indonesia—Towards Safer and Sustainable Development
Dyah R. Hizbaron 1,*, Muhammad Baiquni 2, Junun Sartohadi 1 and R. Rijanta 2
1
Department of Environmental Geography, Faculty of Geography, Gadjah Mada University—Sekip Utara, Bulaksumur, Yogyakarta 55281, Indonesia; Email: junun@ugm.ac.id
2
Department of Regional Development, Faculty of Geography, Gadjah Mada University—Sekip Utara, Bulaksumur, Yogyakarta 55281, Indonesia; Email: mbaiquni@ugm.ac.id (M.B.); rijanta@ugm.ac.id (R.R.)
*
Author to whom correspondence should be addressed; Email: dyah.hizbaron@ugm.ac.id; Tel.:+62-274-545965; Fax: +62-274-545965.
Received: 4 April 2012; in revised form: 6 July 2012 / Accepted: 16 July 2012 /
Published: 30 August 2012

Abstract

: Assuring safer and sustainable development in seismic prone areas requires predictive measurements, i.e., hazard, vulnerability and risk assessment. This research aims to assess urban vulnerability due to seismic hazard through a risk based spatial plan. The idea is to indicate current and future potential losses due to specified hazards with given spatial and temporal units. Herein, urban vulnerability refers to the classic separation between social and physical vulnerability assessments. The research area covers six sub-districts in Bantul, Indonesia. It experienced 6.2 Mw earthquakes on May, 27th, 2006 and suffered a death toll of 5700, economic losses of up to 3.1 billion US$ and damage to nearly 80% of a 508 km2 area. The research area experienced the following regional issues: (1) seismic hazard; (2) rapid land conversion and (3) domination of low-income group. This research employs spatial multi criteria evaluations (SMCE) for social vulnerability (SMCE-SV) and for physical vulnerability (SMCE-PV). The research reveals that (1) SMCE-SV and SMCE-PV are empirically possible to indicate the urban vulnerability indices; and (2) integrating the urban vulnerability assessment into a spatial plan requires strategic, technical, substantial and procedural integration. In summary, without adequate knowledge and political support, any manifestation towards safer and sustainable development will remain meager and haphazard.
Keywords:
vulnerability; sustainability; spatial plan; seismic hazard; Indonesia

1. Introduction

Assuring safer and sustainable development has been under intense debate, especially in areas prone to hazards due to natural disasters. A natural-technological disaster is a result of an unsustainable development combined with an ambiguous cultural reaction to balance the natural, economic and social setting [1]. This article argues that preventive measurements i.e., risk-based spatial plan, building code regulation and other measurement have become critical to reduce future impact of natural disasters. Such planning keeps people and their properties away from hazardous areas [1]. In particular, the risk based spatial plan is a legally binding document to distribute spatial pattern and spatial structure in a safe and sustainable way by integrating hazard, vulnerability and risk information [2]. Unfortunately, some people have been residing in hazardous areas and have become reluctant to move due to social and economic reasons.

As part of a mitigation strategy, the risk based spatial plan contains more than land use allocation. Mitigation is any action taken to lessen future risk or potential damage/loss far before disaster occurrence [1,2,3]. Theoretically, there are three important elements that are important within a risk based spatial plan, i.e., hazard, vulnerability, and risk assessment. In a broader sense, the risk assessment is a convolution between the hazard and the vulnerability to quantify the expected damage and loss from all levels of hazard severity [4]. The hazard refers to the probable extreme natural event within a specified period of time in a given area, which is expressed in certain measurements i.e., magnitude, frequency, recurrence period and potentially causing damage. Herein, the vulnerability refers to the pre-existing condition of being unfavorable due to seismic hazard expressed on a scale from 0 (no loss/damage)–1 (lethal/full damage). Risk information is important to explain probable loss/damage at any level of hazard. Therefore, these three elements are critical as an additional consideration to allocate land use.

2. Research Context

In the case of Indonesia, the urban vulnerability integration into the (risk based) spatial plan becomes critical due to strong political endorsement. The Indonesian government has strategically mainstreamed disaster risk reduction into a development agenda through Act Nr. 24/2007 on Disaster Management and Act Nr. 26/2007 on Spatial Plan. This national agenda entitles for local practice. In particular, the local government of the Bantul District has initiated the risk based spatial plan. However, previous research has indicated that the new local spatial plan has integrated less information about the vulnerability due to seismic hazard, and has presented more on hazard information [5]. Therefore, in order to manifest the national agenda, many local areas in Indonesia strive hard to pursue the risk based spatial plan.

Some may raise the question why the (risk based) spatial plan entails urban vulnerability, while in many cases people doubt the efficacy of the (risk based) spatial plan per se. This argument arises due to limitations of knowledge, technical ability, supporting resources and substantive empowerment, which of course have caused a shortcoming of risk assessment [5]. This has challenged scholars to indicate which conceptual framework is feasible to explain the urban vulnerability concept in a spatial plan context. Another question is why the urban vulnerability terms are used. The answer is simply that they relate to urban form, pattern and structure, and also involve any objects that reside within urban areas, thus the urban terms become significant here.

The vulnerability concept is rooted deeply within each scientific domain. In the natural science domain, urban vulnerability is expressed strictly as an intrinsic part of a threatened system or the hazard impact per se [6,7]. As the natural sciences express urban vulnerability as a quantifiable outcome of losses and damages, the social sciences expand the idea to qualify a process beyond the hazard itself to define an unfortunate condition a so-called vulnerability [8,9,10,11,12,13]. The cause of vulnerability is not merely dependant on the hazard occurrence, but it is also affected by social, political, economical and cultural attributes. In a different setting, the applied sciences notice a spatial-temporal function within the pattern of losses and damage and also within an unfortunate condition [13,14,15,16]. A seminal work in the applied sciences, which elaborates the spatial-temporal approach, is place-based vulnerability [14]. The place-based vulnerability concept has argued that natural (physical-)social interplay within specified geographic and temporal boundaries constructs a certain degree of loss and damage with a certain degree of hazard severity, and it involves adverse reactions of social and natural systems [14]. Thus, the urban vulnerability we discuss here encompasses a myriad of criteria within specified spatial boundaries, i.e., physical, demographic, social-economic and build-up setting, hazard likelihood, loss/damage record etc. Meanwhile, others have expressed vulnerability as the severity level of one being affected by a hazard and the fragility of an element at risk (i.e., building, infrastructure) being exposed to it [13]. Herein, the author reveals that within spatial-temporal boundaries there are various elements at risk, which indicate different response behaviors to disaster. Through there is a massive conceptual overview, research argues that the applied science domain has promoted a possible approach to urban vulnerability and risk-based spatial plan context.

Deriver from this conceptual basis, the urban vulnerability employed within this research is defined as the social and physical vulnerability distributed uniquely among temporal and spatial entities. It delineates the classic separation between social vulnerability assessment (representing a pre-existing condition of people per se which potentially experience losses during future hazard scenarios) and physical vulnerability assessment (representing a pre-existing condition of an urban settlement unit which potentially might be damaged during future hazard scenarios). In more detail, this research perceives urban vulnerability as an important urban indicator to predict pre-existing unfavorable conditions due to seismic hazards expressed on a scale from 0 (no loss/damage)–1 (lethal/full damage) within a specified time frame.

The research area addresses six sub-districts (Banguntapan, Kasihan, Sewon, Sedayu, Pleret and Jetis) in the Bantul District, D.I Yogyakarta Province—Java Island, Indonesia (see Figure 1). These sub-districts are equipped with the so-called risk-based spatial plan, although they have very limited information about hazards. Overall, the research area has experienced three major environmental issues, i.e., (1) diverse seismic intensity level; (2) rapid land conversion and (3) domination of a low-income group. Geologically, it is adjacent to an active subduction zone of south Java Island—a part of the Indo-Australian tectonic plate that has subducted beneath the Eurasian plate [17]. It experienced a 6.2 Mw earthquakes on May 27, 2006, with the epicenter located near the active Opak fault line. The research area suffered 5700 deaths, economic losses up to 3.1 billion US$ and damage of nearly 80% of the total 508 km2 area [18]. Located in such a critical geologic setting regarding seismic hazards, Bantul District is expected to experience another earthquake of high intensity within the next 50 years. The area was home to more than 823,000 in 2004 and up to 954,000 people in 2010, while nearly 44% of total the inhabitants or 425,057 inhabitants live in the six sub-districts [18,19,20]. The research area depicts sub urban setting and is dominated by low to medium income groups earning their living in the agriculture (42%) and non-agriculture sector (58%) [19]. There has been a rapid land conversion in the research area since the early 2000s, which occurred to accommodate the rapid population growth and urbanization phenomena from neighboring the city—Yogyakarta City—and because of the economic transition from an agriculture-based economy to an industrial-based economy in Bantul Districts [21]. The long-term development plan of Bantul District has enlisted areas prone to seismic hazards based on their physical aspect, however social, economic, and other potential vulnerability criteria have not yet been evaluated.

Sustainability 04 02022 g001 1024

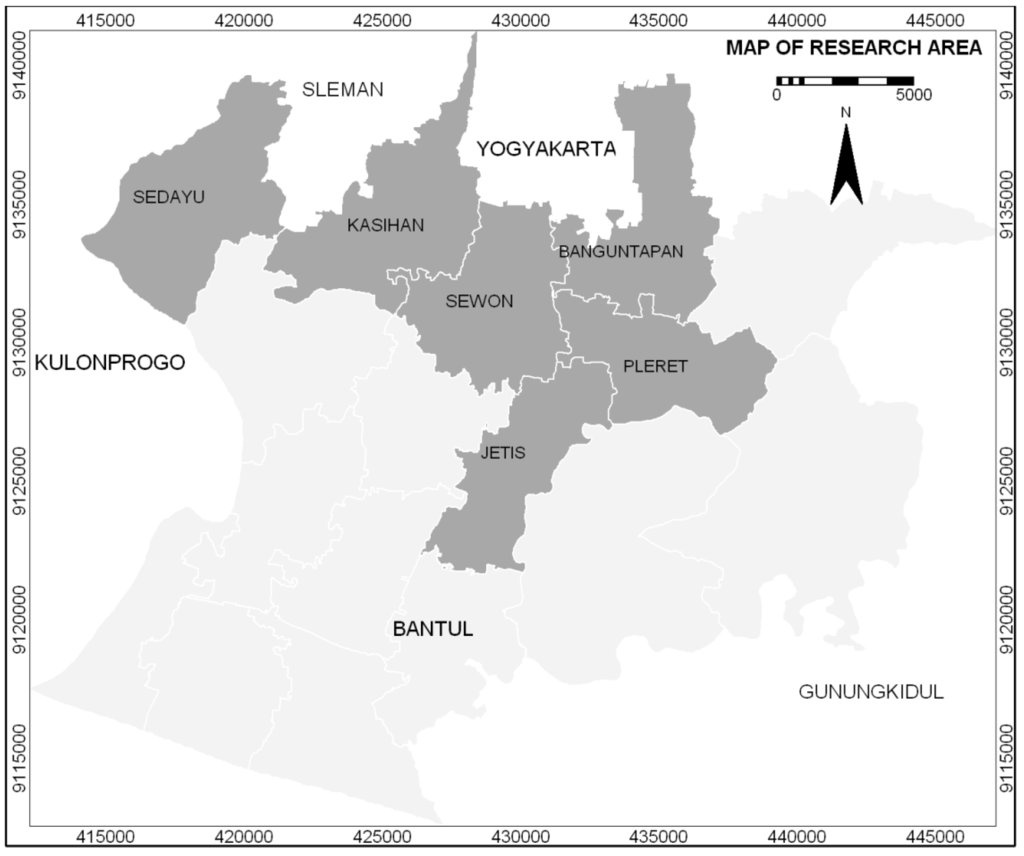

Figure 1. Research area.

Click here to enlarge figure

Figure 1. Research area.
Sustainability 04 02022 g001 1024

Suffice to say, the research area underlies a complex environmental burden either originating from the natural hazard potential and or from a high man-land relation potential. Given the extent of the problem, there are two important research questions: (1) How to assess urban vulnerability and (2) how to integrate it into a risk-based spatial plan.

Among the many analytical methods to assess urban vulnerability, this research selects Spatial Multi Criteria Evaluation (SMCE) for the following reasons. First, it offers a spatial analysis using a geographic information system (GIS) and multi criteria evaluation (MCE) to transform spatial and non-spatial data [22]. Second, it allows diverse input criteria to explain unstructured future conditions based on mathematical logics using problem tree analysis, standardization, weighting scenarios and map generation to generate multiple scenarios [23]. It is possible to work with multi-level input data, i.e., administrative based and/or non-administrative based data, which in fact corresponds to real conditions in the research area since data are commonly available in multiple proxies. Additionally, it is able to generate multiple scenarios to accommodate future possibilities and it selects modest scenarios using decision-making tools for planning in praxis. Third, it is economically feasible to use and modest skills are required to run the program.

The following figure indicates the research flow using the SMCE procedure (see Scheme 1). The problem tree analysis adopts multiple goals and multiple criteria to expose relationships among relevant criteria, which generally cluster into group factors or constraints [24]. As it employs multiple criteria, each criterion holds a certain range scale value, which requires standardization. Standardization is a process to offer membership value based on the utility for each criterion using Boolean Logics and or Fuzzy Logics. Fuzzy Logic allows memberships of factors in a continuous scale from one (full membership or full utility) to zero (full non membership or zero utility) to the main goals. Boolean logics has introduced strict binary options as True or False, or values of 0 (excluded from preference) or 1 (contributing a high utility to the main goal) to express preferences [23]. Furthermore, it should be noted that weighting is a process to assign relative importance to each criterion and to contribute its significance to multiple goals. In summary, this research selects this approach, since it accommodates a spatial approach, includes decision-making tools and employs mathematical logics, which are commonly adopted within spatial plans.

There are several criteria employed for urban vulnerability assessment (see Table 1). In order to select criteria, the research re-routes earlier research and considers data availability in the research area. Hence, the research subjectively selects criteria based on data availability and validity. The SMCE-SV employs hazard, physical, demographic, social-economic, and loss criteria. Meanwhile, the SMCE-PV employs similar criteria except for social-economic criteria and includes build-up criteria. There are five factors to describe physical criteria, such as land use distribution, distance to stream, distance to fault structure, distance to road network and slope. For example, land use indicates developed areas, which in this case means that the more developed the area is, the more it contributes to SV or PV. Additionally, there are eight factors to describe demographic criteria: population density, agriculture density, number of elderly people, children, illiterate groups, highly educated groups, occupation during day-time, and occupation during night-time. These factors share similar logics, because a bigger population contributes more to vulnerability. The demographic criteria are commonly attached to social economic attributes, which in this research are denoted as household proxies. There are thirteen factors within social-economic criteria, such as household with clean water access, electricity access and communication access, number of poor households, households without savings, insurance and low-income groups, pension group, and labor group. It also includes household assets, i.e. building, vehicle, cattle stock and productive land. Their social-economic attributes contribute more to vulnerability, as more assets refer to more properties to lose, while low-economic support and less access to basic services profoundly increase vulnerability. Critically, this research has added building footprint information based on the distribution and occupancy rate. In order to document previous trends, this research has added losses criteria, which describe damage-loss as partly immaterial loss partly damaged housing. Lastly, seismic zonation explains a hazard criterion, which holds a formidable role to delineate sensitive zones.

Sustainability 04 02022 g004 1024
Scheme 1. Research Flow.

Click here to enlarge figure

Scheme 1. Research Flow.
Sustainability 04 02022 g004 1024

As noted earlier, this research set up weighting scenarios to generate multiple scenarios. Weighting scenarios within this research set in random-rank order weight using a direct method which assigns weight based on the importance of ranking of the qualitative assessment by the decision maker. The research expects to generate six scenarios for SV and PV, i.e. a physical scenario, a demographic scenario, a social-economic scenario (for SV) and a build-up scenario (for PV), a loss scenario, a hazard scenario and an equal scenario (see Table 2).

In detail, the physical scenario for example, assigns more weight to the physical criterion (0.40) and assigns the rest of the weight equally to the other criteria (0.15) since it expects a dynamic physical condition which contributes more to vulnerability than the other factors. As for the equal scenario, it regards equal change in each criterion, which equally contributes to vulnerability, thus it assigns equal weight.

Table Table 1. Spatial multi criteria evaluations for social vulnerability (SMCE-SV) and for physical vulnerability (SMCE-PV) criteria.

Click here to display table

Table 1. Spatial multi criteria evaluations for social vulnerability (SMCE-SV) and for physical vulnerability (SMCE-PV) criteria.
NoCriteriaFactorDescription Data source
1PhysicalLand use, Built up areas (+)Secondary data from Regional Planning Board [21]
(For SMCE-SV and SMCE-PV)Faults, Distance to fault lines (+)
Road network, Distance to road network (+)
Stream network,Distance to river (+)
SlopeMountainous area (+)
2DemographicPopulation density, Population by education, by age, by income, by occupationHigh density (+)Secondary data from Statistical Bureau [18] Primary data
(For SMCE-SV and SMCE-PV) Low education (+)
Elderly (+),children (+)
3Socio-economic (For SMCE-SV)Asset, access, economic background, etc.Low economic assets (+)Secondary data from Statistical Bureau [18] Primary data
Low wages (+)
4Built-up Distribution of building, High value (+)Primary data
(For SMCE-PV)Building type*, Poor structure (+)Satellite image interpretation * Fieldwork observation
Building structure*; Permanent type (+)
Building occupants*High occupancy (+)
5LossesMaterial loss ratio, immaterial loss ratioHigh ratio (+)Primary data [21]
(For SMCE-SV and SMCE-PV)
6HazardDistribution, Magnitude, Frequency, IntensityHigh frequency, high magnitude, high intensity, wider distribution (+)Secondary data from Geological Agency [21]
(For SMCE-SV and SMCE-PV)

Note: (+) contribute more or have high utility to construct vulnerability.

Table Table 2. Weighting Scenarios.

Click here to display table

Table 2. Weighting Scenarios.
ScenariosPhysical FactorsDemographic FactorsSocio-Econ./Build-Up FactorsAffected Loss FactorsHazard Factors
Physical0.400.150.150.150.15
Demographic0.150.400.150.150.15
Social-Economic/Build-Up 0.150.150.400.150.15
Losses0.150.150.150.400.15
Hazard0.150.150.150.150.40
Equal 0.200.200.200.200.20

3. Results and Discussion

The research has generated six deterministic social vulnerability scenarios for the research area. It has set vulnerability indices in five categories: not vulnerable (0), marginally vulnerable (0.01–0.25), moderately vulnerable (0.26–0.50), highly vulnerable (0.51–0.75) and very highly vulnerable (0.76–1.00) (see Table 3).

Table Table 3. Vulnerability Classification.

Click here to display table

Table 3. Vulnerability Classification.
NoUpper BoundClass NameCode
10Not vulnerable NV
20.25Marginally vulnerableMV
30.50Moderately vulnerableModV
40.75Highly vulnerableHV
51Very highly vulnerableVV

The social vulnerability scenarios pertain with the condition: If the research area is likely to experience seismic activity originating from active faults or nearby active fault structures, a magnitude of >5 S.R, an attenuation of <0.15 g, a recurrence period between 2009–2059 and an exposure to major perturbation to the physical/demographic/social-economic/losses/hazard criteria is expected, thus the spatial patterns of social vulnerability are depicted in the following figures (see Figure 2a–f).

The social vulnerability scenarios appear robust. These present subdistricts Sewon and Banguntapan as having a very high socially vulnerable area (red zone), while subdistricts Kasihan, Jetis, Pleret and Sedayu are less vulnerable on the scale (dark green and light green zone). The social vulnerability indices range from 0.51 to 0.79. The most sensitive criteria are demographic and social economic setting since they contribute more to the vulnerability indices. This information is given prior to the decision-making input into the spatial pattern analysis for the district scale (1:50,000). Theoretically, these socially vulnerable areas are designated as protected areas with a specific activity and land use direction.

There are six generated scenarios for the SMCE-SV. The physical scenario aims to show the contribution of physical criteria to vulnerability (see Figure 2a). The idea is to introduce the spatial pattern of social vulnerability if the physical criteria (land use, transportation network, fault structure, rivers, and slopes) experience dynamic changes for many possible reasons, i.e., spatial structure plan. The perturbation discussed here highlights land use and transport network, since these are sensitive to any change due to spatial structure plan. Meanwhile, the fault structure, river and slopes are not subject to direct perturbation, but these criteria potentially respond to any dynamic change within their surroundings. If there is a significant perturbation of these physical criteria, vulnerability rises and thus household proxies resided in Banguntapan, Sewon, Jetis, Pleret and partly Kasihan are classified as vulnerable. Meanwhile, the household proxies residing in Kasihan and Sedayu classify as moderately vulnerable. This scenario is considerably important since the latest spatial plan has designated Banguntapan, Sewon, Kasihan and Sedayu as small towns, which potentially may develop into urban agglomeration centers together with the neighboring city of Yogyakarta. This would lead to more physical perturbation, which might impinge future development.

Sustainability 04 02022 g002 1024

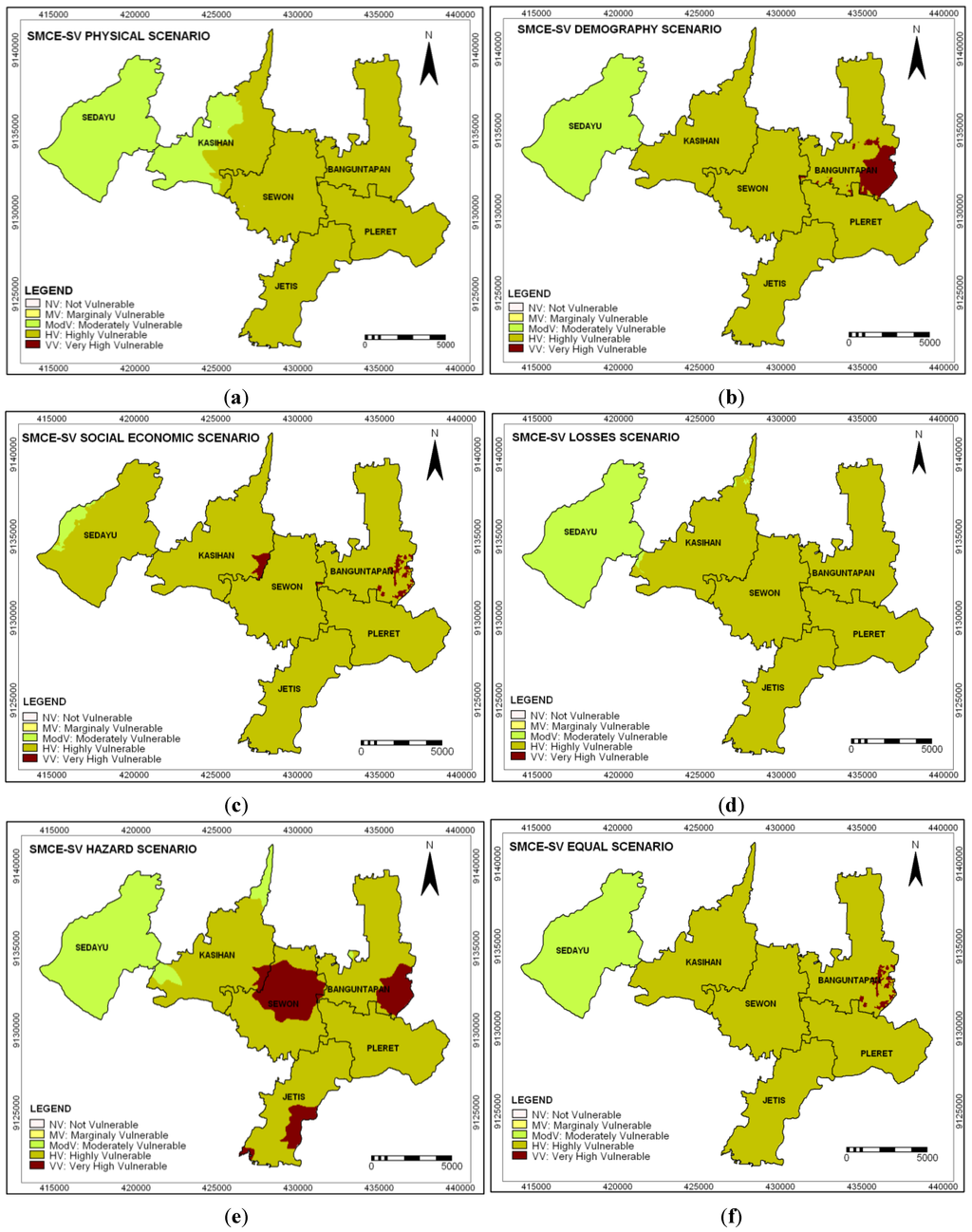

Figure 2. (a) SMCE-SV physical scenario; (b) demographic scenario; (c) social economic scenario; (d) losses scenario; (e) hazard scenario; and (f) equal scenario.

Click here to enlarge figure

Figure 2. (a) SMCE-SV physical scenario; (b) demographic scenario; (c) social economic scenario; (d) losses scenario; (e) hazard scenario; and (f) equal scenario.
Sustainability 04 02022 g002 1024

Second, the demographic scenario aims to expose the contribution of demographic figures to vulnerability (see Figure 2b). The research area has experienced a rapid onset of demographic figure-population growth of less than 2% per year [19]. However, it is possible to experience more rapid demographic variation in the up-coming years due to local migration, since some vulnerable areas, i.e., Banguntapan, Sewon and Kasihan are direct peripheral areas with the potential for rapid demographic spillover from neighboring the city Yogyakarta. According to the spatial pattern plan of 2010–2029, these areas are designated settlement areas together with Pleret [24]. Given the future settlement allocation, these peripheral areas are subjected to more demographic accumulation in the up-coming years following rapid habitation. The demographic scenario has generated similar results as the physical scenario, where household proxies residing in Banguntapan, Sewon, Jetis, Pleret and partly Kasihan have more vulnerability than those residing in Sedayu.

Third, the social-economic scenario aims to expose the contribution of the social economic condition to social vulnerability (see Figure 2c). In general, the Bantul District has dominated by its agriculture setting, while recently, the manufacturing industry has been taking over progressively. Arguably, the economic behaviors in the research area have changed rapidly over the decades, which has triggered a transition of lifestyle and potentially affected changes in the future. This scenario has classified 97.70% of the total research area as a high vulnerable area. It also reveals that some areas are moderately vulnerable (0.96%) and some other areas are very highly vulnerable areas (1.93%). The socio-economic scenario has shown that Kasihan and Sewon are very highly vulnerable areas (darker red zone), and Sedayu is a moderately vulnerable area (light green zone). As affirmed earlier, Banguntapan, Sewon, Jetis and Pleret are considered highly vulnerable areas (green zone).

Fourth, the losses scenario aims to expose the contribution of losses criteria towards social vulnerability (see Figure 2d). Previous damage and loss patterns perpetuate the distribution of elements at risk due to seismic hazards. Arguably, these elements at risk are likely to respond in a similar way once hazards with similar likelihoods strike. Thus, if the research areas experience rapid urbanization, which indirectly increases population growth, economic growth and development activities, the distribution of elements at risk will increase and induce more vulnerability. Notably, the scenario has presented similar results as the physical and demographic scenarios of Banguntapan, Jetis, Pleret, Sewon and some of Kasihan show that they are high vulnerable areas, and Sedayu is a moderately vulnerable area.

Fifth, the hazard scenario aims to expose the contribution of hazard scenarios to vulnerability (see Figure 2e). It becomes critical since it is subject to change. This research employs a hazard map from the Geologic Agency—a deterministic hazard scenario with a 50-year recurrence period—with slight changes (generalization using the krigging method) since it does not cover all of the research area. This research selects the hazard map from legal authorities since it contains valid information and conceives legal consequences. The hazard scenario has estimated 11.39% of the total area as highly vulnerable, which is concentrated in Sewon, Banguntapan and Jetis.

Lastly, the equal scenario aims to elaborate the contribution of all criteria to vulnerability. If the Bantul District continuously controls land use change, manages urbanization, and or conducts preparedness to protect communal or household assets, it will promote equal scenario. The equal scenario gives all variables the same weight, which means it gives equal opportunity to any change caused by different variables. Arguably, the equal scenario occurs if the research area is likely to experience a steady growth in demographics, physical and social economic background. Similar to physical and demographic scenarios, this scenario spots Kasihan, Sewon, Banguntapan, Jetis and Pleret as vulnerable areas and leaves Sedayu as a moderately vulnerable area. Meanwhile some areas in Banguntapan are considered as highly vulnerable area.

This research also generated six deterministic physical vulnerability scenarios for the subdistrict Sewon. The smaller observation unit for the SMCE-PV is due to the limitation of building stock inventory. It is derived from the interpretation of high-resolution satellite images, which are apparently too excessive for the research area. Hence this research selects detailed observations for the most socially vulnerable areas of the subdistrict Sewon.

This research has revealed that the areas are exposed to social and physical vulnerability in very a unique pattern. These scenarios still come with this condition: If the research area is likely to experience seismic activity originating from Opak Fault or nearby active faults, with a magnitude of >5 S.R, an attenuation of <0.15, an occurrence period between 2009–2059 and an exposure to major perturbations of the physical/demographic/build-up/losses/hazard characteristics, then the likelihood of physical vulnerability is spatially discerned as follows (see Figure 3a–f). The physical vulnerability indices range from 0.220 to 0.743, which directly sets the Sewon subdistrict into three vulnerable zones: highly vulnerable (red zone), moderately vulnerable (yellowish red) and marginally vulnerable (green zone). This means that the settlement units residing within this area are subjected to a certain level of physical vulnerability.

Derived from the six generated scenarios, they appear robust. This indicates that the center of subdistrict Sewon suffers from a very high physical vulnerability compared to the surrounding areas. The most sensitive criterion to generate a discerned spatial pattern of the physical vulnerability is the hazard criterion, since it gives high vulnerability indices. Despite such a dynamic physical vulnerability setting, the regional spatial plan has allocated Sewon as a settlement, services and wet agriculture area. The physical vulnerability information is critical for sustainable spatial structure analysis, especially on a subdistrict scale. Theoretically, these physically vulnerable areas should be allocated as specific land use directions with a detailed building codes regulation.

Sustainability 04 02022 g003 1024

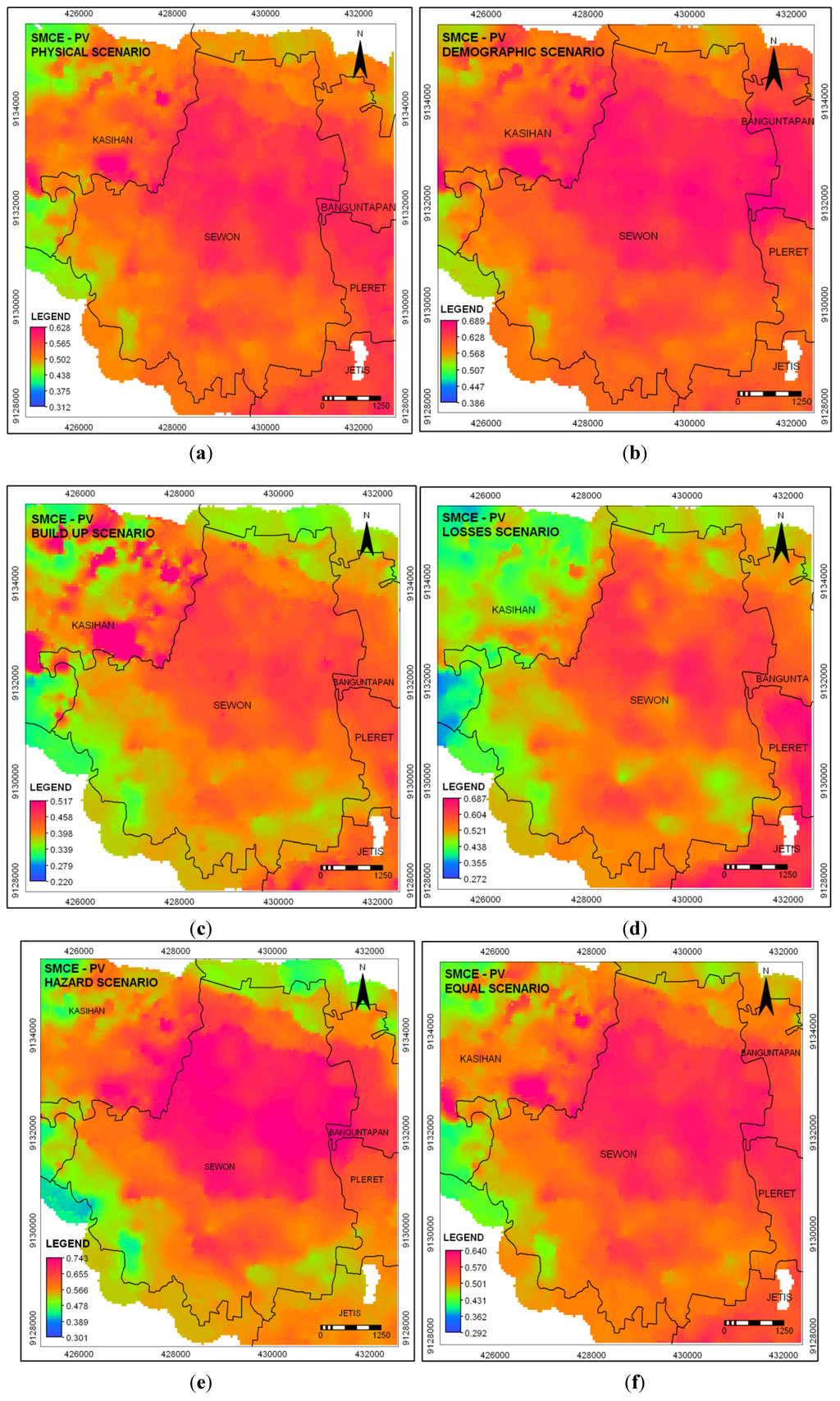

Figure 3. (a) SMCE-PV physical scenario; (b) demographic scenario; (c) build-up scenario; (d) losses scenario; (e) hazard scenario; and (f) equal scenario.

Click here to enlarge figure

Figure 3. (a) SMCE-PV physical scenario; (b) demographic scenario; (c) build-up scenario; (d) losses scenario; (e) hazard scenario; and (f) equal scenario.
Sustainability 04 02022 g003 1024

4. Conclusions

This research has revealed two important findings. First, SMCE-SV and SMCE-PV can assess urban vulnerability from a multi-scale observation and it is best to work in a spatial manner. Second, integrating the urban vulnerability assessment into the risk-based spatial plan requires strategic, technical, substantive and procedural dimensions.

These two empirical exercises—SMCE-SV and SMCE-PV—likely integrate spatial patterns and spatial structures at different levels of the risk-based spatial plan. However, there are limitations to integrating the urban vulnerability information into the risk-based spatial plan. First, social vulnerability serves a more flexible scope of integration compared to physical vulnerability. Social vulnerability promotes a much more flexible scale of observation, i.e. a macro scale (regional or local spatial pattern) ranging from a 1:250,000–1:50,000 scale. The availability of supporting data proxies makes it possible for the social vulnerability to produce a flexible scale of observation. Meanwhile, the physical vulnerability assessment promotes a less flexible scale of observation, which is more accurate for micro scale observations (sub-district spatial structure) ranging from a 1:50,000–1:5,000 scale. Social vulnerability represents household proxies, while physical vulnerability represents settlement proxies, which are quite difficult datasets to obtain. Clearly, data availability for household proxies is excessive therefore it is possible to conduct social vulnerability for rather macro scale of observation. Meanwhile, availability data for settlement proxies is unfortunately difficult to obtain, thus it is quite difficult to generate macro scenarios for physical vulnerability. Second, the social vulnerability assessment has fallen into ecological fallacies—a typical error which occurs when scenarios developed from large data proxies to represent each entities, while the physical vulnerability has systemic fallacies—a typical error from input, analysis and data management. Thus, the future challenge is to create a social vulnerability assessment for detailed spatial units to reduce unambiguous interpretation and to employ valid and accurate data to decrease systemic error.

The first research finding corresponds to the second research finding. The two exercises have indicated that the integration process of the vulnerability assessment into the risk-based spatial plan entails a technical and a substantive element. Despite strong the political will at the national level, the integration process in the regional and local settings will not take place without adequate technical and substantive support. As noted earlier, the Indonesian government has initiated strategic integration through manifestation of Act Nr. 24/2007 on Disaster Management and Act Nr. 26/2007 on Spatial Plan. The regional (provincial) government of D.I. Yogyakarta has translated the national mandate by integrating hazard maps into the spatial plan as an exclusive protected area. However, the local setting of Bantul District poses difficulties to translate the national and regional mandate into praxis. Thus, it also entails a procedural element to support the integration process.

In summary, this research argues that the urban vulnerability information is critical input to the risk-based spatial plan. This research strictly conducts the urban vulnerability assessment in regards to seismic hazards, which of course do not complete a risk-based spatial plan input. The ideal input for a risk-based spatial plan would be urban vulnerability towards multi-hazards. The future challenge of research is to assess the urban vulnerability towards multi-hazard scenarios. Once again, the manifestation of safer and sustainable development is attainable through the integration of social vulnerability into local spatial plans, or on a detailed level. Or, by integration of the physical vulnerability information into detailed sub-district spatial plans. The integration itself is an incessant process, which includes four important elements i.e., strategic, technical, substantive and procedural elements. The strategic initiatives are generally addressed at a national level, while technical, substantive and procedural elements are generally accommodated at the regional or local level.

Acknowledgments

This research is part of the RIMSY Project (Risk Information Management System for Yogyakarta). It is a joint collaboration research under Memorandum of Understanding of “Sister City” between D.I. Yogyakarta Province, Indonesia and Tyrol Province, Austria, which mainly focuses to elaborate potential hazard, vulnerability and risk in D.I. Yogyakarta to create better and safer risk management information systems. The provincial government of D.I. Yogyakarta and the local government of Bantul District (Pemerintah Kabupaten Bantul and Propinsi D.I. Yogyakarta) have contributed much during primary and secondary data collection. The research has been presented at an international conference for development of the margin, in Bonn, 2011. It is also partial funded by an ongoing PhD research at Gadjah Mada University.

Conflict of Interest

The authors declare no conflict of interest within this scientific work.

References

  1. Mileti, D.S. Disaster by Design. In Proceedings of the Conference of the Changing Risk Landscape: Implications for Insurance Risk Management, Sydney, Australia, 1999; Aon Group Australia Limited: Sydney, Australia; pp. 1–16.
  2. Fleischhauer, M. The Role of Spatial Planning in Strengthening Urban Resilience. In Resilience of Cities to Terorist and other Threats; Pasman, H.J., Kirillov, I.A., Eds.; Springer Science and Business Media: Dordrecht, The Netherlands, 2006; pp. 273–298. [Google Scholar]
  3. Mileti, D.S.; Gailus, J.L. Sustainable development and hazards mitigation in the United States: Disaster by design revisited. Mitig. Adapt. Strateg. Global Chang. 2005, 10, 491–504. [Google Scholar] [CrossRef]
  4. Sarris, A.; Loupasakis, C.; Soupios, P.; Trigkas, V.; Vallianatos, F. Earthquake vulnerability and seismic risk assessment of urban areas in high seismic regions: Application to chania city, Crete Island, Greece. Nat. Hazards 2010, 54, 395–412. [Google Scholar] [CrossRef]
  5. Hizbaron, D.R.; Baiquni, M.; Sartohadi, J.; Rijanta, R. Integration Method of Disaster Risk Reduction into Spatial Planning: Case Study Yogyakarta Special Province and Bantul Regency. In Proceedings of the 1st International Conference on Sustainable Built Environment, Yogyakarta, Indonesia, 4 May 2010; Faculty of Civil Engineering and Planning, Islamic University of Indonesia: Yogyakarta, Indonesia; pp. 311–321.
  6. Alcantara-Ayala, I. Geomorphology, natural hazards, vulnerability and prevention of natural disasters in developing countries. Geomorphology 2002, 47, 107–124. [Google Scholar] [CrossRef]
  7. Pelling, M. The Vulnerability of Cities: Natural Disasters and Social Resilience; Earthscan Publishing: London, UK, 2003. [Google Scholar]
  8. Blaikie, P.; Cannon, T.; Davis, I.; Wisner, B. At Risk: Natural Hazards,People's Vulnerabilty and Disasters; Routledge: London, UK, 1994. [Google Scholar]
  9. Wisner, B. Marginality and vulnerability: Why the homeless of Tokyo dont count in disaster preparations. Appl. Geogr. 1998, 18, 25–33. [Google Scholar] [CrossRef]
  10. Brauch, H.G. Threats, Challenges, Vulnerabilities and Risk in Environmental and Human Security; Studies of the University: Research, Counsel, Education Publication Series of UNU-EHS No. 1; UNU-EHS: Bonn, Germany, 2005. [Google Scholar]
  11. Birkmann, J.; Wisner, B. Measuring the Unmeasurable: The Challenge of Vulnerability; UNU-EHS: Bonn, Germany, 2006. [Google Scholar]
  12. Cardona, O.D. The Need for Rethinking the Concepts of Vulnerability and Risk from a Holistic Perspective: A Necessary Review and Criticism for Effective Risk Management. In Mapping Vulnerability: Disasters, Development and People; Bankoff, G., Frerks, G., Hilhorst, D., Eds.; Earthscan Publisher: London, UK, 2003. [Google Scholar]
  13. Quarantelli, E.L. A Social Science Research Agenda for the Disaster of the 21t Century: Theoretical, Methodological, and Empirical Issues and their Professional Implementation. In What is Disaster? New Answer to Old Questions; Perry, R.W., Quarantelli, E.L., Eds.; International Committee on Disaster: Newark, DE, USA, 2005; pp. 326–396. [Google Scholar]
  14. Cutter, S.L. Vulnerability to environmental hazards. Progr. Hum. Geogr. 1996, 20, 529–539. [Google Scholar] [CrossRef]
  15. Kates, R.W. Natural hazard in human ecological perspective: Hypotheses and models. Econ. Geogr. 1971, 47, 438–451. [Google Scholar] [CrossRef]
  16. Hewitt, K. Sustainable Disaster? Perspectives and Powers in the Discourse of Calamity. In Power of Development; Crush, J., Ed.; Routledge Publisher: London, UK, 1995; pp. 111–123. [Google Scholar]
  17. Irsyam, M.; Dangkua, D.T.; Kusumastuti, D.; Kertapati, E.K. Methodology of site-specific seismic hazard analysis for important civil structure. Civil Eng. Dimens. 2007, 9, 103–112. [Google Scholar]
  18. BAPPENAS. Local Governments of D.I. Yogyakarta. Preliminary Damage and Loss Assessment Yogyakarta and Central Java Natural Disaster; BAPPENAS, Local Governments of D.I. Yogyakarta, Central Java and International Partners: Jakarta, Indonesia, 2006.
  19. BPS Bantul. Kabupaten Bantul dalam Angka 2008 (Statistics of Bantul District); Badan Pusat Statistik Kabupaten Bantul: Bantul, Indonesia, 2000.
  20. Disdukcapil Bantul. Data Kependudukan Triwulan I. Indonesia. 2010. Available online: http://disdukcapil.bantulkab.go.id/ (accessed on 11 January 2012).
  21. Bappeda Bantul. Draft Perubahan: Rencana Jangka Panjang Kabupaten Bantul Tahun 2006-2025; Bappeda Bantul: Bantul, Indonesia, 2010.
  22. Carver, S.J. Integrating multi-criteria evaluation with geographical information system. Int. J.Geogr. Inf. Syst. 1991, 5, 321–339. [Google Scholar] [CrossRef]
  23. Malczewski, J. GIS-based land-use suitability analysis: A critical overview. Progr. Plan. 2004, 62, 3–65. [Google Scholar] [CrossRef]
  24. Sharifi, M.A.; Retsios, V. Site selection for waste disposal through spatial multiple criteria decision analysis. J. Telecommun. Inf. Technol. 2006, 3, 1–11. [Google Scholar]
