Review

The Interaction between Hypovirulence-Associated Chrysoviruses and Their Host Fusarium Species

1
State Key Laboratory for Conservation and Utilization of Subtropical Agro-Bioresources, Guangxi Key Laboratory of Sugarcane Biology, College of Agriculture, Guangxi University, Nanning 530004, China
2
Plant Protection Research Institute, Guangxi Academy of Agriculture Science, Nanning 530007, China
*
Author to whom correspondence should be addressed.
Viruses 2024, 16(2), 253; https://doi.org/10.3390/v16020253
Submission received: 20 December 2023 / Revised: 20 January 2024 / Accepted: 30 January 2024 / Published: 5 February 2024
(This article belongs to the Collection Mycoviruses)

Abstract

:
Chrysoviruses are isometric virus particles (35–50 nm in diameter) with a genome composed of double-stranded RNAs (dsRNA). These viruses belonged to the Chrysoviridae family, named after the first member isolated from Penicillium chrysogenum. Phylogenetic classification has divided the chrysoviruses into Alphachrysovirus and Betachrysovirus genera. Currently, these chrysoviruses have been found to infect many fungi, including Fusarium species, and cause changes in the phenotype and decline in the pathogenicity of the host. Thus, it is a microbial resource with great biocontrol potential against Fusarium species, causing destructive plant diseases and substantial economic losses. This review provides a comprehensive overview of three chrysovirus isolates (Fusarium graminearum virus 2 (FgV2), Fusarium graminearum virus-ch9 (FgV-ch9), and Fusarium oxysporum f. sp. dianthi mycovirus 1 (FodV1)) reported to decline the pathogenicity of Fusarium hosts. It also summarizes the recent studies on host response regulation, host RNA interference, and chrysovirus transmission. The information provided in the review will be a reference for analyzing the interaction of Fusarium species with chrysovirus and proposing opportunities for research on the biocontrol of Fusarium diseases. Finally, we present reasons for conducting further studies on exploring the interaction between chrysoviruses and Fusarium and improving the accumulation and transmission efficiency of these chrysoviruses.

1. Introduction

Fusarium is a large genus of agronomically important fungi of the Nectriaceae family (order Hypocreales, class Sordariomycetes). Fusarium strains are ubiquitous in soil, animals, plants, and organic debris. The pathogenic strains of the Fusarium genus are known to infect several plant types, including food crops, cash crops, medicinal plants, and ornamental plants and cause diseases such as root rot, stem rot, stem base rot, flower rot, and ear (grain) rot. These Fusarium strains invade the host plant through wounds and enter the vascular system, damaging their transport tissues, producing toxins, and eventually affecting crop yield and quality [1,2]. Although several physical and chemical strategies have been developed, controlling or preventing Fusarium diseases is challenging. Several destructive diseases have been reported to be caused by Fusarium species globally, such as the wheat Fusarium head blight (F. graminearum) [3], banana wilt disease (Panama disease; F. oxysporum) [4], and sugarcane wilt or top rot (Pokkah boeng disease; F. sacchari) [5,6], which result in crop production losses. The authoritative plant mycologists included F. graminearum and F. oxysporum among the top ten pathogenic fungi in the Molecular Plant Pathology journal in 2012 [7]. These facts suggest the importance of conducting detailed studies managing the plant disease-causing Fusarium species [7].
Currently, chemical control is the most commonly used approach for managing fungal diseases. However, using chemicals has led to the development of fungal resistance, caused increased damage to natural ecosystems, and resulted in the accumulation of toxic residues; therefore, safer alternatives, such as the use of biological control agents, have been explored. Mycoviruses, the specialized parasites that proliferate in fungi and result in decreased or no virulence of the host fungi, are considered one of the most promising biocontrol agents [8]. Among them, host hypovirulence-related species of the Chrysoviridae family have the potential to be developed as biocontrol agents against Fusarium. Chrysoviridae is a family of small, isometric, non-enveloped viruses (35–50 nm diameter) with multi-segmented double-stranded RNA (dsRNA). These dsRNA segments are individually encapsidated and constitute a genome of 8.9–16.0 kbp in size; each dsRNA segment is a monocistron. Typically, dsRNA1 encodes an RNA-directed RNA polymerase (RdRp; P1), while dsRNA2 from chrysoviruses with three dsRNA segments or dsRNA3 from chrysoviruses with four or more dsRNA segments encode the main capsid protein (CP; P2 or P3). However, the functions of the proteins encoded by other dsRNA segments remain unknown. Based on molecular phylogenetic analysis using the complete amino acid sequences of RdRp, the chrysovirus isolates cluster into two large groups, classified at the genera level: genus Alphachrysovirus includes three or four dsRNA segments and genus Betachrysovirus includes four, five, or seven dsRNA segments [9,10].
The chrysoviruses are mainly found in Ascomycota and Basidiomycota fungi [9,10,11], and the viruses reported to impact fungal host pathogenicity are mainly of the Betachrysovirus genus. These viruses include chrysoviruses mediating the hypovirulence of Fusarium strains. Therefore, these mycoviruses have attracted attention as potential biocontrol agents against plant disease-causing Fusarium [12,13,14,15]. Due to the hypovirulence effect, Cryphonectria hypovirus 1 (CHV1), found in the plant pathogenic fungus Cryphonectria parasitica has been used to control chestnut blight in Europe [16]. However, the effective use of mycoviruses as biological control agents remains challenging. Therefore, in this review, we introduced five chrysoviruses isolated from different Fusarium species, focusing on three that inhibit the growth and virulence of the host. We focus on the latest reports on the molecular characteristics, virus–host interaction mechanisms, and the transmission of these three isolates. We also discuss the existing and potential problems and propose plans for research on hypovirulence-associated chrysoviruses to identify effective biocontrol agents against the plant disease-causing Fusarium species.

2. Chrysovirus Isolates Found in Fusarium Species

The first chrysovirus isolated from the Fusarium species was in 2007, Sharzei et al. identified that three dsRNA segments isolated from Fusarium oxysporum f. sp. melonis of Cucumis melo in Iran belonged to the Alphachrysovirus genus of the Chrysoviridae family [17]. Subsequently, chrysoviruses were isolated from Fusarium species infecting crops in various parts of the world. In 2011, Darissa et al. reported a chrysovirus in the ch 9 isolate of the F. graminearum strains (China 1–10) obtained from China’s cereals [18]. In the same year, Yu et al. detected the presence of a chrysovirus in F. graminearum strain 98-8-60 from the barley plants of Korea and found that the sequences of this virus were highly similar to the one in F. graminearum ch 9 isolate from China [19]. In 2015, Lemus-Minor et al. identified four dsRNA segments of chrysovirus from the F. oxysporum f. sp. dianthi strain Fod166 obtained from the carnation plants of Spain [20]. Later, Yao et al. found chrysovirus in the F. sacchari isolate FJ-FZ4 obtained from the sugarcane plants of China [21]. Table 1 summarizes these five chrysovirus isolates reported to inhabit three species of the Fusarium genus.
Among the five Fusarium chrysoviruses, FgV-ch9 and FgV2 showed the highest sequence identity. The putative amino acid sequences of the FgV2 dsRNAs 1 and 3 showed 98% and 99% identity with those of FgV-ch9 [19]. The second-highest sequence identity was detected between FodV1 and FsCV1. The putative amino acid sequences encoded by FsCV1 dsRNA 1 and dsRNA 3 showed 89% and 91% of identity to those from FodV1 [21]. Based on the amino acid sequences of the RdRp and P3 proteins (≤53% amino acid sequence identity in the RdRp and P3), FgV-ch9 and FgV2 were different isolates of a single chrysovirus and FsCV1 and FodV1 were different isolates of another chrysovirus [9]. Interestingly, FgV2 and FgV-ch9 were found in F. graminearum, and both resulted in similarly symptoms. On the other hand, FodV1 and FsCV1 were isolated from different Fusarium species. Therefore, we speculate that similar to FodV1, FsCV1 may also have a symptomatic effect on its host (F. sacchari) strain; however, this aspect needs further examination. Future studies should adopt specific molecular technologies to characterize the functions of the multi-segments of Fusarium chrysovirus isolates to realize similarities and dissimilarities in their effect on the host.
Furthermore, a comparison of the dsRNA segments of the chrysoviruses revealed that their 5′ UTRs were ~62% identical, contained two stretches of identical sequences of 10–14 nt and 23–42 nt long, and were rich in CAA [19,20]. Similar (CAA)n repeats have been identified as the enhancer elements at the 5′ UTRs of tobamoviruses [22]. On the other hand, the 3′ UTRs of the genomic dsRNAs of the above chrysoviruses contained less conserved sequences and were relatively conserved within the dsRNAs of the same species but not among different species. Researchers also found duplications in the 3′ UTR of dsRNA 2 and 3 of FgV-ch9 and FgV2, arranged in a head-to-tail manner and attached to the complete terminus [23]; however, these duplications did not affect the encoded gene. These reports implied that dsRNA 2 and 3 are located close to one another but get transported into the cytoplasm after transcription [23].

3. Effects of Chrysovirus on Fusarium Species

Studies have reported that chrysoviruses, especially the members of the Betachrysovirus genus, such as FgV-ch9, FgV2, and FodV1, influence the colony phenotype, growth, conidiation, sporulation, and pathogenicity of the Fusarium host. These impacts have been reported to be proportional to the viral load. At very low levels of FgV-ch9 dsRNAs (detected via RT-PCR but not visible on electrophoresis gel), the phenotype of the F. graminearum ch 9 strain remained unchanged. But, as the levels of FgV-ch9 dsRNAs in the F. graminearum host increased (visible dsRNA bands), the mycelial growth rate and conidiospores yield decreased, the colonies morphology became more abnormal, the cytoplasm became disordered, and the virulence decreased [24]. The effect of FgV2 on F. graminearum strain 98-8-60 was similar to that of FgV-ch9 on its host. Moreover, FgV2 infection of F. graminearum led to defects in perithecium development, impacting sexual reproduction [25]. FodV1 also significantly reduced the vegetative growth, conidiation rate, and pathogenicity of the fungal host [26]. Besides, FodV1 in the F. oxysporum strain 116 of carnation plants reduced the host mycelia’s colonization speed and spatial distribution in the plant [27]. Studies also reported differences in the progression of plant disease caused by the virus-infected and uninfected Fusarium strains. Though the infected and the uninfected F. oxysporum strains colonized the external roots of the carnation plants similarly in the initial stages, the virus-free strain colonized the internal tissues faster than the FodV1-infected strain. Subsequently, the hyphae of the virus-free and FodV1-infected strains progressed through the xylem vessels and reached the central medulla. At this stage, the virus-free strain densely colonized the xylem vessels and the interior of the medulla cells, while the virus-infected strain colonized the xylem vessels only at a lower density and appeared mainly in the intercellular spaces of the medulla cells [27].
Importantly, the impact of FgV-ch9 on the host at the subcellular level has been determined through microscopic observation; the effects on subcellular ultrastructure were also proportional to the viral load [24]. Most cells of the strain ch9 with low dsRNAs level appeared normal and had organized cytoplasm and nuclei with smooth nuclear membranes, similar to those without dsRNA. Meanwhile, the fungal cells with medium dsRNAs levels had normal nuclei and abundant ribosomes, with partial cytoplasmic disorganization. However, when FgV-ch9 dsRNAs were high in the fungal cells, abnormal cytoplasm appeared with many large vacuole-like structures, as well as disintegrated nuclear and mitochondrial membranes [24]. These changes in the subcellular ultrastructure and macroscopic phenotype of the fungal host indicated that the stage when the viral load attained a medium level in the host cell might be crucial. It seemed that FgV-ch9 might successfully overcome the host’s defense mechanism at this stage, and the dsRNAs could attain a medium load, resulting in partial cytoplasmic disorganization with normal nucleus and abundant ribosomes. At this stage, a visible negative impact was also detected on the mycelial growth and virulence of the fungal host. Thus, the findings suggest that future studies aiming to identify an effective biocontrol agent should focus on analyzing this crucial stage.

4. Interaction of Fusarium Species with Chrysoviruses

The host activates defense mechanisms against viral infection through transcription factors (TFs). The virus interferes with and controls host TFs against the host defense system and makes use of host TFs for replication. In this regard, typically, transcription factors (TFs) directly or indirectly regulate defense mechanisms by activating or repressing a series of genes or pathways in the interaction of virus and host [28]. In F. graminearum, a series of TFs have been shown to be related with the viral accumulation of Fusarium graminearum virus 1 and changes in host phenotype and response to stress [29]. Therefore, identifying TFs associated with viral infection is of great significance for understanding the interaction between the chrysovirus and the Fusarium host. An investigation of the differences in the global gene expression patterns using RNA-seq revealed that 37 TFs, including 31 upregulated and 6 downregulated ones, were differentially expressed in F. graminearum infected by FgV2 compared with the uninfected strain. Among the upregulated TFs genes, 21 belonged to the Zn2Cys6 family, indicating that FgV2 might utilize the host Zn2Cys6 TFs which might be associated with defense response against FgV2 for their replication [30].
Further, Kwon et al. introduced FgV2 into a TF gene deletion mutant library (657 TF gene deletion mutants) of F. graminearum strain GZ03639 to identify the TFs associated with the FgV2-host interaction [31]. The specific TFs were identified as antiviral factors against FgV2 replication since the mutants had higher FgV2 accumulation than the infected wild-type strain. Meanwhile, as some mutants infected by FgV2 restored the phenotype as the infected wild-type strain, the TFs were identified as proviral factors. Detailed analysis revealed that these TFs identified as proviral or antiviral factors mainly belonged to bZIP, GATA-type zinc finger, and Myb families. A few TFs were also involved in FgV2 accumulation and defective interfering RNA (DI-RNA) generation. When DI-RNAs and reduced viral dsRNA load were detected, the mycelial growth rate increased in these TF mutants. DI-RNA were small segments generated from FgV2 RNA3; however, whether the DI-RNA function as a symptom development factor and eventually inhibit virus replication remains uncertain. A few other TFs were identified to be involved in siRNA interference, enhancing DNA damage- or reactive oxygen species (ROS)-responsive pathways and components of the host in response to FgV2 infection. All these results provided broader insights into the TF-mediated FgV2- F. graminearum interaction [31].
A few additional fungal factors have been identified as regulating the fungal host–virus interaction. Bormann et al. found that a putative fungal mRNA-binding protein was related to FgV-ch9-related symptom severity in F. graminearum [32]. The expression of the gene encoding this putative fungal mRNA binding protein named viral response 1 (vr1, locus tag FGSG_05737) was downregulated in response to FgV-ch9 infection. Deleting vr1 in F. graminearum strain PH1 resulted in symptoms similar to those infected by FgV-ch9, while constitutive expression of vr1 in the FgV-ch9 infected PH1 exhibited an infection-free phenotype. These observations suggested that the putative fungal mRNA binding protein negatively regulates chrysovirus infection. Interestingly, the constitutive expression of FgV-ch9 structural protein P3 triggered the downregulation of vr1 and resulted in symptoms like FgV-ch9 infection [32]. However, detailed studies must reveal the interactions between vr1 and P3 and their role in the fungal regulation of viral infection. The findings of those studies will help identify candidates to manipulate the chrysoviral infection in Fusarium and manage plant diseases.
Research has also suggested the role of various processing mechanisms in regulating fungus-chrysovirus interaction. In 2011, an analysis of FgV-ch9 RNA2 and RNA3 sequences indicated that the proteins P2 and P3 were 94 kDa and 93 kDa, respectively [24]. However, electrophoresis showed that P2 was 62 kDa and P3 was 70 kDa. Later, Lutz et al. purified the viral proteins as polysomes and demonstrated that P2 and P3 of FgV-ch9 were expressed as full-length proteins in infected mycelia of three-day old cultures. However, during maturation, the P2 and P3 proteins underwent proteolytic processing. The C-terminal domain of P3 was degraded entirely after capsid processing and particle assembly [33]. Further elucidation of the steps involved in protein processing will provide novel insights into the interaction between the virus and the fungal host.

5. RNA Interference in F. graminearum Responding to FgV2 Infection

In eukaryotes, RNA interference (RNAi) is a major defense response to viruses. Information on the RNAi pathway of fungi is crucial for assessing the interaction with the virus. The RNAi pathway uses small, non-coding RNAs to regulate endogenous genes and defend against viral infection. The classical RNAi pathway uses a set of host components, including Dicers, Argonautes (AGO), and RdRps. Dicers recognize viral dsRNA and cleave it to produce small RNA (sRNA), also called small interfering RNA (siRNA) or microRNA (miRNA), or virus-derived small RNAs (vsiRNAs) that are 21 to 24 nucleotides (nt). One strand of the double strand sRNA binds to the AGO protein to form the functional RNA-induced silencing complex (RISC), which can bind to complementary sequences and specifically cleave target RNA. Lee et al. found that when F. graminearum strain PH-1 was infected by FgV2, the genes encoding RNAi components, FgDICER-1 and -2, FgAGO-1 and -2, and FgRdRp-3, -4, and -5 expression was upregulated, demonstrating the host response to FgV2 infection [25]. However, when these genes of RNAi components were single deleted and then infected with FgV2, the viral load in the single gene deletion mutants were similar to that in the FgV2-infected wild-type strain, and the phenotype of these mutants was still similar to the phenotype of FgV2-infected wild-type strain. These observations indicated that disrupting a single gene among the RNAi components may not directly interfere with the antiviral response of F. graminearum [34]. However, when FgV2 was introduced into FgDICERs or FgAGOs double gene knockout mutants, their growth appeared retarded more than that of the single gene mutant. Compared with the FgV2-infected wild-type strain, the double gene knockout mutant exhibited increased accumulation of FgV2. These results indicated that FgDICER and FgAGO play redundant roles during the response of F. graminearum to FgV2 infection [34]. A high-throughput sequencing of the siRNA library obtained from the FgV2 infected PH-1 strain showed that the vsiRNA reads were 18 to 24 nt long; here, vsiRNAs with 20 to 22 nt in length dominated, and the percentage of vsiRNA reads in the sense strand was significantly higher than that in the antisense strand. Moreover, the percentage of vsiRNA reads varied among the five segments of FgV2, with a relatively high percentage in the dsRNA3 segment. In dsRNA1, the vsiRNAs reads were higher in the 5′ and 3′ UTRs of the sense strand and the internal region of the antisense strand. In dsRNA2, -4, and -5, vsiRNAs were dispersed throughout the segments. Studies also showed that the dsRNA3 segment had more vsiRNA hotspots than the other four segments. These results indicated that the dsRNA3 may be preferentially recognized and targeted by the fungal RNAi components during defense response [34]. It also suggested that further exploration of RNA3 while analyzing the factors influencing FgV2 accumulation is required to reveal the fungal defense response to the chrysovirus.

6. Transmission of Fusarium Chrysoviruses

Generally, most fungal viruses are transmitted vertically via host asexual or sexual spore production or horizontally via hyphal anastomosis [8]. The effectiveness and success of biocontrol agent application are correlated to the transmission rate of mycoviruses. The higher the horizontal transmission rate, the more extensive the impact range of the virus [35]. Similarly, the higher the vertical transmission rate, the longer the effectiveness of the virus’s impact [35]. Thus, understanding and improving the transmission rate of mycoviruses will enhance their effectiveness and success as biocontrol agents. Scientists could successfully introduce FgV2 and FgV-ch9 from the host strain to the same or derived mutant free of virus through hyphal anastomosis or protoplast anastomosis [31,34], but there has been little research on whether they may be transmitted between strains in different vegetative incompatible groups, species, or even genera. Lemus-Minor et al. found that FodV1 was horizontally transferred between compatible isolates in the lab through hyphal anastomosis, attaining high accumulation in the recipient isolate; this virus was also transmitted vertically during sporogenesis [36]. However, a detailed analysis of the vertical transmission rate showed that one FodV1-infected isolate produced 24% conidiospores carrying dsRNA, while another produced 100% conidiospores carrying dsRNA [36]. Since the vertical transmission efficiency varies among the FodV1 isolates, future work should compare these isolates, explore the factors affecting their vertical transmission efficiency, and identify effective agents. It has also been found that the vertical transmission efficiency of FgV2 is affected by the generation of DI-RNA. In the host strain, the vertical transmission efficiency of FgV2 without DI-RNA from the first generation to the third generation was as high as 100%. However, FgV2 in the host strain with DI-RNA generation demonstrated a low vertical transmission efficiency (14.3–25%) from the first generation to the third generation, with constant production of DI-RNA in all three generations [31]. Contrary to FgV2, the vertical transmission of Trichoderma harzianum hypovirus 1 (ThHV1) was prompted by its DI-RNA (ThHV1-S) when ThHV1 and ThHV1-S existed together in conidiospores of Trichoderma harzianum [37]. Furthermore, several TF deletion mutants of the F. graminearum GZ03639 strain have demonstrated FgV2 transmission via protoplast fusion but not via hyphal anastomosis, indicating the role of TFs in hyphal anastomosis-related processes, such as regulating vegetative incompatibility [31]. Therefore, future studies should address the abovementioned diverse aspects to improve the horizontal and vertical transmission rates of the Fusarium chrysoviruses for developing effective biocontrol agents.

7. Conclusions and Prospects

Diseases caused by Fusarium species are a huge threat to global crop production. Though research on chrysoviruses infecting Fusarium species has progressed, some challenges must be overcome. Specifically, the transmission of chrysoviruses needs to be addressed to enhance their efficacy as biological control agents [37]. Moreover, the interaction between chrysovirus and Fusarium remains unclear. A lack of understanding about these aspects has delayed the application of chrysoviruses in preventing and controlling Fusarium diseases.
Furthermore, scientists should aim to clarify the key factors that impact chrysoviral accumulation in Fusarium species (Figure 1). Studies have suggested that an increased load of hypovirulence-associated chrysoviruses significantly affects the Fusarium host, and therefore, it is crucial to identify the factors that impact chrysoviral accumulation. Multi-omics technologies combining transcriptomics, proteomics, and metabolomics should be used to compare the F. graminearum strains with different viral accumulations and explore key genes or pathways and molecular mechanisms, providing theoretical and technical support. Researchers have also shown that the DI-RNAs interfere with FgV2 accumulation, restoring the phenotype and pathogenicity of F. graminearum. In addition, expression of the FgV-ch9 structural protein P3 caused virus infection-like symptoms when expressed in the wild type strain of F. graminearum [32]. Therefore, mutants of these proteins will serve as important resources for exploring key factors in chrysoviral accumulation. In addition, research on Fusarium chrysovirus should not be limited to the ORF region of dsRNAs. Studies have suggested that 5′ UTR with high conservation and rich in CAA might contain enhancer sequences, while 3′ UTR with less conservation might be associated with viral protein processing and stability. However, there are few reports on 5′ UTR and 3′ UTR, and further studies should clarify their role in virus–host interaction.
Identifying the key factors regulating the spread of Fusarium chrysoviruses is another major aspect that demands research (Figure 1). Currently, only five isolates of three Chrysoviridae species are found in Fusarium species, and their distribution is not widespread. Among these, only two isolates, FgV-ch9 and FsCV1, were discovered in China, each from a different Fusarium species and found only in a single location. These observations suggest a low transmission rate of these two isolates, which results in sparse distribution. However, this assumption should be verified. Moreover, research should focus on improving the hypovirulence-associated chrysoviruses (FgV-ch9, FgV2 and FodV1). Analysis of the published works also suggested that advanced technologies using chemicals should be adopted to break through vegetatively incompatible barriers and improve the spread of the Fusarium chrysovirus isolates. In 2013, Ikeda et al. found that zinc compounds weakened the vegetative incompatibility and improved the transmission efficiency of Rosellinia necatrix megabirnavirus 1 between Rosellinia necatrix strains [38]. The mycoviruses have also been found to be transmitted among strains via genetic transformation technologies in the lab. Specifically, protoplast fusion, electroporation, and polyethylene glycol (PEG)-mediated methods were used to transfer viral particles/RNA/viral cDNA into fungal protoplasts and obtain replicable viruses, improving their spread between strains or even species [39,40,41]. Zhang et al. used genetic techniques to knock down the vic (vegetative incompatibility) loci of C. parasitica strains and break down the vegetative incompatibility; this approach engineered the strains to serve as super donors of hypovirus in the field [42,43]. In addition, Liu et al. found that Sclerotinia sclerotiorum hypovirulence-associated DNA virus 1 (SsHADV-1) could be transferred to other S. sclerotiorum strains through the mycophagous insect Lycoriella ingenua [44]. Thus, exploring the transmission vectors is another way to improve viral spread.
More importantly, research on efficiently utilizing fungal viruses to prevent and control plant diseases should be strengthened (Figure 1). We should apply advanced biological technologies and focus on exploring Fusarium viral resources. The primary source of mycoviruses is the Fusarium species obtained from diseased plant tissues. Generally, these fungal strains are highly pathogenic and possess a low possibility of carrying hypovirulence-associated mycoviruses. Therefore, we should concentrate on isolating and cultivating non-virulent or less virulent Fusarium strains from diverse ecological niches, such as soil and plots with low disease incidence, which is difficult and time-consuming. In addition, independently of the isolation and purification techniques, metatranscriptomics should be used to identify the viral sequences in the environmental samples to further accelerate the mining of mycovirus resources. Meanwhile, novel ideas can be planned for current research after identifying new viruses. Moriyama et al. found that the viral particles of MoCV1 were released into the culture supernatant and directly infected the closely related fungal colonies [45]. In addition, successful expression of its P3 gene affected various physiological mechanisms in yeast cells, leading to symptoms similar to those caused by viruses [45,46]. These results suggest that if a single gene of mycovirus could play a significant role in the host fungus, it may have great potential in generating effective biological control agents. Thus, understanding mycoviruses, improving genetic technologies, and utilizing significant genes might broaden their application.

Author Contributions

Conceptualization, Z.Y. and C.Z.; writing—original draft preparation, Z.Y. and X.C.; writing—review and editing, Z.Y., C.Z., X.C. and Q.Z.; supervision, C.Z.; project administration, Z.Y.; funding acquisition, Z.Y. and C.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (32001850 and 31960519).

Data Availability Statement

No new data were generated in this work.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. de Sain, M.; Rep, M. The Role of Pathogen-Secreted Proteins in Fungal Vascular Wilt Diseases. Int. J. Mol. Sci. 2015, 16, 23970–23993. [Google Scholar] [CrossRef]
  2. Perincherry, L.; Lalak-Kańczugowska, J.; Stępień, Ł. Fusarium-Produced Mycotoxins in Plant-Pathogen Interactions. Toxins 2019, 11, 664. [Google Scholar] [CrossRef]
  3. Alisaac, E.; Mahlein, A.K. Fusarium Head Blight on Wheat: Biology, Modern Detection and Diagnosis and Integrated Disease Management. Toxins 2023, 15, 192. [Google Scholar] [CrossRef]
  4. Pegg, K.G.; Coates, L.M.; O’Neill, W.T.; Turner, D.W. The Epidemiology of Fusarium Wilt of Banana. Front. Plant Sci. 2019, 10, 1395. [Google Scholar] [CrossRef]
  5. Bao, Y.; Xu, Y.; Wang, S.; Yao, Z.; Rao, G.P.; Zhang, M. First Report of Fusarium sacchari That Causes Sugarcane Wilt Disease in China. Plant Dis. 2020, 104, 2289. [Google Scholar] [CrossRef]
  6. Meng, J.; Huang, H.; Li, Y.X.; Li, Y.J.; Li, J.; Chen, B. First Report of Fusarium sacchari Causing Sugarcane Pokkah Boeng in China. Plant Dis. 2020, 104, 1553. [Google Scholar] [CrossRef]
  7. Dean, R.; Van Kan, J.A.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The Top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef]
  8. Villan Larios, D.C.; Diaz Reyes, B.M.; Pirovani, C.P.; Loguercio, L.L.; Santos, V.C.; Góes-Neto, A.; Fonseca, P.L.C.; Aguiar, E.R.G.R. Exploring the Mycovirus Universe: Identification, Diversity, and Biotechnological Applications. J. Fungi 2023, 9, 361. [Google Scholar] [CrossRef]
  9. Ghabrial, S.A.; Castón, J.R.; Coutts, R.H.A.; Hillman, B.I.; Jiang, D.; Kim, D.H.; Moriyama, H. Ictv Report Consortium. ICTV Virus Taxonomy Profile: Chrysoviridae. J. Gen. Virol. 2018, 99, 19–20, Erratum in J. Gen. Virol. 2018, 99, 434. [Google Scholar] [CrossRef]
  10. Kotta-Loizou, I.; Castón, J.R.; Coutts, R.H.A.; Hillman, B.I.; Jiang, D.; Kim, D.H.; Moriyama, H.; Suzuki, N. Ictv Report Consortium. ICTV Virus Taxonomy Profile: Chrysoviridae. J. Gen. Virol. 2020, 101, 143–144. [Google Scholar] [CrossRef]
  11. Andika, I.B.; Tian, M.; Bian, R.; Cao, X.; Luo, M.; Kondo, H.; Sun, L. Cross-Kingdom Interactions Between Plant and Fungal Viruses. Ann. Rev. Virol. 2023, 10, 119–138. [Google Scholar] [CrossRef]
  12. Takahashi-Nakaguchi, A.; Shishido, E.; Yahara, M.; Urayama, S.I.; Sakai, K.; Chibana, H.; Kamei, K.; Moriyama, H.; Gonoi, T. Analysis of an Intrinsic Mycovirus Associated with Reduced Virulence of the Human Pathogenic Fungus Aspergillus fumigatus. Front. Microbiol. 2020, 10, 3045. [Google Scholar] [CrossRef]
  13. Sharma, M.; Guleria, S.; Singh, K.; Chauhan, A.; Kulshrestha, S. Mycovirus associated hypovirulence, a potential method for biological control of Fusarium species. Virusdisease 2018, 29, 134–140. [Google Scholar] [CrossRef]
  14. Zhang, Z.; Guo, W.; Lu, Y.; Kang, Q.; Sui, L.; Liu, H.; Zhao, Y.; Zou, X.; Li, Q. Hypovirulence-associated mycovirus epidemics cause pathogenicity degeneration of Beauveria bassiana in the field. Virol. J. 2023, 20, 255. [Google Scholar] [CrossRef]
  15. Zheng, Y.; Yin, S.; Zhao, Y.; Li, S.; Lu, Z.; Li, Z.; Deng, Q.; Li, Z.; Zhang, S.; Fang, S. Molecular and biological characteristics of a novel chrysovirus infecting the fungus phytopathogenic Setosphaeria turcica f. sp. sorghi. Virus Res. 2023, 325, 199037. [Google Scholar] [CrossRef] [PubMed]
  16. Heiniger, U.; Rigling, D. Biological control of chestnut blight in Europe. Annu. Rev. Phytopathol. 1994, 32, 581–599. [Google Scholar] [CrossRef]
  17. Sharzei, A.; Banihashemi, Z.; Afsharifar, A. Detection and characterization of a double-stranded RNA mycovirus in Fusarium oxysporum f. sp. melonis. Iran. J. Plant Pathol. 2007, 43, 9–26. [Google Scholar]
  18. Darissa, O.; Willingmann, P.; Schäfer, W.; Adam, G. A novel double-stranded RNA mycovirus from Fusarium graminearum: Nucleic acid sequence and genomic structure. Arch. Virol. 2011, 156, 647–658. [Google Scholar] [CrossRef] [PubMed]
  19. Yu, J.; Lee, K.M.; Son, M.; Kim, K.H. Molecular characterization of Fusarium graminearum virus 2 Isolated from Fusarium graminearum strain 98-8-60. Plant Pathol. J. 2011, 27, 285–290. [Google Scholar] [CrossRef]
  20. Lemus-Minor, C.G.; Canizares, M.C.; Garcia-Pedrajas, M.D.; Perez-Artes, E. Complete genome sequence of a novel dsRNA mycovirus isolated from the phytopathogenic fungus Fusarium oxysporum f. sp. dianthi. Arch. Virol. 2015, 160, 2375–2379. [Google Scholar] [CrossRef] [PubMed]
  21. Yao, Z.; Zou, C.; Peng, N.; Zhu, Y.; Bao, Y.; Zhou, Q.; Wu, Q.; Chen, B.; Zhang, M. Virome Identification and Characterization of Fusarium sacchari and F. andiyazi: Causative Agents of Pokkah Boeng Disease in Sugarcane. Front. Microbiol. 2020, 11, 240. [Google Scholar] [CrossRef]
  22. Chujo, T.; Ishibashi, K.; Miyashita, S.; Ishikawa, M. Functions of the 5′- and 3′-untranslated regions of tobamovirus RNA. Virus Res. 2015, 206, 82–89. [Google Scholar] [CrossRef]
  23. Blum, C.; Götsch, S.; Heinze, C. Duplications in the 3′ termini of three segments of Fusarium graminearum virus China 9. Arch. Virol. 2017, 162, 897–900. [Google Scholar] [CrossRef]
  24. Darissa, O.; Adam, G.; Schäfer, W. A dsRNA mycovirus causes hypovirulence of Fusarium graminearum to wheat and maize. Eur. J. Plant Pathol. 2012, 134, 181–189. [Google Scholar] [CrossRef]
  25. Lee, K.M.; Cho, W.K.; Yu, J.; Son, M.; Choi, H.; Min, K.; Lee, Y.M.; Kim, K.H. A Comparison of Transcriptional Patterns and Mycological Phenotypes following Infection of Fusarium graminearum by Four Mycoviruses. PLoS ONE 2014, 9, e100989. [Google Scholar] [CrossRef]
  26. Lemus-Minor, C.G.; Cañizares-Nolasco, C.; Mdd, G.P.; Pérez-Artés, E. Fusarium oxysporum f. sp. dianthi virus 1 accumulation is correlated with changes in virulence and other phenotypic traits of its fungal host. Phytopathology 2018, 108, 957–963. [Google Scholar] [CrossRef]
  27. Torres-Trenas, A.; Prieto, P.; Cañizares, M.C.; García-Pedrajas, M.D.; Pérez-Artés, E. Mycovirus Fusarium oxysporum f. sp. dianthi Virus 1 Decreases the Colonizing Efficiency of Its Fungal Host. Front. Cell Infect. Microbiol. 2019, 9, 51. [Google Scholar] [CrossRef] [PubMed]
  28. Alves, M.S.; Dadalto, S.P.; Gonçalves, A.B.; de Souza, G.B.; Barros, V.A.; Fietto, L.G. Transcription Factor Functional Protein-Protein Interactions in Plant Defense Responses. Proteomes 2014, 2, 85–106. [Google Scholar] [CrossRef] [PubMed]
  29. Yu, J.; Kim, K.H. A Phenome-Wide Association Study of the Effects of Fusarium graminearum Transcription Factors Virus 1 Infection. Front. Microbiol. 2021, 12, 622261. [Google Scholar] [CrossRef]
  30. Babu, M.M.; Luscombe, N.M.; Aravind, L.; Gerstein, M.; Teichmann, S.A. Structure and evolution of transcriptional regulatory networks. Curr. Opin. Struct. Biol. 2004, 14, 283–291. [Google Scholar] [CrossRef]
  31. Kwon, G.; Yu, J.; Kim, K.H. Identifying transcription factors associated with Fusarium graminearum virus 2 accumulation in Fusarium graminearum by phenome-based investigation. Virus Res. 2023, 326, 199061. [Google Scholar] [CrossRef] [PubMed]
  32. Bormann, J.; Heinze, C.; Blum, C.; Mentges, M.; Brockmann, A.; Alder, A.; Landt, S.K.; Josephson, B.; Indenbirken, D.; Spohn, M.; et al. Expression of a structural protein of the mycovirus FgV-ch9 negatively affects the transcript level of a novel symptom alleviation factor and causes virus infection-like symptoms in Fusarium graminearum. J. Virol. 2018, 92, e00326-18. [Google Scholar] [CrossRef]
  33. Lutz, T.; Petersen, J.M.; Yanık, C.; de Oliveira, C.; Heinze, C. Processing of the capsid proteins of the Betachrysovirus Fusarium graminearum virus-China 9 (FgV-ch9). Virology 2021, 563, 50–57. [Google Scholar] [CrossRef] [PubMed]
  34. Yu, J.; Lee, K.M.; Cho, W.K.; Park, J.Y.; Kim, K.H. Differential contribution of RNA interference components in response to distinct Fusarium graminearum virus infections. J. Virol. 2018, 92, e01756-17. [Google Scholar] [CrossRef]
  35. Wagemans, J.; Holtappels, D.; Vainio, E.; Rabiey, M.; Marzachì, C.; Herrero, S.; Ravanbakhsh, M.; Tebbe, C.C.; Ogliastro, M.; Ayllón, M.A.; et al. Going Viral: Virus-Based Biological Control Agents for Plant Protection. Annu. Rev. Phytopathol. 2022, 60, 21–42. [Google Scholar] [CrossRef]
  36. Lemus-Minor, C.G.; Cañizares-Nolasco, M.C.; García-Pedrajas, M.D.; Pérez-Artés, E. Horizontal and vertical transmission of the hypovirulence-associated mycovirus Fusarium oxysporum f. sp. dianthi virus 1. Eur. J. Plant Pathol. 2019, 153, 645–650. [Google Scholar] [CrossRef]
  37. You, J.; Zhou, K.; Liu, X.; Wu, M.; Yang, L.; Zhang, J.; Chen, W.; Li, G. Defective RNA of a novel mycovirus with high transmissibility detrimental to biocontrol properties of Trichoderma spp. Microorganisms 2019, 7, 507. [Google Scholar] [CrossRef] [PubMed]
  38. Ikeda, K.; Inoue, K.; Kida, C.; Uwamori, T.; Sasaki, A.; Kanematsu, S.; Park, P. Potentiation of mycovirus transmission by zinc compounds via attenuation of heterogenic incompatibility in Rosellinia necatrix. Appl. Environ. Microbiol. 2013, 79, 3684–3691. [Google Scholar] [CrossRef]
  39. Chen, B.; Choi, G.H.; Nuss, D.L. Attenuation of fungal virulence by synthetic infectious hypovirus transcripts. Science 1994, 264, 1762–1764. [Google Scholar] [CrossRef]
  40. Yu, X.; Li, B.; Fu, Y.; Jiang, D.; Ghabrial, S.A.; Li, G.; Peng, Y.; Xie, J.; Cheng, J.; Huang, J.; et al. A geminivirus-related DNA mycovirus that confers hypovirulence to a plant pathogenic fungus. Proc. Natl. Acad. Sci. USA 2010, 107, 8387–8392. [Google Scholar] [CrossRef]
  41. Yu, X.; Li, B.; Fu, Y.; Xie, J.; Cheng, J.; Ghabrial, S.A.; Li, G.; Yi, X.; Jiang, D. Extracellular transmission of a DNA mycovirus and its use as a natural fungicide. Proc. Natl. Acad. Sci. USA 2013, 110, 1452–1457. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, D.X.; Nuss, D.L. Engineering super mycovirus donor strains of chestnut blight fungus by systematic disruption of multilocus vic genes. Proc. Natl. Acad. Sci. USA 2016, 113, 2062–2067. [Google Scholar] [CrossRef] [PubMed]
  43. Stauder, C.M.; Nuss, D.L.; Zhang, D.X.; Double, M.L.; MacDonald, W.L.; Metheny, A.M.; Kasson, M.T. Enhanced hypovirus transmission by engineered super donor strains of the chestnut blight fungus, Cryphonectria parasitica, into a natural population of strains exhibiting diverse vegetative compatibility genotypes. Virology 2019, 528, 1–6. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, S.; Xie, J.; Cheng, J.; Li, B.; Chen, T.; Fu, Y.; Li, G.; Wang, M.; Jin, H.; Wan, H.; et al. Fungal DNA virus infects a mycophagous insect and utilizes it as a transmission vector. Proc. Natl. Acad. Sci. USA 2016, 113, 12803–12808. [Google Scholar] [CrossRef]
  45. Moriyama, H.; Urayama, S.I.; Higashiura, T.; Le, T.M.; Komatsu, K. Chrysoviruses in Magnaporthe oryzae. Viruses 2018, 10, 697. [Google Scholar] [CrossRef]
  46. Urayama, S.; Kimura, Y.; Katoh, Y.; Ohta, T.; Onozuka, N.; Fukuhara, T.; Arie, T.; Teraoka, T.; Komatsu, K.; Moriyama, H. Suppressive effects of mycoviral proteins encoded by Magnaporthe oryzae chrysovirus 1 strain A on conidial germination of the rice blast fungus. Virus Res. 2016, 223, 10–19. [Google Scholar] [CrossRef]

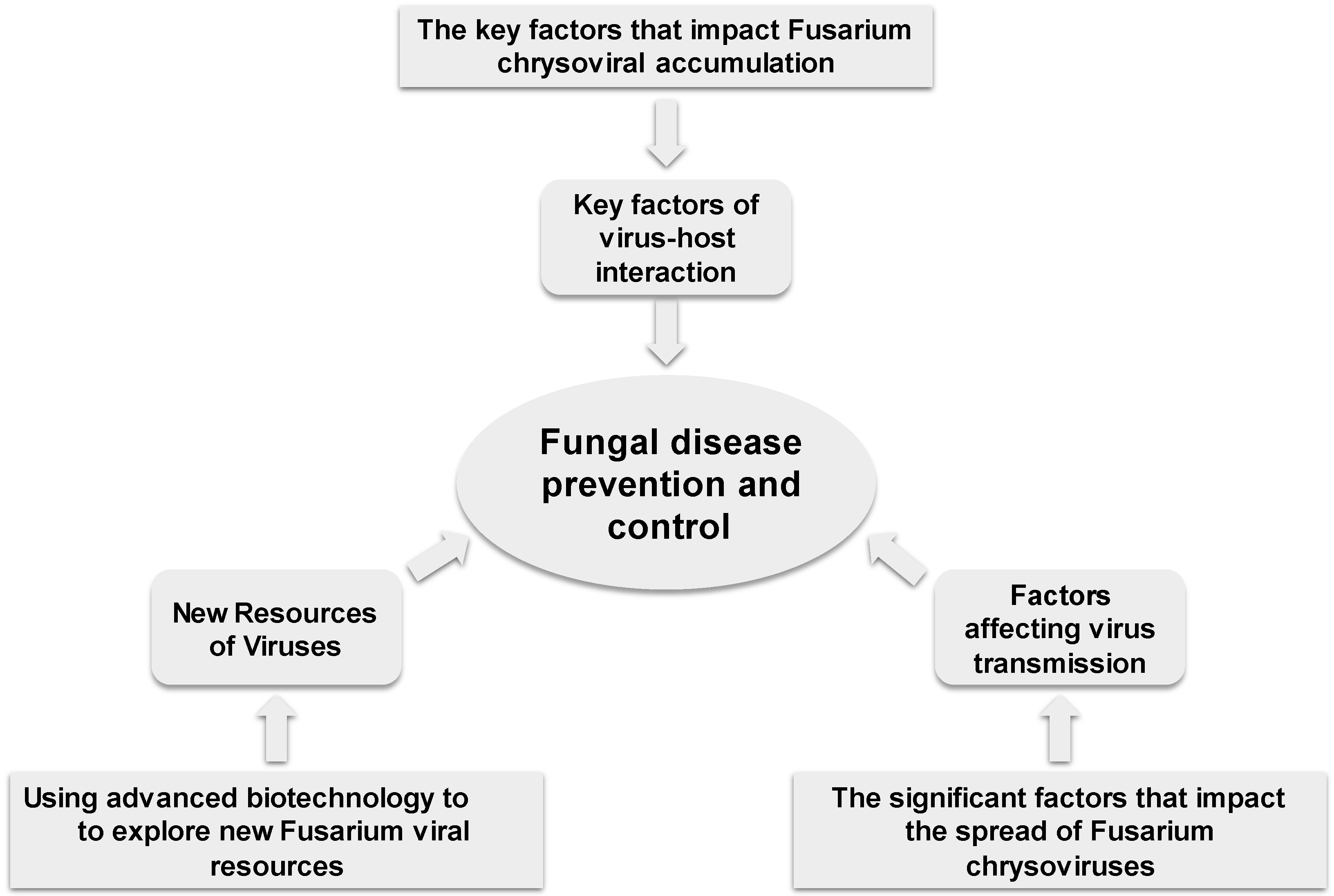

Figure 1. Strategy diagram for fungal disease prevention and control using Fusarium chrysoviruses.
Figure 1. Strategy diagram for fungal disease prevention and control using Fusarium chrysoviruses.
Viruses 16 00253 g001
Table 1. Fusarium chrysoviruses.
Table 1. Fusarium chrysoviruses.
Chrysovirus NameGenusHostEffects on HostdsRNA Segment (nt)Size (nt)5′ UTR (nt)3′ UTR (nt)Accession No.Coding Protein PlantCountryReferences
Fusarium oxysporum chrysovirus 1 (FoV1)AlphachrysovirusF. oxysporum f. sp. melonis.unknownRNA12574 * EF152346RdRpMelonIran[17]
RNA2 648 *EF152347P2
RNA3994 *EF152348nonfunctional putative protease
Fusarium graminearum mycovirus-China 9 (FgV-ch9)BetachrysovirusF. graminearum
strain China 9
Mycelia growth ↓
Pigmentation ↑
Conidiation ↓
Pathogenicity ↓
RNA1 35818284HQ228213RdRp CerealsChina[18]
RNA2 293193210HQ228214P2
RNA3 3002105326HQ228215P3
RNA4 274678160HQ228216P4
RNA5 292896270HQ228217Contains a C2H2 zinc finger domain
Fusarium graminearum virus 2 (FgV2)BetachrysovirusF. graminearum
strain 98-8-60
Mycelia growth ↓
Pigmentation ↑
Conidiation ↓
Pathogenicity ↓
RNA135808284HQ343295RdRp BarleyKorea[19]
RNA2300093279HQ343296P2
RNA32982105306HQ343297P3
RNA4274878162HQ343298P4
RNA5241497184HQ343299Contains a C2H2 zinc finger domain
Fusarium oxysporum f. sp. dianthi mycovirus 1 (FodV1)BetachrysovirusF. oxysporum f.
sp. dianthi strain 116
Mycelia growth ↓
Conidiation ↓
Pathogenicity ↓
RNA135558253KP876629RdRpCarnationSpain[20]
RNA228098488KP876630P2
RNA3279497138KP876631P3
RNA426469756KP876632P4
Fusarium sacchari chrysovirus 1 (FsCV1)BetachrysovirusF. sacchari strain FJ-FZ04unknownRNA135186335MN295964RdRpSugarcaneChina[21]
RNA227967287MN295965P2
RNA3277983137MN295966P3
RNA425693931MN295967P4
* Incomplete sequence.
