Open AccessArticle
Materials 2016, 9(8), 659; doi:10.3390/ma9080659

Morphology Formation in PC/ABS Blends during Thermal Processing and the Effect of the Viscosity Ratio of Blend Partners

1
Graduate School, University of Bayreuth, Universitätstraße 30, Bayreuth 95447, Germany
2
Covestro Deutschland AG, Business Unit Polycarbonates, Research & Development, Development Blends, Leverkusen 51365, Germany
3
Department of Polymer Engineering, University of Bayreuth, Universitätsstraße 30, Bayreuth 95447, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Luyi Sun
Received: 7 June 2016 / Revised: 25 July 2016 / Accepted: 3 August 2016 / Published: 5 August 2016
(This article belongs to the Special Issue Polymer Blends and Compatibilization)
View Full-Text   |   Download PDF [6112 KB, uploaded 5 August 2016]   |

Abstract

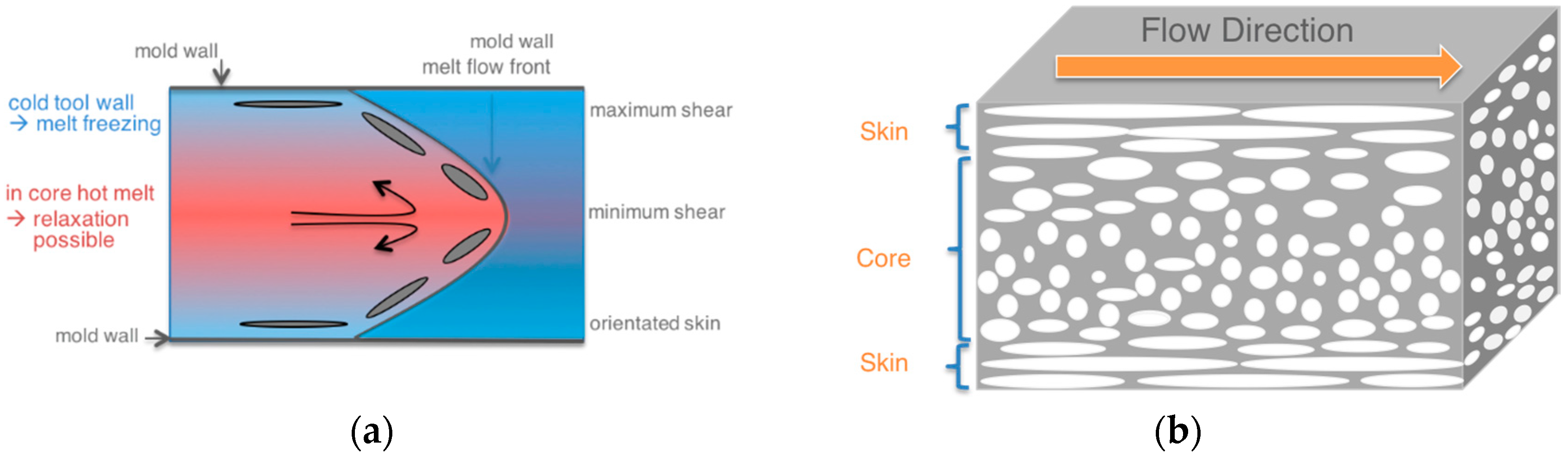

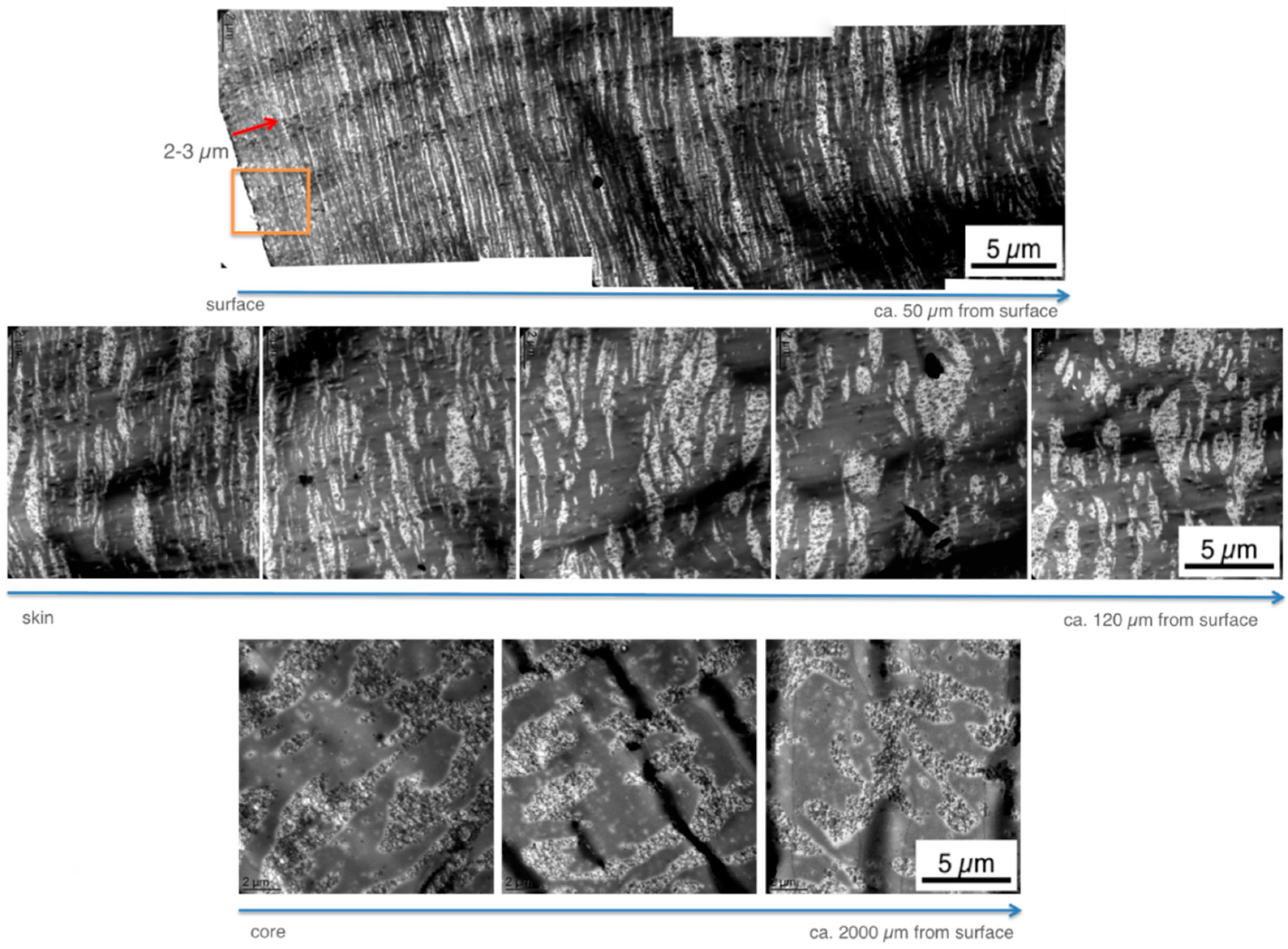

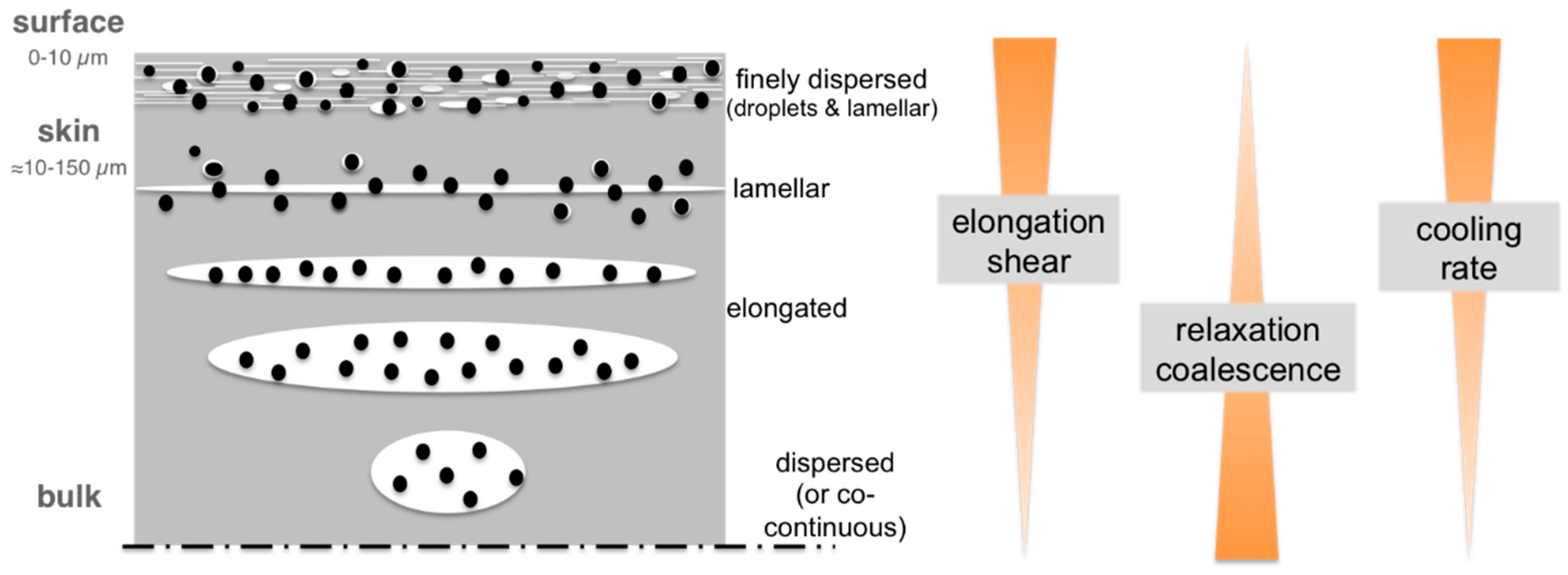

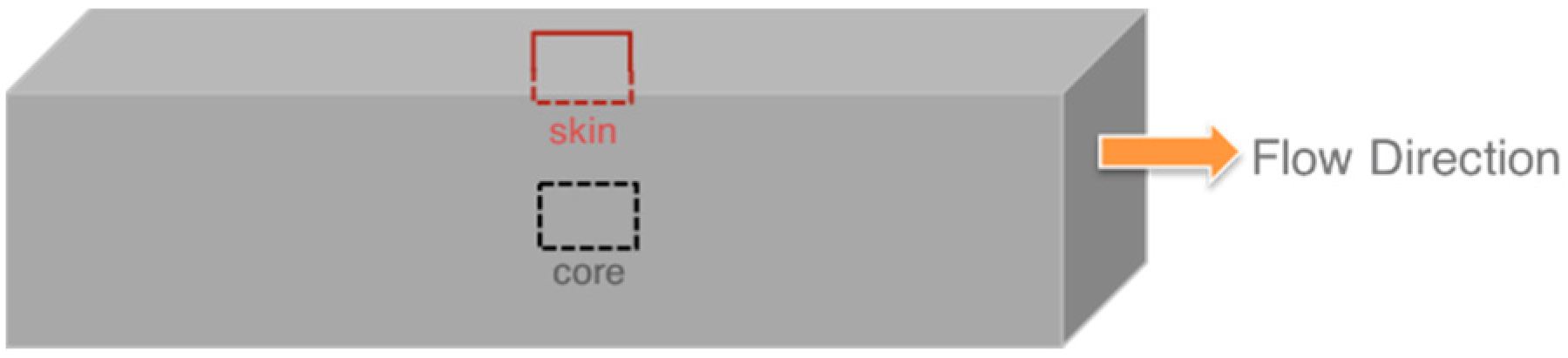

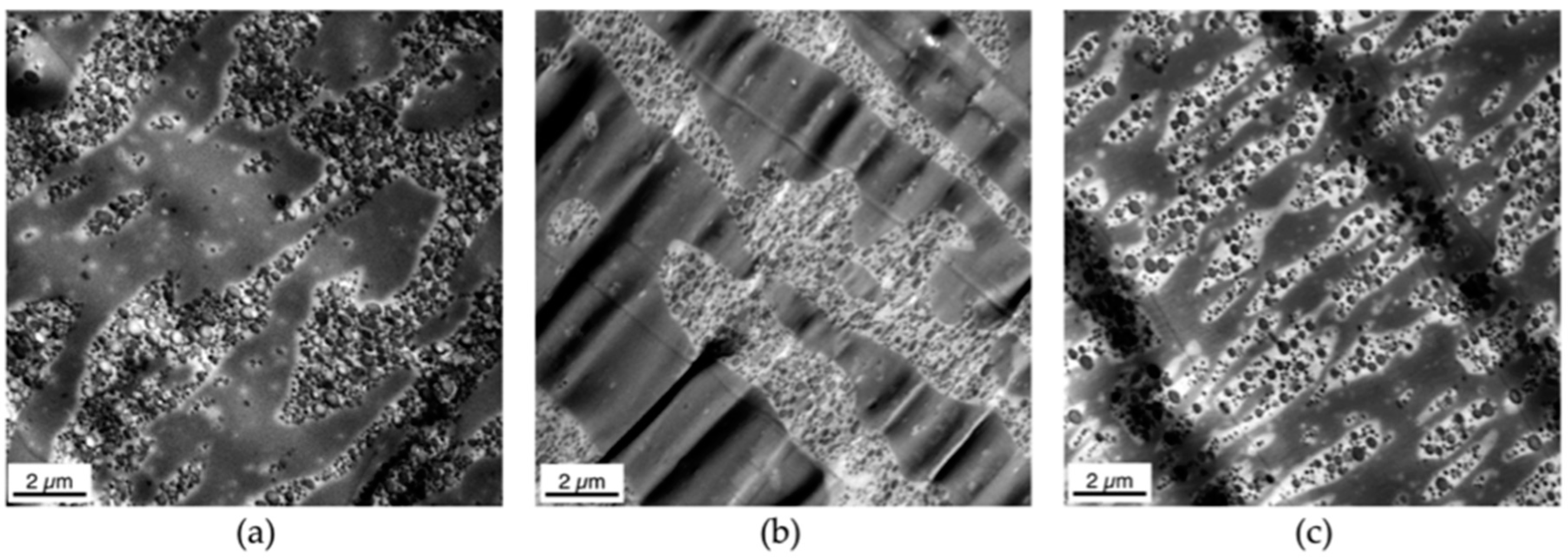

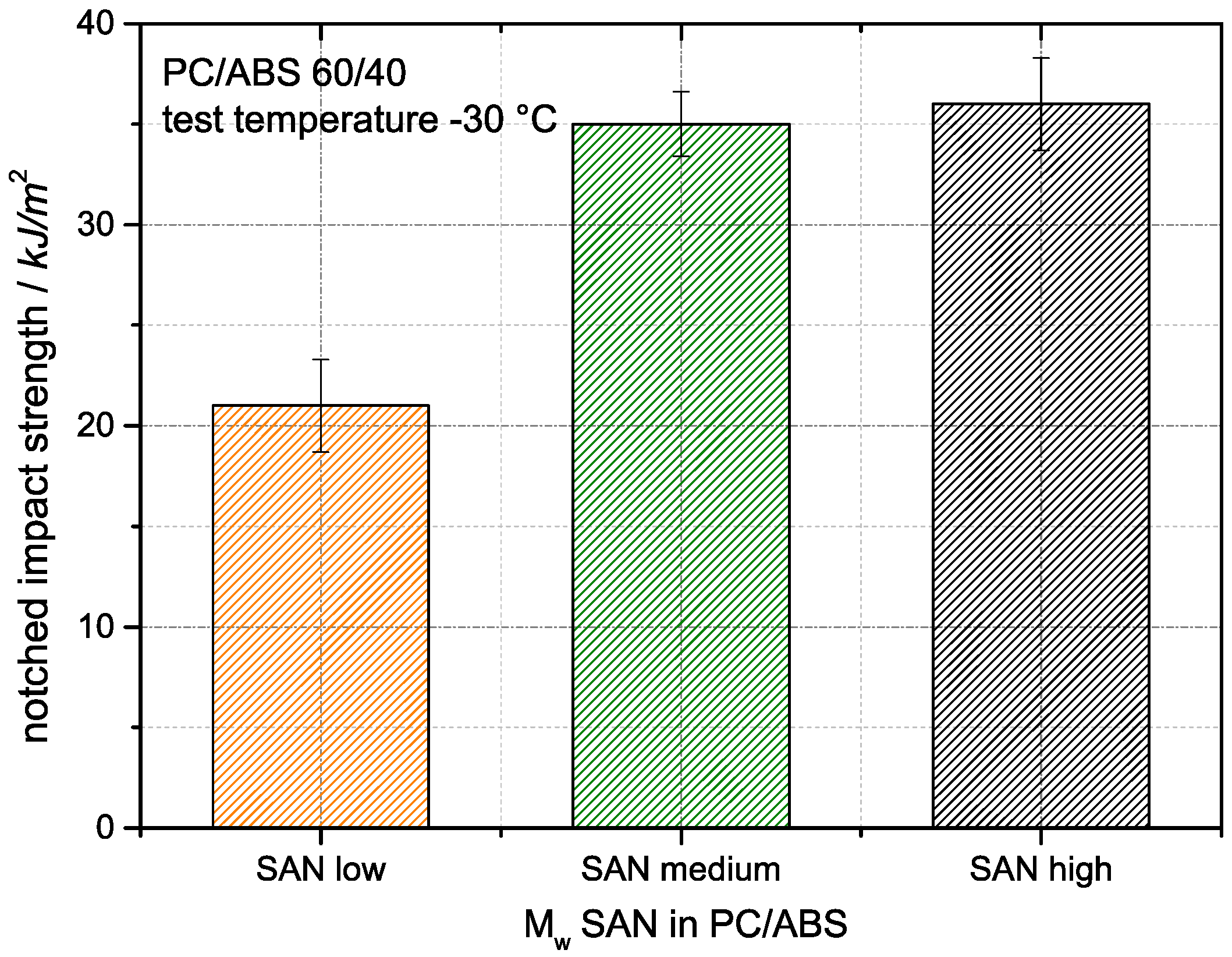

Morphology formation during compounding, as well as injection molding of blends containing 60 wt % polycarbonate (PC) and 40 wt % polybutadiene rubber-modified styrene-acrylonitrile copolymers (ABS), has been investigated by transmission electron microscopy (TEM). Profiles of the blend morphology have been recorded in injection-molded specimens and significant morphology gradients observed between their skin and core. A <10 µm thick surface layer with strongly dispersed and elongated nano-scale (streak-like) styrene acrylonitrile (SAN) phases and well-dispersed, isolated SAN-grafted polybutadiene rubber particles is followed by a 50–150 µm thick skin layer in which polymer morphology is characterized by lamellar SAN/ABS phases. Thickness of these lamellae increases with the distance from the specimen’s surface. In the core of the specimens the SAN-grafted polybutadiene rubber particles are exclusively present within the SAN phases, which exhibit a much coarser and less oriented, dispersed morphology compared to the skin. The effects of the viscosity of the SAN in the PC/ABS blends on phase morphologies and correlations with fracture mechanics in tensile and impact tests were investigated, including scanning electron microscopy (SEM) assessment of the fracture surfaces. A model explaining the mechanisms of morphology formation during injection molding of PC/ABS blends is discussed. View Full-Text
Keywords: polymer blend; skin-core morphology; blend morphology; viscosity ratio; PC/ABS; fracture surface polymer blend; skin-core morphology; blend morphology; viscosity ratio; PC/ABS; fracture surface
