Next Article in Journal
Ionic Liquid-Doped Gel Polymer Electrolyte for Flexible Lithium-Ion Polymer Batteries
Previous Article in Journal
Reinforcement Strategies for Load-Bearing Calcium Phosphate Biocements
Article Menu

Export Article

Open AccessArticle
Materials 2015, 8(5), 2718-2734; doi:10.3390/ma8052718

Effect of Experimental Parameters on Morphological, Mechanical and Hydrophobic Properties of Electrospun Polystyrene Fibers

1
College of Material Science and Engineering, Northeast Forestry University, Harbin 150040, China
2
School of Renewable Natural Resources, Louisiana State University Agricultural Center, Baton Rouge, LA 70803, USA
*
Authors to whom correspondence should be addressed.
Academic Editor: Jung Ho Je
Received: 21 April 2015 / Revised: 4 May 2015 / Accepted: 11 May 2015 / Published: 20 May 2015
(This article belongs to the Section Structure Analysis and Characterization)
View Full-Text   |   Download PDF [1897 KB, uploaded 20 May 2015]   |

Abstract

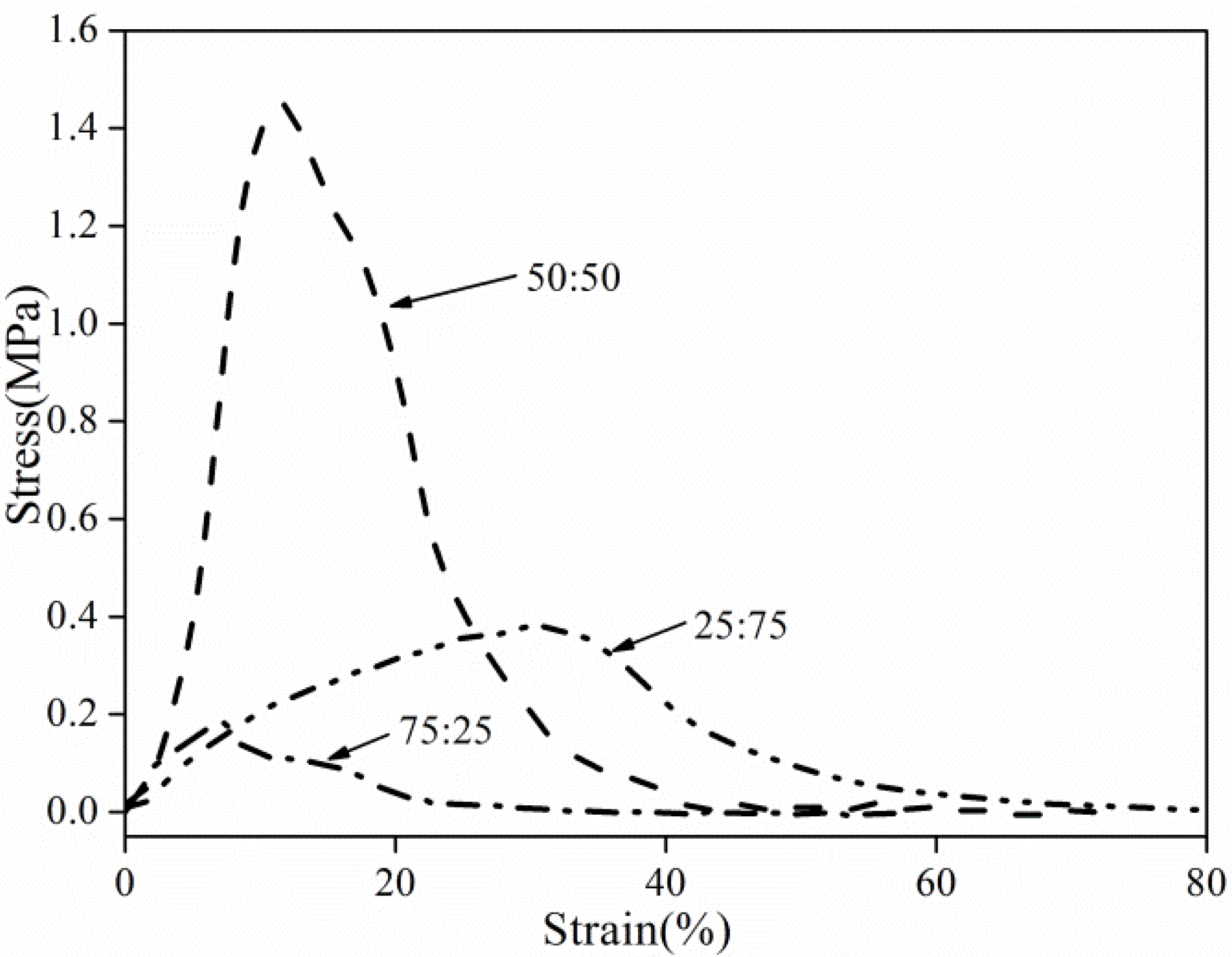

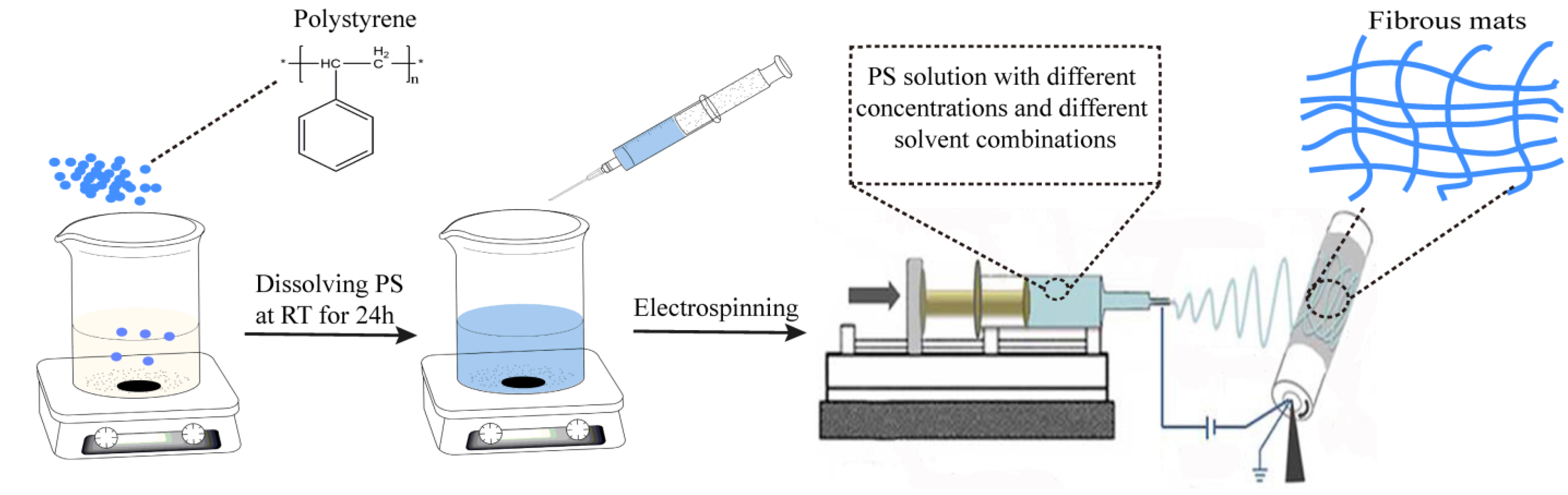

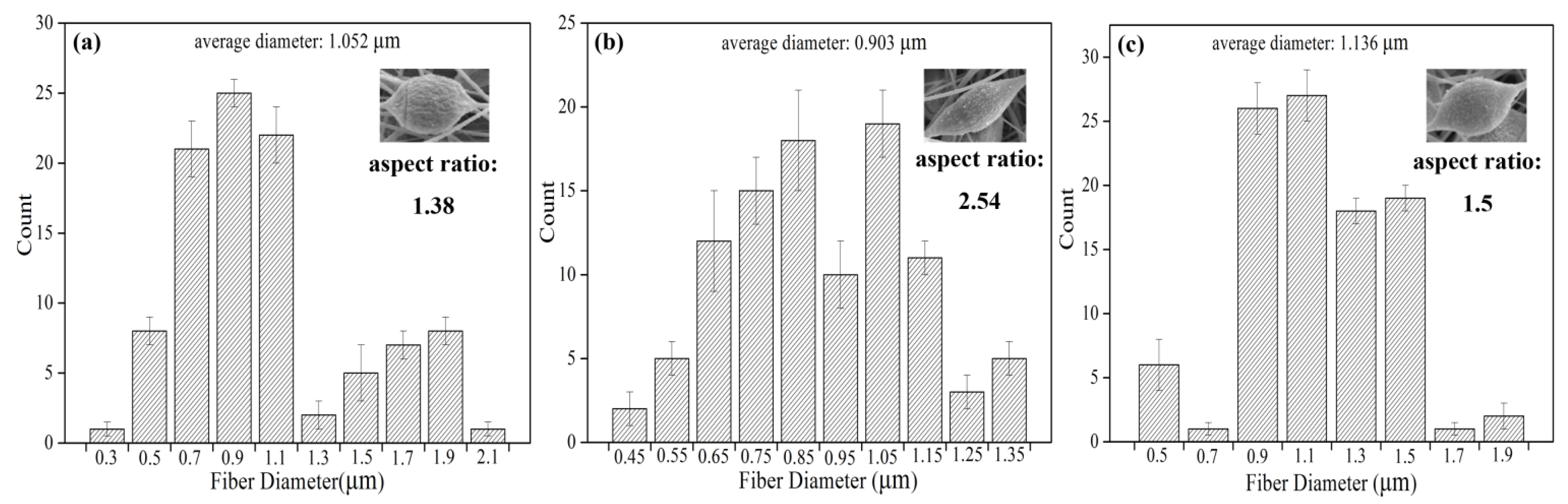

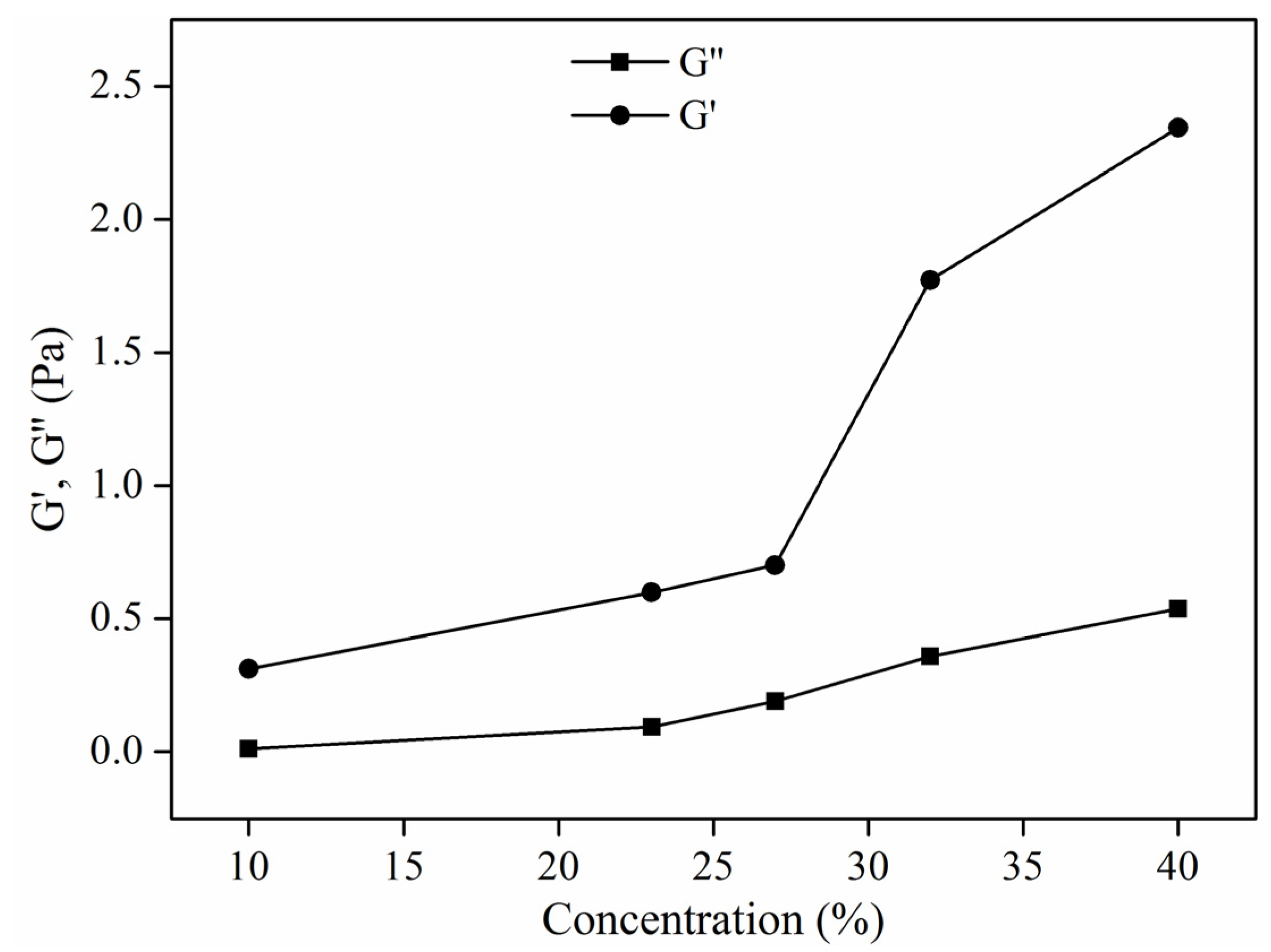

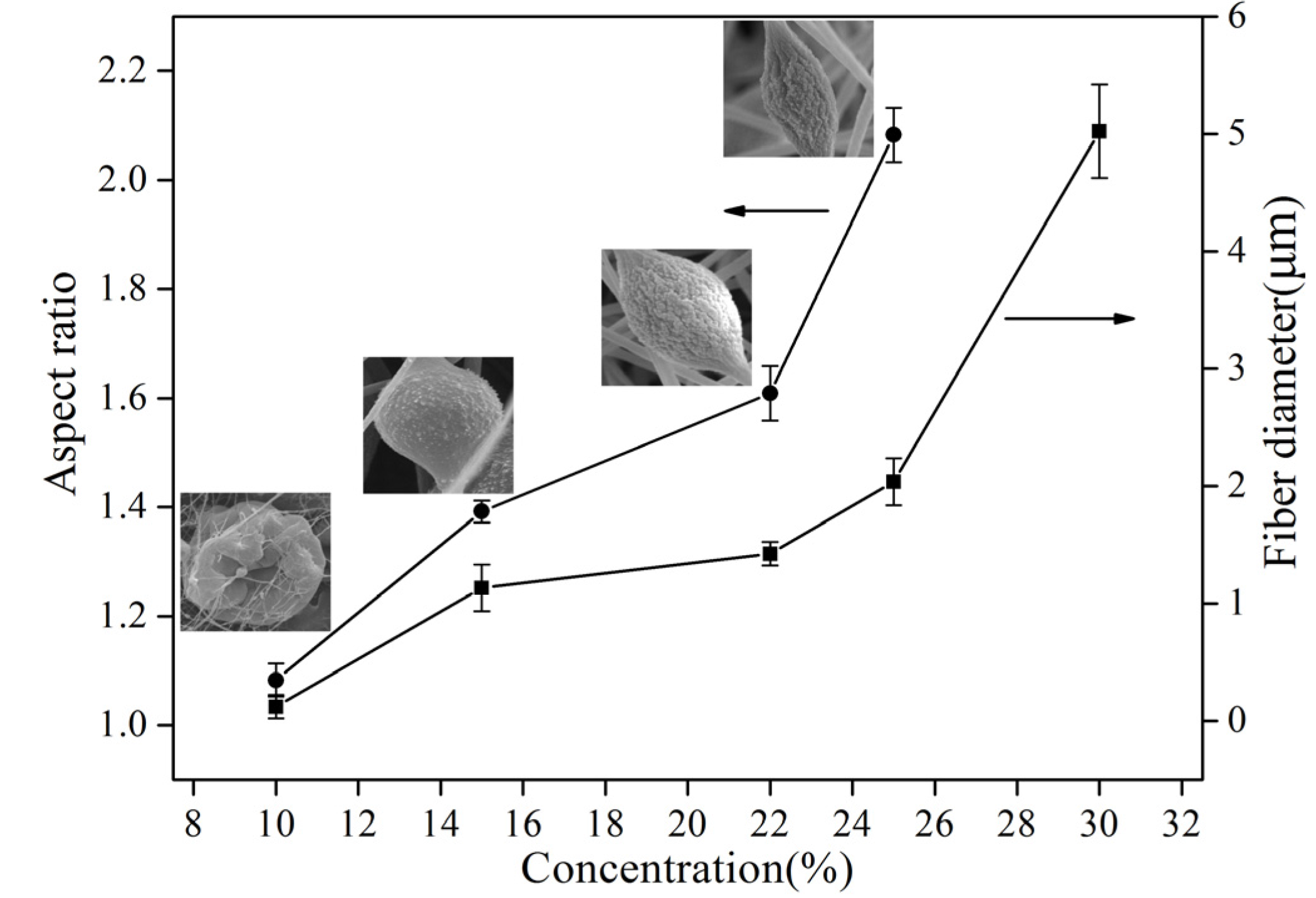

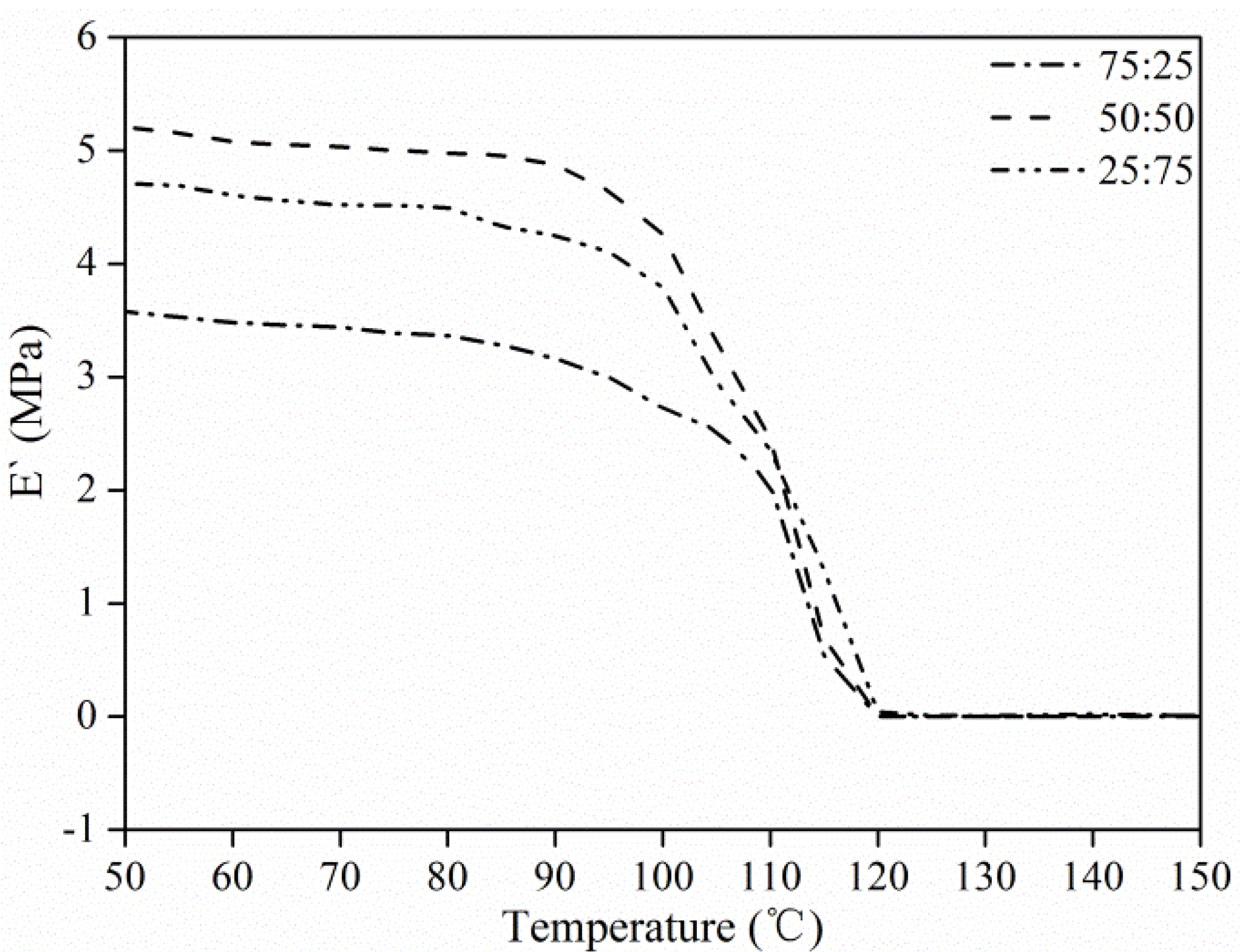

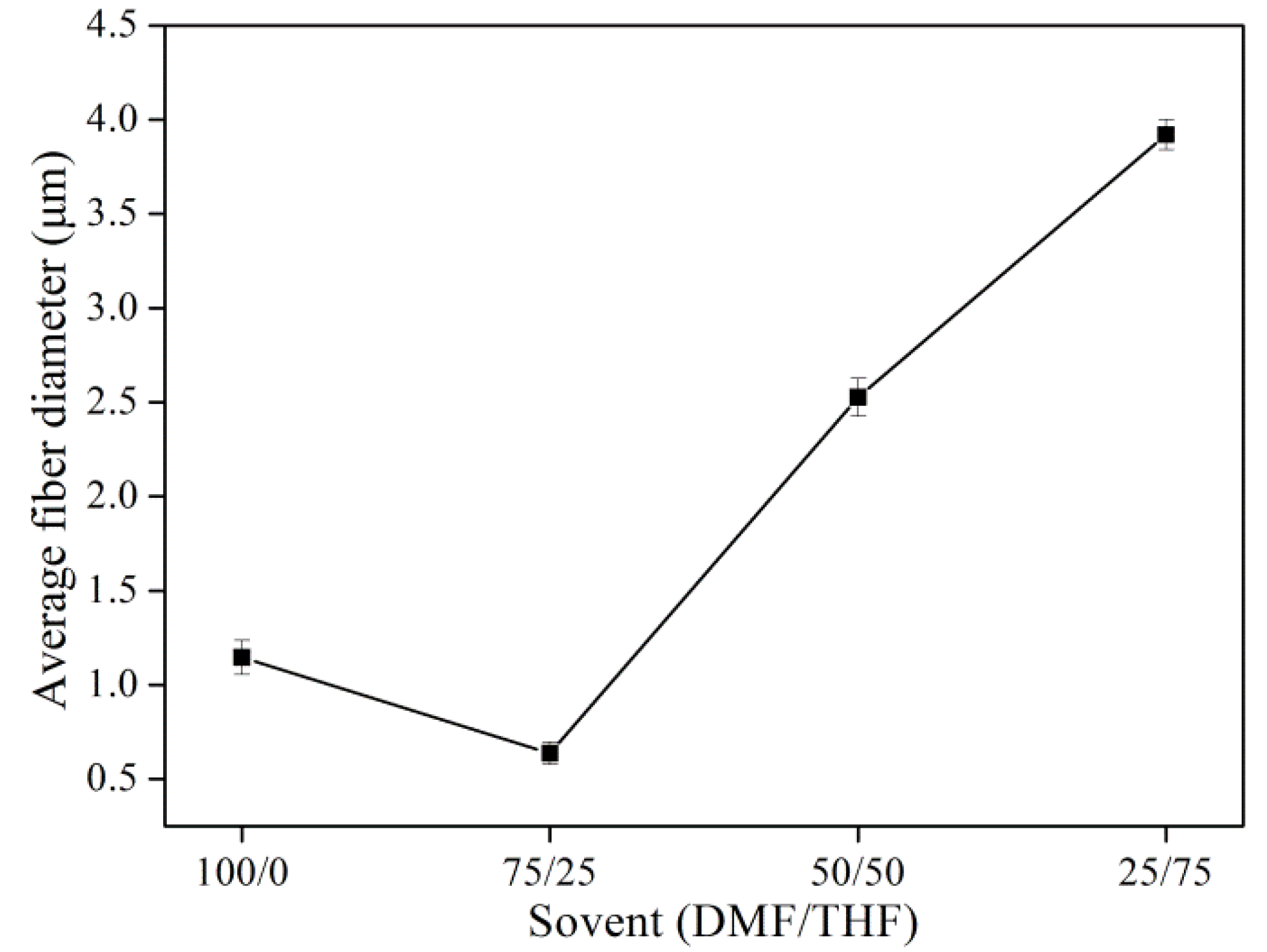

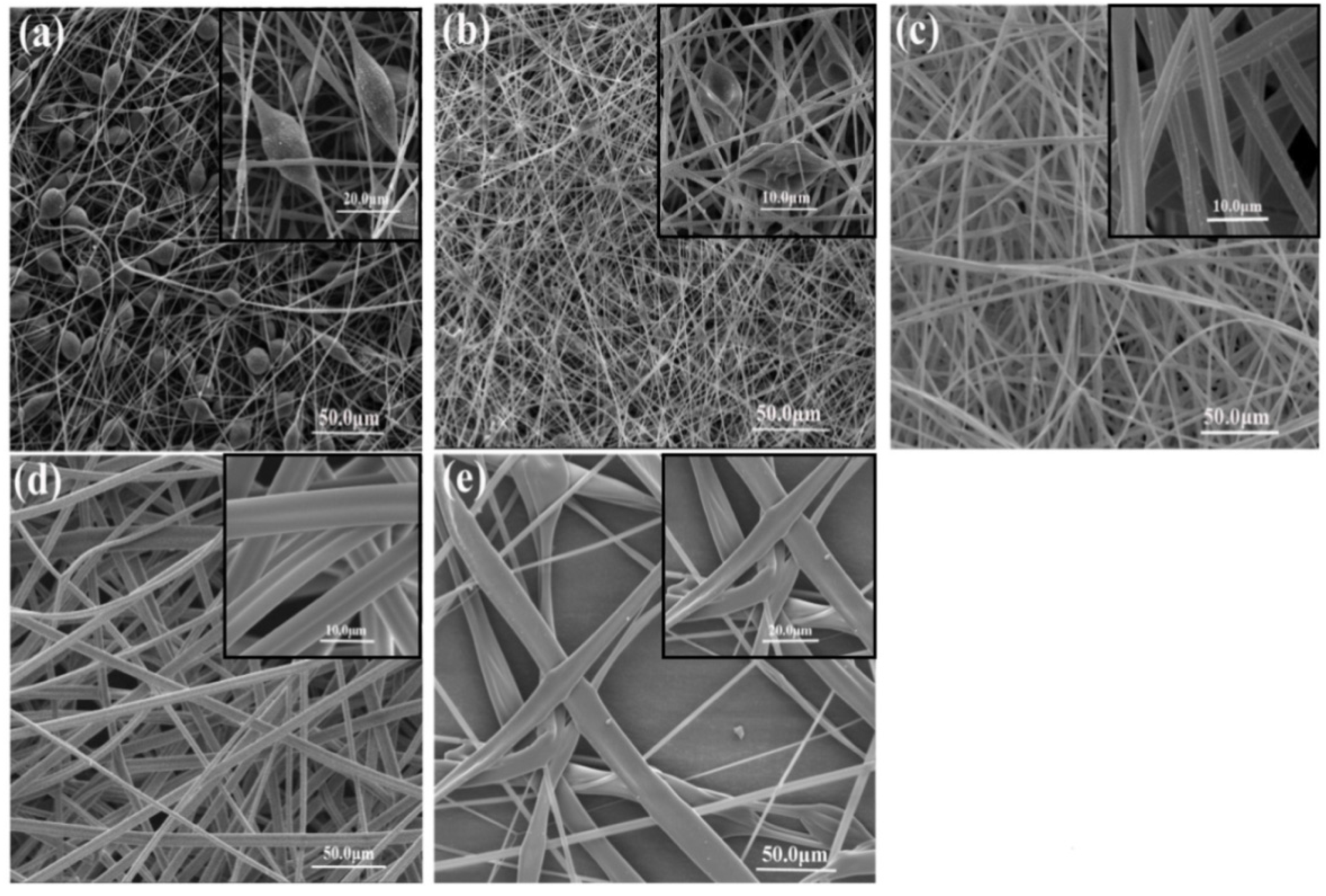

Polystyrene (PS) dissolved in a mixture of N, N-dimethylformamide (DMF) and/or tetrahydrofuran (THF) was electrospun to prepare fibers with sub-micron diameters. The effects of electrospinning parameters, including solvent combinations, polymer concentrations, applied voltage on fiber morphology, as well as tensile and hydrophobic properties of the fiber mats were investigated. Scanning electron microscope (SEM) images of electrospun fibers (23% w/v PS solution with applied voltage of 15 kV) showed that a new type of fiber with double-strand morphology was formed when the mass ratio of DMF and THF was 50/50 and 25/75. The tensile strength of the PS fiber film was 1.5 MPa, indicating strong reinforcement from double-strand fibers. Bead-free fibers were obtained by electrospinning 40% (w/v) PS/DMF solution at an applied voltage of 15 kV. Notably, when the ratio of DMF and THF was 100/0, the maximum contact angle (CA) value of the electrospun PS films produced at 15 kV was 148°. View Full-Text
Keywords: electrospinning; polystyrene nanofiber; morphology; tensile strength; hydrophobicity electrospinning; polystyrene nanofiber; morphology; tensile strength; hydrophobicity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Huan, S.; Liu, G.; Han, G.; Cheng, W.; Fu, Z.; Wu, Q.; Wang, Q. Effect of Experimental Parameters on Morphological, Mechanical and Hydrophobic Properties of Electrospun Polystyrene Fibers. Materials 2015, 8, 2718-2734.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
