Next Article in Journal
Visible Light Curable Restorative Composites for Dental Applications Based on Epoxy Monomer
Next Article in Special Issue
In vitro Endothelialization and Platelet Adhesion on Titaniferous Upgraded Polyether and Polycarbonate Polyurethanes
Previous Article in Journal
Desorption of Furfural from Bimetallic Pt-Fe Oxides/Alumina Catalysts
Previous Article in Special Issue
Influence of Oxygen Content and Microstructure on the Mechanical Properties and Biocompatibility of Ti–15 wt%Mo Alloy Used for Biomedical Applications
Materials 2014, 7(1), 542-553; doi:10.3390/ma7010542
Article

The Influence of Small Quantities of Oxygen in the Structure, Microstructure, Hardness, Elasticity Modulus and Cytocompatibility of Ti-Zr Alloys for Dental Applications

1
,
1
,
2
,
2
,
3
 and
1,*
1 UNESP—Univ. Estadual Paulista, Laboratório de Anelasticidade e Biomateriais, 17.033-360, Bauru, SP, Brazil 2 USP—Universidade de São Paulo, Faculdade de Odontologia, Departamento de Biomateriais e Biologia Oral, 05.508-900, São Paulo, SP, Brazil 3 USP—Universidade de São Paulo, Faculdade de Odontologia, Departamento de Ciências Biológicas, 17.012-901, Bauru, SP, Brazil
* Author to whom correspondence should be addressed.
Received: 31 October 2013 / Revised: 27 December 2013 / Accepted: 30 December 2013 / Published: 20 January 2014
(This article belongs to the Special Issue Titanium Materials for Biomedical Application 2013)
View Full-Text   |   Download PDF [726 KB, uploaded 20 January 2014]   |   Browse Figures

Abstract

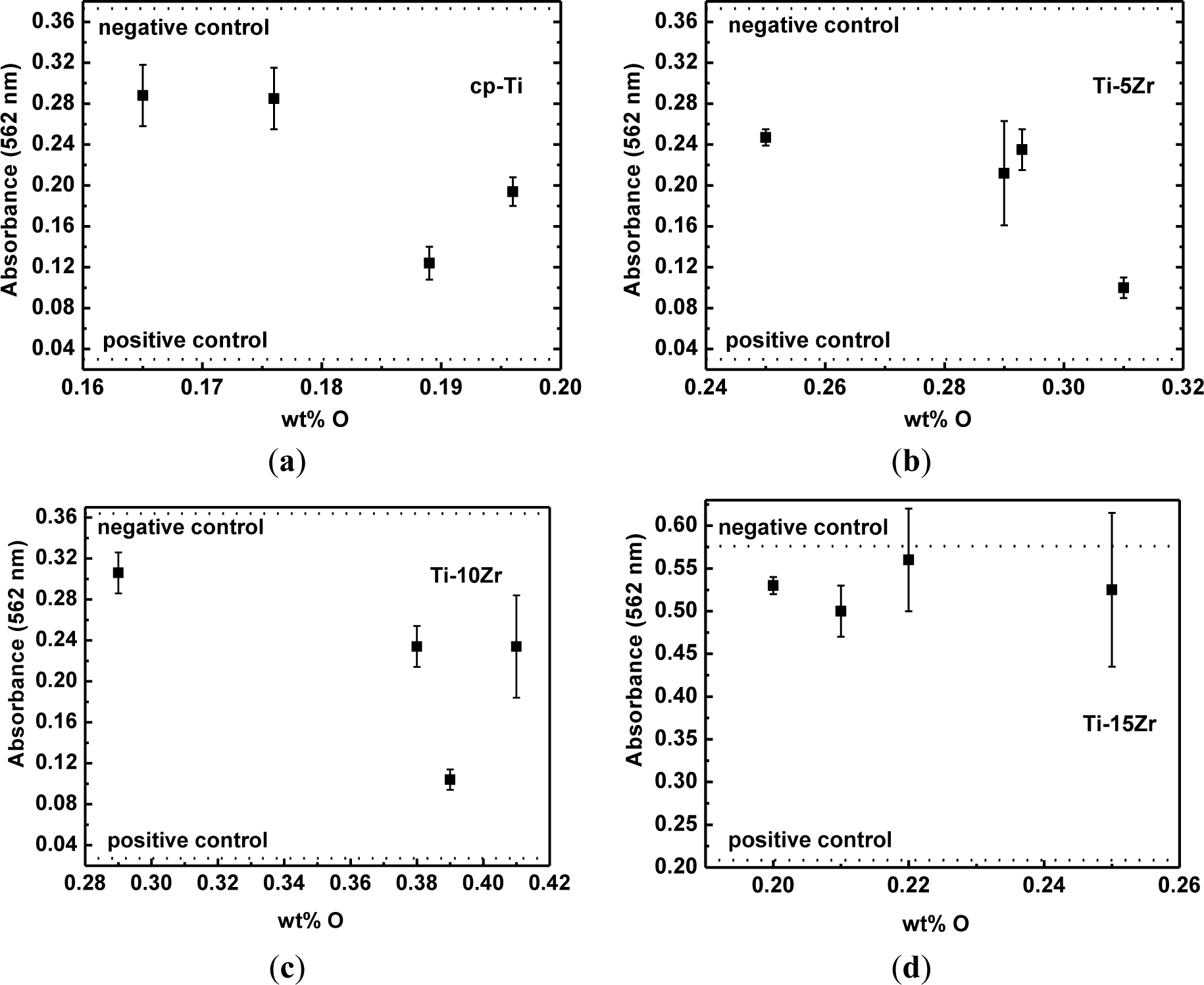

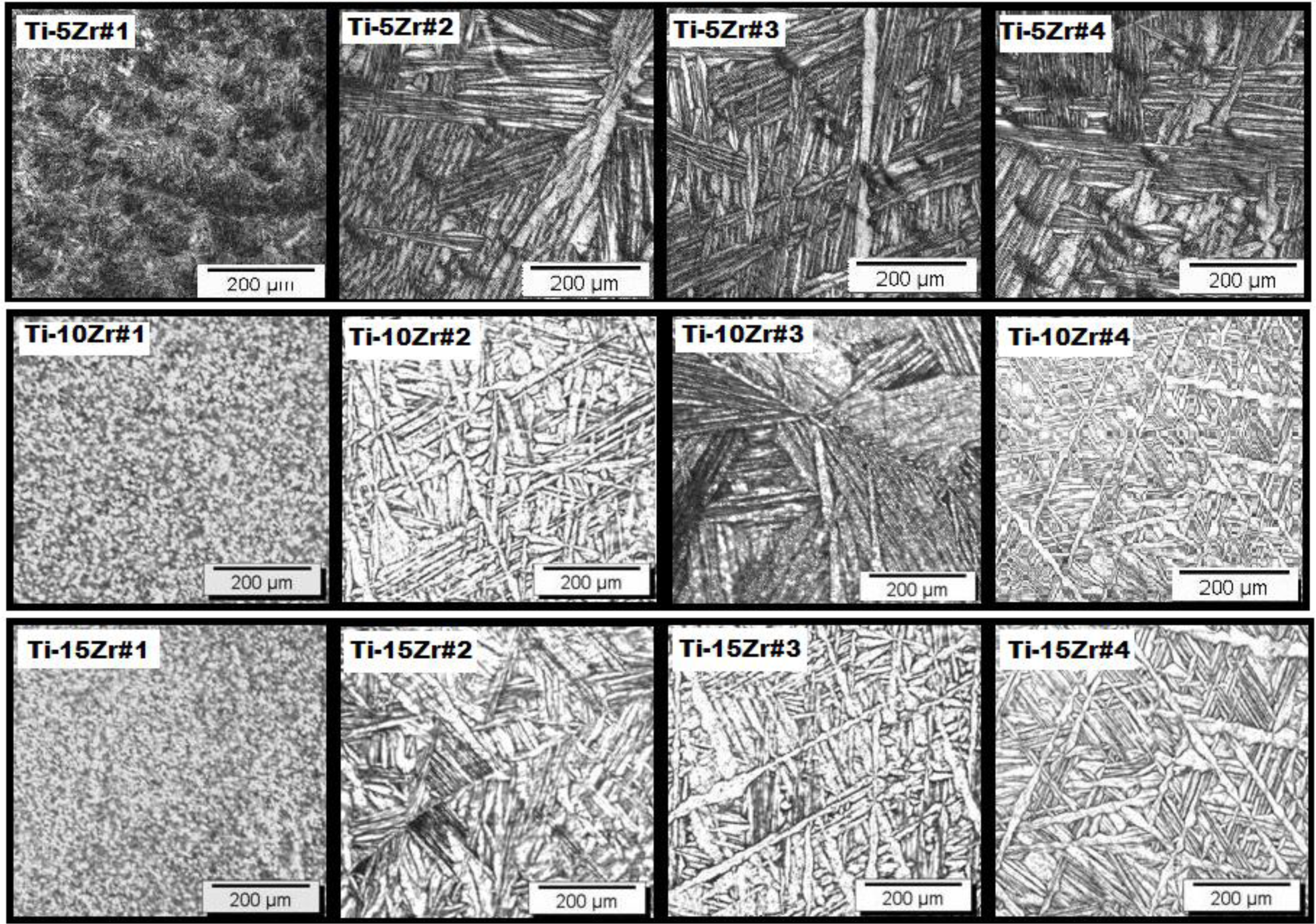

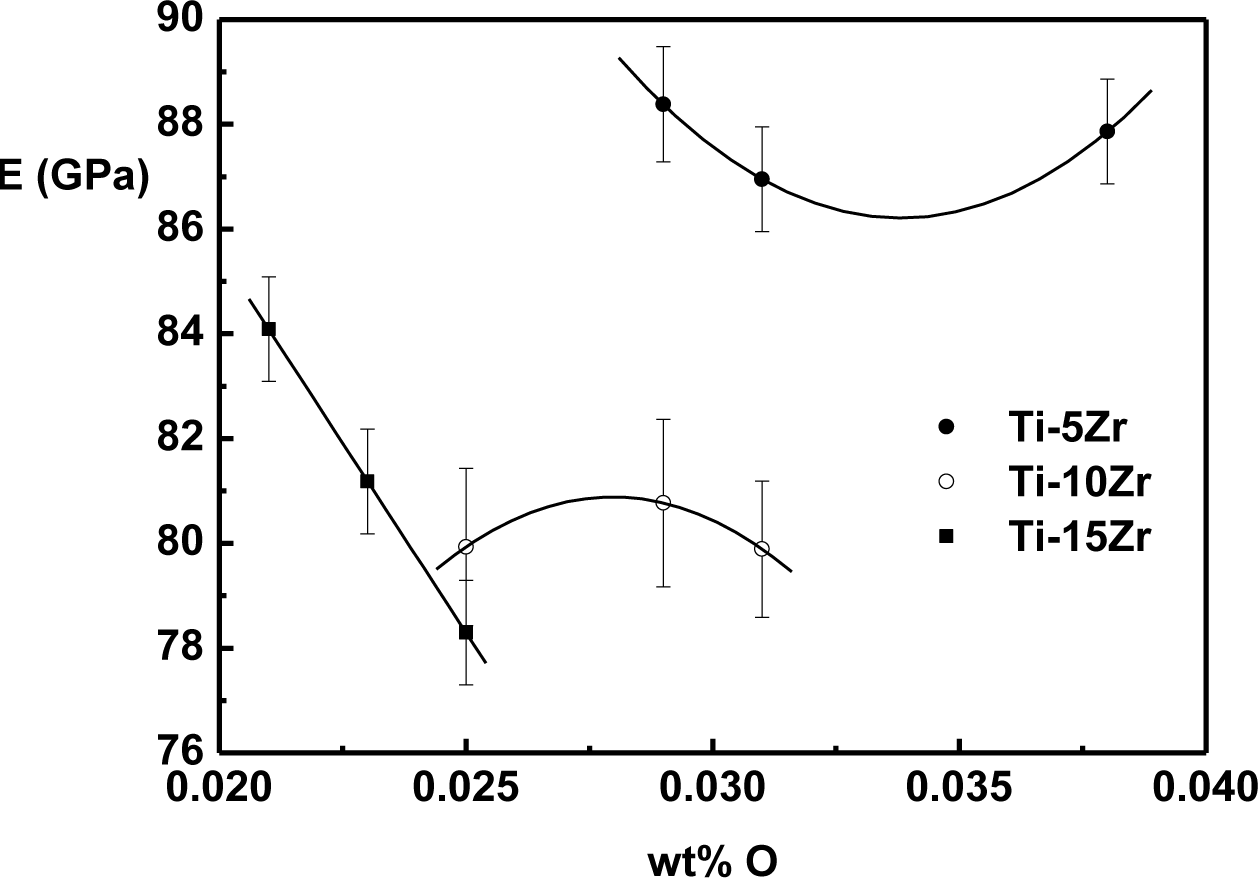

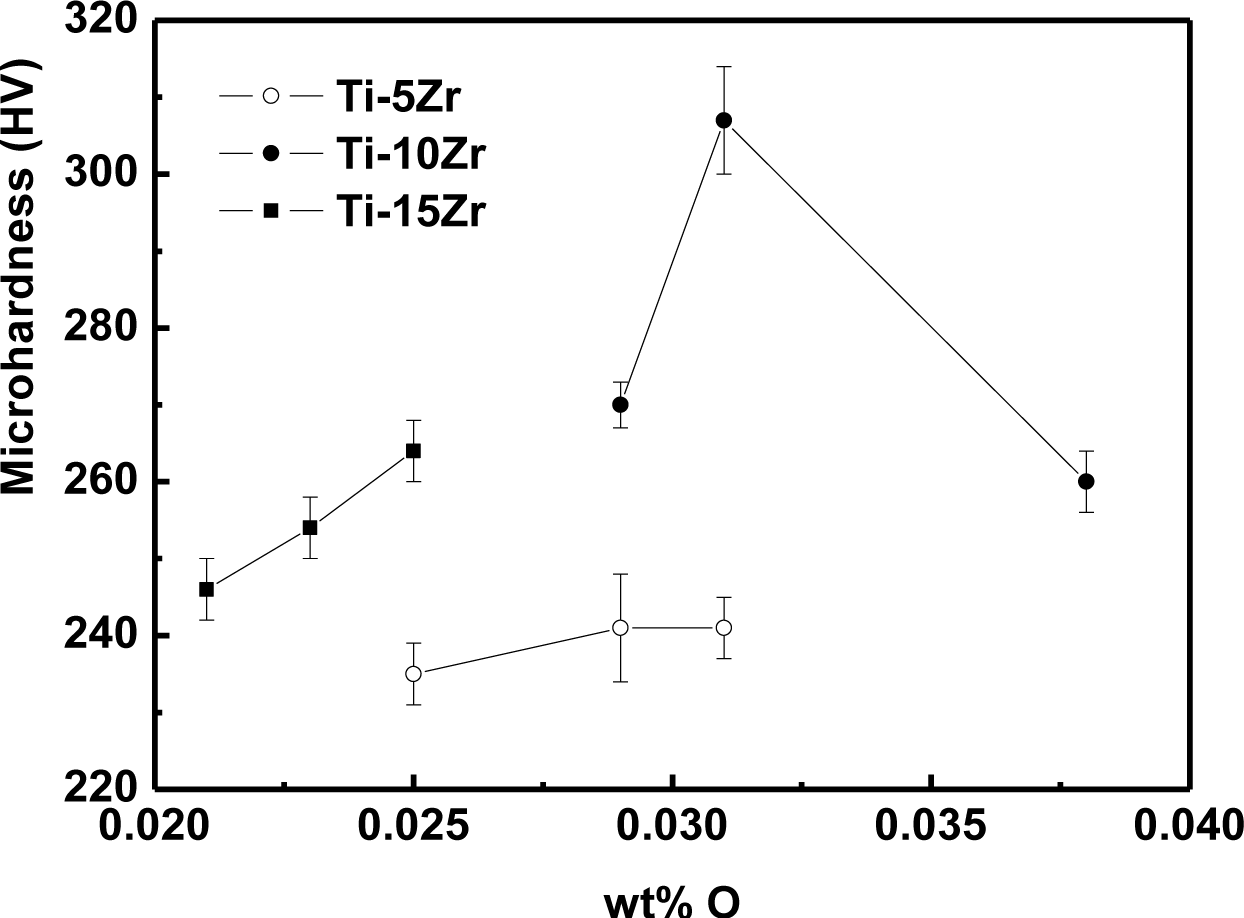

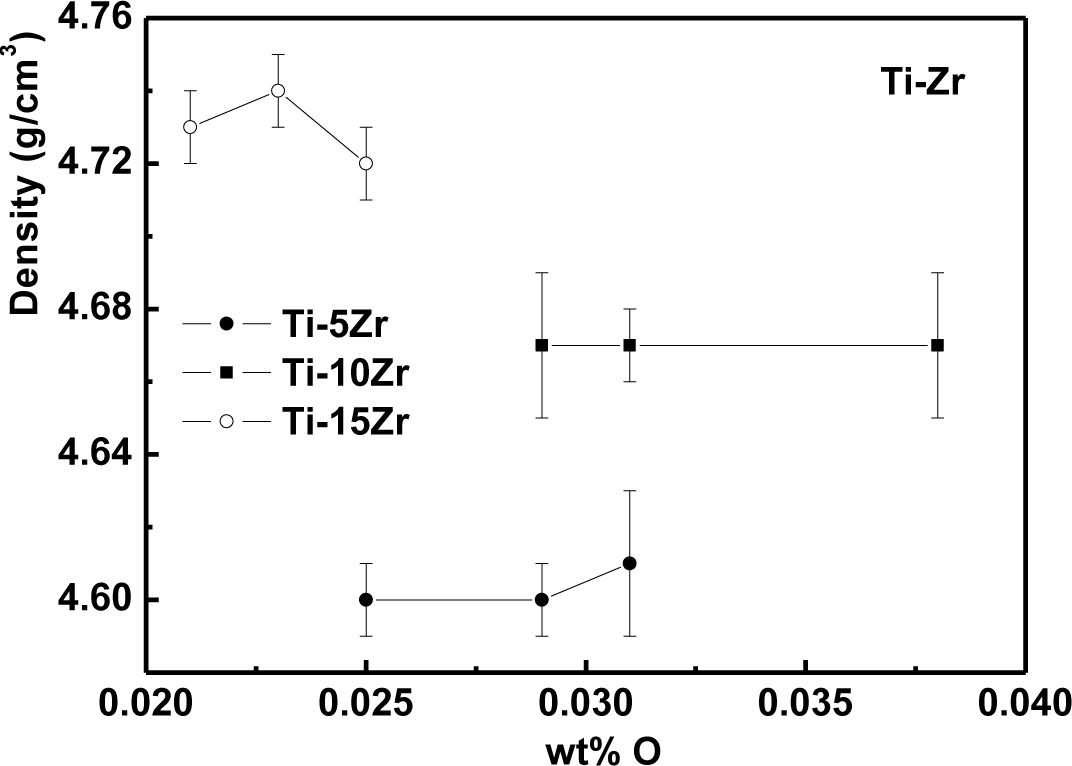

The mechanical properties of Ti alloys are changed significantly with the addition of interstitial elements, such as oxygen. Because oxygen is a strong stabilizer of the α phase and has an effect on hardening in a solid solution, it has aroused great interest in the biomedical area. In this paper, Ti-Zr alloys were subjected to a doping process with small amounts of oxygen. The influence of interstitial oxygen in the structure, microstructure and some selected mechanical properties of interest for use as biomaterial and biocompatibility of the alloys were analyzed. The results showed that in the range of 0.02 wt% to 0.04 wt%, oxygen has no influence on the structure, microstructure or biocompatibility of the studied alloys, but causes hardening of the alloys, increasing the values of the microhardness and causing variation in the elasticity modulus values.
Keywords: Ti alloys; interstitials; microstructure; mechanical properties; biocompatibility Ti alloys; interstitials; microstructure; mechanical properties; biocompatibility
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote
MDPI and ACS Style

Vicente, F.B.; Correa, D.R.N.; Donato, T.A.G.; Arana-Chavez, V.E.; Buzalaf, M.A.R.; Grandini, C.R. The Influence of Small Quantities of Oxygen in the Structure, Microstructure, Hardness, Elasticity Modulus and Cytocompatibility of Ti-Zr Alloys for Dental Applications. Materials 2014, 7, 542-553.

View more citation formats

Related Articles

Article Metrics

For more information on the journal, click here

Comments

Cited By

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
