Materials 2013, 6(9), 4249-4258; doi:10.3390/ma6094249
Communication

Co-Dispersion Behavior of ZrB2–SiC–B4C–C Powders with Polyethyleneimine

1,2,* email, 1email, 1email, 1email, 1,* email, 1,* email and 1email
Received: 8 July 2013; in revised form: 20 August 2013 / Accepted: 20 August 2013 / Published: 23 September 2013
(This article belongs to the Special Issue Ultra-high Temperature Ceramics)
Download PDF [957 KB, uploaded 23 September 2013]

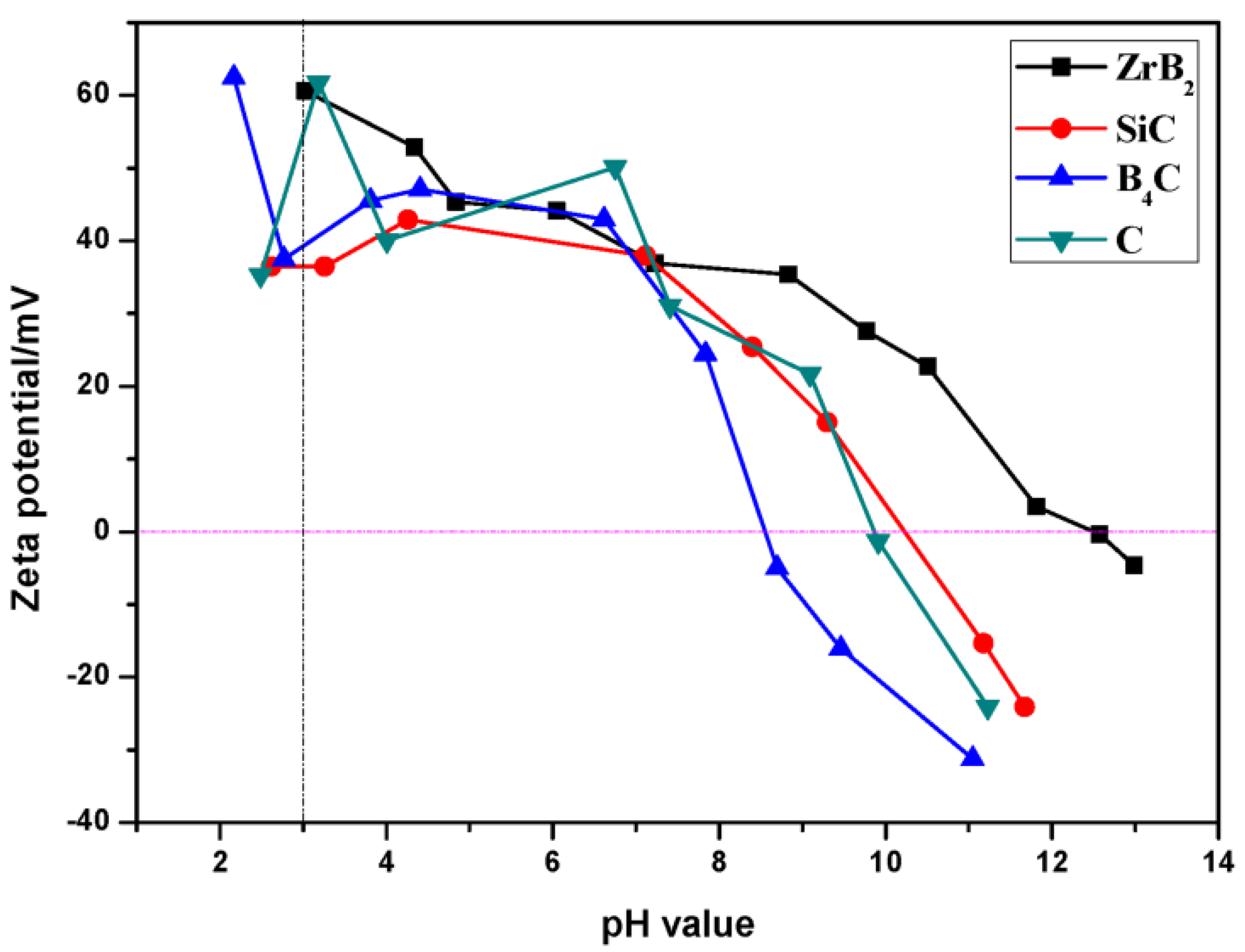

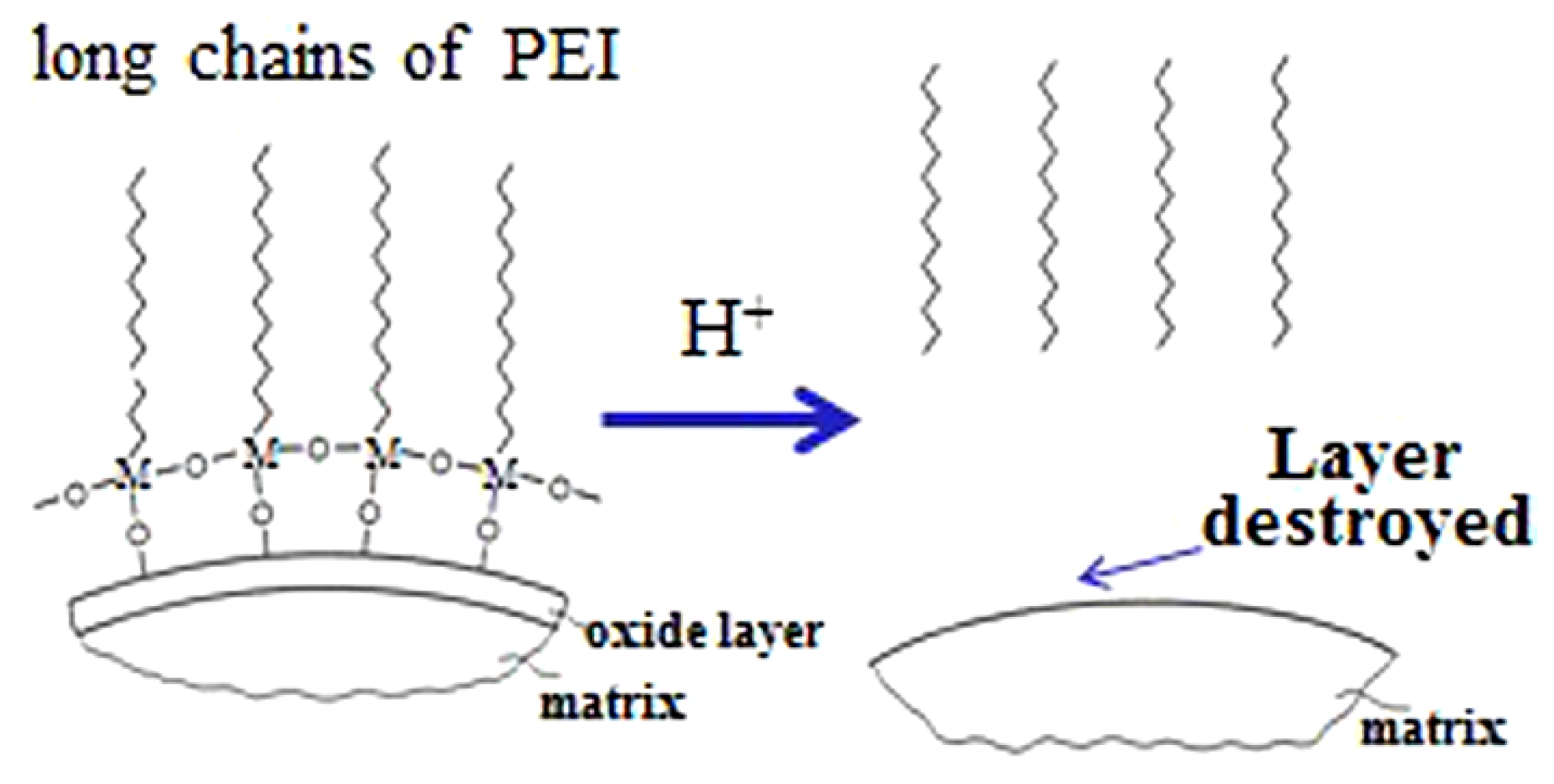

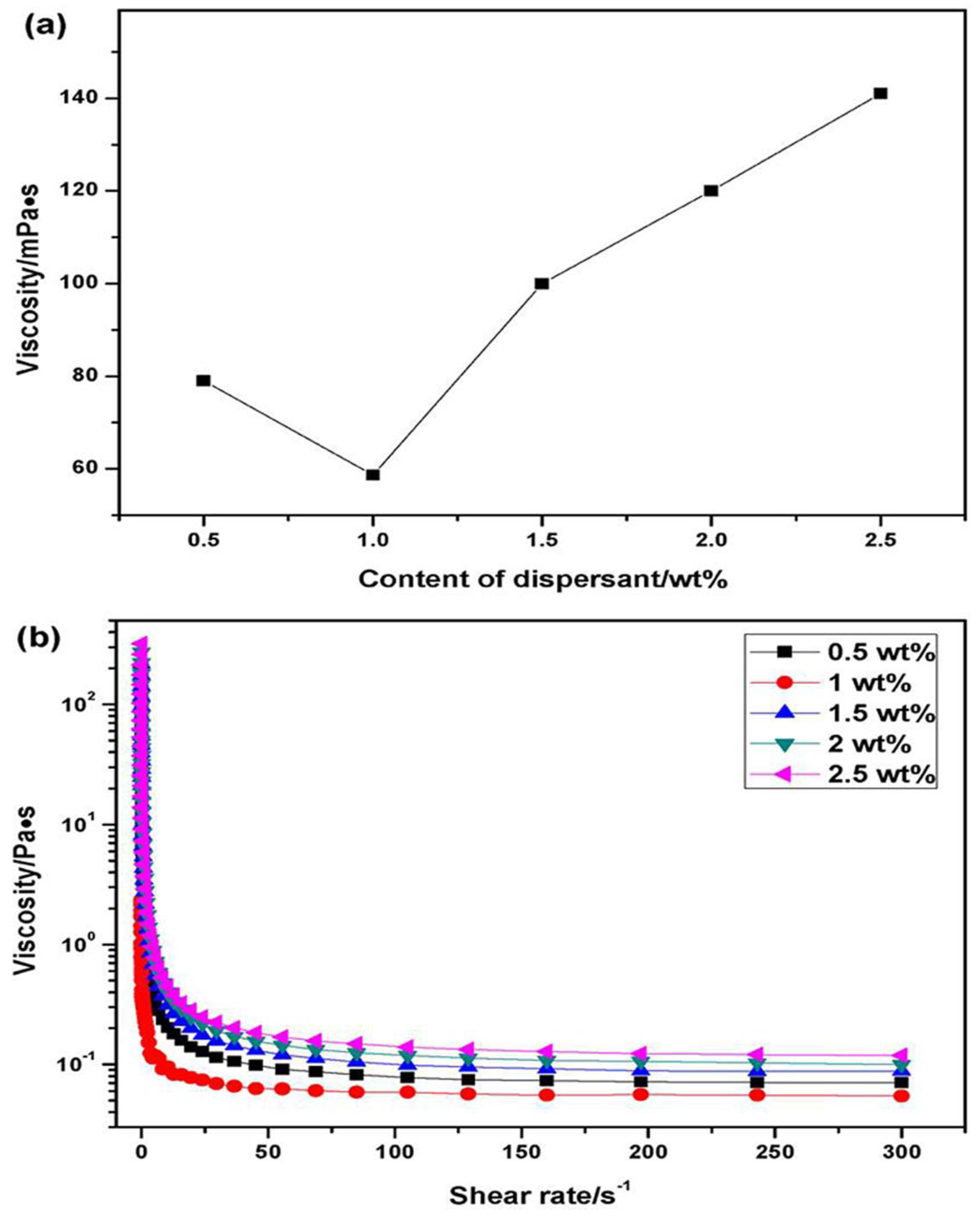

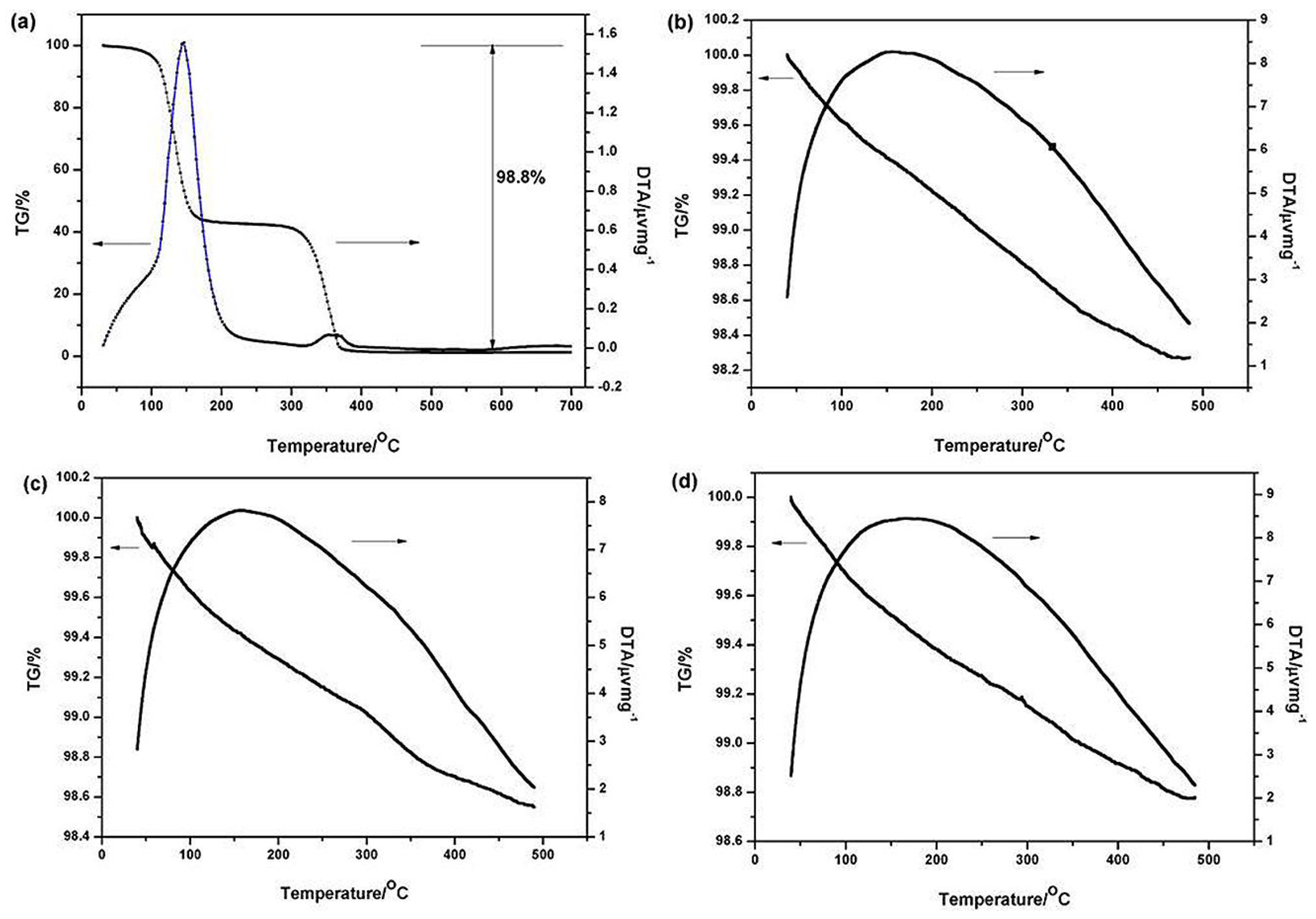

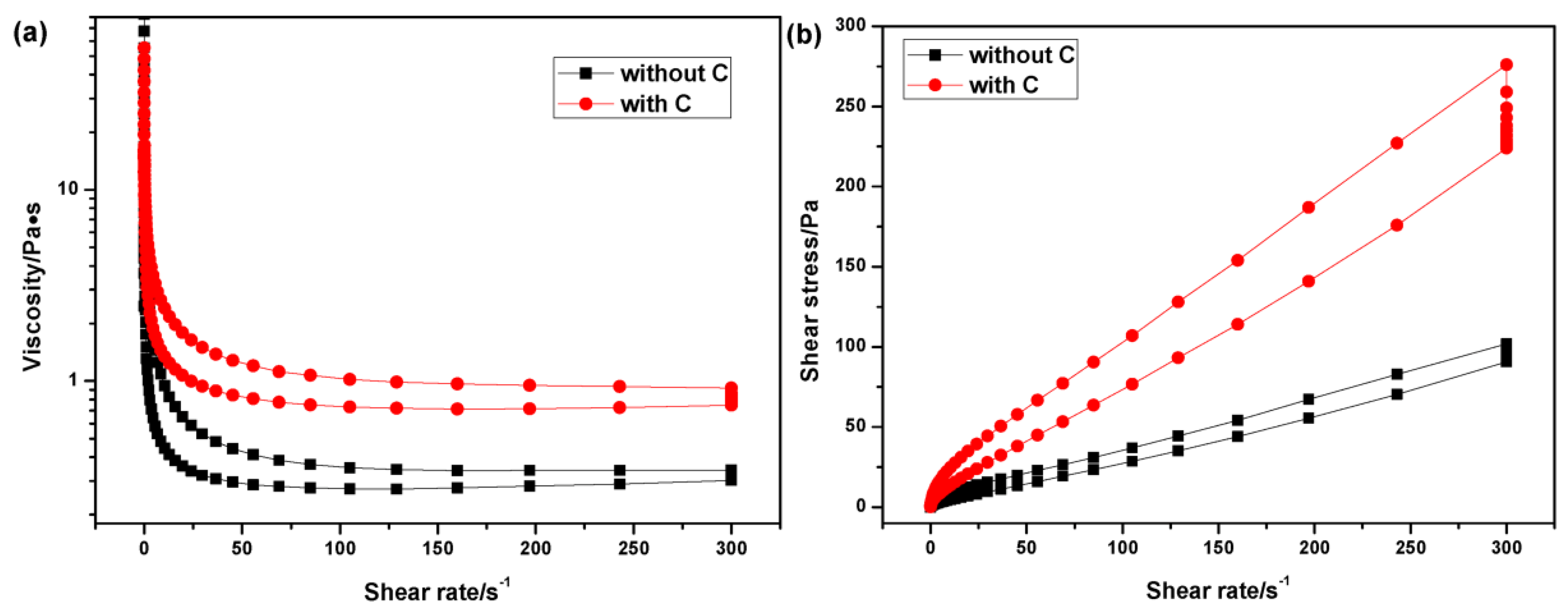

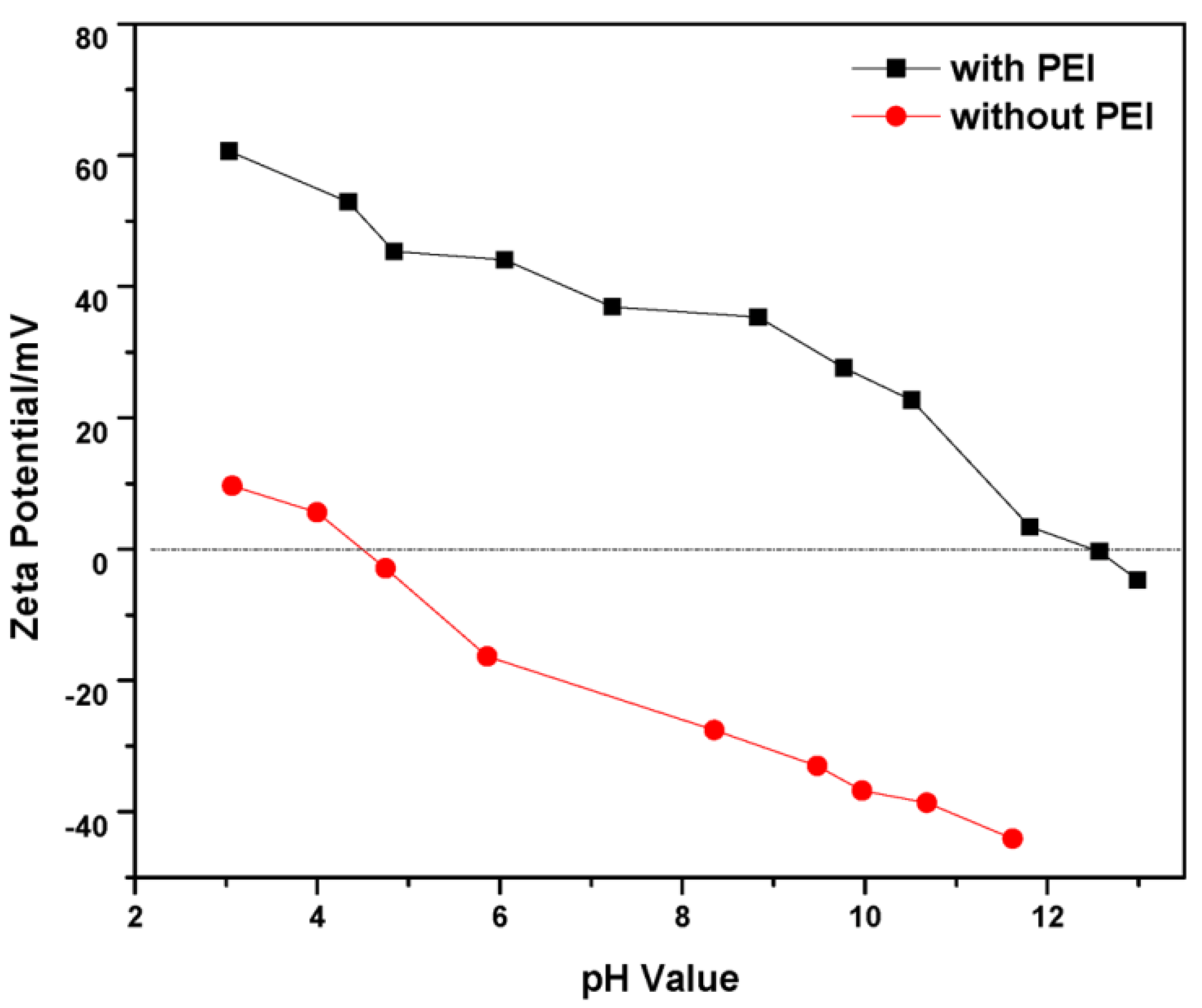

Abstract: The aqueous dispersion behavior of ZrB2, SiC powders with B4C and C as sintering aids was investigated. Well co-dispersed suspension can be obtained in acidic solutions in presence of polyethyleneimine (PEI). The adsorption of PEI on the powder surface was measured by thermal gravimetric (TG) analysis. Rheological measurements displayed the effect of dispersant on the flow behavior of as-prepared slurries. An optimum condition was obtained with 1 wt % PEI. The viscosity of 40 vol % ZrB2–SiC–B4C–C (ZSBC) suspension at 100 s−1 was as low as 0.74 Pa·s, which was suitable for aqueous processing.
Keywords: ZrB2; dispersion; suspension; surface; rheological behavior
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Yin, J.; Chen, J.; Liu, X.; Zhang, H.; Yan, Y.; Huang, Z.; Jiang, D. Co-Dispersion Behavior of ZrB2–SiC–B4C–C Powders with Polyethyleneimine. Materials 2013, 6, 4249-4258.

AMA Style

Yin J, Chen J, Liu X, Zhang H, Yan Y, Huang Z, Jiang D. Co-Dispersion Behavior of ZrB2–SiC–B4C–C Powders with Polyethyleneimine. Materials. 2013; 6(9):4249-4258.

Chicago/Turabian Style

Yin, Jie; Chen, Jian; Liu, Xuejian; Zhang, Hui; Yan, Yongjie; Huang, Zhengren; Jiang, Dongliang. 2013. "Co-Dispersion Behavior of ZrB2–SiC–B4C–C Powders with Polyethyleneimine." Materials 6, no. 9: 4249-4258.


Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
