Materials 2012, 5(8), 1413-1438; doi:10.3390/ma5081413
Review

Design of Higher-k and More Stable Rare Earth Oxides as Gate Dielectrics for Advanced CMOS Devices

School of Electronic Science and Engineering, Nanjing University, Nanjing 210093, China
Received: 2 June 2012; in revised form: 24 July 2012 / Accepted: 26 July 2012 / Published: 17 August 2012
(This article belongs to the Special Issue High-k Materials and Devices)
PDF Full-text Download PDF Full-Text [2103 KB, Updated Version, uploaded 22 August 2012 07:49 CEST]
The original version is still available [2103 KB, uploaded 17 August 2012 09:39 CEST]

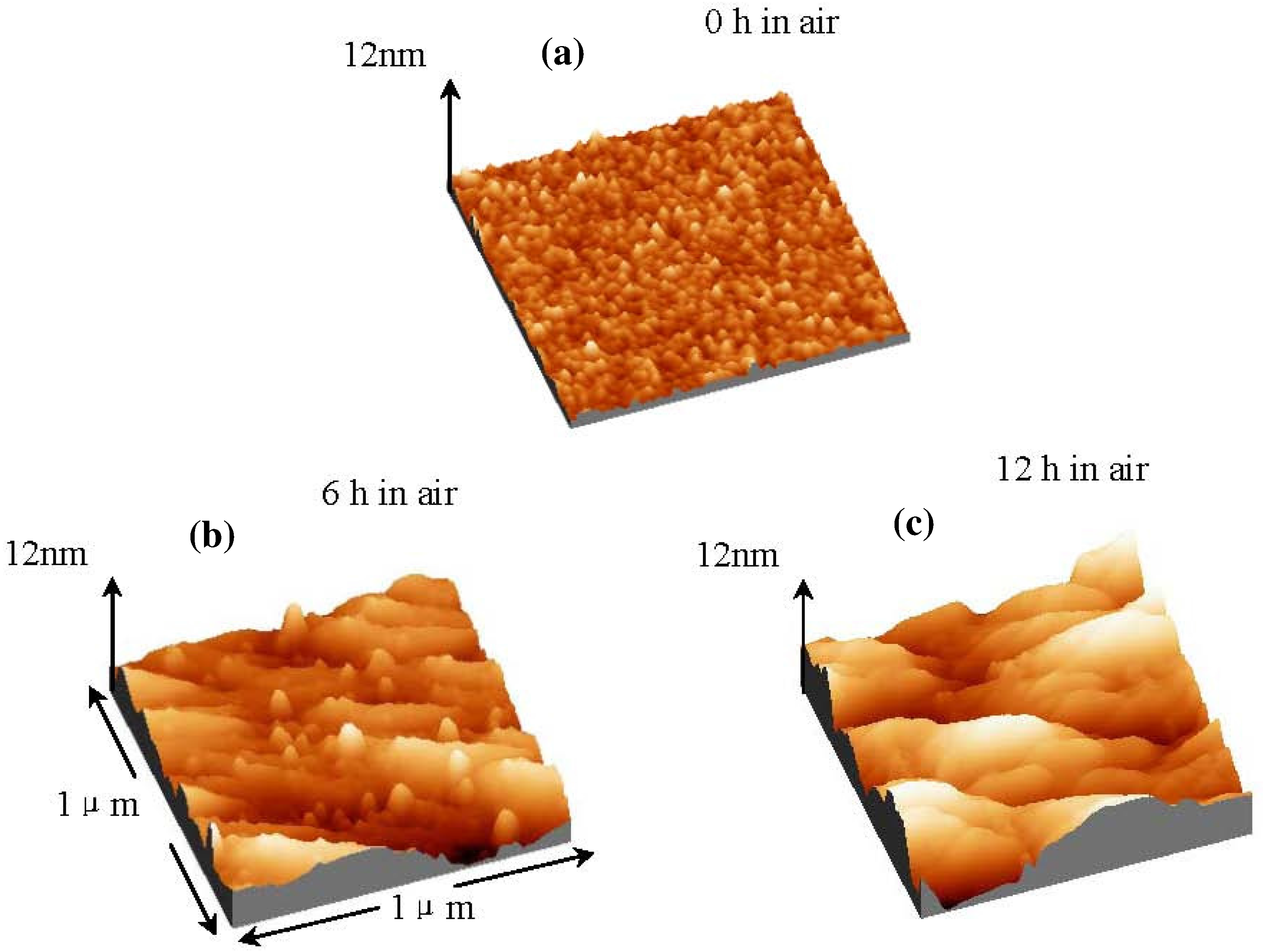

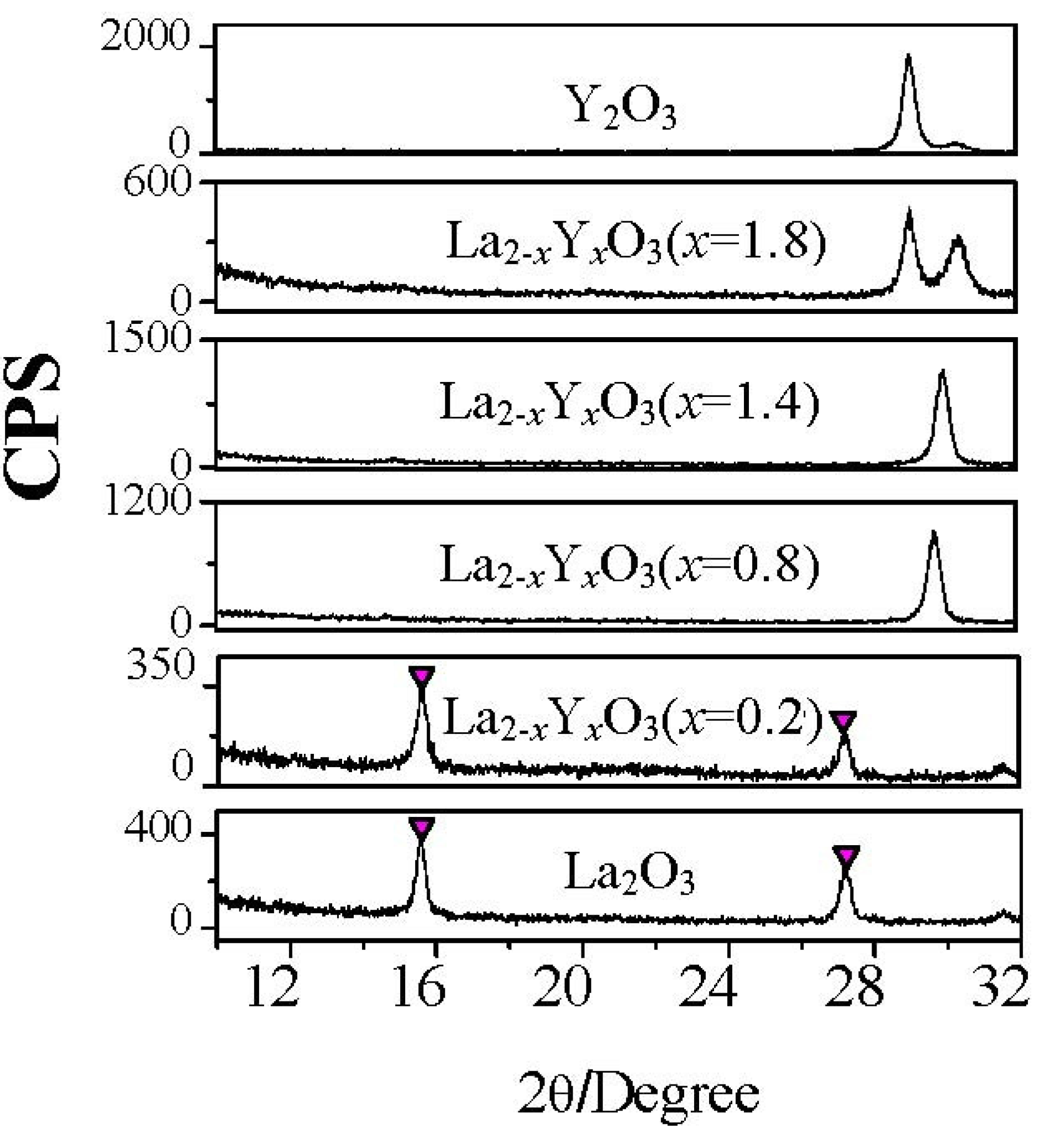

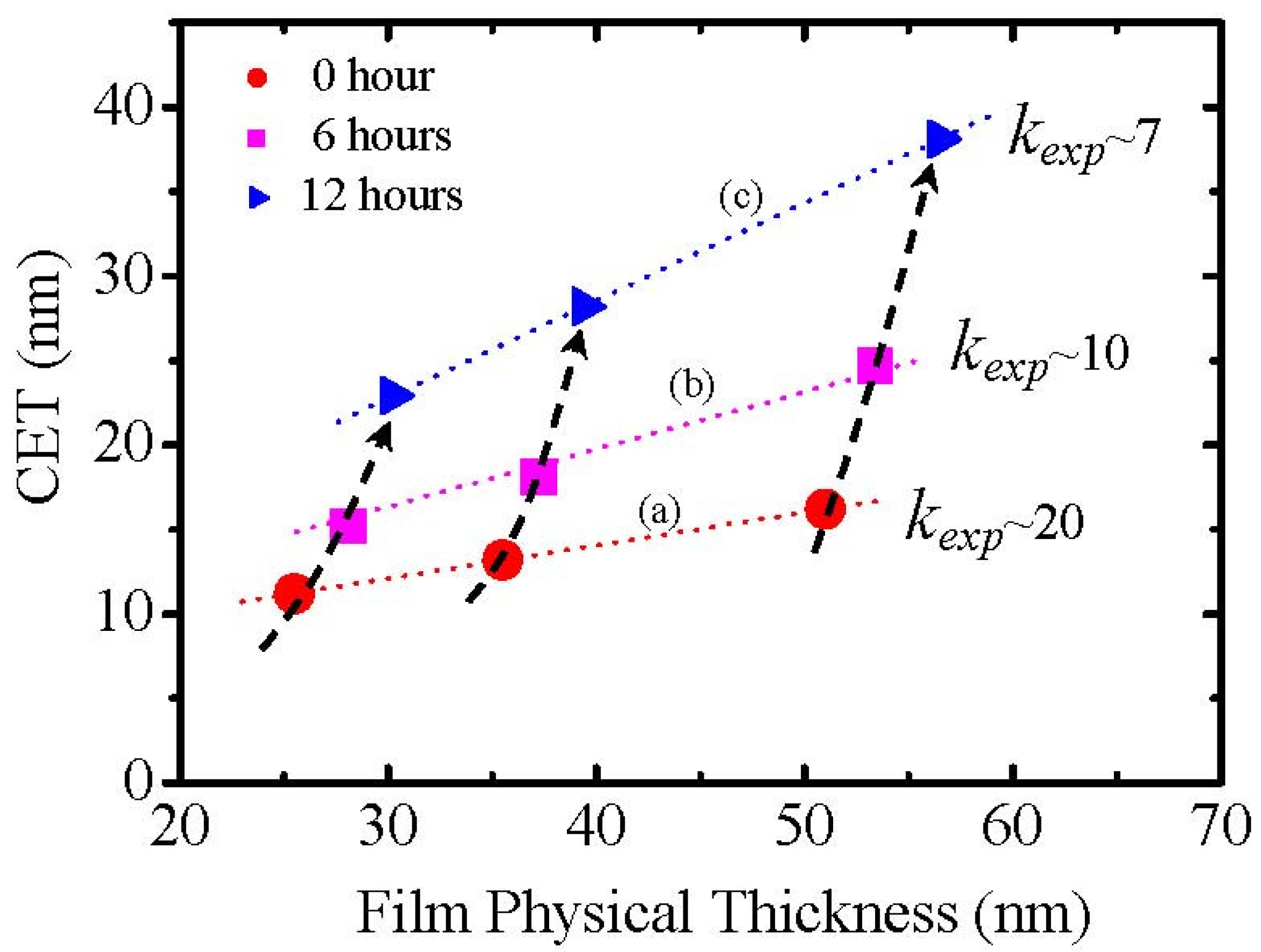

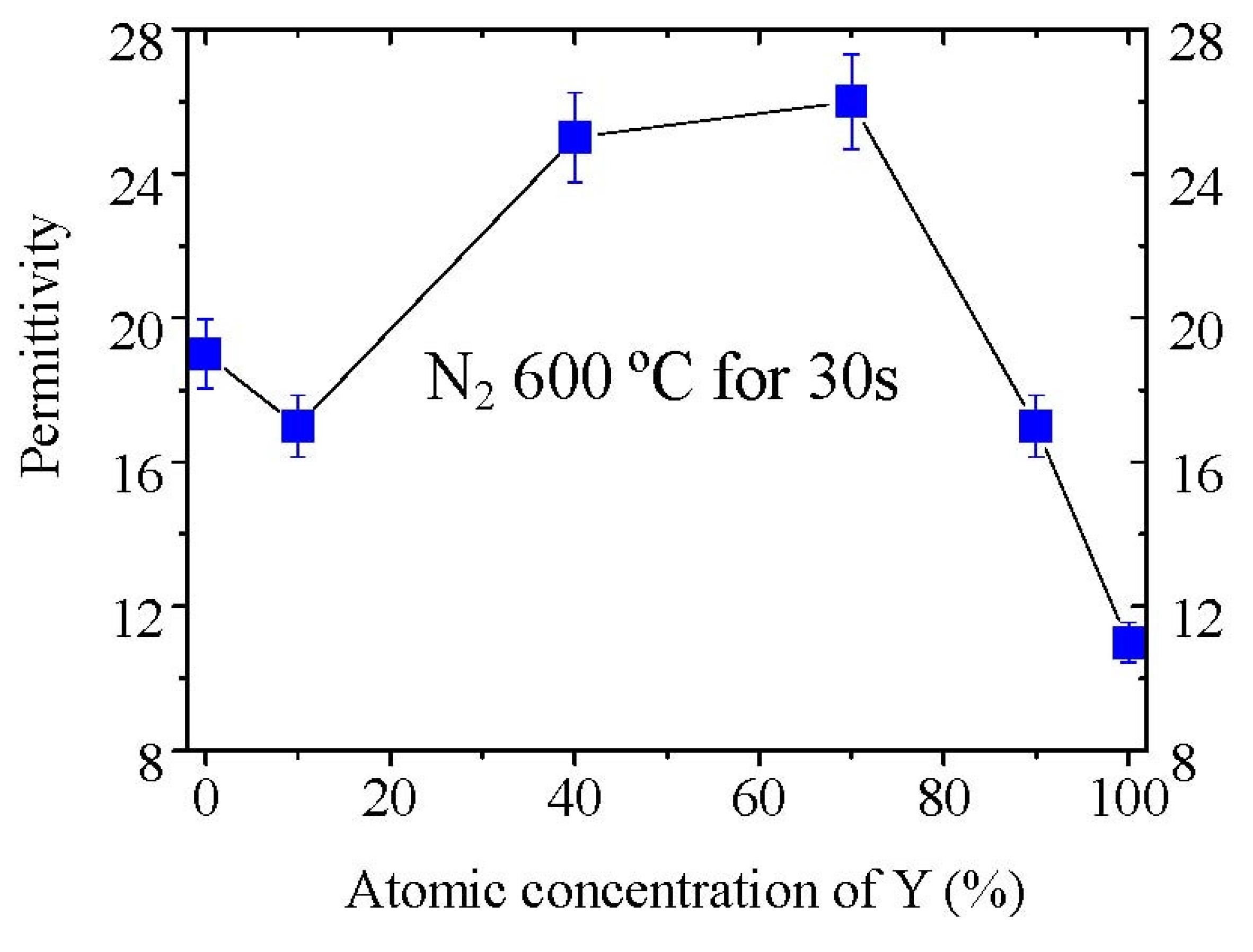

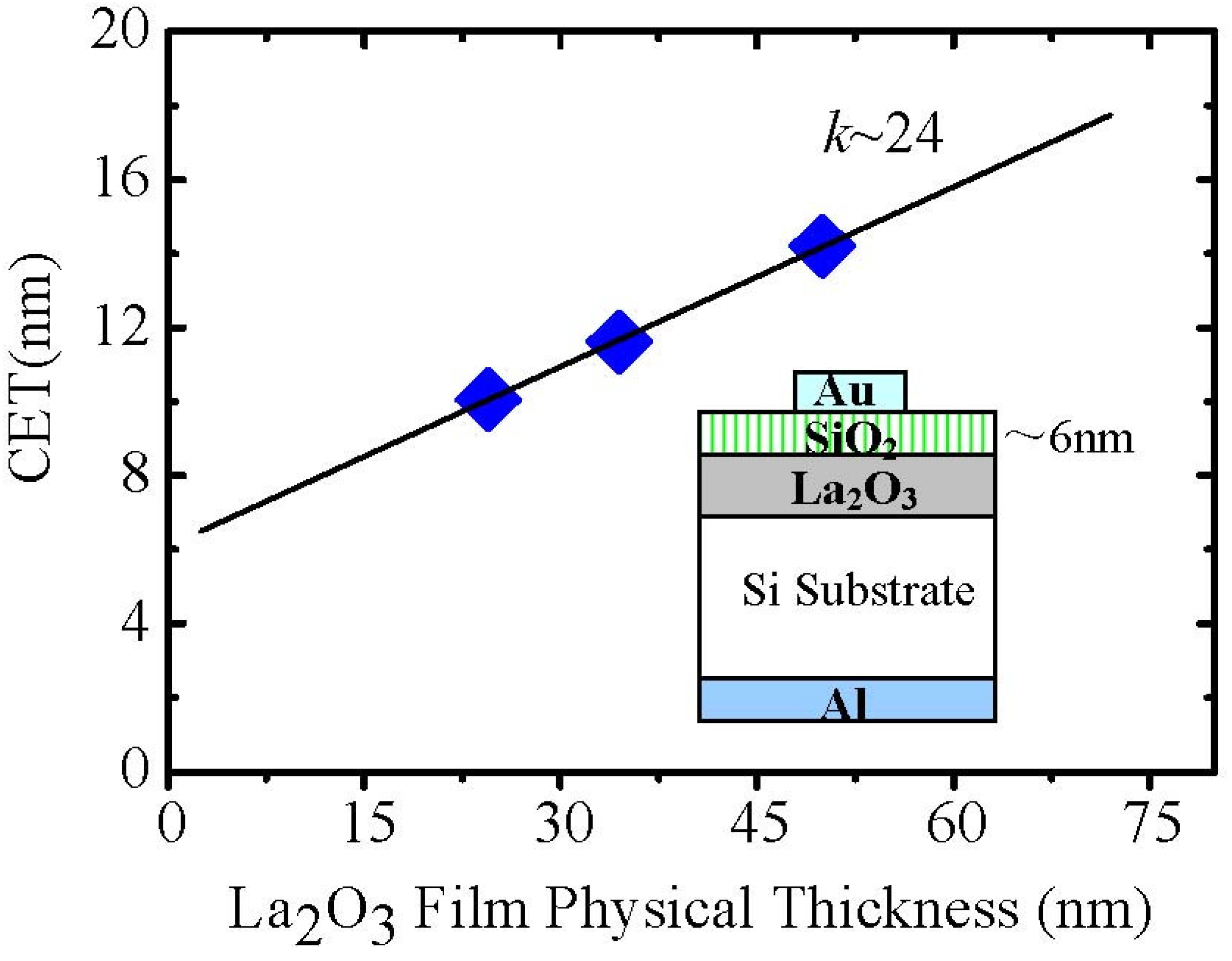

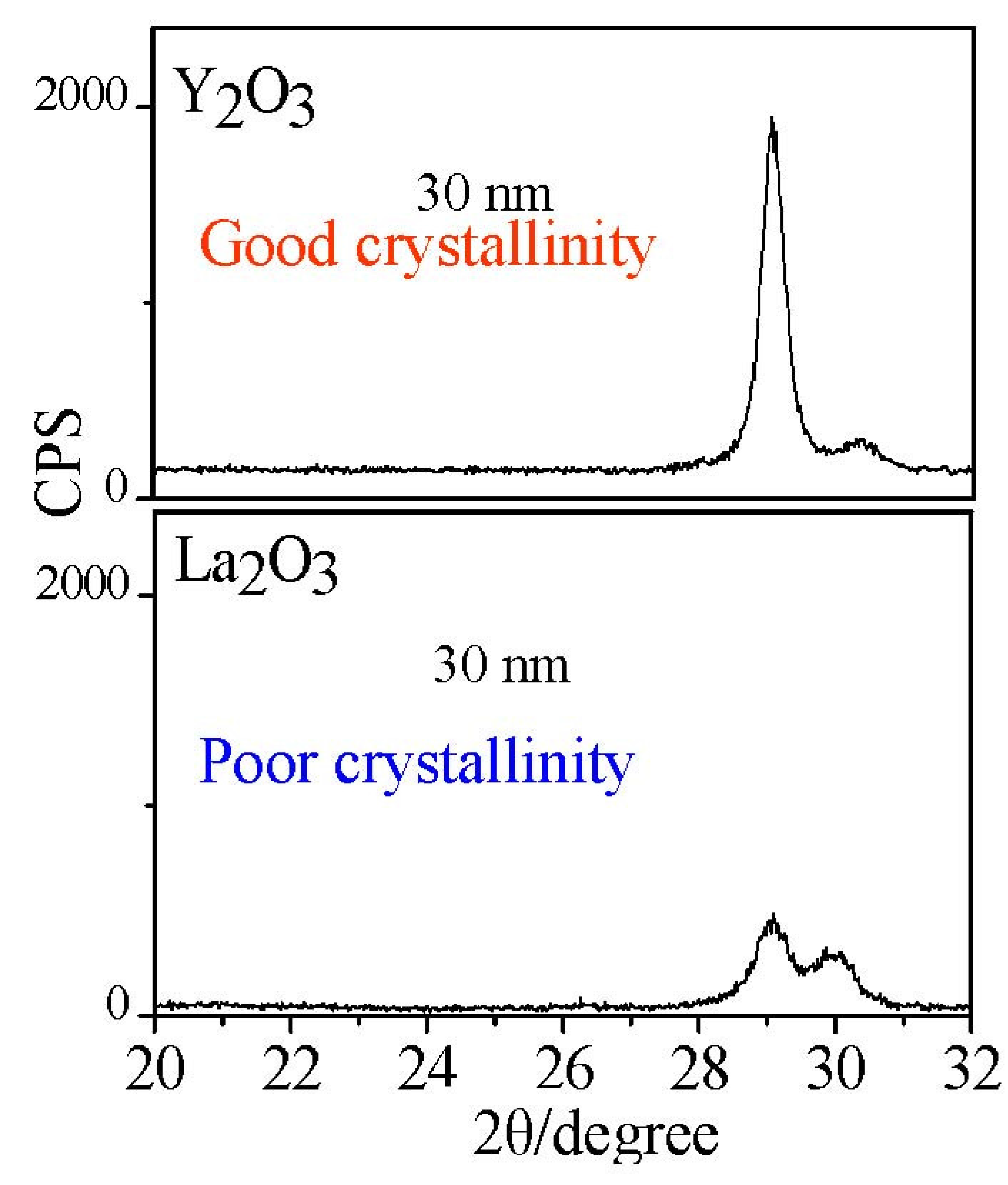

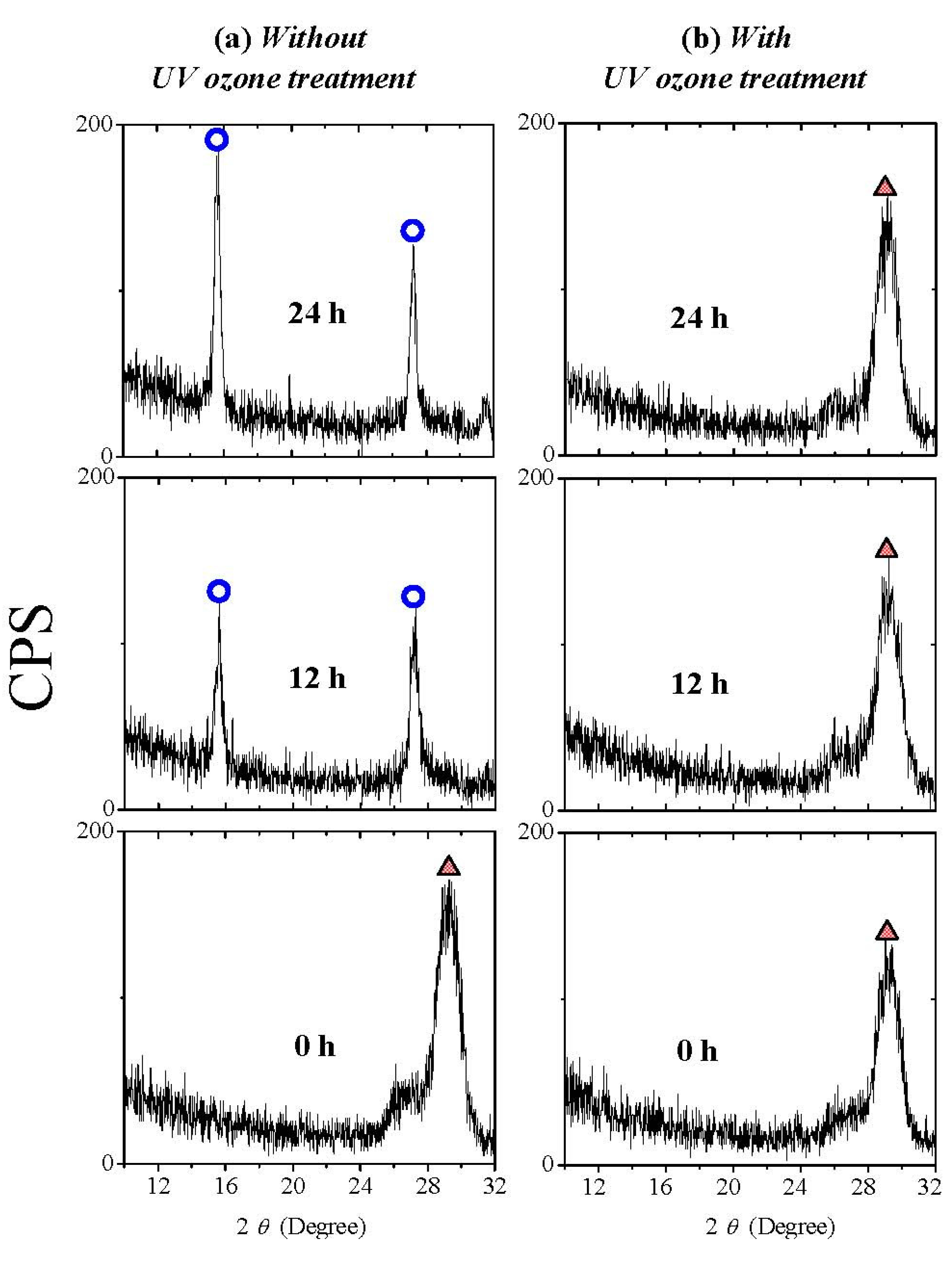

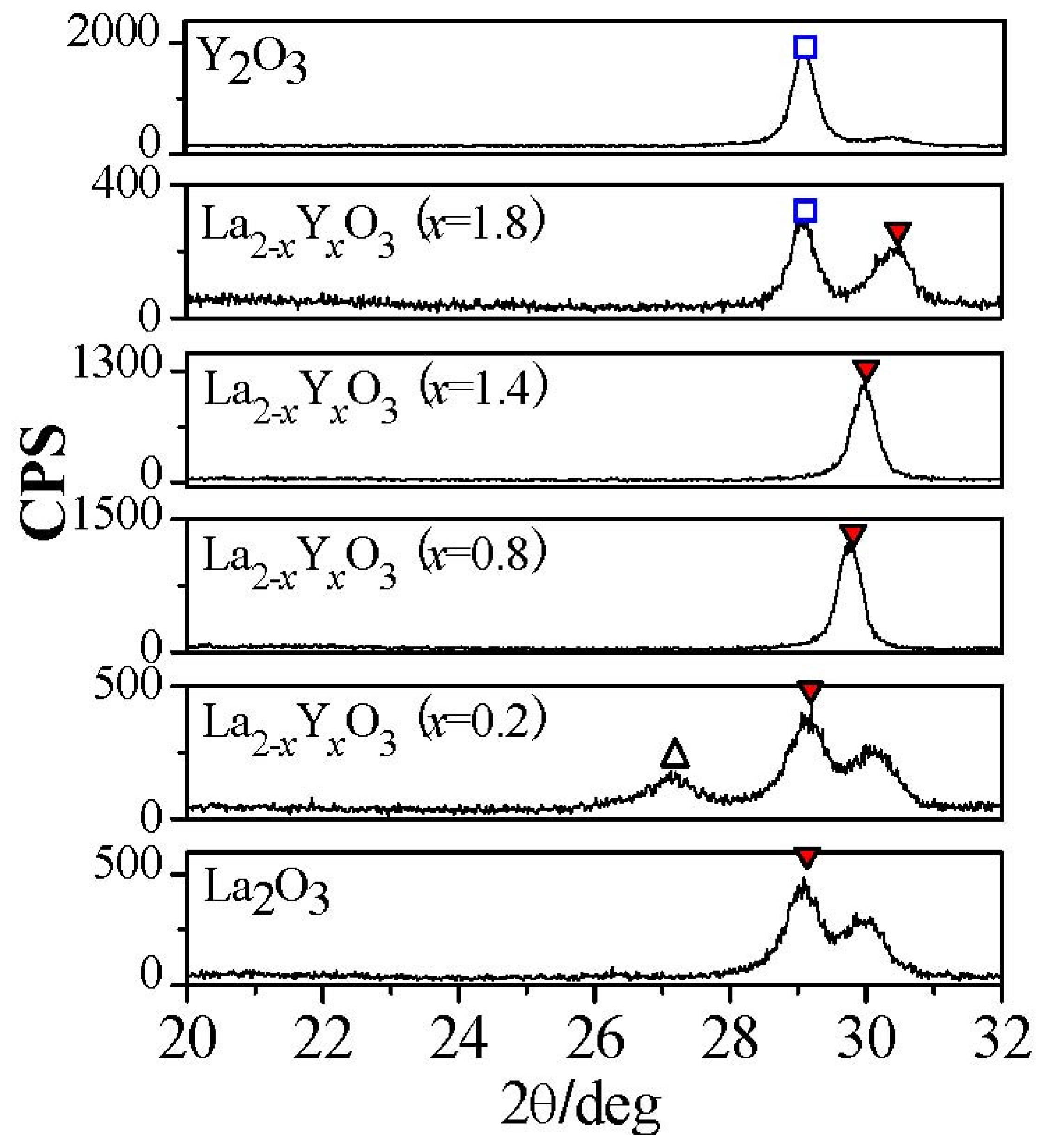

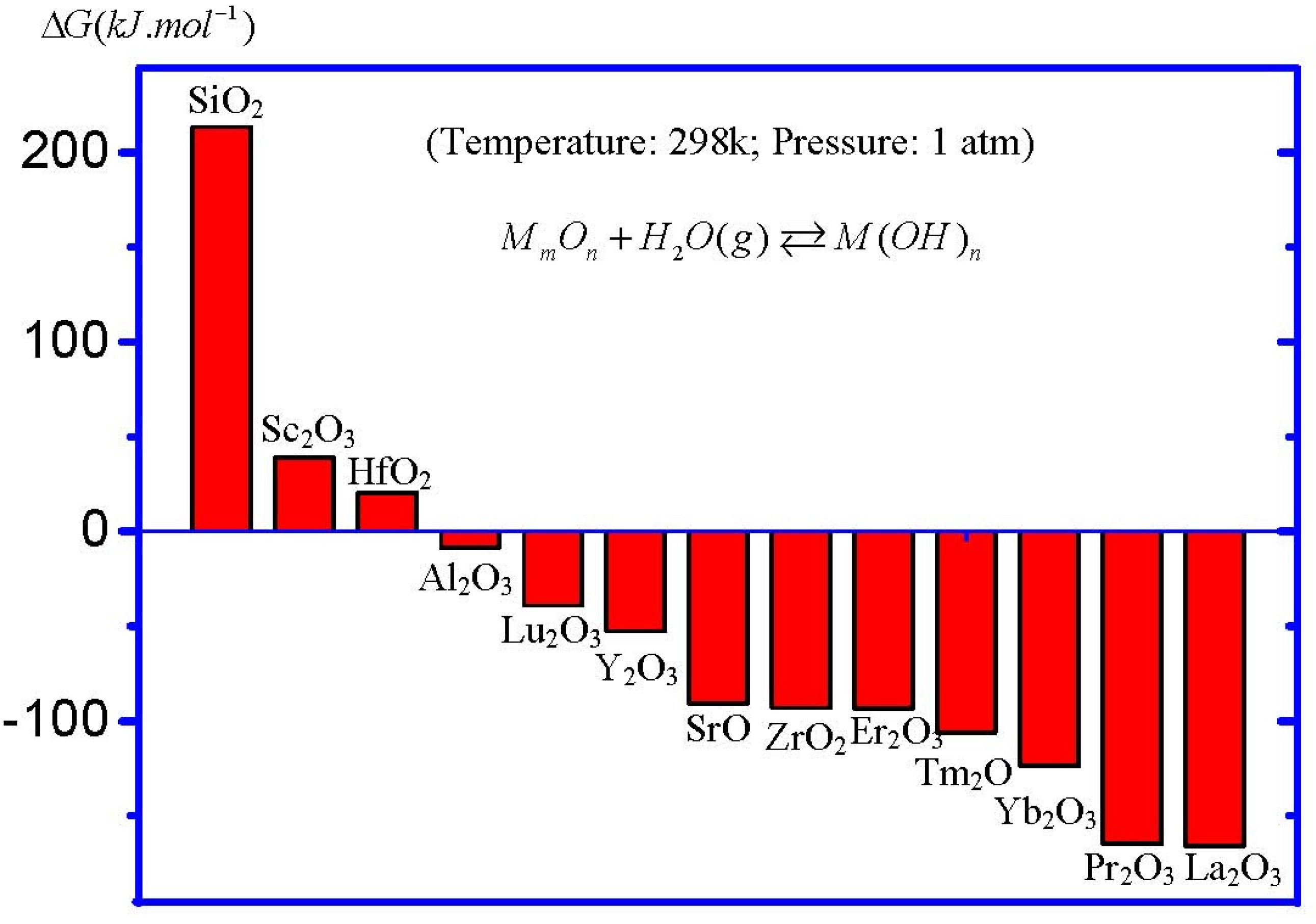

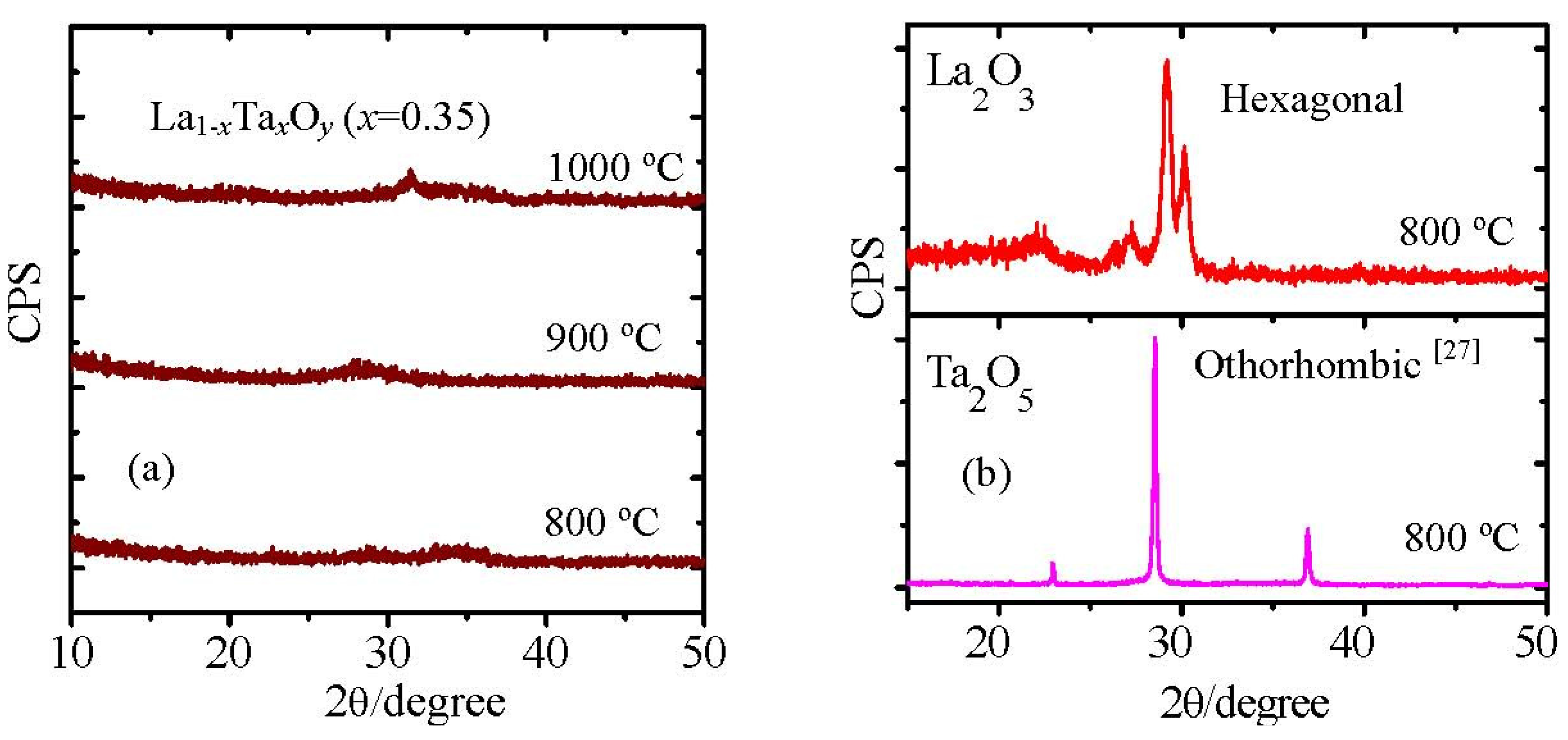

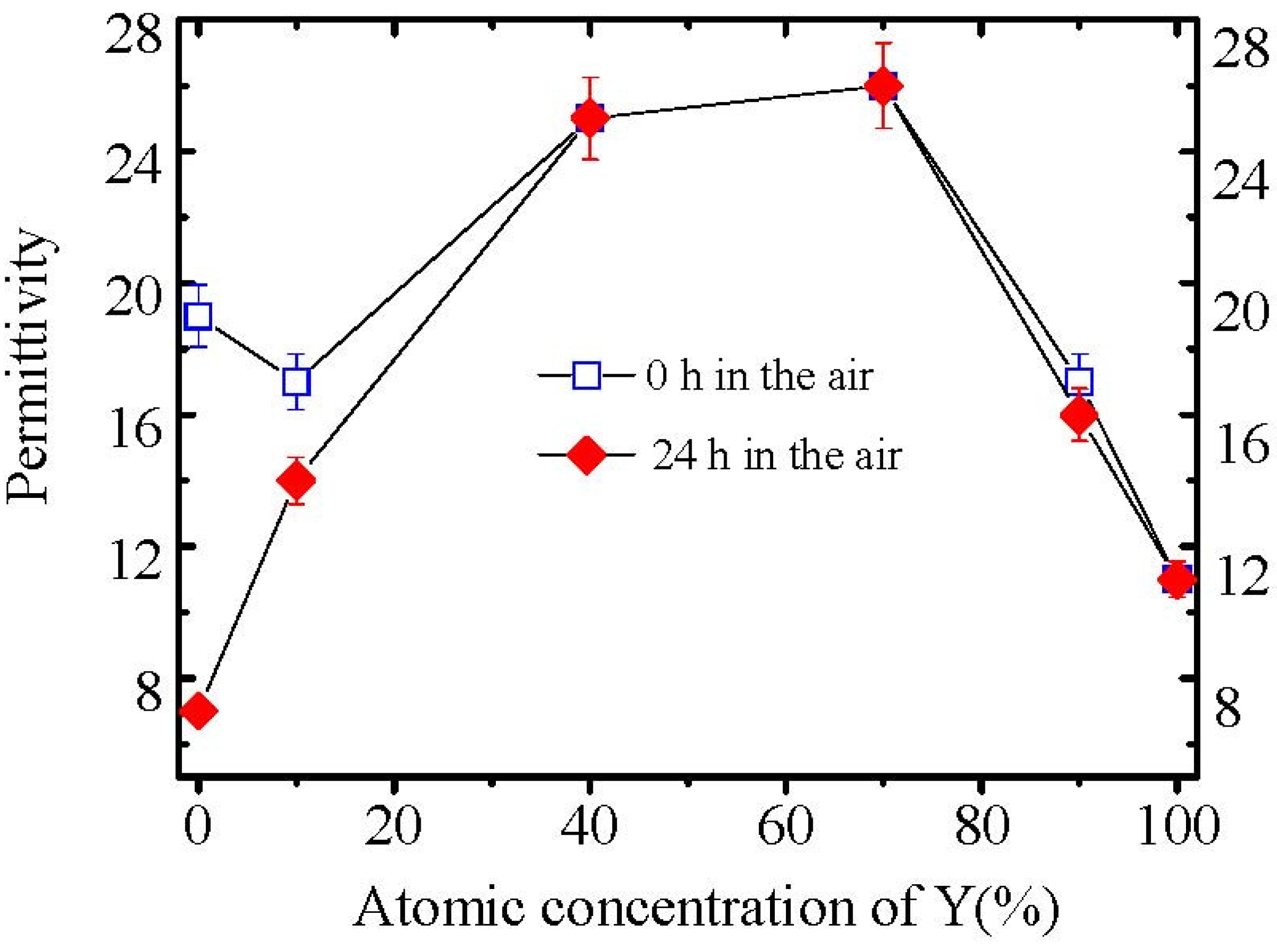

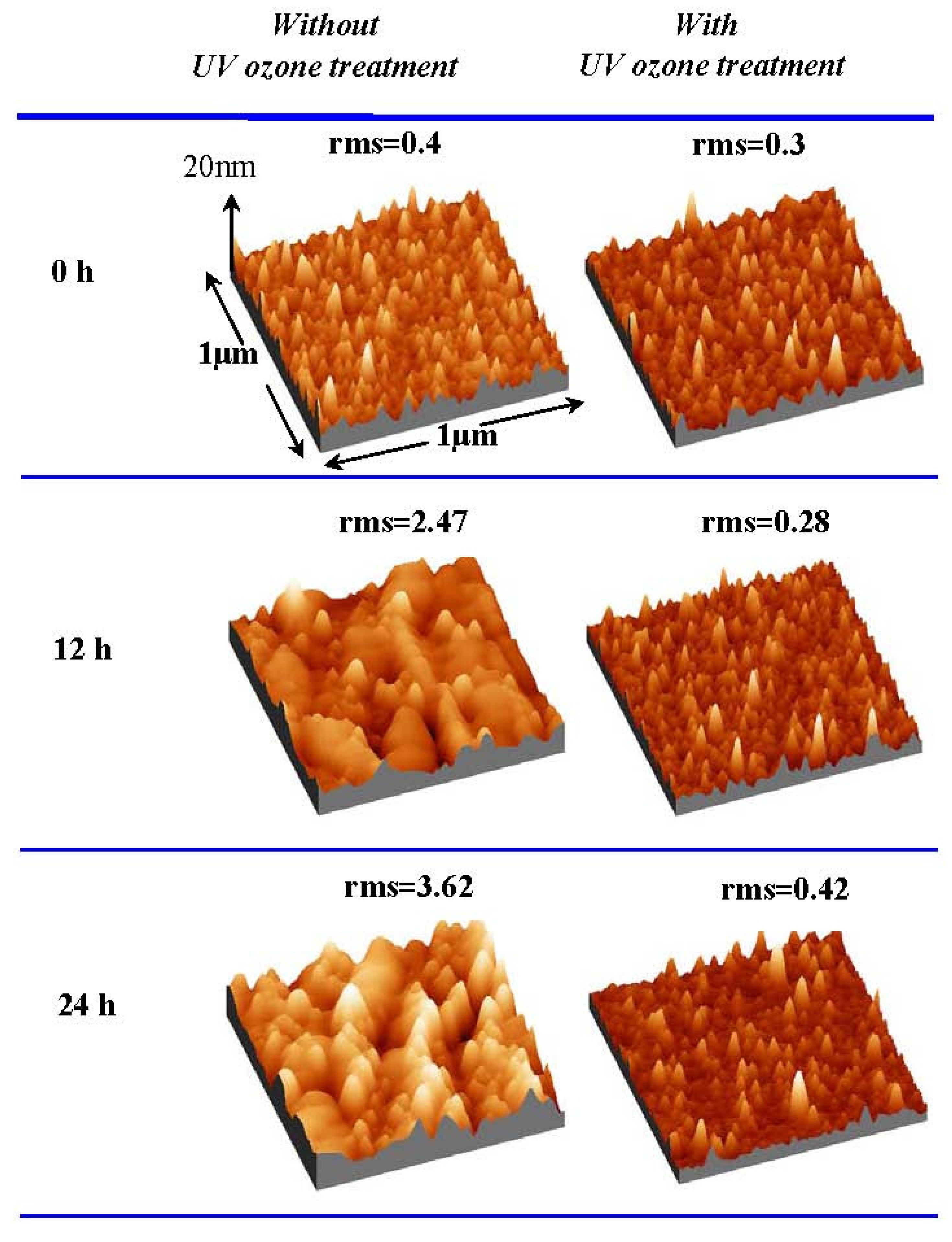

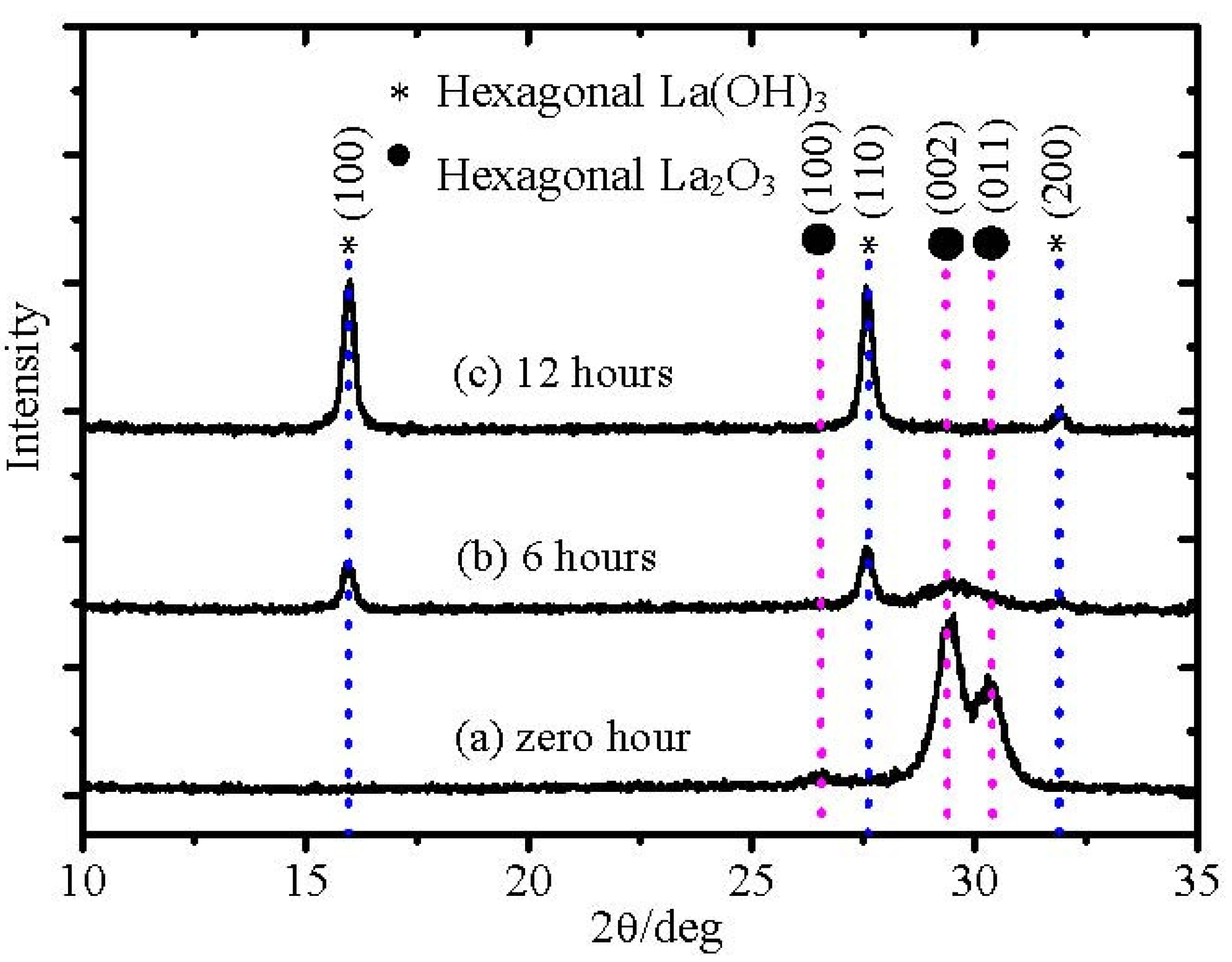

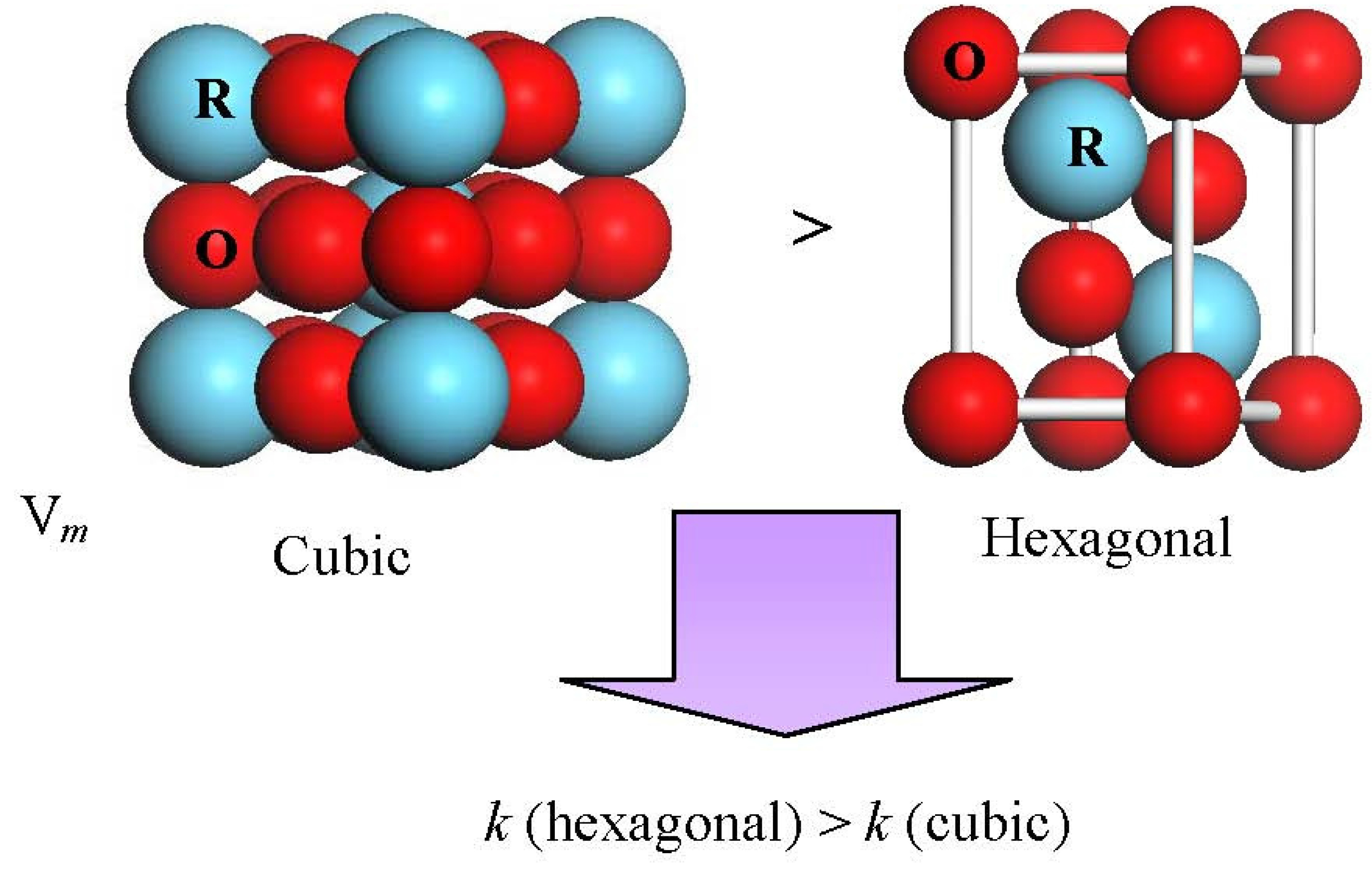

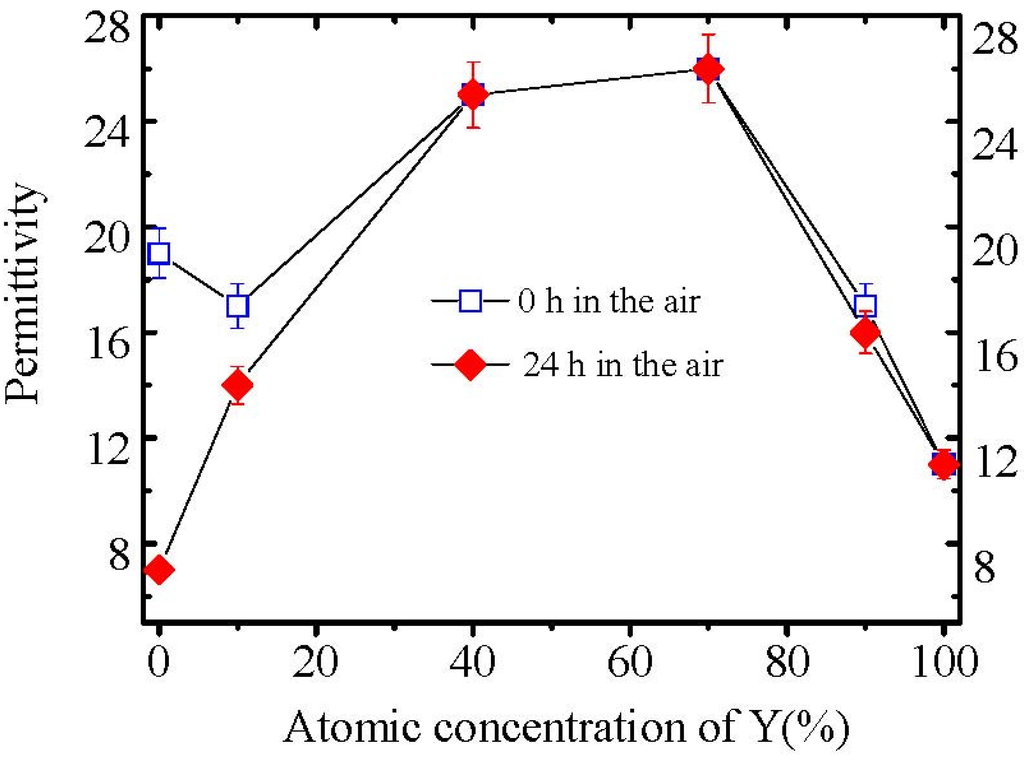

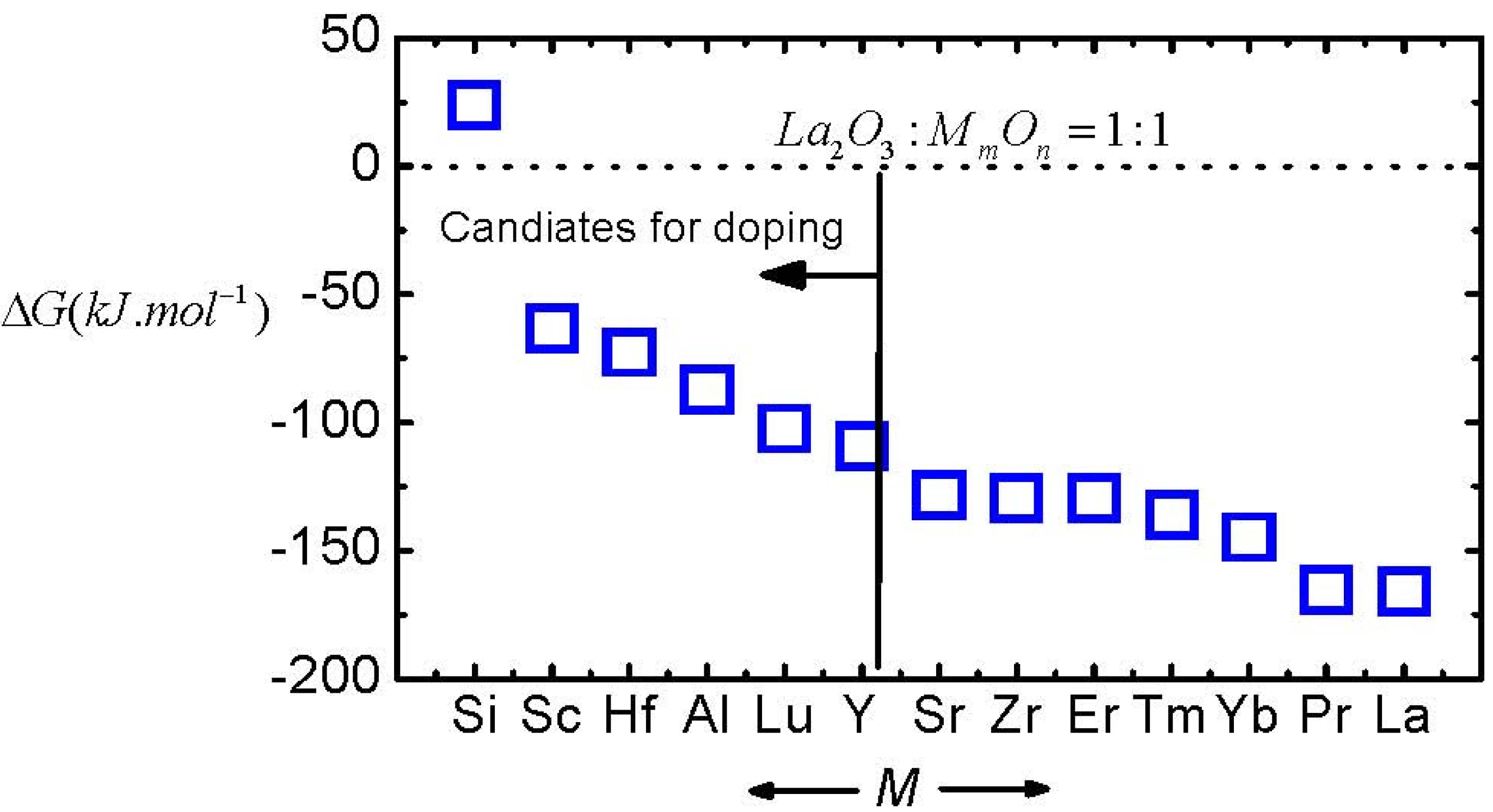

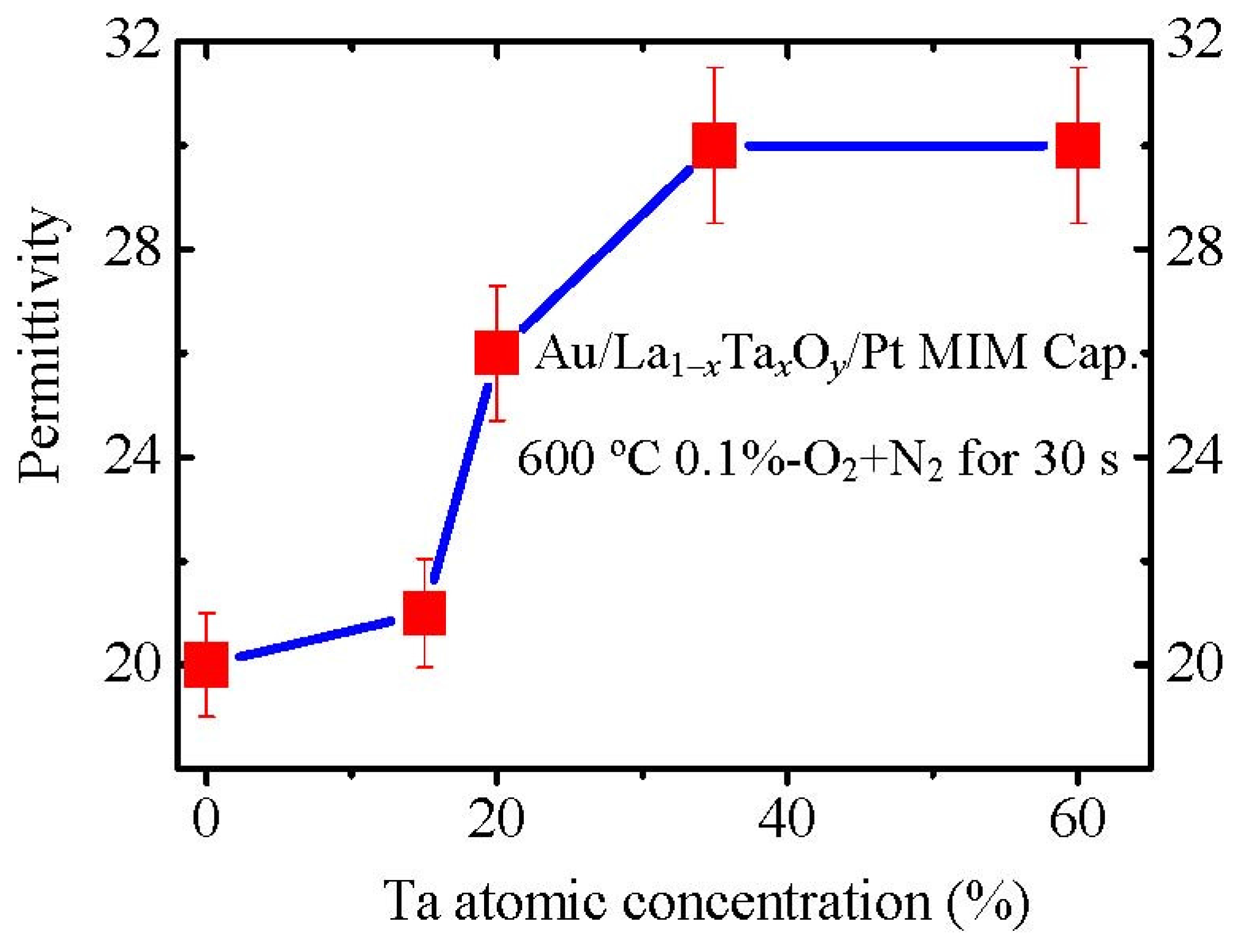

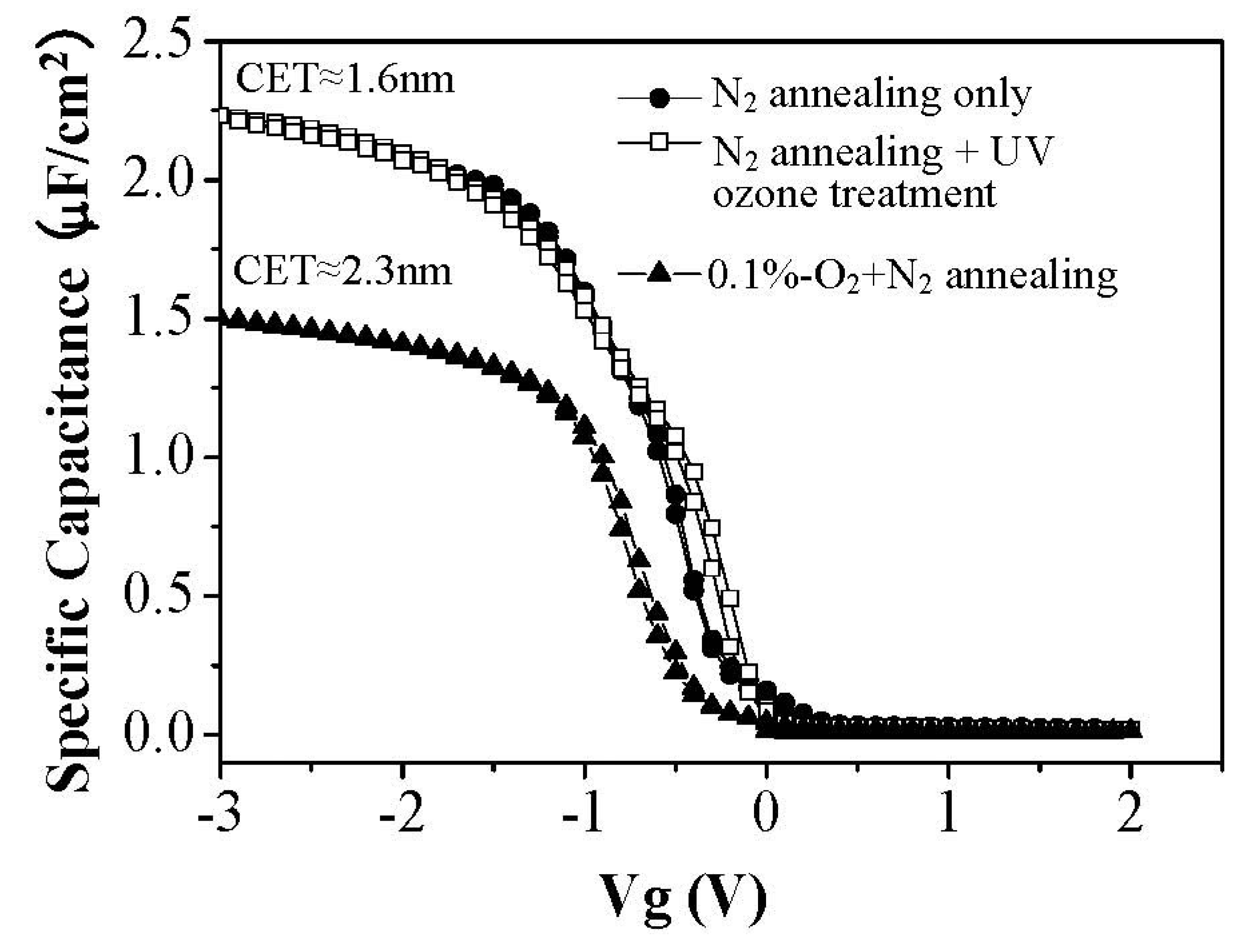

Abstract: High permittivity (k) gate dielectric films are widely studied to substitute SiO2 as gate oxides to suppress the unacceptable gate leakage current when the traditional SiO2 gate oxide becomes ultrathin. For high-k gate oxides, several material properties are dominantly important. The first one, undoubtedly, is permittivity. It has been well studied by many groups in terms of how to obtain a higher permittivity for popular high-k oxides, like HfO2 and La2O3. The second one is crystallization behavior. Although it’s still under the debate whether an amorphous film is definitely better than ploy-crystallized oxide film as a gate oxide upon considering the crystal boundaries induced leakage current, the crystallization behavior should be well understood for a high-k gate oxide because it could also, to some degree, determine the permittivity of the high-k oxide. Finally, some high-k gate oxides, especially rare earth oxides (like La2O3), are not stable in air and very hygroscopic, forming hydroxide. This topic has been well investigated in over the years and significant progresses have been achieved. In this paper, I will intensively review the most recent progresses of the experimental and theoretical studies for preparing higher-k and more stable, in terms of hygroscopic tolerance and crystallization behavior, Hf- and La-based ternary high-k gate oxides.
Keywords: gate dielectrics; hafnium oxide; lanthanum oxide; ternary oxides; permittivity; crystallization temperature; hygroscopic tolerance

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Zhao, Y. Design of Higher-k and More Stable Rare Earth Oxides as Gate Dielectrics for Advanced CMOS Devices. Materials 2012, 5, 1413-1438.

AMA Style

Zhao Y. Design of Higher-k and More Stable Rare Earth Oxides as Gate Dielectrics for Advanced CMOS Devices. Materials. 2012; 5(8):1413-1438.

Chicago/Turabian Style

Zhao, Yi. 2012. "Design of Higher-k and More Stable Rare Earth Oxides as Gate Dielectrics for Advanced CMOS Devices." Materials 5, no. 8: 1413-1438.

Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
