Properties of PEMA-NH4CF3SO3 Added to BMATSFI Ionic Liquid
Abstract
:1. Introduction
2. Experimental Section
2.1. Materials
2.2. Characterization
3. Results and Discussion
3.1. Differential Scanning Calorimetry
Polymer film | Glass transition temperature, Tg (°C) |
---|---|
Pure PEMA | 72 |
(PEMA-NH4SO3CF3) | 68 |
(PEMA-NH4SO3CF3)-BMATFSI 15 wt % | 43 |
(PEMA-NH4SO3CF3)-BMATFSI 25 wt % | 29 |
(PEMA-NH4SO3CF3)-BMATFSI 35 wt % | 2 |

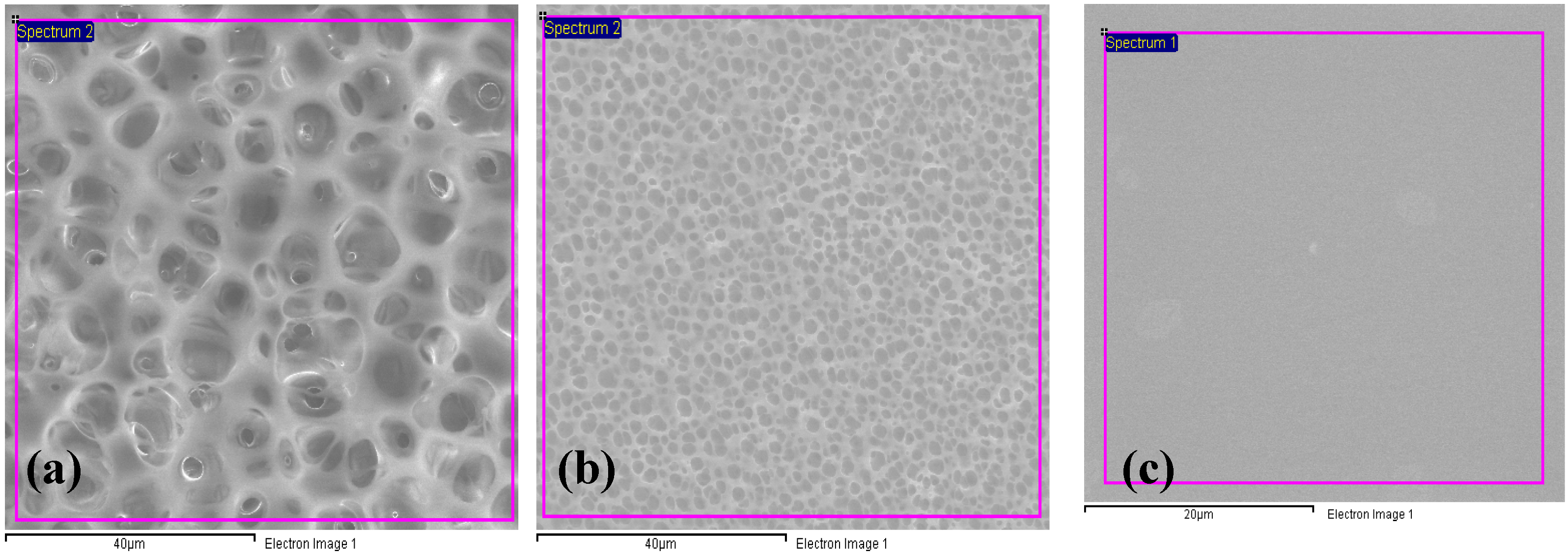

3.2. Scanning Electron Microscopy (SEM)

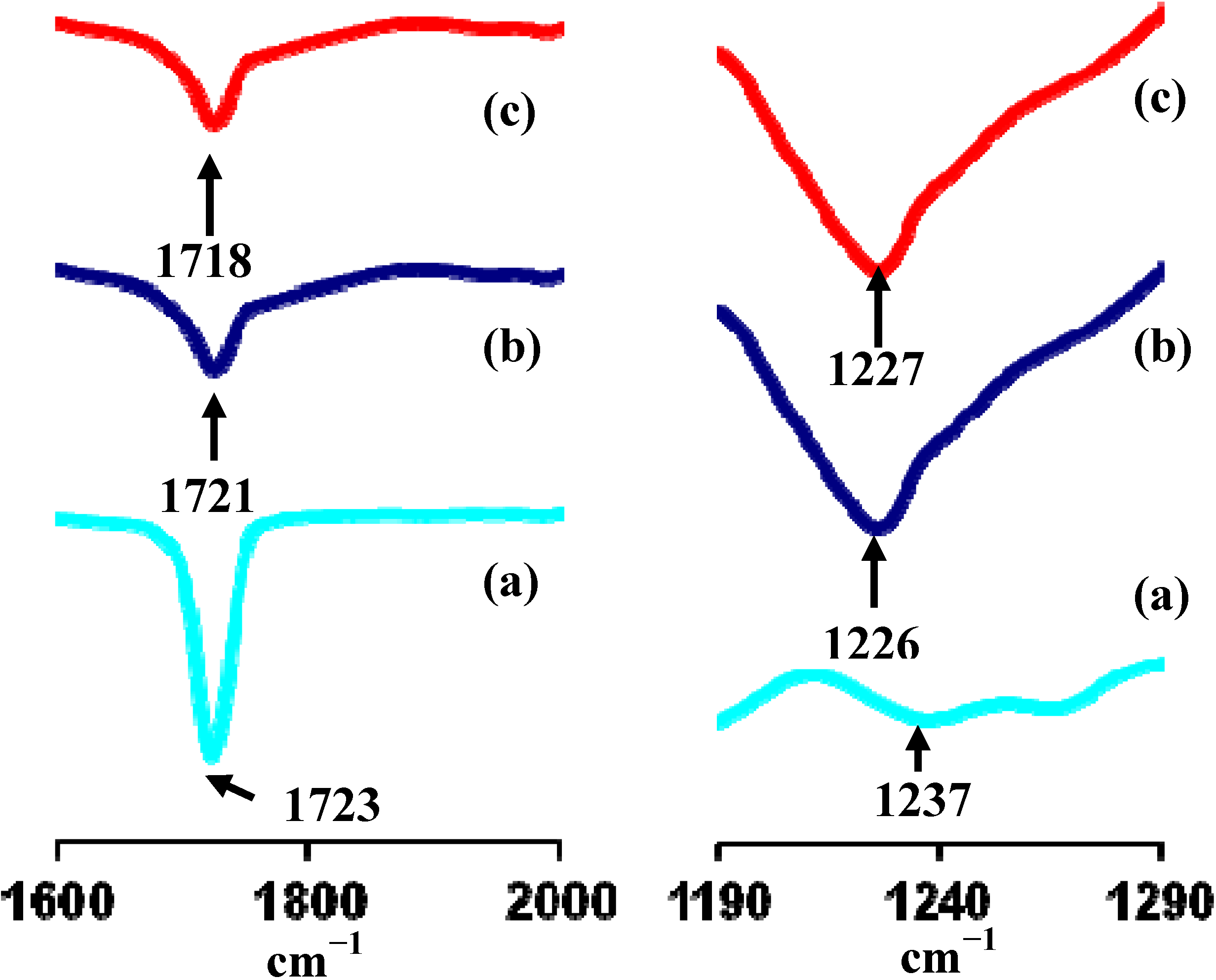

3.3. Fourier Transform Infrared
3.4. Conductivity Study
3.4.1. Composition Dependence of Conductivity
Polymer film | Conductivity, σ (S cm−1) |
---|---|
PEMA | 8.60 × 10−11 |
(PEMA-NH4SO3CF3) | 1.02 × 10−5 |
(PEMA-NH4SO3CF3)-BMATFSI 15 wt % | 4.05 × 10−5 |
(PEMA-NH4SO3CF3)-BMATFSI 25 wt % | 7.47 × 10−5 |
(PEMA-NH4SO3CF3)-BMATFSI 35 wt % | 8.35 × 10−4 |
3.4.2. Temperature Dependence of Conductivity
3.5. Activation Energy for Proton Ion Transport
Polymer film | Tg (K) | EA (kJ) |
---|---|---|
(PEMA-NH4SO3CF3) | 340.93 | 2.5 |
(PEMA-NH4SO3CF3)-BMATFSI 15 wt % | 315.65 | 2.3 |
(PEMA-NH4SO3CF3)-BMATFSI 25 wt % | 302.31 | 2.2 |
(PEMA-NH4SO3CF3)-BMATFSI 35 wt % | 275.25 | 1.8 |
3.6. Electrochemical Stability Determination
3.7. Ionic Transference Number Measurements
Polymer film | tion |
---|---|
(PEMA-NH4SO3CF3) | 0.999 |
(PEMA-NH4SO3CF3)-BMATFSI 25 wt % | 0.930 |
(PEMA-NH4SO3CF3)-BMATFSI 35 wt % | 0.820 |
4. Conclusions
