Materials 2011, 4(8), 1440-1468; doi:10.3390/ma4081440
Article

Simulation of Granular Flows and Pile Formation in a Flat-Bottomed Hopper and Bin, and Experimental Verification

1,*  and 2
Received: 17 June 2011; in revised form: 11 August 2011 / Accepted: 12 August 2011 / Published: 22 August 2011
(This article belongs to the Special Issue Advances in the Dynamics of Granular Materials)
Download PDF [2597 KB, uploaded 22 August 2011]

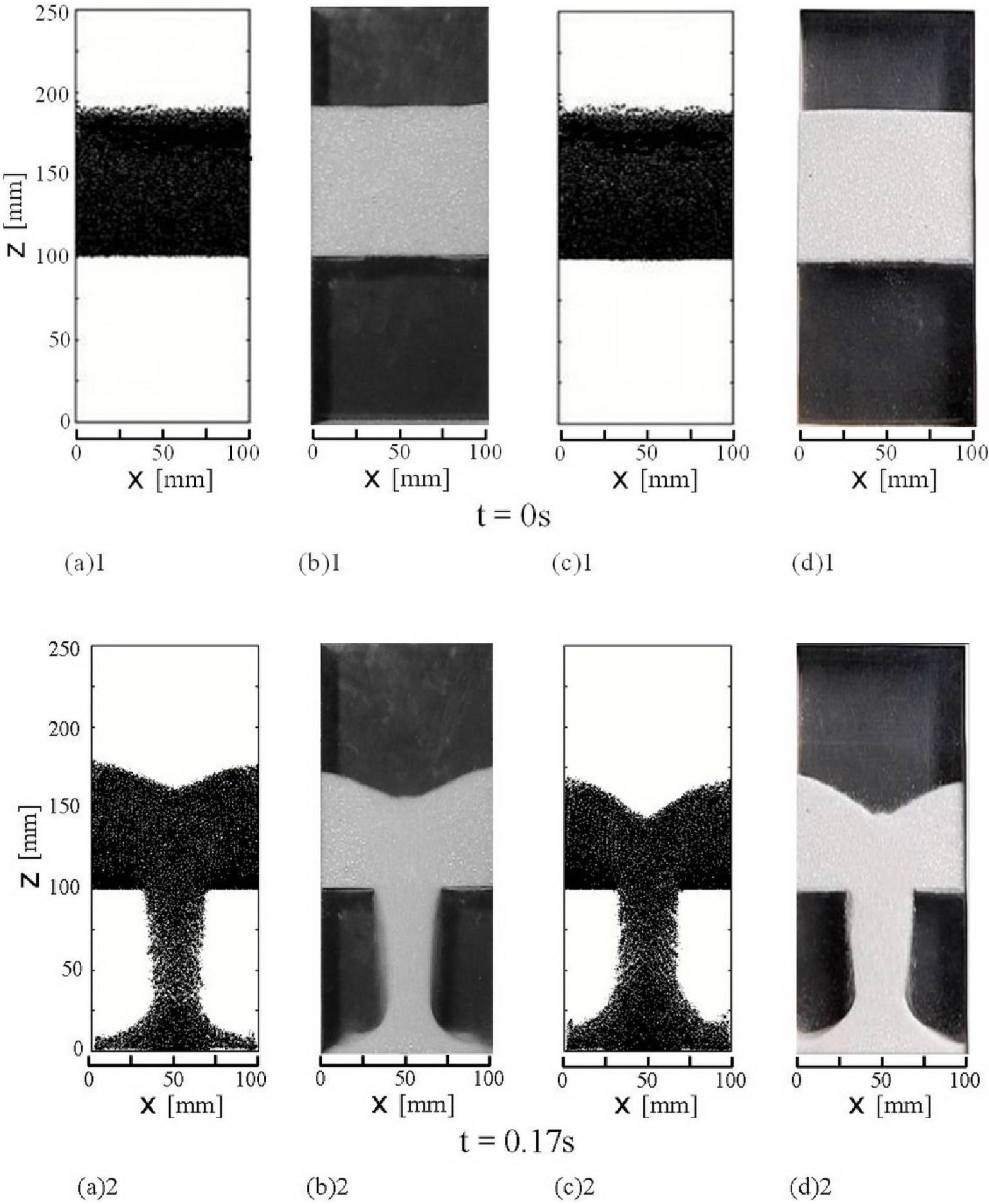

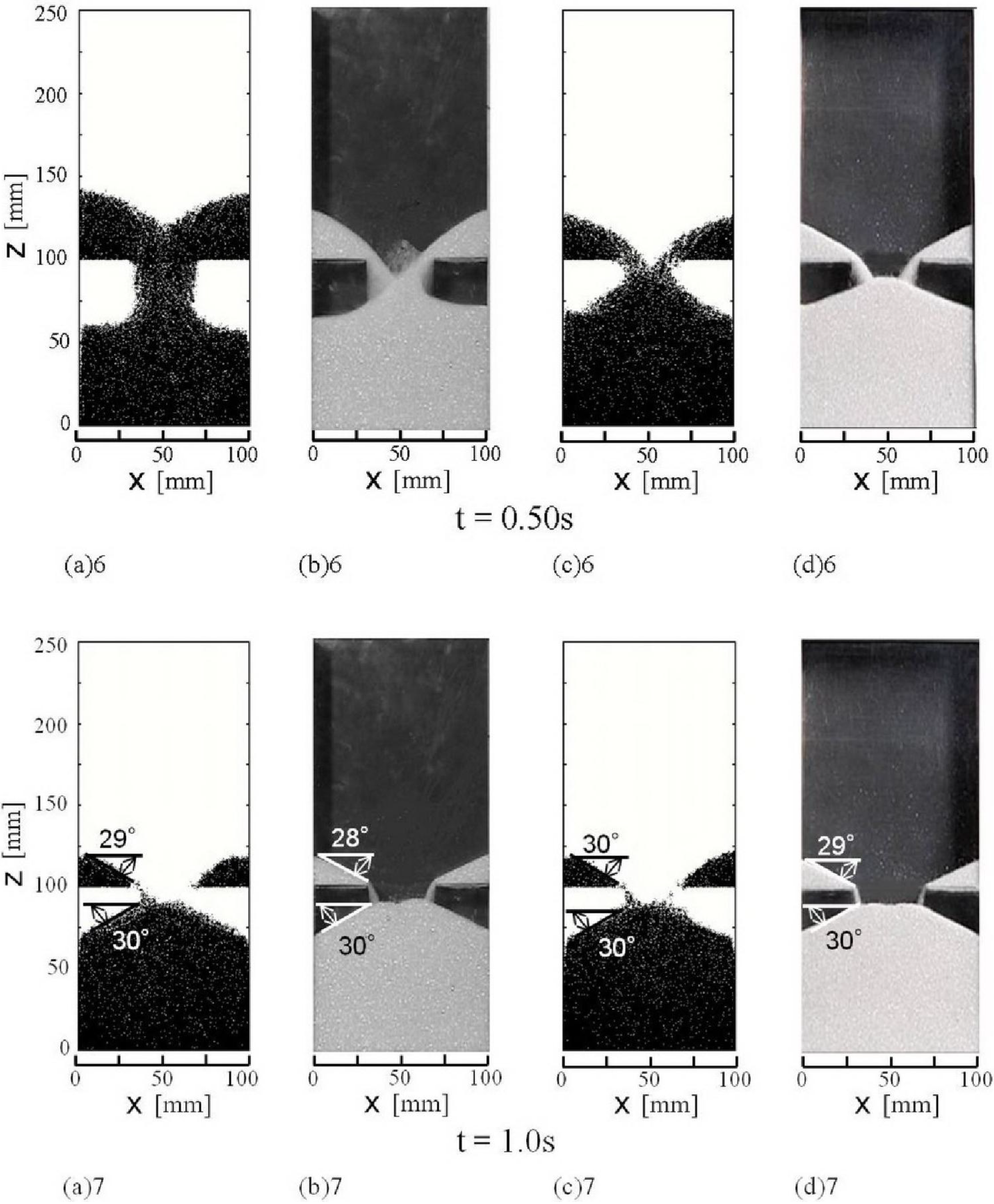

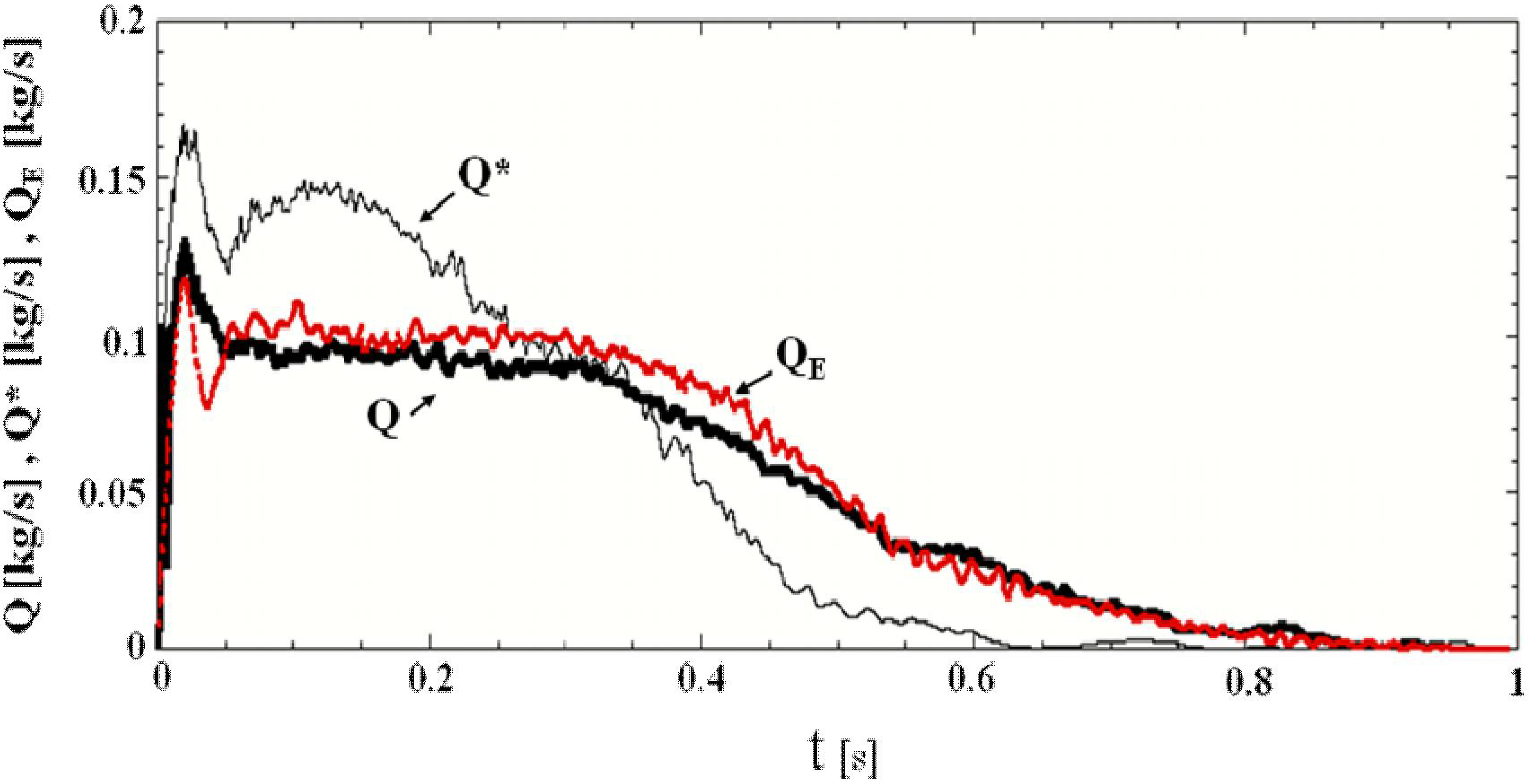

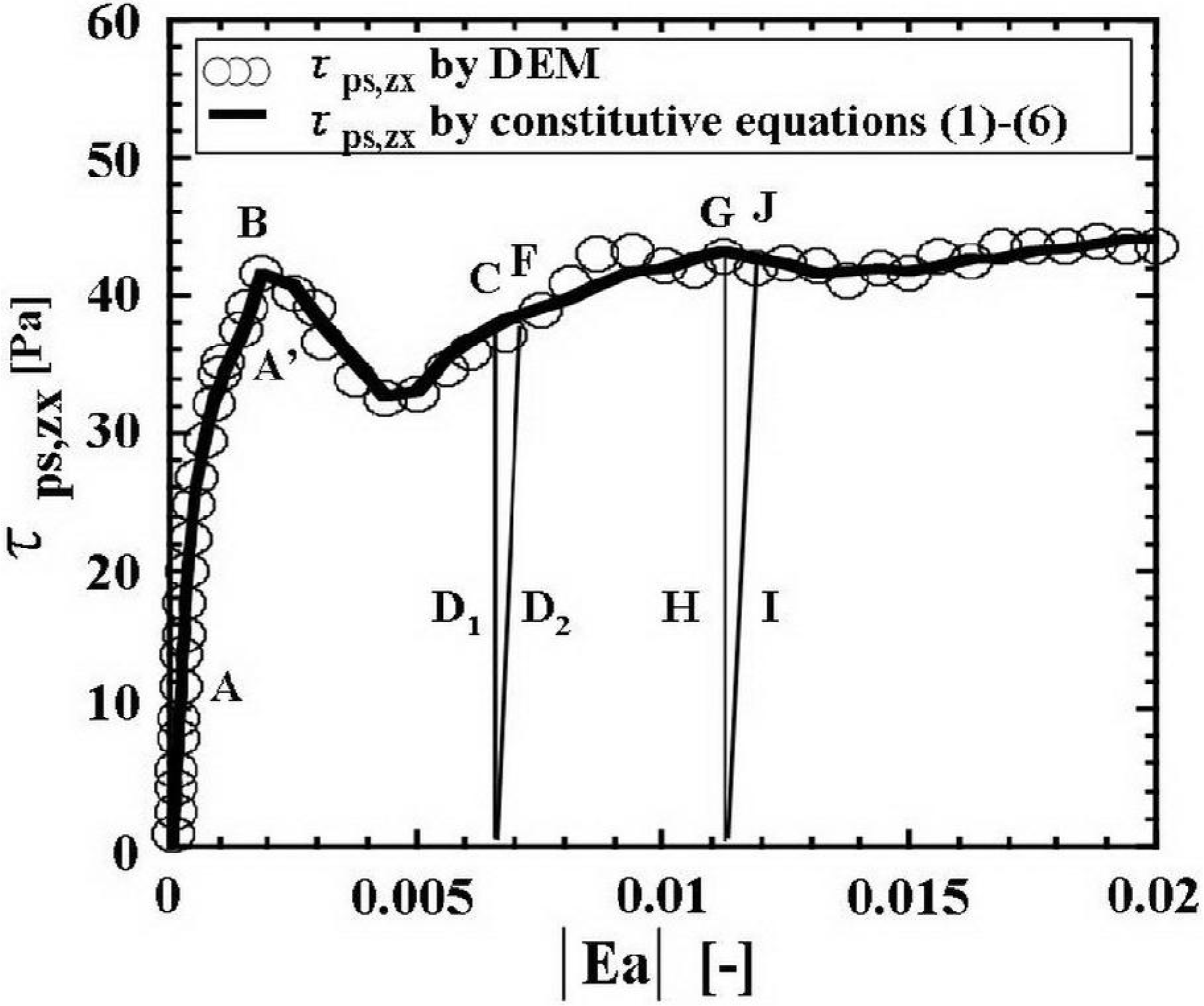

Abstract: Granular flows of 200 μm particles and the pile formation in a flat-bottomed hopper and bin in the presence of air and in a vacuum were predicted based on three-dimensional numerically empirical constitutive relations using Smoothed Particle Hydrodynamics and Computational Fluid Dynamics methods. The constitutive relations for the strain rate independent stress have been obtained as the functions of the Almansi strain including the large deformation by the same method as Yuu et al. [1]. The constitutive relations cover the elastic and the plastic regions including the flow state and represent the friction mechanism of granular material. We considered the effect of air on the granular flow and pile by the two-way coupling method. The granular flow patterns, the shapes of piles and the granular flow rates in the evolution are compared with experimental data measured under the same conditions. There was good agreement between these results, which suggests that the constitutive relations and the simulation method would be applicable for predicting granular flows and pile formation with complex geometry including free surface geometry. We describe the mechanisms by which the air decreases the granular flow rate and forms the convergence granular flow below the hopper outlet.
Keywords: granular flow; granular pile; simulation; constitutive equation; flat-bottomed hopper and bin; smoothed particle hydrodynamics; discrete element method; two-way coupling method granular flow; granular pile; simulation; constitutive equation; flat-bottomed hopper and bin; smoothed particle hydrodynamics; discrete element method; two-way coupling method
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
