Next Article in Journal
Investigation of Quasi-Static Indentation Response of Inkjet Printed Sandwich Structures under Various Indenter Geometries
Previous Article in Journal
Cytotoxicity of Light-Cured Dental Materials according to Different Sample Preparation Methods
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Materials 2017, 10(3), 287; doi:10.3390/ma10030287

Effect of Native Defects on Transport Properties in Non-Stoichiometric CoSb3

Centro de Investigación en Materiales Avanzados, S.C., Av. Miguel de Cervantes 120, Complejo Industrial Chihuahua, Chihuahua 31136, Mexico
*
Author to whom correspondence should be addressed.
Academic Editor: Sofoklis Makridis
Received: 11 January 2017 / Revised: 1 March 2017 / Accepted: 9 March 2017 / Published: 14 March 2017
View Full-Text   |   Download PDF [2100 KB, uploaded 14 March 2017]   |

Abstract

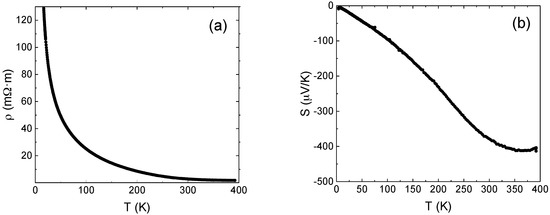

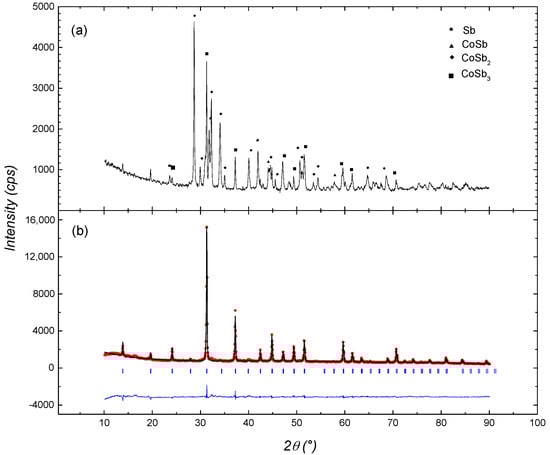

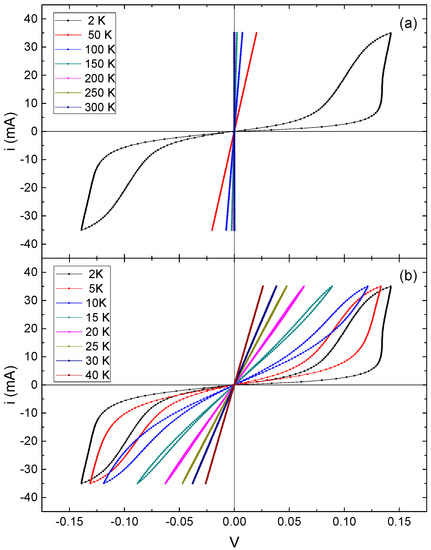

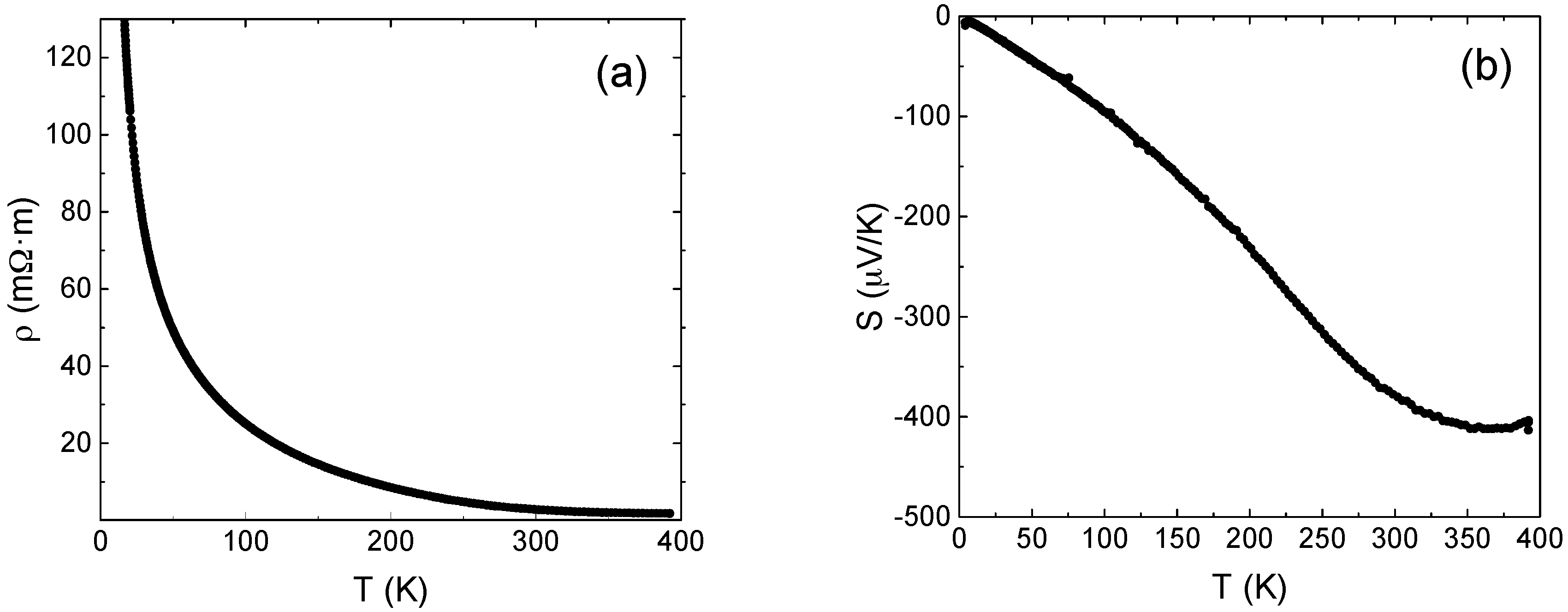

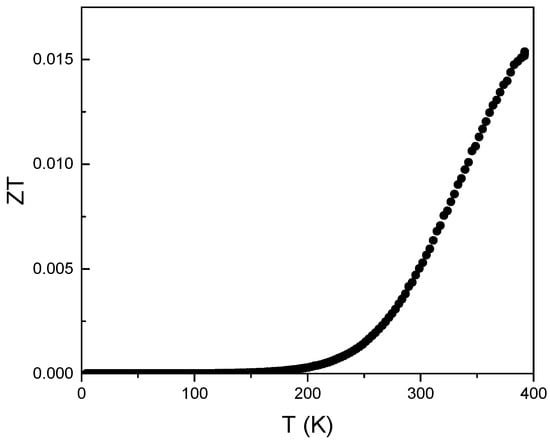

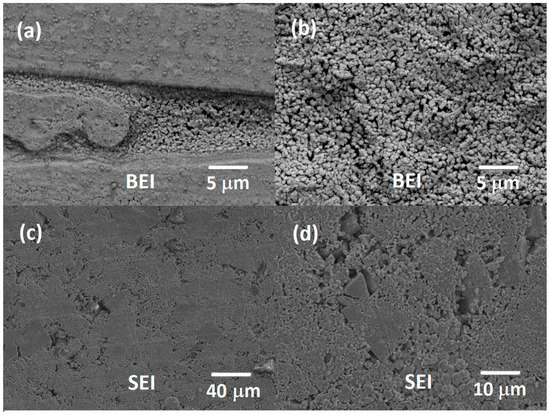

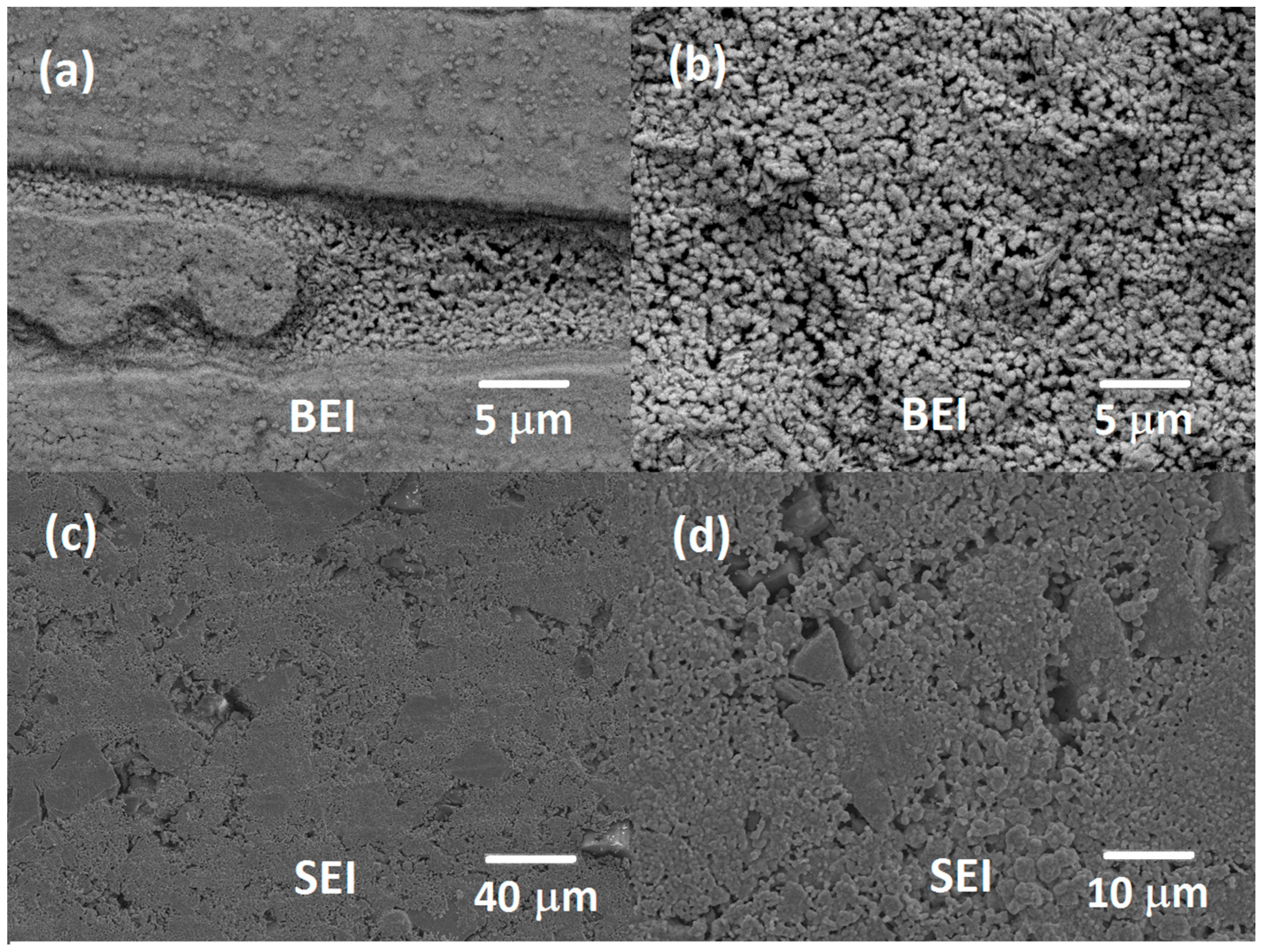

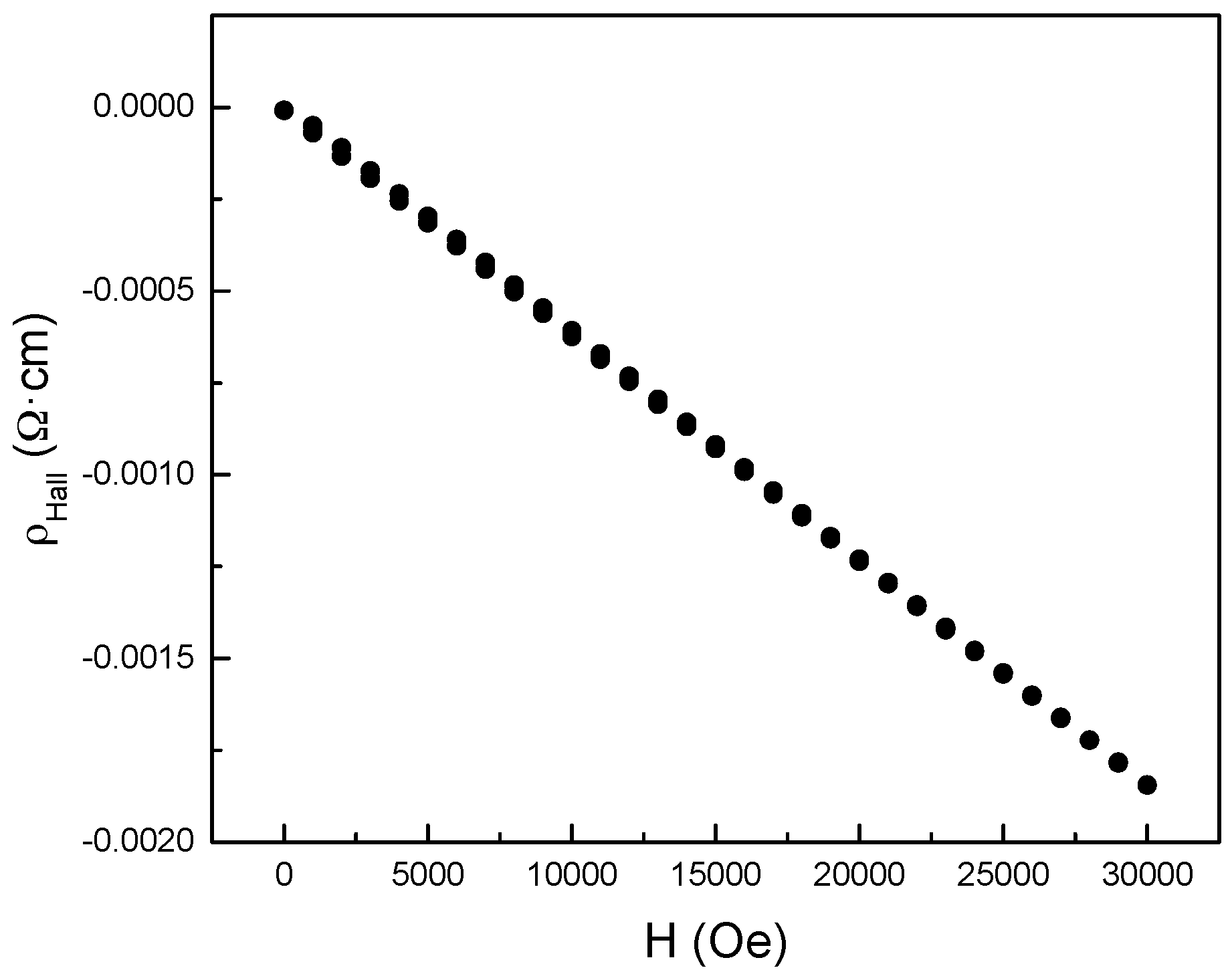

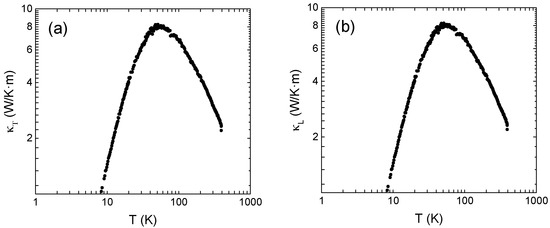

The effect of native defects originated by a non-stoichiometric variation of composition in CoSb3 on I-V curves and Hall effect was investigated. Hysteretic and a non-linear behavior of the  I-V curves at cryogenic temperatures were observed; the non-linear behavior originated from the Poole-Frenkel effect, a field-dependent ionization mechanism that lowers Coulomb barriers and increases emission of charge carriers, and the hysteresis was attributed to the drastic decrease of specific heat which produces Joule heating at cryogenic temperatures. CoSb3 is a narrow gap semiconductor and slight variation in the synthesis process can lead to either n- or p-type conduction. The Sb-deficient CoSb3 presented an n-type conduction. Using a single parabolic model and assuming only acoustic-phonon scattering the charge transport properties were calculated at 300 K. From this model, a carrier concentration of 1.18 × 1018 cm−3 and a Hall factor of 1.18 were calculated. The low mobility of charge carriers, 19.11 cm2/V·s, and the high effective mass of the electrons, 0.66 m0, caused a high resistivity value of 2.75 × 10−3 Ω·m. The calculated Lorenz factor was 1.50 × 10−8 V2/K2, which represents a decrease of 38% over the degenerate limit value (2.44 × 10−8 V2/K2). View Full-Text
Keywords: thermoelectrics; skutterudites; low temperature; electrical transport; native defects thermoelectrics; skutterudites; low temperature; electrical transport; native defects
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Realyvázquez-Guevara, P.R.; Rivera-Gómez, F.J.; Faudoa-Arzate, A.; Botello-Zubiate,  .E.; Sáenz-Hernández, R.J.; Santillán-Rodríguez, C.R.; Matutes-Aquino, J.A. Effect of Native Defects on Transport Properties in Non-Stoichiometric CoSb3. Materials 2017, 10, 287.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
