Next Article in Journal
Materials for Wind Turbine Blades: An Overview
Next Article in Special Issue
Comparison of Microstructure and Mechanical Properties of Scalmalloy® Produced by Selective Laser Melting and Laser Metal Deposition
Previous Article in Journal
Recent Progress and Required Developments in Atmospheric Corrosion of Galvanised Steel and Zinc
Previous Article in Special Issue
Effect of Molten Pool Size on Microstructure and Tensile Properties of Wire Arc Additive Manufacturing of Ti-6Al-4V Alloy
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Materials 2017, 10(11), 1283; https://doi.org/10.3390/ma10111283

Tensile Fracture Behavior and Failure Mechanism of Additively-Manufactured AISI 4140 Low Alloy Steel by Laser Engineered Net Shaping

1
Department of Industrial, Manufacturing, and Systems Engineering, Texas Tech University, Lubbock, TX 79409, USA
2
School of Mechanical Engineering, Dalian University of Technology, Dalian 116023, China
*
Author to whom correspondence should be addressed.
Received: 30 August 2017 / Revised: 6 November 2017 / Accepted: 7 November 2017 / Published: 9 November 2017
(This article belongs to the Special Issue Mechanical Properties of Additive Structures in Materials)
View Full-Text   |   Download PDF [6325 KB, uploaded 9 November 2017]   |

Abstract

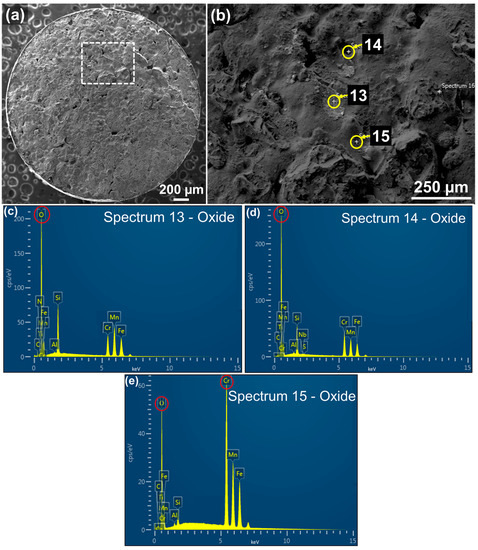

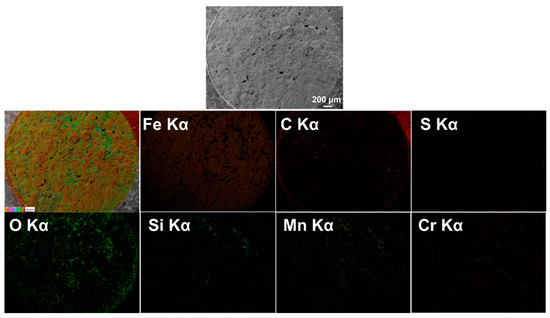

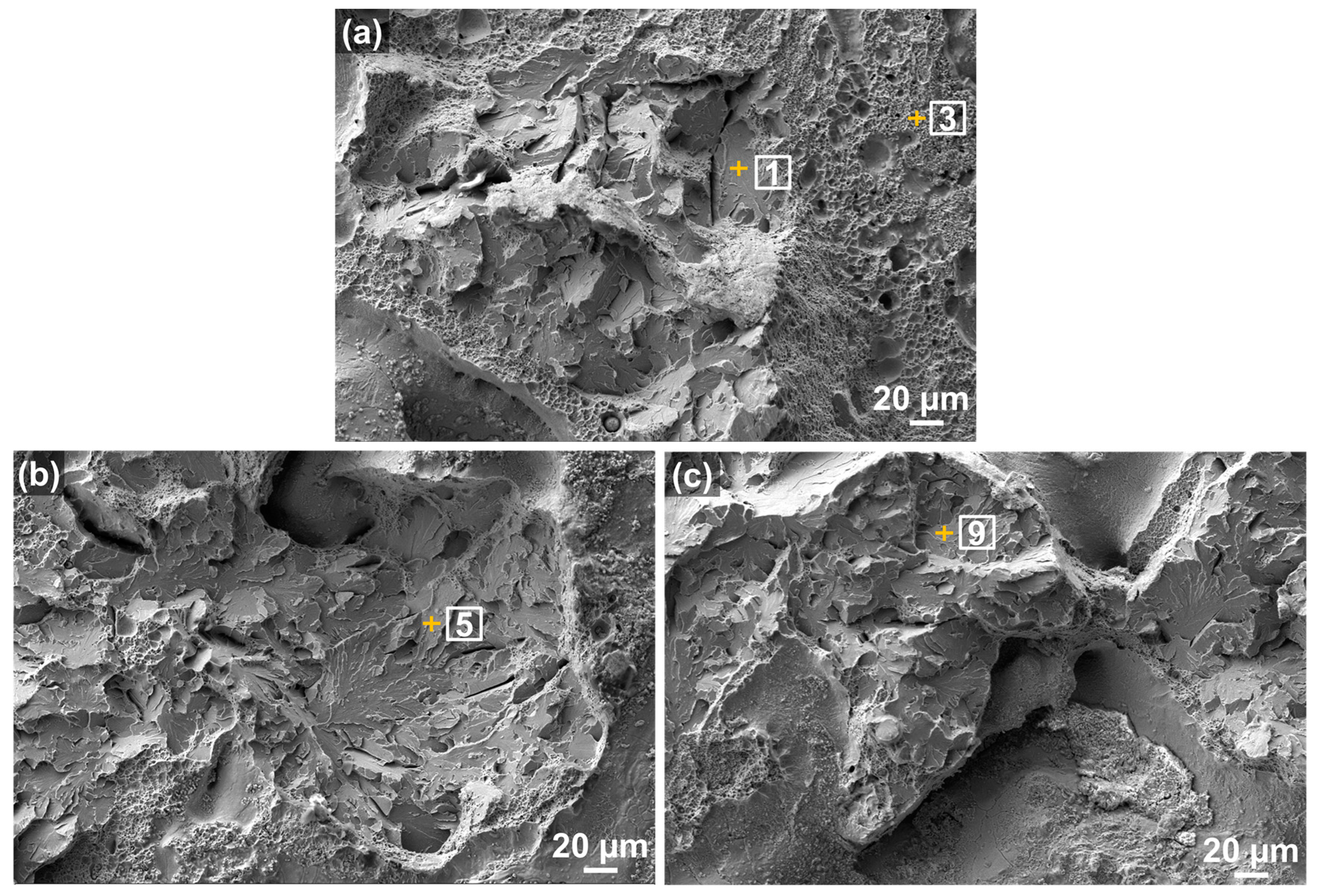

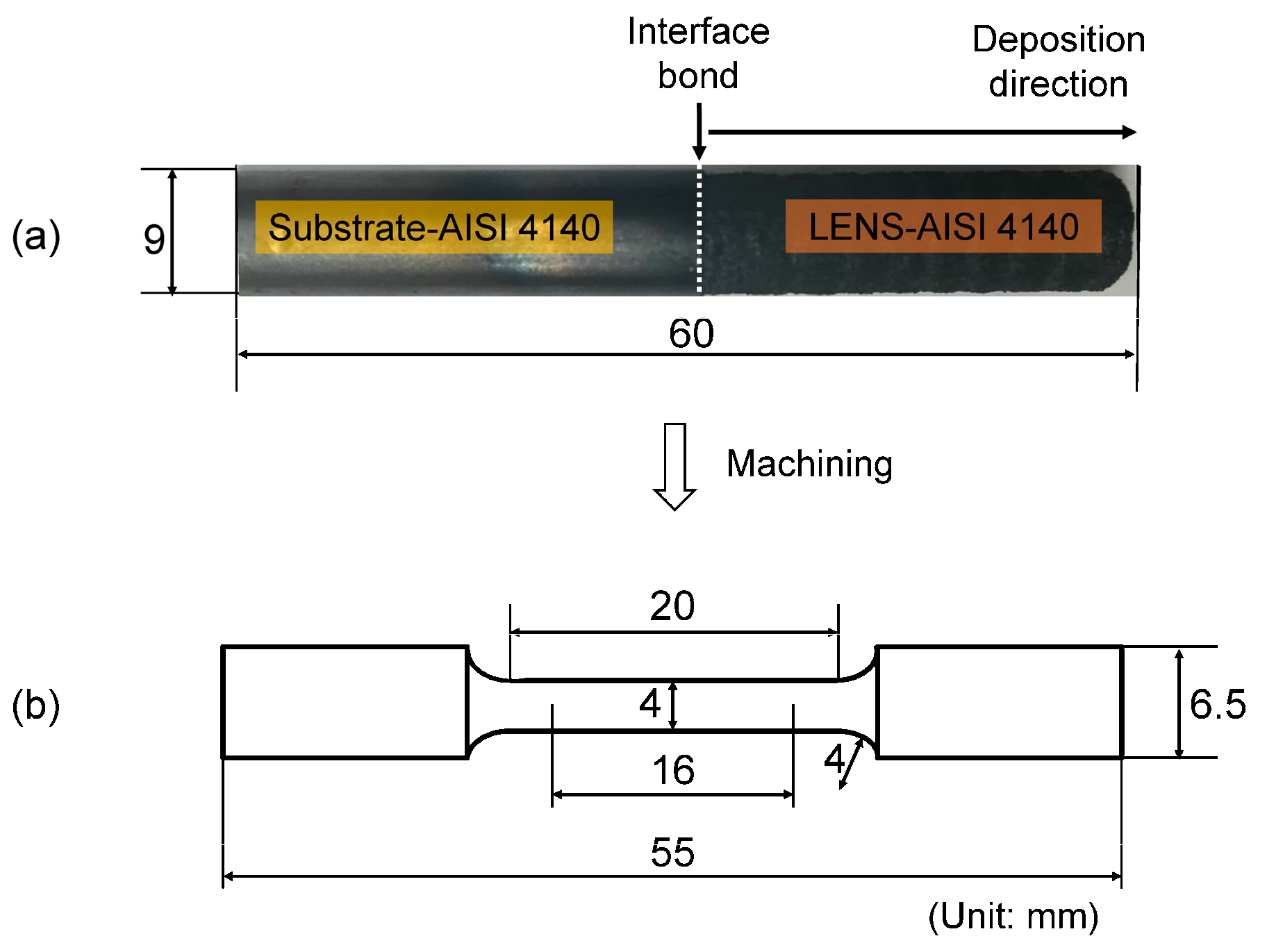

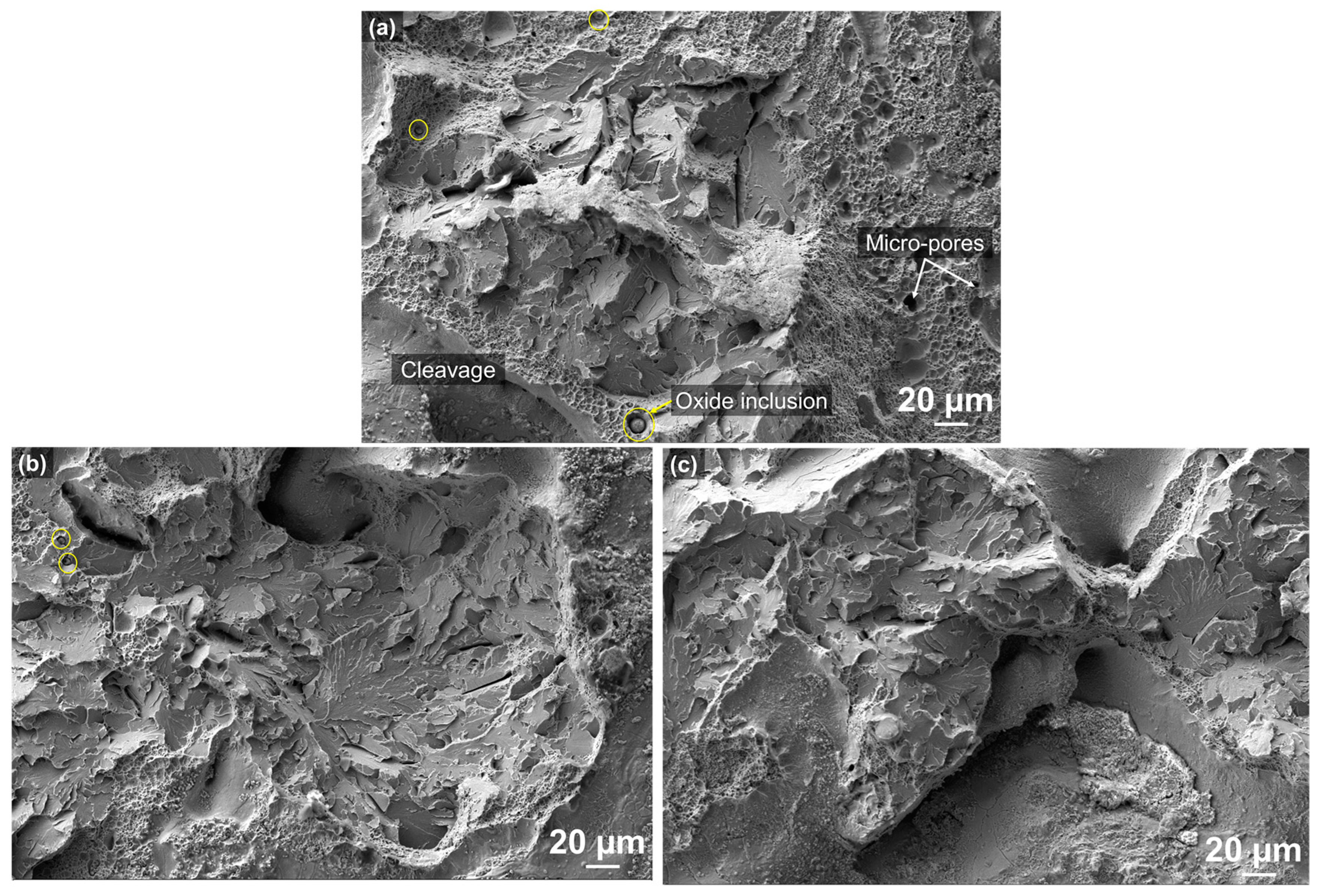

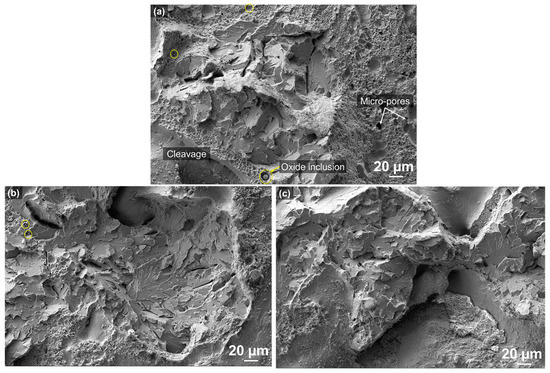

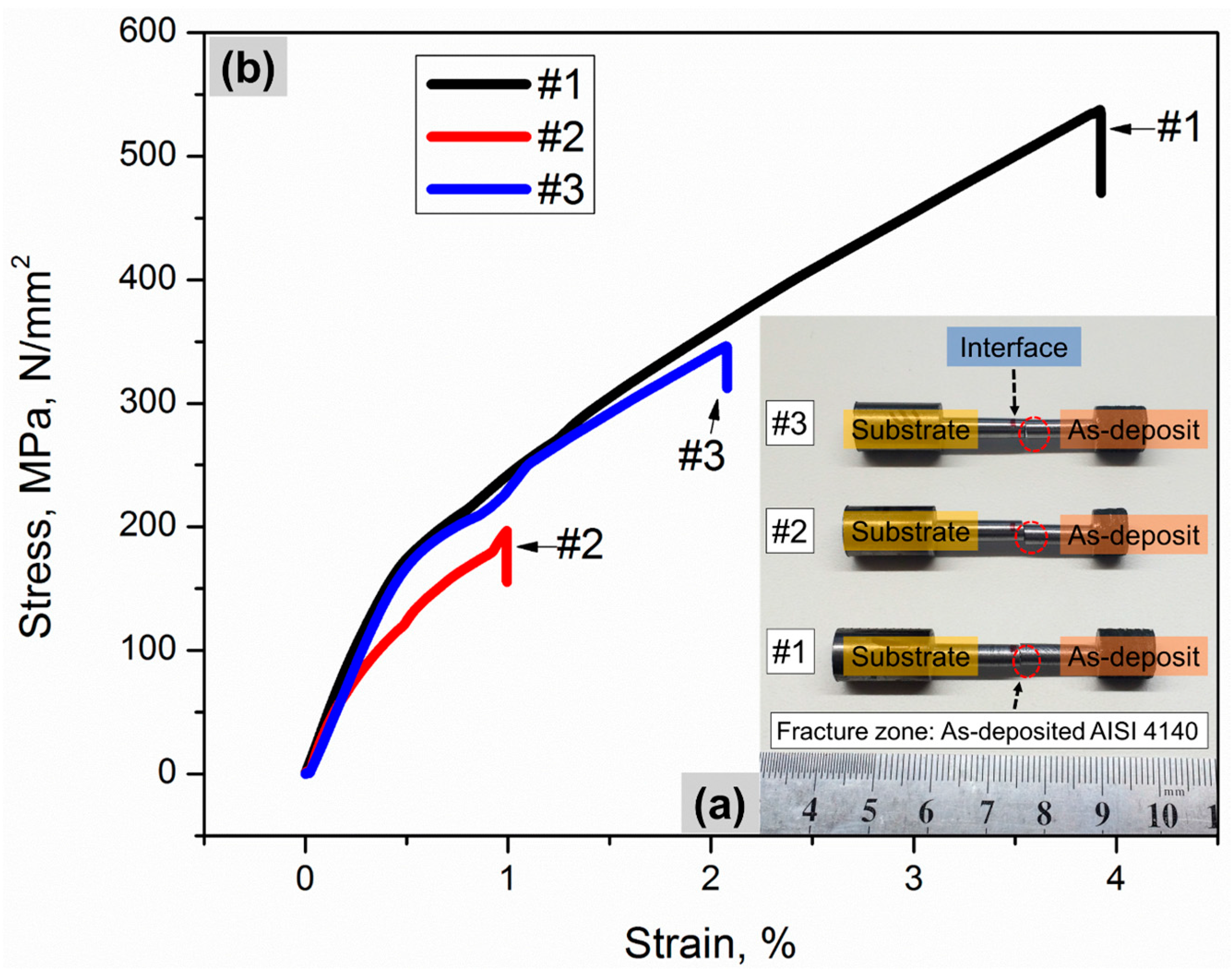

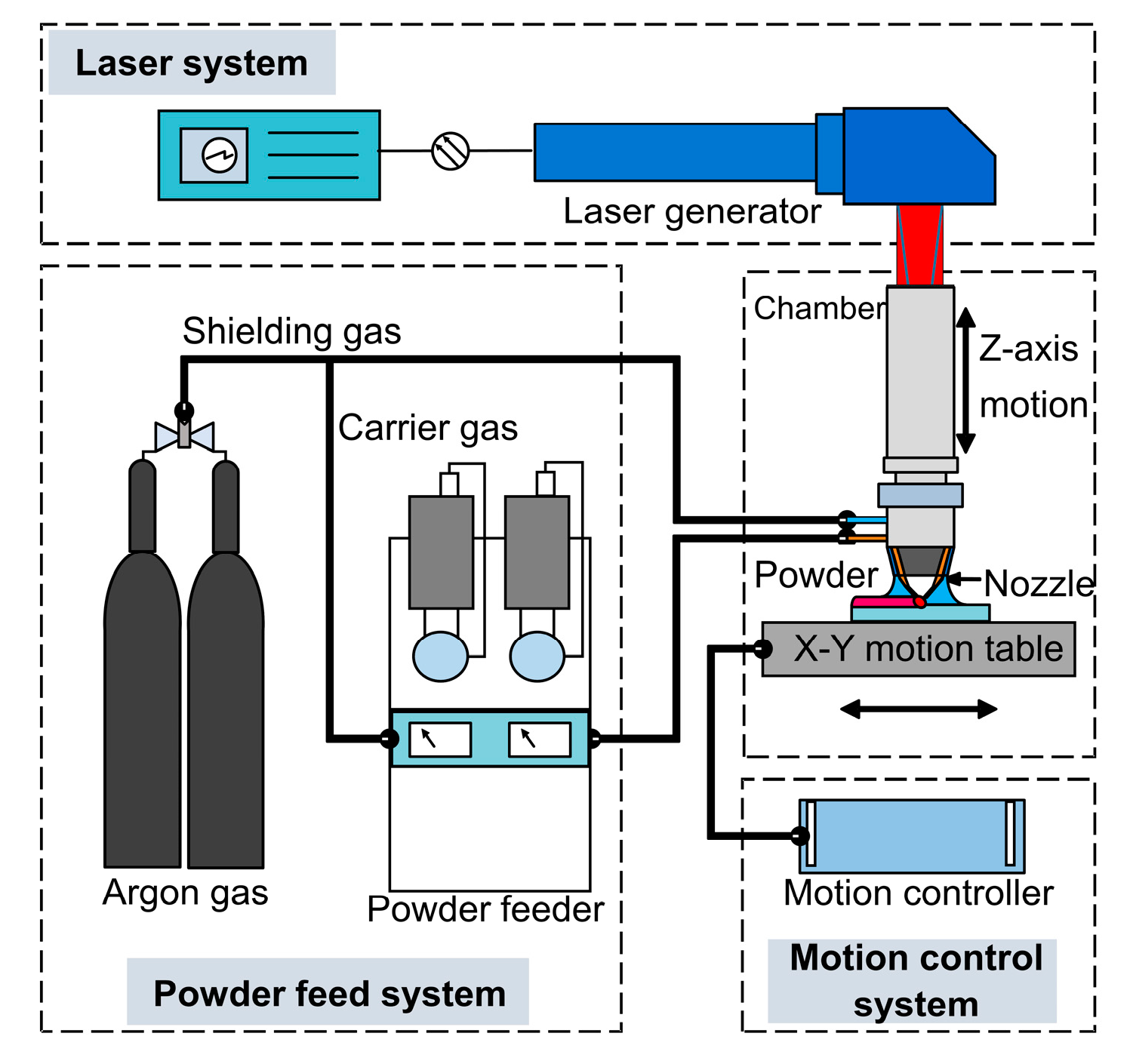

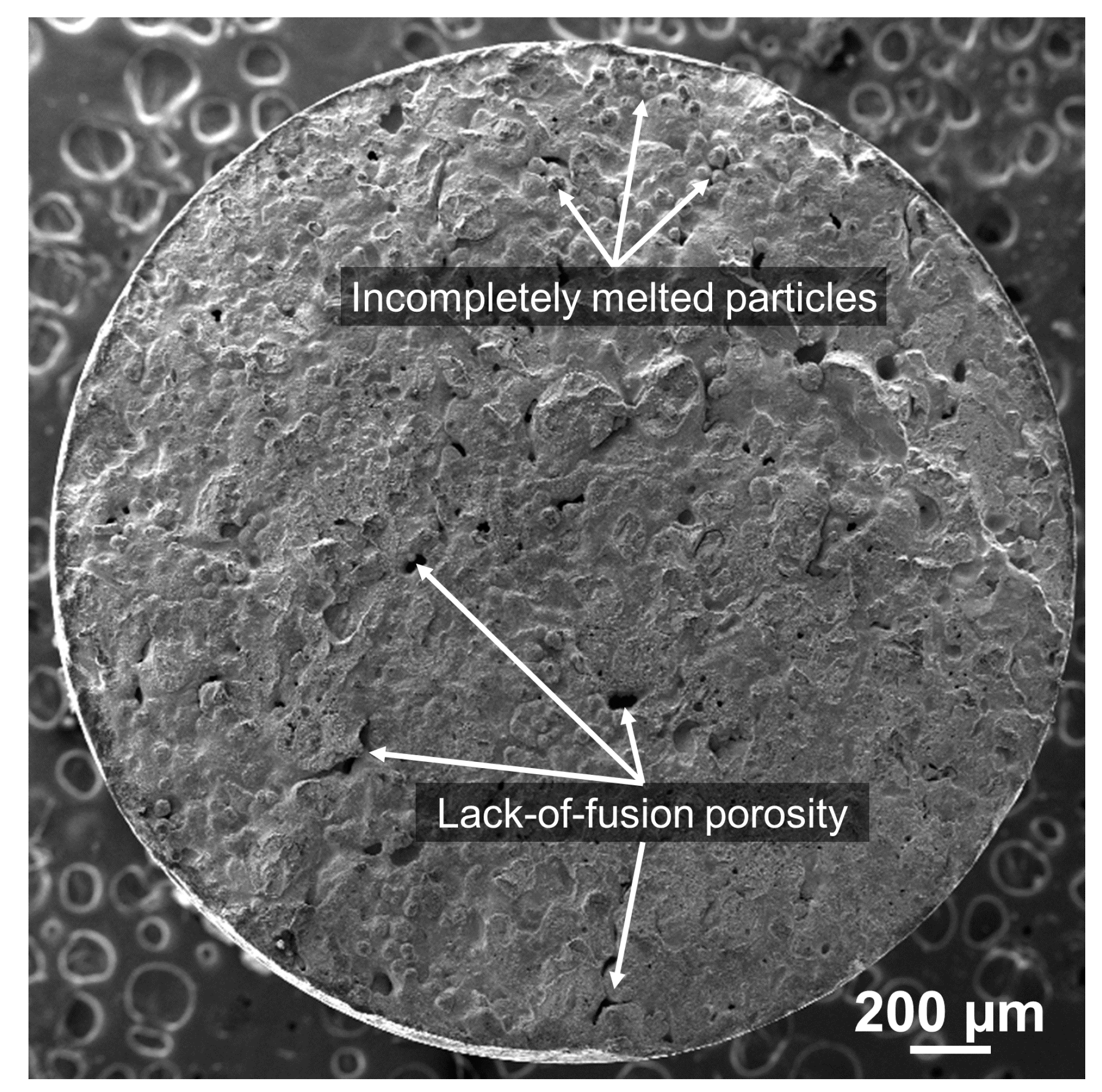

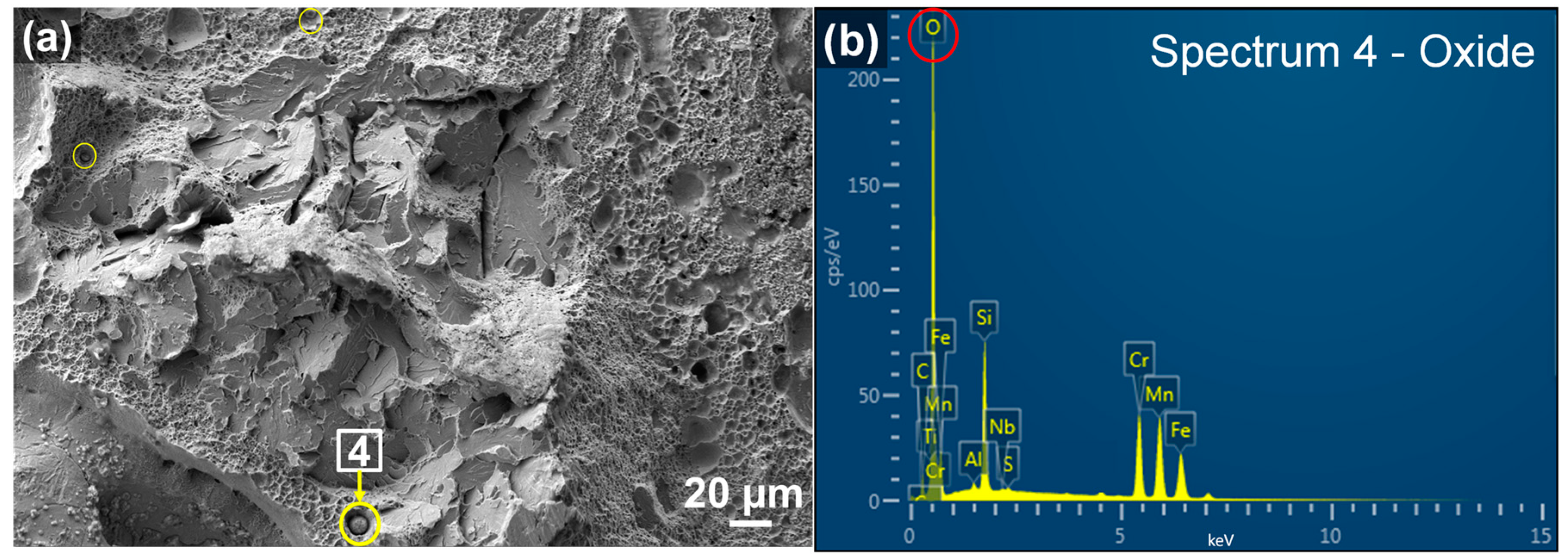

AISI 4140 powder was directly deposited on AISI 4140 wrought substrate using laser engineered net shaping (LENS) to investigate the compatibility of a LENS-deposited part with the substrate. Tensile testing at room temperature was performed to evaluate the interface bond performance and fracture behavior of the test specimens. All the samples failed within the as-deposited zone, indicating that the interfacial bond is stronger than the interlayer bond inside the deposit. The fracture surfaces were analyzed using scanning electron microscopy (SEM) and energy disperse X-ray spectrometry (EDS). Results show that the tensile fracture failure of the as-deposited part is primarily affected by lack-of-fusion defects, carbide precipitation, and oxide particles inclusions, which causes premature failure of the deposit by deteriorating the mechanical properties and structural integrity. View Full-Text
Keywords: fractography; tensile test; lack-of-fusion defects; carbides precipitation; oxide formation; laser engineered net shaping fractography; tensile test; lack-of-fusion defects; carbides precipitation; oxide formation; laser engineered net shaping
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Kim, H.; Liu, Z.; Cong, W.; Zhang, H.-C. Tensile Fracture Behavior and Failure Mechanism of Additively-Manufactured AISI 4140 Low Alloy Steel by Laser Engineered Net Shaping. Materials 2017, 10, 1283.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
