Energies 2016, 9(8), 644; doi:10.3390/en9080644

A New Switching Impulse Generator Based on Transformer Boosting and Insulated Gate Bipolar Transistor Trigger Control

1
State Key Laboratory of Electrical Insulation and Power Equipment, Xi’an Jiaotong University, Xi’an 710049, China
2
Department of Electrical, Electronics and Automation Engineering and Applied Physics, Polytechnic University of Madrid, Ronda de Valencia 3, Madrid 28012, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Issouf Fofana
Received: 2 June 2016 / Revised: 5 August 2016 / Accepted: 8 August 2016 / Published: 16 August 2016
View Full-Text   |   Download PDF [5899 KB, uploaded 16 August 2016]   |

Abstract

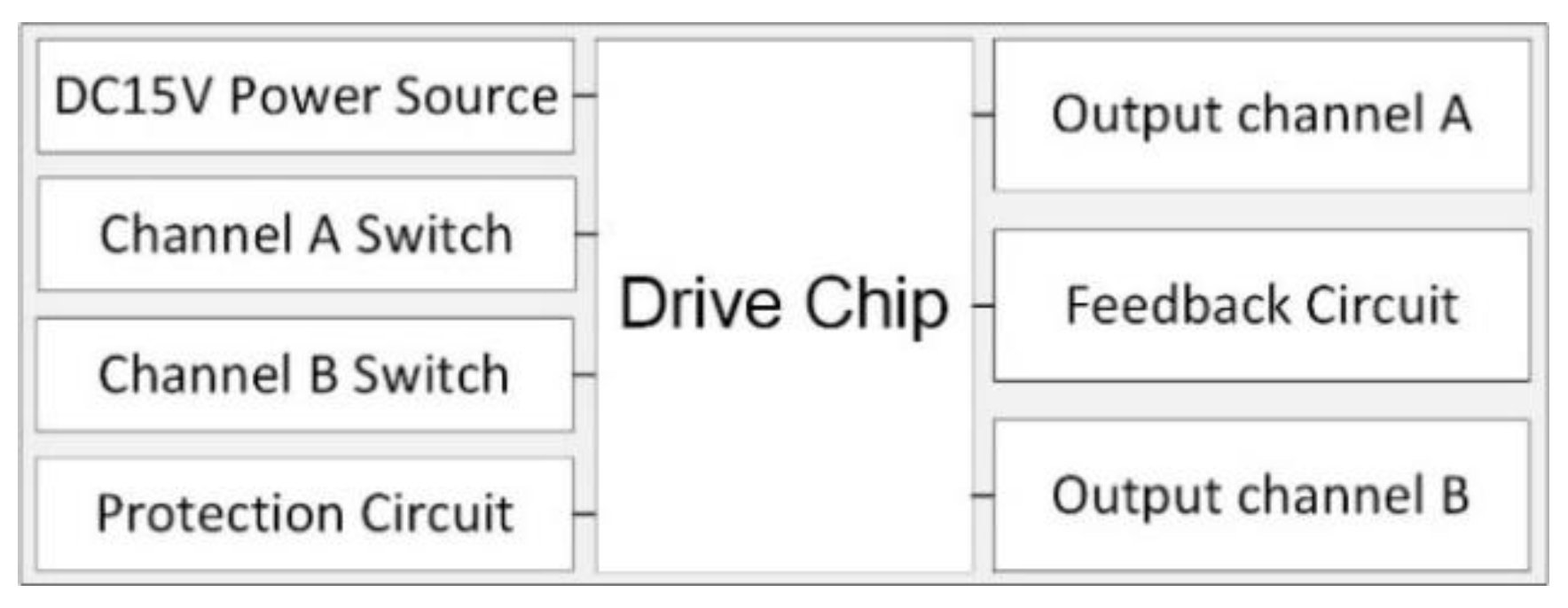

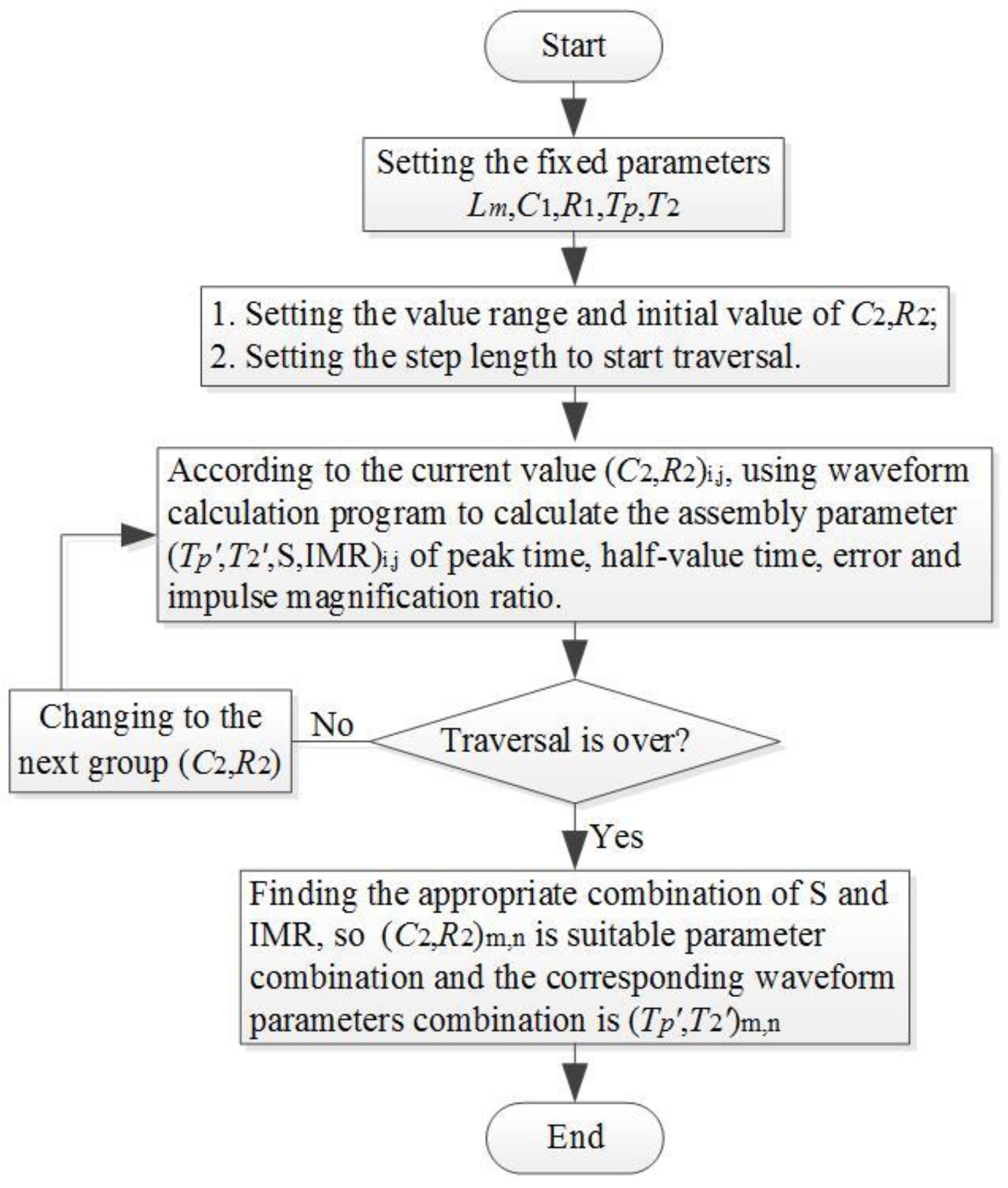

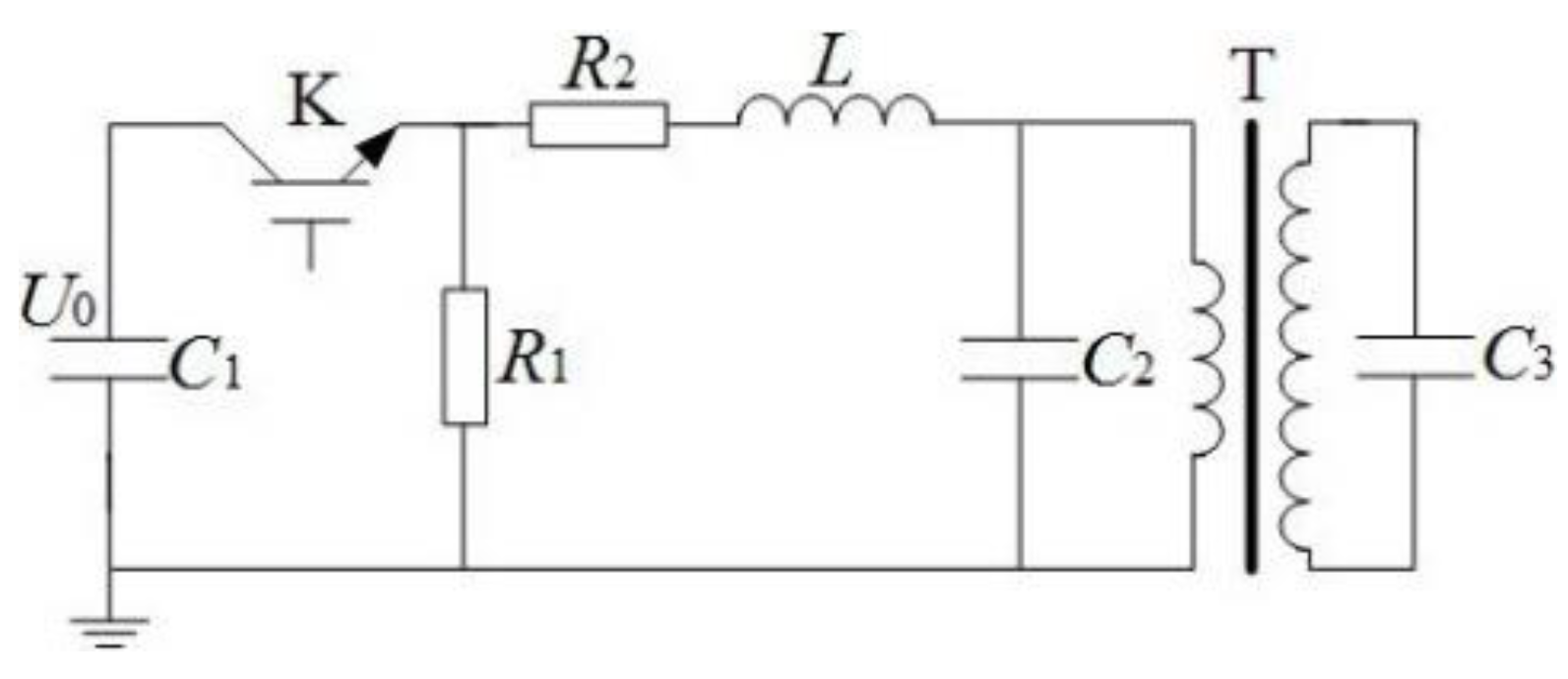

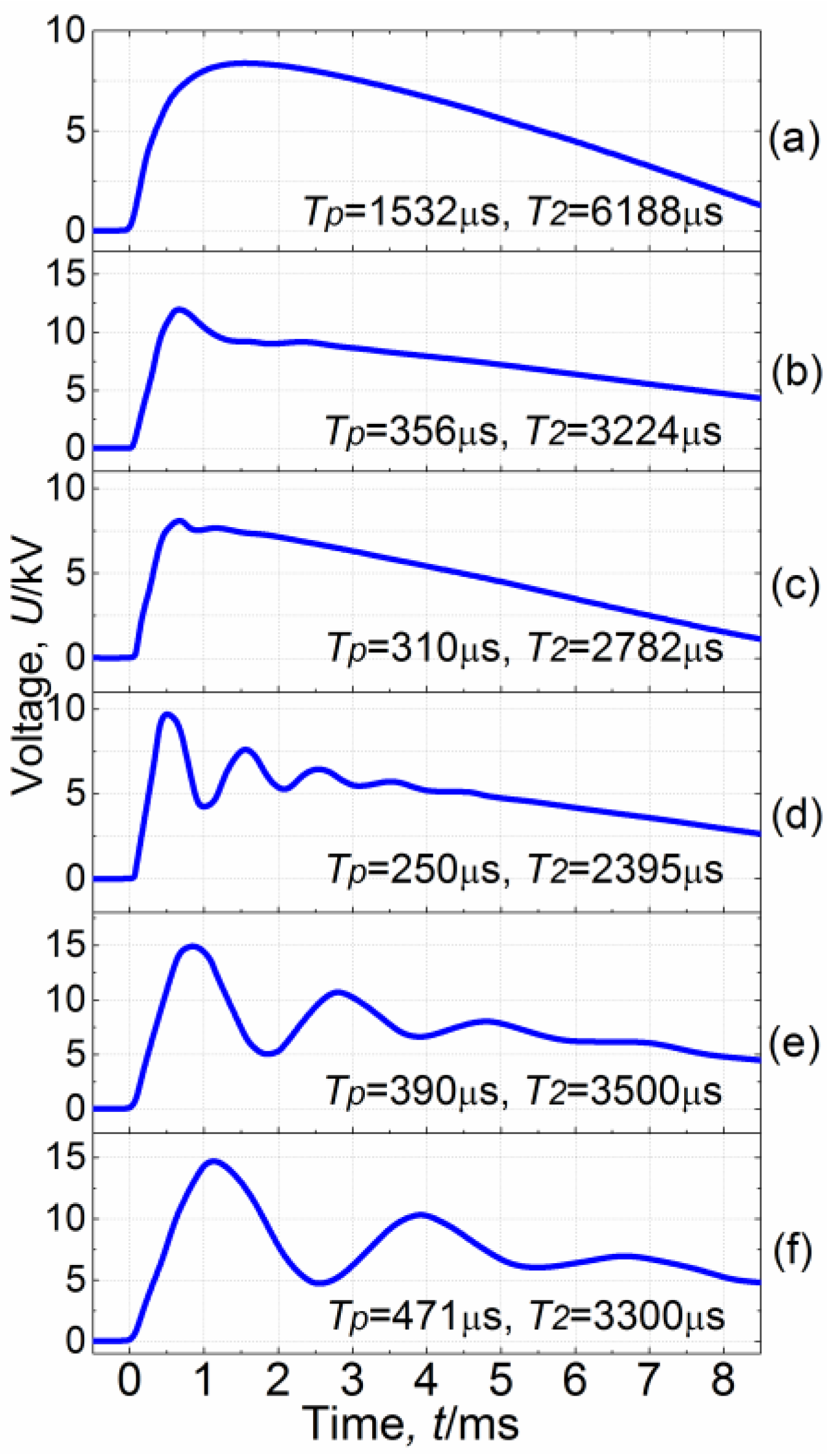

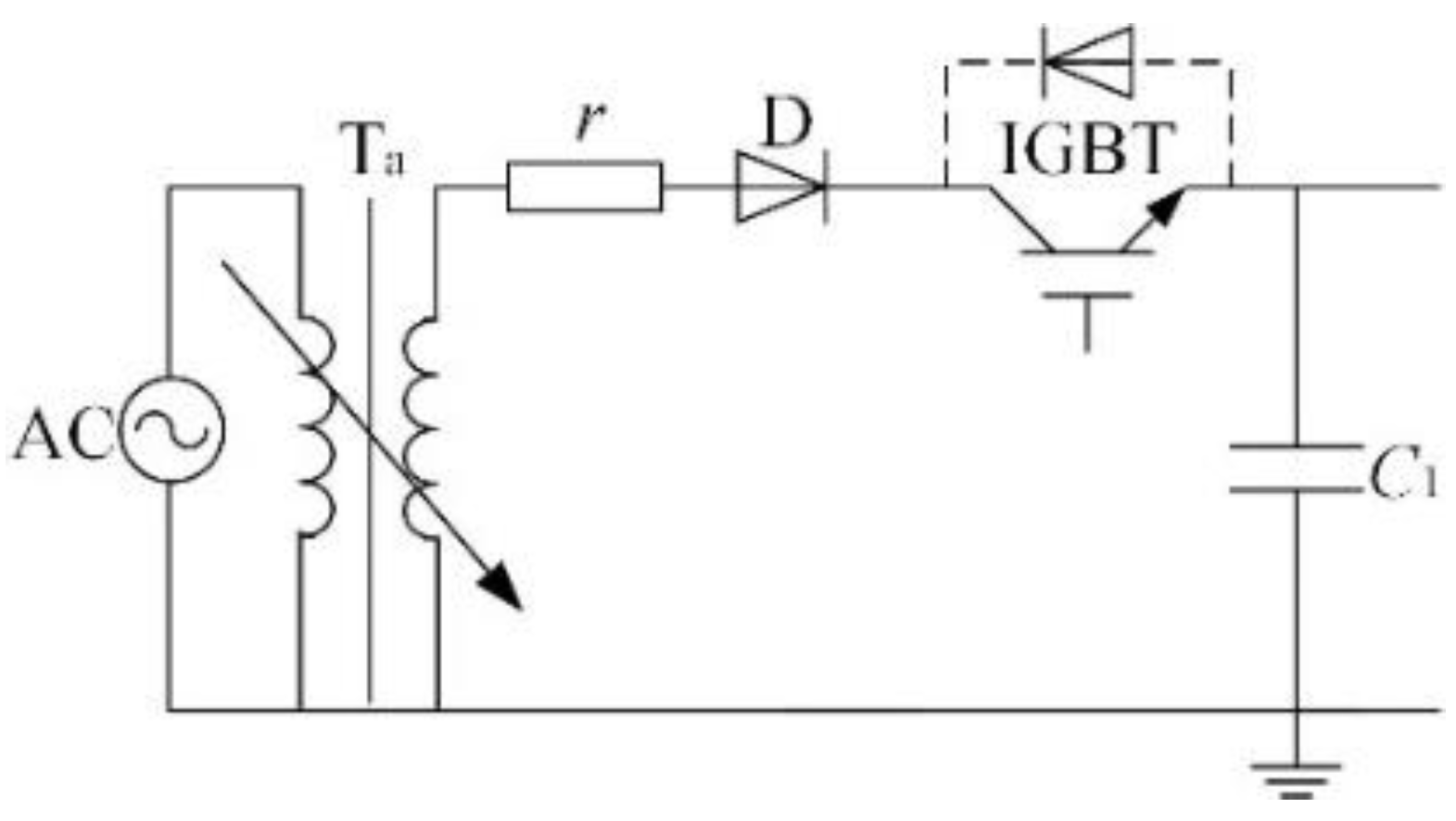

To make the switching impulse (SI) generator more compact, portable and feasible in field tests, a new approach based on transformer boosting was developed. To address problems such as triggering synchronization and electromagnetic interference involved with the traditional spark gap, an insulated gate bipolar transistor (IGBT) module with drive circuit was employed as the impulse trigger. An optimization design for the component parameters of the primary winding side of the transformer was realized by numerical calculation and error correction. Experiment showed that the waveform parameters of SI and oscillating switching impulse (OSI) voltages generated by the new generator were consistent with the numerical calculation and the error correction. The generator was finally built on a removable high voltage transformer with small size. Thus the volume of the generator is significantly reduced. Experiments showed that the waveform parameters of SI and OSI voltages generated by the new generator were basically consistent with the numerical calculation and the error correction. View Full-Text
Keywords: impulse generator; switching impulse (SI); insulated gate bipolar transistor (IGBT); boosting transformer; impulse waveform parameters impulse generator; switching impulse (SI); insulated gate bipolar transistor (IGBT); boosting transformer; impulse waveform parameters

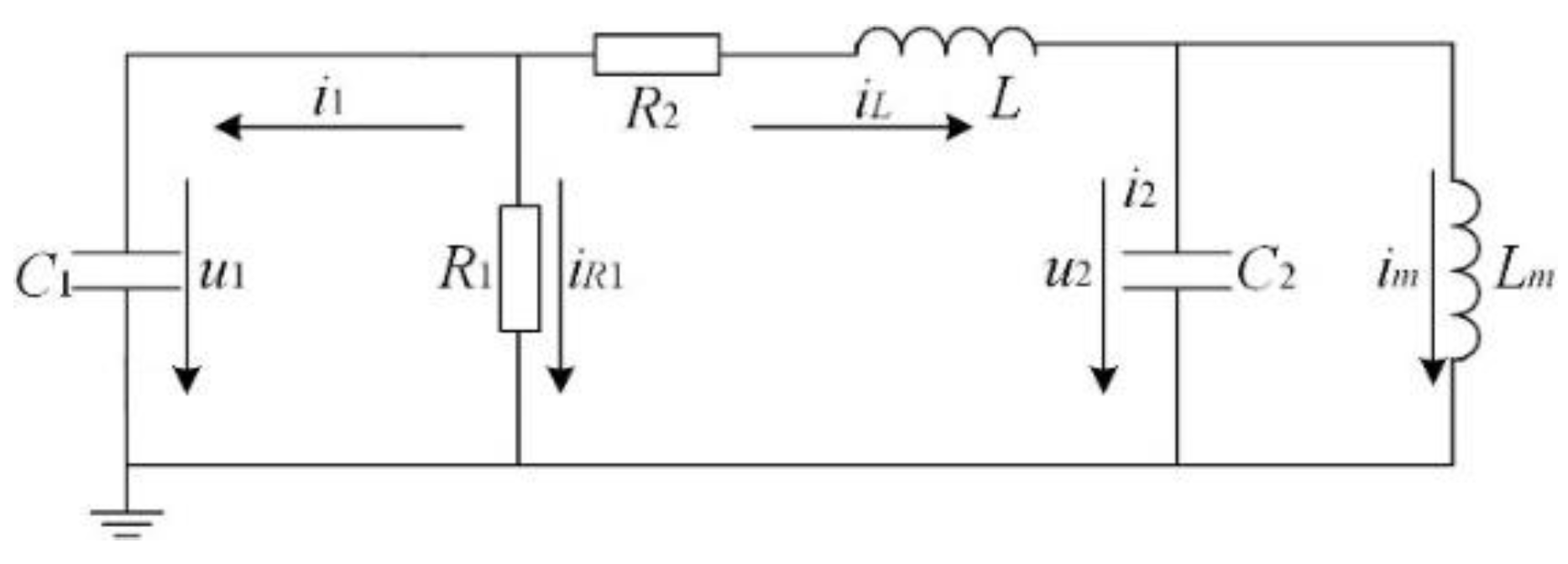

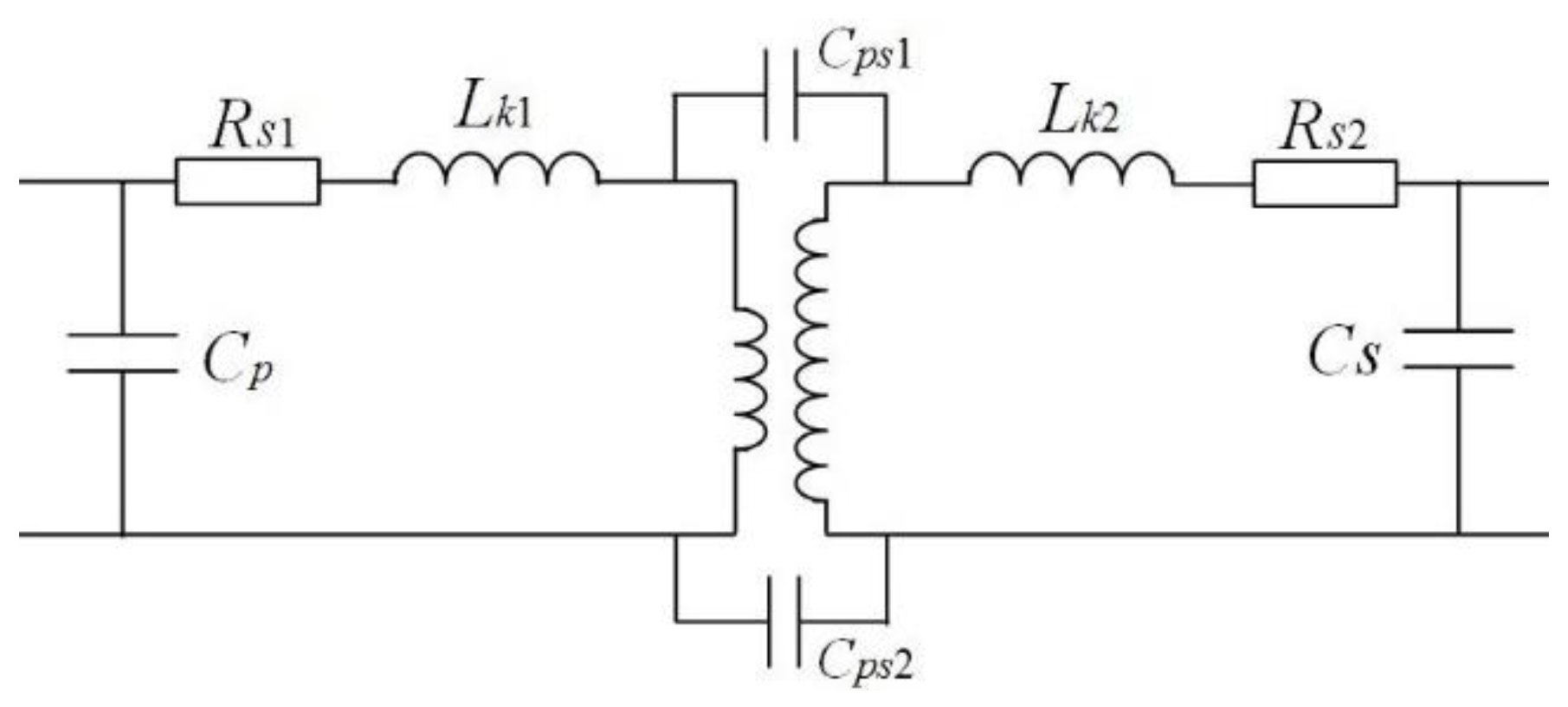

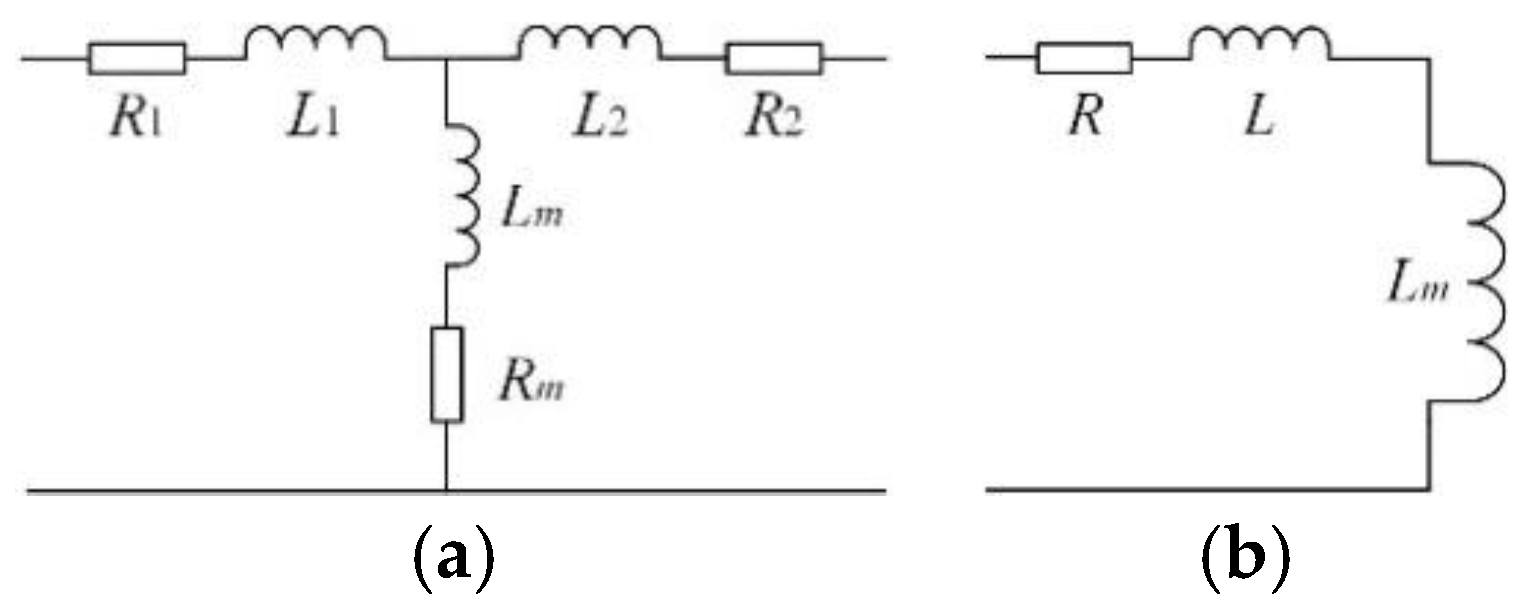

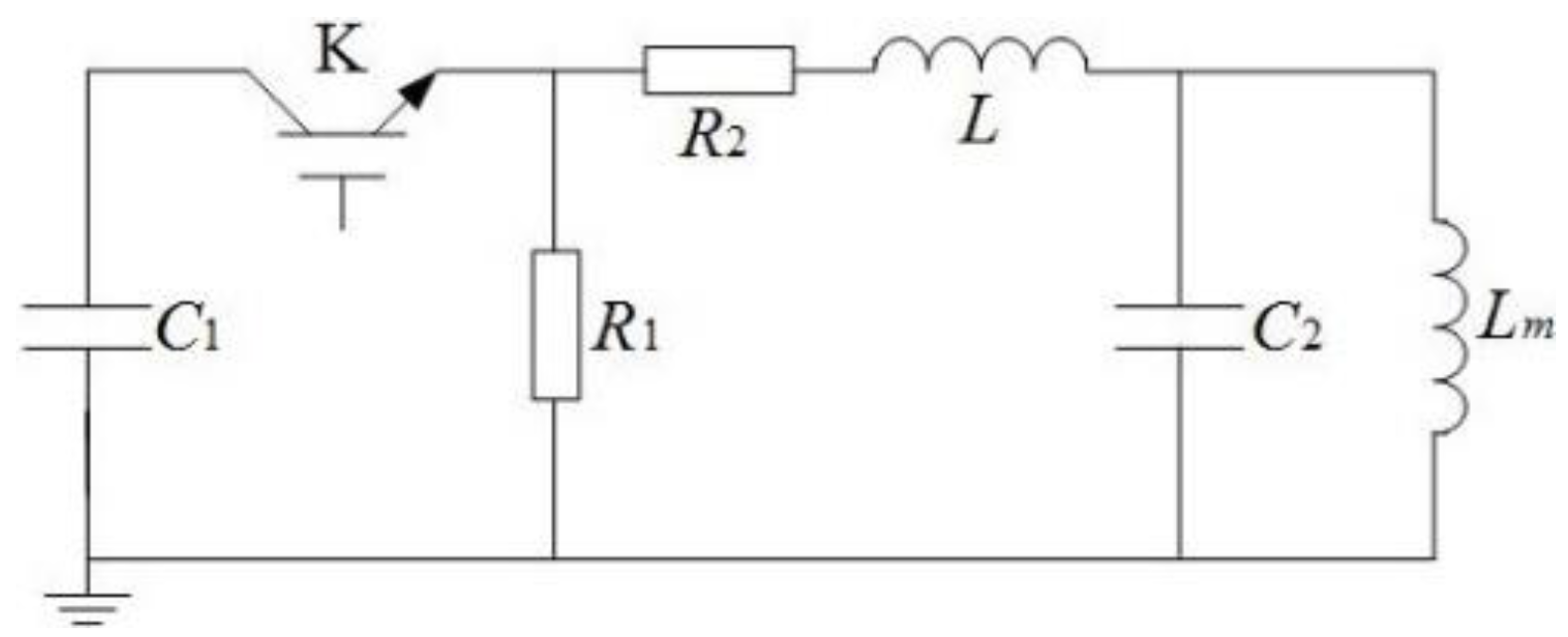

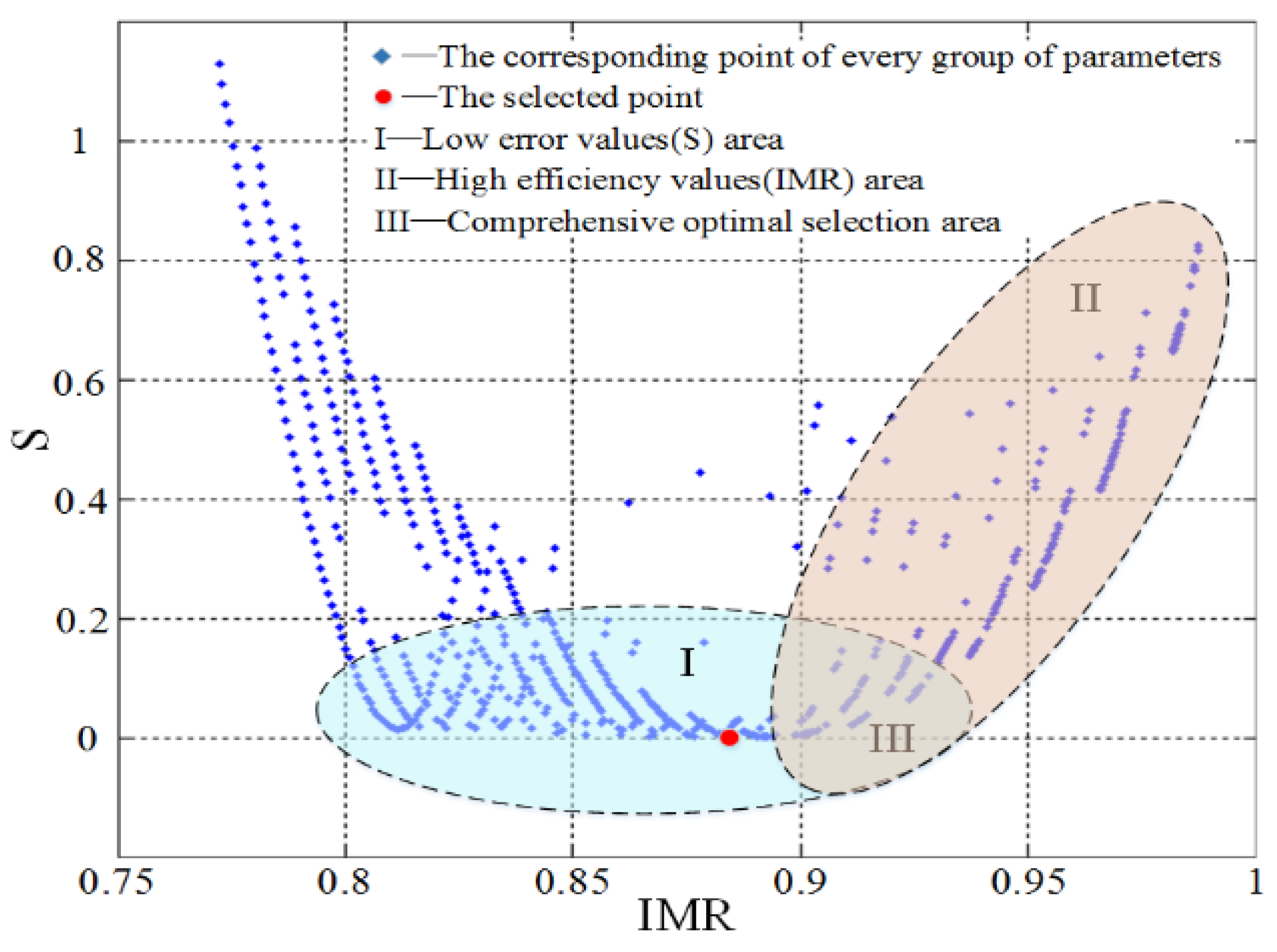

Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Ren, M.; Zhang, C.; Dong, M.; Ye, R.; Albarracín, R. A New Switching Impulse Generator Based on Transformer Boosting and Insulated Gate Bipolar Transistor Trigger Control. Energies 2016, 9, 644.
