Correction

Correction: Yang, W.; Yang, J.; Guo, W.; Zeng, W.; Wang, C.; Saarinen, L.; Norrlund, P. A Mathematical Model and Its Application for Hydro Power Units under Different Operating Conditions. Energies 2015, 8, 10260–10275

1
The State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, China
2
Department of Engineering Sciences, Uppsala University, Uppsala SE-751 21, Sweden
3
Vattenfall R&D, Älvkarleby SE-814 26, Sweden
*
Author to whom correspondence should be addressed.
Energies 2016, 9(6), 477; https://doi.org/10.3390/en9060477
Submission received: 23 May 2016 / Accepted: 30 May 2016 / Published: 22 June 2016
(This article belongs to the Special Issue Hydropower)
The authors wish to make the following corrections to the published paper [1].
  • Equation (15) is replaced with:
    b p K d d y P I D 2 d 2 t + ( 1 + b p K p ) d y P I D d t + b p K i ( y P I D y c ) = ( K d d x f 2 d 2 t + K p d x f d t + K i x f )
  • Equation (16) is replaced with:
    e p K d d p g 2 d 2 t + e p K p d p g d t + e p K i ( p g p c ) + d y P I D d t = ( K d d x f 2 d 2 t + K p d x f d t + K i x f )
  • Equation (17) is replaced with:
    b p K d d ( y P I D y c ) 2 d 2 t + ( 1 + b p K p ) d ( y P I D y c ) d t + b p K i ( y P I D y c ) = 0
  • Table 3 is replaced with:
  • Figure 3 is replaced with:
We apologize for any inconvenience caused to the readers by these changes. The manuscript will be updated and the original will remain available on the article webpage.

Reference

  1. Yang, W.; Yang, J.; Guo, W.; Zeng, W.; Wang, C.; Saarinen, L.; Norrlund, P. A Mathematical Model and Its Application for Hydro Power Units under Different Operating Conditions. Energies 2015, 8, 10260–10275. [Google Scholar] [CrossRef]

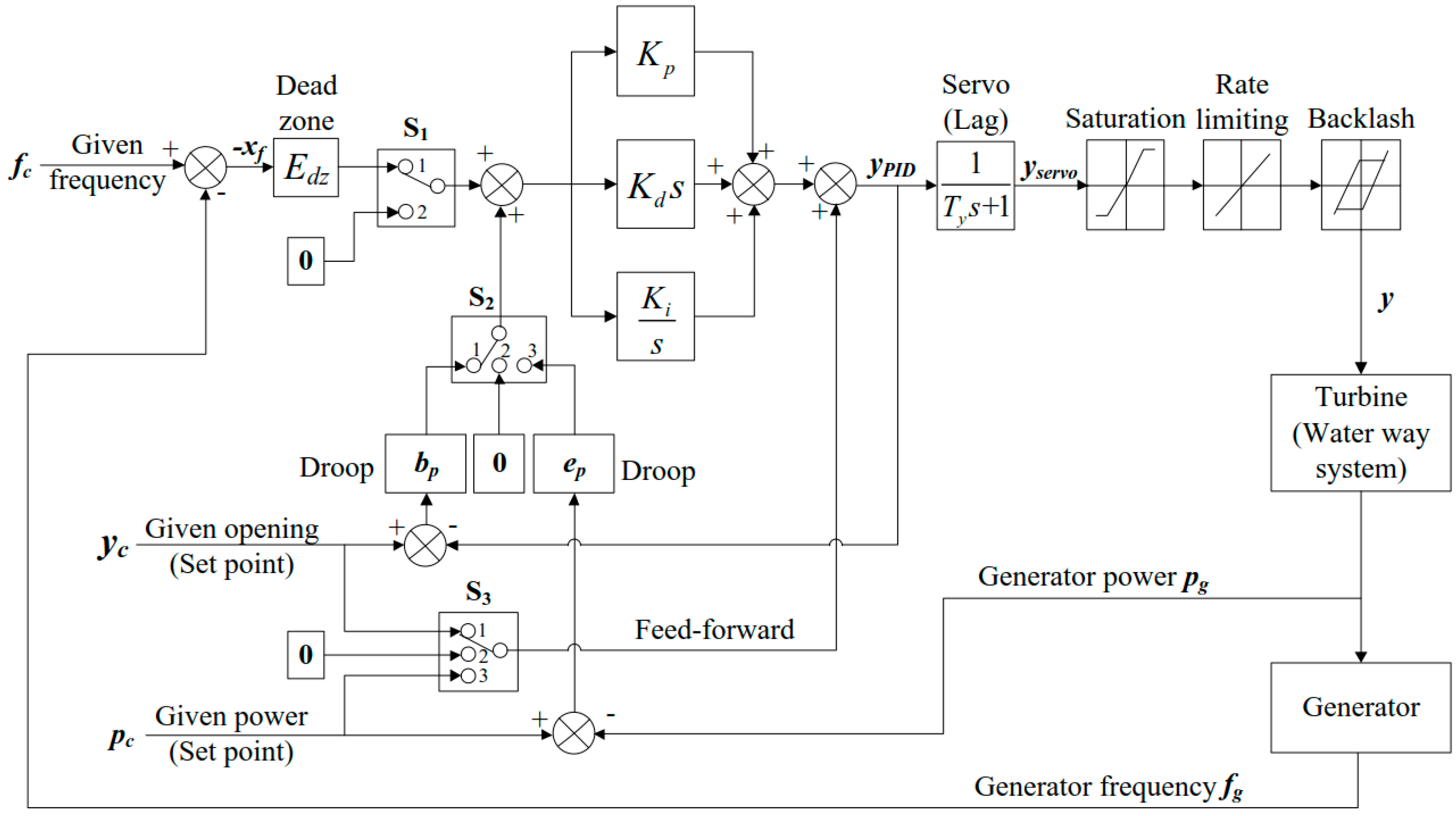

Figure 3. Governor system in TOPSYS.
Figure 3. Governor system in TOPSYS.
Energies 09 00477 g003
Table 3. Status of selectors in different control modes.
Table 3. Status of selectors in different control modes.
Control ModeEquationS1StatusS2StatusS3 Status
Frequency control(15)111
(16)133
Opening control(17)211
(18)221
Power control(19)233
(20)223
