Energies 2016, 9(4), 283; doi:10.3390/en9040283

The Effect of Biomass Physical Properties on Top-Lit Updraft Gasification of Woodchips

1
Department of Mechanical Engineering, Universidad Tecnológica de Panamá, Apartado 0819-07289, El Dorado, Panamá City, Panama
2
Department of Biological and Agricultural Engineering, North Carolina State University, Campus Box 7625, Raleigh 27695, NC, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Thomas E. Amidon
Received: 4 February 2016 / Revised: 28 March 2016 / Accepted: 6 April 2016 / Published: 12 April 2016
View Full-Text   |   Download PDF [2430 KB, uploaded 12 April 2016]   |

Abstract

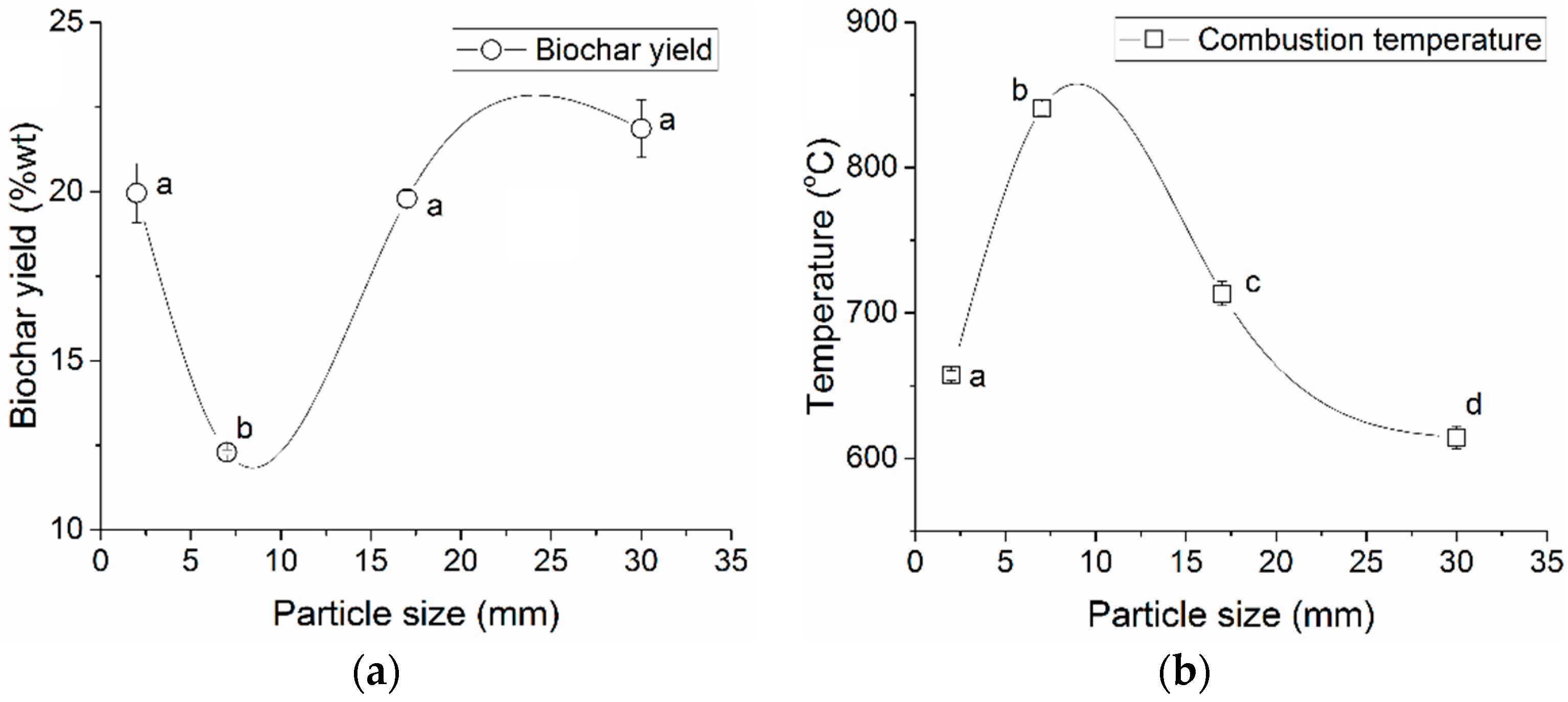

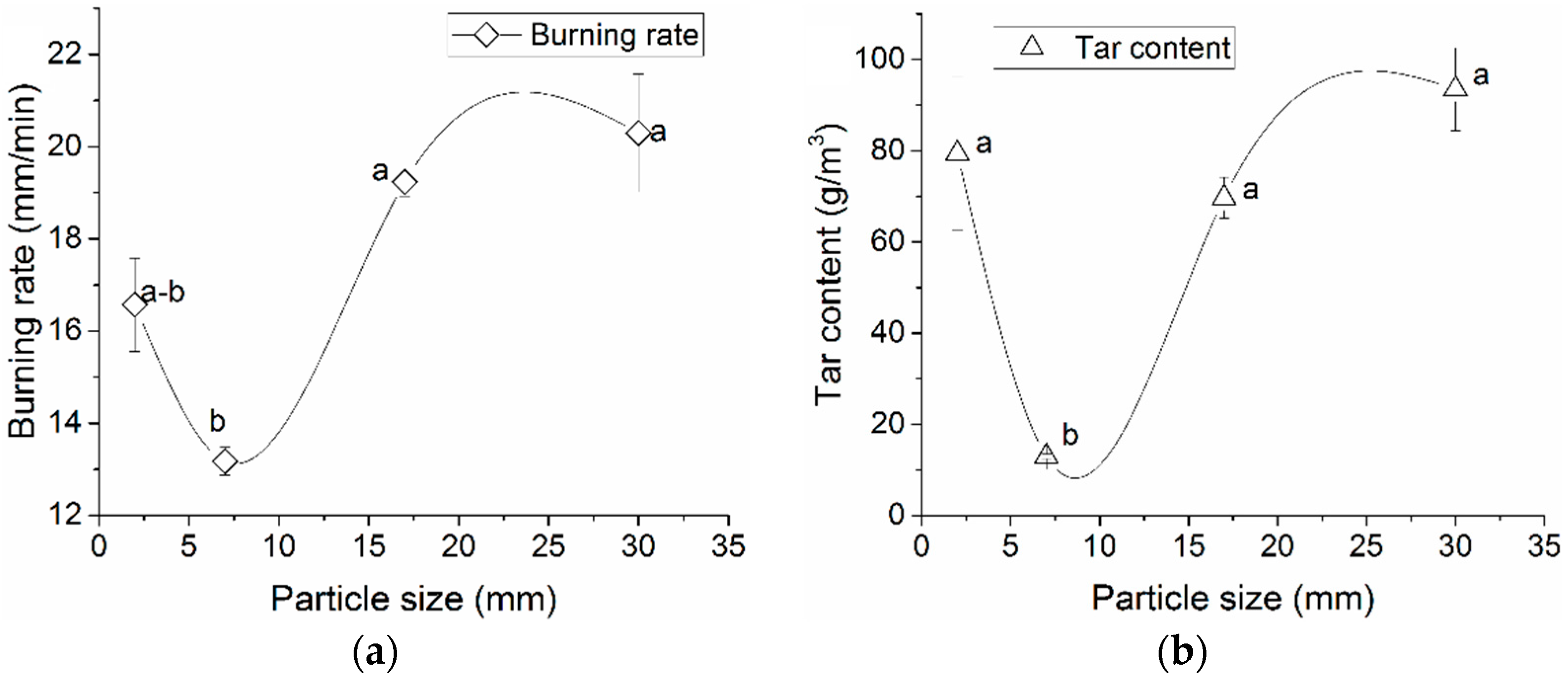

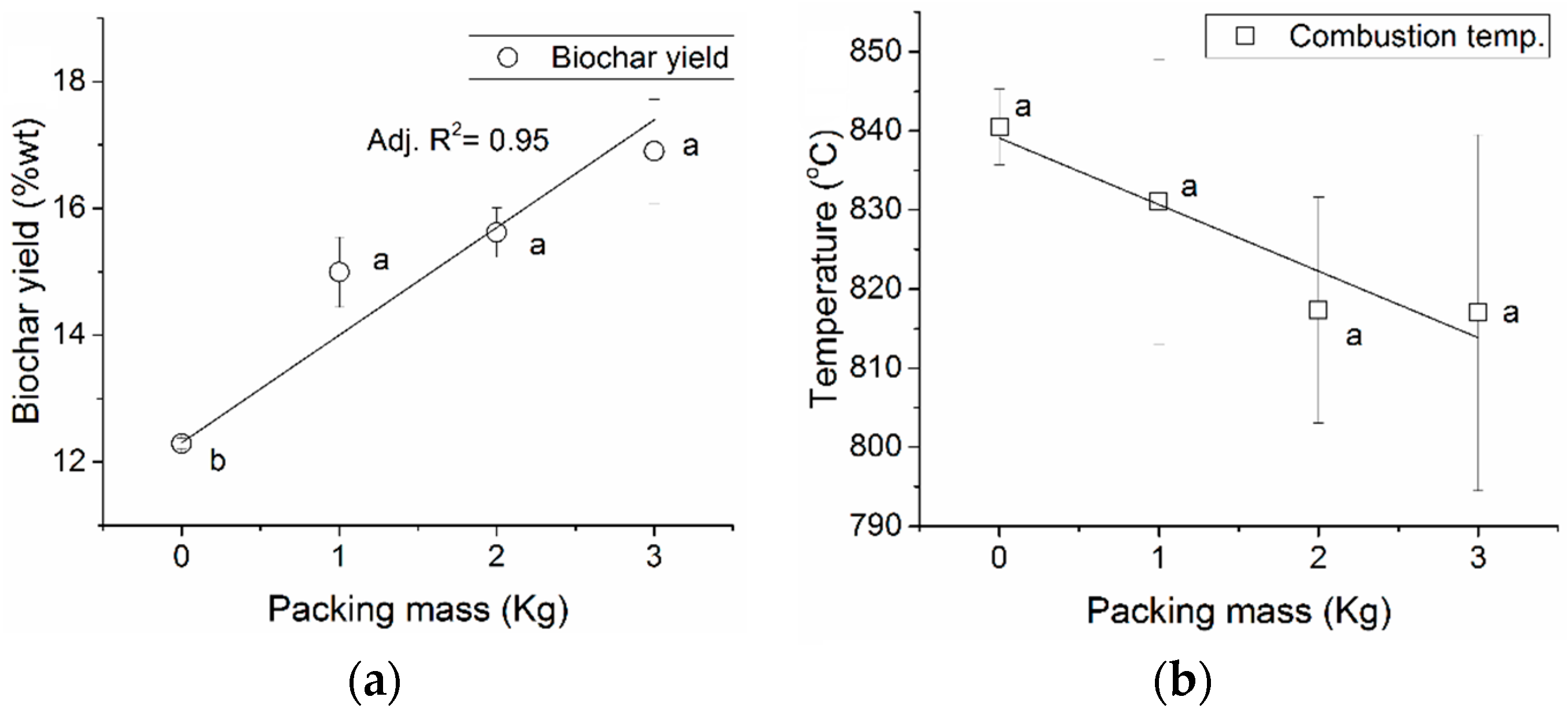

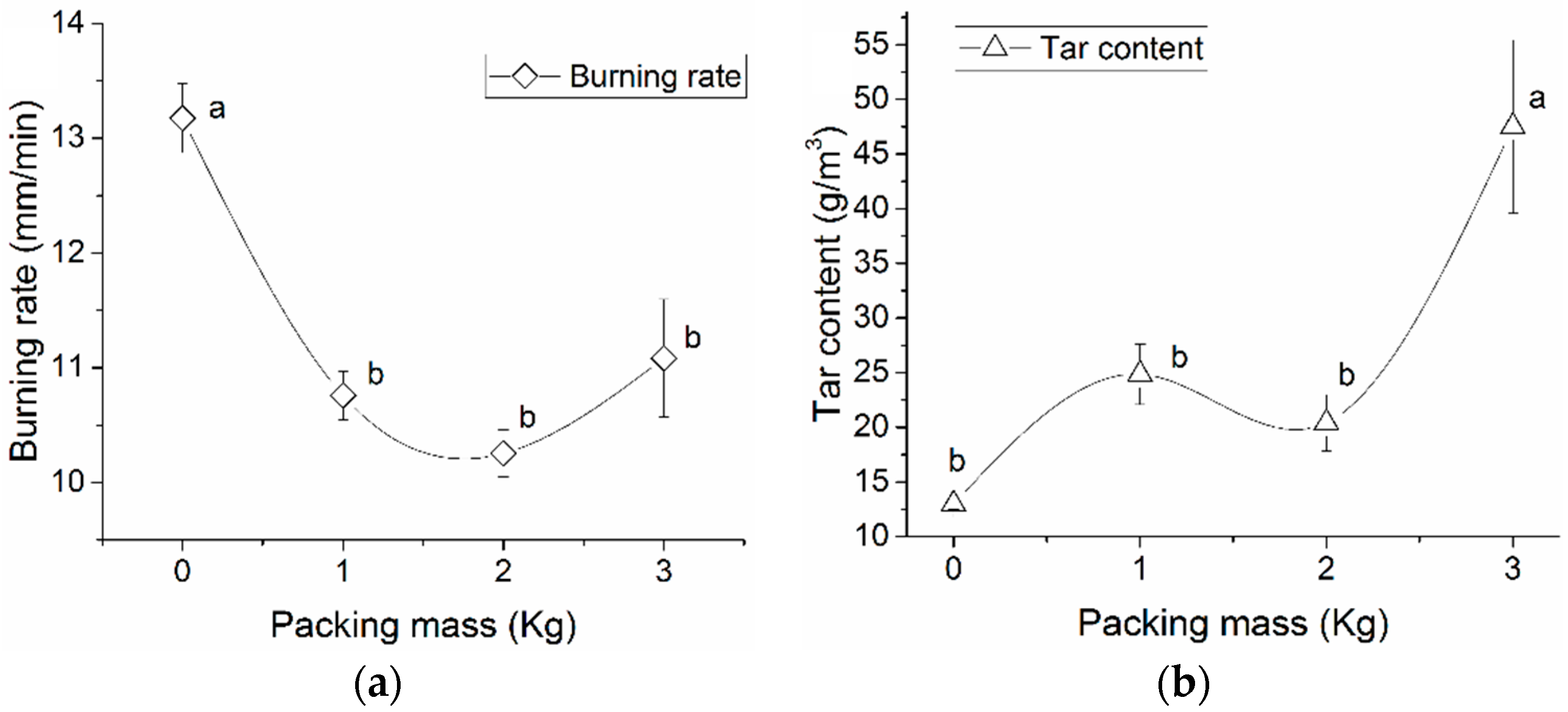

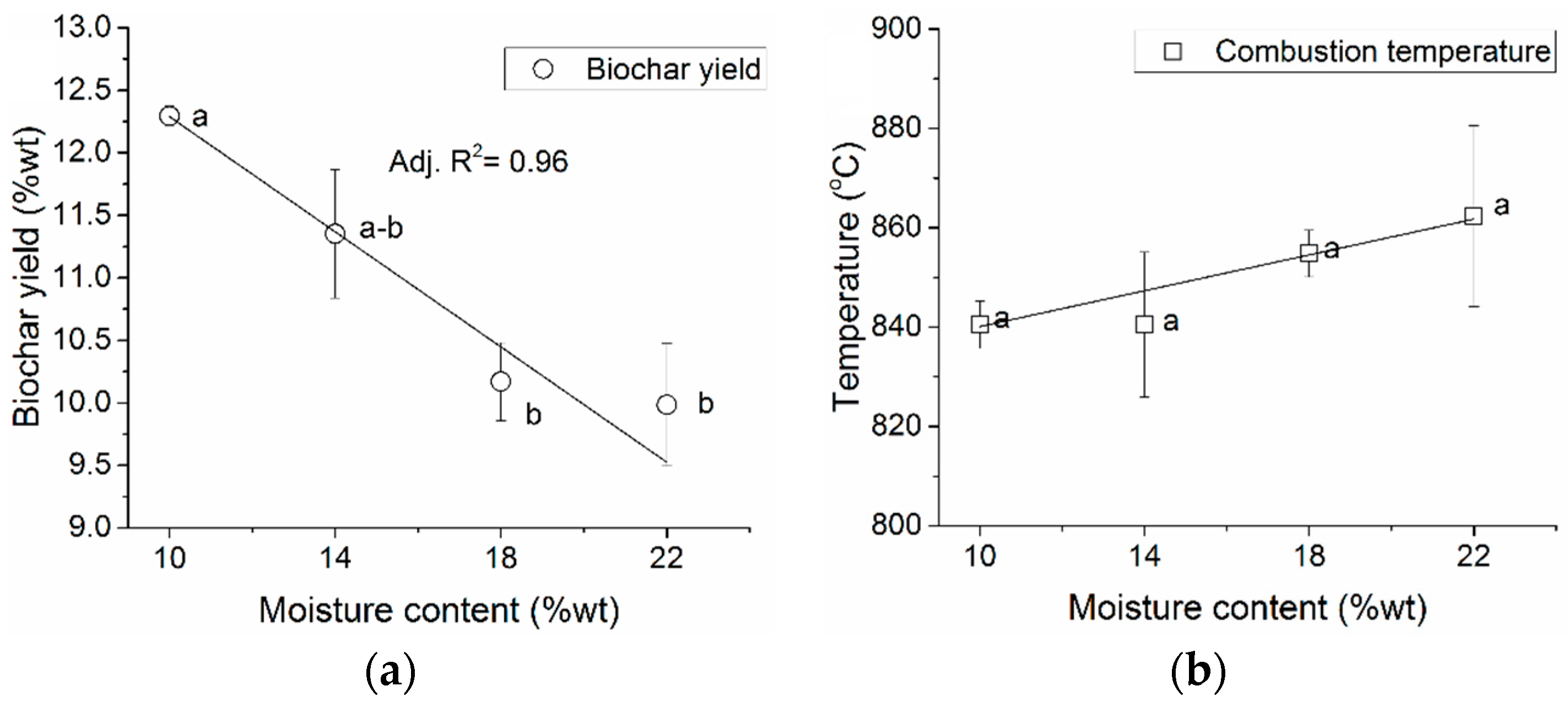

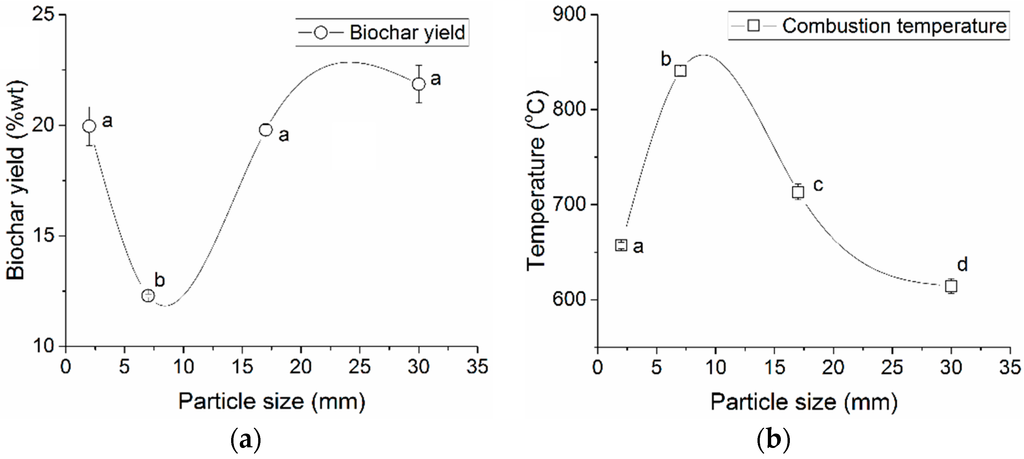

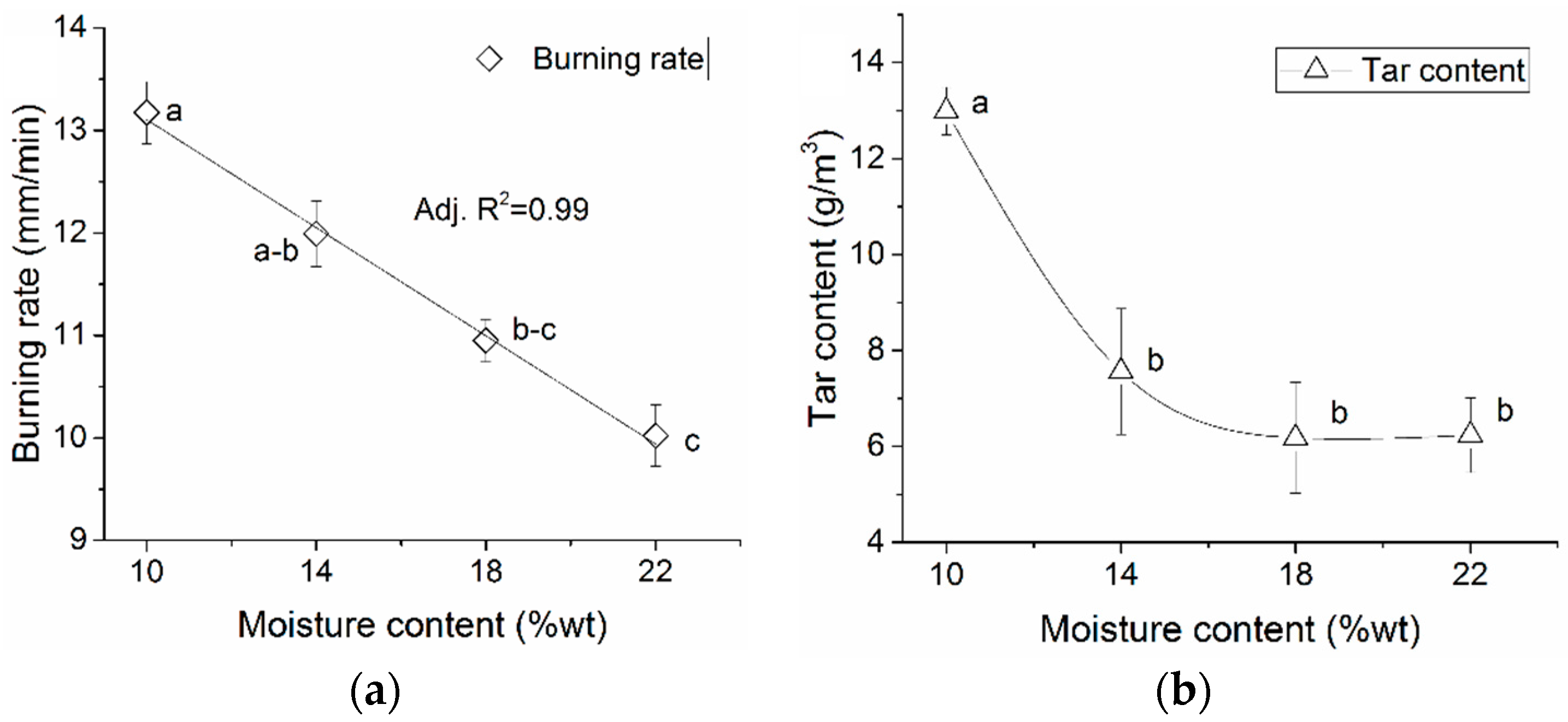

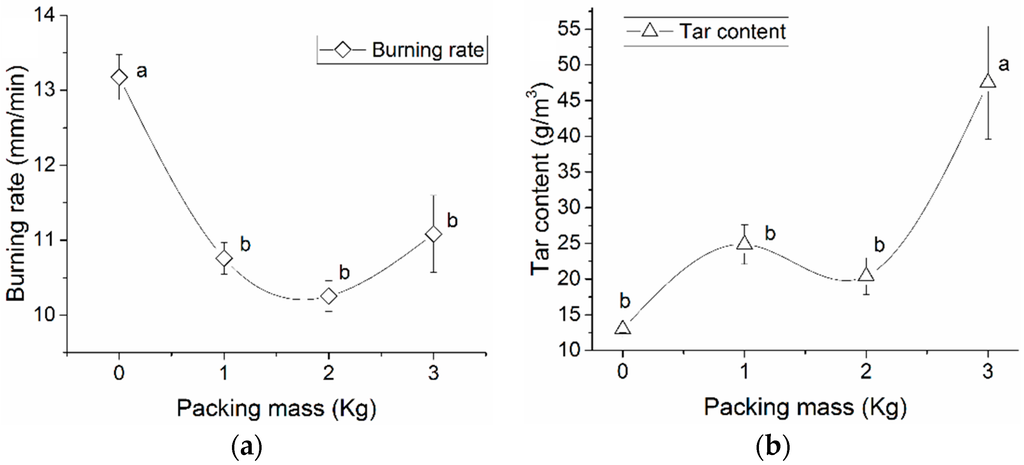

The performance of a top-lit updraft gasifier affected by biomass (pine wood) particle size, moisture content and compactness was studied in terms of the biochar yield, biomass burning rate, syngas composition and tar content. The highest biochar yield increase (from 12.2% to 21.8%) was achieved by varying the particle size from 7 to 30 mm, however, larger particles triggered tar generation that reached its maximum of 93.5 g/m3 syngas at 30-mm biomass particles; in contrast, the hydrogen content in syngas was at its minimum of 2.89% at this condition. The increase in moisture content from 10% to 22% reduced biochar yield from 12% to 9.9%. It also reduced the tar content from 12.9 to 6.2 g/m3 which was found to be the lowest range of tar content in this work. Similarly, the carbon monoxide composition in syngas decreased to its minimum of 11.16% at moisture content of 22%. Finally, the biomass compactness increased biochar yield up to 17% when the packing mass was 3 kg. However, the addition of compactness also increased the tar content in syngas, but little effect was noticed in syngas composition. View Full-Text
Keywords: top-lit updraft; biochar; syngas; biomass; gasification; tar top-lit updraft; biochar; syngas; biomass; gasification; tar
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

James R., A.M.; Yuan, W.; Boyette, M.D. The Effect of Biomass Physical Properties on Top-Lit Updraft Gasification of Woodchips. Energies 2016, 9, 283.
