Energies 2012, 5(7), 2112-2140; doi:10.3390/en5072112
Article

Methane Production from Gas Hydrate Deposits through Injection of Supercritical CO2

* email, email, email and * email
Received: 5 April 2012; in revised form: 5 May 2012 / Accepted: 7 June 2012 / Published: 25 June 2012
(This article belongs to the Special Issue Natural Gas Hydrate 2011)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

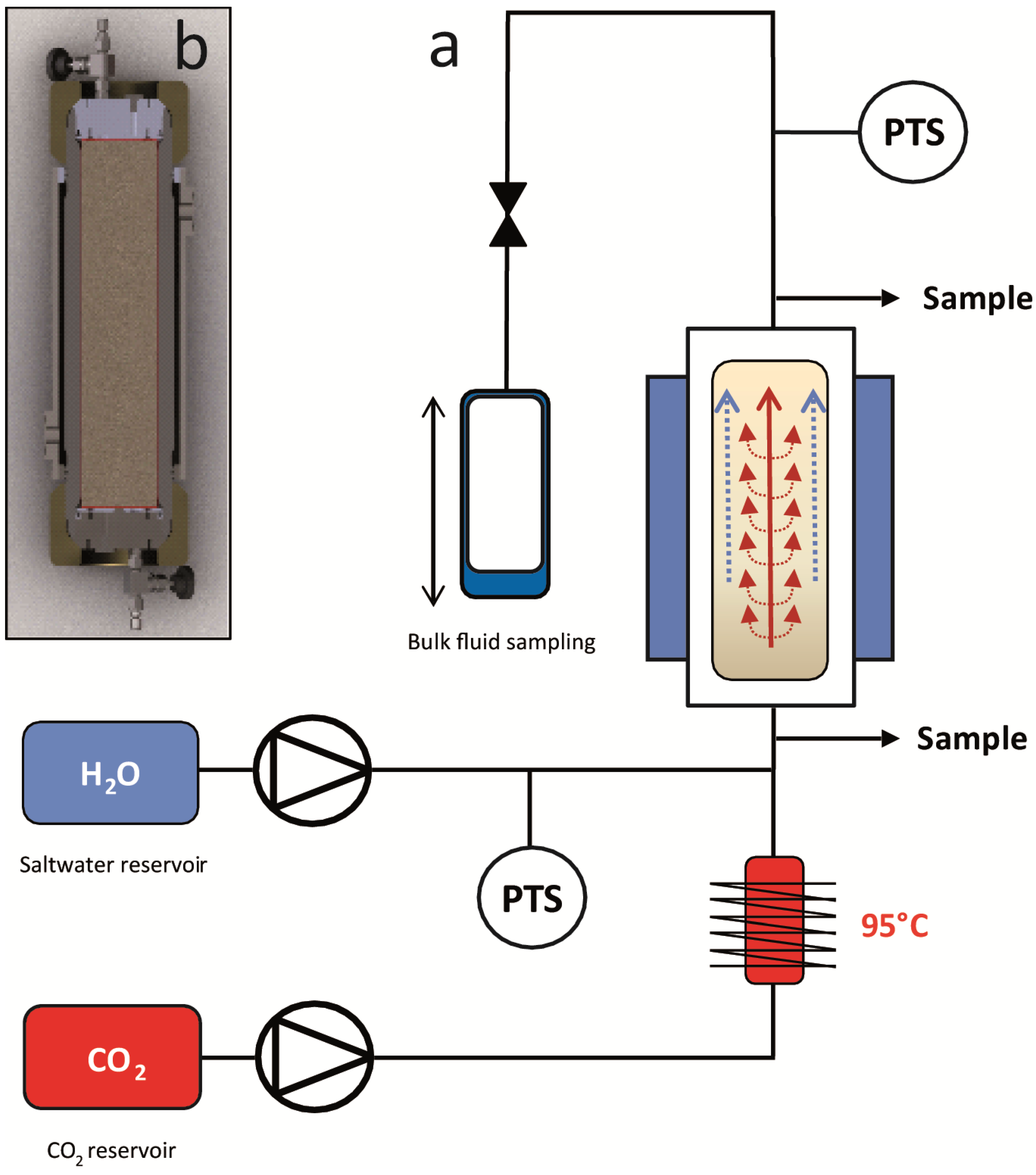

Abstract: The recovery of natural gas from CH4-hydrate deposits in sub-marine and sub-permafrost environments through injection of CO2 is considered a suitable strategy towards emission-neutral energy production. This study shows that the injection of hot, supercritical CO2 is particularly promising. The addition of heat triggers the dissociation of CH4-hydrate while the CO2, once thermally equilibrated, reacts with the pore water and is retained in the reservoir as immobile CO2-hydrate. Furthermore, optimal reservoir conditions of pressure and temperature are constrained. Experiments were conducted in a high-pressure flow-through reactor at different sediment temperatures (2 °C, 8 °C, 10 °C) and hydrostatic pressures (8 MPa, 13 MPa). The efficiency of both, CH4 production and CO2 retention is best at 8 °C, 13 MPa. Here, both CO2- and CH4-hydrate as well as mixed hydrates can form. At 2 °C, the production process was less effective due to congestion of transport pathways through the sediment by rapidly forming CO2-hydrate. In contrast, at 10 °C CH4 production suffered from local increases in permeability and fast breakthrough of the injection fluid, thereby confining the accessibility to the CH4 pool to only the most prominent fluid channels. Mass and volume balancing of the collected gas and fluid stream identified gas mobilization as equally important process parameter in addition to the rates of methane hydrate dissociation and hydrate conversion. Thus, the combination of heat supply and CO2 injection in one supercritical phase helps to overcome the mass transfer limitations usually observed in experiments with cold liquid or gaseous CO2.
Keywords: gas hydrates; methane; energy; carbon dioxide; CCS
PDF Full-text Download PDF Full-Text [1243 KB, uploaded 25 June 2012 14:57 CEST]

Export to BibTeX |
EndNote


MDPI and ACS Style

Deusner, C.; Bigalke, N.; Kossel, E.; Haeckel, M. Methane Production from Gas Hydrate Deposits through Injection of Supercritical CO2. Energies 2012, 5, 2112-2140.

AMA Style

Deusner C, Bigalke N, Kossel E, Haeckel M. Methane Production from Gas Hydrate Deposits through Injection of Supercritical CO2. Energies. 2012; 5(7):2112-2140.

Chicago/Turabian Style

Deusner, Christian; Bigalke, Nikolaus; Kossel, Elke; Haeckel, Matthias. 2012. "Methane Production from Gas Hydrate Deposits through Injection of Supercritical CO2." Energies 5, no. 7: 2112-2140.
