Energies 2018, 11(2), 272; https://doi.org/10.3390/en11020272

Lost Gas Mechanism and Quantitative Characterization during Injection and Production of Water-Flooded Sandstone Underground Gas Storage

1
College of Earth Science and Engineering, Shandong University of Science and Technology, Qingdao 266590, China
2
College of Resources Science and Technology, Beijing Normal University, Beijing 100875, China
*
Author to whom correspondence should be addressed.
Received: 25 December 2017 / Revised: 18 January 2018 / Accepted: 19 January 2018 / Published: 23 January 2018
(This article belongs to the Section Energy Sources)
Full-Text   |   PDF [20838 KB, uploaded 23 January 2018]   |

Abstract

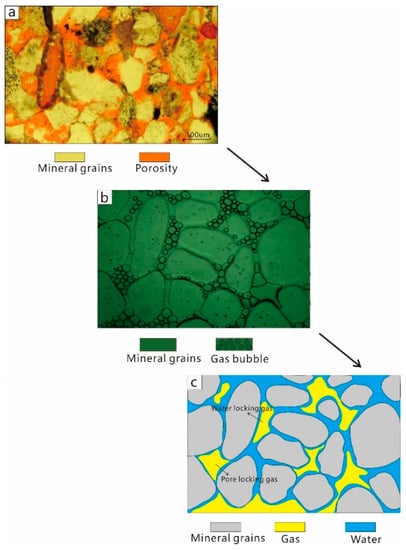

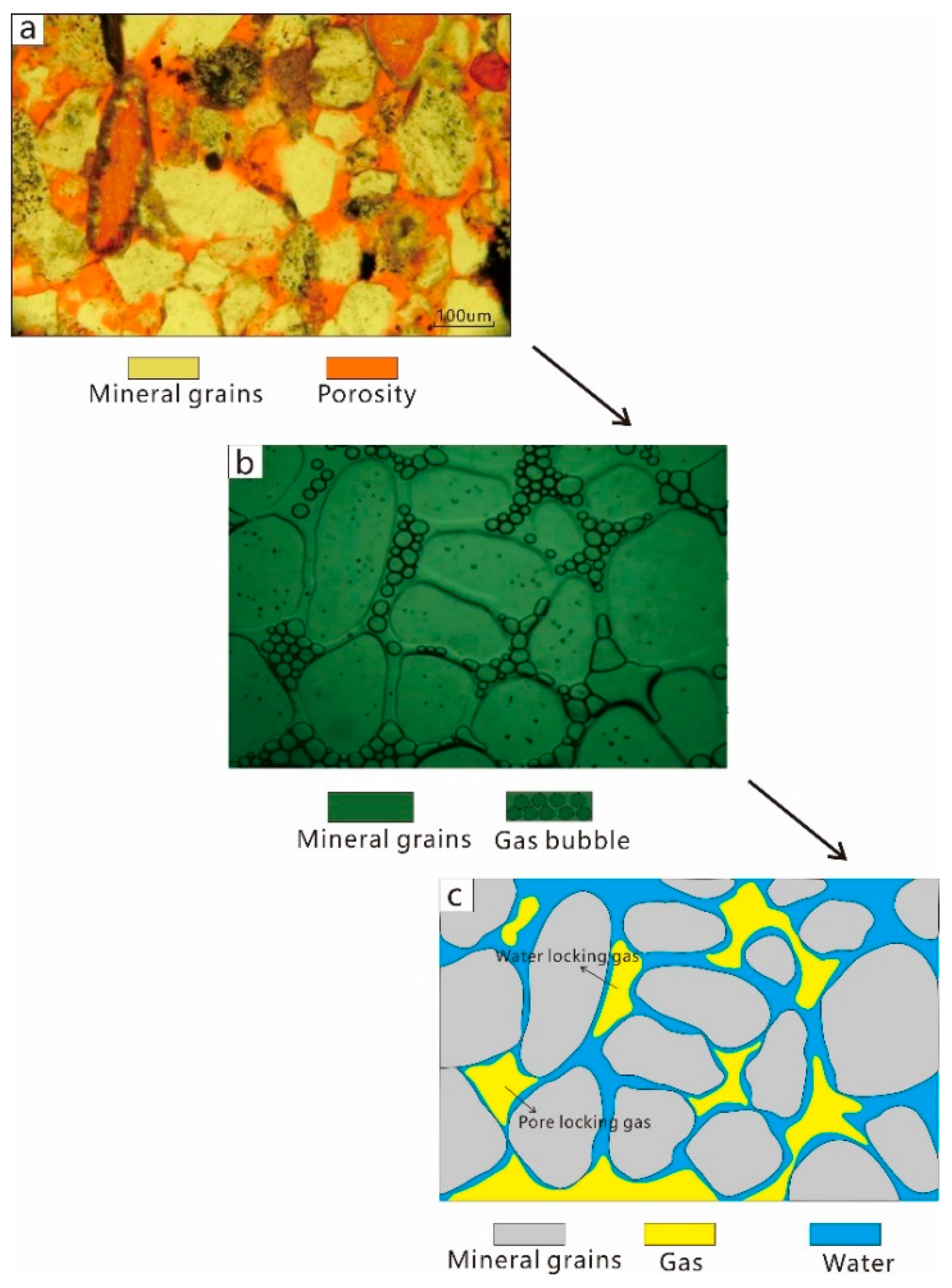

A gas–water two-phase fluid is present in a reservoir before a water-flooded sandstone gas reservoir is rebuilt. Therefore, in the process of injection and production of the rebuilt underground gas storage, the injected gas is easily blocked by the water in the pores, and the efficiency is low, resulting in a significant loss of gas. The study completely utilizes the geological data and dynamic operation monitoring data of a water-flooded sandstone underground gas storage and clarifies the rule of the gas–water three-phase seepage in a high-intensity injection–production process. Moreover, the main control factors of the low efficiency of this type of underground gas storage are clarified. The lost gas generated in the injection–production process is described from two aspects: microcosmic experiment and macroscopic law analysis. The type, mechanism, and occurrence state of the loss gas are clearly defined, its main type is “water trapped gas”, it formed when the gas rushing into the water area under high pressure and surrounded by water, and its occurrence of this kind of lost gas is mainly sporadic or continuous free gas. A gas–water two-phase mathematical model that can simulate the high-intensity injection–production process is set up according to the experimental result, this model is used to simulate the operation process of the Ban 876 underground gas storage. Based on the simulation results, the gas–water macroscopic movement rule and macroscopic accumulation mode of the lost gas are defined, and then the collection area of the lost gas is predicted and quantitatively described. The calculation results show that the lost gas in one cycle is about 775 × 104 m3, which are mainly concentrated in the inner of the gas-water transition zone. According to the numerical simulation result, six new wells have been designed to develop its internal lost gas, they all have good predictions, can increase the working gas volume of 3000 × 104 m3 and reduce the single cycle lost gas by 50%, which is only 326 × 104 m3. This provides guidance for the expansion and exploitation of the same type of water-flooded sandstone underground gas storage. View Full-Text
Keywords: underground gas storage; high strength injection and production; loss gas; numerical simulation; gas-water two phase model underground gas storage; high strength injection and production; loss gas; numerical simulation; gas-water two phase model
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
