Article

Relationship between Air Pollution and Urban Forms: Evidence from Prefecture-Level Cities of the Yangtze River Basin

1
Department of Geography and Resource Management, The Chinese University of Hong Kong, Shatin 999077, Hong Kong
2
School of Resource and Environmental Science, Wuhan University, Wuhan 430079, China
3
College of Surveying and Geo-Informatics, North China University of Water Resources and Electric Power, Zhengzhou 450045, China
4
MOE Key Laboratory of Fundamental Physical Quantities Measurement, School of Physics, Huazhong University of Science and Technology, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2019, 16(18), 3459; https://doi.org/10.3390/ijerph16183459
Submission received: 6 August 2019 / Revised: 3 September 2019 / Accepted: 16 September 2019 / Published: 17 September 2019
(This article belongs to the Section Environmental Health)

Abstract

:
Urban forms, such as size, shape, density, compactness, and fragmentation, are associated with local air pollution concentrations. However, empirical analyses on how urban form improves or degrades urban air quality are still limited and inconclusive, especially for those rapidly expanding cities in developing countries. In this study, by using the improved STIRPAT (stochastic impacts by regression on population, affluence, and technology) model, the quantitative impact of urban form on near-surface PM2.5 and NO2 concentrations was identified in the 10 prefecture-level cities of the Yangtze River Basin (YRB) from 2000 to 2013. Trend analyses showed a significant increasing trend in both PM2.5 (9.69 × 10−4 µg·m−3·year−1) and NO2 (1.73 × 10−4 ppb·year−1) for the whole study period. Notably, a turning point of PM2.5 from increasing to decreasing trends occurred around 2007. In addition, both pollutants showed a spatial agglomeration. The STIRPAT model demonstrated that socioeconomic, transportation and urban form factors played an important role in alleviating the increase of PM2.5 and NO2. In particular, a 1% decrease in urban extent density (UED) significantly increased NO2 by 0.203%, but reduced PM2.5 by 0.033%. The proximity index (PI) measured as a city’s compactness was significantly negatively correlated with PM2.5 and NO2. Conversely, a significant positive relationship of PM2.5 and NO2 concentrations against the openness index (OI) was observed, an important variable for measuring a city’s fragmentation. In addition, the environmental Kuznets curve (EKC) hypothesis between per capita GDP and PM2.5 concentration was confirmed but failed in NO2. Overall, this study encouraged a less fragmented and more compact urban form, which helped alleviate local air pollution concentrations by enhancing urban connectivity, reducing vehicle dependence, and facilitating the use of bicycles and walking.

1. Introduction

Since the reform and opening up in China, along with the rapid urbanization process, air pollution such as PM2.5, PM10, NO2, SO2 and O3 has become a serious problem [1,2]. As of 2016, 75.1% of prefecture-level cities in China did not meet the urban air quality standards [3]. As a result, the number of premature deaths caused by air pollution increased from 0.22 million in 2010 to 3.7 million in 2012. In short, poor air quality in China has attracted great attention in recent years.
Air quality is influenced by a variety of meteorological and socioeconomic factors [4,5,6,7,8,9,10]. However, a number of empirical studies, primarily in developed countries, demonstrated that urban form, such as size, shape, population density, compactness, and fragmentation has an important effect on local air pollution [11,12,13,14,15]. For example, Clark et al. [12] reported that changes in population density, centrality and transit supply led to 4%–14% growth in PM2.5 concentration in 111 urban zones of United States; impacts equivalent in size to those from meteorological conditions. Likewise, in the United States, fragmented cities experienced low air quality [14]. Moreover, Rodríguez et al. [15] demonstrated that in 249 large urban zones across Europe, a fragmented and highly constructed urban form was associated with higher PM10 and NO2 concentrations, but densely populated cities experienced higher SO2 concentration. One related study was also conducted in East Asia from 2000 to 2010 by Larkin et al. [16], confirming that urban area expansion was strongly correlated with NO2 but not PM2.5. However, empirical research exploring the relationship between air pollution and urban form was still limited, especially for those rapidly expanding cities in developing countries [17,18,19]. Therefore, in this study, the Yangtze River Basin (YRB) in China, a zone with rapid urban expansion and serious air pollution, was selected as the region of interest.
Even if most of the previous studies suggested that a less fragmented or a more compact urban form was conducive to alleviating local air pollution emissions, the conclusions varied from region to region [11,20,21]. For example, Fan et al. [21] observed that a less fragmented urban form indeed mitigated air pollutant emissions in northern regions of China, but a polycentric form along with the valleys or rivers was encouraged in southern regions of China to improve local air quality. Besides, according to Cho and Choi [22], compact cities might lead to higher population density, thereby increasing local CO and NO2 concentrations in Korea. Similarly, Bechle et al. [11] also found that in 83 cities around the world, a city’s compactness was not significantly associated with NO2 concentration. Overall, the relationship between air pollution and urban form was inconclusive and required further exploration.
Moreover, most research on this topic has been limited in terms of spatial coverage and temporal continuity [23]. In China, since 2013, 1498 air quality monitoring sites have been launched to provide continuous air pollution observations, including PM2.5, PM10, NO2, SO2 and O3 [5,24]. However, the data before 2013 was missing and perhaps satellite remote sensing was an ideal technology for addressing this problem. Thus, in this study, long-term annual mean near-surface PM2.5 and NO2 concentrations were derived from satellite imagery at a high spatial resolution of 0.01° × 0.01°.
In short, the objectives of this study were to: (1) estimate spatiotemporal trends in near-surface PM2.5 (1998–2016) and NO2 (1996–2012) concentrations over the YRB, (2) identify spatial autocorrelation in the two air pollutants, if present, and (3) further explore the relationship between air pollution and urban form in the 10 prefecture-level cities of the YRB from 2000 to 2013 by using the improved stochastic impacts by regression on population, affluence, and technology (STIRPAT) model. The organizational structure of this study is as follows. Section 2 introduces urban form data, satellite-based PM2.5 and NO2 concentrations data, socioeconomic variables, and a series of analytical methods. Section 3 analyzes spatiotemporal trends and spatial autocorrelation in PM2.5 and NO2 concentrations. The quantitative impact of urban form metrics on the two air pollution concentrations is also estimated in Section 3. Moreover, Section 3 further discusses if there was the environmental Kuznets curve (EKC) hypothesis, an inverted U-shape relationship between per capita income and the two air pollution concentrations [23]. Finally, Section 4 provides a conclusion.

2. Data and Methods

2.1. Data

2.1.1. Urban Form Data

In this study, 10 prefecture-level cities over the YRB with rapid urban sprawl and serious air pollution were selected as the region of interest to reveal the relationship between urban air pollution and urban form. Figure 1 shows, from east to west, Shanghai (SH), Changzhou (CZ), Anqing (AQ), Wuhan (WH), Pingxiang (PX), Yiyang (YY), Zunyi (ZY), Suining (SN), Chengdu (CD) and Leshan (LS). Generally, urban form is defined as the spatial land use configuration of the urban landscape [14,21]. Previous studies monitored the changes of urban form in the process of global urbanization by using various indicators such as urban area, patch number and population density [16]. However, this was not enough and more comprehensive urban form metrics were needed [17]. In this study, considering the size, density, shape, compactness, and fragmentation of a city, five urban form metrics were selected in the 10 prefecture-level cities of the YRB. The relevant vector data were provided by the NYU Urban Expansion Program, UN-Habitat and the Lincoln Institute of Land Policy, and these datasets were freely available online (Table 1).
The detailed description of these urban form metrics and their calculation formula were shown in Table A1. Size in this study referred to the total urban extent area (UEA), an important indicator for measuring urban sprawl, which was calculated from the Landsat 7 (2000) and Landsat 8 (2013) remote sensing images with a pixel resolution of 30 m × 30 m. The density of a given urban extent (UED) was identified as the ratio of its population to the area, in which the population of a given urban extent (UEP) was derived from the census data (2000 and 2013) of China National Census Bureaus. Moreover, fragmentation and compactness represented the shape of a given urban extent, quantified by the openness index (OI) and the proximity index (PI), respectively. Both OI and PI were in the range of 0–1. The OI value close to 1 indicated higher fragmentation [25]. Conversely, higher value of the PI indicated a circular shape of a given urban extent, which was the most compact urban form [25].

2.1.2. Air Pollutant Data

Satellite-retrieved air pollutants provided by the Atmospheric Composition Analysis Group of the National Aeronautics and Space Administration (NASA) were used to identify long-term trends in near-surface PM2.5 (1998–2016) and NO2 (1996–2012) concentrations over the YRB in this study (Table 1). The annual mean near-surface NO2 concentrations at a spatial resolution of 0.01° × 0.01° were derived from GOME, SCIAMACHY and GOME-2 column NO2 observations by using a chemical transport model (GEOS-Chem) [26]. Similarly, based on the GEOS-Chem model, the annual mean near-surface PM2.5 concentrations (0.01° × 0.01°) were retrieved from MODIS, MISR and SeaWiFS AOD observations, and then they were calibrated to global ground-based PM2.5 observations. Previous researches reported a high correlation coefficient (R2 = 0.81) between satellite-retrieved PM2.5 and global ground-based observation [27]. Such high consistency provided us with enough confidence in using satellite-retrieved air pollutants in this study. However, since there were no valid satellite-retrieved NO2 data in 2013, they needed to be calculated from 60 national control sites in the 10 prefecture-level cities of the YRB by using the Kriging interpolation method (Figure 1).

2.1.3. Socioeconomic and Traffic Panel Data

Urban near-surface PM2.5 and NO2 concentrations were also influenced by several socioeconomic and transportation factors. According to previous research, per capita GDP (PGDP), the proportion of the second industry (PSI), industrial added values (IAV), vehicle ownership (VO) and per capita road area (PRA) were selected as control variables [16,18,19]. These panel data of the ten prefecture-level cities in 2000 and 2013 were obtained from the Statistics Yearbook of China (Table 1).

2.2. Methods

As shown in Figure 2, the technical flow chart in this study was as follows.
Firstly, it was necessary to estimate the long-term trend of PM2.5 (1998–2016) and NO2 (1996–2012) concentrations at grid level (0.01° × 0.01°) using a linear regression. The regression slope represented the trend. Then, their corresponding statistical significance was further detected by the Mann-Kenddall (MK) method. The statistics S, the variance V a r ( s )   and the standardized statistics Z were calculated by Equations (1)–(4):
S = i = 1 n 1 j = n + 1 n s g n ( X j X i )
s g n ( X j X i ) = { + 1 ,        i f   ( X j X i ) > 0 0 ,         i f   ( X j X i ) = 0 1 ,       i f   ( X j X i ) < 0
V a r ( s ) = n ( n 1 ) ( 2 n + 5 ) p = 1 q t p ( t p 1 ) ( 2 t p + 5 ) 18
Z = { S 1 V a r ( S ) ,        i f   S > 0 0 ,                  i f   S = 0 S + 1 V a r ( S ) ,        i f   S < 0
where X j and X i were the near-surface PM2.5 and NO2 concentrations in the year j and i, n was the length of the time series, t p was the tied value corresponding to the p th number. Only | Z | > | Z ( 1 α / 2 ) | represented statistical significance in the trend. When the significant level of α = 1%, 5%, and 10%, then their corresponding | Z ( 1 α / 2 ) | were, respectively, 2.58, 1.96 and 1.65. The relevant results were calculated in ArcGIS 10.1 software (Environmental Systems Research Institute, America).
Secondly, in order to investigate the spatial autocorrelation in near-surface PM2.5 and NO2 concentrations over the YRB, two conventional indexes, namely Global and Local Moran’s I, needed to be calculated in Geoda software (Environmental Systems Research Institute, America). The Global Moran’s I was defined as follows (Equation (5)):
I =   i = 1 n j = 1 n   ( x i x ¯ ) ( x j x ¯ ) / ( i = 1 n ( x i x ¯ ) 2 / n ) 2 i = 1 n j = 1 n ω i j
where x i was the yearly near-surface PM2.5 and NO2 at the city i, n was the total number of county-level cities over the YRB, ω i j was the spatial weight from city i to city j. The standardized statistics Z I used for detecting the statistical significance of the Global Moran’s I was computed from Equation (6):
Z I =   I E ( I ) / V a r ( I )
where E ( I ) =   1 / ( n 1 ) , V a r ( I ) = E ( I 2 ) E ( I ) 2 . Generally, the Global Moran’s I ranged from –1 to 1. On the premise of statistical significance, i.e., Z I > 1.65, if Global Moran’s I > 0, then it indicated spatial agglomeration, otherwise, it was spatial dispersion [19]. In terms of the local spatial autocorrelation, LISA (local indicators of spatial association) was selected to spatialize it. LISA is a spatial cluster method based on neighborhood and attributes, dividing the group states into four significant cluster types: high-high, high-low, low-high and low-low [27]. In this study, high-high and low-low patterns represented spatial agglomeration for PM2.5 (NO2) over the YRB. Conversely, high-low and low-high patterns indicated spatial dispersion. Furthermore, high-high was a hot spot with serious air pollution, while low-low was the cold spot.
After the above two steps, this study undertook an overall analysis of PM2.5 and NO2 pollution over the YRB in terms of its long-term trend and spatial autocorrelation. However, the reasons for the changes in PM2.5 and NO2 concentrations required further study. Therefore, this study tried to explore the quantitative impact of urban forms on PM2.5 and NO2 using a stochastic model (STIRPAT). Moreover, the socioeconomic and transportation metrics were selected as control variables. Notably, the New York City Urban Expansion Plan, UN-Habitat and the Lincoln Land Policy Institute provided relevant urban form indicators only for 2000 and 2013. Therefore, in order to maintain data consistency, all air pollution data, urban form data, socio-economic data and traffic data were selected only for 2000 and 2013 when analyzing the quantitative impact of urban forms on air pollution.
The IPAT model was firstly proposed by Ehrlich and Holdren [28] for revealing the anthropogenic impact on the environment. It was defined as:
I =   P A T
where I referred to the anthropogenic environmental impact, P was the population density, A represented the average affluence, generally characterized by GDP, and T was the technology level. According to previous researches [18], the proportion of the second industry (PSI) and the industrial added value (IAV) were selected to represent the technology level. However, the model was inadequate because only a limited number of independent variables were considered. To overcome this weakness, Dietz and Rosa [29] further developed the IPAT into a stochastic model (STIRPAT). It can be expressed as:
I i = α   P i b A i c T i d ε i
After taking logarithms, Equation (8) became as Equation (9):
ln I i = α + b ln P i + c ln A i + d ln T i + ε i
where α was a constant; i was the city; b, c, and d were the coefficients of P i , A i , and T i ; ε i was the error term. Additionally, York et al. [30] refined the STIRPAT model by adding quadratic terms of P i , A i , and T i . In this study, according to previous research, the STRIPAT model is improved by adding urban form, socioeconomic and traffic variables. Besides, time dynamic effect (t) was also considered in the improved formula:
ln I i t = α + b 1 ln P G D P i t + b 2 ln ( P G D P i t ) 2 + b 3 ln S I P i t + b 4 ln I A V i t + b 5 ln V O i t + b 6 ln P R A i t + b 7 ln U E P i t + b 8 ln U E A i t + b 9 ln U E D i t + b 10 ln O I i t + b 11 ln P I i t + ε i
Actually, the STIRPAT model is composed of a range of multivariate regressions, i.e., Model I, Model II, and Model III. Their corresponding coefficients (b1, b2 … b11) were computed by the 2SLS method. The coefficients (b1, b2 … b11) represented the quantitative impact of the selected socioeconomic, transportation and urban form metrics on PM2.5 and NO2 concentrations. However, during stepwise regression in SPASS software, these independent variables should have no collinearity with each other, otherwise they would be eliminated. Following the premise, the UEP and UEA independent variables were eliminated from the stepwise regression.
Finally, according to Equation (10), we could also judge whether there was an EKC hypothesis, an inverted U-shaped relationship between per capita income and air pollutants. This was first proposed by Selden and Song [31] and then empirically examined by a number of researchers [32,33]. The EKC hypothesis states that air pollution increases with income, but then decreases as income increases to a turning point. If b 2 < 0 and b 1 > 0 then there was EKC hypothesis, and the turning point was computed by the equation ( 0.5   b 2 / b 1 ).

3. Results and Discussions

3.1. Near-Surface Air Pollution Concentrations Estimation

3.1.1. Spatiotemporal Trends of Near-Surface PM2.5 and NO2 Concentrations

Figure 3 shows the annual mean trends in near-surface PM2.5 (1998–2016) and NO2 (1996–2012) concentrations over the whole YRB. Obviously, significant upward trends were observed for both PM2.5 (9.69 × 10−4 µg·m−3·year−1) and NO2 (1.73 × 10−4 ppb·year−1) during the entire study period. However, a notable turning point of PM2.5 from increasing to decreasing appeared around 2007. The decrease of PM2.5 was mainly attributed by the implementation of a series of energy saving and emission reduction policies in China after 2006 [7,8,9,10]. To verify the hypothesis, the main anthropogenic emissions of the YRB including organic carbon (OC), black carbon (BC), SO2 and SO4 were calculated from the MERRA-2 aerosol reanalysis datasets (Figure A1) from 2000–2017. A good performance of the MERRA-2 product was reported in previous studies [34,35]. As shown in Figure A1, the over-increasing trends of OC, BC, SO2 and SO4 anthropogenic emissions were curbed efficiently after 2006, and thus decreased near-surface air pollution concentrations.
Figure 4 depicted the spatial patterns of near-surface PM2.5 and NO2 trends over the YRB at 0.01° × 0.01° spatial resolution. Also, their corresponding significant levels were detected based on the MK method. The pixels at 95% significant level (p-value < 0.05) were marked as no grey line coverage. As illustrated in Figure 4c, significant increasing trends of annual mean near-surface PM2.5 (>0.7 µg·m−3·year-1) appeared over the middle and lower reaches of the YRB. Over these regions, frequent industrialization and urbanization activities always took place, resulting in high annual mean near-surface PM2.5 concentrations (>42 µg·m−3) from 1998 to 2016 (Figure 4a,b). Notably, another significant increasing PM2.5 trend was observed over the source of the YRB, probably caused by the combination of the anthropogenic activities and dust events from Taklimakan Desert [36]. If the increasing trend of PM2.5 continues, it will be an alarming condition for the air quality for these regions. In terms of the spatial distribution of NO2, high annual mean NO2 concentrations (>3.5 ppb·year−1) appeared only in the YRD in 1996 (Figure 4c), but expanded to the Central China (CC) and the Sichuan Basin (SB) in 2012 (Figure 4d). Overall, significant increasing trends in annual mean near-surface NO2 concentration from 1996 to 2012 were observed over the YRD, CC and SB, of which the largest increase (>0.35 ppb·year−1) occurred in the YRD (Figure 4e).
In order to identify the linkage between urban sprawl and urban air pollution, 10 prefecture-level cities were selected from the YRD, CC, and SB regions influenced by serious air pollution. Figure 5 shows the changes in PM2.5 (top) and NO2 (bottom) concentrations over the 10 urban extents from 2000 to 2013. Overall, the annual mean PM2.5 and NO2 concentrations in all 10 urban extents in 2013 were higher than those in 2000. The largest increase of PM2.5 occurred in SH, with an annual mean growth rate of approximately 4.71%. However, WH experienced the largest increase of the near-surface NO2, reaching an annual mean growth rate of approximately 16.82%. According to the ambient air quality standard established by the World Health Organization (WHO), the annual mean near-surface PM2.5 concentration should not be exceeded by 10 µg·m−3. All of the 10 prefecture-level cities in 2013 were above this threshold. Regarding the near-surface NO2 concentration, the WHO recommends not to be exceeded by 20 ppb as the annual mean; 20% of the sample in 2013 was beyond this threshold. These results highlighted that it was necessary to explore which factors derived the degradation of air quality over the YRB.

3.1.2. Spatial Autocorrelation of Near-Surface PM2.5 and NO2 Concentrations

Figure 6 showed the Global Moran’s I changes of PM2.5 and NO2 concentrations over the YRB for the period of 1998–2016 and 1996–2012, respectivley. At 95% significant level, all the Global Moran’s I values were greater than 0, indicating a spatial agglomeration of both PM2.5 and NO2. In addition, the Global Moran’s I for PM2.5 increased from 0.706 in 1998 to 0.728 in 2016, while the Global Global Moran’s I for NO2 increased from 0.727 in 1996 to 0.731 in 2012. Result revealed a rapid spatial agglomeration trend in both PM2.5 and NO2, i.e., the near-surface PM2.5 and NO2 concentrations over the YRB became more and more clustered during 1998–2016 and 1996–2012, respectively.
Figure 7 depicts the LISA spatial clustering patterns of near-surface PM2.5 and NO2 concentrations over the 930 county-level cities of the YRB by using the Local Moran’s I. Generally, there were four LISA cluster patterns: high-high, low-low, high-low and low-high. As shown in Figure 7, for both PM2.5 and NO2, the high-high and low-low clusters dominated for the whole study period. These results indicated a spatial agglomeration, which was consistent with the Global Moran’s I (Figure 5). Moreover, in terms of PM2.5 (Figure 7a,b), no significant changes were observed in the low-low clusters and most of them were located in the upper reaches of the YRB. However, the high-high clusters of PM2.5 were mainly located over the YRD and CC in 1998 and then extended to the SB in 2016. Similarly, the high-high clusters of NO2 increased from 74 in 1996 to 96 in 2012 (Figure 7c,d). The rapid spatial agglomeration trends of both PM2.5 and NO2 might be attributed to China’s coordinated regional development policies. A number of heavily polluted enterprises transferred from the east to the west, resulting in the increase of the local air pollutants, and thereby decreased regional inequality [19].

3.2. Changes in the Socioeconomic, Transportation and Urban Form Metrics

Figure 8 shows variations of the socioeconomic factors and transportation metrics. The blue numbers referred to their corresponding annual mean growth rates. Results discovered that the per capita GDP (PGDP) increased significantly at all 10 prefecture-level cities. The largest increase appeared in LS, with an annual mean growth rate of 18%. In terms of the technology level, all 10 prefecture-level cities experienced a significant increasing trend in the industrial added value (IAV). However, only the industrial structures of SH and CZ were optimized, characterized by a decline in the proportion of the second industry (PSI) from 2000 to 2013. Additionally, significant upward trends of vehicle ownership (VO) were also observed in all cities, and thereby increased exhaust gases emission. The per capita road area (PRA) represented a city’s transportation capacity, where higher value of the PRA indicated higher transportation efficiency and less traffic congestion. As illustrated in Figure 8, except for SH, all of the cities experienced a significant increase of the PRA.
Figure 9 depicted dynamic patterns in five urban form metrics. Significant increasing trends were observed in both the urban extent population (UEP) and the urban extent area (UEA). In 2000, the largest UEP appeared in SH (1446 × 104 persons), and increased to 2438 × 104 persons in 2013. By comparison, CD experienced the fastest increase in population between 2000 and 2013, with an annual mean growth rate of 6.8%. Similarly, the fastest expansion of the UEA was also observed in CD, with an annual mean growth rate of 13.0% between 2000 and 2013, followed by WH (9.8%), with urban area increased from 44,273 hectares to 183,723 hectares. However, the smallest growth rate occurred in SH, probably due to the largest urban area in the baseline year (2000) in SH. Overall, results revealed an accelerating process of both population and land urbanizations.
However, the urban extent density (UED) of these cities displayed a significant decreasing trend for the whole study period, except for SH. These results indicated that urban land expansion was faster than urban population growth. According to the 2017 China Statistical Yearbook, China has experienced rapid urbanization between 2000 and 2016, in which the land urbanization rate increased by 142.2% but only 72.74% growth was observed in the population urbanization rate. The reason for the phenomenon might be that expansion and leapfrog patterns dominate the land urbanization [14]. In order to verify this statement, the urban sprawl patterns were estimated at the 10 cities across the study period, which were also derived from the NYU Urban Expansion Program (Figure A2). In Figure A2, the expansion type dominated the added areas of all other cities except SH and PX, and thereby reduced the population density of these cities.
Furthermore, the openness index (OI) was an important indicator for measuring the fragmentation of a given urban extent, ranging from 0 to 1 [25]. Larger OI indicated a more fragmented city, which probably increased the vehicle travelling distance and thus increased the air pollution emissions. Nevertheless, from Figure 9, changes in the OI were different at the 10 cities from 2000 to 2013. CZ, WH, and SN experienced an increasing trend of OI, while a decreasing trend was observed in the other cities. Similarly, uneven changes were observed in the proximity index (PI), a metric for measuring a city’s compactness. It took values in the range of 0–1 [25]. A growing trend in the PI was observed in SH, CZ, YY, LS, and CD, indicating that these cities became more and more compact across the study period.

3.3. Drivers of Air Pollutants

Changes in the near-surface PM2.5 and NO2 concentrations were influenced by a series of socioeconomic factors, transportation indexes as well as urban form metrics [14,15,16,17]. In order to estimate the quantitative impact of these factors on the air pollutants, the improved STIRPAT model was used in this study.
The Model I was used to identify the quantitative impact of the socioeconomic factors on the near-surface PM2.5 and NO2 concentrations. Overall, results revealed that the Model I explained 73.9% (adjusted R2 = 0.739) and 81.0% (adjusted R2 = 0.810) for changes in PM2.5 and NO2, respectively. The economic growth (PGDP) was positively associated with PM2.5 at 99% significant level. In particular, an increase of 1% of PGDP resulted in a 0.554% rise on average in PM2.5 concentration. Generally, wealthy cities tend to have denser populations and buildings as well as more vehicles, which may increase air pollution emissions [20]. But on the other hand, it may have cleaner technologies and stricter emission regulations, and thereby contribute to less air pollutant outputs [21]. For example, a negative relationship was observed between PGDP and NO2 in this study. Additionally, the proportion of the second industry (PSI) and the industrial added value (IAV) were positively associated with both PM2.5 and NO2 concentrations.
Model II extended the basic form of Model I by adding the transportation factors, which were measured as two independent variables of the vehicle ownership (VO) and the per capita road area (PRA). In general, Model II explained 71.4% and 78.5% for changes in the near-surface PM2.5 and NO2 concentrations, respectively. By comparison, the performance of Model II was lower than Model I. In terms of the VO, it was positively associated with air pollutants at 95% significant level, i.e., a 1% increase in the VO led to a 0.064% and 0.123% increase in PM2.5 and NO2 concentration, respectively. By contrast, a significant negative relationship (p-value < 0.05) was observed between the PRA and air pollutants. The PRA represented a city’s transportation capacity. High PRA values were conducive to reducing traffic congestion, and thus effectively alleviating air pollution emissions, especially the NO2 emissions [18]. As shown in Table 2 and Table 3, a 1% increase of the PRA reduced PM2.5 and NO2 concentrations by 0.072% and 0.087%, respectively.
The Model III could estimate the quantitative impact of the urban form metrics on the near-surface PM2.5 and NO2 concentrations. Since there was a collinearity between the urban extent population (UEP) and the urban extent area (UEA), the two independent variables were eliminated during the stepwise regression. The rest of the variables, including the urban extent density (UED), proximity index (PI), openness index (OI), were still remained in Model III. In terms of the UED, it was positively associated with PM2.5 concentrations but negatively correlated with NO2 concentrations at 99% significant level. As discussed in Section 3.2, during 2000–2013, except the SH, all other cities experienced a significant decrease in the UED. The reason was not caused by the decrease of the population, but because land urbanization was faster than urban population growth. The reduction in the UED might lead to a growth in the fragmentation of a given city, thereby increasing the vehicle kilometers of travel and ultimately aggravating transportation-related air pollutant emission, such as NO2 emissions. A 1% reduction of UED increased NO2 concentrations by 0.203% on average during the study period (Table 3). On the other hand, the lower UED was usually related to a decentralized urban population and construction. On this condition, air pollutants were easier to diffuse and dilute, and thus led to lower pollution concentrations. As shown in Table 2, a 1% decrease of UED results in a 0.033% reduction in PM2.5 concentration on average. Recently, Fan et al. [21] also suggested that a high population density could significantly increase SO2 emissions but decrease NO2 emissions at the 344 prefecture-level cities in China.
Furthermore, the PI, an important index for measuring the compactness of a given city, was negatively associated with both PM2.5 and NO2 concentrations. In other words, a compact urban form was conducive to reducing pollution emissions by greater urban connectivity and activity concentration. As illustrated in Table 2 and Table 3, a 1% increase in compactness reduced PM2.5 and NO2 concentrations by 0.305% and 1.750% on average, respectively. By contrast, a significant positive relationship of the OI against PM2.5 and NO2 concentrations was observed. These results suggested that the more fragmented urban form tended to increase air pollution emissions by extending vehicle kilometers of travel. Quantitatively, a 1% increase in the fragmentation led to a 0.524% and 1.002% growth, respectively in the PM2.5 and NO2 concentrations. Similar results were also discussed in cities over the YRD [17], Chinese mainland [18,21], East Asia [16], Europe [15] and United States [14]. All of them suggested that a less-fragmented and more compact urban form was conducive to efficiently mitigating air-pollution emissions.
Based on Equation (10), Model I, Model II, and Model III could also be used to detect the presence of the EKC between economic growth (PGDP) and air pollution (PM2.5 and NO2 concentrations). The EKC hypothesis indicated that air pollution concentrations first increase with the growth of the PGDP, but then decrease when the PGDP reaches a turning point. From Table 2 and Table 3, the EKC hypothesis between economic growth and PM2.5 concentration was confirmed in all three models but failed in NO2 concentration. In addition, Figure 10 showed that only considering the socioeconomic factors (Model I), the turning point of the EKC hypothesis appeared at LNPGDP = 12.0434, i.e., PGDP = 169,987 RMB. Then, by adding the transportation factors (Model II), the turning point was observed in LNPGDP = 12.7875 (PGDP = 357,717 RMB). Finally, through Model III, the turning point happened in LNPGDP = 11.9166 (PGDP = 149,741 RMB). However, the PGDP of all 10 prefecture-level cities of the YRB did not reach the turning point by 2013, in which SH had the highest PGDP of 103,796 RMB. Results suggest that PM2.5 concentration of these cities over the YRB may continue to increase with the PGDP until the turning point is reached. However, the premise is to eliminate the influence of policies and regulations, otherwise it will interfere with the turning point of the EKC hypothesis. For example, as shown in Figure 2, the regional averaged PM2.5 concentrations of the YRB initially increased with GDP growth, but then depicted a downward trend after 2007. The turning point was ahead of schedule. The reason might be that the strict pollution control measures were implemented in China after 2007. Besides, the EKC hypothesis might exhibit an N-shaped curve in a long turn [32,33], which needed to be discussed in future studies.

4. Conclusions

Based on the improved STIRPAT model, this study tried to investigate the quantitative impact of urban form on the near-surface PM2.5 and NO2 concentrations in 10 prefecture-level cities of the YRB from 2000 to 2013. Trend analyses revealed that a notable turning point of PM2.5 concentrations from increasing to decreasing occurred around 2007. It was probably caused by the implementation of a series of energy-saving and emission-reduction policies in China since 2006. Besides, significant increasing trends in the PM2.5 (0.7 µg·m−3·year−1) and NO2 (3.5 ppb·year−1) concentrations were observed over the middle and lower reaches of the YRB. Based on the Global Moran’s I, spatial agglomeration was further confirmed in both PM2.5 and NO2. During the study period, the high-high and low-low clusters dominated the local spatial agglomeration patterns of both air pollutants.
The STIRPAT model further discovered that the socioeconomic and transportation factors were associated with changes in the PM2.5 and NO2 concentrations. In particular, the growth of the PGDP at the ten prefecture-level cities significantly increased PM2.5 concentration but decreased NO2 concentration from 2000 to 2013. EKC hypothesis between economic growth and PM2.5 concentration was confirmed but failed in NO2. The EKC turning point of PM2.5 occurred in PGDP = 169,987, 357,717, 149,741 RMB, respectively for Model I, Model II, and Model III.
Results also highlighted the fact that urban form played an important role in the changes of near-surface PM2.5 and NO2 concentrations. Since land urbanization was faster than population growth, all cities experienced a decrease in the urban extent density (UED), except for SH. As a result, these cities became more and more fragmented, leading to a significant increase in the transportation-related emissions. For example, a 1% reduction in UED increased NO2 concentration by 0.203% on average. Nevertheless, it led to a 0.033% decrease in PM2.5 concentration. Additionally, proximity index (PI), an important index measured as a city’s compactness, was significantly negatively associated with PM2.5 and NO2 concentrations. A 1% increase in PI led to a significant decrease of 0.305% (1.705%) in PM2.5 (NO2) concentration. On the contrary, there was a significant positive relationship of PM2.5 and NO2 concentrations against openness index (OI), an indicator used for measuring a city’s fragmentation. Between 2000 and 2013, a 1% increase in OI would result in a growth of 0.524% (1.002%) in PM2.5 (NO2) concentration.
Overall, this study might provide a better understanding of the relationship between urban form and air quality from an empirical analysis. It suggested that a more compact and a less-fragmented urban form was conducive to alleviating air pollution emissions at prefecture level by enhancing urban connectivity and reducing vehicle dependence. However, several limitations need to be addressed in future research. For example, high-resolution (e.g., 250 m) PM2.5 estimations were still unable to be related with the urban landscape or small geographical units, which is crucial for analyzing the urban pollution structure. The new AOD data with a 160 m spatial resolution retrieved by the Gaofen-1 (GF) may be an ideal technology for addressing this problem [37].

Author Contributions

L.H. and H.Z. designed the research; L.H. and Y.L. performed the experiments and analyzed the data; L.H. wrote the manuscript; P.H. and H.Z. revised the manuscript.

Funding

This work was financially supported the National Key Research and Development Program of China (No. 2018YFC1503504), National Natural Science Foundation of China (No. 41704012), the Special Fund for Basic Scientific Research of Central Colleges, China University of Geosciences, Wuhan (No. CUG150631, CUGL170401, CUGCJ1704).

Acknowledgments

We thank the NYU Urban Expansion Program, UN-Habitat and the Lincoln Institute of Land Policy for providing urban form vector datasets; and we thank the Atmospheric Composition Analysis Group of NASA for providing high-resolution PM2.5 and NO2 vector datasets.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Descriptions of urban form metrics used in this study.
Table A1. Descriptions of urban form metrics used in this study.
IndexEquationDescriptionSignificance
Urban extent population (UEP) UEP =   j = 1 n a i aj = total population of urban patch j.
n = number of urban patches.
Measures the size of a given urban extent.
Urban extent Area (UEA) UEA = j = 1 n b j bj = total area (hectare) of urban patch j.
Urban extent density (UED)UED = UEP/UEAThe ratio of UEP to UEA. Measure of urban sprawl. Increase in the UED results in growth of compactness.
Openness index (OI)\The average share of open space pixels within the Walking Distance Circle (a circle with an area of 1 km2 and a radius of 564 meters) of each build-up pixel.Measure of the fragmentation of a given urban extent. The value ranges from 0 to 1. Increase in OI results in a higher fragmentation.
Proximity index (PI)PI = L/L’L = the average beeline distance of all points in the equal area circle to city hall.
L’ = the average beeline distance of all points in the urban extent to city hall.
Measure of the compactness of a given urban extent. The value ranges from 0 to 1. The closer the PI is to 1, the more compact the city will be.

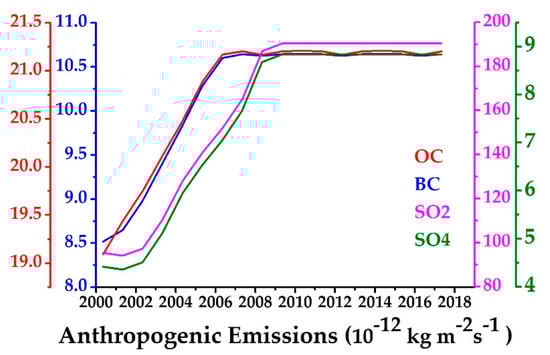

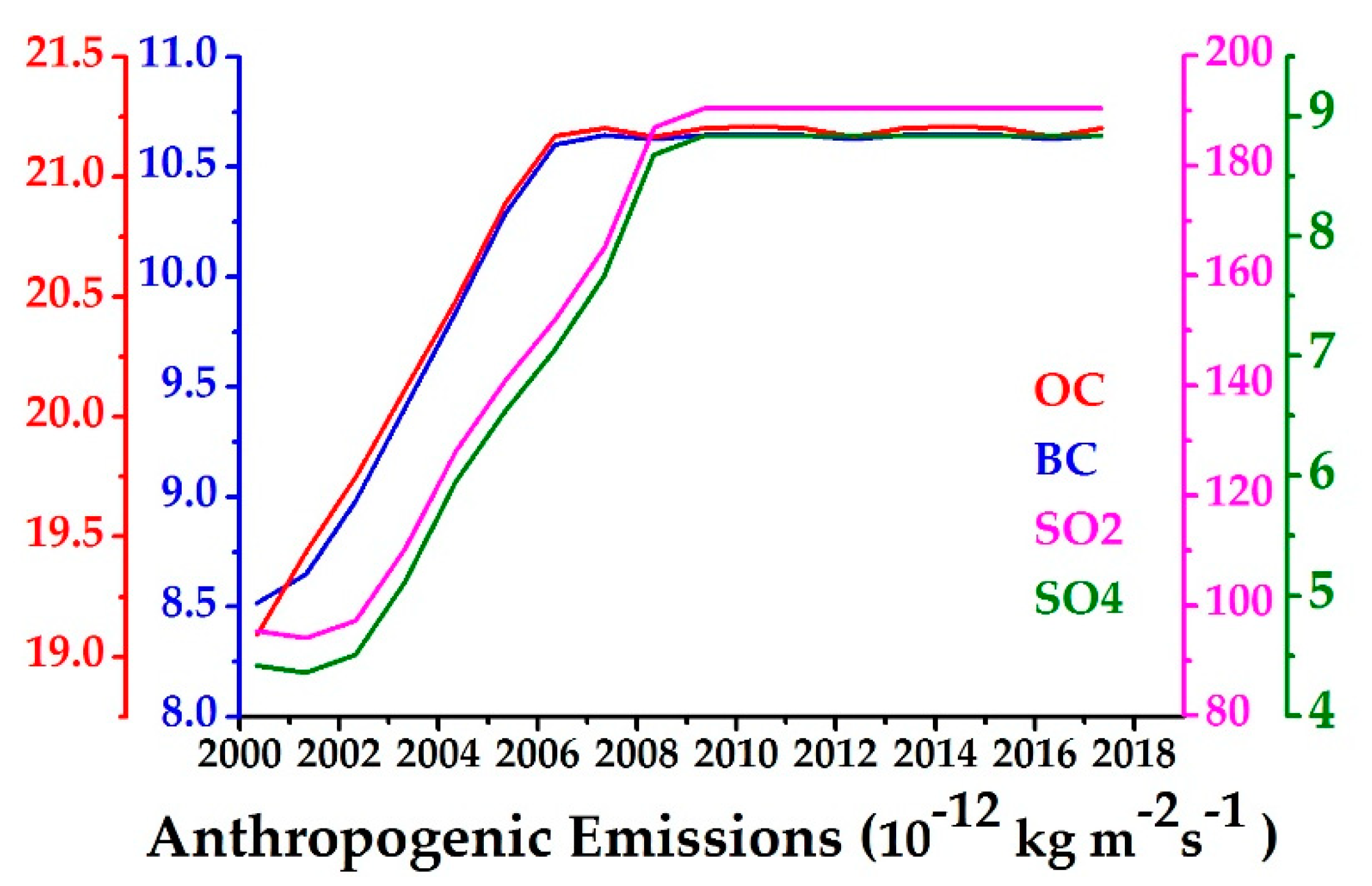

Figure A1. Anthropogenic emissions of organic carbon (OC), black carbon (BC), SO2 and SO4 derived from the MERRA-2 aerosol reanalysis datasets (https://disc.gsfc.nasa.gov/daac-bin/FTPSubset2.pl?LOOKUPID_List=M2I3NXGAS) over the YRB since 2000.
Figure A1. Anthropogenic emissions of organic carbon (OC), black carbon (BC), SO2 and SO4 derived from the MERRA-2 aerosol reanalysis datasets (https://disc.gsfc.nasa.gov/daac-bin/FTPSubset2.pl?LOOKUPID_List=M2I3NXGAS) over the YRB since 2000.
Ijerph 16 03459 g0a1

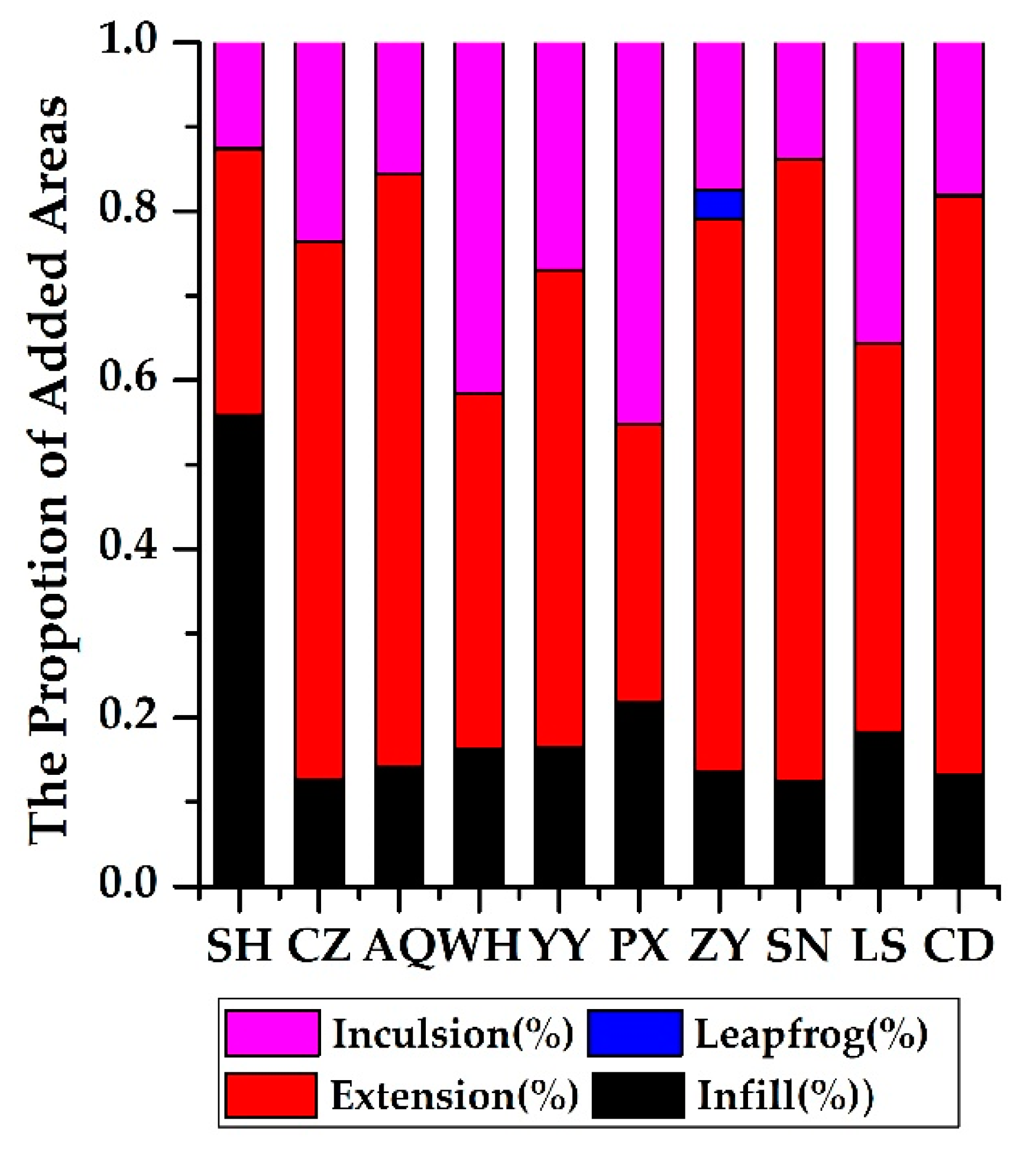

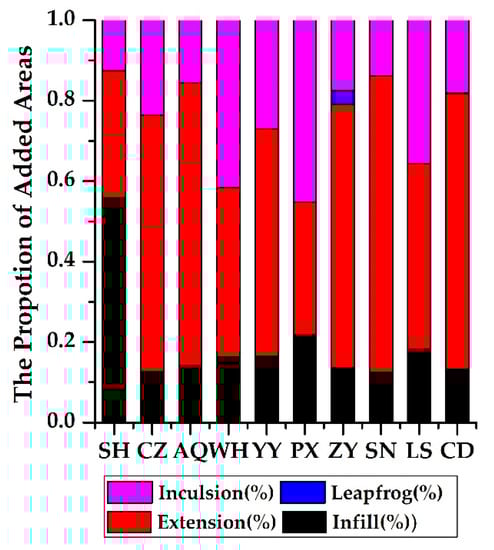

Figure A2. Patterns of the added urban areas at the ten prefecture-level cities of the YRB from 2000 to 2013. Similar to the urban form data, the datasets are also provided by the NYU Urban Expansion Program (http://datatoolkits.lincolninst.edu/subcenters/atlas-urban-expansion/).
Figure A2. Patterns of the added urban areas at the ten prefecture-level cities of the YRB from 2000 to 2013. Similar to the urban form data, the datasets are also provided by the NYU Urban Expansion Program (http://datatoolkits.lincolninst.edu/subcenters/atlas-urban-expansion/).
Ijerph 16 03459 g0a2

References

  1. Tao, M.; Chen, L.; Li, R.; Wang, L.; Wang, J.; Wang, Z.; Tang, G.; Tao, J. Spatial oscillation of the particle pollution in eastern China during winter: Implications for regional air quality and climate. Atmos. Environ. 2016, 144, 100–120. [Google Scholar] [CrossRef]
  2. Zhang, M.; Ma, Y.; Wang, L.; Gong, W.; Hu, B.; Shi, Y. Spatial-temporal characteristics of aerosol loading over the Yangtze river Basin during 2001–2015. Int. J. Climatol. 2018, 38, 2138–2152. [Google Scholar] [CrossRef]
  3. National Bureau of Statistics of China. China Statistical Yearbook; China Statistics Press: Beijing, China, 2017. [Google Scholar]
  4. Wang, L.; Gong, W.; Xia, X.; Zhu, J.; Li, J.; Zhu, Z. Long–term observations of aerosol optical properties at Wuhan, an urban site in Central China. Atmos. Environ. 2015, 101, 94–102. [Google Scholar] [CrossRef]
  5. Guo, J.; Xia, F.; Zhang, Y.; Liu, H.; Li, J.; Lou, M.; He, J.; Yan, Y.; Wang, F.; Min, M.; et al. Impact of diurnal variability and meteorological factors on the PM 2.5–AOD relationship: Implications for PM 2.5 remote sensing. Environ. Pollut. 2017, 221, 94–104. [Google Scholar] [CrossRef] [PubMed]
  6. Zhou, H.; Luo, Z.; Zhou, Z.; Li, Q.; Zhong, B.; Lu, B.; Hsu, H. Impact of different kinematic empirical parameters processing strategies on temporal gravity field model determination. J. Geophys. Res. Sol. Earth 2018, 123, 10–252. [Google Scholar] [CrossRef]
  7. He, L.; Wang, L.; Lin, A.; Zhang, M.; Bilal, M.; Tao, M. Aerosol optical properties and associated direct radiative forcing over the Yangtze river Basin during 2001–2015. Remote Sens. 2017, 9, 746. [Google Scholar] [CrossRef]
  8. He, L.; Wang, L.; Lin, A.; Zhang, M.; Bilal, M.; Wei, J. Performance of the NPP–VIIRS and aqua–MODIS aerosol optical depth products over the Yangtze river Basin. Remote Sens. 2018, 10, 117. [Google Scholar] [CrossRef]
  9. He, L.; Wang, L.; Lin, A.; Zhang, M.; Xia, X.; Tao, M.; Zhou, H. What drives changes in aerosol properties over the Yangtze river Basin in past four decades? Atmos. Environ. 2018, 190, 269–283. [Google Scholar] [CrossRef]
  10. He, L.; Lin, A.; Chen, X.; Zhou, H.; Zhou, Z.; He, P. Assessment of MERRA-2 surface PM2. 5 over the Yangtze river Basin: Ground-based verification, spatiotemporal distribution and meteorological dependence. Remote Sens. 2019, 11, 460. [Google Scholar] [CrossRef]
  11. Bechle, M.J.; Millet, D.B.; Marshall, J.D. Effects of income and urban form on urban NO2: Global evidence from satellites. Environ. Sci. Technol. 2011, 45, 4914–4919. [Google Scholar] [CrossRef]
  12. Clark, L.P.; Millet, D.B.; Marshall, J.D. Air quality and urban form in US urban areas: Evidence from regulatory monitors. Environ. Sci. Technol. 2011, 45, 7028–7035. [Google Scholar] [CrossRef] [PubMed]
  13. Gaigné, C.; Riou, S.; Thisse, J.F. Are compact cities environmentally friendly? J. Urban. Econ. 2012, 72, 123–136. [Google Scholar] [CrossRef]
  14. McCarty, J.; Kaza, N. Urban form and air quality in the United States. Landsc. Urban Plan. 2015, 139, 168–179. [Google Scholar] [CrossRef]
  15. Rodríguez, M.C.; Dupont-Courtade, L.; Oueslati, W. Air pollution and urban structure linkages: Evidence from European cities. Renew. Sustain. Energy. Rev. 2016, 53, 1–9. [Google Scholar] [CrossRef]
  16. Larkin, A.; van Donkelaar, A.; Geddes, J.A.; Martin, R.V.; Hystad, P. Relationships between changes in urban characteristics and air quality in East Asia from 2000 to 2010. Environ. Sci. Technol. 2016, 50, 9142–9149. [Google Scholar] [CrossRef] [PubMed]
  17. She, Q.; Peng, X.; Xu, Q.; Long, L.; Wei, N.; Liu, M.; Xiang, W. Air quality and its response to satellite-derived urban form in the Yangtze river Delta, China. Ecol. Indic. 2017, 75, 297–306. [Google Scholar] [CrossRef]
  18. Wang, S.; Liu, X.; Zhou, C.; Hu, J.; Ou, J. Examining the impacts of socioeconomic factors, urban form, and transportation networks on CO2 emissions in China’s megacities. Appl. Energy 2017, 185, 189–200. [Google Scholar] [CrossRef]
  19. Wang, S.; Liu, X. China’s city-level energy-related CO2 emissions: Spatiotemporal patterns and driving forces. Appl. Energy 2017, 200, 204–214. [Google Scholar] [CrossRef]
  20. Lu, C.; Liu, Y. Effects of China’s urban form on urban air quality. Urban Stud. 2016, 53, 2607–2623. [Google Scholar] [CrossRef]
  21. Fan, C.; Tian, L.; Zhou, L.; Hou, D.; Song, Y.; Qiao, X.; Li, J. Examining the impacts of urban form on air pollutant emissions: Evidence from China. J. Environ. Manag. 2018, 212, 405–414. [Google Scholar] [CrossRef]
  22. Cho, H.-S.; Choi, M.J. Effects of compact urban development on air pollution: Empirical evidence from Korea. Sustainability 2014, 6, 5968–5982. [Google Scholar] [CrossRef]
  23. Liu, Y.; Zhou, Y.; Wu, W. Assessing the impact of population, income and technology on energy consumption and industrial pollutant emissions in China. Appl. Energy 2015, 155, 904–917. [Google Scholar] [CrossRef]
  24. Che, H.; Zhang, X.Y.; Xia, X.; Goloub, P.; Holben, B.; Zhao, H.; Wang, Y.; Zhang, X.C.; Wang, H.; Blarel, L.; et al. Ground–based aerosol climatology of China: Aerosol optical depths from the China Aerosol Remote Sensing Network (CARSNET) 2002–2013. Atmos. Chem. Phys. 2015, 15, 7619–7652. [Google Scholar] [CrossRef]
  25. Angel, S.; Blei, A.M.; Civco, D.L.; Parent, J. Atlas of Urban Expansion; Lincoln Institute of Land Policy: Cambridge, MA, USA, 2012; p. 397. [Google Scholar]
  26. Geddes, J.A.; Martin, R.V.; Boys, B.L.; van Donkelaar, A. Long-term trends worldwide in ambient NO2 concentrations inferred from satellite observations. Environ. Health Perspect. 2016, 124, 281. [Google Scholar] [CrossRef]
  27. Anselin, L. Local indicators of spatial association–LISA. Geogr. Anal. 1995, 27, 93–115. [Google Scholar] [CrossRef]
  28. Ehrlish, P.; Holdren, J. Impact of population growth. Science 1971, 171, 1212–1217. [Google Scholar] [CrossRef]
  29. Dietz, T.; Rosa, E.A. Rethinking the environmental impacts of population, affluence and technology. Hum. Ecol. Rev. 1994, 1, 277–300. [Google Scholar]
  30. York, R.; Rosa, E.A.; Dietz, T. STIRPAT, IPAT and ImPACT: Analytic tools for unpacking the driving forces of environmental impacts. Ecol. Econ. 2003, 46, 351–365. [Google Scholar] [CrossRef]
  31. Selden, T.M.; Song, D. Environmental quality and development: Is there a Kuznets Curve for air pollution emissions? J. Environ. Econ. Manag. 1994, 27, 147–162. [Google Scholar] [CrossRef]
  32. Alam, M.M.; Murad, M.W.; Noman, A.H.M.; Ozturk, I. Relationships among carbon emissions, economic growth, energy consumption and population growth: Testing environmental Kuznets Curve hypothesis for Brazil, China, India and Indonesia. Ecol. Indic. 2016, 70, 466–479. [Google Scholar] [CrossRef]
  33. Kang, Y.Q.; Zhao, T.; Yang, Y.Y. Environmental Kuznets curve for CO2 emissions in China: A spatial panel data approach. Ecol. Indic. 2016, 63, 231–239. [Google Scholar] [CrossRef]
  34. Buchard, V.; Randles, C.A.; da Silva, A.M.; Darmenov, A.; Colarco, P.R.; Govindaraju, R.; Ferrare, R.; Hair, J.; Beyersdorf, A.J.; Ziemba, L.D.; et al. The MERRA–2 aerosol reanalysis, 1980 onward. Part II: Evaluation and case studies. J. Clim. 2017, 30, 6851–6872. [Google Scholar] [CrossRef]
  35. Buchard, V.; da Silva, A.M.; Randles, C.A.; Colarco, P.; Ferrare, R.; Hair, J.; Hostetler, C.; Tackett, J.; Winker, D. Evaluation of the surface PM2.5 in version 1 of the NASA MERRA aerosol reanalysis over the United States. Atmos. Environ. 2016, 125, 100–121. [Google Scholar] [CrossRef]
  36. Huang, J.; Minnis, P.; Yi, Y.; Tang, Q.; Wang, X.; Hu, Y.; Winker, D. Summer dust aerosols detected from CALIPSO over the Tibetan Plateau. Geophys. Res. Lett. 2007, 34, 529–538. [Google Scholar] [CrossRef]
  37. Zhang, T.; Zhu, Z.; Gong, W.; Zhu, Z.; Sun, K.; Wang, L.; Xu, K. Estimation of ultrahigh resolution PM2. 5 concentrations in urban areas using 160 m Gaofen-1 AOD retrievals. Remote Sens. Environ. 2018, 216, 91–104. [Google Scholar] [CrossRef]

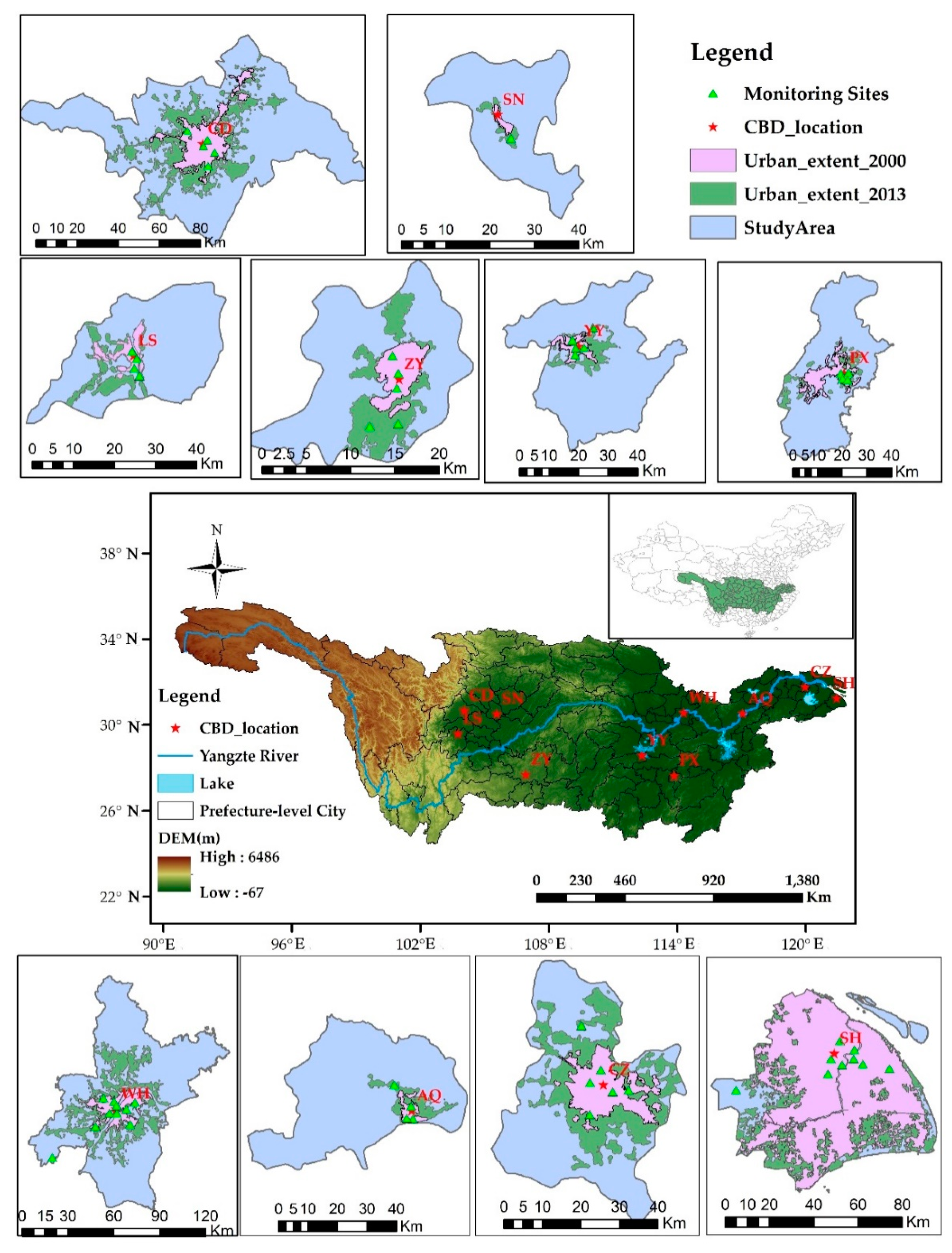

Figure 1. Urban extents of the ten prefecture-level cities over the Yangtze River Basin (YRB) in China from 2000 to 2013. Shanghai (SH), Changzhou (CZ), and Anqing (AQ) are located in the Yangtze River Delta (YRD); Wuhan (WH), Pingxiang (PX) and Yiyang (YY) are located in Central China (CC); the rest of the cities including Chengdu (CD), Zunyi (ZY), Leshan (LS) and Suining (SN) are located all over the Sichuan Basin (SB).
Figure 1. Urban extents of the ten prefecture-level cities over the Yangtze River Basin (YRB) in China from 2000 to 2013. Shanghai (SH), Changzhou (CZ), and Anqing (AQ) are located in the Yangtze River Delta (YRD); Wuhan (WH), Pingxiang (PX) and Yiyang (YY) are located in Central China (CC); the rest of the cities including Chengdu (CD), Zunyi (ZY), Leshan (LS) and Suining (SN) are located all over the Sichuan Basin (SB).
Ijerph 16 03459 g001

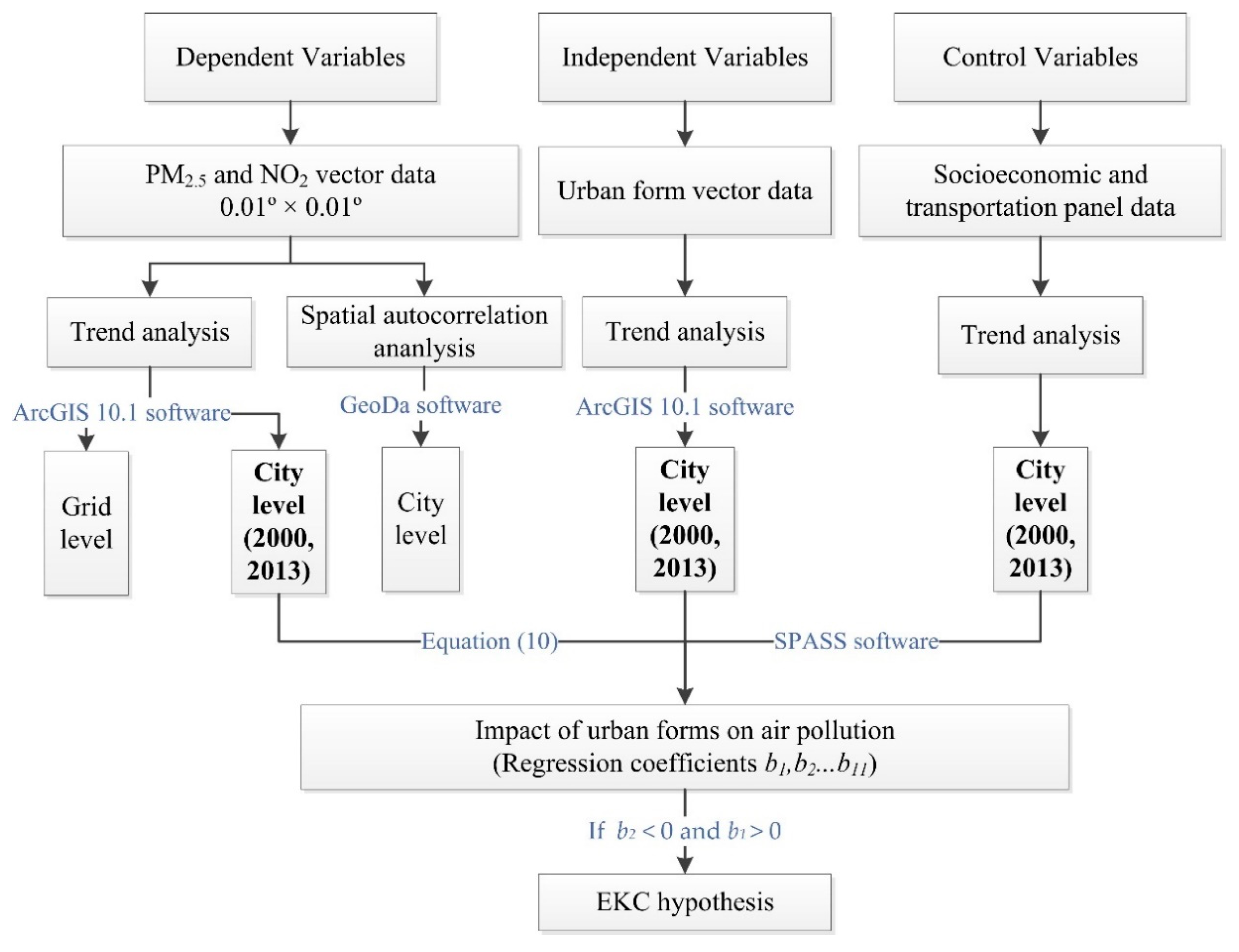

Figure 2. Technical flow chart of this study.
Figure 2. Technical flow chart of this study.
Ijerph 16 03459 g002

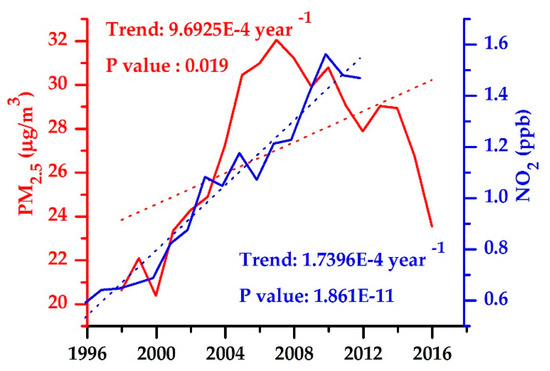

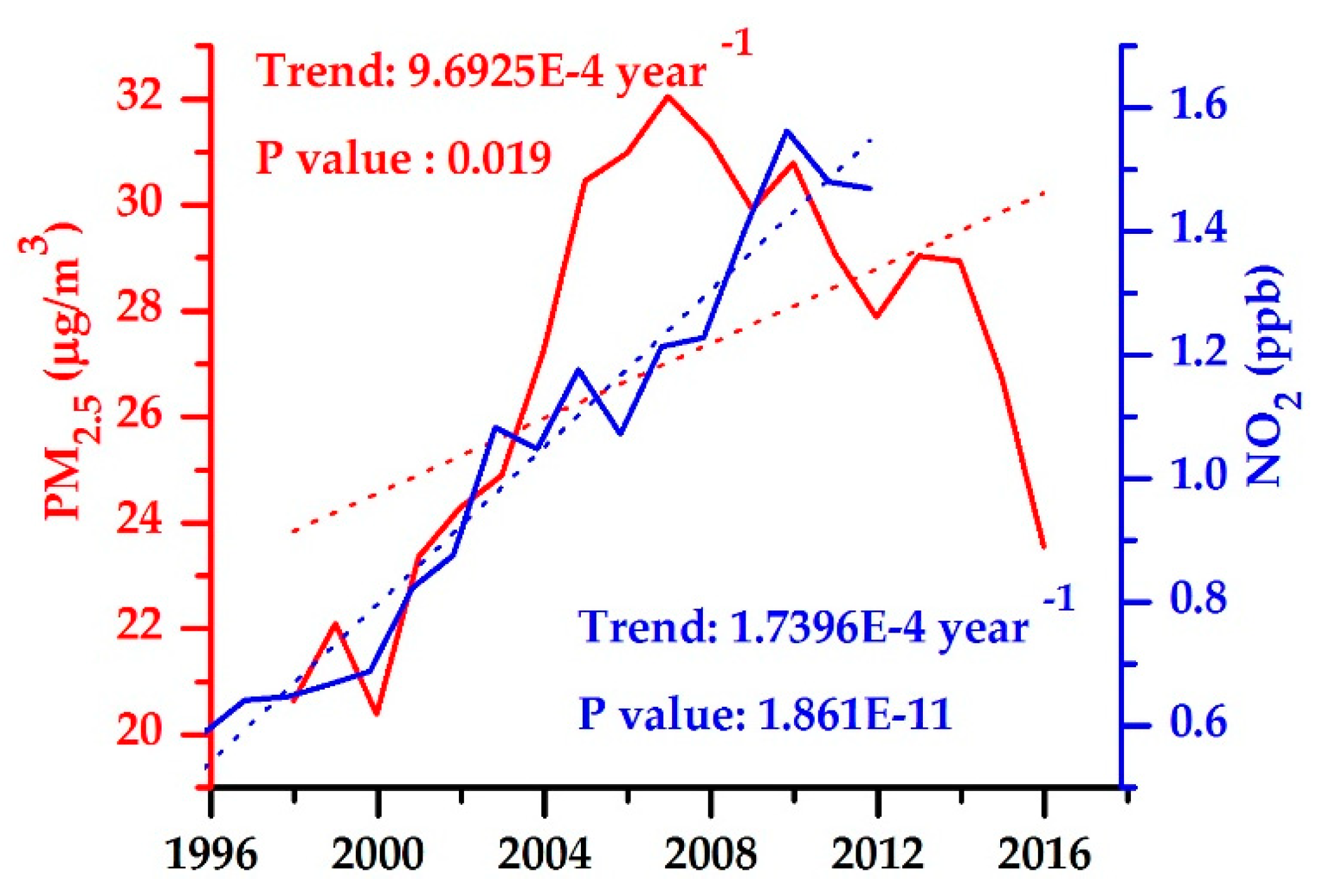

Figure 3. Trend analysis of annual mean near-surface PM2.5 (1998–2016) and NO2 (1996–2012) over the whole YRB.
Figure 3. Trend analysis of annual mean near-surface PM2.5 (1998–2016) and NO2 (1996–2012) over the whole YRB.
Ijerph 16 03459 g003
Figure 4. Spatial distributions of annual mean near-surface PM2.5 (c) and NO2 (f) concentrations over the YRB. Pixels covered by gray lines refer to those trends not passing the 95% significant level. Besides, annual mean PM2.5 (left) and NO2 (right) are also shown in 1998 (a), 2016 (b), 1996 (d) and 2012 (e), respectively.
Figure 4. Spatial distributions of annual mean near-surface PM2.5 (c) and NO2 (f) concentrations over the YRB. Pixels covered by gray lines refer to those trends not passing the 95% significant level. Besides, annual mean PM2.5 (left) and NO2 (right) are also shown in 1998 (a), 2016 (b), 1996 (d) and 2012 (e), respectively.
Ijerph 16 03459 g004

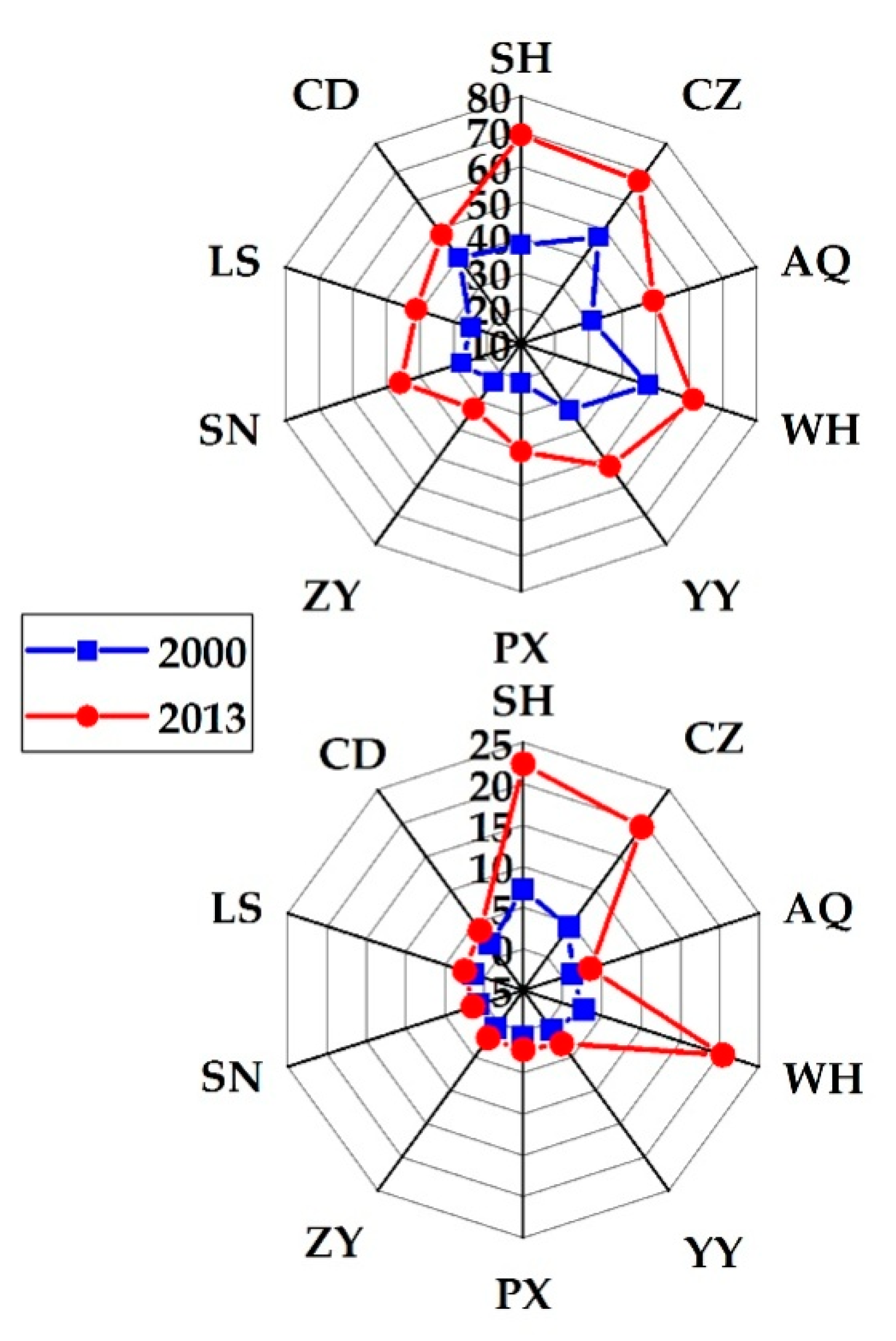

Figure 5. Radar chart of the annual mean near-surface PM2.5 (top) and NO2 (bottom) concentrations at the 10 prefecture-level cities of the YRB in 2000 and 2013.
Figure 5. Radar chart of the annual mean near-surface PM2.5 (top) and NO2 (bottom) concentrations at the 10 prefecture-level cities of the YRB in 2000 and 2013.
Ijerph 16 03459 g005

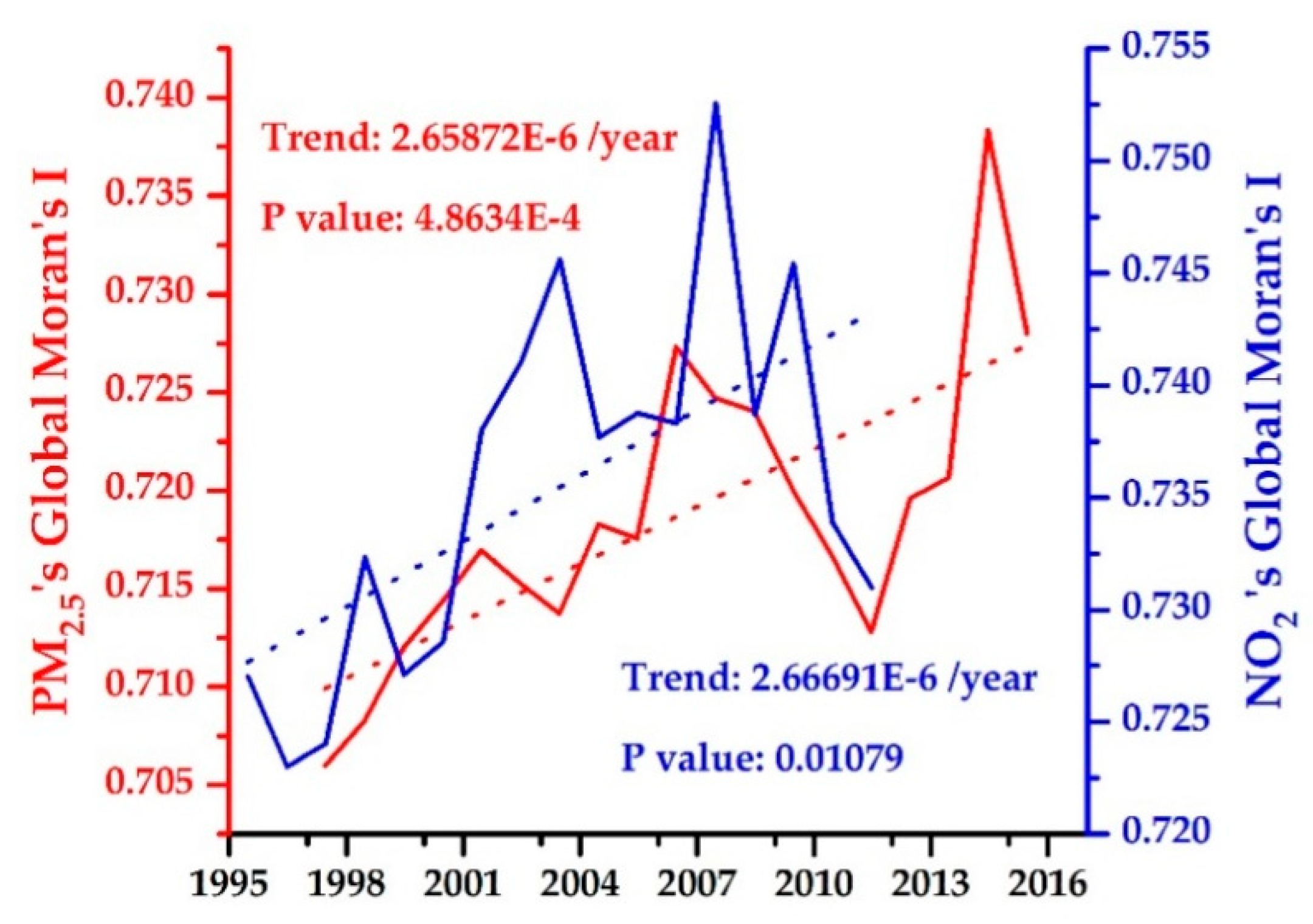

Figure 6. Global Moran’s I variations of the near-surface PM2.5 (1998–2016) and NO2 (1996–2012) concentrations over the YRB.
Figure 6. Global Moran’s I variations of the near-surface PM2.5 (1998–2016) and NO2 (1996–2012) concentrations over the YRB.
Ijerph 16 03459 g006

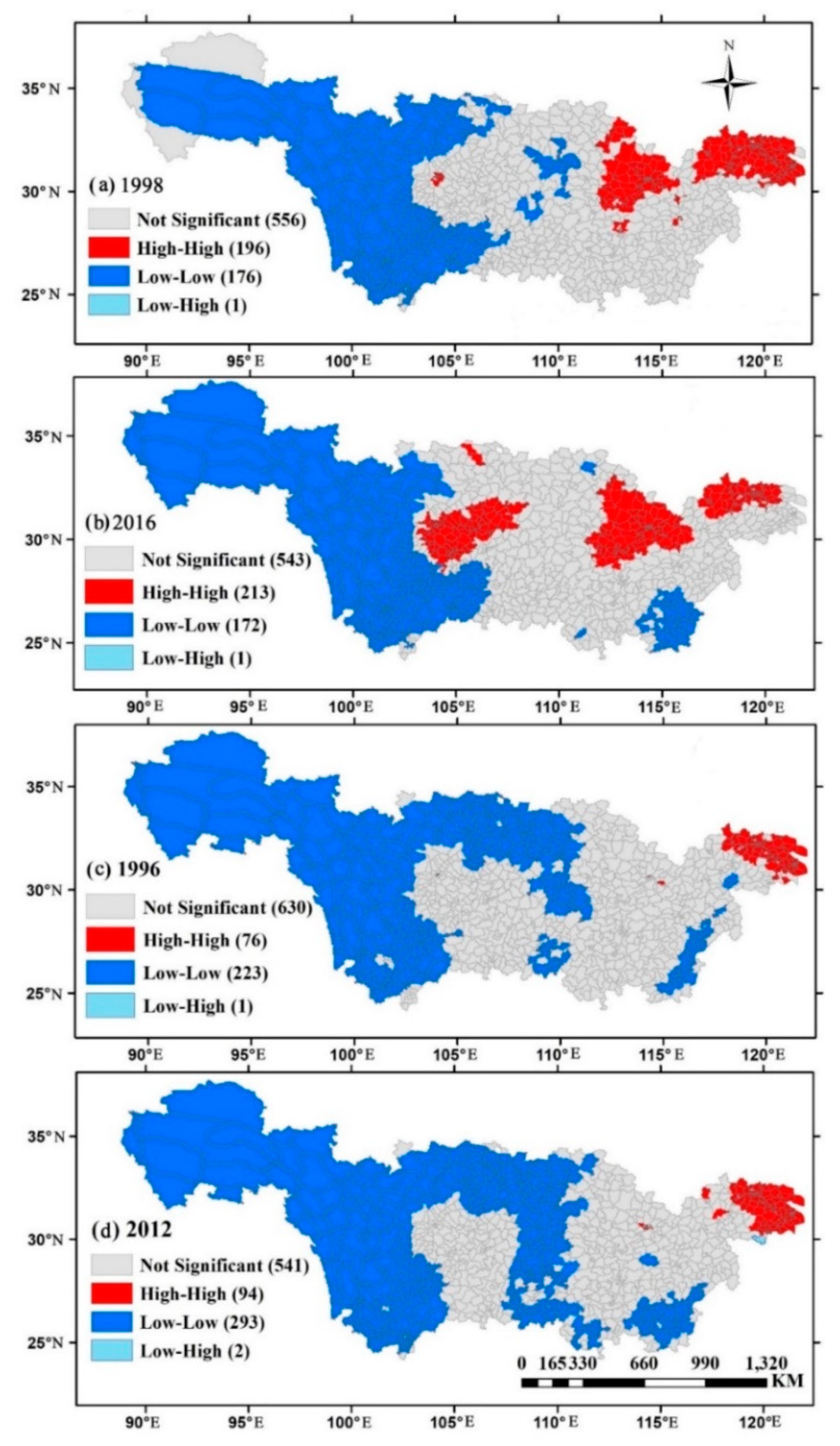

Figure 7. Local indicators of spatial association (LISA) cluster maps of the near-surface PM2.5 ((a) 1998 and (b) 2016) and NO2 ((c) 1996 and (d) 2012) concentrations over the 930 county-level cities of the YRB.
Figure 7. Local indicators of spatial association (LISA) cluster maps of the near-surface PM2.5 ((a) 1998 and (b) 2016) and NO2 ((c) 1996 and (d) 2012) concentrations over the 930 county-level cities of the YRB.
Ijerph 16 03459 g007

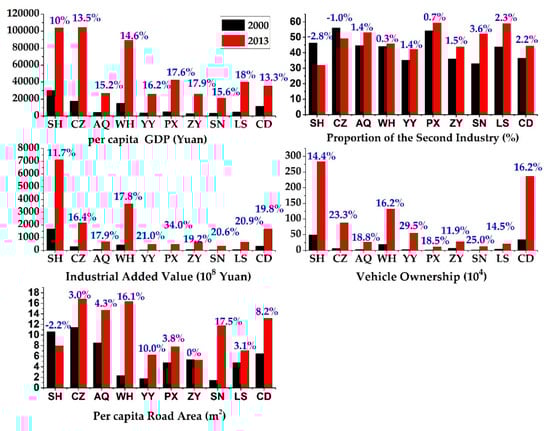

Figure 8. Changes in the socioeconomic factors and transportation metrics at the 10 prefecture-level cities of the YRB during 2000–2013.
Figure 8. Changes in the socioeconomic factors and transportation metrics at the 10 prefecture-level cities of the YRB during 2000–2013.
Ijerph 16 03459 g008

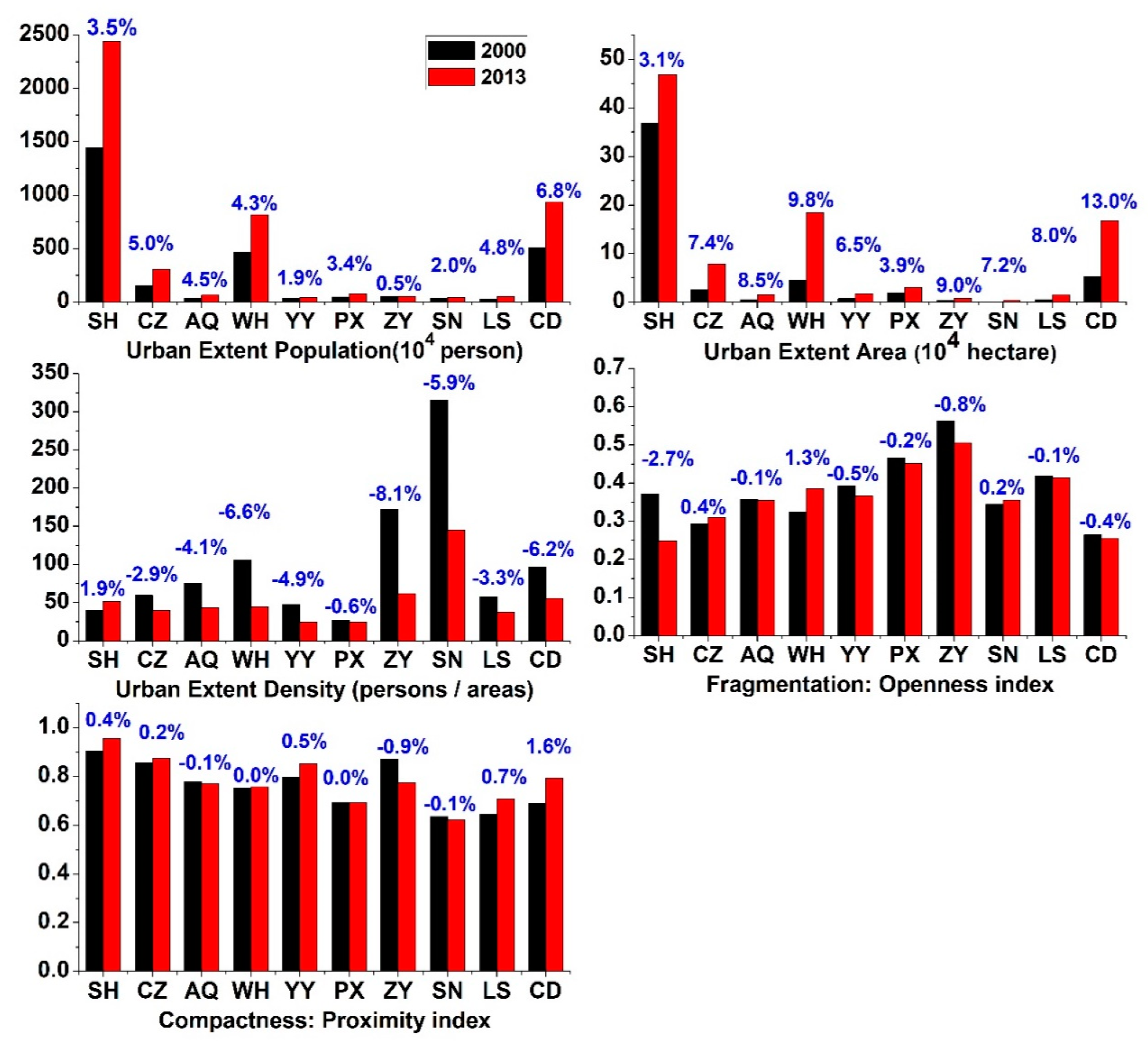

Figure 9. Similar to Figure 8, but for the changes in the five urban form metrics.
Figure 9. Similar to Figure 8, but for the changes in the five urban form metrics.
Ijerph 16 03459 g009

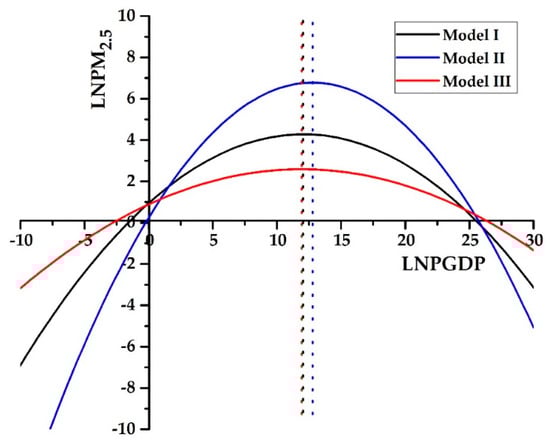

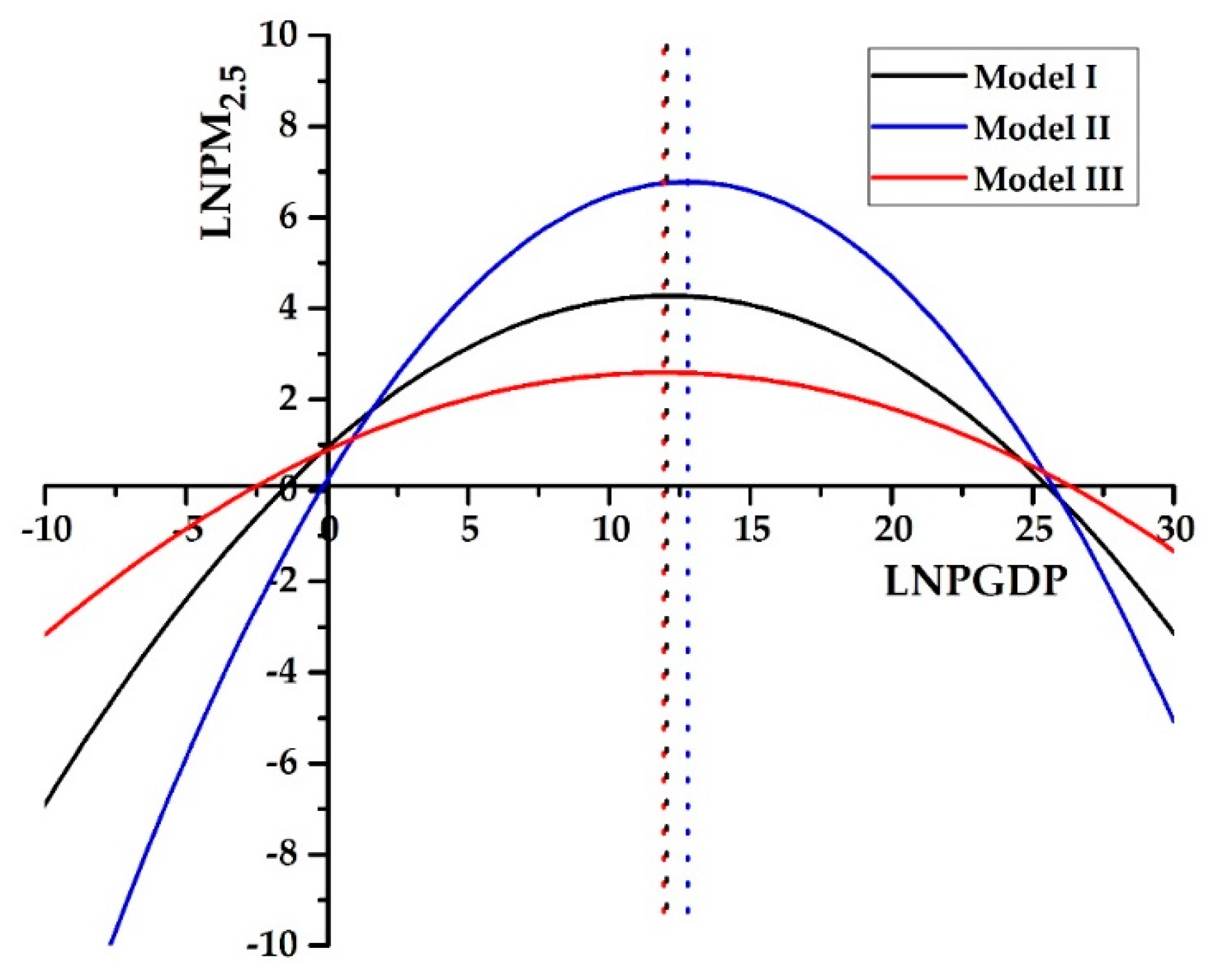

Figure 10. Environmental Kuznets curve (EKC) hypothesis between economic growth and PM2.5 concentration in the ten prefecture-level cities of the YRB from 2000 to 2013. The dashed line refers to the turning point of per capita GDP, respectively, in Model I, Model II, and Model III.
Figure 10. Environmental Kuznets curve (EKC) hypothesis between economic growth and PM2.5 concentration in the ten prefecture-level cities of the YRB from 2000 to 2013. The dashed line refers to the turning point of per capita GDP, respectively, in Model I, Model II, and Model III.
Ijerph 16 03459 g010
Table 1. Data sources and descriptions.
Table 1. Data sources and descriptions.
DataSpatial ResolutionTemporal CoverageData TypeData Source
Urban form dataPrefecture-level city 2000,
2013
Vector data(http://datatoolkits.lincolninst.edu/subcenters/atlas-urban-expansion/)
Near-surface PM2.50.01° × 0.01°1998–2016Raster dataAtmospheric Composition Analysis Group (http://fizz.phys.dal.ca/~atmos/martin/?page_id=140)
Near-surface NO20.01° × 0.01°1996–2012Raster dataAtmospheric Composition Analysis Group (http://fizz.phys.dal.ca/~atmos/martin/?page_id=140)
Prefecture-level city 2013Ground dataChina Air Quality Real-time Monitoring platform (http://113.108.142.147:20035/emcpublish/)
Socio-economic and Traffic dataPrefecture-level city 2000,
2013
Panel dataStatistics Yearbook of China (http://tongji.cnki.net/kns55/Navi/NaviDefault.aspx)
Table 2. Multivariate relationship of socioeconomic, transportation and urban form metrics with the near-surface PM2.5 concentrations calculated by the improved stochastic impacts by regression on population, affluence, and technology (STIRPAT) model. The standard deviation is shown in parentheses. PGDP refers to per capita GDP; PSI refers to the proportion of the second industry; IAV refers to industrial added values; VO refers to vehicle ownership; PRA refers to per capita road area; UED refers to the density of a given urban extent; OI refers to openness index; PI refers to proximity index. * p-value < 0.1, ** p-value < 0.05, *** p-value < 0.01.
Table 2. Multivariate relationship of socioeconomic, transportation and urban form metrics with the near-surface PM2.5 concentrations calculated by the improved stochastic impacts by regression on population, affluence, and technology (STIRPAT) model. The standard deviation is shown in parentheses. PGDP refers to per capita GDP; PSI refers to the proportion of the second industry; IAV refers to industrial added values; VO refers to vehicle ownership; PRA refers to per capita road area; UED refers to the density of a given urban extent; OI refers to openness index; PI refers to proximity index. * p-value < 0.1, ** p-value < 0.05, *** p-value < 0.01.
Explanatory VariablesModel IModel IIModel III
Socioeconomic factors
LNPGDP0.554 (0.858) ***1.023 (1.094) **0.286 (1.074) ***
LN(PGDP)2−0.023 (0.041) ***−0.040 (0.051) **−0.012 (0.050) **
LNPSI0.316 (0.348) **0.625 (0.574) *0.006 (0.576) *
LNIAV0.048 (0.084) *0.068 (0.109) *0.029 (0.085) *
Transportation factors
LNVO 0.064 (0.122) **0.023 (0.114) *
LNPRA −0.072 (0.087) **−0.029 (0.085) **
Urban form factors
LNUED 0.033 (0.098) **
LNPI −0.305 (0.453) **
LNOI 0.524 (0.216) **
Constant0.947 (3.440) ***0.239 (3.746) **0.884 (3.943) **
Adjusted R20.7390.7140.773
Table 3. Similar to Table 2, but for the near-surface NO2 concentrations.
Table 3. Similar to Table 2, but for the near-surface NO2 concentrations.
Explanatory VariablesModel IModel IIModel III
Socioeconomic factors
LNPGDP−1.058 (1.875) **−0.330 (2.430) **−0.943 (1.732) **
LN(PGDP)20.062 (0.089) **0.029 (0.114) **0.053 (0.081) **
LNPSI0.209 (0.760) **−0.297 (1.275)0.435 (0.928) *
LNIAV0.366 (0.183) **0.366 (0.242) **0.400 (0.196) **
Transportation factors
LNVO 0.123 (0.271) **0.016 (0.184) **
LNPRA −0.087 (0.192) **−0.150 (0.137) **
Urban form factors
LNUED −0.203 (0.157) ***
LNPI −1.750 (0.731) **
LNOI 1.002 (0.348) **
Constant2.280 (7.523) **1.103 (8.324) *3.057 (6.359) **
Adjusted R20.8100.7850.953
* p-value < 0.1, ** p-value < 0.05, *** p-value < 0.01.

Share and Cite

MDPI and ACS Style

He, L.; Liu, Y.; He, P.; Zhou, H. Relationship between Air Pollution and Urban Forms: Evidence from Prefecture-Level Cities of the Yangtze River Basin. Int. J. Environ. Res. Public Health 2019, 16, 3459. https://doi.org/10.3390/ijerph16183459

AMA Style

He L, Liu Y, He P, Zhou H. Relationship between Air Pollution and Urban Forms: Evidence from Prefecture-Level Cities of the Yangtze River Basin. International Journal of Environmental Research and Public Health. 2019; 16(18):3459. https://doi.org/10.3390/ijerph16183459

Chicago/Turabian Style

He, Lijie, Ying Liu, Peipei He, and Hao Zhou. 2019. "Relationship between Air Pollution and Urban Forms: Evidence from Prefecture-Level Cities of the Yangtze River Basin" International Journal of Environmental Research and Public Health 16, no. 18: 3459. https://doi.org/10.3390/ijerph16183459

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
