ATR–FTIR Spectral Analysis and Soluble Components of PM10 And PM2.5 Particulate Matter over the Urban Area of Palermo (Italy) during Normal Days and Saharan Events
Abstract
:1. Introduction
2. Materials and Methods
2.1. Site Details

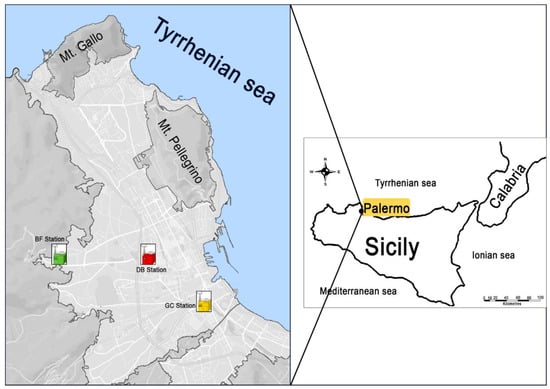

2.2. Sampling Sites
2.3. Analytical Procedures
2.3.1. FTIR Spectra
2.3.2. Water-Soluble Ions
3. Results and Discussion
3.1. Mass Levels of PM10 and PM2.5

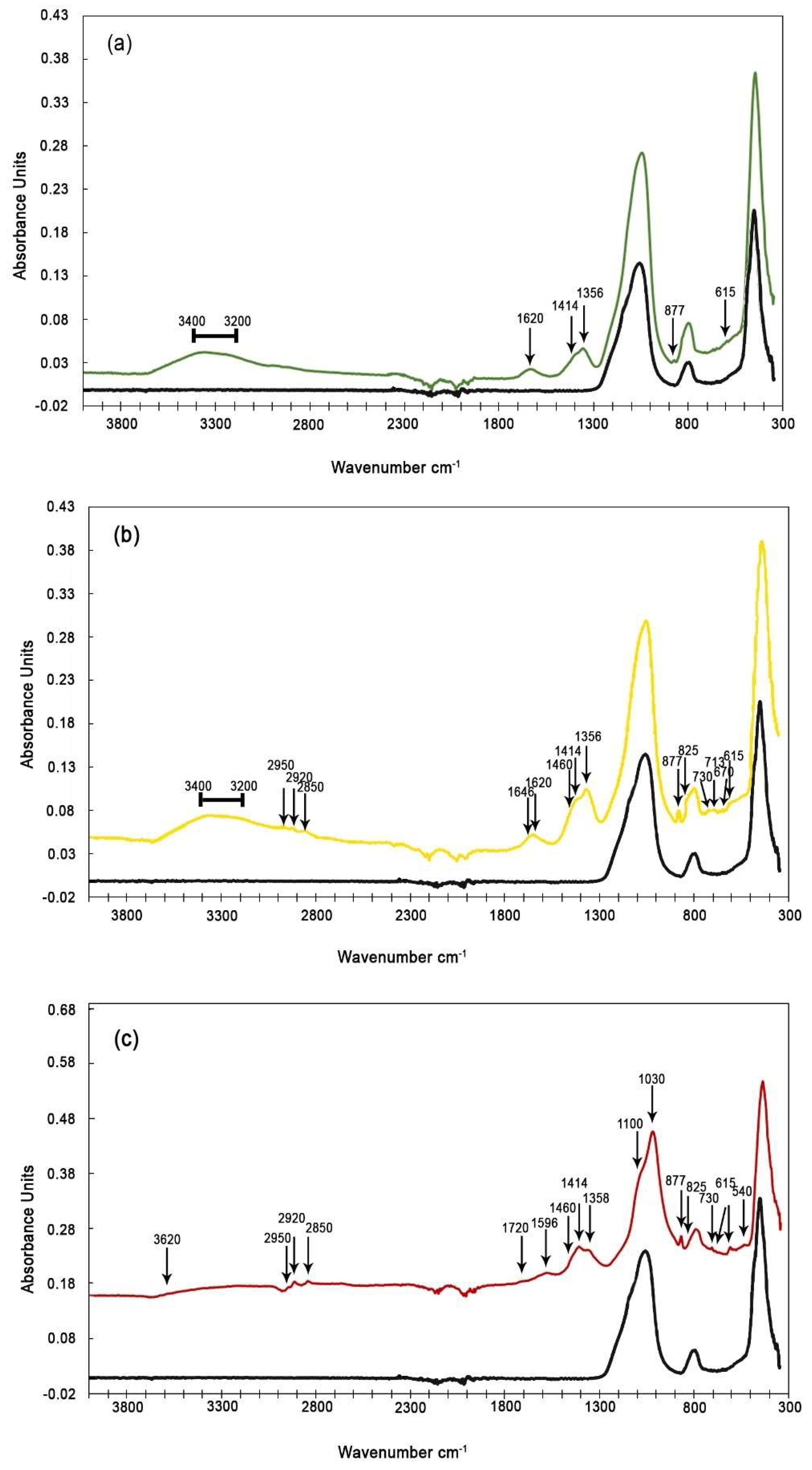

3.2. Spectral Analysis

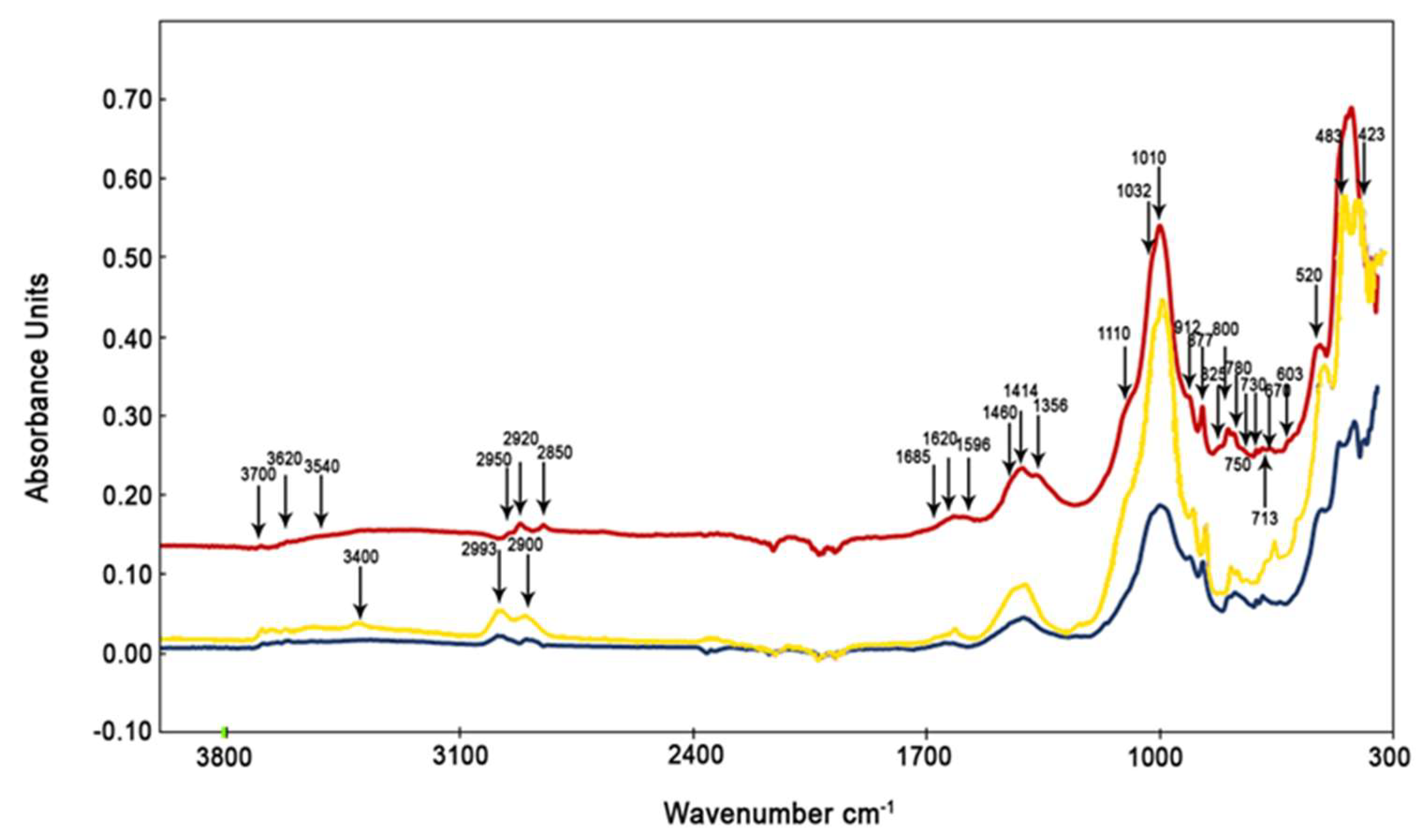

3.3. Spectral Analysis Of Samples Collected During Saharan Dust Episodes

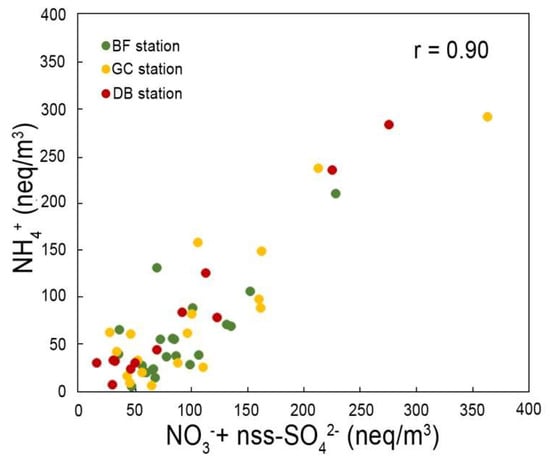

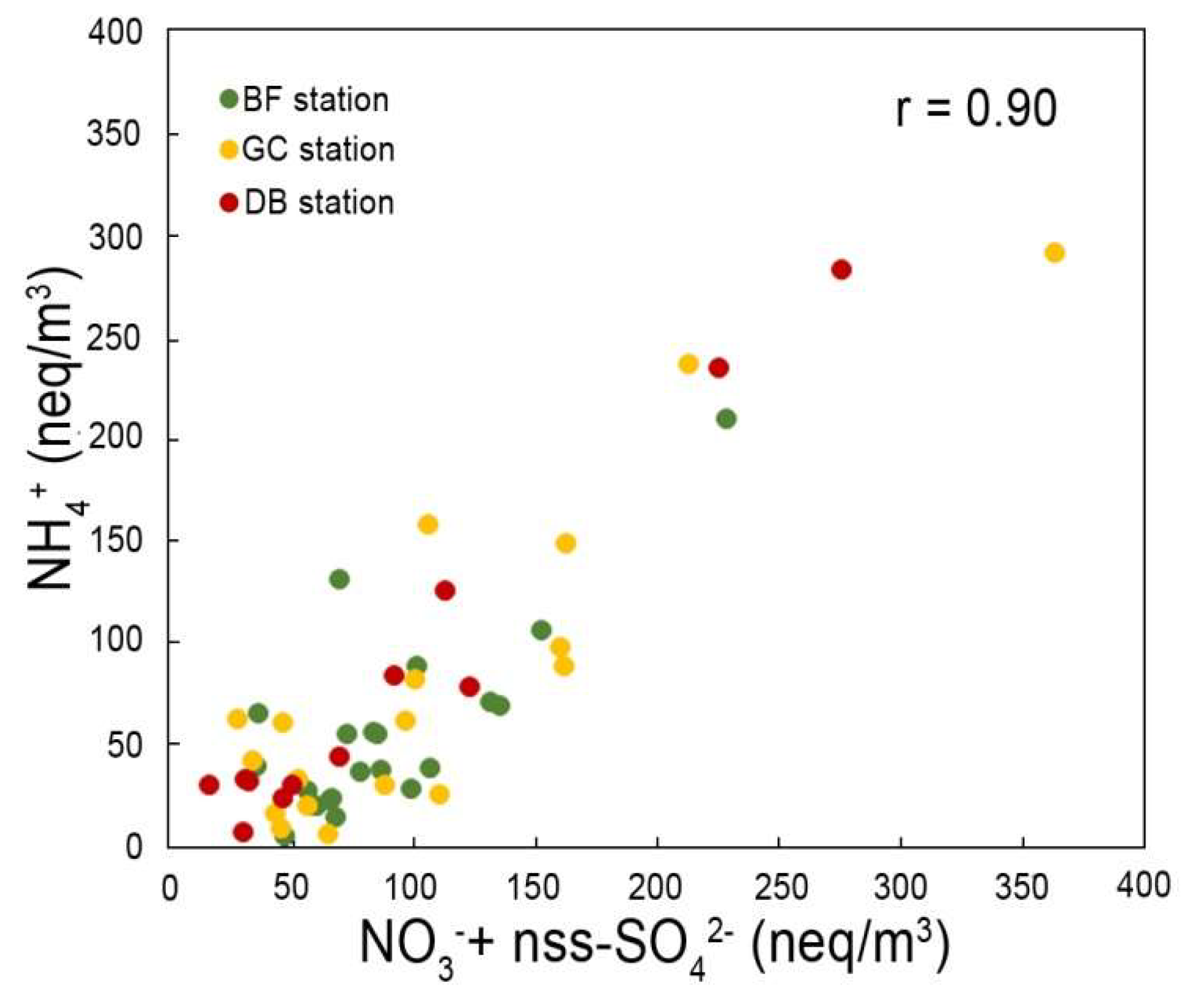

3.4. Water-Soluble Ions
4. Conclusions
Author Contributions
Acknowledgments
Conflicts of Interest
References
- Schell, L.M.; Denham, M. Environmental Pollution in Urban Environments and Human Biology. Annu. Rev. Anthropol. 2003, 32, 111–134. [Google Scholar] [CrossRef]
- Sancini, A.; Tomei, F.; Tomei, G.; Caciari, T.; Di Giorgio, V.; André, J.C.; Palermo, P.; Andreozzi, G.; Nardone, N.; Schifano, M.P.; et al. Urban pollution. G. Ital. Med. Lav. Ergon. 2012, 34, 187–196. [Google Scholar] [PubMed]
- Kelly, F.J.; Fussell, J.C. Air pollution and public health: Emerging hazards and improved understanding of risk. Environ. Geochem. Health 2015, 37, 631–649. [Google Scholar] [CrossRef] [PubMed]
- Miller, K.A.; Siscovick, D.S.; Sheppard, K.; Sullivan, J.H.; Anderson, G.L.; Kaufman, J.D. Long-term exposure to costituents of fine particulate air pollution and incidence of cardiovascular events in women. N. Engl. J. Med. 2007, 356, 447–458. [Google Scholar] [CrossRef] [PubMed]
- Pope, C.A.; Burnett, R.T.; Thun, M.J.; Calle, E.E.; Krewsky, D.; Ito, K.; Thurston, G.D. Lung cancer, cardiopulmonary mortality, and long-term exposure to fine particulate air pollution. JAMA 2002, 287, 1132–1141. [Google Scholar] [CrossRef] [PubMed]
- Pope, C.A.; Ezzati, M.; Dockery, D.W. Fine-Particulate Air Pollution and Life Expectancy in the United States. N. Engl. J. Med. 2009, 360, 376–386. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Van Donkelaar, A.; Martin, R.V.; Michael Brauer, M.; Boys, B.L. Use of Satellite Observations for Long-Term Exposure Assessment of Global Concentrations of Fine Particulate Matter. Environ. Health Perspect. 2015, 123, 135–143. [Google Scholar] [CrossRef] [Green Version]
- Lipfert, F.W. Long-term associations of morbidity with air pollution: A catalog and synthesis. J. Air Waste Manag. Assoc. 2018, 68, 12–28. [Google Scholar] [CrossRef]
- Liu, M.; Xue, X.; Zhou, B.; Zhang, Y.; Baijun, S.; Chen, J.; Li, X. Population susceptibility differences and effects of air pollution on cardiovascular mortality: Epidemiological evidence from a time-series study. Environ. Sci. Pollut. Res. 2019, 26, 15943–15952. [Google Scholar] [CrossRef]
- World Health Organization (WHO). Air Quality Guidelines for Europe, 2nd ed.; WHO Regional Publications, 91; World Health Organization, Regional Office for Europe: Copenhagen, Denmark, 2000. [Google Scholar]
- EU-Commission. Directive 2008/50/EC of the European Parliament and of the Council of 21 May 2008 on Ambient Air Quality and Cleaner Air for Europe Official Journal of the European Union L152/3 (11/06/2008), 6-15; EU-Commission: Brussels, Belgium, 2008. [Google Scholar]
- Squizzato, S.; Cazzaro, M.; Innocente, E.; Visin, F.; Hopke, P.K.; Rampazzo, G. Urban air quality in a mid-size city—PM2.5 composition, sources and identification of impact areas: From local to long range contributions. Atmos. Res. 2017, 186, 51–62. [Google Scholar] [CrossRef]
- Avila, A.; Queralt-Mitjans, I.; Alarcón, M. Mineralogical composition of African dust Delivered by red rains over north eastern Spain. J. Geophys. Res. 1997, 102, 21977–21996. [Google Scholar] [CrossRef]
- Molinaroli, E.; Masiol, M. Particolato Atmosferico e Ambiente Mediteranneo. Il Caso Delle Polveri Sahariane; Aracne: Roma, Italy, 2006; p. 224. [Google Scholar]
- Jiménez, E.; Linares, C.; Martínez, D.; Díaz, J. Role of Saharan dust in the relationship between particulate matter and short-term daily mortality among the elderly in Madrid (Spain). Sci. Total Environ. 2010, 408, 5729–5736. [Google Scholar] [CrossRef] [PubMed]
- Mallone, S.; Stafoggia, M.; Faustini, A.; Gobbi, G.P.; Marconi, A.; Forastiere, F. Saharan dust and associations between particulate matter and daily mortality in Rome, Italy. Environ. Health Prespect. 2011, 119, 1409–1414. [Google Scholar] [CrossRef] [PubMed]
- Cadelis, G.; Tourres, R.; Molinie, J. Short-Term Effects of the Particulate Pollutants Contained in Saharan Dust on the Visits of Children to the Emergency Department due to Asthmatic Conditions in Guadeloupe (French Archipelago of the Caribbean). PLoS ONE 2014, 9, e91136. [Google Scholar] [CrossRef] [PubMed]
- Middleton, N.; Yiallouros, P.; Kleanthous, S.; Kolokotroni, O.; Schwartz, J.; Dockery, D.W.; Demokritou, P.; Koutrakis, P. A 10-year time-series analysis of respiratory and cardiovascular morbidity in Nicosia, Cyprus: The effect of short-term changes in air pollution and dust storms. Environ. Health 2008, 7, 1–16. [Google Scholar] [CrossRef] [PubMed]
- Zhang, X.; Zhao, L.; Tong, D.Q.; Wu, G.; Dan, M.; Teng, B. A Systematic Review of Global Desert Dust and Associated Human Health Effects. Atmosphere 2016, 7, 158. [Google Scholar] [CrossRef]
- Bennett, C.M.; McKendry, I.G.; Kelly, S.; Denike, K.; Koch, T. Impact of the 1998 Gobi dust event on hospital admissions in the Lower Fraser Valley, British Columbia. Sci. Total Environ. 2006, 366, 918–925. [Google Scholar] [CrossRef] [PubMed]
- Schwartz, J.; Norris, G.; Larson, T.; Sheppard, L.; Claiborne, C.; Koenig, J. Episodes of high coarse particle concentrations are not associated with increased mortality. Environ. Health Perspect. 1999, 107, 339–342. [Google Scholar] [CrossRef] [PubMed]
- Sandström, T.; Forsberg, B. Desert dust: An unrecognized source of dangerous air pollution? Epidemiology 2008, 19, 808–809. [Google Scholar] [CrossRef] [PubMed]
- Pérez, L.L.; Tobias, A.; Querol, X.; Künzli, N.; Pey, J.; Alastuey, A.; Viana, M.; Valero, N.; González-Cabré, M.; Sunyer, J. Coarse particles from Saharan dust and daily mortality. Epidemiology 2008, 19, 800–807. [Google Scholar] [CrossRef] [PubMed]
- Chirizzi, D.; Cesari, D.; Guascito, M.R.; Dinoi, A.; Giotta, L.; Donateo, A.; Contini, D. Influence of Saharan dust outbreaks and carbon content on oxidative potential of water-soluble fractions of PM2.5 and PM10. Atmos. Environ. 2017, 163, 1–8. [Google Scholar] [CrossRef]
- Russell, M.; Allen, D.T.; Collins, D.R.; Fraser, M.P. Daily, seasonal, and spatial trends in PM2.5 mass and composition in southern Texas. Aerosol Sci. Technol. 2004, 38, 14–26. [Google Scholar] [CrossRef]
- Lianou, M.; Chalbot, M.C.; Kavouras, I.G.; Kotronarou, A.; Karakatsani, A.; Analytis, A.; Katsouyanni, K.; Puustinen, A.; Hameri, K.; Vallius, M.; et al. Temporal variations of atmospheric aerosol in four European urban areas. Environ. Sci. Pollut. Res. 2011, 18, 1202–1212. [Google Scholar] [CrossRef] [PubMed]
- Lee, B.K.; Hieu, N.T. Seasonal ion characteristics of fine and coarse particles from an urban residential area in a typical industrial city. Atmos. Res. 2013, 122, 362–377. [Google Scholar] [CrossRef]
- Mkoma, S.L.; Da Rocha, G.O.; Domingos, J.S.S.; Santos, J.V.S.; Cardoso, M.P.; Da Silva, R.L.; De Andrade, J.B. Atmospheric particle dry deposition of major ions to the South Atlantic coastal area observed at Baía de Todos os Santos, Brazil. An. Acad. Bras. Cienc. 2014, 86, 37–55. [Google Scholar] [CrossRef]
- Zhang, T.; Cao, J.J.; Tie, X.X.; Shen, Z.X.; Liu, S.X.; Ding, H.; Han, Y.M.; Wang, G.H.; Ho, K.F.; Qiang, J.; et al. Water-soluble ions in atmospheric aerosols measured in Xi’an, China: Seasonal variations and sources. Atmos. Res. 2011, 102, 110–119. [Google Scholar] [CrossRef]
- Allen, D.T.; Palen, E.J.; Haimov, M.I.; Hering, S.V.; Young, J.R. Fourier transform infrared spectroscopy of aerosol collected in a low pressure impactor (LPI/FTIR): Method development and field calibration. Aerosol Sci. Technol. 1994, 21, 325–342. [Google Scholar] [CrossRef]
- Maria, S.F.; Russella, L.M.; Turpin, B.J.; Porcja, R.J. FTIR measurements of functional groups and organic mass in aerosol samples over the Caribbean. Atmos. Environ. 2002, 36, 5185–5196. [Google Scholar] [CrossRef] [Green Version]
- Bruns, E.A.; Perraud, E.; Zelenyuk, A.; Ezell, M.J.; Johnson, S.N.; Yu, Y. Comparison of FTIR and particle mass spectrometry for the measurement of particulate organic nitrates. Environ. Sci. Technol. 2010, 44, 1056–1061. [Google Scholar] [CrossRef]
- Yu, X.; Song, W.; Yu, Q.; Li, S.; Zhu, M.; Zhang, Y.; Deng, W.; Yang, W.; Huang, Z.; Bi, X.; et al. Fast screening compositions of PM2.5 by ATR-FTIR: Comparison with results from IC and OC/EC analyzers. J. Environ. Sci. 2018, 71, 76–88. [Google Scholar] [CrossRef]
- Ghauch, A.; Deveau, P.A.; Jacob, V.; Baussand, P. Use of FTIR spectroscopy coupled with ATR for the determination of atmospheric compounds. Talanta 2006, 68, 1294–1302. [Google Scholar] [CrossRef] [PubMed]
- Doyle, W.M. Principles and Applications of Fourier Transform Infrared (FTIR) Process Analysis; Technical Note AN–906 Rev. C; Hellma Axiom, Inc.: Plainview, NY, USA, 1992; pp. 1–24. [Google Scholar]
- Simonescu, C.M. Application of FTIR Spectroscopy in Environmental Studies. In Advanced Aspects of Spectroscopy; Muhammad, A.F., Ed.; InTech: Rijeka, Croatia, 2012; pp. 49–84. [Google Scholar]
- Michalski, R. Principles and Applications of Ion Chromatography. In Application of IC-MS and IC-ICP-MS in Environmental Research; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
- Rodríguez, S.; Alastuey, A.; Alonso-Pérez, S.; Querol, X.; Cuevas, E.; Abreu-Afonso, J.; Viana, M.; Pérez, N.; Pandolfi, M.; de la Rosa, J. Transport of desert dust mixed with North African industrial pollutants in the subtropical Saharan Air Layer. Atmos. Chem. Phys. 2011, 11, 6663–6685. [Google Scholar] [CrossRef] [Green Version]
- Pey, J.; Alastuey, A.; Querol, X.; Rodríguez, S. Monitoring of sources and atmospheric processes controlling air quality in an urban Mediterranean environment. Atmos. Environ. 2010, 44, 4879–4890. [Google Scholar] [CrossRef]
- Putaud, J.P.; Van Dingenen, R.; Alastuey, A.; Bauer, H.; Birmili, W.; Cyrys, J.; Flentje, H.; Fuzzi, S.; Gehrig, R.; Hansson, H.C.; et al. A European aerosol phenomenology e 3: Physical and chemical characteristics of particulate matter from 60 rural, urban, and kerbside sites across Europe. Atmos. Environ. 2010, 44, 1308–1320. [Google Scholar] [CrossRef]
- Remoundaki, E.; Papayannis, A.; Kassomenos, P.; Mantas, E.; Kokkalis, P.; Tsezos, M. Influence of Saharan Dust Transport Events on PM2.5 Concentrations and Composition over Athens. Water Air Soil Pollut. 2013, 224, 1373–1387. [Google Scholar] [CrossRef]
- Amodio, M.; Bruno, P.; Caselli, M.; de Gennaro, G.; Dambruoso, P.R.; Daresta, B.E.; Ielpo, P.; Gungolo, F.; Placentino, C.M.; Paolillo, V.; et al. Chemical characterization of fine particulate matter during peak PM10 episodes in Apulia (South Italy). Atmos. Res. 2008, 90, 313–325. [Google Scholar] [CrossRef]
- Cesari, D.; Donateo, A.; Conte, M.; Merico, E.; Giangreco, A.; Giangreco, F.; Contini, D. An inter-comparison of PM2.5 at urban and urban background sites: Chemical characterization and source apportionment. Atmos. Res. 2016, 174–175, 106–119. [Google Scholar] [CrossRef]
- Vasilatou, V.; Manousakas, M.; Gini, M.; Diapouli, E.; Scoullos, M.; Eleftheriadis, K. Long Term Flux of Saharan Dust to the Aegean Sea around the Attica Region, Greece. Front. Mar. Sci. 2017, 4, 1–8. [Google Scholar] [CrossRef]
- Nava, S.; Becagli, S.; Calzolai, G.; Chiari, M.; Lucarelli, F.; Prati, P.; Traversi, R.; Udisti, R.; Valli, G.; Vecchi, R. Saharan dust impact in central Italy: An overview on three years elemental data records. Atmos. Environ. 2012, 60, 444–452. [Google Scholar] [CrossRef]
- Querol, X.; Alastuey, A.; Ruiz, C.R.; Artiñano, B.; Hansson, H.C.; Harrison, R.M.; Buringh, E.; ten Brink, H.M.; Lutz, M.; Bruckmann, P.; et al. Speciation and origin of PM10 and PM2.5 in selected European cities. Atmos. Environ. 2004, 38, 6547–6555. [Google Scholar] [CrossRef]
- Dongarrà, G.; Manno, E.; Varrica, D.; Vultaggio, M.; Lombardo, M. Study on ambient concentrations of PM10, PM10-2.5, PM2.5 and gaseous pollutants. Trace elements and chemical speciation of atmospheric particulates. Atmos. Environ. 2010, 44, 5244–5257. [Google Scholar] [CrossRef]
- Pastuszka, J.S.; Rogula-Kozlowska, W.; Zajusz-Zubek, E. Characterization of PM10 and PM2.5 and associated heavy metals at the crossroads and urban background site in Zabrze, Upper Silesia, Poland, during the smog episodes. Environ. Monit. Assess. 2010, 168, 613–627. [Google Scholar] [CrossRef] [PubMed]
- Ferm, M.; Sjöberg, K. Concentrations and emission factors for PM2.5 and PM10 from road traffic in Sweden. Atmos. Environ. 2015, 119, 211–219. [Google Scholar] [CrossRef]
- Kouyoumdjian, H.; Saliba, N.A. Mass concentration and ion composition of coarse and fine particles in an urban area in Beirut: Effect of calcium carbonate on the absorption of nitric and sulfuric acids and the depletion of chloride. Atmos. Chem. Phys. 2006, 6, 1865–1877. [Google Scholar] [CrossRef]
- Hug, S. In situ Fourier Transform infrared measurements of sulfate adsorption on hematite in aqueous solutions. J. Colloid Inerface Sci. 1997, 188, 415–422. [Google Scholar] [CrossRef]
- Peak, D.; Ford, R.G.; Sparks, D.L. An in situ ATR-FTIR investigation of sulfate bonding mechanisms on Goethite. J. Colloid Interface Sci. 1999, 218, 289–299. [Google Scholar] [CrossRef] [PubMed]
- Shaka, H.; Saliba, N. Concentration measurements and chemical composition of PM10-2.5 and PM2.5 at a coastal site in Beirut, Lebanon. Atmos. Environ. 2004, 38, 523–531. [Google Scholar] [CrossRef]
- Rodriguez-Navarro, C.; Sebastian, E. Role of particulate matter from vehicle exhaust on porous building stones (limestone) sulfation. Sci. Total Environ. 1996, 187, 79–91. [Google Scholar] [CrossRef]
- Varrica, D.; Dongarrà, G.; Sabatino, G.; Monna, F. Inorganic geochemistry of roadway dust from the metropolitan area of Palermo (Italy). Environ. Geol. 2003, 44, 222–230. [Google Scholar] [CrossRef]
- Montana, G.; Randazzo, L.; Oddo, I.A.; Valenza, M. The growth of “black crusts” on calcareous building stones in Palermo (Sicily): A first appraisal of anthropogenic and natural sulphur sources. Environ. Geol. 2008, 56, 367–380. [Google Scholar] [CrossRef]
- Rahier, H.; Wullaert, B.; Van Mele, B. Influence of the Degree of Dehydroxylation of Kaolinite on the Properties of Aluminosilicate Glasses. J. Therm. Anal. Calorim. 2000, 62, 417–427. [Google Scholar] [CrossRef]
- Chou, C.C.K.; Huang, S.H.; Chen, T.K.; Lin, C.Y.; Wang, L.C. Size–segregated characterization of atmospheric aerosols in Taipei during Asian outflow episodes. Atmos. Res. 2005, 75, 89–109. [Google Scholar] [CrossRef]
- Coury, C.; Dillner, A.M. A method to quantify organic functional groups and inorganic compounds in ambient aerosols using attenuated total reflectance FTIR spectroscopy and multivariate chemometric techniques. Atmos. Environ. 2008, 42, 5923–5932. [Google Scholar] [CrossRef]
- Reff, A.; Turpin, B.J.; Offenberg, J.H.; Weisel, C.P.; Zhang, J.; Morandi, M.; Stock, T.; Colome, S.; Winer, A. A functional group characterization of organic PM 2.5 exposure: Results from the RIOPA study. Atmos. Environ. 2007, 41, 4585–4598. [Google Scholar] [CrossRef]
- Coury, C.; Dillner, A.M. ATR-FTIR characterization of organic functional groups and inorganic ions in ambient aerosols at a rural site. Atmos. Environ. 2009, 43, 940–948. [Google Scholar] [CrossRef]
- Madejová, J.; Komadel, P. Baseline Studies of the Clay Minerals Society Source Clays: Infrared Methods. Clays Clay Miner. 2001, 49, 410–432. [Google Scholar] [CrossRef]
- Davarcioglu, B. Spectral characterization of non-clay minerals found in the clays Central Anatolian-Turkey. Int. J. Phys. Sci. 2011, 6, 511–522. [Google Scholar]
- Wilson, M.J. A Handbook of Determinative Methods in Clay Mineralogy; Blackie-Son Ltd.: London, UK, 1987; p. 308. [Google Scholar]
- Suárez, M.; García-Romero, E. FTIR spectroscopic study of palygorskite: Influence of the composition of the octahedral sheet. Appl. Clay Sci. 2006, 31, 154–163. [Google Scholar] [CrossRef] [Green Version]
- Anton, O.; Rouxhet, P.G. Note on the intercalation of kaolinite, dickite, and halloysite by dimethylsulfoxide. Clays Clay Miner. 1977, 25, 259–263. [Google Scholar] [CrossRef]
- Madejová, J. FTIR techniques in clay mineral studies. Vib. Spectrosc. 2003, 31, 1–10. [Google Scholar] [CrossRef]
- Farmer, V.C. Transverse and longitudinal crystal modes associated with OH stretching vibrations in single crystals of kaolinite and dickite. Spectrochim. Acta 2000, 56, 927–930. [Google Scholar] [CrossRef]
- Cheng, Z.L.; Lam, K.S.; Chan, L.Y.; Wang, T.; Cheng, K.K. Chemical characteristics of aerosols at coastal station in Hong Kong. I. Seasonal variation of major ions, halogens and mineral dusts between 1995 and 1996. Atmos. Environ. 2000, 34, 2771–2783. [Google Scholar] [CrossRef]
- Kong, L.; Yang, Y.; Zhang, S.; Zhao, X.; Du, H.; Fu, H.; Zhang, S.; Cheng, T.; Yang, X.; Chen, J.; et al. Observations of linear dependence between sulfate and nitrate in atmospheric particles. J. Geophys. Res. Atmos. 2013, 119, 341–361. [Google Scholar] [CrossRef]
- Squizzato, S.; Masiol, M.; Brunelli, A.; Pistollato, S.; Tarabotti, E.; Rampazzo, G.; Pavoni, B. Factors determining the formation of secondary inorganic aerosol: A case study in the Po Valley (Italy). Atmos. Chem. Phys. 2013, 13, 1927–1939. [Google Scholar] [CrossRef]
- Baek, B.H.; Aneja, V.P.; Tong, Q. Chemical coupling between ammonia, acid gases, and fine particles. Environ. Pollut. 2004, 129, 89–98. [Google Scholar] [CrossRef] [PubMed]
- Huang, X.; Qiu, R.; Chan, C.K.; Kant, P.R. Evidence of high PM2.5 strong acidity in ammonia-rich atmosphere of Guangzhou, China: Transition in pathways of ambient ammonia to form aerosol ammonium at [NH4+]/[SO4 2–] = 1.5. Environ. Res. 2011, 99, 488–495. [Google Scholar] [CrossRef]
- Pio, C.A.; Cerqueira, M.A.; Castro, L.M.; Salgueiro, M.L. Sulphur and nitrogen compounds in variable marine/continental air masses at the South-west European coast. Atmos. Environ. 1996, 30, 3115–3127. [Google Scholar] [CrossRef]
November 2008–February 2009 | ||||
---|---|---|---|---|
PM10 | PM2.5 | |||
BF station | GC station | DB station # | DB station # | |
N | 95 | 108 | 105 | 40 |
Mean | 16 | 39 | 42 | 29 |
Std.Dev. | 7 | 11 | 11 | 6 |
Median | 15 | 39 | 43 | 30 |
Min | 8 | 16 | 13 | 13 |
Max | 44 | 69 | 74 | 40 |
Q10 | 10 | 26 | 28 | 22 |
Q25 | 12 | 32 | 35 | 25 |
Q75 | 17 | 46 | 49 | 33 |
Q90 | 27 | 53 | 55 | 37 |
Saharan Dust Events | ||||
N | 7 | 7 | 8 | 4 |
Mean | 130 | 158 | 133 | 78 |
Dev.St | 89 | 81 | 59 | 28 |
Min | 67 | 97 | 89 | 59 |
Max | 261 | 276 | 220 | 120 |
Species | Frequency (cm–1) in This Study | Frequency (cm–1) from Literature | References |
---|---|---|---|
Non-Saharan Events | |||
SO4 2- | 603; 615; 670; 1100 | 608; 615; 670; 1100 | [30,35,36,51,52,53] |
CO3 2- | 713; 730; 877 | 713; 730; 873; 877 | [53,57,58] |
NO3- | 825; 1356 | 825; 1318–1410; 1350 | [30,58] |
NH4+ | 1414 | 1414 | [50] |
C=C | 1510–1596 | 1463–1511–1596 | [59,61] |
C-H | 1460; 2850; 2920; 2950 | 2850–2920; 2800–3000 | [30,31,34,58,59,60] |
Water (OH) | 1620; 3200–3400; 3620 | 1620; 3200–3400; 3620 | [34,53,62] |
Al-O-Si | 540 | 540 | [57,58] |
Si-O | 1030 | 1030 | [30,62] |
C = O | 1720 | 1720; 1722 | [34,58] |
Saharan Dust Events | |||
O-Si-O | 423; 463; 520 | 426; 468; 525 | [63] |
SO4 2- | 603; 615; 670; 1110 | 608; 615; 670; 1100 | [30,60] |
CO3 2- | 713; 730; 780; 877;1433 | 713; 730; 873; 877 | [58,62] |
Al-O-Si | 750 | 750 | [63,64] |
Al-Al-OH | 912 | 910 | [62,65] |
NO3- | 825; 1356 | 825; 1318–1410; 1350 | [30,32,58] |
NH4+ | 1414 | 1414 | [50] |
C = C | 1510–1596 | 1463–1511–1596 | [59,61] |
C-H | 1460; 2800–3000 | 1460; 2850–2920; 2800–3000 | [30,31,34,58,59] |
Water (OH) | 688; 1620; 1685; 3260–3400; 3620; 3669; 3695 | 688; 1620; 3200–3400; 3620, 3669; 3695 | [34,62,63,66] |
Si-O | 1010; 1032 | 1010; 1030; 1031 | [30,62,67] |
PM10 | PM2.5 | ||
---|---|---|---|
BF station | GC station | DB station | |
F- | 0.15 | 0.15 | 0.17 |
Cl- | 1.19 | 1.70 | 0.64 |
NO3- | 2.30 | 4.13 | 2.91 |
SO42- | 2.69 | 2.26 | 2.49 |
Na+ | 1.14 | 1.47 | 0.74 |
K+ | 0.23 | 0.27 | 0.23 |
Mg2+ | 0.20 | 0.24 | 0.09 |
Ca2+ | 0.78 | 1.60 | 1.33 |
NH4+ | 0.96 | 1.32 | 1.52 |
nssSO42- | 2.44 | 2.05 | 2.10 |
ΣTM | 9.64 | 13.1 | 10.1 |
TPM | 19.5 | 37.0 | 29.3 |
