1. Introduction
Noise pollution is a serious environmental problem to human beings, which has further been shown to be associated with reduced quality of life and wellbeing [
1,
2]. At present, most of the academic literature is related to high frequency noise sources from traffic, industry and human activities [
3,
4,
5], while low frequency noise (LFN) is also considered annoying for humans [
6]. The LFN found in living environments is mainly emitted from many artificial sources such as road vehicles, aircraft, and air movement machinery including wind turbines, compressors, and ventilation [
7,
8], and it is claimed that exposure to LFN has a negative impact on humans’ physiological and psychological health. The physiological problems include headaches, hormone changes, dizziness or vertigo, tinnitus and the sensation of aural pain or pressure, and the psychological impact can cause sleep disturbance, dysphoria, difficulty concentrating, irritability and fatigue [
9,
10].
In the field of hydraulic engineering in China, the majority of high dams were constructed in recent decades with the features of high water head, large flow capacity, a deep narrow valley and large flood discharge power. Issues such as energy dissipation and scour protection, vibration control of a hydraulic structure, vapor atomization protection, aeration for cavitation protection, and security warnings associated with high dam flood discharge have attracted significant attention and led to abundant technological achievements [
11,
12,
13,
14]. Some environmental problems from LFN have also recently been found around some hydropower stations during the flood discharge period. For instance, when the Xiangjiaba Hydropower Station (Zhaotong, at the border of Sichuan and Yunnan provinces, China) began to release flow through the dam orifices at a high water level on 10 October 2012, the roller shutter doors of some shops and the windows and doors of residential buildings experienced sustained vibration in downstream Shuifu County. The dominant frequencies of the LFN observed on-site were approximately 0–2 Hz. In a recent study [
15], the impact of ground vibration induced by the flood discharge of Xiangjiaba on on-site roller shutter doors was eliminated by means of a vibration response analysis, and it was deduced that the doors shaking resulted from the resonant interaction between the flow-induced LFN and the door structures. Moreover, the windows of buildings located at the left abutment of the Ertan Hydropower Station (Panzhihua, Sichuan Province, China) oscillated noticeably when the flood was released. The windows and doors of residential buildings in a downstream village about 700–1500 m from the Huangjinping Hydropower Station (Kangding, Sichuan Province, China) experienced sustained vibrations when the flood was released. The LFN observed during the flood discharge period of both the Jinping Hydropower Station (Liangshan Yi Autonomous Prefecture, Sichuan Province, China) and Xiluodu Hydropower Station (Zhaotong, at the border of Sichuan and Yunnan provinces, China) had sound pressure levels (SPL) approximately 20–50 dB higher than the background noise, and the dominant LFN frequencies were between 0.5 Hz and 1.5 Hz. It is found that the inaudible LFN observed around these hydropower stations causes audible secondary noise from surrounding buildings. In Japan, there are some criteria specific to the vibration and rattle attributable to the effects of LFN from stationary sources in worksites, shops and neighborhood residences [
16]. The lowest noise frequency listed in the criteria is 5 Hz with its reference SPL limit of 70 dB. For the flow-induced LFN, the LFN’s effects are extended to a lower frequency of about 0–2 Hz.
Japanese scholars have conducted some research on flow-induced LFN. As Japan is a densely populated country and many hydropower stations are close to residents’ living quarters, the problems of LFN were noted earlier in Japan. Most of the research focused on the waterfalls formed by the discharge flow through the weir or dam’s floodgate. The oscillation of such waterfalls can cause LFN, which has an adverse impact on surrounding buildings and inhabitants [
17,
18,
19]. In addition, since LFN is a low frequency wave, it has a low attenuation rate in air [
17,
20,
21], which is difficult to control, and thus can spread over long distances, even tens of kilometers, to resonate with buildings. Among the previous studies, Nakamura [
17] reported the phenomenon of LFN induced by flood discharge as early as 1978. Takebayashi [
18] and Nakagawa [
19] carried out systematic research on the mechanisms of self-excited oscillation of cavity-waterfall systems and the characteristics of the induced LFN based on site observations. Some control measures, such as placing deflectors, were put forward and applied effectively in the research. Ochiai
et al. [
22] studied various influencing factors of the SPL of the noise from windows and doors induced by LFN by a series of model tests. Saitoh
et al. [
23] studied the sound sources of the hydraulic jump through hydraulic model experiments on the hydraulic jump and cylinder nozzle, and they found that the noise energy at a high frequency of 500–600 Hz induced by the hydraulic jump was derived from bubble cloud oscillations. These research results indicate that LFN induced by flood discharge can cause environmental problems within large areas, and the generation of LFN closely correlates with the discharge flow regime. The problems of LFN can be controlled and reduced by adjusting the flow regime. The previous studies mainly focus on LFN induced by a relatively continuous waterfall of some water projects with low water head, small flow rate and a simple flow regime. However, for water projects that dissipate energy through multi-horizontal submerged jets, LNF energy can still be observed on site although a waterfall does not exist during flood discharge. Therefore, there must be some differences in the generation mechanisms of LFN between energy dissipation by the submerged jet of high dam flood discharge and the oscillation of the waterfall. An extensive literature search has not found any research reports on LFN induced by energy dissipation through the submerged jets of a high dam.
The objective of this study was to identify the mechanisms and key influencing factors of LFN induced by energy dissipation through the submerged jets of a high dam. First, in light of the prototype observation results of LFN, the on-site spatial distribution and propagation laws of the induced LFN along the downstream are analyzed, and the correlation between LFN and the discharge flow regime is discussed. Next, the vortex sound model and numerical turbulent flow model for the flood discharge and energy dissipation of the high dam are presented as the theoretical bases. Then, the flow field’s distribution characteristics and effective regions of acoustic source for the LFN are studied and identified, according to the numerical simulation results of the gas-liquid turbulent flow model of flood discharge. The mathematical prediction model of the LFN intensity induced by the submerged jets is established based on the vortex sound model and turbulent flow model, and the prediction model is verified by prototype observation results. Finally, the findings are summarized, and the conclusions of this study are drawn.
4. Conclusions

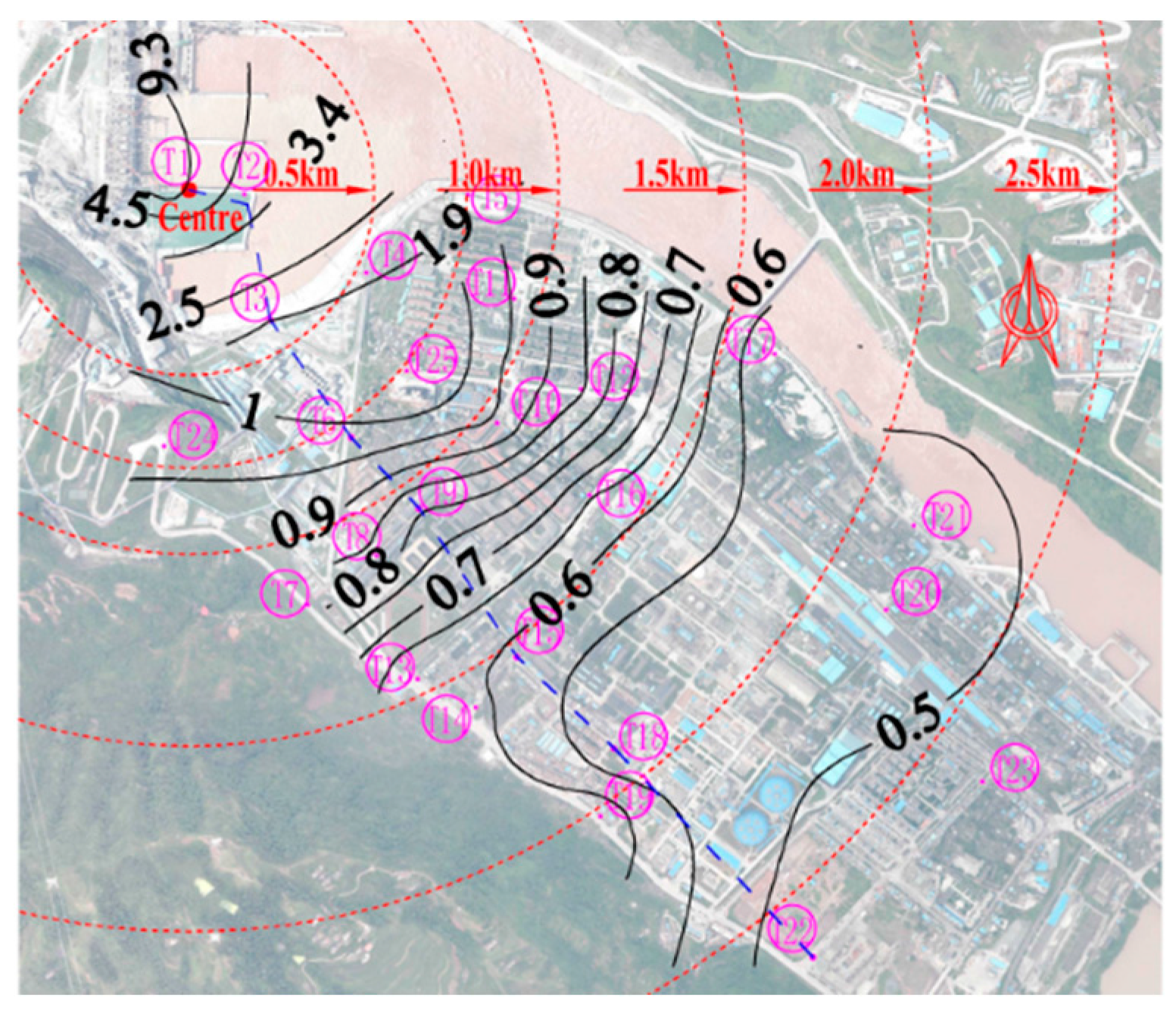

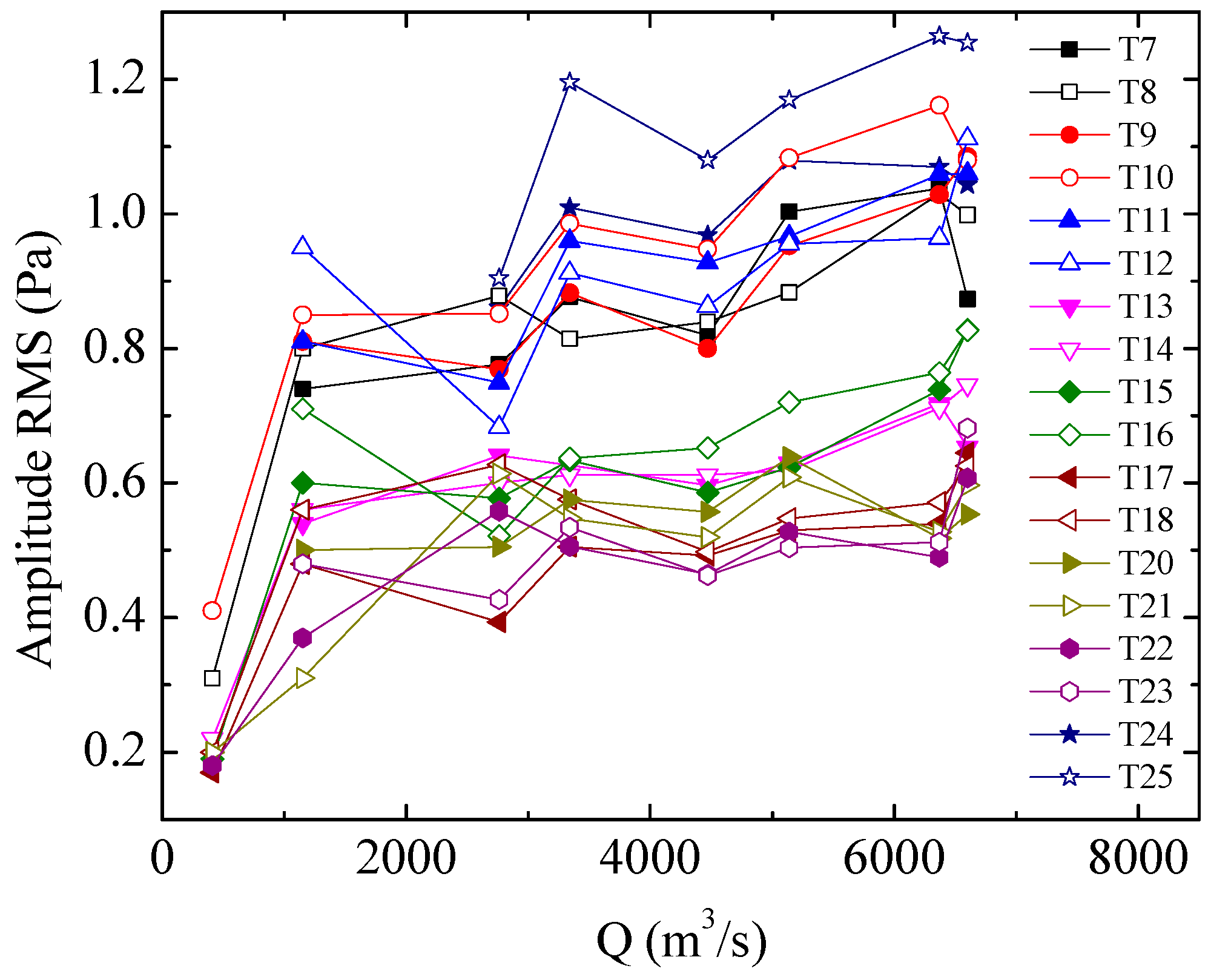

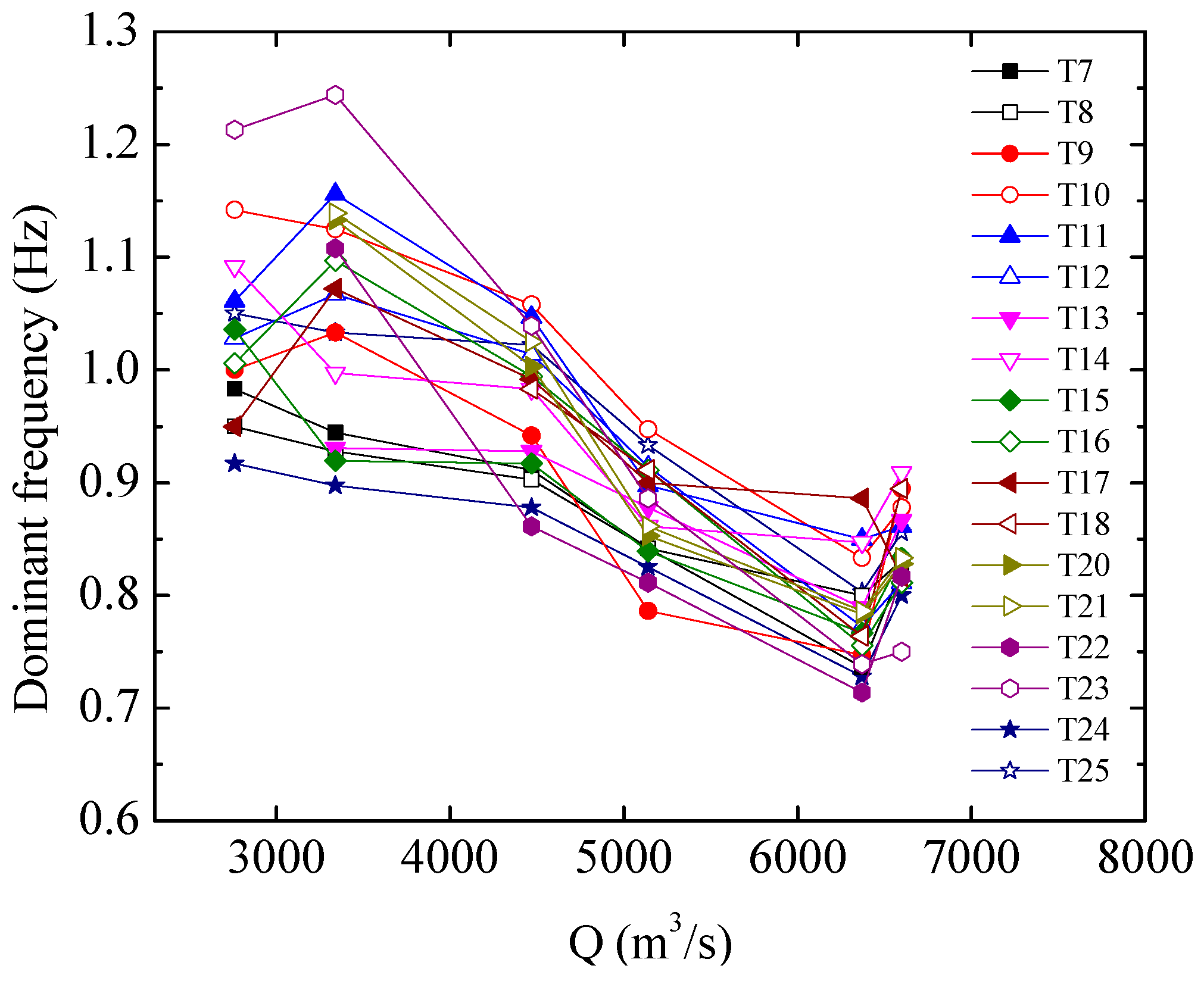

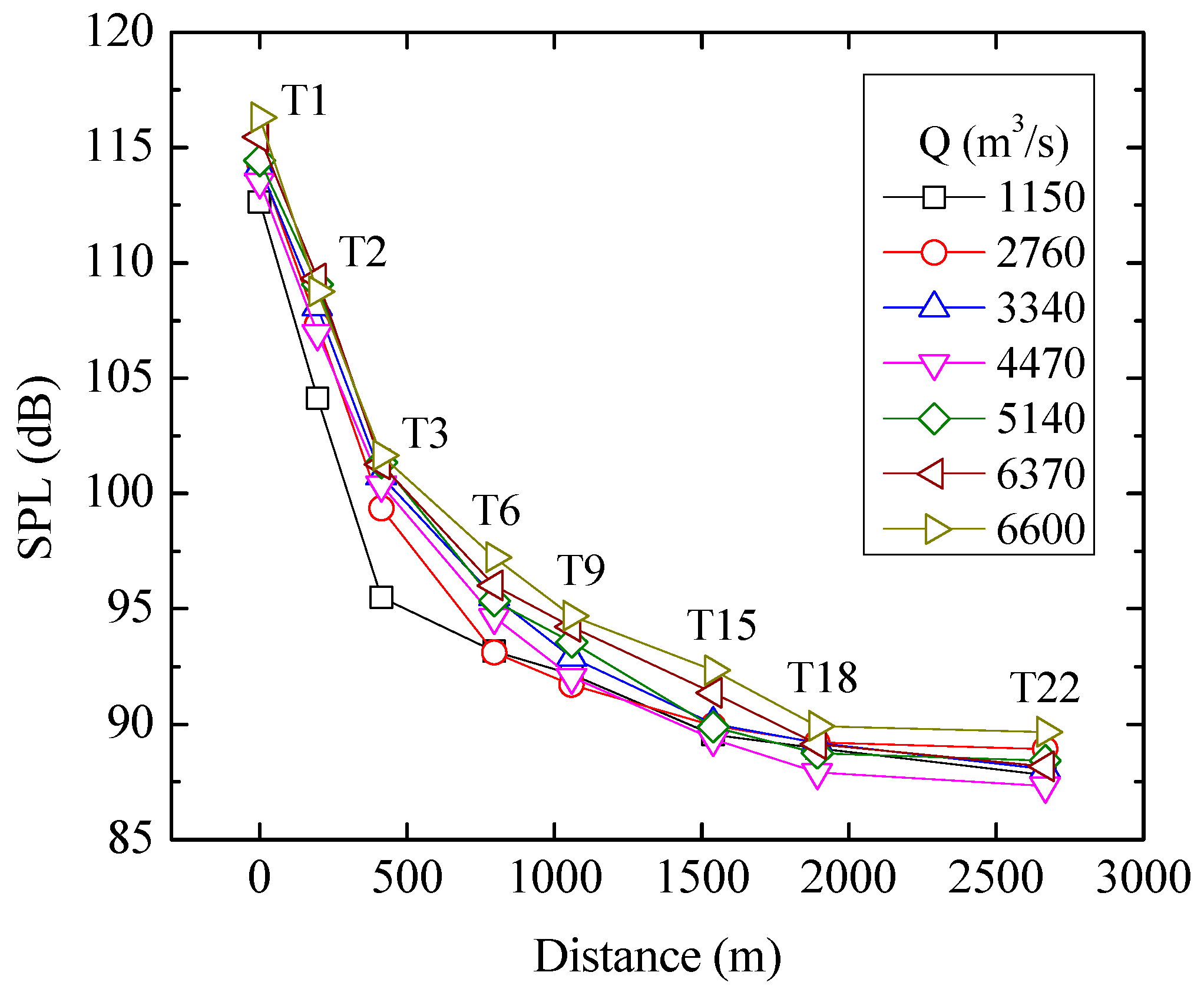

In this study, extensive prototype observations and analyses of low frequency noise (LFN) induced by the process of energy dissipation through the submerged jets of a high dam are carried out. It is found that the LFN amplitude reaches the maximum value near the dam area, which is below the hearing threshold and the LFN limits. In general, the observed LFN has no directly negative effect on local residents’ health. The sound pressure level (SPL) attenuation coefficient of LFN decreases gradually with increasing distance to the dam area, reaching maximum in the vapor atomization area near the overflow dam. The flow-induced LFN intensity has a close relationship with the discharge operation schemes and flow regimes in the stilling basin, and maintaining uniform and smooth flow patterns in the stilling basin using the joint discharge operation scheme has the benefit of reducing the LFN intensity.

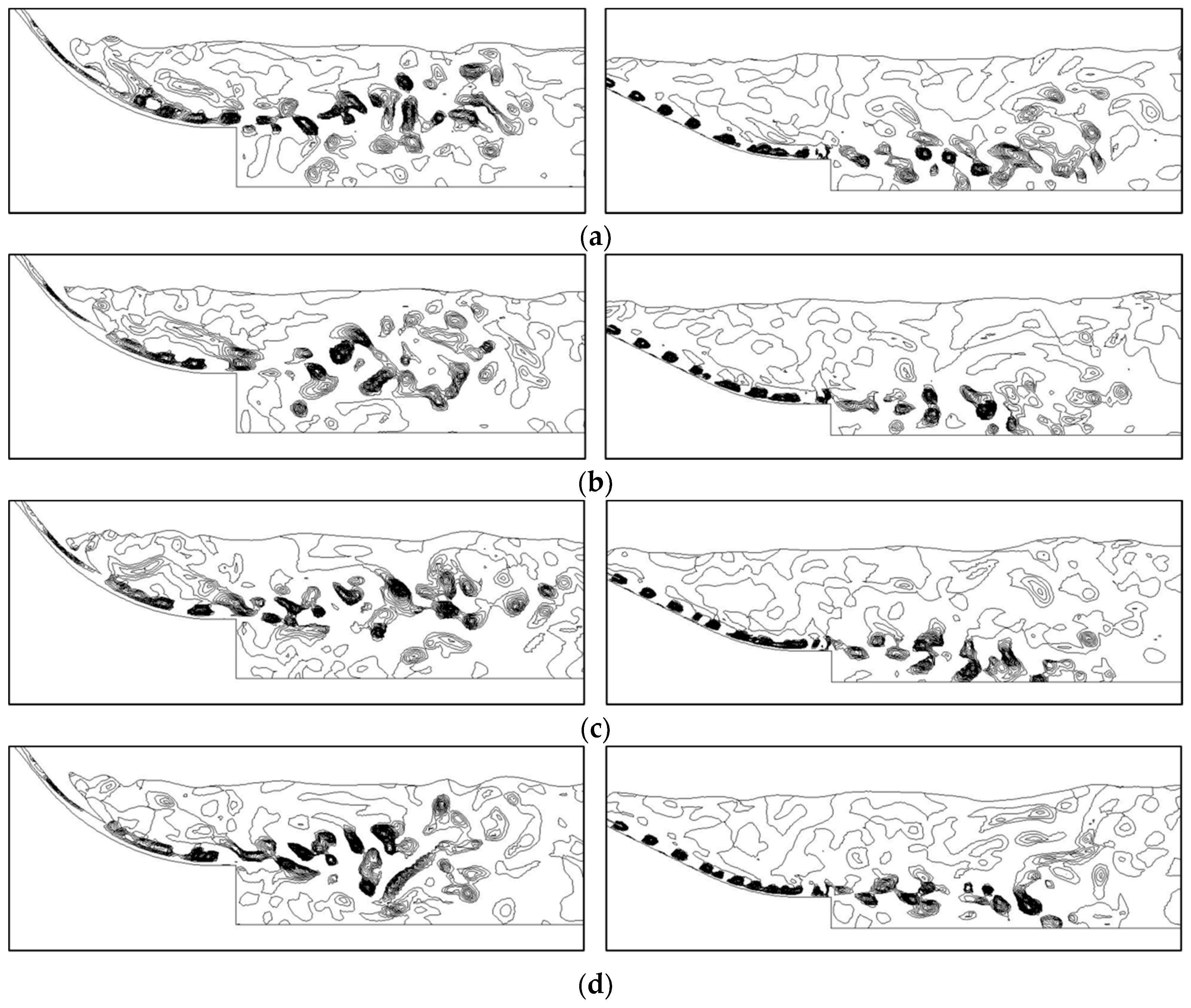

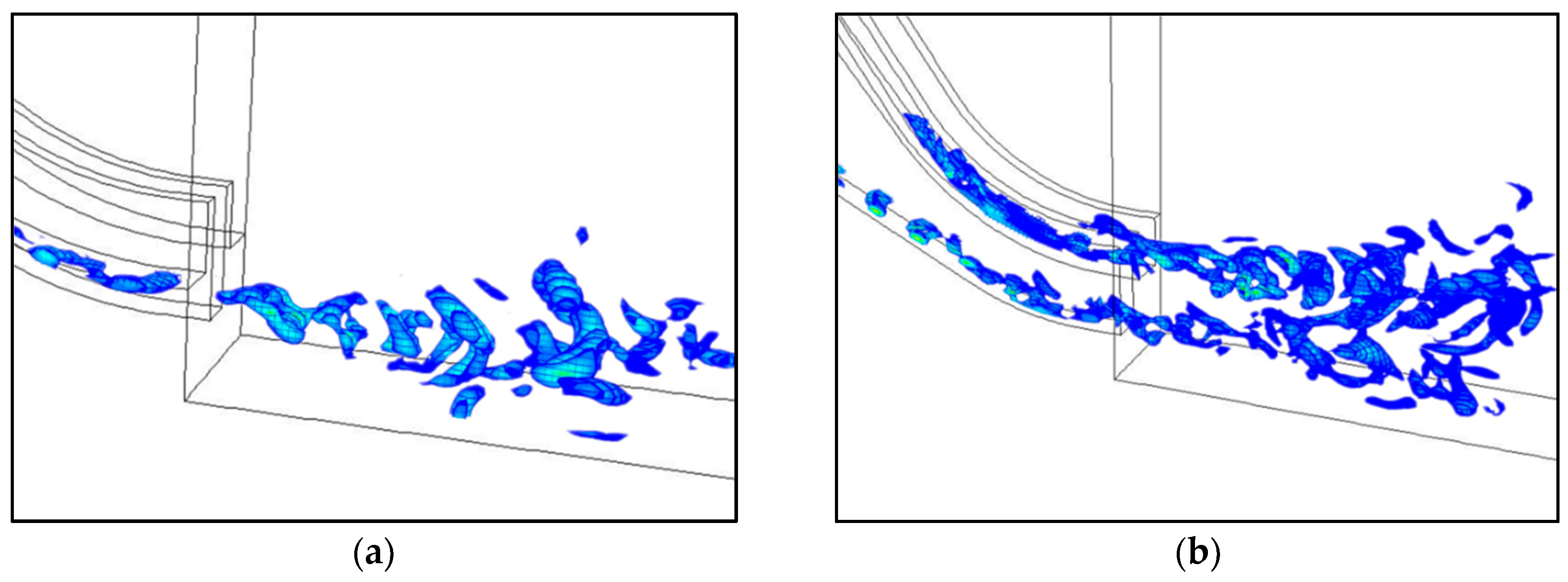

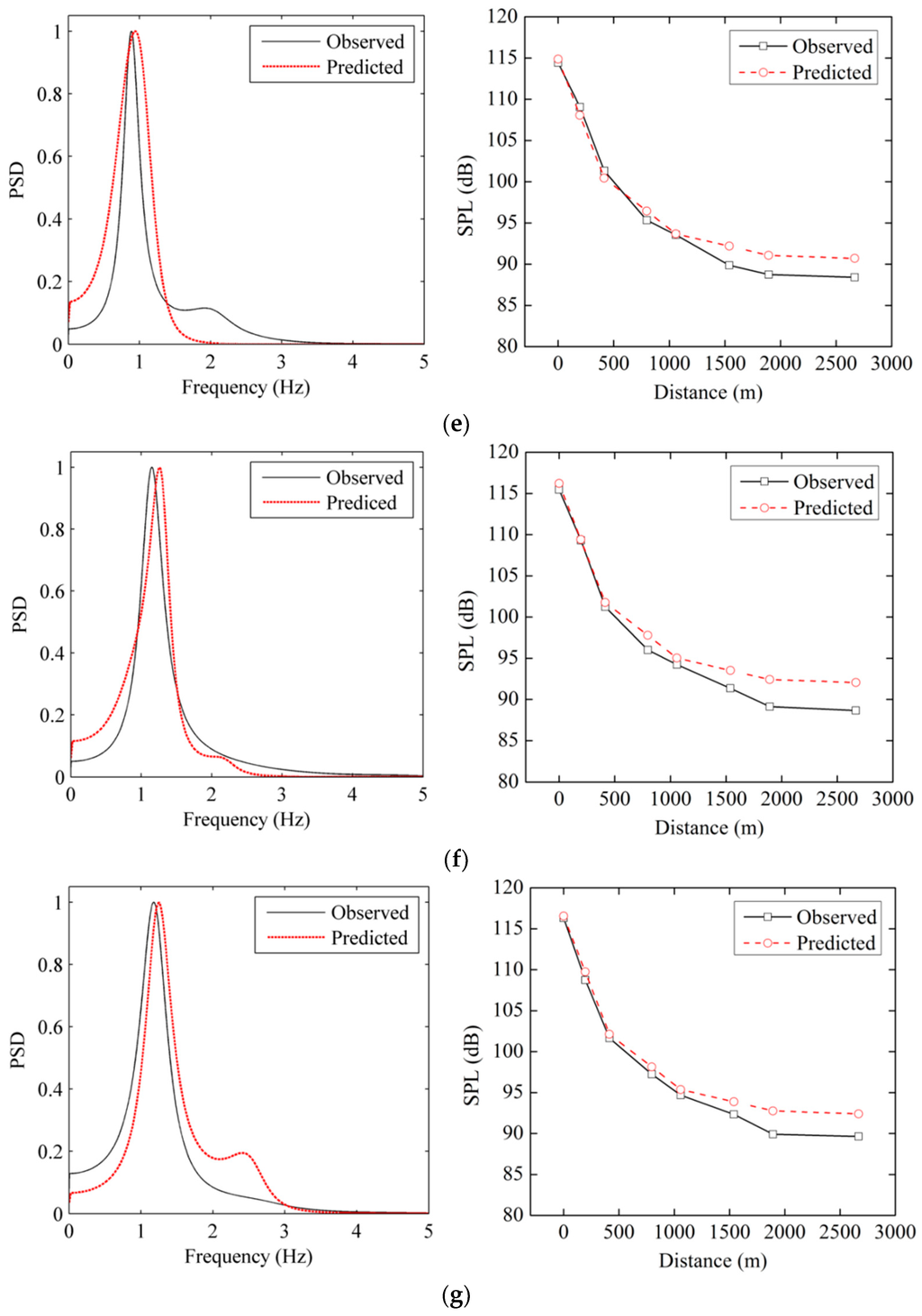

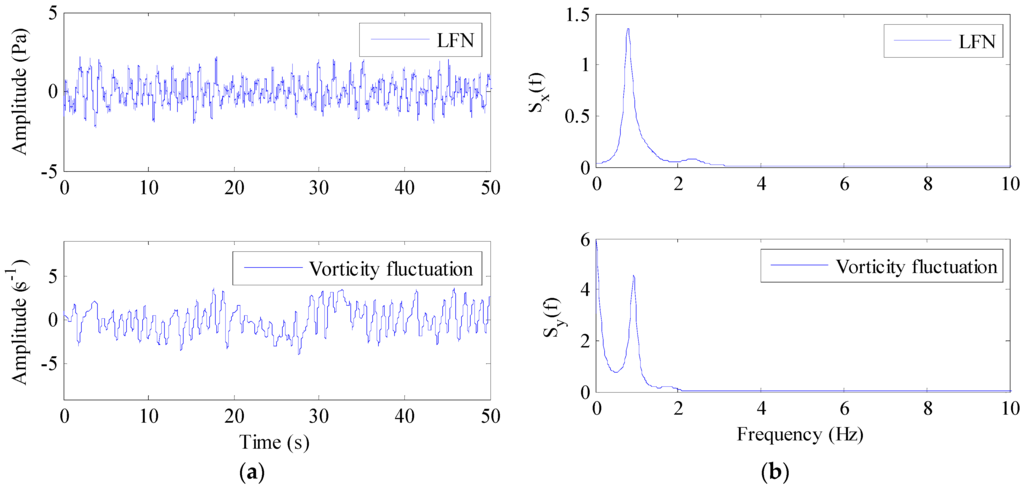

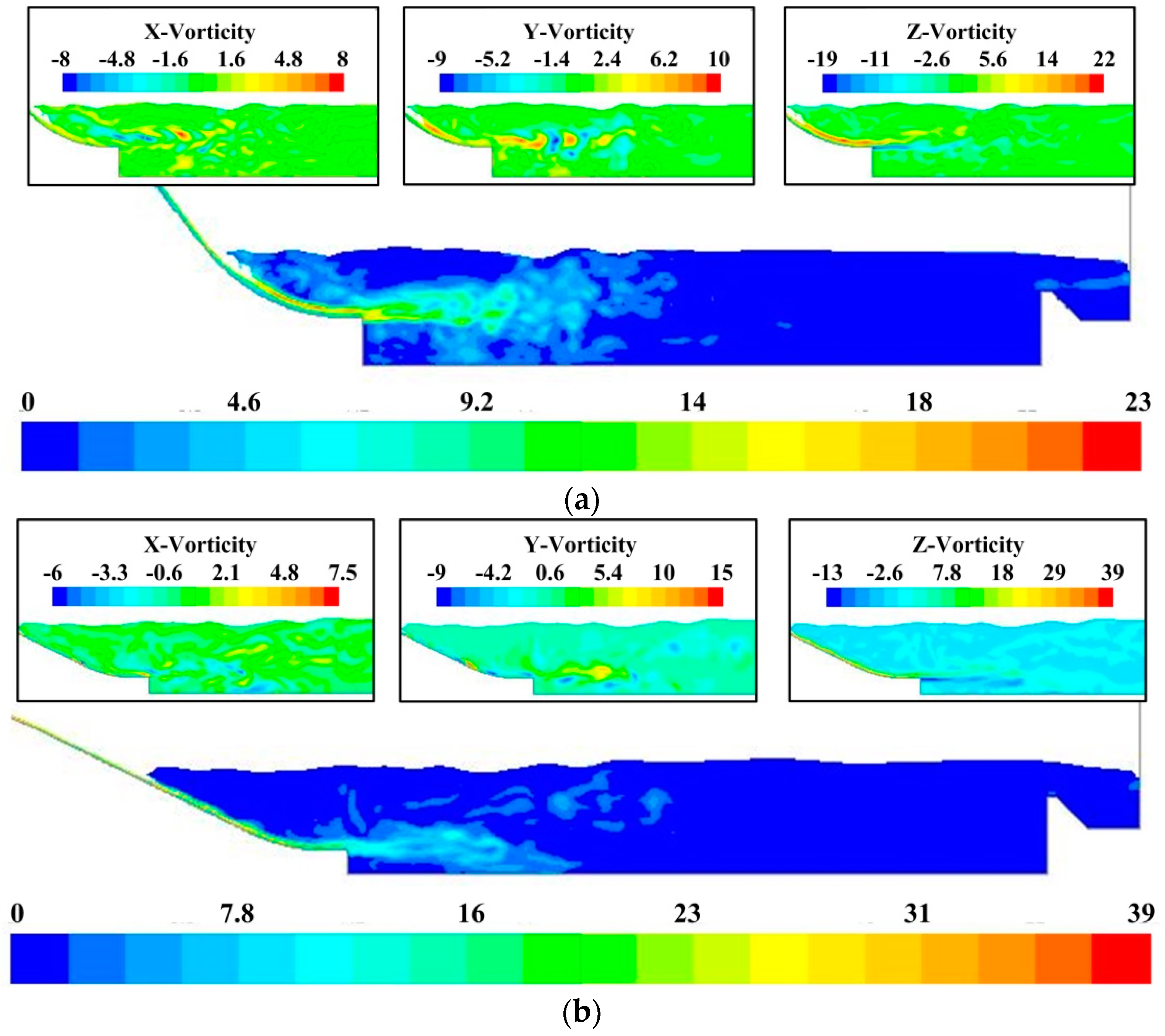

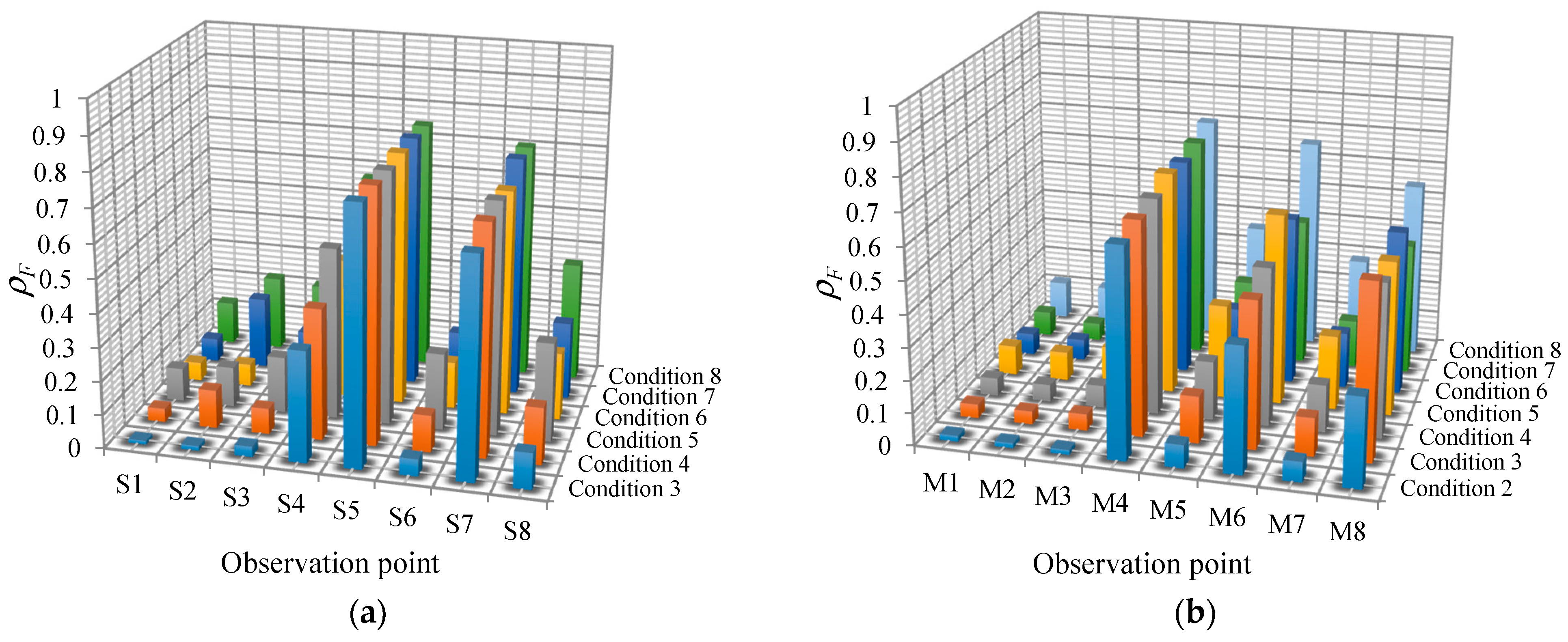

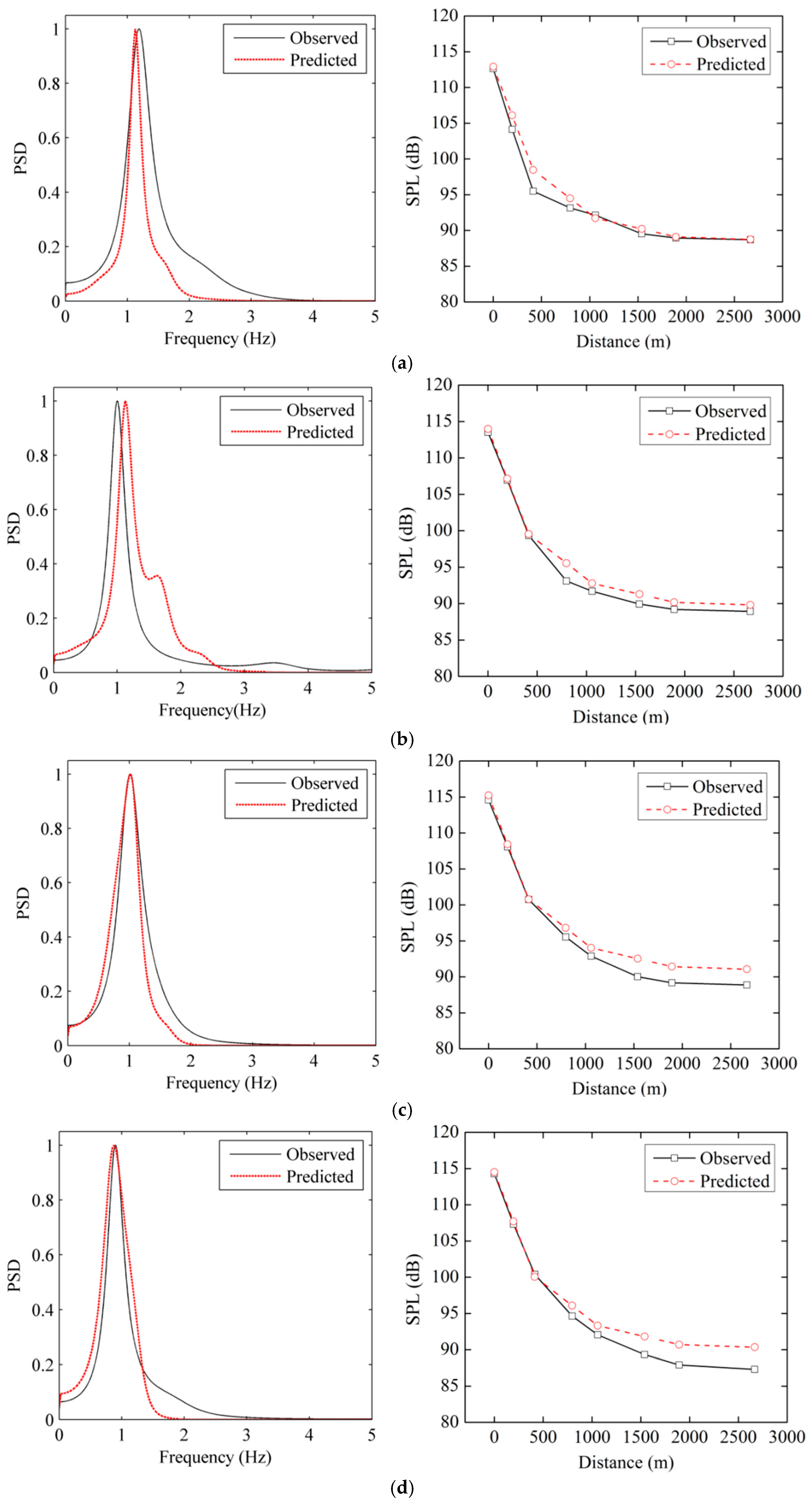

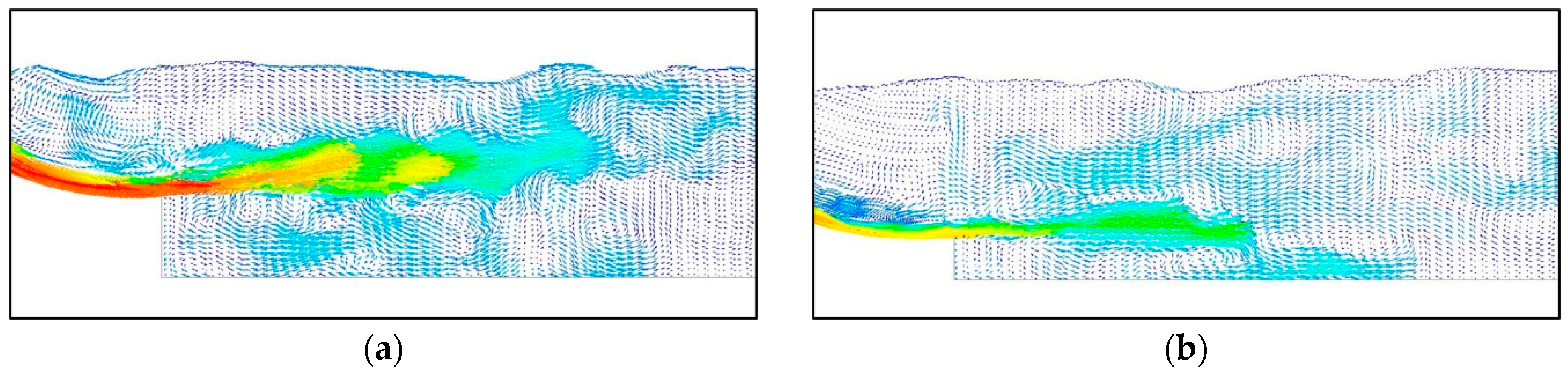

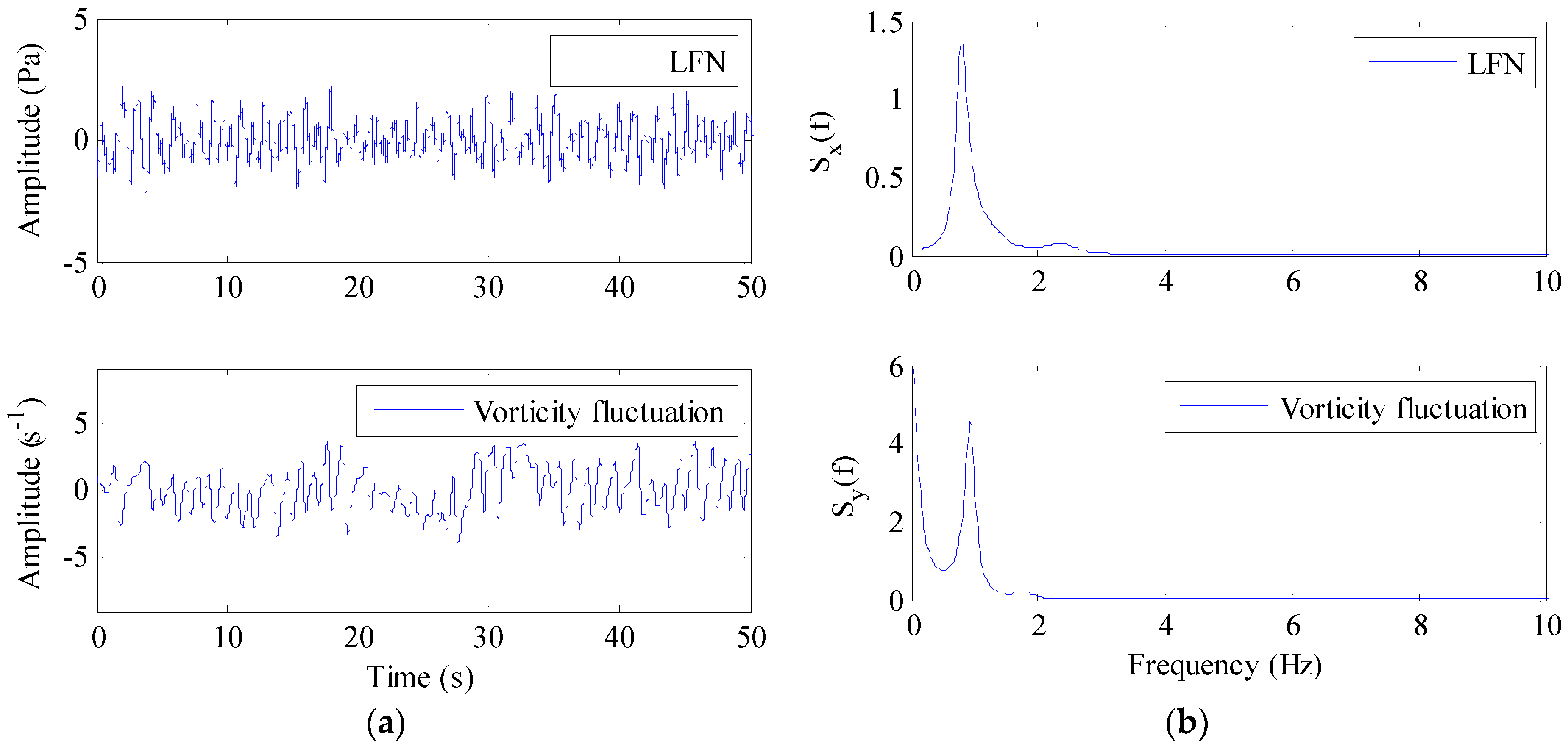

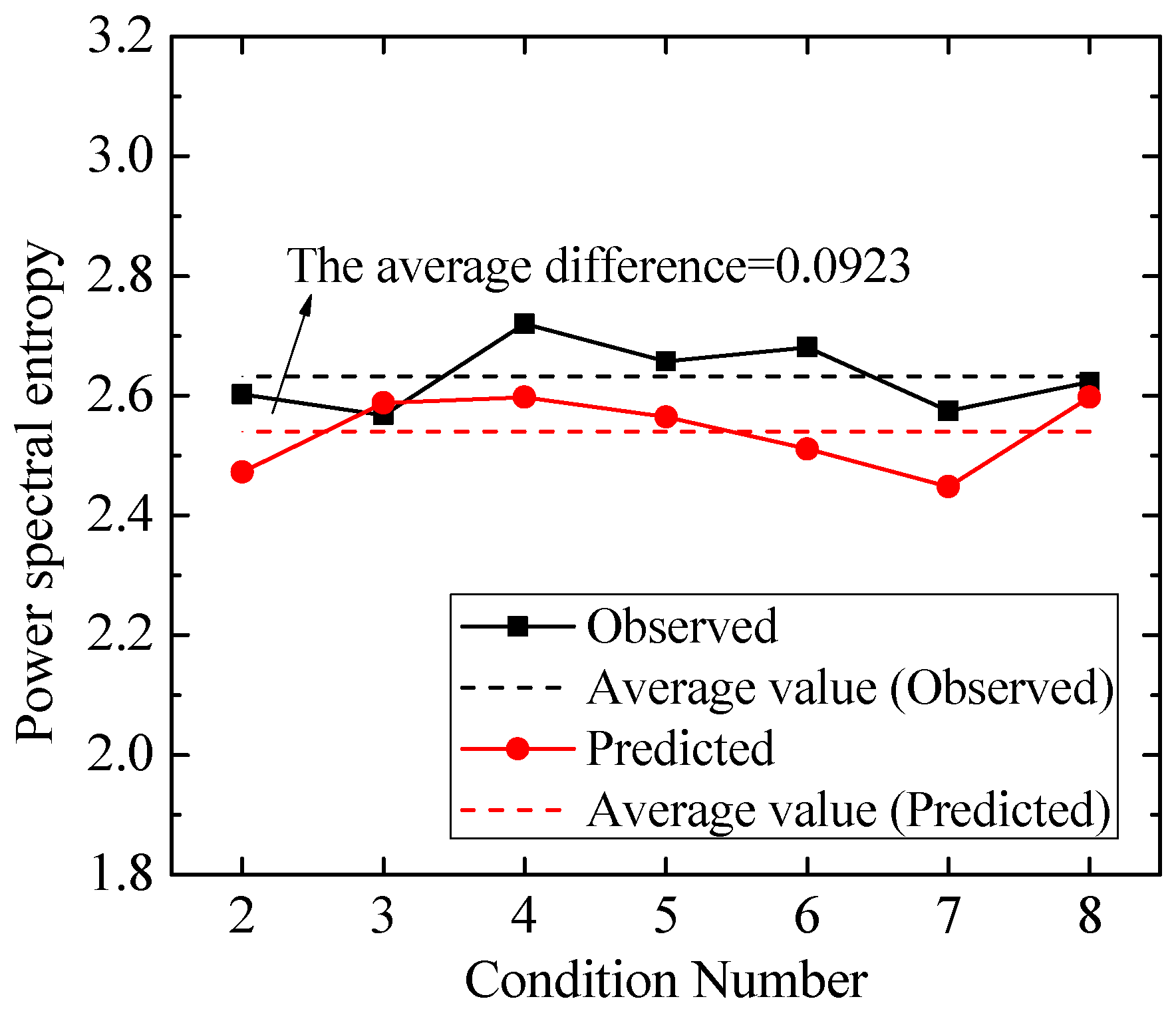

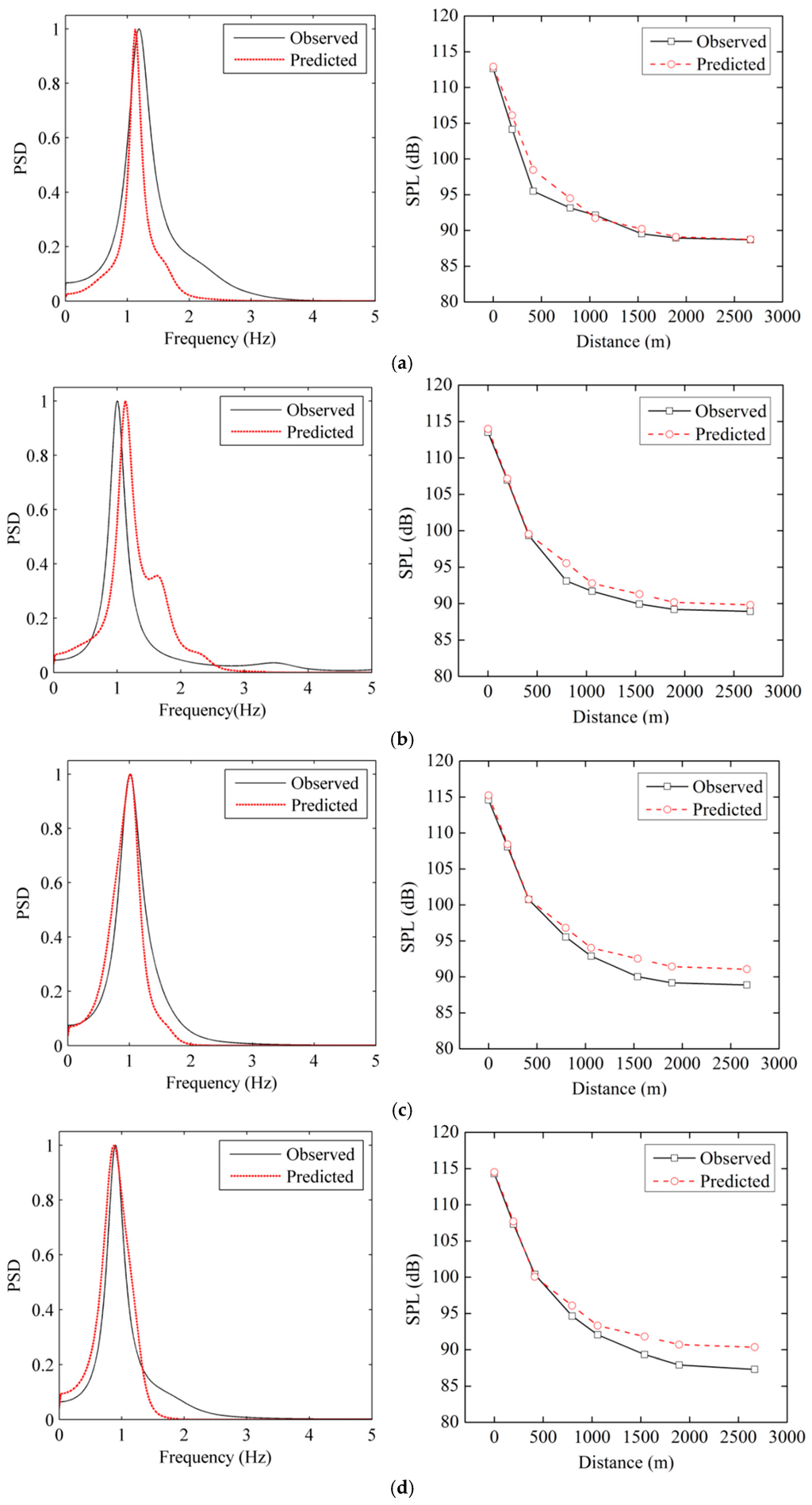

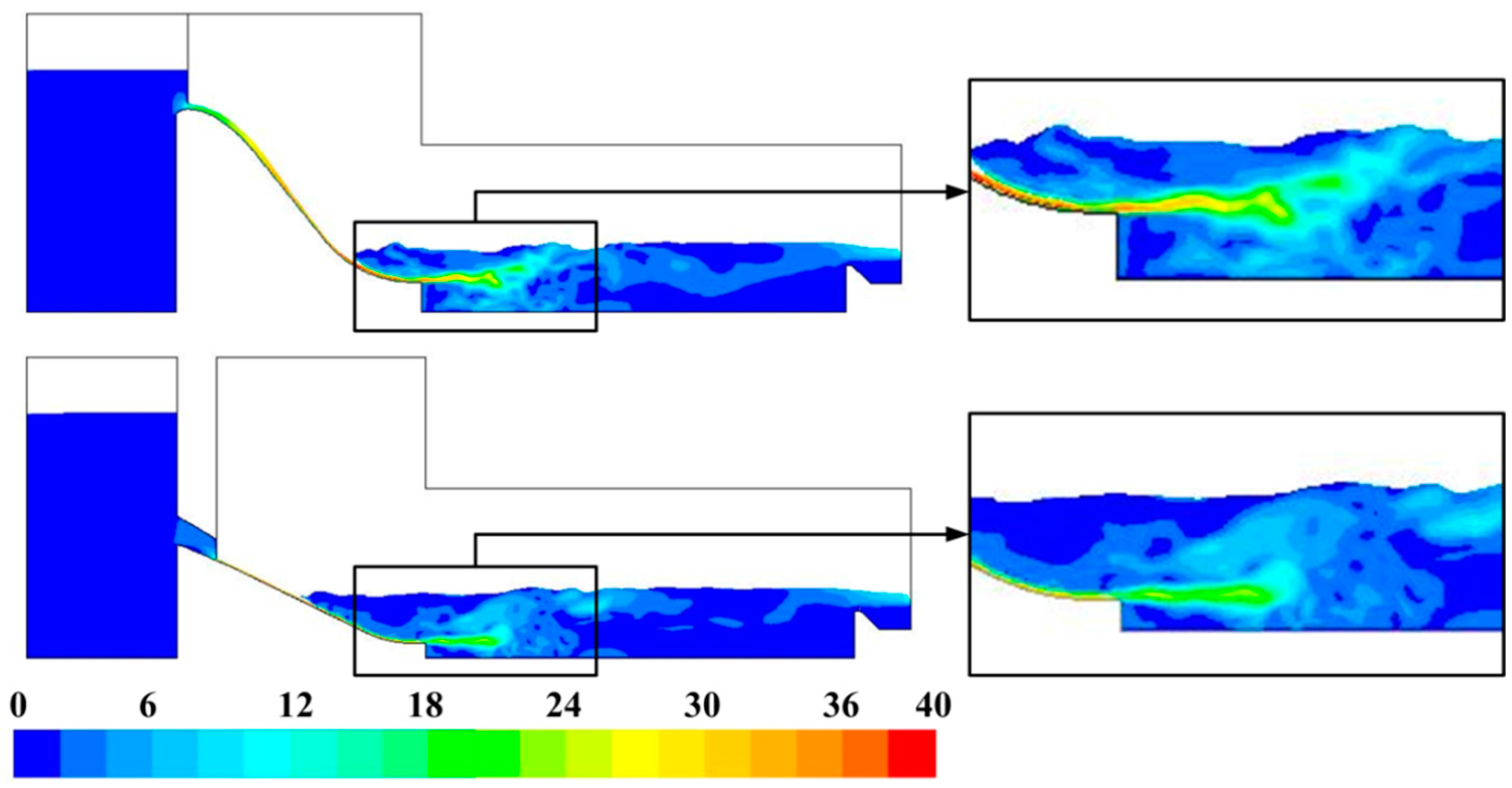

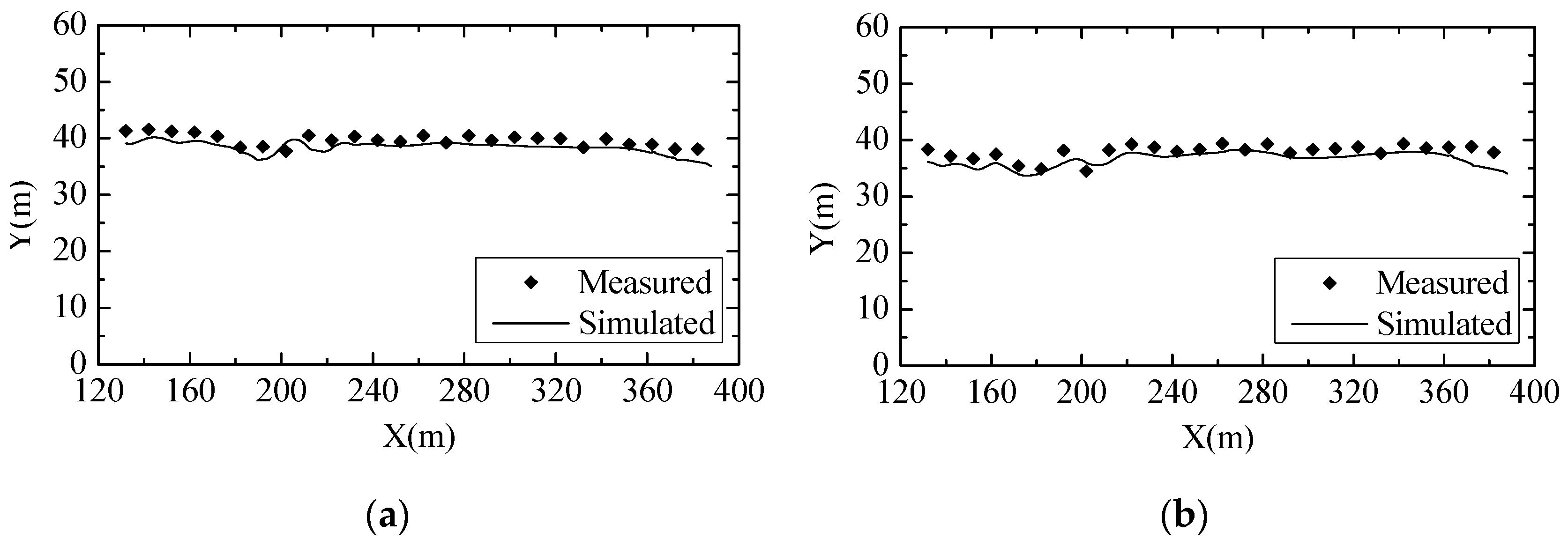

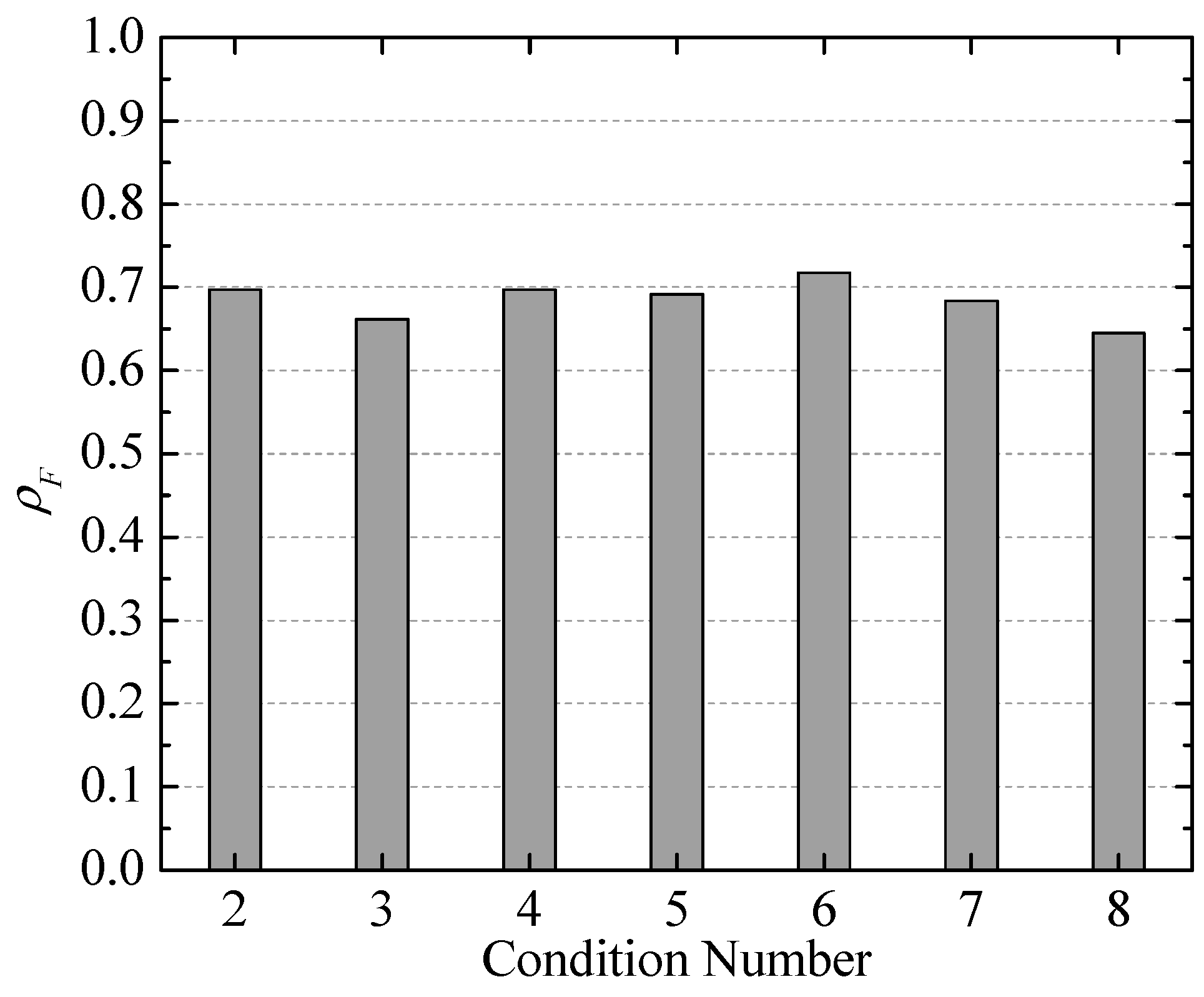

The results from numerical simulation of the flow field characteristics of energy dissipation by the submerged jets indicate that the vortical structures are mainly located at the beginning of the stilling basin where the shearing motion of the flow is violent. The results from correlation analysis of the vorticity fluctuation characteristics and acoustic source indicate that the vorticity fluctuation from the strong shear layers around the high-velocity submerged jets have larger RMS values, where the vorticity fluctuation data are highly correlated to the on-site LFN data. Besides, the strong shear layers are the main regions of acoustic source for the LFN. The mathematical prediction model of the LFN intensity for energy dissipation by the submerged jets is established by combining the vortex sound theory and turbulent flow model, and the model is verified by the prototype observations. The intensity and dominant frequency of the predicted and observed LFN data show satisfactory agreement.
This study for the first time provides the reference data, theoretical foundation and prediction method for addressing the environmental problem of LFN induced by energy dissipating submerged jets during flood discharge from a high dam. In further studies, the specific and scientific discharge operation schemes for reducing the LFN intensity around the station should be built using the current models, which will provide an operation guide and improvements for the station in engineering practices. The theoretical and numerical methods adopted in this study should be applied to other similar engineering projects on LFN issues for further verification of the universality of the prediction model and optimization of the model parameters. Moreover, further problems, such as the propagation and attenuation patterns of LFN and the effects of the water surface wave on the LFN energy, should be studied systematically.
