Mar. Drugs 2013, 11(9), 3124-3154; doi:10.3390/md11093124
Published: 26 August 2013
Abstract: Mycosporine-like amino acids (MAAs) are water-soluble UV-absorbing pigments, and structurally different MAAs have been identified in eukaryotic algae and cyanobacteria. In this study novel glycosylated MAAs were found in the terrestrial cyanobacterium Nostoc commune (N. commune). An MAA with an absorption maximum at 334 nm was identified as a hexose-bound porphyra-334 derivative with a molecular mass of 508 Da. Another MAA with an absorption maximum at 322 nm was identified as a two hexose-bound palythine-threonine derivative with a molecular mass of 612 Da. These purified MAAs have radical scavenging activities in vitro, which suggests multifunctional roles as sunscreens and antioxidants. The 612-Da MAA accounted for approximately 60% of the total MAAs and contributed approximately 20% of the total radical scavenging activities in a water extract, indicating that it is the major water-soluble UV-protectant and radical scavenger component. The hexose-bound porphyra-334 derivative and the glycosylated palythine-threonine derivatives were found in a specific genotype of N. commune, suggesting that glycosylated MAA patterns could be a chemotaxonomic marker for the characterization of the morphologically indistinguishable N. commune. The glycosylation of porphyra-334 and palythine-threonine in N. commune suggests a unique adaptation for terrestrial environments that are drastically fluctuating in comparison to stable aquatic environments.
The terrestrial cyanobacterium Nostoc commune (N. commune) is a cosmopolitan species that is distributed from the tropics to the polar regions of the Earth . N. commune adapts to terrestrial environmental conditions [1,2]. In its natural habitats, it forms visually conspicuous colonies that are subjected to frequent cycles of desiccation and wetting. Desiccated colonies have no metabolic activity and retain the ability to grow for more than 100 years [3,4]. Upon rehydration, N. commune cells rapidly recover respiration and photosynthesis [5,6,7,8]. This phenomenon is termed anhydrobiosis [9,10,11,12]. N. commune is considered to be a prokaryotic model anhydrobiote that retains oxygenic photosynthetic capabilities in vegetative cells and does not differentiate into akinetes (spores) [1,12]. In addition to extreme desiccation tolerance, N. commune colonies are exposed to direct solar radiation and can tolerate UV radiation stress [13,14]. The mechanisms behind this extreme environmental stress tolerance are thought to involve multiple processes, and the ability to produce a biochemically complex extracellular matrix appears to be a required factor . The structural constituents of this matrix in N. commune include extracellular polysaccharides (EPS) , water stress protein (WspA)  and UV absorbing pigments . EPS, which account for 80% of the dry weight of N. commune colonies , play a major role in mechanisms, including desiccation tolerance, that protect cells from various stresses in severe habitats [7,15].
Mycosporine-like amino acids (MAAs) are water-soluble and absorb specific UV-B radiation in the range of 280–320 nm [18,19,20,21,22,23,24]. Structurally distinct MAAs have been observed in eukaryotic algae and cyanobacteria, including marine, freshwater and terrestrial species [18,19,20]. MAAs have an important role in the overall strategy to reduce the deleterious effects of desiccation and environmental UV radiation , especially for the adaptation to terrestrial environments exposed to higher levels of UV-radiation than aqueous environments . With their photoprotective and antioxidative properties, MAAs are natural bioactive compounds attractive to cosmeceutical and pharmaceutical applications [19,20]. Physiological responses to osmotic water stress induced by high salt concentrations are thought to overlap with responses to matric water stress in dry environments . It has been suggested that MAAs may function as osmotic solutes because of the accumulation of MAAs in halophilic cyanobacteria  and overlap between anti-stress compounds produced by marine and terrestrial cyanobacteria can be expected.
N. commune synthesizes UV-A/B absorbing compounds that are secreted to the extracellular matrix [14,15,16]. Recently, two novel glycosylated MAAs were found in naturally growing N. commune colonies . An MAA with an absorption maximum at 335 nm and a molecular mass of 478 Da was identified as a pentose-bound porphyra-334 derivative. The other identified MAA had double absorption maxima at 312 and 340 nm and a molecular mass of 1050 Da. The 544-Da lipid-soluble pigment scytonemin absorbs UV-A radiation of 320–400 nm and occurs exclusively in cyanobacterial sheaths [13,14]. These glycosylated MAAs  and scytonemin [30,31] have radical scavenging activities in vitro. Additionally, a unique antioxidative compound, nostocionone, was reported in N. commune . N. commune is considered to adapt to terrestrial environments with high levels of solar radiation, as it produces both glycosylated MAAs and scytonemin with antioxidative activities in its extracellular matrix [14,15,16,29,30,32].
N. commune is known to be genetically diverse, and four major genotypes, which are hardly morphologically distinguishable and have genetic differences that are not great enough to be recognized as distinct species, have been reported in Japan. These genotypes have been observed within small areas, such as the Kakuma Campus of Kanazawa University . During the investigation of MAAs in naturally growing colonies from different sampling locations, we found novel MAAs that were neither the 478-Da MAA nor the 1050-Da MAA. In this study, we purified and characterized the chemical structures and radical scavenging activities of these newly found glycosylated MAAs. These findings provide new insights into the diversity and chemotaxonomic features of MAAs, as well as the biological functions of MAAs in the adaptation of the cyanobacterium N. commune to terrestrial environments.
2. Results and Discussion
2.1. UV Absorption Spectra of Water Extracts and Genotypes of N. commune
N. commune colonies were found for which the water extract showed a characteristic UV-absorbing spectrum with an absorption maximum at 325 nm. However, this spectrum was different from known N. commune spectra, and thus, the MAA profile and genotype of this particular N. commune sample were examined further. In a typical HPLC chromatogram of the water extract with an absorption maximum at 325 nm, three distinct MAAs were detected as major MAAs with different retention times (Figure 1). Because the retention times and UV absorption maxima were different from those of other known MAAs from N. commune, these MAAs were purified and characterized as described below. According to an analysis of the 16S rRNA gene sequence, the N. commune colony that contained MAAs with absorption maxima at approximately 325 nm was identified as genotype D, as described by Arima et al. .
2.2. 508-Da MAA with an Absorption Maximum at 334 nm

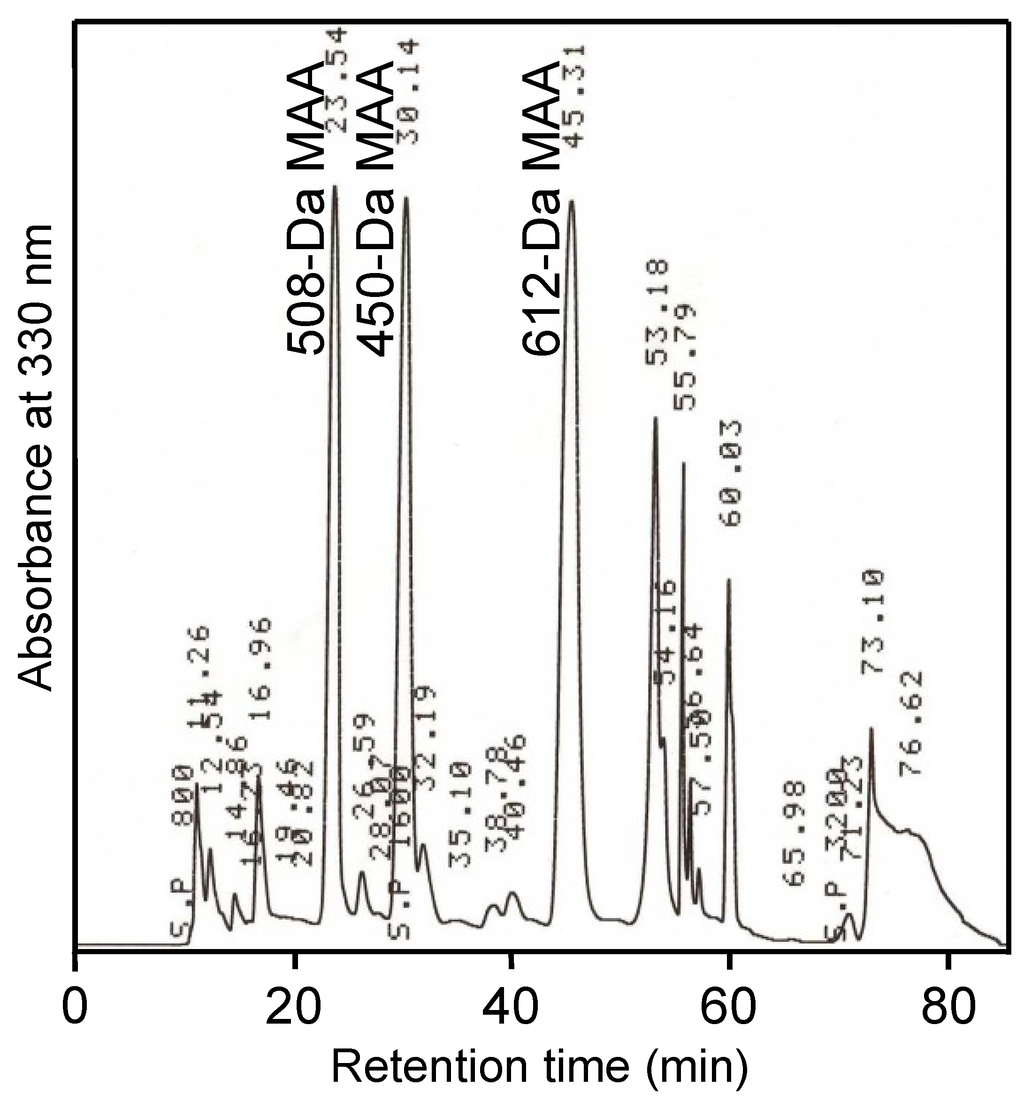

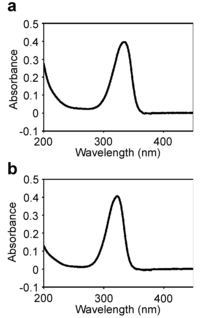

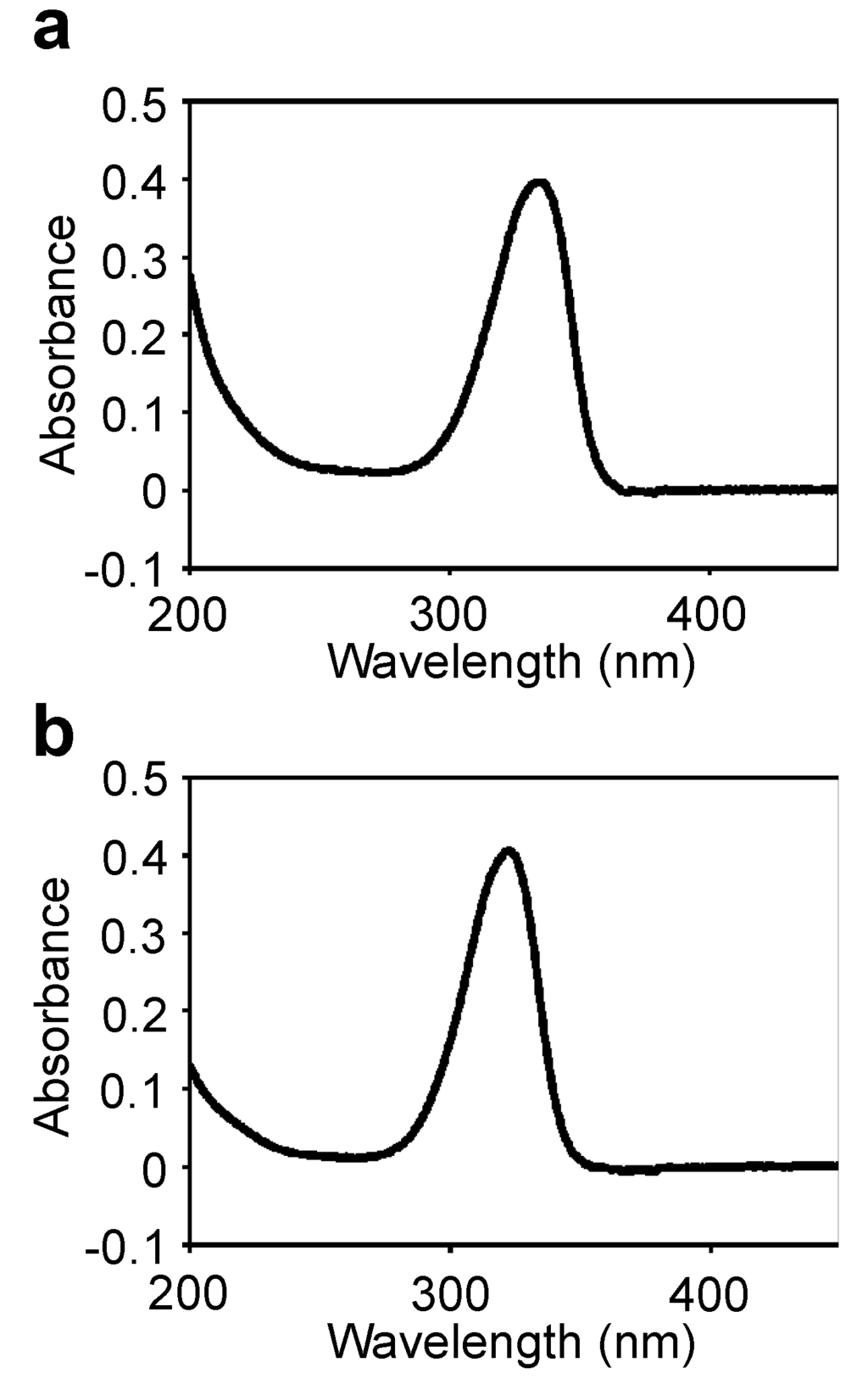

A MAA with an absorption maximum at 334 nm (Figure 1) was purified from the field-isolated natural N. commune colonies (Table 1, Figure S1). The UV absorption spectrum of the purified MAA showed a single absorption peak at 334 nm (Figure 2a). The absorption maximum shifted reversibly to 332 nm in a high acidic solution (pH < 2) and to 334 nm in alkaline solutions. The molecular mass was 508 Da, according to MALDI-TOF MS (Table 2). The absorption coefficient of this MAA in water was 71.4 L·g−1·cm−1 at 334 nm and the calculated molar absorption coefficient at 334 nm was 3.63 × 104 M−1·cm−1. Because no MAA with a molecular mass of 508 Da had been previously reported, the chemical structure of the 508 Da MAA was further characterized.
|Table 1. Purification of 508-Da, 450-Da and 612-Da mycosporine-like amino acids (MAAs) with absorption maxima at 334, 322 and 322 nm, respectively, from N. commune a.|
|Step||Volume (mL)||MAA concentration b (mg·L−1)||MAA amount (mg)||Yield (%)|
|70% Ethanol solution||1960||5.4||10.6||85|
a Dry colonies of N. commune (30 g) that contained the MAAs with absorption maxima at 334 and 322 nm were used as starting materials and the MAAs were purified as described in Experimental Section. HPLC chromatograms and absorption spectra of the purified MAAs are shown in Figure S1 in Supporting Information; b MAA concentrations were determined with an absorption coefficient of 120 L·g−1·cm−1 .
|Table 2. Summary of MALDI-TOF MS analysis of the purified 508-Da MAA with absorption maximum at 334 nm.|
|Mass of fragment||Relative abundance||Neutral loss||Deleted fragment|
|MS of purified MAA||509.12||100|
|451.12||10||58||CO2 + CH2|
|419.15||24||90||CO2 + 2CH2 + H2O|
|407.10||40||102||2CO2 + CH2|
|403.13||37||106||2CO2 + H2O|
|385.07||35||124||2CO2 + 2H2O|
|MS2 of m/z 509||509.12|
|303.24||6||206||Hexose + CO2 (or C2H4O)|
|MS2 of m/z 465||465.13|
|285.27||3||180||Hexose + H2O|
The IR spectrum of the 508-Da MAA (Figure 3a) was compared to those of known MAAs, including porphyra-334  and a glycosylated porphyra-334 with a molecular mass of 478 Da from N. commune  (Table 3). Similar IR absorption peaks were observed, which suggested that the 508-Da MAA had a similar structure to the known MAAs. The absorption peak at 1560 cm−1 in the 508-Da MAA indicated the presence of the conjugated imine as a characteristic structure of MAA chromophore, corresponding to those at 1540 cm−1 in porphyra-334 and at 1558 cm−1 in the 478-Da glycosylated porphyra-334 derivative. The characteristic absorption peak at 3334 cm−1 in the 508-Da MAA indicated the presence of several hydroxyl functional groups, and the absorption peaks in the range of 1200–1300 cm−1 suggested the presence of a sugar, which was consistent with the predicted structure as described below.
MALDI-TOF MS/MS analysis was performed on the parent molecular ion fragment with m/z 509 and molecular ion fragment with m/z 465 (Table 2). A fragment with m/z 347, a molecular mass identical to that of porphyra-334 [36,37], was detected in the second MS of the fragment with m/z 509. The neutral loss of 162 Da suggested the deletion of a hexose (C6H10O5) from the fragment with m/z 509. The fragment with m/z 303 suggested the deletion of CO2. The fragment with m/z 303 was also detected in the second MS of the fragment with m/z 465. The deletion of 162 Da from the fragment with m/z 465 to yield m/z 303 indicated the presence of a hexose in the MAA structure (Table 2). Additionally, in the MS analysis the fragments with m/z 465 and m/z 421 suggested the consecutive deletion of CO2 and the presence of two carboxyl groups in the MAA structure (Table 2). These fragmentation patterns were similar to those from the MS analyses of known MAAs . These data suggest that the 508-Da MAA is a hexose-bound porphyra-334 derivative.
|Table 3. Comparison of the IR spectra of the purified MAAs with that of porphyra-334.|
|508-Da MAA with Amax at 334 nm||Porphyra-334||478-Da MAA with Amax at 335 nm|
IR spectra were recorded with a Fourier transform infrared (FT-IR) spectrometer (Nicolet NEXUS 470 FT-IR) according to the KBr disk method. The wavenumbers of the absorption bands for the 508-Da MAA are compared to those for the known MAAs porphyra-334  and 478-Da pentose-bound porphyra-334 . The FT-IR spectrum of the 508-Da MAA is shown in Figure 3a.
This predicted structure was confirmed by NMR spectroscopic analysis. Both the known chemical shifts for porphyra-334 and hexose were observed in the 508-Da MAA (Table 4). Typical 13C-chemical shifts assignable to a cyclohexenimine chromophore (C1, 2, 3, 4, 5, 6) and amino acid substituents (C9, 10, 11, 12, 13, 14) of the 508-Da MAA were observed at the same regions in porphyra-334. The characteristic coupling pattern (AB quartet) of methylene protons at C4 and C6 was determined (J = 17.4 Hz), which is not shown in porphyra-334. It was hard to identify which carbon (C4 and C6) should be assigned to the glycine-substituted side and vice versa because chemical shifts at C9 and C11 protons were very close to recognize the correlation in heteronuclear multiple bond correlation (HMBC) spectrum. However, the 13C-chemical shifts in the 508-Da MAA were highly similar to those in the pentose-bound porphyra-334 derivative, which has been reported previously (Table 4). The correlations in COSY and HMBC spectra are summarized in Table 5 and shown in Figure 4 as red arrows and blue dashed lines, respectively. Characteristic correlations assignable to the MAA backbone appeared and a probable HMBC correlation suggesting a putative hexose-binding site was observed (shown as red dashed arrow in Figure 4).
|Table 4. Summary of the NMR analysis of the 508-Da MAA with an absorption maximum at 334 nm.|
|C||508-Da MAA with Amax at 334 nm||478-Da pentose-bound porphyra-334||Porphyra-334|
|4 b||36.1||2.82, 3.03 (ABq, 17.4)||36.4||3.00||32.5||2.75|
|6 b′||36.6||2.80, 2.91 (ABq, 17.4)||35.9||2.83||33.0||2.77|
|7||76.1||3.47, 3.76 (d, 10.1, each)||77.7||3.90, 3.67||67.1||3.61 (s)|
|8||62.3||3.67 (s)||62.2||3.70 (s)||59.0||3.73 (s)|
|9||49.6||4.09 (d, 1.8)||49.5||4.06 (d, 2.4)||47.0||4.07 (s)|
|11||67.5||4.10 (d, 4.6)||67.3||4.09 (d, 4.5)||64.0||4.12 (d, 5.0)|
|13||74.4||4.34 (dq, 4.6, 6.4)||71.0||4.31 (dq, 4.5, 6.5)||68.0||4.33 (m, 5.0, 6.4)|
|14||22.4||1.24 (d, 6.4)||22.3||1.26 (d, 6.5)||19.0||1.26 (d, 6.4)|
|Methyl α- d-Man|
|1′||101.8||4.96 (d, 3.2)||106.4||4.37 (d, 7.6)||102.2||4.66|
|2′||71.4||3.88||73.5||3.60 (dd, 7.6, 9.6)||71.4||3.82|
|3′||72.2||3.97||75.0||3.68 (dd, 9.6, 3.6)||72.1||3.65|
|6′||64.2||3.55, 3.72||62.5||3.79, 3.65|
NMR spectra were recorded with a JEOL ECS400 spectrometer in D2O as a solvent. Chemical shifts (ppm) for the purified 508-Da MAA with Amax at 334 nm are compared with those for the known MAA 478-Da pentose-bound porphyra-334 , porphyra-334  and methyl α-d-Man . The coupling patterns and constants (Hz) are shown in parentheses. x, x′, Chemical shifts may be exchangeable for the 508-Da MAA.
|Table 5. Characteristic correlations in COSY and HMBC spectra assignable to the 508-Da MAA backbone.|
|H4||H4||C2, C3, C5, C6|
|H6||H6||C1, C2, C4, C5|
|H7||H7||C4, C5, C6|
a Probable correlation.
The presence of a hexose moiety in the 508-Da MAA was confirmed by the 13C chemical shift in methyl α-d-mannose; chemical shift at the anomer carbon (C1′) was almost the same as that in methyl α-d-mannose, indicating that the substitution position is at the anomer position. Remaining peaks were assigned to one CH2 (C6′) and four CH carbon (C2′, 3′, 4′, 5′) from the result of Distortionless Enhancement by Polarization Transfer (DEPT) spectrum. The chemical shifts of these peaks were also consistent with those of methyl α-d-mannose. In the 508-Da MAA, the hexose binding position could be thought of as at C7 position because the CH2 protons at C7 position coupled to each other (J = 10.1 Hz). This coupling pattern was not observed in porphyra-334 but was observed in the pentose-bound 478-Da MAA (Table 4). In our previous report, the pentose-binding position at the C7 methylene was identified because of the apparent correlation between the C7 carbon and the anomer (C1′) proton in the HMBC spectrum . In the 508-Da MAA, the correlation between C7 and H1′ was not observed apparently (Table 5, Figure 4 red dashed arrow), but geminal coupling at C7 protons suggesting magnetic anisotropy was observed. Thus the high rotation barrier around C5–C7 bond due to a large substituent can be predicted and this idea agrees with the presence of a monosaccharide at C7 position of the 508-Da MAA. The dihedral angle dependence of C5–C7 rotational energy was calculated by using Chem-3D software. The rotational barrier of the C7 substituted porphyra-334 was much greater than that of porphyra-334, which cannot be surmounted at room temperature (data not shown). This simulation can be supported by the previous report concerning neocedumoside derivatives who have a similar chemical structure around a hexose-binding site . Table 6 shows the chemical shifts of the hexose-binding sites of the 508-Da MAA, porphyra-334, neocedumoside and its hydrolysate. The geminal coupling of magnetically anisotropic methylene protons (J = 10.1 Hz) was detected due to the deshielding effect of the neighboring σ-electron. The equatorial proton was observed at lower magnetic field region by 0.43 ppm rather than the axial proton. The 1H-chemical shifts at C7 position in the 508-Da MAA showed two apparently separated signals by 0.29 ppm with geminal coupling between them. The hydrolysis of neocedumoside results in axial and equatorial peaks getting closer to their center of balance . The center of balance of two separated signals in the 508-Da MAA was 3.61 ppm, which is identical to the corresponding chemical shift in porphyra-334. These data support the idea that magnetic anisotropy of methylene protons is caused by the substitution of hexose. In addition, the 13C chemical shift in neocedumoside is downfield shifted by 8.2 ppm from that of hydrolysate, suggesting a characteristic NMR feature on glycolysis. A similar shift (9.0 ppm) from porphyra-334 was also observed in the 508-Da MAA. These NMR analyses and molecular simulation support the substitution of hexose at C7 position. Figure 4 shows the predicted structure of the 508-Da MAA from N. commune.
|Table 6. Comparison of 13C and 1H chemical shifts at the hexose binding site of the 508-Da MAA, porphyra-334, neocedumoside and its hydrolysate.|
|1H||3.47 (d, 10.1)|
3.76 (d, 10.1)
|3.61 (s)||3.40 (d, 10.1)|
3.83 (d, 10.1)
|3.51 (d, 11.0)|
3.54 (d, 11.0)
Chemical shifts (ppm) for the purified 508-Da MAA are compared with those for the known MAA porphyra-334 , neocedumoside and its hydrolysate . The coupling patterns and constants (Hz) are shown in parentheses.
2.3. 612-Da MAA with an Absorption Maximum at 322 nm
An MAA with an absorption maximum at 322 nm (Figure 1) was purified from the same N. commune colonies (Table 1, Figure S1). The UV absorption spectrum of the purified MAA showed a single absorption peak at 322 nm (Figure 2b); similar to the 508-Da MAA, the absorption maximum reversibly shifted to 320 nm in a highly acidic solution. The molecular mass was 612 Da, according to MALDI-TOF MS (Table 7). The accurate molecular mass was determined by FAB MS to predict the elemental composition. A molecular ion fragment with m/z 613.2462 was detected and its predicted molecular formula was C24H41N2O16 within 1 ppm error. The absorption coefficient of this MAA in water was 46.07 L·g−1·cm−1 at 322 nm, and its calculated molar absorption coefficient at 322 nm was 2.82 × 104 M−1·cm−1. Because no MAA with a molecular mass of 612 Da had been previously reported, the chemical structure of the 612 Da MAA was further characterized.
|Table 7. Summary of MALDI-TOF MS analysis of the purified 612-Da MAA with absorption maximum at 322 nm.|
|Mass of fragment||Relative abundance||Neutral loss||Deleted fragment|
|MS of purified MAA||613.17||18|
|407.13||17||206||CO2 + Hexose|
|389.12||100||224||CO2 + Hexose + H2O|
|349.09||21||264||Hexose + C4H6O3|
|227.02||16||386||CO2 + 2Hexose + H2O|
|MS2 of m/z 613||613.17|
|407.21||1||206||Hexose + CO2|
|389.23||8||224||Hexose + CO2 + H2O|
|MS2 of m/z 569||569.19|
|392.32||13||177||Hexose + CH3|
|389.33||37||180||Hexose + H2O|
|375.31||10||194||Hexose + H2O + CH2|
|227.24||16||342||2Hexose + H2O|
|209.22||21||360||2Hexose + 2H2O|
|191.21||8||378||2Hexose + 3H2O|
|177.19||18||392||2Hexose + 3H2O + CH2|
|MS2 of m/z 451||451.21|
|245.17||6||206||Hexose + CO2|
|227.19||2||224||Hexose + CO2 + H2O|
|170.13||1||281||Hexose + CO2 + H2O + C3H5O|
|151.14||1||300||Hexose + CO2 + 2H2O + C3H6O|
|MS2 of m/z 407||407.13|
|230.24||3||177||Hexose + CH3|
|227.25||15||180||Hexose + H2O|
|209.23||5||198||Hexose + 2H2O|
|199.21||4||208||Hexose + C2H6O|
|177.21||6||230||Hexose + 3H2O + CH2|
|MS2 of m/z 389||389.12|
|212.24||9||177||Hexose + CH3|
|209.26||36||180||Hexose + H2O|
|191.24||54||198||Hexose + 2H2O|
|181.21||17||208||Hexose + C2H6O|
|170.19||8||219||Hexose + C3H5O|
|MS2 of m/z 349||349.09|
|169.18||8||180||Hexose + H2O|
|151.16||25||198||Hexose + 2H2O|
Similar IR absorption peaks were observed when the 612-Da MAA IR spectrum (Figure 3b) was compared with those from the known MAA palythine triacetate  and the 1050-Da glycosylated MAA from N. commune  (Table 8), which suggested that the 612-Da MAA had a similar structure to the known MAAs. The characteristic absorption peak at 3370 cm−1, but not that at 3310 cm−1, in the 612-Da MAA suggested the presence of a large number of hydroxyl groups, and the absorption peaks in the range of 1200–1300 cm−1 suggested the presence of sugars, which was consistent with the presence of two hexose rings as described below. The absorption peak at 1542 cm−1 suggested the presence of the conjugated imine in the 612-Da MAA.
MALDI-TOF MS/MS analysis was performed on the parent molecular ion fragment with m/z 613 and on the other main molecular ion fragments with m/z 569, 451, 407, 389 and 349 (Table 7). A plausible fragmentation pattern could be suggested with regard to the mass spectra (Figure 5). The ion fragment with m/z 569 indicated the deletion of CO2 from the parent molecular ion fragment with m/z 613, suggesting the presence of a carboxyl group. Subsequent deletions of 162 and 18 Da from the fragment with m/z 569 to produce the fragments with m/z 407 and m/z 389 indicated the deletions of hexose (C6H10O5) and H2O, respectively. MS/MS analysis of the fragments with m/z 407 and 389 led to the fragment at m/z 227, which indicated the deletion of another hexose (Table 7 and Figure 5).
|Table 8. Comparison of IR spectra of the 612-Da MAA with known MAAs.|
|612-Da MAA with Amax at 322 nm||Palythine triacetate||1050-Da MAA with Amax at 312 and 340 nm|
|1067, 1036||1076, 1046|
IR spectra were recorded with a Fourier transform infrared (FT-IR) spectrometer (Nicolet NEXUS 470 FT-IR) according to the KBr disk method. The wavenumbers of absorption bands for the 612-Da MAA are compared with those for the known MAA palythine triacetate  and the 1050-Da MAA . The IR spectrum of the 612-Da MAA is shown in Figure 3b.

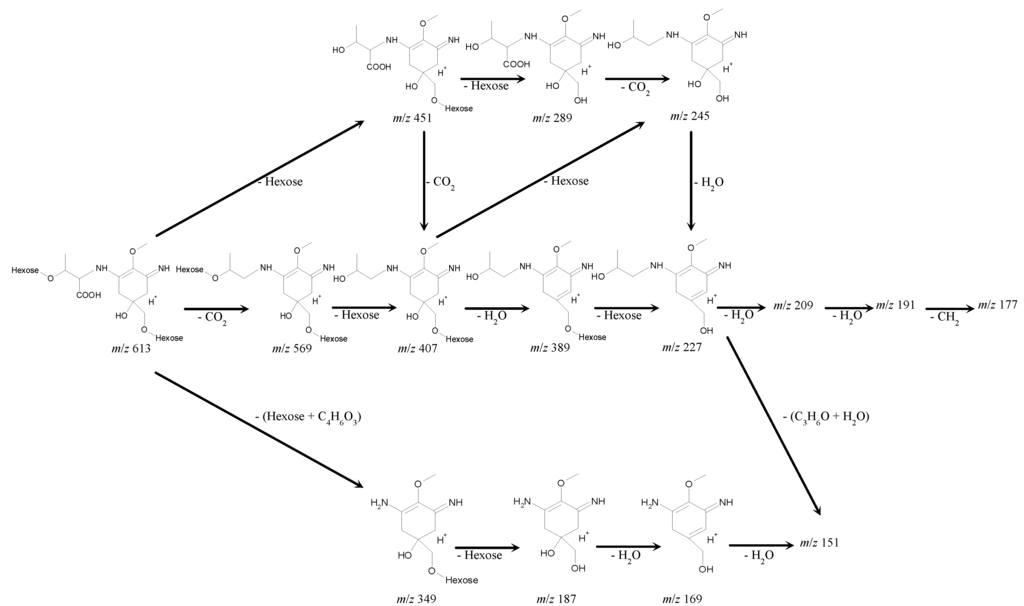

The successive deletions of 162 Da from the parental molecular fragment with m/z 613 to produce m/z 451 and m/z 289 indicates the presence of two hexoses (C6H10O5) in the parent molecular ion with m/z 613; the resultant fragment with m/z 289 can be assumed to be a palythine-threonine (C12H20N2O6 + H+). Consistent with this assumption, the deletion of 44 Da from m/z 289 to produce m/z 245 indicated the deletion of CO2 and suggested the presence of a carboxyl group in the molecular fragment with m/z 289. The fragment with m/z 227 could lose two molecules of H2O and CH3 to produce the fragments with m/z 209, 191 and 177, respectively. The fragment with m/z 227 might also lose a part of the threonine chain (C3H6O) and H2O to produce the fragment with m/z 170 (or m/z 169) and 151 (Table 7 and Figure 5).
In a MS/MS analysis of the molecular ion fragment with m/z 349, the neutral loss of 162 Da indicated the presence of hexose in the fragment with m/z 349, and the fragments with m/z 169 and m/z 151 suggested the subsequent deletions of two H2O molecules (Table 7 and Figure 5).
These fragmentation patterns were similar to the results from MS analyses of the known MAAs [42,43] and confirmed the proposed structure of the 612-Da MAA with the presence of two hexoses and a carboxyl group.
1H, 13C and 2D NMR experiments were performed in D2O. The 13C and 1H NMR spectra of the 612-Da MAA were compared to those of the known MAAs mycosporine-glycine and palythine-threonine sulfate as well as β-d-glucose and methyl β-d-glucose (Table 9). Signals with identical chemical shifts to 3-aminocyclohexenimine (C1, 2, 3, 4, 5, 6) and threonine (C9, 10, 11, 12) were observed in the 612-Da MAA, similar to those of palythine-threonine sulfate. In mycosporine-glycine the chemical shifts assignable to carbonyl and imine carbon are obviously distinguishable (159.7 ppm and 187.2 ppm in Table 9, ). However, the chemical shifts corresponding to imine carbon (C3) and amino alkene carbon (C1) in the 612-Da MAA overlapped each other because of the conjugation between them. In palythine-threonine sulfate these chemical shifts assigned to C1 and C3 carbons also overlapped each other (Table 9, ). Therefore, high-resolution 13C NMR measurement focusing on the X-range at around 160 ppm was performed to separate two distinct signals assignable to imine and amino alkene carbons at C1 and C3 positions in the 612-Da MAA (NMR data shown in Supporting Information). These two separated signals demonstrated the presence of the 3-aminocyclohexenimine ring in the 612-Da MAA. In the 2D NMR spectra, characteristic correlations assignable to the MAA backbone were detected. The correlations in COSY and HMBC spectra are summarized in Table 10 and shown in Figure 6 as red arrows and blue dashed lines.
|Table 9. Summary of the NMR analysis of the 612-Da MAA with an absorption maximum at 322 nm.|
|C||612-Da MAA with Amax at 322 nm||Palythine-threonine sulfate||Mycosporine-glycine|
|4 b||37.0||2.85, 3.10 (ABq, 17.6)||34.0||2.81 (ABq, 17.0)||45.4||2.50, 2.73 (ABq, 17.0)|
|6 b′||38.9||2.76, 3.03 (ABq, 17.0)||36.0||2.77 (ABq, 17.0)||33.8||2.72, 2.83 (ABq, 17.0)|
|7||76.0||3.49 (d, 10.0), 3.78 (d, 10.0)||72.5||3.90 (s)||68.4||3.57 (s)|
|8||62.1||3.69 (s)||59.3||3.55 (s)||60.2||3.64 (s)|
|9||66.4||4.17 (d, 4.6)||64.5||3.98 (d, 4.5)||43.7||4.24 (s)|
|11||75.7||4.34 (dq, 4.6, 6.4)||68.2||4.20 (dq, 4.5, 6.0)|
|12||18.9||1.28 (d, 6.4)||19.5||1.12 (d, 6.0)|
|1″||101.7||5.00 (d, 3.7)|
NMR spectra were recorded with a JEOL ECS400 spectrometer in D2O as a solvent. Chemical shifts (ppm) for the purified 612-Da MAA with Amax at 322 nm are compared with those for the known MAA mycosporine-glycine , palythine-threonine sulfate  and methyl β-d-Glc and β-d-Glc . The coupling patterns and constants (Hz) are shown in parentheses. x, x′, Chemical shifts may be exchangeable for palythine-threonine sulfate and the 612-Da MAA.

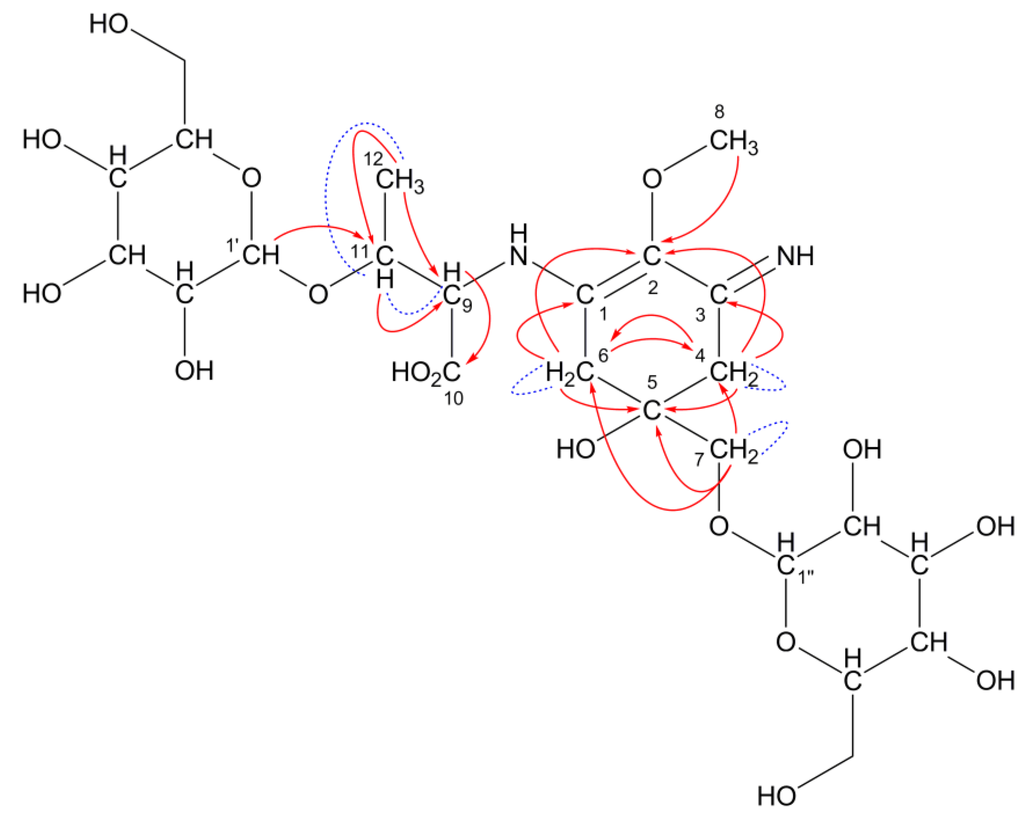

|Table 10. Characteristic correlations in COSY and HMBC spectra assignable to the 612-Da MAA backbone.|
|H4||H4||C2, C3, C5, C6|
|H6||H6||C1, C2, C4, C5|
|H7||H7||C4, C5, C6|
Two separable signals that are characteristic for the anomer positions (C1′ and C1″) of distinguishable carbohydrates were observed (Table 9), demonstrating the presence of two carbohydrates. The downfield 13C chemical shifts of the carbohydrate anomer positions suggested hexose sugars bound to the palythine-threonine scaffold of the 612-Da MAA. As described in the section on the structure determination of the 508-Da MAA, the downfield 13C shifts of C7 and C11 were thought to be due to hexose binding via O-glycoside bonds in the 612-Da MAA. According to the HMBC spectrum, a correlation between the C11 carbon in the MAA backbone and the proton bound to the anomer carbon (C1′) of hexose was observed, suggesting the presence of hexose bound at the C11 position. The correlation between the C7 carbon and the anomer proton of the other hexose did not appear; however, geminal coupling at the C7 methylene protons due to the high rotational barrier was observed, suggesting the presence of a large functional group such as a hexose at the C7 position. The difference of 13C chemical shift at C7 position between the 612-Da MAA and palythine-threonine sulfate was only 3.5 ppm, which is smaller than that expected from the difference between the 508-Da MAA and porphyra-334. Because a sulfate group is a strong electron-withdrawing substituent, the 1H-chemical shift at the C7 position in palythine-threonine sulfate shifts downfield from that in palythine-threonine.
These results are consistent with the MS analysis of the 612-Da MAA. After combining the data from the MS and NMR analysis, the predicted structure of the 612-Da MAA was generated and is shown in Figure 6.
2.4. 450-Da MAA with an Absorption Maximum at 322 nm
Another MAA with an absorption maximum at 322 nm and a different retention time in the HPLC analysis elution profile (Figure 1) was purified from the same N. commune colonies (Table 1, Figure S1). The UV absorption spectrum of the purified MAA showed a single absorption peak at 322 nm (Figure S1). A molecular mass of 450 Da was determined by MALDI-TOF MS and FAB MS. MALDI-TOF MS/MS analysis was performed on the parent molecular ion fragment with m/z 451 and the other main molecular ion fragments with m/z 407, 389 and 349. The fragmentation patterns were similar to those of the 612-Da MAA and suggested the presence of a hexose and the same palythine-threonine scaffold (Table 11). The 1H and 13C NMR analyses suggested that the structure consisted of a cyclohexenimine chromophore that was similar to that of the 612-Da MAA with one hexose sugar (data not shown). These data suggest that the 450-Da MAA is a hexose-bound palythine-threonine. Additionally, MALDI-TOF MS analysis suggested that the hexose was not bound to the threonine chain (Table 11).
|Table 11. Summary of MALDI-TOF MS analysis of the purified 450-Da MAA with absorption maximum at 322 nm.|
|Mass of fragment||Relative abundance||Neutral loss||Deleted fragment|
|MS of purified MAA||451.22||82|
|389.22||53||62||CO2 + H2O|
|MS2 of m/z 451||451.22|
|245.18||13||206||Hexose + CO2|
|MS2 of m/z 407||407.23|
|230.20||7||177||Hexose + CH3|
|227.21||8||180||Hexose + H2O|
|213.21||15||194||Hexose + H2O + CH2|
|209.18||7||198||Hexose + 2H2O|
|199.18||16||208||Hexose + C2H6O|
|177.17||11||230||Hexose + 3H2O + CH2|
|169.17||5||238||Hexose + H2O + C3H6O|
|151.16||7||256||Hexose + 2H2O + C3H6O|
|MS2 of m/z 389||389.22|
|209.18||16||180||Hexose + H2O|
|191.16||13||198||Hexose + 2H2O|
|181.16||14||208||Hexose + C2H6O|
|MS2 of m/z 349||349.09|
|169.16||8||180||Hexose + H2O|
|151.15||18||198||Hexose + 2H2O|
2.5. Radical Scavenging Activity in Glycosylated MAAs
Table 12 shows the radical scavenging activity found in the purified 508-Da and 612-Da MAAs from N. commune. Both the 508-Da MAA and the 612-Da MAA showed ABTS radical scavenging activity as determined by the decolorization of ABTS radicals. During the time course experiments, the decolorization of the ABTS radicals increased as the incubation time extended from 10 min to 2 h, which suggested that these MAAs were slow-acting radical scavengers. Trolox and ascorbic acid, which were used as standards, are known to be fast-acting scavengers that bring the decolorization reactions to completion within 10 min. Based on these results, the assay incubation time was fixed at 1 h as described by Matsui et al. . When ESR was used to directly monitor the decrease in ABTS radical concentrations, the activity of the 612-Da MAA was comparable to that of Trolox and ascorbic acid, while the 508-Da MAA showed weak activity (Table 12).
|Table 12. Radical scavenging activity in MAAs a.|
|Assay||Colorimetry b||ESR c|
|Ascorbic acid d||0.28||0.16|
|508-Da MAA with Amax at 334 nm||58||29|
|612-Da MAA with Amax at 322 nm||16||0.25|
a Radical scavenging activity was measured with ABTS as the organic radical source; b Decolorization of ABTS was monitored with a spectrophotometer for 1 h; c ESR signals were monitored with a free radical monitor (JEOL JES-FR30EX); d Ascorbic acid and Trolox were used as standards; IC50 (50% inhibitory concentration) values are shown.

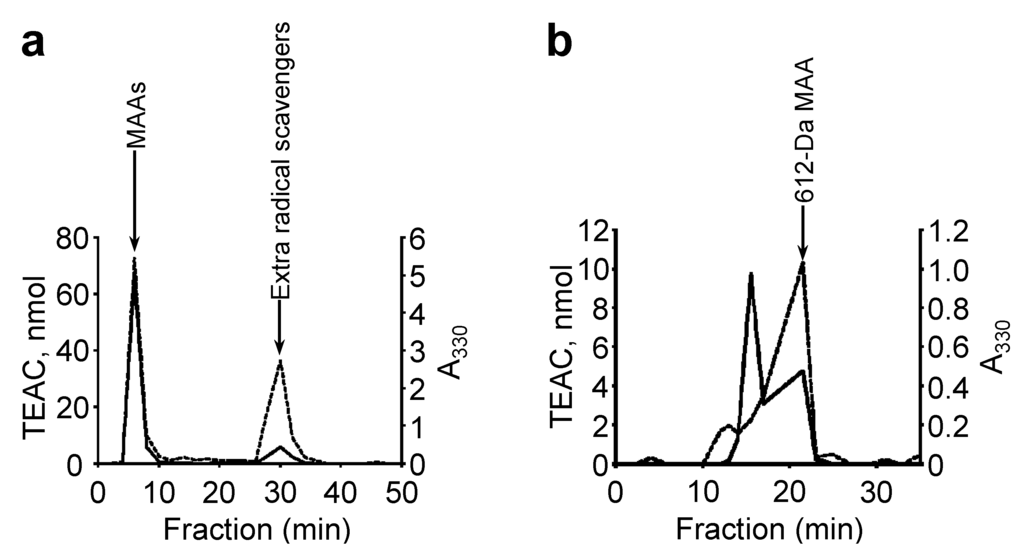

The MAA-associated radical scavenging activity was examined in the N. commune water extract by HPLC fractionation (Figure 7a). The fraction with MAA-associated radical scavenging activity accounted for approximately 45% of the total recovered activity (Figure 7a). Interestingly, high radical scavenging activity, which was not MAA-associated, was detected and determined to account for approximately 40% of the total recovered activity (Figure 7a). This result suggested that additional water-soluble antioxidants contributed highly to the total radical scavenging capacity of genotype D N. commune. This non-MAA radical scavenger will be characterized in future studies.
The recovered fractions with MAAs were further examined on an HPLC system with a gel filtration column (Figure 7b). The 612-Da MAA accounted for approximately 60% of the total MAAs, and the radical scavenging activity eluted with the 612-Da MAA accounted for approximately 45% of the recovered activity (Figure 7b). These results suggest that the 612-Da MAA is a major MAA in genotype D N. commune and is also a main component of the water-soluble radical scavengers, as it contributed approximately 20% of the total water-soluble radical scavenging activity in the water extract.
2.6. Specificity of the Genotypes and MAAs
N. commune is known to be genetically diverse, and four major genotypes of N. commune have been reported in Japan; however, the morphological features of the macroscopic colonies and microscopic trichomes are almost identical, and the genotypes are indistinguishable without a determination of molecular taxonomical markers . During an investigation of MAA contents in field-isolated N. commune colonies, we observed different UV-absorption spectra in the water extracts from colonies at different sampling locations. We have reported two types of N. commune, those that specifically produce a 478-Da MAA with an absorption maximum at 335 nm or those that produce a 1050-Da MAA with double absorption maxima at 312 and 340 nm, although biological or physiological differences that would allow us to separate the different MAA producers could not be determined . In addition to these two types of N. commune colonies, another type of N. commune colony, the water extract of which showed a characteristic UV-absorbing spectrum with an absorption maximum at 325 nm was found. According to the unique UV-absorbing spectrum and HPLC chromatogram of the water extract, we thought that this particular N. commune contained a structurally different MAA. Thus, in this study, the novel glycosylated MAAs were purified and characterized from organisms that did not produce either the 478-Da MAA or the 1050-Da MAA. Eight samples of N. commune from different sampling locations that had an absorption maximum at 325 nm in their water extracts were identified as genotype D, according to their 16S rRNA nucleotide sequences ; these data confirmed that genotype D is the 612-Da MAA producer. The glycosylated MAA patterns could be a feasible chemotaxonomic marker with which to characterize N. commune; it might be classified into three groups, namely, the 478-Da MAA producer, the 1050-Da MAA producer and the 612-Da MAA producer, as these groups are genetically different chemical races of N. commune. Further investigations into the genotypes and specificities of the types of the glycosylated MAAs are ongoing, and the results will be published in the future.
2.7. Glycosylated MAAs
The chemical structures were determined for two glycosylated MAAs that were previously identified in N. commune . The first was the 478-Da MAA with an absorption maximum at 335 nm that was identified as a pentose-bound porphyra-334 derivative. The second MAA, with a molecular mass of 1050 Da, had a characteristic UV absorption spectrum with an absorption peak at 312 nm, which was associated with a shoulder at 340 nm. The 1050-Da MAA is unique due to its high molecular mass and the presence of both 3-aminocyclohexen-1-one and 3-aminocyclohexenimine chromophores within a single molecule. These unique structural features with different chromophores are related to the expanded UV-absorbing window due to the double absorption maxima that cover both the UV-A and UV-B wavelengths. Interestingly, all of the MAAs characterized so far in N. commune have been glycosylated [29,47]. This glycosylation is unique to the terrestrial cyanobacterium N. commune, although the function of this glycosylation has not yet been clarified. However, other glycosylated mycosporines, including mycosporine-glutaminol-glucoside and mycosporine-glutamicol-glucoside, have been reported in rock-inhabiting microcolonial fungi  and terrestrial cyanobacteria from rock surfaces . The high concentrations of mycosporine-glutaminol-glucoside in desert rock-inhabiting fungi might be related to their survival potential in a terrestrial environment . Hence, the glycosylated MAAs might be generally protective and allow adaptation to terrestrial environments in which the organisms are exposed to drastic changes in temperature and extreme desiccation, as well as direct solar radiation in the biologically harmful UV range. The details of these ecophysiological roles of the glycosylated MAAs remain to be demonstrated directly in future studies.
2.8. Porphyra-334 and Its Derivatives

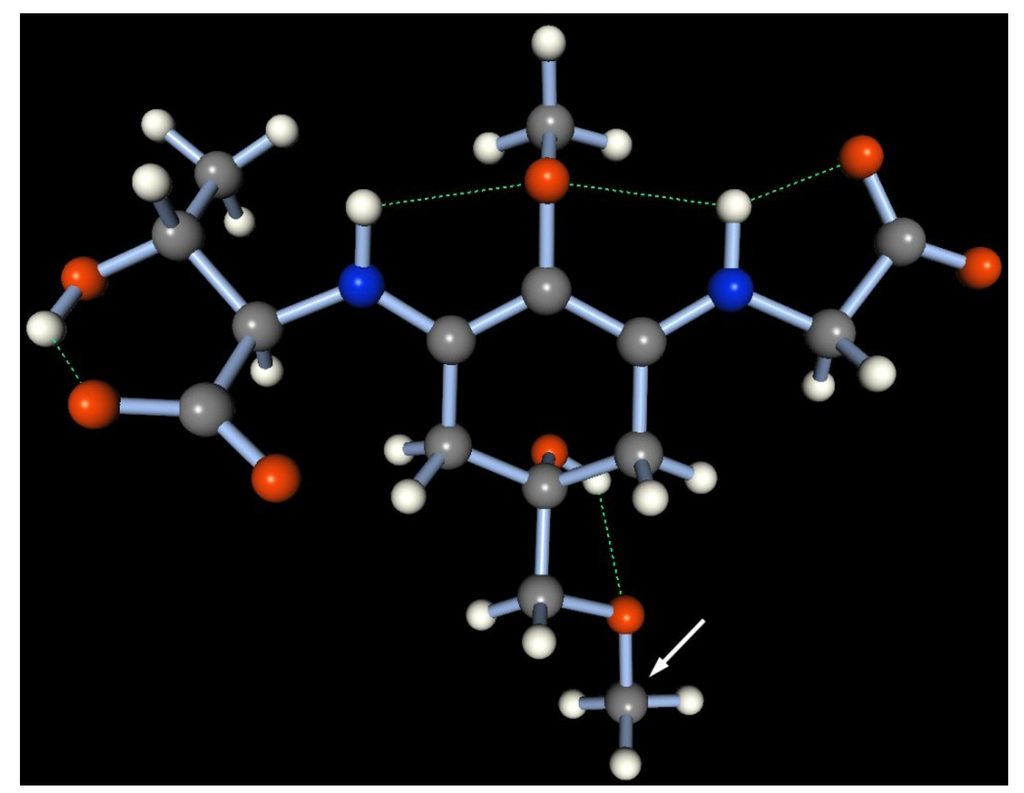

Porphyra-334, a UV-protective compound with absorption maximum at 334 nm and molecular mass of 346 Da, was first identified in the marine red alga Porphyra tenera  and was reported to be one of the most common MAAs in marine algal species . To date, a limited number of studies have been published on the occurrence of porphyra-334 in cyanobacteria. Porphyra-334 has been reported in the marine cyanobacterial species of Nodularia , in the freshwater bloom-forming cyanobacterium Microcystis aeruginosa , in the aquatic cyanobacterium Aphanizomenon flos-aquae  and in the rice-field cyanobacterium Anabaena doliolum . We have reported a 478-Da MAA pentose-bound porphyra-334 derivative in the terrestrial cyanobacterium N. commune , and in this study, we have identified a 508-Da MAA to be a hexose-bound porphyra-334 derivative. These studies have indicated the existence of glycosylated porphyra-334 in N. commune; however, the non-glycosylated form of porphyra-334 was not observed and the glycosylation of porphyra-334 in N. commune suggests a unique adaptation for terrestrial environments.
The absorption maximum of the hexose-bound porphyra-334 derivative from N. commune reversibly shifted to 332 nm in a highly acidic solution, similar to porphyra-334 , which suggested that glycosylated porphyra-334 is a zwitterion in aqueous solution and thus is stable across a wide pH range. To confirm the stable conformation, a semi-empirical molecular simulation of the 508-Da MAA in neutral water at 25 °C was performed by molecular orbital package (MOPAC) 2011 with the PM6 Hamiltonian function (Figure 8). A methyl group was substituted to mimic the hexose group in the 508-Da MAA and simplify the simulation (indicated by a white arrow in Figure 8). The most stable form of the methyl-porphyra-334 derivative occupied a near-planar conformation, which allowed for a stable conformation with three hydrogen bonds in the molecule (depicted as green dashed bonds; heat of formation = −485.75 kcal/mol). In acidic conditions, the protonation on the carboxylate anion could cleave the one of the hydrogen bonds and thus would slightly prevent the resonance delocalization of π-electrons within the molecule.
The biosynthesis of porphyra-334 is thought to be genetically controlled, and porphyra-334 producers can be classified as a taxonomical group in cyanobacteria and also in marine algae. Biochemical and molecular biological studies of the biosynthesis of the porphyra-334 scaffold based 478-Da and 508-Da MAAs in N. commune will yield further understanding of the diversity and function of porphyra-334, which is produced and accumulated in taxonomically diverse marine, freshwater and terrestrial organisms [18,19,20].
2.9. Palythine-Threonine and Its Drivatives
Palythine-threonine, an MAA with absorption maximum at 320 nm and molecular mass of 288 Da, was first identified in the corals Pocillopora capitata, Stylophora pistillata and Pocillopora eydouxi , however its sulfate ester had been reported in the reef-building coral S. pistillata . To date, no studies have been published on the occurrence of palythine-threonine in cyanobacteria. In this study, we have identified the 612-Da MAA consisting of a cyclohexenimine chromophore conjugated with the substituent group of threonine (Figure 6), and this scaffold was characterized as a palythine-threonine with a molecular mass of 288 Da. This is the first report of the unique glycosylated palythine-threonine, which was not listed for previously reported MAAs [18,19,22,57,58]. The absorption maximum of this molecule at 322 nm (Figure 2b), the MS/MS results (Table 7) and the molecular mass of its scaffold were similar to those of the previously reported MAA palythine-threonine . The identification of the glycosylated palythine-threonine from N. commune provides new insight into the molecular diversity of MAAs and the glycosylation of palythine-threonine in the terrestrial cyanobacterium suggests a unique adaptation for terrestrial environments that are harsh and drastically fluctuating in comparison to stable aquatic environments. However, the biosynthesis and glycosylation of palythine-threonine in N. commune remain to be elucidated in future studies. Biochemical and molecular biological studies of the biosynthesis of palythine-threonine in cyanobacteria will yield further understanding of this unique MAA originally identified in corals.
2.10. Antioxidative Role of MAAs
In terrestrial environments, N. commune colonies are subjected to desiccation and UV-irradiation. Protective compounds that are involved in reactive oxygen-scavenging mechanisms must have an important role in increasing cell tolerance to the oxidative stresses associated with desiccation and UV irradiation [12,59]. MAAs have been suggested to be protective against UV-induced oxidative stress in algae  and in cyanobacteria . In N. commune, the 478-Da and 1050-Da MAAs were reported to show radical scavenging activity in vitro, and the 1050-Da MAA, which has potent radical scavenging activity, contributes approximately 27% of the total water-soluble radical scavenging activity . The glycosylated MAAs identified in this study also showed radical scavenging activities in vitro (Table 12). Although porphyra-334 was reported to have photoprotective but not antioxidant functions [62,63,64], both glycosylated derivatives of porphyra-334, the 508-Da MAA (Table 12) and the 478-Da MAA , had slow-acting radical scavenging activities in vitro. The glycosylation of porphyra-334 has been suggested to provide the antioxidant activities of these glycosylated porphyra-334 derivatives, although the molecular mechanism is unknown. The 612-Da MAA was the main water-soluble radical scavenger in the water extract, as it provided approximately 20% of the water-soluble radical scavenging activities in N. commune. The 612-Da and 1050-Da MAAs were the major MAAs in their respective colonies and demonstrated very similar water-soluble radical scavenging capacities . The high in vitro radical scavenging activity of the 1050-Da MAA consisting of cyclohexenone chromophores is consistent with the antioxidative functions of the oxocarbonyl-type MAAs, such as mycosporine-glycine [64,65,66] and mycosporine-taurine . Because the 612-Da MAA is not an oxocarbonyl-type MAA, the high radical scavenging activity may be due to its glycosylation, similar to the glycosylated porphyra-334 derivatives. These findings suggest the importance of these glycosylated MAAs to the oxidative stress response in N. commune and support the idea of multifunctional MAAs as UV-protectants and antioxidants.
2.11. Localization of Glycosylated MAAs in N. commune
The 36-kDa water stress protein (WspA) accounts for more than 70% of the extracellular matrix protein content of N. commune [16,17,67]. WspA binds to the scytonemin and MAA through non-covalent interactions and is assumed to be relevant to the structure and/or the function of the extracellular matrix [15,16,68]. UV irradiation stimulates the synthesis and secretion of WspA , as well as EPS production and scytonemin and MAA synthesis . The xylose-containing MAA, which interacts with EPS via its sugar moieties, was reported to form multimeric complexes with WspA through strong ionic interactions in the absence of salt, which must be subject to the attenuation of UV-induced radiation damage during desiccation in N. commune [16,68]. MAA glycosylation might be relevant to the architecture of the extracellular matrix in N. commune, but the details must be characterized in future studies.

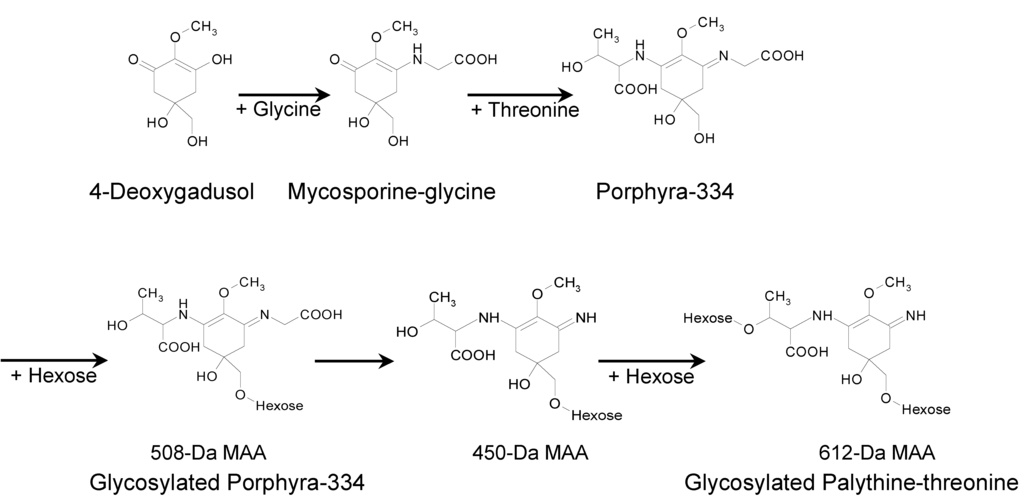

2.12. Biosynthesis of Glycosylated MAAs in N. commune
More than 30 structurally distinct MAAs, including the mycosporine-derivatives, have been characterized to date [18,19,22,57,58]. These MAAs are formed from the precursor 4-deoxygadusol  and are conjugated with a nitrogen substituent (e.g., amino acids) [18,19,22,71]. The gene product of Ava_3856 from Anabaena variabilis can convert 4-deoxygadusol and glycine into mycosporine-glycine , which is a metabolic precursor of the bi-substituted MAAs [70,72]. Previous reports indicate that condensation of the mono-substituted mycosporine-glycine with an amino acid would be a common reaction in the generation of bi-substituted MAAs such as shinorine and porphyra-334 [70,72]. Consistent with a previous report on the coral P. capitata which suggested that palythine-threonine is formed by decarboxylation of porphyra-334 followed by demethylation of mycosporine-methylamine-threonine , the simultaneous occurrence of palythine-threonine and porphyra-334 as scaffolds in N. commune suggests that porphyra-334 could be a metabolic precursor of palythine-threonine (Figure 9). Supporting this idea, the glycosylated palythine-threonine accounted for 60% of the total MAAs and was the most abundant one in N. commune. According to the structures and fragmentation patterns of the glycosylated MAAs, a MAA biosynthetic pathway is predicted in N. commune (Figure 9). In our predicted pathway, porphyra-334 could be generated via the addition of threonine to the core ring of mycosporine-glycine and the glycosylation of porphyra-334 could produce the 508-Da MAA. The 450-Da MAA could be formed via the elimination of a portion of glycine from C3 of the 508-Da MAA. The addition of another hexose to the 450-Da MAA could produce the 612-Da MAA (Figure 9). This biosynthetic pathway for the production of the glycosylated palythine-threonine and porphyra-334 derivatives could occur particularly in genotype D of N. commune; however, the enzymes and genes involved in the biosynthesis of these glycosylated MAAs are unknown. Further molecular genetic studies are required to identify the enzymes and associated genes in the predicted biosynthetic pathway as well as the function of these glycosylated MAAs in adaptation to terrestrial environments.
3. Experimental Section
Colonies of field-grown N. commune were collected from the Kakuma Campus of Kanazawa University (N 36.544812, E 136.709635), Ishikawa, Japan. Wet colonies that were naturally swollen in response to rain were harvested, washed with tap water to remove soil, air-dried in the laboratory, and stored at room temperature until used. Water extracts from N. commune powders were examined spectrophotometrically to confirm the absorption maximum at 325 nm, and genotypes were characterized by the nucleotide sequence of the 16S rRNA gene as described previously .
3.2. Purification of MAAs
N. commune powder (30 g) that contained MAAs with absorption maxima at 334 or 322 nm was suspended in distilled water (2 L), and the MAAs were extracted by stirring at room temperature for 2 h. After centrifugation at 15,240× g for 20 min at 4 °C, the supernatant was vacuum-filtered with a Buchner sintered-glass filter funnel and then condensed to approximately 600 mL with a rotary evaporator under reduced pressure. Sufficient ethanol was added to the filtrate to yield a final concentration of 70% ethanol (v/v), and the mixture was kept at 4 °C for 1 h in the dark to precipitate the 70% ethanol-insoluble materials. After centrifugation at 15,240× g for 20 min at 4 °C, the supernatant was vacuum filtered with a Buchner sintered-glass filter funnel. The filtrate was evaporated and centrifuged at 21,500× g for 10 min at 4 °C. The supernatant was filtered through a 0.20-μm syringe filter (Minisart RC 15, Sartorius Stedim, Göettingen, Germany) and injected into an HPLC system with a Hitachi L-6200 pump that was equipped with a reverse phase column (IRICA C18, 20 × 250 mm). The mobile phase changed stepwise from distilled water during the first 40 min to 10% (v/v) methanol with 0.1% (v/v) acetic acid during the next 20 min to 100% methanol during the final 20 min. The flow rate was kept at 4 mL·min−1, and the A330 was monitored with a Hitachi L-4200 UV-VIS detector. The fractions with the MAAs were recovered separately, condensed with a lyophilizer and injected into an HPLC system equipped with a gel filtration column (TSKgel G2500PW, TOSOH, Tokyo, Japan). The mobile phase was water at a flow rate of 1 mL·min−1, and A330 was monitored with a Hitachi L-4200 UV-VIS detector. The MAA fractions were recovered, and the final MAA products were lyophilized. In each step, the total MAA concentration was estimated spectrophotometrically with an extinction coefficient of 120 L·g−1·cm−1 . To determine the extinction coefficients of the purified MAAs with absorption maxima at 334 or 322 nm, diluted solutions were prepared in water, and the A334 or A322 was determined, respectively. The MAA dry weight in 1 mL of solution was measured after lyophilization.
3.3. MS Analysis
MALDI-TOF MS analysis was performed at the Division of Functional Genomics, Advanced Science Research Center, Kanazawa University, on a tandem mass spectrometer (4800 plus MALDI TOF/TOF™ Analyzer; Applied Biosystems, Foster City, CA, USA) with 2,5-dihydroxybenzoic acid (DHB) as a matrix. The secondary mass spectrum was recorded when applicable. FAB MS analysis to determine the accurate mass and predicted elemental composition was performed at the Research Institute for Instrumental Analysis in Kanazawa University on a mass spectrometer (JMS-SX102A, JEOL, Tokyo, Japan) with glycerol as a matrix.
3.4. Spectroscopic Methods
UV-VIS spectra were recorded with a Hitachi U-2800 spectrophotometer. Fourier transformation infrared (FT-IR) spectra were recorded with a Nicolet NEXUS 470 FT-IR by the KBr disk method. NMR spectra in a D2O solvent were recorded with a JEOL ECS400 spectrometer at the Research Institute for Instrumental Analysis in Kanazawa University. 3-(Trimethylsilyl)-1-propanesulfonic acid-d6 sodium salt (TMP) was used as an internal NMR standard. In order to separate two overlapping signals assignable to imine carbons in the 612-Da MAA, high-resolution 13C NMR measurement was performed focusing on the X-range around 160 ppm and the NMR spectrum was recorded with a JEOL ECA-600 spectrometer.
3.5. Measurement of Trolox Equivalent Antioxidant Capacity (TEAC)
Radical scavenging activity was measured with 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid) (ABTS) as a substrate in a colorimetric assay . Decolorization at A734 was monitored spectrophotometrically for 1 h. The electron spin resonance (ESR) signals of ABTS were recorded with a free radical monitor (JES-FR30EX, JEOL, Tokyo, Japan). Trolox (6-hydroxy-2,5,7,8-tetramethylchroman-2-carboxylic acid) and ascorbic acid were used as artificial and natural water-soluble antioxidant standards.
3.6. Chromatographic Separation and Detection of MAAs and Radical Scavenging Activities in N. commune Water Extracts
N. commune powder (1 g) was suspended in distilled water (100 mL) and extracted at room temperature by stirring for 4 h. After centrifugation at 21,500× g for 10 min at 4 °C, the supernatant was concentrated with a centrifugal concentrator (VC-360, TAITEC, Koshigaya, Japan) and filtered through a 0.20-μm syringe filter (Minisart RC 15, Sartorius Stedim). The concentrated water extract with 178 nmol TEAC was injected into an HPLC system with a Hitachi L-6200 pump and an L-4200 UV-VIS detector equipped with a reverse phase column (Wakosil 5C18, 4.6 mm × 250 mm; Wako, Osaka, Japan). The mobile phase changed stepwise from distilled water during the initial 14 min to 100% methanol during the next 36 min. The flow rate was kept at 0.5 mL·min−1, and a 1-mL fraction was collected every 2 min. The MAA-containing fraction with the highest radical scavenging activity was re-injected into another HPLC system with a Hitachi L-6200 pump and an L-4200 UV-VIS detector equipped with a TSKgel G2500PW column. The mobile phase was distilled water, and the flow rate was constant at 0.5 mL·min−1. The MAAs were detected at A330. Radical scavenging activity was measured by ABTS decolorization assay.
In this study, novel glycosylated MAAs with radical scavenging activities were identified in the terrestrial cyanobacterium Nostoc commune. The chemical structures of these glycosylated MAAs were different from those of previously reported MAAs [18,19,22,29]. The major MAA, which had a molecular mass of 612 Da and an absorption maximum at 322 nm, was identified as a two-hexose-bound palythine-threonine derivative (Figure 6). The second MAA, which had a molecular mass of 508 Da and an absorption maximum at 334 nm, was identified as a hexose-bound porphyra-334 derivative (Figure 4). The MAA with a molecular mass of 450 Da and an absorption maximum at 322 nm was identified as a hexose-bound palythine-threonine derivative. The 450-Da and 612-Da MAAs were linked to one or two hexoses, and their scaffolds were related by a common palythine-threonine scaffold, suggesting that the 450-Da MAA is a likely intermediate from which the 612-Da MAA is produced via glycosylation (Figure 9), although there are no data to rule out the possibility of a break-down product of the 612-Da MAA.
N. commune excretes and accumulates MAAs in the extracellular matrix, and thus far, all characterized MAAs in N. commune have been glycosylated. Putatively, N. commune would be incapable of surviving terrestrial environments and sustaining viability in a long-term desiccated state without glycosylated MAAs. The glycosylation mechanism and physiological roles of these glycosylated MAAs with antioxidative activities in this unique anhydrobiotic organism, as well as their interactions with other components of the extracellular matrix architecture, remain to be elucidated in future studies.
This work was supported by the Japan Society for the Promotion of Science (KAKENHI 22510227) and HABA Laboratories, Inc. We thank Kenji Takahashi for generous assistance with IR analysis and Chieri Tsuji for technical assistance. We are sincerely grateful to one of the anonymous reviewers for helpful comments concerning chemical structure analysis.
Conflicts of Interest
The authors declare no conflict of interest.
- Potts, M. Nostoc . In The Ecology of Cyanobacteria; Whitton, B.A., Potts, M., Eds.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2000; pp. 465–504. [Google Scholar]
- Novis, P.M.; Whitehead, D.; Gregorich, E.G.; Hunt, J.E.; Sparrow, A.D.; Hopkins, D.W.; Eleberling, B.; Greenfield, L.G. Annual carbon fixation in terrestrial populations of Nostoc commune (Cyanobacteria) from an Antarctic dry valley is driven by temperature regime. Glob. Chang. Biol. 2007, 13, 1224–1237. [Google Scholar] [CrossRef]
- Cameron, R.E. Species of Nostoc vaucher occurring in the Sonoran Desert in Arizona. Trans. Am. Microsc. Soc. 1962, 81, 379–384. [Google Scholar] [CrossRef]
- Lipman, C.B. The successful revival of Nostoc commune from a herbarium specimen eighty-seven years old. Bull. Torr. Bot. Club 1941, 68, 664–666. [Google Scholar] [CrossRef]
- Scherer, S.; Ernst, A.; Chen, T.-W.; Böger, P. Rewetting of drought-resistant blue-green algae: Time course of water uptake and reappearance of respiration, photosynthesis, and nitrogen fixation. Oecologia 1984, 62, 418–423. [Google Scholar] [CrossRef]
- Satoh, K.; Hirai, M.; Nishio, J.; Yamaji, T.; Kashino, Y.; Koike, H. Recovery of photosynthetic systems during rewetting is quite rapid in a terrestrial cyanobacterium, Nostoc commune. Plant Cell Physiol. 2002, 43, 170–176. [Google Scholar] [CrossRef]
- Tamaru, Y.; Takani, Y.; Yoshida, T.; Sakamoto, T. Crucial role of extracellular polysaccharides in desiccation and freezing tolerance in the terrestrial cyanobacterium Nostoc commune. Appl. Environ. Microbiol. 2005, 71, 7327–7333. [Google Scholar] [CrossRef]
- Sakamoto, T.; Yoshida, T.; Arima, H.; Hatanaka, Y.; Takani, Y.; Tamaru, Y. Accumulation of trehalose in response to desiccation and salt stress in the terrestrial cyanobacterium Nostoc commune. Phycol. Res. 2009, 57, 66–73. [Google Scholar] [CrossRef]
- Potts, M. Desiccation tolerance: A simple process? Trends Microbiol. 2001, 9, 553–559. [Google Scholar] [CrossRef]
- Clegg, J.S. Cryptobiosis—A peculiar state of biological organization. Comp. Biochem. Physiol. Part B 2001, 128, 613–624. [Google Scholar] [CrossRef]
- Crowe, L.M. Lessons from nature: The role of sugars in anhydrobiosis. Comp. Biochem. Physiol. Part A 2002, 131, 505–513. [Google Scholar] [CrossRef]
- Billi, D.; Potts, M. Life and death of dried prokaryotes. Res. Microbiol. 2002, 153, 7–12. [Google Scholar] [CrossRef]
- Castenholz, R.W.; Garcia-Pichel, F. Cyanobacterial Responses to UV-Radiation. In The Ecology of Cyanobacteria; Whitton, B.A., Potts, M., Eds.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2000; pp. 591–611. [Google Scholar]
- Castenholz, R.W.; Garcia-Pichel, F. Cyanobacterial Responses to UV Radiation. In Ecology of Cyanobacteria II; Whitton, B.A., Ed.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2012; pp. 481–499. [Google Scholar]
- Helm, R.F.; Potts, M. Extracellular Matrix (ECM). In Ecology of Cyanobacteria II; Whitton, B.A., Ed.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2012; pp. 461–480. [Google Scholar]
- Wright, D.J.; Smith, S.C.; Joardar, V.; Scherer, S.; Jervis, J.; Warren, A.; Helm, R.F.; Potts, M. UV irradiation and desiccation modulate the three-dimensional extracellular matrix of Nostoc commune (Cyanobacteria). J. Biol. Chem. 2005, 280, 40271–40281. [Google Scholar]
- Morsy, F.M.; Kuzuha, S.; Takani, Y.; Sakamoto, T. Novel thermostable glycosidases in the extracellular matrix of the terrestrial cyanobacterium Nostoc commune. J. Gen. Appl. Microbiol. 2008, 54, 243–252. [Google Scholar] [CrossRef]
- Carreto, J.I.; Carignan, M.O. Mycosporine-like amino acids: Relevant secondary metabolites. Chemical and ecological aspects. Mar. Drugs 2011, 9, 387–446. [Google Scholar] [CrossRef]
- Rastogi, R.P.; Sinha, R.P.; Singh, S.P.; Häder, D.-P. Photoprotective compounds from marine organisms. J. Ind. Microbiol. Biotechnol. 2010, 37, 537–558. [Google Scholar] [CrossRef]
- Pallela, R.; Na-Young, Y.; Kim, S.-K. Anti-photoaging and photoprotective compounds derived from marine organisms. Mar. Drugs 2010, 8, 1189–1202. [Google Scholar] [CrossRef]
- Shick, J.M.; Dunlap, W.C. Mycosporine-like amino acids and related gadusols: Biosynthesis, acumulation, and UV-protective functions in aquatic organisms. Annu. Rev. Physiol. 2002, 64, 223–262. [Google Scholar] [CrossRef]
- Sinha, R.P.; Häder, D.-P. UV-protectants in cyanobacteria. Plant Sci. 2008, 174, 278–289. [Google Scholar] [CrossRef]
- Rastogi, R.P.; Sinha, R.P. Biotechnological and industrial significance of cyanobacterial secondary metabolites. Biotechnol. Adv. 2009, 27, 521–539. [Google Scholar]
- Singh, S.P.; Häder, D.-P.; Sinha, R.P. Cyanobacteria and ultraviolet radiation (UVR) stress: Mitigation strategies. Ageing Res. Rev. 2010, 9, 79–90. [Google Scholar] [CrossRef]
- Jiang, H.; Gao, K.; Helbling, E.W. UV-Absorbing compounds in Porphyra haitanensis (Rhodophyta) with special references to effects of desiccation. J. Appl. Phycol. 2008, 20, 387–395. [Google Scholar] [CrossRef]
- Wada, N.; Sakamoto, T.; Matsugo, S. Multiple roles of photosynthetic and sunscreen pigments in cyanobacteria focusing on the oxidative stress. Metabolites 2013, 3, 463–483. [Google Scholar] [CrossRef]
- Hayashi, H.; Murata, N. Genetically Engineered Enhancement of Salt Tolerance in Higher Plants. In Stress Responses of Photosynthetic Organisms; Satoh, K., Murata, N., Eds.; Elsevier: Amsterdam, The Netherlands, 1998; pp. 133–148. [Google Scholar]
- Oren, A. Mycosporine-like amino acids as osmotic solutes in a community of halophilic cyanobacteria. Geomicrobiol. J. 1997, 14, 231–240. [Google Scholar] [CrossRef]
- Matsui, K.; Nazifi, E.; Kunita, S.; Wada, N.; Matsugo, S.; Sakamoto, T. Novel glycosylated mycosporine-like amino acids with radical scavenging activity from the cyanobacterium Nostoc commune. J. Photochem. Photobiol. B 2011, 105, 81–89. [Google Scholar] [CrossRef]
- Matsui, K.; Nazifi, E.; Hirai, Y.; Wada, N.; Matsugo, S.; Sakamoto, T. The cyanobacterial UV-absorbing pigment scytonemin displays radical-scavenging activity. J. Gen. Appl. Microbiol. 2012, 58, 137–144. [Google Scholar] [CrossRef]
- Ninomiya, M.; Satoh, H.; Yamaguchi, Y.; Takenaka, H.; Koketsu, M. Antioxidative activity and chemical constituents of edible terrestrial algae Nostoc commune Vauch. Biosci. Biotechnol. Biochem. 2011, 75, 2175–2177. [Google Scholar] [CrossRef]
- Ferroni, L.; Klisch, M.; Pancaldi, S.; Häder, D.-P. Complementary UV-absorption of mycosporine-like amino acids and scytonemin is responsible for UV-insensitivity of photosynthesis in Nostoc flagelliforme. Mar. Drugs 2010, 8, 106–121. [Google Scholar] [CrossRef]
- Arima, H.; Horiguchi, N.; Takaichi, S.; Kofuji, R.; Ishida, K.; Wada, K.; Sakamoto, T. Molecular genetic and chemotaxonomic characterization of the terrestrial cyanobacterium Nostoc commune and its neighboring species. FEMS Microbiol. Ecol. 2012, 79, 34–45. [Google Scholar] [CrossRef]
- Garcia-Pichel, F.; Castenholz, R.W. Occurrence of UV-absorbing, mycosporine-like compounds among cyanobacterial isolates and an estimate of their screening capacity. Appl. Environ. Microbiol. 1993, 59, 163–169. [Google Scholar]
- Torres, A.; Enk, C.D.; Hochberg, M.; Srebnik, M. Porphyra-334, a potential natural source for UVA protective sunscreens. Photochem. Photobiol. Sci. 2006, 5, 432–435. [Google Scholar]
- Yoshiki, M.; Tsuge, K.; Tsuruta, Y.; Yoshimura, T.; Koganemaru, K.; Sumi, T.; Matsui, T.; Matsumoto, K. Production of new antioxidant compound from mycosporine-like amino acid, porphyra-334 by heat treatment. Food Chem. 2009, 113, 1127–1132. [Google Scholar] [CrossRef]
- Whitehead, K.; Karentz, D.; Hedges, J.I. Mycosporine-like amino acids (MAAs) in phytoplankton, a herbivorous pteropod (Limacina helicina), and its pteropod predator (Clione antarctica) in McMurdo Bay, Antarctica. Mar. Biol. 2001, 139, 1013–1019. [Google Scholar] [CrossRef]
- Whitehead, K.; Hedges, J.I. Electrospray ionization tandem mass spectrometric and electron impact mass spectrometric characterization of mycosporine-like amino acids. Rapid Commun. Mass Spectrom. 2003, 17, 2133–2138. [Google Scholar] [CrossRef]
- Agrawal, P.K. NMR spectroscopy in the structural elucidation of oligosaccharides and glycosides. Phytochemistry 1992, 31, 3307–3330. [Google Scholar] [CrossRef]
- Muraoka, O.; Morikawa, T.; Zhang, Y.; Ninomiya, K.; Nakamura, S.; Matsuda, H.; Yoshikawa, M. Novel megastigmanes with lipid accumulation inhibitory and lipid metabolism—Promoting activities in HepG2 cells from Sedum sarmentosum. Tetrahedron 2009, 65, 4142–4148. [Google Scholar] [CrossRef]
- Tsujino, I.; Yabe, K.; Sekikawa, I.; Hamanaka, N. Isolation and structure of a mycosporine from the red alga Chondrus yendoi. Tetrahedron Lett. 1978, 19, 1401–1402. [Google Scholar] [CrossRef]
- Carignan, M.O.; Cardozo, K.H.M.; Oliveira-Silva, D.; Colepicolo, P.; Carreto, J.I. Palythine-threonine, a major novel mycosporine-like amino acid (MAA) isolated from the hermatypic coral Pocillopora capitata. J. Photochem. Photobiol. B 2009, 94, 191–200. [Google Scholar] [CrossRef]
- Ingalls, A.E.; Whitehead, K.; Bridoux, M.C. Tinted windows: The presence of the UV absorbing compounds called mycosporine-like amino acids embedded in the frustules of marine diatoms. Geochim. Cosmochim. Acta 2010, 74, 104–115. [Google Scholar] [CrossRef]
- Ito, S.; Hirata, Y. Isolation and structure of mycosporine from the zoanthid Palythoa tuberculosa. Tetrahedron Lett. 1977, 18, 2429–2430. [Google Scholar] [CrossRef]
- Won, J.J.W.; Chalker, B.E.; Rideout, J.A. Two new UV-absorbing compounds from Stylophora pistillata sulfate esters of mycosporine-like amino acids. Tetrahedron Lett. 1997, 38, 2525–2526. [Google Scholar] [CrossRef]
- Yamaba, M. Kanazawa University, Kanazawa, Ishikawa, Japan, 2012. Unpublished work.
- Böhm, G.A.; Pfleiderer, W.; Böger, P.; Scherer, S. Structure of a novel oligosaccharide-mycosporine-amino acid ultraviolet A/B sunscreen pigment from the terrestrial cyanobacterium Nostoc commune. J. Biol. Chem. 1995, 270, 8536–8539. [Google Scholar]
- Volkmann, M.; Whitehead, K.; Rütters, H.; Rullkötter, J.; Gorbushina, A.A. Mycosporine-glutamicol-glucoside: A natural UV-absorbing secondary metabolite of rock-inhabiting microcolonial fungi. Rapid Commun. Mass Spectrom. 2003, 17, 897–902. [Google Scholar]
- Volkmann, M.; Gorbushina, A.A. A broadly applicable method for extraction and characterization of mycosporines and mycosporine-like amino acids of terrestrial, marine and freshwater origin. FEMS Microbiol. Lett. 2006, 255, 286–295. [Google Scholar] [CrossRef]
- Gorbushina, A.A.; Whitehead, K.; Dornieden, T.; Niesse, A.; Schulte, A.; Hedges, J.I. Black fungal colonies as units of survival: Hyphal mycosporines synthesized by rock-dwelling microcolonial fungi. Can. J. Bot. 2003, 81, 131–138. [Google Scholar] [CrossRef]
- Takano, S.; Nakanishi, A.; Uemura, D.; Hirata, Y. Isolation and structure of a 334 nm UV-absorbing substance, porphyra-334 from the red alga Porphyra tenera Kjellman. Chem. Lett. 1979, 8, 419–420. [Google Scholar]
- Carreto, J.I.; Carignan, M.O.; Montoya, N.G. A high-resolution reverse-phase liquid chromatography method for the analysis of mycosporine-like amino acids (MAAs) in marine organisms. Mar. Biol. 2005, 146, 237–252. [Google Scholar] [CrossRef]
- Sinha, R.P.; Ambasht, N.K.; Sinha, J.P.; Klisch, M.; Häder, D.-P. UV-B-induced synthesis of mycosporine-like amino acids in three strains of Nodularia (Cyanobacteria). J. Photochem. Photobiol. B 2003, 71, 51–58. [Google Scholar] [CrossRef]
- Liu, Z.; Häder, D.-P.; Sommaruga, R. Occurrence of mycosporine-like amino acids (MAAs) in the bloom-forming cyanobacterium Microcystis aeruginosa. J. Plankton Res. 2004, 26, 963–966. [Google Scholar] [CrossRef]
- Singh, S.P.; Sinha, R.P.; Klisch, M.; Häder, D.-P. Mycosporine-like amino acids (MAAs) profile of a rice-field cyanobacterium Anabaena doliolum as influenced by PAR and UVR. Planta 2008, 229, 225–233. [Google Scholar] [CrossRef]
- Zhang, Z.; Tashiro, Y.; Matsukawa, S.; Ogawa, H. Influence of pH and temperature on the ultraviolet-absorbing properties of porphyra-334. Fish. Sci. 2005, 71, 1382–1384. [Google Scholar] [CrossRef]
- Sinha, R.P.; Singh, S.P.; Häder, D.P. Database on mycosporines and mycosporine-like amino acids (MAAs) in fungi, cyanobacteria, macroalgae, phytoplankton and animals. J. Photochem. Photobiol. B 2007, 89, 29–35. [Google Scholar] [CrossRef]
- Llewellyn, C.A.; Airs, R.L. Distribution and abundance of MAAs in 33 species of microalgae across 13 classes. Mar. Drugs 2010, 8, 1273–1291. [Google Scholar] [CrossRef]
- He, Y.-Y.; Klisch, M.; Häder, D.-P. Adaptation of cyanobacteria to UV-B stress correlated with oxidative stress and oxidative damage. Photochem. Photobiol. 2002, 76, 188–196. [Google Scholar] [CrossRef]
- Lee, T.-M.; Shiu, C.-T. Implications of mycosporine-like amino acid and antioxidant defenses in UV-B radiation tolerance for the algae species Ptercladiella capillacea and Gelidium amansii. Mar. Environ. Res. 2009, 67, 8–16. [Google Scholar] [CrossRef]
- Zhang, L.; Li, L.; Wu, Q. Protective effects of mycosporine-like amino acids of Synechocystis sp. PCC 6803 and their partial characterization. J. Photochem. Photobiol. B 2007, 86, 240–245. [Google Scholar] [CrossRef]
- Conde, F.R.; Churio, M.S.; Previtali, C.M. The photoprotector mechanism of mycosporine-like amino acids. Excited-state properties and photostability of porphyra-334 in aqueous solution. J. Photochem. Photobiol. B 2000, 56, 139–144. [Google Scholar] [CrossRef]
- Conde, F.R.; Churio, M.S.; Previtali, C.M. The deactivation pathways of the excited-states of the mycosporine-like amino acids shinorine and porphyra-334 in aqueous solution. Photochem. Photobiol. Sci. 2004, 3, 960–967. [Google Scholar] [CrossRef]
- Dunlap, W.C.; Yamamoto, Y. Small-molecule antioxidants in marine organisms: Antioxidant activity of mycosporine-glycine. Comp. Biochem. Physiol. B 1995, 112, 105–114. [Google Scholar] [CrossRef]
- Suh, H.-J.; Lee, H.-W.; Jung, J. Mycosporine glycine protects biological systems against photodynamic damage by quenching singlet oxygen with a high efficiency. Photochem. Photobiol. 2003, 78, 109–113. [Google Scholar] [CrossRef]
- Yakovleva, I.; Bhagooli, R.; Takemura, A.; Hidaka, M. Differential susceptibility to oxidative stress of two scleractinian corals: Antioxidant functioning of mycosporine-glycine. Comp. Biochem. Physiol. Part B 2004, 139, 721–730. [Google Scholar] [CrossRef]
- Scherer, S.; Potts, M. Novel water stress protein from a desiccation-tolerant cyanobacterium. J. Biol. Chem. 1989, 264, 12546–12553. [Google Scholar]
- Hill, D.R.; Hladun, S.L.; Scherer, S.; Potts, M. Water stress proteins of Nostoc commune (Cyanobacteria) are secreted with UV-A/B-absorbing pigments and associate with 1,4-β-d-xylanxylanohydrolase activity. J. Biol. Chem. 1994, 269, 7726–7734. [Google Scholar]
- Ehling-Schulz, M.; Bilger, W.; Scherer, S. UV-B-induced synthesis of photoprotective pigments and extracellular polysaccharides in the terrestrial cyanobacterium Nostoc commune. J. Bacteriol. 1997, 179, 1940–1945. [Google Scholar]
- Balskus, E.P.; Walsh, C.T. The genetic and molecular basis for sunscreen biosynthesis in cyanobacteria. Science 2010, 329, 1653–1656. [Google Scholar] [CrossRef]
- Singh, S.P.; Klisch, M.; Sinha, R.P.; Häder, D.-P. Genome mining of mycosporine-like amino acid (MAA) synthesizing and non-synthesizing cyanobacteria: A bioinformatics study. Genomics 2010, 95, 120–128. [Google Scholar] [CrossRef]
- Portwich, A.; Garcia-Pichel, F. Biosynthetic pathway of mycosporines (mycosporine-like amino acids) in the cyanobacterium Chlorogloeopsis sp. strain PCC 6912. Phycologia 2003, 42, 384–392. [Google Scholar] [CrossRef]
- Re, R.; Pellegrini, N.; Proteggente, A.; Pannala, A.; Yang, M.; Rice-Evans, C. Antioxidant activity applying an improved ABTS radical cation decolorization assay. Free Radic. Biol. Med. 1999, 26, 1231–1237. [Google Scholar] [CrossRef]
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
