Mar. Drugs 2013, 11(10), 3661-3675; doi:10.3390/md11103661

Article
Synthesis of Marine α-Methoxylated Fatty Acid Analogs that Effectively Inhibit the Topoisomerase IB from Leishmania donovani with a Mechanism Different from that of Camptothecin
Néstor M. Carballeira 1,*, Nashbly Montano 1, Raquel Alvarez-Velilla 2, Christopher F. Prada 3, Rosa M. Reguera 2 and Rafael Balaña-Fouce 2
1
Department of Chemistry, University of Puerto Rico, PO Box 23346, San Juan 00931-3346, Puerto Rico; E-Mail: nashbly@hotmail.com
2
Department of Biomedical Sciences, University of León, Campus de Vegazana s/n, León 24071, Spain; E-Mails: ralvv@unileon.es (R.A.-V.); rmregt@unileon.es (R.M.R.); rbalf@unileon.es (R.B.-F.)
3
Infectious Diseases Research Center of the CHUL of Québec and Laval University, Québec City, Québec G1V 4G2, Canada; E-Mail: Christopher.Fernandez@crchuq.ulaval.ca
*
Author to whom correspondence should be addressed; E-Mail: nestor.carballeira1@upr.edu; Tel.: +1809-787-764-0000 (ext. 4791); Fax: +1809-787-756-8242.
Received: 7 August 2013; in revised form: 1 September 2013 / Accepted: 10 September 2013 /
Published: 30 September 2013

Abstract

: Sponges biosynthesize α-methoxylated fatty acids with unusual biophysical and biological properties and in some cases they display enhanced anticancer activities. However, the antiprotozoal properties of the α-methoxylated fatty acids have been less studied. In this work, we describe the total synthesis of (5Z,9Z)-(±)-2-methoxy-5,9-eicosadienoic acid (1) and its acetylenic analog (±)-2-methoxy-5,9-eicosadiynoic acid (2), and report that they inhibit (EC50 values between 31 and 22 µM) the Leishmania donovani DNA topoisomerase IB enzyme (LdTopIB). The inhibition of LdTopIB (EC50 = 53 µM) by the acid (±)-2-methoxy-6-icosynoic acid (12) was studied as well. The potency of LdTopIB inhibition followed the trend 2 > 1 > 12, indicating that the effectiveness of inhibition depends on the degree of unsaturation. All of the studied α-methoxylated fatty acids failed to inhibit the human topoisomerase IB enzyme (hTopIB) at 100 µM. However, the α-methoxylated fatty acids were capable of inhibiting an active but truncated LdTopIB with which camptothecin (CPT) cannot interact suggesting that the methoxylated fatty acids inhibit LdTopIB with a mechanism different from that of CPT. The diunsaturated fatty acids displayed low cytotoxicity towards Leishmania infantum promastigotes (EC50 values between 260 and 240 µM), but 12 displayed a better cytotoxicity towards Leishmania donovani promastigotes (EC50 = 100 µM) and a better therapeutic index.
Keywords:
methoxylated fatty acids; leishmania donovani; 2-methoxy-5,9-eicosadienoic acid; topoisomerase IB

1. Introduction

A selected group of marine sponges, such as Calyx podatypa, Tropsentia roquensis or Higginsia tethyoides, biosynthesize unusual α-methoxylated fatty acids with saturated, monounsaturated, and diunsaturated alkyl chains [1]. The most ubiquitous monounsaturated α-methoxylated fatty acids in the phospholipids of sponges are those with a Δ6 double bond, while among the diunsaturated α-methoxylated fatty acids the Δ5,9 double bonds predominate akin with the propensity of sponges to biosynthesize very long-chain Δ5,9 fatty acids [2,3]. More recently, the anticancer activity of this interesting group of fatty acids has received renewed attention, and there is substantial evidence indicating that α-methoxylation increases the anticancer properties of fatty acids by probably decreasing the fatty acid critical micelle concentration (CMC) [4].

The antiprotozoal activity of the marine α-methoxylated fatty acids has been less explored, but some interesting findings are now beginning to emerge, in particular promising inhibitory results against the DNA topoisomerase IB (LdTopIB) from Leishmania donovani, the key parasite responsible for visceral leishmaniasis. LdTopIB has a number of distinctive features that makes it a perfect therapeutic target. Unlike its human homologue of monomeric nature, the enzyme is a heterodimer and LdTopIB is comprised of two subunits encoded by different genes, which are independently regulated [5]. When LdTopIB is compared to the corresponding human enzyme (hTopIB), a low level of conservation of residues that comprise both proteins is observed. If sequence alignments between the two subunits of LdTopIB and hTopIB are performed, it is found that the degree of similarity between the largest subunit of LdTopIB and hTopIB is very low (45%) and even much lower (29%) when the small subunits are compared. These differences are important because it is just in these non-conserved regions where we find the residues responsible for drug sensitivity. A recent drug development effort targets these non-conserved regions by finding new drugs that can interfere with LdTopIB without harming human cells. Camptothecin (CPT) and some of its derivatives such as gimatecan, topotecan, and irinotecan, to name just a few, have been investigated as LdTopIB poisons [6].

While the saturated α-methoxylated fatty acids do not inhibit LdTopIB, the monounsaturated α-methoxylated Δ6 fatty acids do display interesting inhibition of the enzyme. For example, our group recently synthesized the (±)-2-methoxy-6Z-heptadecenoic acid, a naturally occurring fatty acid from the sponge Calyx podatypa, and showed that it inhibits LdTopIB with an EC50 of 41 ± 6 µM [7]. Moreover, we found that the synthetic alkynoic analog (±)-2-OMe-6-heptadecynoic acid displayed a better inhibition of the enzyme with an EC50 of 17 ± 1 µM [7]. These findings led us to conclude that an alkynoic α-methoxylated fatty acid could be a more effective inhibitor of LdTopIB than an alkenoic α-methoxylated fatty acid provided that the carbon atoms in the acyl chain remain constant [7].

The Caribbean sponge Erylus goffrilleri is unusual in the sense that it biosynthesizes α-methoxylated Δ5,9 fatty acids [2]. Among these compounds, the (5Z,9Z)-(±)-2-methoxy-5,9-eicosadienoic acid (1) was identified in the phospholipids of E. goffrilleri together with other shorter-chain α-methoxylated Δ5,9 fatty acids [2]. Due to the low natural abundance of these α-methoxylated fatty acids in the sponge (ca. 0.3%), it was not possible to study their antiprotozoal or other related biological properties in the absence of a synthetic methodology that could provide enough quantities of fatty acids for biological screenings. In addition, the complete characterization of 1 was not possible. Therefore, in the present work we present the first total synthesis of 1 utilizing our previously developed methodology for this type of fatty acids [8], and show that 1 inhibits LdTopIB with a mechanism different from that of CPT. In addition, taking advantage of the same synthetic route developed for 1, and based on previous findings that alkynoic fatty acids are better inhibitors of LdTopIB than alkenoic fatty acids [7], the unnatural analog (±)-2-methoxy-5,9-eicosadiynoic acid (2) was also synthesized expecting 2 to display a better inhibition of LdTopIB than 1.

2. Results and Discussion

2.1. Synthesis of the α-Methoxylated Fatty Acids 1 and 2

The synthesis of 1 followed the synthetic strategy previously developed in our group for this type of fatty acids and it is shown in Scheme 1 [8]. The synthesis started with the versatile starting material 1,5-hexadiyne (50% in pentane), which was coupled with 2-(2-bromoethyl)-1,3-dioxolane using n-BuLi in THF-HMPA at −78 °C, resulting in a 61% yield of the desired dioxolane 3 (Scheme 1). The next step called for coupling of dioxolane 3 with 1-bromodecane using similar reaction conditions as the first step resulting in the dioxolane 4 in a 69% yield. In order to install the correct stererochemistry for the two cis double bonds required for the final product, dioxolane 4 was hydrogenated under Lindlar conditions in hexane affording 5 (82% yield). The 100% cis stereochemistry for the two double bonds in 5 was confirmed by 13C NMR spectroscopy and capillary gas chromatography-mass spectrometry (GC-MS). In 13C NMR spectroscopy, the allylic carbon resonances are strongly dependent upon the stereochemistry of the adjacent double bonds and there is a significant difference (around 5 ppm) between the allylic carbon resonances (around 32 ppm) adjacent to a trans double bond and the allylic carbon resonances (around 27 ppm) adjacent to a cis double bond [9]. With the GC-MS analysis we were able to confirm that we only obtained the cis, cis product and no other combination of double bond stereochemical alternatives such as, for example, cis, trans. Removal of the dioxolane in 5 was most conveniently achieved under acidic conditions (HCl) using acetone/water (1:1) as solvent and heating at 60 °C for 24 h, resulting in a 64% yield of dienal 6. Aldehyde 6 was then reacted with trimethylsilyl cyanide (TMSCN) in dichloromethane and catalytic amounts of triethylamine at 0 °C, yielding the nitrile 7 in an 82% yield. Nitrile 7 was then transformed into the desired methyl ester 8 in two subsequent steps. First, acid hydrolysis of 7 in 2-methyltetrahydrofuran (2-MeTHF) at 60 °C for 24 h afforded the (5Z,9Z)-(±)-2-hydroxy-5,9-eicosadienoic acid, which was esterified in HCl/methanol, without isolation, resulting in the desired methyl ester 8 in a combined 49% yield for the last two steps. The final acid 1 was obtained in two more steps. First, methylation of 8 with sodium hydride and methyl iodide in THF, afforded the methyl (5Z,9Z)-(±)-2-methoxy-5,9-eicosadienoate and after saponification in 1M KOH/ethanol and final purification the expected acid 1 was obtained in a combined 67% yield for the last two steps. The overall yield for this nine-step synthetic sequence was 5.9%. A GC-MS co-injection of methyl (5Z,9Z)-(±)-2-methoxy-5,9-eicosadienoate with the fatty acid methyl ester (FAME) mixture from E. goffrilleri confirmed that we synthesized the same α-methoxylated dienoic fatty acid as the naturally occurring fatty acid, thus corroborating the structure of the natural fatty acid as well as the stereochemistry of the two cis double bonds [2]. We are also reporting, for the first time, the complete spectral data for 1.

Marinedrugs 11 03661 g005 1024

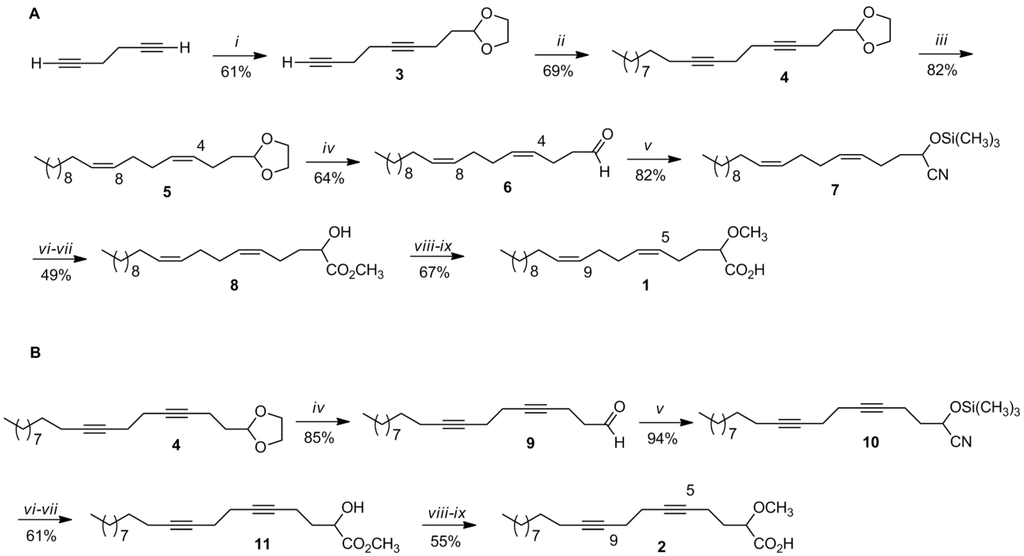

Scheme 1. Synthesis of the α-methoxylated acids 1 (A) and 2 (B). (i) n-BuLi, THF-HMPA, 2-(2-bromoethyl)-1,3-dioxolane, −78 °C, 24 h; (ii) n-BuLi, THF-HMPA, 1-bromodecane, −10 °C, 24 h; (iii) H2, Lindlar/hexane, 24 h; (iv) HCl (conc.), acetone/H2O, 60 °C, 24 h; (v) TMSCN, Et3N, CH2Cl2, 0 °C, 3 h; (vi) HCl (conc.), 2-Me-THF, 60 °C, 24 h; (vii) HCl/MeOH, 35 °C, 3 h; (viii) NaH-CH3I, THF, 0 °C, 3 h; (ix) KOH/MeOH (1 M), heat, 2 h then HCl.

Click here to enlarge figure

Scheme 1. Synthesis of the α-methoxylated acids 1 (A) and 2 (B). (i) n-BuLi, THF-HMPA, 2-(2-bromoethyl)-1,3-dioxolane, −78 °C, 24 h; (ii) n-BuLi, THF-HMPA, 1-bromodecane, −10 °C, 24 h; (iii) H2, Lindlar/hexane, 24 h; (iv) HCl (conc.), acetone/H2O, 60 °C, 24 h; (v) TMSCN, Et3N, CH2Cl2, 0 °C, 3 h; (vi) HCl (conc.), 2-Me-THF, 60 °C, 24 h; (vii) HCl/MeOH, 35 °C, 3 h; (viii) NaH-CH3I, THF, 0 °C, 3 h; (ix) KOH/MeOH (1 M), heat, 2 h then HCl.
Marinedrugs 11 03661 g005 1024

Taking advantage of the previous synthetic sequence, acid 2 was also prepared by utilizing dioxolane 4 as the key intermediate. Removal of the dioxolane in 4 was also possible under acidic conditions (HCl) using acetone/water (1:1) as solvent and heating at 60 °C for 24 h, resulting in an 85% yield of diynal 9. Similar to the synthetic procedure described above, diynal 9 was reacted with TMSCN in dichloromethane and catalytic amounts of triethylamine at 0 °C, resulting in a 94% yield of nitrile 10. Diynonitrile 10 was then transformed into the desired methyl ester 11 in two steps. First, acid hydrolysis of 10 in 2-MeTHF at 60 °C for 24 h afforded the (±)-2-hydroxy-5,9-eicosadiynoic acid, which was esterified in HCl/methanol, without isolation, resulting in the desired methyl ester 11 in a combined 61% yield for the last two steps. Methylation of 11 with sodium hydride and methyl iodide in THF afforded the methyl (±)-2-methoxy-5,9-eicosadiynoate, and after saponification in 1M KOH/ethanol and final purification, the desired acid 2 was obtained in a combined 55% yield for the last two steps. The overall yield for this eight-step synthetic sequence was 11.2%.

2.2. Inhibition of LdTopIB by Acids 1 and 2

Based on our previous results with the α-methoxylated Δ6 fatty acids [7], we concentrated on the inhibition of LdTopIB by acids 1 and 2 so as to be able to compare the effect of a Δ6 unsaturation versus a Δ5,9 diunsaturation on the degree of inhibition of LdTopIB (Figure 1, Table 1). As a mode of comparison, the inhibition of LdTopIB by the (±)-2-methoxy-6-icosynoic acid (12) (Figure 2) was also investigated since it has the same carbon chain length as acids 1 and 2 and its synthesis was recently described [4]. As explained in the Introduction, LdTopIB is a worthwhile target to study since recent strategies against leishmania take advantage of the structural differences between LdTopIB and hTopIB, and because the unorthodox heterodimeric TopIB of kinetoplastid parasites, such as LdTopIB, can be used for the development of novel drugs aimed at LdTopIB without interfering with the host [10]. For this reason, the inhibition of both LdTopIB and hTopIB by acids 1 and 2 was examined. As predicted, 2 was the most efficient inhibitor of LdTopIB with an EC50 = 22 ± 1 μM followed by 1 with an EC50 = 31 ± 2 μM and finally 12 with an EC50 = 53 ± 3 μM (Table 1). Therefore, the effectiveness of LdTopIB inhibition followed the order 2 > 1 > 12 and the data seems to support our hypothesis that as the degree of unsaturation increases, the inhibition of LdTopIB by the fatty acid increases as well.

Marinedrugs 11 03661 g001 1024

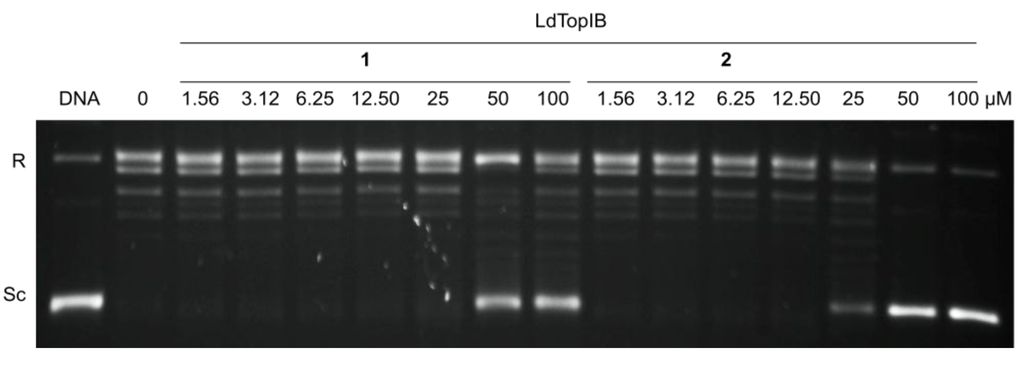

Figure 1. Comparison of the inhibition of the relaxation activity of recombinant LdTopIB by 1 (left) and 2 (right). One unit of recombinant LdTopIB was assayed in a plasmid DNA relaxation assay for 30 min at 37 °C in the presence of 1.56–100 µM of either acids 1 or 2. Reaction products were resolved in agarose gel and subsequently visualized by ethidium bromide staining. The relative position of the negatively supercoiled DNA substrate is indicated by Sc, R is the relaxed DNA, whereas the ladder of relaxed DNA topoisomer bands is shown in between. Reactions were stopped with a mixture of 1% SDS and 6.1 µg of proteinase K. Lane 1 contains 0.5 µg of pSK plasmid DNA and lane 2, indicated by a 0, is 10% DMSO.

Click here to enlarge figure

Figure 1. Comparison of the inhibition of the relaxation activity of recombinant LdTopIB by 1 (left) and 2 (right). One unit of recombinant LdTopIB was assayed in a plasmid DNA relaxation assay for 30 min at 37 °C in the presence of 1.56–100 µM of either acids 1 or 2. Reaction products were resolved in agarose gel and subsequently visualized by ethidium bromide staining. The relative position of the negatively supercoiled DNA substrate is indicated by Sc, R is the relaxed DNA, whereas the ladder of relaxed DNA topoisomer bands is shown in between. Reactions were stopped with a mixture of 1% SDS and 6.1 µg of proteinase K. Lane 1 contains 0.5 µg of pSK plasmid DNA and lane 2, indicated by a 0, is 10% DMSO.
Marinedrugs 11 03661 g001 1024
Table Table 1. Inhibition of the relaxation activities of LdTopIB and hTopIB by the studied fatty acids and camptothecin (CPT) (µM).

Click here to display table

Table 1. Inhibition of the relaxation activities of LdTopIB and hTopIB by the studied fatty acids and camptothecin (CPT) (µM).
CompoundsLdTopIB EC50hTopIB EC50
131 ± 2>100
222 ± 1>100
1253 ± 3>100
CPT0.7 ± 0.12 ± 1
Marinedrugs 11 03661 g002 1024

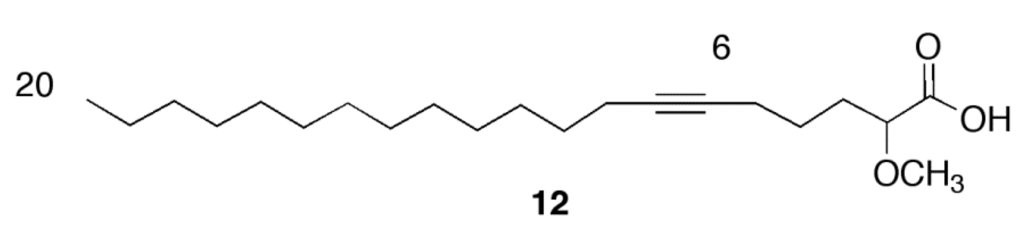

Figure 2. Structure of the (±)-2-methoxy-6-icosynoic acid (12).

Click here to enlarge figure

Figure 2. Structure of the (±)-2-methoxy-6-icosynoic acid (12).
Marinedrugs 11 03661 g002 1024

In the latter experiment, the inhibition of hTopIB by acids 1 and 2 was also compared to the inhibition observed for LdTopIB and the results are shown in Table 1 and Figure 3. While all of the α-methoxylated fatty acids studied herein were able to inhibit LdTopIB at concentrations between 53 and 22 μM, they were not effective against hTopIB (EC50 > 100 μM). These results, once again, demonstrate that it can be possible to preferentially inhibit LdTopIB without inhibiting hTopIB, a finding that could have medicinal applications. It is evident that LdTopIB is more sensitive to inhibition by the α-methoxylated fatty acids than hTopIB.

Marinedrugs 11 03661 g003 1024
Figure 3. Comparison of the inhibition of the relaxation activity of hTopIB by 1 (left) and 2 (right). One unit hTopIB was assayed in a plasmid DNA relaxation assay for 30 min at 37 °C in the presence of 1–100 µM of either acids 1 or 2. Reaction products were resolved in agarose gel and subsequently visualized by ethidium bromide staining. The relative position of the negatively supercoiled DNA substrate is indicated by Sc, R is the relaxed DNA, whereas the ladder of relaxed DNA topoisomer bands is shown in between. Reactions were stopped with a mixture of 1% SDS and 6.1 µg of proteinase K. Lane 1 contains 0.5 µg of pSK plasmid DNA and lane 2, indicated by a 0, is 10% DMSO.

Click here to enlarge figure

Figure 3. Comparison of the inhibition of the relaxation activity of hTopIB by 1 (left) and 2 (right). One unit hTopIB was assayed in a plasmid DNA relaxation assay for 30 min at 37 °C in the presence of 1–100 µM of either acids 1 or 2. Reaction products were resolved in agarose gel and subsequently visualized by ethidium bromide staining. The relative position of the negatively supercoiled DNA substrate is indicated by Sc, R is the relaxed DNA, whereas the ladder of relaxed DNA topoisomer bands is shown in between. Reactions were stopped with a mixture of 1% SDS and 6.1 µg of proteinase K. Lane 1 contains 0.5 µg of pSK plasmid DNA and lane 2, indicated by a 0, is 10% DMSO.
Marinedrugs 11 03661 g003 1024

To further study the mechanism by which the α-methoxylated fatty acids inhibit LdTopIB we explored if these acids inhibit the enzyme with a mechanism similar or different to that of CPT, a well-known topoisomerase I inhibitor [11]. Towards this purpose we carried an assay whereby instead of using the wild type Leishmania enzyme we used a doubly truncated enzyme [LdTopIB CPTR (LdTopIL1−561/S175end)] from which the sections responsible for interacting with CPT were removed and yet the enzyme still retained TopIB activity [12,13]. In Figure 4, we can see that CPT (at levels of 100 µM) is not able to inhibit the activity of LdTopIB CPTR nor has it the ability to increase the intensity of the CL band. However, we can also observe in Figure 4 (lanes 4 and 5) that both acids 1 and 2 are able to completely inhibit LdTopIB CPTR as judged by the band corresponding to the supercoiled (Sc) DNA. Therefore, this experiment clearly demonstrates that acids 1 and 2 inhibit the LdTopIB-mediated DNA relaxation by a complete different mechanism as CPT.

Marinedrugs 11 03661 g004 1024

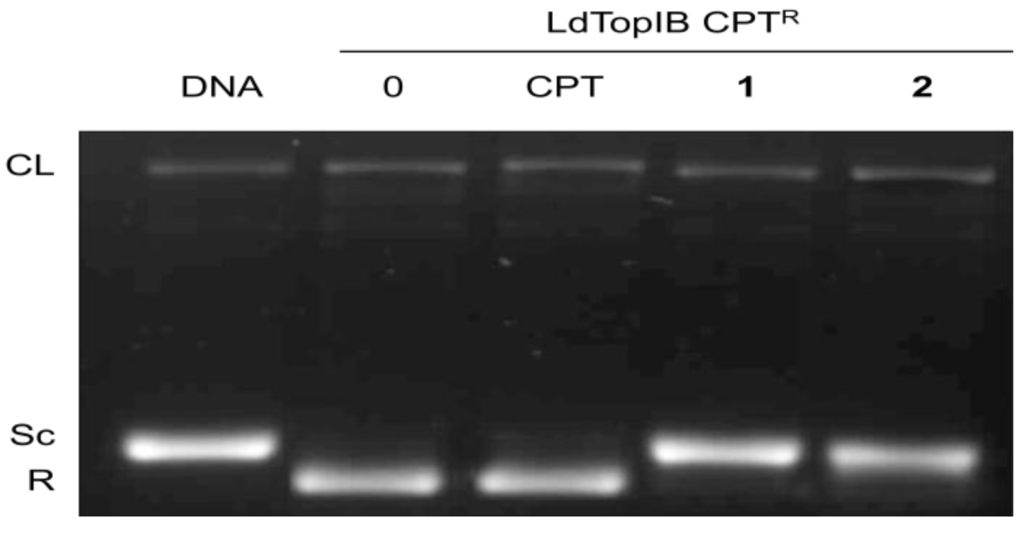

Figure 4. Methoxylated fatty acids inhibit LdTopIB by a CPT-independent mechanism. CPT-resistant LdTopIB CPTR [12,13] was assayed in the presence of DMSO (lane 0), 100 μM CPT, 100 μM acid 1, and 100 μM acid 2. Samples were incubated for 4 min at 25 °C, stopped with 1% SDS and digested for one extra hour at 37 °C in the presence of 1 mg/mL proteinase K. DNA was extracted with one volume of phenol-chloroform and samples were run on a 1% agarose gel containing ethidium bromide to a final concentration of 40 μg/mL in order to separate supercoiled and relaxed DNA. The nicked band corresponds to the stabilized cleavage complexes. The results are representative of three independent trials.

Click here to enlarge figure

Figure 4. Methoxylated fatty acids inhibit LdTopIB by a CPT-independent mechanism. CPT-resistant LdTopIB CPTR [12,13] was assayed in the presence of DMSO (lane 0), 100 μM CPT, 100 μM acid 1, and 100 μM acid 2. Samples were incubated for 4 min at 25 °C, stopped with 1% SDS and digested for one extra hour at 37 °C in the presence of 1 mg/mL proteinase K. DNA was extracted with one volume of phenol-chloroform and samples were run on a 1% agarose gel containing ethidium bromide to a final concentration of 40 μg/mL in order to separate supercoiled and relaxed DNA. The nicked band corresponds to the stabilized cleavage complexes. The results are representative of three independent trials.
Marinedrugs 11 03661 g004 1024

Despite the fact that the exact mechanism by which fatty acids inhibit LdTopIB still remains elusive, the best explanation to date, as we have hypothesized in previous studies, is for the α-methoxylated fatty acids to be interacting with LdTopIB by binding in a region close to the topoisomerase active site and either inhibiting the enzyme binding to DNA or blocking the cleavage reaction step [14].

2.3. Toxicity of Acids 1, 2, and 12 towards L. infantum and L. donovani

As a logical next step after the LdTopIB inhibitory studies, the toxicity of acids 1 and 2 towards L. infantum, which is closely related to L. donovani, was studied to determine if the inhibitory effects towards LdTopIB translates into toxicity towards L. infantum promastigotes. Both acids 1 and 2 were weakly toxic to L. infantum promastigotes with EC50 values between 260 and 240 µM (Table 2). However, acid 2 was slightly more toxic to L. infantum than 1, a finding that seems to correlate with the LdTopIB studies. In a separate experiment, it was also found that acid 12 was more effective towards L. donovani promastigotes with an EC50 of 100 µM. From the in vitro studies we can conclude that the α-methoxylated fatty acids 1 and 2 are weakly toxic to Leishmania promastigotes, but surprisingly, 12 displayed the best therapeutic index, as it was more toxic to L. donovani promastigotes and less toxic to murine macrophages (Table 2). Murine macrophages were chosen as reference for this study since Leishmania spp. normally infects macrophages and in macrophages is where Leishmania promastigotes are transformed into Leishmania amastigotes. From these studies we can conclude that 12 displays the best correlation between the enzyme inhibitory studies and the parasite growth inhibition data with only a two-fold difference between the enzyme inhibitory EC50 (Table 1) and the toxicity IC50 (Table 2).

Table Table 2. Toxicities of the studied fatty acids and CPT towards L. infantum and murine macrophages (µM).

Click here to display table

Table 2. Toxicities of the studied fatty acids and CPT towards L. infantum and murine macrophages (µM).
CompoundsL. infantum EC50Murine Macrophages BALB/c IC50Therapeutic Index (IC50/EC50)
1260 ± 20110 ± 100.4
2240 ± 1090 ± 200.4
12100 ± 10 a>100>1
CPT1.1 ± 0.10.6 ± 0.10.5

a IC50 (µM) against L. donovani promastigotes.

3. Experimental Section

3.1. Instrumentation

1H NMR (300 or 500 MHz) and 13C NMR (75 or 125 MHz) were either recorded on a Bruker DPX-300 or a Bruker DRX-500 spectrometer. 1H NMR chemical shifts are reported with respect to internal (CH3)4Si, 13C NMR shifts are reported in part per million relative to CDCl3 (77.0 ppm). GC/MS analysis were recorded at 70 eV using either a Hewlett Packard 5972A MS Chem Station or an Agilent 5975C MS Chem Station coupled to an Agilent 7890A. Both GC were equipped with a 30 m × 0.25 mm special performance capillary column (HP-5MS) of polymethyl siloxane crosslinked with 5% phenyl methylpolysiloxane. IR spectra were recorded on a Spectrum One FT-IR Spectrometer (PerkinElmer). High-resolution mass spectra data was performed at the Emory University Mass Spectrometry Center on a Thermo LTQ-FTMS using APCI as the probe.

3.2. Synthesis of (5Z,9Z)-(±)-2-Methoxy-5,9-eicosadienoic Acid (1)

3.2.1. 2-(3,7-Octadiynyl)-1,3-dioxolane (3)

It was as obtained as a colorless oil in a 61% yield from the reaction of 3.7 mL (19.23 mmol) of 1,5-hexadiyne in 40 ml of dry THF with 5.1 mL (55.47 mmol) of n-BuLi (2.5 M in hexane) at −78 °C and 1.5 mL (12.85 mmol) of 2-(2-bromoethyl)-1,3-dioxolane following the procedure already described and with identical spectral data as previously reported [7].

3.2.2. 2-(Octadeca-3,7-diynyl)-1,3-dioxolane (4)

To a stirred solution of 3 (1.39 g, 7.81 mmol) in dry THF (13 mL) and under argon was added 2.1 mL (22.8 mmol) of n-BuLi (2.5 M) in hexanes at −10 °C followed by 45 min of stirring. After this time the temperature was lowered to −70 °C and 3.1 mL of HMPA was added to the reaction mixture followed by 2.7 mL (13.01 mmol) of 1-bromodecane, and stirring for 24 h. Then, the reaction mixture was quenched with water. The organic product was extracted with brine solution (2 × 15 mL), diethyl ether (2 × 15 mL), dried over MgSO4, filtered, and evaporated in vacuo. The product was purified using silica gel column chromatography eluting with hexane/ether (9:1). Dioxolane 4 (1.71 g, 5.37 mmol) was obtained as colorless oil for a 69% yield.

1H (CDCl3, 300 MHz) δ (ppm) 4.95 (1H, t, H-2), 3.95–3.81 (4H, m, -OCH2-), 2.30 (4H, m,), 2.25 (2H, m), 2.11 (2H, t, H-3), 1.81 (2H, m), 1.43 (2H, m), 1.26 (14H, brs, -CH2-), 0.86 (3H, t, -CH3); 13C (CDCl3, 75 MHz) δ (ppm) 103.3 (d, C-2), 81.2 (s), 79.8 (s), 79.1 (s), 78.6 (s), 64.9 (t), 33.2 (t), 31.9 (t), 29.7 (t), 29.5 (t), 29.3 (t), 29.1 (t), 29.0 (t), 28.8 (t), 22.7 (t), 19.4 (t), 19.3 (t), 18.8 (t), 14.1 (q, -CH3), 13.7 (t); GC/MS (70 eV) m/z (relative intensity): 318 (M+, 1), 303 (1), 290 (2), 289 (5), 273 (1), 235 (1), 191 (6), 177 (2), 163 (5), 139 (55), 105 (10), 99 (23), 86 (12), 73 (100); HRMS (APCI) Calcd for C21H35O2 [M + H]+ 319.2632, found 319.2630.

3.2.3. 2-[(3Z,7Z)-Octadeca-3,7-dien-1-yl]-1,3-dioxolane (5)

Into a 50-mL two-necked round-bottomed flask containing Lindlar’s catalyst (0.64 g) was added a solution of 4 (0.27 g, 0.86 mmol) in dry hexane (8.6 mL) and catalytic amounts of quinoline. The reaction mixture was stirred under H2 for 24 h, filtered, and the solvent removed in vacuo. The product was purified under vacuum distillation (Kugelrohr) by removing impurities and quinoline at 130 °C/3 mmHg. The dioxolane 5 (0.23 g, 0.70 mmol) was obtained as colorless oil in an 82% yield.

IR (NaCl) νmax: 3005, 2924, 2854, 1456, 1408, 1212, 1140, 1040, 944, 723 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 5.45–5.39 (m, 4H, -CH=CH-), 4.85 (1H, t, H-2), 3.97–3.85 (4H, m, -OCH2-) 2.17 (2H, m), 2.09 (2H, m), 2.00 (2H, m), 1.71 (2H, m), 1.29 (16H, brs, -CH2-), 0.87 (3H, t, -CH3); 13C (CDCl3, 75 MHz) δ (ppm) 130.5 (d), 130.0 (d), 129.0 (d), 128.9 (d), 104.1 (d, C-2), 64.9 (t), 33.8 (t), 31.9 (t), 29.7 (t), 29.6 (t), 29.5 (5), 29.3 (t), 29.2 (t), 27.3 (t), 22.7 (t), 21.4 (t), 14.1 (q, -CH3); GC/MS (70 eV) m/z (relative intensity): 322 (M+, 1), 321 (1), 279 (3), 265 (1), 239 (1), 195 (4), 155 (6), 141 (32), 128 (22), 119 (8), 99 (73), 86 (35), 81 (18), 79 (29), 73 (100), 69 (15), 67 (23), 55 (22); HRMS (APCI) Calcd for C21H39O2 [M + H]+ 323.2945, found 323.2943.

3.2.4. (4Z,8Z)-Nonadeca-4,8-dienal (6)

To a stirred solution of 5 (0.20 g, 0.62 mmol) in acetone/water (1.6 mL each) was added 0.6 mL of HCl (conc.) followed by reflux at 60 °C for 24 h. Then, the reaction mixture was extracted with diethyl ether (1 × 15 mL), water (1 × 15 mL), dried over MgSO4, filtered, and evaporated in vacuo affording aldehyde 6 (0.11 g, 0.40 mmol) in 64% yield as colorless oil.

IR (NaCl) νmax: 3418, 3007, 2925, 2855, 1715 (C=O), 1464, 1377, 1258, 1051, 722 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 9.77 (1H, t, CHO), 5.43-5.35 (4H, m, -CH=CH-), 2.48 (2H, m), 2.37 (2H, m), 2.09 (4H, m), 2.02 (2H, m), 1.26 (16H, brs, -CH2-), 0.87 (3H, t, -CH3); 13C (CDCl3, 75 MHz) δ (ppm) 202.2 (d, C-2), 131.0 (d), 130.7 (d), 128.7 (d), 127.5 (d), 43.8 (t), 31.9 (t), 29.7 (t), 29.63 (t), 29.60 (t), 29.3 (t), 27.3 (t), 27.1 (t), 22.7 (t), 20.1 (t), 14.1 (q, -CH3); GC/MS (70 eV) m/z (relative intensity): 278 (M+, 1), 260 (1), 249 (1), 137 (11), 134 (11), 123 (10), 119 (13), 111 (13), 109 (14), 97 (90), 95 (29), 83 (69), 81 (36), 79 (74), 69 (100), 67 (69), 57 (40), 55 (94); HRMS (APCI) Calcd for C19H35O [M + H]+ 279.2682, found 279.2682.

3.2.5. (5Z,9Z)-(±)-2-Trimethylsilyloxy-5,9-eicosadienonitrile (7)

To a stirred solution of aldehyde 6 (0.11 g, 0.38 mmol) in dry CH2Cl2 (5.0 mL) at 0 °C was added trimethylsilyl cyanide (TMSCN) (0.8 mL, 0.57 mmol) and catalytic amounts of triethylamine. The mixture was stirred under argon for 3 h. Then, the solvent was removed in vacuo, the crude mixture washed with water (2 × 10 mL), extracted with diethyl ether (2 × 10 mL), dried over MgSO4, filtered, and after solvent removal 7 (0.12 g, 0.31 mmol) was obtained as a yellow oil in 82% yield.

IR (NaCl) νmax: 3800, 2925, 2854, 2251 (CN), 1655, 1437, 1254, 1078, 846, 722 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 5.45–5.31 (4H, m, -CH=CH-), 4.39 (1H, t, H-2), 2.22 (2H, m), 2.11 (4H, m), 2.00 (2H, m), 1.83 (2H, m), 1.25 (12H, brs, -CH2-), 0.87 (3H, t, -CH3), 0.19 (9H, s, -OSi(CH3)3); 13C (CDCl3, 75 MHz) δ (ppm) 131.4 (d), 130.7(d), 128.7 (d), 127.5 (d), 120.0 (s, C-1), 60.8 (d, C-2), 36.1 (t), 31.9 (t), 29.7 (t), 29.6 (t), 29.5 (t), 29.3 (t), 29.2 (t), 27.4 (t), 27.3 (t), 27.1 (t), 22.7 (t), 22.3 (t), 14.1 (q, -CH3), -0.39 (q, -OSi(CH3)3); GC/MS (70 eV) m/z (relative intensity): 377 (M+, 17), 362 (16), 350 (11), 349 (30), 286 (4), 234 (10), 208 (14), 160 (12), 155 (18), 142 (29), 128 (40), 119 (25), 116 (73), 106 (33), 97 (43), 83 (53), 81 (41), 80 (77), 79 (67), 75 (36), 73 (100), 69 (59), 67 (62), 57 (36), 55 (74); HRMS (APCI) Calcd for C23H44O2NSi [M + H]+ 378.3187, found 378.3187.

3.2.6. Methyl (5Z,9Z)-(±)-2-Hydroxy-5,9-eicosadienoate (8)

To a stirred solution of 7 (0.12 g, 0.34 mmol) in 2-MeTHF (5.1 mL) was added concentrated HCl (2.0 mL). The reaction mixture was stirred at 60 °C for 24 h. After this time, the crude was washed with water (2 × 10 mL), extracted with diethyl ether (2 × 10 mL), dried over MgSO4, filtered, and evaporated in vacuo. After purification by Kugelrohr distillation at 140 °C/3 mmHg, the (5Z,9Z)-(±)-2-hydroxy-5,9-eicosadienoic acid was obtained which was esterified in 20.0 mL of methanol by adding HCl (conc.), and stirring for 3 h at 35 °C. After methanol removal in vacuo, the crude was washed with water (2 × 10 mL), ether (2 × 10 mL), dried over MgSO4, filtered, and concentrated by evaporation in vacuo. The methyl ester was purified using silica gel column chromatography eluting with hexane/ether (7:3). Methyl ester 8 (0.06 g, 0.17 mmol) was obtained as colorless oil in a 49% overall yield for the last two steps.

IR (NaCl) νmax: 3501, 2926, 2855, 1740 (C=O), 1456, 1436, 1362, 1199, 1127, 807, 722 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 5.45–5.31 (4H, m, -CH=CH-), 4.19 (1H, m, H-2), 3.79 (3H, s, -OCH3), 2.19 (2H, m), 2.09 (4H, m), 2.01 (2H, m), 1.88 (2H, m), 1.27 (12H, br s, -CH2-), 0.87 (3H, t, -CH3); 13C (CDCl3, 75 MHz) δ (ppm) 175.8 (s, C-1), 130.7 (d), 130.5 (d), 128.9 (d), 128.3 (d), 69.9 (d, C-2), 52.5 (q, -OCH3), 31.9 (t), 29.6 (t), 29.5 (t), 29.3 (t), 29.0 (t), 27.3 (t), 25.3 (t), 22.7 (t), 14.1 (q, -CH3); GC/MS (70 eV) m/z (relative intensity): 338 (M+, 1), 322 (1), 307 (1), 295 (1), 279 (3), 261 (6), 213 (6), 165 (11), 157 (13), 139 (13), 123 (11), 109 (20), 97 (100), 90 (74), 83 (32), 81 (40), 79 (65), 69 (48), 67 (51), 57 (21), 55 (54); HRMS (APCI) Calcd for C21H39O3 [M + H]+ 339.2894, found 339.2897.

3.2.7. (5Z,9Z)-(±)-2-Methoxy-5,9-eicosadienoic acid (1)

To a stirred solution of NaH (0.01 g, 0.50 mmol) in dry THF (3.0 mL) under argon was added a solution of 8 (0.05 g, 0.14 mmol) in dry THF (3.0 mL). The reaction mixture was stirred at rt for 10 min, and then methyl iodide (0.03 mL, 0.48 mmol) was added dropwise at 0 °C, followed by 3 h stirring. After that, HCl (conc.) was added to the solution until the pH was acidic. The crude was extracted with diethyl ether (2 × 10 mL), dried over MgSO4 and evaporated in vacuo. The product was purified using silica gel column chromatography first eluting with hexane/ether (9:1) and then with ether affording the methyl (5Z,9Z)-(±)-2-methoxy-5,9-eicosadienoate. To obtain 1, a solution of KOH/ethanol (1 M) (20.0 mL) and the methoxylated methyl ester was stirred for 2 h at 60 °C. After this time the solvent was removed in vacuo and hexane (5.0 mL) and 5.0 mL of 6M HCl was added to the solution. The crude product was washed with water (1 × 10 mL), diethyl ether (2 × 10 mL), dried over MgSO4, filtered, and the ether evaporated in vacuo. The final product was purified using Florisil® (activated magnesium silicate) column chromatography eluting with diethyl ether affording 1 (0.032 g, 0.09 mmol) as an oil for a 67% yield.

IR (NaCl) νmax: 3500–2500 (-OH), 3006, 2925, 2854, 1706 (C=O), 1463, 1378, 1200, 1125, 722 cm−1; 1H (CDCl3, 500 MHz) δ (ppm) 5.45–5.31 (4H, m, -CH=CH-), 3.81 (1H, t, H-2), 3.44 (3H, s, -OCH3), 2.21 (2H, m), 2.10 (4H, m), 2.01 (2H, m), 1.27 (16H, brs, -CH2-), 0.87 (3H, t, -CH3); 13C (CDCl3, 125 MHz) δ (ppm) 177.3 (s, C-1), 130.9 (d, C-10), 130.6 (d, C-6), 128.9 (d, C-9), 128.1 (d, C-5), 79.5 (d, C-2), 58.3 (q, -OCH3), 31.9 (t), 29.7 (t), 29.69 (t), 29.64 (t), 29.5 (t), 29.3 (t), 27.3 (t), 27.29 (t), 27.24 (t), 22.7 (t), 22.6 (t), 14.1 (q, -CH3); HRMS (APCI) Calcd for C21H37O3 [M + H]+ 337.2748, found 337.2743.

3.3. Synthesis of (±)-2-Methoxy-5,9-eicosadiynoic Acid (2)

3.3.1. Nonadeca-4,8-diynal (9)

Aldehyde 9 was obtained as a white solid (mp 57–60 °C) in an 85% yield by refluxing dioxolane 4 (0.51 g, 1.60 mmol) in acetone/water (4.0 mL each) with HCl (conc) (1.60 mL) following the procedure outlined in Section 3.2.4.

IR (NaCl) νmax: 3311, 2954, 2924, 2852, 1691 (C=O), 1436, 1258, 1214, 917, 803, 723, 634 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 9.78 (1H, t, CHO), 2.62 (2H, dt, H-3), 2.48 (2H, t, H-11), 2.31 (4H, m), 2.13 (2H, t, H-4), 1.46 (2H, m), 1.27 (14H, brs, -CH2-), 0.89 (3H, t, -CH3); 13C (CDCl3, 75 MHz) δ (ppm) 201.0 (d, C-2), 81.3 (s), 80.1 (s), 78.7 (s), 78.5 (s), 42.8 (t), 31.9 (t), 29.58 (t), 29.55 (t), 29.3 (t), 29.2 (t), 29.0 (t), 28.8 (t), 22.7 (t), 19.4 (t), 19.3 (t), 18.7 (t), 14.1 (q, -CH3), 12.1 (t, C-4); GC/MS (70 eV) m/z (relative intensity): 274 (M+, 1), 273 (3), 259 (1), 217 (2), 175 (25), 161 (32), 148 (25), 147 (63), 133 (61), 131 (25), 119 (64), 106 (29), 105 (100), 95 (41), 91 (94), 81 (34), 79 (51), 67 (58), 55 (41); HRMS (APCI) Calcd for C19H31O [M + H]+ 275.2369, found 275.2369.

3.3.2. 2-(±)-Trimethylsilyloxy-5,9-eicosadiynonitrile (10)

Nitrile 10 was obtained as yellow oil and in a 94% yield from the reaction of 9 (0.31 g, 1.12 g) with TMSCN (0.22 mL, 1.65 mmol) and catalytic amounts of Et3N in dry CH2Cl2 (10.0 mL) following the procedure outlined in Section 3.2.5. The product was used as such for the next step without further purification.

IR (NaCl) νmax: 2926, 2855, 2256 (CN), 1713, 1444, 1378, 1340, 1258, 1102, 1044, 944, 878, 722, 633 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 4.62 (1H, m, H-2), 2.32 (4H, m), 2.18 (2H, t), 1.95 (2H, m), 1.45 (2H, m), 1.25 (10H, brs, -CH2-), 0.89 (3H, t), 0.21 (9H, s, -OSi(CH3)3); 13C (CDCl3, 75 MHz) δ (ppm) 119.9 (s, C-1), 81.4 (s), 80.7 (s), 78.4 (s), 78.2 (s), 65.0 (d, C-2), 35.2 (t, C-3), 31.9 (t), 29.6 (t), 29.5 (t), 29.3 (t), 29.1 (t), 29.0 (t), 28.8 (t), 28.7 (t), 28.2 (t), 22.7 (t), 19.34 (t), 19.29 (t), 18.7 (t), 14.3 (q, -CH3), 14.1 (t, C-4), -0.49 (q, OSi(CH3)3); GC/MS (70 eV) m/z (relative intensity): 373 (M+, 6), 372 (8), 358 (29), 329 (10), 316 (9), 288 (24), 284 (15), 282 (32), 274 (30), 260 (26), 247 (38), 246 (62), 232 (29), 205 (16), 198 (21), 184 (28), 171 (15), 169 (24), 157 (32), 131 (22), 128 (34), 117 (25), 91 (34), 84 (79), 75 (42), 73 (100), 57 (57), 55 (44).

3.3.3. Methyl (±)-2-Hydroxy-5,9-eicosadiynoate (11)

The methyl hydroxy ester 11 was obtained as colorless oil (61% yield for the two steps) from the reaction of 10 (0.39 g, 1.05 mmol) with concentrated HCl (6.2 mL) in 2-MeTHF (15.4 mL) followed by methanol esterification as detailed in Section 3.2.6.

IR (NaCl) νmax: 3501, 2926, 2855, 1740 (C=O), 1440, 1339, 1258, 1219, 1104, 998, 722, 667 cm−1; 1H (CDCl3, 300 MHz) δ (ppm) 4.32 (1H, m, H-2), 3.78 (3H, s, -CO2CH3), 2.31 (4H, m), 2.12 (2H, t), 1.97 (2H, m), 1.78 (2H, m), 1.44 (2H, m), 1.24 (14H, m, -CH2-), 0.96 (3H, t, -CH3); 13C (CDCl3, 75 MHz) δ (ppm) 175.4 (s), 81.3 (s), 79.9 (s), 79.3 (s), 78.5 (s), 69.2 (d, C-2), 52.6 (q, -OCH3), 33.4 (t, C-3), 31.9 (t), 29.6 (t), 29.5 (t), 29.3 (t), 29.1 (t), 28.96 (t), 28.8 (t), 22.7 (t), 19.5 (t), 19.4 (t), 18.7 (t), 14.6 (q, -CH3), 14.1 (t, C-4); GC/MS (70 eV) m/z (relative intensity): 334 (M+, 1), 291 (2), 275 (25), 257 (1), 245 (3), 235 (2), 221 (7), 208 (17), 195 (4), 175 (6), 161 (12), 155 (51), 147 (19), 133 (33), 121 (25), 119 (53), 105 (24), 95 (65), 93 (40), 91 (100), 90 (53), 81 (40), 79 (76), 77 (46), 67 (84), 55 (95); HRMS (APCI) Calcd for C21H35O3 [M + H]+ 335.2581, found 335.2579.

3.3.4. (±)-2-Methoxy-5,9-eicosadiynoic acid (2)

The diynoic acid 2 was obtained as an oil in a 55% yield (for the two steps) in the reaction of 11 (0.05 g, 0.16 mmol), with NaH (0.01 g, 0.54 mmol) and methyl iodide (0.03 mL, 13.01 mmol) in dry THF (4.0 mL) followed by saponification with KOH/ethanol (1M) as described in Section 3.2.7.

IR (NaCl) νmax: 3500–2500 (-OH), 3310, 2926, 2855, 1723, 1443, 1258, 1207, 1119, 722, 637 cm−1; 1H (CDCl3, 500 MHz) δ (ppm) 3.98 (1H, m, H-2), 3.47 (3H, s, -OCH3), 2.33 (4H, m), 2.12 (2H, t), 1.97 (2H, m), 1.89 (2H, m), 1.46 (2H, m), 1.26 (14H, brs, -CH2-), 0.86 (3H, t, -CH3); 13C (CDCl3, 125 MHz) δ (ppm) 176.8 (s, C-1), 81.3 (s), 80.2 (s), 79.0 (d, C-2), 78. 6 (s), 78.5 (s), 58.7 (q, -OCH3), 31.9 (t), 29.6 (t), 29.5 (t), 29.3 (t), 29.2 (t), 29.0 (t), 28.8 (t), 22.7 (t), 19.43 (t), 19.38 (t), 18.7 (t), 14.7 (q, -CH3), 14.1 (t); HRMS (APCI) Calcd for C21H33O3 [M + H]+ 333.2435 found 333.2431.

3.4. LdTopIB and hTopIB Inhibitory Assays

The LdTopIB and hTopIB inhibitory bioassays were performed as previously described [7]. A brief description of the experimental procedure can be found as the header of Figure 1 and Figure 3.

3.5. Comparative Inhibition of Recombinant LdTopIB by CPT, and Acids 1 and 2

The experimental procedure employed can be found as the header of Figure 4 and the details of the preparation of LdTopIB CPTR (LdTopIL1−561/S175end) were previously described in the literature [12,13].

3.6. Cytotoxicity of Acids 1, 2, and 12 towards L. infantum and L. donovani

The experimental procedures employed to assess the toxicity of acids 1 and 2 towards L. infantum and L. donovani are the same as the ones previously described [5,15]. CPT was used as the control drug.

4. Conclusions

The first total synthesis of 1 was achieved in nine steps and in a 5.9% overall yield. It was possible to corroborate both the structure and the cis double bond stereochemistry for the two double bonds in 1 with that of the natural fatty acid from the sponge E. goffrilleri. In addition, full spectral data is reported, for the first time, for the natural acid 1. Both the natural acid 1 and its diynoic analogue 2 were good inhibitors of LdTopIB with a mechanism different from that of CPT. Acids 1 and 2 did not display significant toxicity towards L. infantum promastigotes, but the synthetic acid 12 displayed a better toxicity towards L. donovani promastigotes, less toxicity towards murine macrophages, and therefore, a better therapeutic index. Therefore, it can be concluded that although a Δ5,9 diynoic α-methoxylated fatty acid displays a better inhibition of LdTopIB than a Δ6 monoynoic α-methoxylated fatty acid with the same carbon chain length, the latter is more effective and selective towards L. donovani promastigotes.

Acknowledgments

The project described was supported by Award Number SC1GM084708 from the National Institutes of General Medical Sciences of the NIH. N. Montano thanks the UPR RISE program for a graduate fellowship. This research was also supported in part by Ministerio de Ciencia e Innovation (grant AGL2010-16078/GAN), by Junta de Castilla y León (grant Gr-238) and Instituto de Salud Carlos III (grant PI12/00104 and the Tropical Diseases Network RICET) from Ministerio de Salud y Consumo of the Spanish Kingdom.

Conflict of Interest

The authors declare no conflict of interest.
