Pharmaceuticals 2013, 6(5), 634-649; doi:10.3390/ph6050634

Article
In Vivo Anti-Leukemia, Quantum Chemical Calculations and ADMET Investigations of Some Quaternary and Isothiouronium Surfactants
Ahmed A. El-Henawy 1,*, Manal M. Khowdiary 2,3, Abdelfattah B. Badawi 2 and Hussein M. Soliman 4
1
Chemistry Department, Faculty of Science, Al-Azhar University, Nasr City 11727, Cairo, Egypt
2
Egyptian Petroleum Research Institute, Applied Surfactant Laboratory, Nasr City 11727, Cairo, Egypt
3
Chemistry Department, Faculty of Science, Um El Qura University, Makkah 21514, Saudi Arabia
4
Al Farbabi Collage, Riyadh 11195, Saudi Arabia
*
Author to whom correspondence should be addressed; E-Mail: elhenawy_sci@hotmail.com.
Received: 17 November 2012; in revised form: 29 December 2012 / Accepted: 4 January 2012 /
Published: 29 April 2013

Abstract

: Anti-leukemia screening of previously prepared isothiouronium and quaternary salts was performed, and some salts exhibited promising activity as anticancer agents. Quantum chemical calculations were utilized to explore the electronic structure and stability of these compounds. Computational studies have been carried out at the PM3 semiempirical molecular orbitals level, to establish the HOMO-LUMO, IP and ESP mapping of these compounds. The ADMET properties were also studied to gain a clear view of the potential oral bioavailability of these compounds. The surface properties calculated included critical micelle concentration (CMC), maximum surface excess (Γmax), minimum surface area (Amin), free energy of micellization (ΔGomic) and adsorption (ΔGoads).
Keywords:
isothiouronium; quaternary salts; leukemia; PM3

1. Introduction

Cancer is presently considered as one of the primary worldwide health problems, responsible for about 15% of deaths and 25% in developed countries. Antitumor chemotherapy is thus nowaday s a very attractive research target [1,2]. Thioureas, isothiouronium compounds and their derivatives constitute an important class of compounds which exhibit a wide range of antibacterial, fungicidal, herbicidal, antiviral, and plant growth regulatory activities, and play important roles in many chemical and biological processes [3,4,5,6,7], but also act as potential anticancer and anti-HIV drugs [8,9,10,11].The activity of isothiouronium groups may be due to the enhanced acidity of the NH moieties, thereby functioning as a better binder than the thiourea group [12,13,14,15,16,17]. Several synthetic isothiouronium compounds were synthesized to obtain more potent and less toxic therapeutic agents [18].The studies report herein studies aimed to examine the anti-cancer and ADMET properties of some previous synthesized isothiouronium salts 14 (Figure 1) [19].

Pharmaceuticals 06 00634 g001

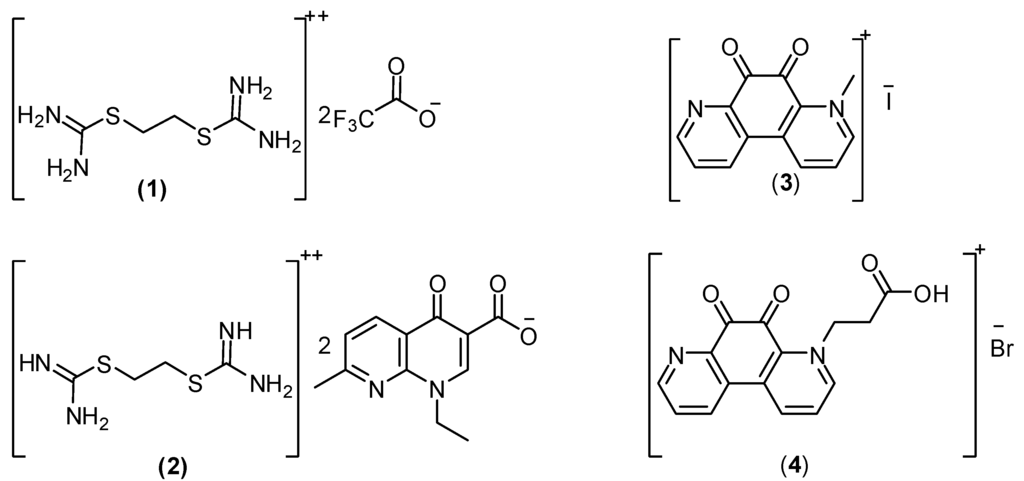

Figure 1. The chemical structure of the previously prepared isothiouronium salts [19].

Click here to enlarge figure

Figure 1. The chemical structure of the previously prepared isothiouronium salts [19].
Pharmaceuticals 06 00634 g001

2. Result and Discussion

2.1. Surface Parameter Results for the Prepared Isothornium Salts Surfactants

2.1.1. CMC of the Prepared Surfactants

Surfactants form aggregates of molecules or ions called micelles, when the concentration of the surfactant solute in the bulk of the solution exceeds a limiting value, the so called critical micelle concentration (CMC), which is a fundamental characteristic of each solute-solvent system. If the properties of a surfactant solution are plotted as a function of the concentration of the surfactant, the properties usually vary linearly with the concentration, up to critical micelle concentration, at which point there is a break in the curve as shown in Figure 2.

The results in Figure 1 and Table 1 showed that all tested compounds have very low CMC values and a notable decrease of these values was observed in going from 1 to 4. That fact could be explained from the unique property of the quaternary ammonium salts in water, that is the salts retain their unity in their solutions, which increases their volume in the aqueous media and then repulsion occurs between the hydrophobic chains and water molecules. The lower CMC values of 2 compared with 1 and 4 compared with 3 is due owing to the same reason, whereby an increased hydrophobic part increases this repulsion and accelerates the adsorption of molecules at the interface under very low concentration that form micelles immediately.

Pharmaceuticals 06 00634 g002

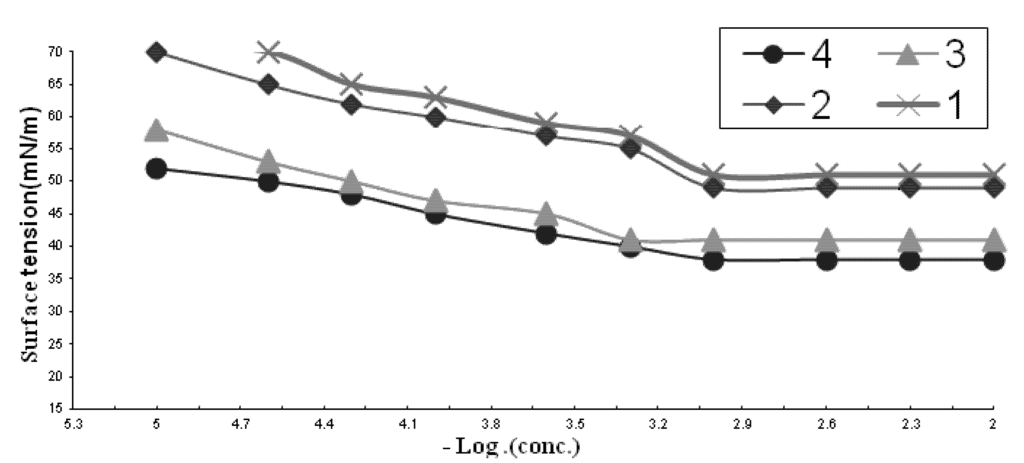

Figure 2. Variation in surface tension of surfactants 14 vs. concentration at 25 °C concentration, expressed as mol/L.

Click here to enlarge figure

Figure 2. Variation in surface tension of surfactants 14 vs. concentration at 25 °C concentration, expressed as mol/L.
Pharmaceuticals 06 00634 g002
Table Table 1. The critical micelle concentration (CMC) and surface parameters of the tested compounds (surfactants).

Click here to display table

Table 1. The critical micelle concentration (CMC) and surface parameters of the tested compounds (surfactants).
Comp.CMC X 10−3γCMC (mN/m)ΠCMC (mN/m)PC20 (Mole/L)Γmax X 10−11 (Mole/cm2)A min (nm2)Δ GadsΔ Gmic
11.351213.06.92.3−36−33
21.0549233.26.52.5−37.5−33.9
30.941314.54.93.3−41−34.7
40.638345.04.53.6−44−36.4

2.1.2. Effectiveness (Πcmc)

The effectiveness (Πcmc) is determined by the difference between surface tension values at the CMC “γcmc” and the surface tension measured for pure water at the appropriate temperature (γo). The most efficient surfactant one is that gives the greatest lowering in surface tension for a critical micelle concentration (CMC). Compound 4 was found to be the most efficient one in Table 1 because it achieved the maximum reduction of the surface tension at CMC (Figure 2).

2.1.3. Efficiency (PC20)

The efficiency (PC20) was determined by the concentration (mol/L) capable of suppressing the surface tension by 20 dyne/cm. Values of efficiency of the prepared surfactants are shown in Table 1, the efficiency increased from compound 1 to 4.

2.1.4. Maximum Surface Excess (Γmax)

The number of surfactant molecules at the air-water interface at the critical micelle concentration at (25 °C) is expressed by Γmax. It is evident from Table 1 that Γmax decreases from 1 to 4 this due to the increase in size of the molecules, which are adsorbed at the interface by its huge size and then form the micelles directly at low concentration.

2.1.5. Minimum Area per Molecule (Amin)

The minimum surface area is defined as the area occupied by a surfactant molecule at the air-water interface at the equilibrium of the solution. Results given in Table 1 indicate that the decrease of Γmax that occurred at the interface was logically accompanied by an increase in Amin values from 1 to 4.

2.1.6. The Standard Free Energies of Micellization (ΔGomic) and Adsorption (ΔGoads)

From Table 1 the values of ΔGomic and ΔGoads are always negative, indicating the spontaneity of these two processes, although there is more increase in the negativity of ΔGoads than that of micellization, indicating the tendency of the molecules to be adsorbed at the interface.

2.2. Anti-Cancer Screening

Tumor growth can be checked by blocking the process of multiplication of tumor cells; this could be achieved either by irradiation or chemical agents. The anticancer activity of the tested compounds 14 on the life-span of mice bearing Leukemia L-1210 was evaluated (Table 2).

Table Table 2. Anticancer activity of some selected compounds against leukemia L-1210.

Click here to display table

Table 2. Anticancer activity of some selected compounds against leukemia L-1210.
Compds.Dose (µg/kg.)ILS % *
14000
200100
100100
24000
20091
10099
34000
200105
100120
440061
200107
100114

* Percentage ILS (increase in life span) values were determined from median survival times of treated and saline control groups. If more than 50% of the animals survived for more than 30 days, median survival times and % ILS are indicated as greater than 30 days.

As shown, the isothiuronium compounds 1 and 2 were toxic at a dose level of 400 µg/kg, and failed to increase the life-span of the treated animals. In addition, the quaternary Entobex derivatives 3 and 4, exhibited borderline activity amounting to 20 and 14%, respectively. From the combination between surface and antitumor activity we reach the conclusion that compounds 3 and 4 with the highest surface activity were also the compounds that exhibited antitumor activity.

In our research surfactants 3 and 4 affected tumor tissues at very low concentrations, lower than their CMC values, which means that there is a strong relation between very small CMC values of these compounds and the display of borderline activity at very low concentration, this being due to the fact that an increasing concentration of surfactant causes an increase in the adsorption process on cell membranes until the CMC is reached, and beyond this concentration the adsorption is slowly retarded and finally stopped due to the formation of micelles which prevent the mobility and suppress anticancer activity.

2.3. Molecular Modeling

In trying to gain better insight into the molecular structure of compounds 14 in Figure 1, conformational analysis of the target compounds has been performed using the MMFF94 force-field [20,21] (calculations in vacuo, bond dipole option for electrostatics, Polake Ribiere algorithm, RMS gradient of 0.01 kcal/A mol) as implemented in the Spartan 08 program [22]. The most stable conformer was fully geometrically optimized by PM3 [23] semi-empirical Hamiltonian molecular orbital calculation [with Restricted Hartree-Fock (RHF) and RMS gradientof 0.05 kca]. Furthermore, the computed molecular parameters, total energy, heat of formation, the lowest occupied molecular orbital (LUMO) and the highest occupied molecular orbital (HOMO) energies, potential energies, solvation energies, electrostatic energies, ionization potential energies, dipole moment and the thermo-dynamic parameters of the studied compounds, such as zero-point vibrational energies, entropy, constant volume molar heat capacity, enthalpy and Gibbs free energy, were calculated (Table 3, Table 4).

Table Table 3. The optimized calculatedenergies and thermodynamic parameters atthe semi-empirical PM3 level for 14.

Click here to display table

Table 3. The optimized calculatedenergies and thermodynamic parameters atthe semi-empirical PM3 level for 14.
CPDHFEEsZPECV°
1−458.26−407.84−43.581601.57462.36236.630.155427819−0.207933
2−376.38−446.96−70.57628.37516.22296.040.1125376930.0539166
3−1835.03−1914.11−79.08514.11606.16385.66−0.436475908−0.505311
4−508.01−628.05−45.80602.05857.66697.300.4529647630.3555698

HF: The heat of formation energy (kJ/mol); E: Total energy (kJ/mol) (heat of formation + strain energy), Es: Solvation energy (kJ/mol), ZPE: zero-point vibrational energies (kJ/mol), S°: Entropy (kJ/mol), Cvº: Constant volume molar heat capacity, H°: Enthalpy (kJ/mol), G°: Gibbs free energy (kJ/mol).

Table Table 4. The optimized calculatedenergies atthe semi-empirical PM3 level for 14.

Click here to display table

Table 4. The optimized calculatedenergies atthe semi-empirical PM3 level for 14.
CPDHOMOLUMOHLGIPESPµχ
1−10.21−2.317.9299.9077.906.043.95
2−8.66−1.327.3451.61−285.325.743.67
3−8.03−1.956.0843.46−448.589.843.04
4−8.77−1.517.2642.94−279.417.973.63

HOMO: Highest Occupied Molecular Orbital (eV); LUMO: Lowest unoccupied Molecular Orbital (eV); HLG: difference between HOMO and LUMO energylevels;IP: ionization potential energy (kJ/mol); ESP: electrostatic potential energy (kJ/mol), χ: Mulliken electronegativity (eV), µ: dipole moment (Debye).

2.3.1. Energy Features

The calculated molecular parameters have been used to investigate the most stable conformer of the compounds 14 (Table 3), and the optimized geometry structures are represented in Figure 3. The lower calculated energy of the most active compounds 3 and 4 (−1914.11 and −628.05 kJ/mol) compared with the inactiveisothiouronium salts 1 and 2 (−407.84 and −446.96 kJ/mol, respectively), suggests an increase in spatial stability for 3 and 4 compared to 1 and 2. Furthermore, compound 3 has the lowest calculated solvation energy (−79.08 kJ/mol) which may explain the increasing activity due to increased solubility. Taking into consideration the zero-point energy at 298.15 K temperature, the inter-conversion energy is the largest for 1 and 2. From comparison of the thermodynamic parameters (Table 4), the most active compounds 3 and 4 are the more stable structures, which agrees with the PM3 calculations.

2.3.2. Optimized Geometry

The single crystal x-ray structures of the isothiouranium compounds 14 are not available till now, so the geometrical optimization parameters (bond lengths and angles) at thePM3 semi-empirical quantum mechanical level (Figure 3, Figure S1 in Supplementary Information) were calculated (Tables S1–S5 in Supplementary Information).

Pharmaceuticals 06 00634 g003
Figure 3. Ball and stick rendering for the most stable conformer of the isothiouronium salts 14 as calculated by PM3 semi-empirical molecular orbital calculations.

Click here to enlarge figure

Figure 3. Ball and stick rendering for the most stable conformer of the isothiouronium salts 14 as calculated by PM3 semi-empirical molecular orbital calculations.
Pharmaceuticals 06 00634 g003

In 1 and 2, the N1-C2-N3 and N9-C8-N10 bond angles are ~119°, and the two carbamimidothioate moieties are stabilized by being arranged in a coplanar position with each other, and the distances between C2-N3, N1-C2and C2-S4 are nearly the same as N10-C8, C8-N9 and C8-S7(~1.3, ~1.409 and ~1.8 Å) respectively, and the increased bond length of the imino moiety could be explained by the presence of π electron conjugation of the phenyl ring, and the sp2 hybridization N-imino orbitals that has more s-character, with the most electron density closer to the nuclei compared with the electron density distribution at sp3 hybridized amino nitrogen, which results in a lengthening of the C2-N1 and C8-N9 imino bond. The compounds 3 and 4 are arranged in space in the same manner, except the methyl moiety is arranged perpendicular with the phenanthrolinedione ring in 3, and in 4, the propionic moiety is arranged coplanar with the phenanthrolinedione ring. The bond lengths in both compounds 3 and 4 for C1-C6, N14-C8, N14-C13 and C9-C10 are about ~1.33, 1.4, 1.31 and 1.500Å, respectively.

2.3.3. HOMO-LUMO and Dipole Moments Analysis

The frontier molecular orbitals (highest occupied molecular orbital, HOMO, and lowest unoccupied molecular orbital, LUMO) are the most important orbitals in a molecule. These orbitals determine the way the molecule interacts with other species. The frontier orbital gap (as calculated by simple Hückel Molecular Orbital theory, SHMO) helps to characterize the chemical reactivity and kinetic stability of amolecule [24,25,26]. Furthermore, the HOMO and LUMO of a molecule play important roles in intermolecular interactions [27], through the interaction between the HOMO of the drug with the LUMO of the receptor and vice versa. The interactions are stabilized inversely with the energy gap between the interacting orbitals. Increasing HOMO energy and decreasing LUMO energy in the drug molecule lead to enhancement of stabilizing interactions, and hence, binding with the receptor [27]. HOMOs and LUMOs of the studied systems in the S0 states are shown in Figure 4, which suggests the delocalization and localization of molecular orbitals.

Pharmaceuticals 06 00634 g004

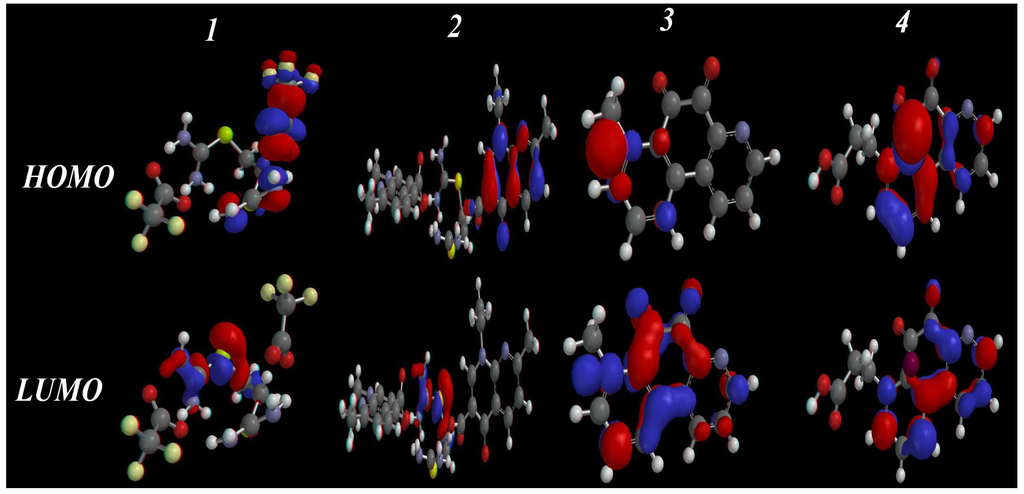

Figure 4. The calculated HOMO, LUMO and HOMO-LUMO gap for 14 as calculated by the PM3 semiempirical method.

Click here to enlarge figure

Figure 4. The calculated HOMO, LUMO and HOMO-LUMO gap for 14 as calculated by the PM3 semiempirical method.
Pharmaceuticals 06 00634 g004

The HOMO/LUMO and gap values for compounds 14 are given in Table 4.The results showed that 3 and 4 have the lowest energy gaps (7.26 and 6.08 eV), and explains their higher affinity towards cancer cells. The total dipole moment is also considered an important physical quantity, as it reflects the interaction ability of the molecules with the surrounding environment. Compounds 3 and 4 have higher dipole moment values (~9.84 and 7.97 Debye) than 1 and 2 (~6.04 and 5.74 Debye), respectively, which increases their ability to interact with the surroundings. Therefore, molecules 3 and 4 are promising structures for interaction with the receptors of cancer cells.

2.3.4. Flexible Alignment

To understanding the similarity between the three-dimensional structures of active compounds 3 and 4, flexible alignment using MOE/MMFF94 was employed (Figure 5) [28].

Pharmaceuticals 06 00634 g005

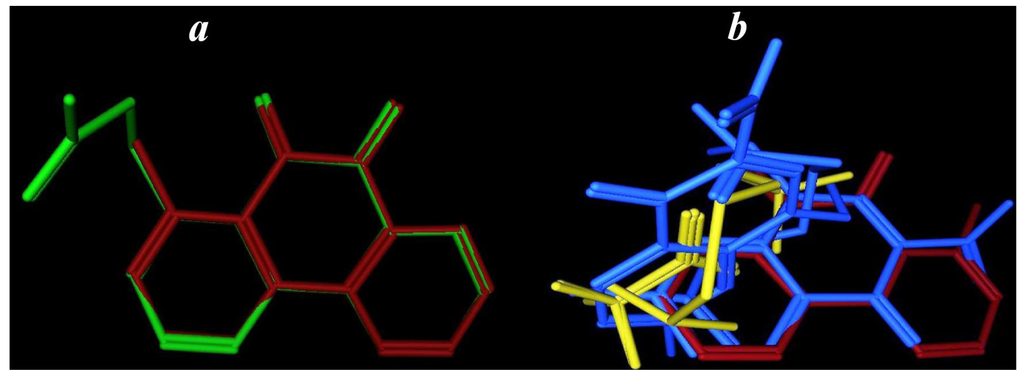

Figure 5. (a) Flexible alignments of the most active compounds 3 (in green), 4 and (in red), (b) flexible alignment of the highly active compound 3 (in red) and lowest active compounds 1 (in yellow) and 2 (in blue).

Click here to enlarge figure

Figure 5. (a) Flexible alignments of the most active compounds 3 (in green), 4 and (in red), (b) flexible alignment of the highly active compound 3 (in red) and lowest active compounds 1 (in yellow) and 2 (in blue).
Pharmaceuticals 06 00634 g005

Two hundred conformers of each compound were generated and minimized with a distance-dependant dielectric model. A low energy set of 100 was selected for further analysis. Conformations of compound 3 were generated using distance geometry and optimized with MMFF94. Thirteen low energy, maximally dissimilar structures were selected for comparison to the other compounds. After assigning MMFF94 charges to all molecules, flexible alignment was ranked by overlays of compounds 3 and 4 based on electrostatic, steric field, hydrophobic areas overlap, hydrogen bond acceptors and donors overlap. From the highest scoring superposition, the limited set of conformers was used in the analysis of molecules with high flexibility capable to achieving complete atom to atom superposition.

A common feature of the MOE-generated alignments was that the two structures showed matched phenanthrolinedione rings, and slight differences in the distance the between methyl and acetyl moieties (0.28Å, Figure 4a). In the same way, the most active anti-cancer compound 3 and the least active compounds 1 and 2 were subjected to flexible alignment. Analysis of the weakly active molecules (Figure 4b), is an important way to gain a clear vision of the essential features for a given activity. It is clear that compounds 1 and 2 were flexibly aligned in a different manner when compared with the active compound 3. Common feature of the MOE-generated alignments showed, the super position of the dicarbamimidothioate fragments in 1 and 2, and a deviation distance of about 2.20Å compared with the highly active compound 3. These features explaining why these compounds were the least active as anti-cancer agents and shows the importance of both the alkyl moiety and the heteroaryl ring attached to it (Figure 5).

2.3.5. Electrostatic (ESP) and Ionization Potential (IP) Map

In an attempt to understand the lowest and the highest anti-cancer activity of compounds 14, electrostatic and ionization potential mapping was performed for the lowest energy conformers, to examine the match and mismatch in electronic, and electrostatic binding characteristics for the molecules surface and conformational properties (Figure 6).

Pharmaceuticals 06 00634 g006

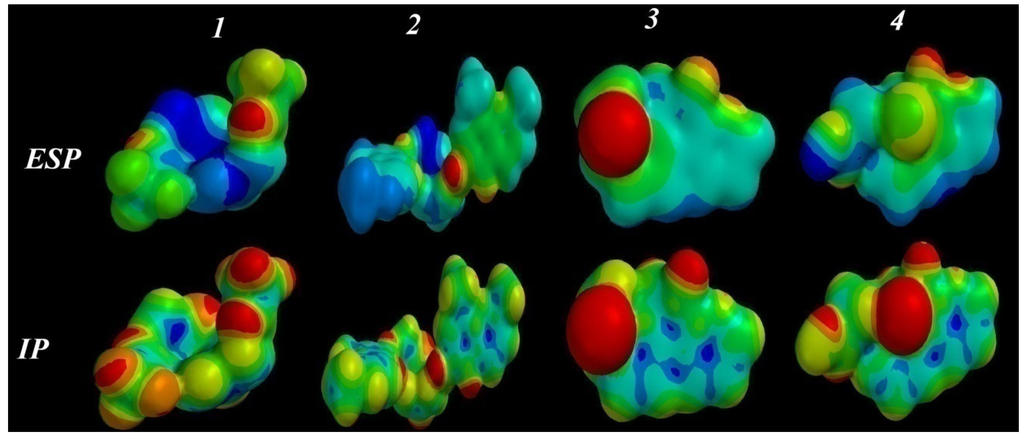

Figure 6. The ESP and IP surfaces for 14 by PM3 semi-empirical calculations.

Click here to enlarge figure

Figure 6. The ESP and IP surfaces for 14 by PM3 semi-empirical calculations.
Pharmaceuticals 06 00634 g006

The mapped electrostatic potentials (ESP), represent a balance between the repulsive interactions of the positively-charged nuclei and attractive interactions involving the negatively-charged electrons. The colors toward red depict negative potential (high electron density area, representing a strong attraction between the proton and the points on the molecular surface), while colors toward blue depict positive potential, and colors in between (orange, yellow, green) depict intermediate values of the potential. In addition, the local ionization potential (IP) mapping was performed, which indicates the proportional electron ionization facility around the molecule [29,30] and measure the sensitivity of a molecular zone toward electrophilic attack (reactivity). The default program value used [Fixed Value: (0.032e); Medium Resolution], for the IP surface mapping is shown in Figure 6. Comparison of the ESP and IP mappings of the lowest activity compounds 1 and 2 showed a common feature of increasing distribution of positive charge (in blue), and increase the polar area. On the contrary, the high activity compounds 3 and 4 showed an increased distribution of negative charge (in red) on the surface of the compounds. From the above features, the highest activity may be due to the increasing negative charge located on the compounds, representing hydrogen bond acceptors (in red). It is clear that the related charge distribution and electrostatic ionization mappings suggest a similar interaction and orientations of the molecules with a potential protein-binding site.

2.4. ADMET Factor Profiling

Oral bioavailability is considered to play an important role in the development of bioactive molecules as therapeutic agents. Many potential therapeutic agents fail to reach the clinic because of their unfavorable absorption, distribution, metabolism, elimination and toxic (ADMET) factors. Therefore, a computational study for prediction of ADMET properties was performed for compounds 14, by the determination of topological polar surface area (TPSA), a calculated percent absorption (%ABS) which was estimated by the Zhao et al. equation [31], and the ‘‘rule of five’’, formulated by Lipinski [32],which establish whether a chemical compound can be expected to be an orally active drug in humans, which occurs if it has no more than one violation of the following rules: (i) ClogP (partition coefficient between water and octanol) < 5; (ii) number of hydrogen bond donors sites ≤ 5; (iii) number of hydrogen bond acceptor sites ≤ 10; (iv), molecular weight < 500 and molar refractivity should be between 40–130. In addition, the total polar surface area (TPSA) is another key property linked to drug bioavailability, a the passively absorbed molecules with TPSA > 140 have low oral bioavailability [33]. All calculated descriptors were obtained using the MOE package [32], and the results are listed in Table 5.

Table Table 5. Pharmacokinetic parameters important for good oral bioavailability of compounds 14.

Click here to display table

Table 5. Pharmacokinetic parameters important for good oral bioavailability of compounds 14.
CPDMwtTPSA%ABSVLogPHBDHBALip-V
1408.344187.5844.2849255.8751.58480
2642.76249.8822.7914658.9612.274142
3352.1350.8891.4464265.0682.83040
4363.1688.5078.4675307.2612.035160

TPSA: Polar surface area; %ABS: absorption percentage; Log P: Calculated lipophilicity; LogS: Solubility parameter; HBA: Number of hydrogen bond acceptors; HBD: Number of hydrogen bond donors; Lip-V: Number of violations of Lipinski’s rule of five; V: Volume (Å3).

Our results revealed that the CLogP (the lipophilicity factor) [34] was less than 5.0, the molecular weight was less than 500, except for compound 2 (642.76), hydrogen bond acceptor < 10 except for 2 (14) and hydrogen bond donors (~1–4), which fulfill Lipinski’s rule. Also, the percent absorption of compounds 3 and 4 show the highest % absorption among all compounds 14. From these data, we can suggest that 3 and 4 can be used as good orally absorbed anti-cancer compounds with less toxicity, but compound 2 is highly toxic and has the lowest oral absorption from all investigated compounds, which matches the empirical data.

2.5. Pharmacophore Prediction

The aim of this approach is generation and prediction of a pharmacophore model (hypothesis) based on the most active compound. The following steps are employed for 3D pharmacophore applications: (i) Compound 3 is used as reference for other conformations of each compound (Figure 6); (ii) Assignment of the pharmacophoric features; (iii) Application of the method for undertaking conformational searching of databases for new structures matching the generated pharmacophoric features. These steps allow (hypothetical) pharmacophoric building of anticancer compounds. MOE is used for pharmacophore building [28]. The calculated conformational models were performed with a 15 Kcal energy cut off (minimization convergence criteria during conformational analysis: energy convergence = 0.01 kcal/mol, gradient convergence = 0.01 kcal/mol). The number of conformers generated for each substrate was limited to a maximum of 500. All molecules with their associated conformations were regrouped depending on the biological data. Hypothesis generation was carried out with the low energy conformers of the molecules. The calculation and analysis were performed after assignment of possible pharmacophore elements for each analogue using the MOE program, then superposition of the molecules including the assigned elements was attempted (Figure 7), to generate pharmacophore maps, and many runs of the calculations were repeated.

Pharmaceuticals 06 00634 g007

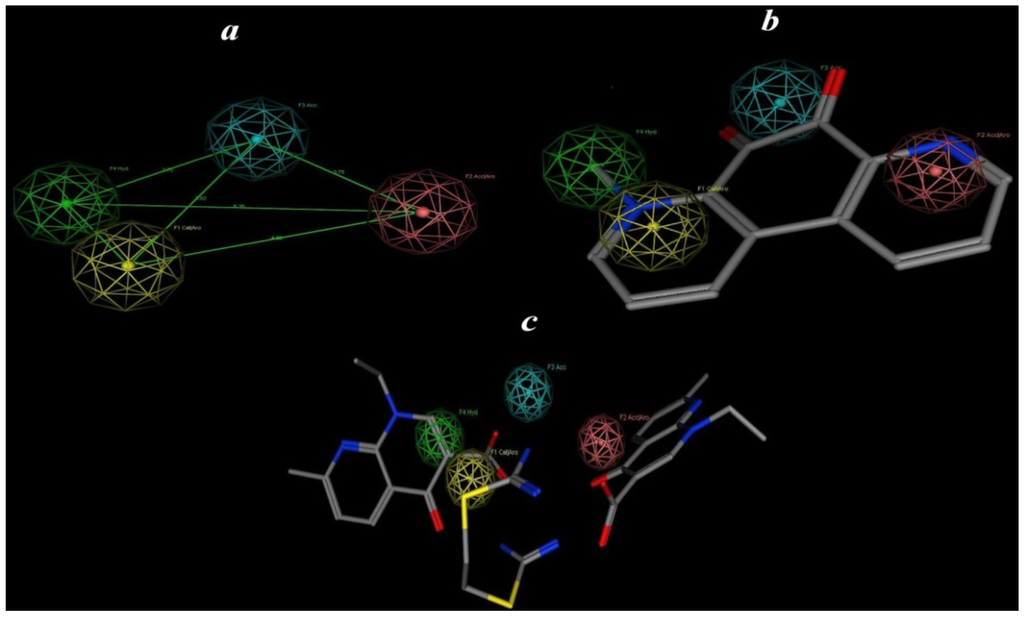

Figure 7. (a) Showsthe best predicted pharmacophore features and geometries which are required for anti-cancer activity; (b) showsthe most active compound 3 mapped to the pharmacophore model; (c) showsthe least active compound 2 mapped to the pharmacophore model. Pharmacophore features are color coded: yellow for catalytic aromatics, green for hydrophobic, red for acceptor aromatics and blue a hydrogen bond acceptor feature.

Click here to enlarge figure

Figure 7. (a) Showsthe best predicted pharmacophore features and geometries which are required for anti-cancer activity; (b) showsthe most active compound 3 mapped to the pharmacophore model; (c) showsthe least active compound 2 mapped to the pharmacophore model. Pharmacophore features are color coded: yellow for catalytic aromatics, green for hydrophobic, red for acceptor aromatics and blue a hydrogen bond acceptor feature.
Pharmaceuticals 06 00634 g007

For each run a distinct number of specified pharmacophore elements were generated. All appropriate models showed that the acceptor atoms of the CO fragments (as acceptor) and the methyl fragment (as hydrophobic unit) were well superimposed within the set distance tolerance, which confirms the important role of the hydrophobic moieties for anticancer activity. The initial pharmacophoric query was carried out, and the introduction of four features, as summarized in Table 6, is illustrated graphically in Figure 7.

Table Table 6. Pharmacophoric and structure features of the most active compounds.

Click here to display table

Table 6. Pharmacophoric and structure features of the most active compounds.
Pharmacophoric featuresStructure features
F1: Aro/CatPyridinyl
F2: Aro/AccAlkyl pyridinyl
F3: AccCO
F4: HydroAlkyl

From Figure 7a, models for 3 and its analog 4 possess pharmacophore elements: the heteroaryl ring (as a hydrophobic moiety) attached to an alkyl group which is in plane with the other heteroaryl ring, two heteroaryl rings attached with a CO group (as a hydrogen bond acceptor region, Figure 7b). In contrast, the model for compound 1 and its analog 2 (Figure 7c) showed mismatch with the mapping of the pharmacophore model (Figure 6a), since the alkyl attached with the heteroaryl part of compound 3 plays an important role in activity. According to the pharmacophore generated by MOE [28] the minimal structural requirements for anti-cancer activity consist of an alkyl fragment (hydrophobic region) attached to a heteroaryl ring (aryl catalysis region), carbonyl fragment (H-bonding acceptor region) and another hetroaryl ring (aryl acceptor region). This pharmacophoric assumption was consistent with biological data.

3. Experimental

3.1. Surface Active Properties Evaluation Methods

3.1.1. Surface Tension Measurements

Surface tension measurement of the prepared surfactants was made at (25 °C) with Du Nouytensiometer (Kruss type 8451) using distilled water solution of 0.1% weight concentration [35]. The surface tension of the used distilled water was 73 mN/m, surfactant solutions were aged for 1/2 h before any measurements were made. Three readings were made on each sample to determine any change with time and to obtain an average value [36].

3.1.2. Efficiency (PC20)

The efficiency (PC20) was determined as the concentration (mol/L) capable of suppressing the surface tension by 20 dyne/cm [37]. The efficiencies have been determined by extrapolating from γ = 52 to the linear portion before CMC of the γ versus-Logc plot [38], at 25 °C.

3.1.3. Effectiveness (Πcmc)

The surface tension (γcmc) values at CMC were used to calculate values of surface pressure (effectiveness) from the following expression:

Πcmc = γo − γcmc
where γo is the surface tension measured for the pure water at the appropriate temperature and γcmc is the surface tension at the CMC. The effectiveness of adsorption is an important factor to determine properties of a surfactant such as foaming, wetting and emulsification, since tightly packed coherent interfacial films have very different interfacial properties than loosely packed, non-coherent films [39].

3.1.4. Determination of Critical Micelle Concentration

CMC of the prepared surfactants were determined by the surface tension method [40]. In this method, values of the surface tension obtained for various concentrations of aqueous solutions of the prepared surfactants were plotted vs. the corresponding concentrations.

3.1.5. Maximum Surface Excess Γmax

The surface excess concentration is defined as the surface concentration at surface saturation; the maximum surface excess Γmax is a useful measure of the effectiveness of adsorption of the surfactant at the water-air interface, since it is the maximum value at which adsorption can attain:

Γmax = Pharmaceuticals 06 00634 i001
where R = 8.314 J mol−1 K−1, T is absolute temperature, (δγ/δ logc) is the slope of the surface tension vs. log concentration plot at 25 °C [41]. A substance which lowers the surface tension is thus present in excess at or near the surface, i.e., when the surface tension decreases with increasing activity of the surfactant, Γ is positive.

3.1.6. Minimum Surface Area (Amin)

Amin is the minimum area per molecule of the prepared compounds at the interface and was calculated from the following equation:

Amin = Pharmaceuticals 06 00634 i002
where N is Avogadro’s number and Γmax is the maximum surface excess.

3.1.7. The Standard Free Energies of Micellization ΔGomic and Adsorption ΔGoads

Understanding the process of micellization and adsorption are important for explanation of the effects of structural and environmental factors on the value of the CMC and for predicting itseffects on new structural and environmental variations. Standard free energy of micellization ΔGomic, and adsorption ΔGoads, have played an important role in such understanding.The standard free energy of micellization and adsorption are given by:

ΔGomic = RTln CMC
ΔGoads = ΔGomic − 6.023 × 10−1ΠCMC Amin

3.2. Anticancer Screening against Leukemia L-1210

Group of six animals were inoculated interperitoneally with 105 cells. After 24 h the tested compounds were injected at three dose levels selected on the basis of their toxicity so that the higher dose is the maximum treatment dose. The animals were kept for one month or till the death of the last animal. The ILS were calculated for all animals died from tumors, and T/C values were calculated.

3.3. Molecular Modeling

3.3.1. Computational Details

All electronic structure calculations were performed using the Spartan 08 program [22]. Geometry optimizations have been achieved using the PM3 method. The structural parameters, such as the dipole moment of the molecules µ, the energy of the highest occupied molecular orbital EHOMO and the lowest unoccupied molecular orbital ELUMO were obtained. The thermodynamic parameters, including total energy(TE), enthalpy (H), entropy (S), free energy (G), zero-point vibrational energy (ZPE), the absorption spectra and the vibration frequency calculation For each stationary point was performed at the same levels, to characterize its nature as minima or transition states and to correct energies.

3.3.2. Conformational Search and Flexible Alignment

Conformational analysis and flexible alignment of tested compounds were carried out with the MOE [28] software of Chemical Computing Group Inc. (Montreal, Canada), on a Core 2 duo 3.00 GHz workstation. The molecules were built using the Builder module of MOE. The geometry optimized using the MMFF94 force-field followed by a flexible alignment with systematic conformational search. Lowest energy aligned conformation(s) were identified through the analysis module of DSV.

4. Conclusions

Anticancer screening of some previously prepared novel isothiouronium and quaternary salts was performed, and compounds 3 and 4 showed promising activity as anti-leukemia agents. Computational studies have been performed at the PM3 semiempirical molecular orbitals level, to establish the HOMO–LUMO, IP and ESP mapping of these compounds, to understand the lowest and highest anticancer activity of the compounds, and show the importance of the alkyl group in these compounds. Also, the ADMET properties for compounds 3 and 4 showed good oral absorption and suggested they could be used as anti-cancer compounds with less toxicity.

References

  1. Balunas, M.J.; Kinghorn, A.D. Drug Discovery from medicinal plants. Life Sci. 2005, 78, 431–441, doi:10.1016/j.lfs.2005.09.012.
  2. Parkin, D.M. Global cancer statistics in the year 2000. Lancet Oncol. 2001, 2, 533–543, doi:10.1016/S1470-2045(01)00486-7.
  3. Tait, A.; Gamberini, G.; Giovannini, M.G.; di Bella, M. S-aryl (tetramethyl) isothiouronium salts as possible antimicrobial agents, IV. Farmaco 1989, 44, 1129–1140.
  4. Tait, A.; Gamberini, G.; Giovannini, M.G.; di Bella, M. S-aryl (tetramethyl) isothiouronium salts as possible antimicrobial agents, III. Farmaco 1988, 43, 979–988.
  5. Trani, A.; Ferrari, P.; Pallanza, R.; Ciabatti, R. Thioureas and isothiouronium salts of the aglycone of teicoplanin. I. Synthesis and biological activity. J. Antibiot. (Tokyo) 1989, 42, 1268–1275, doi:10.7164/antibiotics.42.1268.
  6. Manez, R.M.; Sancenon, F. Fluorogenic and chromogenic chemosensors and reagents for anions. Chem. Rev. 2003, 103, 4419–4476, doi:10.1021/cr010421e.
  7. Manez, R.M.; Sancenon, F. New advances in fluorogenic anion chemosensors. J. Fluoresc. 2005, 15, 267–285, doi:10.1007/s10895-005-2626-z.
  8. Venkatachalam, T.K.; Vassilev, A.O.; Benyunov, A.; Grigoriants, O.; Tibbles, H.E.; Uckun, F.M. Stereochemistry as a Determinant of the Anti-Leukemic Potency of Halopyridyl and Thiazolyl Thiourea Compounds. Lett. Drug Des. Discov. 2007, 4, 318–326, doi:10.2174/157018007780867870.
  9. Manjula, S.N.; Noolvi, N.M.; Parihar, K.V. Synthesis and antitumor activity of optically active thiourea and their 2-aminobenzothiazole derivatives: A novel class of anticancer agents. Eur. J. Med. Chem. 2009, 44, 2923–2929, doi:10.1016/j.ejmech.2008.12.002.
  10. Venkatachalam, T.K.; Mao, C.; Uckun, F.M. Effect of stereochemistry on the anti-HIV activity of chiral thiourea compounds. Bioorg. Med. Chem. 2004, 12, 4275–4284, doi:10.1016/j.bmc.2004.04.050.
  11. Hunter, R.; Kaschula, C.H.; Parker, I.M.; Caira, M.R.; Richards, P.; Travis, S.; Taute, F.; Qwebani, T. Substituted ajoenes as novel anti-cancer agents. Bioorg. Med. Chem. Lett. 2008, 18, 5277–5279, doi:10.1016/j.bmcl.2008.08.056.
  12. Kubo, Y.; Ishihara, S.; Tsukahara, M.; Tokita, S. Isothiouronium-derived simple fluorescent chemosensors of anions. J. Chem. Soc. Perkin Trans. 2 2002, 2002, 1455–1460.
  13. Kubo, Y.; Kato, M.; Misawa, Y.; Tokita, S. A fluorescence-active 1,3-bis(isothiouronium)-derived naphthalene exhibiting versatile binding modes toward oxoanions in aqueous MeCN solution: New methodology for sensing oxoanions. Tetrahedron Lett. 2004, 45, 3769–3773, doi:10.1016/j.tetlet.2004.03.076.
  14. Kubo, Y.; Tsukahara, M.; Ishihara, S.; Tokita, S. A simple anion chemosensor based on a naphthalene-thiouronium dyad. Chem. Commun. 2000, 2000, 653–654.
  15. Nishizawa, S.; Cui, Y.Y.; Minagawa, M.; Morita, K.; Kato, Y.; Taniguchi, S.; Kato, R.; Teramae, N. Conversion of thioureas to fluorescent isothiouronium-based photoinduced electron transfer sensors for oxoanion sensing. J. Chem. Soc. Perkin Trans. 2 2002, 2002, 866–870.
  16. Yeo, W.S.; Hong, J.I. Thiouronium-thymine conjugate as a new carrier for selective transport of 5'-AMP. Tetrahedron Lett. 1998, 22, 3769–3772.
  17. Srivastava, S. Electrodeposition of Copper Metal in Presence of Organic Solvents. Ph.D. Thesis, Banaras Hindu University, Varanasi, India, 2003.
  18. Yeo, W.S.; Hong, J.I. Oxoanion recognition by a thiouronium receptor. Tetrahedron Lett. 1998, 39, 8137–8140, doi:10.1016/S0040-4039(98)01806-1.
  19. Badawi, A.M.; Seliem, V.R.; Haroun, B.; Solima, H. Isothironium salts of potential biological activity. Oriental J.Chem. 1988, 4, 107–118.
  20. Profeta, S.; Allinger, N.L. Molecular mechanics calculations on aliphatic amines. J. Am. Chem. Soc. 1985, 107, 1907–1918, doi:10.1021/ja00293a019.
  21. Halgren, T.A. Merck molecular force field I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490–519, doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P.
  22. Spartan 08. Software, Wavefunction Inc. Irvine, CA, USA, 2008.
  23. Stewart, J.J.P. MOPAC Manual. J. Comput. Chem. 1989, 10, 221, doi:10.1002/jcc.540100209.
  24. Rauk, A. Orbital Interaction Theory of Organic Chemistry, 2nd ed.; Wiley Interscience: New York, NY, USA, 2001; p. 86.
  25. Streitwieser, A., Jr. Molecular Orbital Theory for Organic Chemists; Wiley: New York, NY, USA, 1961.
  26. Fleming, I. Frontier Orbitals and Organic Chemical Reactions; John Wiley: New York, NY, USA, 1976.
  27. Fukui, K. Role of Frontier Orbitals in Chemical Reactions. Science 1982, 218, 747–754, doi:10.1126/science.218.4574.747.
  28. Computational Chemistry (MOE 2009.10). Computing Group Inc, Montreal, Canada, 2009.
  29. Sjoberg, P.; Murray, J.S.; Brinck, T.; Politzer, P. Average local ionization energies on the molecular surfaces of aromatic systems as guides to chemical reactivity. Can. J. Chem. 1990, 68, 1440–1443, doi:10.1139/v90-220.
  30. Politzer, P.; Murray, J.S.; Concha, M.C. The complementary roles of molecular surface electrostatic potentials and average local ionization energies with respect to electrophilic processes. Int. J. Quant. Chem. 2002, 88, 19–27, doi:10.1002/qua.10109.
  31. Zhao, Y.; Abraham, M.H.; Lee, J.; Hersey, A.; Luscombe, N.C.; Beck, G.; Sherborne, B.; Cooper, I. Rate-limited steps of human oral absorption and QSAR studies. Pharm. Res. 2002, 19, 1446–1456, doi:10.1023/A:1020444330011.
  32. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug. Delivery Rev. 1997, 23, 3–25, doi:10.1016/S0169-409X(96)00423-1.
  33. Clark, D.E.; Pickett, S.D. Computational methods for the prediction of drug-likeness. Drug Discov. Today 2000, 5, 49–58, doi:10.1016/S1359-6446(99)01451-8.
  34. Wildman, S.A.; Crippen, G.M. Prediction of Physicochemical Parameters by Atomic Contribution. J. Chem. Inf. Comput. Sci. 1999, 39, 868–873, doi:10.1021/ci990307l.
  35. Findlay, A. Practical Physical Chemistry, 6th ed.; Longmans: New York, NY, USA, 1963; pp. 92–101.
  36. Hampson, J.W.; Cosnell, D.G. Surface-tension Properties of Some Poly dispersed Alkyl-Substituted polyoxy-ethylated Phenyl Sulfonamides. J. Am. Oil Chem. Soc. 1996, 73, 891–895, doi:10.1007/BF02517991.
  37. Takeshita, T.I.; Shimohara, W.; Maeda, S. Surface-tension Properties of Some Poly dispersed Alkyl-Substituted. J. Am. Oil Chem. Soc. 1980, 57, 9430–9435.
  38. Takeshita, T.I.; Shimohara, W.; Maeda, S. A Rapid Synthesis of Fatty Acyl Urea Derivatives. J. Am. Oil Chem. Soc. 1982, 59, 90–94.
  39. Bhattacharyya, D.N.; Kelkar, R.Y.; Almeida, M.R.; Das, A.K.; Chikhale, S.V. Tenside Surfactants Detergents; Carl Hanser Publisher: Munich, Germany, 1994; Volume 31, p. 260.
  40. Rosen, M.J. Surfactants and Interfacial Phenomena; Johm Wiley and Sons Inc.: New York, NY, USA, 1987.
  41. Hikota, T.; Merguro, K.J. Surfactants and interfacial phenomena. Jpn. Chem. Soc. 1970, 47, 158.

Supplementary Files

  • Supplementary File 1:

    Supplementary Materials (PDF, 315 KB)

  • Pharmaceuticals EISSN 1424-8247 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
