Open AccessArticle
Sensors 2009, 9(4), 2746-2759; doi:10.3390/s90402746

Orientation Effects in Ballistic High-Strained P-type Si Nanowire FETs

Key Laboratory of MEMS of Ministry of Education, Southeast University, 2 Sipailou, Nanjing, Jiangsu, People’s Republic of China
College of Electronic & Information Engineering, Nanjing University of Information Science & Technology, 219 Ning-Lu Road, Nanjing, Jiangsu, People’s Republic of China
Authors to whom correspondence should be addressed.
Received: 22 March 2009 / Revised: 15 April 2009 / Accepted: 16 April 2009 / Published: 17 April 2009
View Full-Text   |   Download PDF [671 KB, uploaded 21 June 2014]   |

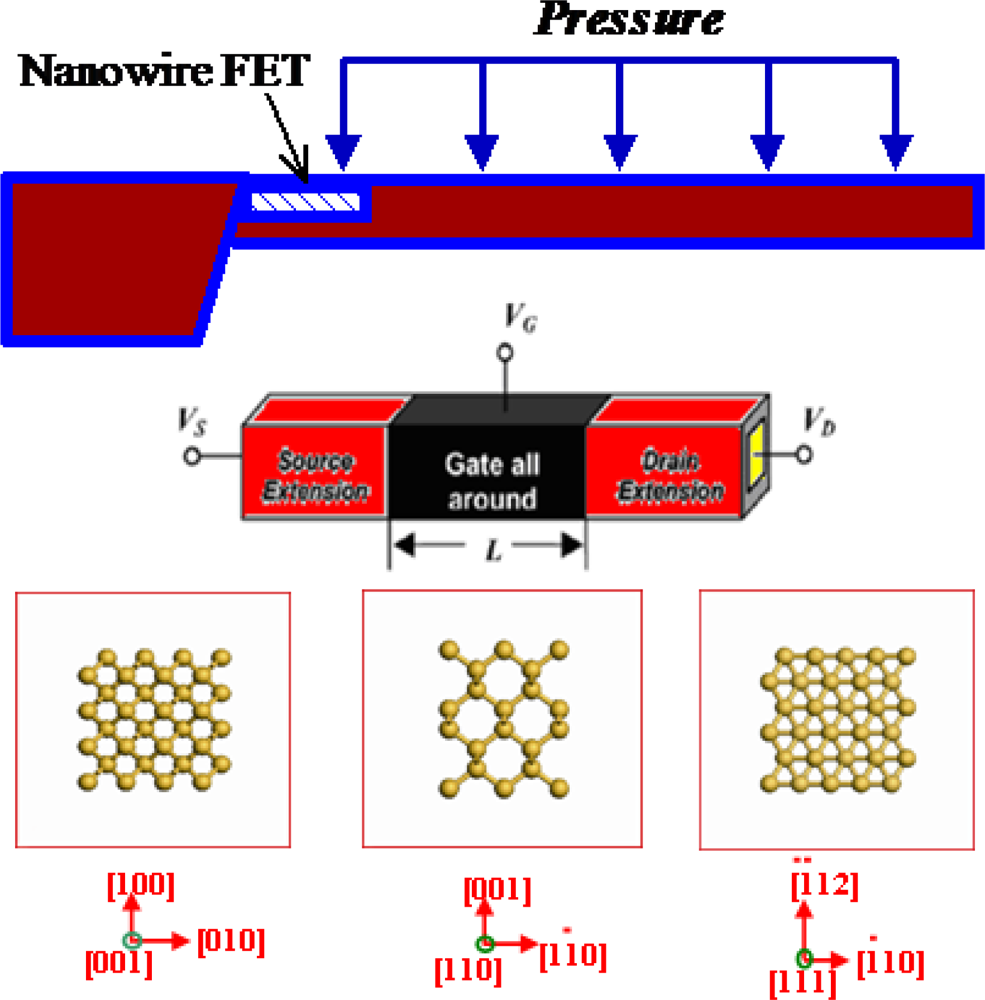

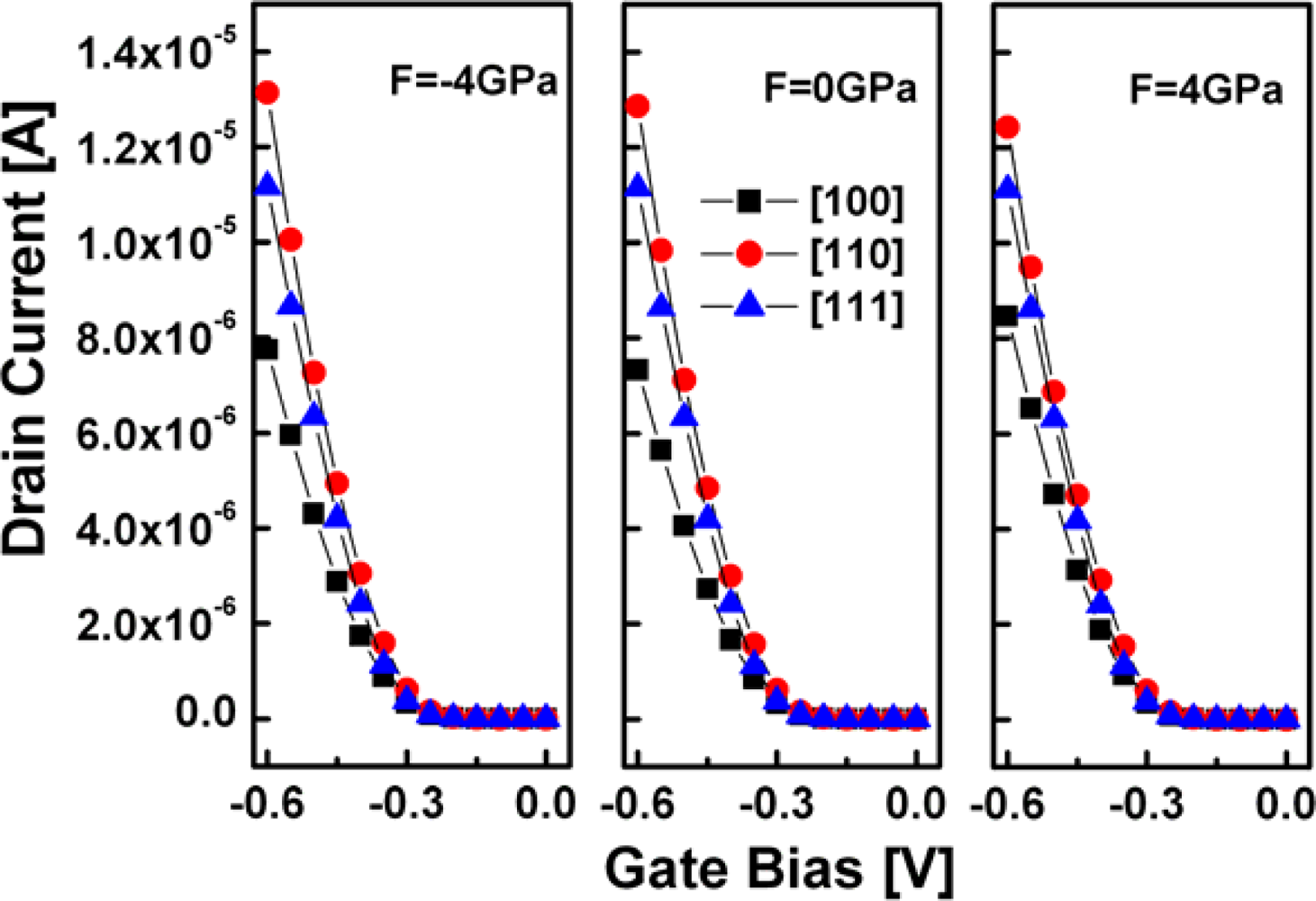

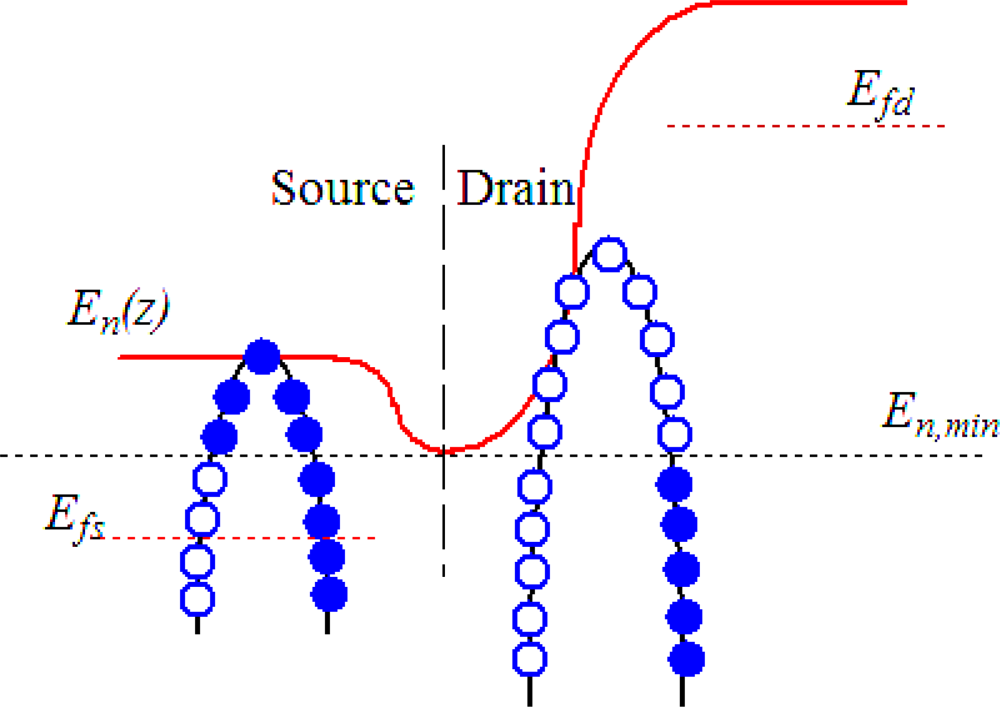

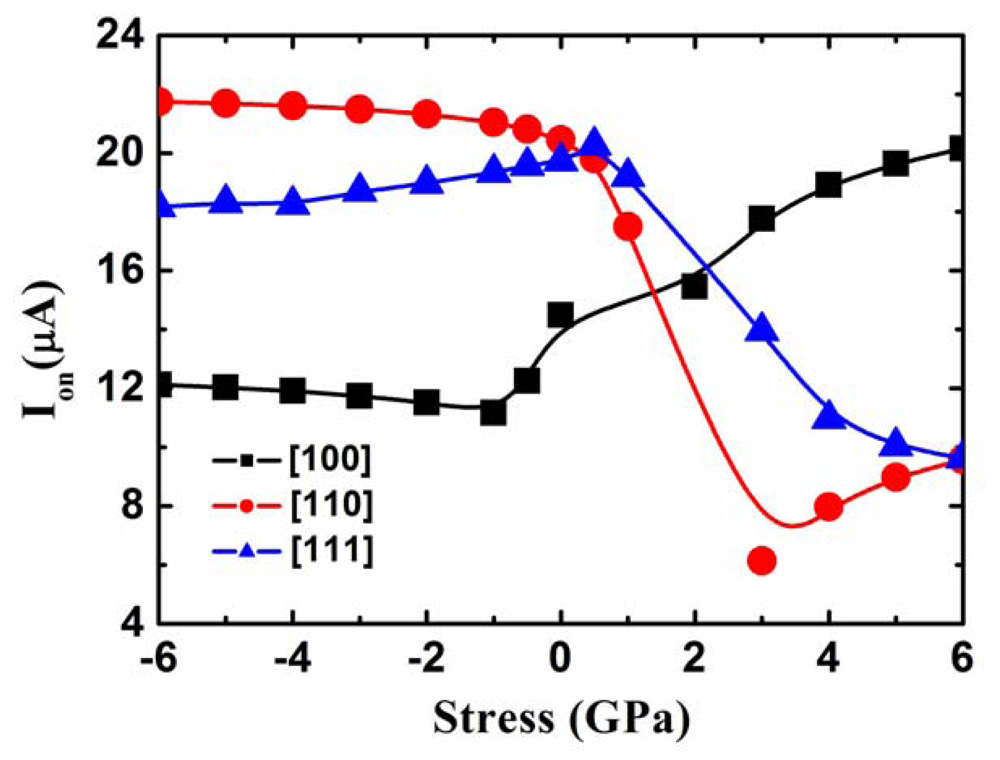

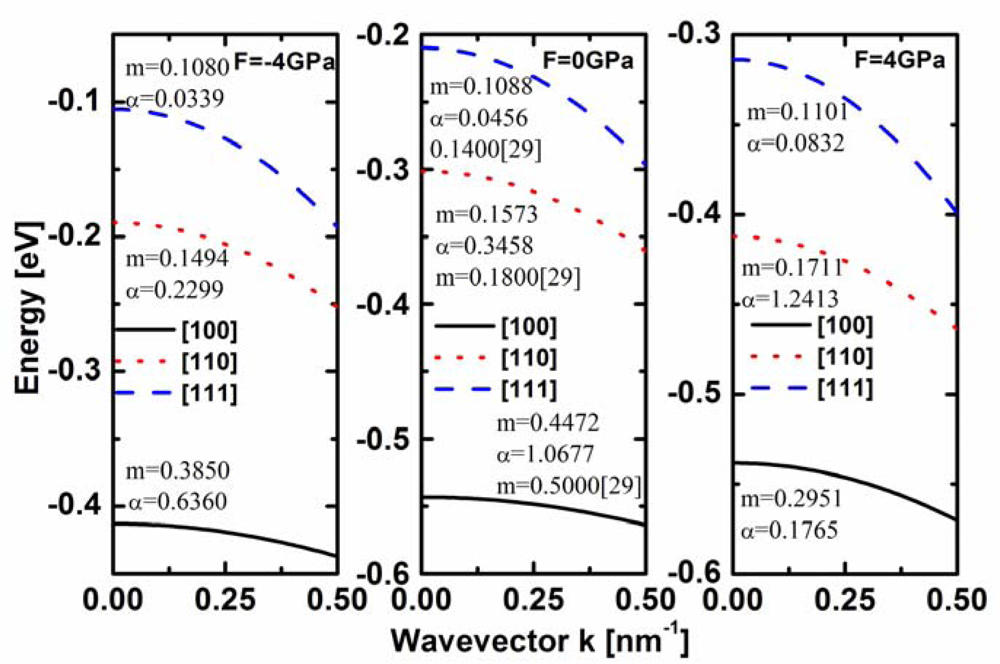

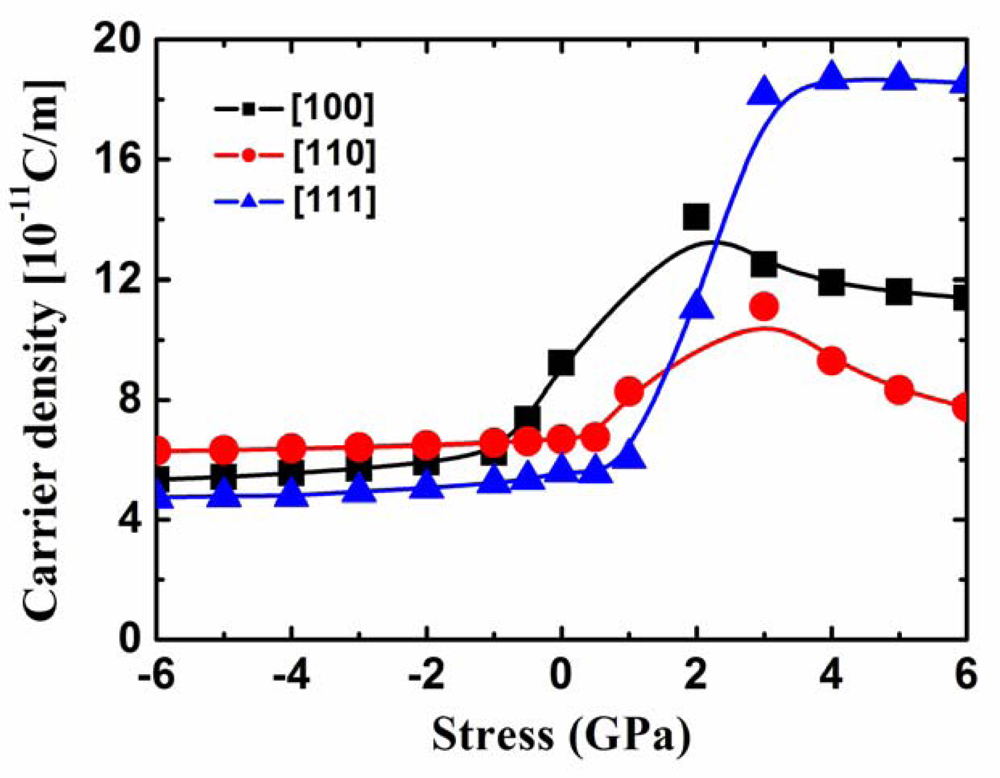

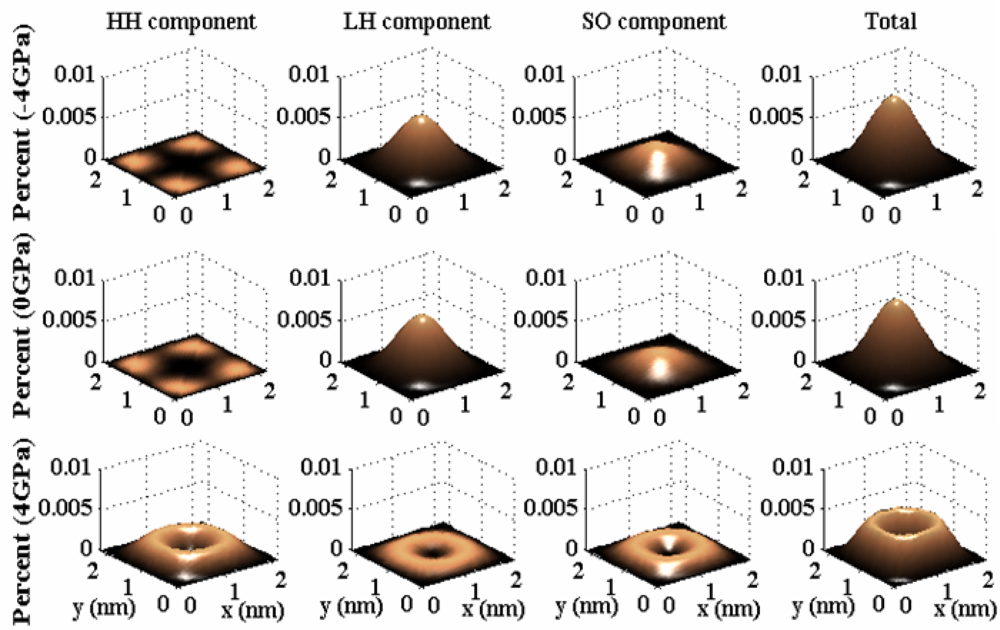

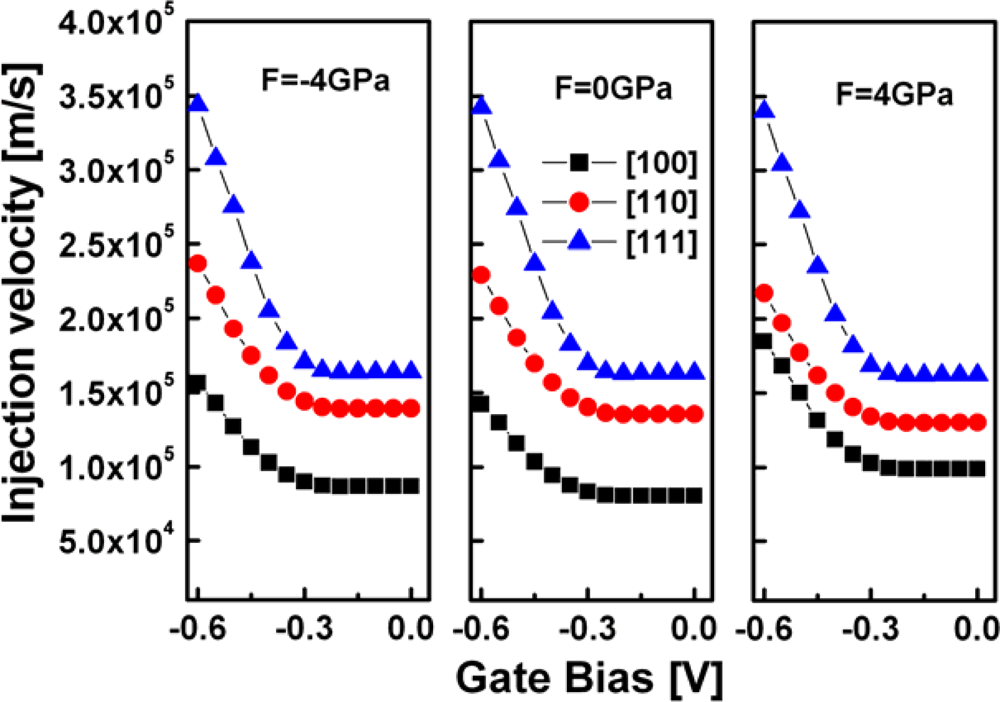

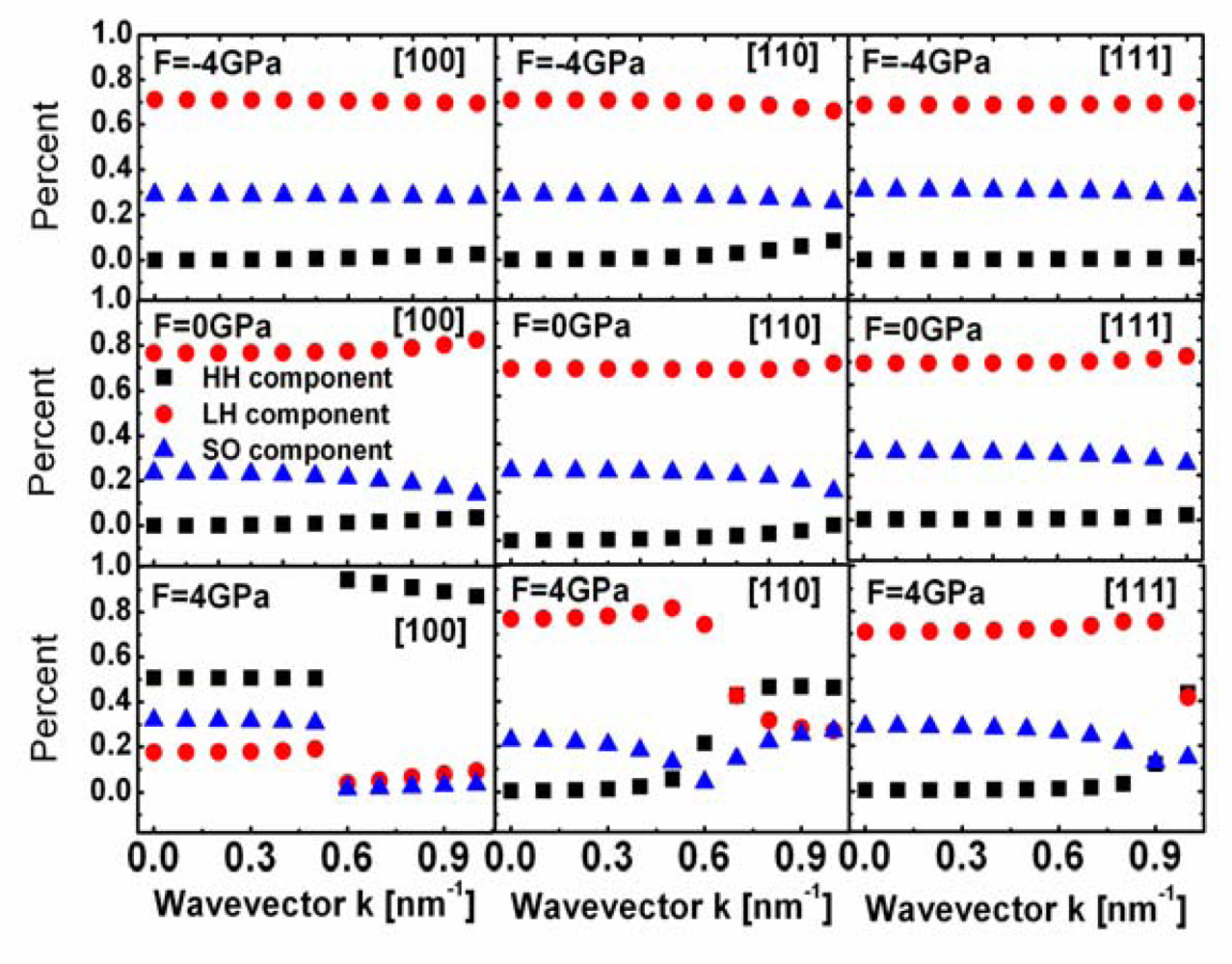

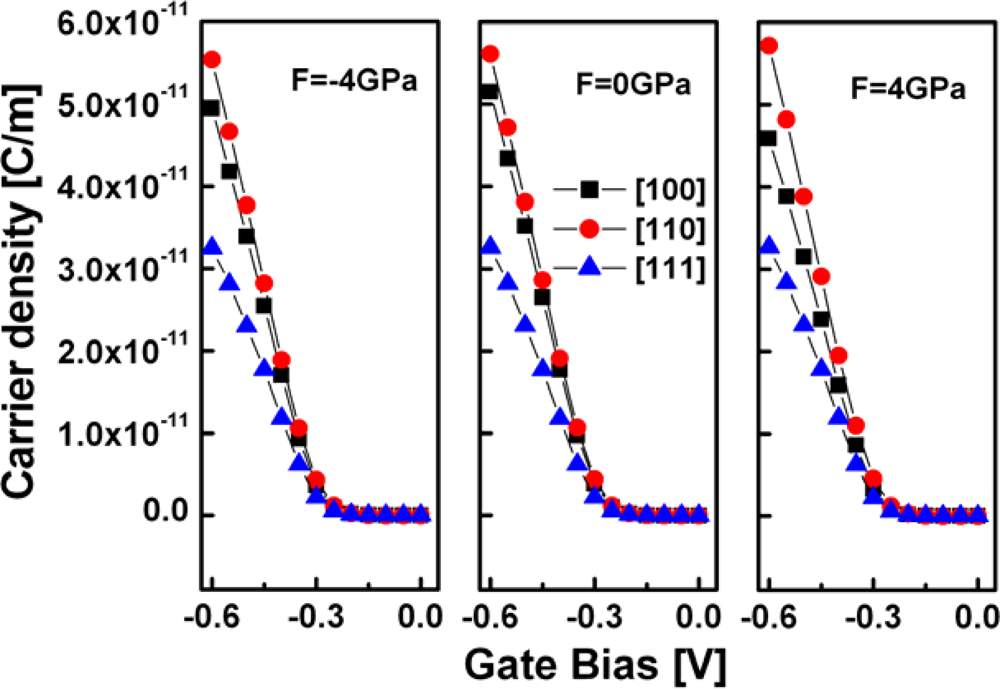

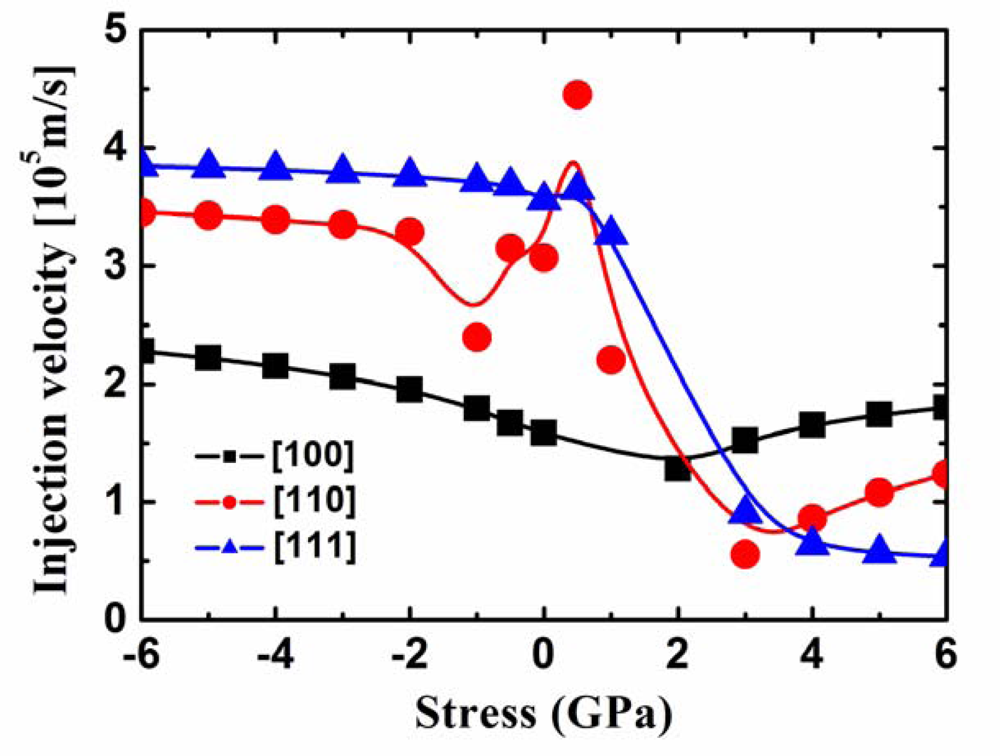

In order to design and optimize high-sensitivity silicon nanowire-field-effect transistor (SiNW FET) pressure sensors, this paper investigates the effects of channel orientations and the uniaxial stress on the ballistic hole transport properties of a strongly quantized SiNW FET placed near the high stress regions of the pressure sensors. A discrete stress-dependent six-band k.p method is used for subband structure calculation, coupled to a two-dimensional Poisson solver for electrostatics. A semi-classical ballistic FET model is then used to evaluate the ballistic current-voltage characteristics of SiNW FETs with and without strain. Our results presented here indicate that [110] is the optimum orientation for the p-type SiNW FETs and sensors. For the ultra-scaled 2.2 nm square SiNW, due to the limit of strong quantum confinement, the effect of the uniaxial stress on the magnitude of ballistic drive current is too small to be considered, except for the [100] orientation. However, for larger 5 nm square SiNW transistors with various transport orientations, the uniaxial tensile stress obviously alters the ballistic performance, while the uniaxial compressive stress slightly changes the ballistic hole current. Furthermore, the competition of injection velocity and carrier density related to the effective hole masses is found to play a critical role in determining the performance of the nanotransistors.
Keywords: NW FET pressure sensor; orientation; uniaxial stress; ballistic hole transport NW FET pressure sensor; orientation; uniaxial stress; ballistic hole transport
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
