Sensors 2008, 8(5), 3134-3149; doi:10.3390/s8053134

Article
The Landcover Impact on the Aspect/Slope Accuracy Dependence of the SRTM-1 Elevation Data for the Humboldt Range
George C. Miliaresis
Geology Department, University of Patras, Rion 26504, Greece; E-mail: gmiliar@upatras.gr; Tel: +30-6977-047123
Received: 18 February 2008 / Accepted: 8 May 2008 / Published: 15 May 2008

Abstract

: The U.S. National Landcover Dataset (NLCD) and the U.S National Elevation Dataset (NED) (bare earth elevations) were used in an attempt to assess to what extent the directional and slope dependency of the Shuttle Radar Topography Mission (SRTM) finished digital elevation model is affected by landcover. Four landcover classes: forest, shrubs, grass and snow cover, were included in the study area (Humboldt Range in NW portion of Nevada, USA). Statistics, rose diagrams, and frequency distributions of the elevation differences (NED-SRTM) per landcover class per geographic direction were used. The decomposition of elevation differences on the basis of aspect and slope terrain classes identifies a) over-estimation of elevation by the SRTM instrument along E, NE and N directions (negative elevation difference that decreases linearly with slope) while b) underestimation is evident towards W, SW and S directions (positive elevation difference increasing with slope). The aspect/slope/landcover elevation differences modelling overcome the systematic errors evident in the SRTM dataset and revealed vegetation height information and the snow penetration capability of the SRTM instrument. The linear regression lines per landcover class might provide means of correcting the systematic error (aspect/slope dependency) evident in SRTM dataset.
Keywords:
Terrain analysis; accuracy assessment; digital elevation model; SAR

1. Introduction

The Shuttle Radar Topography Mission (SRTM) had successfully collected Interferometric Synthetic Aperture Radar (IFSAR) data covering over 80 percent of the landmass of the Earth by February 2000 [1]. The outcome of this effort was a digital elevation model (DEM). Several additional editing steps were applied to the SRTM DEMs [2]. The editing, also referred to as finishing, consisted of delineating and flattening water bodies, better defining coastlines, removing “spikes” and “wells”, and filling small voids. This “finished” set is publicly available at two postings: 1 arc-second for the United States and 3 arc-seconds for regions between 60 degrees N and 56 degrees S latitude. The finished SRTM data has replaced the research-grade data [3]. Research-grade SRTM data is still available from NASA's Jet Propulsion Laboratory [4].

Accuracy is computed by a comparison of DEM elevations with corresponding known elevations [5]. Test points should be well distributed, representative of the terrain, and have true elevations with accuracies well within the DEM accuracy criteria [6], [7]. Previous research efforts indicated that accuracy for a SAR derived DEM could be terrain dependent. For DEMs generated from RADARSAT, the vertical accuracy was almost linearly correlated with the terrain slope while there was no specific trend with azimuth [8]. The decomposition of SRTM 1 arc second research-grade DEM error to aspect and slope terrain classes [9] identified a) over-estimation of elevation by the SRTM instrument along certain geographic directions (negative error that decreases linearly with slope) while b) underestimation is evident towards the opposite geographic directions (positive error increasing with slope).

The SRTM radar signal measurement result in a reflective surface elevation which depends on terrain cover and is a complicated function of the electromagnetic and structural properties of the scattering medium [10]. In snow, the penetration depth of the radar signal depends on wetness, temperature, and porosity [11]. Vegetation presents an even more complex scattering environment. It has been estimated that C-band only penetrates a quarter or a third of the canopy height [12].

It is still under question if the elevation difference: bare ground elevation minus SRTM elevation data, could give an indication of the height of vegetation/buildings/snow cover. The new findings [9] that indicate the directional dependency of SRTM elevation accuracy make this task even more doubtful. The aim of the current research effort is to use landcover data [13] and the U.S National Elevation Dataset (NED) that gives bare earth elevations [14] in order to assess to what extent the directional and slope dependency [9] of the SRTM-1 finished DEM is affected by landcover.

2. Methodology

First the study area and the DEM data, the derivative products (slope and aspect) used as well as the landcover data are presented. The data was downloaded from the US Geological Survey data distribution system [2]. Then, the statistical analysis of the elevation difference image (NED minus SRTM) per selected landcover classes is performed. Statistics are computed for aspect and slope classes in an attempt to model the impact of direction and slope [9]. The statistical distributions were modeled on the basis of mean, standard deviation and the coefficient of skew [15].

Skewness characterizes the degree of asymmetry of a distribution around its mean [16]. The coefficient of skew is a unit-less number (Equation 1).

Skew = n ( n 1 ) * ( n 2 ) * 1 n [ X i μ s ] 3
where n=number of points, μ= mean, s=standard deviation and Xi= the elevation difference of the ith test point.

Positive skewness indicates a distribution with an asymmetric tail extending toward more positive values. Negative skewness indicates a distribution with an asymmetric tail extending toward more negative values. According to an empirical rule [6], when the absolute value of the skew exceeds a value such as 0.5, then the error distribution is sufficiently asymmetrical to cause concern that the dataset may not represent a normal distribution.

2.1. Study area

The study area corresponds to a NW portion of the state of Nevada (U.S.A.) that includes the Humboldt Range, with latitude in the range 40.31458° to 40.68847° (N) and longitude in the range -118.30319° to -118.00930° (W). The Humboldt Range is formed by gently sloping mountain sides while the dichotomic drainage pattern indicates that the range is surrounded by coalescent alluvial fans [9].

2.2 Bare earth DEM, slope and aspect

NED was used as the reference DEM. NED is a digital terrain model depicting bare earth (ground) elevation in geographic co-ordinates (horizontal datum of NAD83, vertical datum of NAVD88) with spacing 1 arc second, with accuracy specification of root mean square error (RMSE) equal to 7 m [12]. The NED DEM of the study area (Figure 1a) consists of 1,346 rows and 1,058 columns. Slope (Figure 1b) and aspect, the slope pointing direction (Figure 1c) were computed on the basis of NED DEM [9]. The method that derives the topographical variables from DEMs given in geographical co-ordinates was used [17].

2.3 SRTM finished DEM

SRTM finished DEM of the study area (Figure 2a) is available [3] in geographic co-ordinates (horizontal datum of WGS84, vertical datum of EGM96) with 1 arc second spacing. The absolute horizontal and vertical accuracies are equal to 20 meters (circular error at 90% confidence) and 16 meter (linear error at 90% confidence) respectively [7]. The SRTM DEM presents an intrinsic random noise level of five m [18] that was visualized in Figure 2.

The vertical accuracy is actually significantly better than the 16 meters and it is closer to +/- 10 meters [7]. The elevations are provided with respect to the reflective surface (first return), which may be vegetation, human-made features, etc.

2.4 Orthometric to geodetic height recalculation

The ellipsoids (horizontal datums) GRS 80 for NAD 83 (for NED) compared to WGS 84 (for SRTM) are for all practical purposes at scales smaller than 1:5,000 identical [19], [20].

In order to conduct a realistic and consistent comparison amongst the available height data sets (vertical datum of NAVD88 for NED versus the vertical datum of EGM96 for SRTM), it was imperative that all heights refer to the same vertical datum. It was decided to perform the data comparisons in terms of ellipsoidal heights with respect to WGS84 that is consistent with the geocentric reference system employed by GPS. The difference between GPS ellipsoid height (WGS84), h, and levelled orthometric height, H, is called geoid height, N (N= h-H).

Orthometric heights (NAVD88) of NED DEM were converted (recalculation of elevation values) to WGS84 ellipsoid heights [21]. The geoid height within the study area varies from -22 to -21 m (Figure 2).

The SRTM DEM grid values are provided to users in terms of orthometric heights with respect to EGM96 [22]. Ellipsoidal heights with reference to the WGS84 ellipsoid [23] were desirable. The geoidal undulations were interpolated from the EGM96 height file [24]. The geoid heights within the study area vary from -22 to -20.9 m.

The elevation difference (NED-SRTM) per grid point was computed (Figure 3b). The visual interpretation indicated that the difference image was correlated to the aspect image (Figures 1c). An error pattern composed from dark and white regions was revealed in Figure 3b. Landsat image (Figure 4a) indicated a surface mine and a new void mask (Figure 3c) was computed.

2.5 Landcover

The National Landcover Dataset (NLCD) 2001 is a Landsat based landcover database containing 21 classes of land-cover data [13]. The snow cover was interpreted from the Landsat image (Figure 3a) downloaded from the US Geological Survey data distribution system [2]. The landcover map of the study area (Figure 4b) includes eight classes (Table 1). A snow mask was applied on the landcover map of the study area (Figure 5a).

Aspect is undefined when slope is minimised [8] so a mask was created (Figure 5b) for a slope threshold equal to 2°. The slope mask was applied to the landcover map. The final landcover map that includes a snow class is given in Figure 5c. The snow cover class consists of grid points that were initially classified as forest (4.4%), shrubs (87.3%), or grass (8.2%). The occurrence (percent area extent) in the final landcover map of forest, shrubs, grass and snow cover is 5.3%, 56.9%, 23.2%, 13% respectively (the 98.5% of the non-masked grid points).

2.6 Directional dependency of elevation differences

Statistics and rose diagrams per landcover class per aspect direction were used in an attempt to reveal the directional dependency of elevation differences (Figure 6).

Forest and snow presented an almost similar pattern of directional dependency. SRTM instrument seems to over-estimate elevation towards the N, NE, E directions and under-estimates it towards the W, SW, S. An analogous pattern was observed for shrub and grass but the relative elevation differences were less than those observed for forest and snow (Table 2). Table 2 indicated that the magnitude of the overall mean elevation difference per landcover class was a function of mean vegetation height as it was interpreted from Table 1. That is why elevation differences were minimized for grass (Table 2).

RMSE is maximised for NE-SE direction for snow (Figure 7, Table 2). Forest, shrubs and grass presented an almost similar directional pattern (RMSE was maximised toward the North direction). RMSE magnitude (Table 2) seemed to be landcover dependent and interpreted to be associated to mean vegetation height estimated from Table 1. RMSE was minimised for the grass class.

The elevation difference frequency distributions per aspect direction for forest and snow (Figures 8, 9) as well as the statistical data of Table 2, indicate that the absolute value of the skew is less than 0.5 and normal distribution criterion is fulfilled [5].

On the contrary, for grass and shrub landcover classes (Figures 10, 11) and for the majority of geographic directions, the absolute value of the skew exceeds 0.5 (Table 2), and so the distributions are sufficiently asymmetrical to cause concern that the dataset may not represent a normal distribution [5]. The interpretation given is that although these landcover classes were dominated by shrubs or grass, trees or man-made elevated features of greater height exist (Table 1).

The interpretation of frequency distributions (Figures 8, 9 and 10) per landcover class (the grass landcover class was excluded since the directional dependency of elevation differences was minimised) revealed that elevation difference for grid points that slopes in opposite geographic directions (Table 2) was maximized, an exception being the NW-SE direction.

A two-sample means test (Equation 2) is applied [14], the null hypotheses being that for NE and SW directions of the forest class, the mean elevation difference is statistically the same.

t = X Y S x 2 n x 1 + S y 2 n y 1
where X and Y correspond to the means of the two populations compared, Sx and Sy, the corresponding standard deviations, nx and ny the sample size.

The mean elevation difference was proved statistically significant since the observed t-statistics equal to 61.349 that was far greater than the tabled critical value (2.326) of t (one-tailed test, for infinite degrees of freedom at the 0.01 level). So the null hypothesis was rejected.

2.7 Slope dependency of elevation differences

Mean slope per geographic direction per landcover class is presented in Table 3, expressed as well as rose-diagrams (Figure 12).

The relationship between one-degree slope intervals (x) and the corresponding mean elevation difference (y) is further explored by assuming the linear regression model (Figure 13, Tables 4). Y′ corresponds to the estimated value, (y′=a*x+b).

Elevation differences are linearly correlated to the terrain slope (the steeper the slope, the greater the |error|) for the eight principal geographic directions. The eight lines that correspond to the eight geographic directions per landcover class were interpreted to intersect Y-axis at a common point that corresponds (y-coordinate) to the mean vegetation height (derived from Table 1).

For snow landcover class this point approach zero (C-band was proved to penetrate snow). The lines for the forest class were interpreted to be quite noisy (due to the complex interaction of tree canopy to the radar signal) than the corresponding lines of the shrub class (Figure 13).

3. Discussion

The SRTM radar signal measurement results in a reflective surface elevation which depends on terrain cover. The degree of penetration depends on vegetation gap structure, canopy structure (multiple or single canopy), leaf-on versus leaf-off, wetness, ground reflectivity, and tree type [10]. The penetration depth of the radar signal depends on wetness, temperature, and porosity of snow cover [11]. These properties certainly are not constant and depend on many factors (surface, elevation, month, climatic zone, etc.). The landcover classes (Table 1) consisted of a mixture of landcover types with a specific type to prevail. Additionally the NLCD 2001 landcover database was assumed to coincide to the landcover evident during the time of SRTM data acquisition. NED DEM accounts for bare earth elevation. Both data sources are not perfect and error is evident. According to RMSE values, NED DEM is of greatest accuracy (RMSE<7 m) than SRTM DEM (RMSE<10 m) and thus it can be used for SRTM evaluation purposes [4].

The interpretation of frequency distributions (Figures 8, 9, 10 and 11) per landcover class revealed that elevation differences for grid points that slope in opposite geographic directions were maximized, an exception being the NW-SE direction (Table 2).

Figure 12, proved that in the particular physiographic region under study, the slope was maximized along the N to S geographic direction. Snow, forest and shrub presented similar directional pattern of mean slope that differed only in slope magnitude. Grass is developed over a terrain class where slope is minimized. The visual comparison of the slope direction pattern (Figure 12) to the directional patterns of mean elevation difference (Figure 6) and RMSE (Figure 7) proved that they differ.

The decomposition of elevation differences on the basis of aspect and slope terrain classes (Figure 13, Tables 4) identified: a) an over-estimation of elevation by the SRTM instrument along E, NE and N directions (negative elevation difference that decreases linearly with slope) and b) an under-estimation was evident towards W, SW and S directions (positive elevation difference increasing with slope). The elevation differences were minimised and appeared to be independent of slope magnitude along the NW and SE directions.

Elevation underestimation is a key issue, and the factors associated with it are still unexplored [8] although it is definitely geographic direction dependent as it was also proved for both the 1 and the 3 arc seconds SRTM dataset [9, 16]. Mis-registration on SRTM and reference DEM might lead to correlation between elevation differences and aspect [26], but such an assumption would be valid if tested with DEMs that were not derived from SAR imagery.

The study of three different landcover types (forest, shrub and grass with expected mean vegetation height greater than 5 m, less than 5 m and less than 0.5 m, respectively) indicated that elevation differences were mean vegetation height dependent (Figure 13). On the contrary, the SRTM (C band) signal was interpreted (Figure 13) to penetrate snow cover [10].

4. Conclusions

The decomposition of elevation differences on the basis of aspect and slope terrain classes identifies a) over-estimation of elevation by the SRTM instrument along E, NE and N directions (negative elevation difference that decreases linearly with slope) while b) under-estimation is evident towards W, SW and S directions (positive elevation difference increasing with slope). The aspect/slope/landcover elevation differences modelling overcome the systematic errors evident in the SRTM dataset and revealed vegetation height information and the snow penetration capability of the SRTM instrument. The linear regression lines per landcover class might provide means of correcting the systematic error (aspect/slope dependency) evident in SRTM dataset.

The author is grateful for, and this paper was greatly benefited from, the thorough and evaluations of the anonymous reviewers. The author thanks the Prof. Daniele Riccio, guest editor of the SAR special issue, for the kind invitation to participate.

References

  1. Farr, T.G.; Kobrick, M. Shuttle Radar Topography Mission Produces a Wealth of Data. Amer. Geophys. Union EOS 2000, 81, 583–585. [Google Scholar]
  2. Slater, J.A.; Garvey, G.; Johnston, C.; Haase, J.; Heady, B.; Kroenung, G.; Little, J. The SRTM Data “Finishing” Process and Products. Photogramm. Eng. Remote Sens. 2006, 72, 237–247. [Google Scholar]
  3. USGS Seamless Data Distribution System. 2007. http://seamless.usgs.gov/.
  4. SRTM research-grade data. NASA 's Jet Propulsion Laboratory, 2007. http://www2.jpl.nasa.gov/srtm/.
  5. Maune, D.; Maitra, J.; McKay, E. Digital Elevation Model Technologies and Applications, the DEM Users Manual; Maune, D., Ed.; American Society for Photogrammetry and Remote Sensing: Bethesda, 2001; Chapter 3. pp. 61–82. [Google Scholar]
  6. Daniel, C.; Tennant, K. Digital Elevation Model Technologies and Applications, the DEM Users Manual; Maune, D., Ed.; American Society for Photogrammetry and Remote Sensing: Bethesda, 2001; Chapter 12. pp. 395–440. [Google Scholar]
  7. Finished SRTM data. 2007. http://seamless.usgs.gov/website/seamless/faq/srtm_faq.asp.
  8. Toutin, T. Impact of Terrain Slope and Aspect on Radargrammetric DEM Accuracy. ISPRS J. Photogramm. Remote Sens. 2002, 57, 228–240. [Google Scholar]
  9. Miliaresis, G. An Upland Object Based Modeling of the Vertical Accuracy of the SRTM-1 Elevation Dataset. J. Spatial Sci. 2007, 52, 13–29. [Google Scholar]
  10. Bhang, K.J.; Schwartz, F.; Braun, A. Verification of the Vertical Error in C-Band SRTM DEM Using ICESat and Landsat-7, Otter Tail County, MN. IEEE Trans on Geosci. Remote Sens. 2007, 45, 36–44. [Google Scholar]
  11. Braun, A.; Fotopoulos, G. Assessment of SRTM, ICESat, and survey control monument elevations in Canada. Photogramm. Eng. Remote Sens. 2007, 73, 1333–1342. [Google Scholar]
  12. Carabajal, C.C.; Harding, D.J. ICESat validation of SRTM C-band digital elevation models. Geophys. Res. Lett. 2005, 32, L22S01. [Google Scholar] [CrossRef]
  13. Homer, C.; Huang, C.; Yang, L.; Wylie, B.; Coan, M. Development of a 2001 National Land-cover Database for the United States. Photogramm. Eng. Remote Sens. 2004, 70, 829–840. [Google Scholar]
  14. Osborn, K.; List, J.; Gesch, D.; Crowe, J.; Merril, G.; Constance, E.; Mauck, J.; Lund, C.; Caruso, V.; Kosovich, J. Digital Elevation Model Technologies and Applications, the DEM Users Manual; Maune, D., Ed.; American Society for Photogrammetry and Remote Sensing: Bethesda, 2001; Chapter 4. pp. 83–120. [Google Scholar]
  15. Sircombe, K. AGEDispaly: an EXCEL Workbook to Evaluate and Display Univariate Geochronological Data Using Binned Frequency Histograms and Probability Density Distributions. Comput. Geosci. 2004, 30, 21–31. [Google Scholar]
  16. Clark, W.; Hosking, P. Statistical Methods for Geographers.; John Wiley & Sons: New York, 1986. [Google Scholar]
  17. Florinsky, I. Derivation of Topographic Variables from a Digital Elevation Models Given by a Spheroidal Trapezoidal Grid. Int. J. Geogr. Info. Sci. 1998, 12, 829–852. [Google Scholar]
  18. Rodriguez, E.; Morris, C.S.; Belz, J.E. A Global Assessment of the SRTM Performance. Photogramm. Eng. Remote Sens. 2006, 72, 249–261. [Google Scholar]
  19. Stem, J.E. Use of the NAD/WGS 84 Datum Tag on Mapping Products. National Geodetic Survey, NOAA: Silver Spring, MD, 1995; 72. no. 157. Federal register notice. URL: http://www.ngs.noaa.gov/PUBS_LIB/FedRegister/FRdoc95-19408.pdf. [Google Scholar]
  20. Schwarz, C.R. Relation of NAD 83 to WGS 84. Silver Spring, MD: National Geodetic Survey, NOAA, 1989; article 22. p. 249. Professional Paper NOS 2, URL: http://www.mentorsoftwareinc.com/resource/Nad83.htm#Page 249. [Google Scholar]
  21. Milbert, D.G.; Smith, D.A. Converting GPS Height into NAVD88 Elevation with the GEOID96 Geoid Height Model. Silver Spring, MD: National Geodetic Survey, NOAA, 1997. http://geodesy.noaa.gov/PUBS_LIB/gislis96.html. [Google Scholar]
  22. Lemoine, F.G.; Kenyon, J.K.; Factor, R.G.; Trimmer, N.K.; Pavlis, D.S.; Chinn, C.M.; Cox, S.M.; Klosko, S.B.; Luthcke, M.H.; Torrence, Y.M.; Wang, R.G.; Williamson, E.C.; Pavlis, R.H.; Rapp, T.R.; Olson, P. The Development of the Joint NASA GSFC and the NIMA Geopotential Model EGM96, NASA TP/-1998-206861; NASA Goddard Space Flight Center: Greenbelt, MD, 1999. [Google Scholar]
  23. Snay, R.A.; Soler, T. Modern terrestrial reference systems, part 3: WGS 84 and ITRS. Prof. Surv. 2000. [Google Scholar]
  24. NGA. WGS 84 EGM96 15-Minute Geoid Height File and Coefficient File. National Geospatial Agency, Office of GEOINT Sciences, 2007. http://earth-info.nga.mil/GandG/wgs84/gravitymod/egm96/. [Google Scholar]
  25. Miliaresis, G.; Paraschou, Ch. Vertical Accuracy of the SRTM DTED Level 1 of Crete. Int. J. Appl. Earth Observ. GeoInfo. 2005, 7, 49–59. [Google Scholar]
  26. Van Niel, T.G.; McVicar, T.R.; Li, L.T.; Gallant, J.C.; Yang, Q.K. The impact of misregistration on SRTM and DEM image differences. Remote Sens. Environ. 2008. [Google Scholar] [CrossRef]
Sensors 08 03134f1 1024
Figure 1. (a) Elevation is in the range 1,237 to 2,993 m, the brightest pixels have highest elevation. (b) Slope is in the range [0 to 39°], the brightest pixels present the lowest slope. (c) Aspect is quantified to the directions defined in a raster image (E, NE, N, NW, W, SW, S, SE) while the zero label was used for flat terrain (if slope is less than 1°, aspect was considered to be undefined).

Click here to enlarge figure

Figure 1. (a) Elevation is in the range 1,237 to 2,993 m, the brightest pixels have highest elevation. (b) Slope is in the range [0 to 39°], the brightest pixels present the lowest slope. (c) Aspect is quantified to the directions defined in a raster image (E, NE, N, NW, W, SW, S, SE) while the zero label was used for flat terrain (if slope is less than 1°, aspect was considered to be undefined).
Sensors 08 03134f1 1024
Sensors 08 03134f2 1024
Figure 2. Visualization of NED and SRTM DEMs of the study area indicated the existence of random noice in SRTM elevation dataset. The geoid height in the study area (orthometric heights with respect to NAVD88 and geodetic height with respect to WGS84).

Click here to enlarge figure

Figure 2. Visualization of NED and SRTM DEMs of the study area indicated the existence of random noice in SRTM elevation dataset. The geoid height in the study area (orthometric heights with respect to NAVD88 and geodetic height with respect to WGS84).
Sensors 08 03134f2 1024
Sensors 08 03134f3 1024
Figure 3. (a) SRTM-1 finished DEM. The elevation is in the range 1,235.12 to 2,989 m, the brightest pixels have highest elevation. Voids are labeled black. (b)The elevation differences (NED – SRTM) are in the range -146.3 to 128.2 m. Notice the error pattern within the circle. (c) Black points correspond either to voids or to DEM points with elevation difference not in the range [-50, 50].

Click here to enlarge figure

Figure 3. (a) SRTM-1 finished DEM. The elevation is in the range 1,235.12 to 2,989 m, the brightest pixels have highest elevation. Voids are labeled black. (b)The elevation differences (NED – SRTM) are in the range -146.3 to 128.2 m. Notice the error pattern within the circle. (c) Black points correspond either to voids or to DEM points with elevation difference not in the range [-50, 50].
Sensors 08 03134f3 1024
Sensors 08 03134f4 1024
Figure 4. (a) The Landsat image with bands 4 (near-infrared), 3 (red), and 2 (green), displayed as red, green, and blue, respectively.A surface mine is enclosed within the circle. (b) The landcover map.

Click here to enlarge figure

Figure 4. (a) The Landsat image with bands 4 (near-infrared), 3 (red), and 2 (green), displayed as red, green, and blue, respectively.A surface mine is enclosed within the circle. (b) The landcover map.
Sensors 08 03134f4 1024
Sensors 08 03134f5 1024
Figure 5. (a) A snow mask applied to the landcover map. (b) Dark points present slope greater than 2° (slope mask). (C) Landcover map that includes a snow class and the slope mask.

Click here to enlarge figure

Figure 5. (a) A snow mask applied to the landcover map. (b) Dark points present slope greater than 2° (slope mask). (C) Landcover map that includes a snow class and the slope mask.
Sensors 08 03134f5 1024
Sensors 08 03134f6 1024

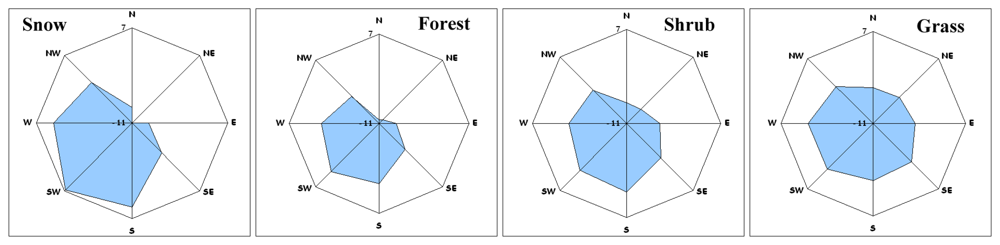

Figure 6. The mean elevation difference value per aspect direction per landcover class. The mean elevation difference corresponded to the radius of each rose-diagram was within the range [-11, 7] m.

Click here to enlarge figure

Figure 6. The mean elevation difference value per aspect direction per landcover class. The mean elevation difference corresponded to the radius of each rose-diagram was within the range [-11, 7] m.
Sensors 08 03134f6 1024
Sensors 08 03134f7 1024

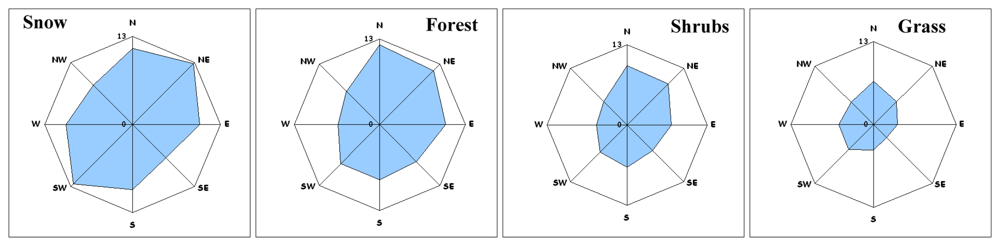

Figure 7. The RMSE per aspect direction per landcover class. The RMSE corresponded to the radius of each rose-diagram was within the range [0, 13] m.

Click here to enlarge figure

Figure 7. The RMSE per aspect direction per landcover class. The RMSE corresponded to the radius of each rose-diagram was within the range [0, 13] m.
Sensors 08 03134f7 1024
Sensors 08 03134f8 1024

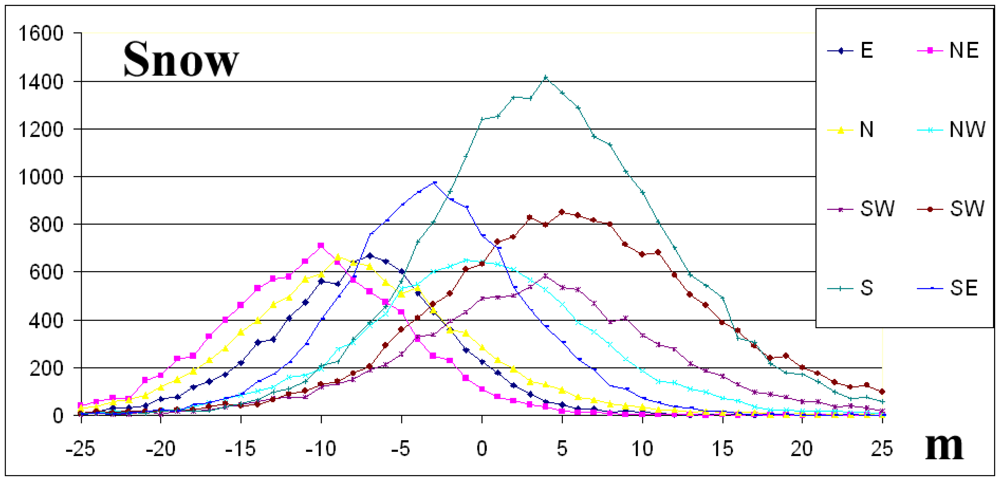

Figure 8. The frequency distributions per geographic direction for snow. The y-axis represents number of grid points per 1 m elevation difference.

Click here to enlarge figure

Figure 8. The frequency distributions per geographic direction for snow. The y-axis represents number of grid points per 1 m elevation difference.
Sensors 08 03134f8 1024
Sensors 08 03134f9 1024

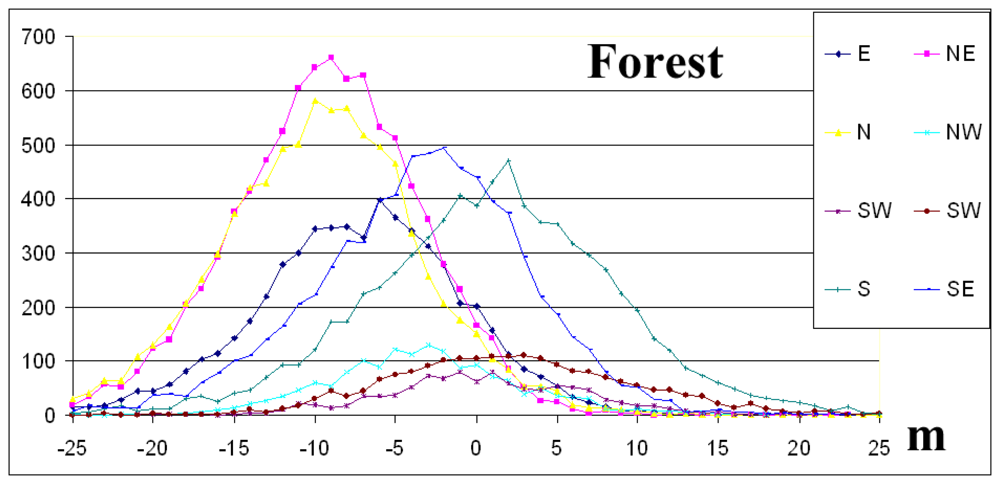

Figure 9. The frequency distributions per geographic direction for forest. The y-axis represents number of grid points per 1 m elevation difference.

Click here to enlarge figure

Figure 9. The frequency distributions per geographic direction for forest. The y-axis represents number of grid points per 1 m elevation difference.
Sensors 08 03134f9 1024
Sensors 08 03134f10 1024

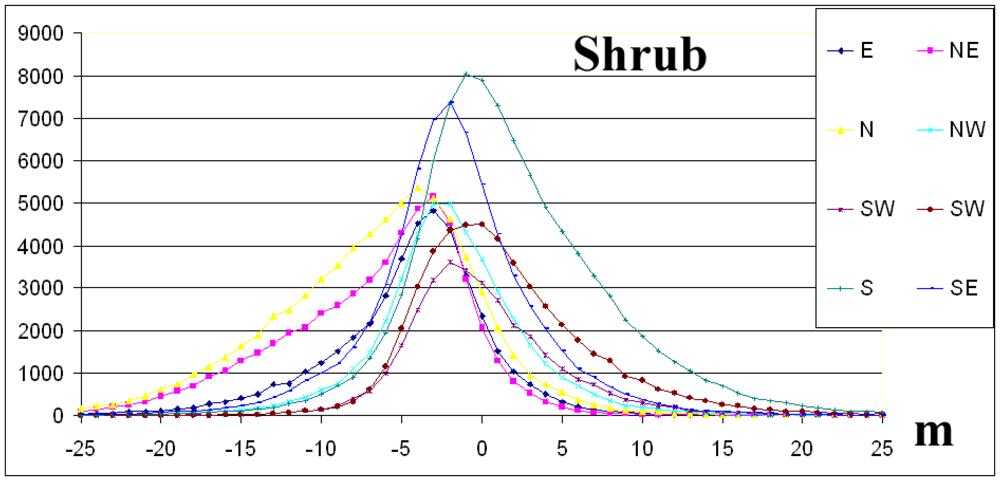

Figure 10. The frequency distributions per geographic direction for shrub. The y-axis represents number of grid points per 1 m elevation difference.

Click here to enlarge figure

Figure 10. The frequency distributions per geographic direction for shrub. The y-axis represents number of grid points per 1 m elevation difference.
Sensors 08 03134f10 1024
Sensors 08 03134f11 1024

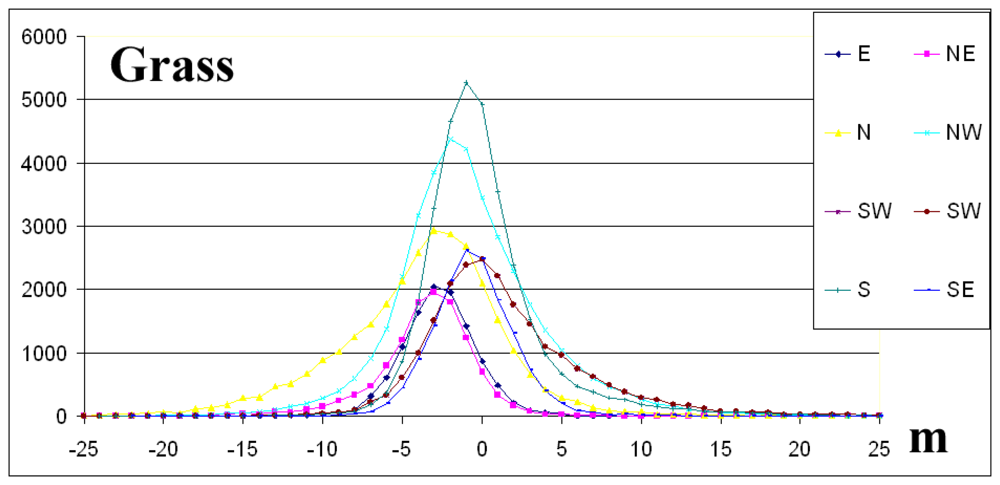

Figure 11. The frequency distributions per geographic direction for grass. The y-axis represents number of grid points per 1 m elevation difference.

Click here to enlarge figure

Figure 11. The frequency distributions per geographic direction for grass. The y-axis represents number of grid points per 1 m elevation difference.
Sensors 08 03134f11 1024
Sensors 08 03134f12 1024

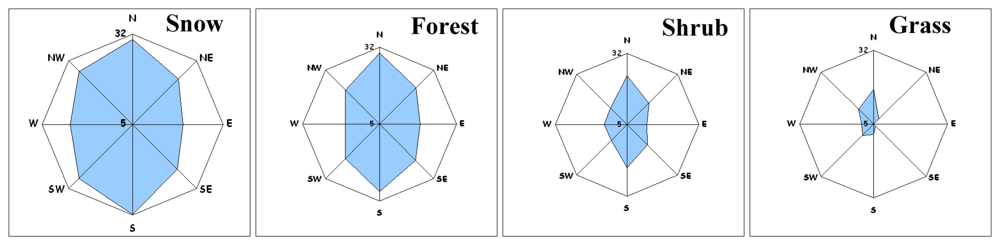

Figure 12. The mean slope per aspect direction per landcover class. The slope corresponded to the radius of each rose-diagram is within the range [4.7°, 32°].

Click here to enlarge figure

Figure 12. The mean slope per aspect direction per landcover class. The slope corresponded to the radius of each rose-diagram is within the range [4.7°, 32°].
Sensors 08 03134f12 1024
Sensors 08 03134f13 1024

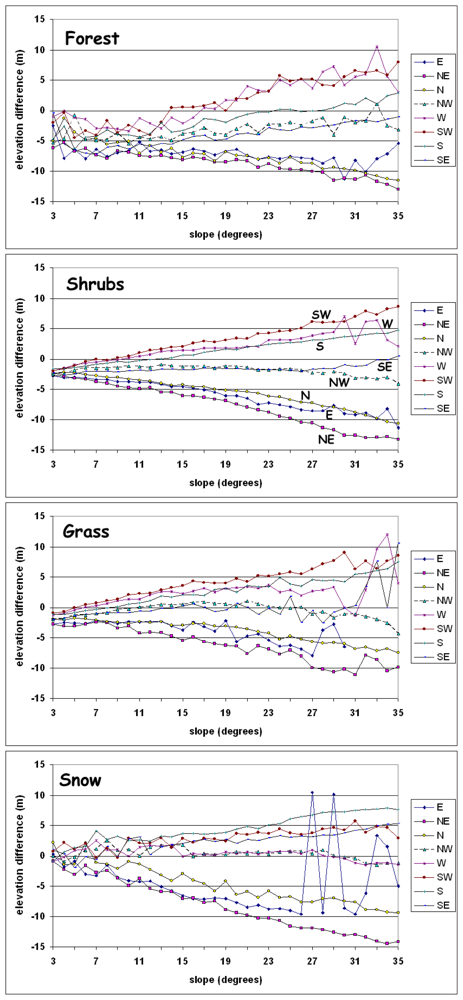

Figure 13. Mean elevation difference (y) per 1° slope classes per landcover class.

Click here to enlarge figure

Figure 13. Mean elevation difference (y) per 1° slope classes per landcover class.
Sensors 08 03134f13 1024
Table Table 1. The included classes of the landcover map (Figure 3b).

Click here to display table

Table 1. The included classes of the landcover map (Figure 3b).
IDClassDescription
1WaterAll areas of open water, generally with less than 25% cover or vegetation or soil
2DevelopedIncludes areas with a mixture of constructed materials and vegetation. These areas most commonly include single-family housing units.
3BarrenBarren areas of bedrock. Vegetation accounts for less than 15% of total cover.
4ForestAreas dominated by trees generally greater than 5 meters tall, and greater than 20% of total vegetation cover.
5ShrubAreas dominated by shrubs; less than 5 meters tall with shrub canopy, typically greater than 20% of total vegetation.
6GrassAreas dominated by grammanoid vegetation, generally greater than 80% of total vegetation.
7CultivatedCrop vegetation accounts for greater than 20 percent of total vegetation. Forest or shrub land vegetation or perennial herbaceous vegetation
8Wetlandsaccounts for greater than 20 percent of vegetative cover and the soil or substrate is periodically saturated or covered with water.
Table Table 2. For a certain landcover class, the number of points, the mean, the standard deviation, the coefficient of skew and RMSE of the elevation differences are presented per aspect direction.

Click here to display table

Table 2. For a certain landcover class, the number of points, the mean, the standard deviation, the coefficient of skew and RMSE of the elevation differences are presented per aspect direction.
ClassAttributeAspect direction
ENENNWWSWSSEAll
ForestPoints57269,13084241611104620067518738242843
Mean-7.2-9.4-9.7-3.20.42.30.9-3.5-5.3
St.dev.6.45.96.46.06.17.87.96.88.0
Skew-0.2-0.30.00.20.00.4-0.2-0.40.2
RMSE9.611.111.76.86.18.18.07.79.6

GrassPoints1109911842294633813922258222583313015121168189
Mean-2.7-3.6-3.8-0.81.51.50.1-0.5-0.9
St.dev.2.53.35.34.75.15.13.82.75.0
Skew0.0-0.9-0.20.50.90.80.90.80.6
RMSE3.64.96.54.85.35.33.82.85.1

ShrubPoints4232755901712534478433061500569397467236458592
Mean-4.5-6.7-6.7-1.9-0.11.41.9-1.8-2.2
St.dev.5.26.06.54.84.85.76.35.36.7
Skew-0.4-0.6-0.30.10.60.90.70.20.0
RMSE6.99.19.35.24.85.96.55.67.0

SnowPoints85559381104191123610250176322490712836105216
Mean-7.5-10.5-7.7-0.33.56.34.5-3.1-0.3
St.dev.5.96.37.57.98.810.08.16.09.9
Skew0.10.40.40.10.00.20.30.10.3
RMSE9.512.310.87.99.511.99.26.79.9
Table Table 3. Mean and st.dev. of slope per geographic direction per landcover class.

Click here to display table

Table 3. Mean and st.dev. of slope per geographic direction per landcover class.
ClassAttributeSlope in degrees
ENENNWWSWSSEAll
ForestMean18.822.829.621.616.821.628.222.524.2
St.dev.6.17.28.27.98.39.19.47.48.8

GrassMean4.77.417.412.39.010.28.45.510.4
St.dev.3.47.111.49.27.48.68.24.49.3

ShrubMean12.016.223.113.713.313.120.815.416.9
St.dev.8.110.215.59.916.59.512.410.511.8

SnowMean19.723.830.127.123.327.231.423.426.7
St.dev.5.16.68.57.56.77.17.46.48.0
Table Table 4. Linear regression (y=ax+b) and the correlation coefficient (R) per landcover classes.

Click here to display table

Table 4. Linear regression (y=ax+b) and the correlation coefficient (R) per landcover classes.
AttributesENENNWWSWSSE
Forestb-4.03-5.19-3.12-4.59-4.19-5.49-6.02-6.94
a-0.20-0.19-0.230.060.300.370.240.16
a in degrees-11.5-10.7-12.83.516.620.213.58.9
R0.550.960.960.420.600.940.960.81

Grassb-1.31-0.87-0.500.440.56-0.70-1.94-2.50
a-0.15-0.29-0.18-0.060.080.250.240.14
a in degrees-8.6-16.2-10.3-3.54.314.113.77.8
R0.730.950.960.460.280.960.990.55

Shrubsb-2.34-1.03-0.66-0.86-1.20-2.68-2.38-2.83
a-0.18-0.35-0.26-0.060.150.320.200.07
a in degrees-10.3-19.4-14.5-3.38.717.511.43.8
R0.820.990.990.710.710.991.000.82

SnowB-4.06-0.230.981.281.711.090.21-0.54
a-0.02-0.42-0.29-0.05-0.080.090.220.15
a in degrees-1.1-22.9-16.4-3.1-4.55.012.78.8
R0.040.990.950.510.700.610.970.91
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
