Sensors 2007, 7(7), 1091-1107;

Full Research Paper
Comparative Study of Protein Immobilization Properties on Calixarene Monolayers
Hongxia Chen 1, Minsu Lee 2, Sungwook Choi 3, Jae-Ho Kim 3, Heung-Jin Choi 4, Sung-Hoon Kim 4, Jeabeom Lee 5 and Kwangnak Koh 5,*
1
College of Pharmacy, Pusan National University, Pusan 609-735, Korea; E-mail: chenhongxia@pusan.ac.kr
2
Seed Biochips, Chung-Buk, 363-883, Korea; E-mail: antilee@naver.com
3
Department of Molecular Science and Technology, Ajou University, Suwon 442-749, Korea; E-mail: jhkim@ajou.ac.kr
4
Department of Textile System Engineering, Kyungpook National University, Taegu 702-701, Korea; E-mail: choihj@knu.ac.kr; shokim@knu.ac.kr
5
Department of Nanomedical Engineering, Pusan National University, Pusan 609-735, Korea; E-mail: jeabeom@pusan.ac.kr
*
Author to whom correspondence should be addressed. E-mail: koh@pusan.ac.kr
Received: 19 June 2007 / Accepted: 28 June 2007 / Published: 29 June 2007

Abstract

: Three calix[4]arene (Cal-4) derivatives of which contain ethylester (1), carboxylic acid (2), and crownether (3) at the lower rim with a common reactive thiol at the upper rim were synthesized and constructed to self-assembled monolayers (SAMs) on Au films. After spectroscopic characterization of monolayers, the interaction between Cal-4 and surface confined bovine serum albumin (BSA) in the SAMs was analyzed by surface plasmon resonance (SPR). The estimated surface concentration of BSA on the Cal-4 SAM with crownether group was the highest among the three Cal-4 derivatives. Anti-hIgG and hIgG pair was employed for the investigation of protein-protein interaction. Molecular interaction between anti-hIgG and hIgG can be detected in a concentration range of 10 pg/mL to 200 pg/mL on the Cal-4 derivative 3 SAM modified SPR chip.
Keywords:
Calix[4]arene; Self-assembled monolayer; Linker system; anti-hIgG; Biosensor

1. Introduction

Protein adsorption onto the surface of a foreign material is the initial event for the diverse application such as advanced biosensors, biochips, bioreactors and many diagnostic techniques. For this reason, it is very important to construct well–characterized linker system that can immobilize protein efficiently [1]. It is well known that calix[4]arene (Cal-4) has been used in the design and synthesis of artificial receptors for cations, anions and neutral organic molecules [2-7]. In particular, the lower or upper rim of the Cal-4 molecule can be modified to achieve more sophisticated structures to bind specific guest molecules [8-10]. Therefore, Cal-4 derivatives can be used as an artificial linker system for protein immobilization. For the construction of well–characterized linker layer, self-assembled monolayer (SAM) technique can be applied to the organization of artificial linker molecules on the solid substrates surface. This SAM technique guarantees each molecule to exhibit its original function on the surface [11]. SPR technique is a essential analysis instrument to characterized the immobilization of artificial linker molecules and the interaction of protein-protein on the molecular linker system. Currently, surface plasmon resonance (SPR) based protein-protein interaction on Au substrate has been extensively studied and widely applied to develop protein chips [12-14].

Our research purpose is a SPR based fundamental study of protein immobilization properties on artificial linker system in order to increase the amount of immobilized receptor proteins. For this purpose, three different Cal-4 derivatives containing ethylester (1), carboxylic acid (2), and crownether (3) at the lower rim were synthesized and applied to linker layer for protein immobilization system. Self-assembly technique was utilized to construct a well–characterized linker layer and then, Cal-4 monolayer formation process was investigated with SPR spectroscopy. The characterization of Cal-4 derivative SAMs was monitored by FT-infrared reflection absorption spectroscopy (FTIR-RAS), atomic force microscopy (AFM) image, and electrochemical analysis. Immobilization of bovine serum albumin (BSA) as a standard protein on the Cal-4 linker system was measured. The comparison of surface concentration of BSA on the Cal-4 linker system monolayers were calculated by simulation of experimental SPR data [15]. In addition, the protein-protein interaction was observed using anti-hIgG and hIgG to evaluate application potential of the artificial linker systems to protein chip.

2. Experimental

2.1. Chemicals and Reagents

Protein A, anti-hIgG, hIgG, BSA and phosphate-buffered saline (PBS) were obtained from Sigma Chemical Co. (St. Louis, MO, USA). All other reagents including LiOH, chloroform, methanol, and Acetone were purchased from Aldrich Chemical Co. (Milwaukee, WI, USA). Cal-4 derivative 1 (ethylester) and 2 (carboxylic acid) were synthesized. Cal-4 derivative 3 (crownether) was obtained from Proteogen Co. (ProLinker™, Seoul, Korea). A Milli-Q grade (>18.2 mΩ ·cm) water was used for the preparation of buffer solutions.

2.2. Synthesis and Characterization of Cal-4 Derivative 1 and 2

Cal-4 derivative 1 was synthesized according to the modified literature procedure [16]. A mixture of tetrakis(chloromethyl)Cal-4 (216 mg, 0.22 mmol) and thiourea (200 mg, 2.6 mmol) was dissolved in DMF (15 mL). The mixture was stirred at room temperature overnight under N2. The solvent was removed by vacuum distillation at 100 °C. The residue was dissolved in 20 mL of 1M-aquoues Na2CO3. The product was extracted with CH2Cl2 (20 mL × 3). The combined organic layer was dried over MgSO4, filtered, and concentrated to dryness to give glassy solid (200 mg, 94 %). The product was characterized by 1H and 13C NMR (400 MHz and 100 MHz, CD3OD, Bruker Co., USA) [17]. Cal-4 derivative 2 (carboxylic acid) was converted from Cal-4 derivative 1 (ethylester) by treatment of 0.1 M LiOH for 3 h (Figure 1).

2.3. Formation and Characterization of Cal-4 Derivative SAMs

A microscope cover glass (Matsunami, Japan) with Au layer was used as a substrate for the formation of Cal-4 derivative SAMs. Au film (about 50 nm thickness) was deposited on the cover glass by the sputter coating system (E5000, Polaron Co., U.K.) under conditions of 2.0 × 10-2 mbar and 20 mA for 180 s. The Au chips were cleaned in piranha solution (30% H2O2 : concentrated H2SO4 = 1:3, v/v) for 15 s and carefully rinsed with DW, methanol and acetone, sequentially. The Au chips were then dried in a N2 stream.

Cal-4 derivative 1 was prepared to 0.1 mM in chloroform:methanol = 1:9 (v/v) solution mixture for the formation of its SAM on Au surface. The 1 SAM was formed by immersing the Au chips into Cal-4 derivative 1 solution for 6 h. The immobilization process was monitored by SPR spectroscopy. After the immobilization process, the sensor chip was rinsed with the same chloroform-methanol solution mixture and methanol and then dried under N2 stream.

Cal-4 derivative 2 SAM was converted from Cal-4 derivative 1 SAM through the hydrolysis of ethylene group by treatment of LiOH for 3 h (Figure 1). Cal-4 derivative 3 was prepared to 1 mM in chloroform:methanol = 1:3 (v/v) mixture for the formation of SAM on Au surface.

After rinsing with the same solvent of SAM formation process and drying under N2 gas stream, SAMs of Cal-4 derivatives were characterized by FTIR-RAS, AFM and cyclic voltammetry (CV).

The FTIR-RAS spectra were measured with a resolution of 2 cm-1. The glazing angle was maintained at 80° and a p-polarized IR beam was used as the light source. AFM images were collected by the contact mode. The silicon nitride cantilevers had a nominal spring constant of about 0.067 N/m. The scanning parameters were adjusted to provide clear images, revealing the affects of SAM on the deposited gold surface. For electrochemical measurements, Au, Pt, and Ag/AgCl were used as the working, counter, and reference electrodes, respectively. The electrochemical reductive desorption of the Cal-4 derivatives from the electrode was performed in 0.5 M KOH solution by scanning from 0 to -1.2 V at a scan rate of 50 mV/s. To calculate the real area of the electrode, CV measurements for the Au electrode were carried out in 0.5 M H2SO4 with a scan rate of 200 mV/s.

2.4. SPR Spectroscopic Measurement

SPR spectroscopic measurements for the monolayer formation of Cal-4 derivatives and BSA immobilization were performed by homemade SPR system based on the traditional Kretschmann configuration [18]. In addition, proteinchip application using Cal-4 derivative SAMs as a molecular linker system was measured by commercial SPR (K-MAC Co., SpectraBio 2000, Taejon, Korea). A schematic diagram of the homemade SPR system and a sensor chip configuration is shown in Figure 2.

Laser diode (LD, λmax = 675 nm) was used as the light source. Reflected intensity of light by a way of the polarizer and the prism was measured with the photodiode detector (ANDO Electric Co. Ltd., AQ-1976, Kanagawa, Japan). The incident angle into the prism varied with the motorized rotary stage and its controller (Suruga Seiki, D80, Shizuoka, Japan). During the SPR measurements, the temperature was kept at 25 ± 0.1°C by temperature controlling system with Peltier-module. The signal from photodiode was converted through a signal process board (K-MAC Co., Spectra View 2000, Taejon, Korea) and could be interfaced with a computer. The angle resolution of the SPR system that was determined by the resolution of motorized rotary stage was 0.004 degree.

2.5. BSA Immobilization and Theoretical Calculation

Observation of protein immobilization and theoretical calculation of immobilized proteins amount on the self-assembled artificial linker layers were performed using BSA as a standard protein. The concentration of BSA was 0.5 μM in PBS buffer (pH 7.4). The immobilization process of BSA was measured by SPR. The surface concentration of immobilized BSA was calculated according to a previously reported method [15]. The optical parameters that required to calculating the surface concentration of immobilized BSA were determined by simulation with experimental SPR data. The surface concentration of immobilized BSA on the surface was calculated by the following equation:

Γ = 3 d ( n 2 n b 2 ) / [ ( n 2 + 2 ) ( r ( n b 2 + 2 ) v ( n b 2 1 ) ) ]
Where, Γ and d are surface concentration of the adsorbed molecules and the thickness of the adsorbed layer, respectively. nb and n are the refractive index of the buffer solution and of the adsorbed layer, respectively. r and v are the specific refractivity of BSA (0.243 ml/g) and the partial specific volume of BSA deposited on the linker layer (0.729 ml/g).

2.6. Application to Biochip

To evaluate the application potential of Cal-4 derivatives as a molecular linker system to proteinchip, the measurement of molecular interaction between anti-hIgG and hIgG, was investigated by SPR. Anti-hIgG can be well oriented onto the self-assembled protein A layer, since it's well known that protein A binds to the Fc region of IgG [19-21]. A schematic diagram of a sensor chip configuration is shown in Figure 3. Proteins including protein A, anti-hIgG, and BSA were immobilized on the gold surface with Cal-4 derivative SAMs respectively. The concentration of protein A was 500 μg/mL in PBS solution (pH 7.4). The anti-hIgG solution for the immobilization of probe protein was prepared with 150 μg/mL concentration in PBS solution (pH 7.4). For blocking the nonspecific binding of hIgG onto the site of Cal-4 derivatives SAMs without anti-hIgG, the chip was treated in 30 mg/mL BSA in PBS solution (pH 7.4).

SPR angle shifts induced by the interaction between anti-hIgG and hIgG were measured by commercial SPR (K-MAC Co., SpectraBio 2000, Taejon, Korea). The measured concentration of hIgG solution ranged from 5.0 pg/mL to 10 μg/mL in PBS solution (pH 7.4). The results were averaged after measurement and uniformly smoothed by adjacent averaging.

3. Results and Discussion

3.1. Formation and Characterization of Cal-4 Derivative SAMs

In the immobilization process of Cal-4 derivative 1 on Au surface, as the number of immobilized molecule increased, SPR angle shifts were gradually increased and saturated at inner 10 h. After that, the Cal-4 derivative 1 SAM (ethylester) was consecutively converted to Cal-4 derivative 2 SAM (carboxylic acid) by treatment of LiOH solution for 3h (Figure 4(a)). On the other hand, the immobilization process of Cal-4 derivative 3 on Au surface was measured by SPR. SPR angle shifts caused by immobilization of Cal-4 derivative 3 were gradually increased and saturated at inner 8 h (Figure 4(b)).

The formation of each Cal-4 derivative SAM was characterized by FTIR-RAS, AFM, and CV. Figure 5 and Table 1 show the FTIR-RAS spectra and assignment of three Cal-4 derivative SAMs on Au surface. In the FTIR-RAS spectra, we confirmed the typical absorption spectra of Cal-4 derivative SAMs on Au surface. In particular, the formation of Cal-4 derivative 2 SAM with carboxylic acid group from Cal-4 derivative 1 SAM was verified by appearance of ν(OH) stretching at 3546 cm-1 and absence of δ(CH3) stretching at 1377 cm-1 due to the elimination of ethylester group. In addition, after removing ethylester group of Cal-4 derivative 1 SAM, the peak intensity of νs(CH2) and νa(CH2) stretching mode was decreased in the FTIR-RAS spectra of Cal-4 derivative 2 SAM. FTIR-RAS spectra of Cal-4 derivative 3 SAM on Au surface showed ν(sp2C-O) stretching at 1203 cm-1 due to crownether group of Cal-4 derivative SAM.

The AFM images showed the surface geometry of bare Au and Cal-4 derivative-modified Au surface (Figure 6). In comparison with bare Au surface, the Cal-4 derivative-modified Au surface showed a marked difference. The images of Au surface with Cal-4 derivative 1 and 2 SAMs composed of a much larger grain size than that of bare Au surface. While, in case of Cal-4 derivative 3 SAM, the images of Au surface with Cal-4 derivative 3 SAM showed a little smaller grain size than that of bare Au surface.

In the RMS value that present the roughness degree of one of the most general and most useful roughness parameters, the RMS roughness of the bare Au surface was 20.1 Å, while those of Cal-4 derivative SAMs were 35.1 (Cal-4 derivative 1 SAM), 39.1 (Cal-4 derivative 2 SAM), and 18.1 Å (Cal-4 derivative 3 SAM), respectively (Table 2). These changes in RMS roughness of Cal-4 derivative-modified Au surface strongly support the formation of SAM. In particular, the Au surface with Cal-4 derivative 3 SAM showed a little smaller RMS roughness value than that of bare Au surface. This may be explained by the decrease of RMS roughness value due to the densely packed arrangement of Cal-4 derivative 3 SAM. In addition, this result was supported by regular and small grain size in AFM image (Figure 6(d)).

In some previous studies, the formation mechanism of alkanethiol monolayers on Au substrates has been proposed [22-24]. Though the Cal-4 derivatives have different number of –SH group in the upper rim of Cal-4, the formation of three Cal-4 derivative SAMs on Au substrates can be explained by the same mechanism. The properties of the electrode with Cal-4 derivative SAMs can be estimated by submitting the electrode to reductive desorption experiments. Figure 7 shows the reductive desorption peaks of Cal-4 derivative SAMs on the Au electrode. This peak has been attributed to the reductive desorption of thiolated compounds that are chemisorbed to Au.

After assuming that all thiolated compounds are reduced/oxidized in the CV experiments, the surface coverage can be determined from the reductive desorption data [23-25]. Accounting for the surface roughness of the Au electrode, the surface coverage (Γ) of the Cal-4 derivative SAMs at the Au electrode were calculated from the integrated area under the reduction peak (Table 3). These calculated values effectively indicate the relative packing degree of each Cal-4 derivative SAM on the Au surface.

3.2. BSA Immobilization and Theoretical Calculation

In the study of protein immobilization process using BSA, as the adsorbed BSA molecule increased on Au surface, SPR angle shifts were gradually increased and saturated at inner 5 h (Figure 8). SPR angle shifts (Δθ) that caused by the immobilization of BSA in PBS solution were 0.06° (Cal-4 derivative 1 SAM), 0.10° (Cal-4 derivative 2 SAM), and 0.147° (Cal-4 derivative 3 SAM), respectively.

After immobilization of BSA, geometrical morphology and granule size of Au surface with BSA-modified Cal-4 derivative SAMs were changed remarkably (Figure 9). The images of Au surface with BSA-modified Cal-4 derivative 2 and 3 SAMs showed a much larger grain size than that of the other Au surface with BSA-modified Cal-4 derivative 1 SAM. In particular, the Au surface with BSA-modified Cal-4 derivative 3 SAM showed large and regular grain size. These results strongly support that on the Cal-4 derivative 3 SAM, the amount of adsorbed BSA is the largest and also the immobilization characteristic of BSA is excellent.

In the AFM image, the RMS roughness of each Cal-4 derivative SAMs was 22.7 Å (Cal-4 derivative 1 SAM), 55.7 Å (Cal-4 derivative 2 SAM), and 45.2 Å (Cal-4 derivative 3 SAM), respectively. In case of Cal-4 derivative 2 and 3 SAMs, their carboxylic acid group and crown moiety can interact with amine or ammonium groups of protein, strongly. Therefore, a large amount of BSA was immobilized on Cal-4 derivative 2 and 3 SAMs, accordingly their RMS roughness increased after BSA immobilization. In addition, in case of Cal-4 derivative 3 SAM, hydrophobic interactions between hydrophobic residue of protein and methoxy group of the linker molecules may also be involved in protein immobilization. On the contrary, Cal-4 derivative 1 SAM doesn't have any effective terminal group to interact with protein. Thus it was expected that the amount of immobilized BSA would be small. In AFM measurement results of BSA-immobilized Cal-4 derivative 1 SAM, the reason of relative small RMS roughness can be explained that only a small amount of BSA was immobilized on SAM and also they filled in a groove of SAM surface.

The optical parameters that required to calculating the surface concentration of immobilized BSA were determined by simulation with experimental SPR data. Figure 10 showed the experimental and calculated SPR curves of Cal-4 derivative SAMs according to the immobilization of BSA. The surface concentration of immobilized BSA on the Au surface with Cal-4 derivative SAMs can be calculated and compared each other [15].

Table 4 shows the surface concentration of BSA and thickness change on the Cal-4 derivative SAMs. The surface concentration of immobilized BSA on the Cal-4 derivative SAMs was 98 ng/cm2 (Cal-4 derivative 1 SAM), 163 ng/cm2 (Cal-4 derivative 2 SAM), and 184 ng/cm2 (Cal-4 derivative 3 SAM), respectively. Among the three Cal-4 derivative SAMs, Cal-4 derivative 3 SAM showed the most excellent characteristic as an artificial linker system for protein immobilization. Although Cal-4 derivative SAMs were formed on the commonly deposited Au surface not the Au (111) crystal, the surface concentration of immobilized BSA on the Cal-4 derivative 3 SAM is similar to that of well-ordered alkanethiol SAM on Au (111) surface [26]. These results indicate that Cal-4 derivative 3 SAM has practical advantage for protein immobilization.

3.3 Application to Biochip

To confirm the efficiency of protein immobilization on Au surface with Cal-4 linker system and of protein-protein interactions, SPR analysis using anti-hIgG and hIgG were carried out. The interaction between anti-hIgG and hIgG was represented by SPR angle shifts as a function of analyte protein concentration. For application to proteinchip, Cal-4 derivative 2 and 3 SAMs which showed good efficiency for immobilization of BSA were applied as an artificial linker system. Figure 11 shows the immobilization process of probe proteins such as protein A, anti-hIgG, BSA on the Cal-4 derivative 3 SAM. As the amount of immobilized probe protein increased, SPR angle shifts caused by binding of probe protein to the chip surface were gradually increased and saturated. The saturation time of each probe protein was 3 h (protein A and anti-hIgG) and 7 h (BSA), respectively.

Table 5 shows the SPR angle shifts according to the immobilization of each probe proteins on the Au surface with Cal-4 derivative 2 and 3 SAMs. In the immobilization process of protein A, SPR angle shifts in Cal-4 derivative 3 SAM was a little larger than that of Cal-4 derivative 2 SAM. On the other hand, in the BSA blocking and the immobilization process of anti-hIgG, SPR angle shifts in Cal-4 derivative 3 SAM was a little smaller than that of Cal-4 derivative 2 SAM. The sequential process for immobilization of probe proteins was successfully performed and estimated to have similar characteristics.

The molecular interaction between anti-hIgG and hIgG on the artificial linker system was measured by SPR. Figure 12 (a) shows the SPR angle shifts of the anti-hIgG immobilized sensor chip with Cal-4 derivative 3 SAM corresponding to various concentrations of hIgG in the PBS solution (pH = 7.4). As the hIgG concentration increased, the SPR angle shift was gradually increased. This SPR angle shift arose from the molecular interaction between anti-hIgG and hIgG on the recognition interface with Cal-4 derivative 3 SAM.

Figure 12 (b) shows the dose-response curves of anti-hIgG immobilized sensor chip represented by SPR angle shifts according to variation of hIgG concentration. On the sensor chip with Cal-4 derivative 3 SAM, molecular interaction between anti-hIgG and hIgG can detectable at the concentration range from 10 pg/mL to 200 pg/mL. While, in case of other one with Cal-4 derivative 2 SAM, detection range for the protein-protein interaction was from 100 pg/mL to 600 pg/mL. With regard to the detection limit of conventional methods for the protein-protein interaction, which stay at the ng level, these results are quite remarkable. These results indicate that on the sensor chip with Cal-4 derivative 3 SAM, probe protein was effectively immobilized and well organized for protein-protein interaction. In addition, these results strongly support that the protein chip with artificial linker system like as Cal-4 derivative SAMs is very useful and suitable method for the study of protein-protein interaction.

4. Conclusion

In this study, three Cal-4 derivatives of which contain ethylester, carboxylic acid, and crownether as a functional group to interact with protein at the lower rim and a common reactive thiol at the upper rim were synthesized and constructed to monolayer on Au surface. The structural integrity and orientation of the Cal-4 derivative SAMs on the Au surface was characterized carefully. Surface confined Cal-4 derivatives have potential applications in the development of molecular linker layer for immobilizing protein by selective affinity at the surface. The interaction between BSA and surface confined Cal-4 derivative SAMs was analyzed by SPR and the surface concentration of immobilized BSA was theoretically calculated by simulation of experimental SPR data. The estimated surface concentration of BSA was the highest on the Cal-4 derivative 3 SAM with crownether group among the three Cal-4 linker systems. These results from SPR measurements indicate that the functional groups at the lower rim of Cal-4 exert a critical effect on the selective affinity toward the immobilizing protein in the SAMs. In addition, the SPR analysis for protein-protein interaction using anti-hIgG and hIgG was performed. From the results of SPR analysis, we confirmed that the detection of protein-protein interaction at the very low concentration (pg/mL level) is possible through the application of Cal-4 linker system to biochip and SPR detection system. In conclusion, the main results of this research showed that the SPR technique and careful construction of appropriate SAM are very useful methods to the development of more efficient biosensing interface.

This work was supported for two years by Pusan National University Research Grant and partially by the Brain Korea 21 project in 2007.

References and Notes

  1. Vitalii, S.; Howard, W.; David, J. V. SPR Studies of the Nonspecific Adsorption Kinetics of Human IgG and BSA on Gold Surfaces Modified by Self-Assembled Monolayers (SAMs). J. Colloid Interface Sci. 1997, 185, 94–103. [Google Scholar]
  2. Ji, H. F.; Brown, G. M.; Dabestani, R. Calix[4]arene-based Cs+ selective optical sensor. Chem. Commun. 1999, 7, 609–610. [Google Scholar]
  3. Bohmer, V. Calixarenes, Macrocycles with (Almost) Unlimited Possibilities. Angew Chemie 1995, 107, 785–818. [Google Scholar]
  4. Koh, K.; Araki, K.; Shinkai, S.; Asfari, Z.; Vicens, J. Cation Binding Properties of a Novel 1,3-Alternate Calix[4]biscrown. Formation of 1:1 and 1:2 Complexes and Unique Cation Tunneling across a Calix[4]arene Cavity. Tetrahedron Letters 1995, 36, 6095–6098. [Google Scholar]
  5. Lo, H. S.; Yip, S. K.; Wong, K. M. C.; Zhu, N.; Yam, V. W. W. Selective Luminescence Chemosensing of Potassium Ions Based on a Novel Platinum (II) Alkynylcalix[4]crown-5 Complex. Organometallics 2006, 25, 3537–3540. [Google Scholar]
  6. Doutea-guevel, N.; Coleman, A. W.; Morel, J. P.; Morel-Desrosiers, N. Complexation of the basic amino acids lysine and arginine by three sulfonatocalix[n]arenes (n = 4, 6 and 8) in water: microcalorimetric determination of the Gibbs energies, enthalpies and entropies of complexation. J. Chem. Soc., Perkin Trans. II 1999, 3, 629–634. [Google Scholar]
  7. Grote Gansey, M. H. B.; De Haan, A. S.; Bos, E. S.; Verboom, W.; Reinhoudt, D. N. Conjugation, Immunoreactivity, and Immunogenicity of Calix[4]arenes; Model Study to Potential Calix[4]arene-Based Ac3+ Chelators. Bioconjug. Chem. 1999, 10, 613–623. [Google Scholar]
  8. Yilmaz, A.; Memon, S.; Yilmaz, M. Synthesis and study of allosteric effects on extraction behavior of novel calixarene-based dichromate anion receptors. Tetrahedron 2002, 58, 7735–7740. [Google Scholar]
  9. Memon, S.; Yilmaz, A.; Roundhill, D. M.; Yilmaz, M. Synthesis of Polymeric Calix[4]arene Dinitrile and Diamino-Derivatives: Exploration of Their Extraction Properties Towards Dichromate Anion. J. Macromolecular Sci., Part A. Pure and Applied Chemistry 2004, 41, 433–447. [Google Scholar]
  10. Tabakci, M.; Tabakci, B.; Yilmaz, M. Design and Synthesis of New Chiral Calix[4]arenes as Liquid Phase Extraction Agents for alfa-Amino Acid Methylesters and Chiral alfa-Amines. J. Incl. Phenom. Macrocycl. Chem. 2005, 53, 51–56. [Google Scholar]
  11. Esplandiú, M. J.; Hagenström, H.; Kolb, D. M. Functionalized Self-Assembled Alkanethiol Monolayers on Au(111) Electrodes: 1. Surface Structure and Electrochemistry. Langmuir 2001, 17, 828–838. [Google Scholar]
  12. O'Shannessy, D. J.; Brigham-Burke, M.; Peck, P. Immobilization chemistries suitable for use in the BIAcore surface plasmon resonance detector. Anal. Biochem. 1992, 205, 132–136. [Google Scholar]
  13. Nelson, R. W.; Krone, J. R. Advances in surface plasmon resonance biomolecular interaction analysis mass spectrometry (BIA/MS). J. Mol. Recognit. 1999, 12, 77–93. [Google Scholar]
  14. Gomes, P.; Giralt, E.; Andreu, D. Direct single-step surface plasmon resonance analysis of interactions between small peptide analytes and immobilised monoclonal antibodies. J. Immunol. Methods 2000, 325, 101–111. [Google Scholar]
  15. Corsel, J. W.; Willems, G. M.; Kop, J. M. M.; Cuypers, P. A.; Hermens, W. T. The role of intrinsic binding rate and transport rate in the adsorption of prothrombin, albumin and fibrinogen to phospholipid bilayers. J. Colloid Interface Sci. 1986, 111, 544–554. [Google Scholar]
  16. Iki, N.; Narumi, F.; Fujimoto, T.; Morohashi, N.; Miyano, S. Selective synthesis of three conformational isomers of tetrakis[(ethoxycarbonyl)methoxy]thiacalix[4]arene and their complexation properties towards alkali metal ions. J. Chem. Soc. Perkin Trans. 1998, 2, 2745–2750. [Google Scholar]
  17. 1H NMR (400 MHz, DMF-d6) δ6.72 (s, 8 H), 4.75 (overlapped with NH2), 4.67 (s, 8 H), 4.16 (s, 8 H), 4.12 (q, J = 6.6 Hz, 8 H), 3.20 (d, J = 11.5 Hz, 4 H), 1.20 (t, J = 6.6 Hz, 12 H); 13C NMR (100 MHz, CDCl3) δ185.9, 172.7, 171.7, 157.7, 136.9, 131.1, 129.8, 73.0, 62.3, 36.8, 32.7, 15.0.
  18. Kretschmann, E. Determination of optical constants of metals by excitation of surface plasmons. Phys. 1971, 241, 313–324. [Google Scholar]
  19. Philips, A. V.; Robbins, D. J.; Coleman, M. S.; Barkley, M. D. Immunoaffinity purification and fluorescence studies of human adenosine deaminase. Biochemistry 1987, 26, 2893–2903. [Google Scholar]
  20. Suri, C. R.; Jain, P. K.; Mishra, G. C. Development of piezoelectric crystal based microgravimetric immunoassay for determination of insulin concentration. J. Biotechnil. 1995, 39, 27–34. [Google Scholar]
  21. Kanno, S.; Yanagida, Y.; Haruyama, T.; Kobatake, E.; Aizawa, M. Assembling of engineered IgG-binding protein on gold surface for highly oriented antibody immobilization. J. Biotechnol. 2000, 76, 207–214. [Google Scholar]
  22. Whitesides, G. M.; Laibinis, P. E. Wet chemical approaches to the characterization of organic surfaces: self-assembled monolayers, wetting, and the physical-organic chemistry of the solid-liquid interface. Langmuir 1990, 6, 87–96. [Google Scholar]
  23. Bryant, M. A.; Pemberton, J. E. Surface Raman scattering of self-assembled monolayers formed from 1-alkanethiols: behavior of films at gold and comparison to films at silver. J. Am. Chem. Soc. 1991, 113, 8284–8293. [Google Scholar]
  24. Bard, A. J.; Faulkner, L. R. Electrochemical Methods; John Wiley & Sons: New York, 2001; pp. 239–243. [Google Scholar]
  25. Walczak, M. M.; Popenoe, D. D.; Deinhammer, R. S.; Lamp, B. D.; Chung, C.; Porter, M. D. Reductive desorption of alkanethiolate monolayers at gold: a measure of surface coverage. Langmuir 1991, 7, 2687–2693. [Google Scholar]
  26. Nonogaki, T.; Xu, S.; Kugimiya, S.; Sato, S.; Miyata, I.; Yonese, M. Two Dimensional Auto-Organized Nanostructure Formation of Hyaluronate on Bovine Serum Albumin Monolayer and Its Surface Tension. Langmuir 2000, 16, 4272–4278. [Google Scholar]
Sensors 07 01091f1 1024

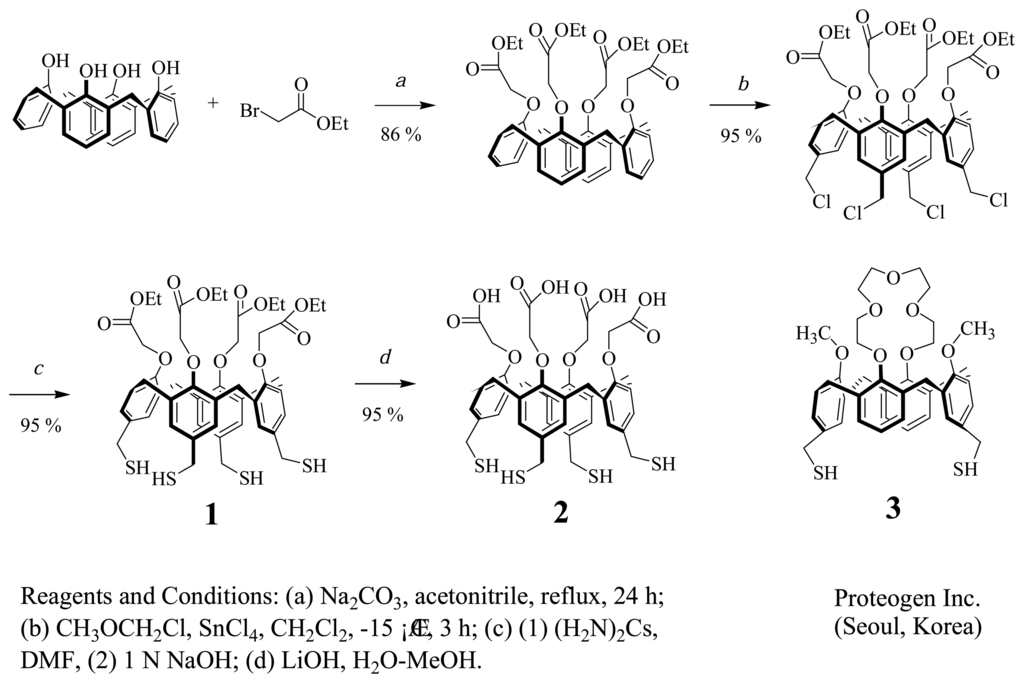

Figure 1. Synthetic scheme and structure of Cal-4 derivative 1, 2 and 3.

Click here to enlarge figure

Figure 1. Synthetic scheme and structure of Cal-4 derivative 1, 2 and 3.
Sensors 07 01091f1 1024
Sensors 07 01091f2 1024

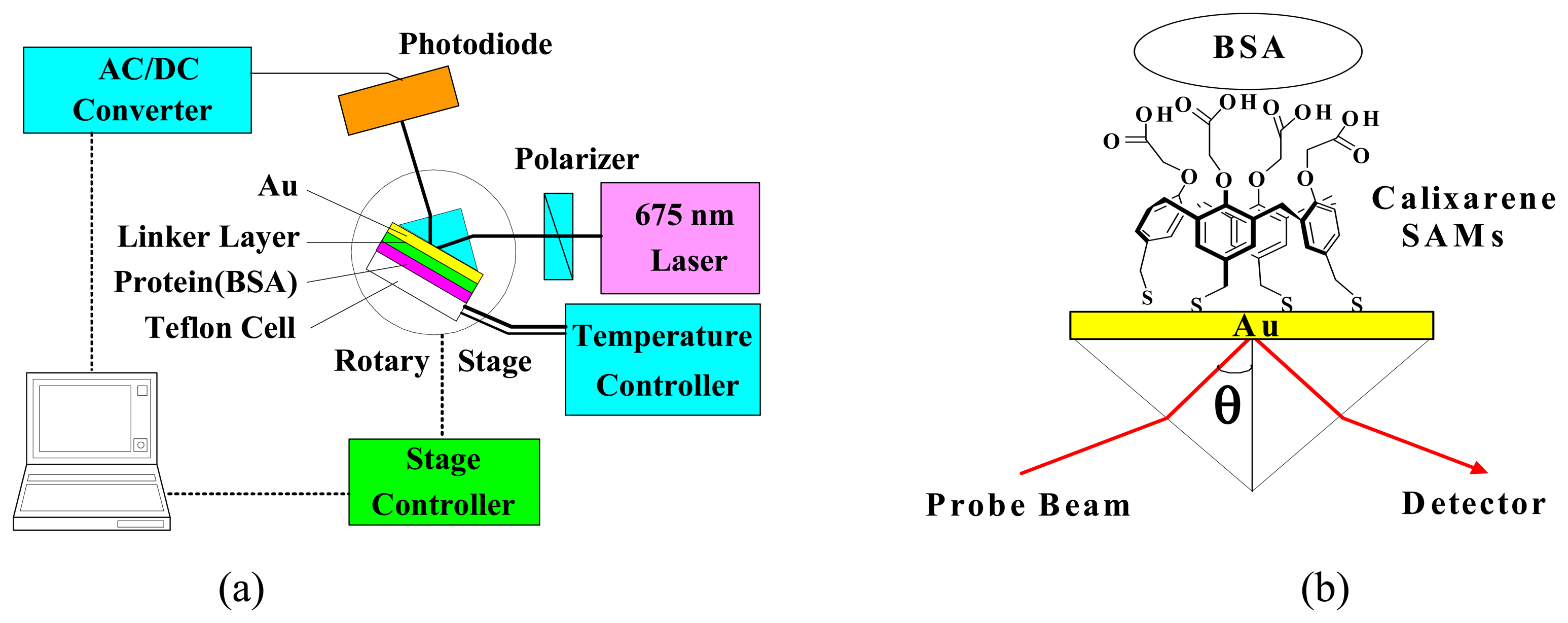

Figure 2. Schematic diagram of (a) the homemade SPR system and (b) a sensor chip configuration.

Click here to enlarge figure

Figure 2. Schematic diagram of (a) the homemade SPR system and (b) a sensor chip configuration.
Sensors 07 01091f2 1024
Sensors 07 01091f3 1024

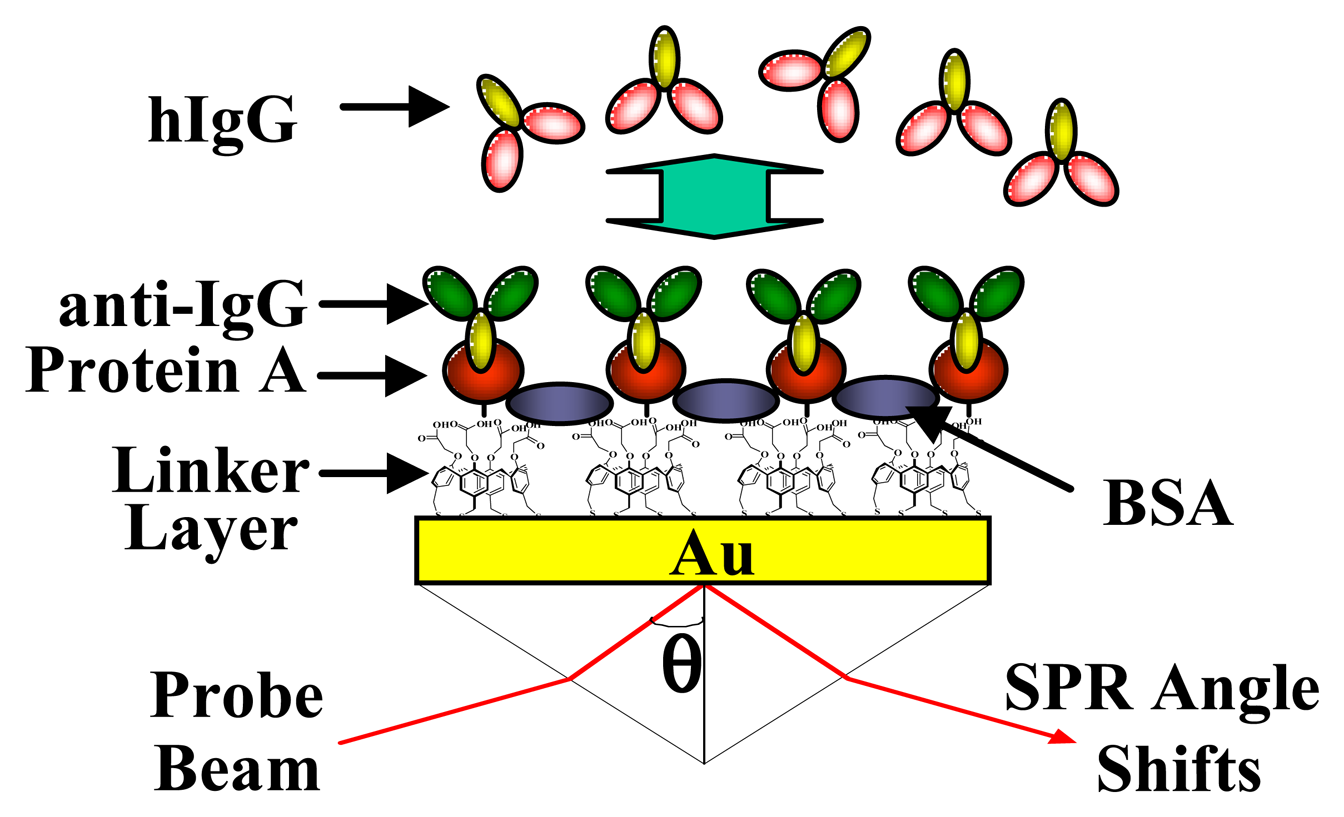

Figure 3. Schematic diagram of protein-protein interaction between hIgG and anti-hIgG on Cal-4 linker system confined Au surface.

Click here to enlarge figure

Figure 3. Schematic diagram of protein-protein interaction between hIgG and anti-hIgG on Cal-4 linker system confined Au surface.
Sensors 07 01091f3 1024
Sensors 07 01091f4 1024

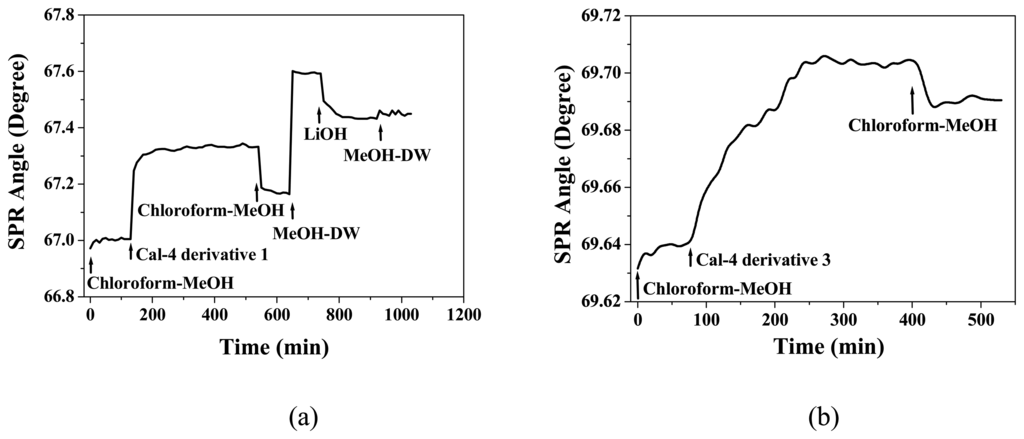

Figure 4. SPR angle shifts according to the immobilization of Cal-4 derivative SAMs. (a) Cal-4 derivative 1 and 2 SAMs, (b) Cal-4 derivative 3 SAM.

Click here to enlarge figure

Figure 4. SPR angle shifts according to the immobilization of Cal-4 derivative SAMs. (a) Cal-4 derivative 1 and 2 SAMs, (b) Cal-4 derivative 3 SAM.
Sensors 07 01091f4 1024
Sensors 07 01091f5 1024

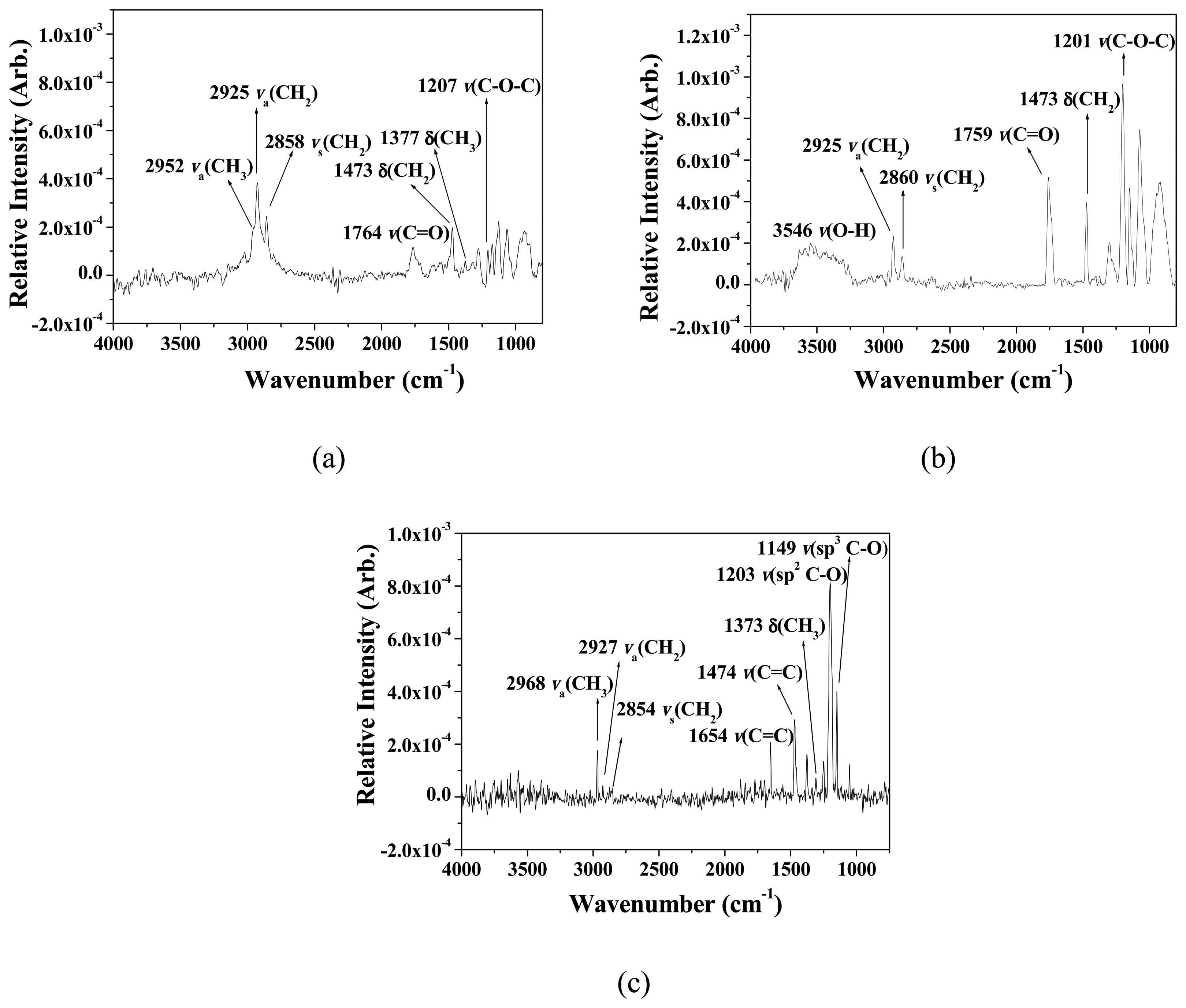

Figure 5. FTIR-RAS spectra of (a) Cal-4 derivative 1 SAM, (b) Cal-4 derivative 2 SAM, and (c) Cal-4 derivative 3 SAM on Au surface.

Click here to enlarge figure

Figure 5. FTIR-RAS spectra of (a) Cal-4 derivative 1 SAM, (b) Cal-4 derivative 2 SAM, and (c) Cal-4 derivative 3 SAM on Au surface.
Sensors 07 01091f5 1024
Sensors 07 01091f6 1024
Figure 6. AFM images of (a) Bare Au, (b) Cal-4 derivative 1 SAM, (c) Cal-4 derivative 2 SAM, and (d) Cal-4 derivative 3 SAM.

Click here to enlarge figure

Figure 6. AFM images of (a) Bare Au, (b) Cal-4 derivative 1 SAM, (c) Cal-4 derivative 2 SAM, and (d) Cal-4 derivative 3 SAM.
Sensors 07 01091f6 1024
Sensors 07 01091f7 1024

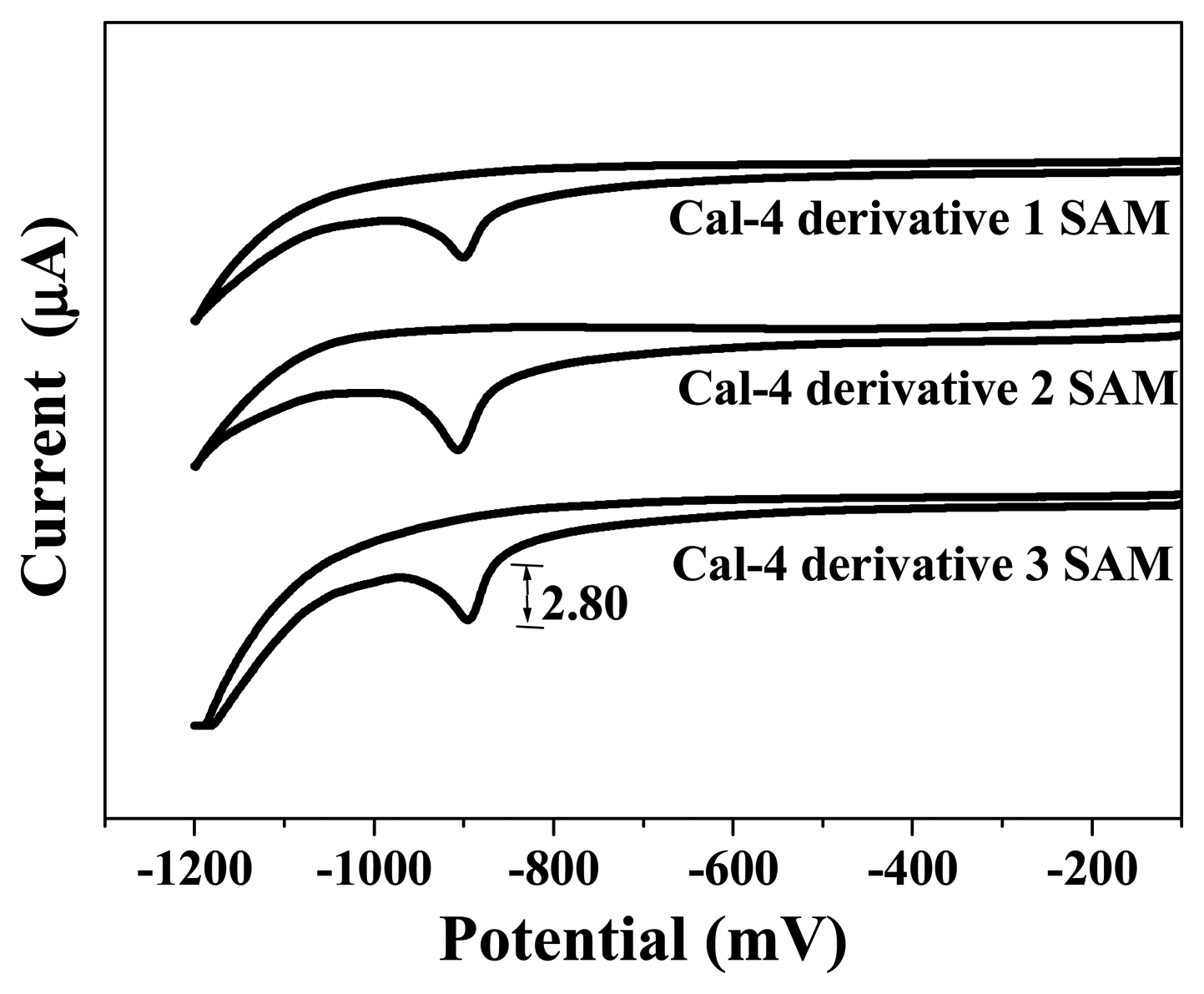

Figure 7. Reductive desorption peaks of Cal-4 derivative SAMs on the Au electrode surface.

Click here to enlarge figure

Figure 7. Reductive desorption peaks of Cal-4 derivative SAMs on the Au electrode surface.
Sensors 07 01091f7 1024
Sensors 07 01091f8 1024
Figure 8. SPR angle shifts according to the immobilization of BSA on (a) Cal-4 derivative 1 SAM, (b) Cal-4 derivative 2 SAM, and (c) Cal-4 derivative 3 SAM.

Click here to enlarge figure

Figure 8. SPR angle shifts according to the immobilization of BSA on (a) Cal-4 derivative 1 SAM, (b) Cal-4 derivative 2 SAM, and (c) Cal-4 derivative 3 SAM.
Sensors 07 01091f8 1024
Sensors 07 01091f9 1024

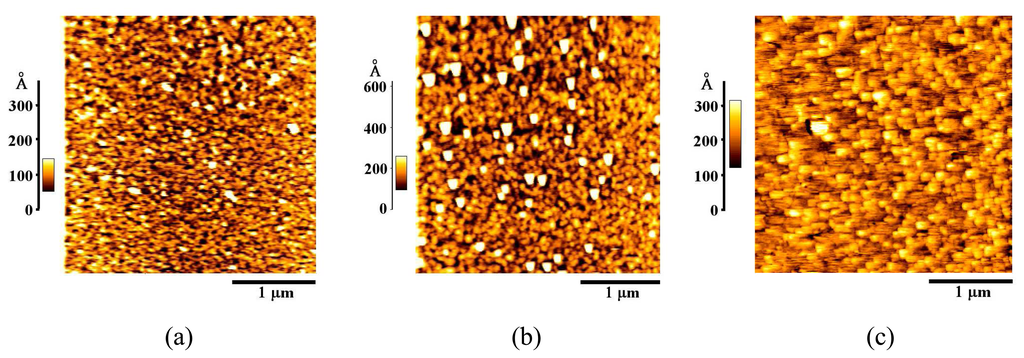

Figure 9. AFM images of (a) BSA-immobilized Cal-4 derivative 1 SAM, (b) BSA-immobilized Cal-4 derivative 2 SAM, and (c) BSA-immobilized Cal-4 derivative 3 SAM.

Click here to enlarge figure

Figure 9. AFM images of (a) BSA-immobilized Cal-4 derivative 1 SAM, (b) BSA-immobilized Cal-4 derivative 2 SAM, and (c) BSA-immobilized Cal-4 derivative 3 SAM.
Sensors 07 01091f9 1024
Sensors 07 01091f10 1024

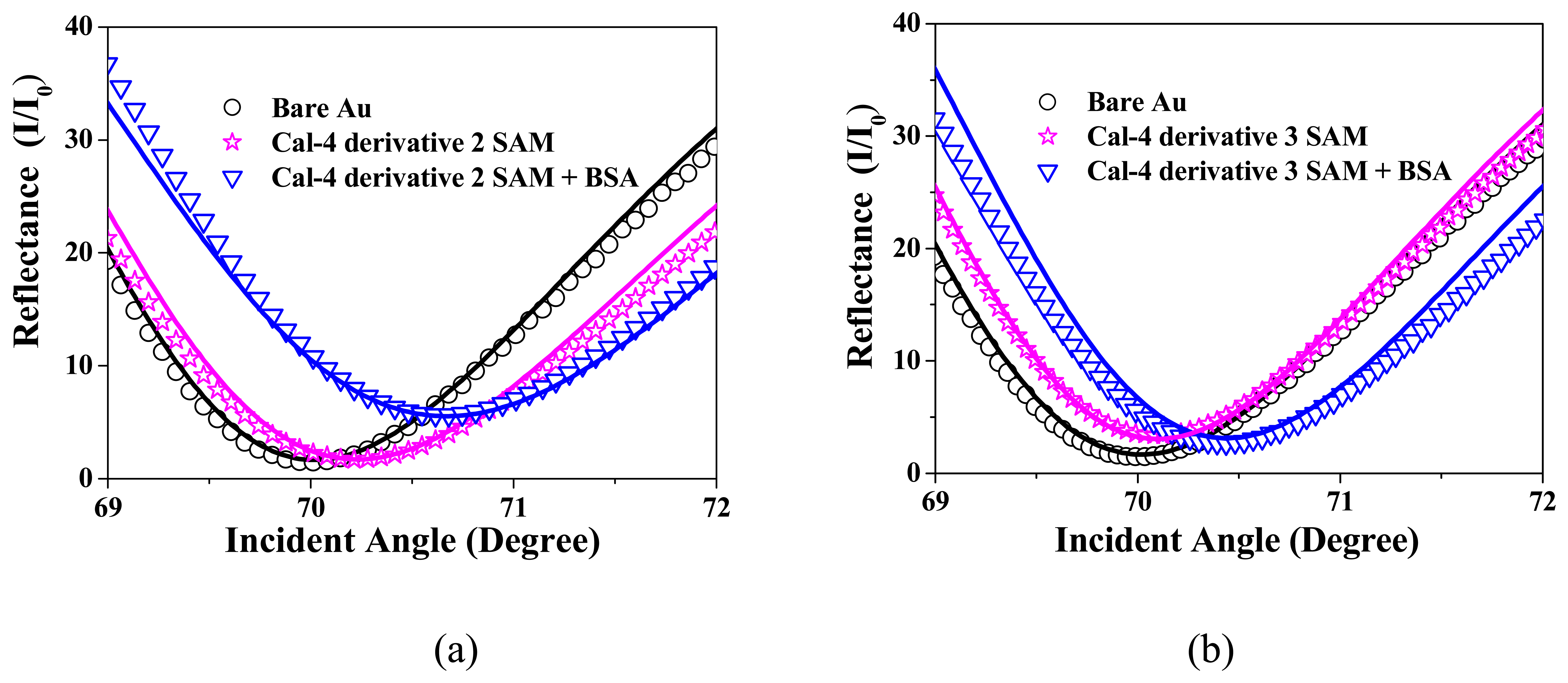

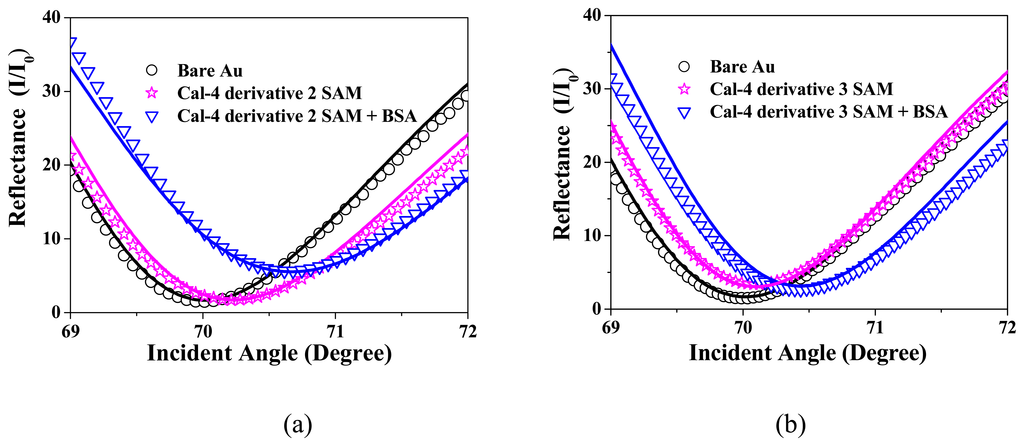

Figure 10. Experimental curves (symbol) and calculated SPR curves (line) of Au surface with Cal-4 derivative SAMs according to the immobilization of BSA; (a) Cal-4 derivative 2 SAM, (b) Cal-4 derivative 3 SAM.

Click here to enlarge figure

Figure 10. Experimental curves (symbol) and calculated SPR curves (line) of Au surface with Cal-4 derivative SAMs according to the immobilization of BSA; (a) Cal-4 derivative 2 SAM, (b) Cal-4 derivative 3 SAM.
Sensors 07 01091f10 1024
Sensors 07 01091f11 1024

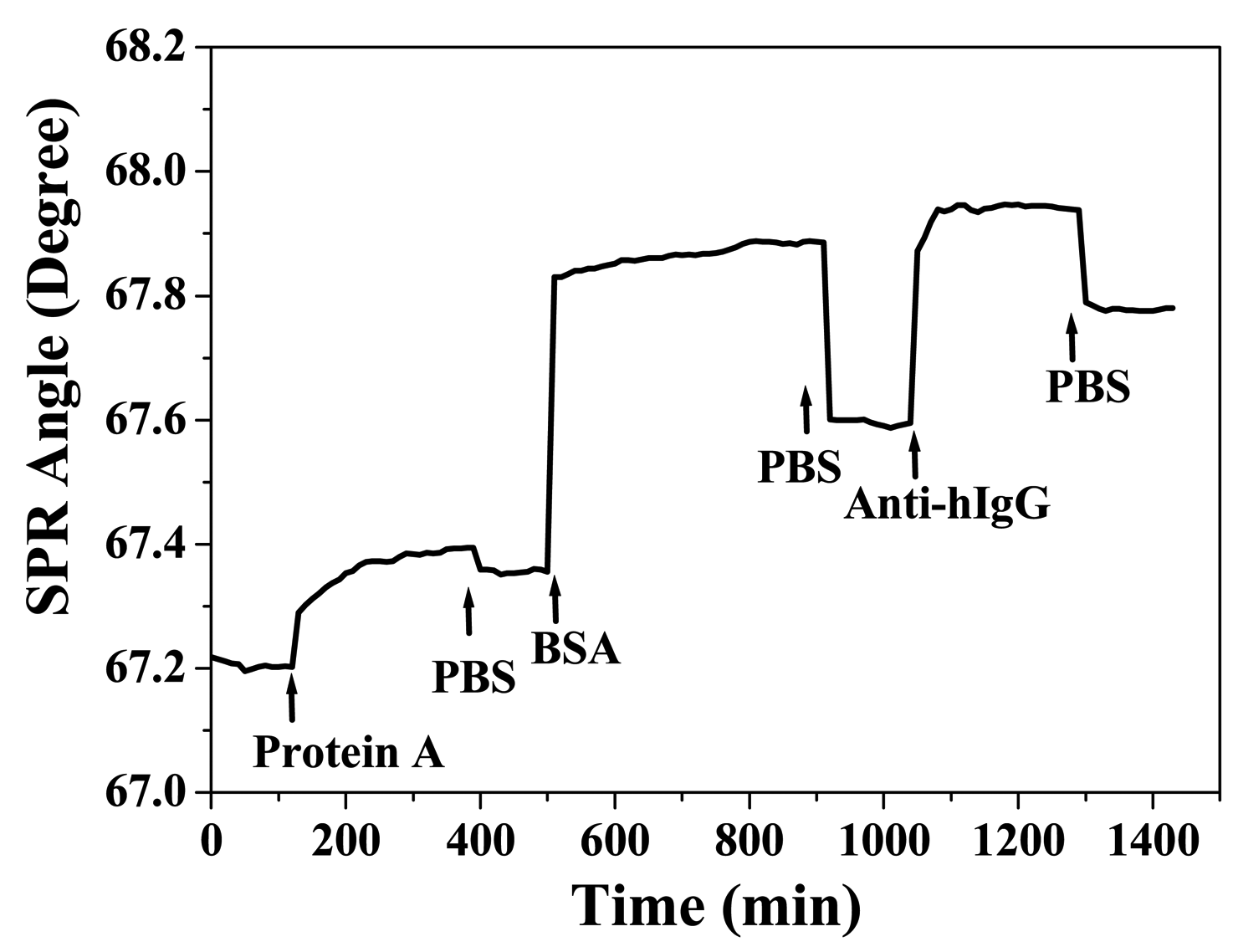

Figure 11. Sensogram of probe protein immobilization on the Cal-4 derivative 3 SAM.

Click here to enlarge figure

Figure 11. Sensogram of probe protein immobilization on the Cal-4 derivative 3 SAM.
Sensors 07 01091f11 1024
Sensors 07 01091f12 1024

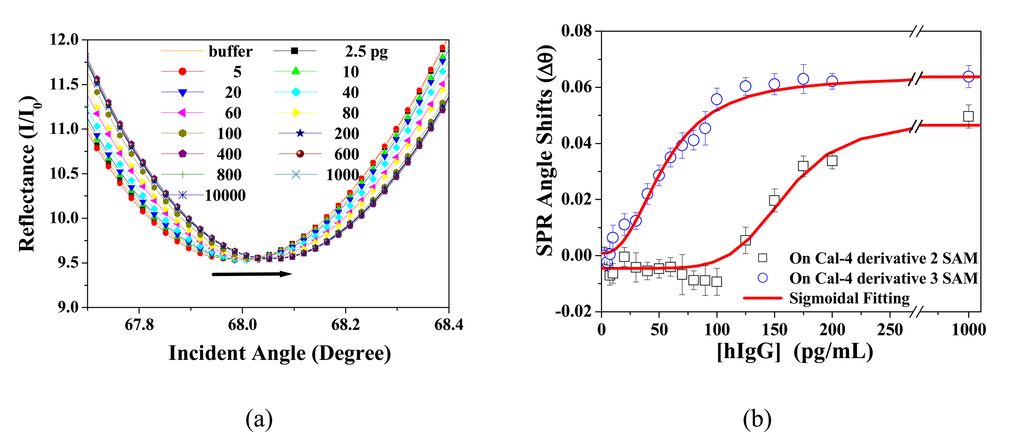

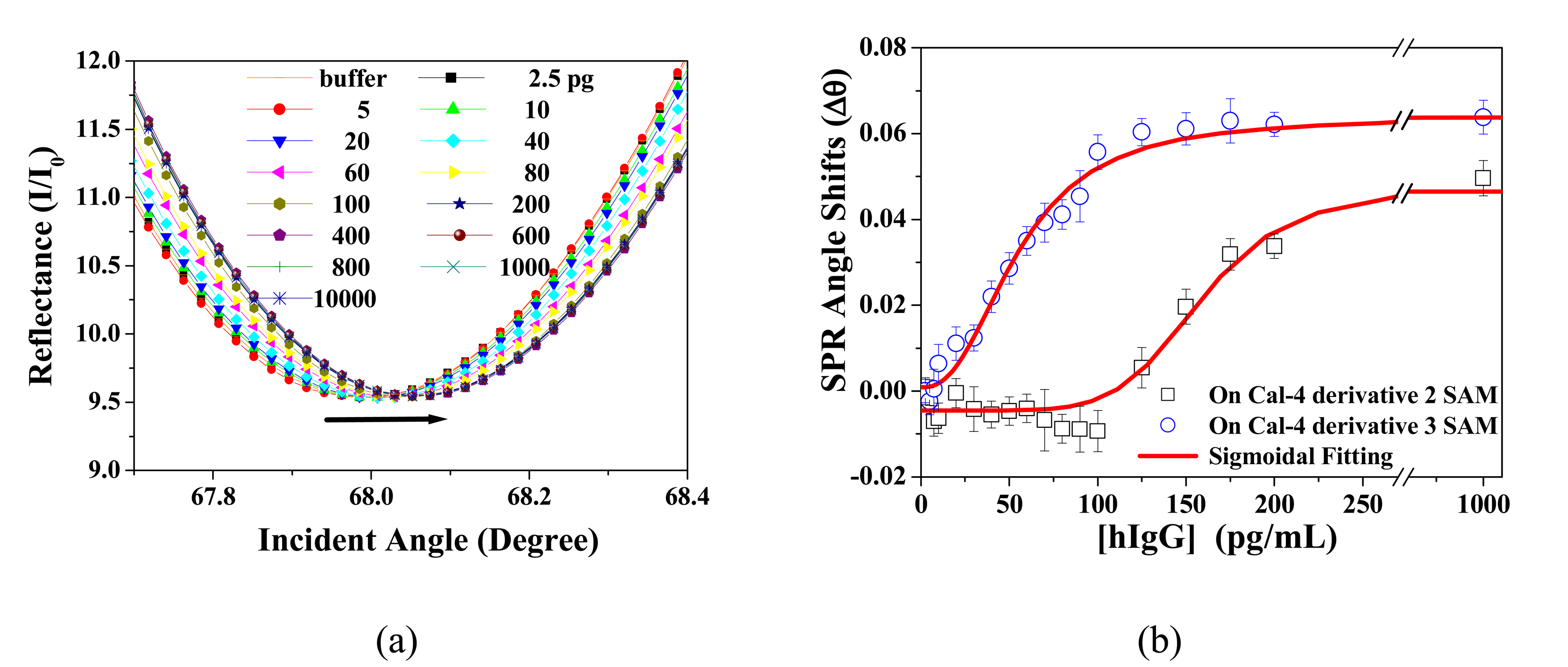

Figure 12. (a) SPR angle shifts according to the interaction between anti-hIgG and hIgG on the Cal-4 derivative 3 SAM. (b) Dose-response curves of anti-hIgG immobilized sensor chip represented by SPR angle shifts according to the interaction between anti-hIgG and hIgG on the Cal-4 derivative 2 (rectangular) and 3 (circle) SAMs. Solid line indicates the result of sigmoidal fitting.

Click here to enlarge figure

Figure 12. (a) SPR angle shifts according to the interaction between anti-hIgG and hIgG on the Cal-4 derivative 3 SAM. (b) Dose-response curves of anti-hIgG immobilized sensor chip represented by SPR angle shifts according to the interaction between anti-hIgG and hIgG on the Cal-4 derivative 2 (rectangular) and 3 (circle) SAMs. Solid line indicates the result of sigmoidal fitting.
Sensors 07 01091f12 1024
Table Table 1. FTIR-RAS spectra assignment of Cal-4 derivative SAMs.

Click here to display table

Table 1. FTIR-RAS spectra assignment of Cal-4 derivative SAMs.
Stretching ModeWavenumber (cm-1)

Cal-4 derivative
1 SAM
Cal-4 derivative
2 SAM
Cal-4 derivative
3 SAM
ν(O-H)3546
νa(CH3)29522968
νa(CH2)292529252927
νs(CH2)285828602854
ν(C=O)17641759
ν(C=C)147314731474
δ(CH3)13771373
ν(sp2C-O)120712011203
ν(sp3C-O)1149
Table Table 2. RMS Roughness of Cal-4 derivative SAMs on Au surface.

Click here to display table

Table 2. RMS Roughness of Cal-4 derivative SAMs on Au surface.
MonolayerRMS Roughness (Å)
Bare Au20.1
Cal-4 derivative 1 SAM35.1
Cal-4 derivative 2 SAM39.1
Cal-4 derivative 3 SAM18.1
Table Table 3. Surface coverage of Cal-4 derivative SAMs on Au electrode surface.

Click here to display table

Table 3. Surface coverage of Cal-4 derivative SAMs on Au electrode surface.
MonolayerSurface Coverage (Γ)
(×10-11 mole/cm2)
Cal-4 derivative 1 SAM7.076
Cal-4 derivative 2 SAM6.647
Cal-4 derivative 3 SAM22.092
Table Table 4. Surface concentration of the immobilized BSA and optical parameters determined by theoretical simulation.

Click here to display table

Table 4. Surface concentration of the immobilized BSA and optical parameters determined by theoretical simulation.
MonolayerBare AuCal-4 Linker LayerBSA layerSurface concentration (ng/cm2)

nkdnkdnkd
Cal-4 derivative
1 SAM
0.2333.8481.600.241.41.4501.398
Cal-4 derivative
2 SAM
0.2273.8481.590.151.11.450.052.4163
Cal-4 derivative
3 SAM
0.2213.8491.600.081.41.4502.7184

nis refractive indexkis extinction coefficientdis geometrical thickness (nm).

Table Table 5. SPR angle shifts according to the protein (protein A, anti-hIgG and BSA) immobilization on the Cal-4 derivative SAMs.

Click here to display table

Table 5. SPR angle shifts according to the protein (protein A, anti-hIgG and BSA) immobilization on the Cal-4 derivative SAMs.
ProteinsSPR Angle Shift (Δθ)

Cal-4 derivative
2 SAM
Cal-4 derivative
3 SAM
protein A (500 μg/mL)0.1130.153
BSA (30 mg/mL)0.4750.239
anti-hIgG (150 μg/mL)0.2290.185
