Anodic Oxidation and Amperometric Sensing of Hydrazine at a Glassy Carbon Electrode Modified with Cobalt (II) Phthalocyanine–cobalt (II) Tetraphenylporphyrin (CoPc- (CoTPP)4) Supramolecular Complex

Chemistry Department, University of Pretoria, Pretoria 0002, South Africa
Sensors 2006, 6(8), 874-891; https://doi.org/10.3390/s6080874
Submission received: 11 April 2006 / Accepted: 8 June 2006 / Published: 24 August 2006
(This article belongs to the Special Issue Supramolecular Sensors)

Abstract

:
This paper describes the electrocatalytic behaviour of a glassy carbon electrode (GCE) modified with cobalt(II)phthalocyanine (CoPc) complex peripherally tetrasubstituted with cobalt(II)tetraphenylporphyrin (CoTPP) complexes via ether linkages (i.e., CoPc-(CoTPP)4). The features of the immobilised pentamer were interrogated with cyclic voltammetry and electrochemical impedance spectroscopy (EIS) using [Fe(CN)6]3-/4- as redox probe revealed enhanced electron transfer properties with kapp ≈ 18 × 10-6 cms-1 compared to that of the bare GCE (4.7 × 10-6 cms-1). The viability of this supramolecular complex as a redox mediator for the anodic oxidation and sensitive amperometric determination of hydrazine in alkaline conditions is described. The electrocatalytic oxidation of hydrazine by GCE-CoPc-(CoTPP)4 was characterised with satisfactory catalytic current response with low non-Faradaic current (ca. 30 times lower than the bare GCE) and at much lower oxidation potential (ca. 300 mV lower than the bare GCE). A mechanism for the studied electrocatalytic reaction was proposed based on the spectrophotometric evidence that revealed the major involvement of the Co(III)/Co(II) redox couple of the central CoPc species rather than the CoTPP component of the pentamer. Rate constant for the anodic oxidation of hydrazine was estimated from chronoamperometry as ∼ 3×103 M-1s-1. The proposed amperometric sensor displayed excellent charateristics towards the determination of hydrazine in 0.2 M NaOH; such as low overpotentials (+100 mV vs Ag|AgCl), very fast amperometric response time (1 s), linear concentration range of up to 230 μM, with micromolar detection limit, high sensitivity and stability.

1. Introduction

Hydrazine (N2H4) is a powerful reducing agent, useful as a fuel in fuel cells [1]. Hydrazine and its derivatives are frequently found in our environment, and are used as essential raw materials and intermediates in some industrial preparations such as pesticides, but also suspected to be carcinogenic and mutagenic [2]. Hydrazine can be absorbed through the skin, affecting our blood production and leading to liver and kidney damage. Thus, it is recognized in pharmacology because of its carcinogenicity and hepatotoxicity. Industrially, hydrazine is commonly employed as a substitute for sulfite in boilers as a scavenger for oxygen. Thus, a highly sensitive method is necessary for the reliable measurement of hydrazine. Several methods including titrimetry [3], coulometry [4], spectrophotometry [5] and electrochemical techniques [6-12] have been described in the literature for the detection of hydrazine. The use of electrochemical sensors are most preferred because of their simplicity, ease of fabrication with excellent possibility for miniaturisation, high sensitivity and reproducibility when compared to other non-electrochemical techniques.
Electrocatalytic oxidation of hydrazine at ordinary electrodes such as the bare carbon electrodes require very large oxidation overpotential. One way to circumvent this problem is the use of chemically modified electrodes (CMEs). Electrodes modified with macrocyclic transition metal complexes such as the metallophthalocyanines (MPcs) have been reported to be efficient catalysts for the oxidation of hydrazine. Metalloporphyrins (red or dark red in solution) and metallophthalocyanines (blue or green in solution) are well recognised supramolecular complexes because of their excellent physico-chemical properties, rich electrochemistry and high versatility as powerful electrocatalysts that could be harnessed for the fabrication of electrochemical sensors [13-16]. The potential technological applications of these molecules will require the use of their thin solid films immobilised onto solid supports such as the glassy carbon electrode (GCE). Individual metallophthalocyanine and metalloporphyrin complexes of cobalt have been reported as efficient electrocatalysts for several molecules of environmental and biomedical relevance such as thiols [17-20], nitric oxide [21-23], nitrite [24] and oxygen [25,26], however, the use of their conjugates in electrocatalysis or electrochemical sensing is grossly under-explored. Recently, the synthesis of a cobalt phthalocyanine covalently linked to four cobalt porphyrin complexes via ether bonds (CoPc-(CoTPP)4) (Fig. 1) was reported [27] with subsequent investigations on its electrocatalytic properties towards the detection of hydrogen peroxide [28] and as redox mediator for glucose oxidase electrode [29]. The electrocatalytic oxidation and detection of hydrazine with cobalt phthalocyanine-based electrodes in strong basic conditions have been reported [8-10]. However, most of the experiments were performed at cathodic potentials. A major disadvantage of cathodic measurements for hydrazine is that oxygen could react with hydrazine in the presence of transition metal ion to generate hydrogen peroxide and nitrogen [30]. Thus, the use of cathodic region is limited by the cathodic reduction of molecular oxygen, which interferes with the reliable hydrazine measurements. Therefore, a sensitive determination of hydrazine in anodic potential window (as described in this work) where oxygen interference is not much of analytical problem is very important.
In this work, first, the features of the immobilised CoPc-(CoTPP)4 were interrogated using cyclic voltammetry and electrochemical impedance spectroscopy (EIS) with [Fe(CN)6]3-/4- system as a redox probe. Second, the application of the immobilised pentamer film as a viable potential electroctalyst for both the anodic oxidation and amperometric determination of hydrazine in alkaline pH conditions were studied. Finally, the mechanism of the electrocatalytic processes of hydrazine with the immobilised pentamer film was proposed based on the electrochemistry data and supported by solid UV-visible spectrophotometric investigations. This represents the first report on the use of a metallophthalocyanine-metalloporphyrin conjugate for the study of the electrocatalytic oxidation and detection of hydrazine.

2. Results and Discussion

As described previously [28], GCE-CoPc-(CoTPP)4 showed a well-defined, and highly electrochemically stable reversible couple in aqueous solution, associated with the [Co(II)Pc(-2)(TPP(-2)Co(III))4/Co(III)Pc(-2)(TPP(-2)Co(III))4] redox process, with a unit ratio of the anodic-to-cathodic peak currents (Ipa/Ipc), half-wave potential (E1/2 = Epa+Epc/2) of approximately zero V (vs Ag|AgCl), and a peak-peak separation (ΔEp) of ∼0.2 V (vs Ag|AgCl). In this work, the surface concentration of CoPc-(CoPP)4 film attached to the GCE surface was ca. 5.0×10−10 mol cm−2. Fig. 2 shows graphical representation of the effect of the solution pH on the Ep of the Co(II)Pc(-2)/Co(III)Pc(-2) redox couple, studied with SWV. The plot of Ep against pH was linear up to pH 8.0 (Ep (mV) = – 53.702 (pH) + 217.79, r2 = 0.9929) but became almost independent from pH 9.0 to 12.0. The slope of −53 mV/pH suggests a monoprotonic / monoelectronic redox process. Also, the Co(III)Pc/Co(II)Pc redox couple shifted slightly to the negative potential direction with increasing alkaline pH which may be attributed to the strong binding of the OH- with the Co(III)Pc [31].

2.1. Electrochemical impedance spectroscopy studies

Electrochemical impedance spectroscopy (EIS) is an effective technique for probing the features of a surface-confined species [32]. Before the EIS experiments, CVs of the [Fe(CN)6]3-/4- redox probe were run. Both GCE and GCE-CoPc-(CoTPP)4 gave well-defined redox peaks with approximately same current responses. As evident in Fig. 3, the bare GCE showed (Fig. 3 (i)) slightly larger ΔEp (0.49 V vs Ag|AgCl) compared to that (0.28 V vs Ag|AgCl) obtained for the GCE-CoPc-(CoTPP)4 (Fig. 3 (ii)) The anodic peak current due to the GCE-CoPc-(CoTPP)4 was more enhanced and better defined than that shown by the bare GCE. These results clearly showed that the pentamer acts as a redox mediator by enhancing the electronic communication between the GCE and the [Fe(CN)6]4-/[Fe(CN)6]3- species, possibly by electrostatic attraction of the negatively charged probe and the positively charged cobalt centers of the pentamer. EIS experiments were performed at the formal potential (E1/2 = 0.10 V vs Ag|AgCl) of [Fe(CN)6]3-/4- obtained in Fig. 3.
The constant phase element (CPE) equivalent circuit model (Fig. 4A), in which the double layer capacitance is replaced by the CPE in Randles' model [32] (i.e., Rs(CPE[RetZw]), where Rs is the solution resistance, Ret is the electron-transfer resistance and Zw is the Warburg impedance) was sufficient to explain the EIS data obtained in this work. The Nyquist plots (Zimaginary vs Zreal) (Fig. 4B) exhibited the characteristics semicircles (most pronounced for the bare than the modified GCE) at high frequencies and a straight line at low frequencies, corresponding to kinetic and diffusion processes, respectively. These EIS data (Rs, Rct, CPE and Zw) were extracted from the Nyquist plots.
For the bare, the Rs, Rct, CPE and Zw values were estimated as 6.4 kΩcm-2, 56.9 kΩcm-2, 4.0 nFcm-2 and 12×10-4 Ωcm-2s1/2, respectively. For the GCE-CoPc-(CoTPP)4, values of 13.1 kΩcm-2, 14.6 kΩcm-2, 86 nFcm-2 and 6.4×10-4 Ωcm-2s1/2 were obtained for the Rs, Rct, CPE and Zw, respectively. The Rct value for the modified electrodes is approximately a quarter compared to that of the bare GCE, which indicates that the pentamer facilitates the electron transfer process, thus corroborating the CVs of Fig. 3. The slightly higher CPE value for the GCE-CoPc-(CoTPP)4 reflects the uniformity of the immobilised film [33], which is somewhat surprising for a drop-dry film. Most probably, the homogeneity might have been attained by pretreatment in the aqueous condition. The apparent electron transfer rate constant kapp was obtained from the equation [34]:
k app = R T / F 2 R c t C
where R is the gas constant (8.314 J mol−1K−1), T is the absolute temperature of the system (298 K), F is the Faraday constant (96485 C mol-1), C is the concentration of the [Fe(CN)6]3- (in mol cm-3, the concentration of [Fe(CN)6]3- and [Fe(CN)6]4- are equal). The calculated kapp values for the GCE-CoPc-(CoTPP)4 (18.27×10-6 cms-1) and the bare GCE (4.68×10-6 cms-1) are of similar magnitude. The high kapp value for the GCE-CoPc-(CoTPP)4 is indicative of faster electron transfer process compared to the bare GCE. It also suggests a small electron-tunnelling distance between the modified film and the GCE, indicating a flat orientation of the pentamer film on the GCE rather than horizontal. From the Bode plots (θ (phase angle) vs log f (frequency)) (Fig. 4C), the bare GCE showed symmetrical peak with a maximum value of ∼ 31° at 631 Hz corresponding to the relaxation process of the GCE|solution interface. Modification of the GCE led to the disappearance of this relaxation with the appearance of an ill-defined maximum (∼ 46° at 0.13 Hz). The disappearance indicates that the reaction takes place at the surface of the CoPc-(CoTPP)4 film rather than the bare GCE.

2.2. Anodic oxidation of hydrazine

The pKa of hydrazine is known to be 7.9 [35] meaning that most hydrazine is protonated at pH < 8.0. Oxidation of hydrazine with carbon electrodes modified with CoPc and related complexes were performed in strong alkaline pH (0.2 M NaOH) [8-10]. In this work, electrocatalytic oxidation of hydrazine with GCE-CoPc-(CoTPP)4 exhibited optimum current response at 0.2 M NaOH. Hence, this study was carried out in 0.2 M NaOH conditions. Fig. 5 shows our initial experiment to investigate the current response of the bare GCE (Fig. 5 (i)) and GCE modified with CoPc-(CoTPP)4 (Fig. 5 (ii)) in 0.2 M NaOH condition. Unlike the bare GCE, the Co(II)Pc/Co(III)Pc redox couple appeared around −0.10 V (vs Ag|AgCl). The CV showed that this weak redox couple (amplified in the inset) started to appear around – 0.20 V (vs Ag|AgCl), very close to where it was observed in Fig. 2 using SWV technique. Fig. 6 shows the voltammetric responses of the GCE-CoPc-(CoTPP)4 towards the oxidation of hydrazine. The GCE-CoPc-(CoTPP)4 showed a well-defined anodic oxidation peak at ca +0.10 V vs (Ag|AgCl). A broad couple is observed around −0.20 V (vs Ag|AgCl), attributable to Co(II)Pc/Co(III)Pc couple.
Similar experiments with the bare GCE (Fig. 6 inset) showed hydrazine peak at 0.41V (vs Ag|AgCl). The integrated peak current response of hydrazine for the bare GCE is approximately equal to that of the GCE-pentamer, however, the pentamer electrode is characterized by a very low background current (ca. 30 times lower than unmodified GCE) and with less positive oxidation peak potential for hydrazine (300 mV lower compared to unmodified GCE). These results confirm that the immobilized CoPc-(CoTPP)4 solid thin film serves as an efficient electron transfer mediator between hydrazine and the GCE and the pentamer electrode can be successfully employed for the analysis of this important analyte. Cyclic voltammetric investigation on the influence of different scan rates at constant hydrazine concentration (3×10-4 mol/L) (not shown) exhibited catalytic anodic peak current (Ipa) values that showed direct proportionality to the square root of scan rate (ν1/2), indicating a diffusion-controlled reaction. The oxidation of hydrazine in aqueous solution has long been established with EPR to lead to the generation of the radical cation N2H4+. [35]. The formation of this radical cation is usually regarded as the rate-determining step since not all proposed intermediates in the oxidation of hydrazine are stable. The plot of the peak potential (Ep) against the logarithm of scan rate (log ν) (not shown) resulted in a linear relationship (Ep (V) = 0.0766 (log ν) + 0.2161, r2 = 0.9945) with a Tafel slope of approximately 153 mV/decade, which suggests that the rate-determining step for the electrocatalysis could follow a one-electron transfer process [36,37]. Tafel slopes greater than the normal 30 – 120 mV/decade for a totally irreversible process such as in this work, have been associated with [38-40] the substrate-catalyst interactions, where the substrate binds very strongly to the catalyst during the interaction as the reaction intermediate step. The Tafel slope obtained in this work may also be rationalized as strong binding of the hydrazine–Pentamer in the intermediate step.

2.3. Proposed mechanism for anodic oxidation of hydrazine

The oxidation of hydrazine started from – 0.06 V vs Ag|AgCl, which is close to (– 0.2 V vs Ag|AgCl) where the [Co(II)Pc(-2)(TPP(-2)Co(III))4 / Co(III)Pc(-2)(TPP(-2)Co(III))4] redox peak was observed in this alkaline pH condition. This observation confirms the involvement of the Co(III)/Co(II) in this catalytic reaction. Also, it was found that the GCE modified with CoPc film (GCE-CoPc) catalyzed the oxidation of hydrazine at a well-defined peak potential, Ep (– 340 mV vs Ag|AgCl) (not shown), which is consistent with reports proposed for the involvement of the Co(II)Pc/Co(I)Pc redox couple [9]. Hou et al. [11] had reported before that GCE-CoTPP showed no detectable oxidation peak for hydrazine at pH ≥ 10. Thus, the above results further confirm that the operating mechanism for the oxidation of hydrazine involve mainly the central Co(III)Pc/Co(II)Pc of this pentamer complex. The involvement of the Co(III)Pc/Co(II)Pc couple was further interrogated using solid UV-Vis spectrophotometric investigations. Fig. 7 shows the UV-vis spectra for the CoPc-(CoTPP)4 when immobilized onto a glass surface(a). This spectrum is similar to the solution spectrum of the pentamer reported previously [27].
The split B band (416 and 435 nm) and Q band (580 nm) are due to the CoTPP component of the pentamer while the bands at 618 nm (vibronic) and 680 nm (Q band) are due to the CoPc component of the pentamer. The split B band of the CoTPP is indicative of partial oxidation of the CoTPP from Co(II) to Co(III) [27]. After 15 s exposure to bromine vapour (b), the central Co(II) of both the CoTPP and CoPc are oxidized to their Co(III) species confirmed by the red shifts of the split B band of the CoTPP to a sharp band (442 nm) and Q band of the CoPc (from 680 to 685 nm). Interestingly, on dipping the bromine-oxidised pentamer in a 10-3 M solution of hydrazine and then drying (c), the Co(III)Pc (685 nm) quickly reversed to Co(II)Pc (∼ 680 nm) while the Co(III)TPP (442 nm) remained unchanged. The inability of the Co(III)TPP to convert to Co(II)TPP further suggests that the central Co(III)Pc/Co(II)Pc is the main driving force in the electrooxidation of hydrazine by the pentamer complex. Also, the pentamer-hydrazine spectrum (Fig. 7c) is characterized with higher absorbance, which may suggest improved solubility of the pentamer as a result of coordination with hydrazine. The 5 nm shift to lower wavelength of the Co(III)Pc-hydrazine peak indicates the interaction (most likely axial coordination) of hydrazine to Co(III)Pc. From the above data, therefore, the main operating mechanism involve the initial oxidation of the central Co(II)Pc of the pentamer to Co(III)Pc, followed by the formation of the hydrazine–Co(III)Pc adduct and the oxidation of the reduced hydrazine to its products and subsequent regeneration of the Co(II)Pc species. This is an interesting observation if we consider that electrocatalytic oxidation of hydrazine at basic pH conditions with CoPc-based electrodes generally occur at the cathodic windows and involve the Co(II)/Co(I) [8-10] rather than the Co(III)/Co(II) redox couple. The reason for the involvement of the Co(III)/Co(II) rather than the Co(II)/Co(I) redox couple may be attributed to the presence of the four CoTPP appendages of the pentamer, probably by synergistic contribution and the previously established [27] electron-withdrawing influence of the CoTPP on the CoPc. Further electrocatalytic parameters were obtained by carrying out chronoamperometric investigations.

2.4. Chronoamperometric studies

Chronoamperometric investigations were conducted at a 2.15 mM hydrazine. The current for the electrochemical reaction (under mass transport control) of an electroactive analyte such as hydrazine with a diffusion coefficient, D (cm2 s-1), is described by the Cottrell equation:
I = nFA cat D 1 / 2 C 0 / π 1 / 2 t 1 / 2
assuming n = 4 for the complete oxidation of hydrazine in aqueous solution [8-10], and all other parameters retaining their usual meaning and values obtained in this work. From the slope of the linear plot of I vs t-1/2, D was estimated as 7.30 ×10-8 cm2s-1. This value is less than those (in the 10-7 – 10-5 cm2 s-1 range) reported [8,10], which may suggest that the CoPc-(CoTPP)4 film on the GCE are probably denser than those other electrode modifiers [10].
The heterogeneous rate constant (k), which represents the catalytic reaction rate between the immobilized pentamer film and hydrazine diffusing from the solution, was evaluated using the chronoamperometric approach [6]:
I cat / I L = ( π k C 0 t ) 1 / 2
where Icat and IL are the current responses of the GCE-CoPc-(CoTPP)4 in the presence and absence of hydrazine, respectively; k, Co and t are the catalytic rate constant (M-1s-1), bulk concentration of hydrazine (M) and time elapsed (s), respectively. From the slope of the plot of the Icat/IL against t1/2 (at intermediate times of 0.5 – 4 s in the present work, exemplified in Fig. 8) for 2.15 mM hydrazine was obtained and k was calculated to be 2.98×103 M-1s-1. This value is similar to those reported for other modified electrodes used in the study of electrocatalytic oxidation of hydrazine.

2.5. Chronoamperometric determination of hydrazine

Fig. 9 shows chronoamperograms recorded under stirring (250 rpm) conditions where the potential was poised at +100 mV (vs Ag|AgCl) in 0.2 M NaOH. At this fixed potential (+ 100 mV), a slightly higher current response (∼ 7 %) was obtained compared to studies at either +120 or +150 mV, hence all subsequent studies were undertaken at fixed potential of +100 mV (vs Ag|AgCl). As shown in Fig. 9, successive additions of 30 μM, a well-defined response is observed. For each addition of hydrazine, within a fast response time of about one second, a sharp rise in the current was observed. The plot of amperometric response (Ip) vs hydrazine concentration is shown as inset in Fig. 9, giving a linear concentration of 10 – 230 μM. The regression equation of the linear plot was:
I p ( μ A ) = 0.6636 + 0.0157 c , with r 2 = 0.9991
where c is the concentration of hydrazine in μM.
At signal-to-noise ratio of 3, the detection limits were obtained as approximately 1.0 μM. To my knowledge this study represents the first time any metallophthalocyanine-metalloporphyrin conjugate has been used to modify an electrode for the study of the electrocatalytic oxidation and detection of hydrazine. Thus, there are no similar reports with which to adequately compare the present analytical results. A more closer report is the recent study by Li et al. [10] which described the study of hydrazine in 0.2 M NaOH using a GCE that was modified, first with a 4-aminobenzoic acid, alternating layers of diazo-resins (multi-layer film) and a deposit of a water-soluble cobalt tetrasulphophthalocyanine complex and then subjected to UV photochemical reaction. Advantageously, the pentamer-based electrode reported in this work showed linearity at lower concentration range compared to the 5 – 21 mM reported by Li et al [10]. The simplicity of fabrication of the GCE-CoPc-(CoTPP)4, requiring less use of chemical reagents, is also of advantage compared to the above report [10].
Interference studies were also carried out with the GCE-CoPc-(CoTPP)4 using a 1:10 (hydrazine:interferent (mol/mol)) ratio. Interestingly, the electrode showed no detectable interference to common species; chloride, bromide, fluoride, carbonate, nitrite, nitrate, sulfate, thiocyanate and hydrogen peroxide under the experimental conditions employed in this work. To assess the suitability of the proposed electrode for potential analytical application, chronoamperomteric experiments were also performed with fresh tap water sample (pH adjusted to ∼ 12) spiked with hydrazine sulfate using standard addition method. Six replicate determinations showed recovery of 99.82±0.10% of the spike, thus demonstrating the suitability of the proposed CoPc-(CoTPP)4 based electrode to real sample analysis.
During a multi-scan process in 0.2 M NaOH containing a slightly higher concentration (10-4 mol/L) of hydrazine, about 30% reduction in the peak height after 80 continuous scans was observed. This result indicates electrode fouling by the oxidation products of hydrazine during this multi-scan process. But on daily use, the electrode showed good reproducibility (RSD ≈ 2%) and good stability for up to one month, a typical behaviour of an electrochemically stable electrode.

2.6. Conclusion

The pentamer shows strong promise for potential application as an efficient redox mediator in the design of an amperometric sensor for hydrazine. Three remarkable results have been revealed by this study. First, CV and EIS data proved that the pentamer-modified GCE is an effective redox mediator. Second, the pentamer film led to the more advantageous anodic oxidation rather than the cathodic oxidation of hydrazine in alkaline conditions. Third, unlike the widely reported cathodic oxidation of hydrazine with CoPc-based electrodes in strong alkaline conditions that involved the Co(II)Pc/Co(I)Pc redox process, the anodic oxidation of hydrazine reported in this work at similar alkaline pH conditions involve Co(III)Pc/Co(II)Pc redox process. Since chronoamperometric detectors are easily integrated with several analytical devices such as the flow injection analysis (FIA), the possible instrumentation designs and technological applications of this amperometric sensor may be found in, for example, the flow-injection analytical system integrated with amperometric detector (FIA-Amp) for environmental and industrial detection and monitoring of hydrazine.

3. Experimental Section

3.1. Reagents and Materials

Cobalt(II) phthalocyanine-cobalt(II) porphyrin (CoPc-(CoTPP)4) pentamer (Fig. 1) was synthesized from dicyanophenoxy cobalt(II) tetraphenylporphyrin complex and cobalt acetate using the recently reported method [27]. Hydrazine sulphate was obtained from Aldrich. All other reagents were of analytical grades and were used as received from the suppliers without further purification. Ultra pure water of resistivity not less than 18.2 MΩ was obtained from a Milli-Q Water System (Millipore Corp., Bedford, MA, USA) and was used throughout.

3.2. Electrode fabrication and pretreatment

Modification of the glassy carbon electrodes (GCE) with the CoPc-(CoTPP)4 pentamer and its pretreatment followed our previously reported procedure [28]. Prior to use, the glassy carbon electrode (GCE) was first cleaned by polishing with aqueous slurry of alumina, followed by ultrasonication, rinsed with distilled water and then wiped dry with clean tissue paper. The cleaned GCE was modified by placing a 100 μL of 1 mM DMSO solution of the CoPc-(CoTPP)4 onto its surface, dried in oven at 80 °C for 2 hr and finally allowed to cool to room temperature. When dried, the original green solution of the pentamer on the GCE surface turned to a blue-purple thin film. The modified electrode is thoroughly rinsed in water and then immersed in a 0.1 M HClO4 electrolyte solution and the potential was repetitively cycled from -0.60 to +0.60 V (vs Ag|AgCl) at 25 mVs-1 until a stable reversible voltamogramm was obtained. When not in use, the electrode was stored in a refrigerator.
Electrochemical data (voltammograms and chronoamperograms) were obtained with BioAnalytical System (BAS) 100 B/W Electrochemical Workstation, using a conventional three-electrode set-up with a 3.00 mm diameter GCE (BAS) modified with CoPc-(CoTPP)4) (herein referred to as GCE-CoPc-(CoTPP)4) as a working electrode, platinum wire as a counter electrode and Ag|AgCl wire as a pseudo-reference electrode. Electrochemical impedance spectroscopy (EIS) measurements were performed with an Autolab FRA software between 100 mHz and 10 kHz using a 10 mV rms sinusoidal modulation in a solution of 1 mM of K4Fe(CN)6 and 1 mM K3Fe(CN)6 (1:1) mixture containing 0.1 M KCl, and at the E1/2 of the [Fe(CN)6]3-/4- (0.1 V vs Ag|AgCl). Anodic oxidation and detection of the hydrazine was performed in 0.2 M NaOH solution (pH ∼ 12). The pH studies were performed with 0.1 M phosphate buffer solutions, the required pH adjusted appropriately using a 10 mM M NaOH or H3PO4 solutions. A WTW pH 330/SET-1 (Germany) pH meter was used for pH measurements. Chronoamperometric sensing of hydrazine was carried out in stirred (250 rpm) solution with potential fixed at +100 mV (vs Ag|AgCl). Tap water sample was obtained from public tap water and was analysed on the same day using the chronoamperometry. The pH of the tap water was adjusted to from pH 7.03 to about pH 12 using 0.01M NaOH. A Wissenschaftlick-Technishe Werkstätten (WTW) pH 330/SET-1 (Germany) pH meter was used for pH measurements. All experiments were performed at room temperature, 25±1°C.

Acknowledgments

The financial support of the National Research Foundation of South Africa (NRF, GUN 2073666) for this work is acknowledged. Useful discussions with Prof. Tebello Nyokong (Rhodes University) on this manuscript are highly appreciated.

References

  1. Yamada, K.; Yasuda, K.; Fujiwara, N.; Siroma, Z.; Tanaka, H.; Miyazaki, Y.; Kobayashi, T. Potential application of anion-exchange membrane for hydrazine fuel cell electrolyte. Electrochem. Commun. 2003, 5, 892–896. [Google Scholar]
  2. Poso, A.; von Wright, A.; Gynther, J. An empirical and theoretical study on mechanisms of mutagenic activity of hydrazine compounds. Mutation Res. 1995, 332, 63–71. [Google Scholar]
  3. Huamin, J.; Weiying, H.; Erkany, W. Amperometric flow-injection analysis of hydrazine by electrocatalytic oxidation at cobalt tetraphenylporphyrin modified electrode with heat treatment. Talanta 1992, 39, 45–50. [Google Scholar]
  4. Malaki, E.A.; Koupparis, M.K. Kinetic study of the determination of hydrazines, isoniazid and sodium azide by monitoring their reactions with 1-fluoro-2,4-dinitrobenzene, by means of a fluoride-selective electrode. Talanta 1989, 36, 431–436. [Google Scholar]
  5. Dias, F.; Olojola, A.S.; Joselskis, B. Spectrophotometric determination of micro amounts of hydrazine and hydroxylamine alone and in the presence of each other. Talanta 1979, 26, 47–49. [Google Scholar]
  6. Pournaghi-Azar, M.H.; Sabzi, R. Electrochemical characteristics of a cobalt pentacyanonitrosylferrate film on a modified glassy carbon electrode and its catalytic effect on the electrooxidation of hydrazine. J. Electroanal. Chem. 2003, 543, 115–125. [Google Scholar]
  7. Ozoemena, K.I.; Nyokong, T. Electrocatalytic oxidation and detection of hydrazine at gold electrode modified with iron phthalocyanine complex linked to mercaptopyridine self-assembled monolayer. Talanta 2005, 67, 162–168. [Google Scholar]
  8. Zhang, J.; Tse, Y-H.; Pietro, W.J.; Lever, A.B.P. Electrocatalytic activity of NNNN-tetramethyltetra-3,4-pyridoporphyrazinocobalt(II) adsorbed on a graphite electrode towards the oxidation of hydrazine and hydroxylamine. J. Electroanal. Chem. 1996, 406, 203–211. [Google Scholar]
  9. Isaacs, M.; Aguirre, M.J.; Toro-Labbe, A.; Costamagna, J.; Paez, M.; Zagal, J.H. Comparative study of the electrocatalytic activity of cobalt phthalocyanine and cobalt naphthalocyanine for the reduction of oxygen and the oxidation of hydrazine. Electrochim. Acta 1998, 43, 1821–1827. [Google Scholar]
  10. Li, X.; Zhang, S.; Sun, C. Fabrication of covalently attached multiplayer film electrode containing cobalt phthalocyanine and its electrocatalytic oxidation of hydrazine. J. Electroanal. Chem. 2003, 553, 139–145. [Google Scholar]
  11. Hou, W.; Ji, H.; Wang, E. Amperometric flow-injection analysis of hydrazine by electrocatalytic oxidation at cobalt tetraphenylporphyrin-modified electrode with heat treatment. Talanta 1992, 39, 45–50. [Google Scholar]
  12. Batchelor-McAuley, C.; Banks, C.E.; Simm, A.O.; Jones, T.G.J.; Compton, R.G. A comparison of the use of palladium nanoparticles supported on a boron-doped diamond and palladium plated BDD microdisc array. Analyst 2006, 131, 106–110. [Google Scholar]
  13. Kadish, K.M.; Smith, K.M.; Guilard, R. (Eds.) The Porphyrin Handbook; Volume 1–20, Academic Press: Boston, 1999–2003.
  14. Vasuvedan, P.; Poughat, N.; Shuklat, A.K. Metal phthalocyanines as electrocatalysyts for redox reactions. Appl. Organomet. Chem. 1996, 10, 591–604. [Google Scholar]
  15. Ozoemena, K.I.; Nyokong, T. Encyclopedia of Sensors; Grimes, C.A., Dickey, E.C., Pishko, M.V., Eds.; American Scientific Publishers: California, 2006; Volume 3, Chapter E; pp. 157–200. [Google Scholar]
  16. Bedioui, F.; Devynck, J.; Bied-Charreton, C. Immobilization of metalloporphyrins in electropolymerized films: design and applications. Acc. chem. Res. 1995, 28, 30–36. [Google Scholar]
  17. Zagal, J.H.; Gulppi, M.A.; Caro, C.A.; Cárdenas-Jirón, G.I. Paradoxical effect of the redox potential of adsorbed metallophthalocyanines on their activity for the oxidation of 2-mercaptoethanol. Inner versus outer sphere electrocatalysis. Electrochem. Commun. 1999, 1, 389–393. [Google Scholar]
  18. Ozoemena, K.I.; Nyokong, T.; Westbroek, P. Self-assembled monolayers of cobalt and iron phthalocyanine complexes on gold electrodes: Comparative surface electrochemistry and electrocatalytic interaction with thiols and thiocyanate. Electroanalysis 2003, 15, 1762–1770. [Google Scholar]
  19. Griveau, S.; Gulppi, M.; Bedioui, F.; Zagal, J.H. Electropolymerized cobalt macrocomplex-based films for thiols electro-oxidation: effect of the film formation conditions and the nature of the macrocyclic ligand. Solid State Ionics 2004, 169, 59–63. [Google Scholar]
  20. Maree, S.; Nyokong, T. Electrocatalytic behavior of substituted cobalt phthalocyanines towards the oxidation of cysteine. J. Electroanal. Chem. 2000, 492, 120–127. [Google Scholar]
  21. Nyokong, T.; Vilakazi, S. Phthalocyanines and related complexes as electrocatalysts for the detection of nitric oxide. Talanta 2003, 61, 27–35. [Google Scholar]
  22. Oni, J.; Diab, N.; Radtke, I.; Schuhmann, W. Detection of NO release from endothelial cells using Pt micro electrodes modified with a pyrrole-functionalised Mn(II) porphyrin. Electrochim. Acta 2003, 48, 3349–3354. [Google Scholar]
  23. Pereira-Rodrigues, N.; Albin, V.; Koudelka-Hep, M.; Auger, V.; Pailleret, A.; Bedioui, F. Nickel tetrasulfonated phthalocyanine based platinum microelectrode array for nitric oxide oxidation. Electrochem. Commun. 2002, 4, 922–927. [Google Scholar]
  24. Cosnier, S.; Gondran, C.; Wessel, R.; Montforts, F-P.; Wedel, M. A poly(pyrrole-cobalt(II)deuteroporphyrin) electrode for the potentiometric determination of nitrite. Sensors 2003, 3, 213–222. [Google Scholar]
  25. D'Souza, F.; Hsieh, Y.Y.; Wickman, H.; Kutner, W. New sensor for dissolved dioxygen: a gold electrode modified with a condensation polymer film of β-cyclodextrin hosting cobalt tetraphenylporphyrin. Chem. Commun. 1997, 1191–1192. [Google Scholar]
  26. Janda, P.; Lam, H.; Pietro, W.J.; Lever, A.B.P. Monomeric and polymeric tetraaminophthalocyaninatocobalt(II) modified electrodes: electrocatalytic reduction of oxygen. J. Porphyrins phthalocyanines 1997, 1, 3–16. [Google Scholar]
  27. Zhao, Z.X.; Ozoemena, K.I.; Maree, D.M.; Nyokong, T. Synthesis and electrochemical studies of a covalently linked cobalt(II) phthalocyanine-cobalt(II) porphyrin conjugate. Dalton Trans. 2005, 1241–1248. [Google Scholar]
  28. Ozoemena, K.I.; Zhao, Z.X.; Nyokong, T. Immobilized cobalt (II) phthalocyanine–cobalt (II) porphyrin pentamer at a glassy carbon electrode: Applications to efficient amperometric sensing of hydrogen peroxide in neutral and basic media. Electrochem. Commun. 2005, 7, 679–684. [Google Scholar]
  29. Ozoemena, K.I.; Nyokong, T. Novel amperometric glucose biosensor based on an ether-linked cobalt(II) phthalocyanine–cobalt(II) tetraphenylporphyrin pentamer as a redox mediator. Electrochim. Acta 2006, 51, 5131–5136. [Google Scholar]
  30. Mantai, K.E.; Hind, G. Mechanism and stoichiometry of the oxidation of hydrazine by illuminated chloroplasts. Plant Physiol. 1971, 48, 5–8. [Google Scholar]
  31. Nevin, W.A.; Hempetead, M.R.; Liu, W.; Leznoff, C.C.; Lever, A.B.P. Electrochemistry and spectroelectrochemistry of mononuclear and binuclear cobalt phthalocyanines. Inorg. Chem. 1987, 26, 570–578. [Google Scholar]
  32. Katz, E.; ; Wilner, I. Ultrathin Electrochemical Chemo- and Biosensors. Technology and Performance; Mirsky, V.M., Ed.; Springer-Verlag: New York, 2004; Chapter 4; pp. 68–116. [Google Scholar]
  33. Bisquert, J.; Garcia-Belmonte, G.; Bueno, P.; Longo, E.; Bulhoes, L.O.S. Impedance of constant phase element (CPE)-blocked diffusion in film electrodes. J. Electroanal. Chem. 1998, 452, 229–234. [Google Scholar]
  34. Sabatini, E.; Rubinstein, I. Organized self-assembled monolayers on electrodes. 2. Monolayer-based ultramicroelectrodes for the study of very rapid electrode kinetics. J. Phys. Chem. 1987, 91, 6663–6669. [Google Scholar]
  35. Adams, J.Q.; Thomas, J.R. Electron Paramagnetic Resonance of a Hydrazine Radical Ion. J. Chem. Phys. 1963, 39, 1904–1906. [Google Scholar]
  36. Zhao, Y.-D.; Zhang, W.-D.; Chen, H.; Luo, Q.-M. Anodic oxidation of hydrazine at carbon nanotube powder microelectrode and its detection. Talanta 2002, 58, 529–534. [Google Scholar]
  37. Golabi, S.M.; Zare, H.R.; Hamzehloo, M. Electrocatalytic oxidation of hydrazine at a pyrocatechol violet (PCV) chemically modified electrode. Microchem. J. 2001, 69, 13–23. [Google Scholar]
  38. Zen, J.-M.; Kumar, A. S.; Chang, M.-R. Electrocatalytic oxidation and trace detection of amitrole using a Nafion/lead–ruthenium oxide pyrochlore chemically modified electrode. Electrochim. Acta 2000, 45, 1691–1700. [Google Scholar]
  39. Wermeckers, B.; Beck, F. ; Anodic oxidation of β-cyanoethyl ethers. Electrochim. Acta 1985, 30, 1491–1500. [Google Scholar]
  40. Siswana, M.; Ozoemena, K.I.; Nyokong, T. Electrocatalytic behaviour of carbon paste electrode modified with iron (II) phthalocyanine (FePc) nanoparticles towards the detection of amitrole. Talanta 2006, 69, 1136–1142. [Google Scholar]
Figure 1. The molecular structure of a cobalt phthalocyanine-cobalt porphyrin (CoPc-(CoTPP)4) pentamer.
Figure 1. The molecular structure of a cobalt phthalocyanine-cobalt porphyrin (CoPc-(CoTPP)4) pentamer.
Sensors 06 00874f1

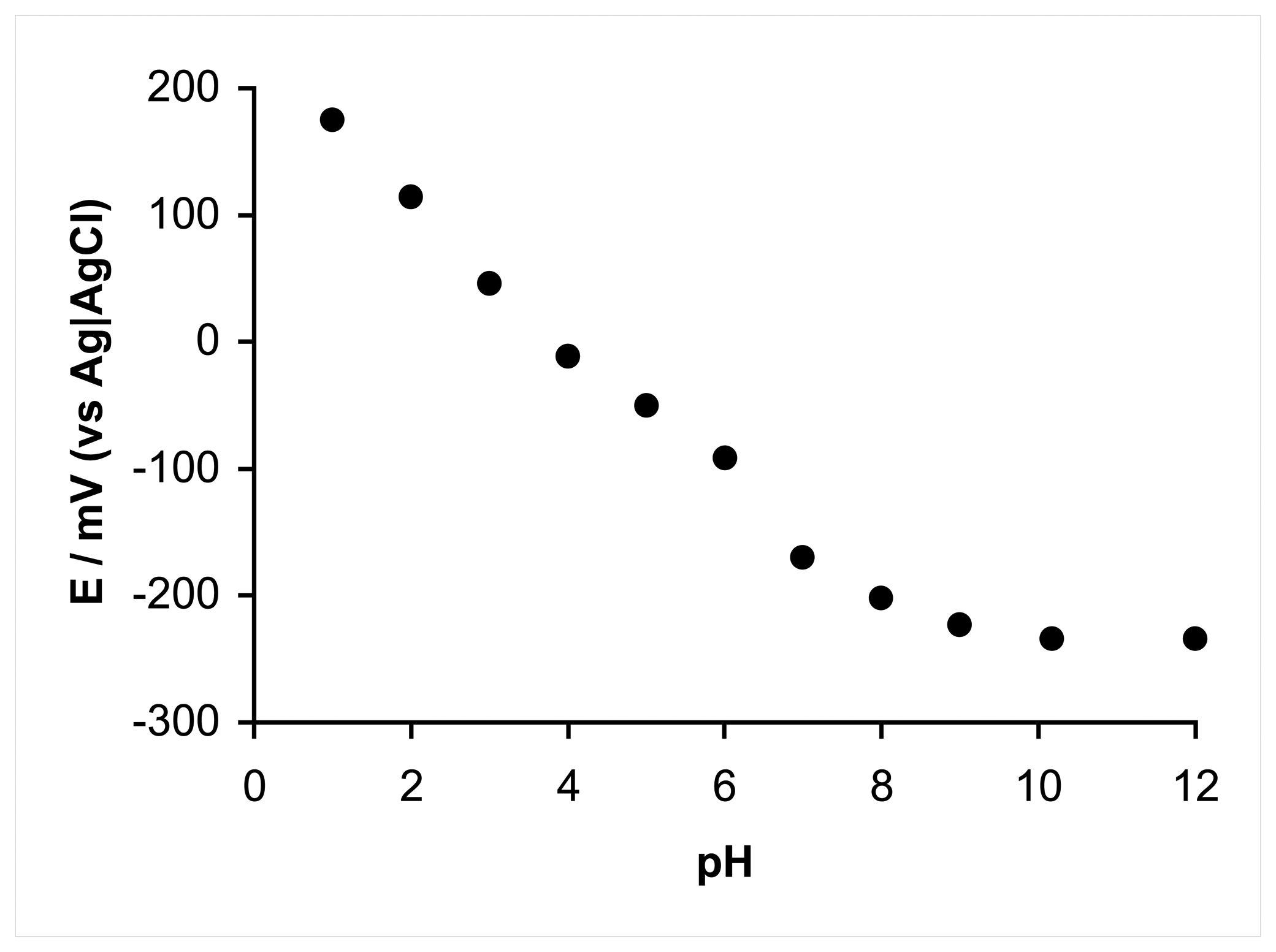

Figure 2. The CV reponse of the GCE-CoPc-(CoTPP)4 to changes in solution pH.
Figure 2. The CV reponse of the GCE-CoPc-(CoTPP)4 to changes in solution pH.
Sensors 06 00874f2

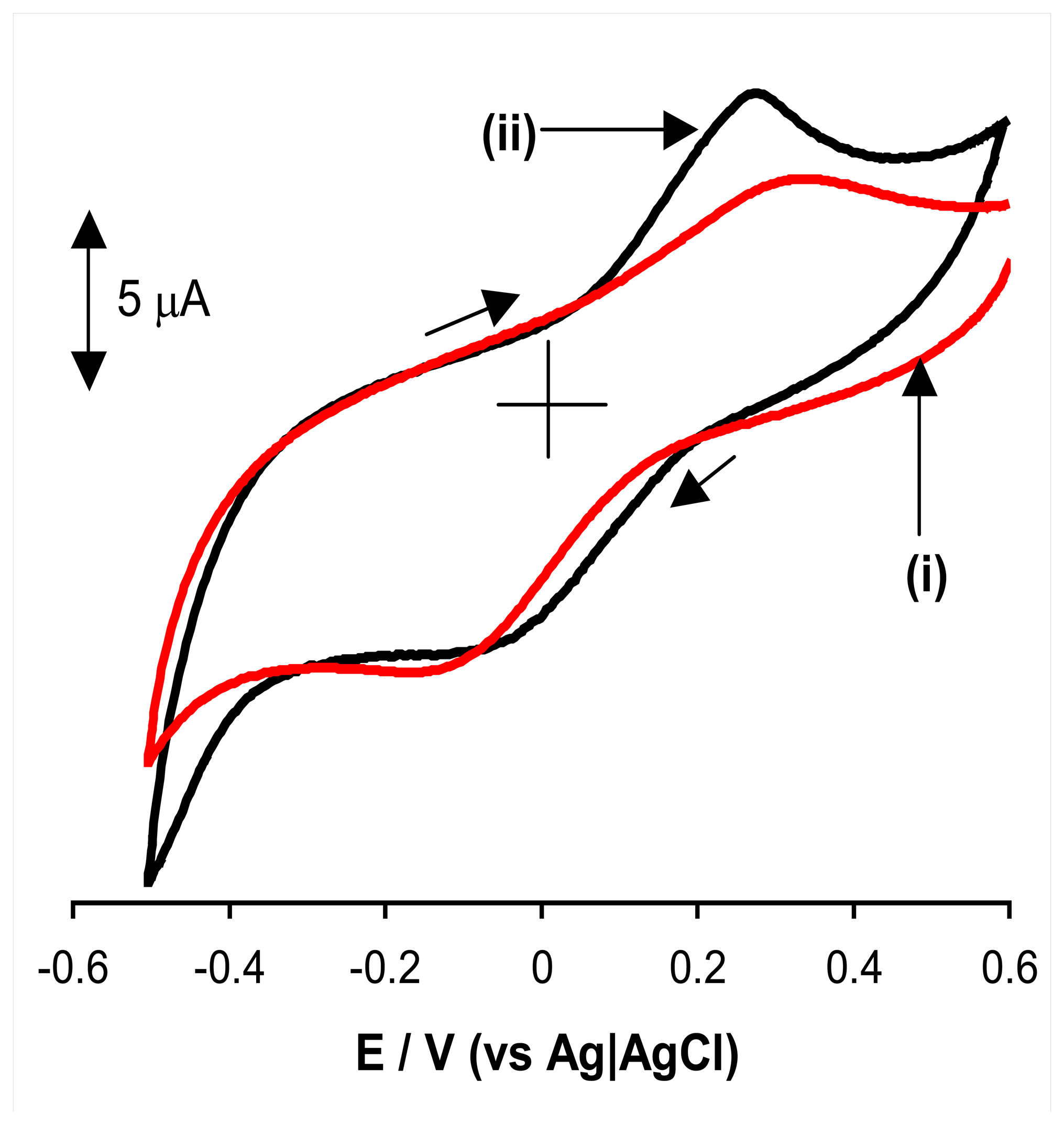

Figure 3. CV response of (i) GCE and (ii) GCE-CoPc-(CoTPP)4 in 0.1M KCl containing 0.1M KCl containing equimolar mixture of K4Fe(CN)6 and K3Fe(CN)6.
Figure 3. CV response of (i) GCE and (ii) GCE-CoPc-(CoTPP)4 in 0.1M KCl containing 0.1M KCl containing equimolar mixture of K4Fe(CN)6 and K3Fe(CN)6.
Sensors 06 00874f3
Figure 4. (A)The equivalent circuit model where Rs, Rct, CPE and Zw represent the solution resistance, the charge transfer resistance, double layer resistance and Warburg impedance, respectively. (B) Nyquist and (C) Bode Plots of (i) GCE and (ii) GCE-CoPc-(CoTPP)4 in 0.1M KCl containing equimolar mixture of K4Fe(CN)6 and K3Fe(CN)6.
Figure 4. (A)The equivalent circuit model where Rs, Rct, CPE and Zw represent the solution resistance, the charge transfer resistance, double layer resistance and Warburg impedance, respectively. (B) Nyquist and (C) Bode Plots of (i) GCE and (ii) GCE-CoPc-(CoTPP)4 in 0.1M KCl containing equimolar mixture of K4Fe(CN)6 and K3Fe(CN)6.
Sensors 06 00874f4
Figure 5. Cyclic voltammograms recorded at (i) bare GCE and (ii) GCE-CoPc-(CoTPP)4 in 0.2 M NaOH at 25 mVs-1. Inset shows the Co(II)Pc/Co(III)Pc redox couple.
Figure 5. Cyclic voltammograms recorded at (i) bare GCE and (ii) GCE-CoPc-(CoTPP)4 in 0.2 M NaOH at 25 mVs-1. Inset shows the Co(II)Pc/Co(III)Pc redox couple.
Sensors 06 00874f5

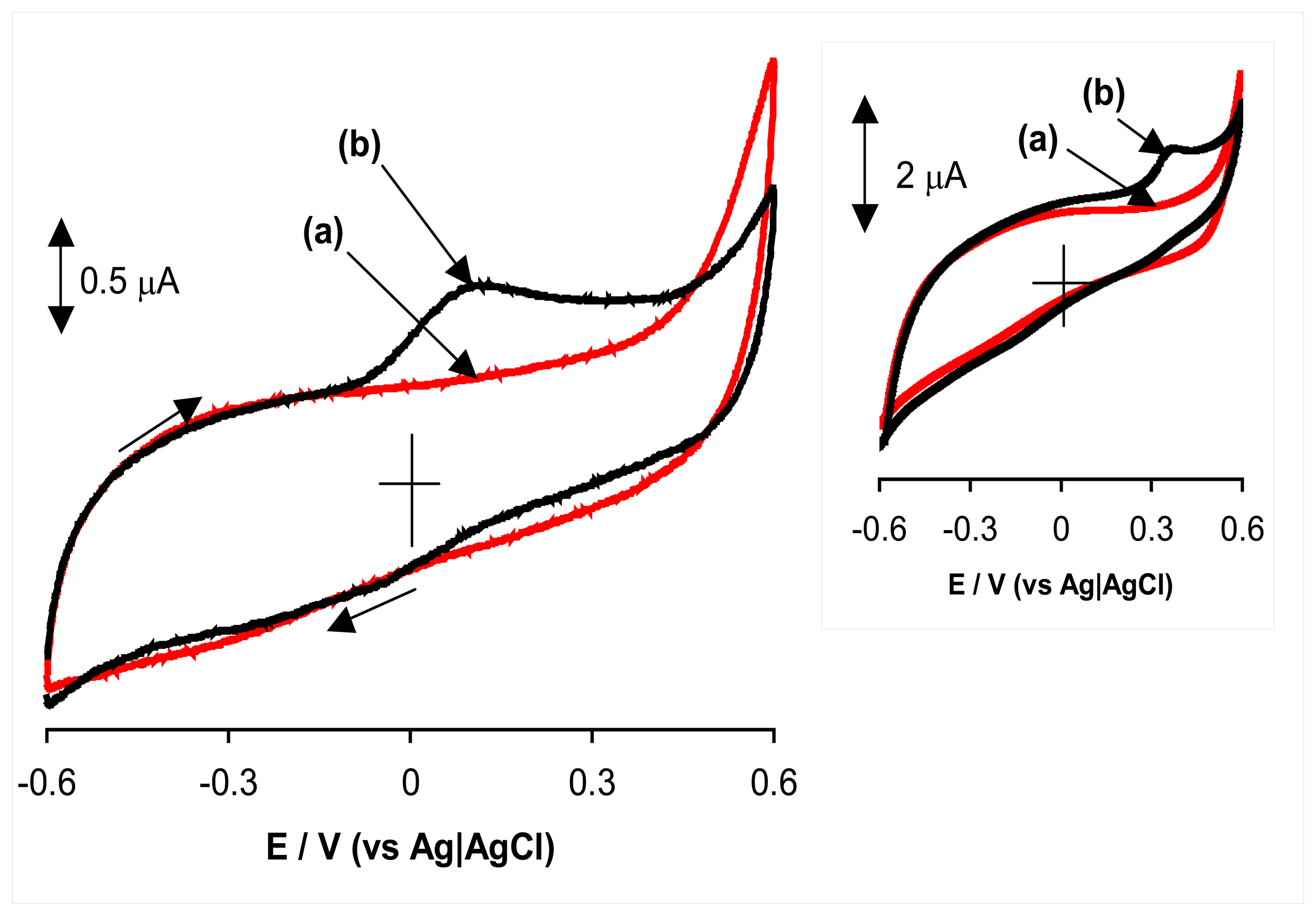

Figure 6. Typical cyclic voltammograms recorded at a GCE-CoPc-(CoTPP)4 in 0.2 M NaOH without (a) and with (b) 1×10-4 mol/L hydrazine at 25 mVs-1. Inset shows the comparative CV responses at bare GCE at the same conditions.
Figure 6. Typical cyclic voltammograms recorded at a GCE-CoPc-(CoTPP)4 in 0.2 M NaOH without (a) and with (b) 1×10-4 mol/L hydrazine at 25 mVs-1. Inset shows the comparative CV responses at bare GCE at the same conditions.
Sensors 06 00874f6
Figure 7. UV-Visible spectra of CoPc-(CoTPP)4 immobilised at a glass slide (a), after 15 s exposure to bromine vapour (b) and dipping in 0.1 M NaOH solution of hydrazine solution and drying (c).
Figure 7. UV-Visible spectra of CoPc-(CoTPP)4 immobilised at a glass slide (a), after 15 s exposure to bromine vapour (b) and dipping in 0.1 M NaOH solution of hydrazine solution and drying (c).
Sensors 06 00874f7
Figure 8. Plot of plot of the Icat/IL vs t1/2
Figure 8. Plot of plot of the Icat/IL vs t1/2
Sensors 06 00874f8

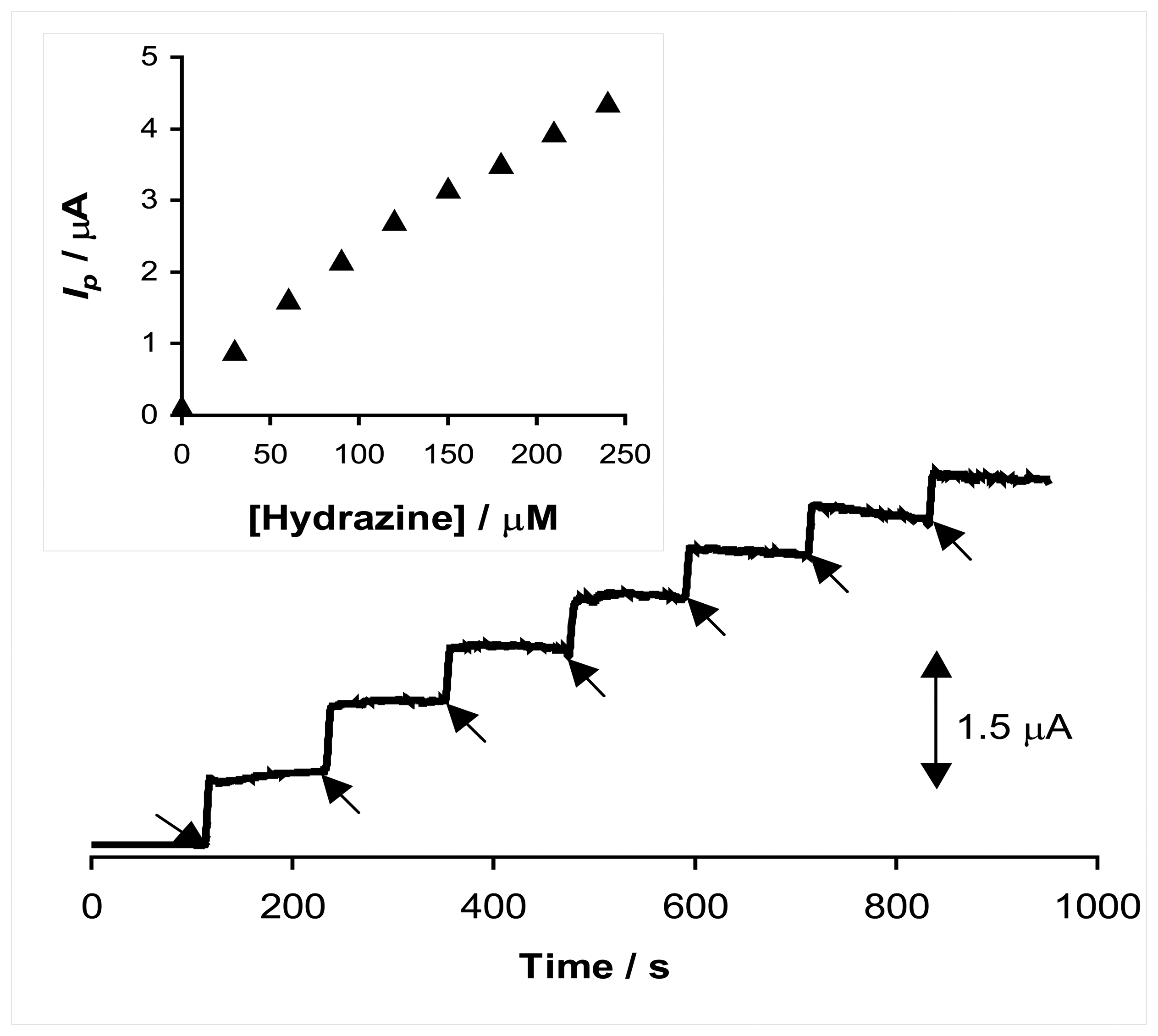

Figure 9. Chronoamperograms recorded at a GCE-CoPc-(CoTPP)4 on successive additions of 30 μM hydrazine to a 0.2 M NaOH solution. Inset is the corresponding plot of observed current vs hydrazine concentration. Arrows indicate points of injection. Fixed potential = +100 mV (vs Ag|AgCl); solution stirred at 250 rpm.
Figure 9. Chronoamperograms recorded at a GCE-CoPc-(CoTPP)4 on successive additions of 30 μM hydrazine to a 0.2 M NaOH solution. Inset is the corresponding plot of observed current vs hydrazine concentration. Arrows indicate points of injection. Fixed potential = +100 mV (vs Ag|AgCl); solution stirred at 250 rpm.
Sensors 06 00874f9
