Article

Agreement between Optoelectronic System and Wearable Sensors for the Evaluation of Gait Spatiotemporal Parameters in Progressive Supranuclear Palsy

by
Carlo Ricciardi
1,*,†,
Noemi Pisani
2,†,
Leandro Donisi
3,
Filomena Abate
4,
Marianna Amboni
4,
Paolo Barone
4,
Marina Picillo
4,
Mario Cesarelli
5 and
Francesco Amato
1,*
1
Department of Electrical Engineering and Information Technology, University of Naples Federico II, 80125 Naples, Italy
2
Department of Advanced Biomedical Sciences, University of Naples Federico II, 80131 Naples, Italy
3
Department of Advanced Medical and Surgical Sciences, University of Campania Luigi Vanvitelli, 80138 Naples, Italy
4
Center for Neurodegenerative Diseases (CEMAND), Department of Medicine, Surgery and Dentistry “Scuola Medica Salernitana”, University of Salerno, 84131 Salerno, Italy
5
Department of Engineering, University of Sannio, 82100 Benevento, Italy
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to the work.
Sensors 2023, 23(24), 9859; https://doi.org/10.3390/s23249859
Submission received: 14 November 2023 / Revised: 12 December 2023 / Accepted: 14 December 2023 / Published: 16 December 2023
(This article belongs to the Special Issue Sensors Network and Wearables for People Activities and Wellbeing Monitoring)
Browse Figures
Versions Notes

Abstract

:
The use of wearable sensors for calculating gait parameters has become increasingly popular as an alternative to optoelectronic systems, currently recognized as the gold standard. The objective of the study was to evaluate the agreement between the wearable Opal system and the optoelectronic BTS SMART DX system for assessing spatiotemporal gait parameters. Fifteen subjects with progressive supranuclear palsy walked at their self-selected speed on a straight path, and six spatiotemporal parameters were compared between the two measurement systems. The agreement was carried out through paired data test, Passing Bablok regression, and Bland-Altman Analysis. The results showed a perfect agreement for speed, a very close agreement for cadence and cycle duration, while, in the other cases, Opal system either under- or over-estimated the measurement of the BTS system. Some suggestions about these misalignments are proposed in the paper, considering that Opal system is widely used in the clinical context.

1. Introduction

Progressive supranuclear palsy (PSP) is a rare neurodegenerative disease characterized by oculomotor gaze palsy, akinesia, postural instability, and cognitive dysfunction. Gait abnormalities represent one of the cornerstones of PSP and determine an increased risk of falls from the earliest stages of the disease [1,2,3]. The PSP Rating Scale (PSP-RS) is a semi-quantitative clinician-based scale considered the gold standard to evaluate disease severity in both clinical and research settings. However, only a few items of the PSP-RS are dedicated to gait and to axial impairment in general [4].
Beyond clinical scales, gait analysis is considered one of the main tools to measure quantitative gait-related parameters [5,6]. In detail, the instrumented gait analysis can assess an individual’s gait patterns through the calculation of quantitative gait-related parameters, namely kinetic, kinematic, and spatiotemporal variables. In neurodegenerative diseases, gait analysis has been used for monitoring disease progression over time, quantifying parkinsonian symptoms [7], evaluating treatments’ outcomes, implementing algorithms for diagnosis through the recognition of soft signs [8], and predicting the risk of falls [9,10,11,12]. As for PSP, recent evidence suggests that quantitative evaluation of gait may provide further insights in both the diagnostic process and in the evaluation of disease progression [1,13,14].
Optoelectronic motion capture systems are recognized as the gold standard in the evaluation of quantitative gait parameters [15,16]. These laboratory systems are based on passive light-reflecting markers, infrared cameras to track the trajectory of markers, and force platforms to extract kinetic data [17,18]. However, the limitations of optoelectronic systems consist of high equipment costs, the need for large capture volume, technical and clinical trained personnel, and time-consuming acquisitions [19]. These aspects have recently boosted the development of wearable sensors based on Inertial Measurement Units (IMUs) for calculating gait parameters [20,21,22,23]. IMU sensors can be used in several real-life environments, both indoor and outdoor, reducing the costs of lab-based systems and the complexity of the acquisitions. Additionally, these devices are easy to wear, require less patient preparation, and, consequently, can be used by a larger number of users [24,25].
Recently, inertial sensors and gold standard systems have been compared in gait parameters assessment (kinematic, spatiotemporal, or both) in healthy subjects [26,27,28]. González et al. studied the reliability of the Kinovea (version 0.8.15) software, a video annotation tool designed for movement analysis, and the agreement with a three-dimensional motion system, Vicon Motion System®, for extracting hip, knee, and ankle joint angles parameters [29]. The same kinematic parameters were extracted by Piche et al. to compare the iSen IMU sensor with the optoelectronic gold standard system OptiTrack [30]. Finally, Bartoszec et al. compared the IMU-based MyoMotion system and the optoelectronic BTS SMART DX system, simultaneously recording the upper and lower limb joint angles [31]. Furthermore, the comparison of the above-mentioned measurement systems is also carried out to develop an algorithm for the accurate calculation of spatiotemporal gait parameters from wearable IMUs for Parkinson disease (PD) rehabilitation [32]. The Vicon Motion System® was also used as gold standard reference against the system proposed in [33], based on a single RGB-D sensor to estimate the gait parameters in a limited space such as the domestic setting. Previous studies have also investigated the interoperability of IMUs sensors and optoelectronic systems in PD subjects [11,34].
In this context, the aim of the study is to evaluate the agreement between two systems for the measurement of the spatiotemporal gait parameters in patients with PSP. The BTS SMART DX optoelectronic system by BTS Bioengineering Inc. is used as reference device to the wearable Opal System by APDM Inc. To the best of our knowledge, no study has ever investigated the agreement between these two measurements systems in a population of patients with a rare disease such as the PSP. In this work, spatiotemporal parameters calculated by the two measurement systems were evaluated by means of different statistical techniques to assess their level of agreement. Since, as said above, a hard limit of the optoelectronic systems relies in the fact that they cannot be used outside the laboratorial context, the overall objective of this study is to prove that the Opal wearable system can guarantee a performance comparable to that one of the BTS SMART DX optoelectronic system.

2. Materials and Methods

2.1. Study Population and Clinical Assessment

Fifteen patients diagnosed with PSP, aged between 60 and 75 years, were recruited from the Center for Neurodegenerative diseases (CEMAND) at the University of Salerno, Italy, between January 2021 and January 2023. The diagnosis was established using the Movement Disorders Society clinical criteria [1], and all patients met the criteria for either probable or possible PSP [32]. Exclusion criteria included patients with gait requiring bilateral assistance, dementia according to the Diagnostic and Statistical Manual of Mental Disorders (DSM-V) criteria, significant comorbidities possibly impacting on gait (including other neurologic disorders, orthopedic diseases, or cardiovascular/respiratory diseases and/or brain surgery). All enrolled patients were treated with levodopa with a mean Levodopa Equivalent Daily Dose (LEDD) of 322.00 ± 177.13 [35]. The protocol was approved by the local ethics committee and all patients were enrolled upon signing a written informed consent form.
Disease severity was evaluated with the PSP-RS, administered by expert clinicians. The scale is composed of 28 items, distributed into 6 domains: history, mentation, bulbar, ocular motor, limb motor, gait/midline. The total score ranges from 0 to 100, where 100 represents the more severe outcome [4].
Demographic and clinical data are shown in Table 1.

2.2. Gait Analysis Systems

Two different systems were compared for gait analysis in PSP patients: the BTS SMART DX-400 System (BTS Bioengineering Corp., Milan, Italy) and the Opal System (APDM Inc., Portland, OR, USA).
The BTS SMART DX-400 is an optoelectronic system made up of six infrared digital cameras that record at a sample frequency of 100 Hz, two dynamometric platforms, twenty-two retro-reflective passive markers (each one with a diameter of 14 mm), two video cameras, and an elaborator, as shown in Figure 1. For data acquisition, the Davis protocol [36] was applied, consisting of the following steps:
  • anthropometric measurements,
  • positioning of passive markers on patients’ body (from the feet to the shoulders) according to the Davis protocol,
  • standing phase,
  • walking phases.
Then, the acquired data were transferred to the elaborator using a dedicated proprietary software, able to store and compute spatiotemporal parameters, as reported in other studies [13,37,38].
The Opal System is a wearable inertial system made up of three IMU sensors, each one containing three-axes accelerometer with 14 bits resolution and selectable ±16 g or ±200 g ranges, three-axes gyroscope with 16 bits resolution and ±2000 deg/s, and three-axes magnetometer with 12 bits resolution and ±8 Gauss range. Opal sensors were placed on the patients’ body by means of straps, including one sensor on each foot and one sensor on the lumbar region. Thanks to the Access Point, sensors were wirelessly connected by Bluetooth to a laptop equipped with the Mobility Lab (version 4) software capable of processing movement-related data. In addition, the Docking Station was used for charging and configuring the sensors. Figure 2 illustrates the Opal Systems parts.

2.3. Study Protcol

Gait analysis tasks were performed in the movement analysis laboratory at the University Hospital of Salerno. First, all patients were trained to walk at their normal speed on a 10 m straight pathway four times; overall, a straight path of 40 m has been considered. Then, the four walking phases were averaged. The trials were recorded by the optoelectronic system BTS SMART DX. Before conducting the analysis with the Opal sensors, patients rested for 15 min to allow them to perform the new test without feeling tired. After such resting time, patients repeated the trials on a straight path for 10 m, walking at their normal speed for two minutes while wearing the Opal sensors. All patients were evaluated more than once.
The spatiotemporal parameters analyzed were as follows:
  • Cadence (steps/minute): stepping rate.
  • Cycle duration (s): duration of a complete gait cycle.
  • Speed (m/s): walking speed.
  • Stance phase (% gait cycle time): average percentage of a gait cycle that either foot is on the ground.
  • Swing phase (% gait cycle time): average percentage of a gait cycle that either foot is off the ground.
  • Stride length (m): distance between two consecutive foot falls at the moments of initial contacts.
For the current analysis, the spatiotemporal parameters from the trials were averaged for each subject in order to obtain the mean value of both sides (right and left).

2.4. Statistical Analyses

All statistical analyses were performed using the SPSS® (version 28, IBM Corp., Armonk, NY, USA) and MATLAB (version 2021b, Mathworks Inc., Natick, MA, USA) software. In order to evaluate the agreement between the optoelectronic system (BTS SMART DX-100, BTS Bioengineering Inc., Milano, Italy) and the inertial sensors (Opal, APDM Inc., Portland, OR, USA), a two-tailed paired test was carried out. The paired data test, in its parametric and non-parametric form according to the Shapiro–Wilk normality test, was used to identify statistically significant differences between the means or the medians of the spatiotemporal variables measured by the two systems [39]. The absence of a statistically significant difference implies an overall agreement between the variables.
Passing–Bablok (PB) linear regression analysis was employed to evaluate the presence of systematic errors in the measurements. In particular, the slope of the regression line indicates a proportional systematic error, while the intercept of the regression line with the y-axis indicates a constant systematic error; such errors have a physical meaning whenever the slope and the intercept 95% confidence intervals contain the 1 and 0 values, respectively. The PB method was applied after verifying the linear relationship between the measurements [34,40].
The Bland–Altman (BA) method is a visual representation of the agreement between the two systems by means of a scatterplot in which the mean of the two measurements is plotted on the x-axis and the difference between the measurements is represented on the y-axis. To obtain the limits of agreement, defined as the mean of the differences ±1.96 times the standard deviation (i.e., 95% of the confidence interval), the mean of differences (bias) and the standard deviation of differences were calculated. In this context, the presence of errors can be assessed through the bias distance from the 0 value, which implies a constant systematic error, the width of the limits of agreement and any trends in the distribution of data around the bias [29,41]. In particular, possible errors could be a fan-shaped distribution within the limits of agreement, known as heteroscedasticity of variance, a non-causal but systemic distribution in absolute value, or a linear distribution of points which determine a systematic proportional error [42,43].
In all the performed analyses, the uncertainty level was set at α = 0.05.

3. Results

Table 2 shows the paired data test results in terms of p-value. Additionally, Table 2 reports the mean and standard deviation values for each spatiotemporal variable for both systems and test types, parametric or non-parametric, depending on the normality test.
The PB linear regression results of cadence, cycle duration, and speed, illustrated in Table 3, exhibited a confidence interval containing 1 for the slope and 0 for the intercept. Other parameters deviated from such values.
The results of the BA analysis for each spatiotemporal parameter included in the study are shown in Table 4 in terms of bias (the difference between two measurement systems), the 95% lower and the upper bounds of bias, and the BA lower and upper bounds, known as limits of agreement. The bias approached zero, and the bias limits containing the zero value demonstrate a good agreement between the measured parameters.
Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8 show, in pairs, the PB plot and the BA graph for all parameters (i.e., cadence, cycle duration, speed, stance phase, swing phase, and stride length).

4. Discussion

The current study aimed to compare the performance of Opal wearable sensors by APDM with the BTS SMART DX system in assessing spatiotemporal parameters in PSP patients during walking. Among all the spatiotemporal parameters evaluated, gait speed showed a perfect agreement between the two measurement systems, meaning it can be interchangeably evaluated with either of them. Cadence and cycle duration showed a very close agreement due to the presence of a constant systematic error, which could be removed by zeroing the bias. On the other hand, constant and proportional systematic errors were detected for the remaining parameters, meaning those cannot be interchangeably evaluated by the two systems.
Regarding speed, first, the overall agreement was demonstrated by the Wilcoxon test with no significance between the groups (p-value = 0.192). The agreement was then confirmed by the PB analysis (Table 3 and Figure 5) with the slope (m = 1.02) and the intercept (q = 0.05) values of regression line close to 1 and 0, respectively, and their 95% confidence intervals containing such values. Moreover, points were equally distributed around the identity line (OPAL = BTS), as shown in Figure 5 on the left. The BA analysis in Table 4 showed the presence of a small bias equal to −0.03 and its 95% confidence interval contained the 0 value. In the BA plot, points were randomly distributed around the 0 line (Figure 5). Therefore, even though there is a very small bias, there is an absolute agreement between the two measurement systems regarding speed.
Concerning cadence, the paired data test showed a significant overall difference (p-value equal to 0.002), with Opal overestimating the parameter. This result was confirmed by the PB plot (Figure 3) in which the majority of points were over the identity line (OPAL = BTS). Additionally, the slope of the PB regression line was 1.09 and its 95% confidence interval (0.74–1.81) included the 1 value, assuring the absence of a proportional systematic error, while the intercept value was equal to −3.02 with a quite large 95% confidence interval (−67.89–30.17) containing 0. Nevertheless, there may be a constant systematic error due to the width of the confidence interval. Indeed, the BA analysis, illustrated in Table 4, confirmed the presence of a constant systematic error for the presence of a bias (bias = −7.43), which was quite different from 0, and its 95% confidence interval did not include 0, as shown in Figure 3.
Similarly, as for the cadence parameter, Wilcoxon test for cycle duration showed a statistical overall difference (p-value equal to 0.003). In this case, the Opal system underestimated the evaluation of the cycle duration variable (Table 2 and Figure 4). The slope and the intercept of the PB regression line were close to 1 and 0, respectively (m = 1.03; q = −0.10), and their 95% confidence intervals contained the 1 and 0 values, which allows to suppose the presence of agreement. Despite this, the presence of a constant systematic error has been detected by the BA analysis (Table 4 and Figure 4). Indeed, there was a small bias, equal to 0.15 with a confidence interval, ranging from 0.05 to 0.25. The BA plots for cadence and cycle duration illustrated a random distribution of points around the zero-line, confirming the presence of only a constant systematic error. In conclusion, due to a constant systematic error, there is no agreement between the BTS systems and wearable sensors for both cadence and cycle duration parameters, which could be achieved by zeroing the bias.
Concerning the stance phase, the paired data test exhibited a significant overall difference (p-value = 0.037), implying the absence of an overall agreement. The slope of the PB regression line was 0.63 and its 95% confidence interval ranging from 0.46 to 0.85 did not include the 1 value, showing the presence of a proportional systematic error; the intercept was 23.09 with a 95% confidence interval that did not contain the 0, indicating the presence of a constant systematic error; the presence of such errors has emerged also from the analysis of BA (Table 4 and Figure 6). The bias of the stance phase was close to 0 (bias = 0.84) but its 95% confidence interval did not include the 0 value. Furthermore, the points distribution followed a linear trend around the bias, as shown in Figure 6. In conclusion, there is no agreement between the two measurement systems due to the presence of a constant systematic error and a proportional systematic error.
Regarding the swing phase, no significance between groups was found (p-value = 0.159) from Wilcoxon test, suggesting the presence of an overall agreement. Nevertheless, the slope and the intercept of the PB regression line (m = 0.58; q = 15.96) were far from the identity line values and their 95% confidence intervals did not include 1 and 0, respectively, showing the presence of a proportional and a constant systematic error (Table 3). The BA analysis, illustrated in Table 4, confirmed the presence of both errors for the presence of bias (bias = −0.05), whose 95% confidence interval contained 0, and for the linear distribution of points around the bias (Figure 7). Therefore, due to a constant systematic error, we can conclude that there is no agreement between BTS and Opal systems for the swing phase.
Regarding stride length, the T-Student paired test showed a statistical overall difference (p-value < 0.001) with Opal overestimating the parameter (Table 2). This result was confirmed by the PB scatter plot in Figure 8. The PB analysis, in Table 3, illustrated the presence of a proportional systematic error with a slope value far from 1 and its 95% confidence interval, ranging from 1.64 to 2.69, which did not include it. The intercept of the PB regression line was −0.05 and its 95% confidence interval (−0.28–0.13) contained the 0 value, assuring the absence of a constant systematic error. The absence of a constant systematic error was not confirmed by the BA analysis due to the presence of a small bias equal to −0.37, and its 95% confidence interval did not include the 0, as shown in Table 4. In addition, the BA plot in Figure 8, where the linear trend of points around the bias is shown, implies the presence of a proportional systematic error. In conclusion, there is no agreement between the two measurement systems due to the presence of a constant systematic error and a proportional systematic error. Results are summarized in Table 5.
Recently, Zago et al. compared the BTS SMART DX optoelectronic system to the G-Sensor wearable system, assessing spatiotemporal parameters in patients’ diagnosis with PD [11]. The variables cadence, stride length, stride duration, step duration, stance duration, swing duration, and double support showed no statistical significance from Wilcoxon rank-sum test (p-value > 0.05) except for velocity showing a p-value equal to 0.01. The Spearman correlation analysis obtained a good correlation between the two measurement systems, reaching high correlation coefficient values (from 0.64 to 0.91) except for step duration that achieved a correlation coefficient value equal to 0.41. High values, over 10% of the mean absolute error, were obtained for stride length, step duration, stance, and double support duration. The overall results reached by the IMUs system were sufficiently accurate for spatiotemporal parameters evaluations, showing a discrepancy with our results. The same optoelectronic system in comparison with an IMU-based system was used in another study for kinematic gait parameters assessment in healthy subjects [31]. A high relationship between the two measurement systems was obtained by the correlation coefficient r for shoulder flexion-extension, ankle dorsi-plantar flexion, elbow flexion-extension, knee flexion-extension, hip abduction-adduction, and hip flexion-extension. The BA analysis results showed that the IMU-based system overestimates or underestimates the joint angles measurements, reaching bias values greater than 10 degrees. Moreover, Vítecková et al. achieved results comparable to ours by means of different measurement systems (the GAITRite optoelectronic system and the wearable G-Walk system) [34]. Compared to our study, other parameters were additionally evaluated, namely stride duration, double, and single support. Cadence, speed, stride length, and stride duration demonstrated no statistical differences from the paired t-test. The PB analysis showed slope and intercept values very close to 1 and 0 for cadence and stride duration, whereas the interclass correlation coefficient exhibited high correlation value (r > 0.75) for speed, stride duration, cadence, and stride length. In particular, the agreement was reached for the speed variable in both studies, whereas parameters that could not be considered interchangeable for the two systems and for both studies were stance and swing phase.
The use of gait analysis systems in movement disorders is of utmost importance for regular outpatient follow-ups and for research purposes. Recent evidence demonstrated that Opal wearable sensors present a good correlation with PSP-RS and can effectively detect disease severity and progression in PSP [14,44,45]. Wearable sensors present several advantages compared to more sophisticated systems gathering spatiotemporal parameters of gait for both clinical and research settings. First, set-up and placement are swift and straightforward and only require a short training. Then, the report is promptly provided by the parent company software and normal and previous evaluation values are always shown on the output, making it easy to be interpreted even by non-expert clinicians. As a matter of fact, in just a few minutes, the clinician can have a complete overview of patients gait impairment. Moreover, since PSP patients usually suffer from a severe and rapidly progressive disability, it could be easier for them to use wearable sensors at home or in their outpatient clinic rather than reaching a specific movement analysis laboratory. From a research point of view, wearable sensors can be easily added to a protocol evaluating the efficacy of disease treatments and implemented even in research centers lacking a specific gait lab with more sophisticated instruments.
One limitation of the present study concerns the acquisitions that could not be conducted at the same time due to the incompatibility of the two systems (positions of sensors and markers in the same points of the body and possibility of infrared ray reflection), but they were conducted in the same conditions to reduce the risk of bias at the minimum. Other studies in the literature emphasized the small sample size [11,28,31,32,34] in addition to the fact that patients walk straight paths in lab-based or clinical settings; nevertheless, our study focused on a rare disease, which means that our sample size is consistent with other studies investigating PSP [11,13]. It could also be useful for evaluating a cohort of patients with several gait-related conditions. Furthermore, the different algorithms implemented in the measurement systems can introduce discrepancies in the measurement of parameters.

5. Conclusions

This study proposed a comparison between the wearable Opal system, and the optoelectronic lab-based system, BTS SMART DX, for assessing gait-related parameters in PSP patients. The agreement study conducted between the two measurement systems does not allow the conclusion that the two devices can be used with a complete interchangeability, due to the presence of two types of errors: a constant systematic error detectable with bias zeroing (cadence and cycle duration), and a proportional error (stance phase, swing phase and stride length). This result does not apply to the speed variable that showed perfect agreement between the two measurement systems. This is a first step in defining the reliability of a wearable sensor system compared to the actual gait analysis gold standard. Given the increasing importance of implementing wearable technologies in both clinical and research settings, the feasibility for non-expert clinicians and the known sensitivity of the Opal system, the present data represent a further step forward the implementation of quantitative evaluation of gait in PSP patients. A further development could be focused on the need to study the algorithm to detect gait events underlying systems by reducing the offset.

Author Contributions

Conceptualization, M.C. and F.A. (Francesco Amato); methodology, N.P., C.R., L.D., M.C. and F.A. (Francesco Amato); software, N.P., C.R., M.C. and F.A. (Francesco Amato); validation, M.A., P.B., F.A. (Filomena Abate) and M.P.; formal analysis, N.P., C.R. and L.D.; investigation, M.A., P.B., F.A. (Filomena Abate) and M.P.; data curation, N.P., C.R., M.A., P.B., F.A. (Filomena Abate) and M.P.; writing—original draft preparation, N.P., C.R. and F.A. (Filomena Abate); writing—review and editing, C.R., L.D., P.B., M.P., M.C. and F.A. (Francesco Amato) and supervision, M.C. and F.A. (Francesco Amato); funding acquisition, M.P. All authors have read and agreed to the published version of the manuscript.

Funding

The present study was funded by the Italian Ministry of Health—GR-2019-12370133, Principal Investigator: Marina Picillo.

Institutional Review Board Statement

This study was performed in accordance with the 1964 Declaration of Helsinki and was approved by Campania Sud, the reference ethics committee of the Center for Neurodegenerative Diseases of the University of Salerno (approval date 2 December 2022).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to the privacy policy.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hatanaka, N.; Sato, K.; Hishikawa, N.; Takemoto, M.; Ohta, Y.; Yamashita, T.; Abe, K. Comparative Gait Analysis in Progressive Supranuclear Palsy and Parkinson’s Disease. Eur. Neurol. 2016, 75, 282–289. [Google Scholar] [CrossRef] [PubMed]
  2. Nieuwboer, A.; Dom, R.; De Weerdt, W.; Desloovere, K.; Fieuws, S.; Broens-Kaucsik, E. Abnormalities of the Spatiotemporal Characteristics of Gait at the Onset of Freezing in Parkinson’s Disease. Mov. Disord. 2001, 16, 1066–1075. [Google Scholar] [CrossRef] [PubMed]
  3. Rogers, M.W. Disorders of Posture, Balance, and Gait in Parkinson’s Disease. Clin. Geriatr. Med. 1996, 12, 825–845. [Google Scholar] [CrossRef] [PubMed]
  4. Golbe, L.I.; Ohman-Strickland, P.A. A Clinical Rating Scale for Progressive Supranuclear Palsy. Brain 2007, 130, 1552–1565. [Google Scholar] [CrossRef] [PubMed]
  5. Nonnekes, J.; Goselink, R.J.M.; Růžička, E.; Fasano, A.; Nutt, J.G.; Bloem, B.R. Neurological Disorders of Gait, Balance and Posture: A Sign-Based Approach. Nat. Rev. Neurol. 2018, 14, 183–189. [Google Scholar] [CrossRef] [PubMed]
  6. Salarian, A.; Russmann, H.; Vingerhoets, F.J.G.; Dehollain, C.; Blanc, Y.; Burkhard, P.R.; Aminian, K. Gait Assessment in Parkinson’s Disease: Toward an Ambulatory System for Long-Term Monitoring. IEEE Trans. Biomed. Eng. 2004, 51, 1434–1443. [Google Scholar] [CrossRef]
  7. Sveinbjornsdottir, S. The Clinical Symptoms of Parkinson’s Disease. J. Neurochem. 2016, 139, 318–324. [Google Scholar] [CrossRef]
  8. Cesarelli, G.; Donisi, L.; Amato, F.; Romano, M.; Cesarelli, M.; D’Addio, G.; Ponsiglione, A.M.; Ricciardi, C. Using Features Extracted from Upper Limb Reaching Tasks to Detect Parkinson’s Disease by Means of Machine Learning Models. IEEE Trans. Neural Syst. Rehabil. Eng. 2023, 31, 1056–1063. [Google Scholar] [CrossRef]
  9. Morris, R.; Stuart, S.; McBarron, G.; Fino, P.C.; Mancini, M.; Curtze, C. Validity of Mobility Lab (Version 2) for Gait Assessment in Young Adults, Older Adults and Parkinson’s Disease. Physiol. Meas. 2019, 40, 095003. [Google Scholar] [CrossRef]
  10. Fasano, A.; Plotnik, M.; Bove, F.; Berardelli, A. The Neurobiology of Falls. Neurol. Sci. Off. J. Ital. Neurol. Soc. Ital. Soc. Clin. Neurophysiol. 2012, 33, 1215–1223. [Google Scholar] [CrossRef]
  11. Zago, M.; Sforza, C.; Pacifici, I.; Cimolin, V.; Camerota, F.; Celletti, C.; Condoluci, C.; De Pandis, M.F.; Galli, M. Gait Evaluation Using Inertial Measurement Units in Subjects with Parkinson’s Disease. J. Electromyogr. Kinesiol. 2018, 42, 44–48. [Google Scholar] [CrossRef] [PubMed]
  12. Warmerdam, E.; Schumacher, M.; Beyer, T.; Nerdal, P.T.; Schebesta, L.; Stürner, K.H.; Zeuner, K.E.; Hansen, C.; Maetzler, W. Postural Sway in Parkinson’s Disease and Multiple Sclerosis Patients During Tasks with Different Complexity. Front. Neurol. 2022, 13, 857406. [Google Scholar] [CrossRef] [PubMed]
  13. Picillo, M.; Ricciardi, C.; Tepedino, M.F.; Abate, F.; Cuoco, S.; Carotenuto, I.; Erro, R.; Ricciardelli, G.; Russo, M.; Cesarelli, M.; et al. Gait Analysis in Progressive Supranuclear Palsy Phenotypes. Front. Neurol. 2021, 12, 674495. [Google Scholar] [CrossRef] [PubMed]
  14. Abate, F.; Russo, M.; Ricciardi, C.; Tepedino, M.F.; Romano, M.; Erro, R.; Pellecchia, M.T.; Amboni, M.; Barone, P.; Picillo, M. Wearable Sensors for Assessing Disease Severity and Progression in Progressive Supranuclear Palsy. Park. Relat. Disord. 2023, 109, 105345. [Google Scholar] [CrossRef] [PubMed]
  15. Stamatakis, J.; Crémers, J.; Maquet, D.; Macq, B.; Garraux, G. Gait Feature Extraction in Parkinson’s Disease Using Low-Cost Accelerometers. In Proceedings of the 2011 Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Boston, MA, USA, 30 August–3 September 2011; pp. 7900–7903. [Google Scholar]
  16. Zhou, H.; Hu, H. Human Motion Tracking for Rehabilitation—A Survey. Biomed. Signal Process. Control 2008, 3, 1–18. [Google Scholar] [CrossRef]
  17. Hreljac, A.; Marshall, R.N. Algorithms to Determine Event Timing during Normal Walking Using Kinematic Data. J. Biomech. 2000, 33, 783–786. [Google Scholar] [CrossRef] [PubMed]
  18. McGinley, J.L.; Baker, R.; Wolfe, R.; Morris, M.E. The Reliability of Three-Dimensional Kinematic Gait Measurements: A Systematic Review. Gait Posture 2009, 29, 360–369. [Google Scholar] [CrossRef]
  19. Saggio, G.; Tombolini, F.; Ruggiero, A. Technology-Based Complex Motor Tasks Assessment: A 6-DOF Inertial-Based System Versus a Gold-Standard Optoelectronic-Based One. IEEE Sens. J. 2021, 21, 1616–1624. [Google Scholar] [CrossRef]
  20. Santos, T.M.O.; Barroso, M.F.S.; Ricco, R.A.; Nepomuceno, E.G.; Alvarenga, É.L.F.C.; Penoni, Á.C.O.; Santos, A.F. A Low-Cost Wireless System of Inertial Sensors to Postural Analysis during Human Movement. Measurement 2019, 148, 106933. [Google Scholar] [CrossRef]
  21. Wu, Y.; Su, Y.; Feng, R.; Yu, N.; Zang, X. Wearable-Sensor-Based Pre-Impact Fall Detection System with a Hierarchical Classifier. Measurement 2019, 140, 283–292. [Google Scholar] [CrossRef]
  22. Muro-de-la-Herran, A.; Garcia-Zapirain, B.; Mendez-Zorrilla, A. Gait Analysis Methods: An Overview of Wearable and Non-Wearable Systems, Highlighting Clinical Applications. Sensors 2014, 14, 3362–3394. [Google Scholar] [CrossRef] [PubMed]
  23. Donisi, L.; Pagano, G.; Cesarelli, G.; Coccia, A.; Amitrano, F.; D’Addio, G. Benchmarking between Two Wearable Inertial Systems for Gait Analysis Based on a Different Sensor Placement Using Several Statistical Approaches. Measurement 2021, 173, 108642. [Google Scholar] [CrossRef]
  24. Mancini, M.; Smulders, K.; Harker, G.; Stuart, S.; Nutt, J.G. Assessment of the Ability of Open- and Closed-Loop Cueing to Improve Turning and Freezing in People with Parkinson’s Disease. Sci. Rep. 2018, 8, 12773. [Google Scholar] [CrossRef] [PubMed]
  25. Muthukrishnan, N.; Abbas, J.J.; Shill, H.A.; Krishnamurthi, N. Cueing Paradigms to Improve Gait and Posture in Parkinson’s Disease: A Narrative Review. Sensors 2019, 19, 5468. [Google Scholar] [CrossRef] [PubMed]
  26. Bugané, F.; Benedetti, M.G.; Casadio, G.; Attala, S.; Biagi, F.; Manca, M.; Leardini, A. Estimation of Spatial-Temporal Gait Parameters in Level Walking Based on a Single Accelerometer: Validation on Normal Subjects by Standard Gait Analysis. Comput. Methods Programs Biomed. 2012, 108, 129–137. [Google Scholar] [CrossRef] [PubMed]
  27. Mariani, B.; Hoskovec, C.; Rochat, S.; Büla, C.; Penders, J.; Aminian, K. 3D Gait Assessment in Young and Elderly Subjects Using Foot-Worn Inertial Sensors. J. Biomech. 2010, 43, 2999–3006. [Google Scholar] [CrossRef]
  28. Webster, K.E.; Wittwer, J.E.; Feller, J.A. Validity of the GAITRite® Walkway System for the Measurement of Averaged and Individual Step Parameters of Gait. Gait Posture 2005, 22, 317–321. [Google Scholar] [CrossRef]
  29. Fernández-González, P.; Koutsou, A.; Cuesta-Gómez, A.; Carratalá-Tejada, M.; Miangolarra-Page, J.C.; Molina-Rueda, F. Reliability of Kinovea® Software and Agreement with a Three-Dimensional Motion System for Gait Analysis in Healthy Subjects. Sensors 2020, 20, 3154. [Google Scholar] [CrossRef]
  30. Piche, E.; Guilbot, M.; Chorin, F.; Guerin, O.; Zory, R.; Gerus, P. Validity and Repeatability of a New Inertial Measurement Unit System for Gait Analysis on Kinematic Parameters: Comparison with an Optoelectronic System. Measurement 2022, 198, 111442. [Google Scholar] [CrossRef]
  31. Bartoszek, A.; Struzik, A.; Jaroszczuk, S.; Wozniewski, M.; Pietraszewski, B. Comparison of the Optoelectronic BTS Smart System and IMU-Based MyoMotion System for the Assessment of Gait Variables. Acta Bioeng. Biomech. Wroclaw Univ. Technol. 2022, 24, 103–116. [Google Scholar] [CrossRef]
  32. Muthukrishnan, N.; Abbas, J.J.; Krishnamurthi, N. A Wearable Sensor System to Measure Step-Based Gait Parameters for Parkinson’s Disease Rehabilitation. Sensors 2020, 20, 6417. [Google Scholar] [CrossRef] [PubMed]
  33. Cimolin, V.; Vismara, L.; Ferraris, C.; Amprimo, G.; Pettiti, G.; Lopez, R.; Galli, M.; Cremascoli, R.; Sinagra, S.; Mauro, A.; et al. Computation of Gait Parameters in Post Stroke and Parkinson’s Disease: A Comparative Study Using RGB-D Sensors and Optoelectronic Systems. Sensors 2022, 22, 824. [Google Scholar] [CrossRef] [PubMed]
  34. Vítečková, S.; Horáková, H.; Poláková, K.; Krupička, R.; Růžička, E.; Brožová, H. Agreement between the GAITRite® System and the Wearable Sensor BTS G-Walk® for Measurement of Gait Parameters in Healthy Adults and Parkinson’s Disease Patients. PeerJ 2020, 8, e8835. [Google Scholar] [CrossRef] [PubMed]
  35. Tomlinson, C.L.; Stowe, R.; Patel, S.; Rick, C.; Gray, R.; Clarke, C.E. Systematic Review of Levodopa Dose Equivalency Reporting in Parkinson’s Disease. Mov. Disord. 2010, 25, 2649–2653. [Google Scholar] [CrossRef] [PubMed]
  36. Davis, R.B.; Õunpuu, S.; Tyburski, D.; Gage, J.R. A Gait Analysis Data Collection and Reduction Technique. Hum. Mov. Sci. 1991, 10, 575–587. [Google Scholar] [CrossRef]
  37. Ricciardi, C.; Amboni, M.; De Santis, C.; Ricciardelli, G.; Improta, G.; D’Addio, G.; Cuoco, S.; Picillo, M.; Barone, P.; Cesarelli, M. Machine Learning Can Detect the Presence of Mild Cognitive Impairment in Patients Affected by Parkinson’s Disease. In Proceedings of the 2020 IEEE International Symposium on Medical Measurements and Applications (MeMeA), Bari, Italy, 1 June–1 July 2020; pp. 1–6. [Google Scholar]
  38. Landolfi, A.; Ricciardi, C.; Donisi, L.; Cesarelli, G.; Troisi, J.; Vitale, C.; Barone, P.; Amboni, M. Machine Learning Approaches in Parkinson’s Disease. Curr. Med. Chem. 2021, 28, 6548–6568. [Google Scholar] [CrossRef]
  39. Blair, R.C.; Cole, S. Two-Sided Equivalence Testing of the Difference Between Two Means. J. Mod. Appl. Stat. Methods 2002, 1, 18. [Google Scholar] [CrossRef]
  40. Passing, H.; Bablok, W. A New Biometrical Procedure for Testing the Equality of Measurements from Two Different Analytical Methods. Application of linear regression procedures for method comparison studies in Clinical Chemistry, Part I. Clin. Chem. Lab. Med. (CCLM) 1983, 21, 709–720. [Google Scholar] [CrossRef]
  41. Benchoufi, M.; Matzner-Lober, E.; Molinari, N.; Jannot, A.-S.; Soyer, P. Interobserver Agreement Issues in Radiology. Diagn. Interv. Imaging 2020, 101, 639–641. [Google Scholar] [CrossRef]
  42. Ludbrook, J. Confidence in Altman–Bland Plots: A Critical Review of the Method of Differences. Clin. Exp. Pharmacol. Physiol. 2010, 37, 143–149. [Google Scholar] [CrossRef]
  43. Mansournia, M.A.; Waters, R.; Nazemipour, M.; Bland, M.; Altman, D.G. Bland-Altman Methods for Comparing Methods of Measurement and Response to Criticisms. Glob. Epidemiol. 2021, 3, 100045. [Google Scholar] [CrossRef] [PubMed]
  44. Sotirakis, C.; Conway, N.; Su, Z.; Villarroel, M.; Tarassenko, L.; FitzGerald, J.J.; Antoniades, C.A. Longitudinal Monitoring of Progressive Supranuclear Palsy Using Body-Worn Movement Sensors. Mov. Disord. 2022, 37, 2263–2271. [Google Scholar] [CrossRef] [PubMed]
  45. Dale, M.L.; Prewitt, A.L.; Harker, G.R.; McBarron, G.E.; Mancini, M. Perspective: Balance Assessments in Progressive Supranuclear Palsy: Lessons Learned. Front. Neurol. 2022, 13, 801291. [Google Scholar] [CrossRef] [PubMed]
Sensors 23 09859 g001

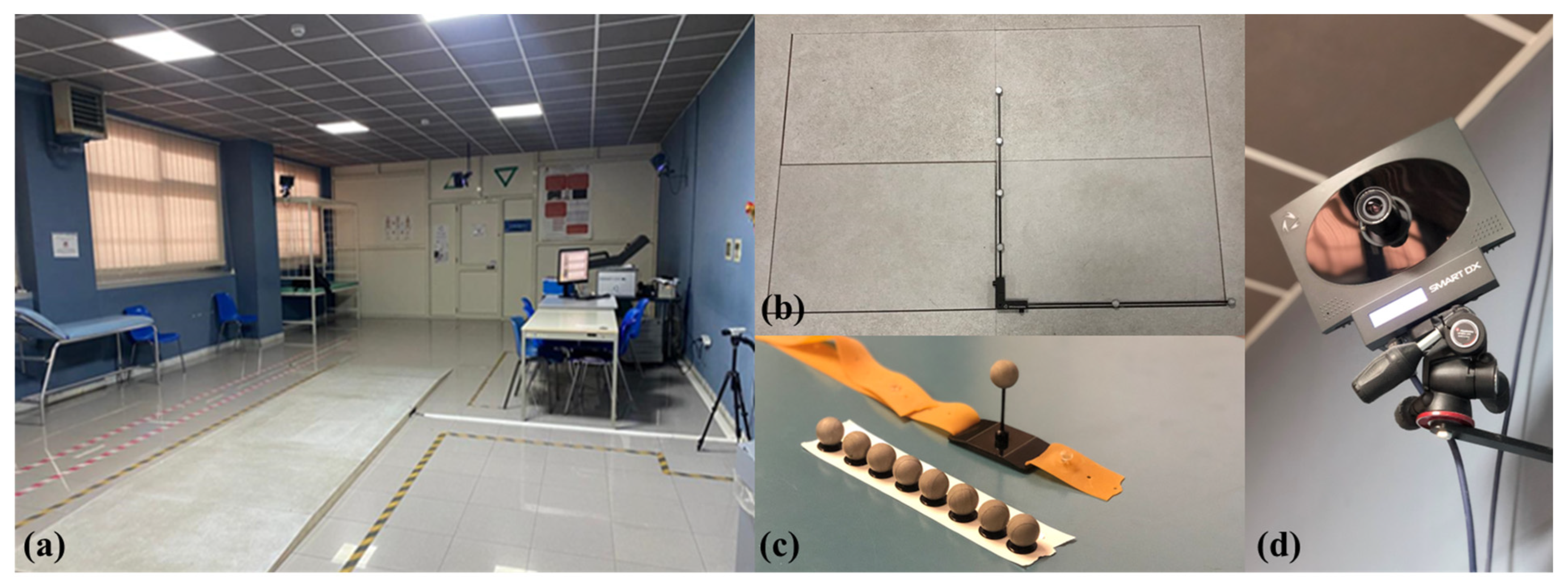

Figure 1. BTS Gait Lab: (a) Movement analysis laboratory at the University Hospital of Salerno; (b) Dynamometric platform; (c) Retro-reflective passive markers; (d) Infrared-camera.
Figure 1. BTS Gait Lab: (a) Movement analysis laboratory at the University Hospital of Salerno; (b) Dynamometric platform; (c) Retro-reflective passive markers; (d) Infrared-camera.
Sensors 23 09859 g001
Sensors 23 09859 g002
Figure 2. Opal System: (a) Access Point; (b) Docking Station; (c) Mobility Lab software; (d) Opal sensor.
Figure 2. Opal System: (a) Access Point; (b) Docking Station; (c) Mobility Lab software; (d) Opal sensor.
Sensors 23 09859 g002
Sensors 23 09859 g003

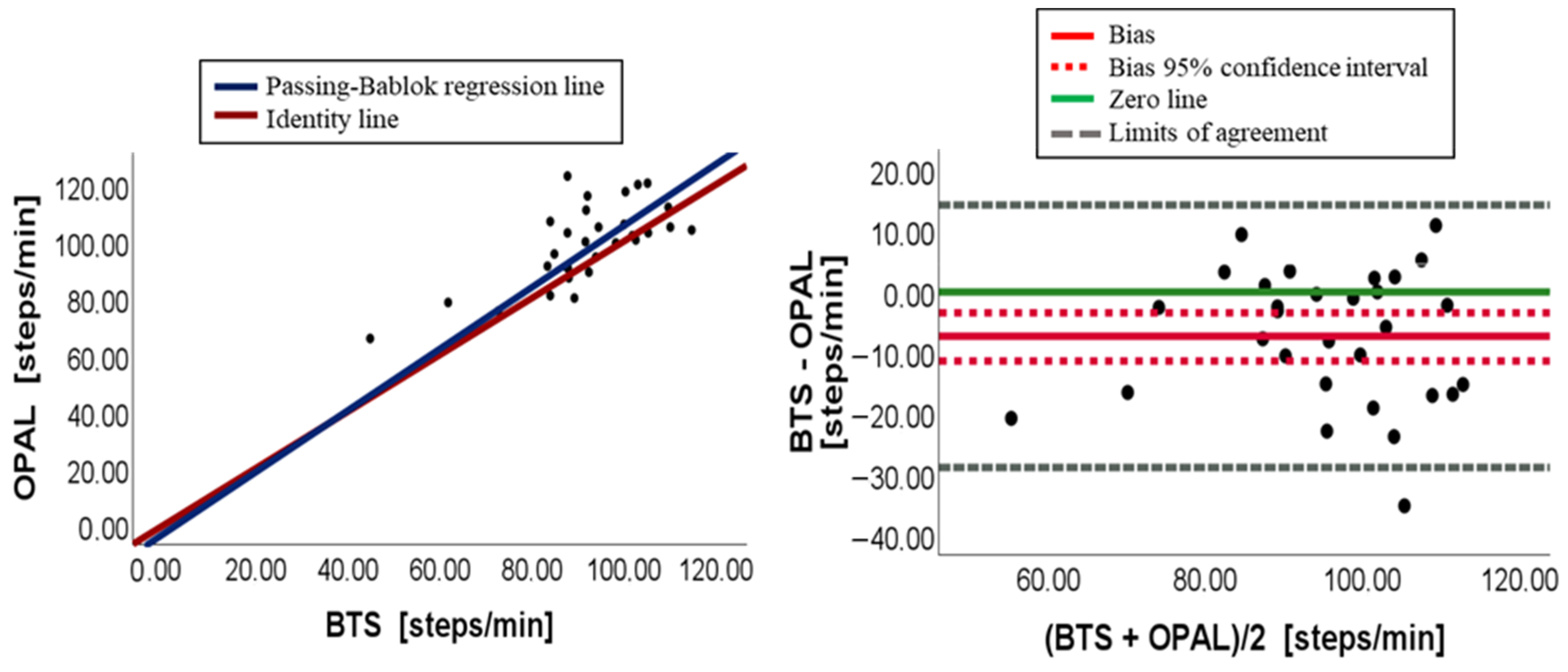

Figure 3. Cadence. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Figure 3. Cadence. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Sensors 23 09859 g003
Sensors 23 09859 g004

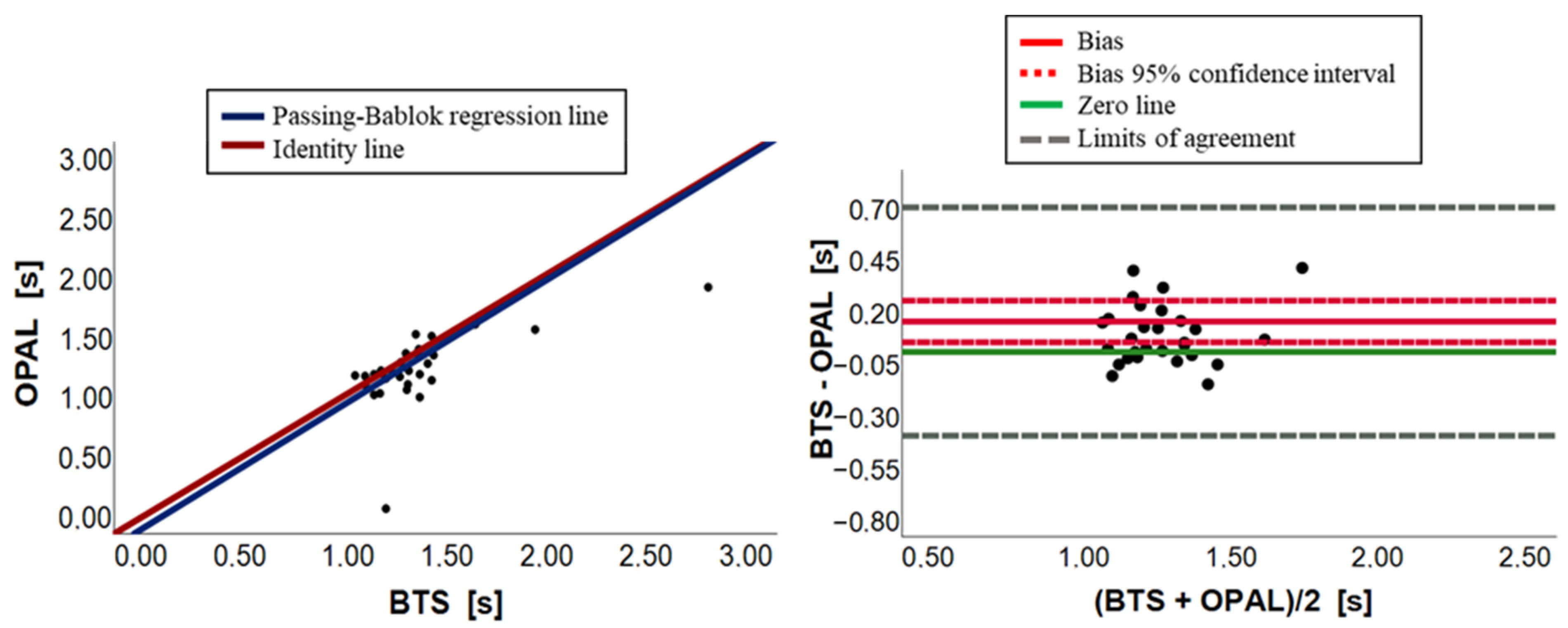

Figure 4. Cycle duration. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Figure 4. Cycle duration. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Sensors 23 09859 g004
Sensors 23 09859 g005
Figure 5. Speed. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Figure 5. Speed. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Sensors 23 09859 g005
Sensors 23 09859 g006

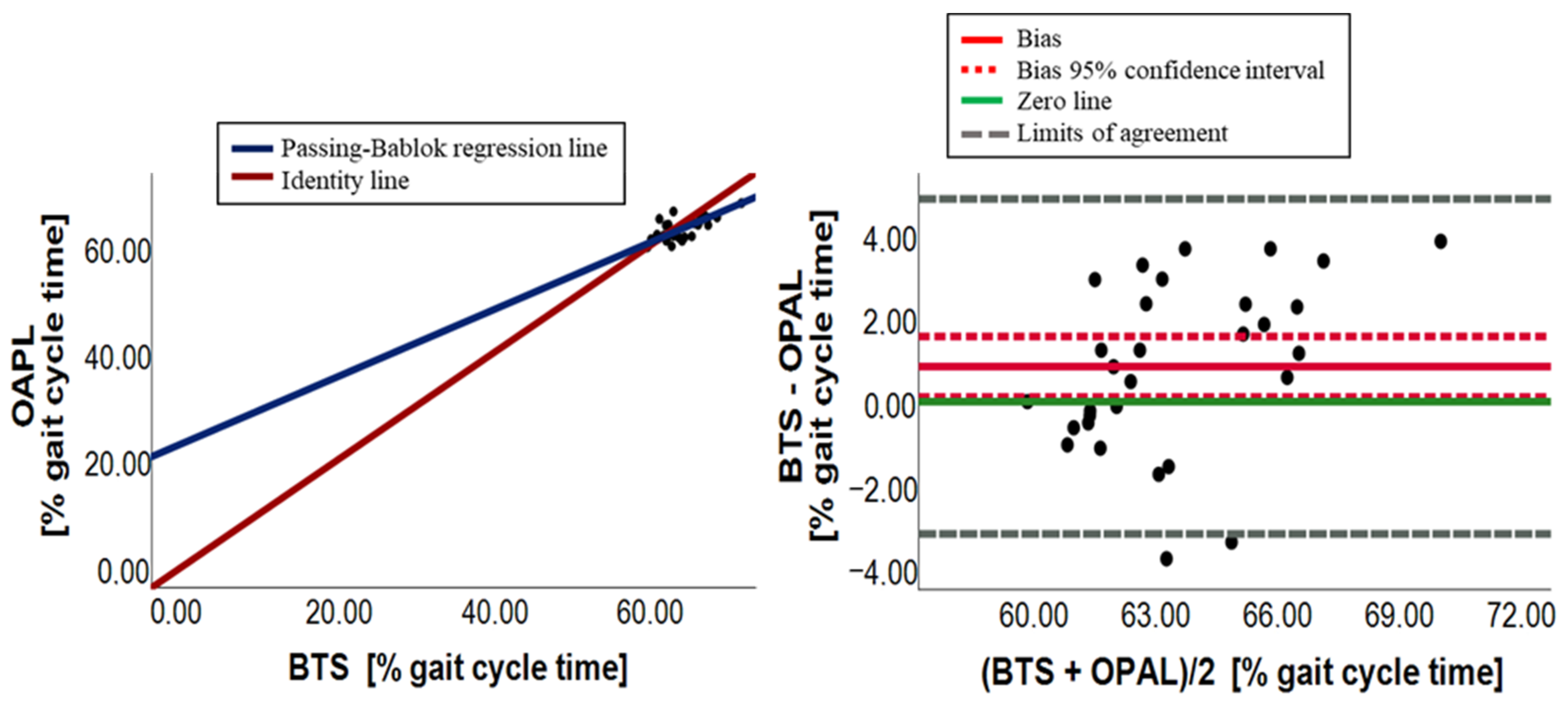

Figure 6. Stance phase. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Figure 6. Stance phase. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Sensors 23 09859 g006
Sensors 23 09859 g007

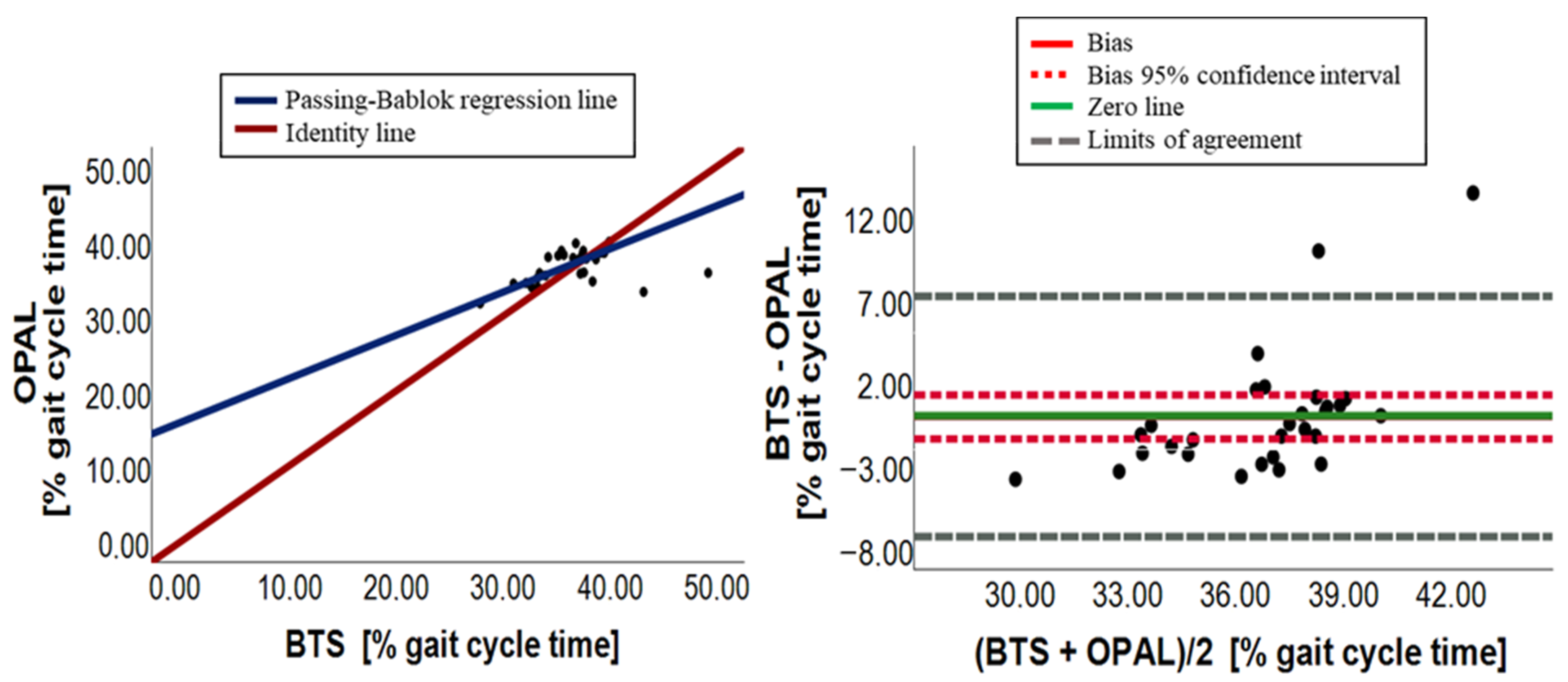

Figure 7. Swing phase. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Figure 7. Swing phase. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Sensors 23 09859 g007
Sensors 23 09859 g008

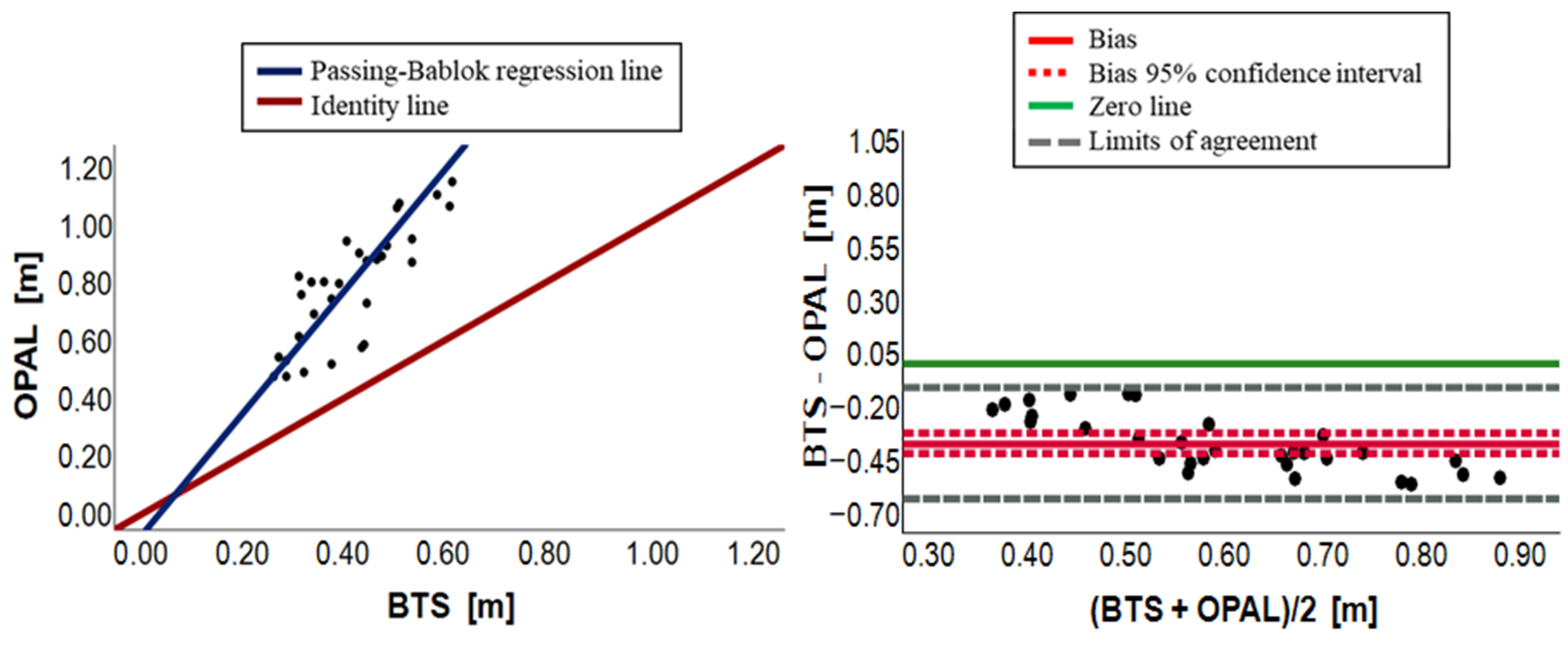

Figure 8. Stride length. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Figure 8. Stride length. On the left, scatter plot with PB regression line and identity line (BTS = OPAL). On the right, BA plot (average vs. difference).
Sensors 23 09859 g008
Table 1. Patients’ anthropometrics and clinical data (n = 15; 5 females and 10 males).
Table 1. Patients’ anthropometrics and clinical data (n = 15; 5 females and 10 males).
Clinical ParametersMean ± SD
Age (years)68.13 ± 4.97
Disease duration (years)3.13 ± 2.07
PSP-RS limb3.33 ± 2.29
PSP-RS gait/midline5.20 ± 4.78
LEDD (mg)322.00 ± 177.13
BMI (kg/m2)27.48 ± 3.84
Abbreviations: BMI = Body Mass Index; LEDD = Levodopa Equivalent Daily Dose; PSP-RS = Progressive Supranuclear Palsy Rating Scale.
Table 2. Two-tailed paired test analysis to test the overall agreement between each couple of parameters of the systems.
Table 2. Two-tailed paired test analysis to test the overall agreement between each couple of parameters of the systems.
Spatiotemporal ParametersBTS SMART DX SystemOpal Systemp-ValueTest Type
Cadence (steps/min)91.72 ± 14.2399.14 ± 14.280.002Wilcoxon test
Cycle duration (s)1.36 ± 0.331.21 ± 0.300.003Wilcoxon test
Speed (m/s)0.61 ± 0.200.65 ± 0.190.192Wilcoxon test
Stance phase (% gait cycle time)63.96 ± 2.9262.12 ± 2.110.037Wilcoxon test
Swing phase (% gait cycle time)36.83 ± 3.9236.88 ± 2.110.159Wilcoxon test
Stride length (m)0.41 ± 0.100.78 ± 0.20<0.001T-Student test
Table 3. PB linear regression analysis.
Table 3. PB linear regression analysis.
Spatiotemporal Parametersm *LB_mUB_mq **LB_qUB_q
Cadence (steps/min)1.090.741.81−3.02−67.8930.17
Cycle duration (s)1.030.631.74−0.10−1.040.40
Speed (m/s)1.020.711.450.05−0.170.22
Stance phase (% gait cycle time)0.630.460.8523.098.7833.34
Swing phase (% gait cycle time)0.580.320.7415.9610.1325.68
Stride length (m)2.101.642.69−0.06−0.280.13
* m is the slope of Passing-Bablok regression line; ** q is the intercept of Passing-Bablok regression line. Abbreviations: LB = Lower Bound of confidence interval; UB = Upper Bound of confidence interval.
Table 4. BA analysis applied per each couple of parameters of the systems.
Table 4. BA analysis applied per each couple of parameters of the systems.
Spatiotemporal ParametersBiasLB_bUB_bLB_LAUB_LA
Cadence (steps/min)−7.43−11.36−3.50−28.9514.10
Cycle duration (s)0.150.050.25−0.400.70
Speed (m/s)−0.03−0.080.02−0.310.25
Stance phase (% gait cycle time)0.840.111.57−3.174.84
Swing phase (% gait cycle time)−0.05−1.371.27−7.307.20
Stride length (m)−0.37−0.42−0.32−0.63−0.11
Abbreviations: LA = Limit of Agreement; LB = Lower Bound; UB = Upper Bound.
Table 5. Agreement results.
Table 5. Agreement results.
Spatiotemporal ParametersLevel of AgreementError Types
Cadence (steps/min)Very close agreementConstant systematic error
Cycle duration (s)Very close agreement Constant systematic error
Speed (m/s)Agreement /
Stance phase (% gait cycle time)No agreementConstant and proportional systematic errors
Swing phase (% gait cycle time)No agreementConstant and proportional systematic errors
Stride length (m)No agreementConstant and proportional systematic errors
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ricciardi, C.; Pisani, N.; Donisi, L.; Abate, F.; Amboni, M.; Barone, P.; Picillo, M.; Cesarelli, M.; Amato, F. Agreement between Optoelectronic System and Wearable Sensors for the Evaluation of Gait Spatiotemporal Parameters in Progressive Supranuclear Palsy. Sensors 2023, 23, 9859. https://doi.org/10.3390/s23249859

AMA Style

Ricciardi C, Pisani N, Donisi L, Abate F, Amboni M, Barone P, Picillo M, Cesarelli M, Amato F. Agreement between Optoelectronic System and Wearable Sensors for the Evaluation of Gait Spatiotemporal Parameters in Progressive Supranuclear Palsy. Sensors. 2023; 23(24):9859. https://doi.org/10.3390/s23249859

Chicago/Turabian Style

Ricciardi, Carlo, Noemi Pisani, Leandro Donisi, Filomena Abate, Marianna Amboni, Paolo Barone, Marina Picillo, Mario Cesarelli, and Francesco Amato. 2023. "Agreement between Optoelectronic System and Wearable Sensors for the Evaluation of Gait Spatiotemporal Parameters in Progressive Supranuclear Palsy" Sensors 23, no. 24: 9859. https://doi.org/10.3390/s23249859

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
