MEMS Gyroscope Automatic Real-Time Mode-Matching Method Based on Phase-Shifted 45° Additional Force Demodulation

School of Electronic and Information Engineering, Soochow University, Suzhou 215006, China
*
Author to whom correspondence should be addressed.
Received: 7 August 2018 / Revised: 3 September 2018 / Accepted: 5 September 2018 / Published: 7 September 2018
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [5568 KB, uploaded 7 September 2018]   |

Abstract

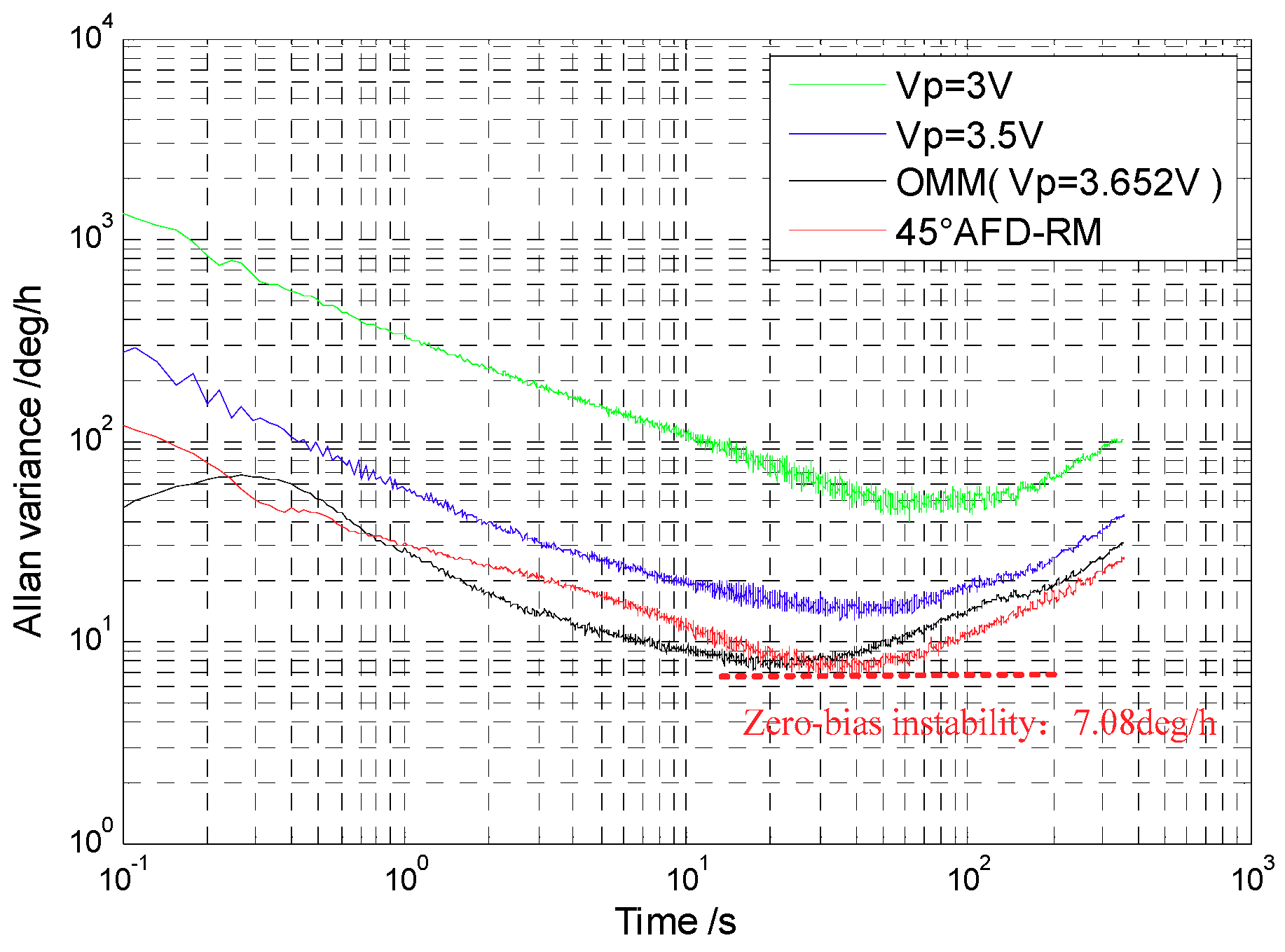

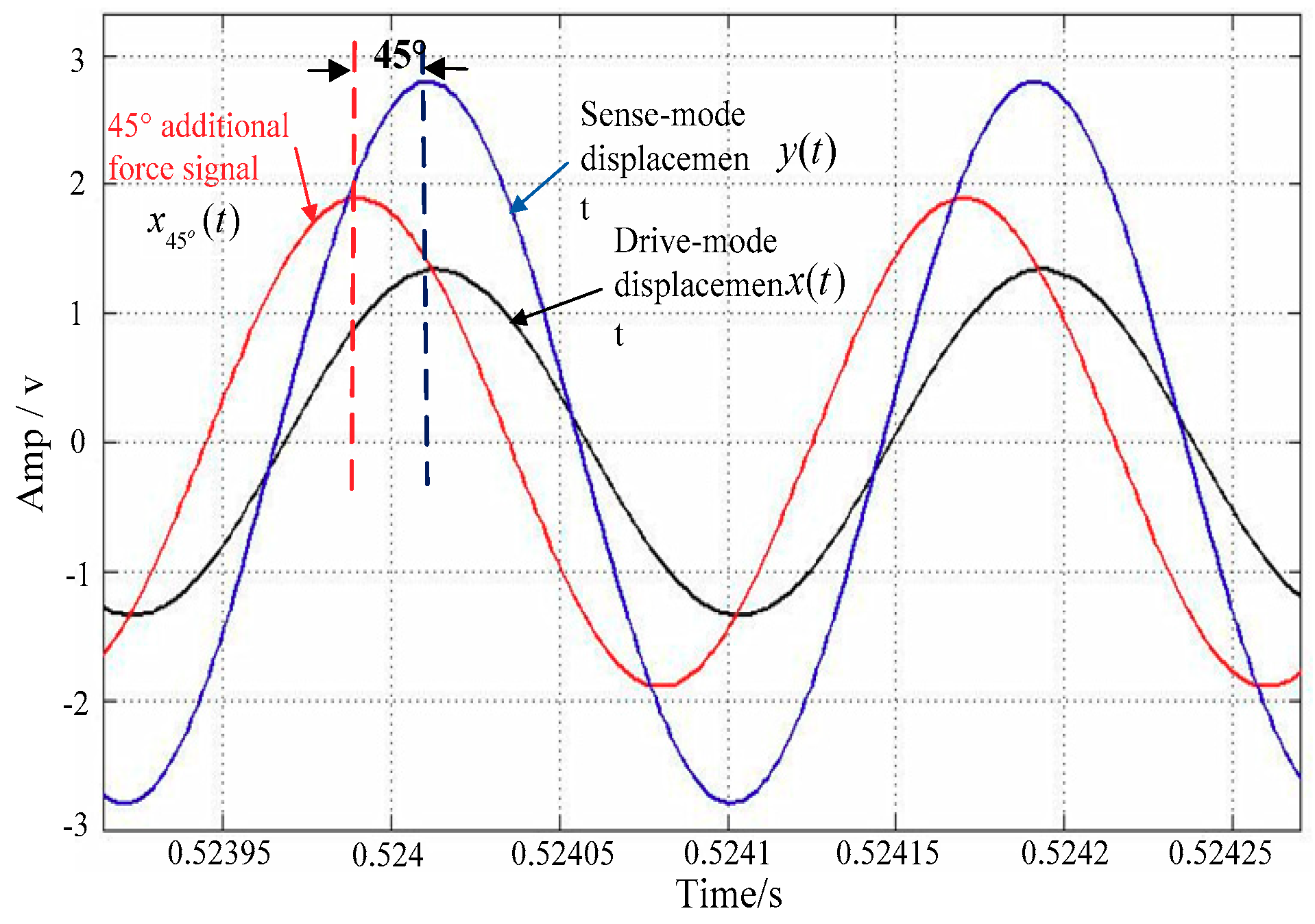

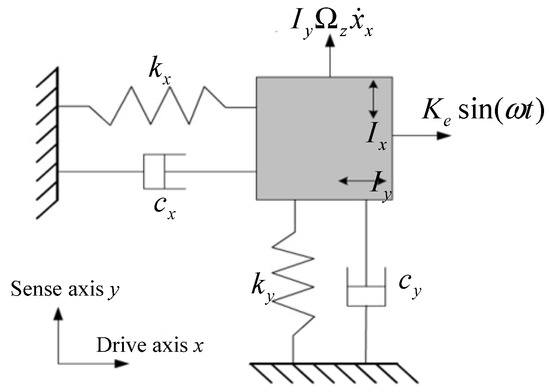

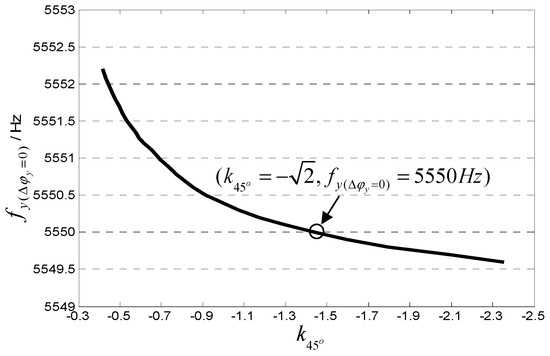

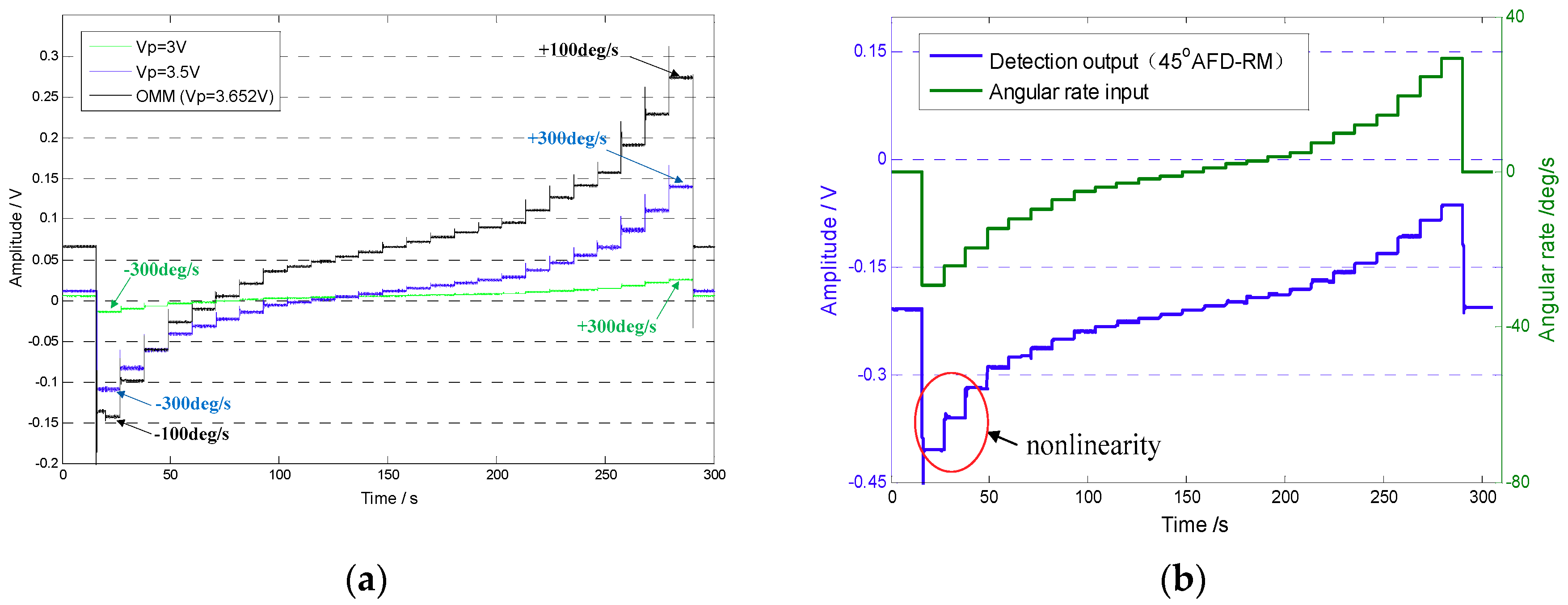

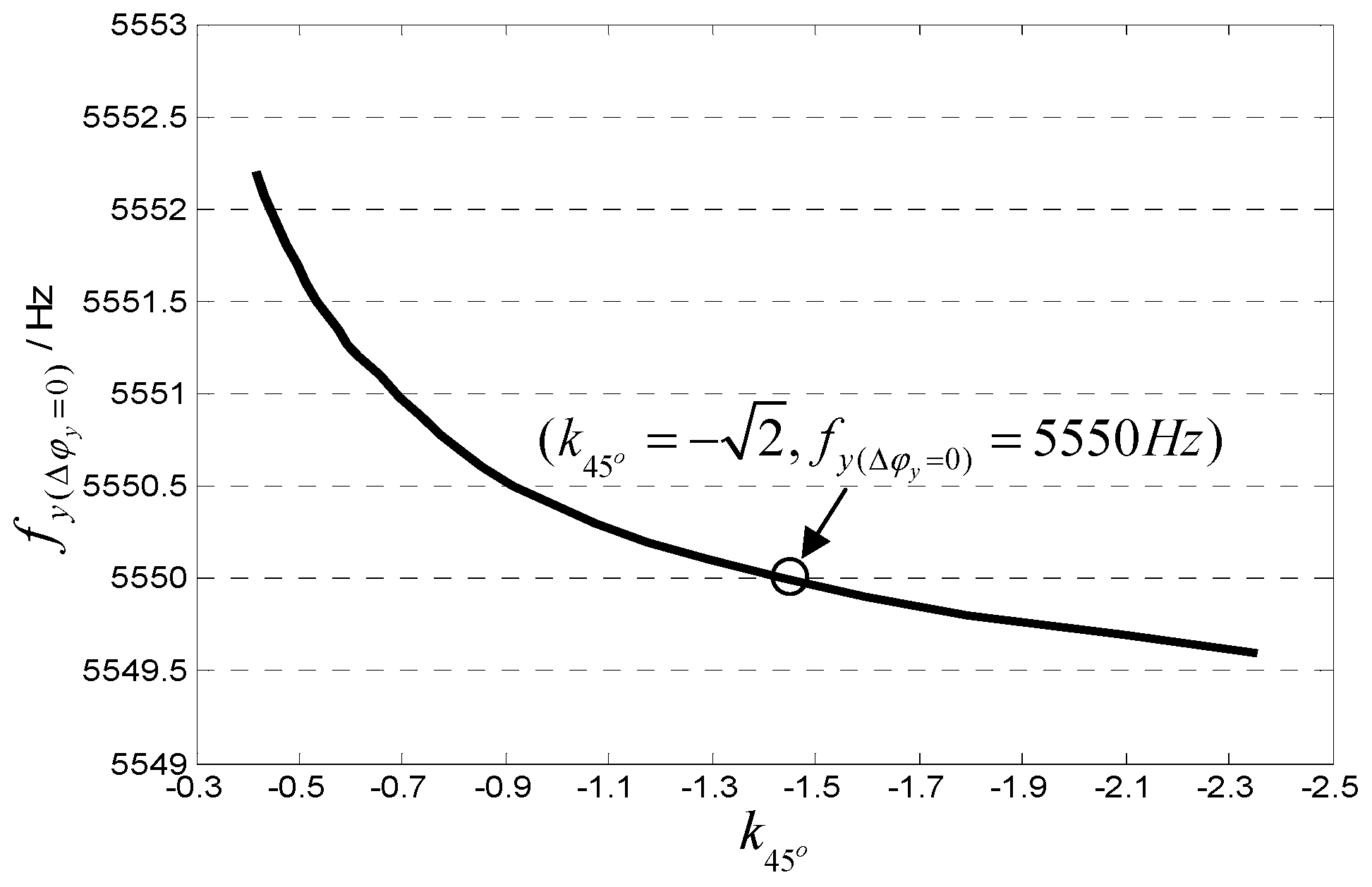

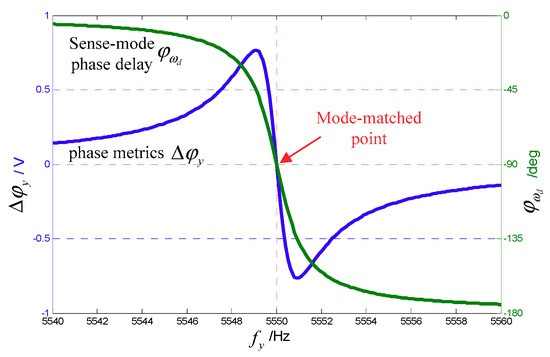

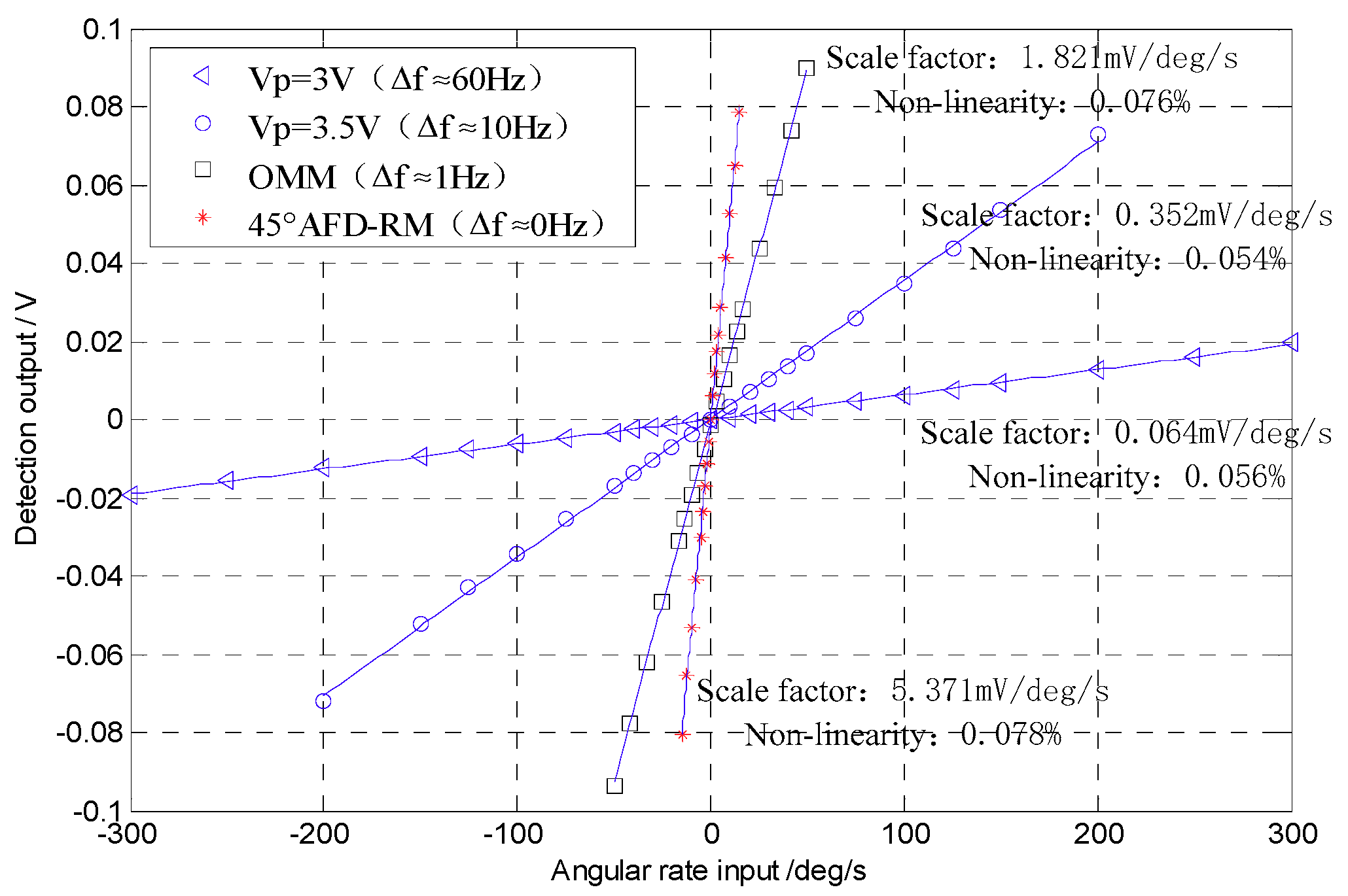

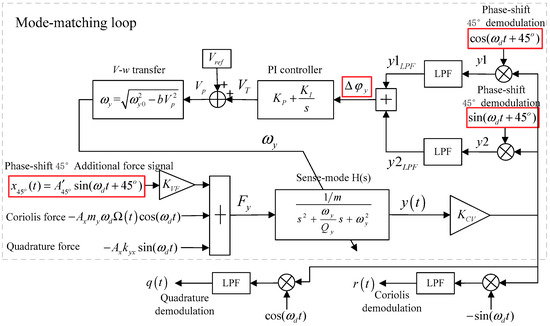

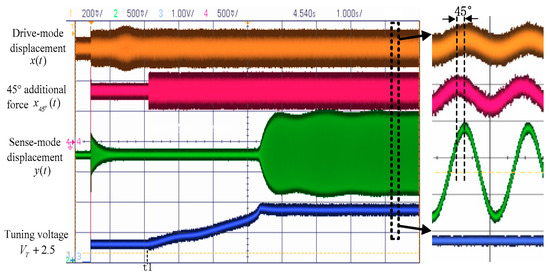

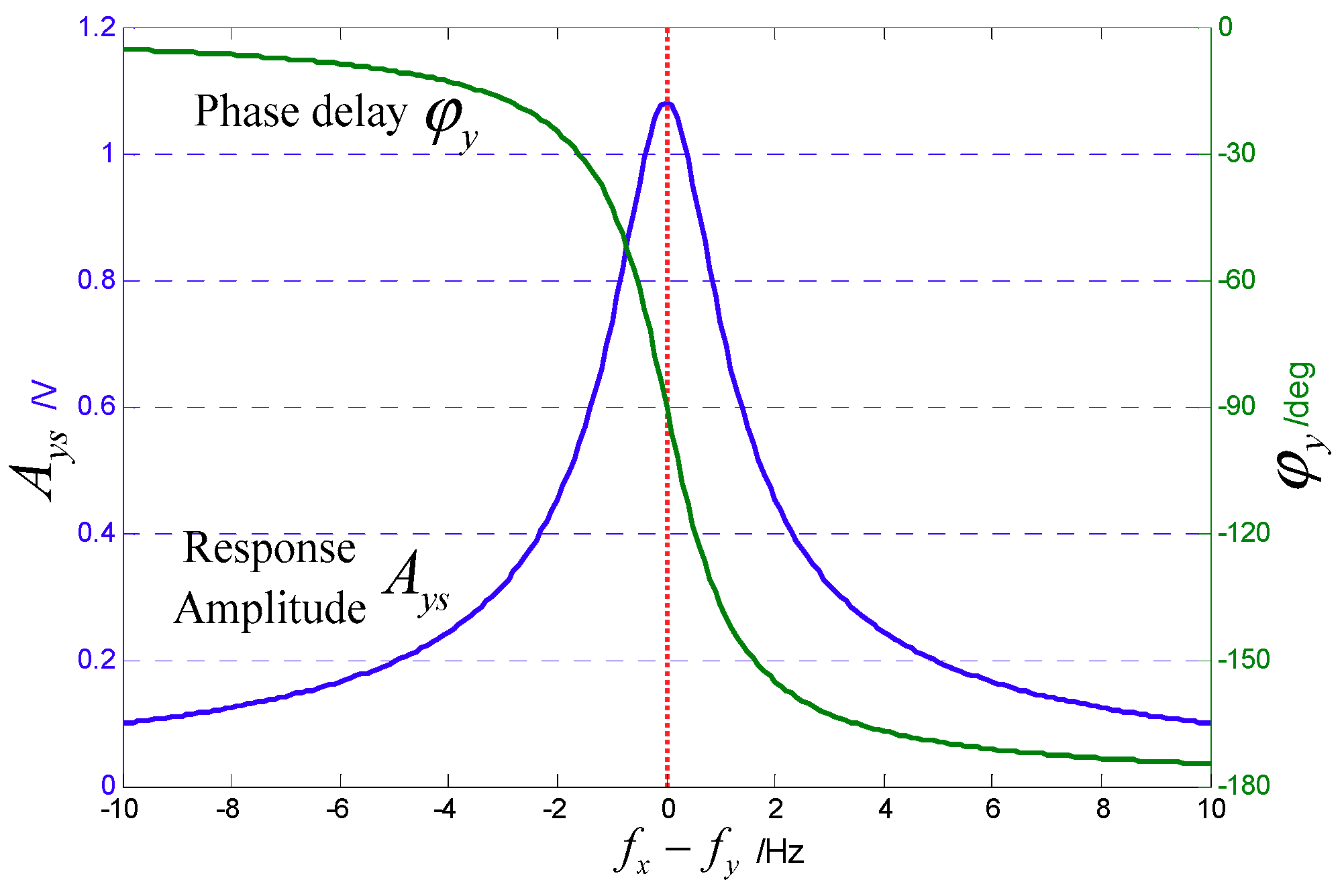

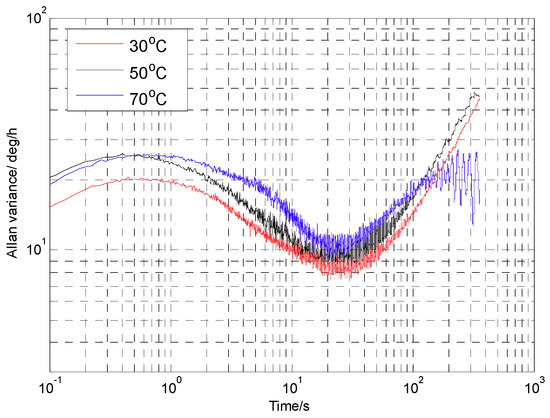

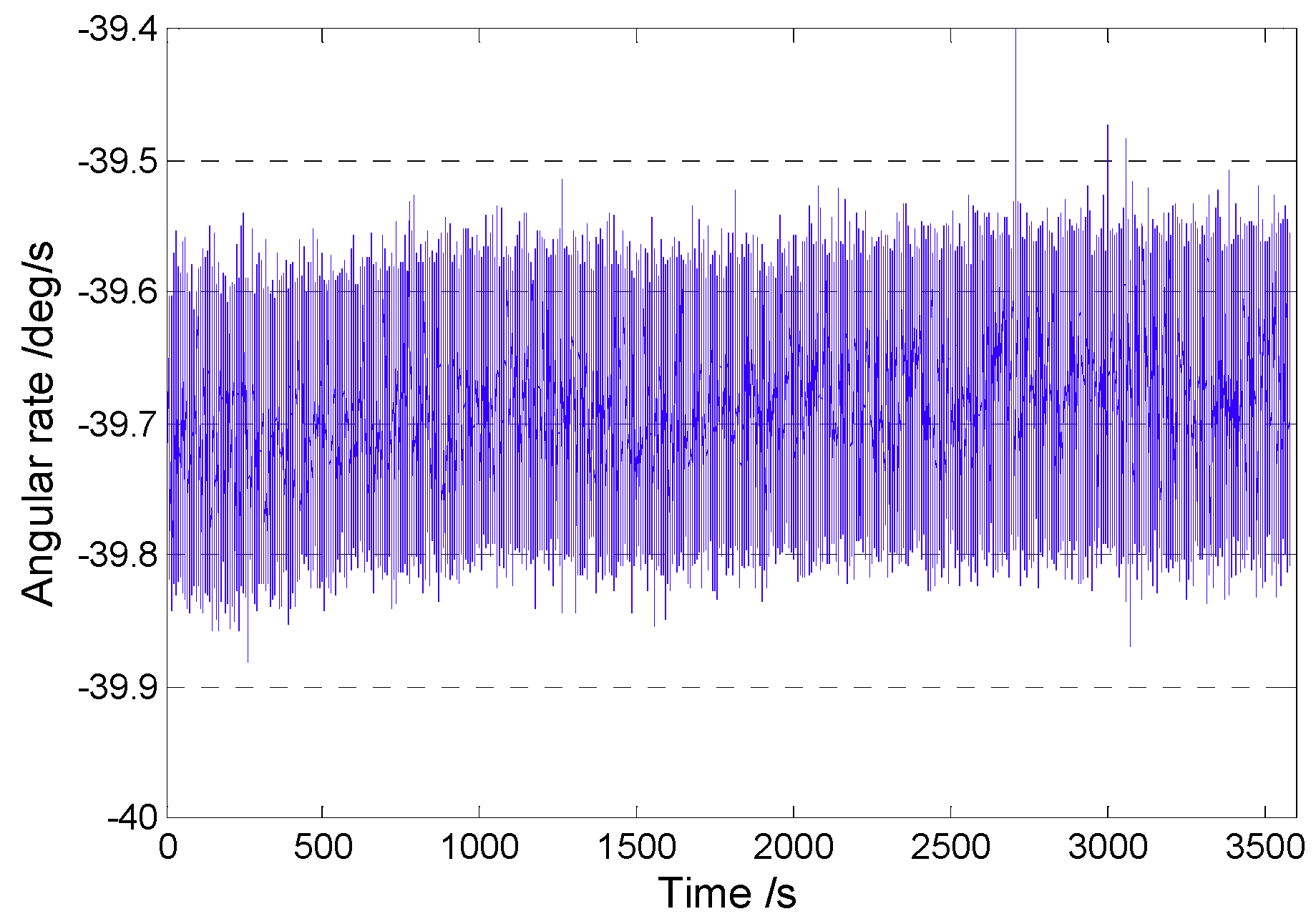

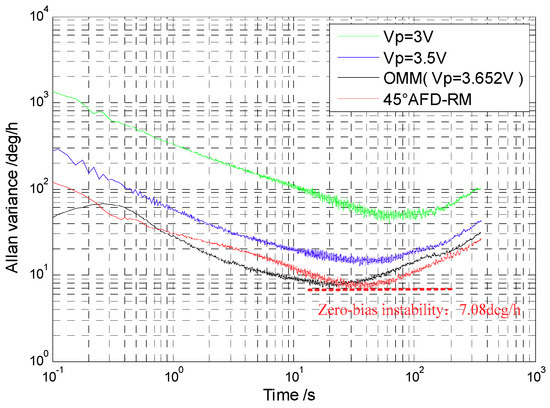

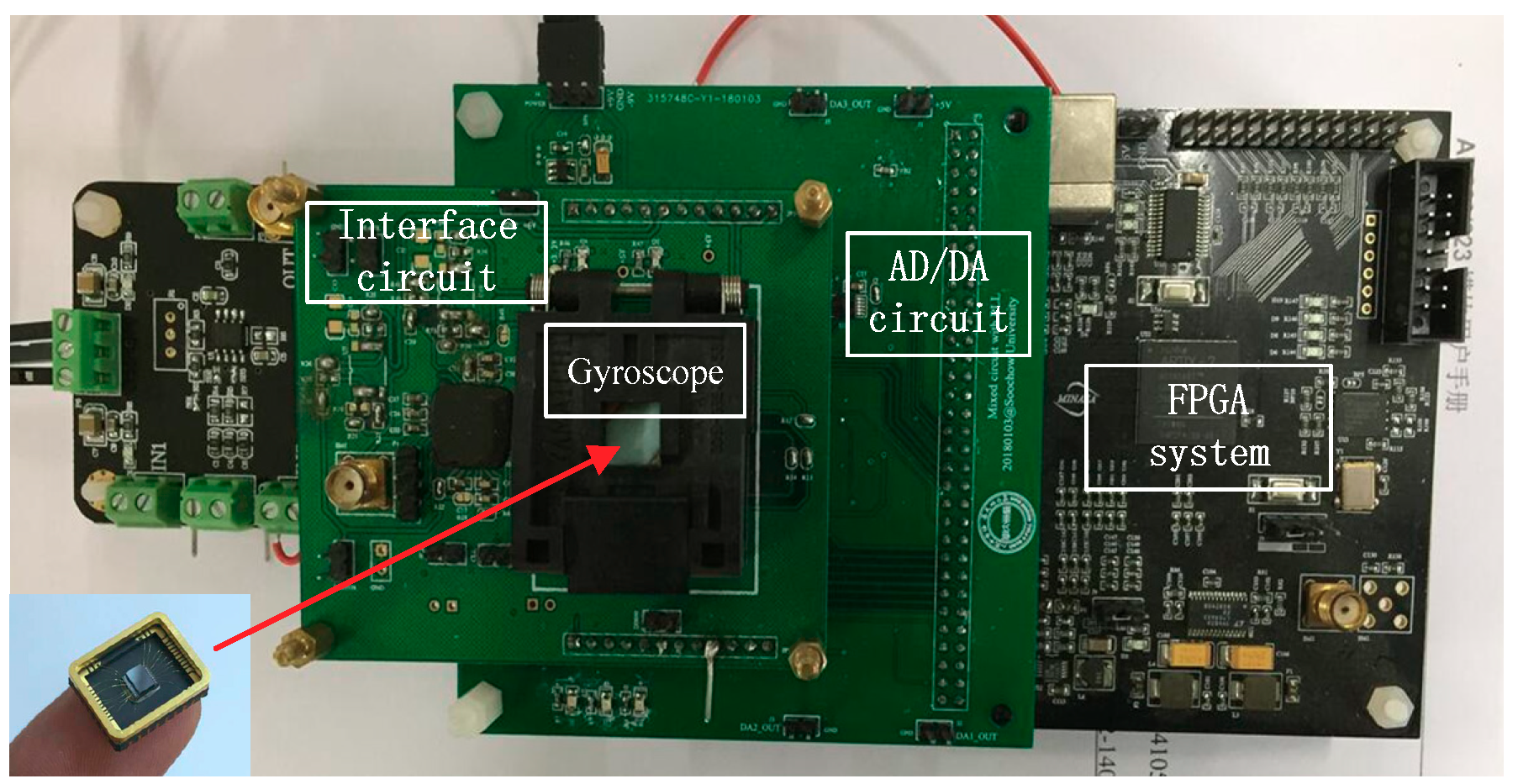

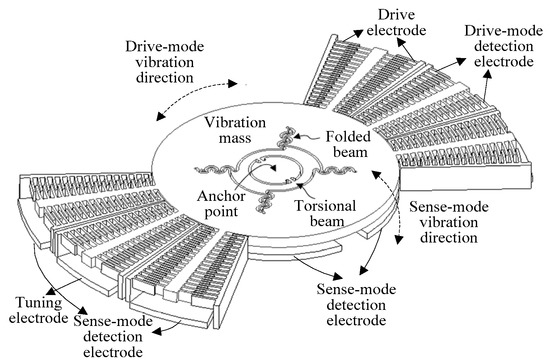

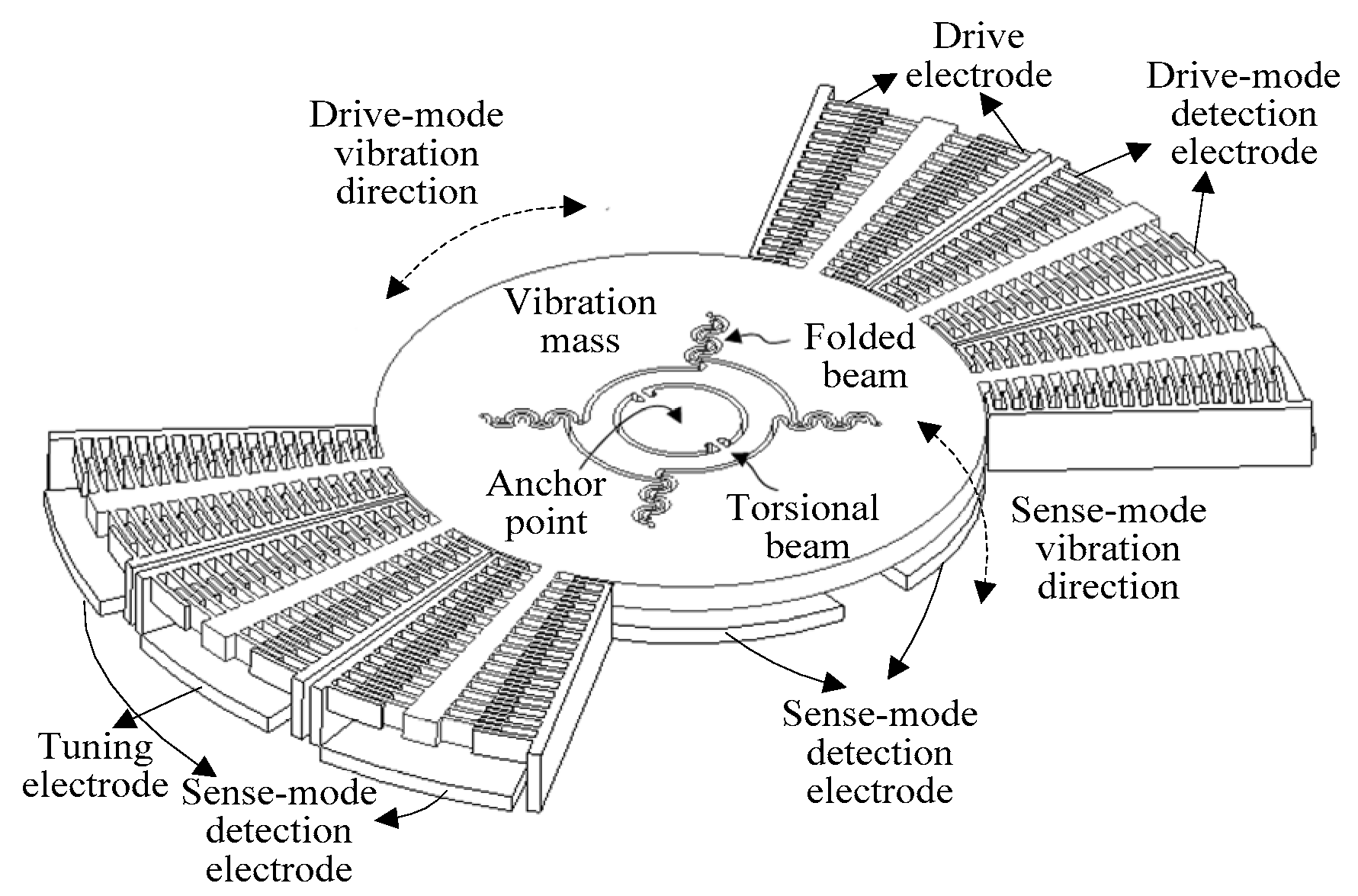

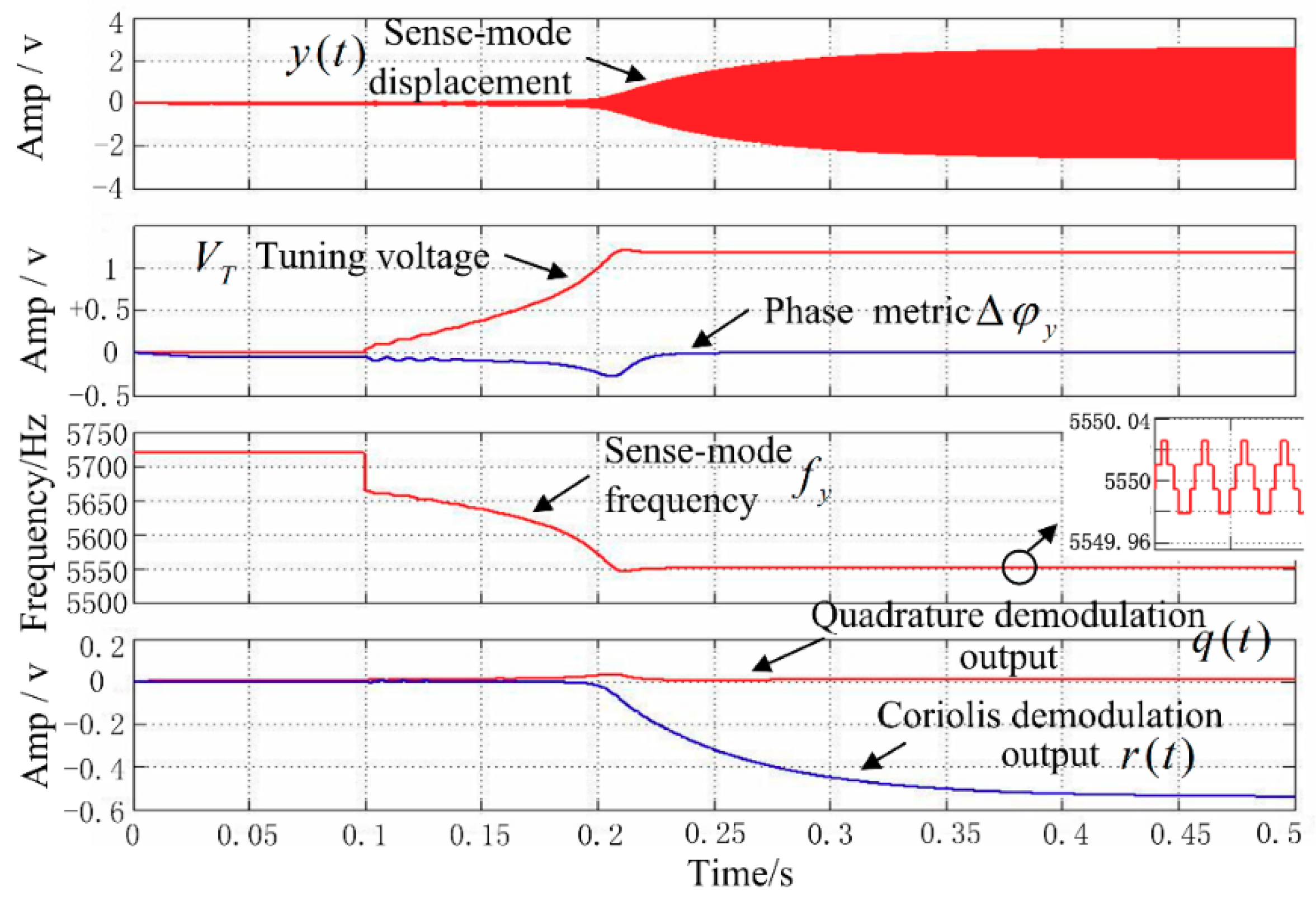

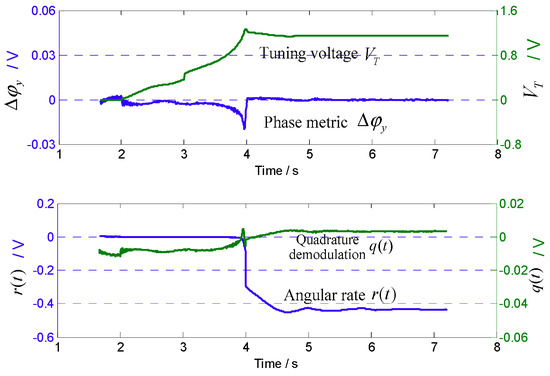

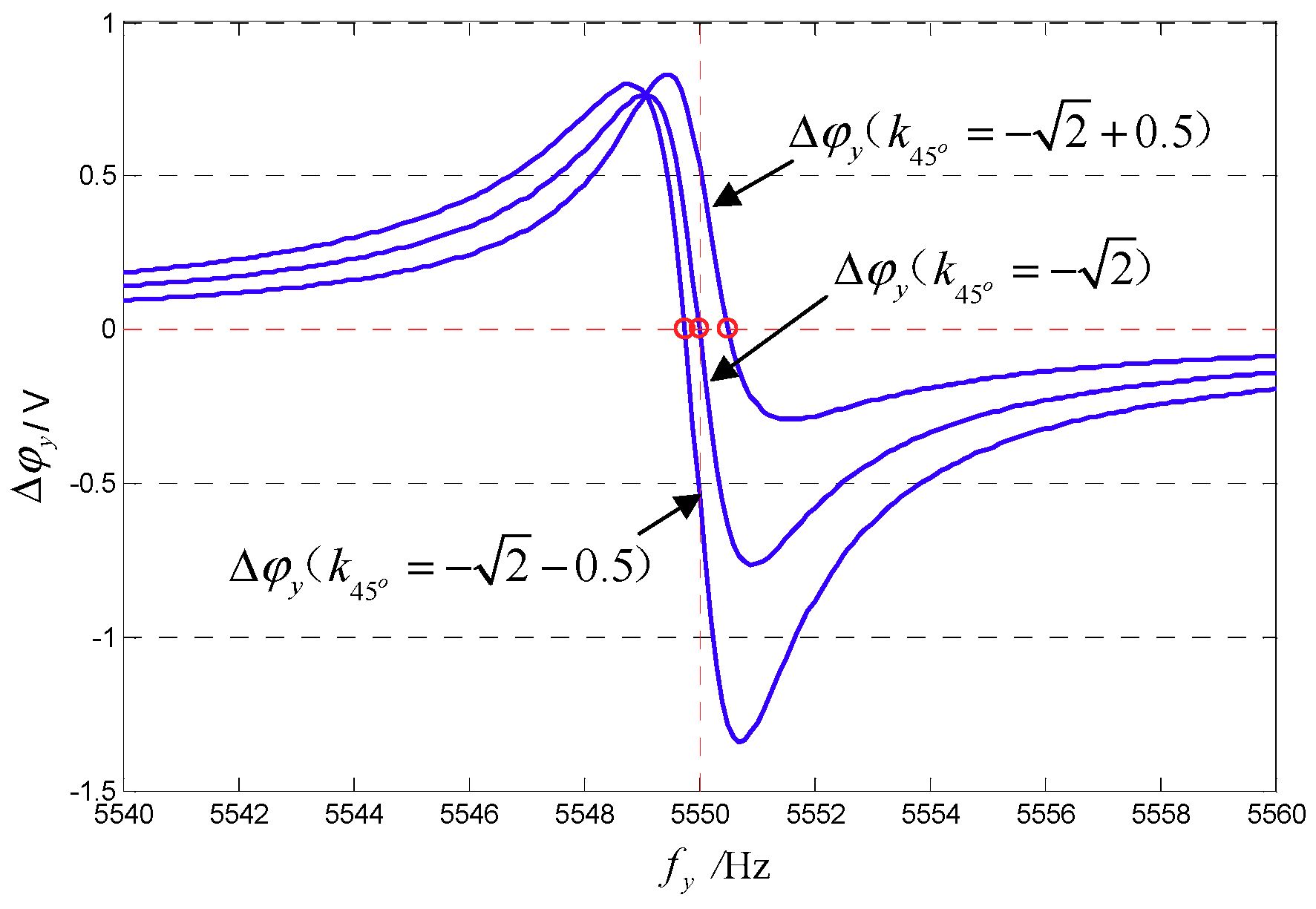

In order to solve the problem where existing mode-matching methods in microelectromechanical systems (MEMS) vibrating gyroscopes fail to meet real-time and reliability requirements, this paper presents a novel method to accomplish automatic and real-time mode-matching based on phase-shifted 45° additional force demodulation (45° AFD-RM). The phase-shifted 45° additional force signal has the same frequency as the quadrature force signal, but it is phase-shifted by 45° and applied to the sense mode. In addition, two-way phase-shifted 45° demodulations are used at the sense-mode detection output to obtain a phase metric that is independent of the Coriolis force and can reflect the mode-matching state. Then, this phase metric is used as a control variable to adaptively control the tuning voltage, so as to change the sense-mode frequency through the negative stiffness effect and ultimately achieve real-time mode-matching. Simulation and experimental results show that the proposed 45° AFD-RM method can achieve real-time matching. The mode frequency split is controlled within 0.1 Hz, and the gyroscope scale factor, zero-bias instability, and angle random walk are effectively improved. View Full-Text
Keywords: MEMS gyroscope; real-time mode-matching; 45° additional force; phase-shifted demodulation; negative stiffness effect MEMS gyroscope; real-time mode-matching; 45° additional force; phase-shifted demodulation; negative stiffness effect
