Open AccessArticle
Sensors 2018, 18(9), 2890; https://doi.org/10.3390/s18092890

Non-Contact Measurement of the Surface Displacement of a Slope Based on a Smart Binocular Vision System

1
School of Civil Engineering and Architecture, Southwest Petroleum University, Chengdu 610500, China
2
School of Transportation and Logistics, Southwest Jiaotong University, Chengdu 610031, China
*
Author to whom correspondence should be addressed.
Received: 14 July 2018 / Revised: 18 August 2018 / Accepted: 25 August 2018 / Published: 31 August 2018
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [6248 KB, uploaded 4 September 2018]   |

Abstract

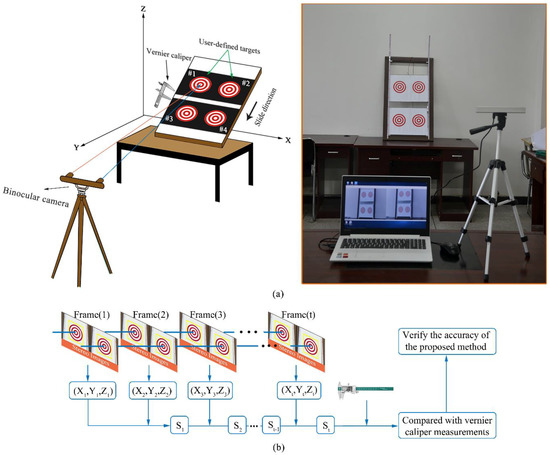

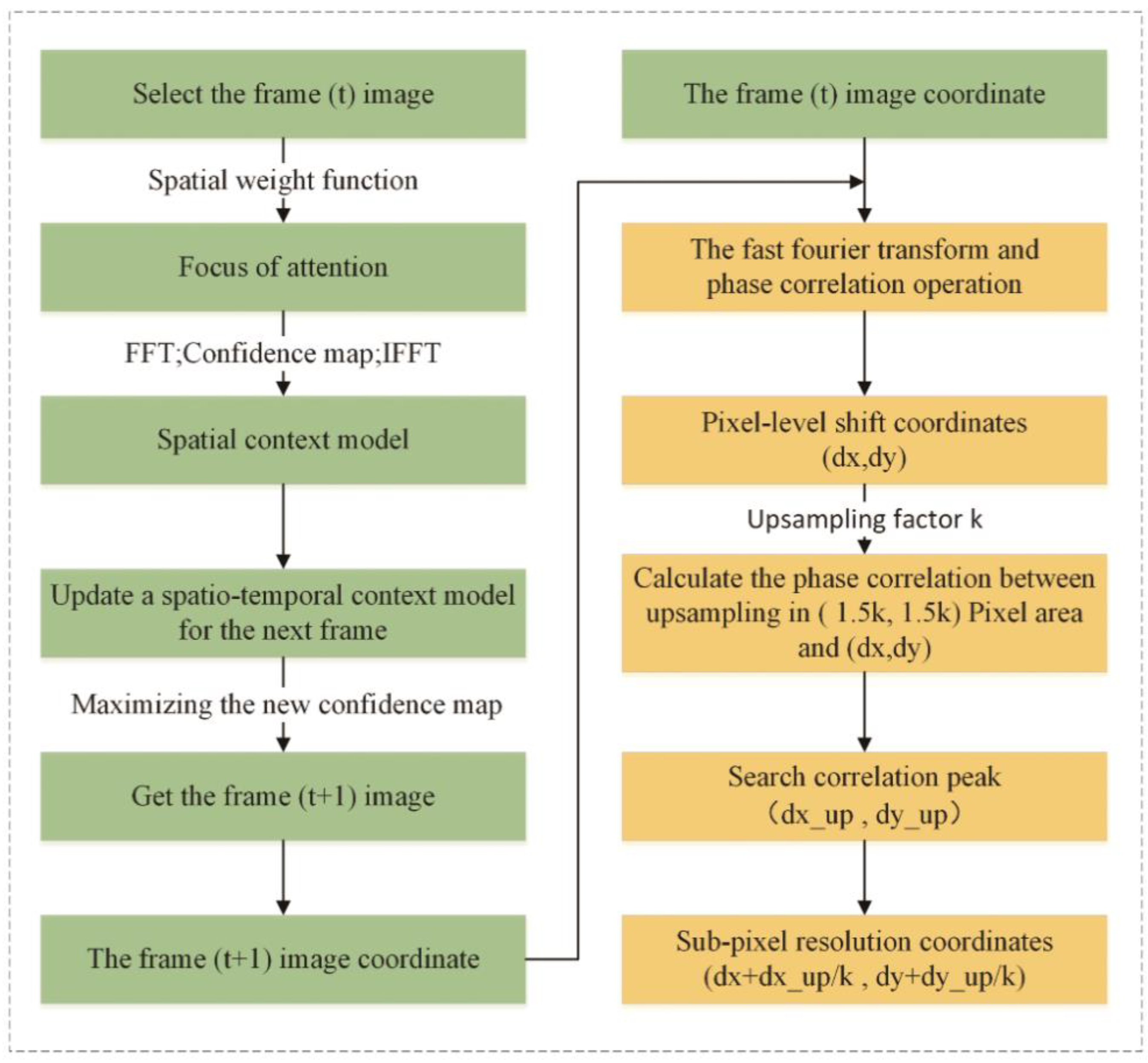

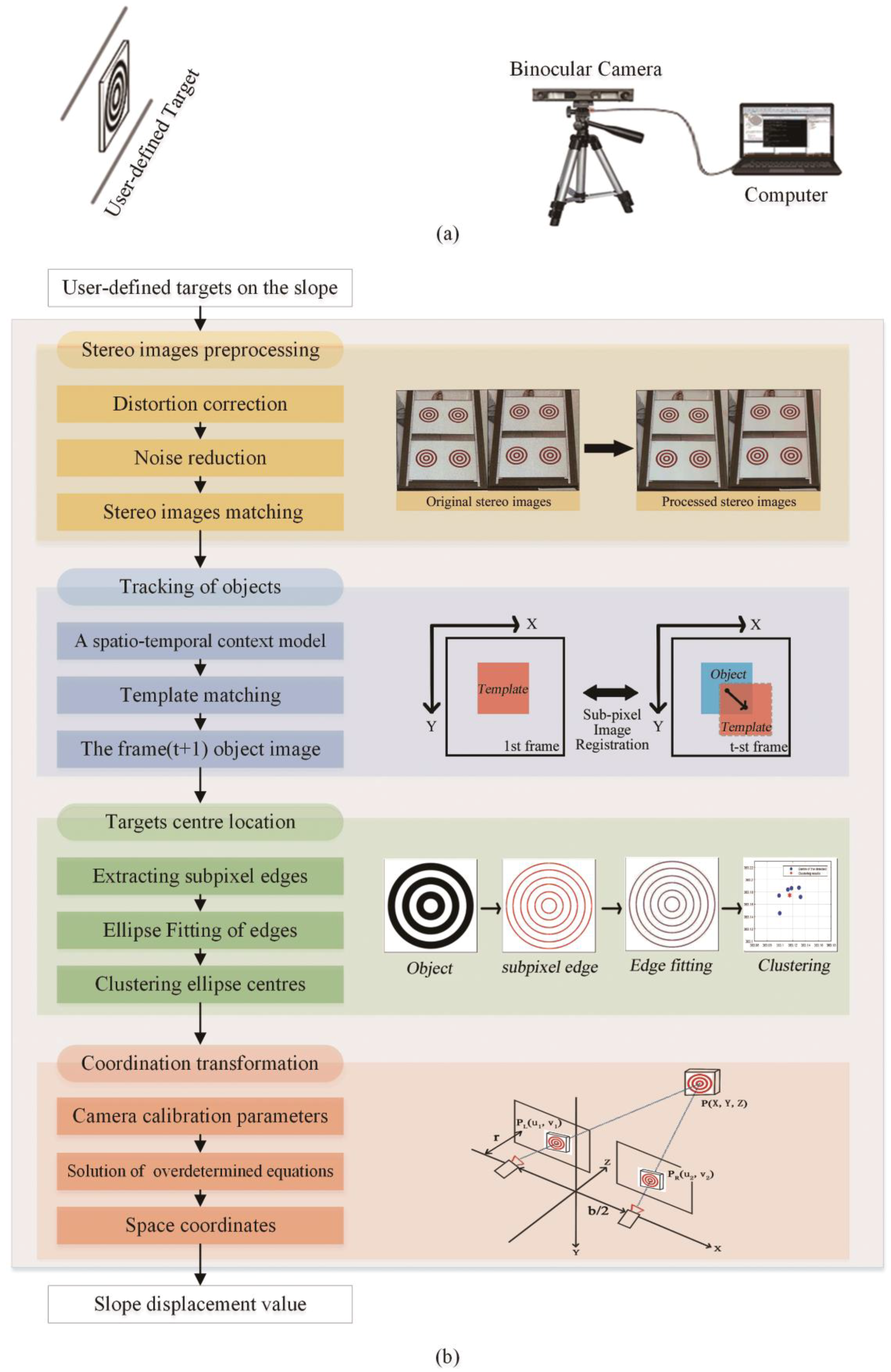

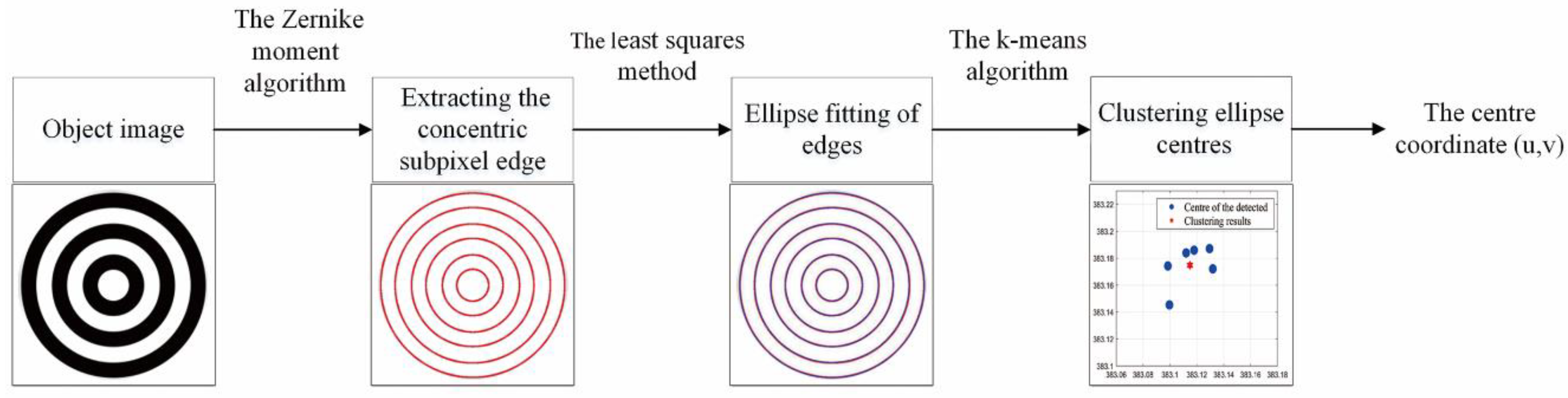

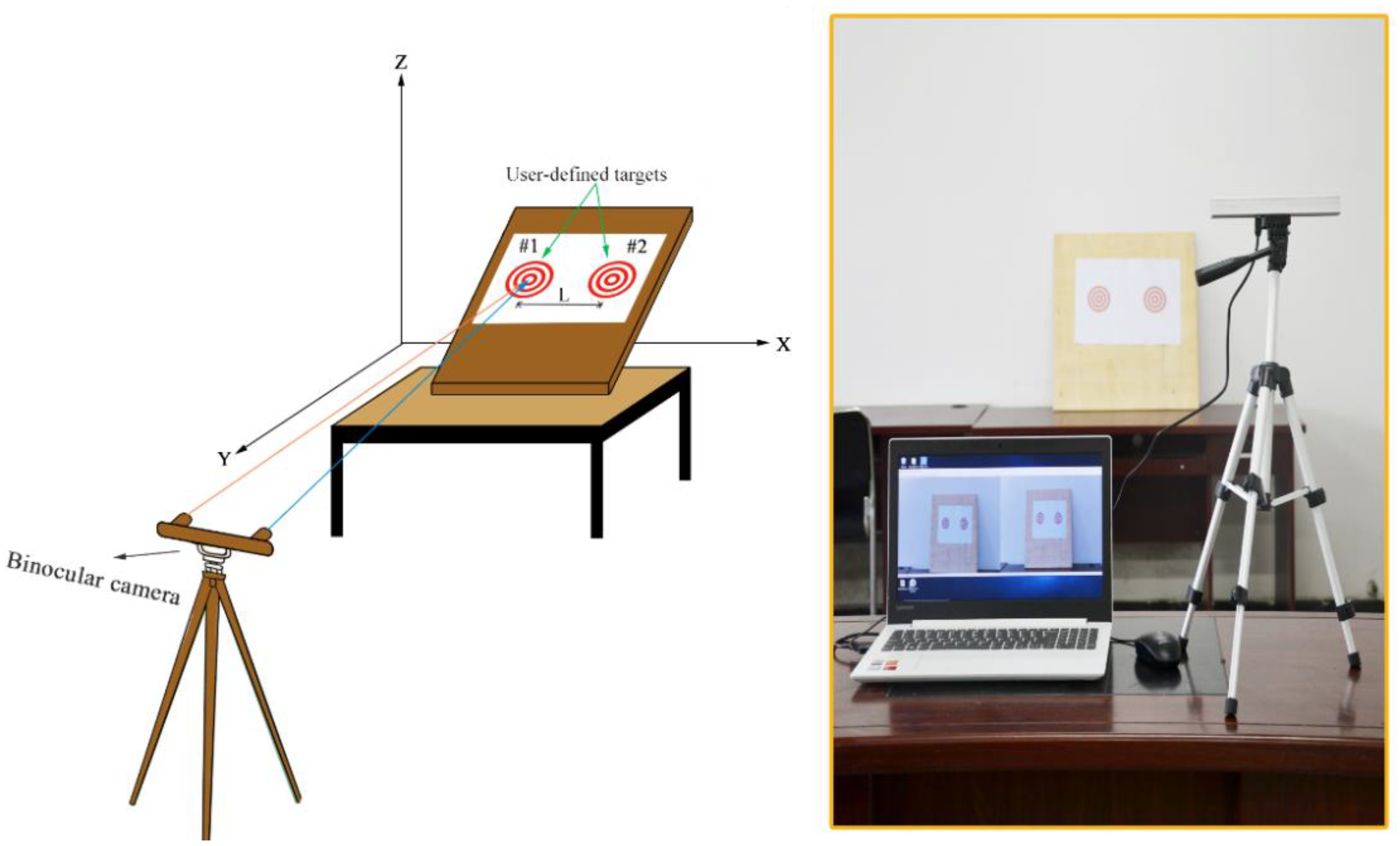

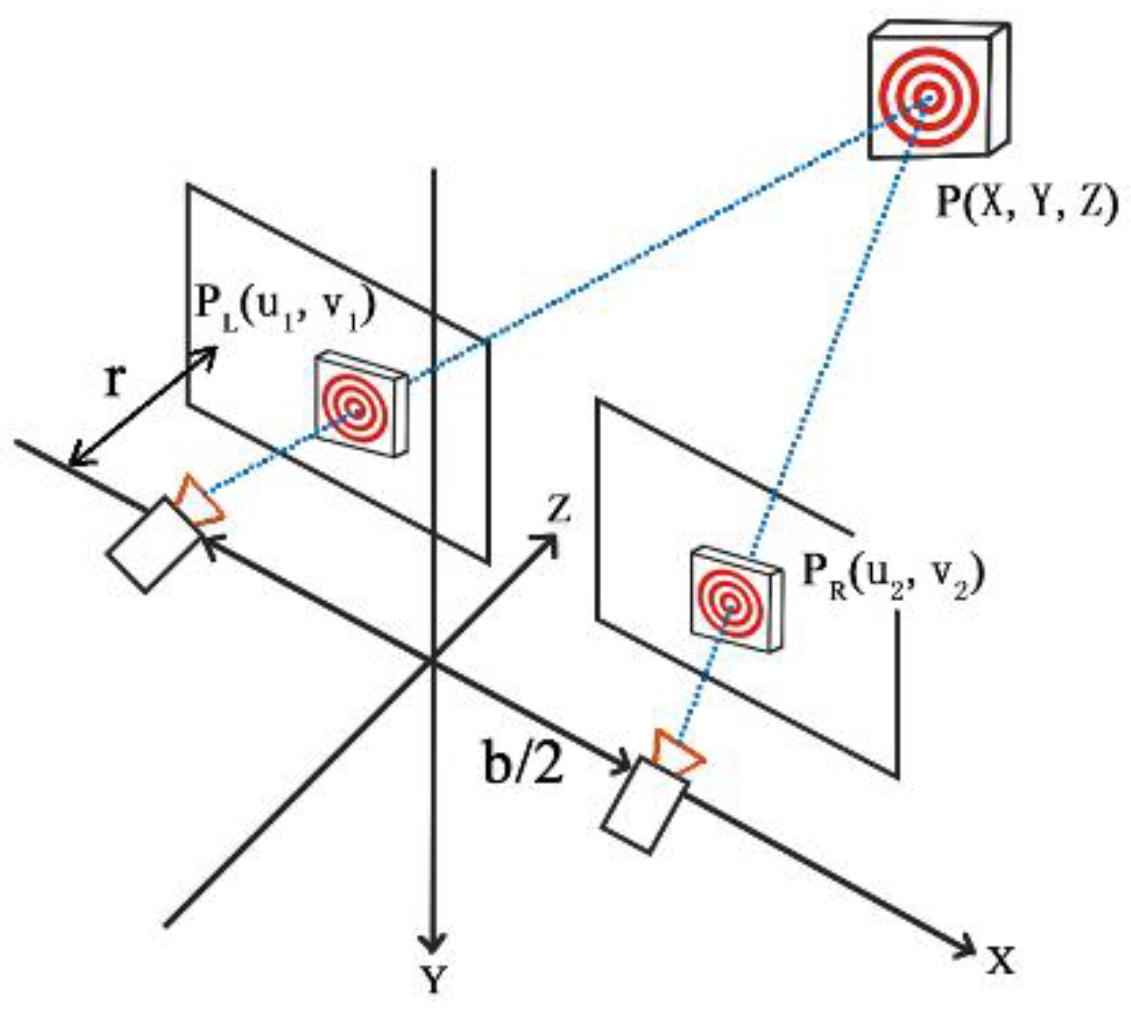

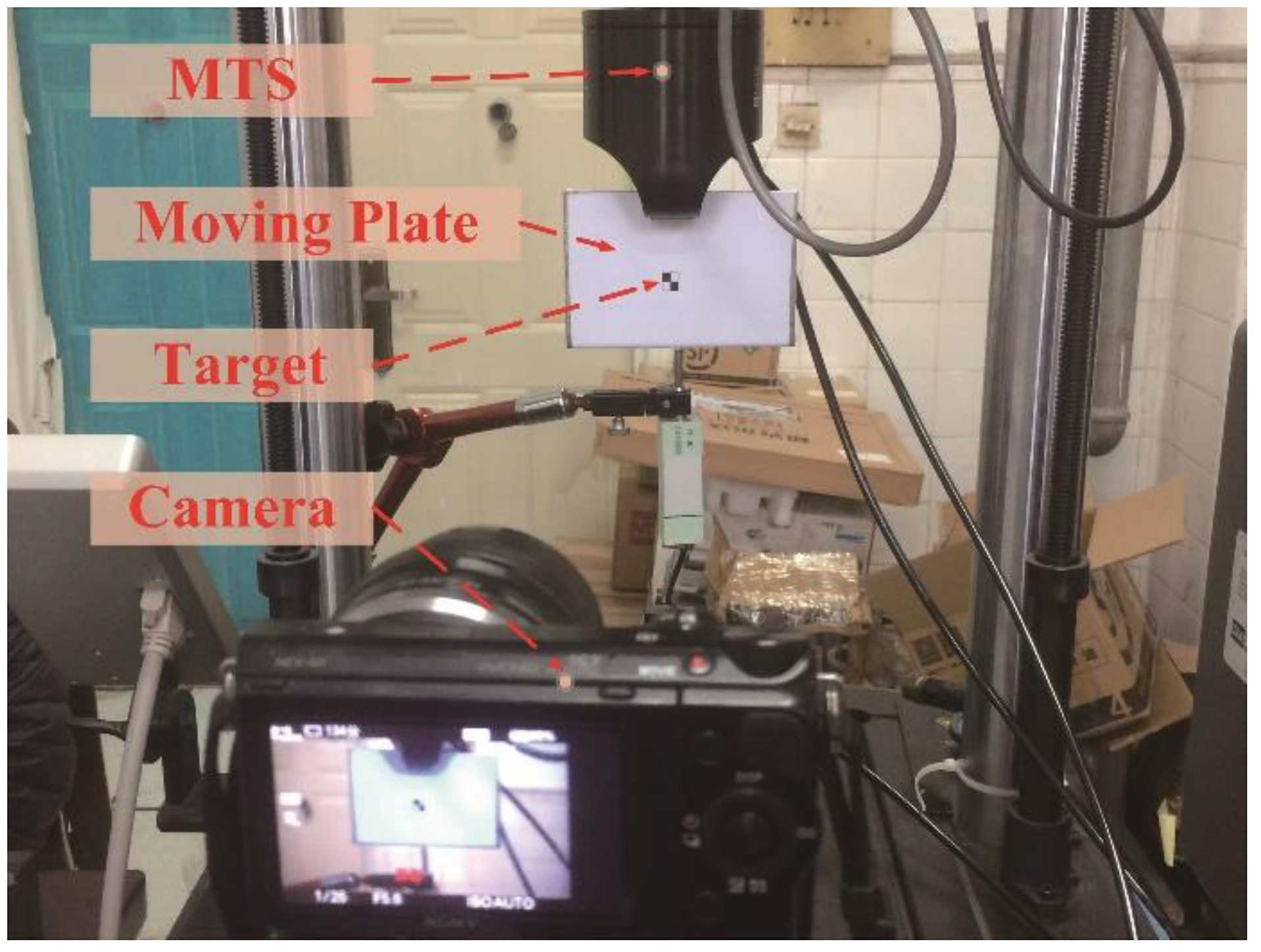

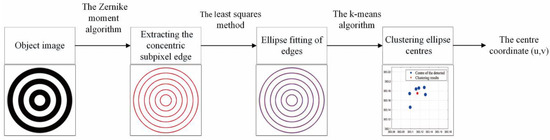

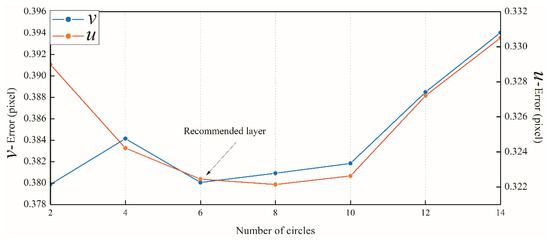

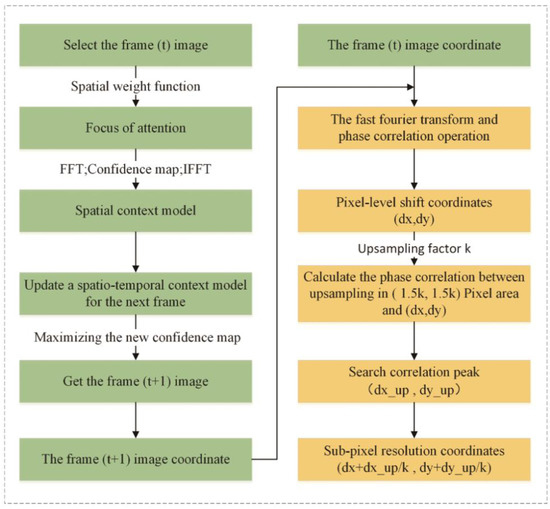

The paper presents an intelligent real-time slope surface deformation monitoring system based on binocular stereo-vision. To adapt the system to field slope monitoring, a design scheme of concentric marking point is proposed. Techniques including Zernike moment edge extraction, the least squares method, and k-means clustering are used to design a sub-pixel precision localization method for marker images. This study is mostly focused on the tracking accuracy of objects in multi-frame images obtained from a binocular camera. For this purpose, the Upsampled Cross Correlation (UCC) sub-pixel template matching technique is employed to improve the spatial-temporal contextual (STC) target-tracking algorithm. As a result, the tracking accuracy is improved to the sub-pixel level while keeping the STC tracking algorithm at high speed. The performance of the proposed vision monitoring system has been well verified through laboratory tests. View Full-Text
Keywords: slope monitoring; surface deformation; binocular vision; subpixel resolution; user defined target slope monitoring; surface deformation; binocular vision; subpixel resolution; user defined target
