Open AccessArticle
Sensors 2018, 18(3), 714; https://doi.org/10.3390/s18030714

High-Precision Ionosphere Monitoring Using Continuous Measurements from BDS GEO Satellites

1,2,* , 1,2,3
,
1,2,3
and
1,2,3
1
National Time Service Center, Chinese Academy of Sciences, Xi’an 710600, China
2
Key Laboratory of Precision Navigation and Timing Technology, Chinese Academy of Sciences, Xi’an 710600, China
3
School of Astronomy and Space Science, University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Received: 21 January 2018 / Revised: 17 February 2018 / Accepted: 25 February 2018 / Published: 27 February 2018
(This article belongs to the Special Issue GNSS and Fusion with Other Sensors)
View Full-Text   |   Download PDF [3748 KB, uploaded 1 March 2018]   |

Abstract

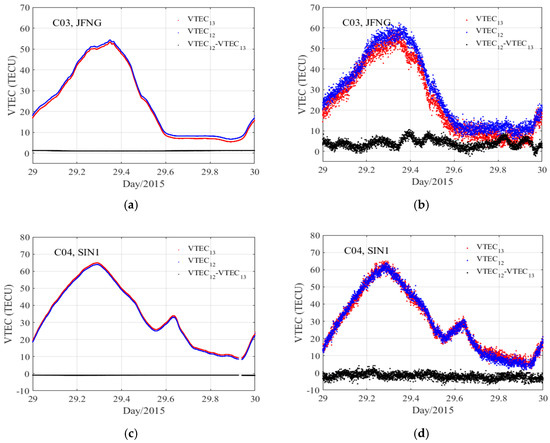

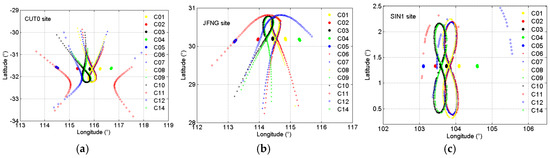

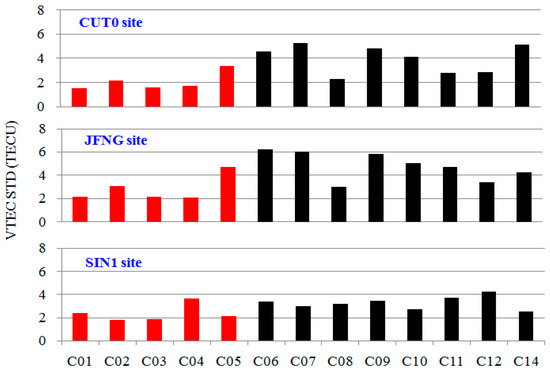

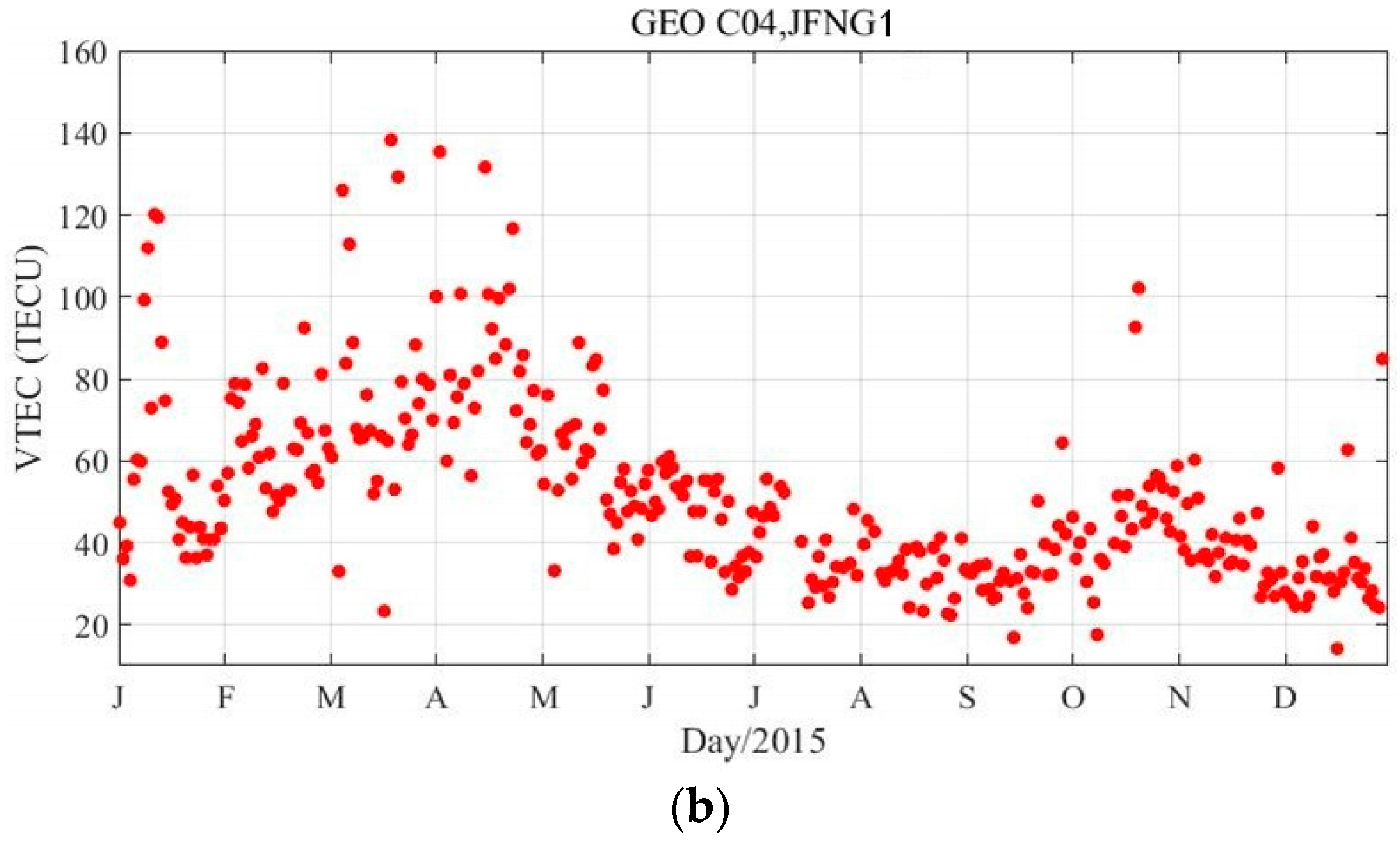

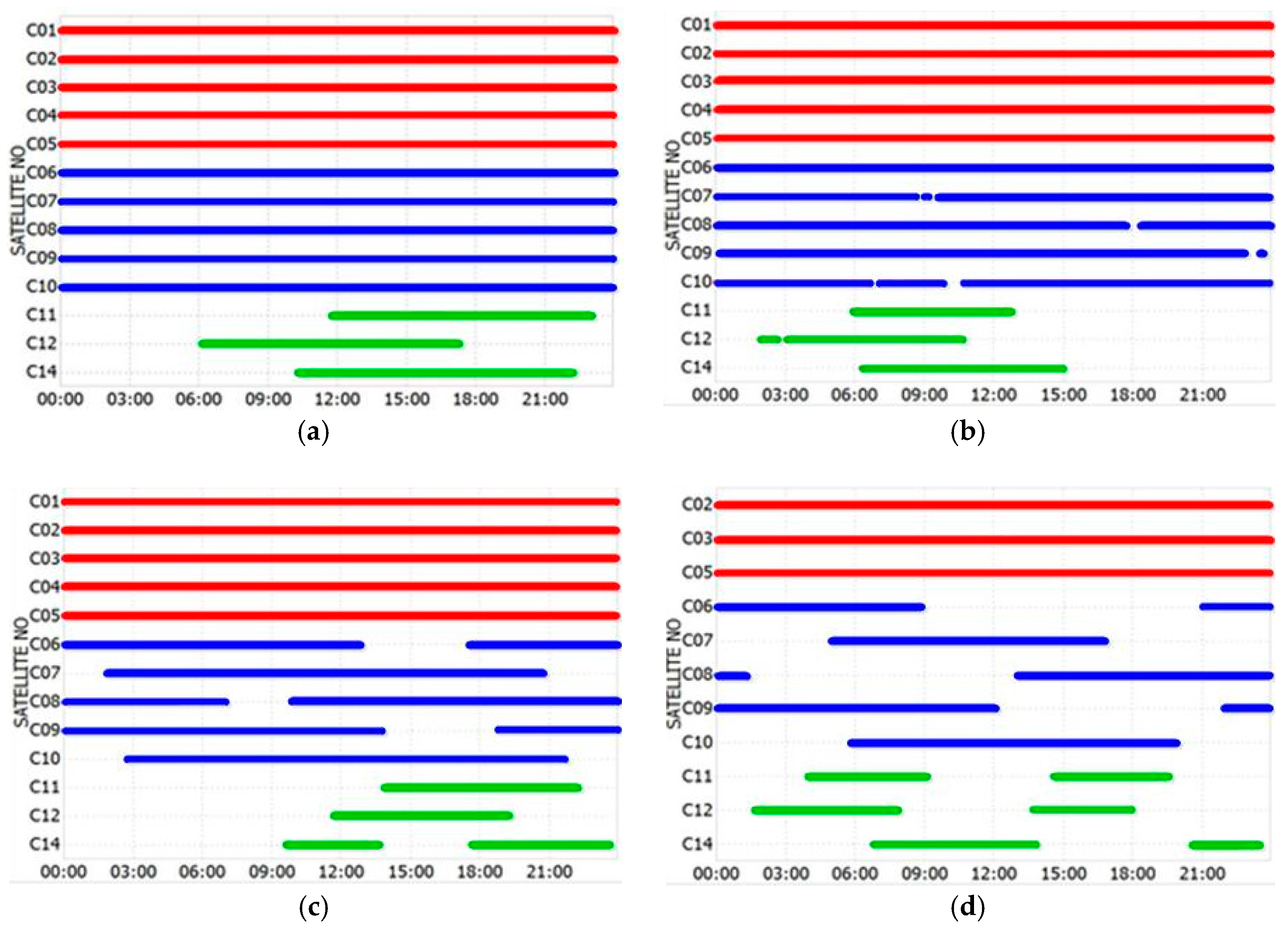

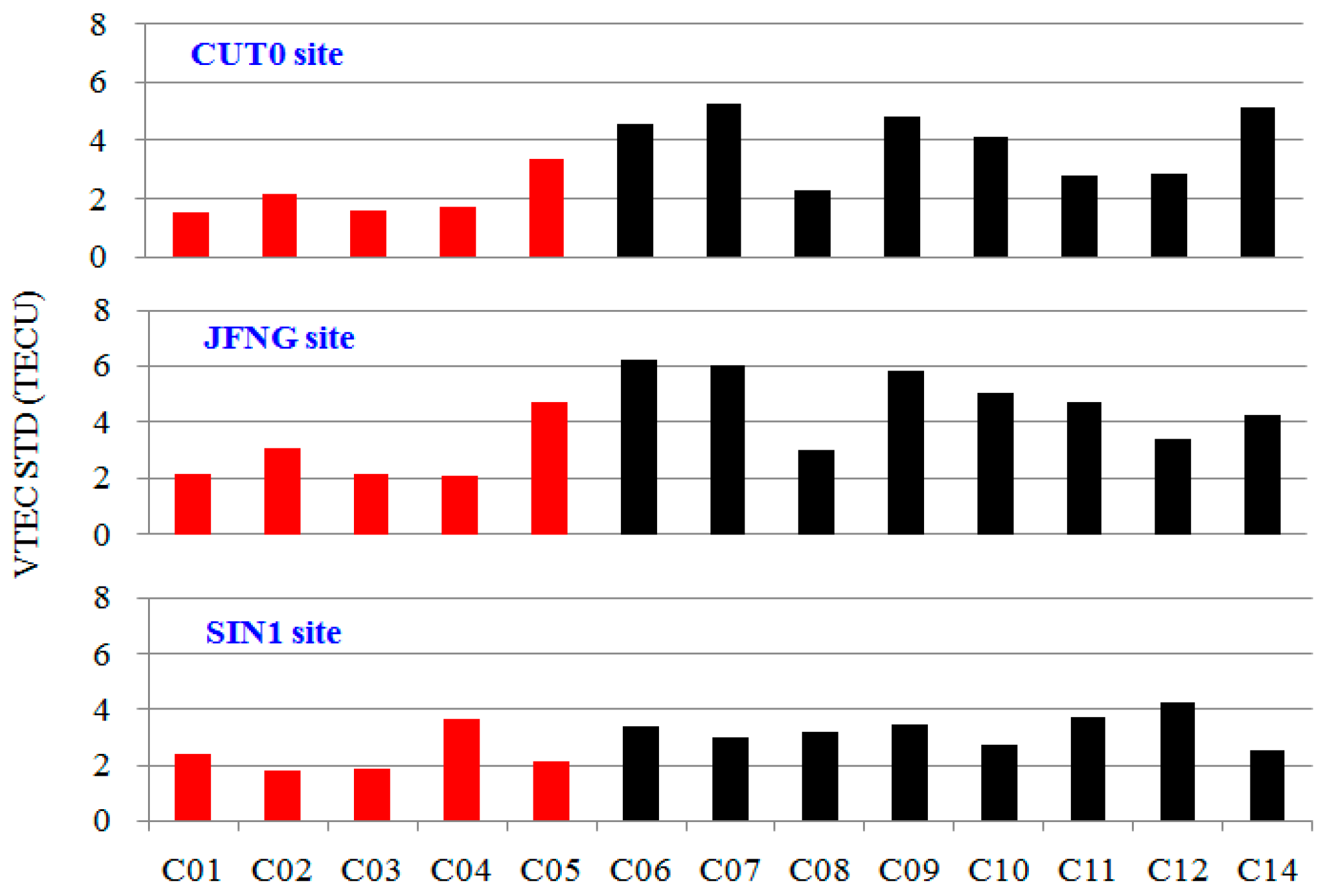

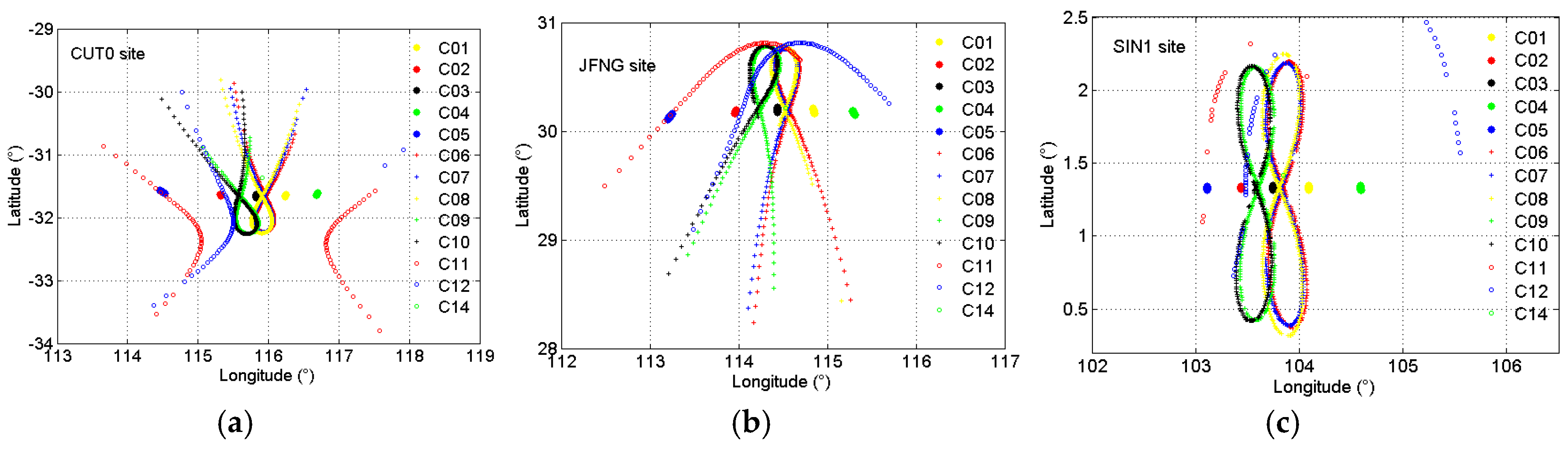

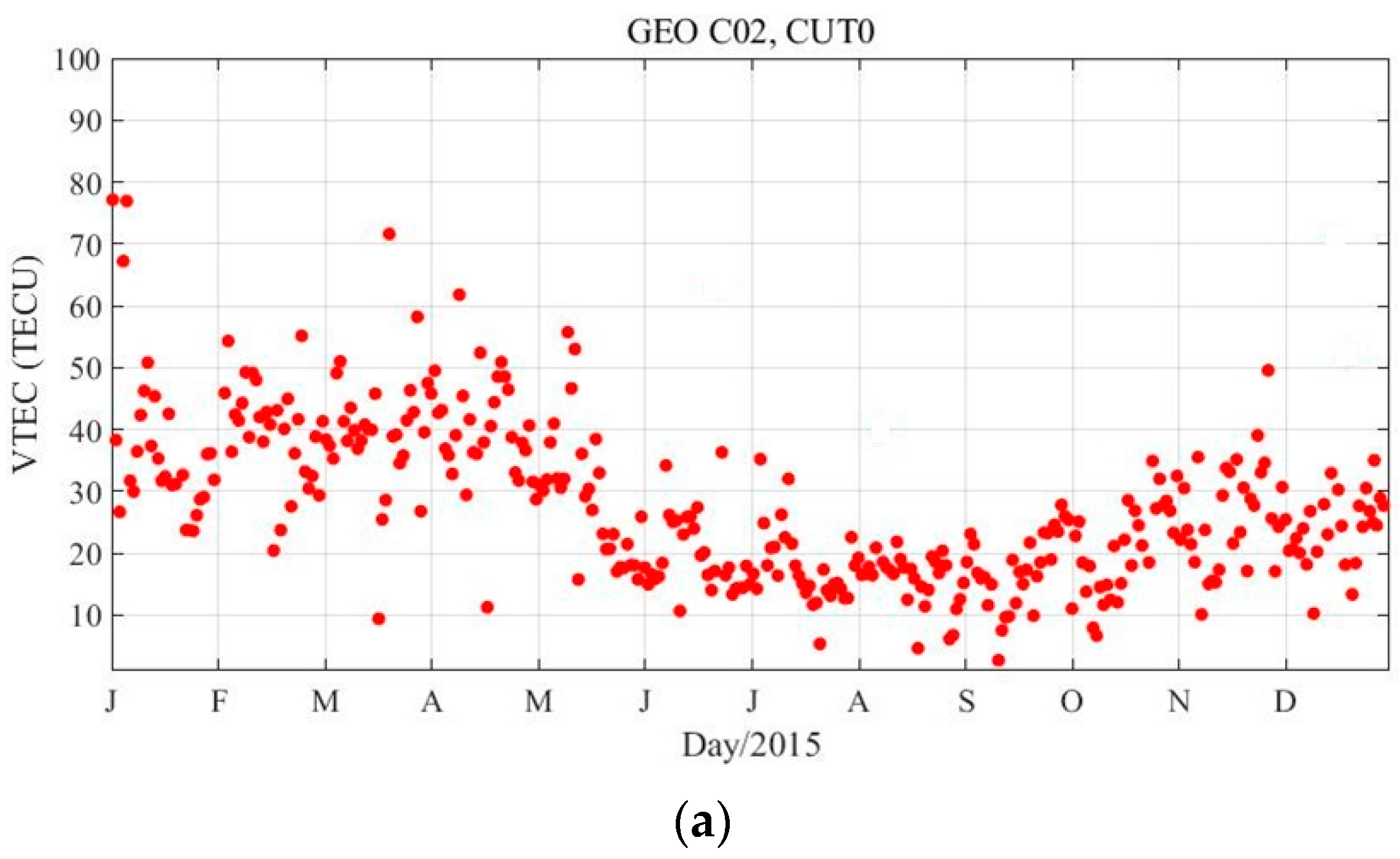

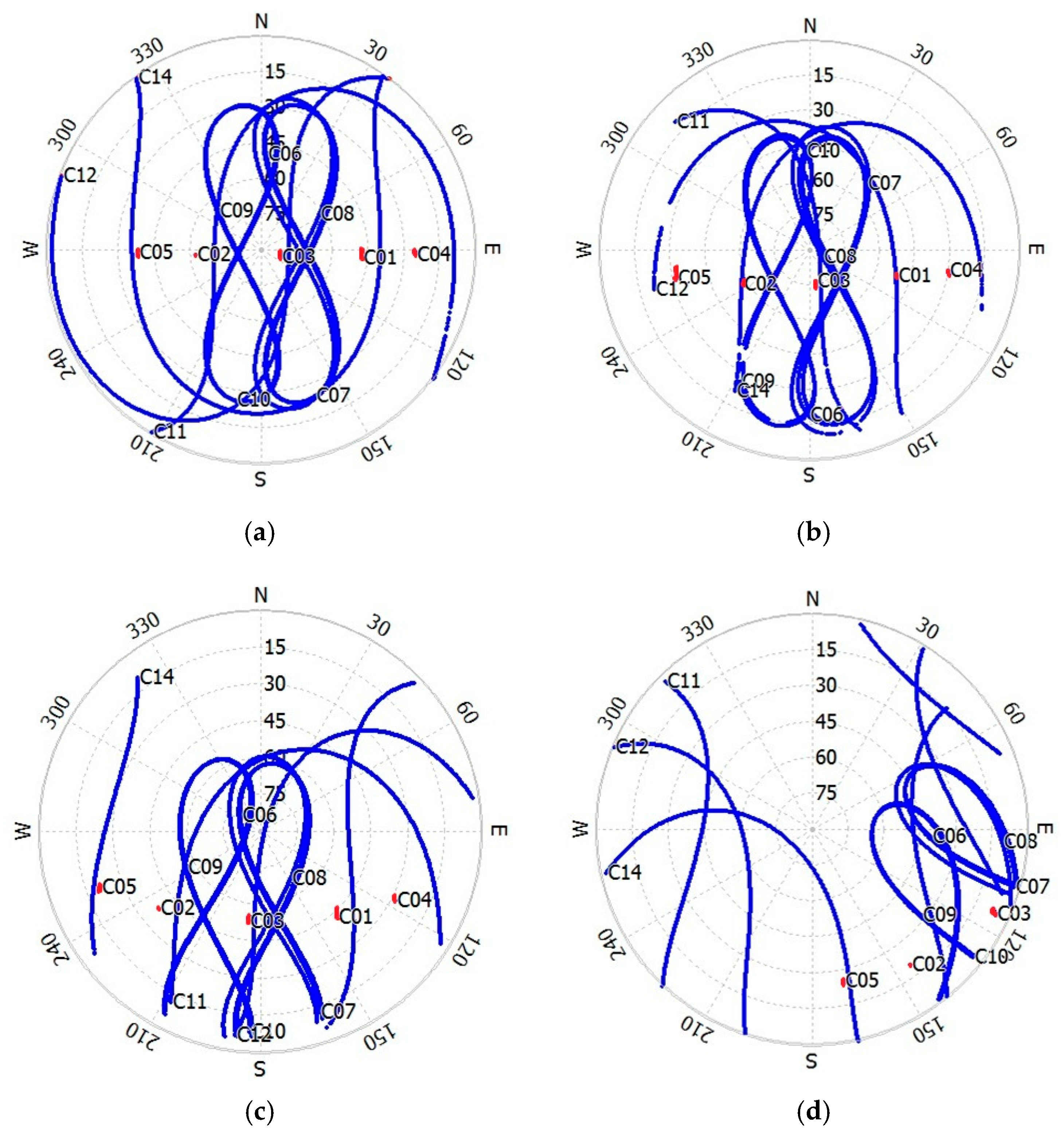

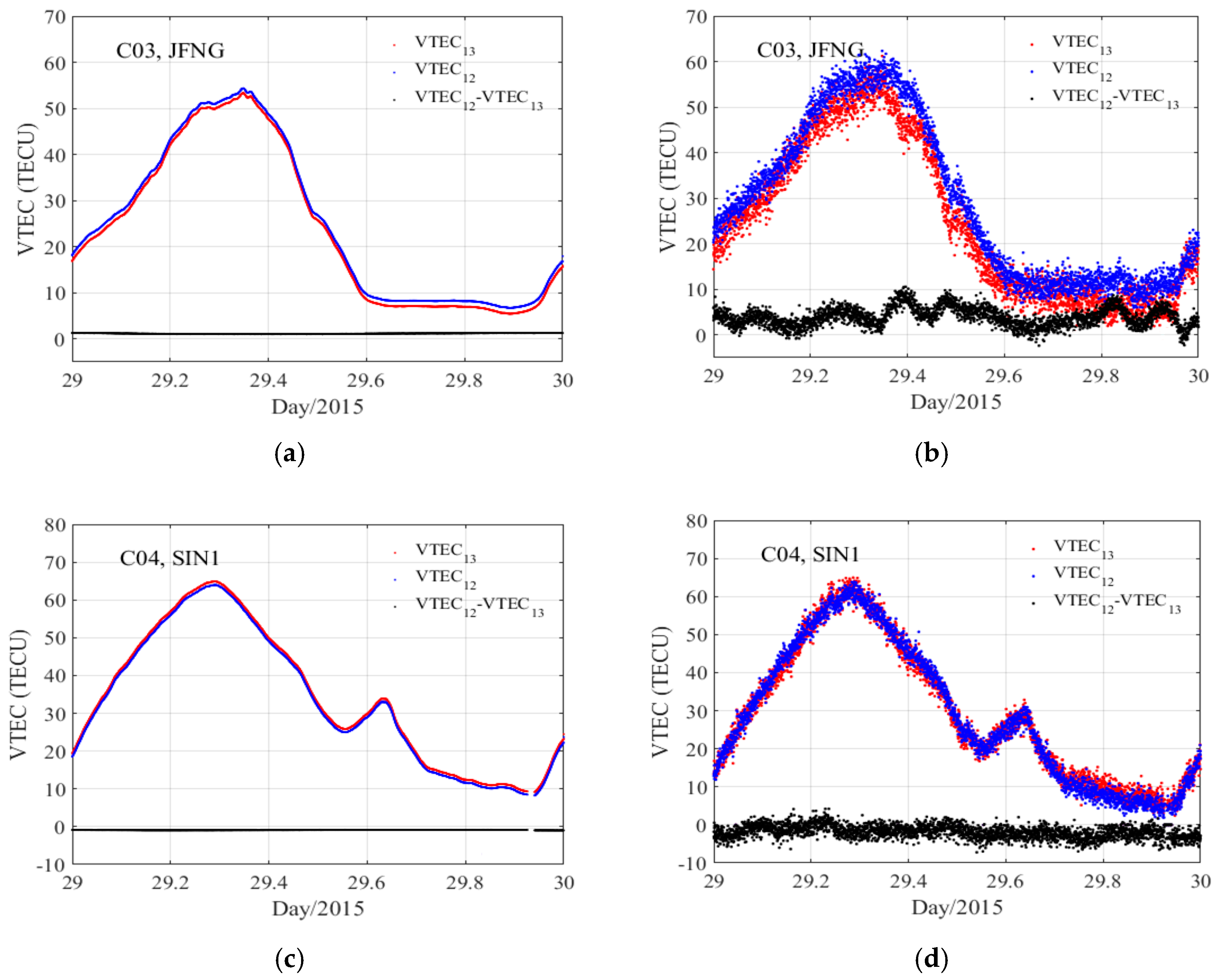

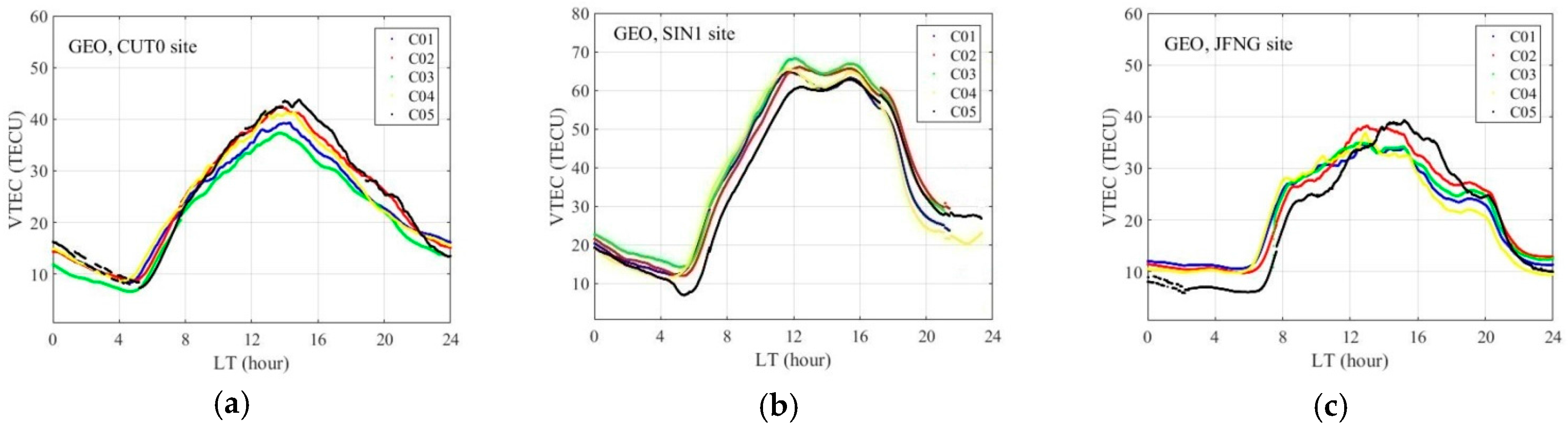

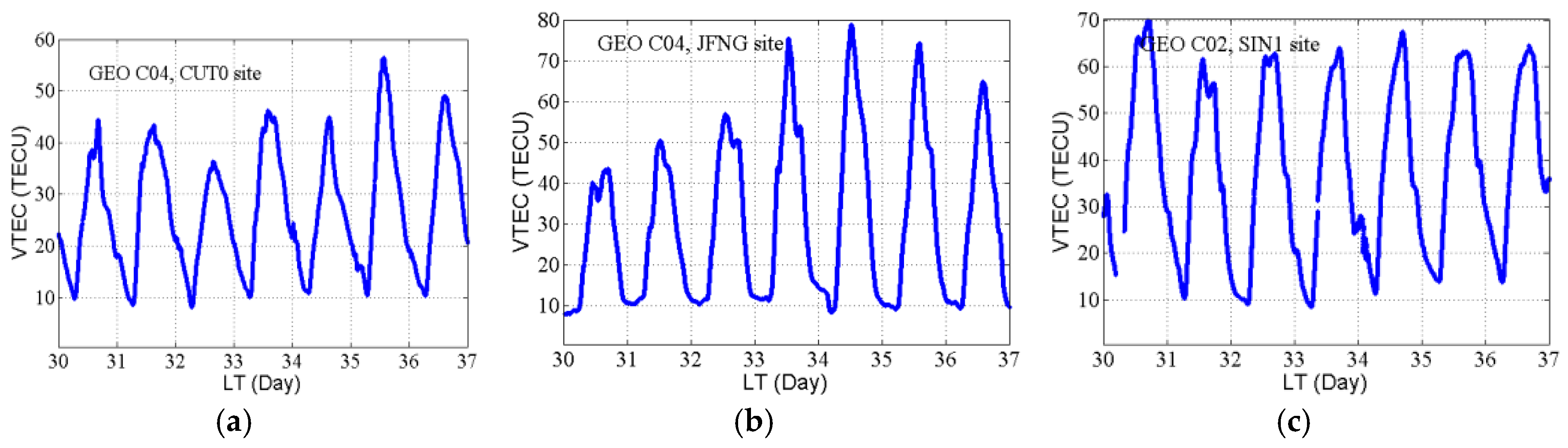

The current constellation of the BeiDou Navigation Satellite System (BDS) consists of five geostationary earth orbit (GEO) satellites, five inclined geosynchronous satellite orbit (IGSO) satellites, and four medium earth orbit (MEO) satellites. The advantage of using GEO satellites to monitor the ionosphereis the almost motionless ionospheric pierce point (IPP), which is analyzed in comparison with the MEO and IGSO satellites. The results from the analysis of the observations using eight tracking sites indicate that the ionospheric total electron content (TEC) sequence derived from each GEO satellite at their respective fixed IPPs is always continuous. The precision of calculated vertical TEC (VTEC) using BDS B1/B2, B1/B3, and B2/B3 dual-frequency combinationsis compared and analyzed. The VTEC12 precision based on the B1/B2 dual-frequency measurements using the smoothed code and the raw code combination is 0.69 and 5.54 TECU, respectively, which is slightly higher than VTEC13 and much higher than VTEC23. Furthermore, the ionospheric monitoring results of site JFNG in the northern hemisphere, and CUT0 in the southern hemisphere during the period from 1 January to 31 December 2015 are presented and discussed briefly. View Full-Text
Keywords: BeiDou Navigation Satellite System (BDS); geostationary earth orbit (GEO); ionosphere monitoring; total electron content (TEC) BeiDou Navigation Satellite System (BDS); geostationary earth orbit (GEO); ionosphere monitoring; total electron content (TEC)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
