Open AccessArticle
Sensors 2018, 18(2), 343; https://doi.org/10.3390/s18020343

Dual-Mode Gas Sensor Composed of a Silicon Nanoribbon Field Effect Transistor and a Bulk Acoustic Wave Resonator: A Case Study in Freons

1
State Key Laboratory of Precision Measuring Technology & Instruments, Tianjin University, Tianjin 300072, China
2
China Marine Development and Research Center (CMDRC), Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Received: 27 December 2017 / Revised: 14 January 2018 / Accepted: 14 January 2018 / Published: 25 January 2018
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [3180 KB, uploaded 25 January 2018]   |

Abstract

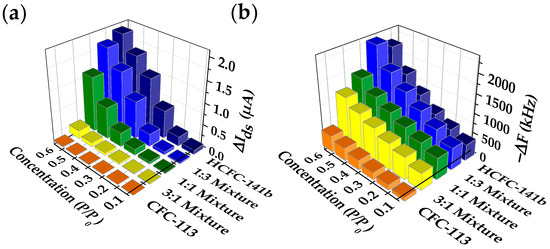

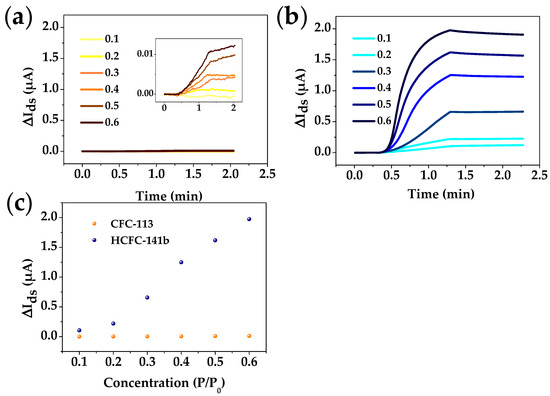

In this paper, we develop a novel dual-mode gas sensor system which comprises a silicon nanoribbon field effect transistor (Si-NR FET) and a film bulk acoustic resonator (FBAR). We investigate their sensing characteristics using polar and nonpolar organic compounds, and demonstrate that polarity has a significant effect on the response of the Si-NR FET sensor, and only a minor effect on the FBAR sensor. In this dual-mode system, qualitative discrimination can be achieved by analyzing polarity with the Si-NR FET and quantitative concentration information can be obtained using a polymer-coated FBAR with a detection limit at the ppm level. The complementary performance of the sensing elements provides higher analytical efficiency. Additionally, a dual mixture of two types of freons (CFC-113 and HCFC-141b) is further analyzed with the dual-mode gas sensor. Owing to the small size and complementary metal-oxide semiconductor (CMOS)-compatibility of the system, the dual-mode gas sensor shows potential as a portable integrated sensing system for the analysis of gas mixtures in the future. View Full-Text
Keywords: freons detection; bulk acoustic wave resonator; field effect transistor; dual-mode sensing; gas sensor freons detection; bulk acoustic wave resonator; field effect transistor; dual-mode sensing; gas sensor
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Chang, Y.; Hui, Z.; Wang, X.; Qu, H.; Pang, W.; Duan, X. Dual-Mode Gas Sensor Composed of a Silicon Nanoribbon Field Effect Transistor and a Bulk Acoustic Wave Resonator: A Case Study in Freons. Sensors 2018, 18, 343.
