Open AccessArticle
Sensors 2018, 18(1), 31; doi:10.3390/s18010031

Redundancy Analysis of Capacitance Data of a Coplanar Electrode Array for Fast and Stable Imaging Processing

1
Institute of Science and Technology, Yanshan University, Qinhuangdao 066004, China
2
Key Lab of Measurement Technology and Instrumentation of Hebei Province, Qinhuangdao 066004, China
3
Institute of Electrical Engineering, Yanshan University, Qinhuangdao 066004, China
*
Author to whom correspondence should be addressed.
Received: 31 October 2017 / Revised: 9 December 2017 / Accepted: 20 December 2017 / Published: 24 December 2017
View Full-Text   |   Download PDF [7246 KB, uploaded 24 December 2017]   |

Abstract

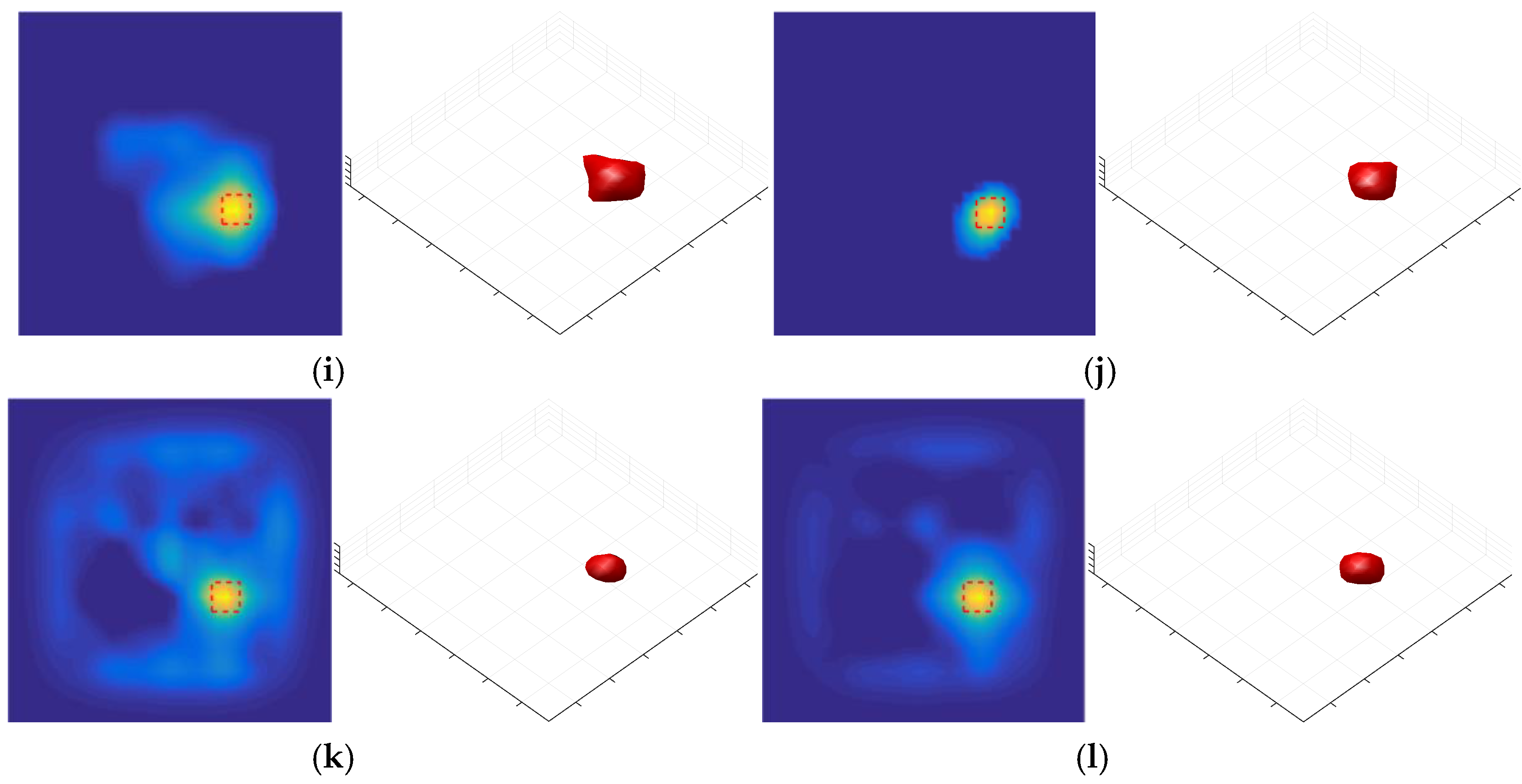

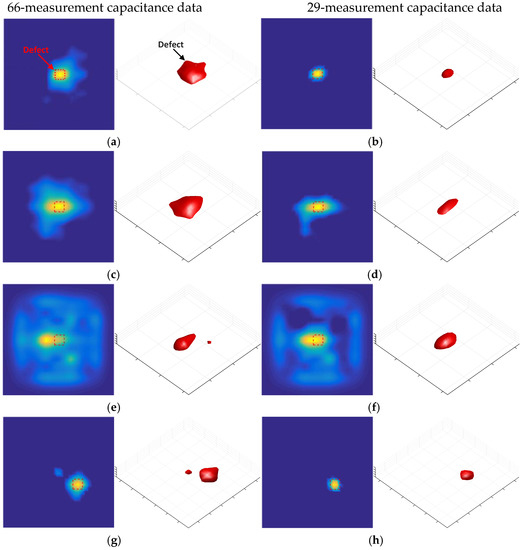

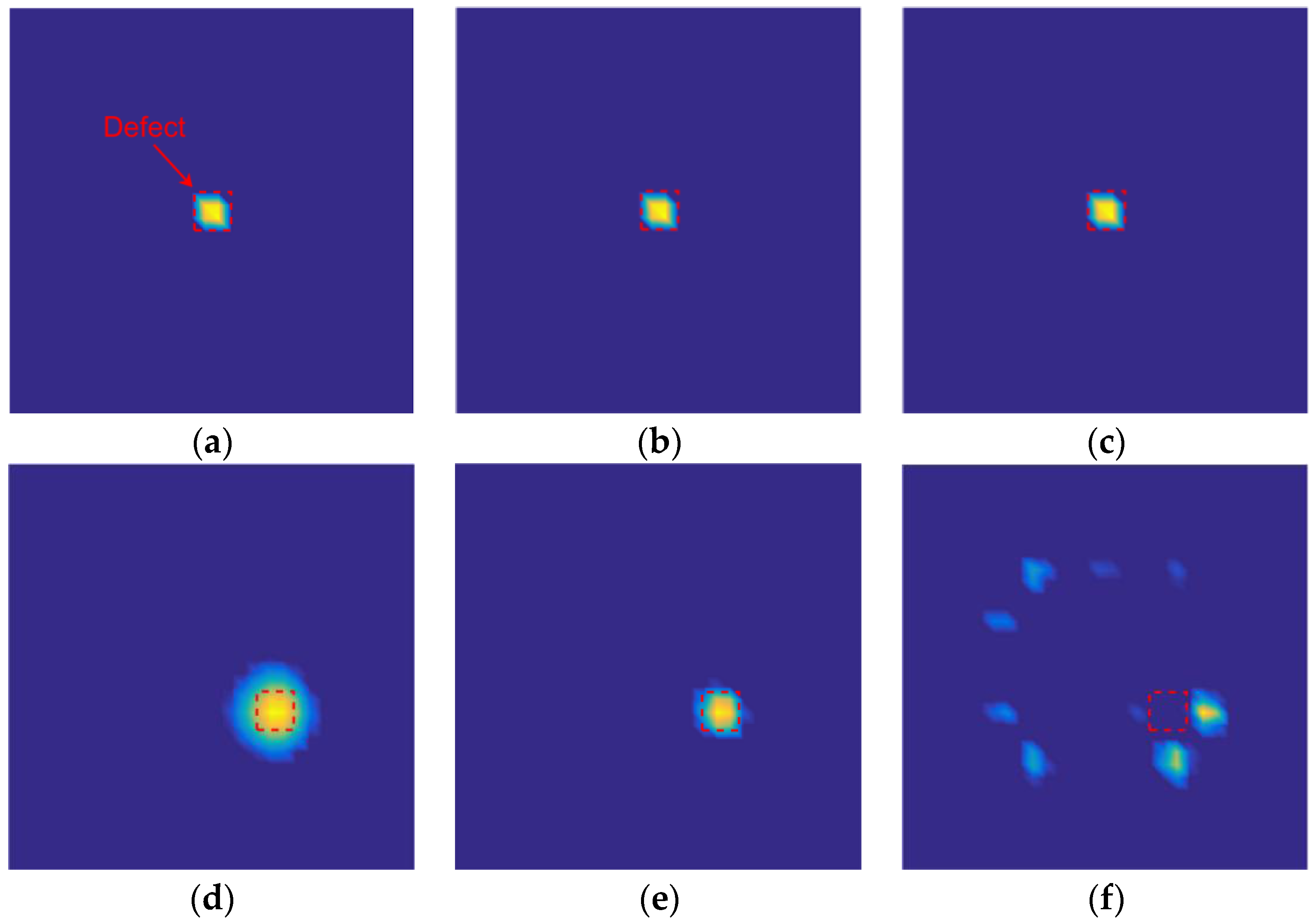

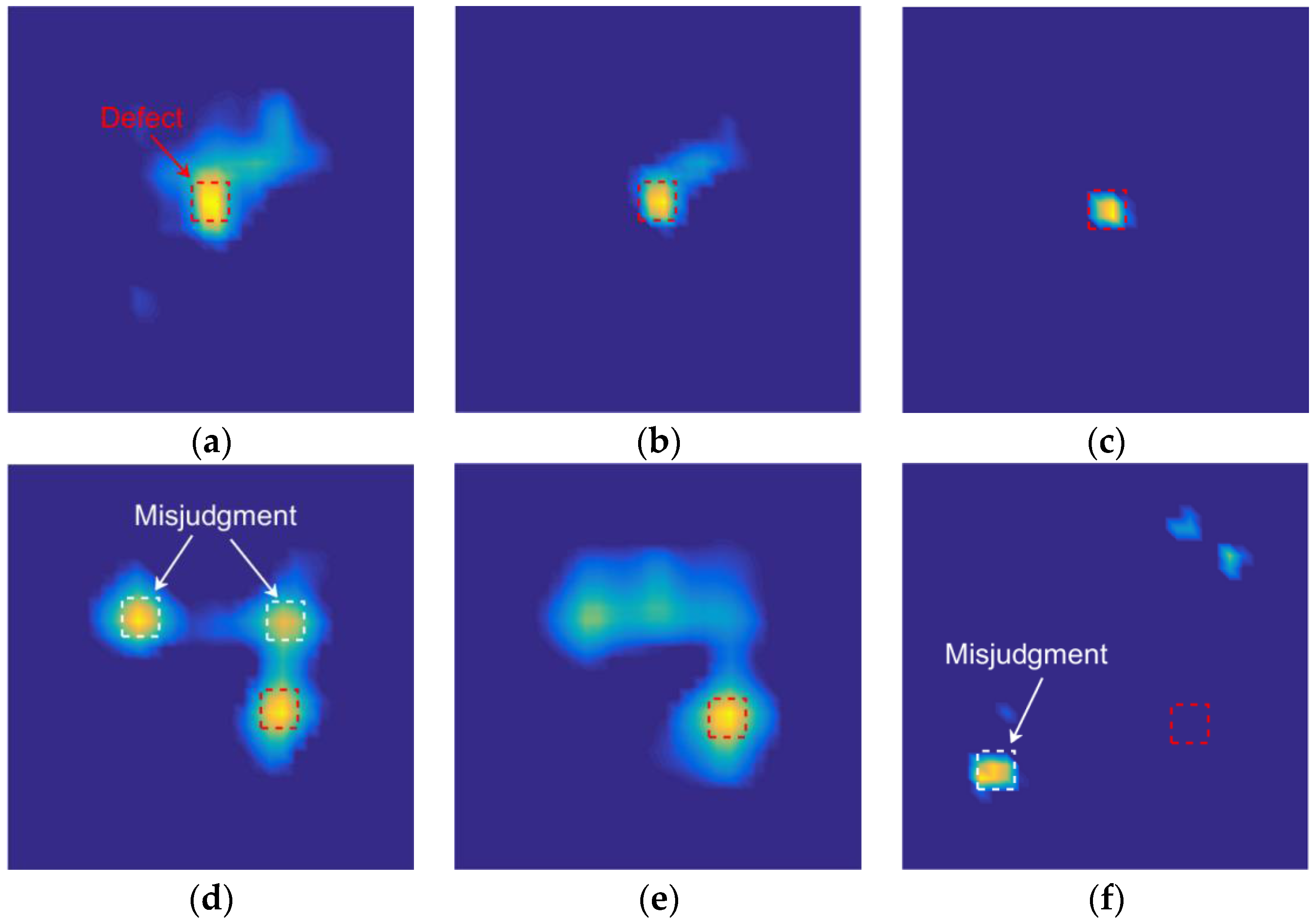

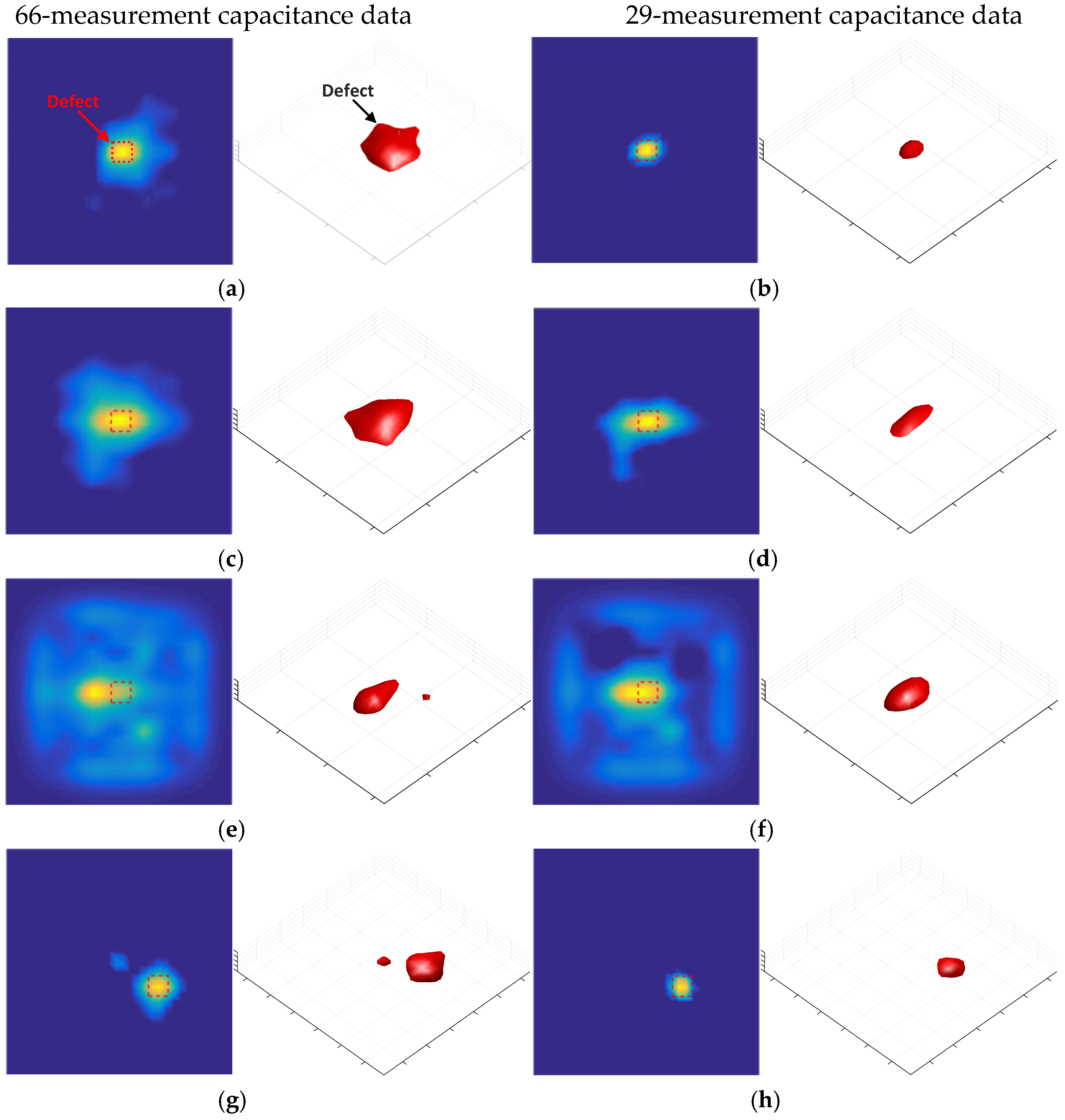

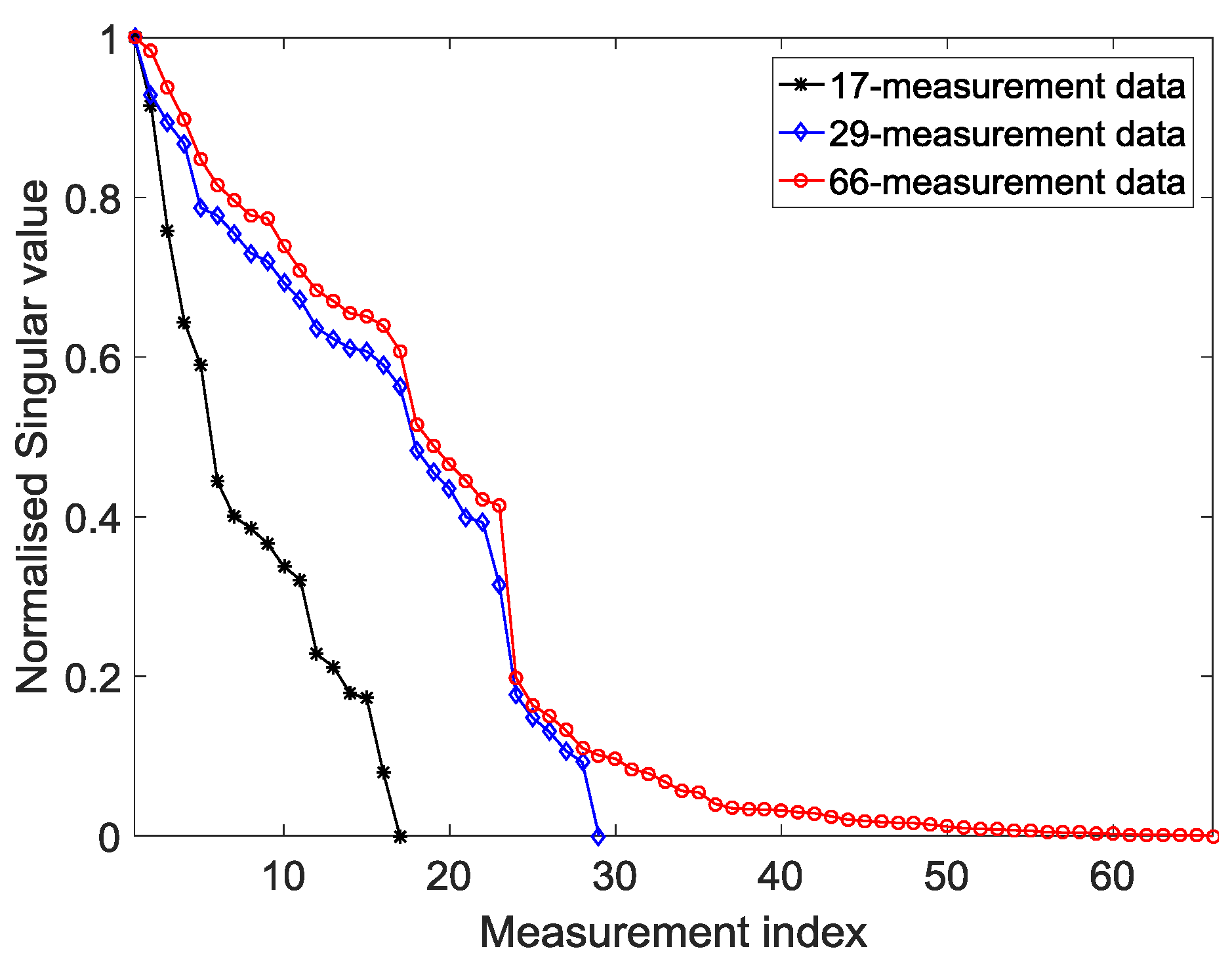

A coplanar electrode array sensor is established for the imaging of composite-material adhesive-layer defect detection. The sensor is based on the capacitive edge effect, which leads to capacitance data being considerably weak and susceptible to environmental noise. The inverse problem of coplanar array electrical capacitance tomography (C-ECT) is ill-conditioning, in which a small error of capacitance data can seriously affect the quality of reconstructed images. In order to achieve a stable image reconstruction process, a redundancy analysis method for capacitance data is proposed. The proposed method is based on contribution rate and anti-interference capability. According to the redundancy analysis, the capacitance data are divided into valid and invalid data. When the image is reconstructed by valid data, the sensitivity matrix needs to be changed accordingly. In order to evaluate the effectiveness of the sensitivity map, singular value decomposition (SVD) is used. Finally, the two-dimensional (2D) and three-dimensional (3D) images are reconstructed by the Tikhonov regularization method. Through comparison of the reconstructed images of raw capacitance data, the stability of the image reconstruction process can be improved, and the quality of reconstructed images is not degraded. As a result, much invalid data are not collected, and the data acquisition time can also be reduced. View Full-Text
Keywords: coplanar electrode array sensor; redundancy; singular value decomposition; stable imaging; bonding defects; composites material coplanar electrode array sensor; redundancy; singular value decomposition; stable imaging; bonding defects; composites material
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
