Open AccessArticle
Sensors 2018, 18(1), 184; https://doi.org/10.3390/s18010184

A Time-Domain Analog Spatial Compressed Sensing Encoder for Multi-Channel Neural Recording

Department of Electrical and Electronic Information Engineering, Toyohashi University of Technology, 1-1 Hibarigaoka, Tempaku-cho, Toyohashi, Aichi 441-8580, Japan
*
Author to whom correspondence should be addressed.
Received: 3 November 2017 / Revised: 8 January 2018 / Accepted: 8 January 2018 / Published: 11 January 2018
(This article belongs to the Section Intelligent Sensors)
View Full-Text   |   Download PDF [1722 KB, uploaded 11 January 2018]   |

Abstract

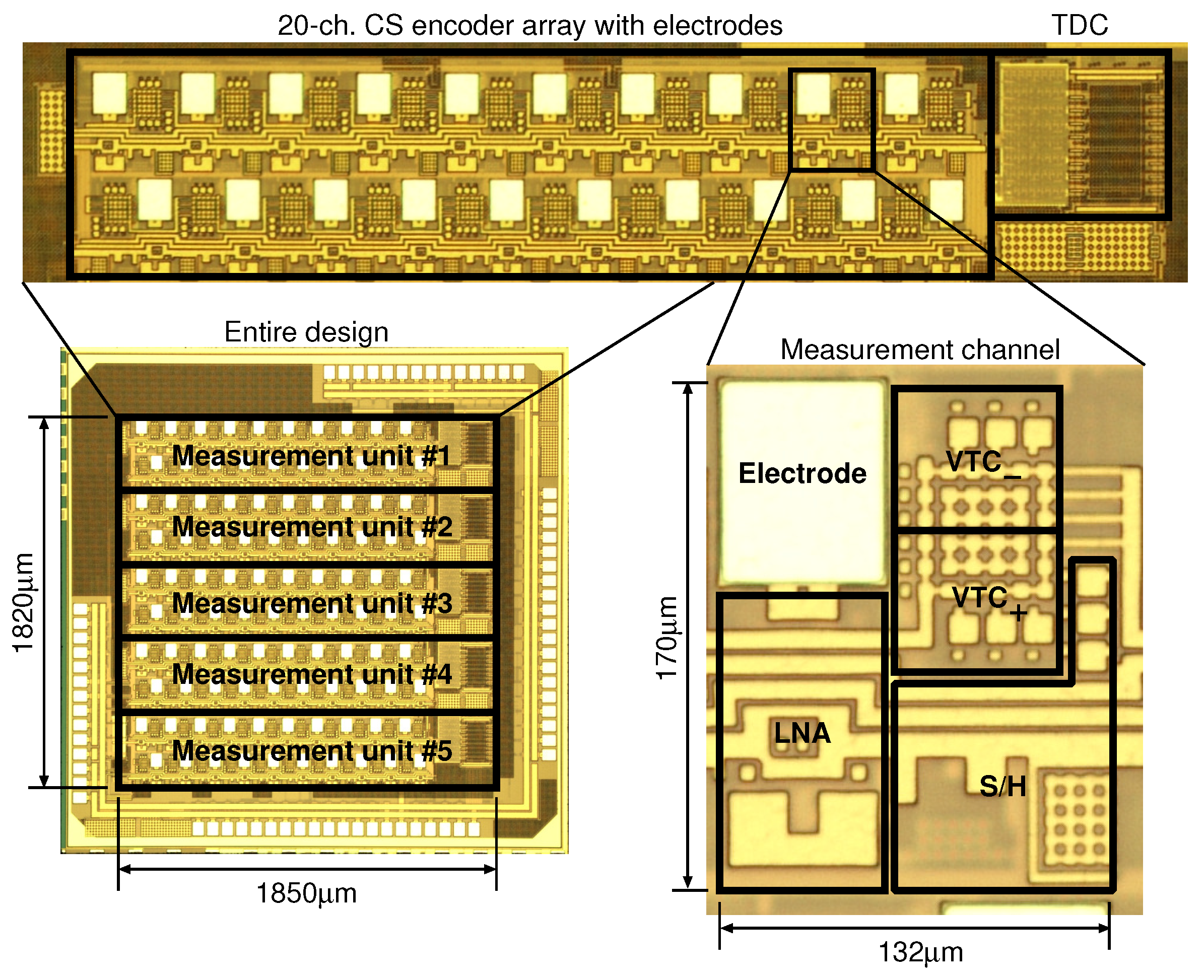

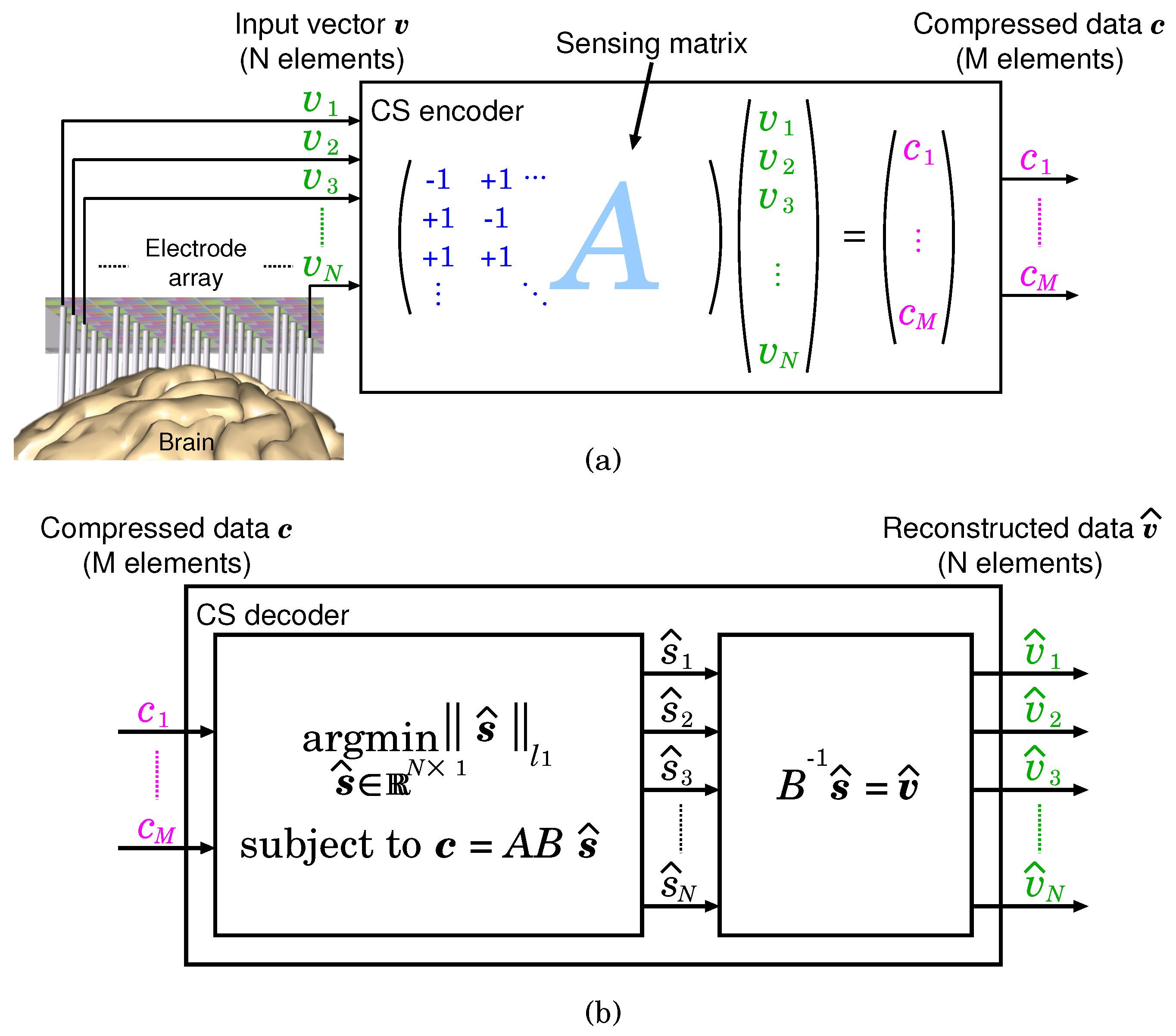

A time-domain analog spatial compressed sensing encoder for neural recording applications is proposed. Owing to the advantage of MEMS technologies, the number of channels on a silicon neural probe array has doubled in 7.4 years, and therefore, a greater number of recording channels and higher density of front-end circuitry is required. Since neural signals such as action potential (AP) have wider signal bandwidth than that of an image sensor, a data compression technique is essentially required for arrayed neural recording systems. In this paper, compressed sensing (CS) is employed for data reduction, and a novel time-domain analog CS encoder is proposed. A simpler and lower power circuit than conventional analog or digital CS encoders can be realized by using the proposed CS encoder. A prototype of the proposed encoder was fabricated in a 180 nm 1P6M CMOS process, and it achieved an active area of 0.0342 mm 2 / ch . and an energy efficiency of 25.0 pJ / ch . · conv . View Full-Text
Keywords: compressed sensing; time domain analog; spatial compressed sensing; time domain analog; spatial
Figures

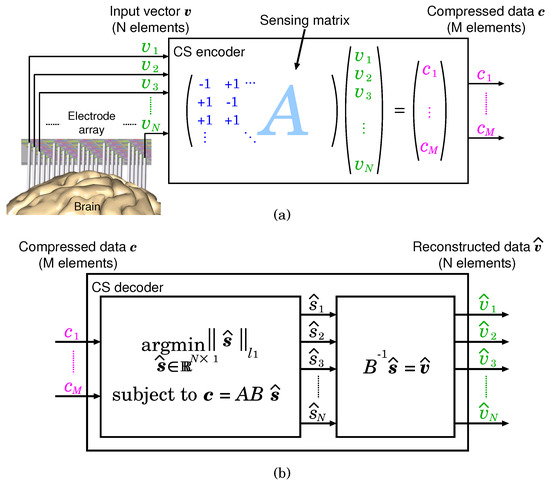

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Okazawa, T.; Akita, I. A Time-Domain Analog Spatial Compressed Sensing Encoder for Multi-Channel Neural Recording. Sensors 2018, 18, 184.
