Sensors 2017, 17(9), 1968; https://doi.org/10.3390/s17091968

Transformation from a Single Antenna to a Series Array Using Push/Pull Origami

School of Electrical and Electronics Engineering, College of Engineering, Chung-Ang University, 84 Heukseok-ro, Dongjak-gu, Seoul 156-756, Korea
*
Author to whom correspondence should be addressed.
Received: 11 July 2017 / Revised: 18 August 2017 / Accepted: 24 August 2017 / Published: 26 August 2017
(This article belongs to the Special Issue Materials and Applications for Sensors and Transducers)
View Full-Text   |   Download PDF [2796 KB, uploaded 26 August 2017]   |

Abstract

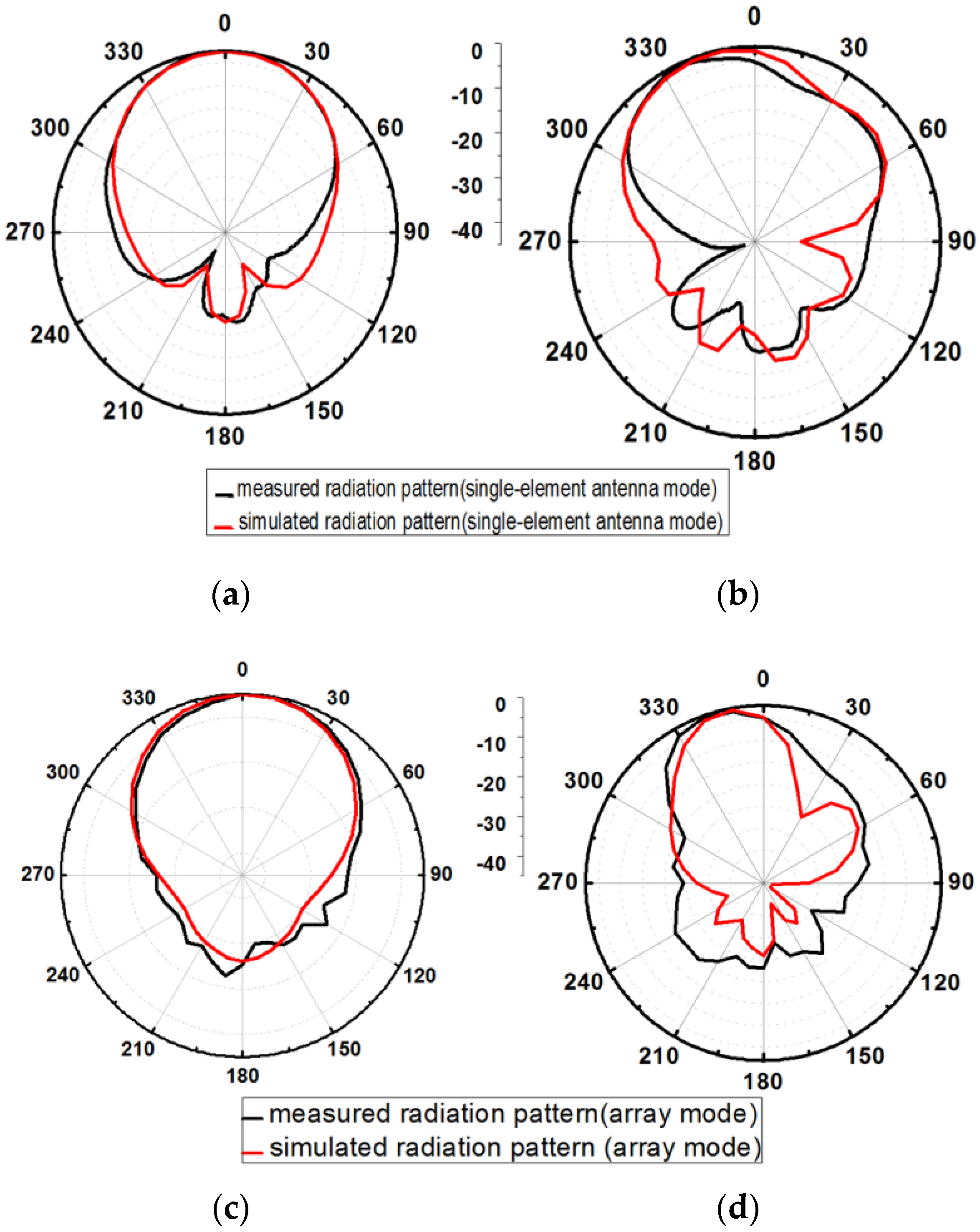

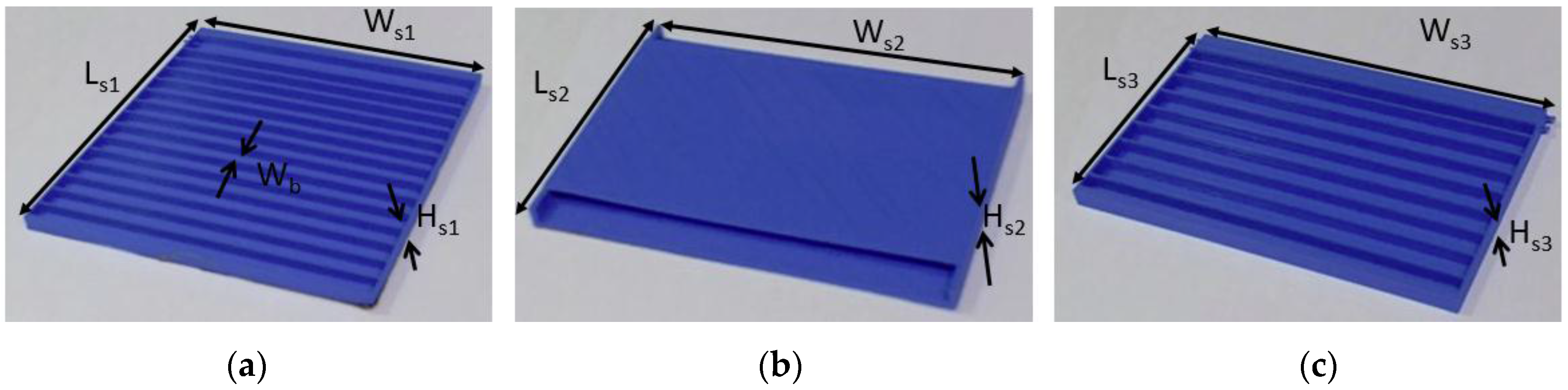

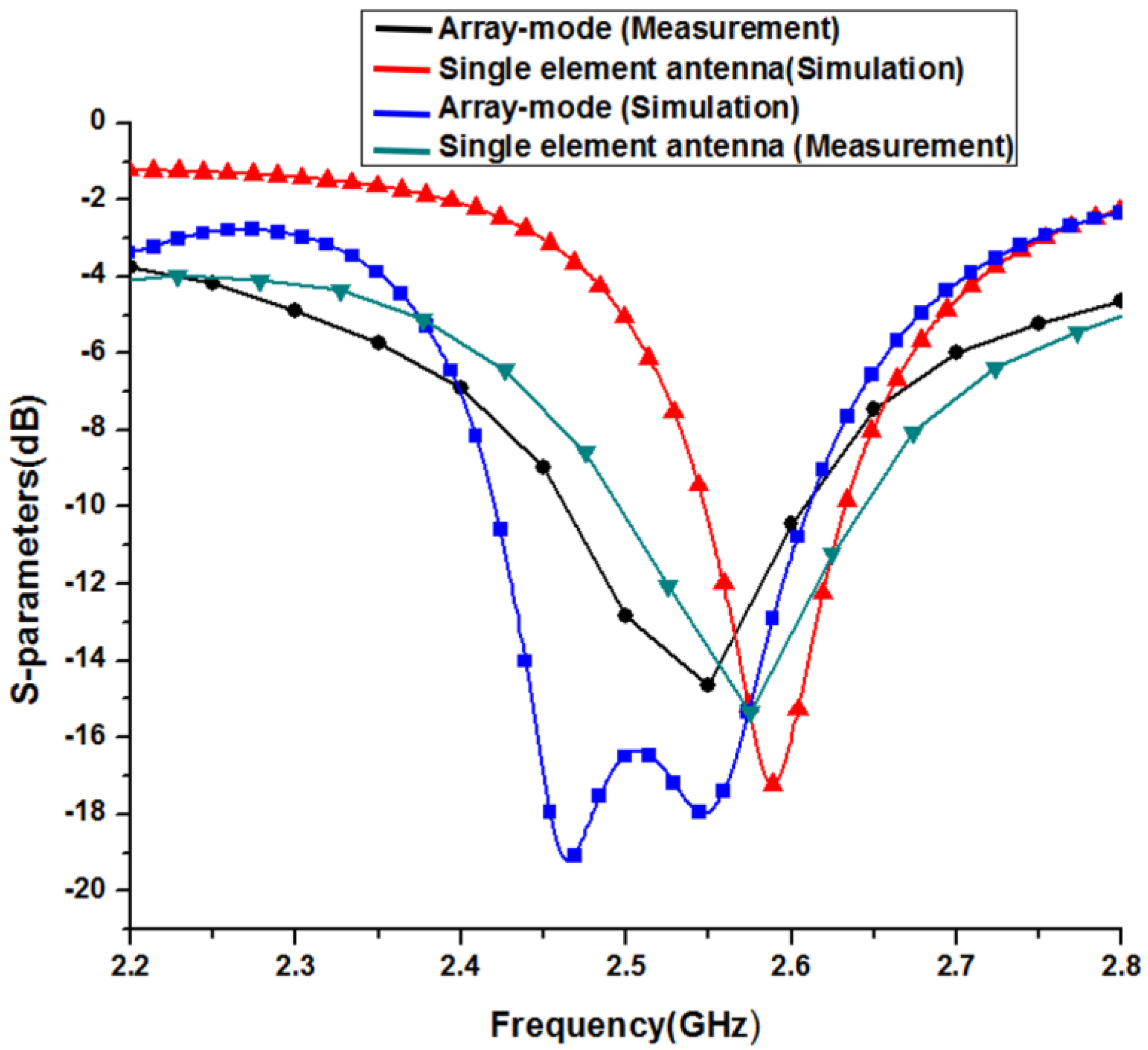

We propose a push/pull origami antenna, transformable between a single antenna element and a three-element array. In limited space, the proposed origami antenna can work as a single antenna. When the space is not limited and a higher gain is required, the proposed origami antenna can be transformed to a series antenna array by pulling the frame. In order to push the antenna array back to a single antenna, the frame for each antenna element size must be different. The frame and supporting dielectric materials are built using a three-dimensional (3D) printer. The conductive patterns are inkjet-printed on paper. Thus, the proposed origami antenna is built using hybrid printing technology. The 10-dB impedance bandwidth is 2.5–2.65 GHz and 2.48–2.62 GHz for the single-antenna and array mode, respectively, and the peak gains in the single-antenna and array mode are 5.8 dBi and 7.6 dBi, respectively. The proposed antenna can be used for wireless remote-sensing applications. View Full-Text
Keywords: push/pull origami; three-dimensional (3D) printing technology; inkjet printing technology; hybrid printing technology push/pull origami; three-dimensional (3D) printing technology; inkjet printing technology; hybrid printing technology
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Shah, S.I.H.; Lim, S. Transformation from a Single Antenna to a Series Array Using Push/Pull Origami. Sensors 2017, 17, 1968.
