Open AccessArticle
Sensors 2017, 17(8), 1750; doi:10.3390/s17081750

A Miniaturized QEPAS Trace Gas Sensor with a 3D-Printed Acoustic Detection Module

1
College of Power and Energy Engineering, Harbin Engineering University, Harbin 150001, China
2
National Key Laboratory of Science and Technology on Tunable Laser, Harbin Institute of Technology, Harbin 150001, China
3
Department of Electrical and Computer Engineering, Rice University, 6100 Main Street, Houston, TX 77005, USA
*
Authors to whom correspondence should be addressed.
Received: 8 July 2017 / Revised: 23 July 2017 / Accepted: 28 July 2017 / Published: 31 July 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [8257 KB, uploaded 31 July 2017]   |

Abstract

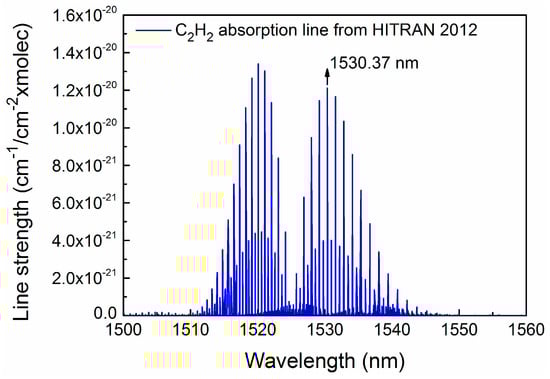

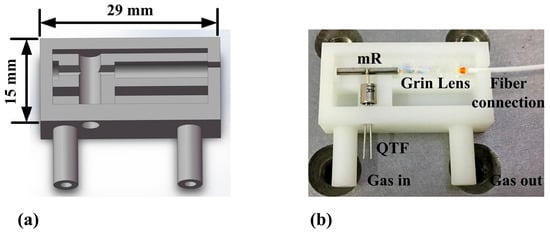

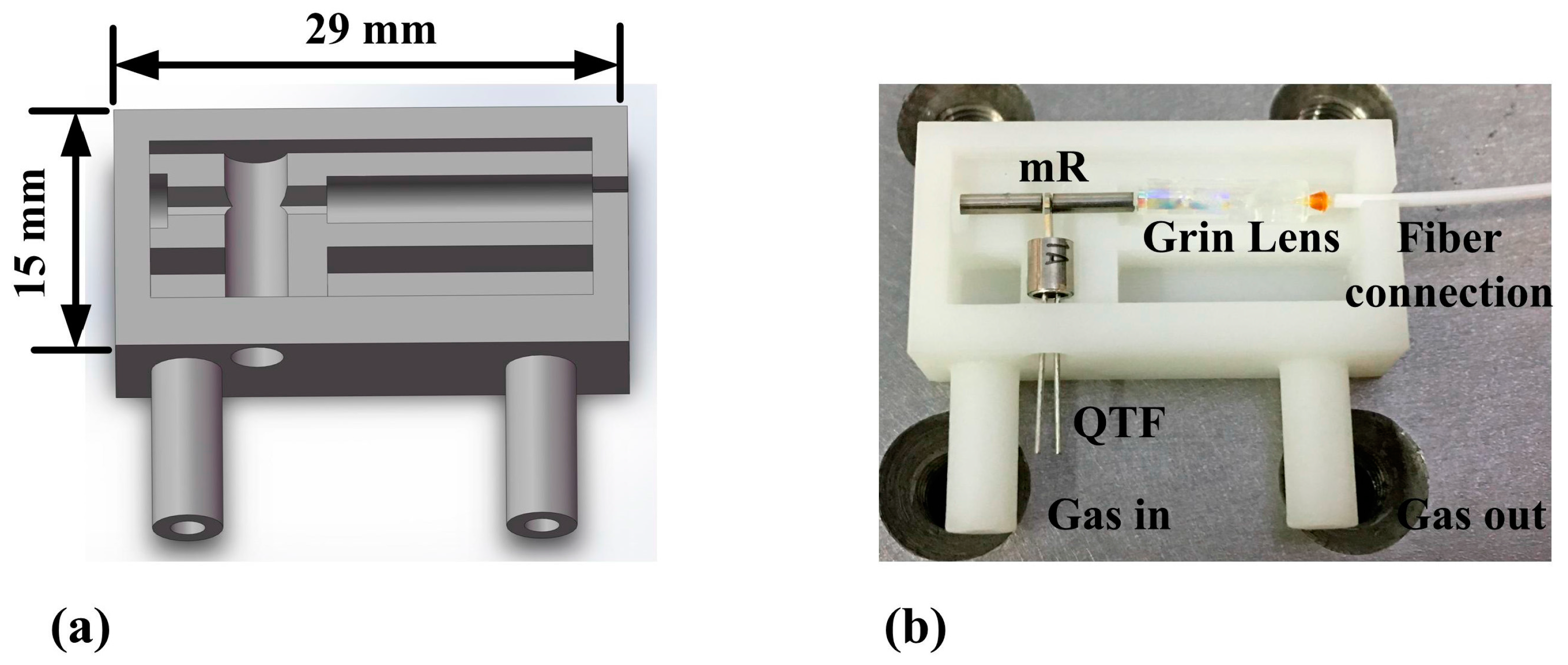

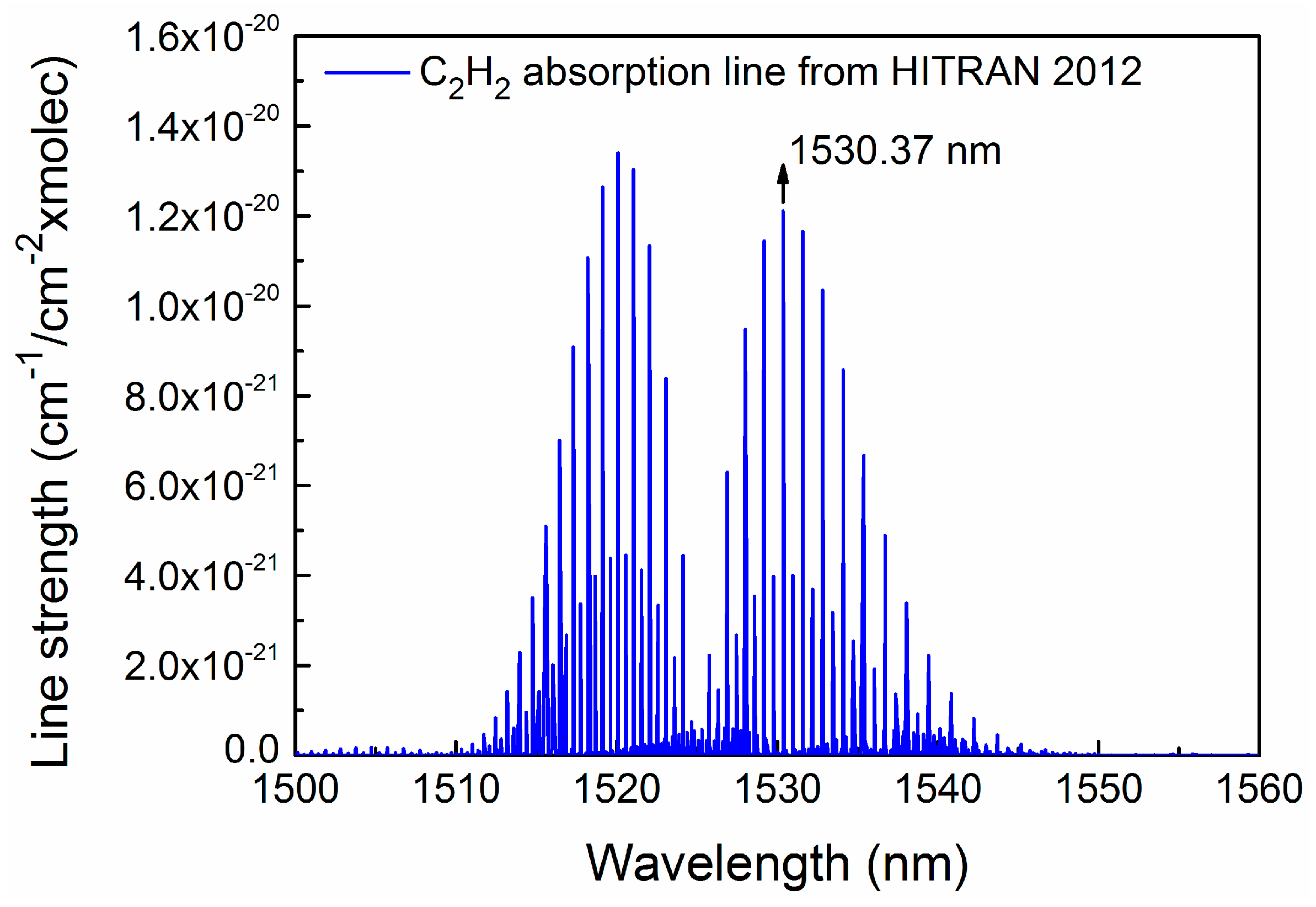

A 3D printing technique was introduced to a quartz-enhanced photoacoustic spectroscopy (QEPAS) sensor and is reported for the first time. The acoustic detection module (ADM) was designed and fabricated using the 3D printing technique and the ADM volume was compressed significantly. Furthermore, a small grin lens was used for laser focusing and facilitated the beam adjustment in the 3D-printed ADM. A quartz tuning fork (QTF) with a low resonance frequency of 30.72 kHz was used as the acoustic wave transducer and acetylene (C2H2) was chosen as the analyte. The reported miniaturized QEPAS trace gas sensor is useful in actual sensor applications. View Full-Text
Keywords: QEPAS; 3D printing; miniaturization; C2H2 quantification QEPAS; 3D printing; miniaturization; C2H2 quantification
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Yang, X.; Xiao, Y.; Ma, Y.; He, Y.; Tittel, F.K. A Miniaturized QEPAS Trace Gas Sensor with a 3D-Printed Acoustic Detection Module. Sensors 2017, 17, 1750.
