Open AccessArticle
Sensors 2017, 17(7), 1621; https://doi.org/10.3390/s17071621

Effect of Distributed Mass on the Node, Frequency, and Sensitivity of Resonant-Mode Based Cantilevers

School of Materials Science and Engineering, Taiyuan University of Science and Technology, Taiyuan 030024, China
*
Author to whom correspondence should be addressed.
Received: 8 June 2017 / Revised: 1 July 2017 / Accepted: 5 July 2017 / Published: 13 July 2017
(This article belongs to the Special Issue Surface Acoustic Wave and Bulk Acoustic Wave Sensors)
View Full-Text   |   Download PDF [4284 KB, uploaded 13 July 2017]   |

Abstract

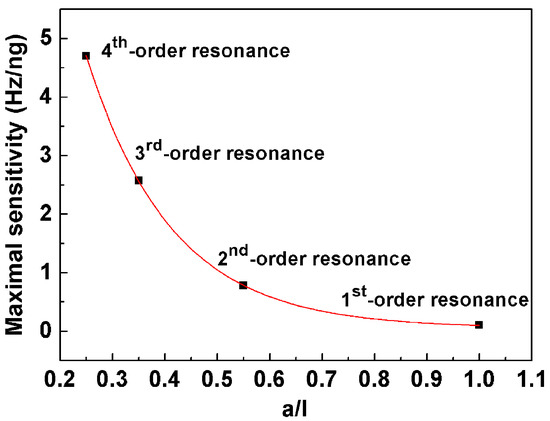

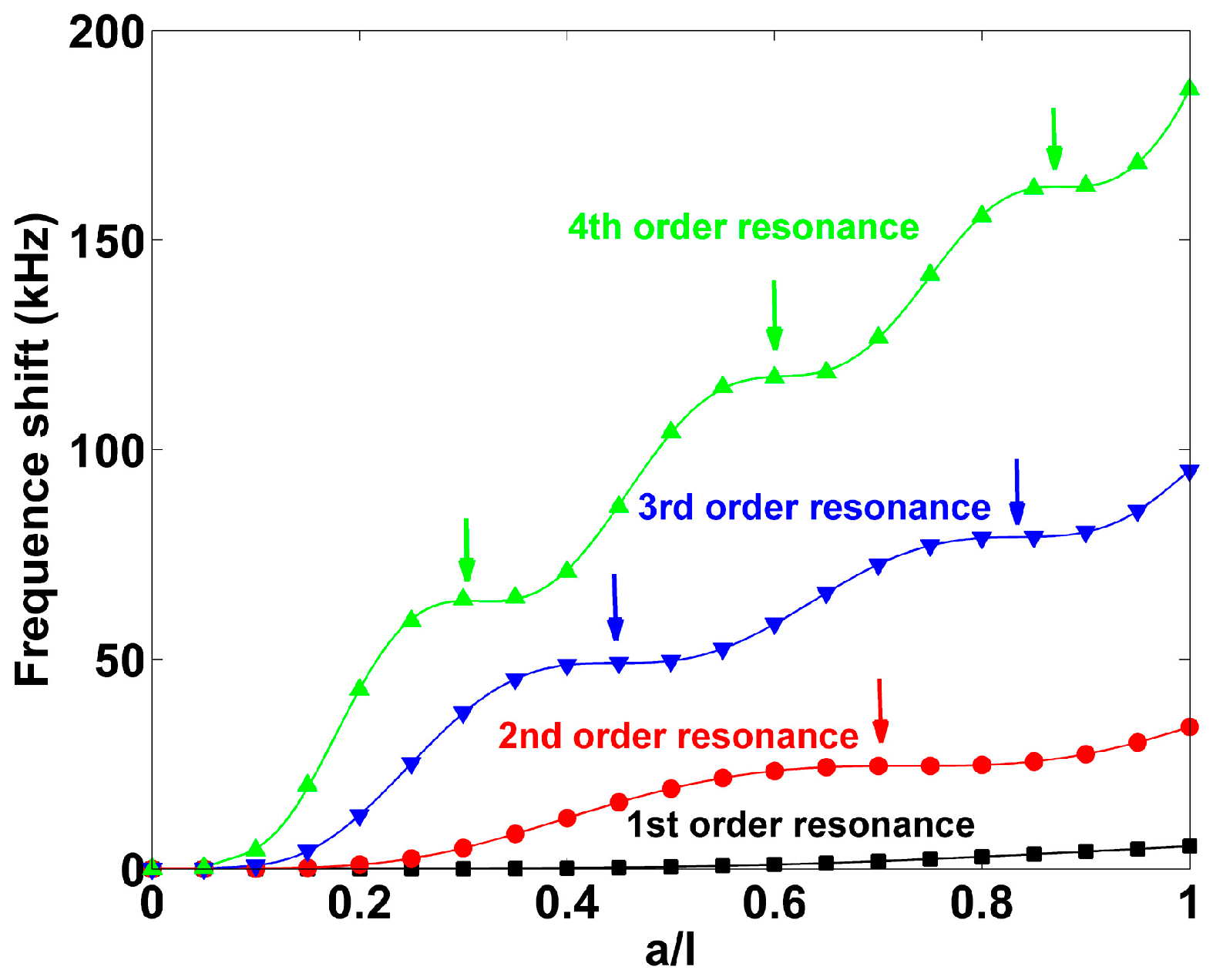

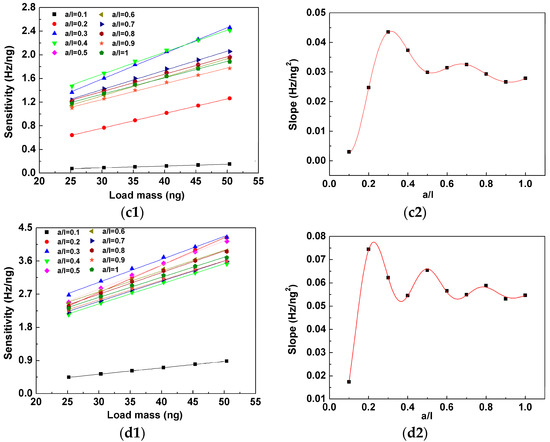

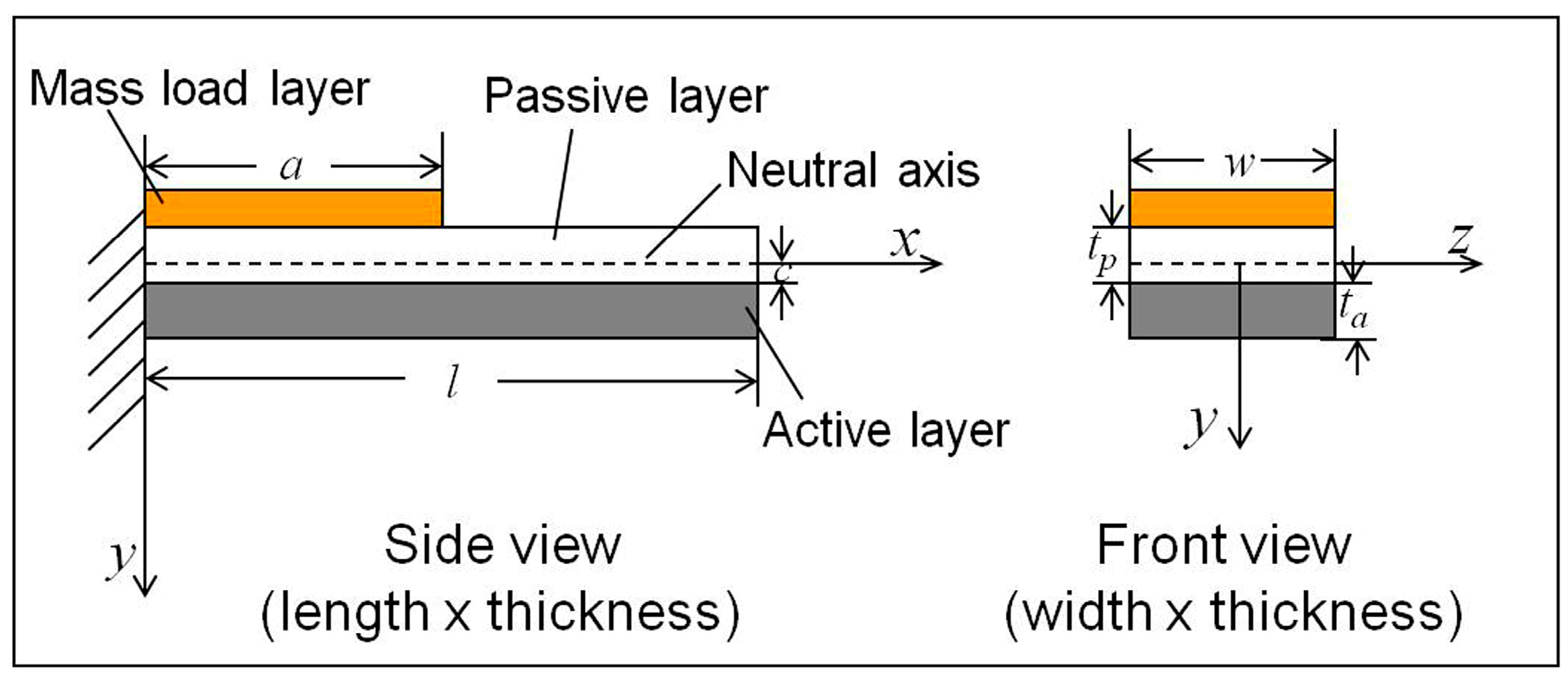

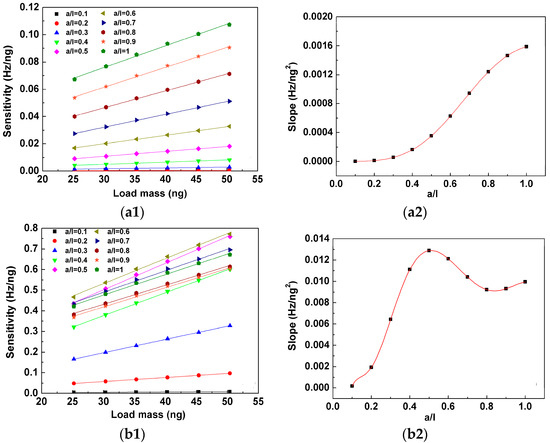

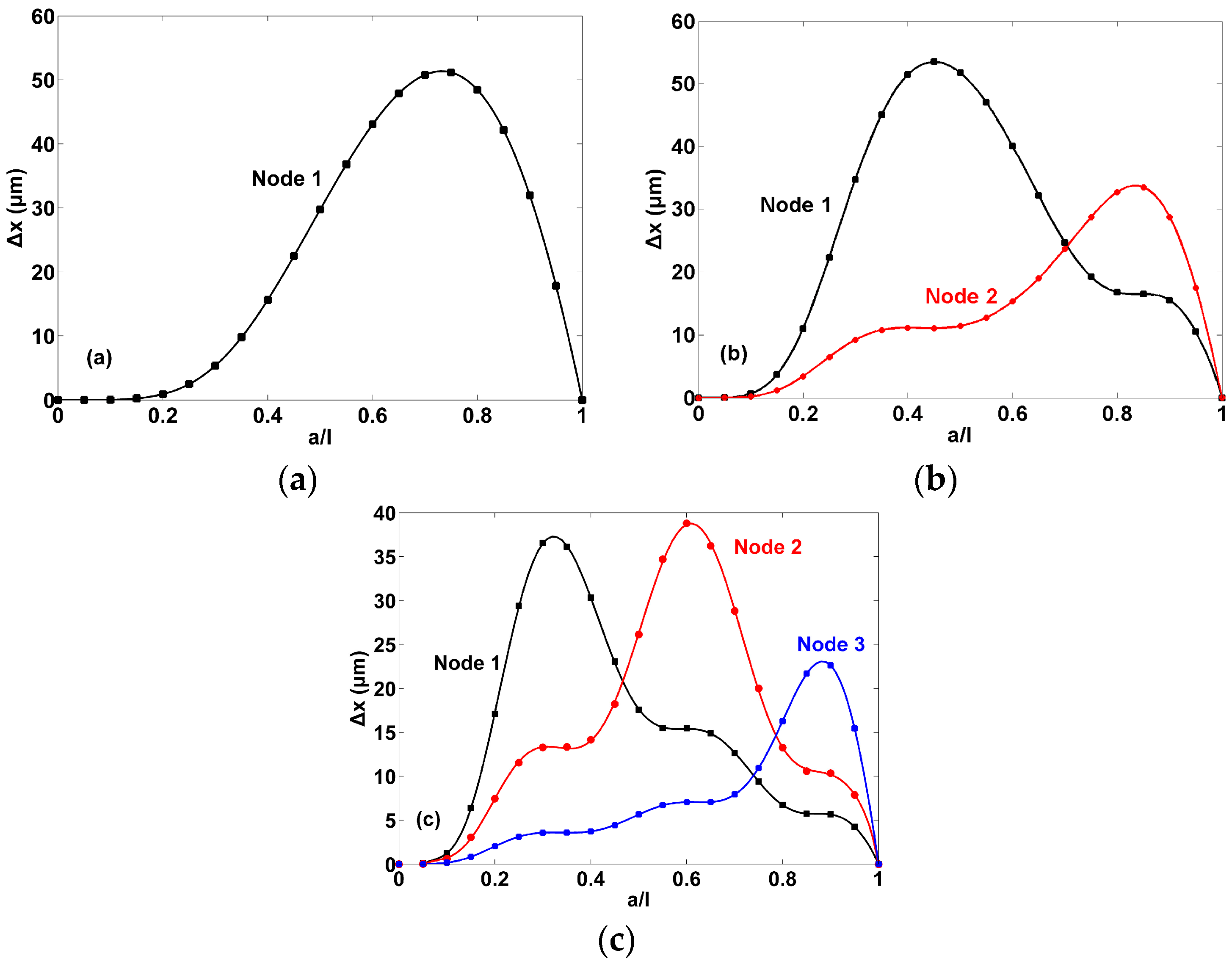

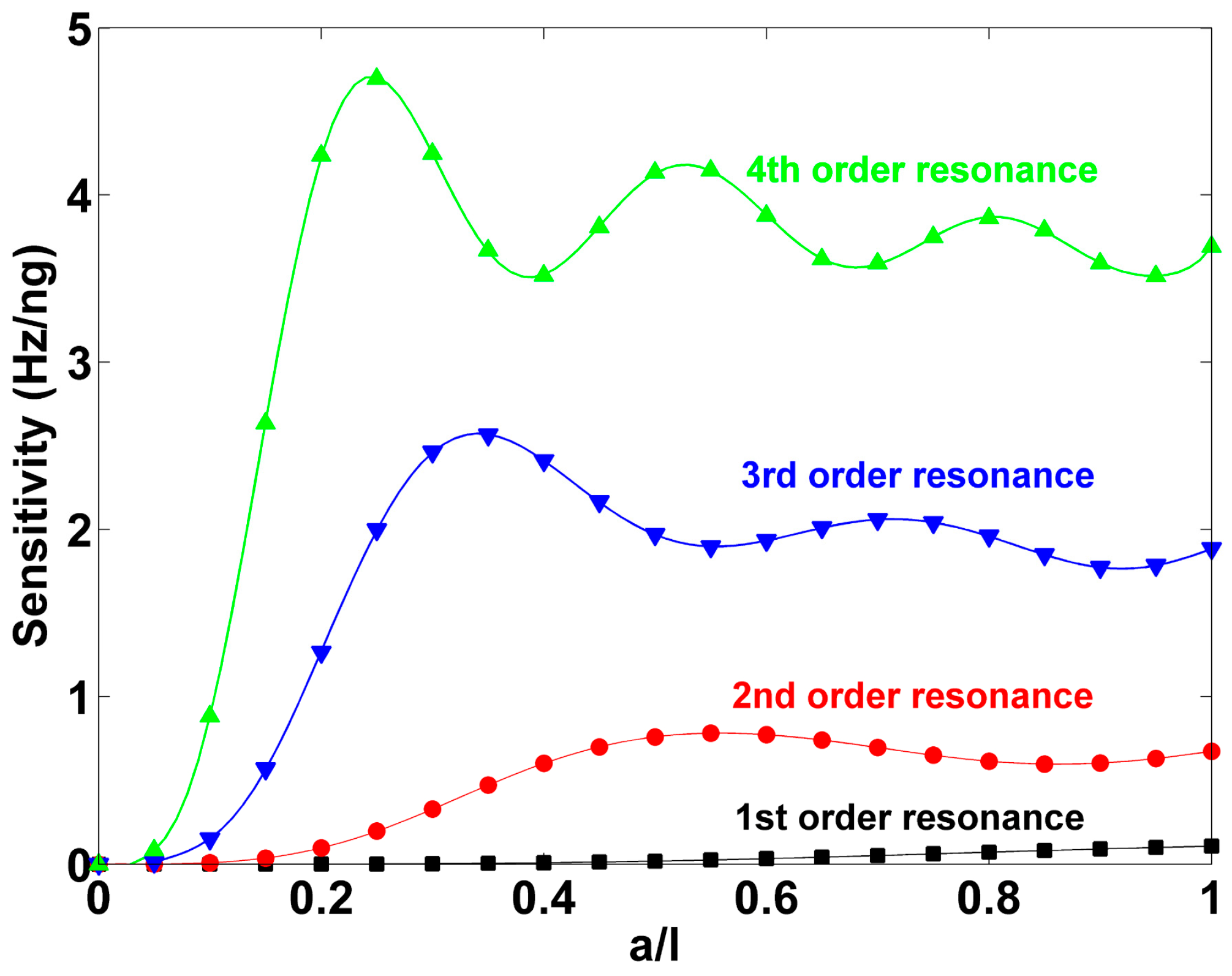

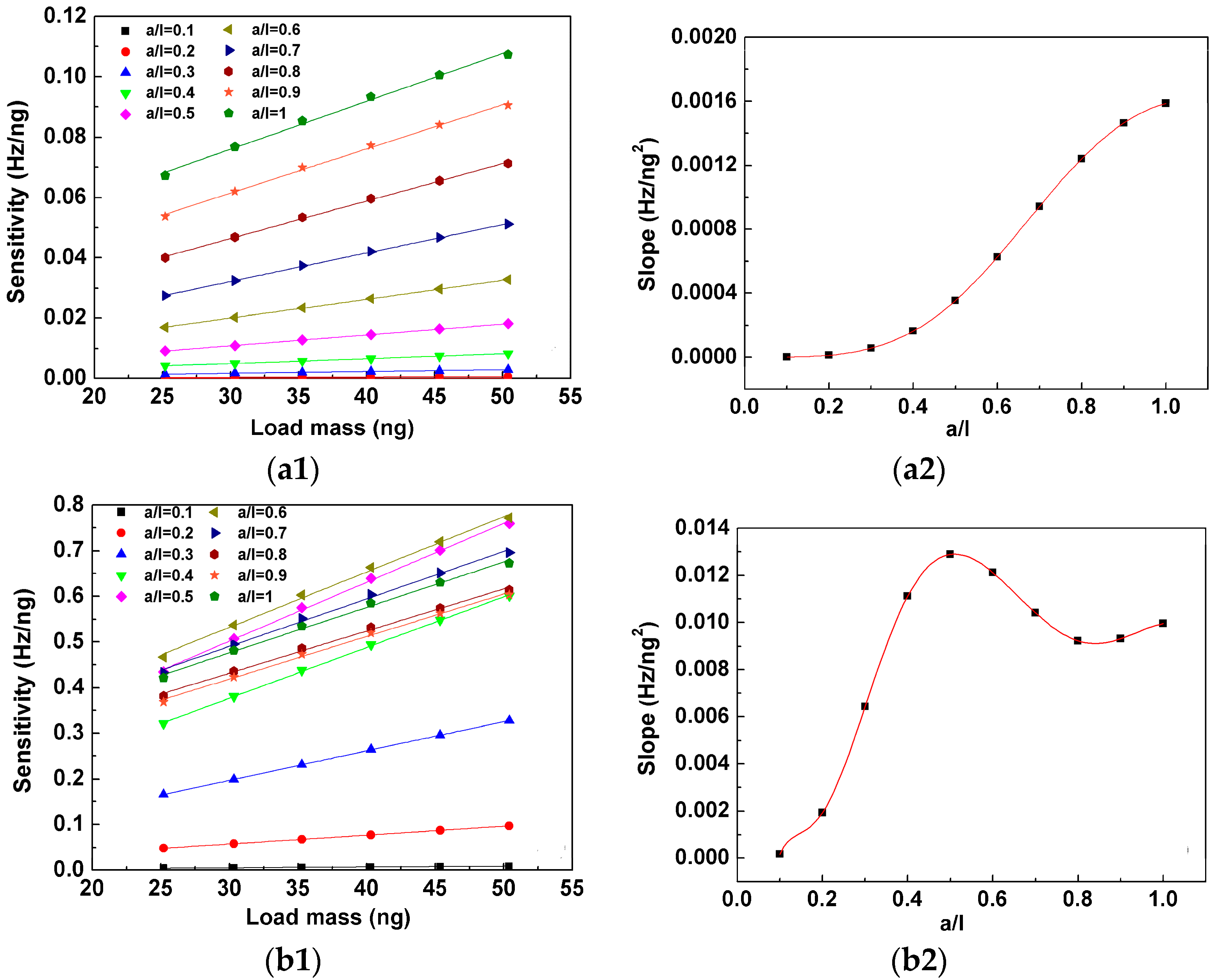

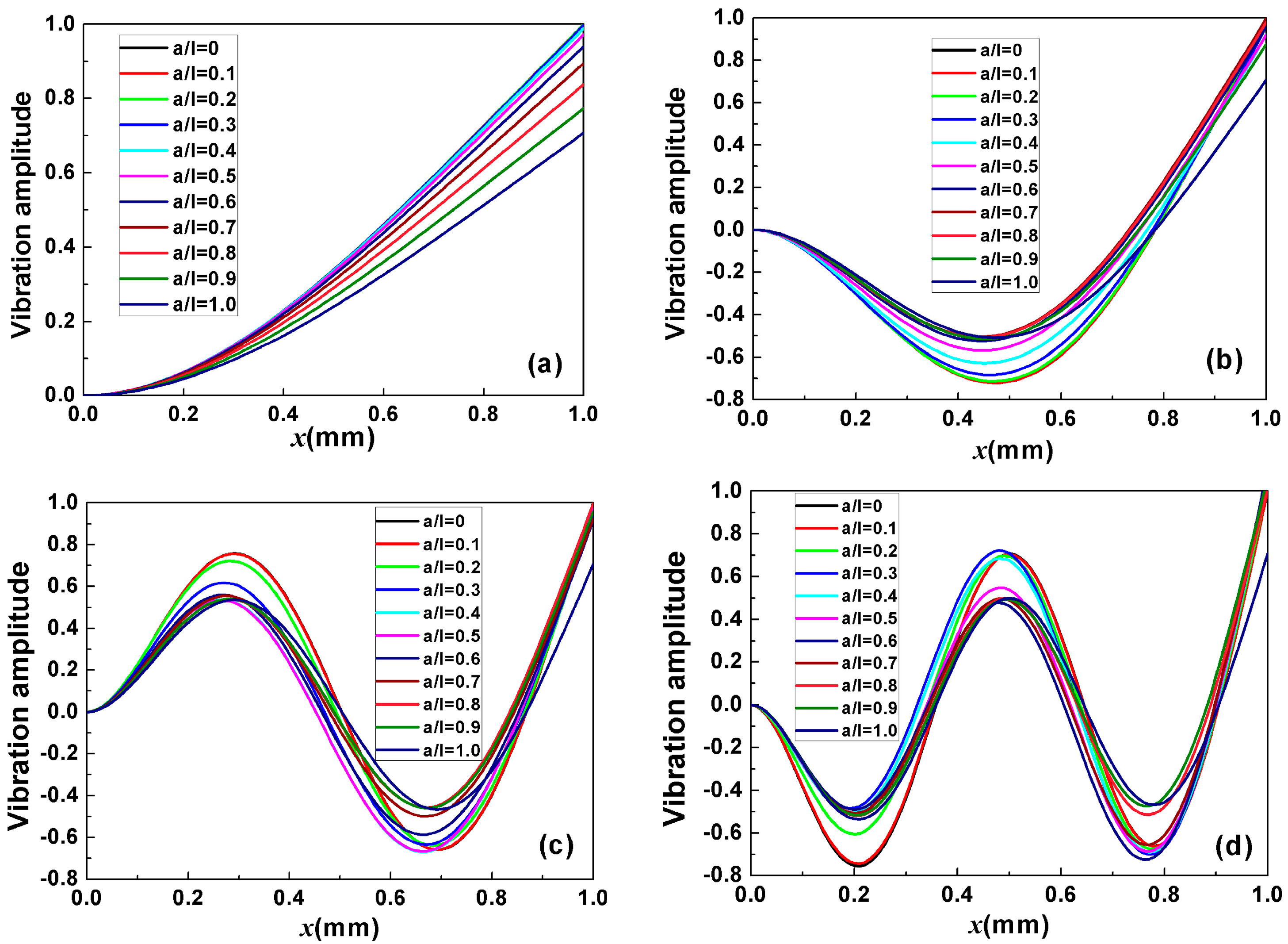

We derived an analytical expression for a resonant-mode based bi-layered cantilever with distributed mass load. The behavior of mode of vibration, nodal position, frequency shift, as well as sensitivity under different mass load distributions was theoretically studied. The theoretical results suggested that asymmetric mass load distribution leads to the shift of nodes as well as the sensitive regions of a resonant-mode based cantilever. n − 1 local maximal sensitivities and n − 1 local minimal sensitivities are observed when the cantilever vibrates in the nth-order resonance. The maximal sensitivity is found at the first local maximal sensitivity and the behavior of mass load length as a function of the maximal sensitivity follows the rule of an exponent decaying function. The sensitivity increases as the load mass increases for the same mass load distribution, but the corresponding slopes are different. View Full-Text
Keywords: cantilever; mass load; node; frequency shift; sensitivity cantilever; mass load; node; frequency shift; sensitivity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Zhang, K.; Zhu, Q.; Chen, Z. Effect of Distributed Mass on the Node, Frequency, and Sensitivity of Resonant-Mode Based Cantilevers. Sensors 2017, 17, 1621.
